VW Transporter T5 T5.1 Brake Light Reverse Camera Tailgate Version & 5" Monitor

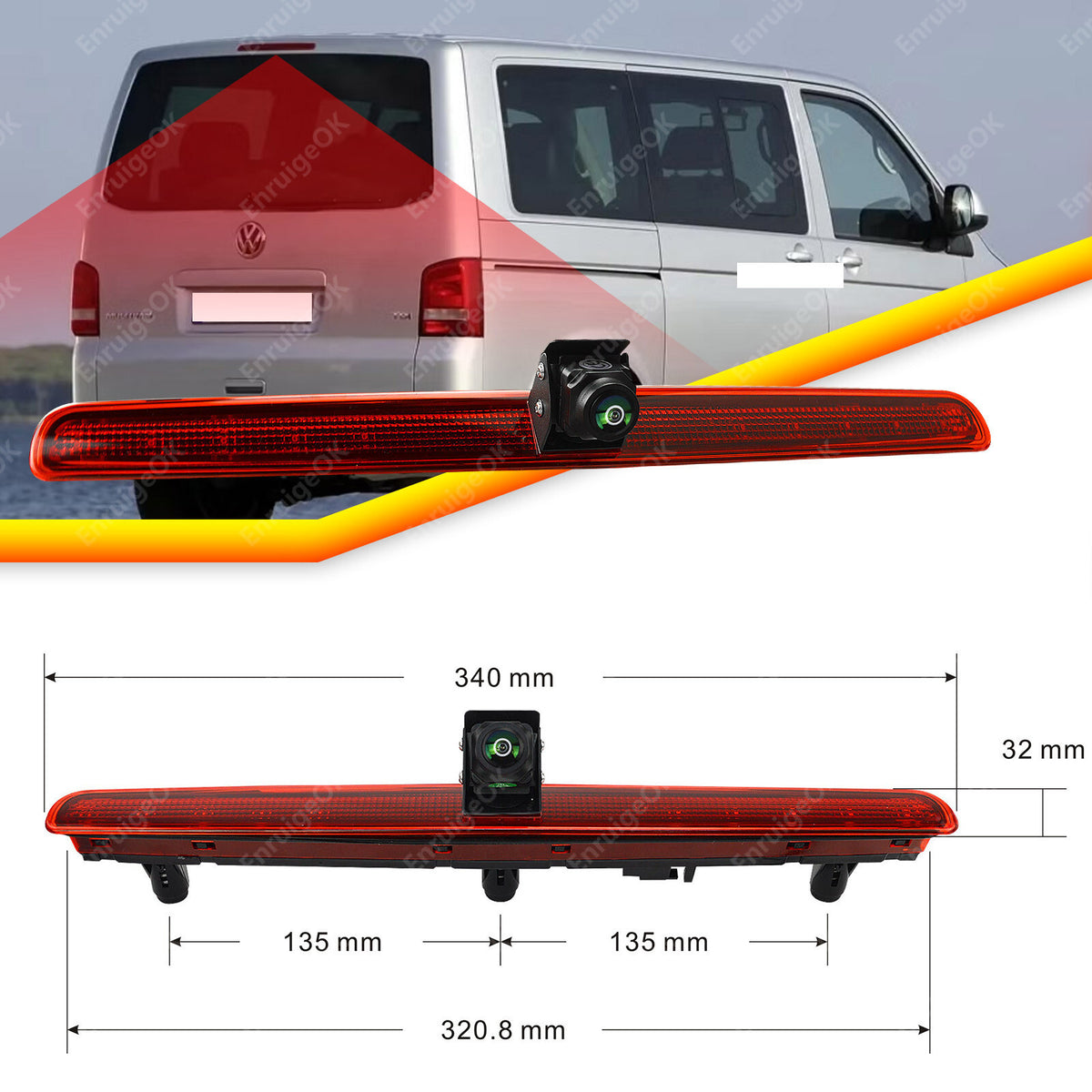

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK Reverse Camera provides an excellent solution to enhance your parking skills and ensure safer reversing. The camera automatically activates when you shift into reverse, offering a clear view to assist you.

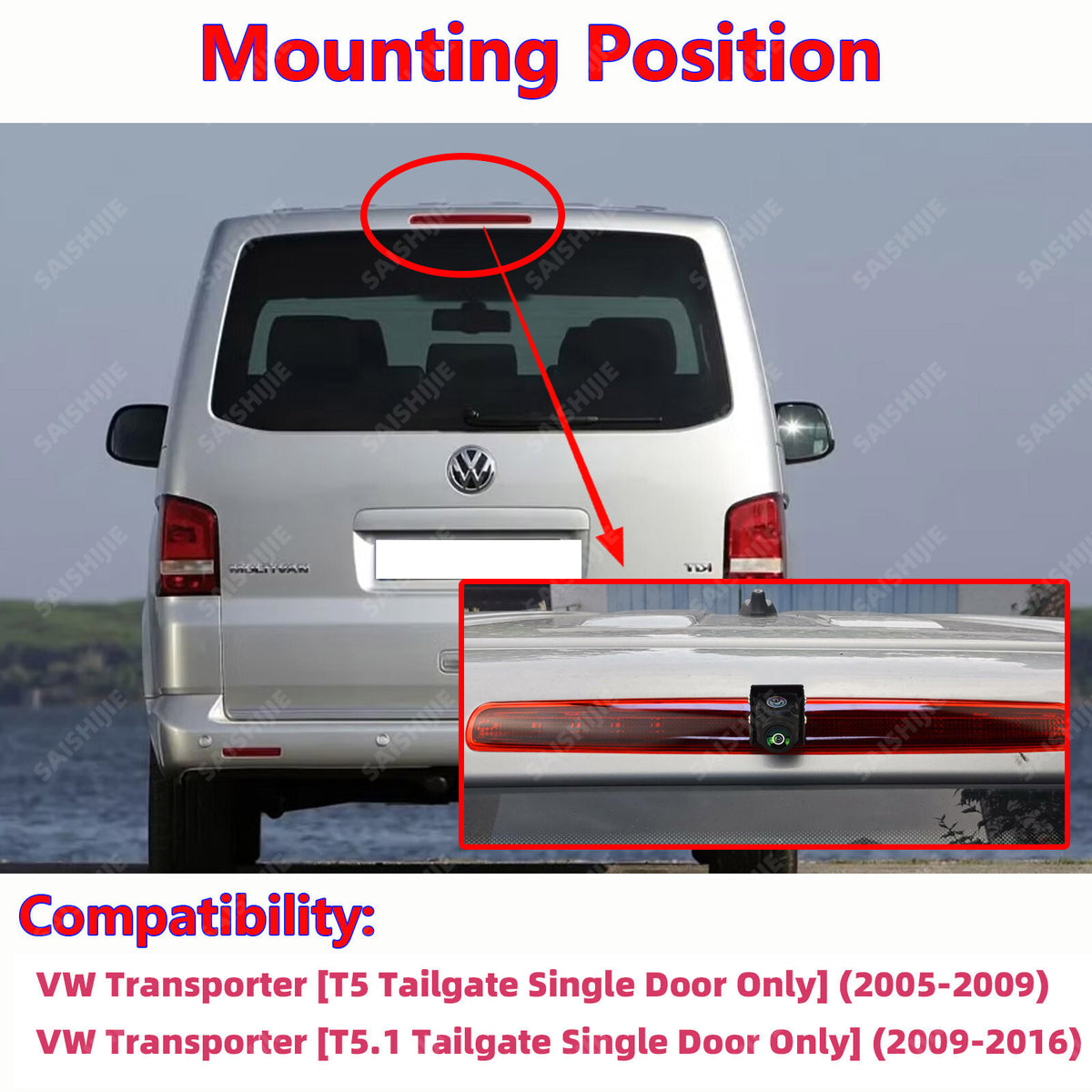

Camera Compatibility

VW Transporter [T5 Tailgate Single Door Only] (2003-2009)

VW Transporter [T5.1 Tailgate Single Door Only] (2009-2016)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

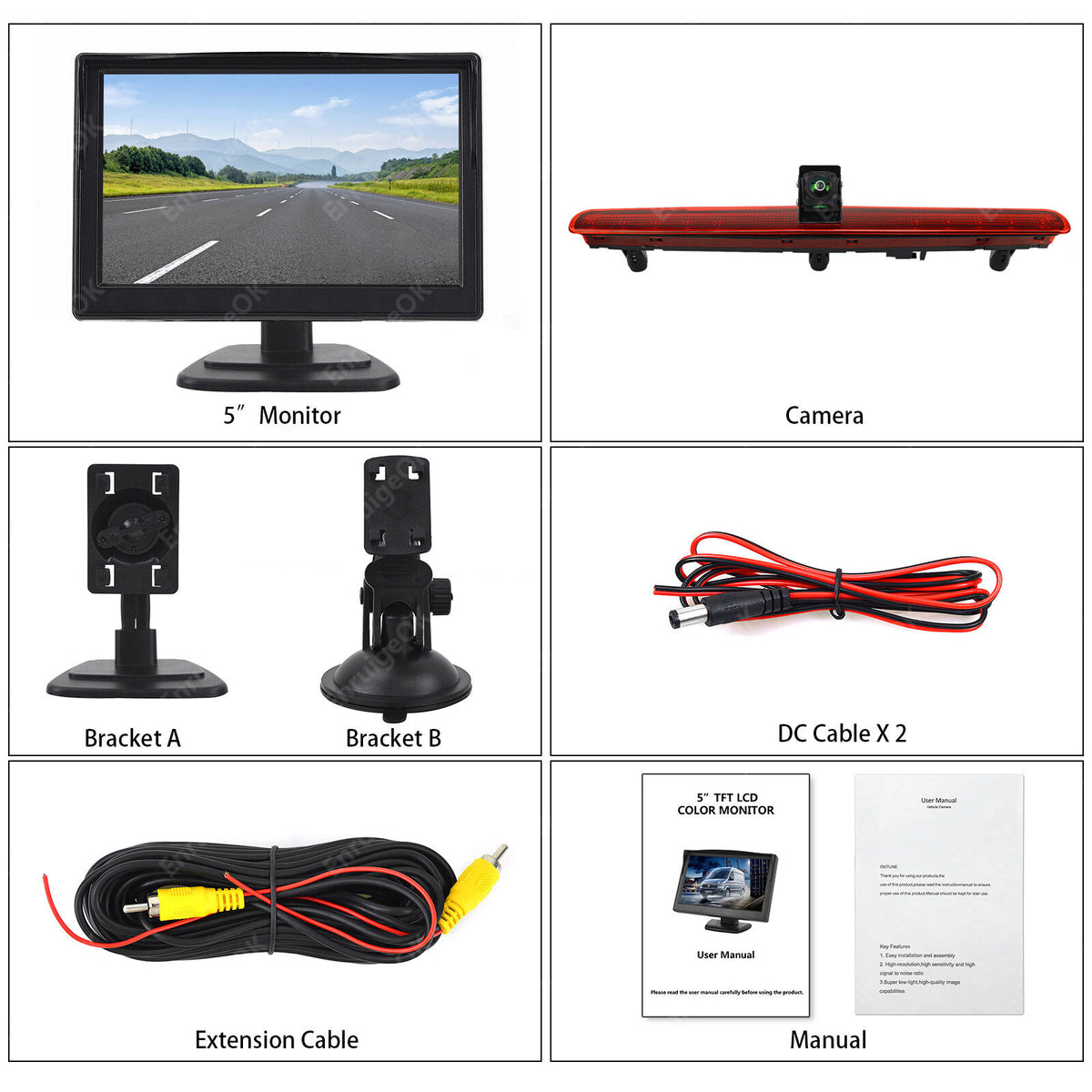

Package contents

1 X Brake light camera

1 X 5'' IPS display monitor

1 X 10m/33ft. extension cable

2 X DC Power cables

1 X Dashboard mount stand

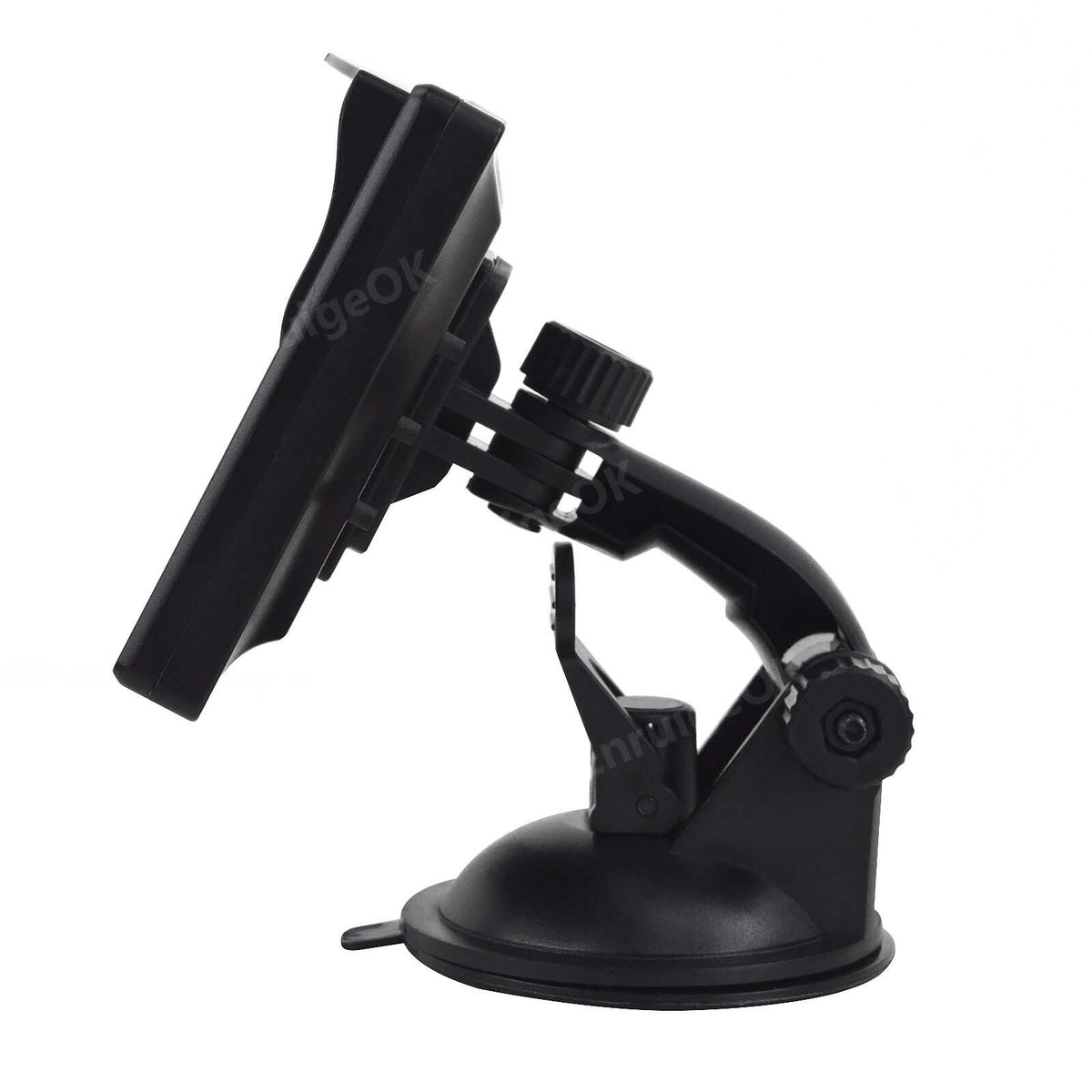

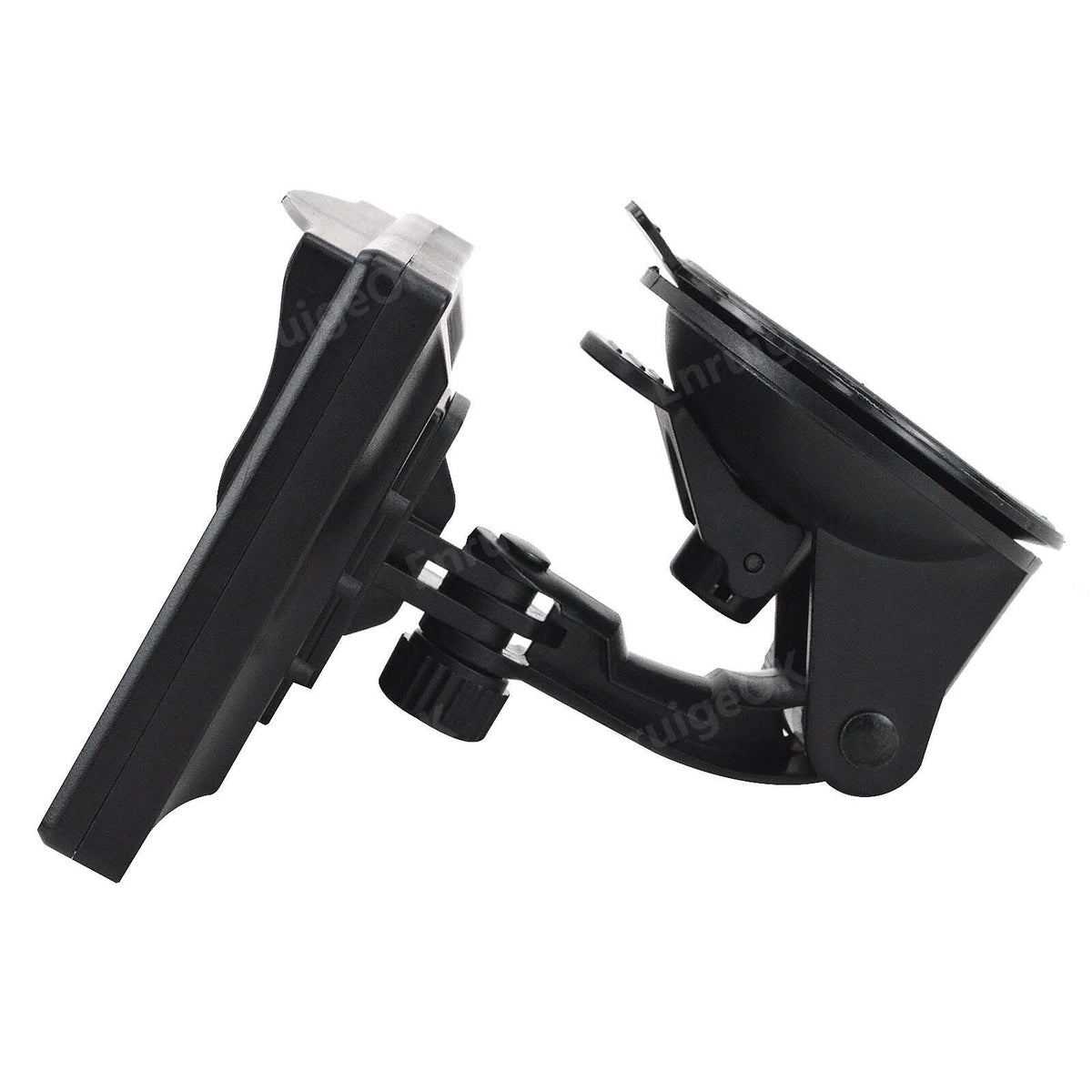

1 X Suction cup mount stand

1 X Manual

Description

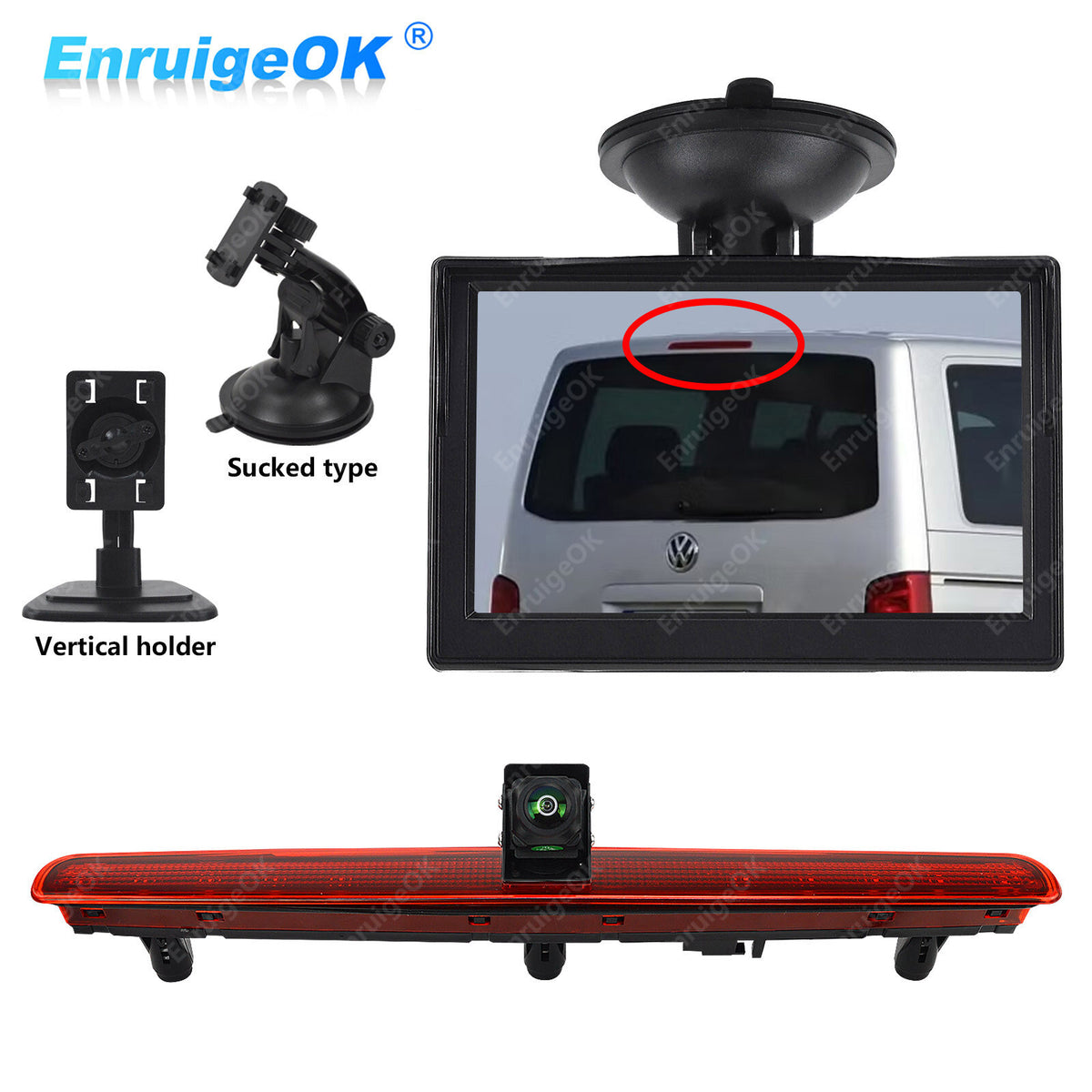

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

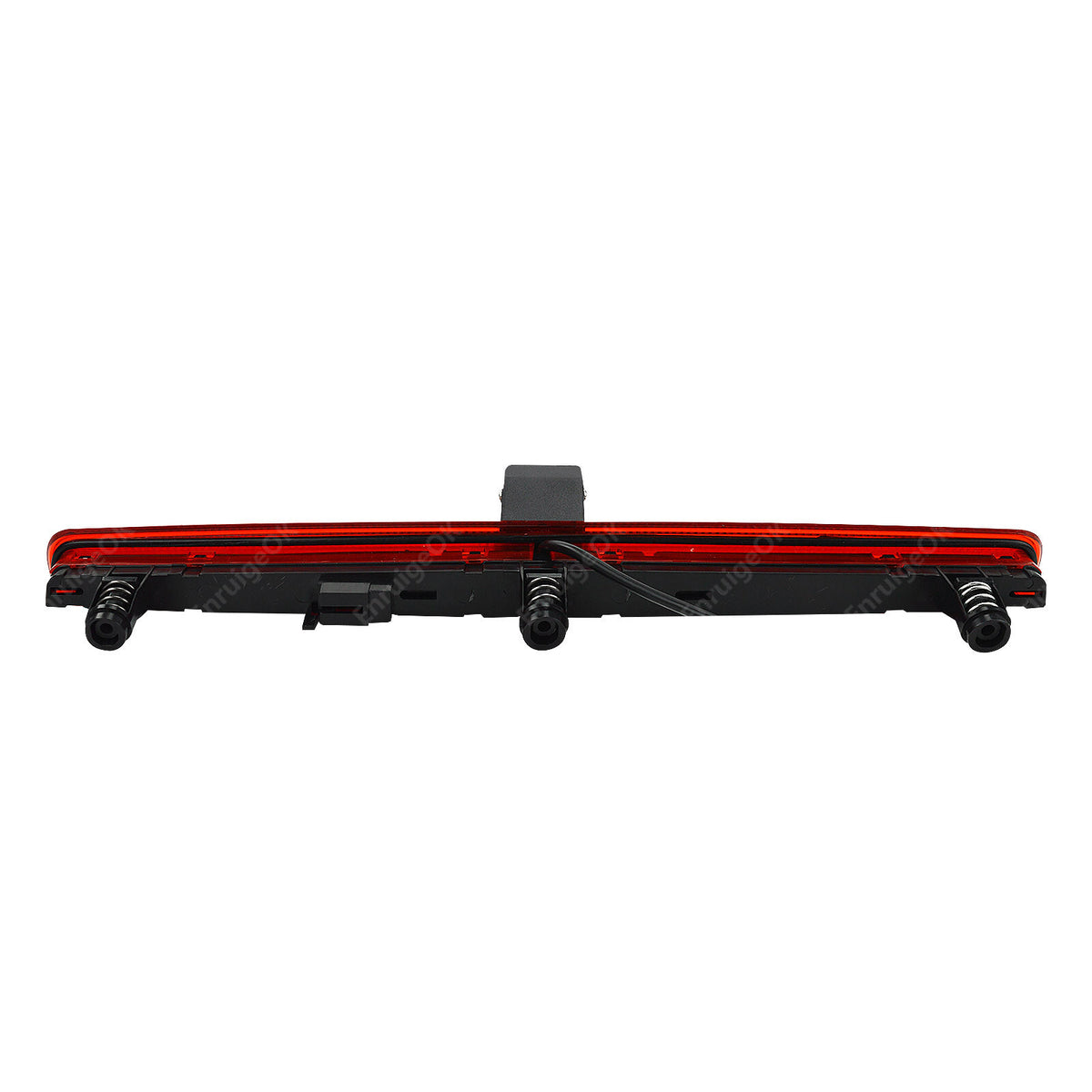

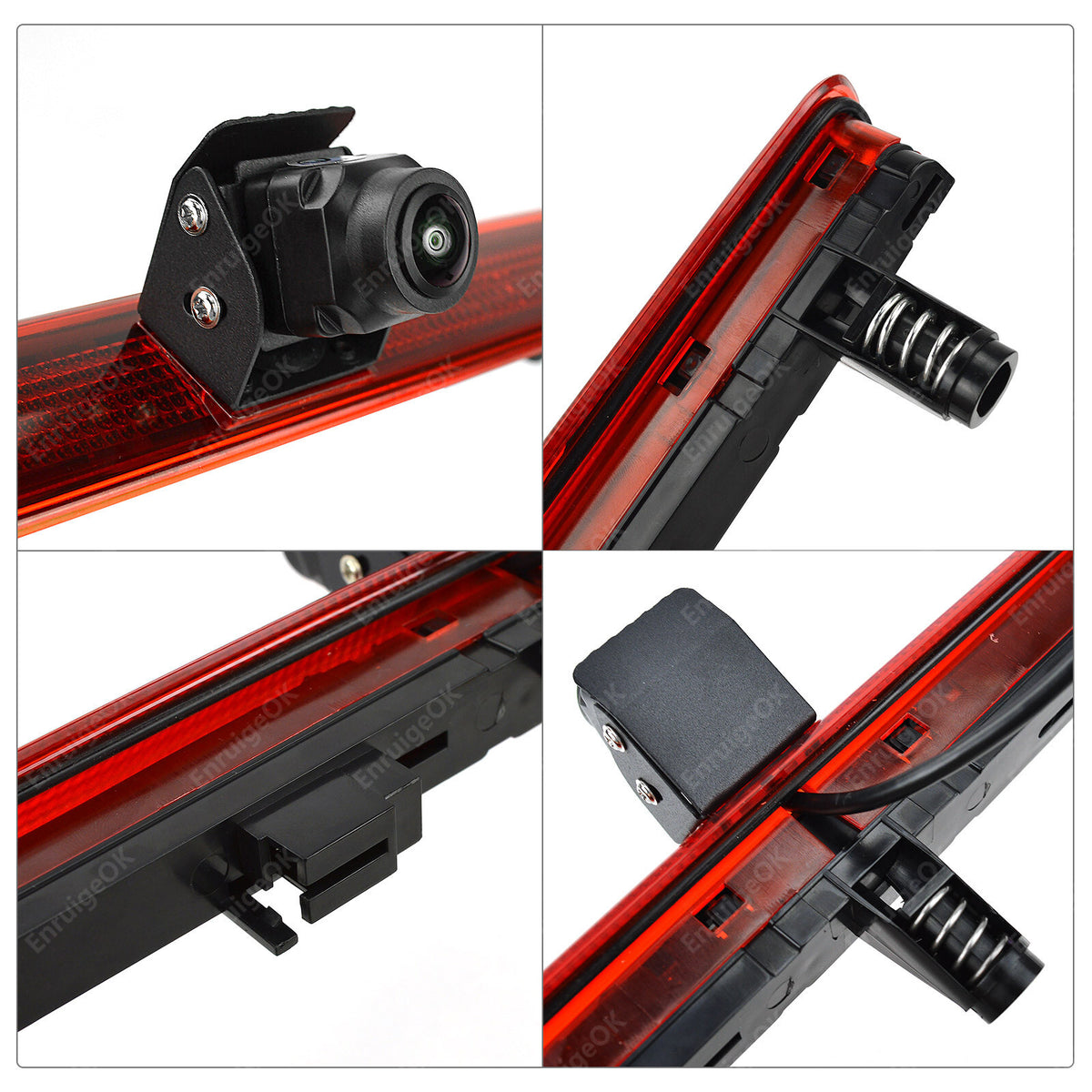

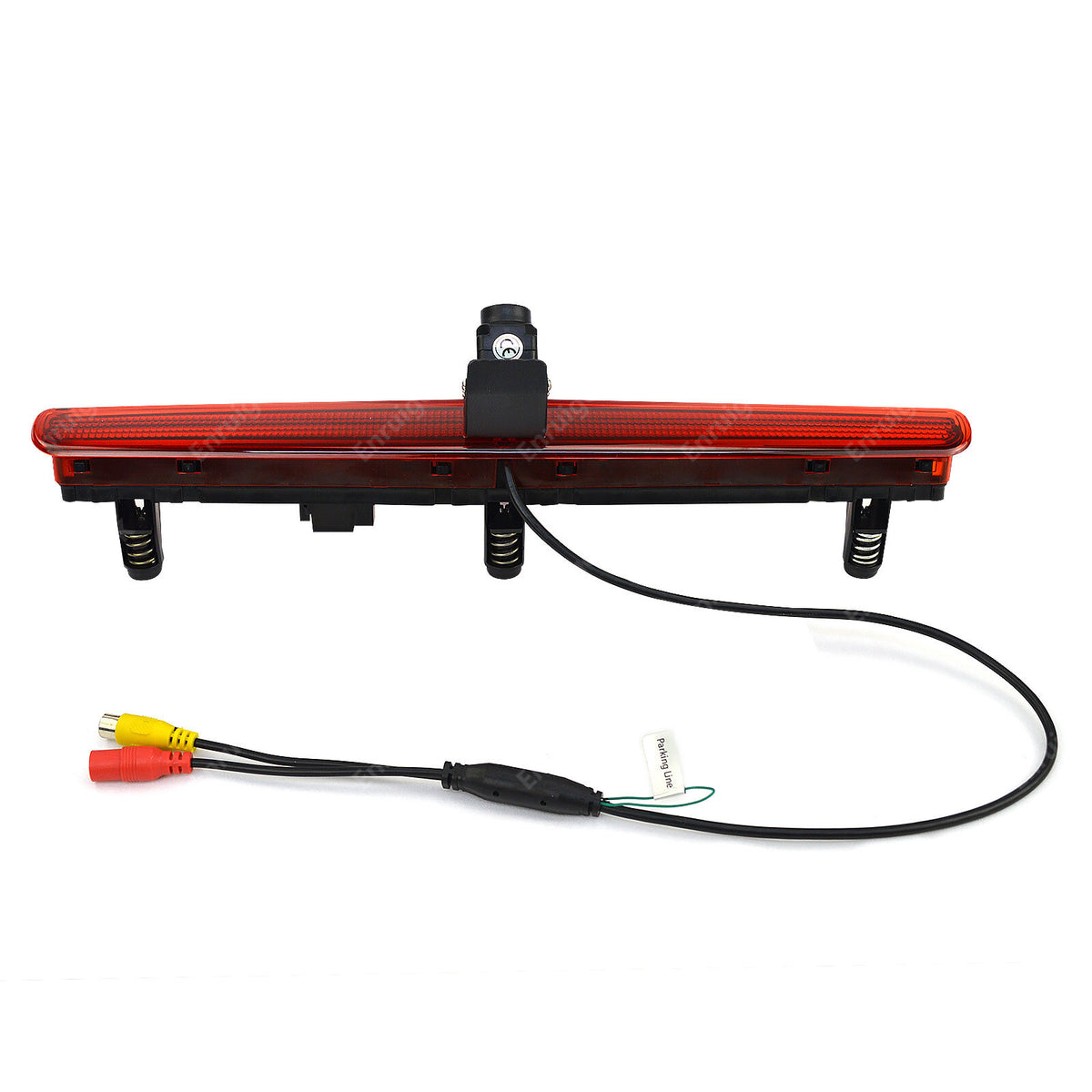

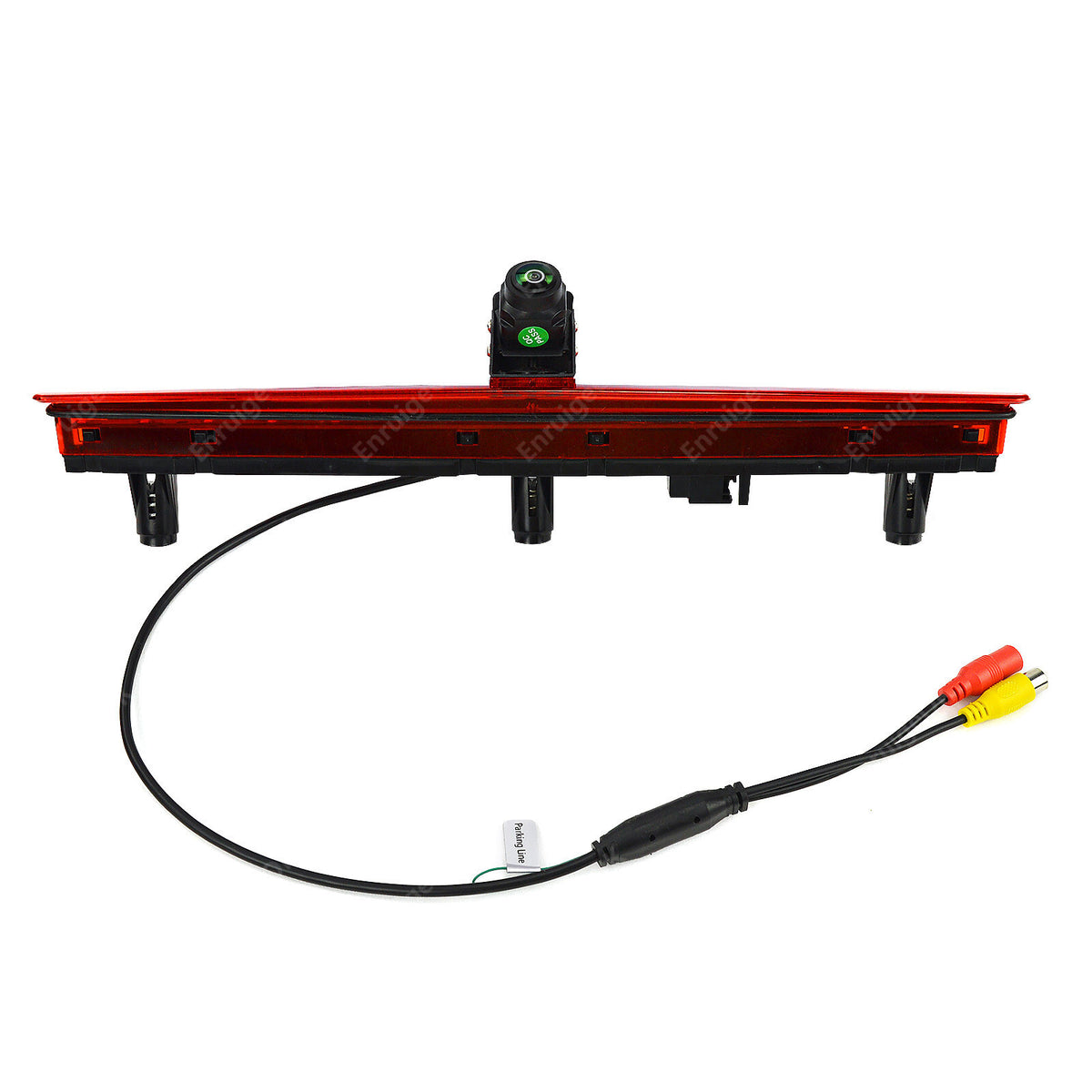

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

This brake light camera uses a 1/3" CMOS sensor with enhanced color imaging.

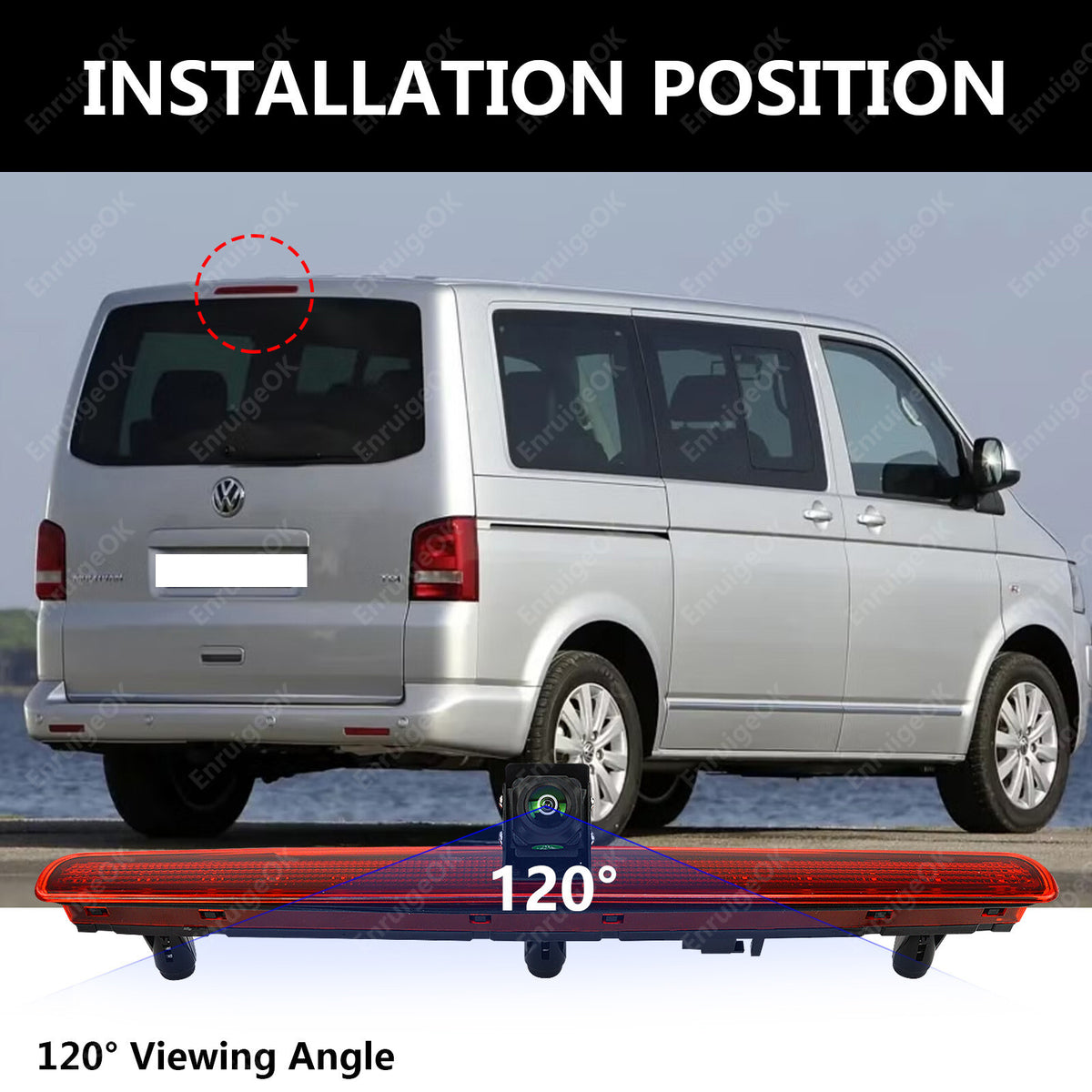

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

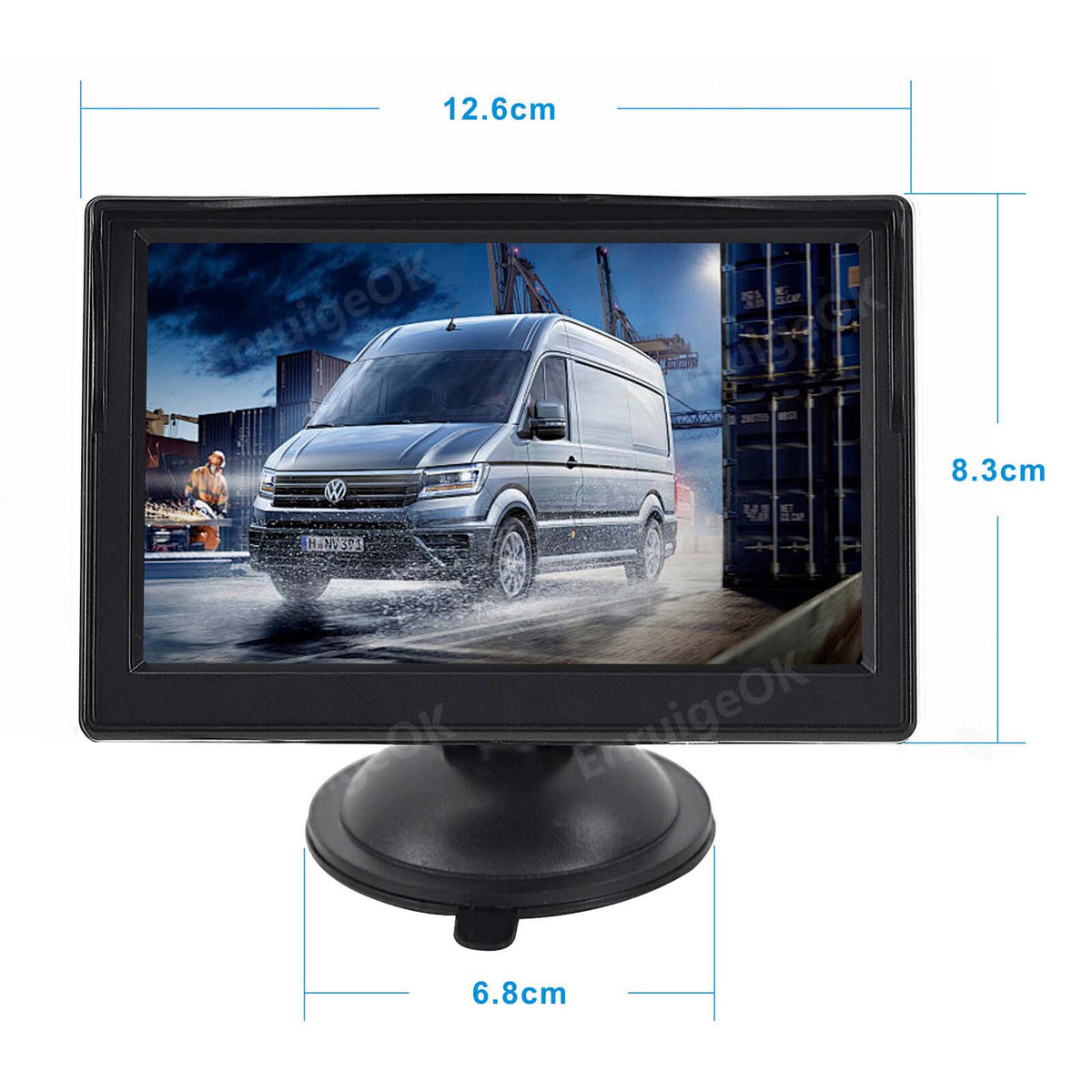

The 5" Color IPS display Monitor features 2 video inputs and an 480*272 (RGB) resolution, making it compatible with the brake light rearview camera.

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1Lux

Power: DC 9V-35V

Operating temperature: -20℃ to +70℃

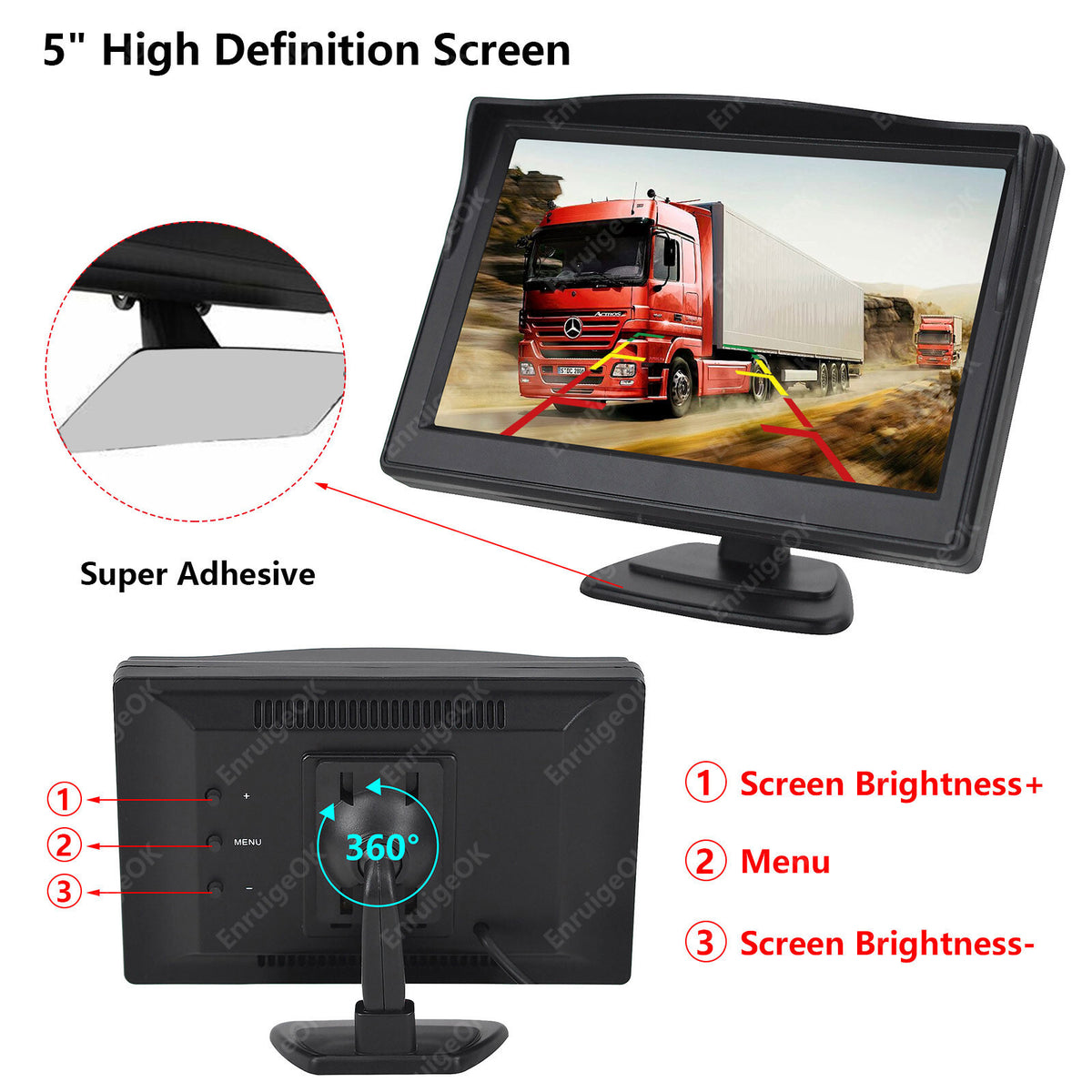

Monitor Specifications

Screen size: 5 inch

Display format: 16: 9

Video system: NTSC / PAL auto switch

Contrast: 300: 1

Brightness: 400 CD/㎡

Video: 2-channel video input; AV1 and AV2(For reversing camera) switching, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

Resolution: 480 (H) x 272 (V)

Power supply: DC 12V

Current consumption: <4W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
