Universal Surface Mount Brake Light Reverse Camera Kit for Commercial Vans

Description

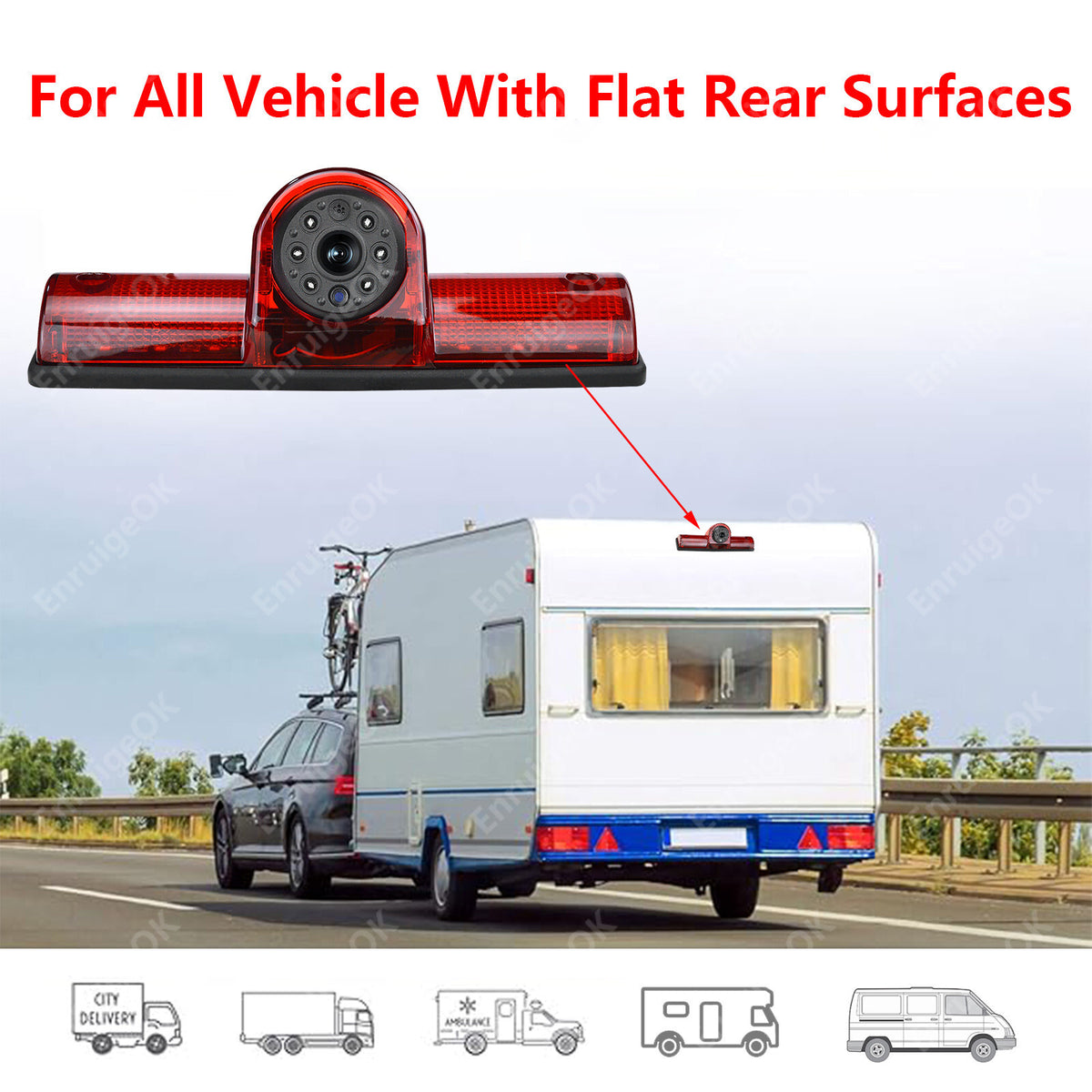

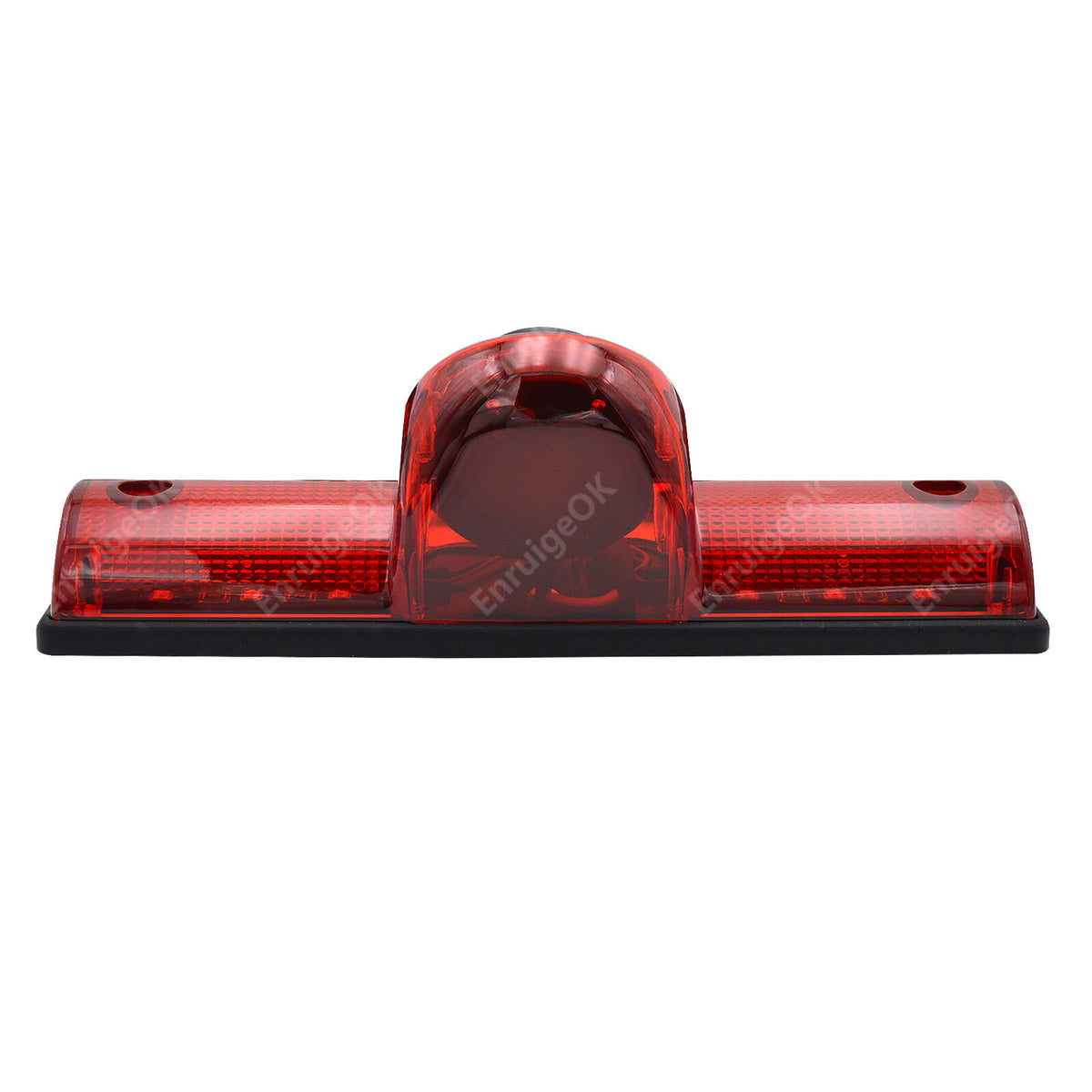

This Camera universal fit for all vehicles that have flat rear surfaces, such as cargo vans, motorhomes, and buses.

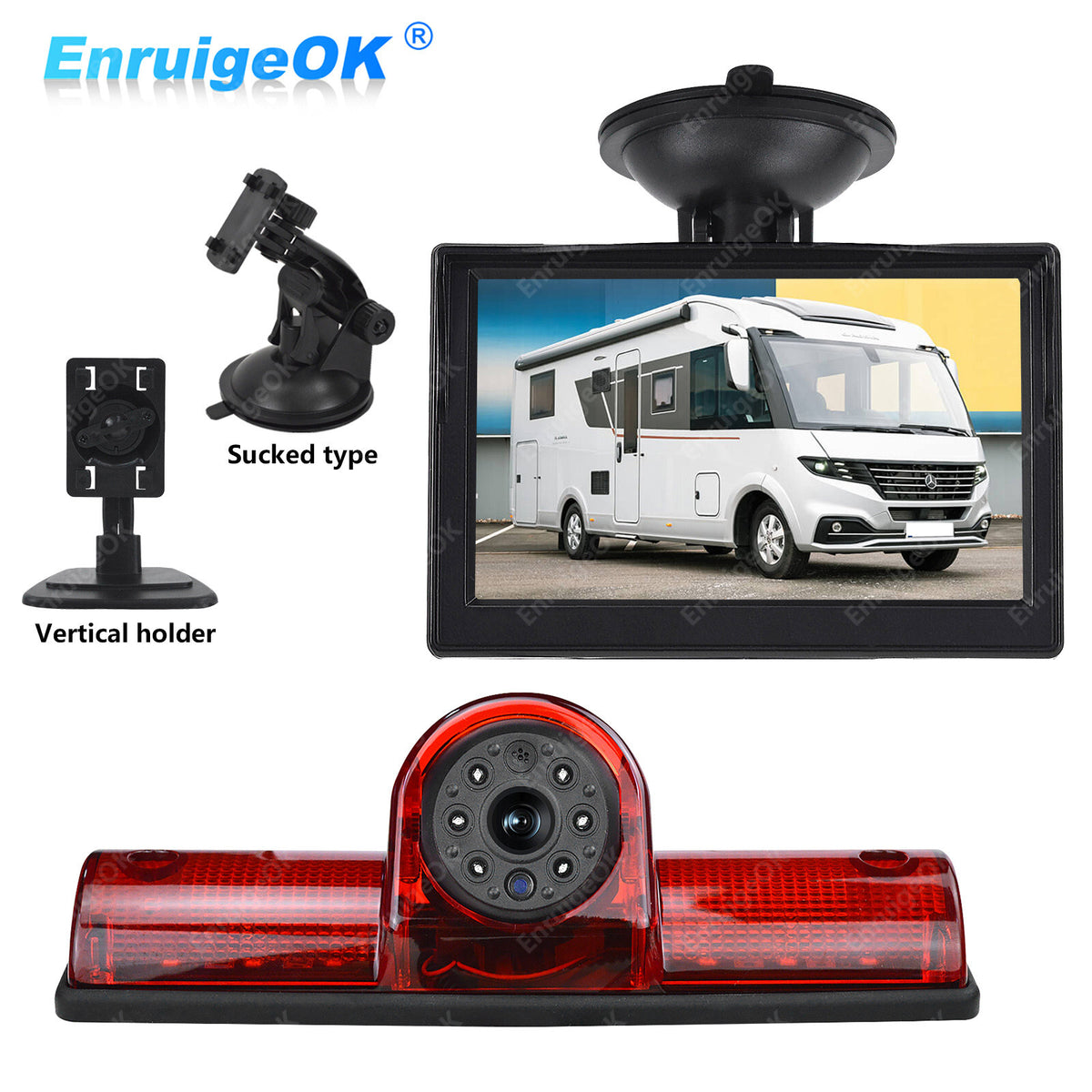

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

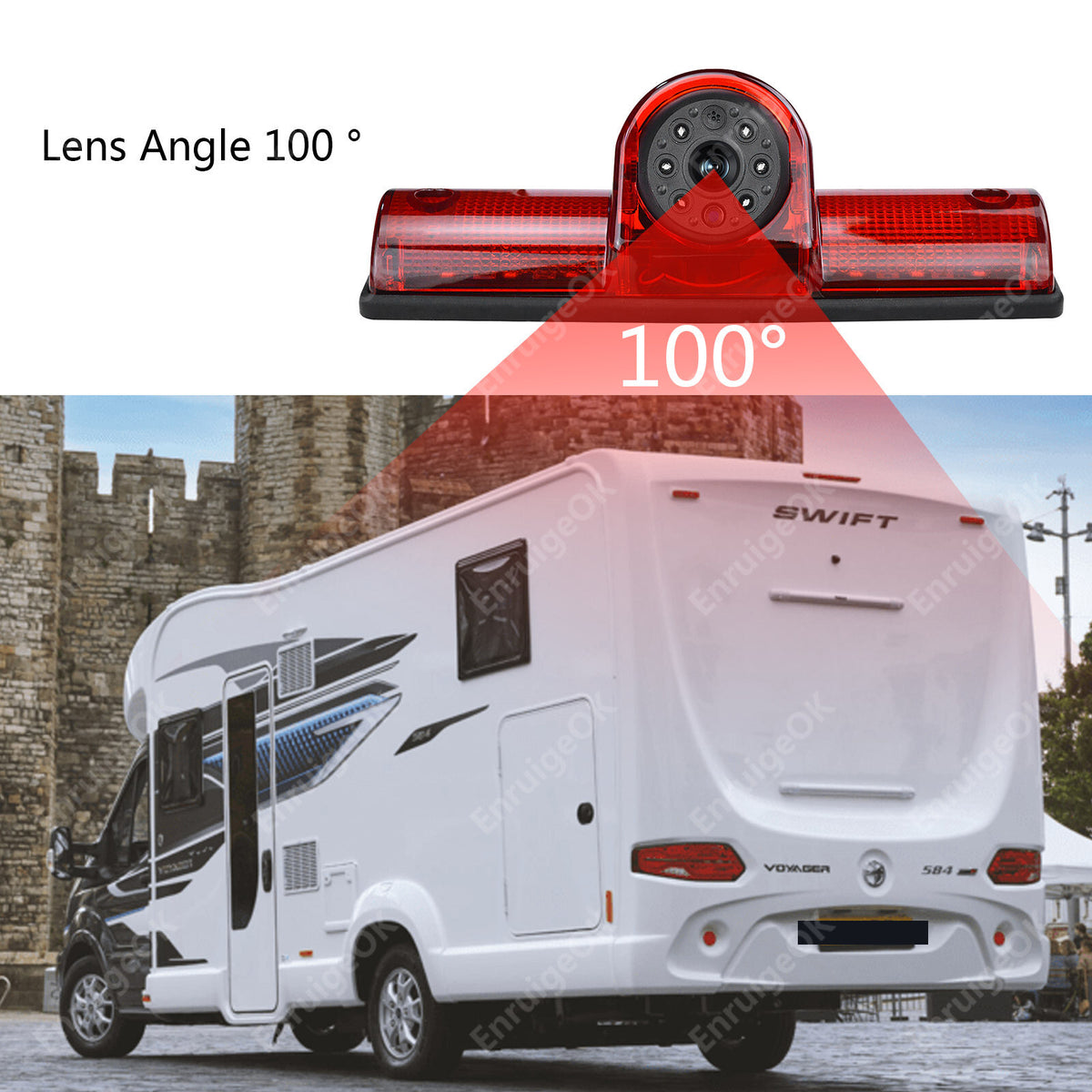

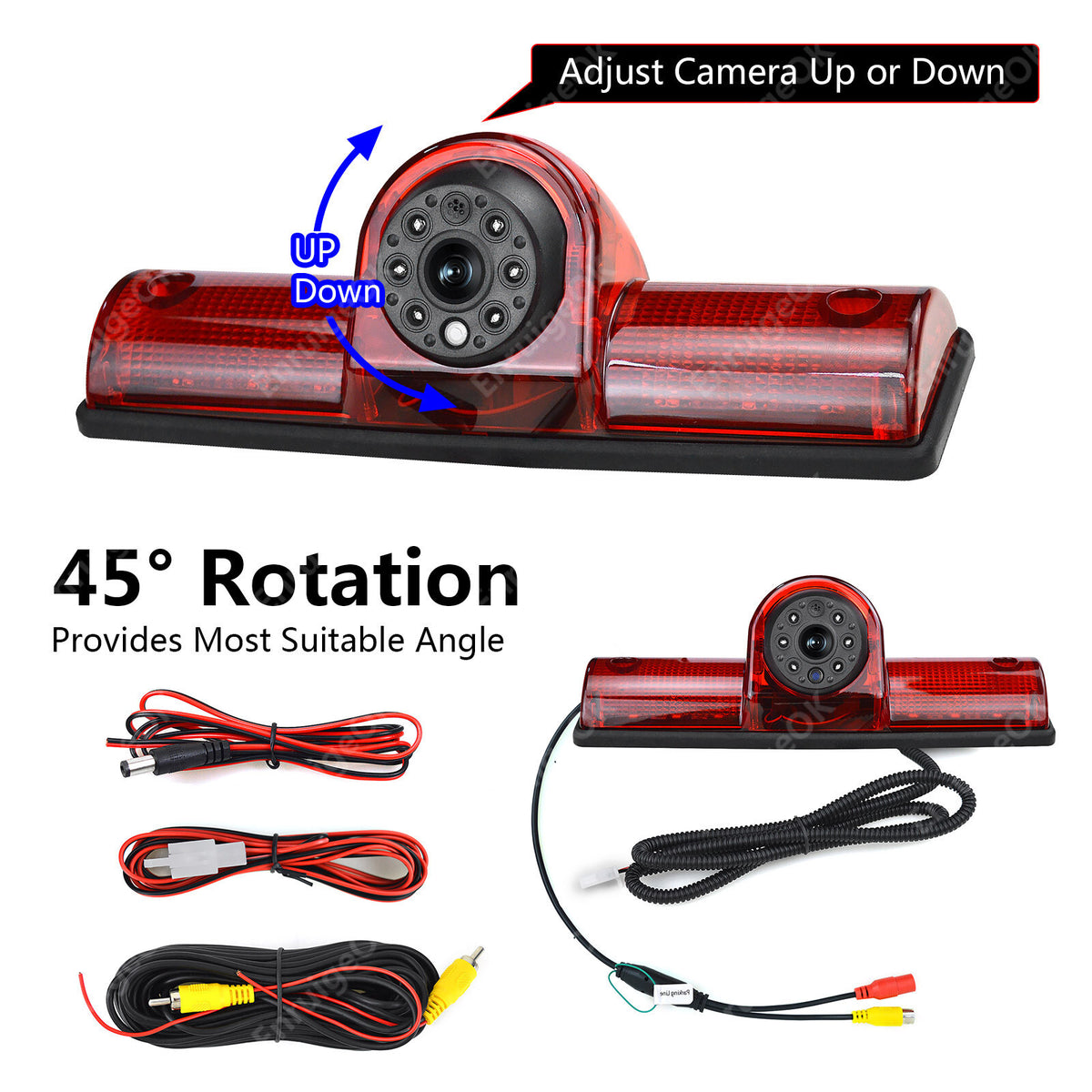

Rear backup camera through the 100° wide-angle camera device with parking line, the obstacle behind the car is clearly visible.

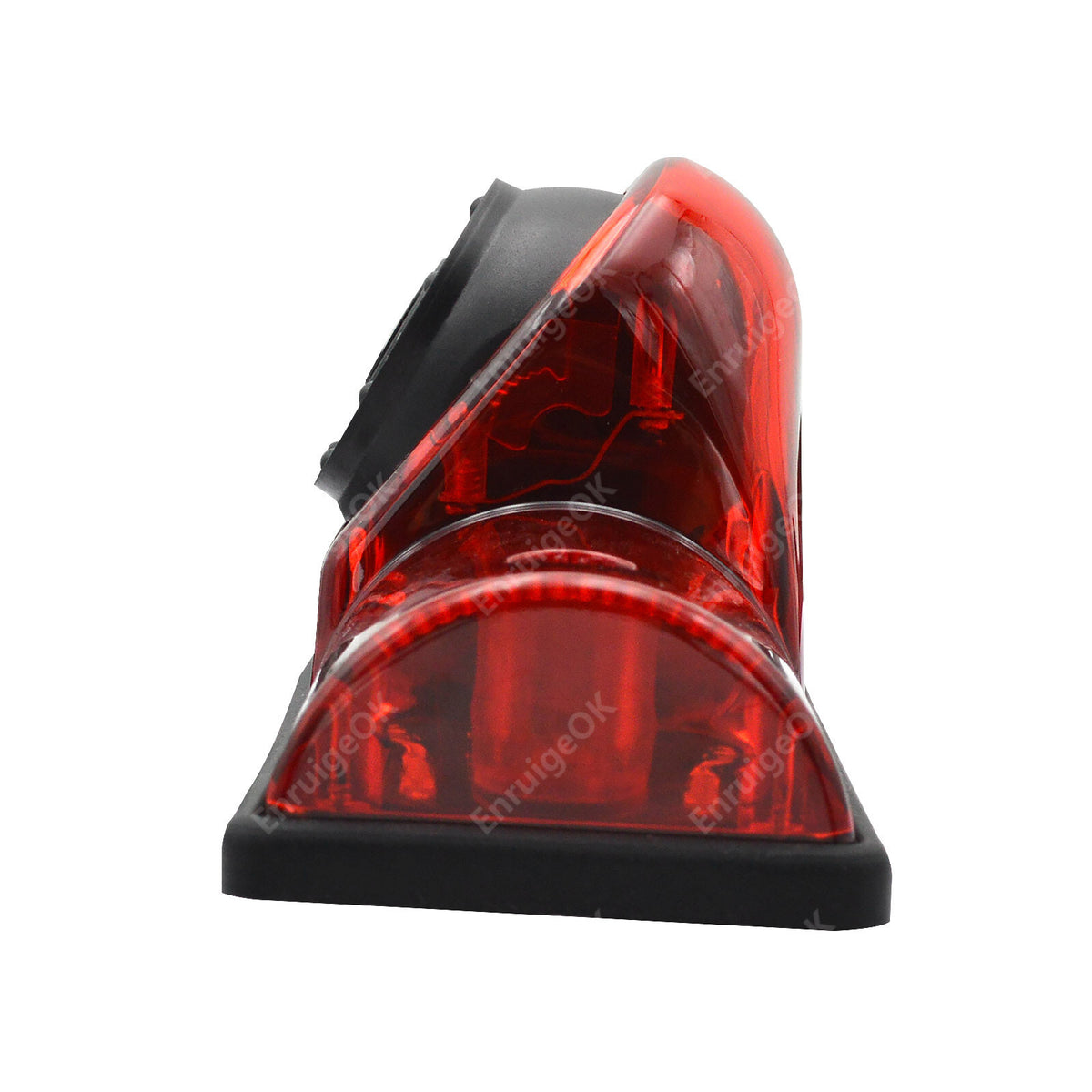

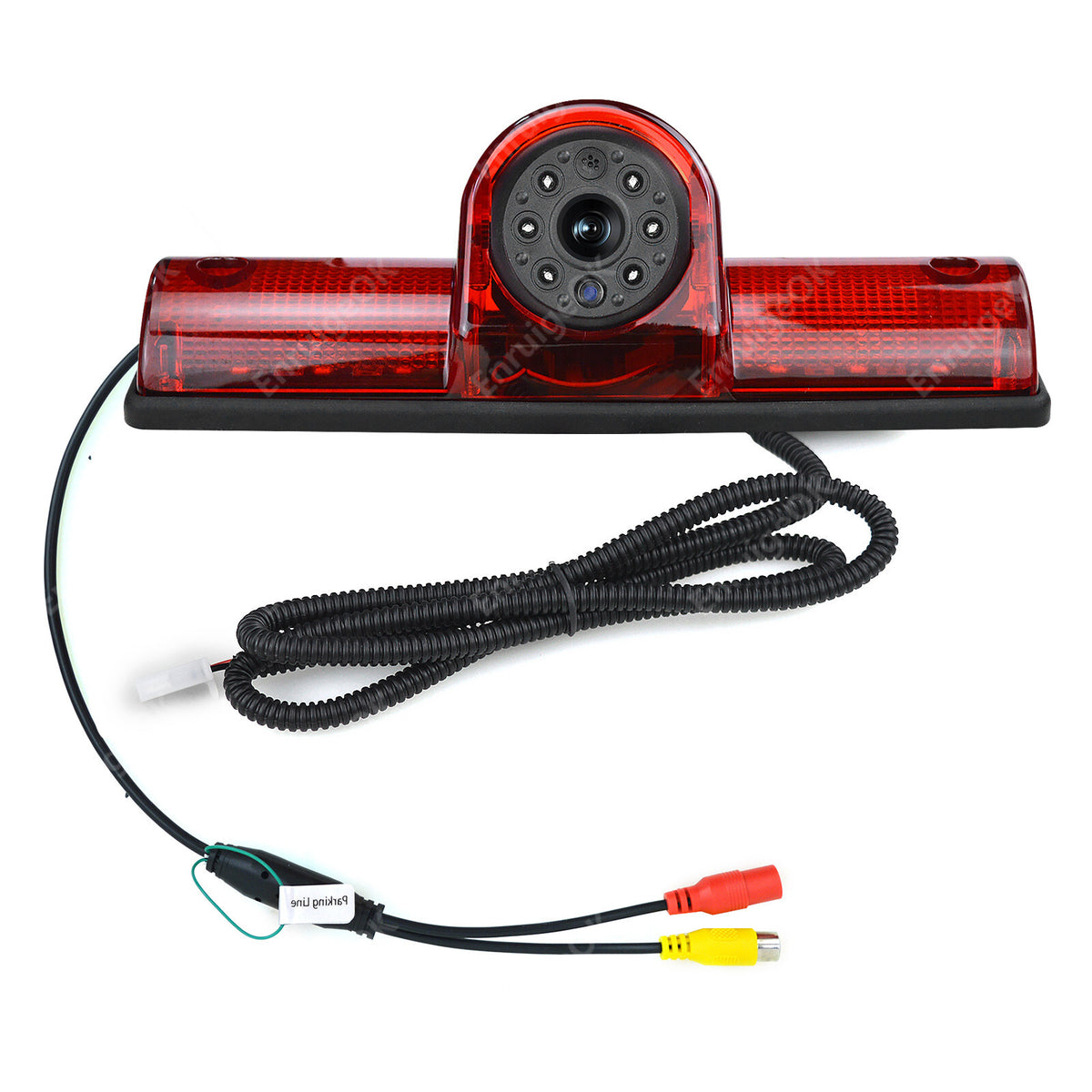

This brake light camera uses a 1/4" CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

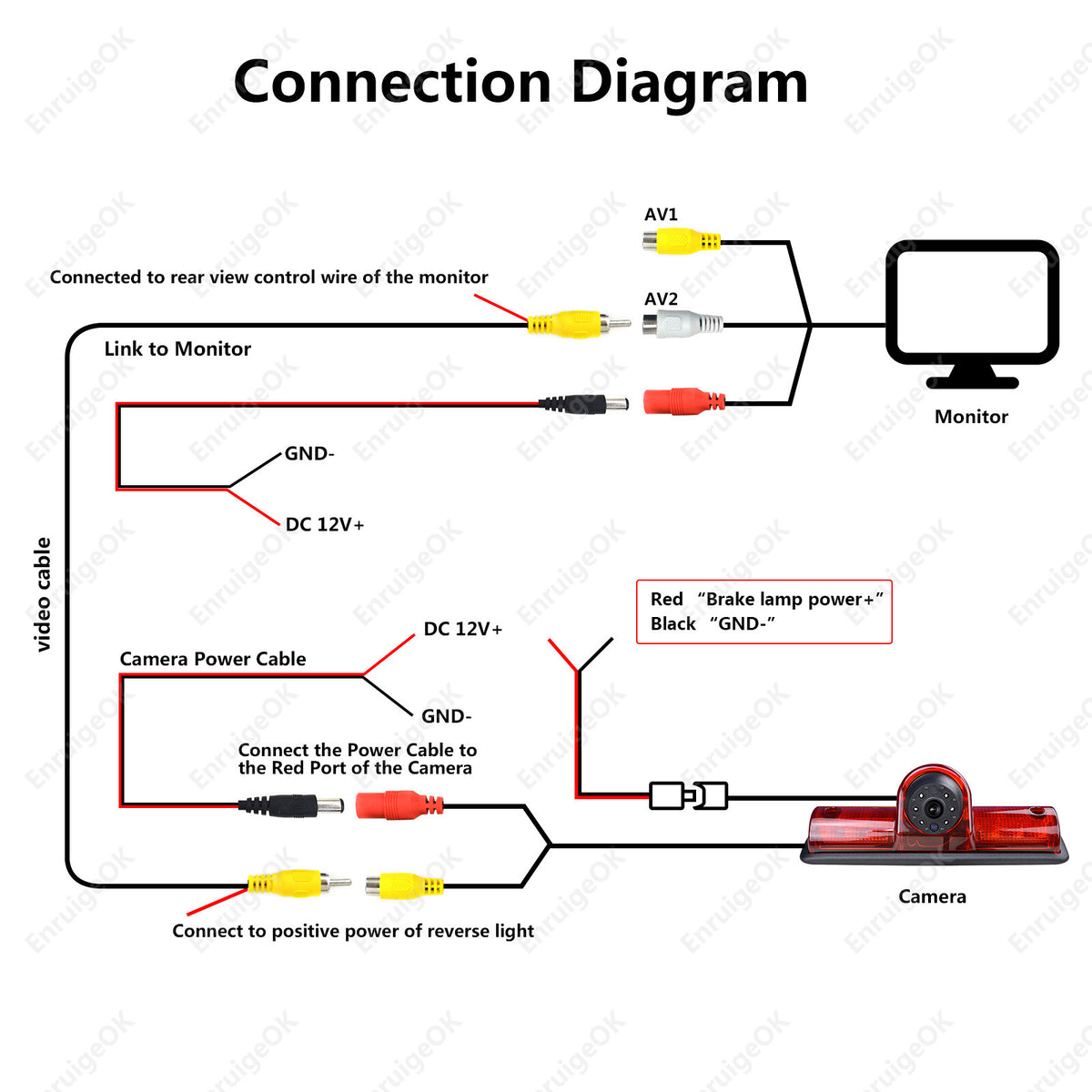

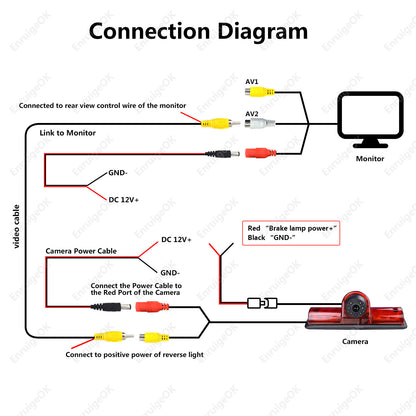

Easy installation. You can connect the camera's power to reverse light, then connect the rearview camera to the monitor cable.

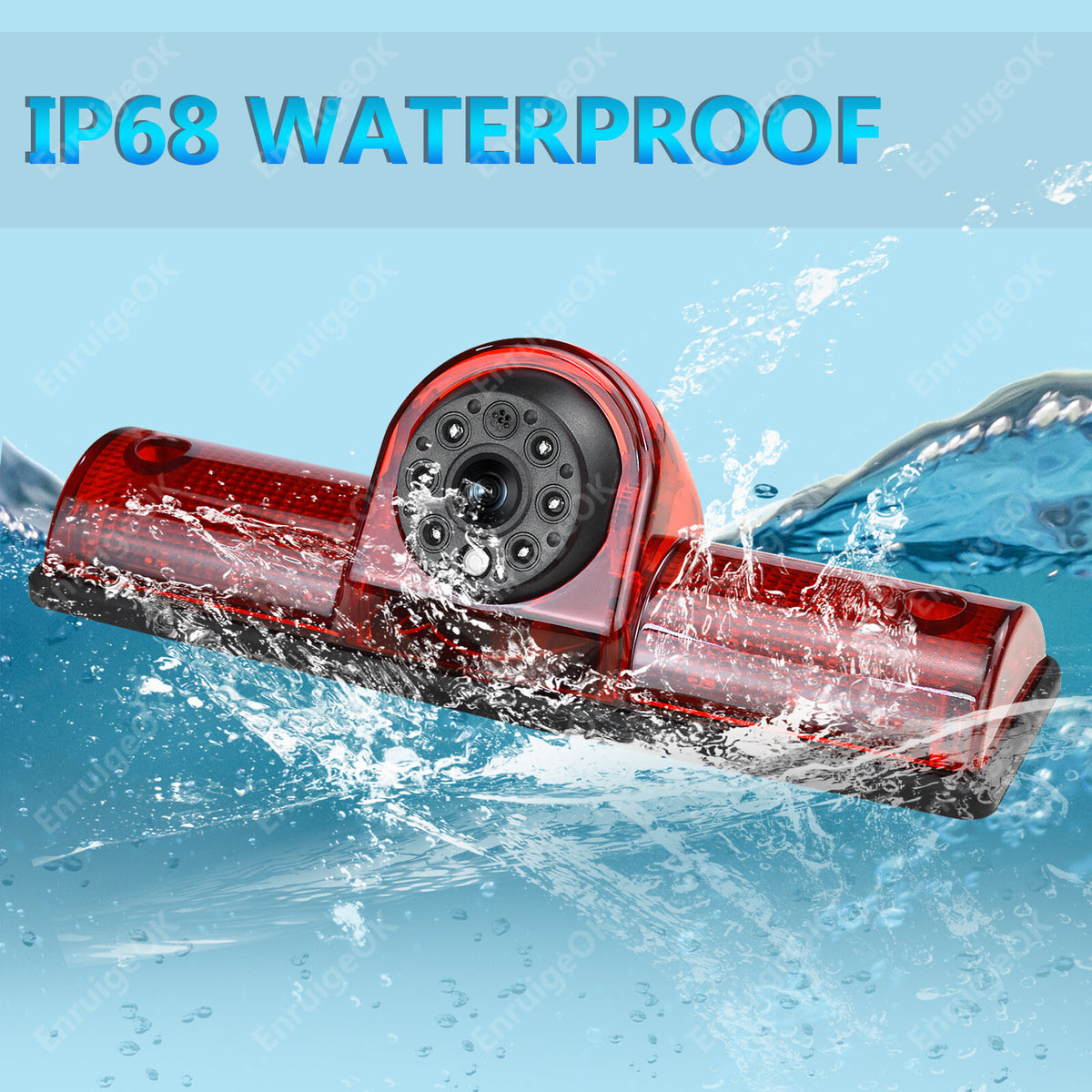

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

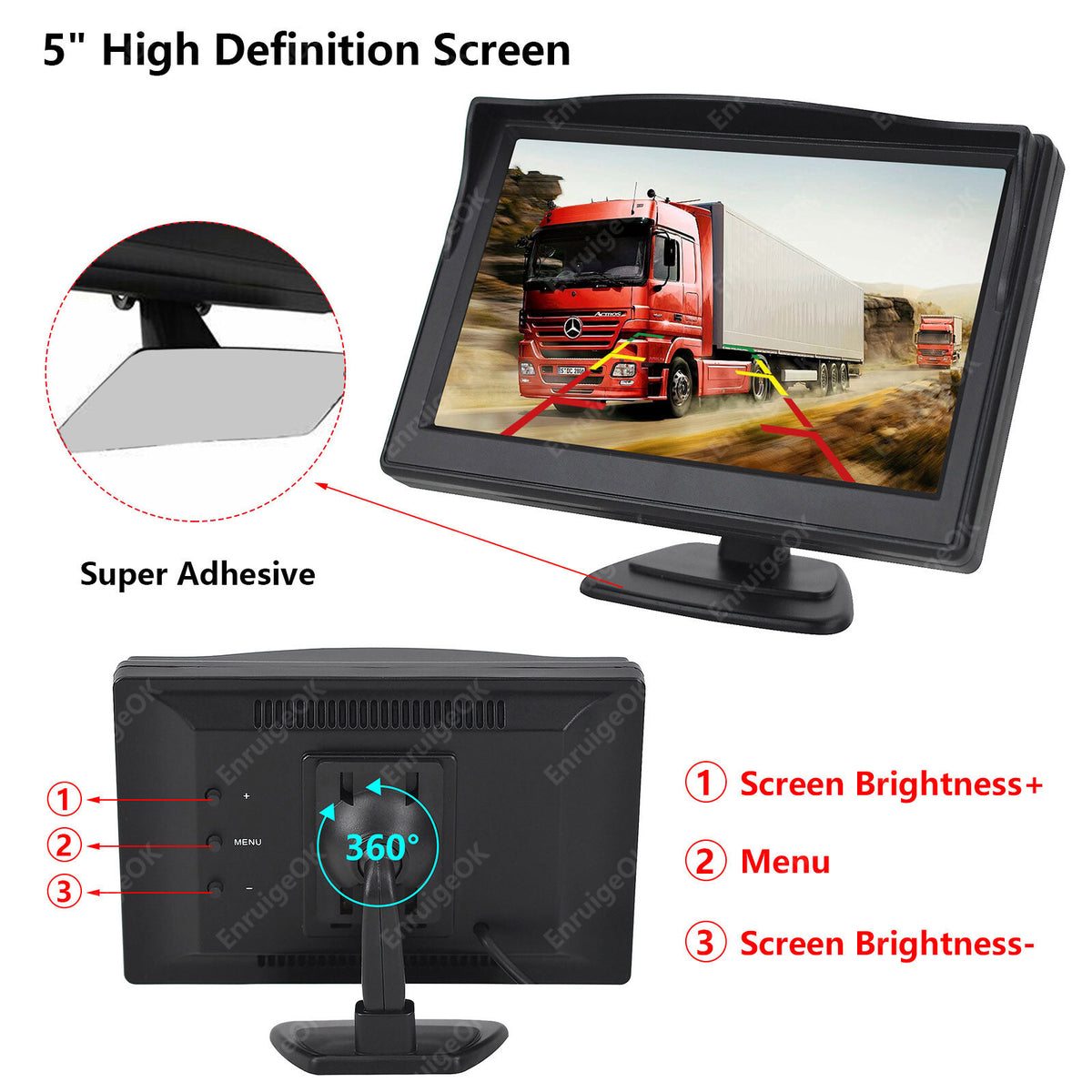

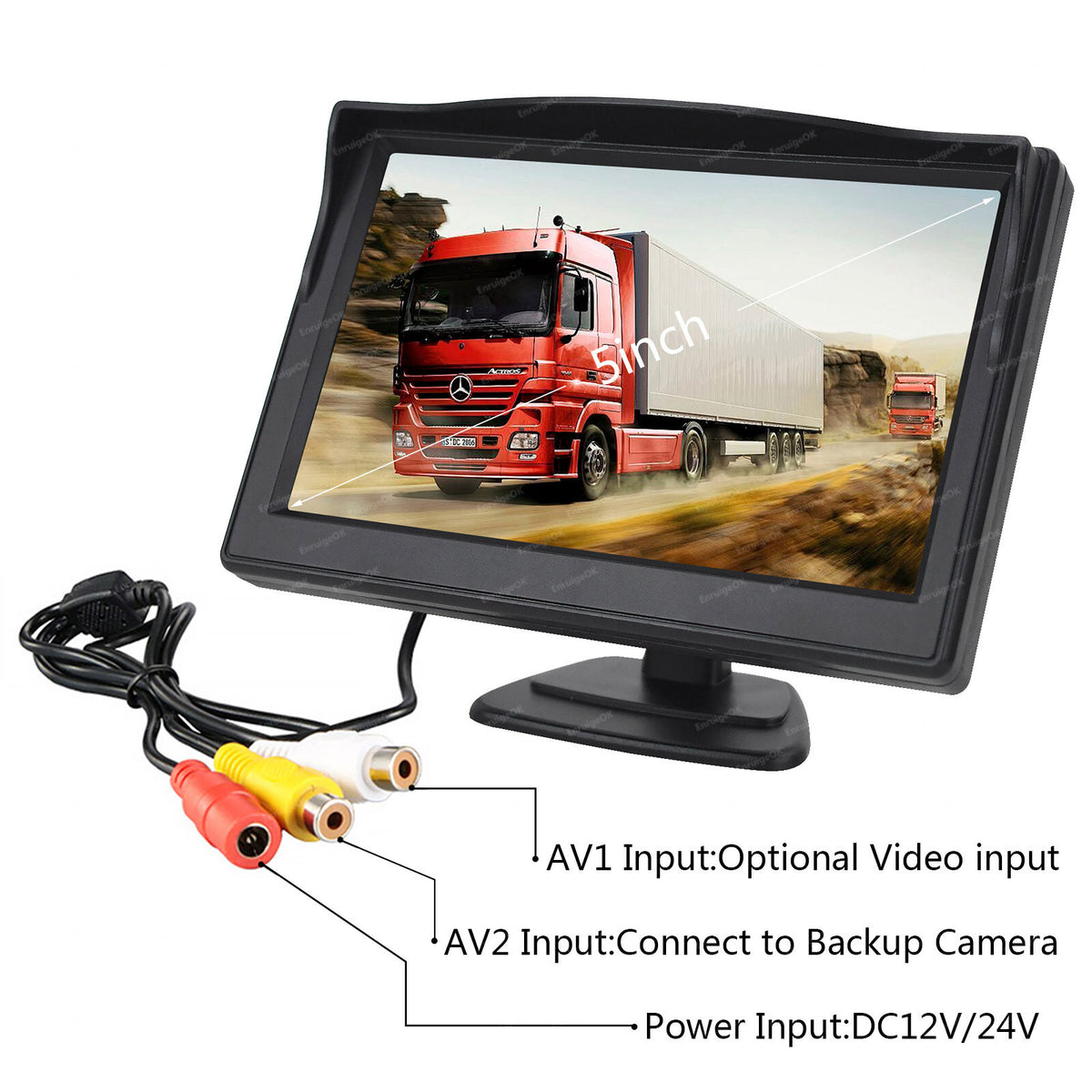

The 5" Color IPS display Monitor features 2 video inputs and an 480*272 (RGB) resolution, making it compatible with the brake light rearview camera.

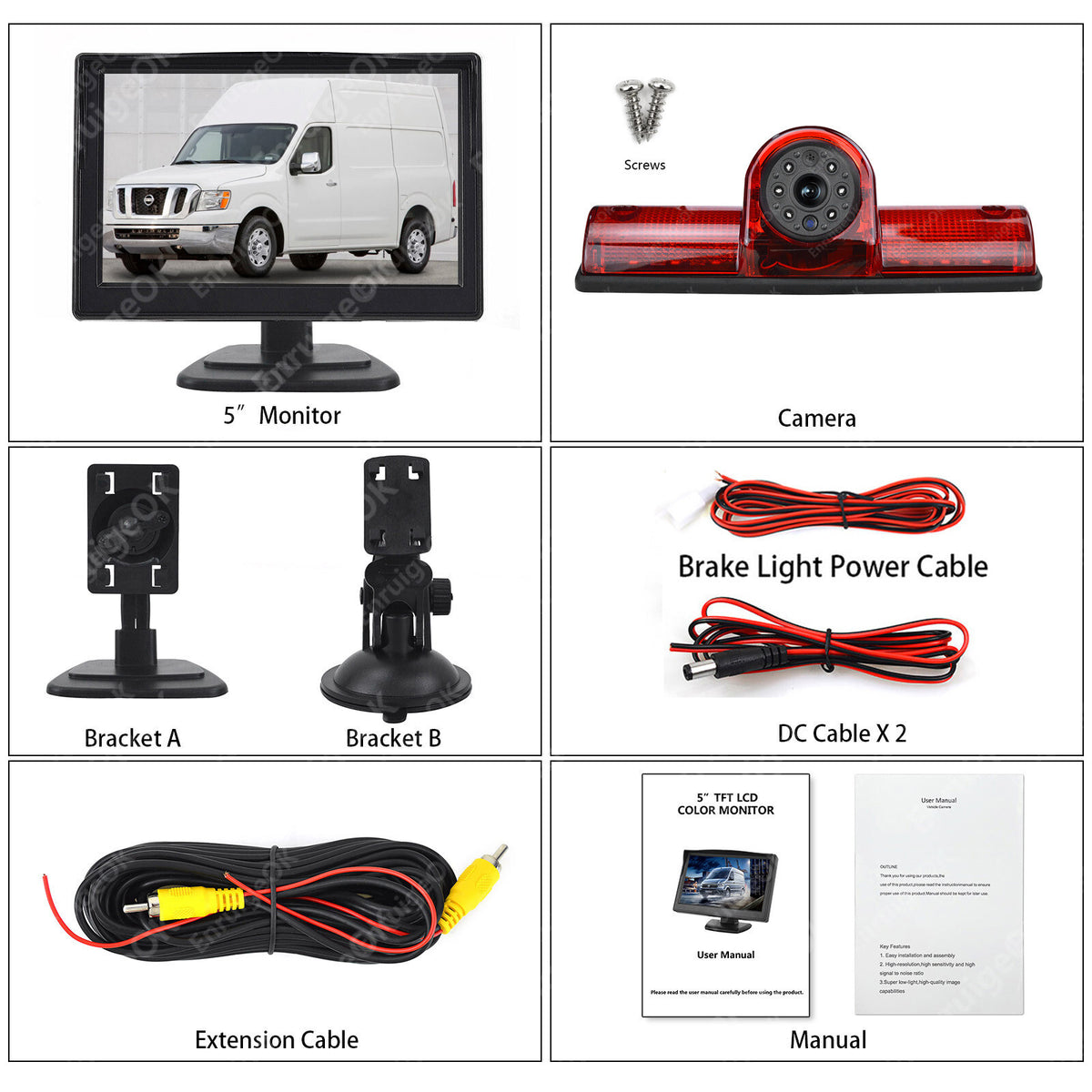

Package contents

1 X Brake light camera

1 X 5'' IPS display monitor

1 X 10m/33ft. extension cable

2 X DC Power cables

1 X 2m brake light power cable

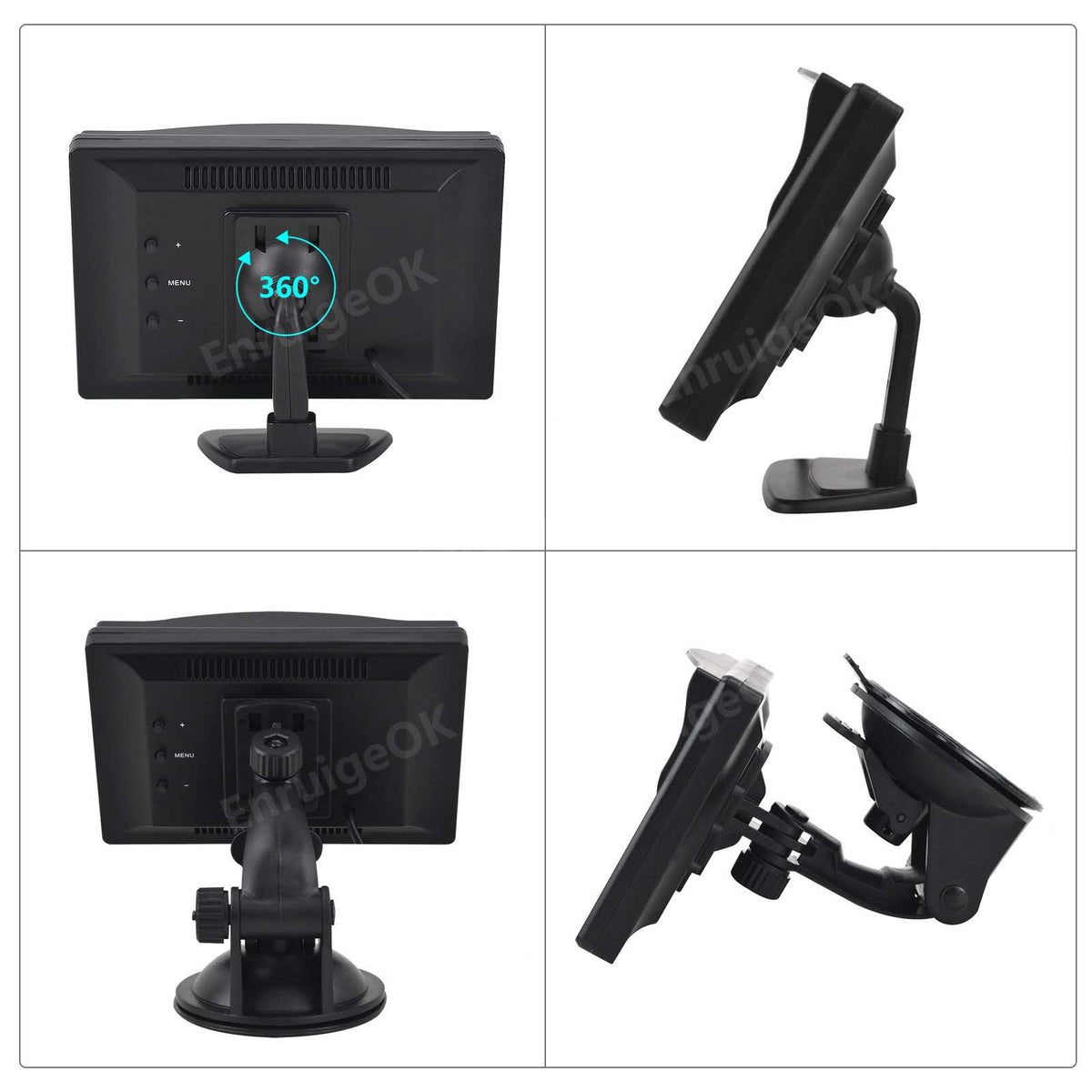

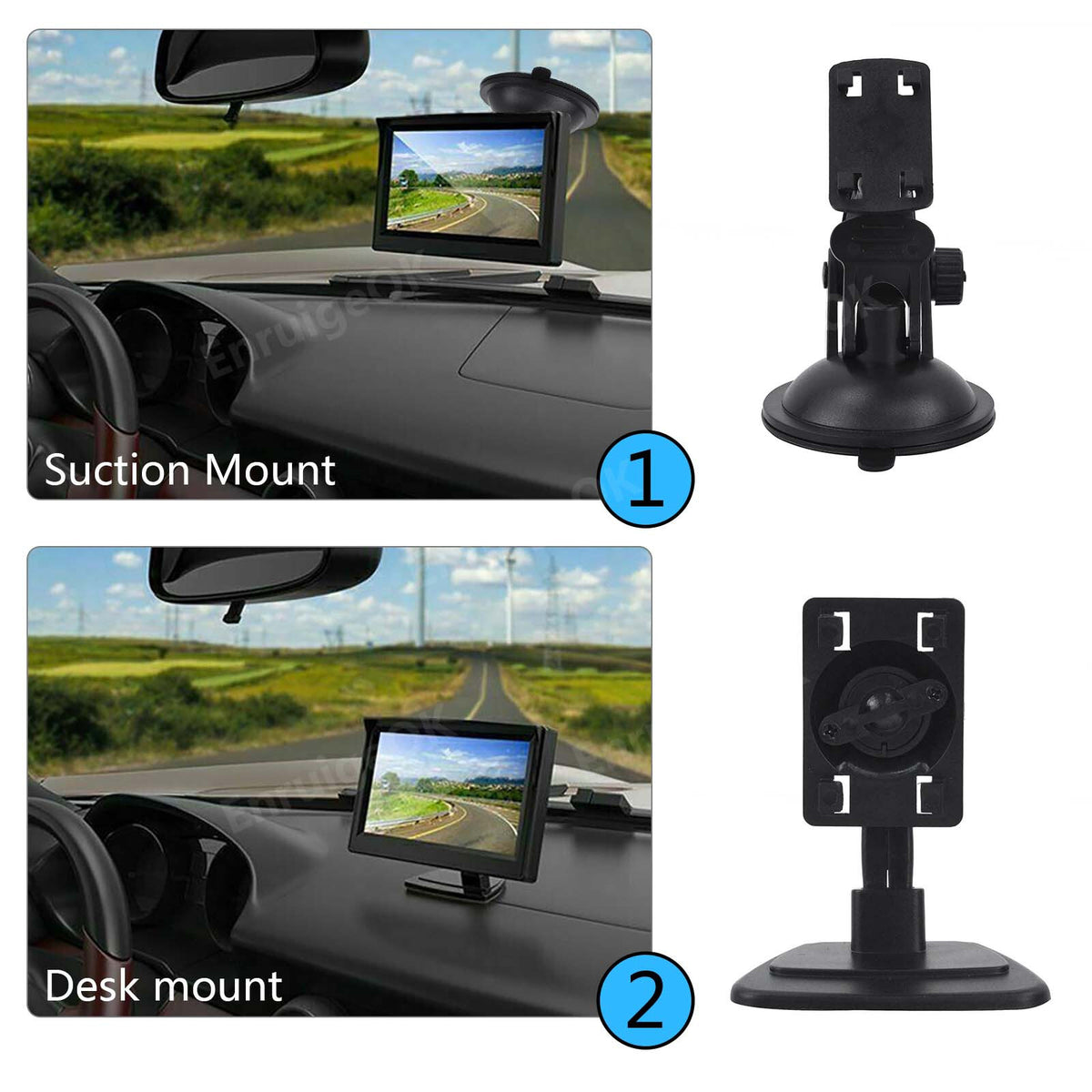

1 X Dashboard mount stand

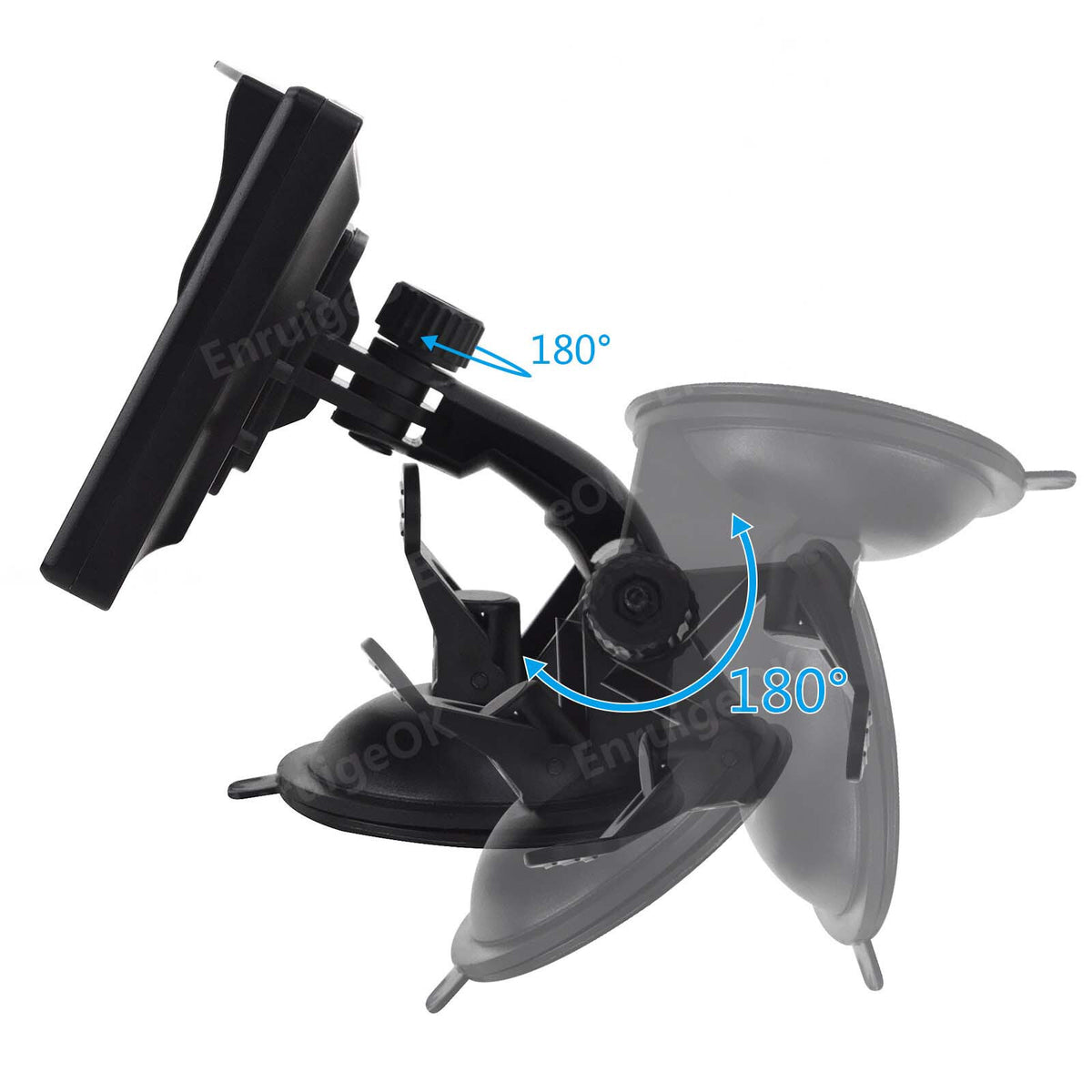

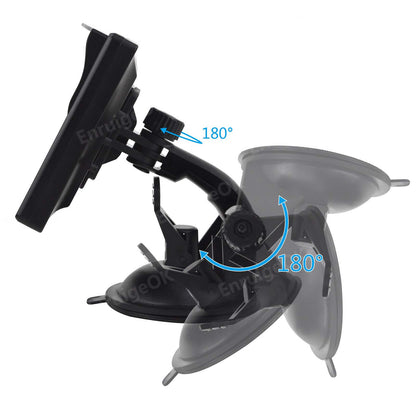

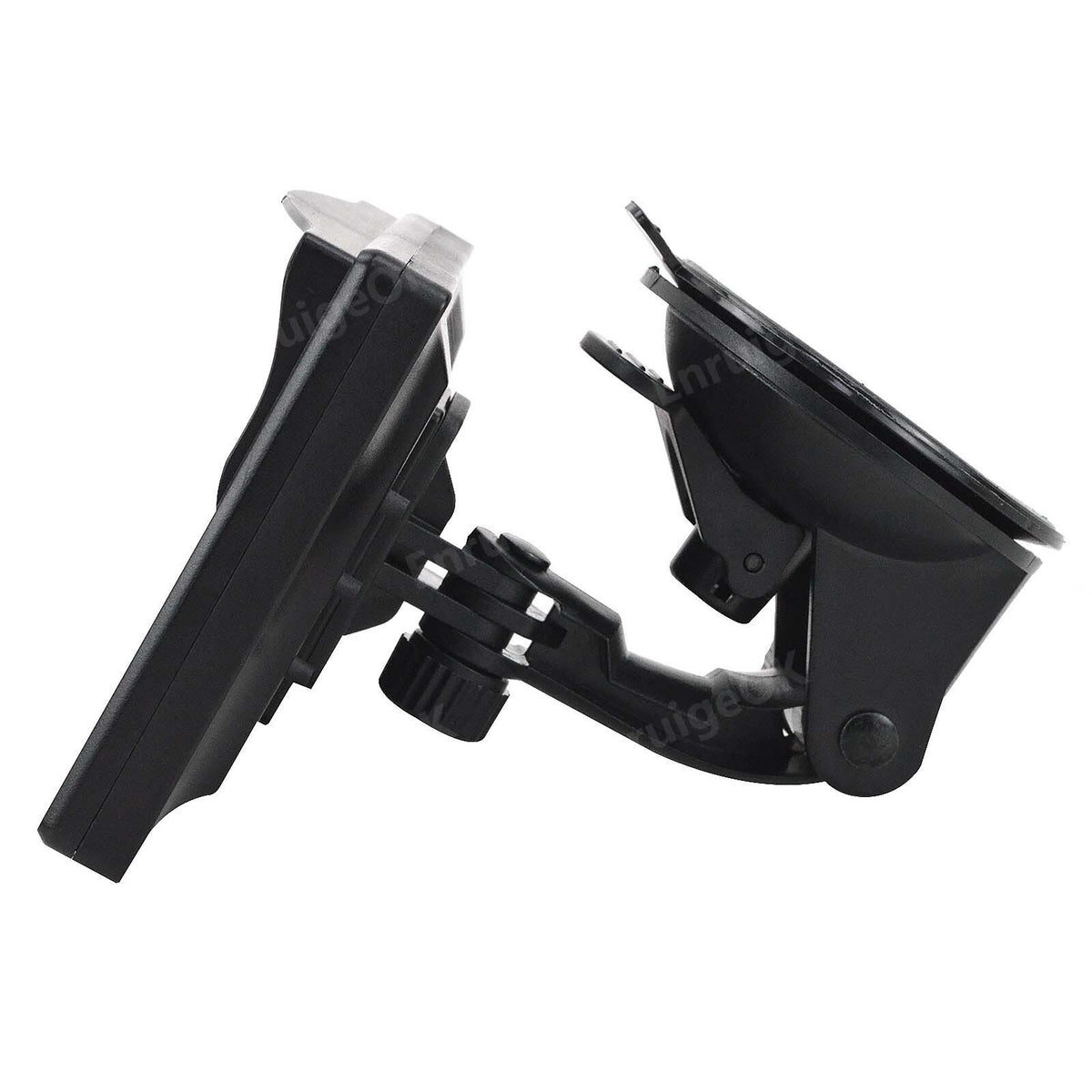

1 X Suction cup mount stand

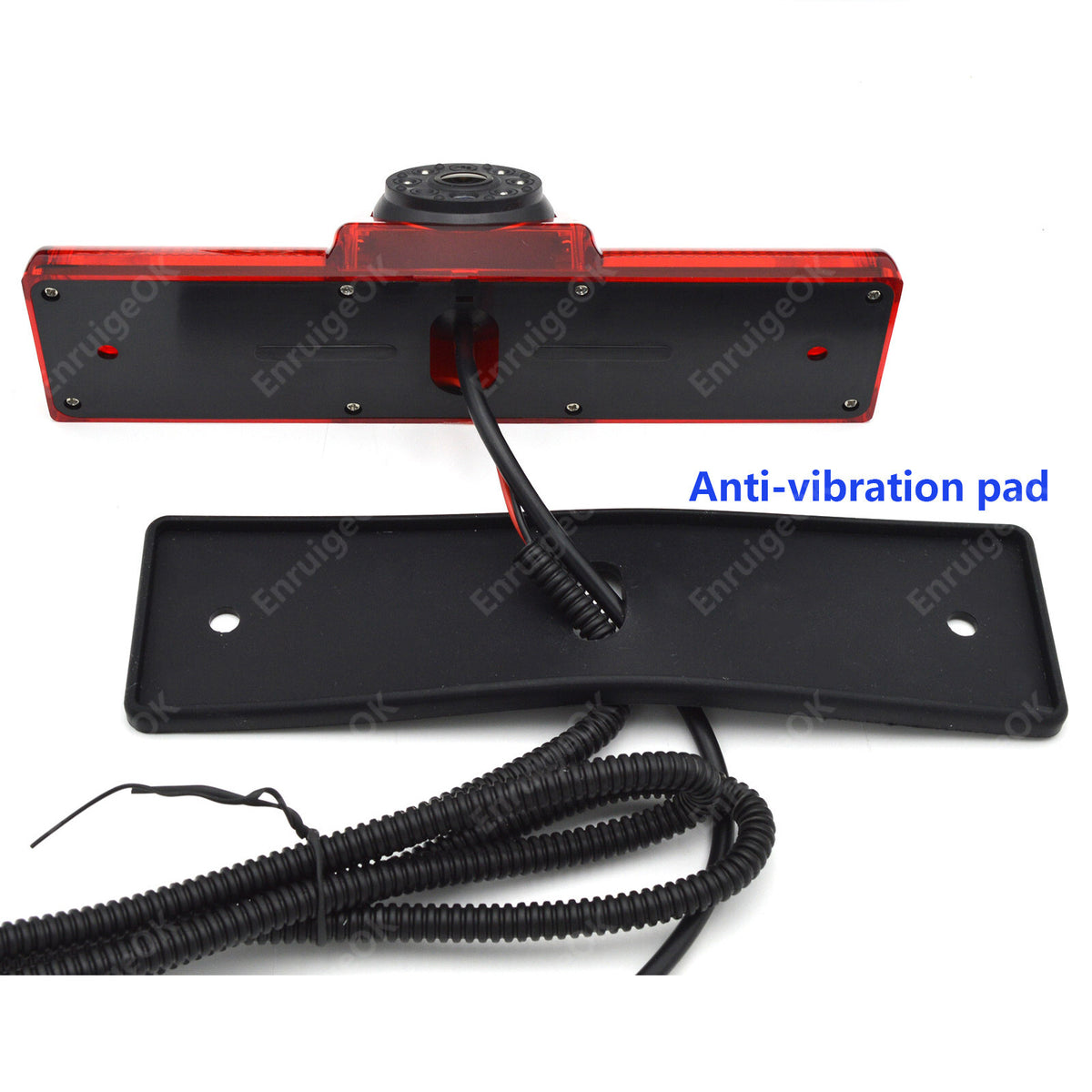

1 X Anti-vibration pad

1 X Manual

Camera Specifications

Material: ABS+PC

Image sensor: 1/4" CMOS

TV system: PAL/NTSC

Waterproof rating: IP68

Effective pixel: 733x493

Horizontal sync frequency: 15.625KHZ

Scanning system:2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: CVBS 480TVL

S/N Ratio: more than 48dB

Current consumption: no more than 150mA

Minimum illumination: 0Lux(IR ON)

Power supply: DC 9V-36V

Power: 5W

Monitor Specifications

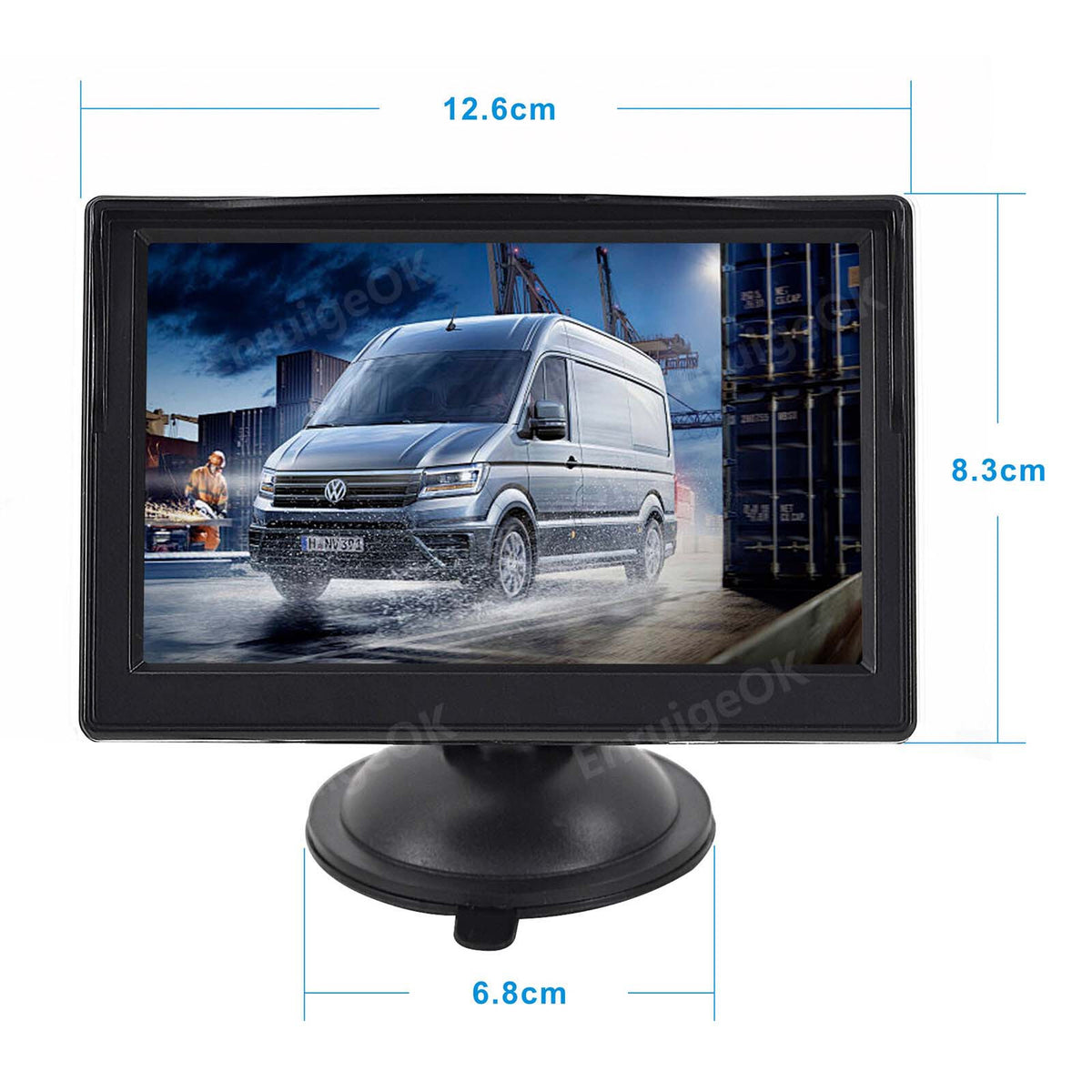

Screen size: 5 inch

Display format: 16: 9

Contrast: 300: 1

Brightness: 400 CD/㎡

Video: 2-channel video input; V1/V2 switching

Resolution: 480 (H) x 272 (V)

Power supply: DC 12V

Rear view in priority

Video system: NTSC / PAL auto switch

Current consumption: <4W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

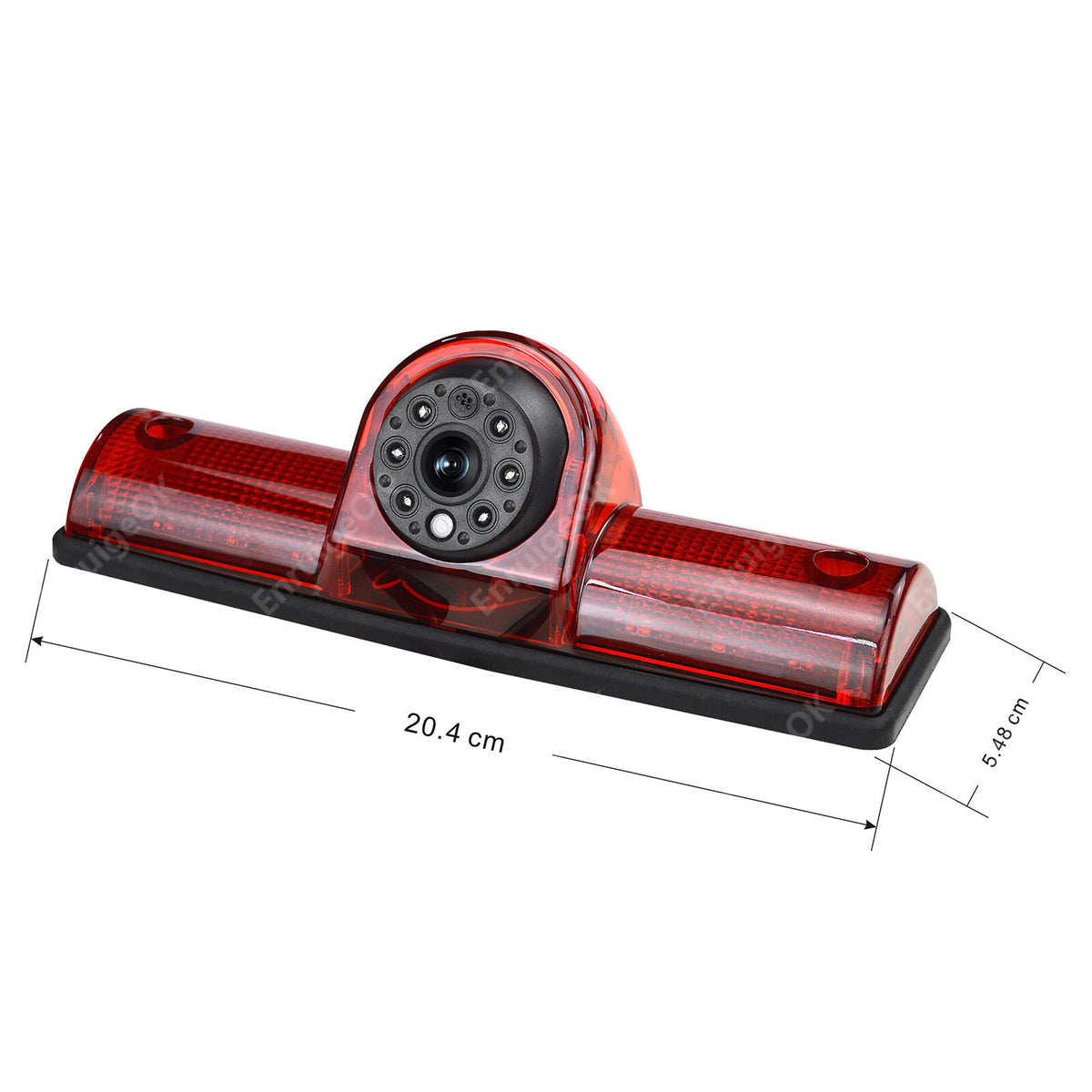

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
