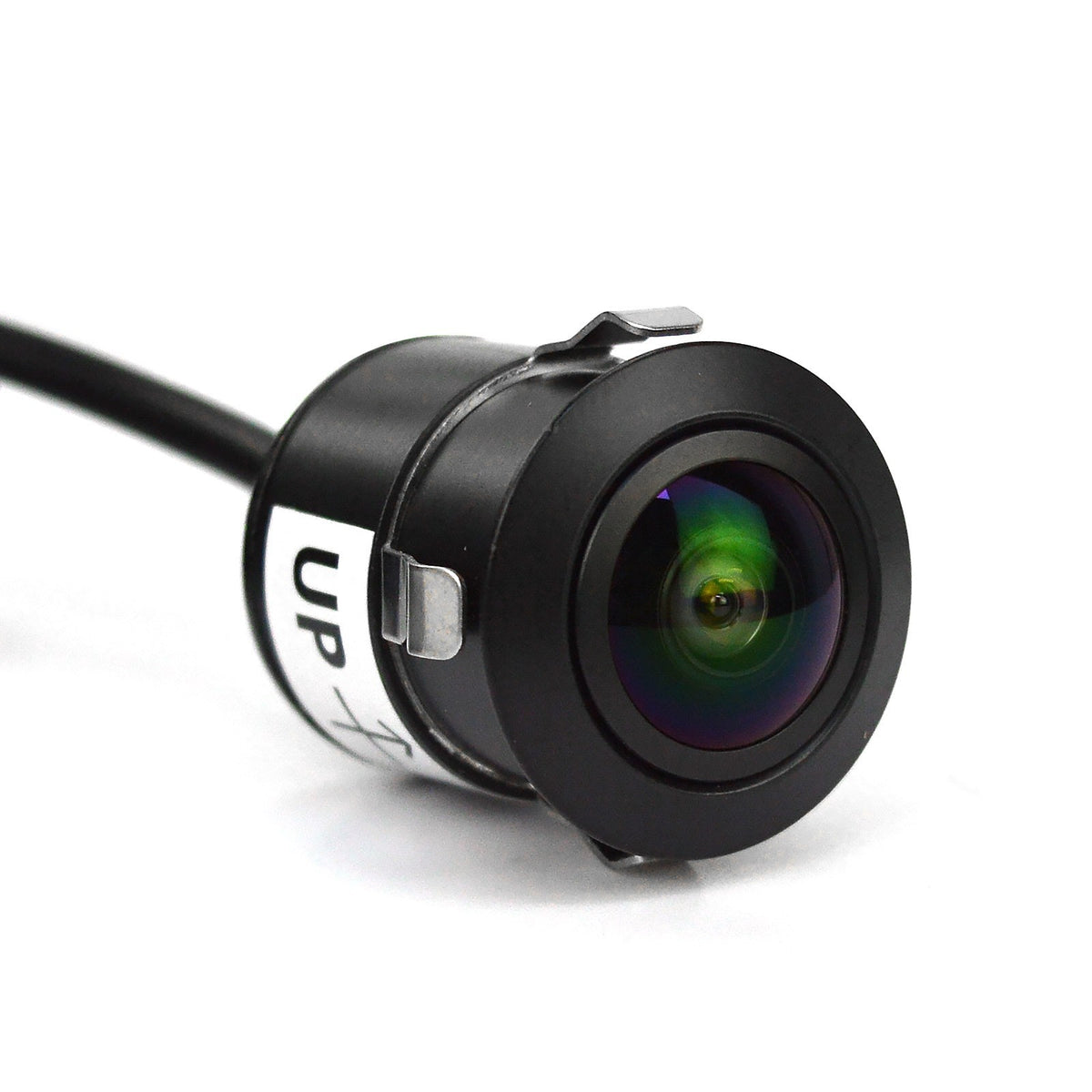

Universal Rear View Backup Camera Reverse Parking Cam HD Night Vision Waterproof

Product Description

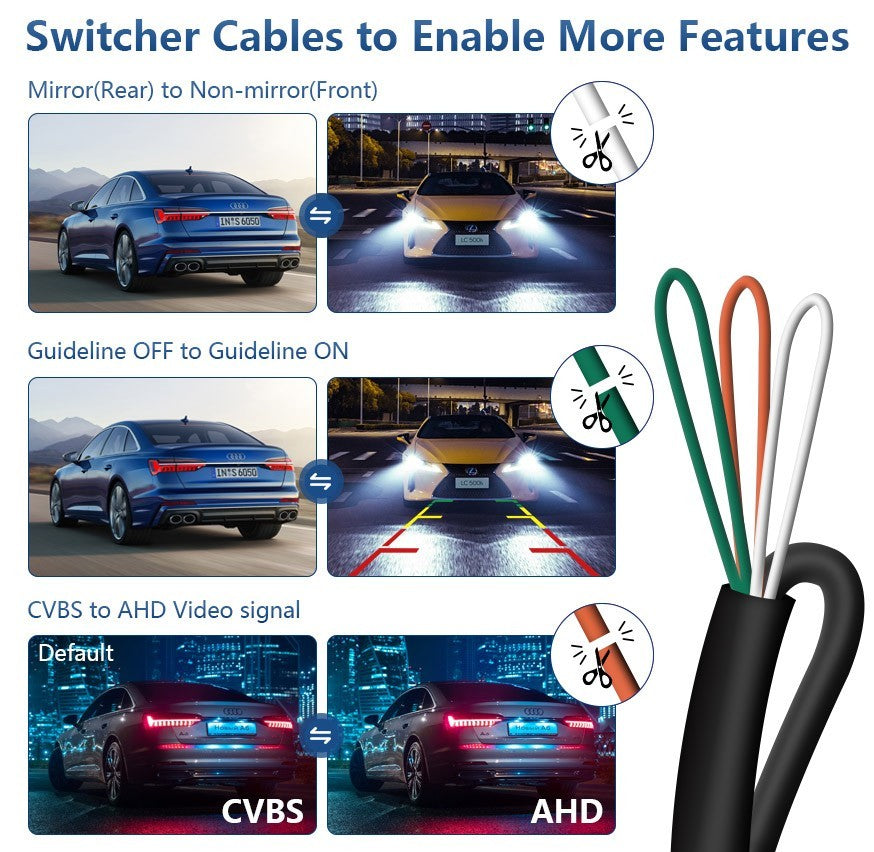

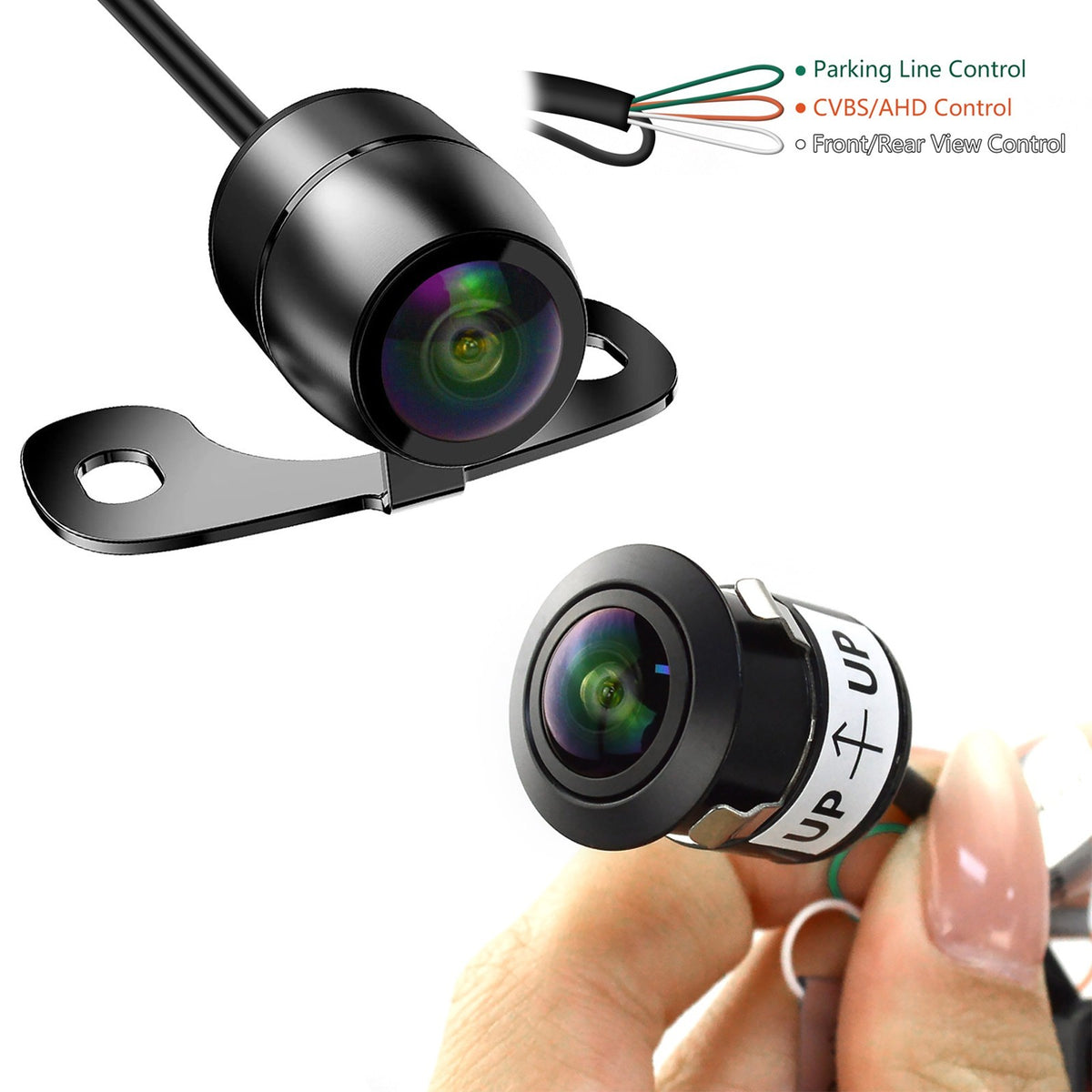

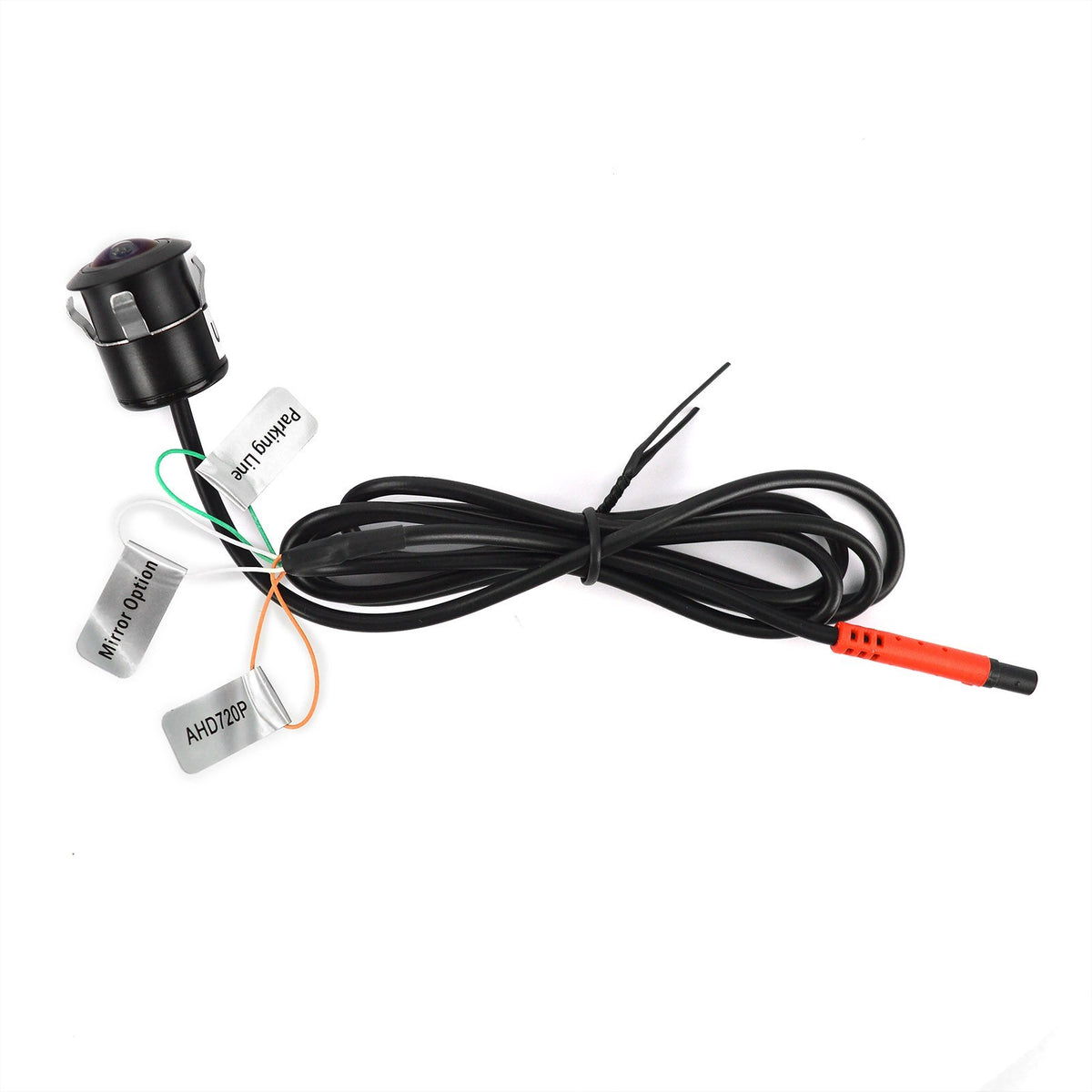

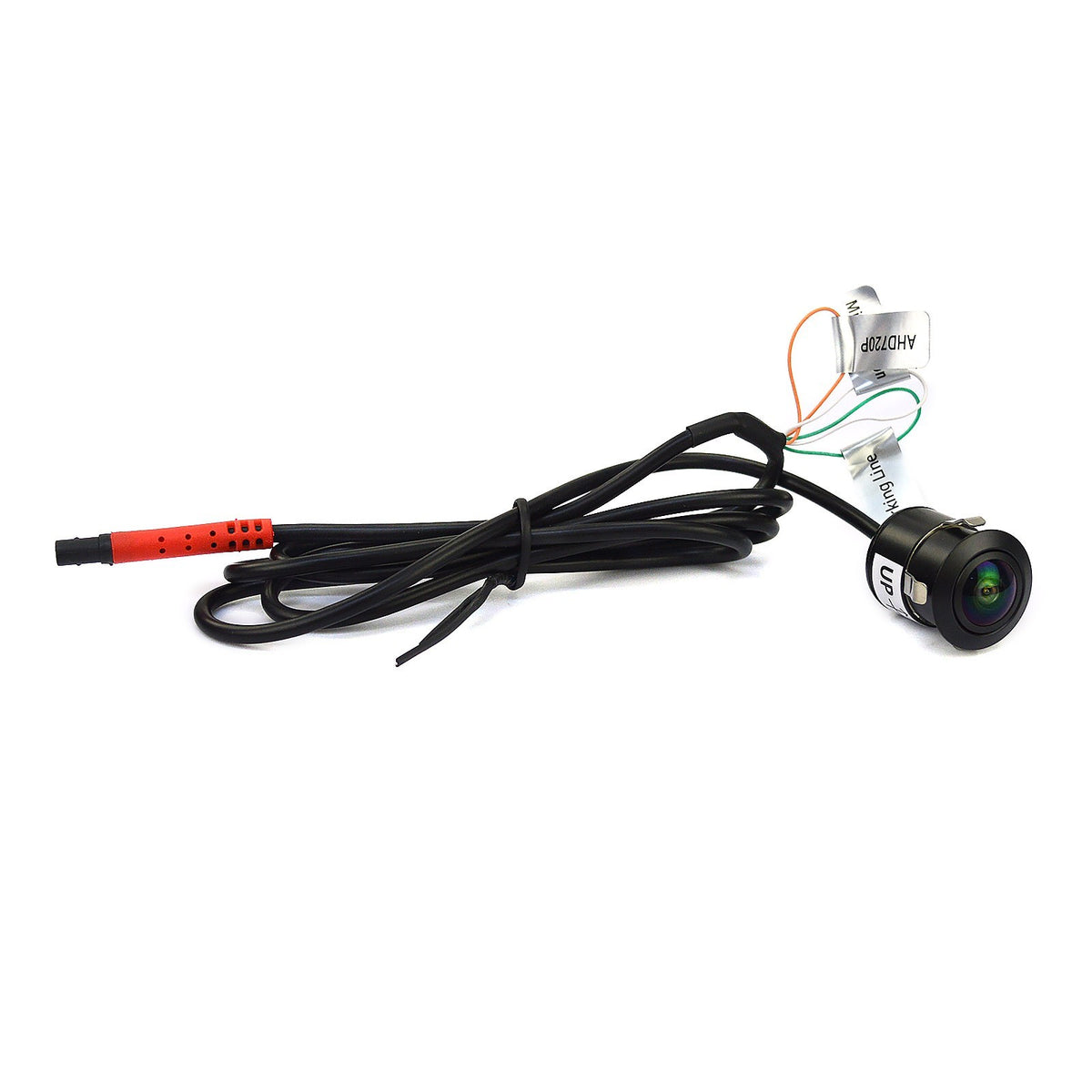

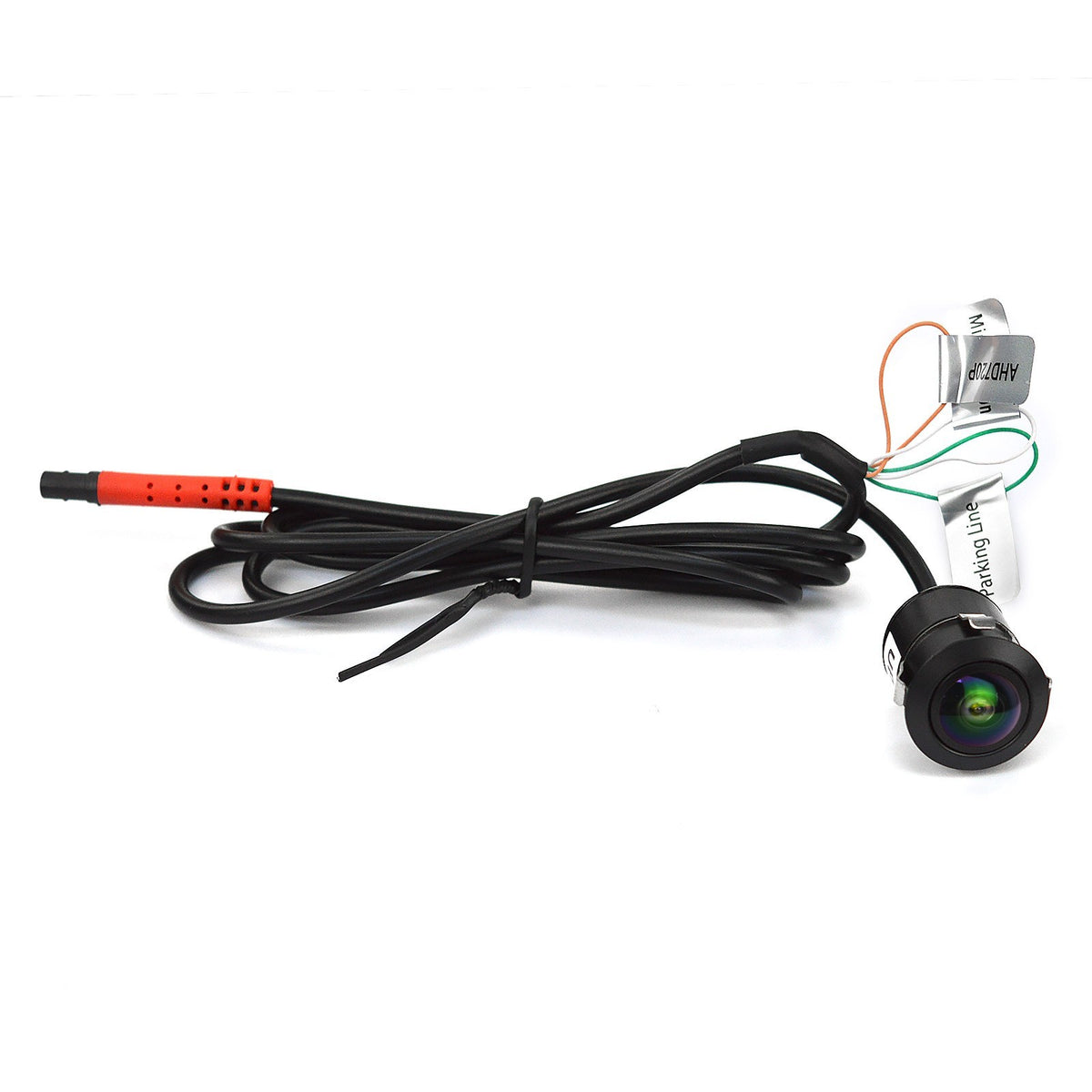

White Loop

The camera is set to rear view mode by default.

By cutting or keeping the white loop, you can switch the image and use it as a rear view, front view, or side view camera.

Green Loop

The camera is set by default as a rear view camera without parking lines.

If you would like to display parking guidelines, simply cut the green loop.

Orange Loop

The camera outputs CVBS signal by default.

If your Android head unit or monitor supports AHD signal, please cut the orange loop. Otherwise, leave it connected.

Easy Installation

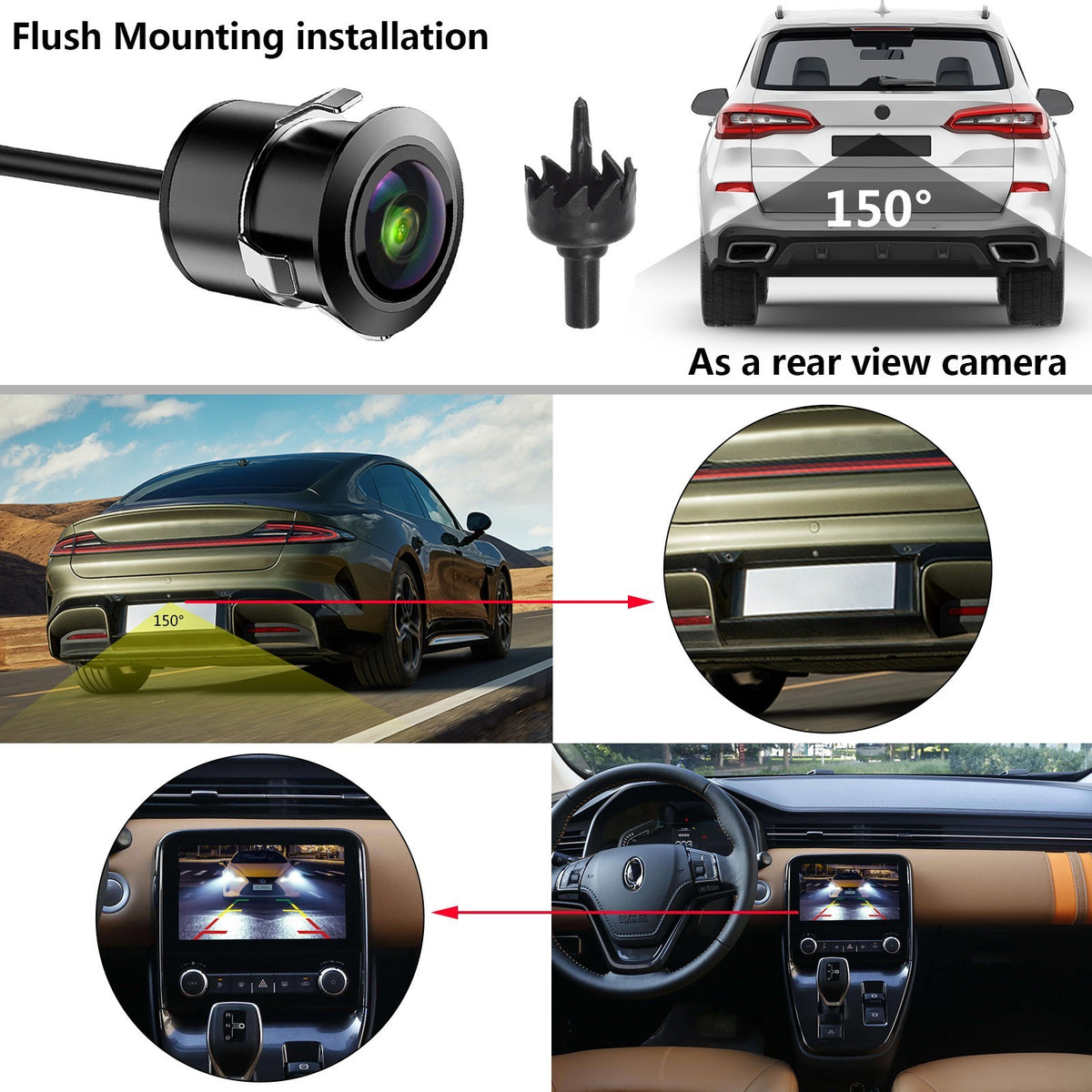

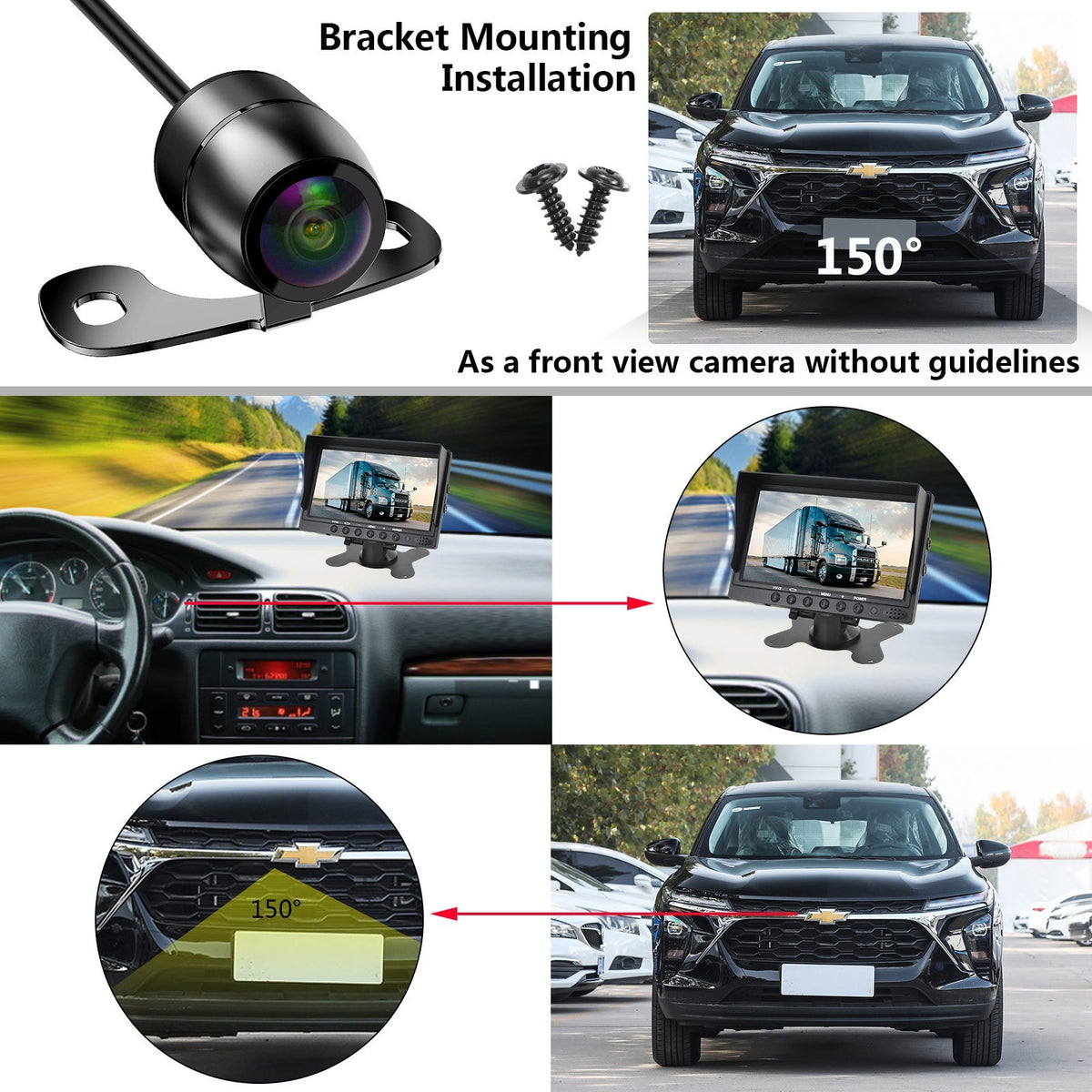

Comes with 2 mounting options — you can choose either bracket mounting or flush mounting to best fit your vehicle and installation position.

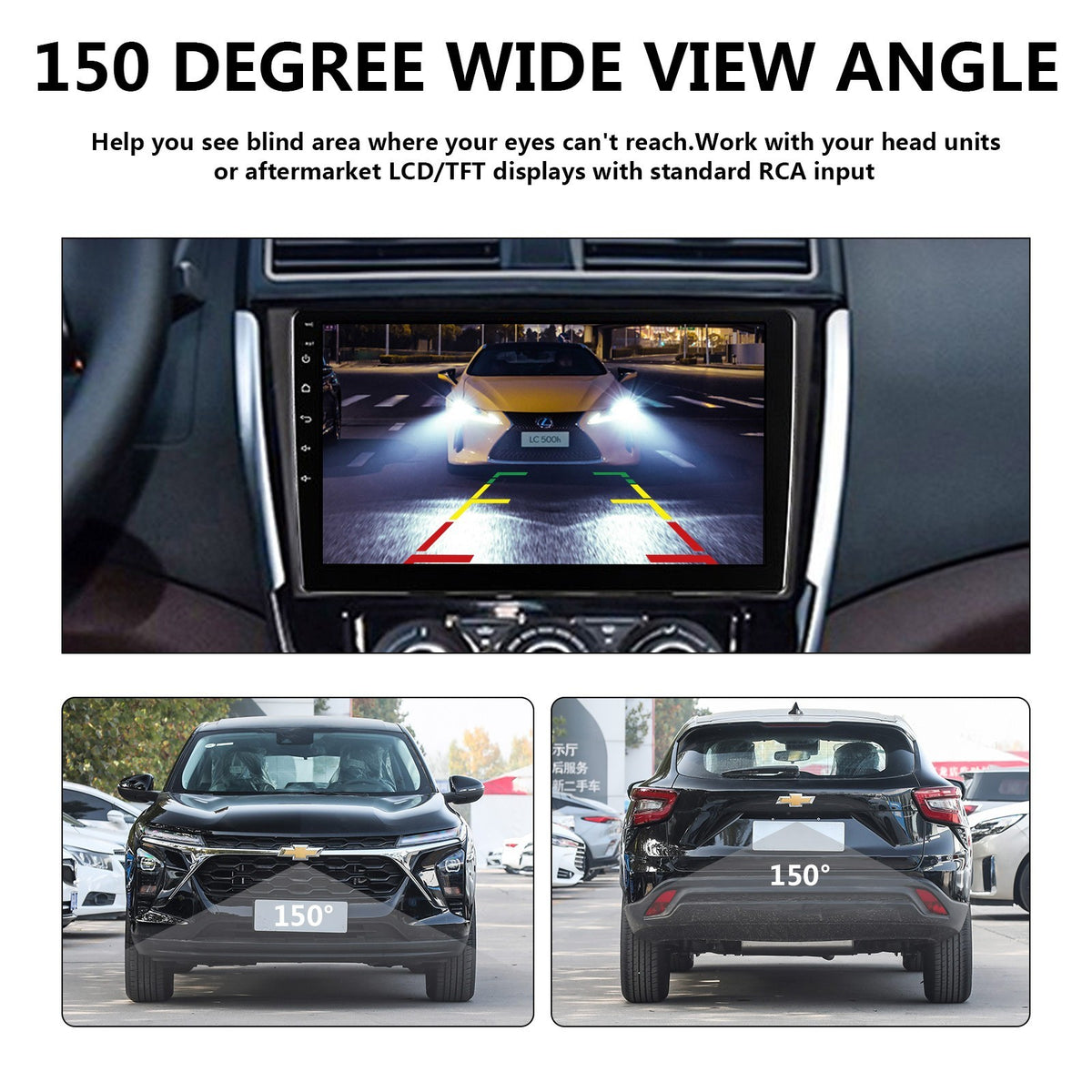

150° Wide Viewing Angle

The wide-angle lens helps reduce blind spots and lets you see areas your mirrors may miss.

Works with head units or aftermarket LCD/TFT monitors with standard RCA input.

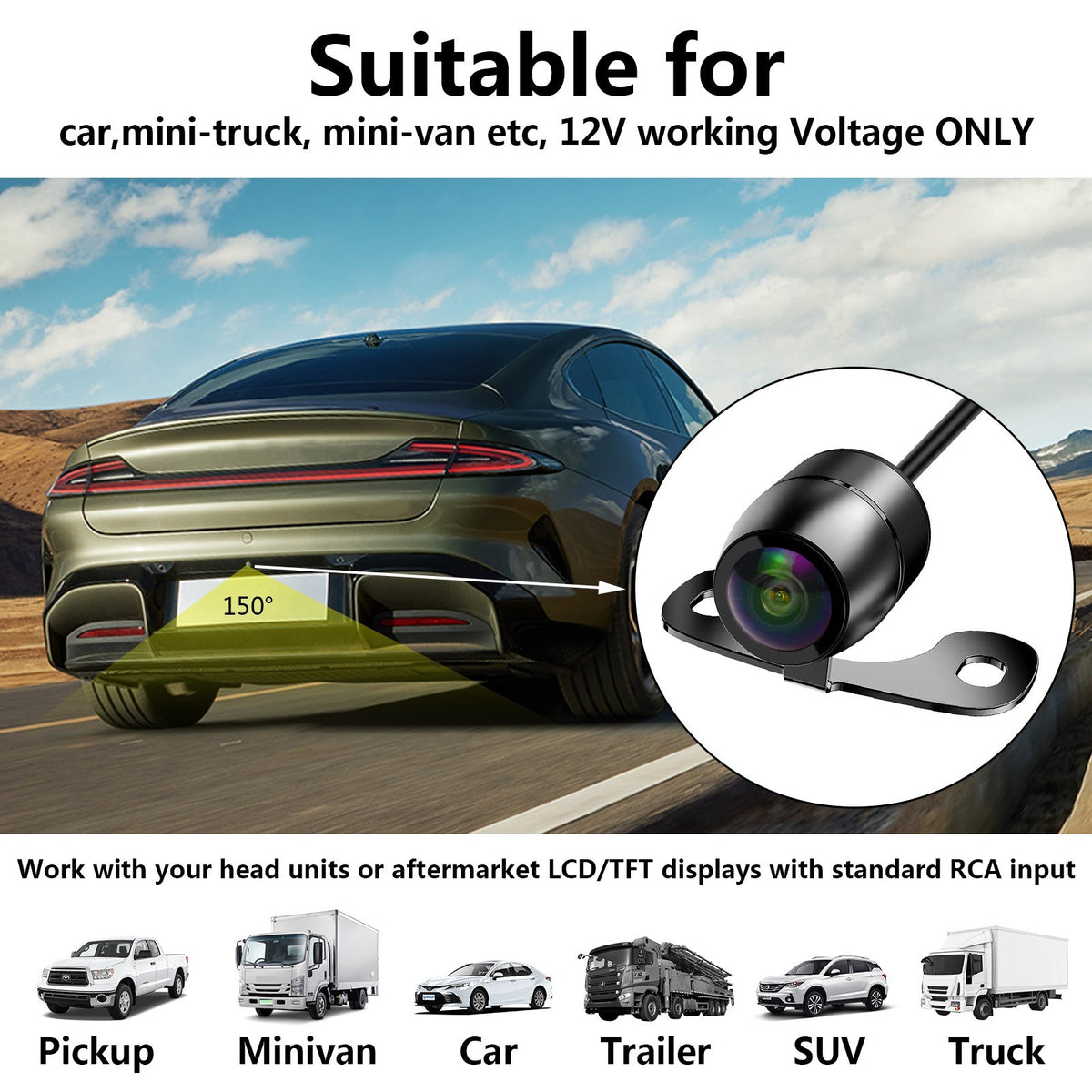

Suitable for a wide range of 12V vehicles, including cars, vans, mini trucks, SUVs, camper vans, and more.

Specifications

• Color: Black
• Image sensor: 1/4" CMOS
• Viewing angle: 150°
• TV system: NTSC/PAL
• Waterproof rating: IP68
• Effective pixels: 733(H) × 493(V)
• Resolution: 480 TV lines
• Horizontal sync frequency: 15.625 kHz
• Scanning system: 2:1 interface
• Sync system: Internal
• AGC: Auto
• BLC: Auto
• S/N ratio: More than 48 dB
• Current consumption: ≤150 mA
• Minimum illumination: 0.1–0.5 Lux / F=1.2
• Power supply: DC 12V

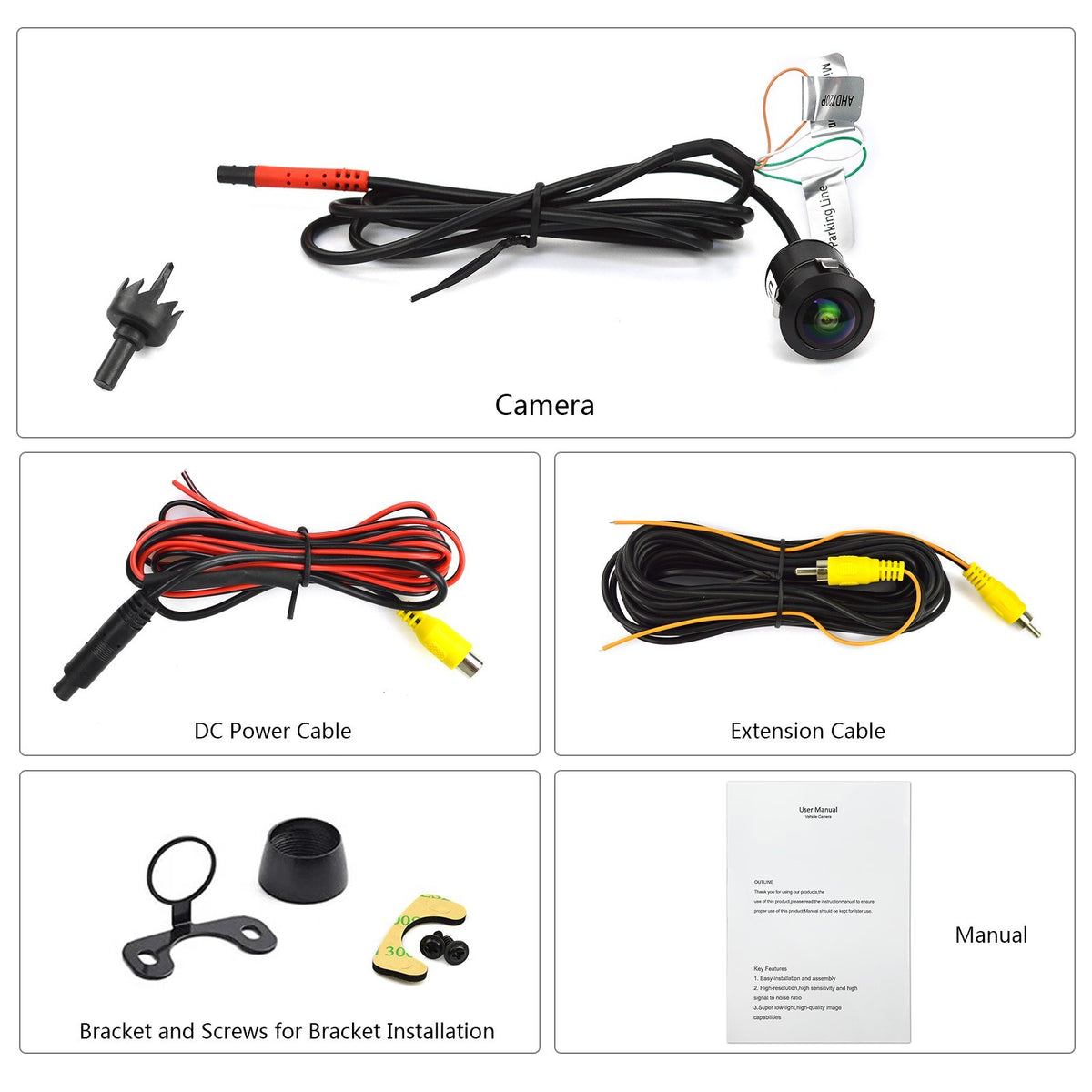

Package Includes

• 1 × Car front/side/rear camera
• 1 × 8 m RCA video cable
• 1 × DC power cable
• 1 × Hole saw
• 1 × Mount bracket
• 2 × Screws
• 1 × Manual
