Universal Rear Brake Light Reversing Camera for Coachmen RV Class C &7" Monitor

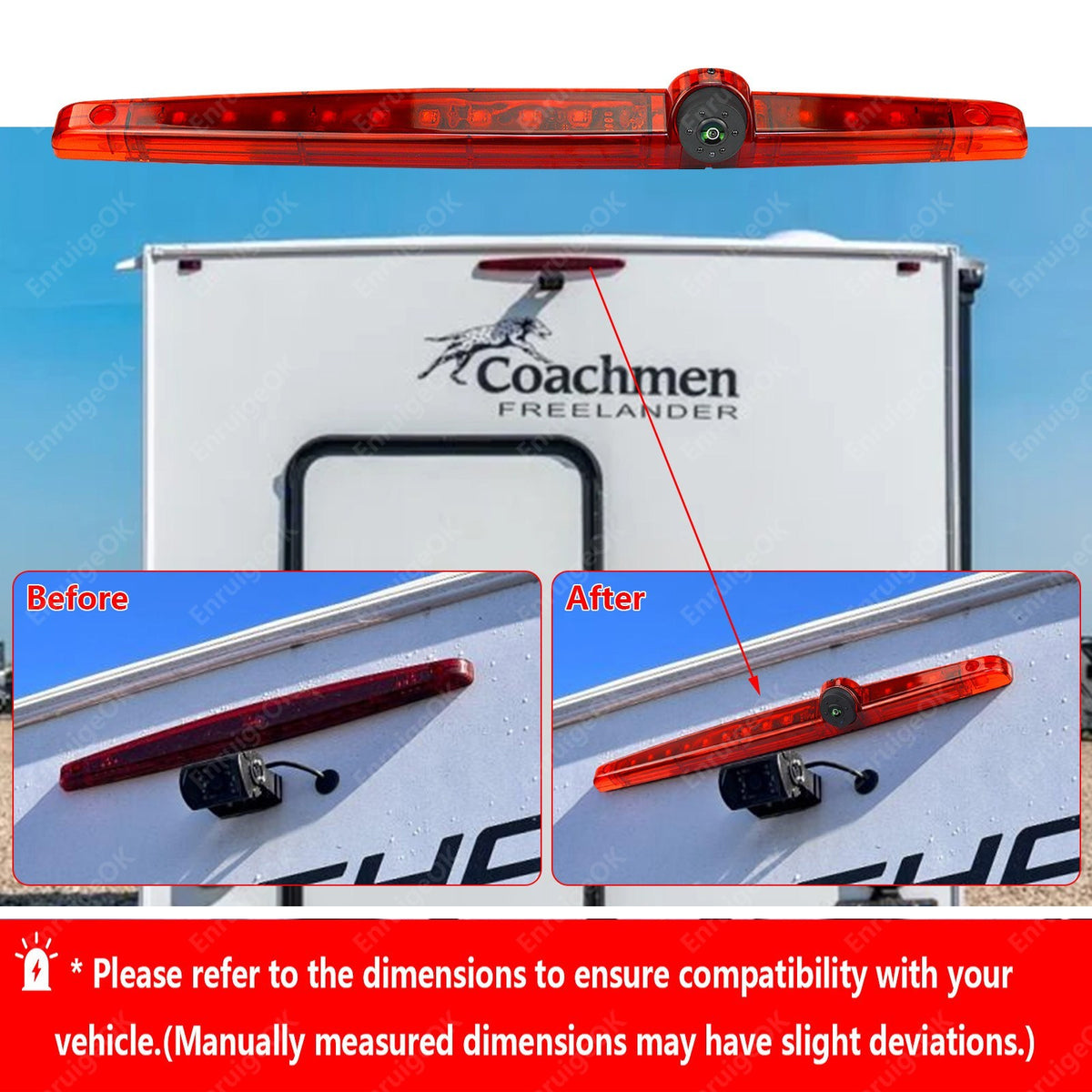

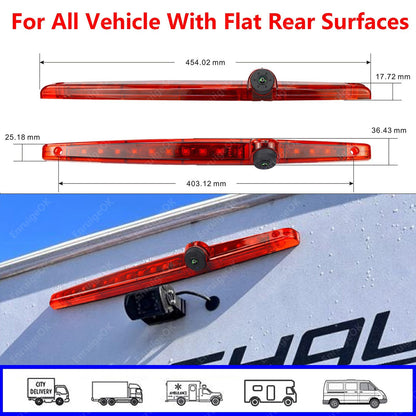

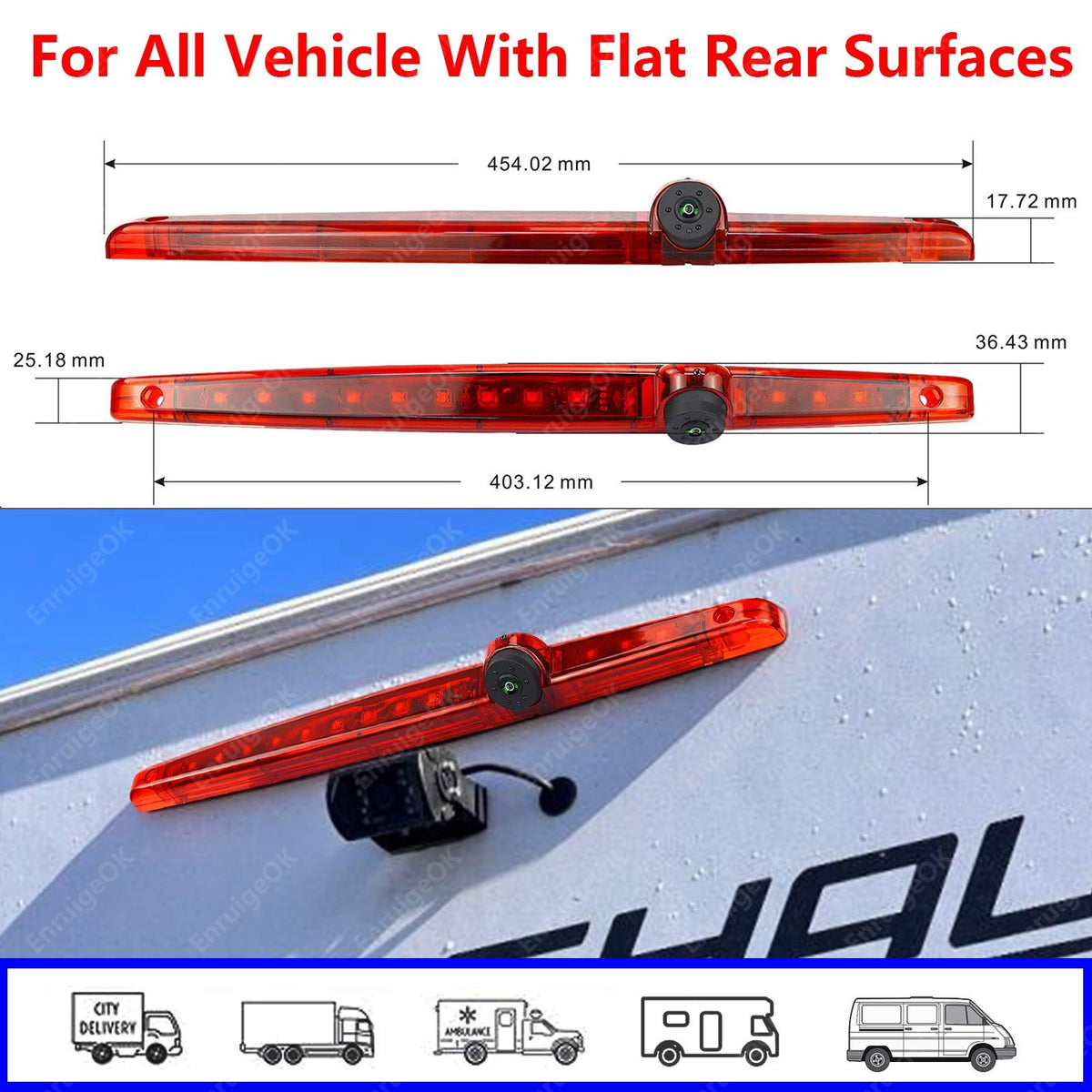

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK High Roof Mount Rear Brake Light Reversing Camera Kit for Coachmen RV Class C — Leprechaun / Freelander — Chevy 4500 / Ford 450 Camper, Trailer, Motorhome, LED Tail Light Lamp Reverse Camera for Travel Trailer, Pickup, RV, Camper, Motorhome

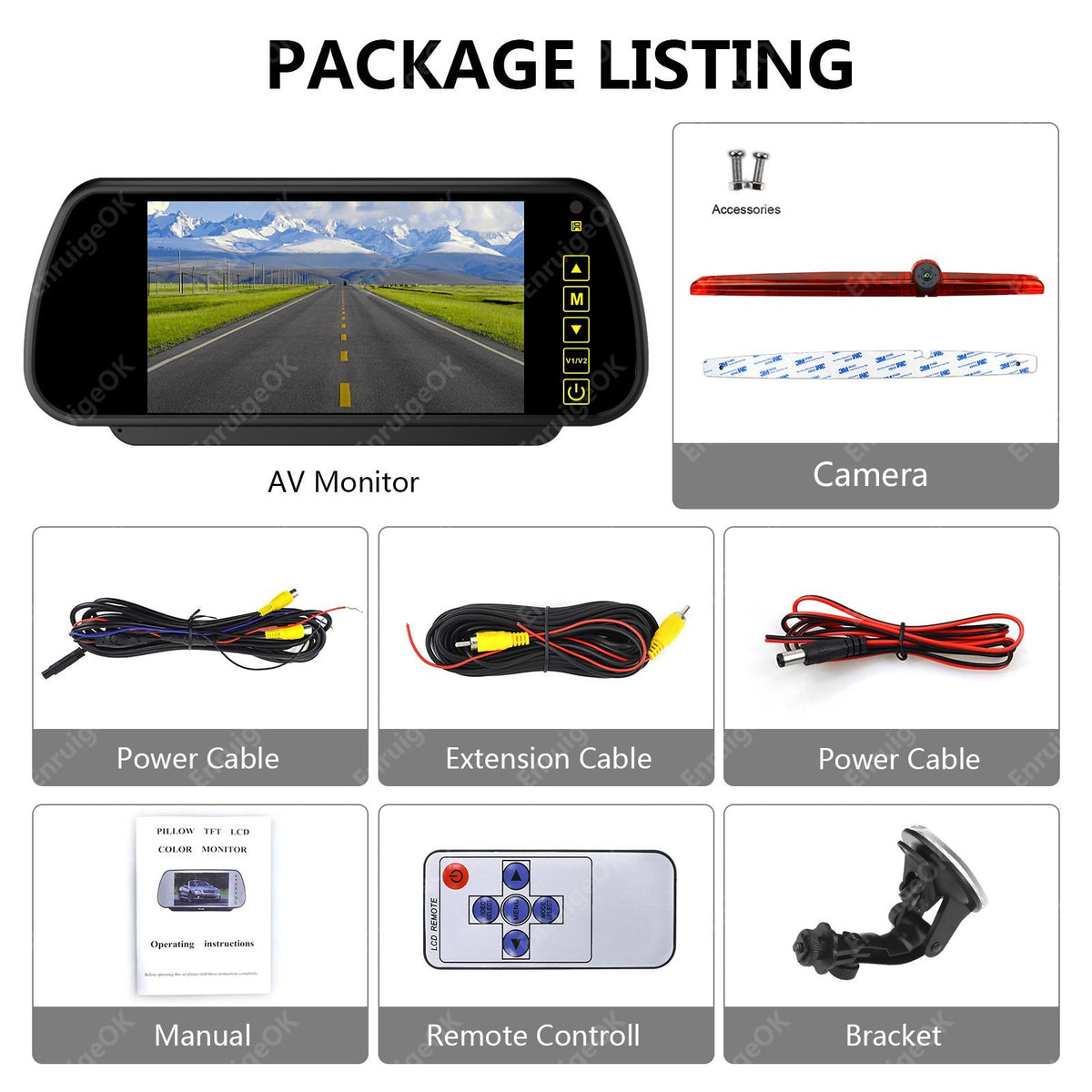

Package contents

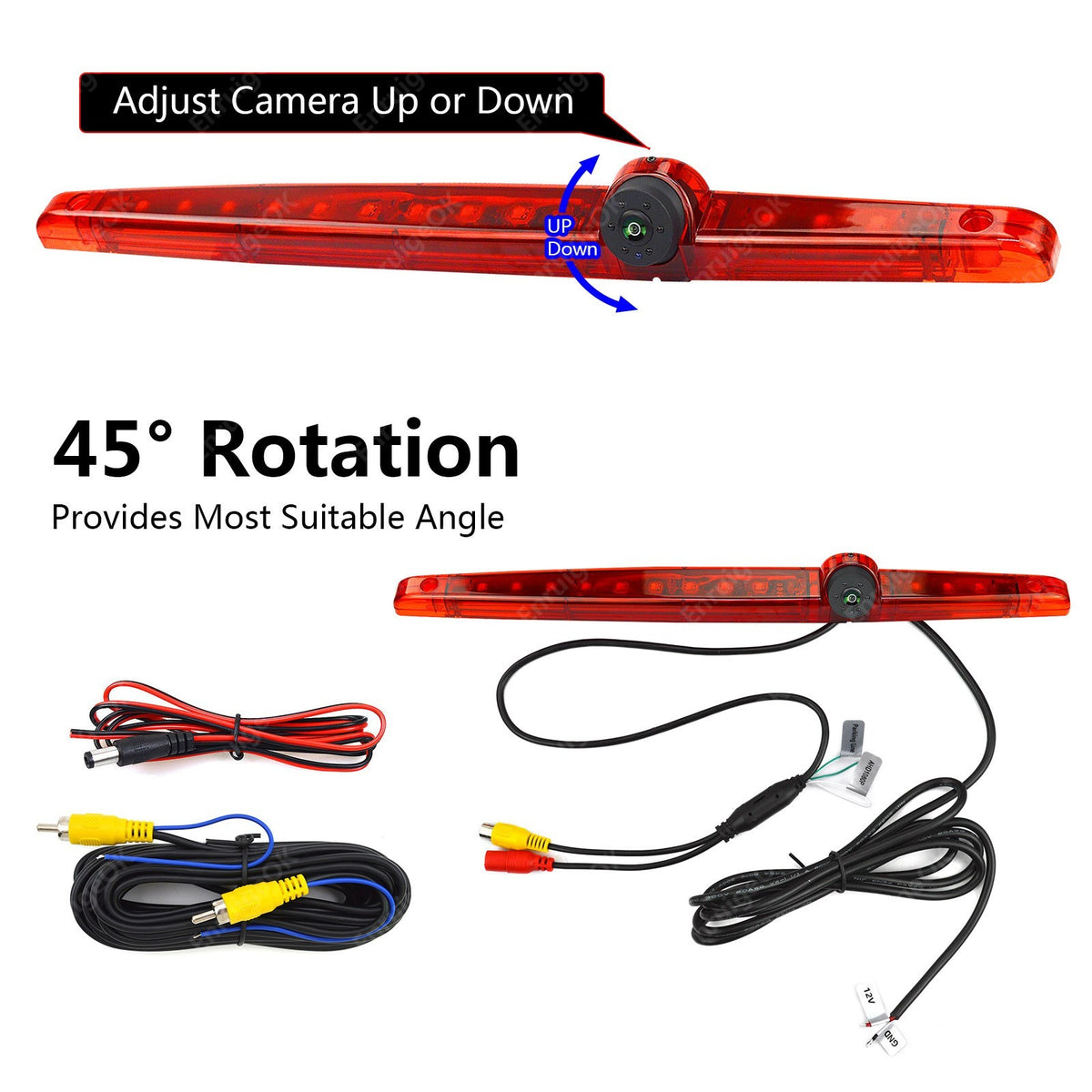

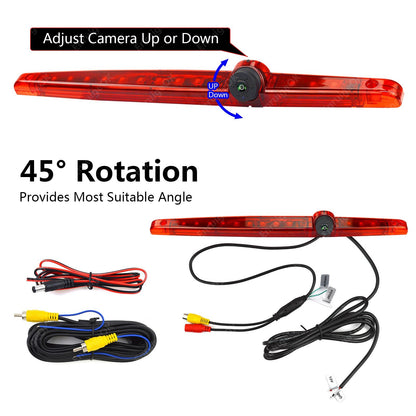

1 X Brake light reversing camera

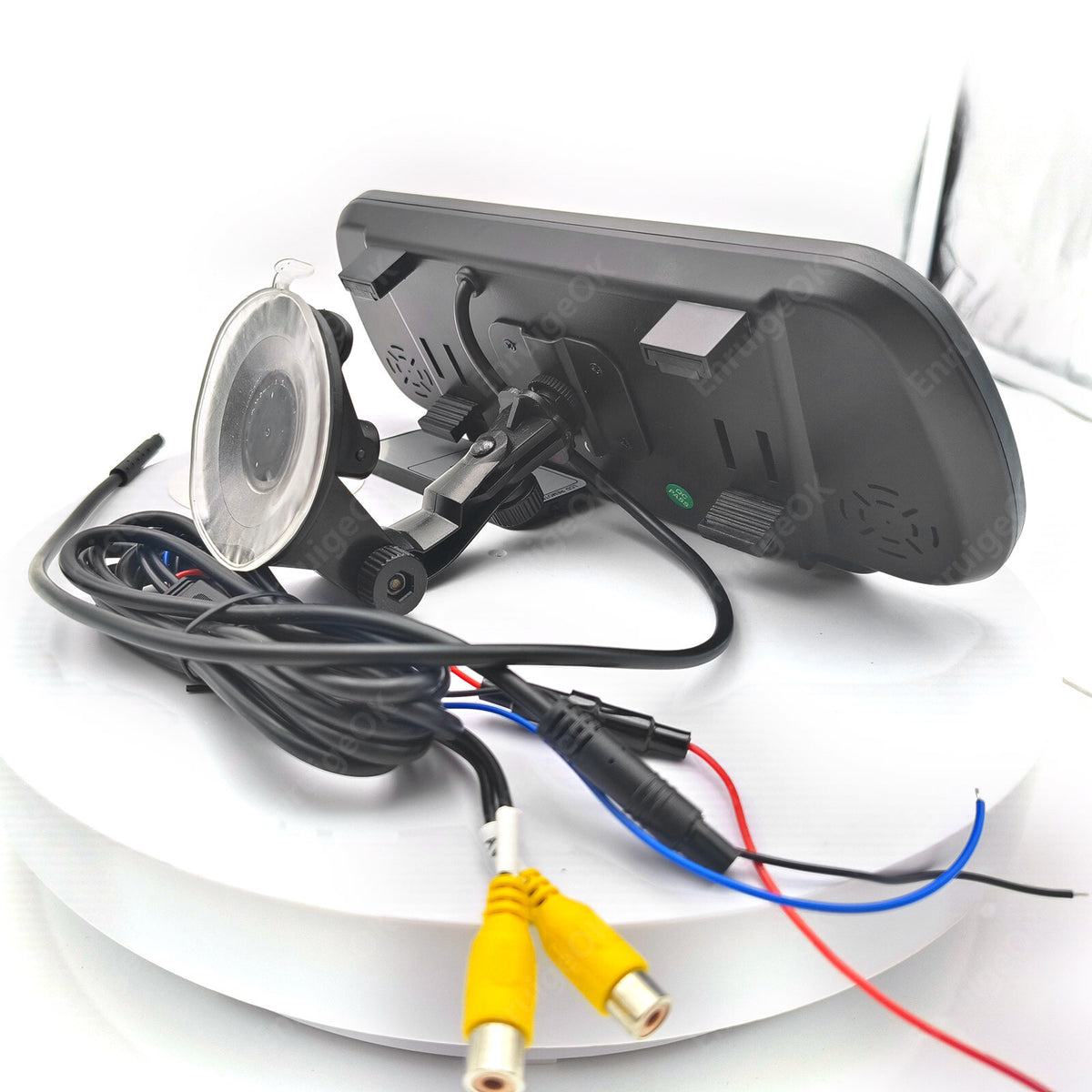

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

1 X 10m/33ft. video extension cable

1 X 1m DC Power cable

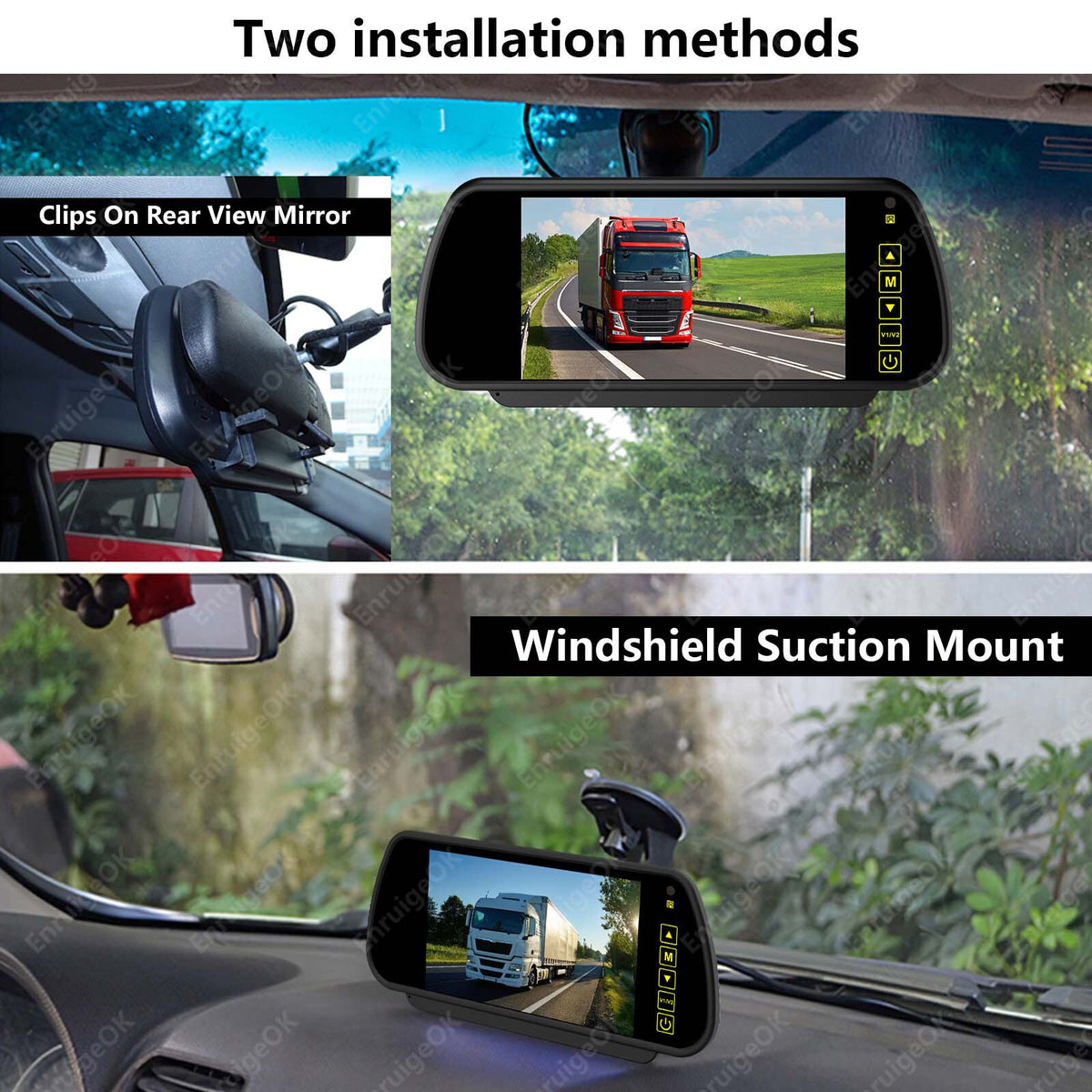

1 X Suction cup mount stand

1 X Manual

Description

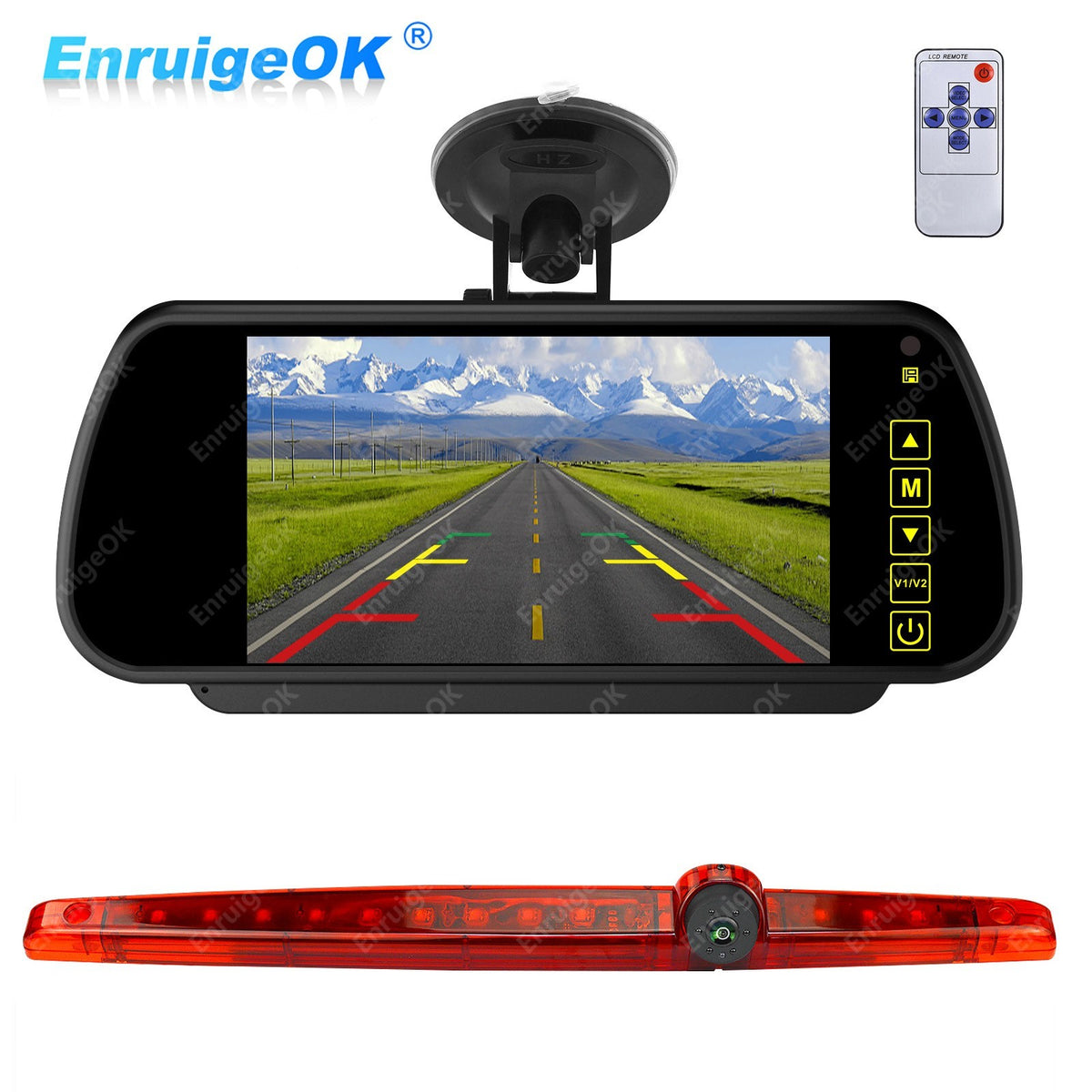

It includes a backup camera and 7" TFT-LCD monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

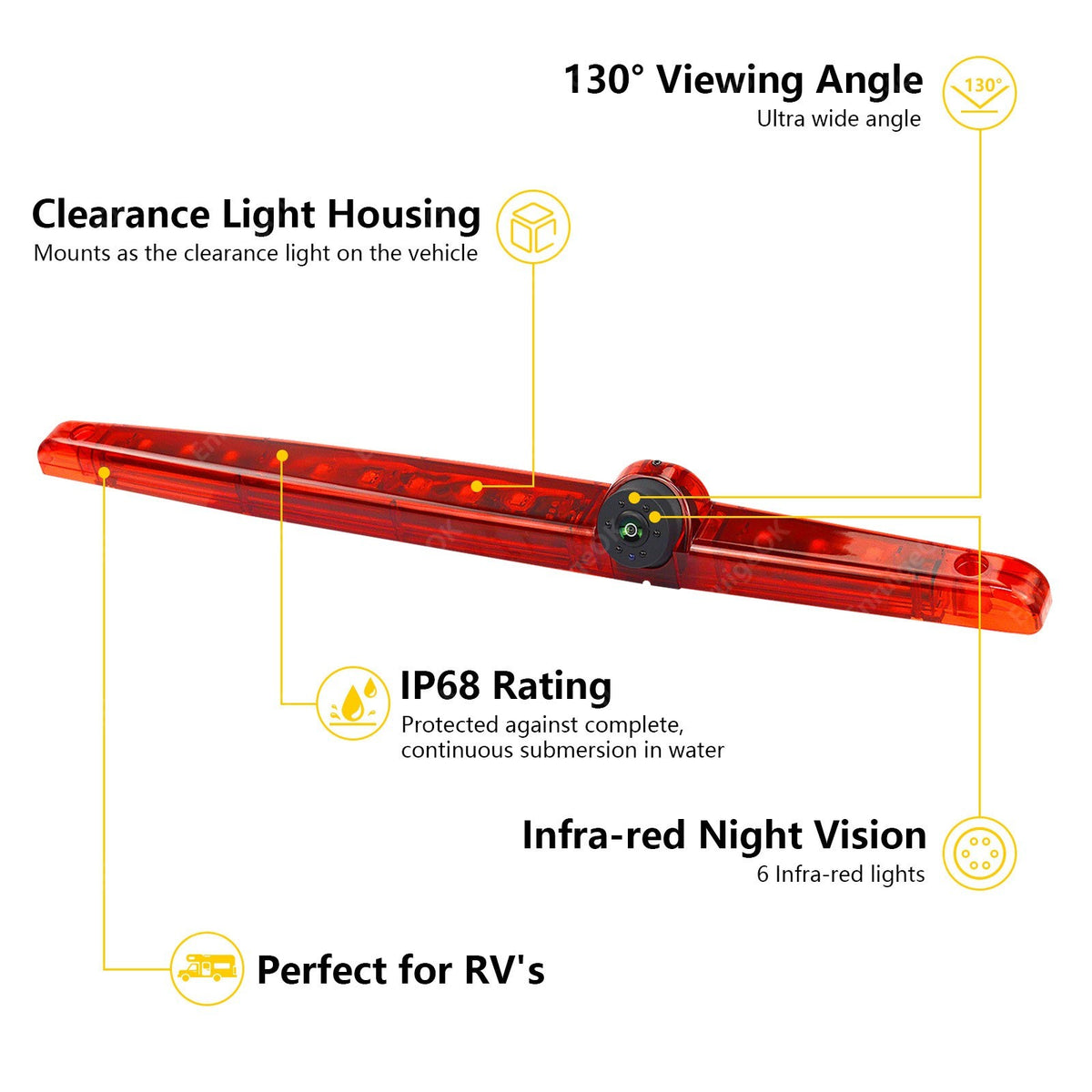

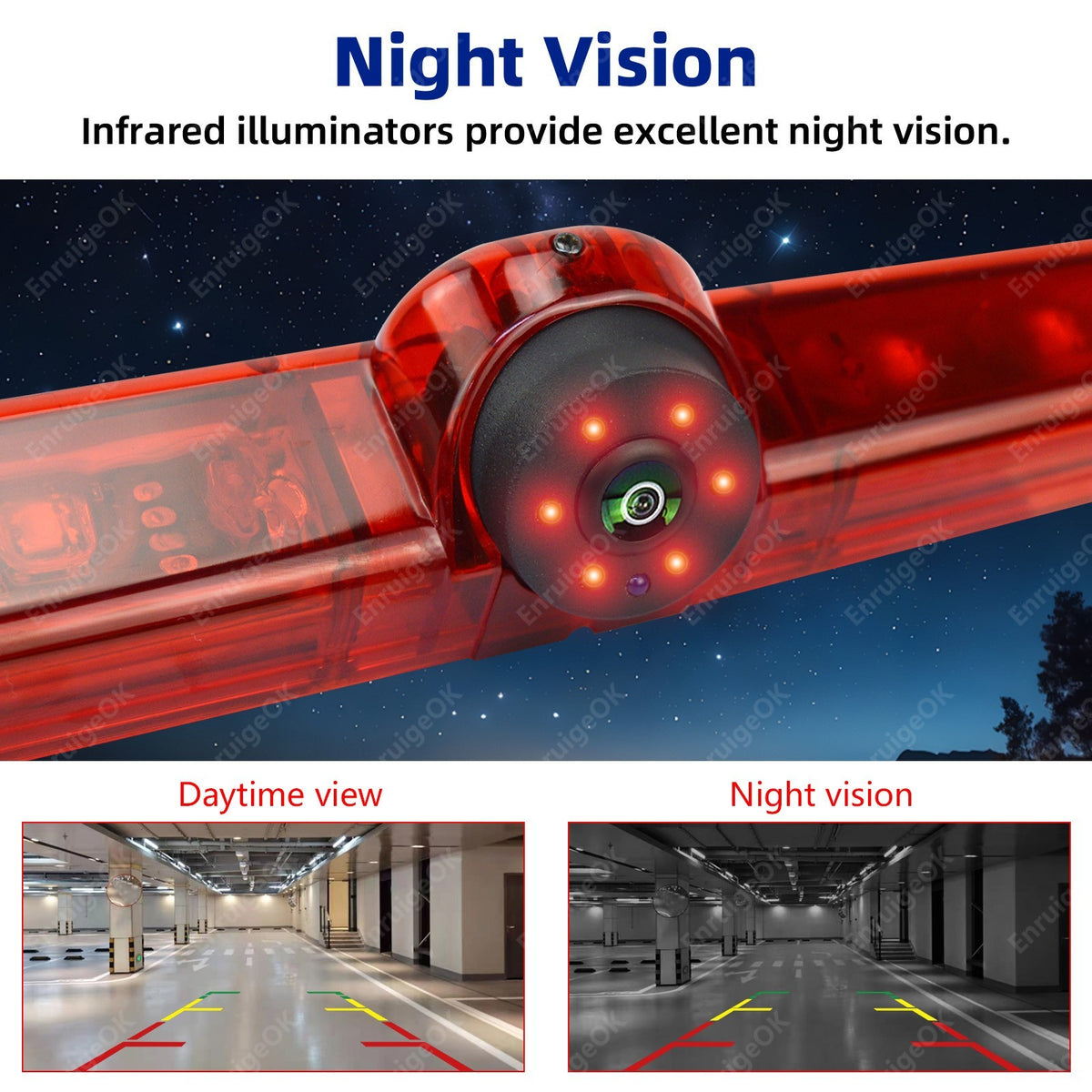

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

Horizontal Viewing Angle: With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

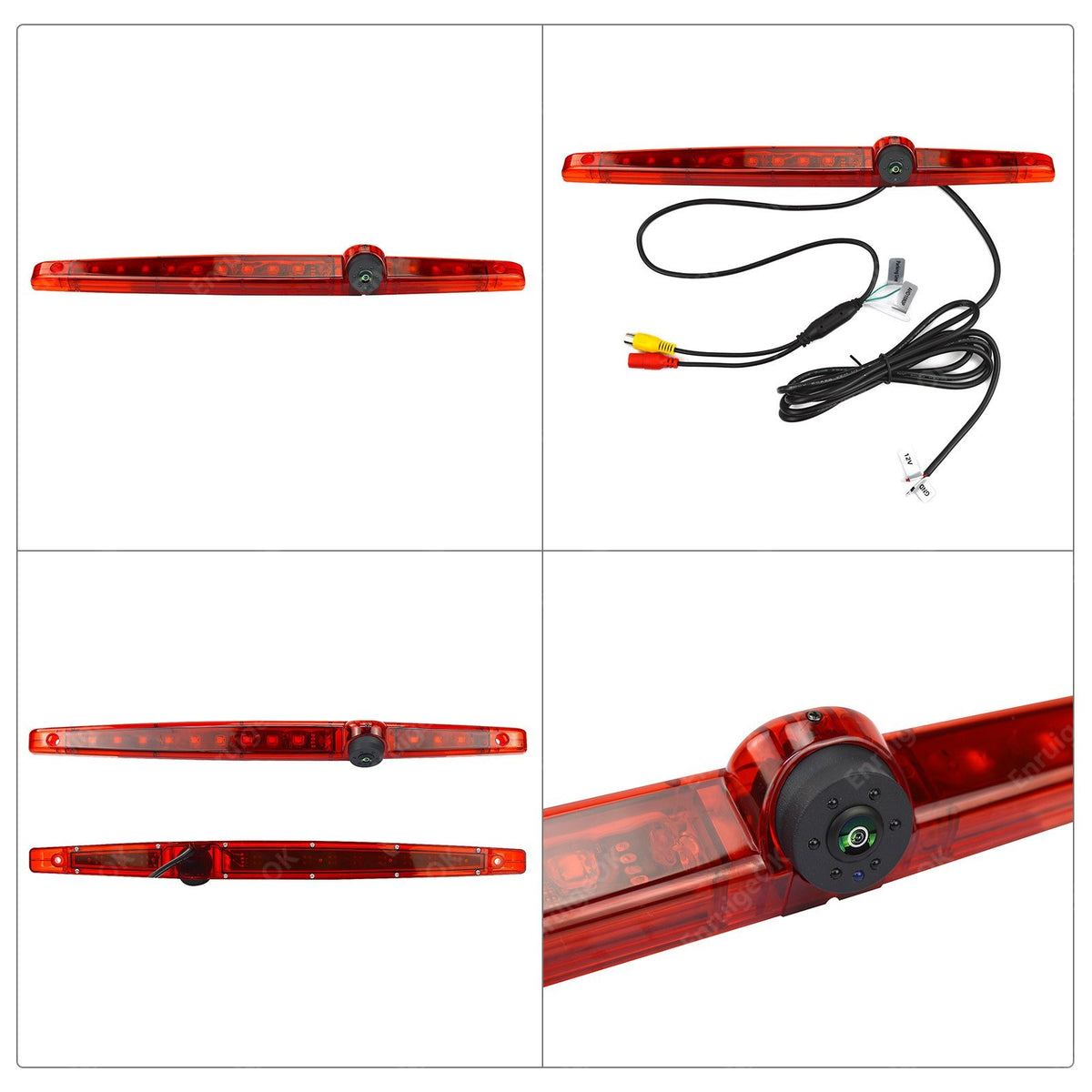

Camera Specifications

Image sensor: Colour CMOS

Effective pixel: 733(H)x493(V)

Resolution: CVBS 480TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +70℃

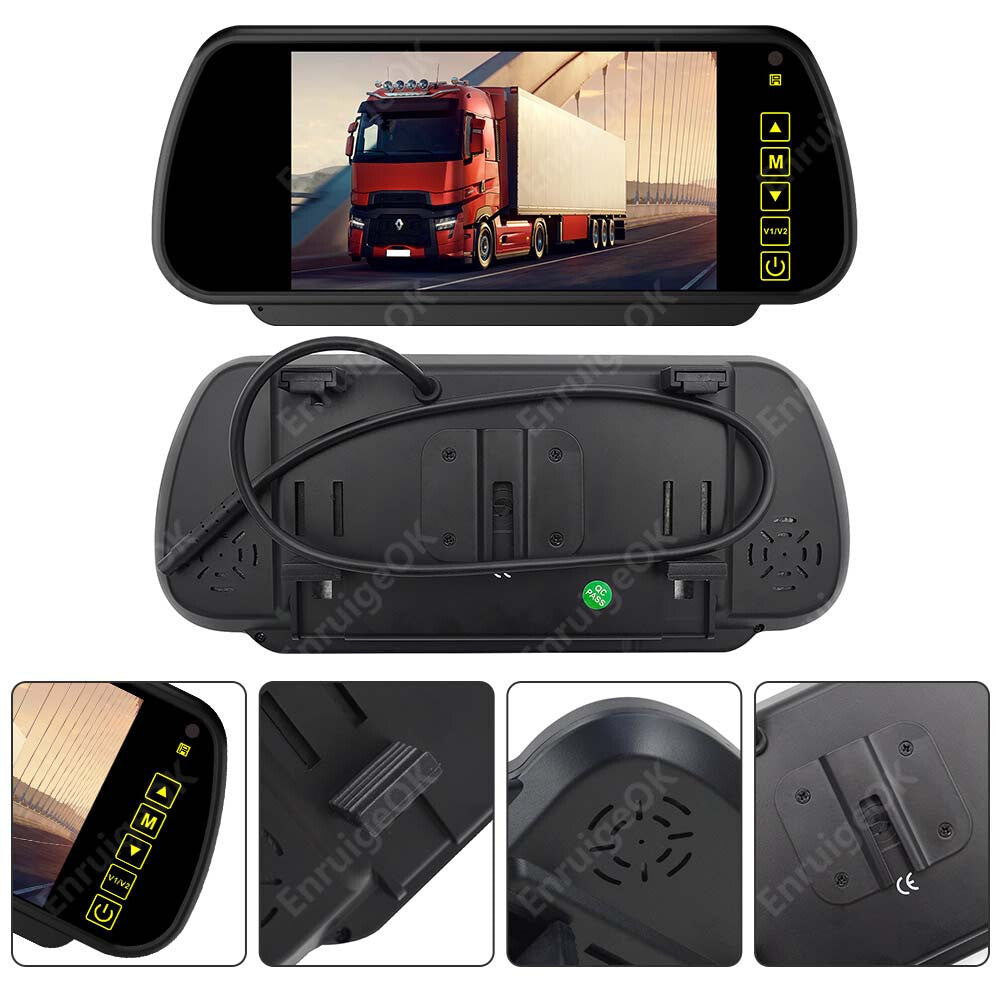

Monitor Specifications

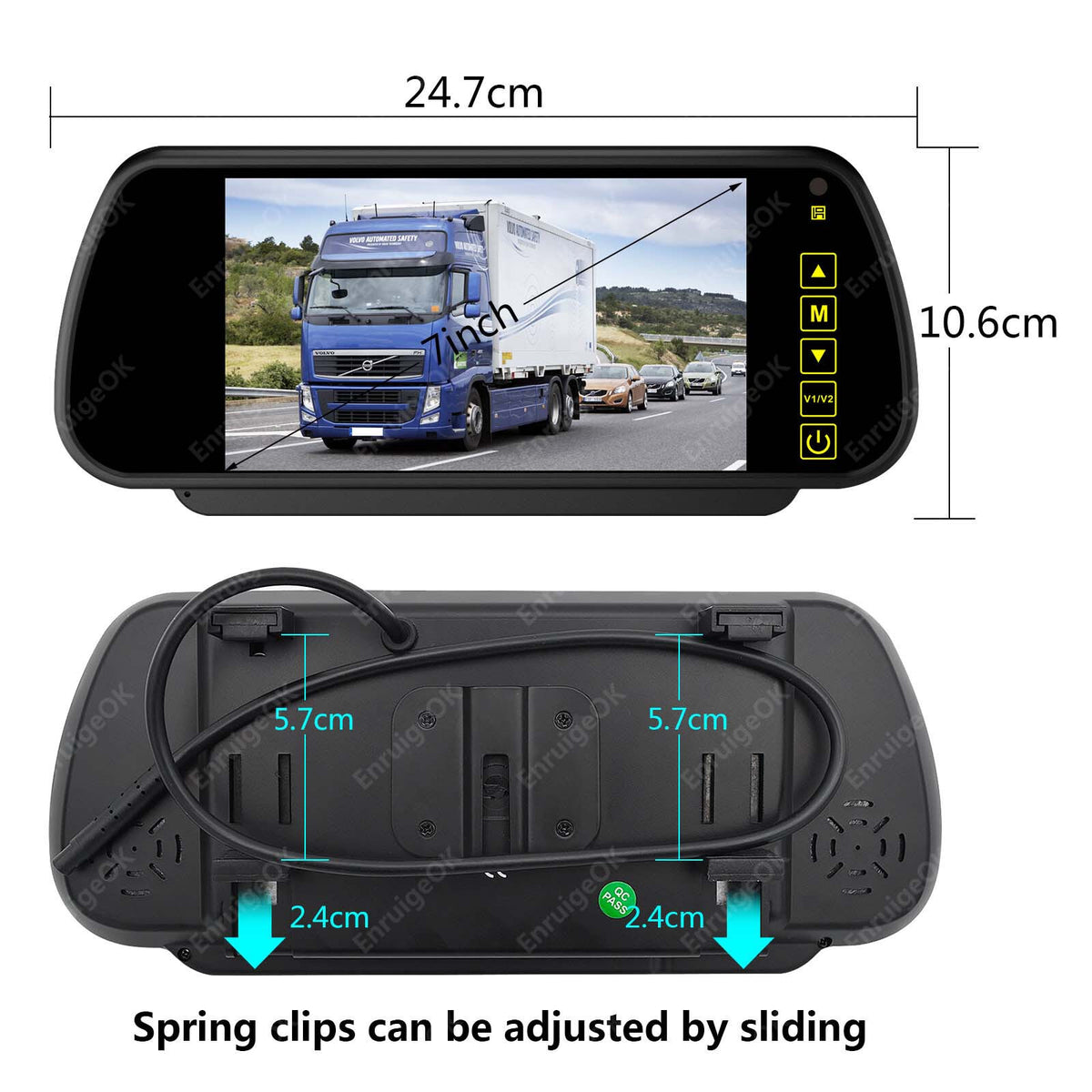

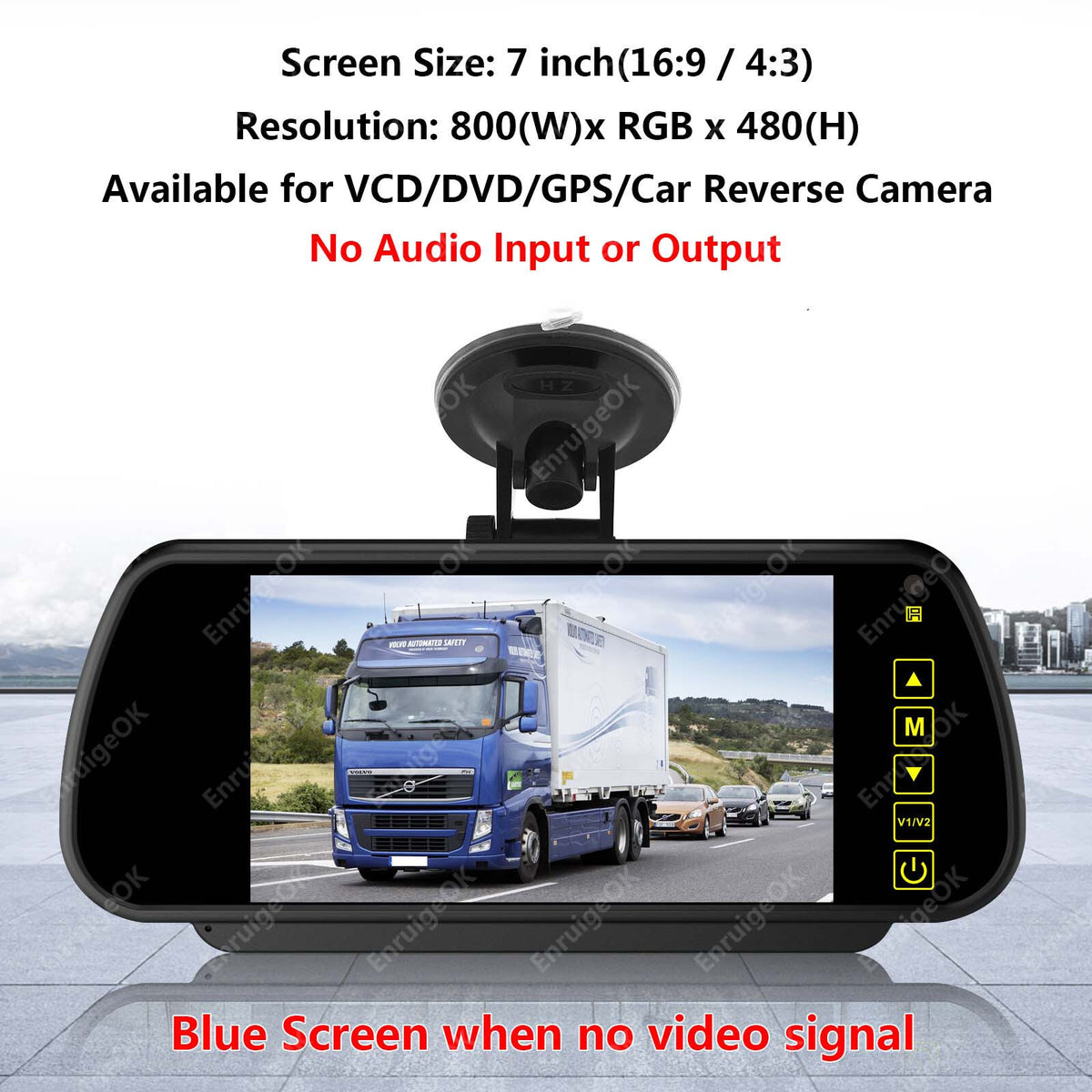

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

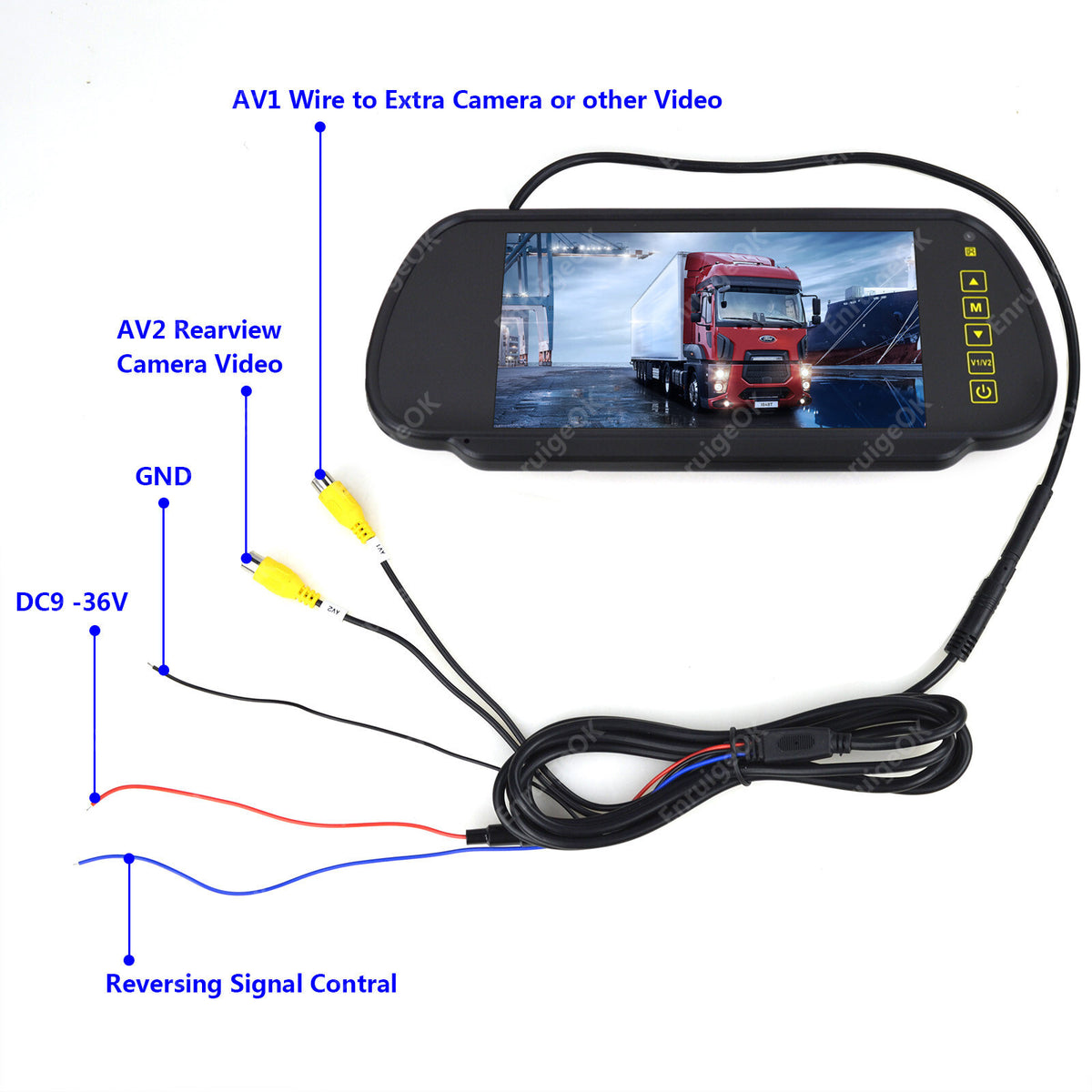

Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

Blue screen displayed when no signal is detected.

Parking Guidelines: Adjustable (ON/OFF via monitor settings).

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
