Universal High Level Brake Light Reversing Camera Kit for Vans Motorhomes

Description

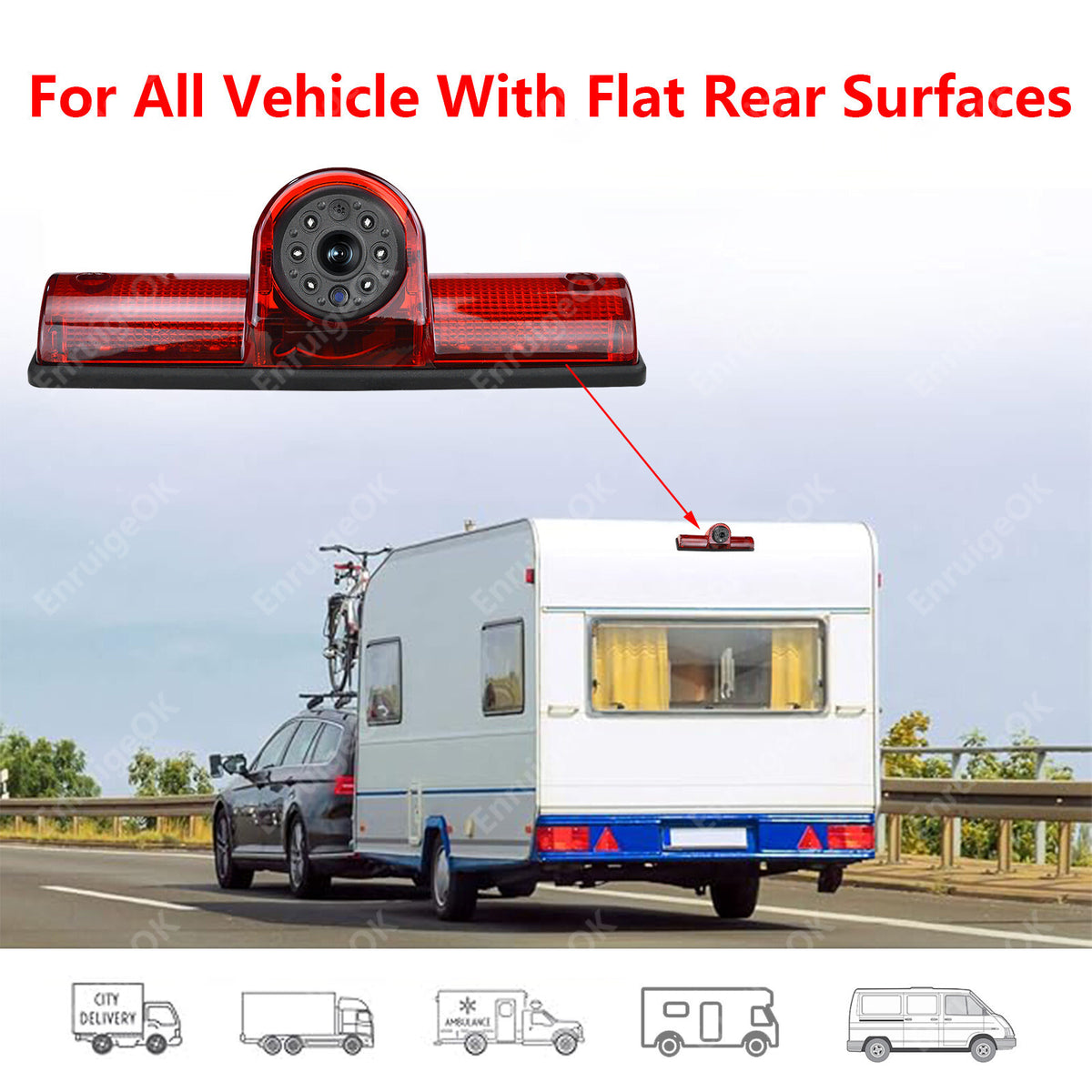

This Camera universal fit for all vehicles that have flat rear surfaces, such as cargo vans, motorhomes, and buses.

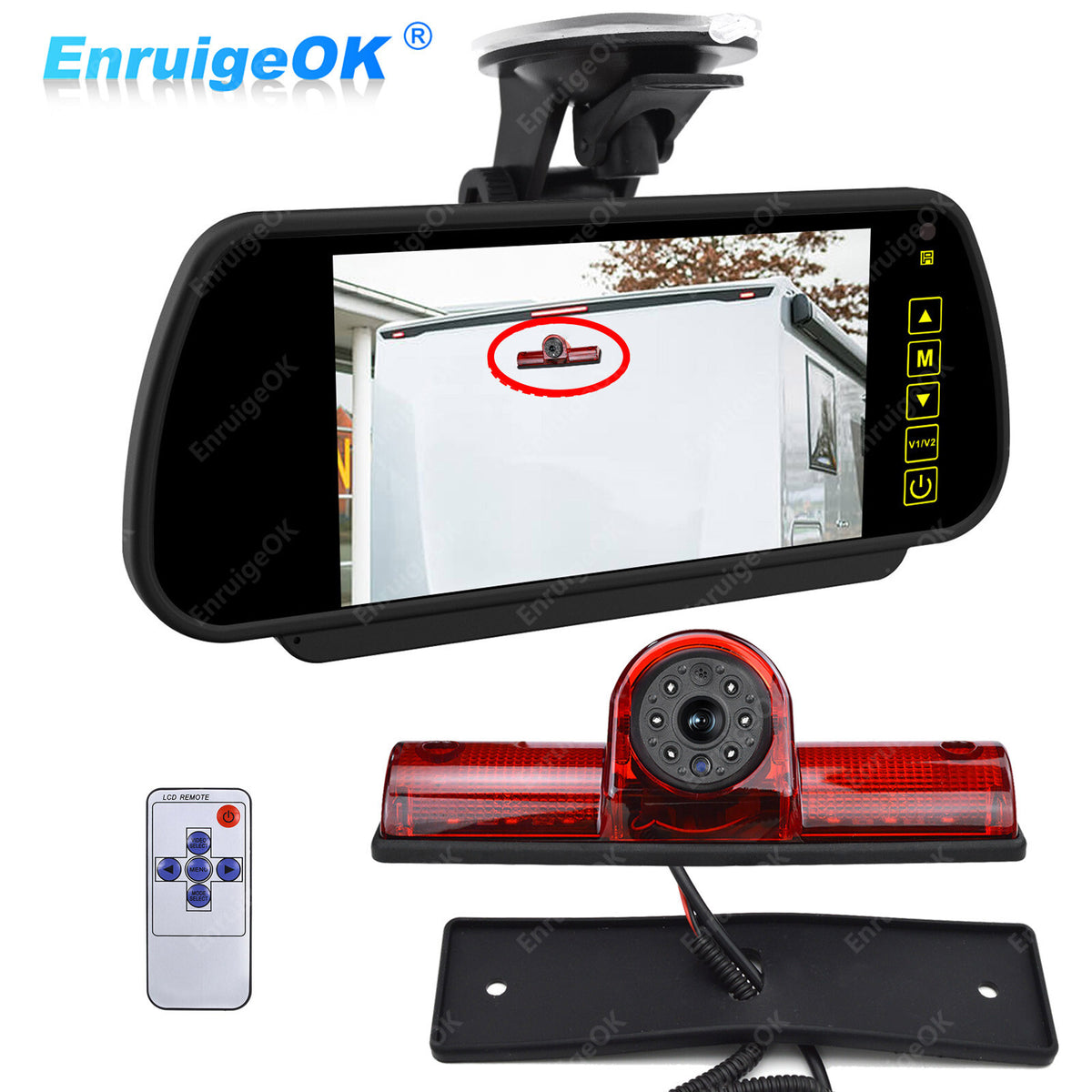

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

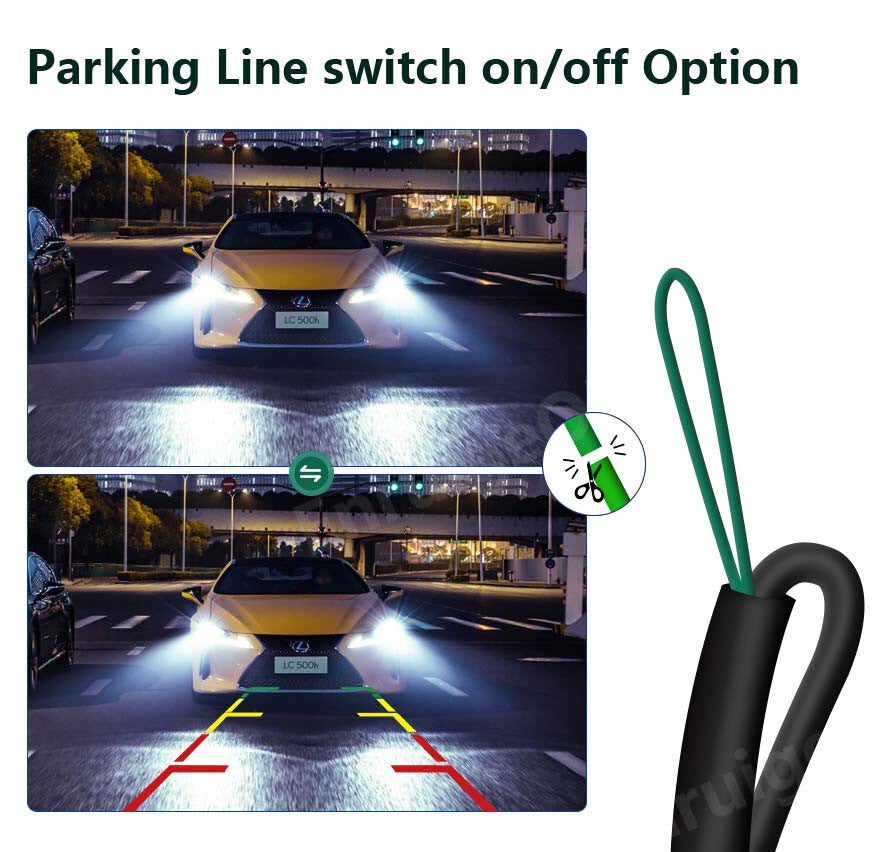

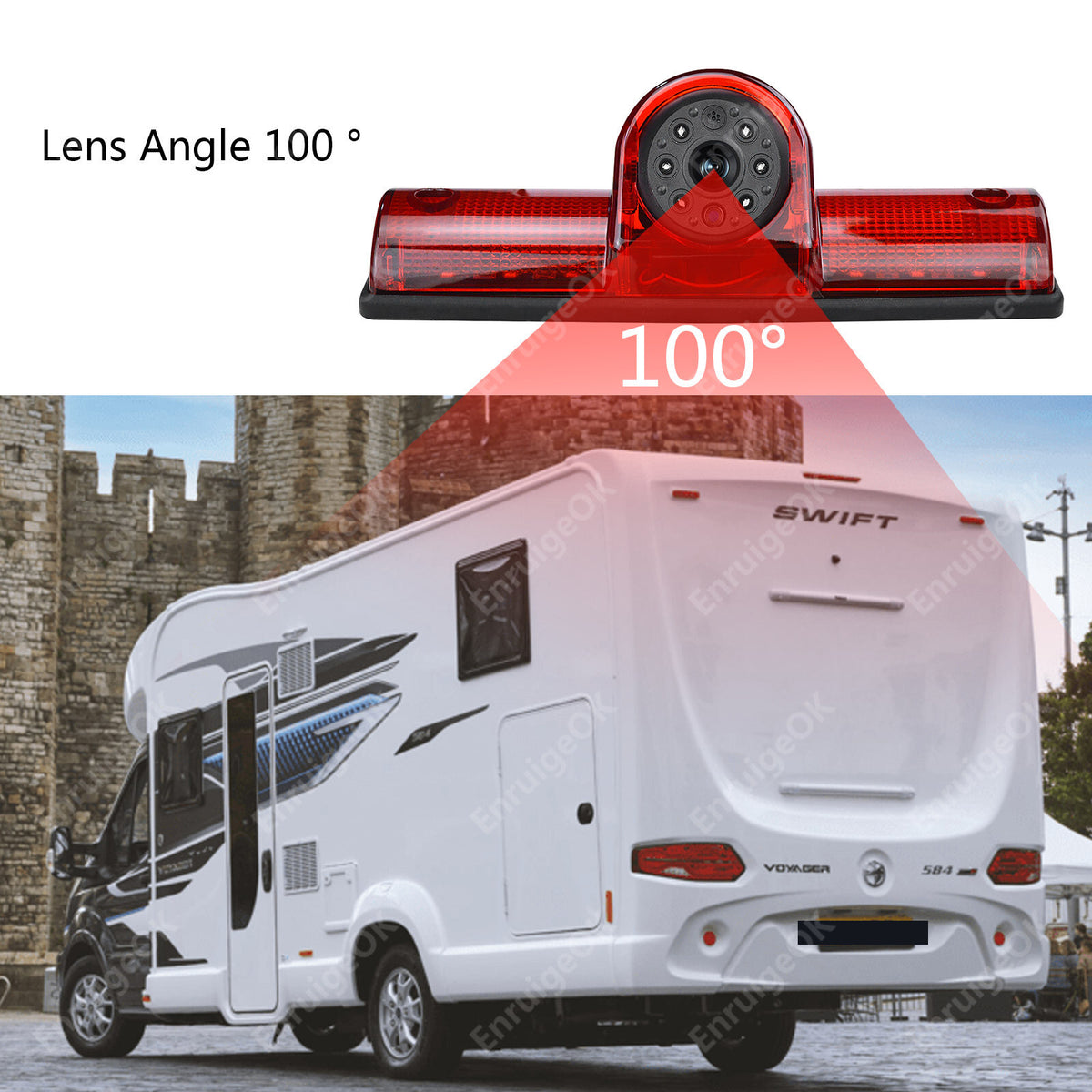

Rear backup camera through the 100° wide-angle camera device with parking line, the obstacle behind the car is clearly visible.

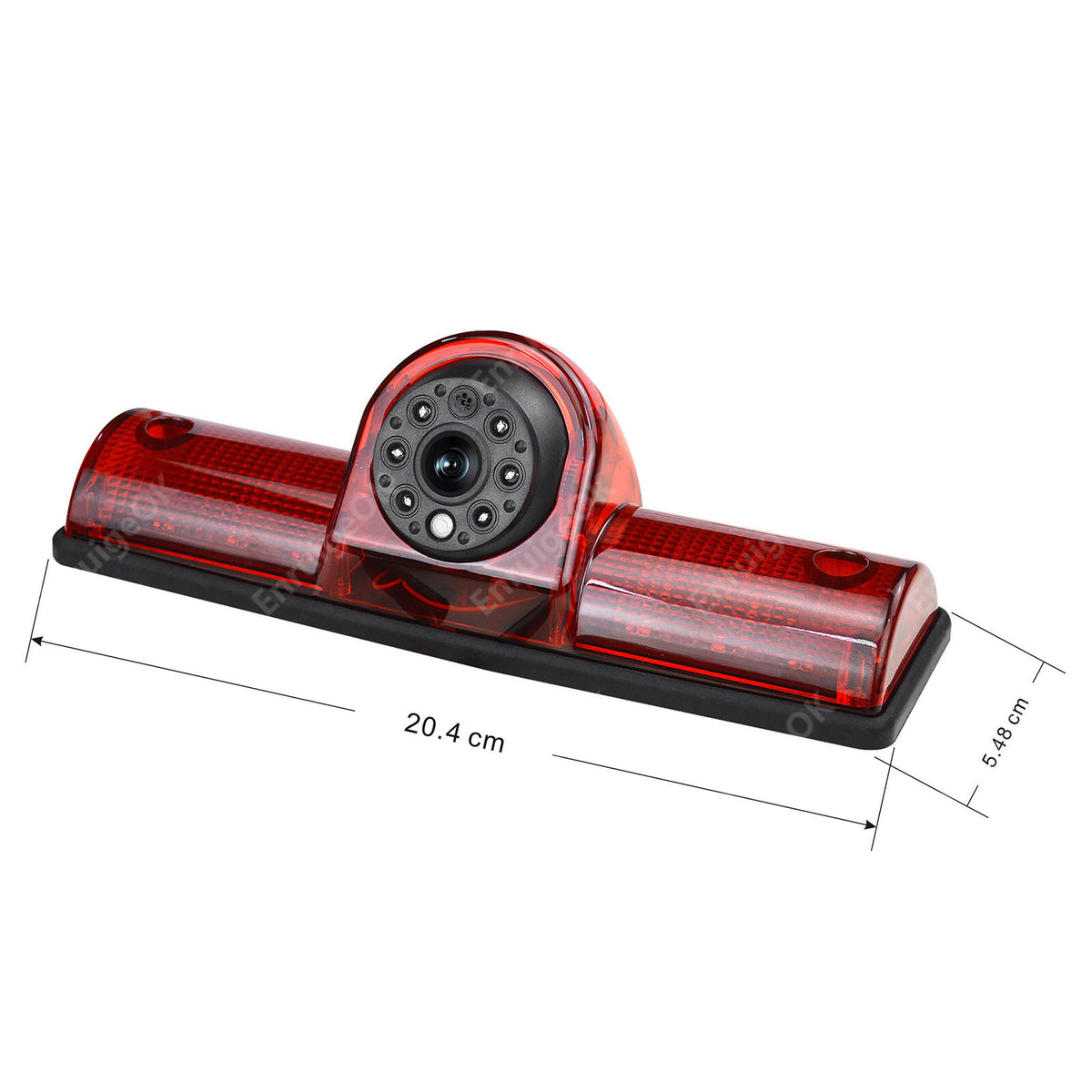

This brake light camera uses a 1/4" CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

Easy installation. You can connect the camera's power to reverse light, then connect the rearview camera to your radio screen or monitor by universal monitors (RCA) cable with Hi-definition color pictures, sensitive real-time and continuous.

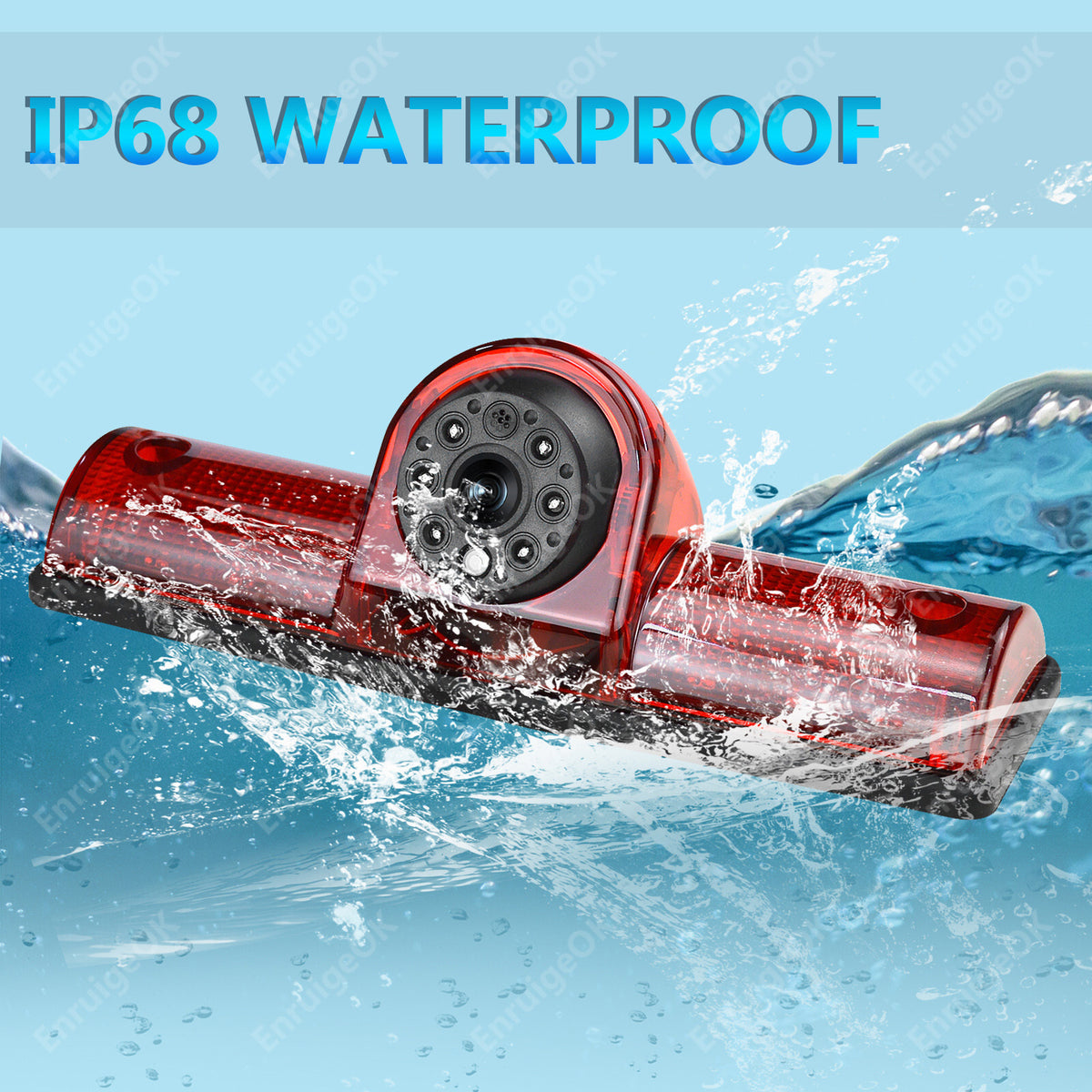

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

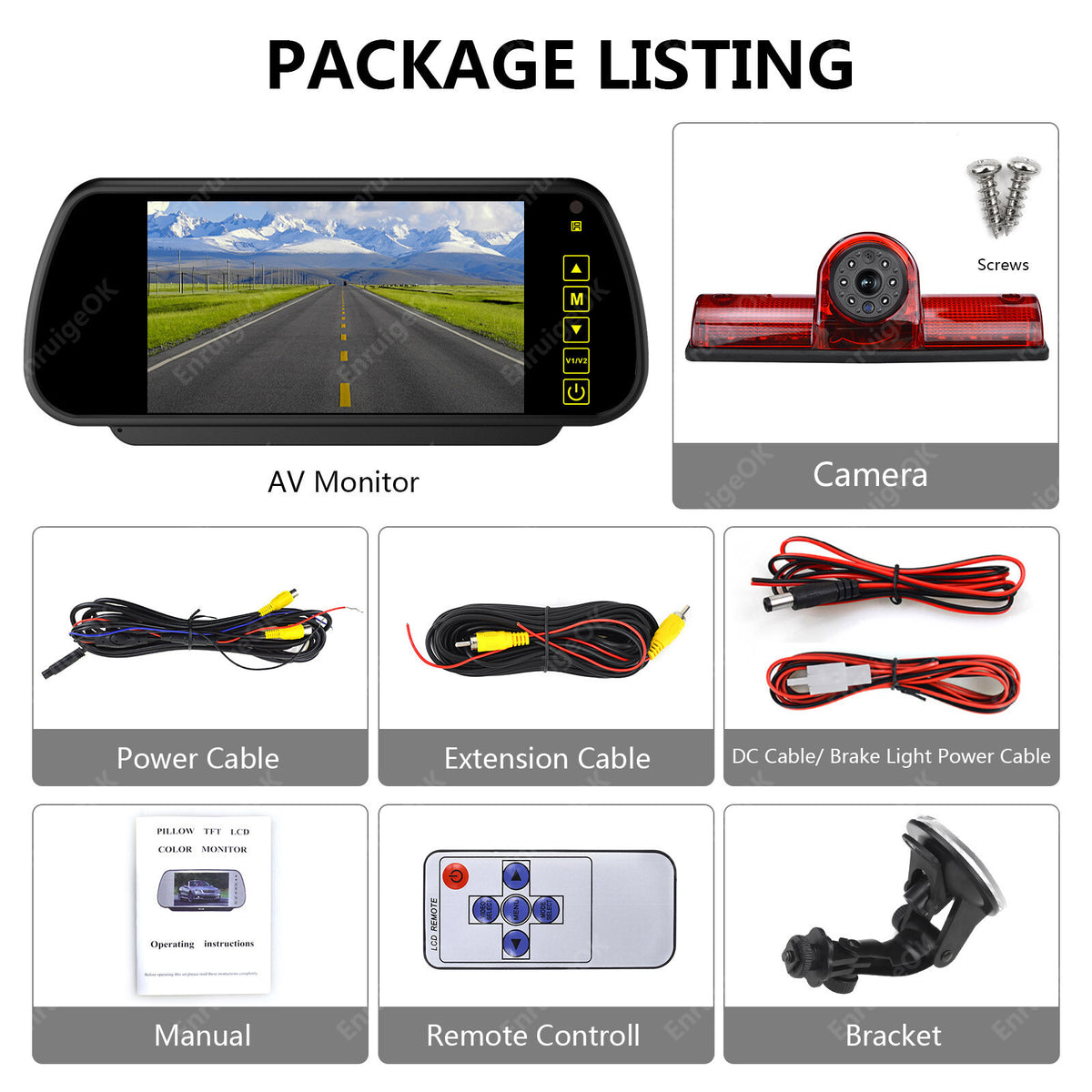

Package contents

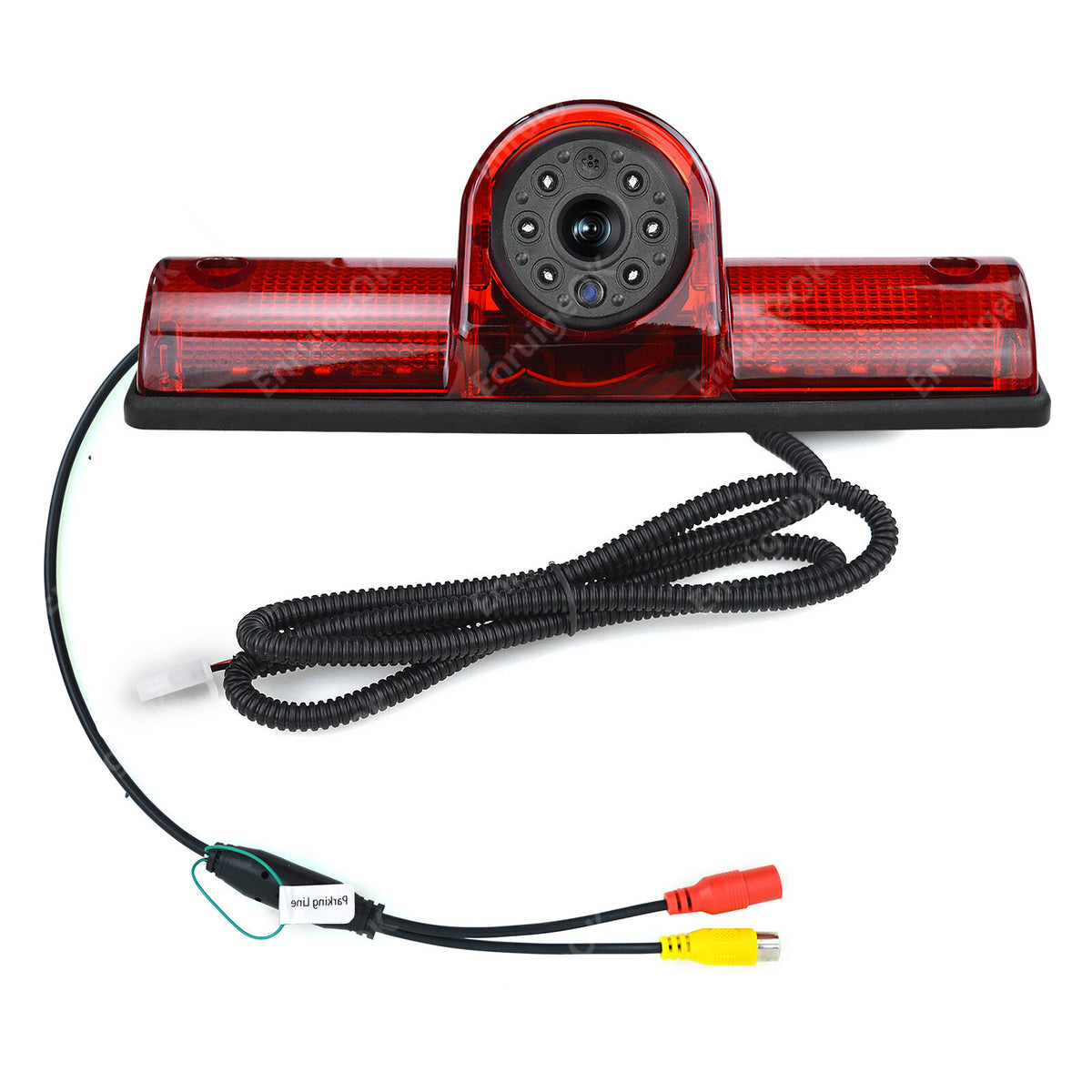

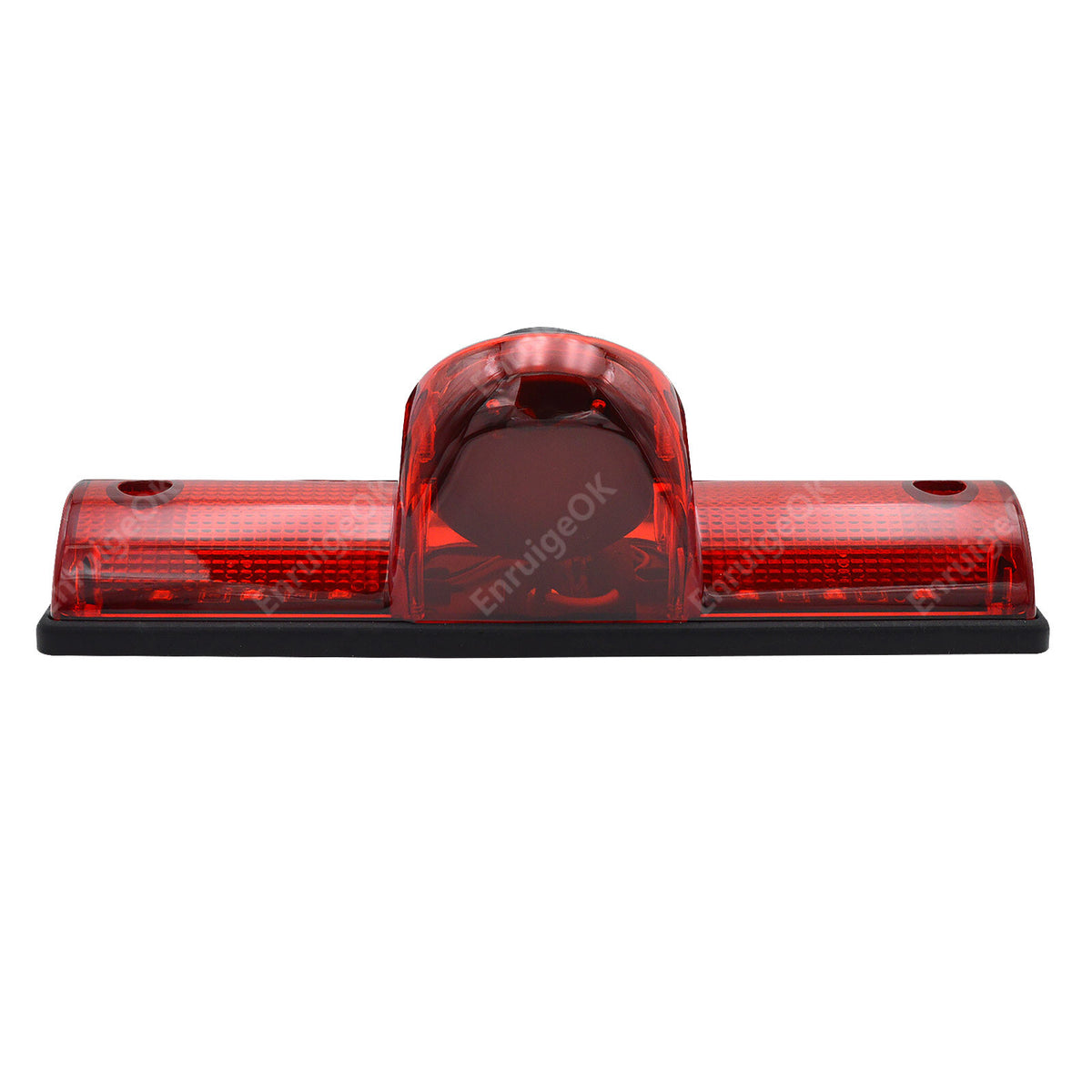

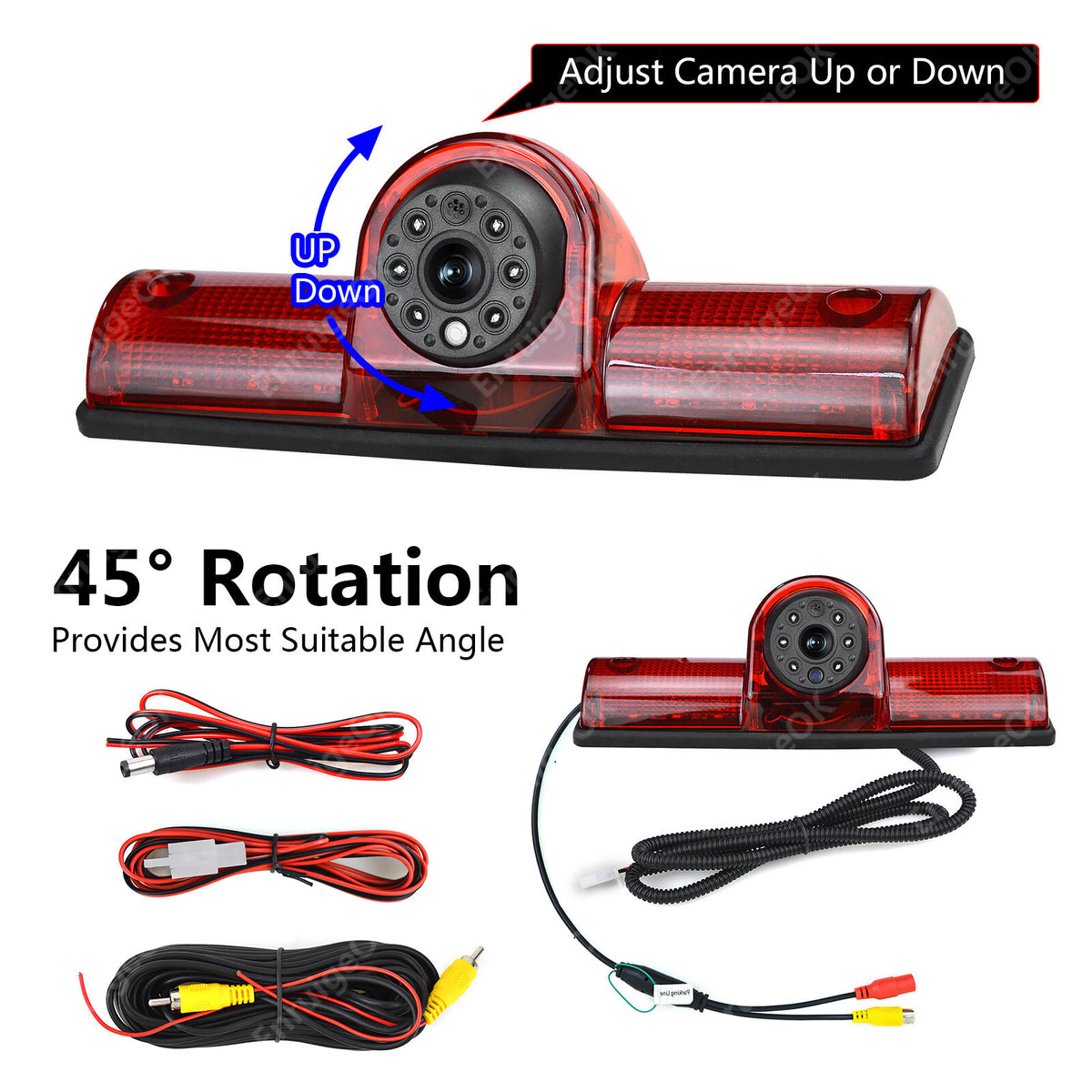

1 X Brake light camera

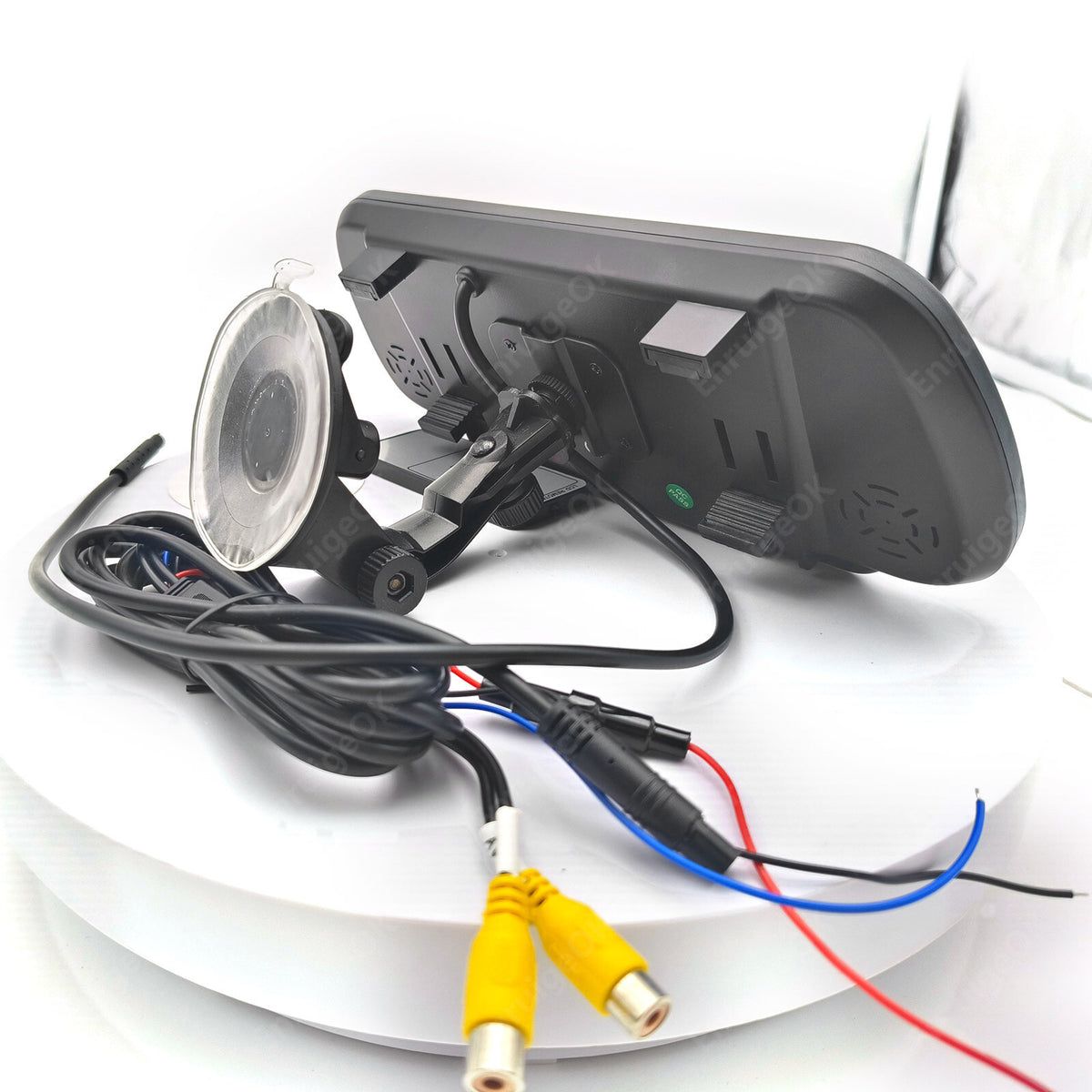

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

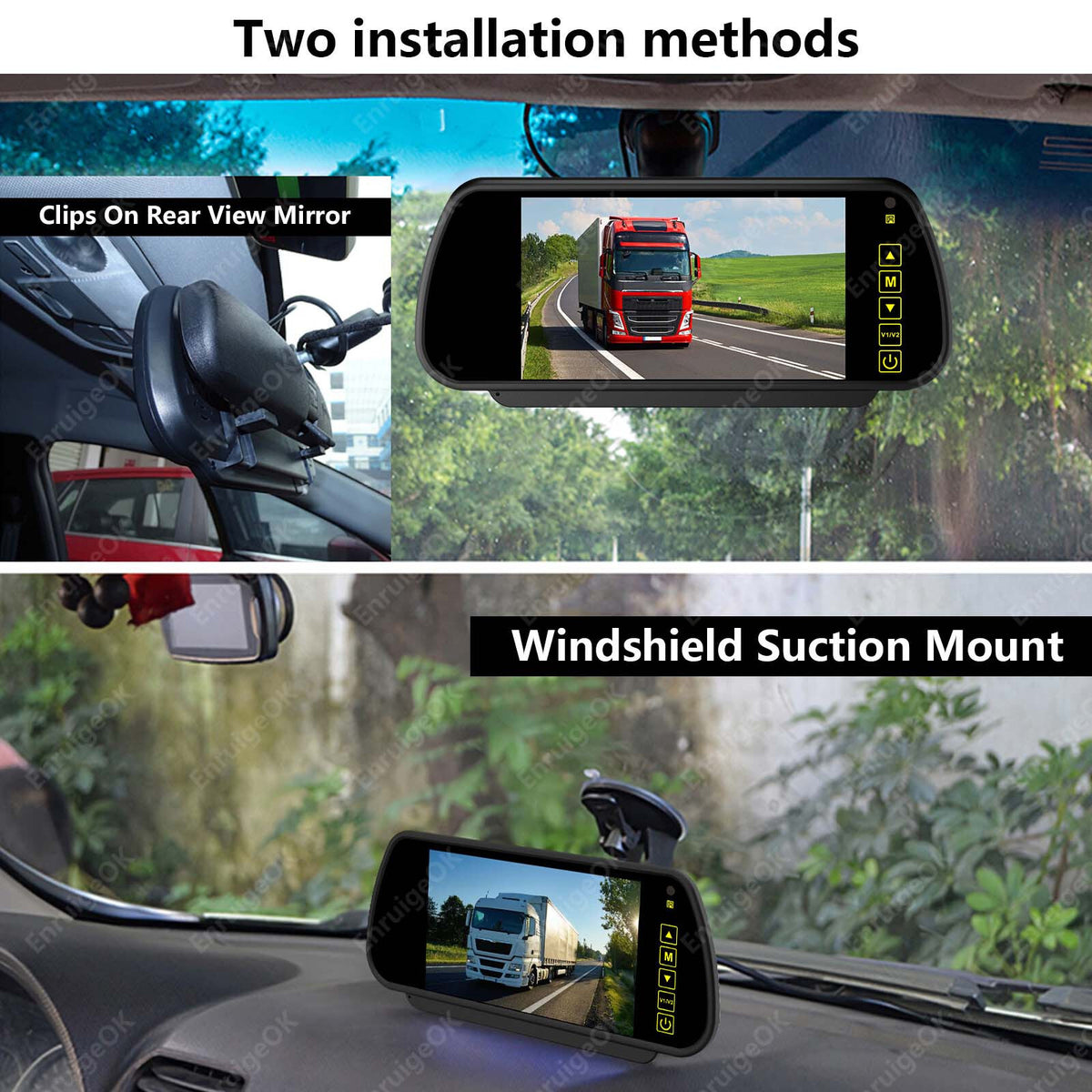

1 X Suction cup mount stand

1 X 10m/32.8ft. extension cable

1 X 1m DC Power cable

1 X 2m brake light power cable

1 X Screw Kit

1 X Manual

Camera Specifications

Material: ABS+PC

Image sensor: 1/4" CMOS

TV system: PAL/NTSC

Waterproof rating: IP68

Effective pixel: 733x493

Horizontal sync frequency: 15.625KHZ

Scanning system:2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: CVBS 480TVL

S/N Ratio: more than 48dB

Current consumption: no more than 150mA

Minimum illumination: 0Lux(IR ON)

Power supply: DC 9V-36V

Power: 5W

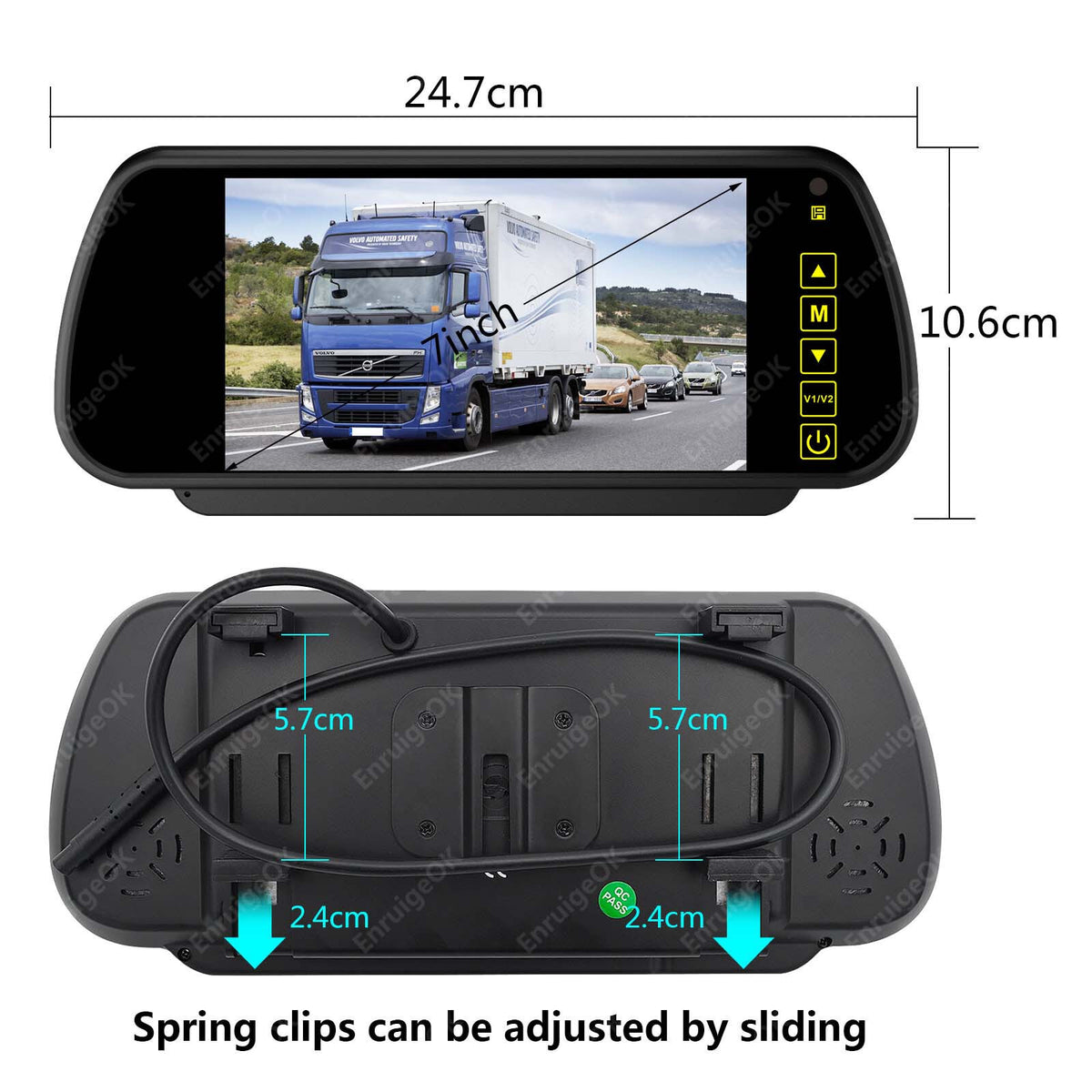

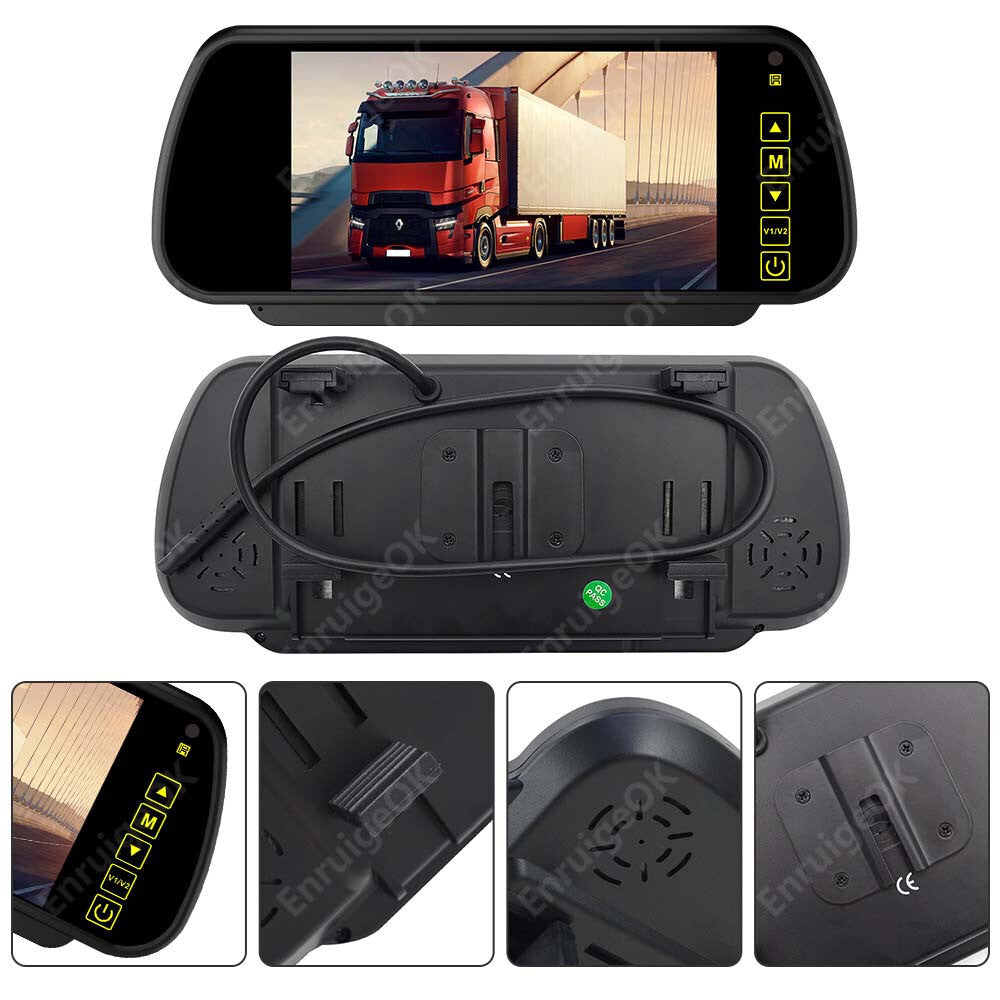

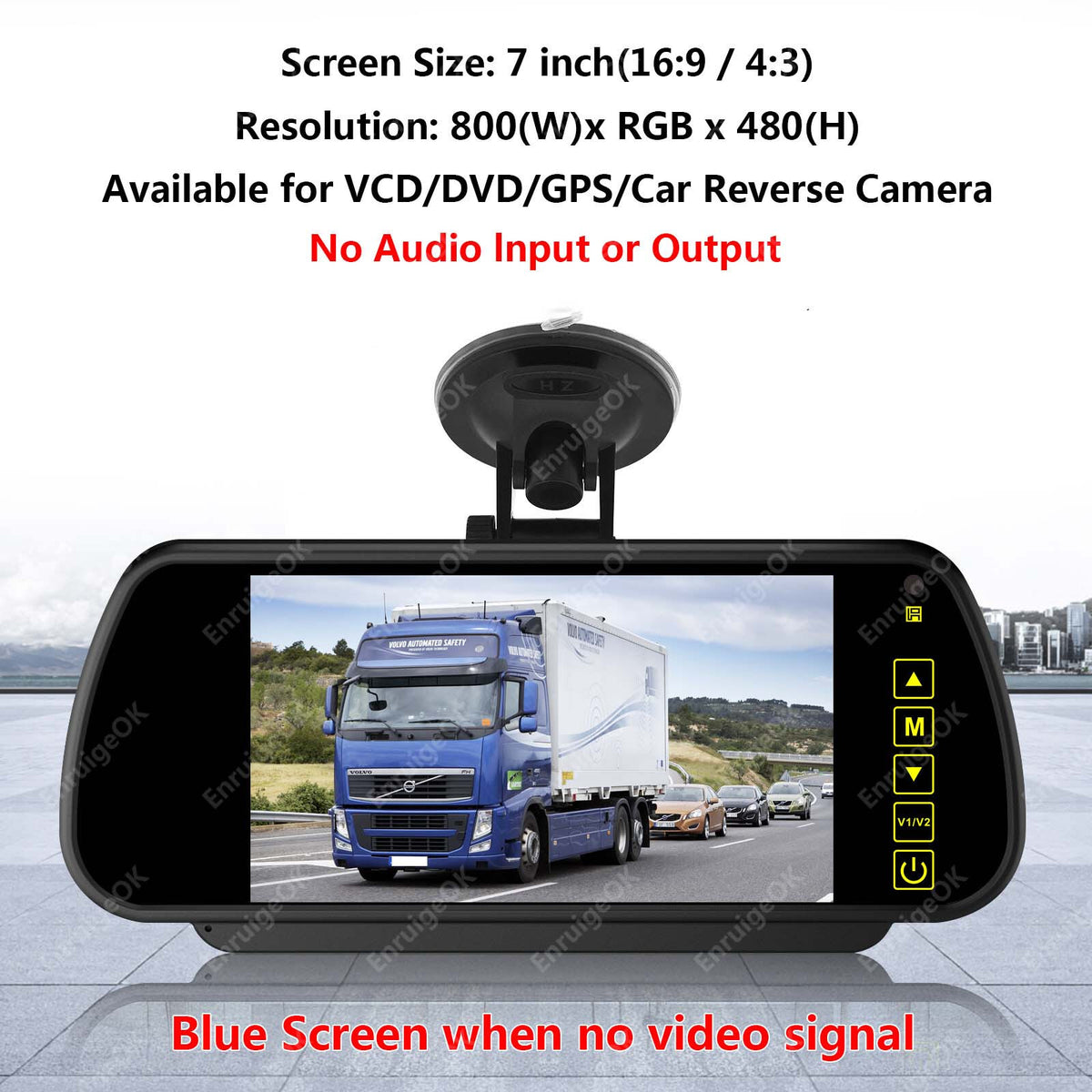

Monitor Specifications

Material: ABS+glass

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: 2AV video input

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The touch key operation and remote control

Dual video inputs: automatically switch when reversing

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
