Universal Dual-Lens Rear Brake Light Reversing Camera for Vans and Motorhomes

EnruigeOK 6.86" Dual Split Screen Mirror Monitor with Strong Windshield Suction Mount & Dual Lens high level Brake Light Reversing Camera For Sunlight, Carado, and Etrusco Motorhomes(Fits Any Flat Car Body), Simple replacement with the factory-set LED auxiliary stop lamp Hella 2DA 343 106-201.

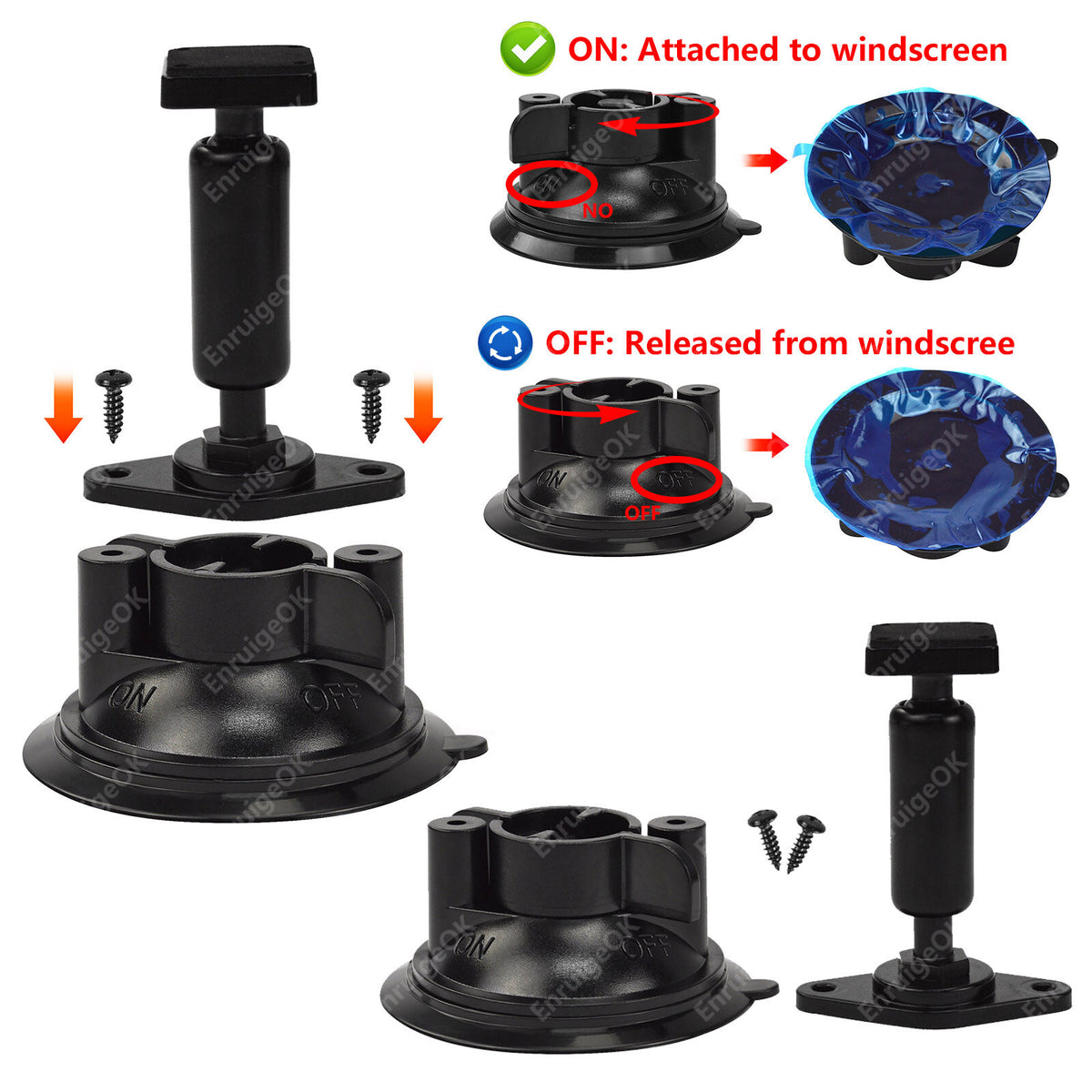

Monitor bracket:

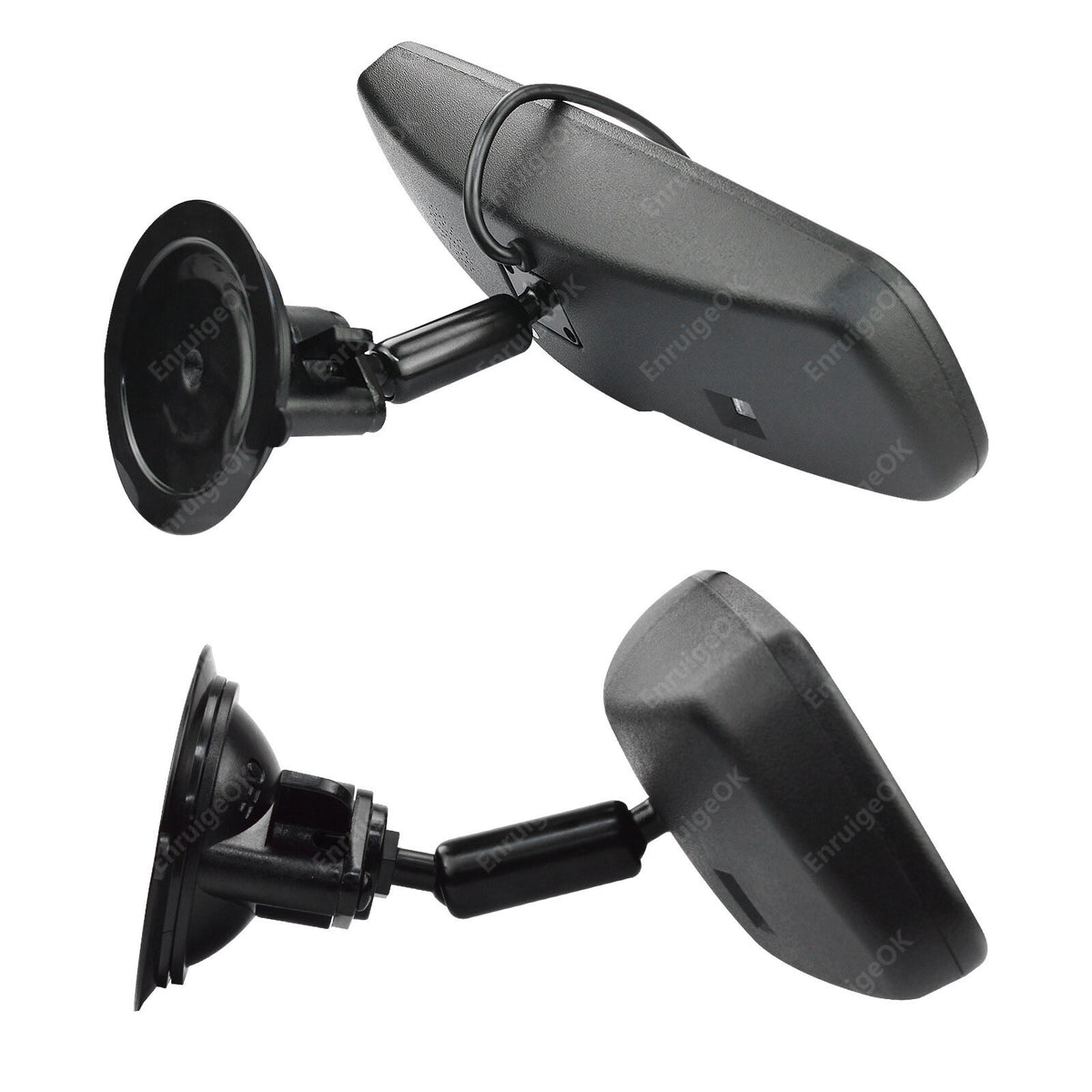

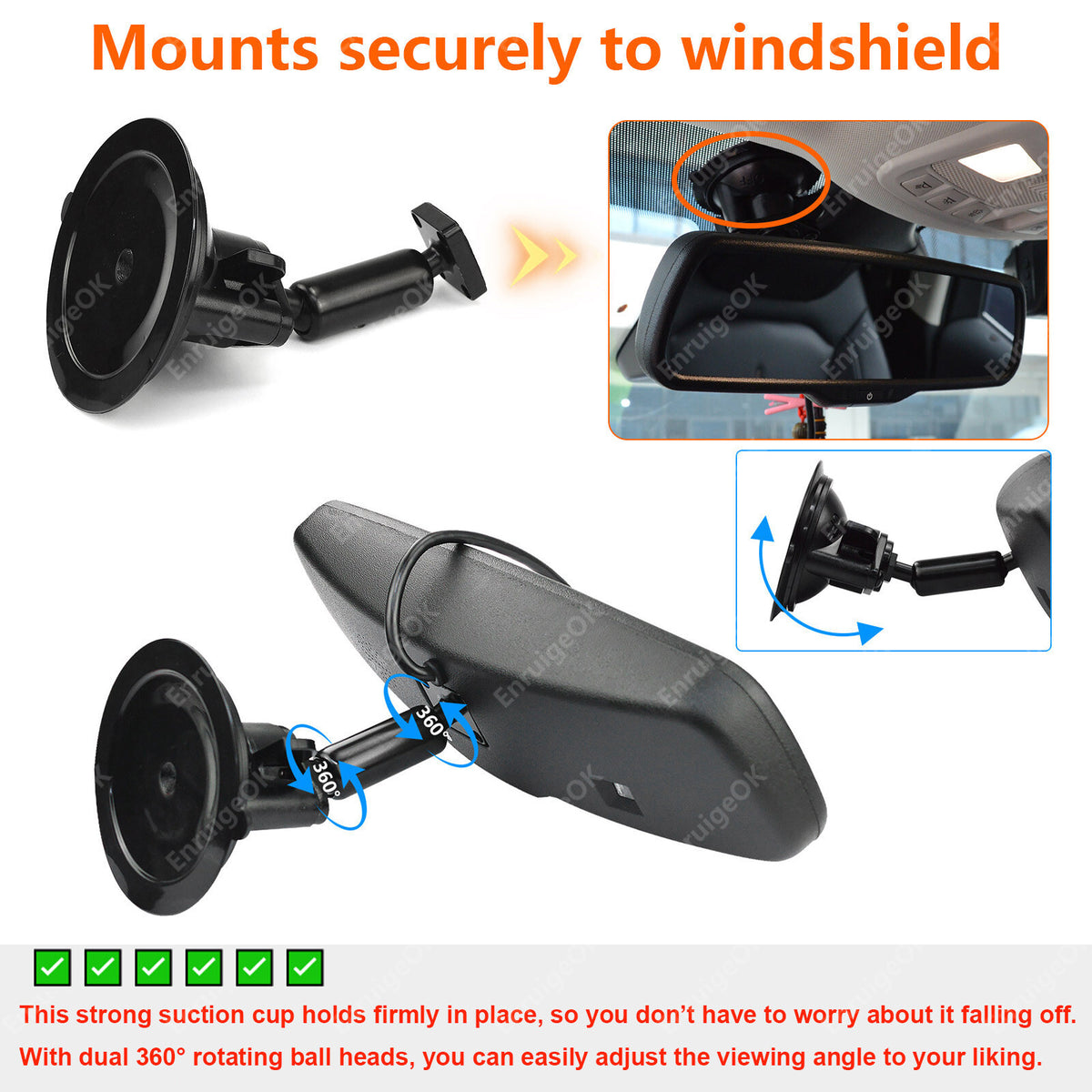

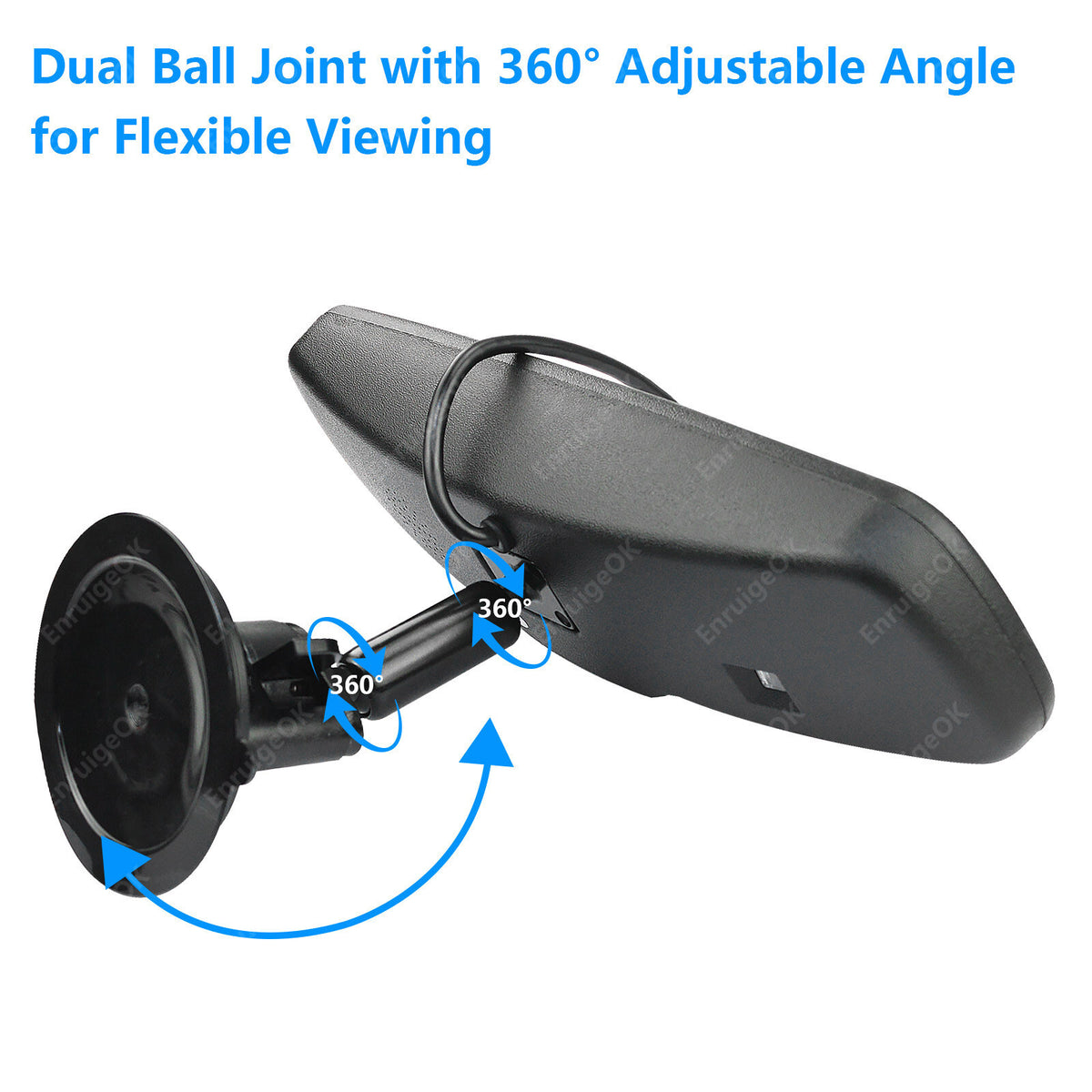

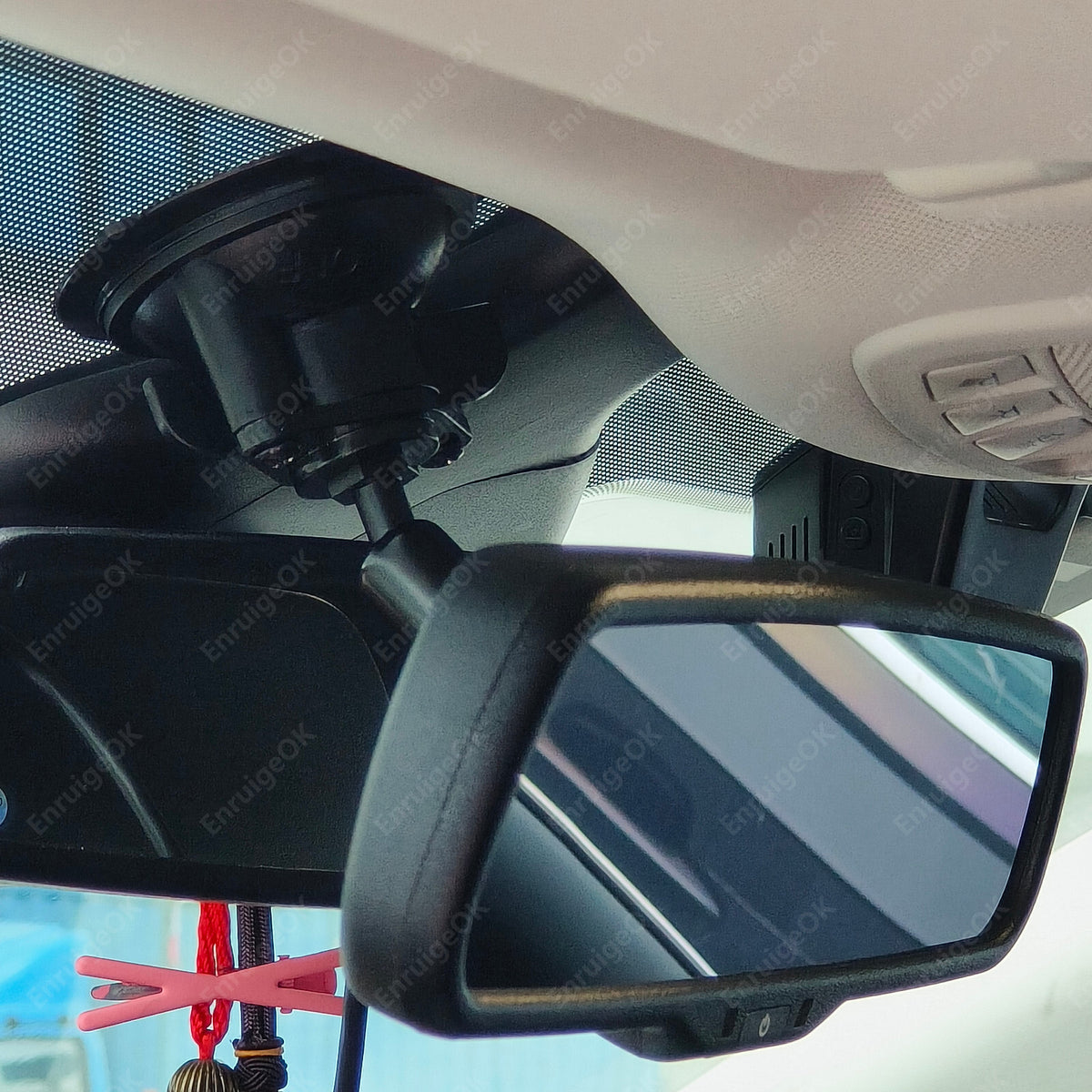

This set comes with a suction cup bracket. Strong suction cup design ensures firm attachment without slipping. Equipped with dual 360° rotating ball heads for flexible angle adjustment, allowing you to achieve the perfect viewing angle with ease.

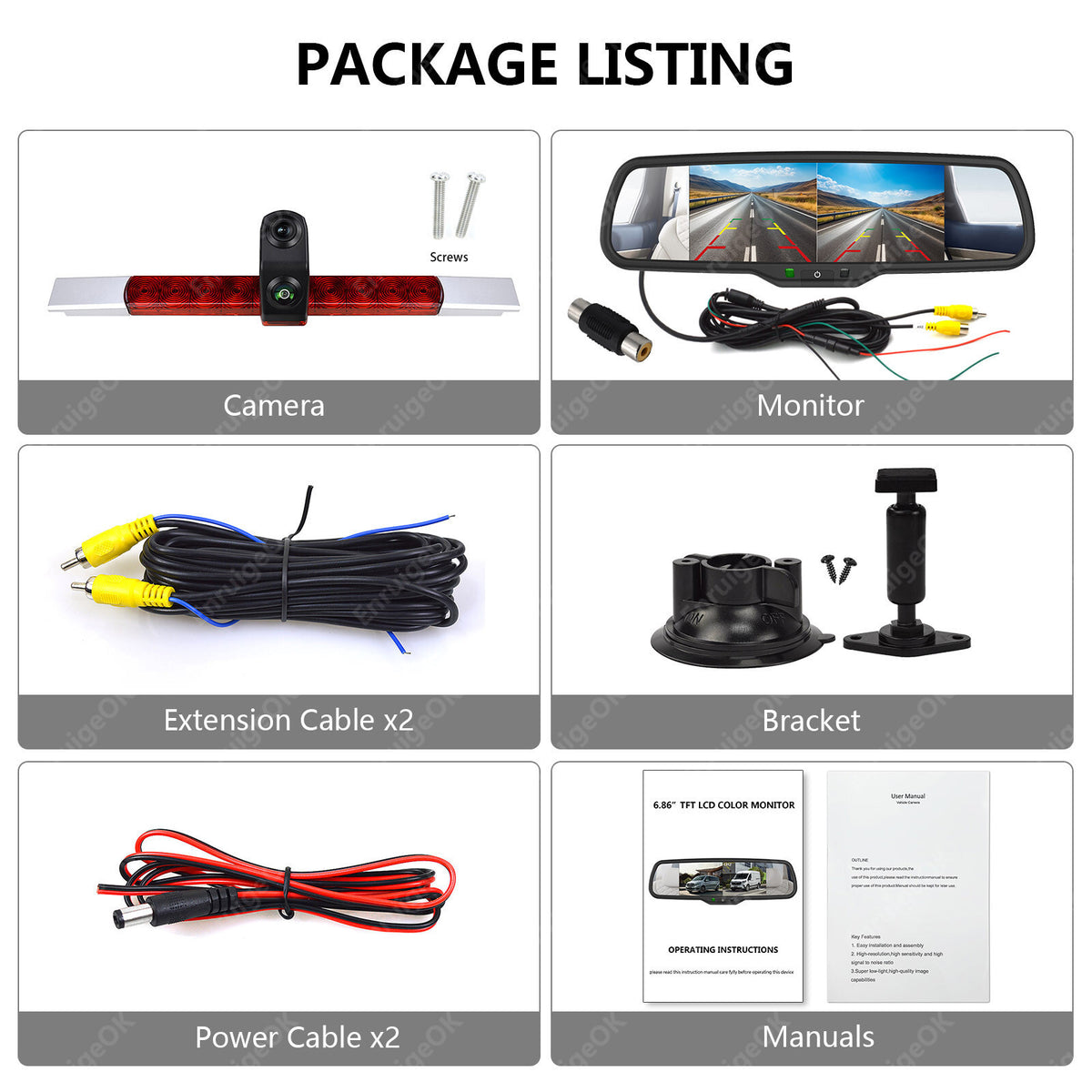

Package contents

1 X Dual lens brake light camera

1 X 6.86'' Mirror monitor

1 X 2.5m monitor power cable

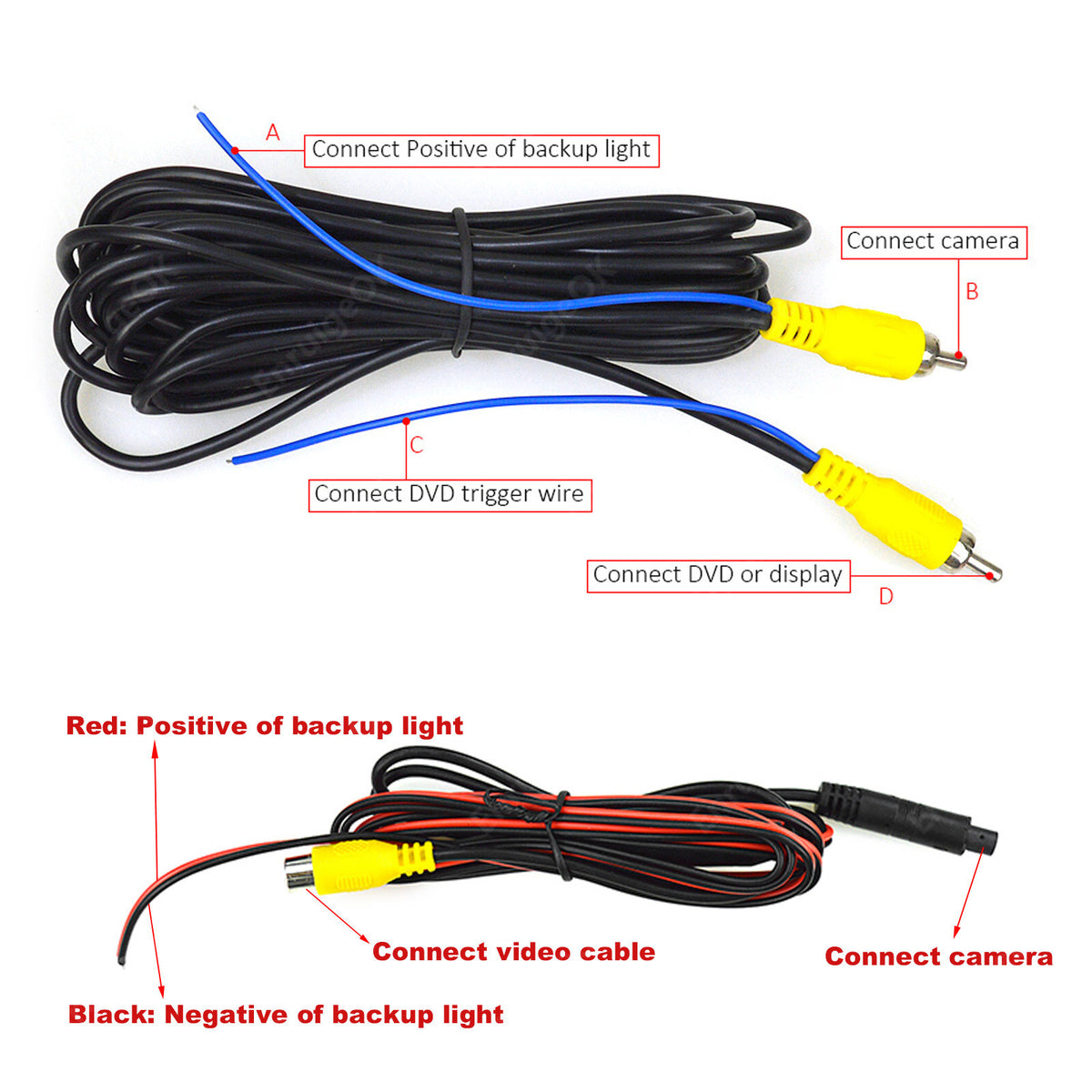

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X Female to female adapter

1 X Suction cup bracket

1 X Manual

Description

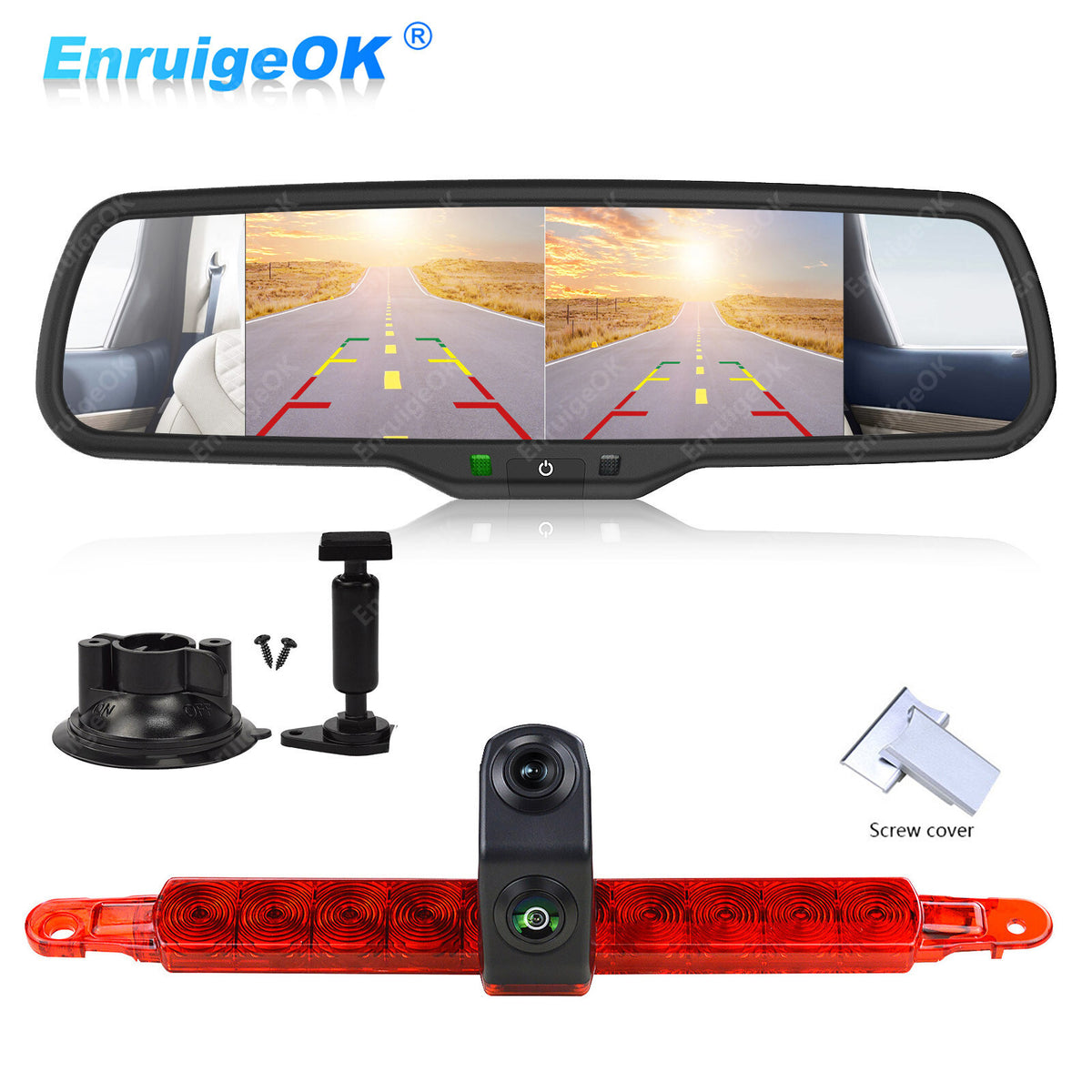

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.

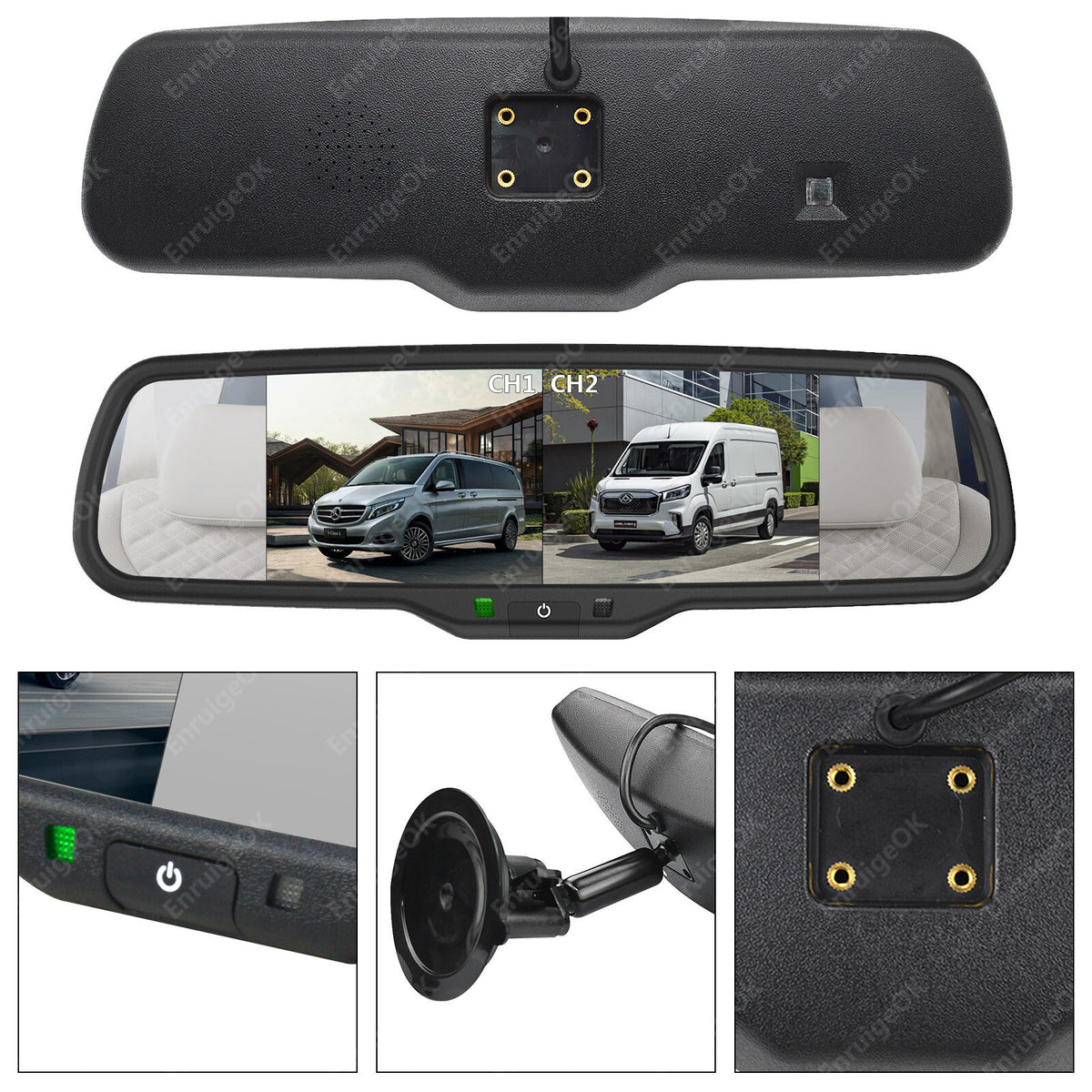

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

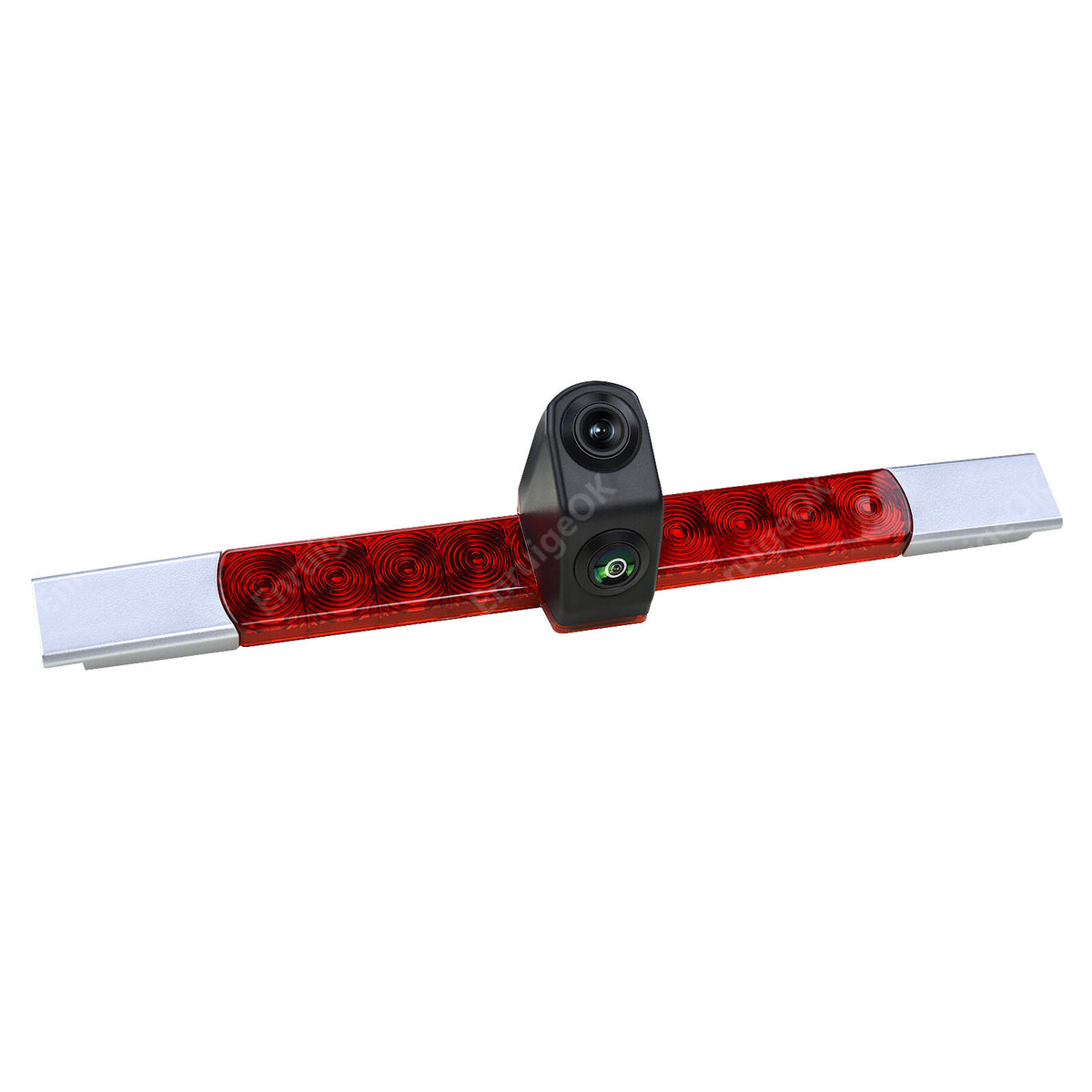

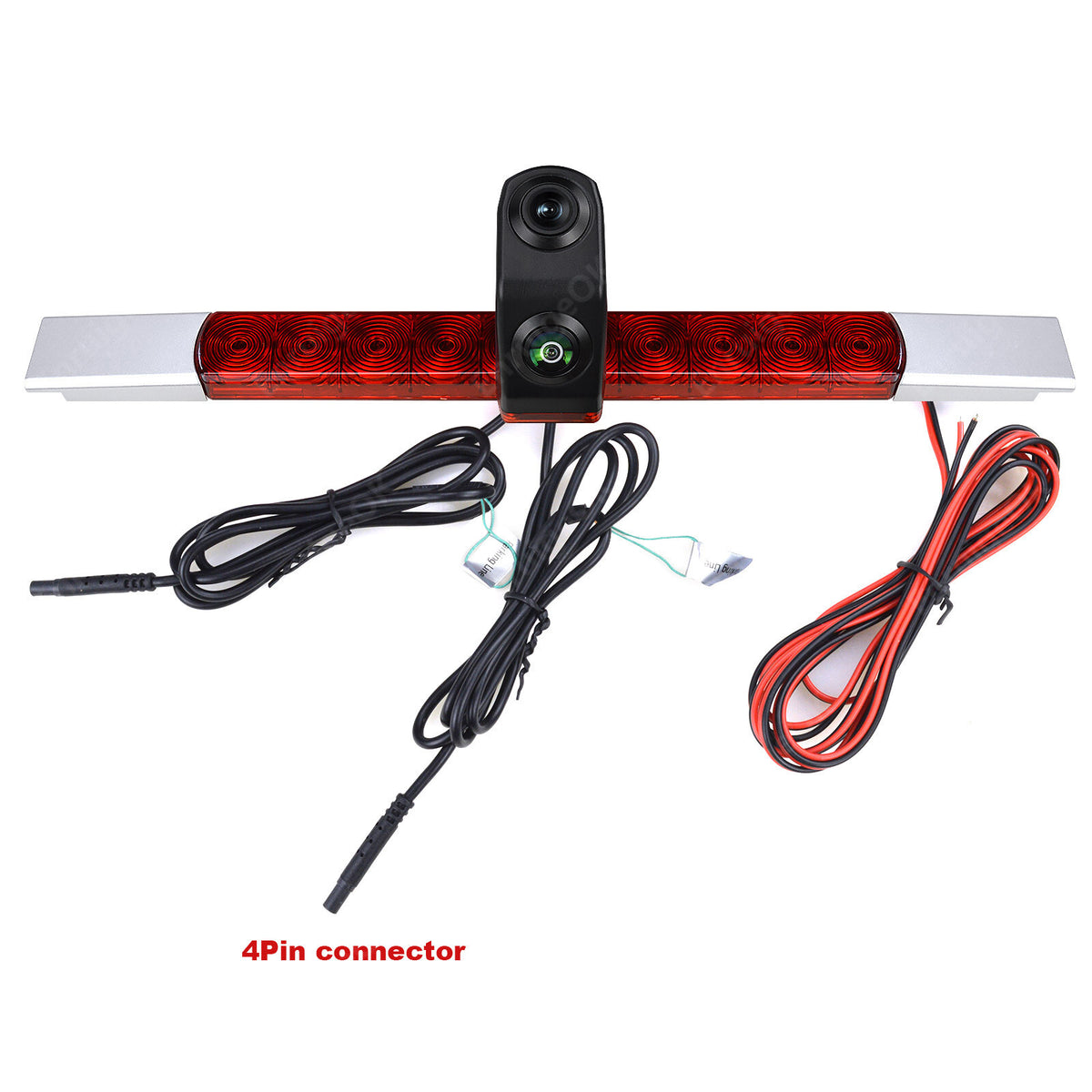

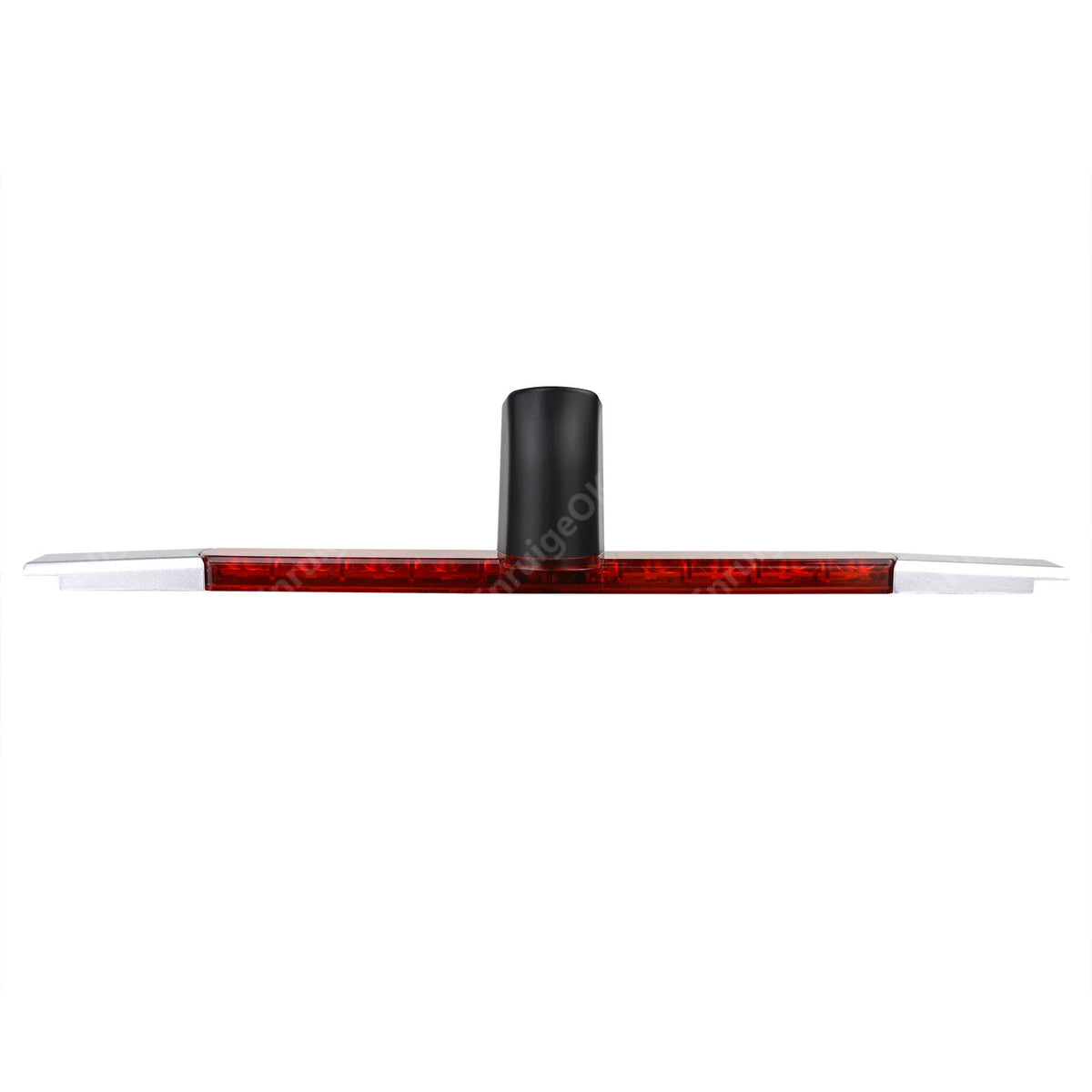

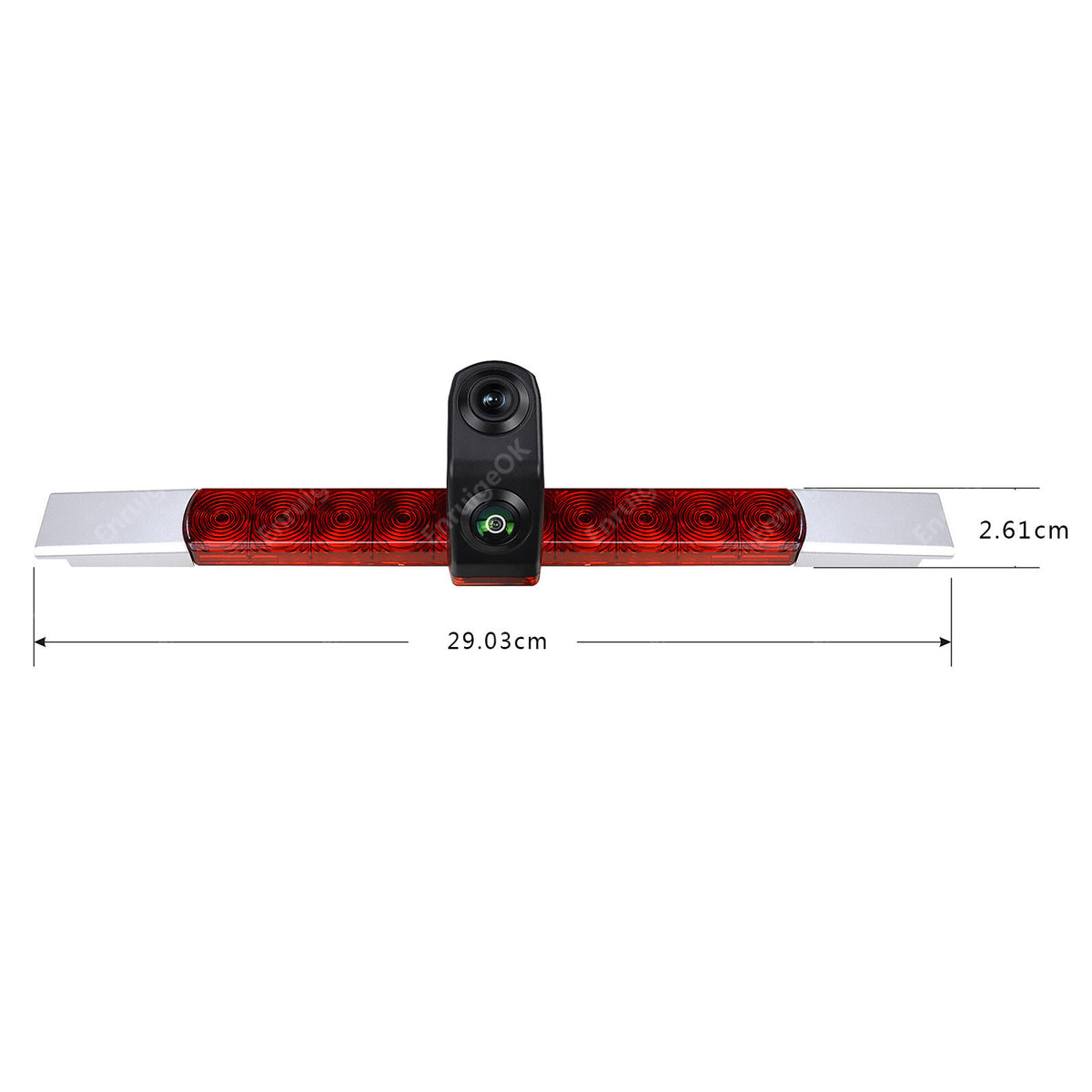

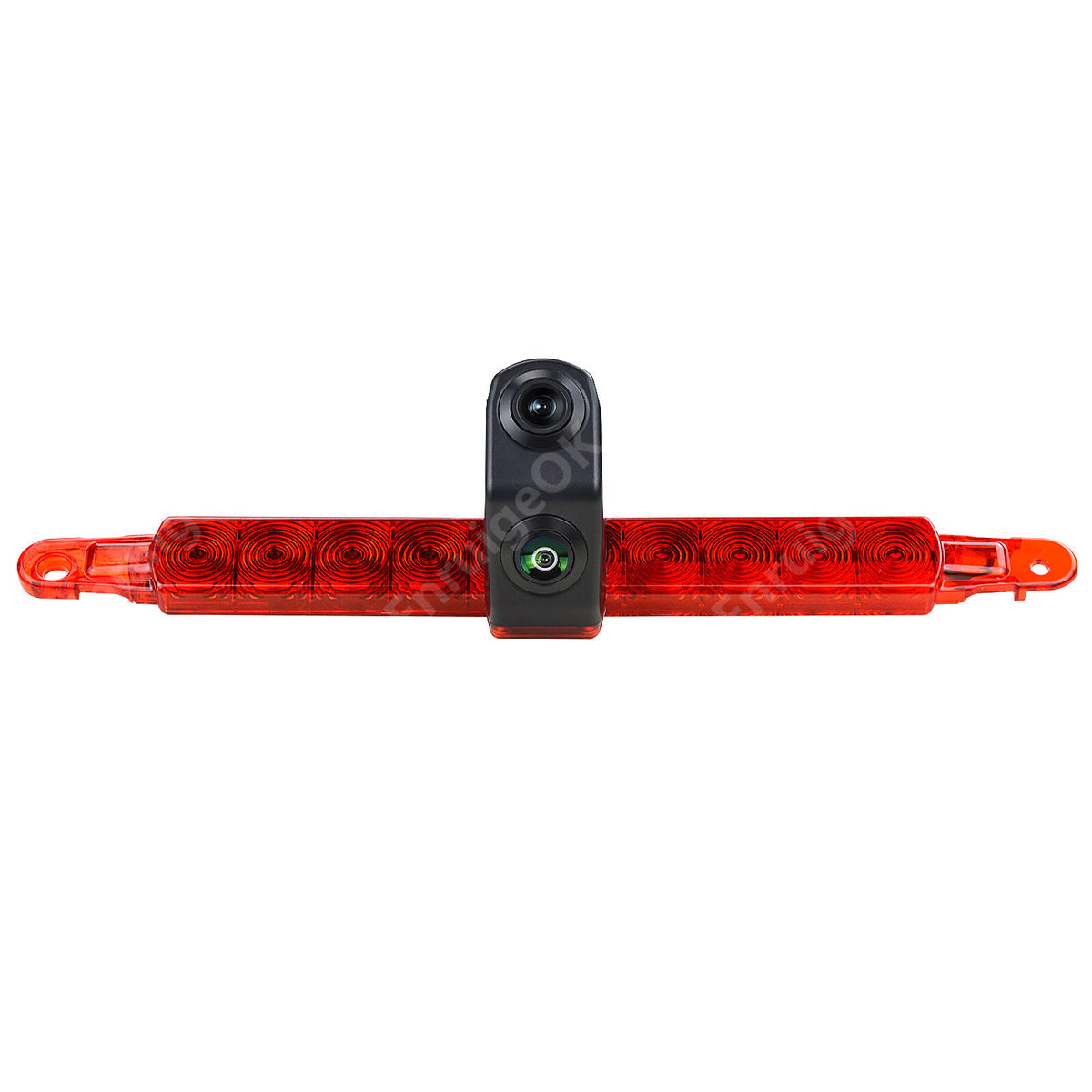

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

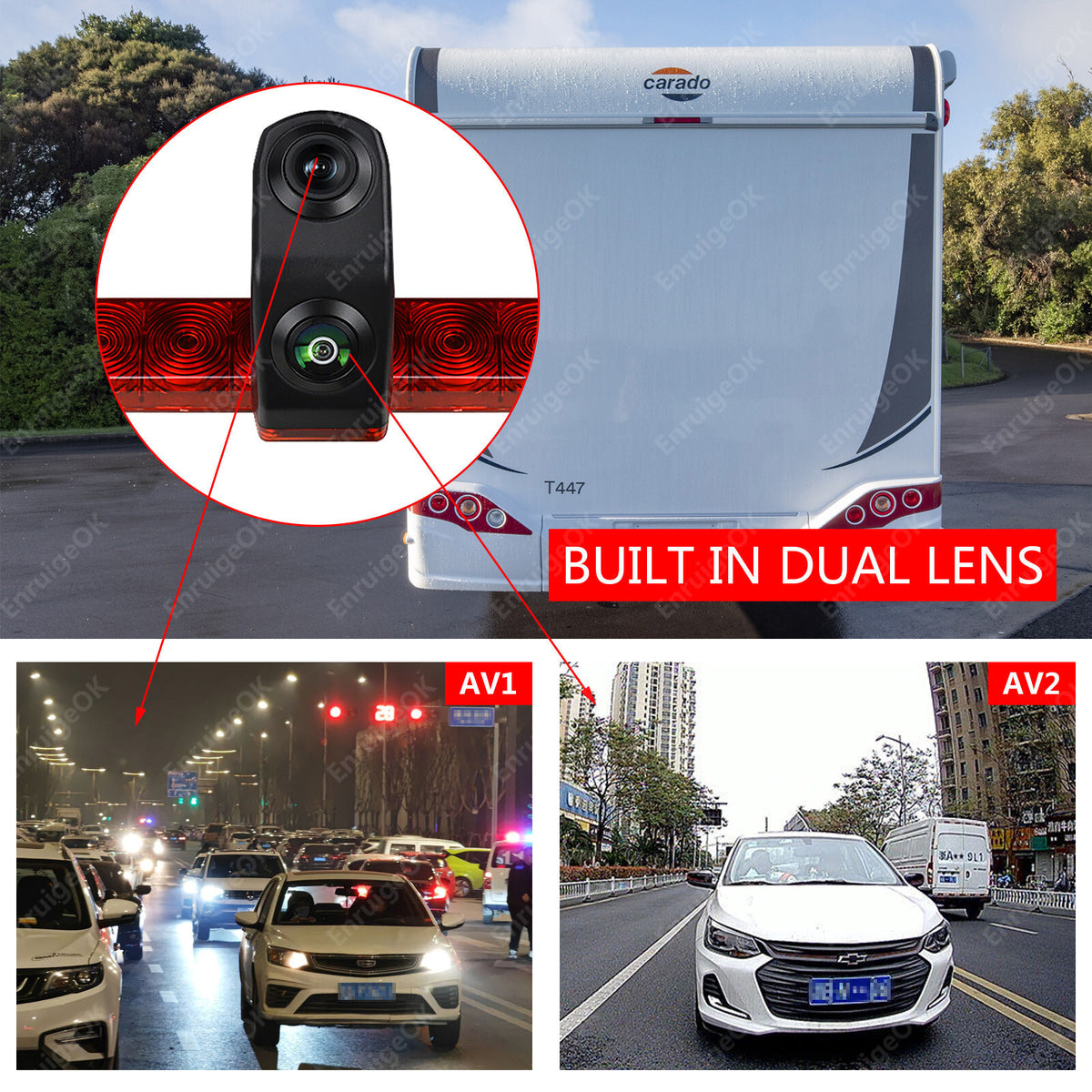

TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving(AV1), one for reversing view while parking(AV2).

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

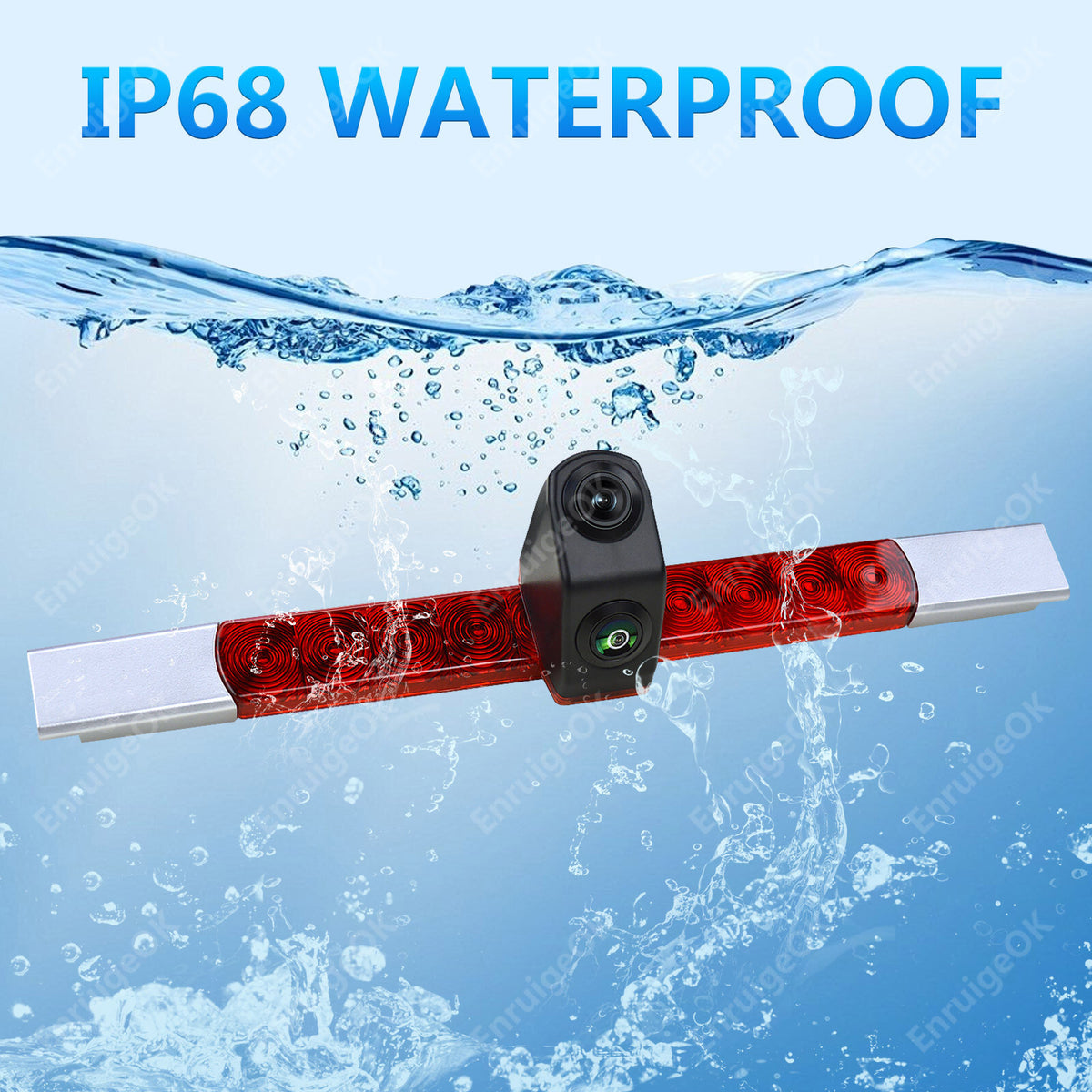

Waterproof Rating: Built with an IP68 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/4" CMOS

Lens: 2.8mm & 3.6mm

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP68

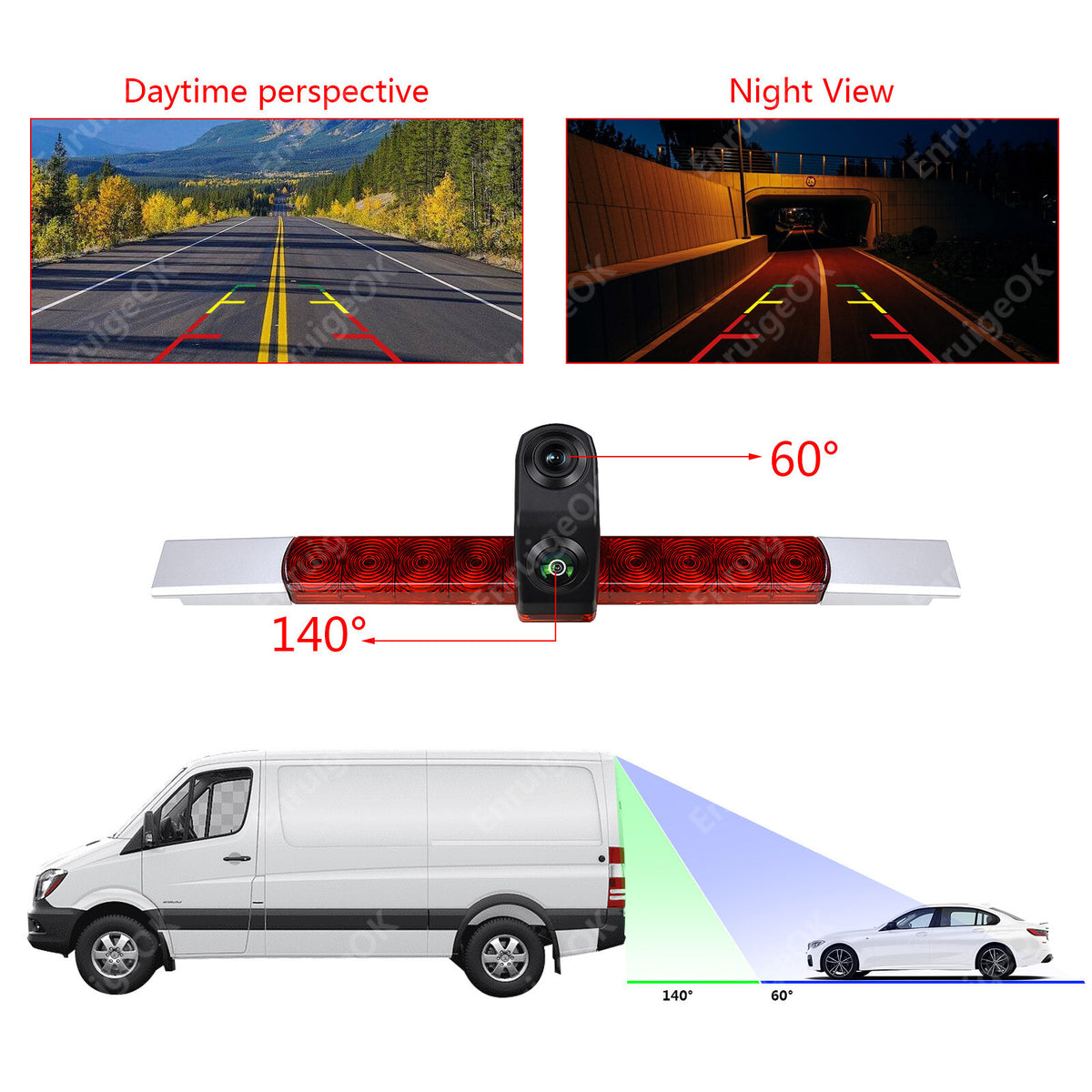

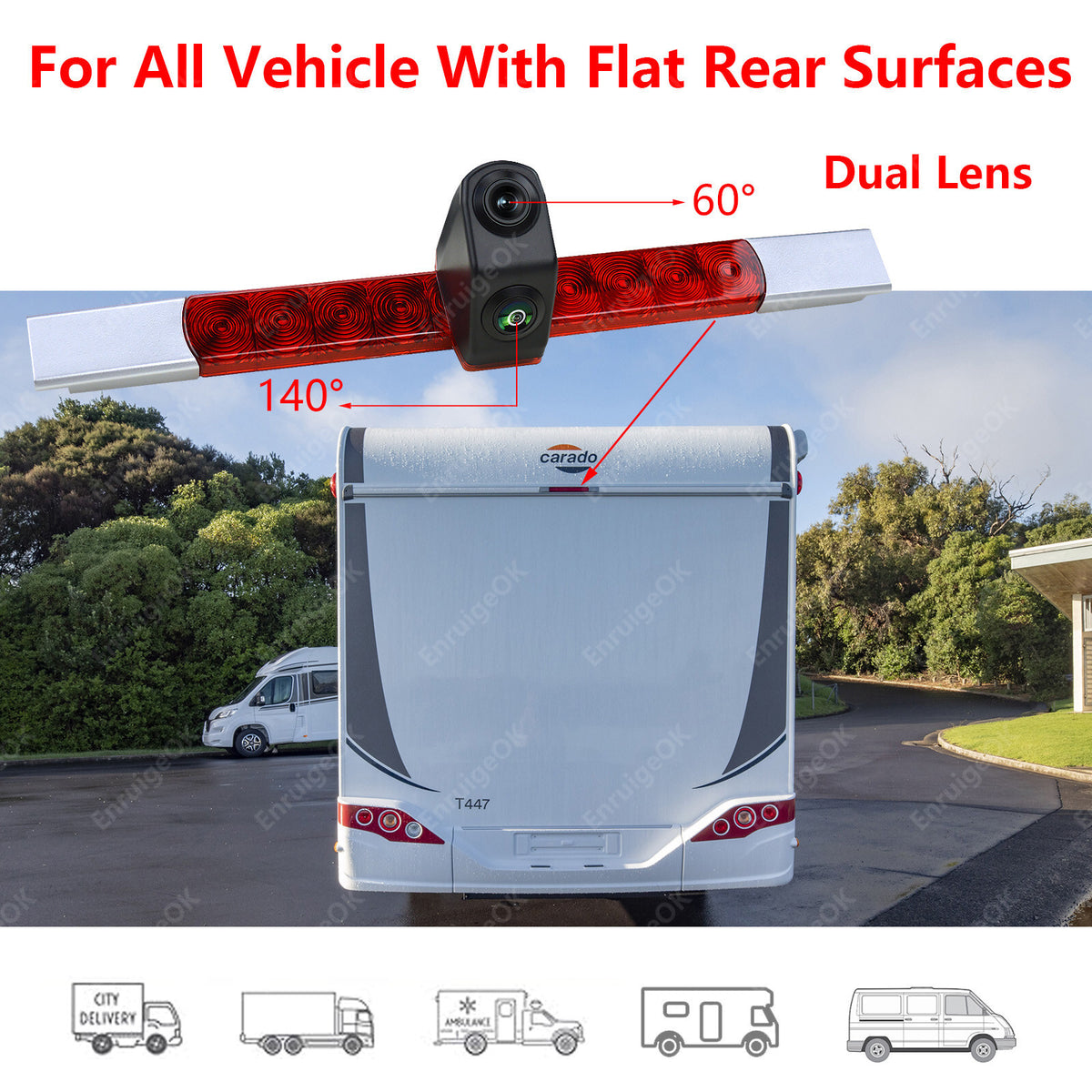

Viewing angle: 140°& 60°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2(0 Lux with LED on)

Power: DC12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

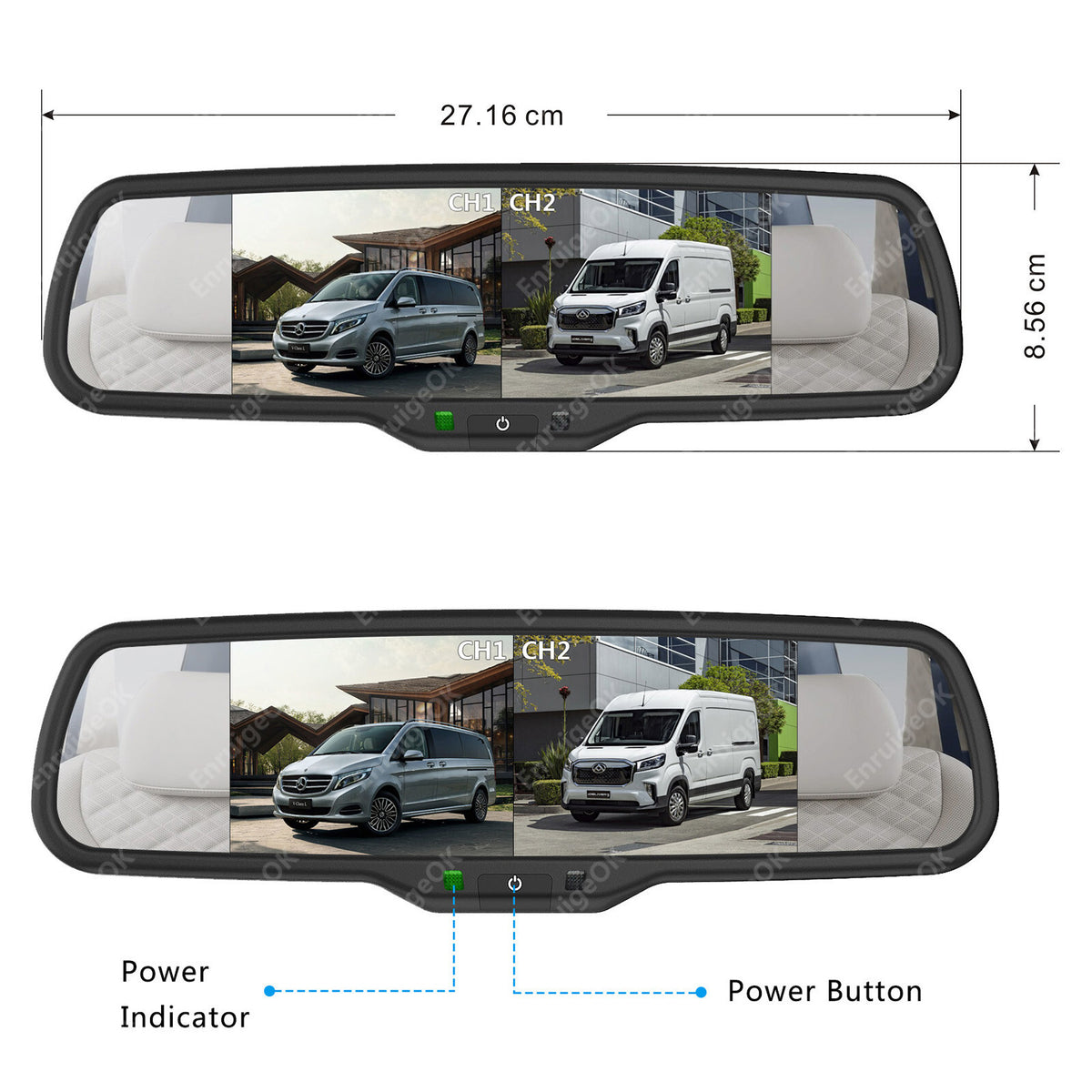

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

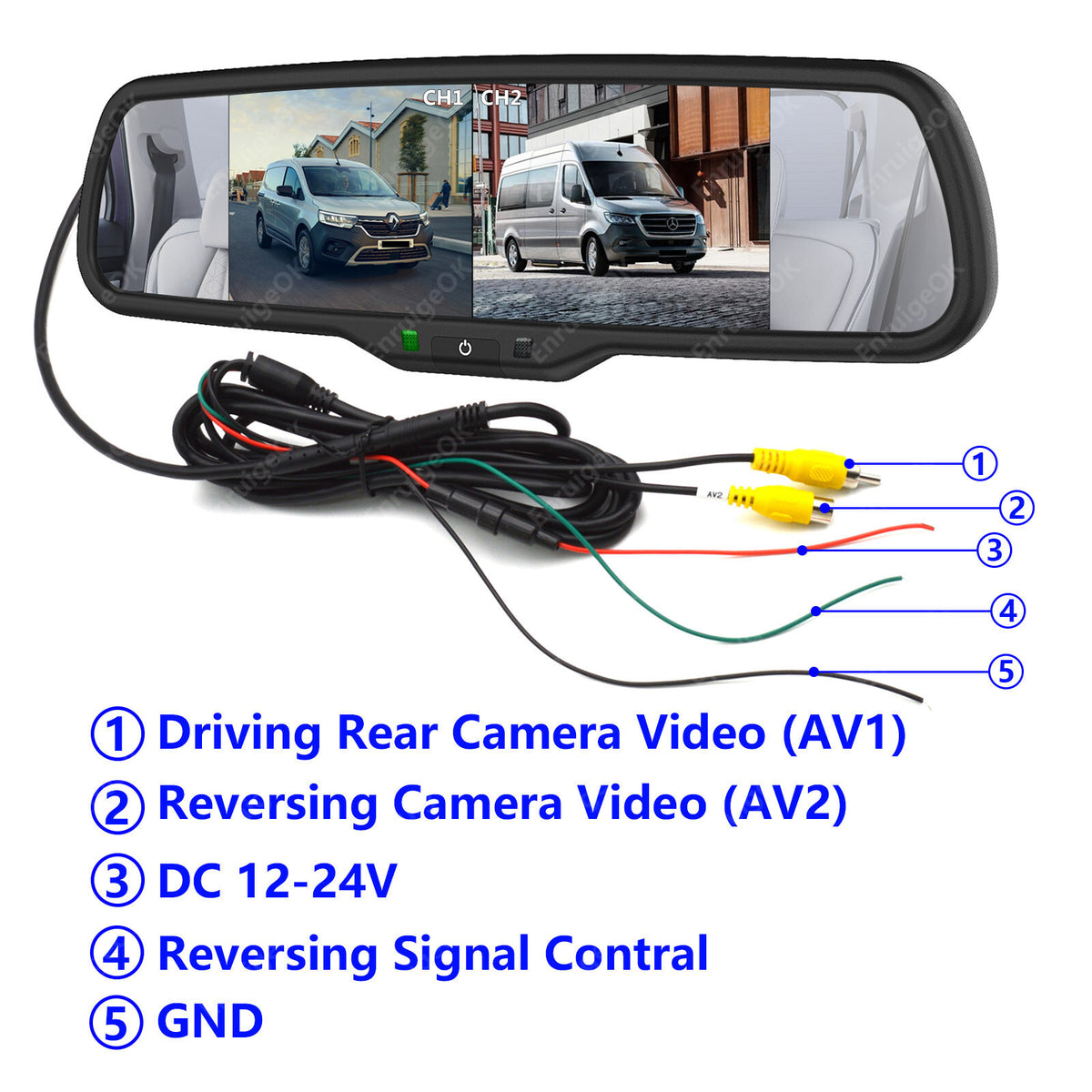

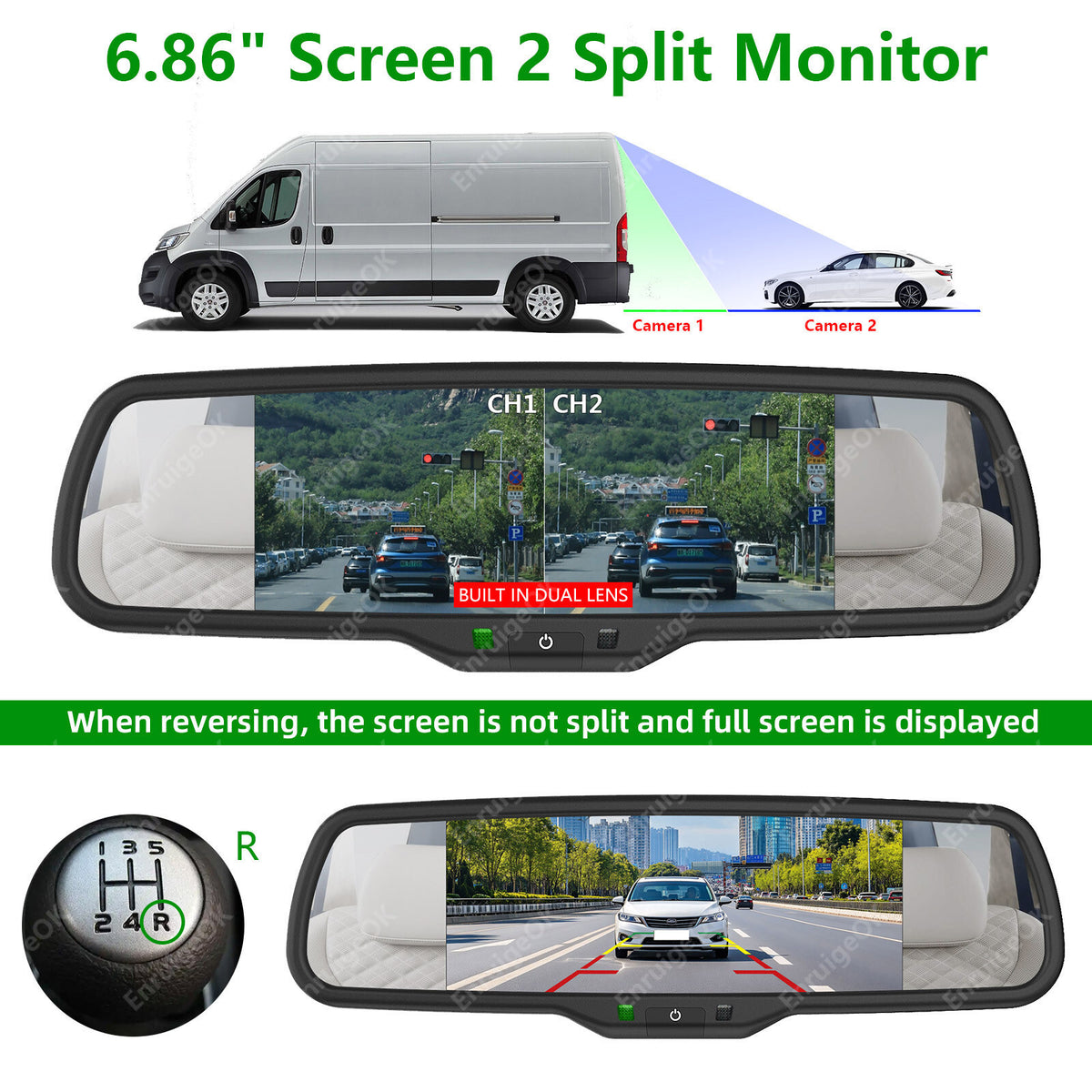

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), support 2-Split Screen, automatic full-screen switch during reversing

Blue screen displayed when no signal is detected.

Power Supply: DC 12V-24V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃
