Universal Brake Light Backup Camera for RV Motorhome Camper Van & Split Monitor

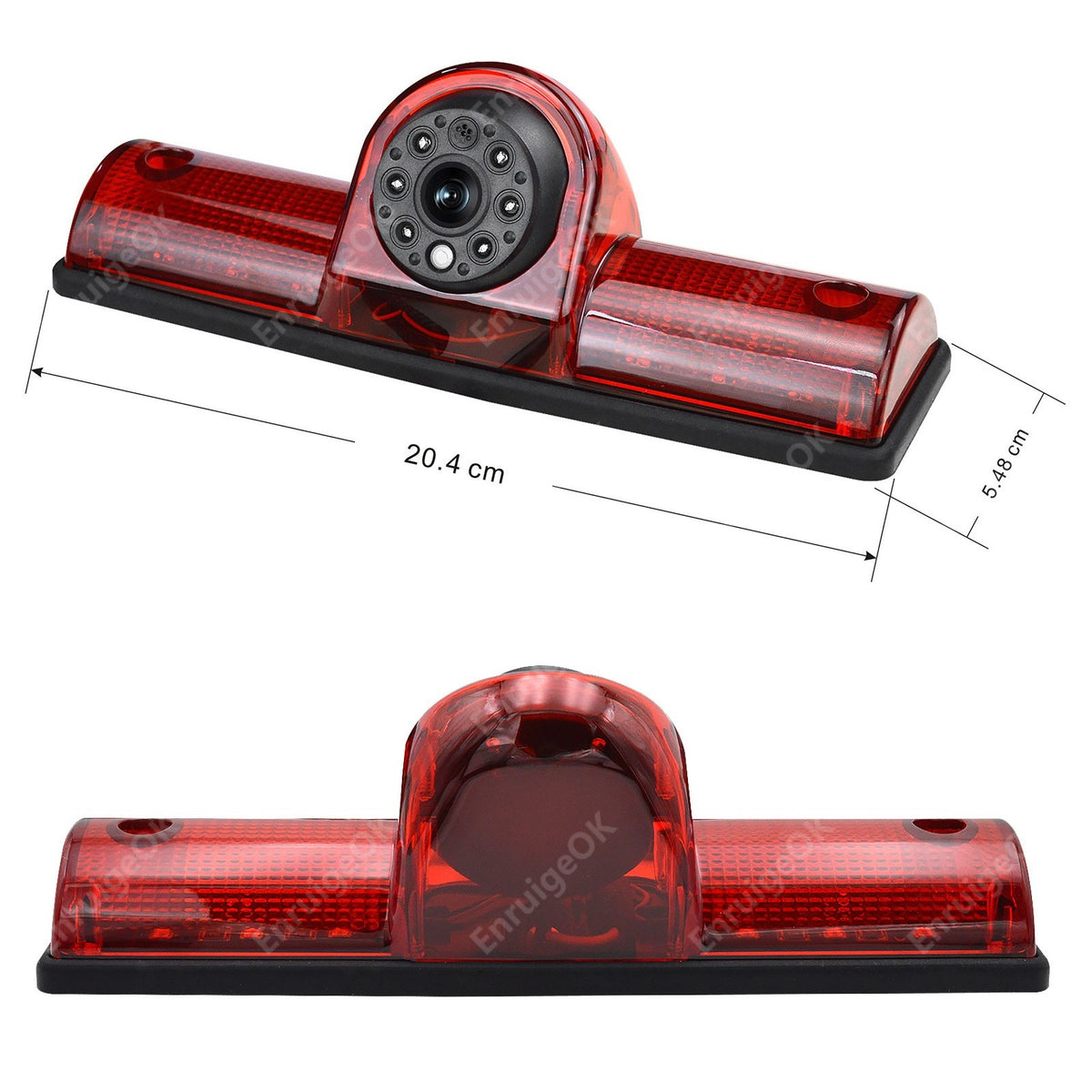

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

Camera Compatibility

✅Compatible with Sunlight / Carado / Etrusco motorhomes

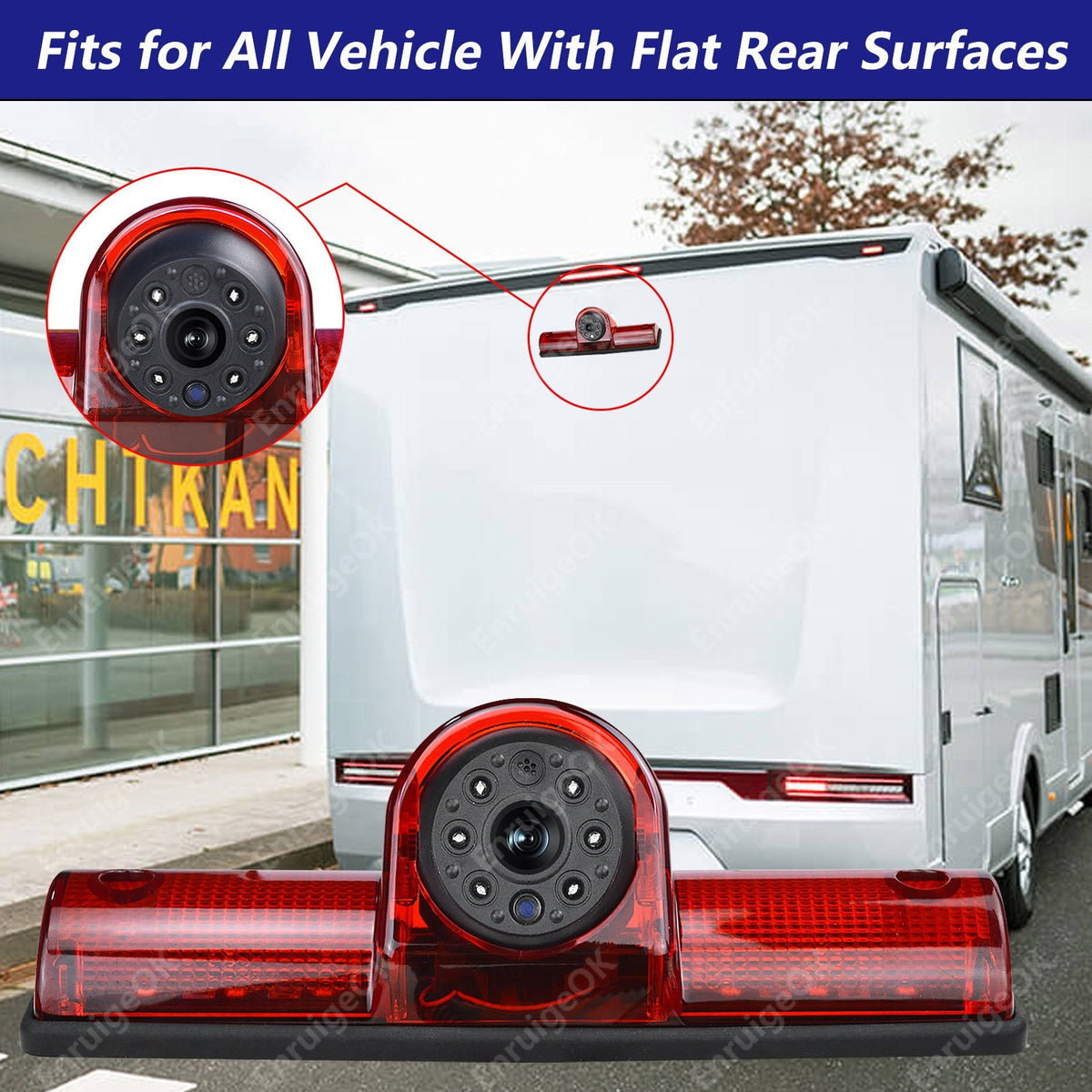

✅Also suitable for vehicles with a flat rear body

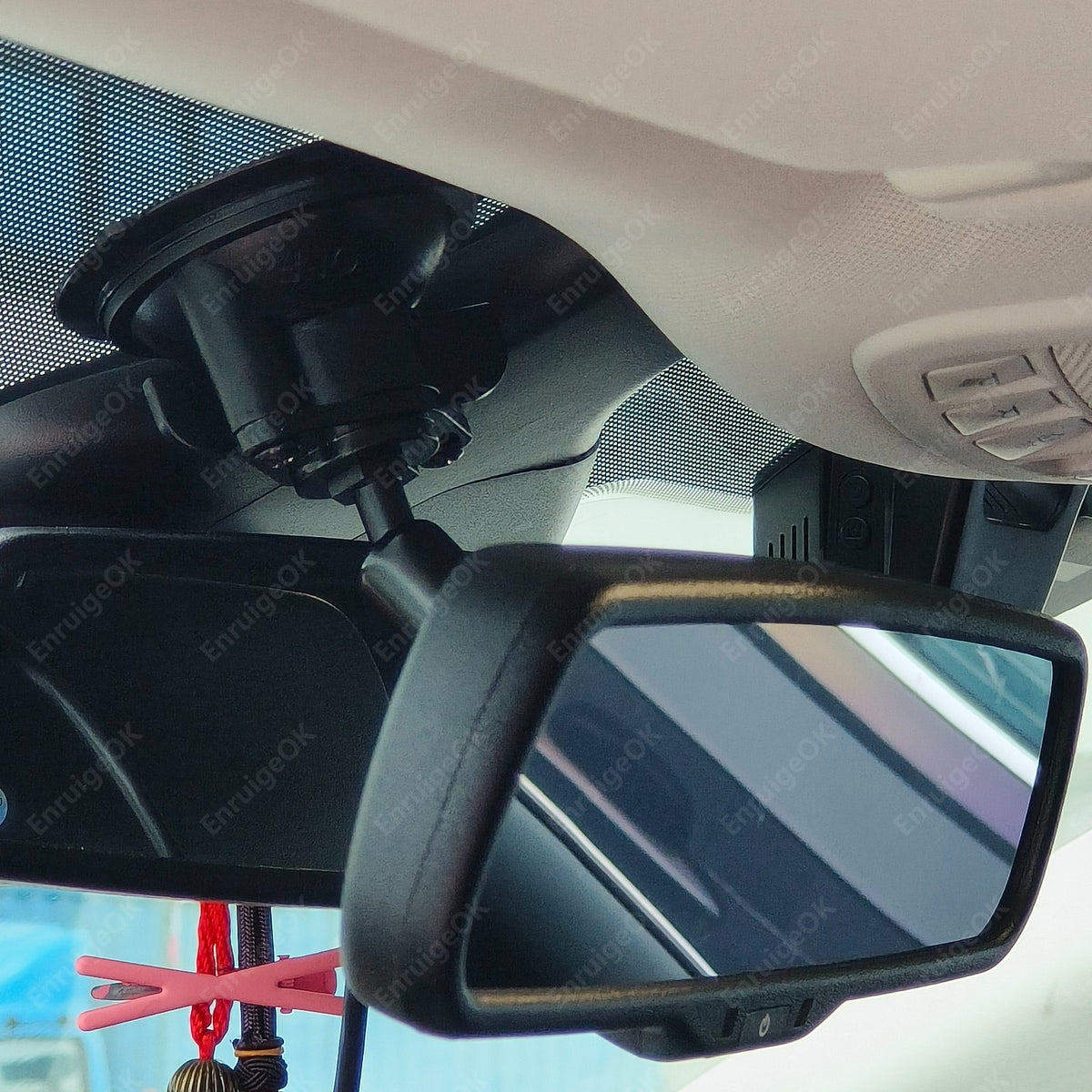

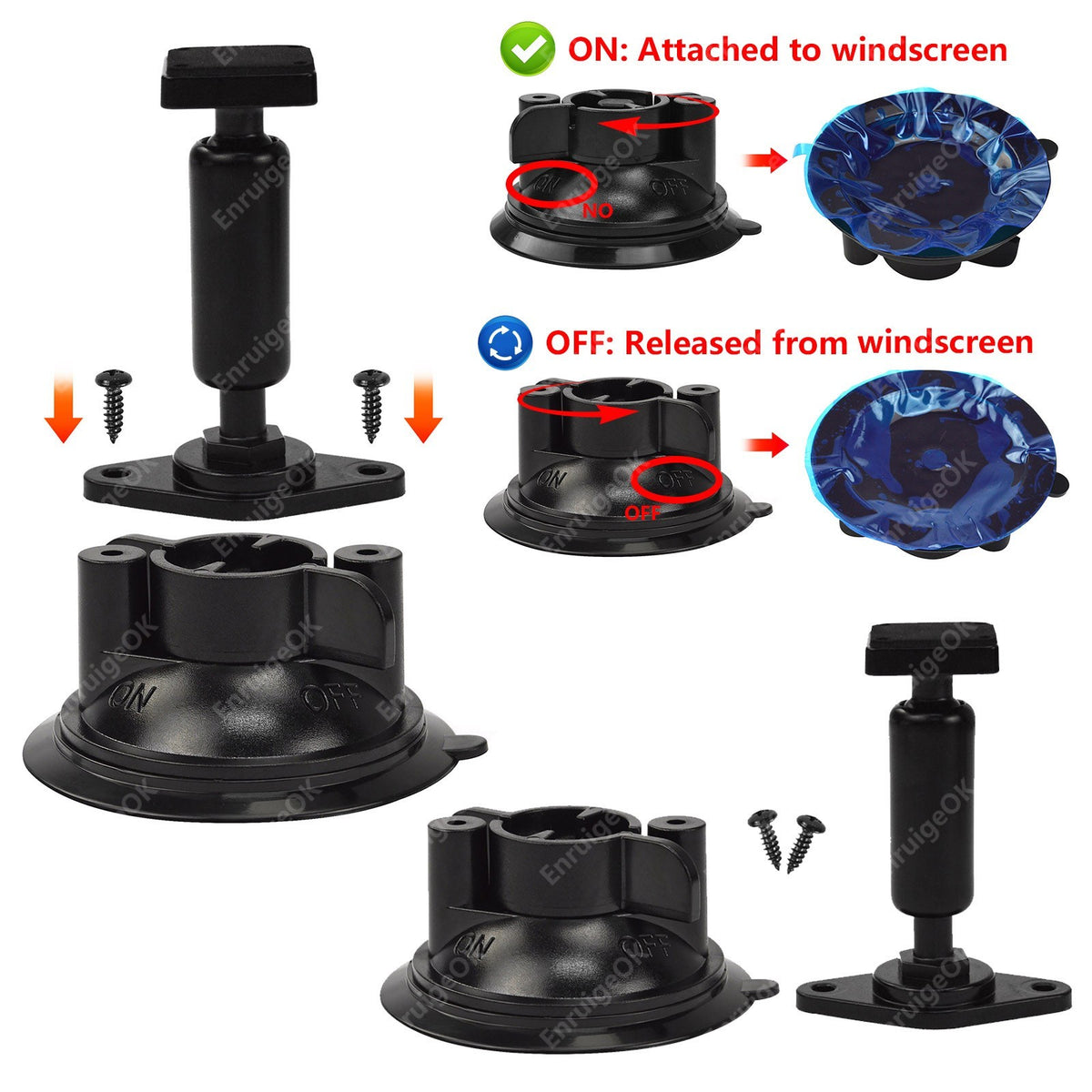

Monitor Bracket:

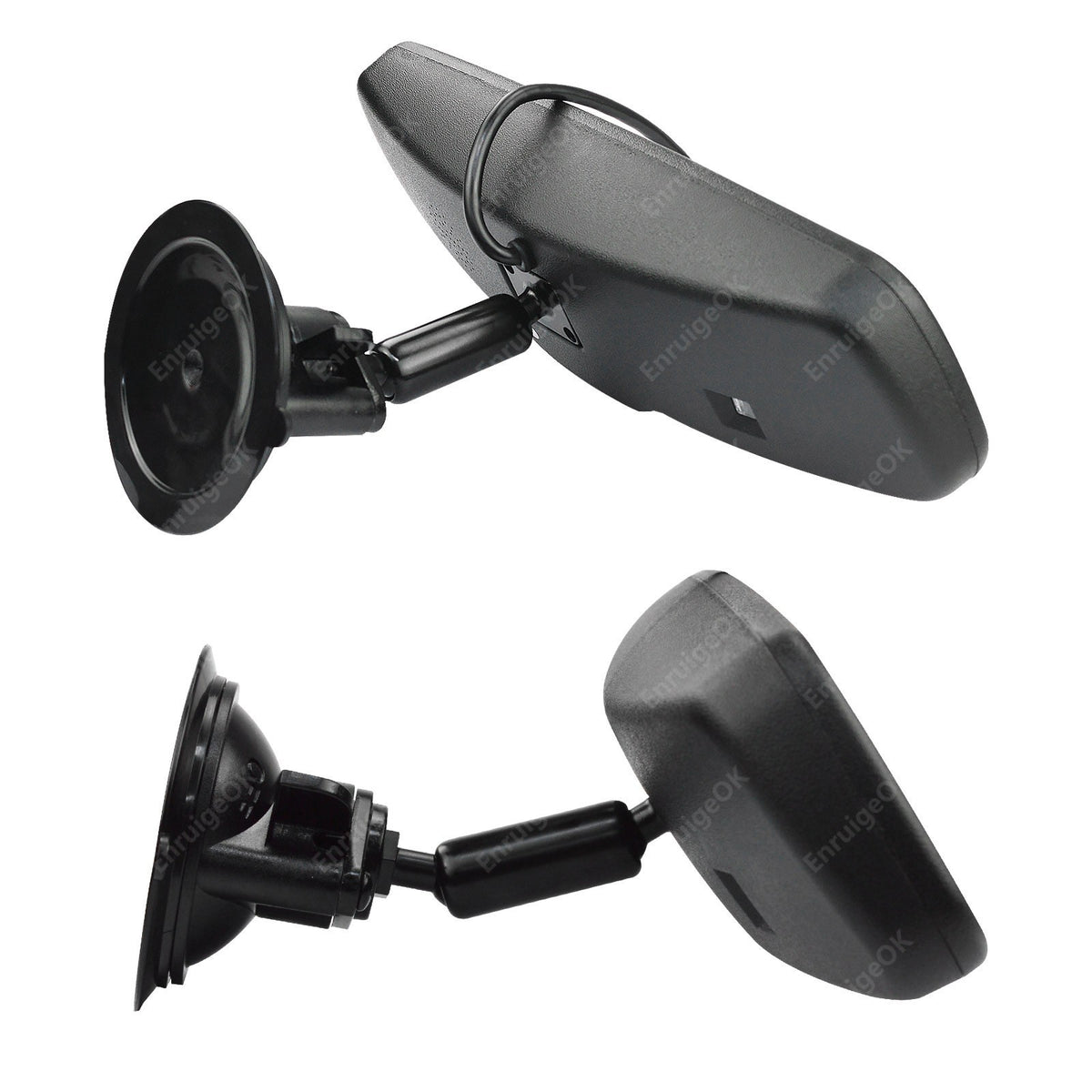

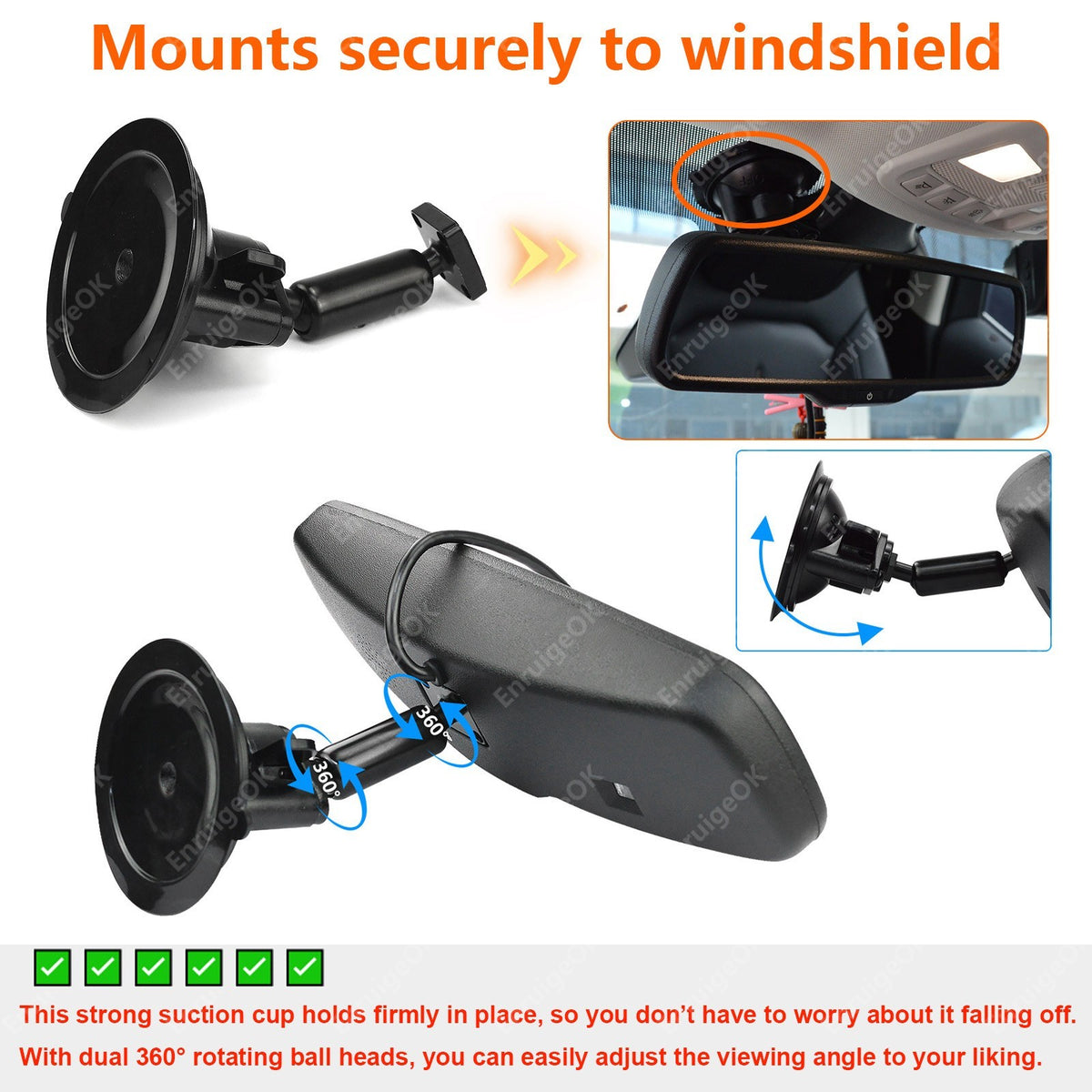

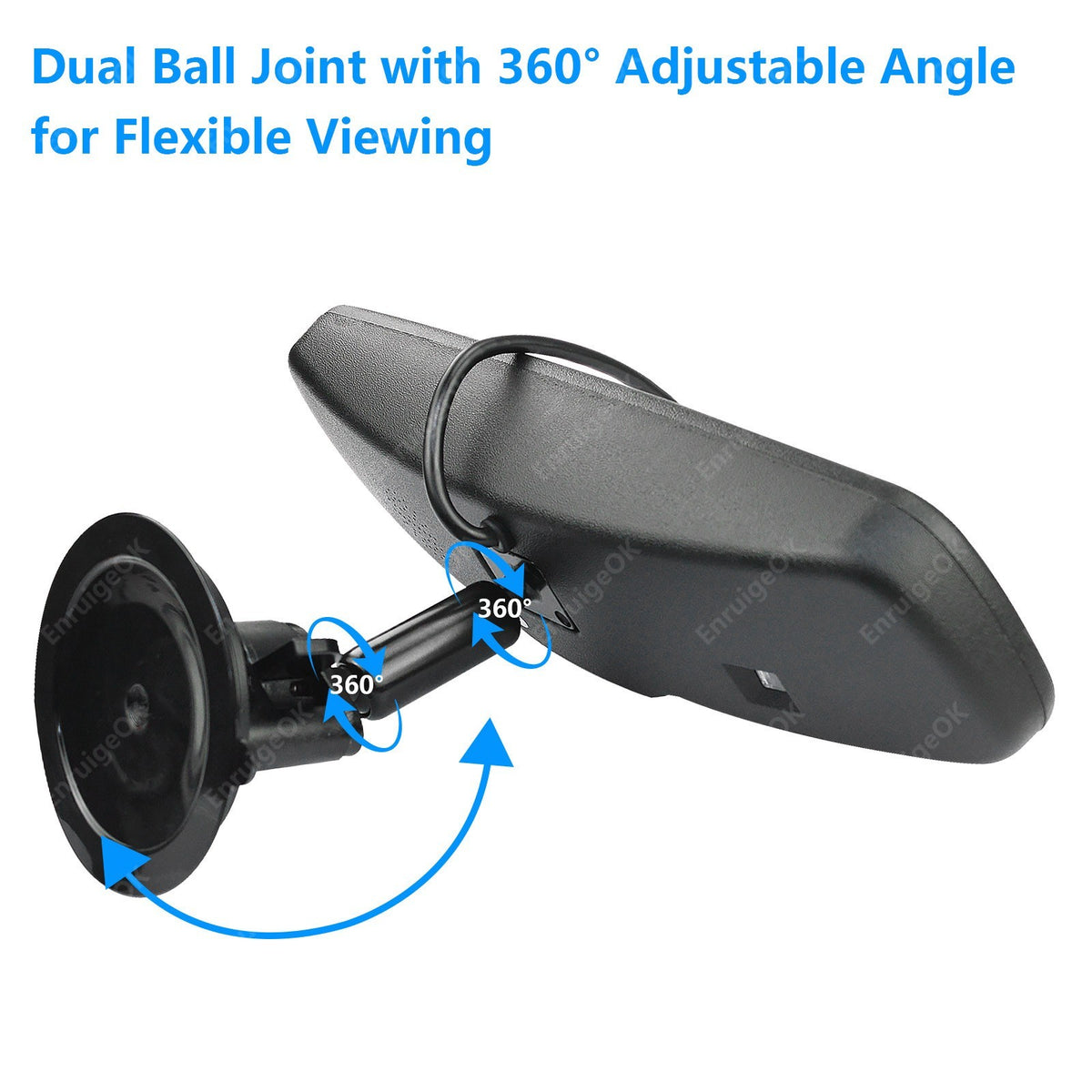

This set comes with a suction cup bracket. Strong suction cup design ensures firm attachment without slipping. Equipped with dual 360° rotating ball heads for flexible angle adjustment, allowing you to achieve the perfect viewing angle with ease.

Description

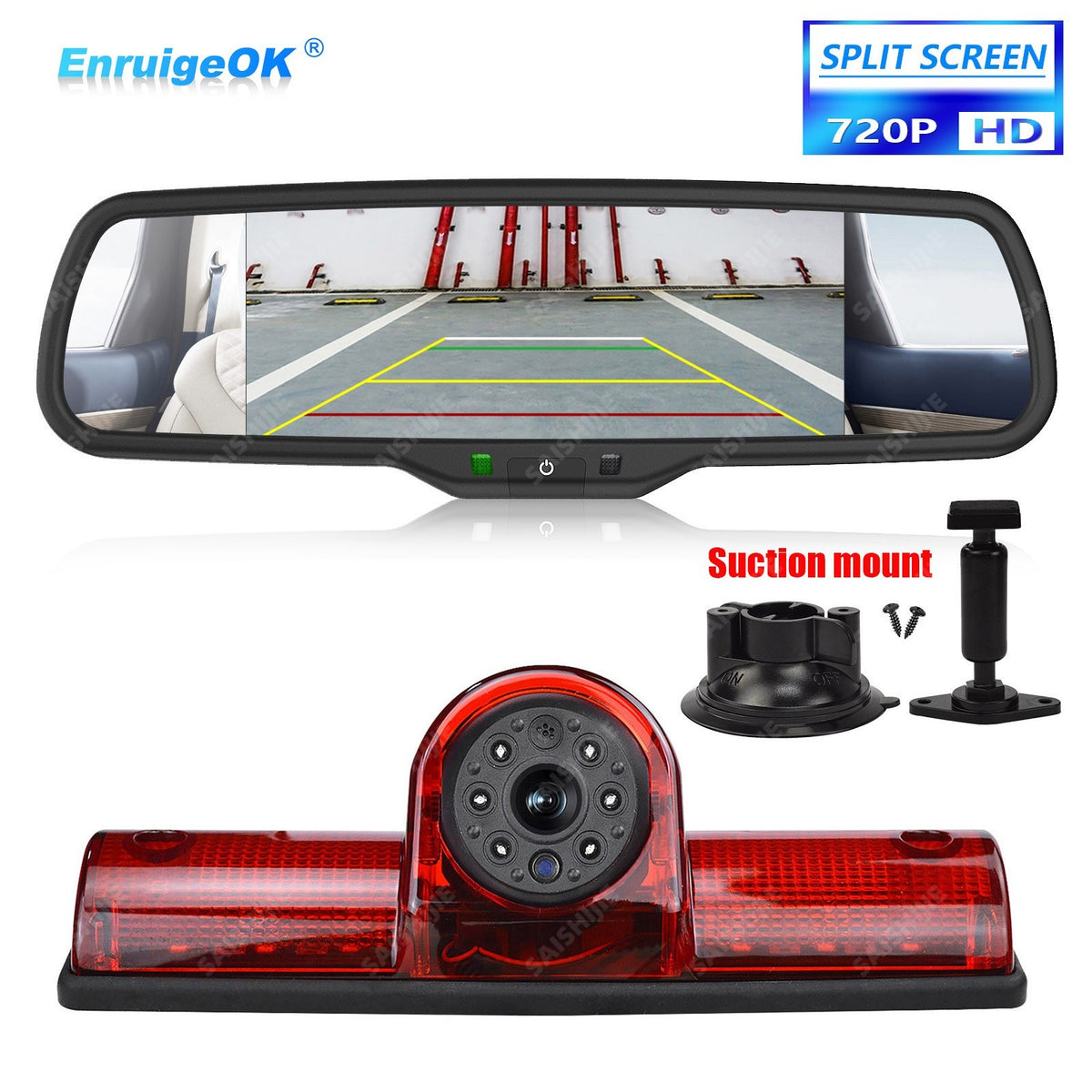

Complete Rearview System for Vans: Includes a 6.86-inch dual split-screen mirror monitor and a rear brake light camera, providing clear rear visibility and improved parking safety.

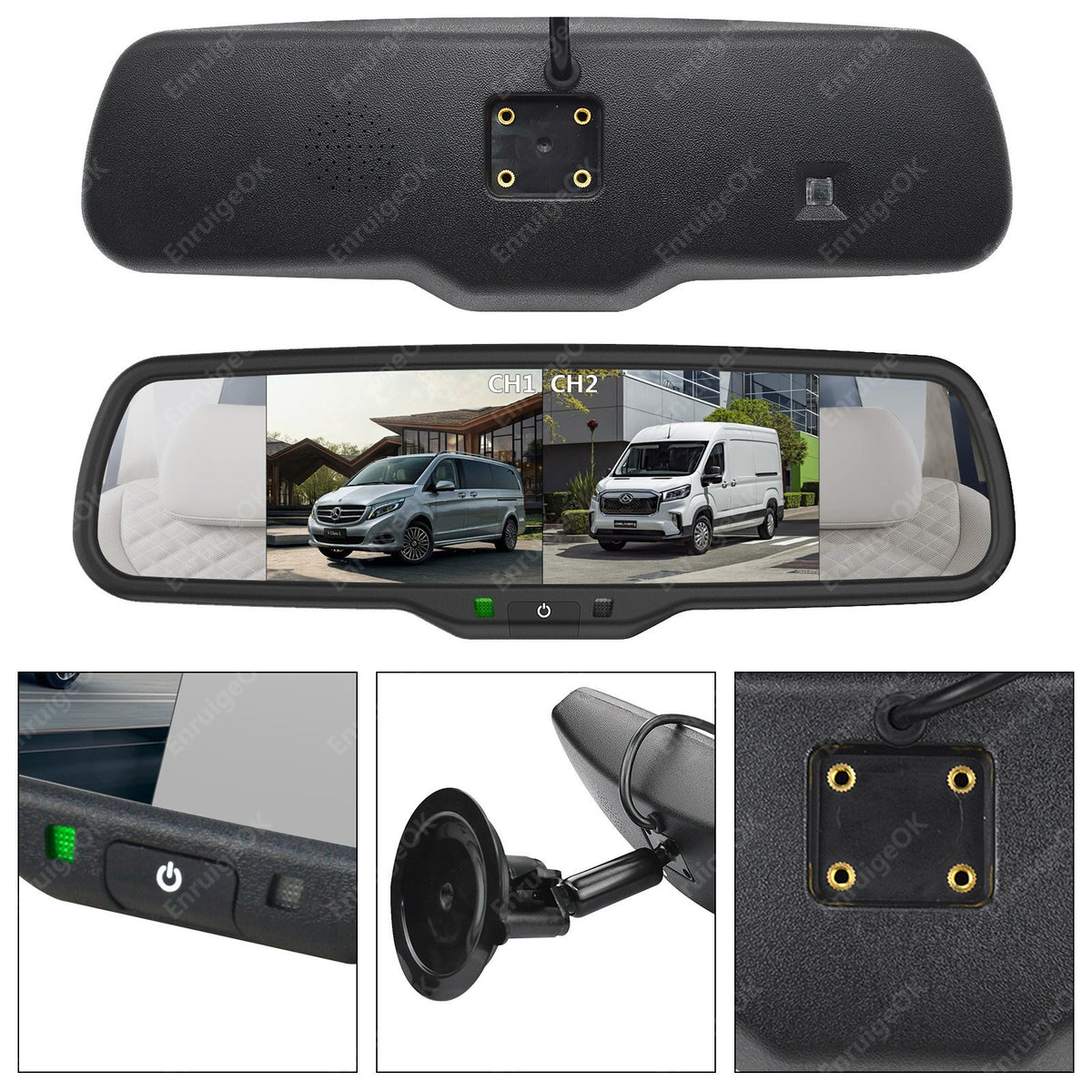

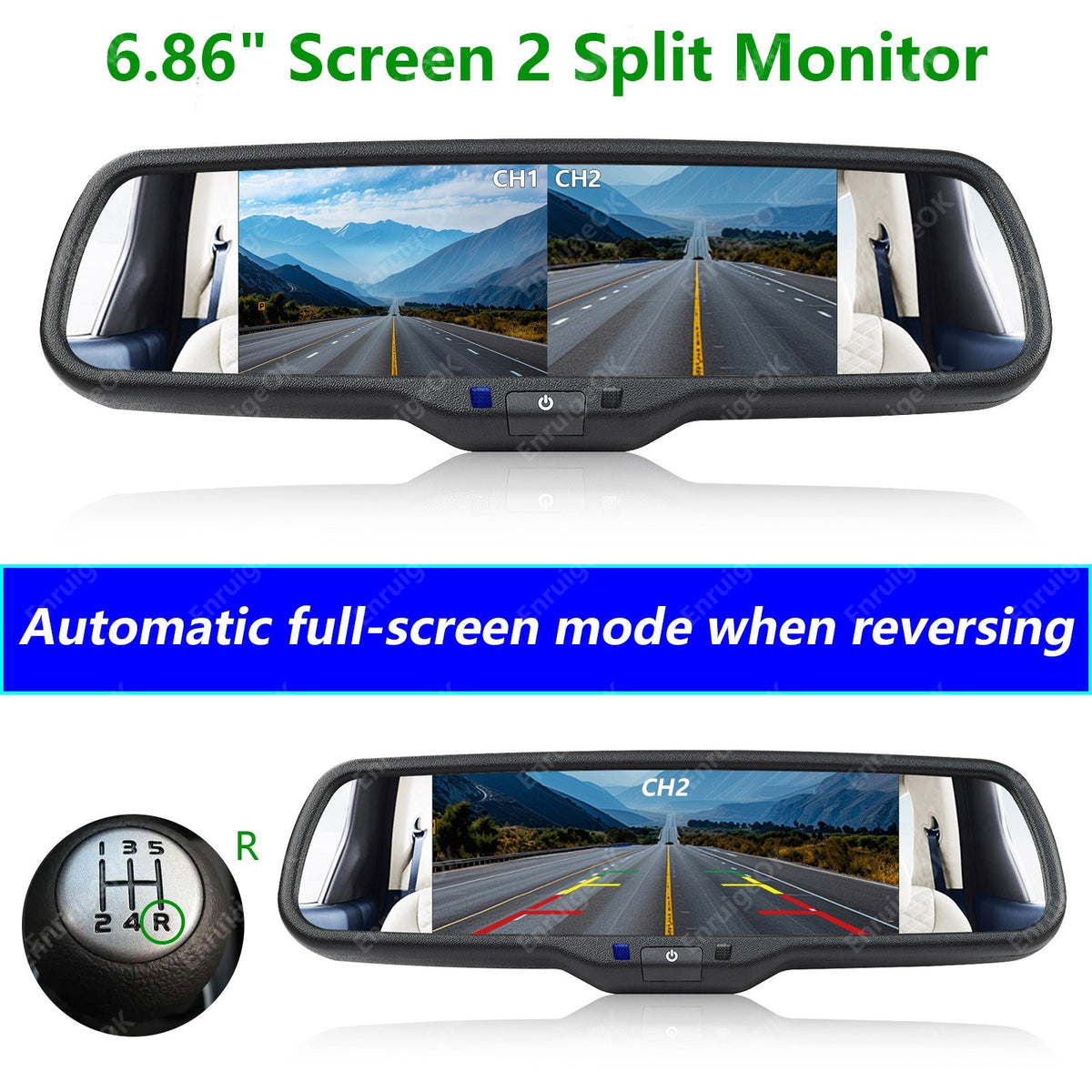

6.86" Dual-Screen Mirror Monitor: High-resolution 1280x480 IPS display with dual video inputs, split-screen functionality, and automatic full-screen mode when reversing.

AV2 Reversing Input: Captures a rear view while reversing, displayed on AV2 input.

AV1 Driving Input: Can connect an spare rear-view camera to monitor traffic behind while driving.

Wide Voltage Range (DC 9V-35V): Ensuring reliable operation in various conditions.

IP69 Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

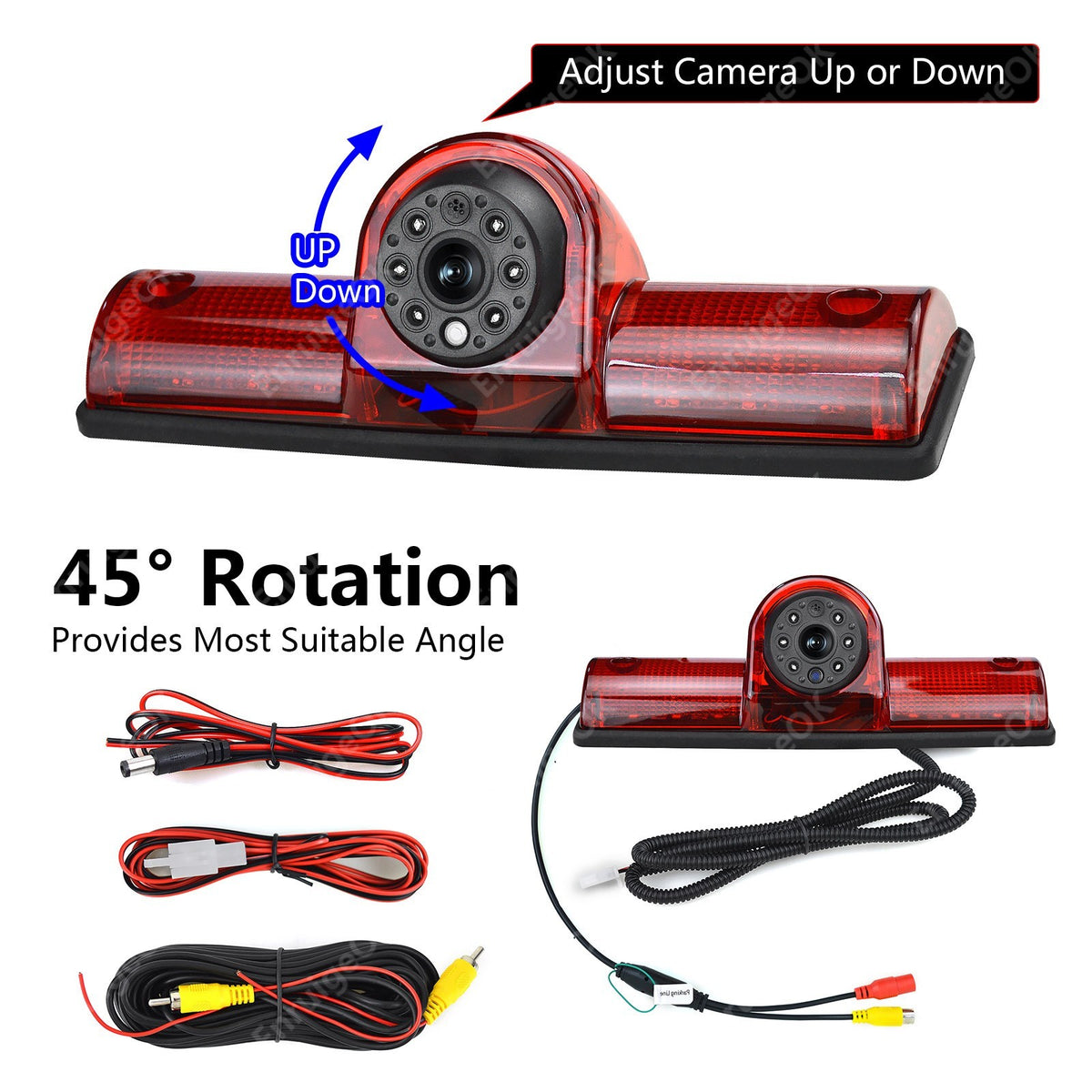

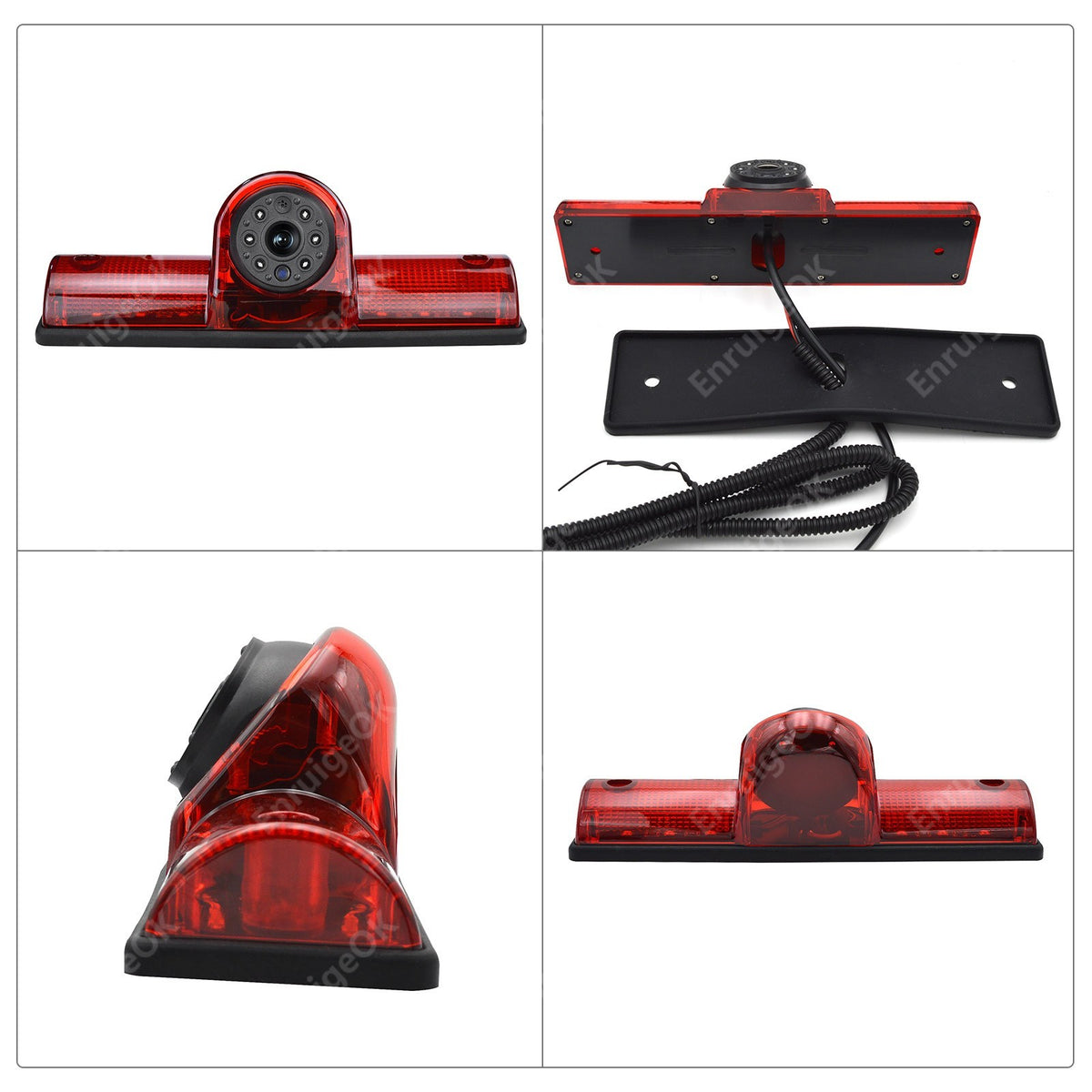

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixels: 1920(H)x720(V)

Resolution: AHD 720P

Night vision distance: Approx. 35ft

Waterproof rating: IP69

Horizontal angle: 120°

Video system: PAL/NTSC

S/N Ratio: >48dB

Current consumption: <150mA

Minimum illumination: 0.1 Lux

Power: DC 9V-35V

Operating temperature: -20℃ to +70℃

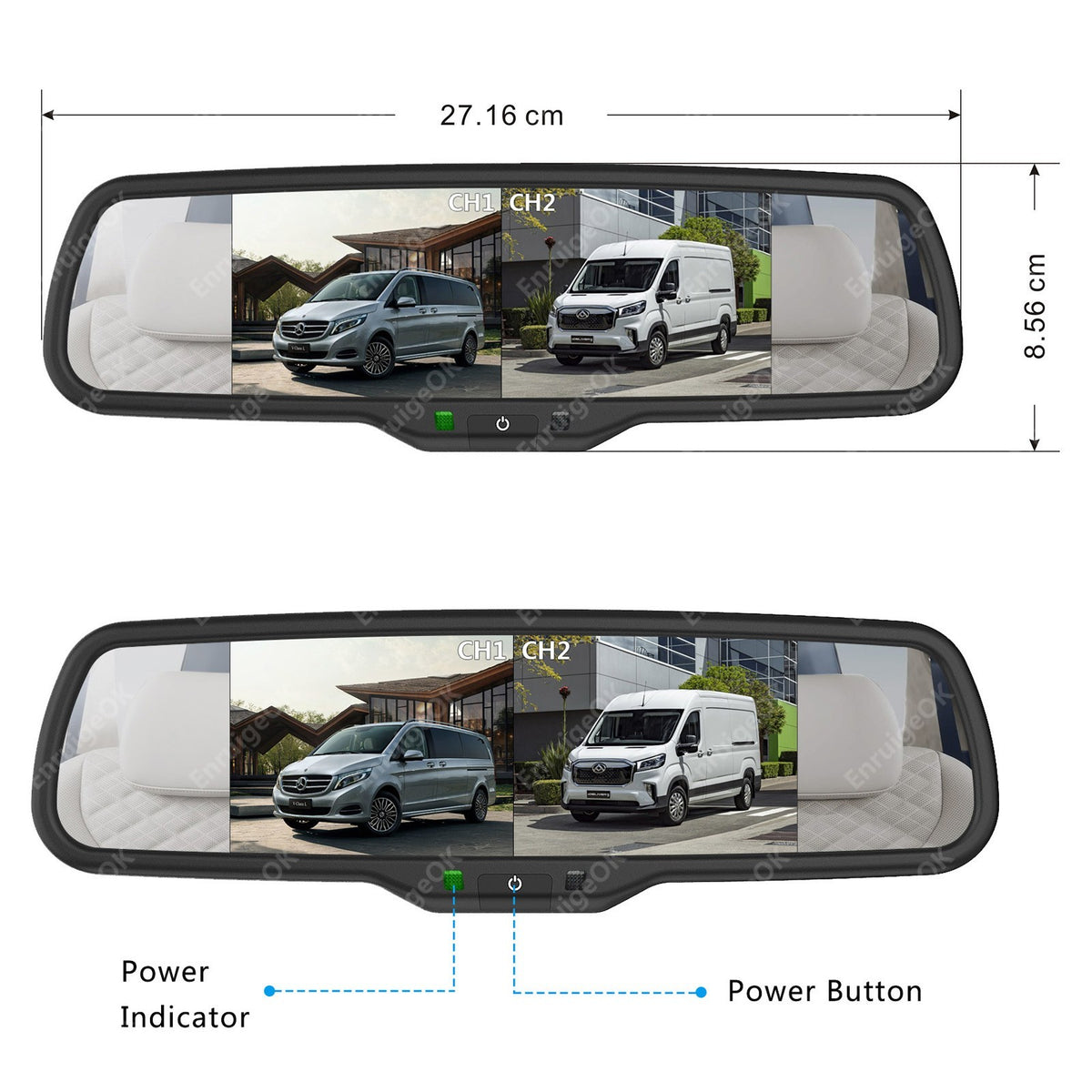

Monitor Specifications

Screen: 6.86 inch, support dual split screen

Resolution: 1280(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio: 16:9 / 4:3 adjustable

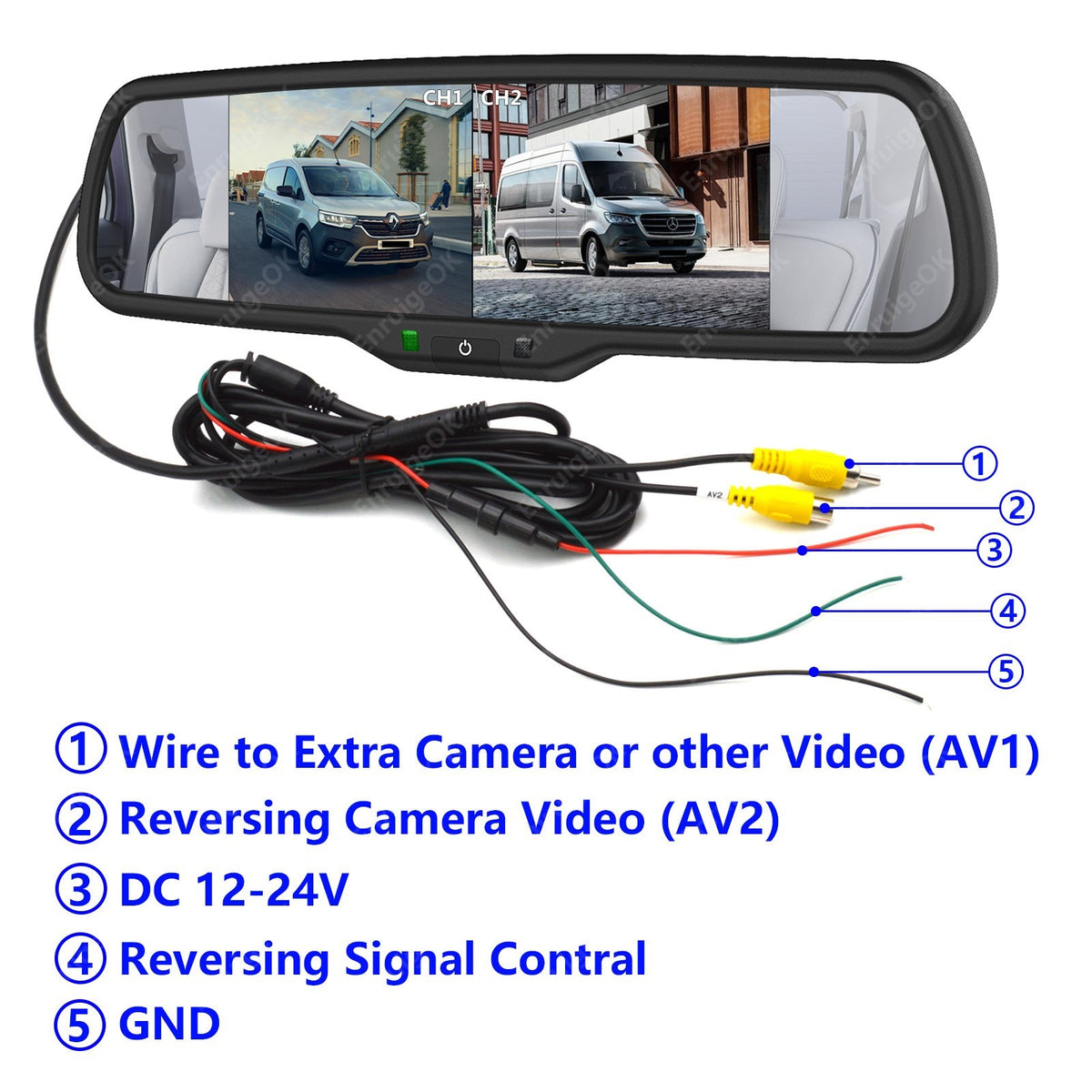

Video Input: Dual video input (AV1 for standard mirror view, AV2 for reversing), support 2-split screen, automatic full-screen switch during reversing

Blue screen displayed when no signal detected

Power Supply: DC 12V-24V

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

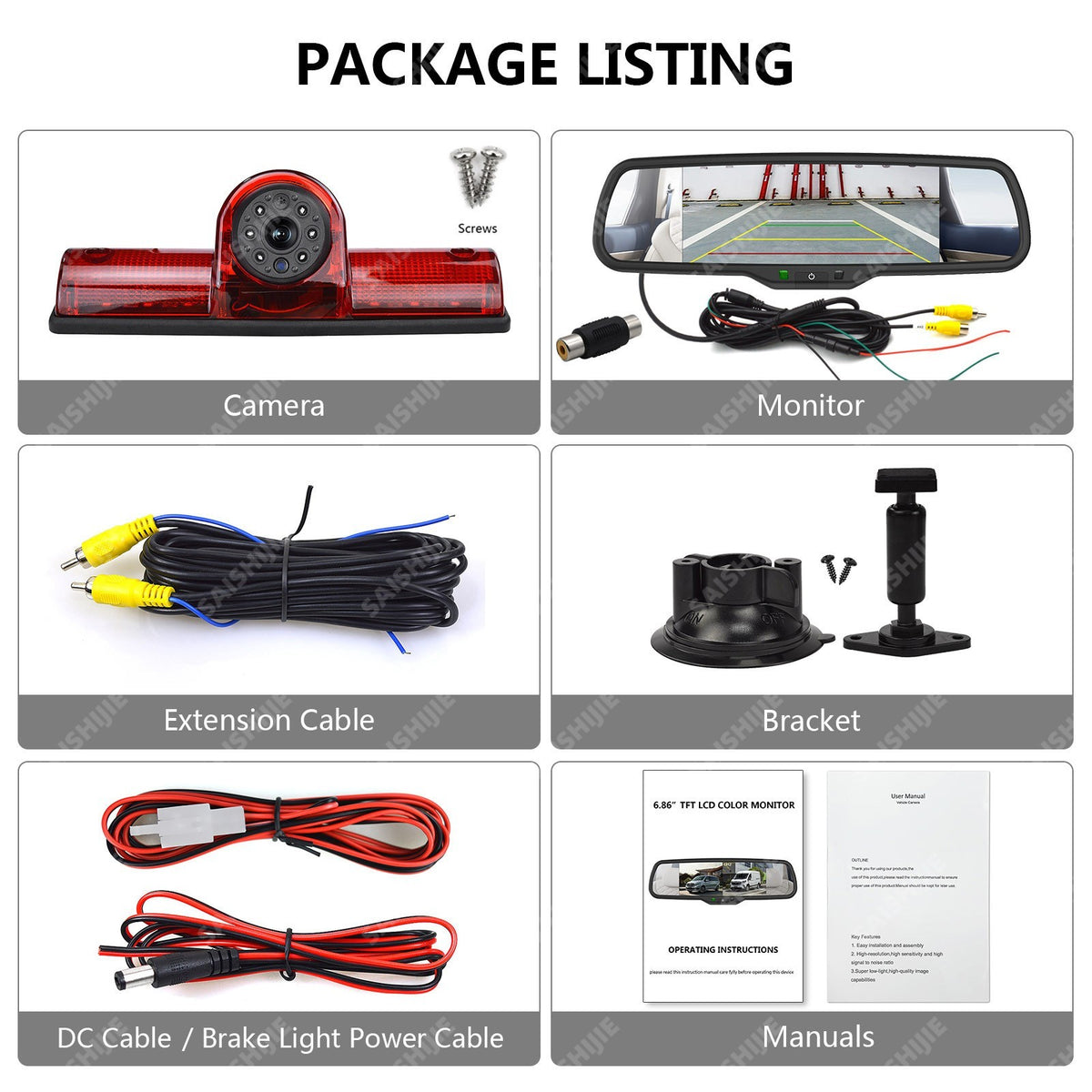

Package contents

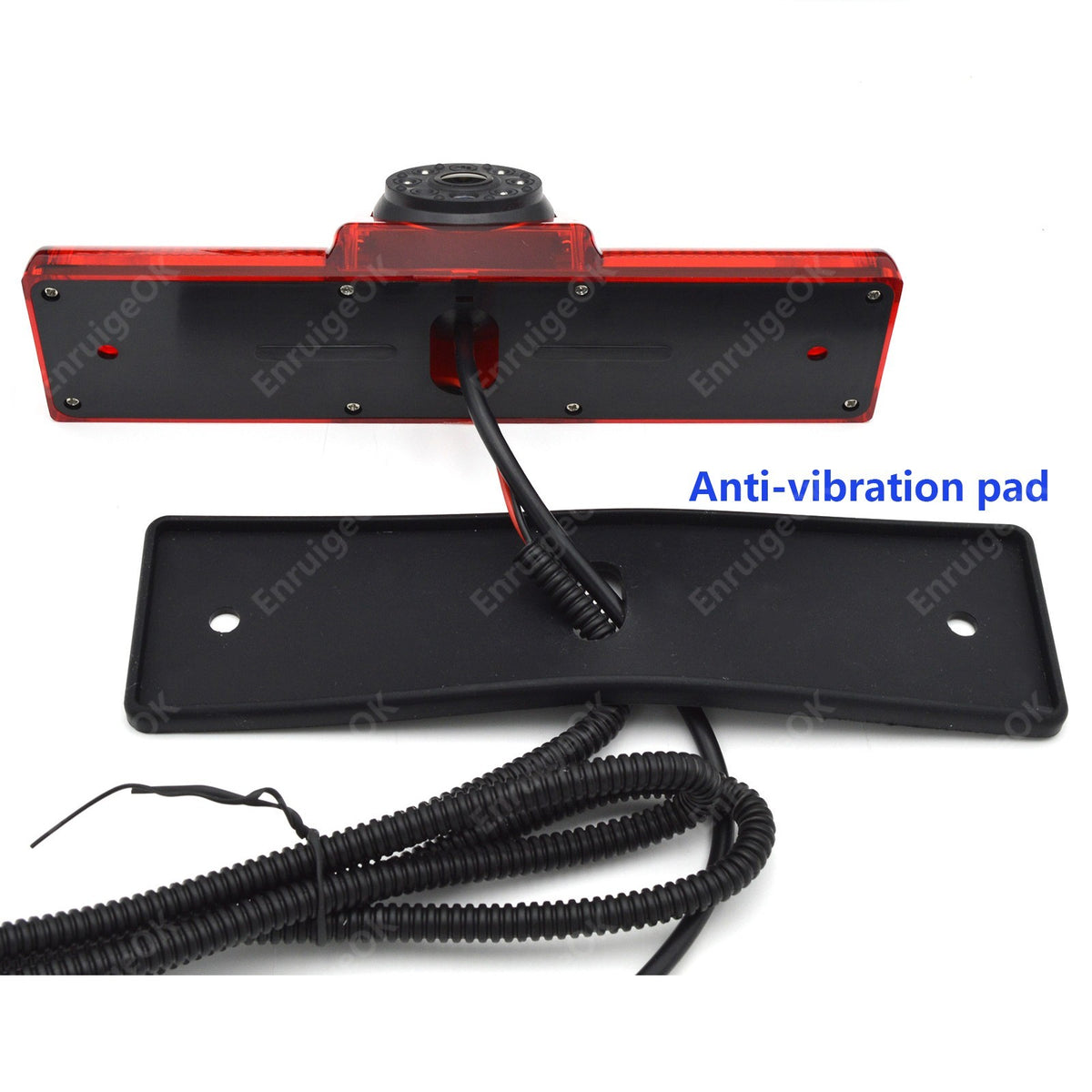

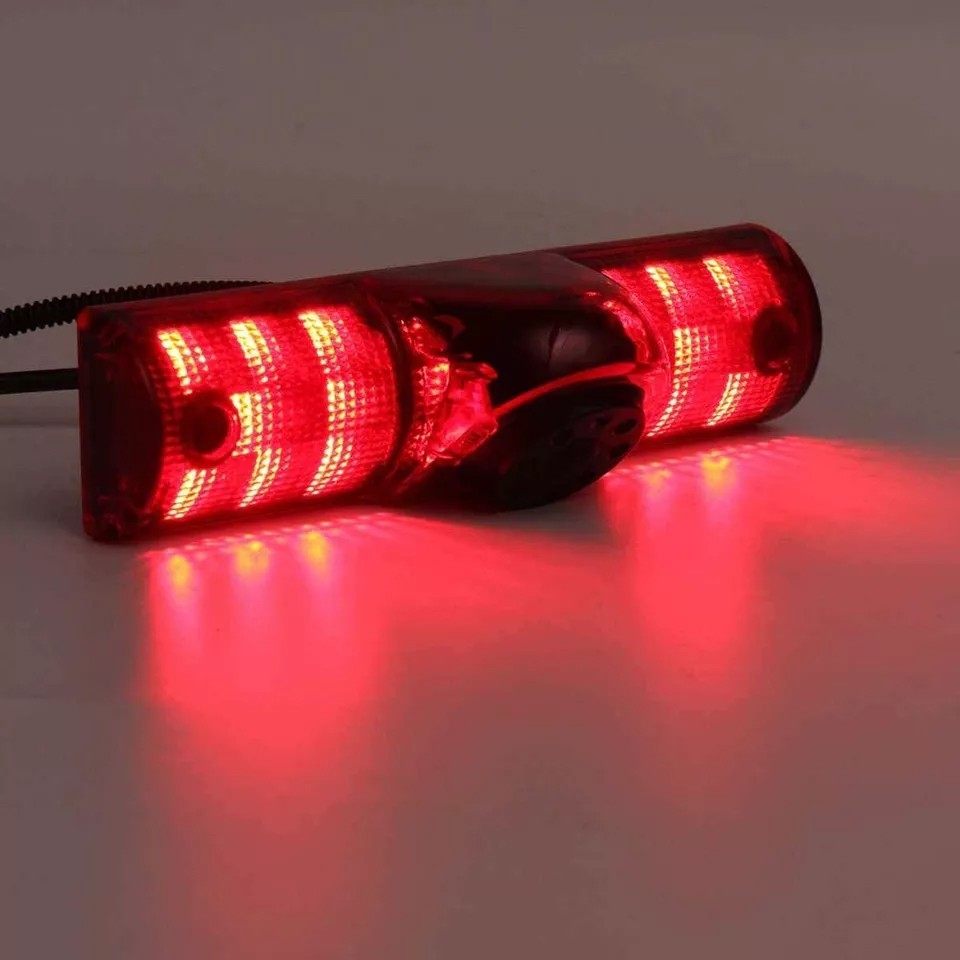

1 X Brake light camera

1 X 6.86'' split mirror monitor

1 X 2.5m monitor power cable

1 X 10m/33ft. video extension cable

1 X 1m DC power cable

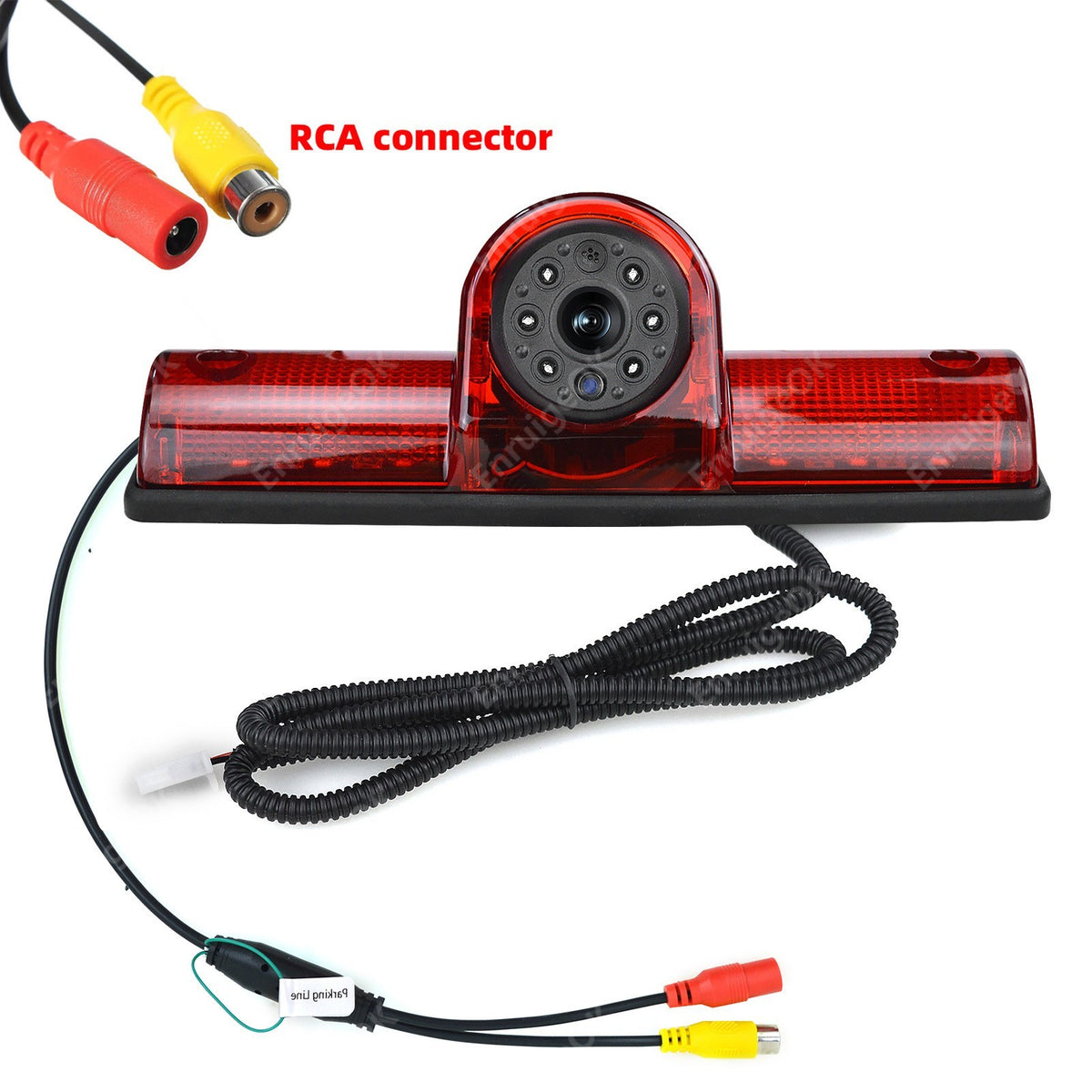

1 X Camera brake light power cable

1 X Female-to-female adapter

1 X Suction cup bracket

1 X Manual
