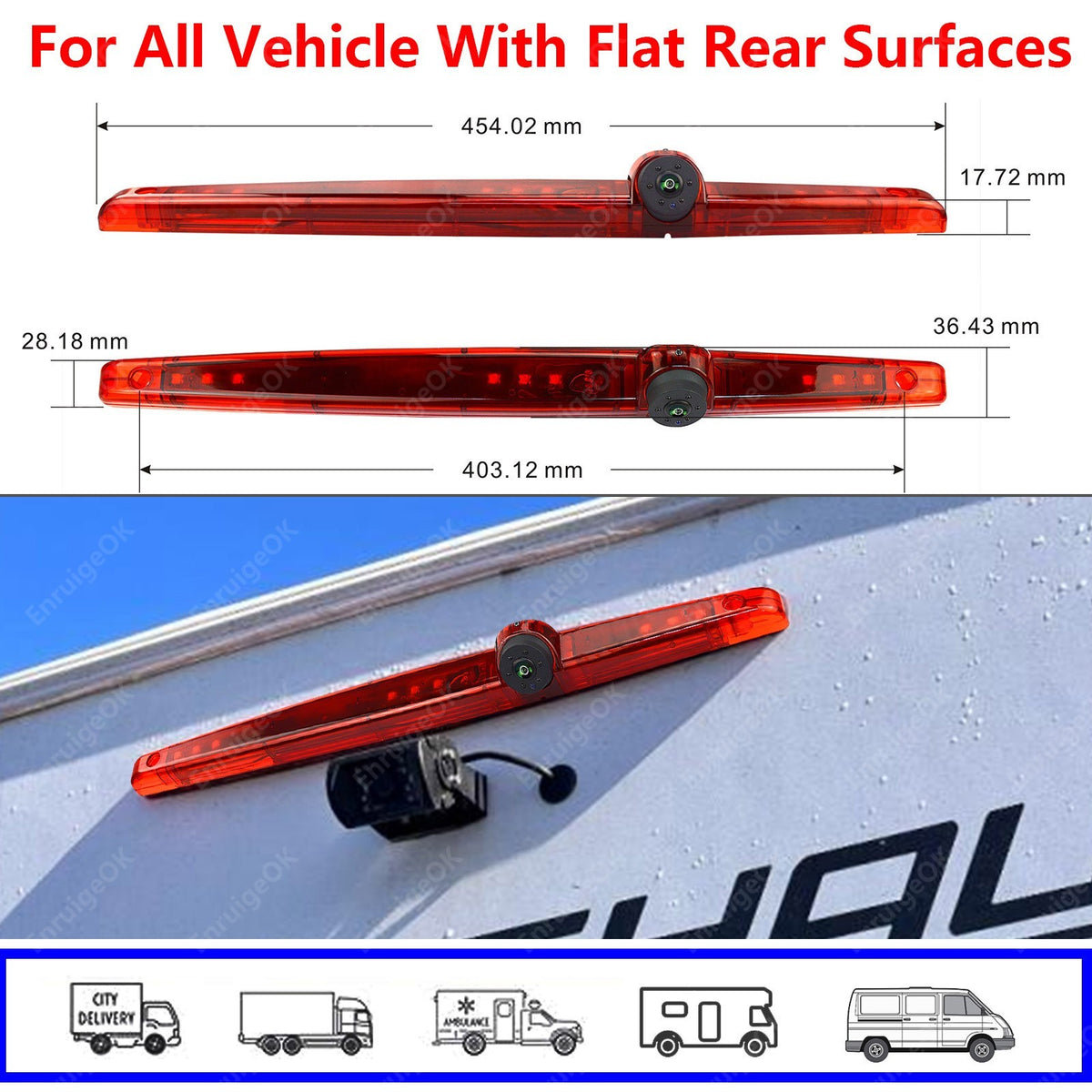

Surface Mounted 3rd Brake Light Backup Camera Kit Universal for Motorhome Vans

Note: Please check the camera size carefully before make the order.

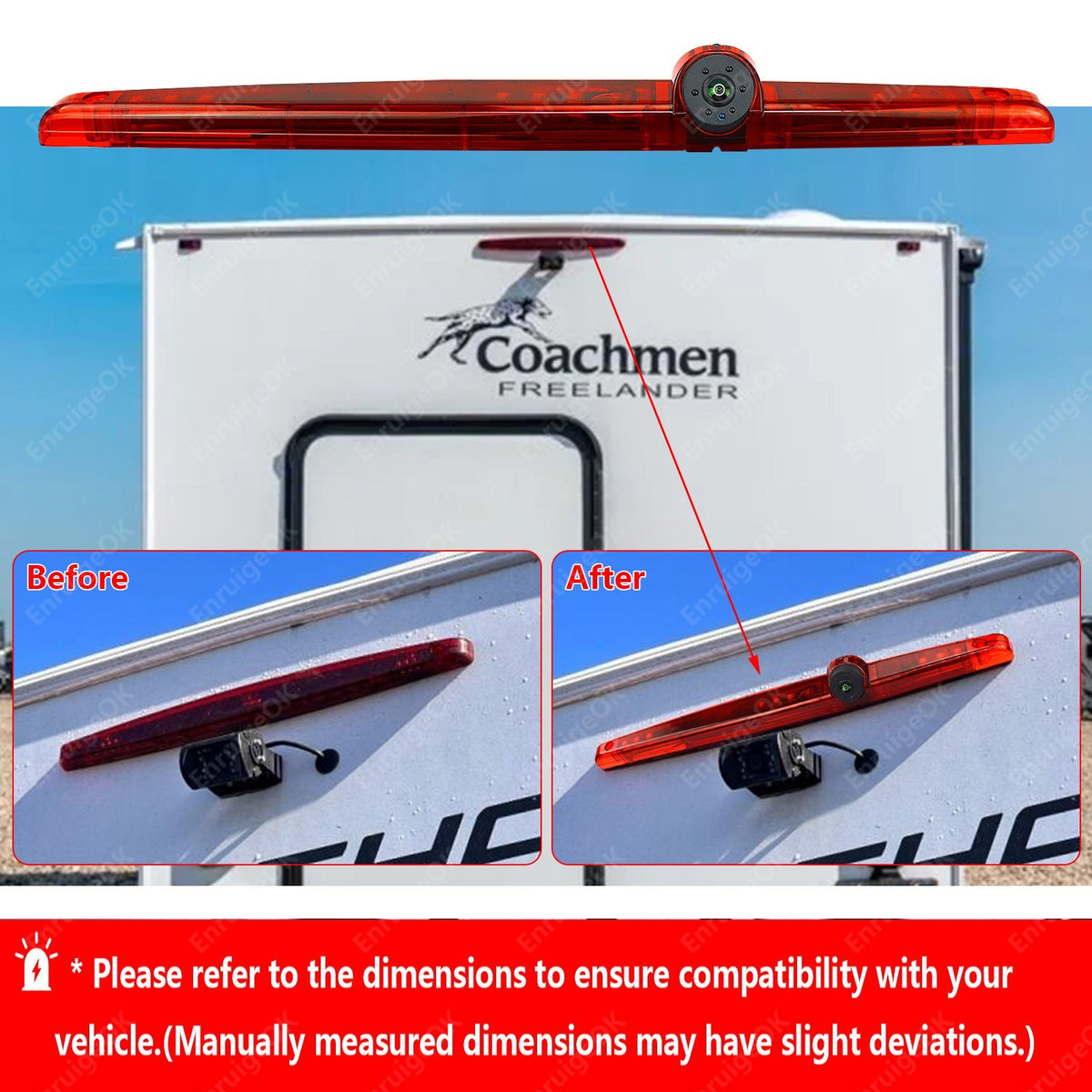

EnruigeOK High Roof Mount 3rd Brake Light Backup Camera for Coachmen RV Class C — Leprechaun / Freelander — Chevy 4500 / Ford 450 Camper, Trailer, Motorhome, LED Tail Light Lamp Reverse Camera for Travel Trailer, Pickup, RV, Camper, Motorhome, Direct Fit for RCA Connector Aftermarket Monitors

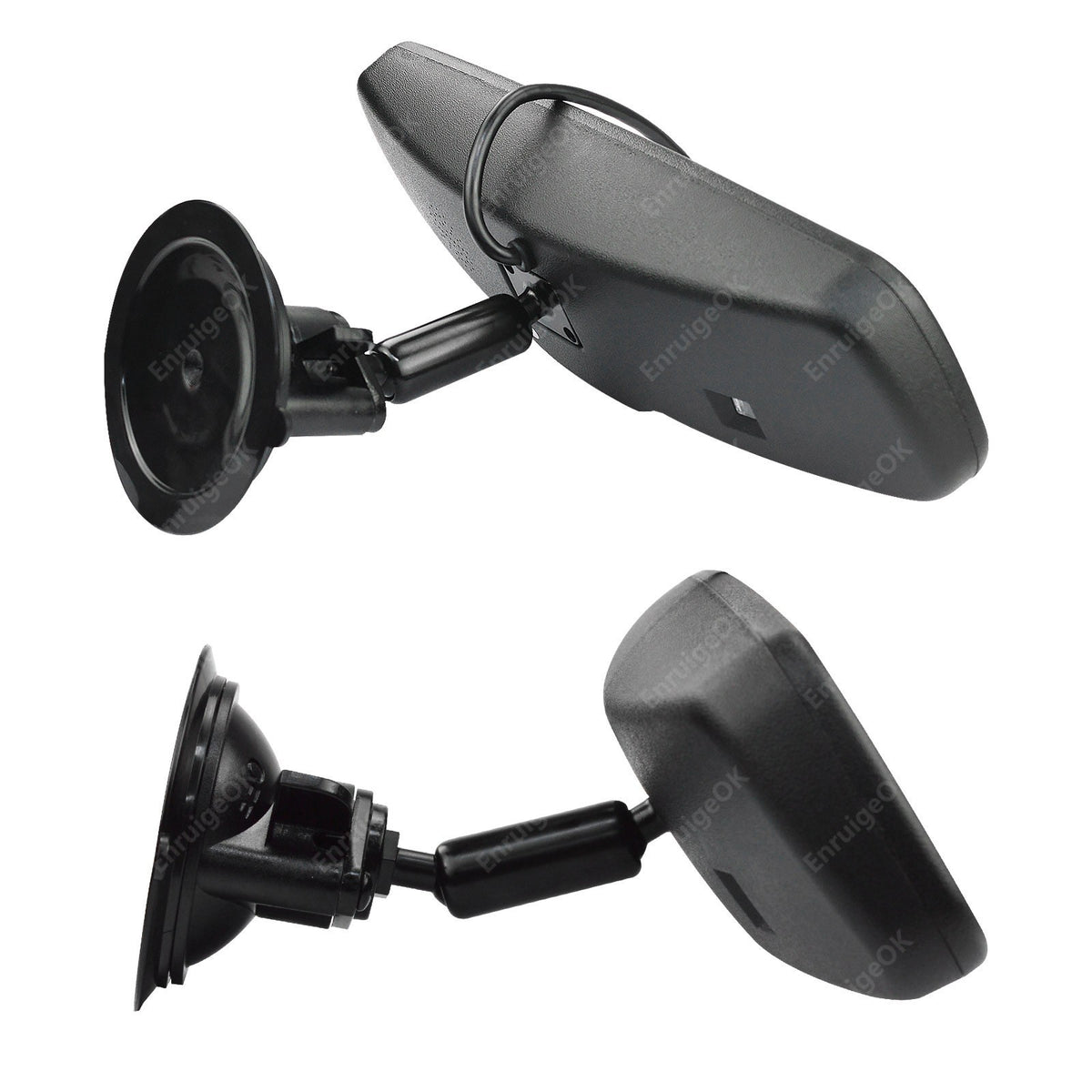

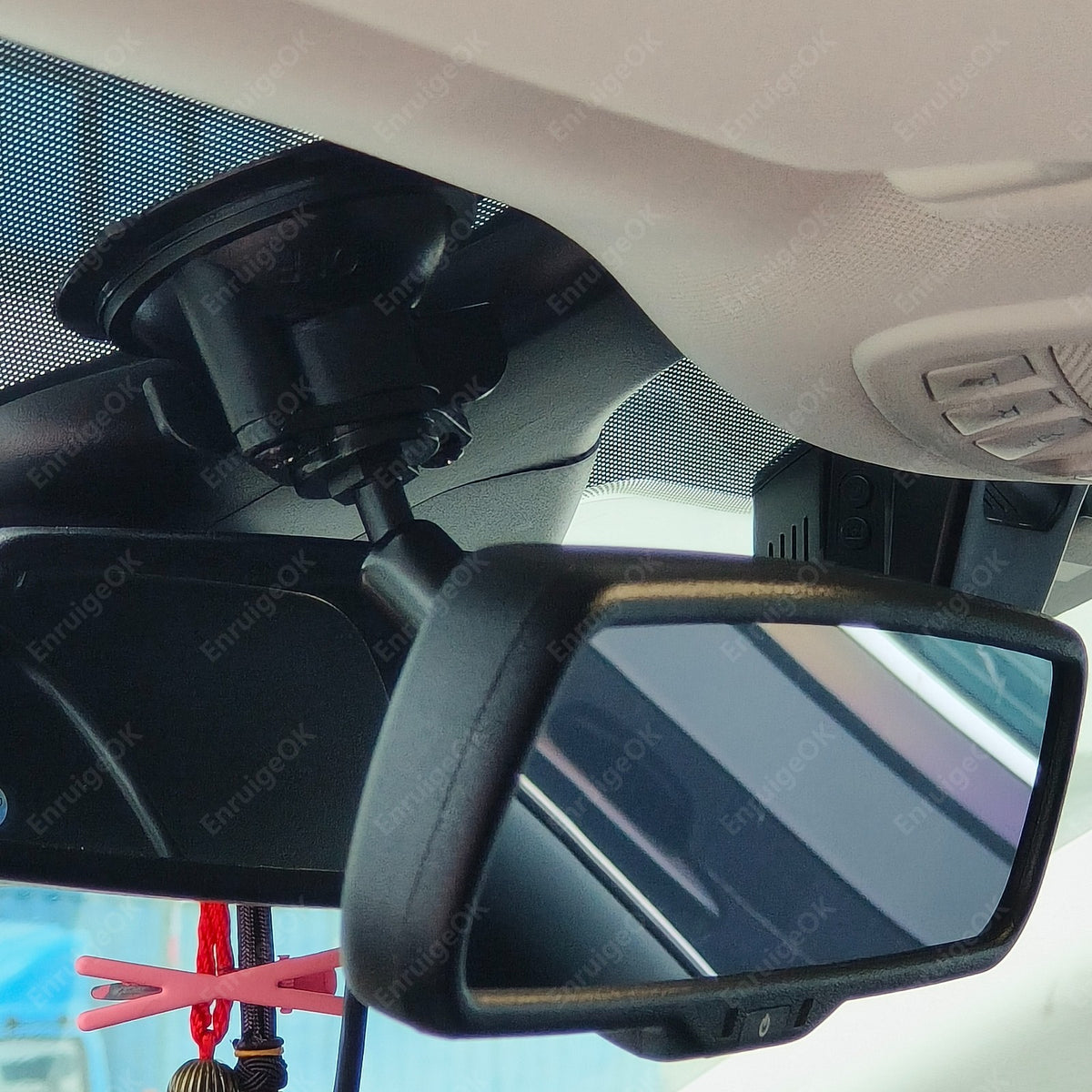

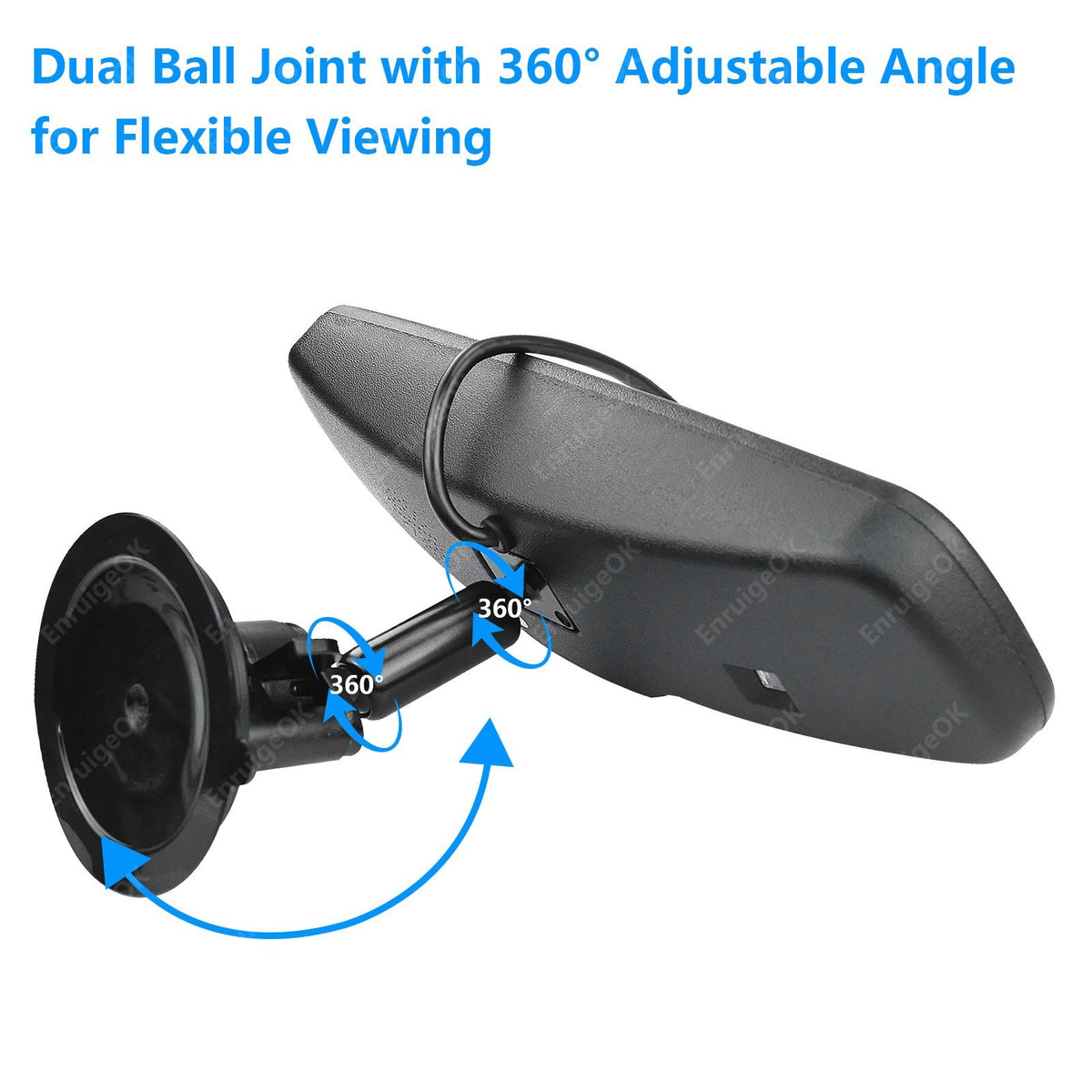

Monitor Bracket:

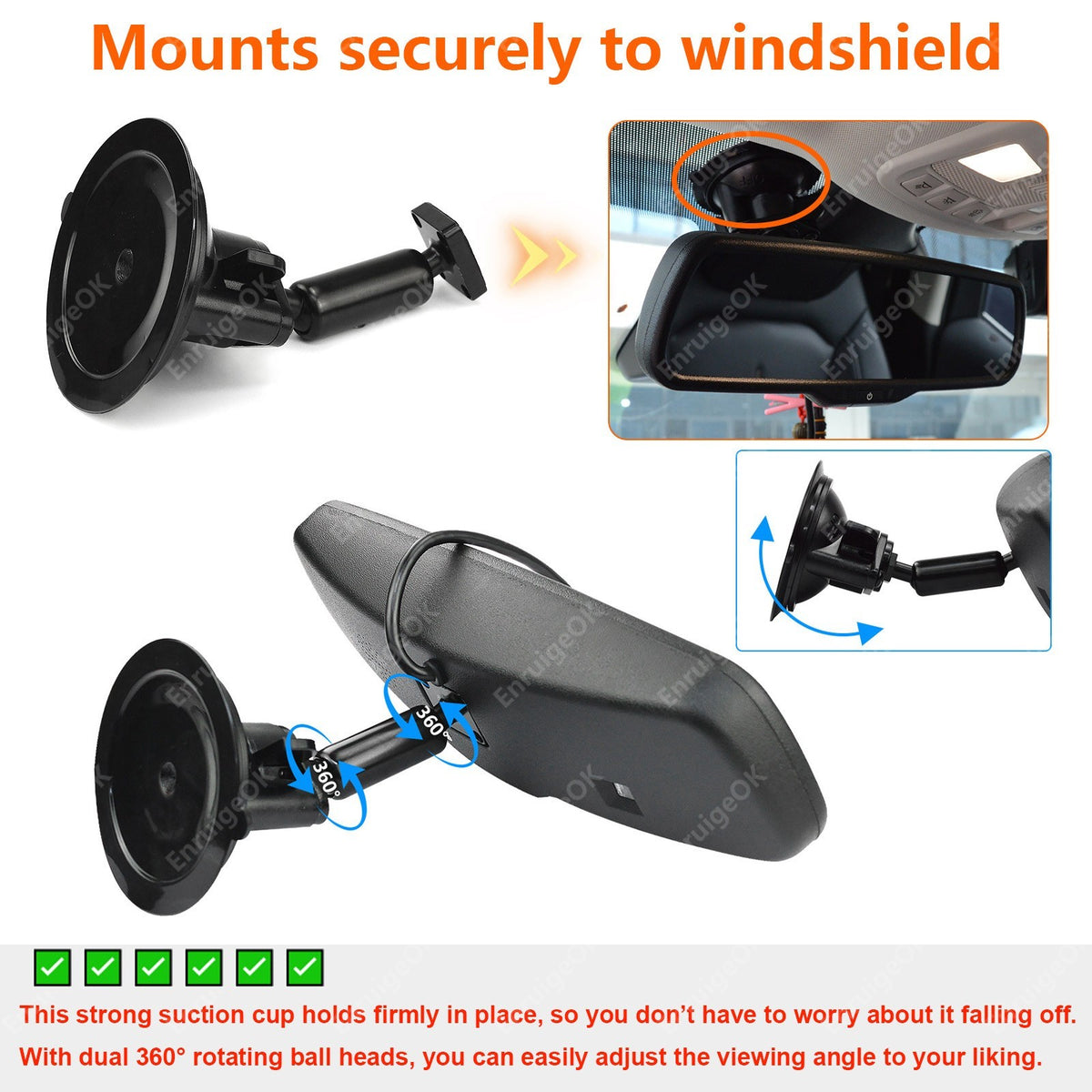

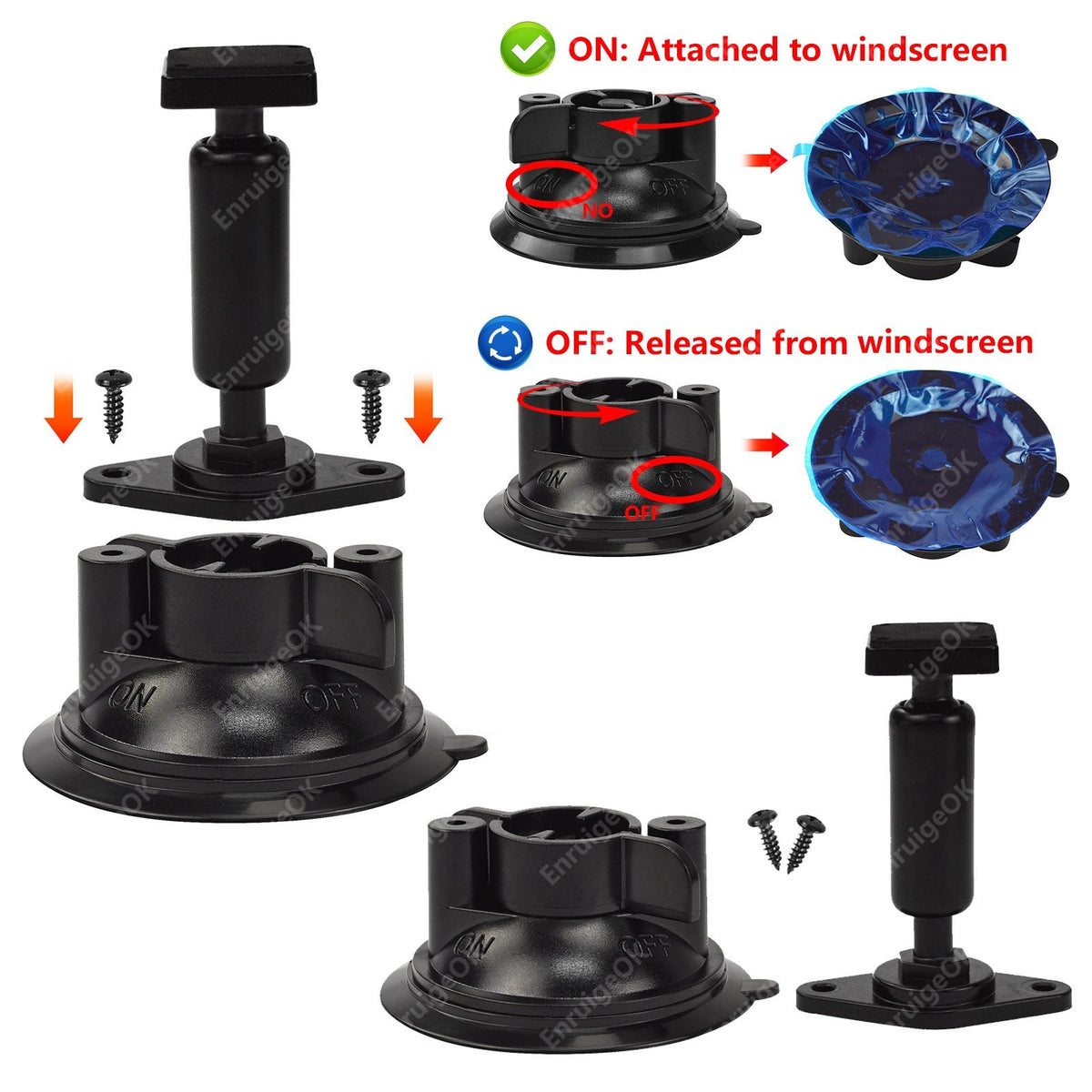

This set comes with a suction cup bracket. Strong suction cup design ensures firm attachment without slipping. Equipped with dual 360° rotating ball heads for flexible angle adjustment, allowing you to achieve the perfect viewing angle with ease.

Description

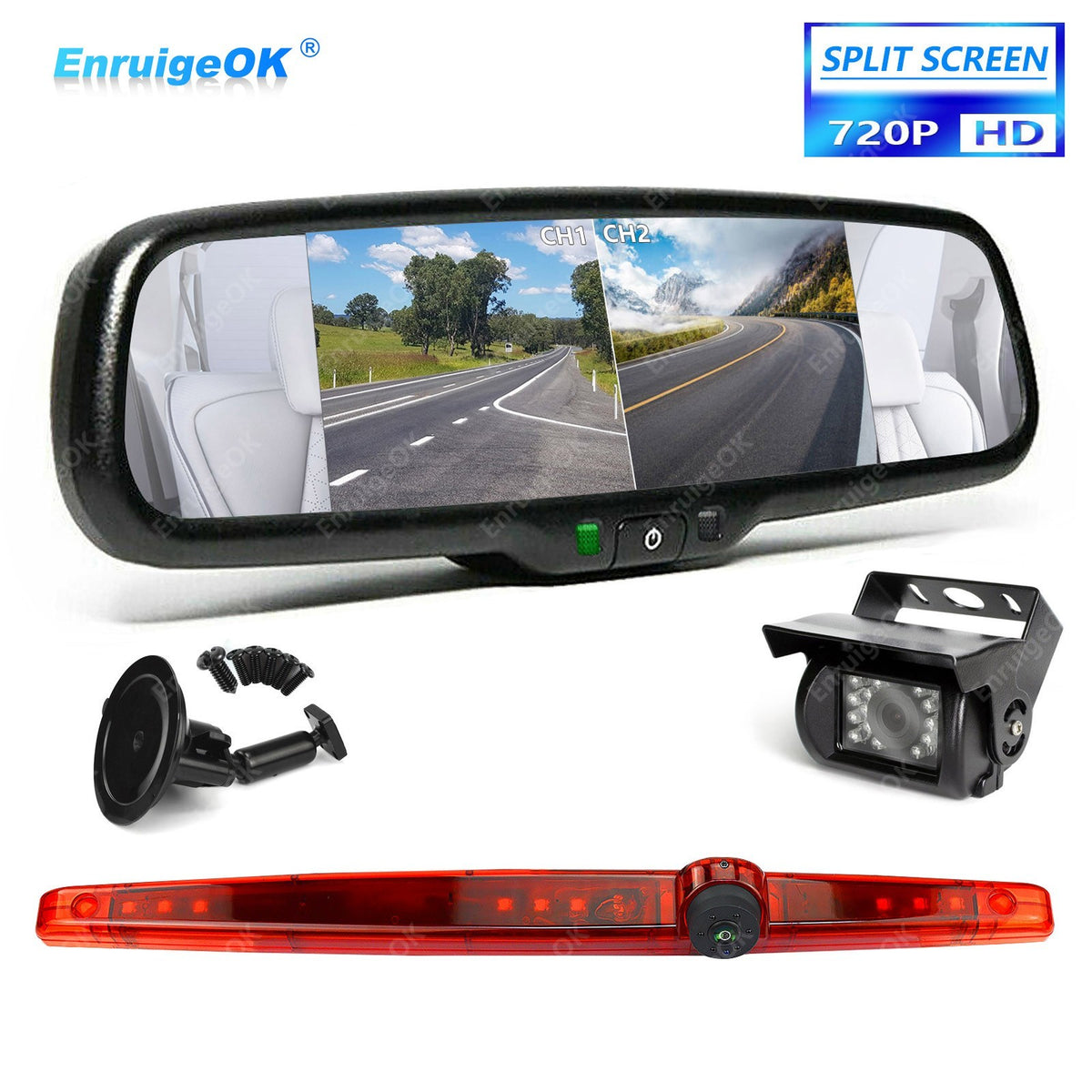

Complete Rearview System for Vans: Includes a 6.86-inch dual split-screen mirror monitor, a rear brake light camera and rear-view camera, providing clear rear visibility and improved parking safety.

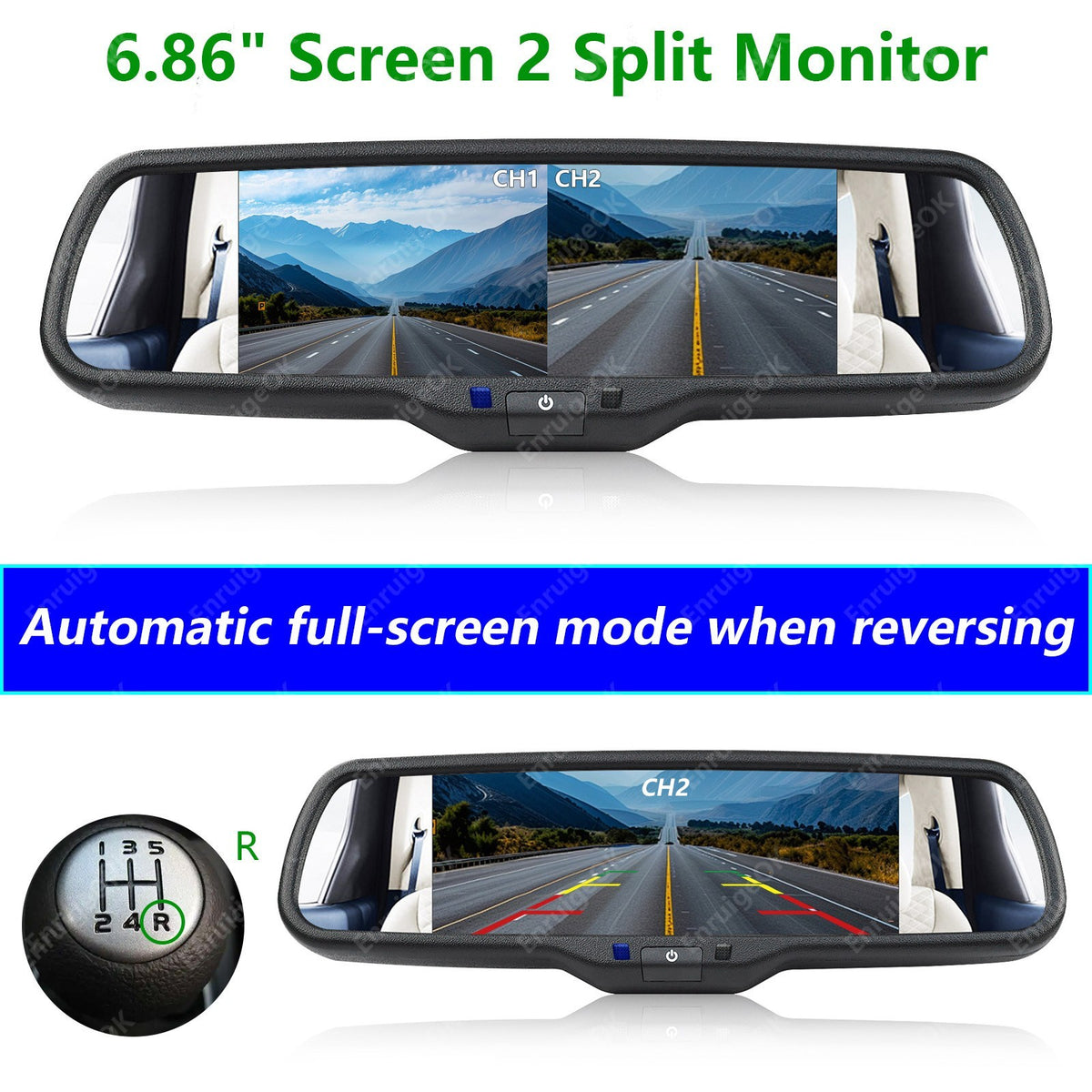

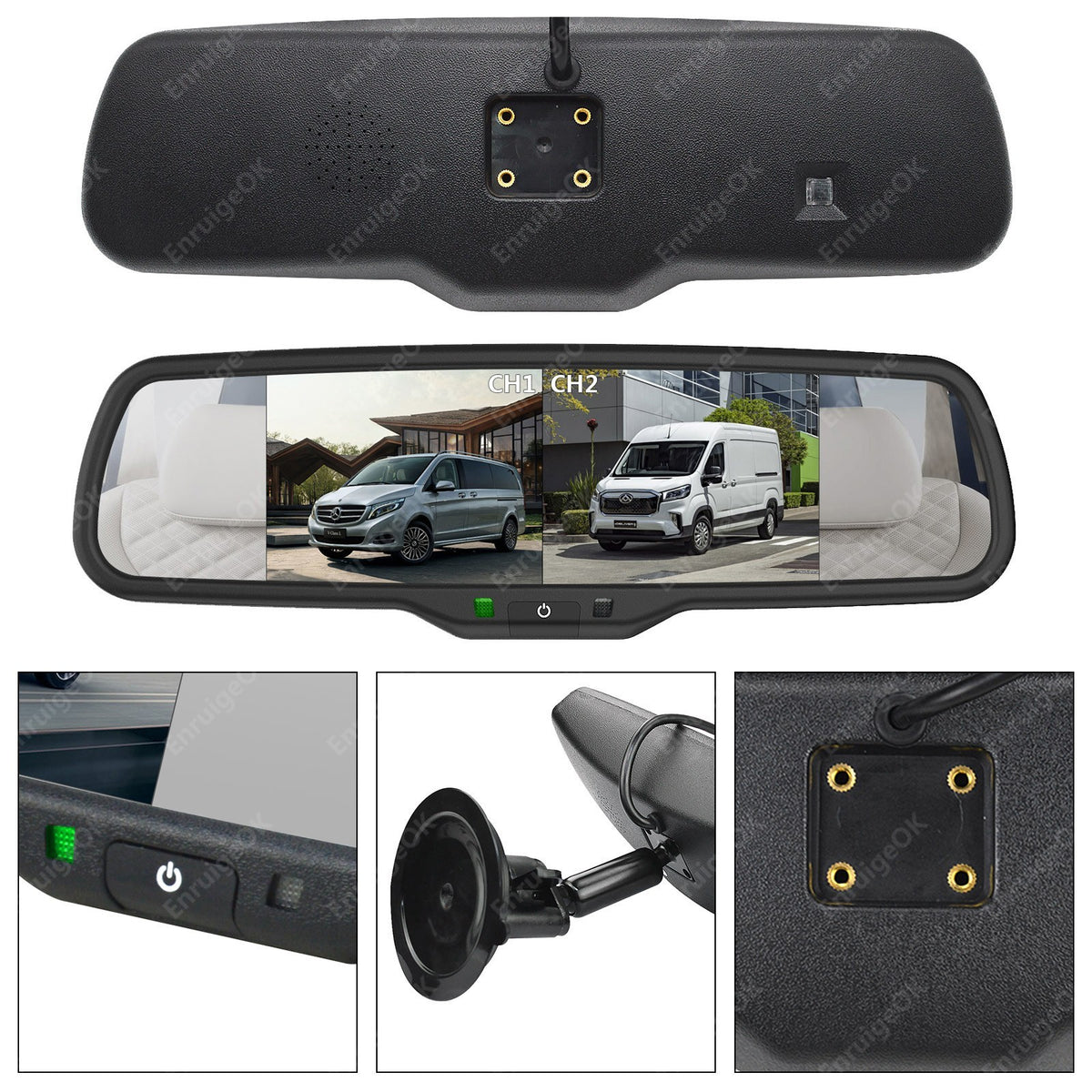

6.86" Dual-Screen Mirror Monitor: High-resolution 1280x480 IPS display with dual video inputs, split-screen functionality, and automatic full-screen mode when reversing.

AV2 Reversing Input: Captures a rear view while reversing, displayed on AV2 input.

AV1 Driving Input: Can connect the rear-view camera to monitor traffic behind while driving.

Wide Voltage Range (DC 9V-35V): Ensuring reliable operation in various conditions.

IP69 Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

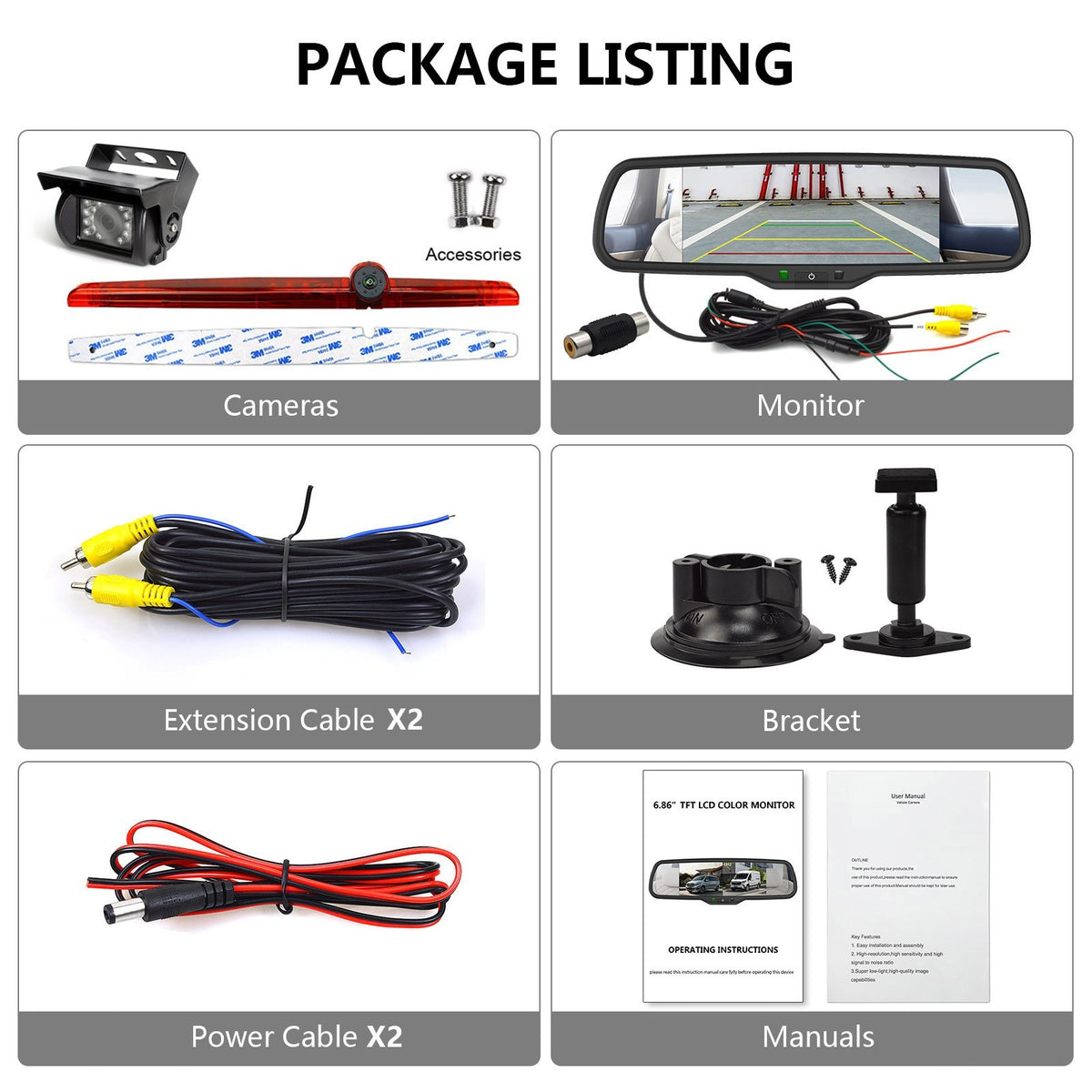

Package contents

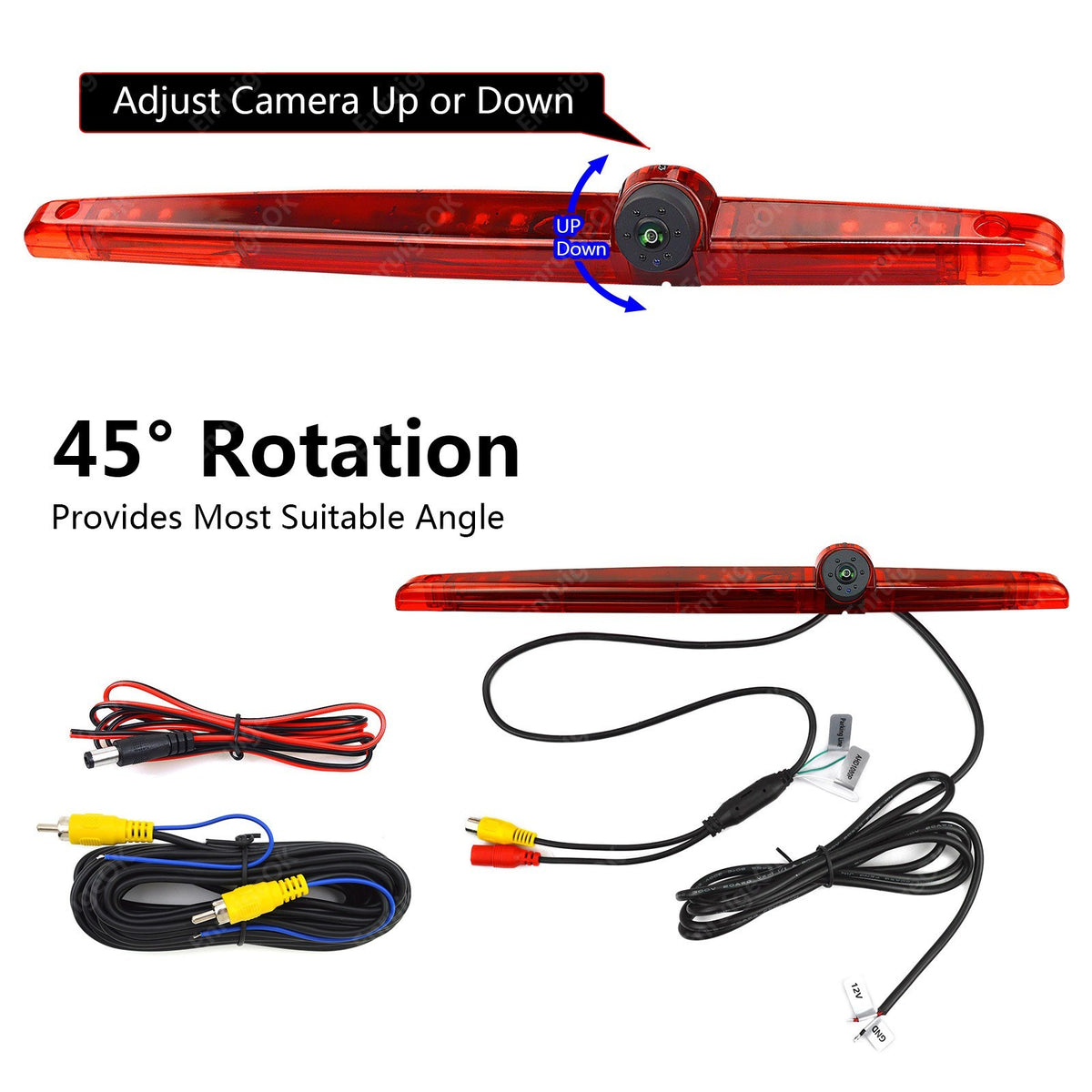

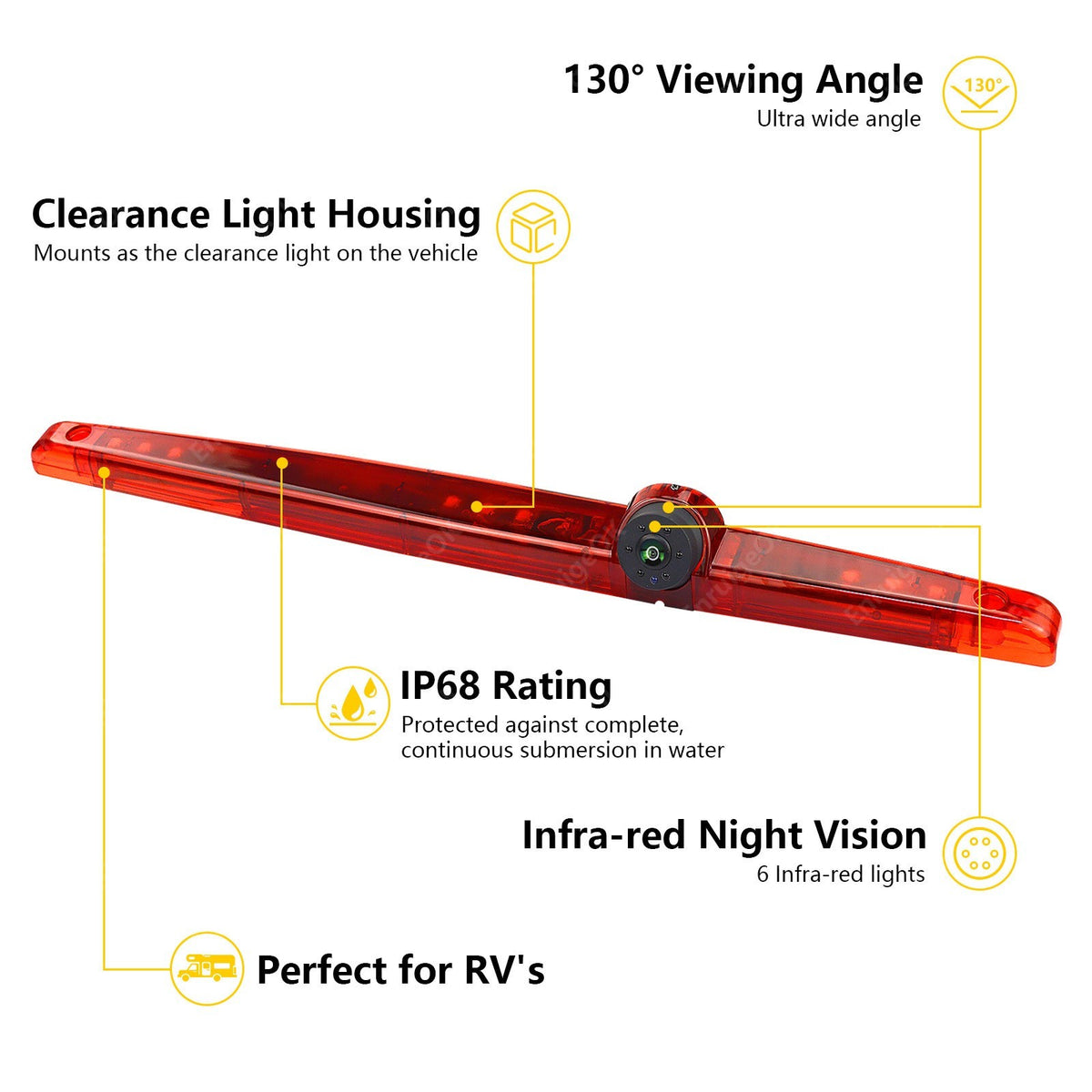

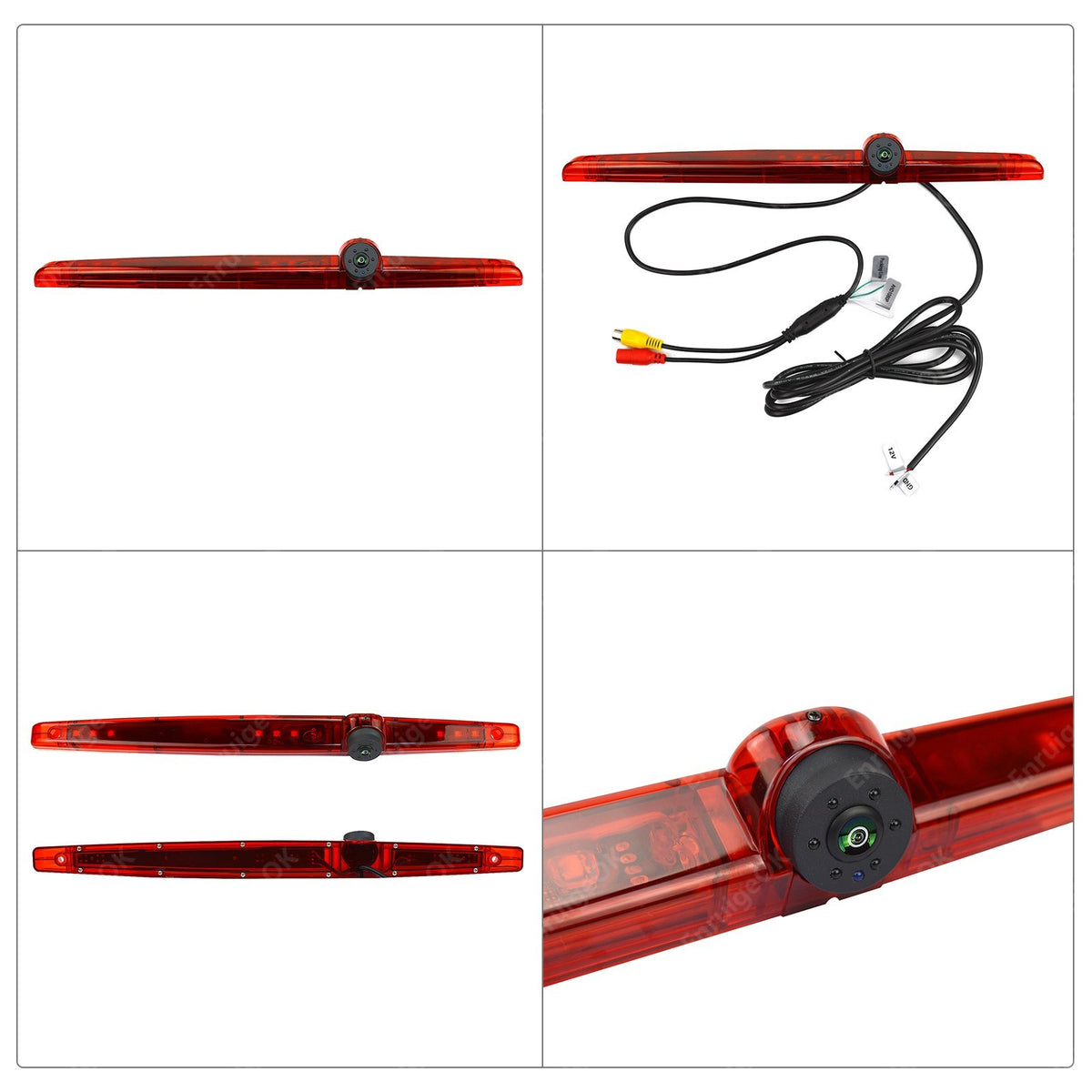

1 X Brake light camera

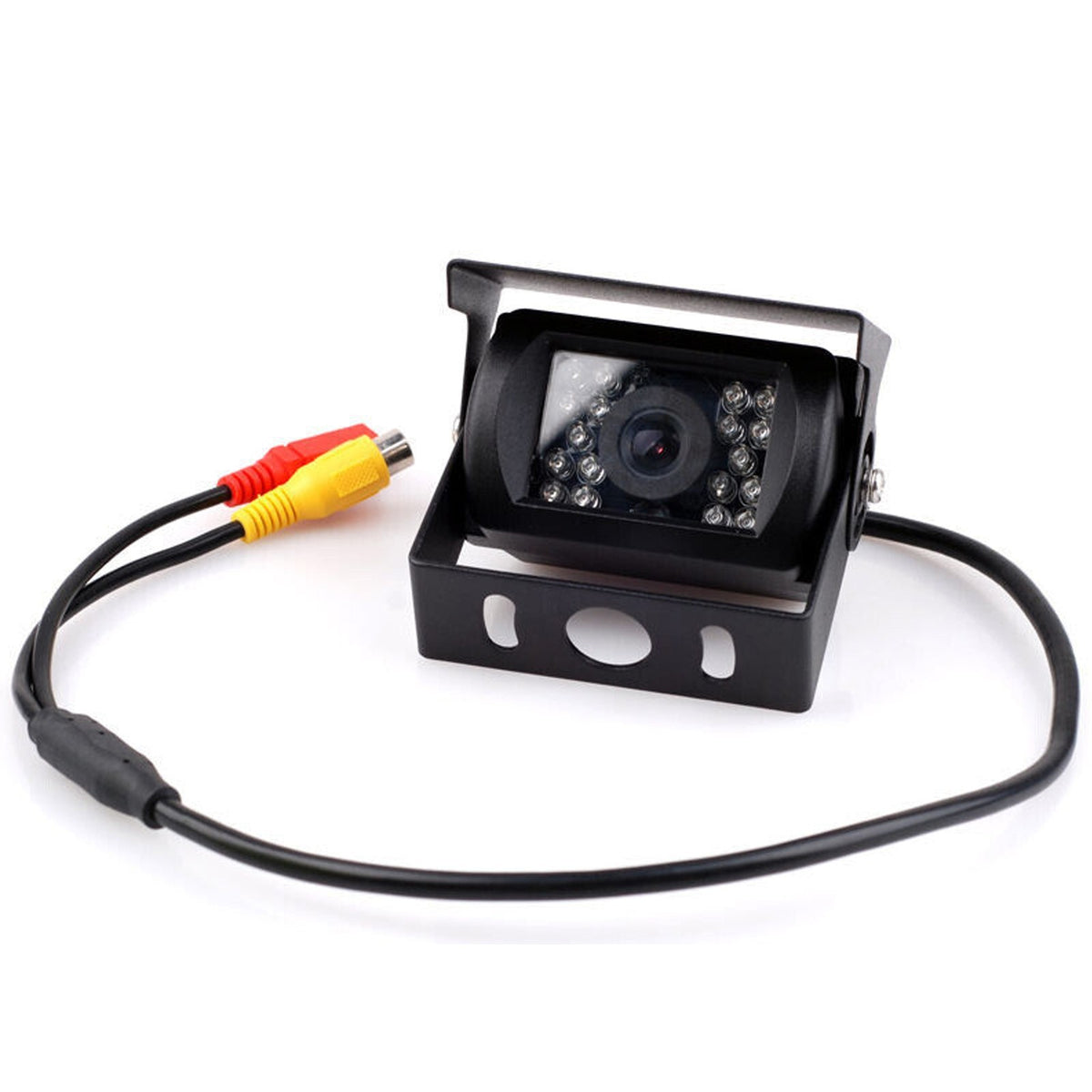

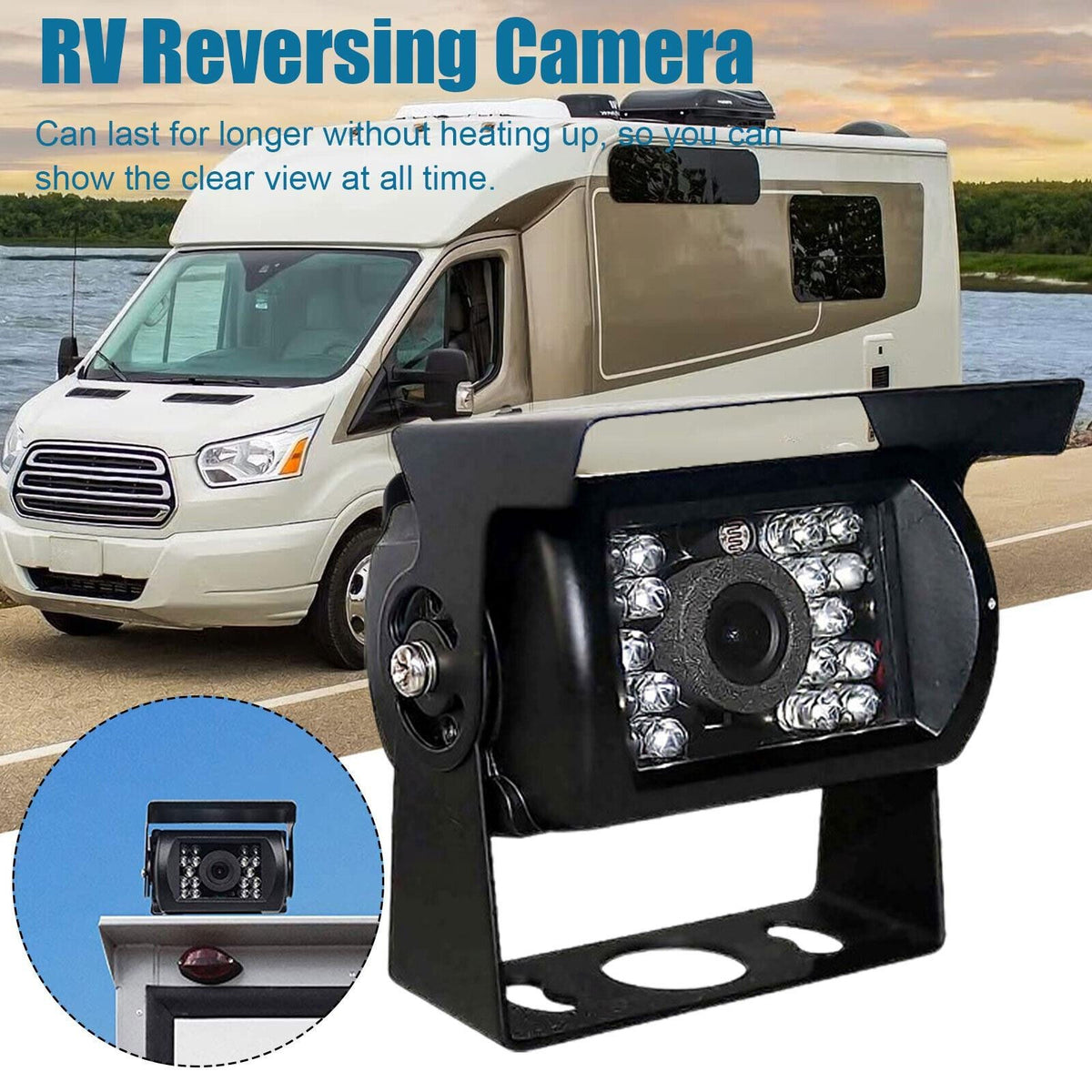

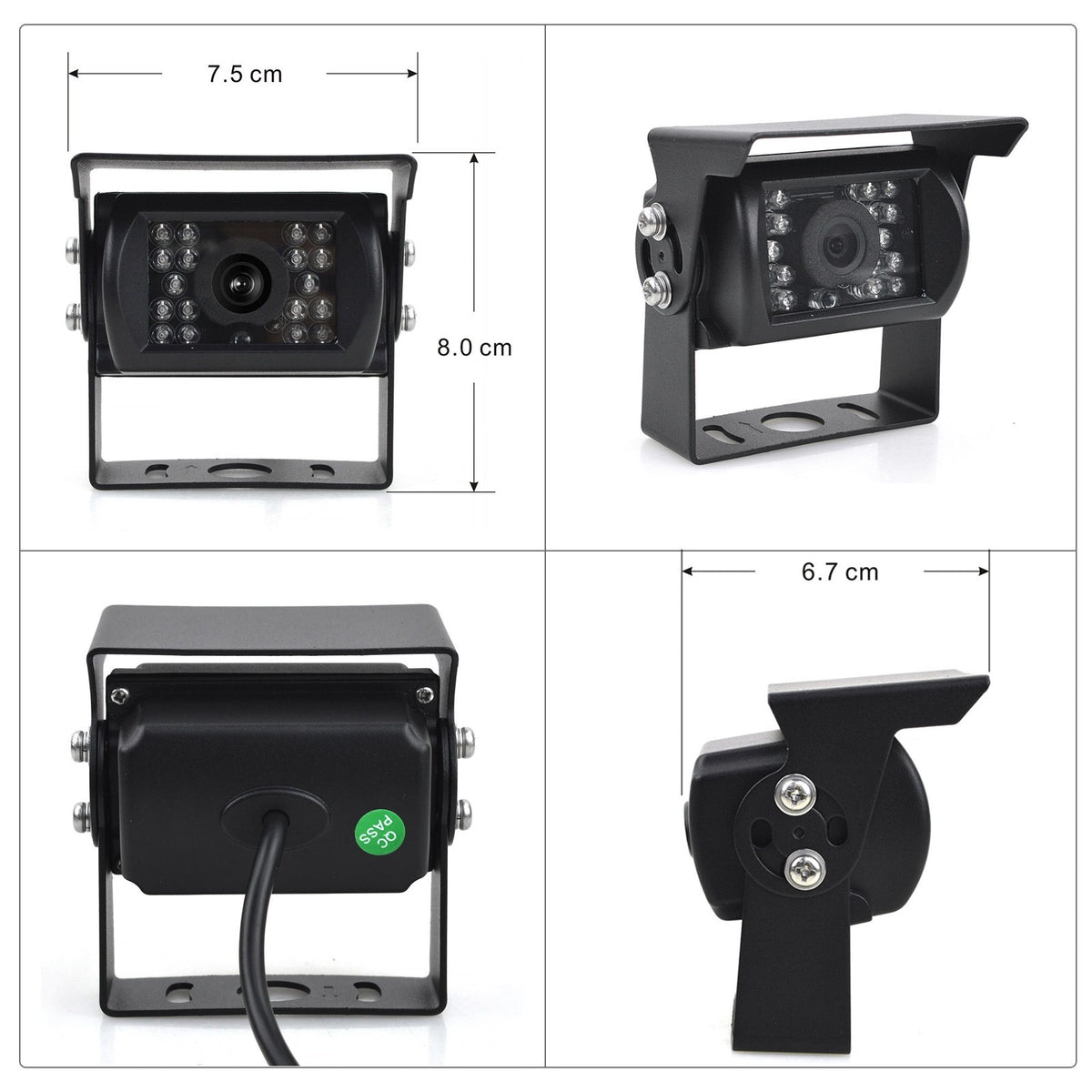

1 X Rear-view camera

1 X 6.86'' split mirror monitor

1 X 2.5m monitor power cable

1 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X Female-to-female adapter

1 X Suction cup bracket

1 X Manual

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixels: 1920(H)x720(V)

Resolution: AHD 720P

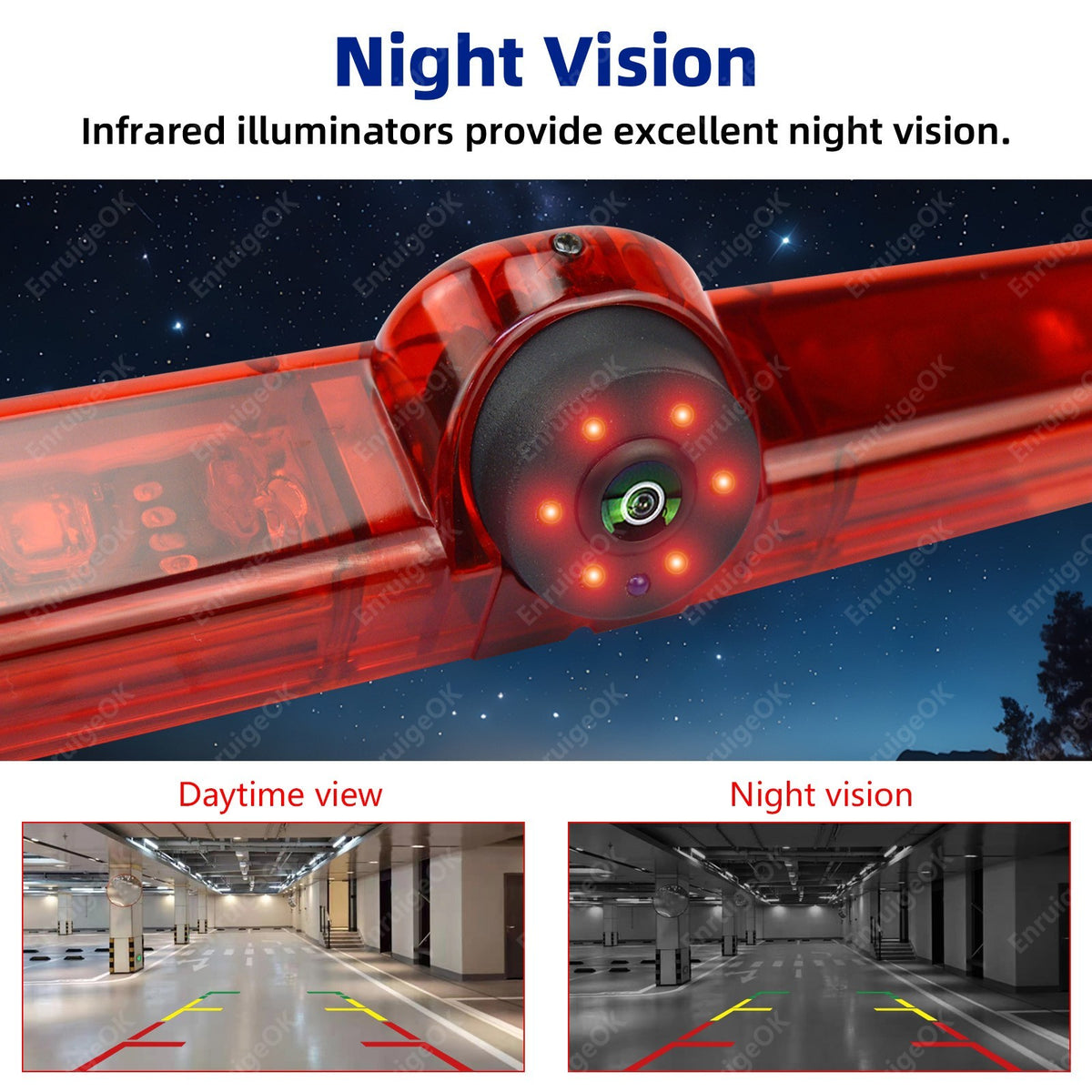

Night vision distance: Approx. 35ft

Waterproof rating: IP69

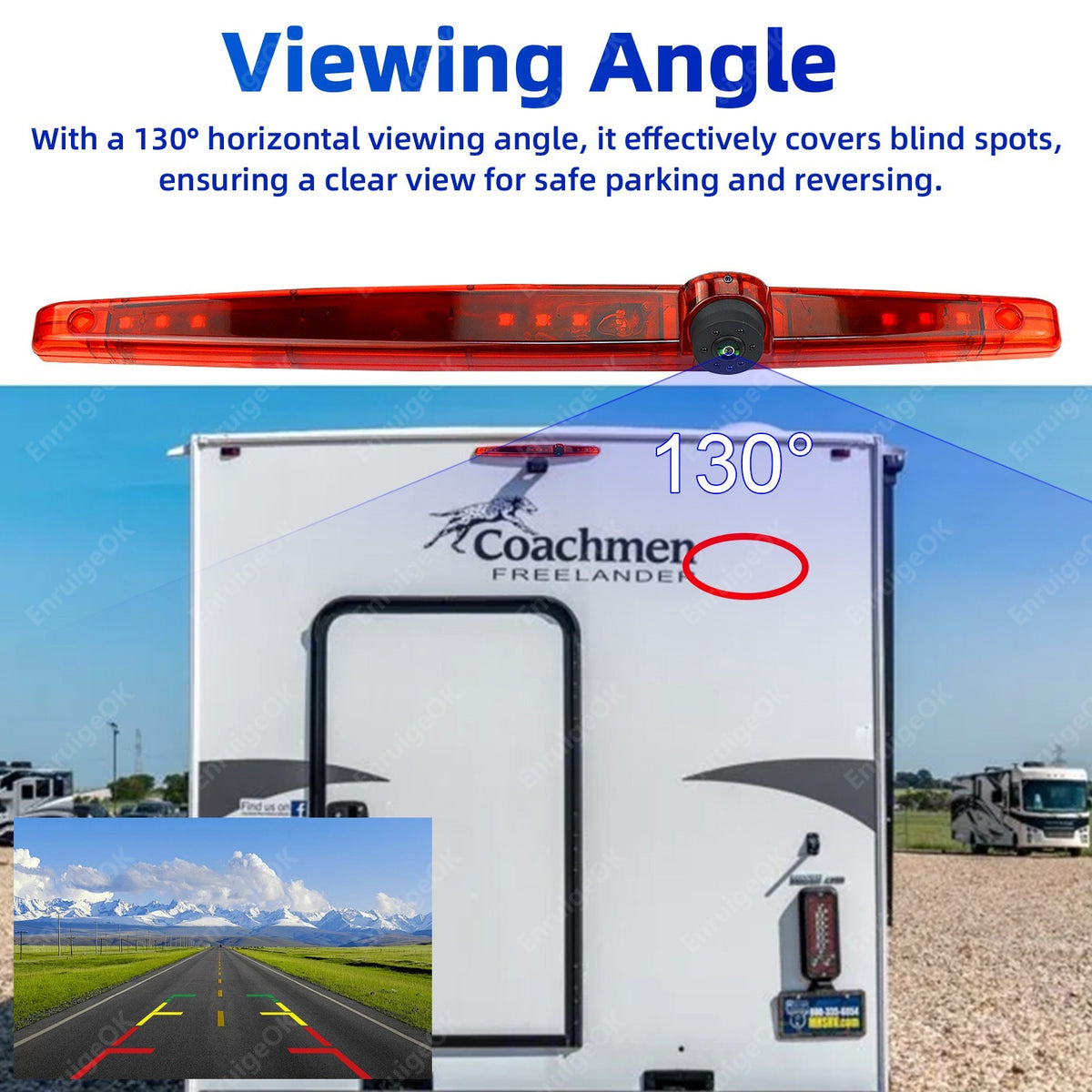

Horizontal angle: 120°

Video system: PAL/NTSC

S/N Ratio: >48dB

Current consumption: <150mA

Minimum illumination: 0.1 Lux

Power: DC 9V-35V

Operating temperature: -20℃ to +70℃

Monitor Specifications

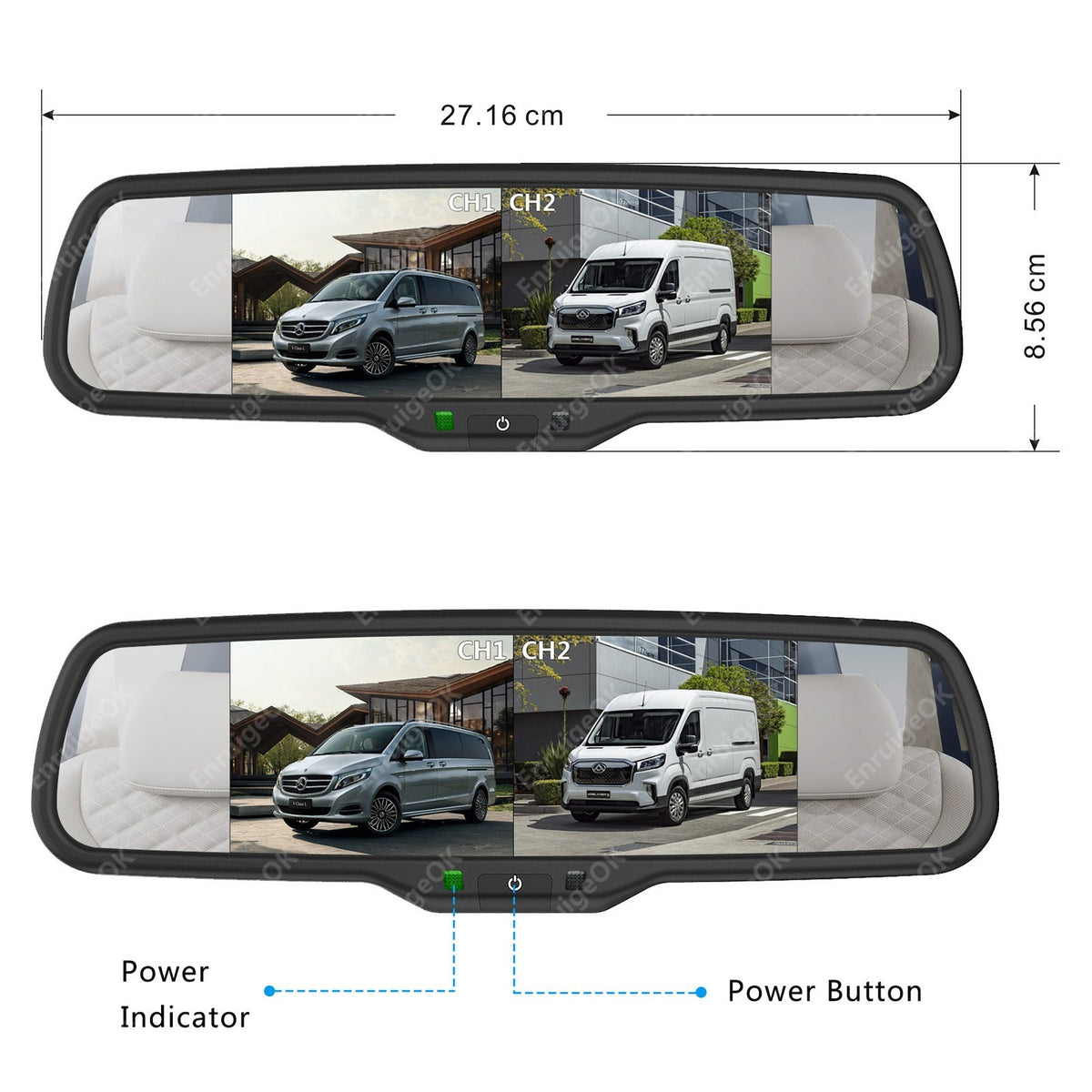

Screen: 6.86 inch, support dual split screen

Resolution: 1280(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio: 16:9 / 4:3 adjustable

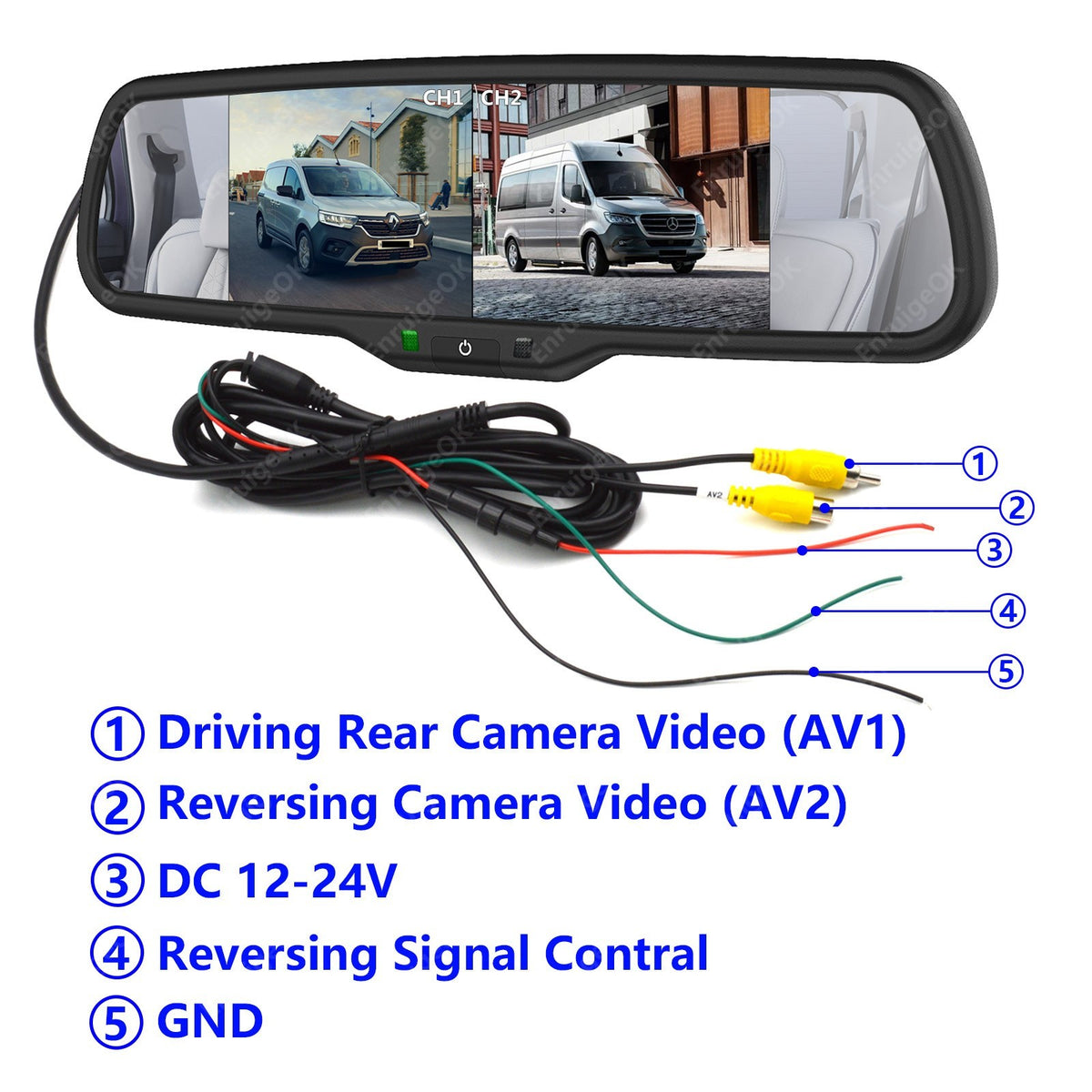

Video Input: Dual video input (AV1 for standard mirror view, AV2 for reversing), support 2-split screen, automatic full-screen switch during reversing

Blue screen displayed when no signal detected

Power Supply: DC 12V-24V

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
