Reversing Camera for Volkswagen VW Caddy [MK3] (2003-2016) Rear Brake Light Fit

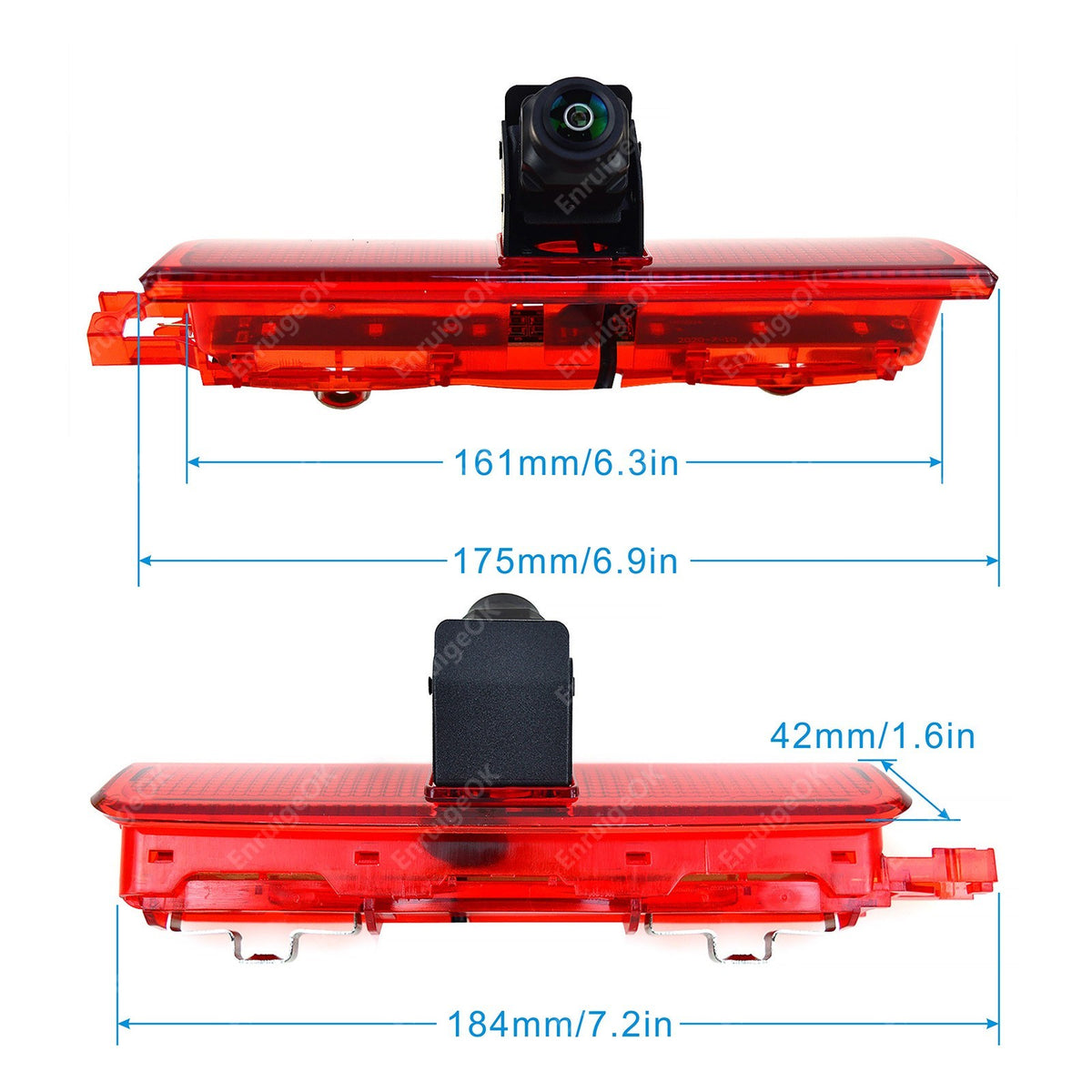

Note: Please check the camera size carefully before make the order.

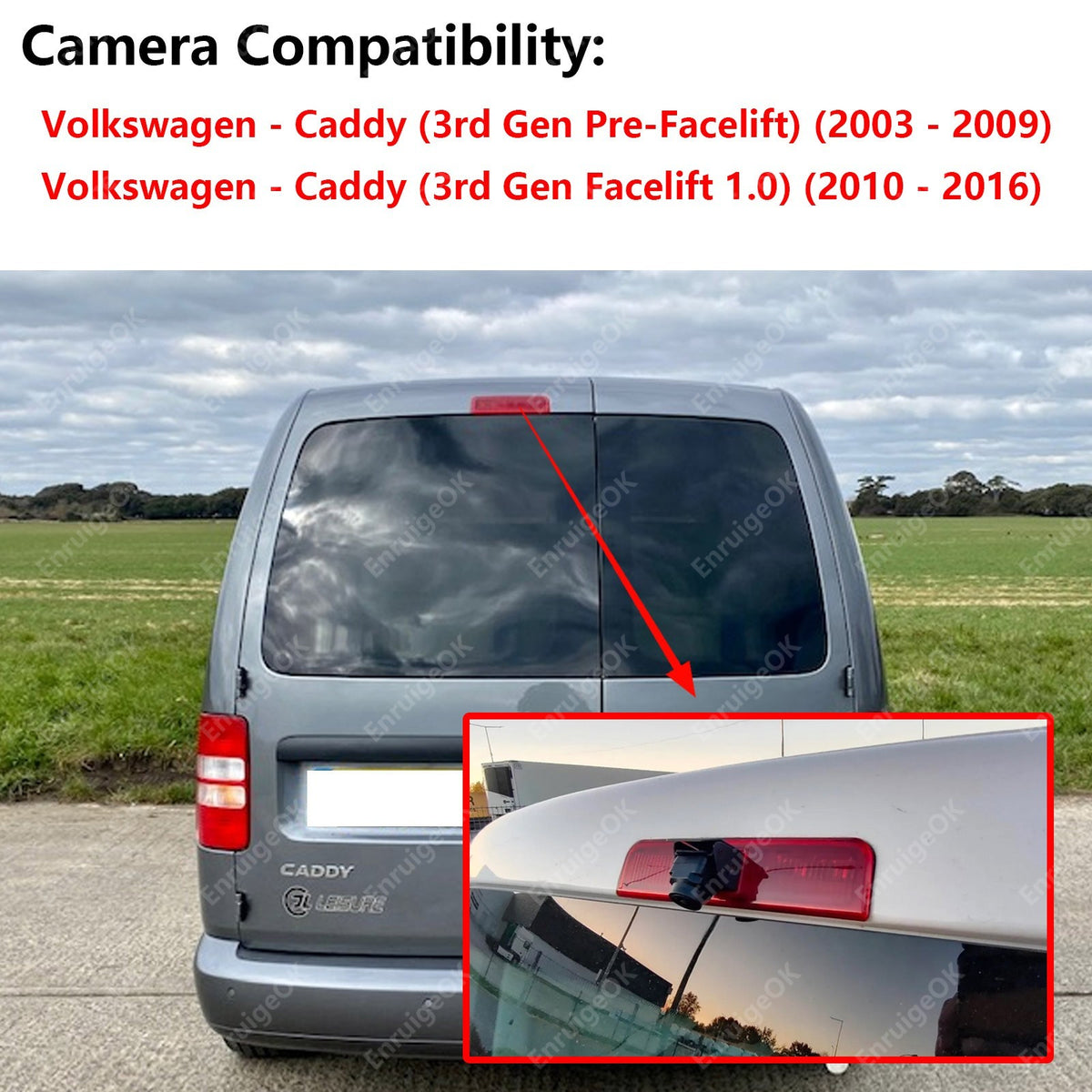

Camera Compatibility

✅Volkswagen Caddy (3rd Gen Pre-Facelift) (2003 - 2009)

✅Volkswagen Caddy (3rd Gen Facelift 1.0) (2010 - 2016)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

Reminder Friendly

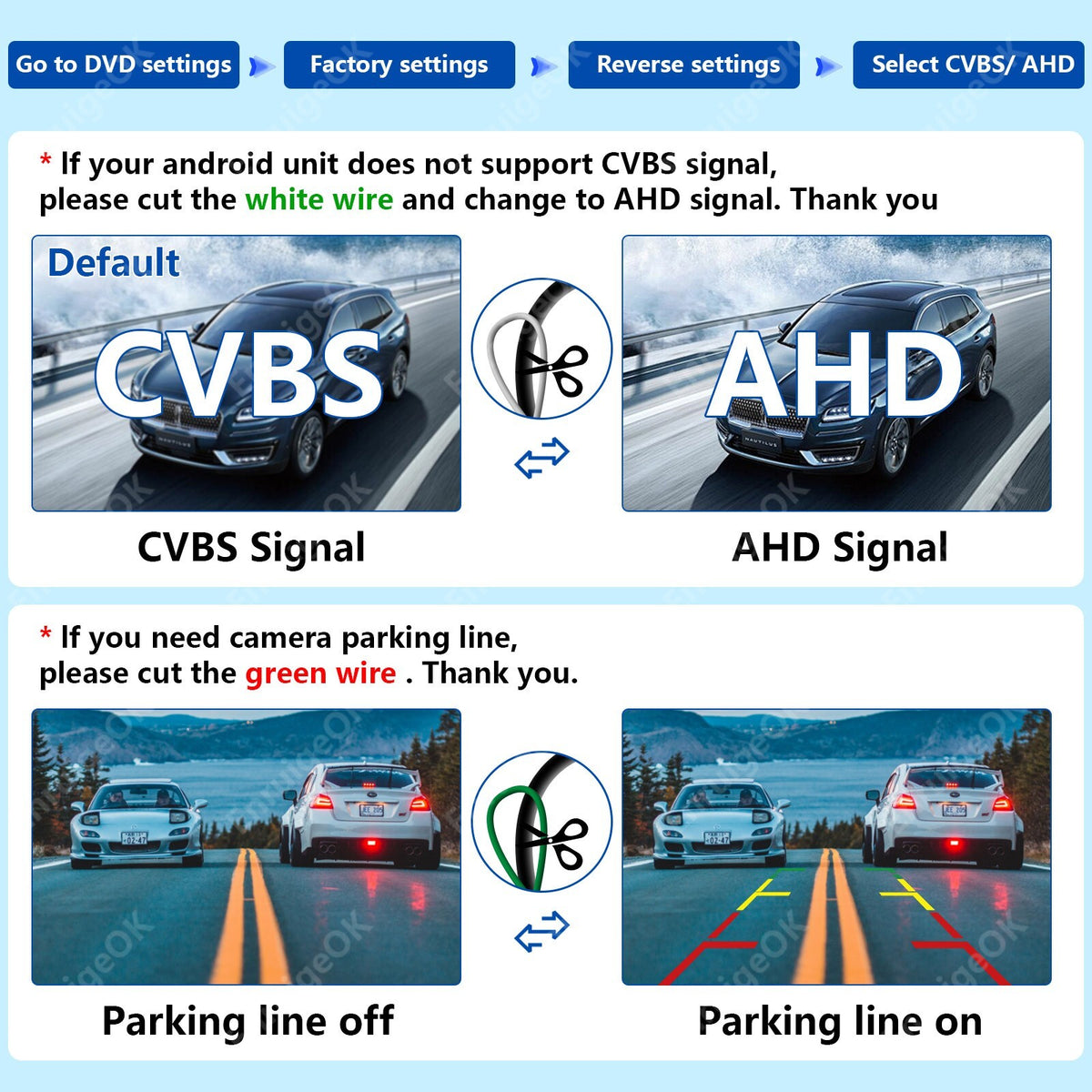

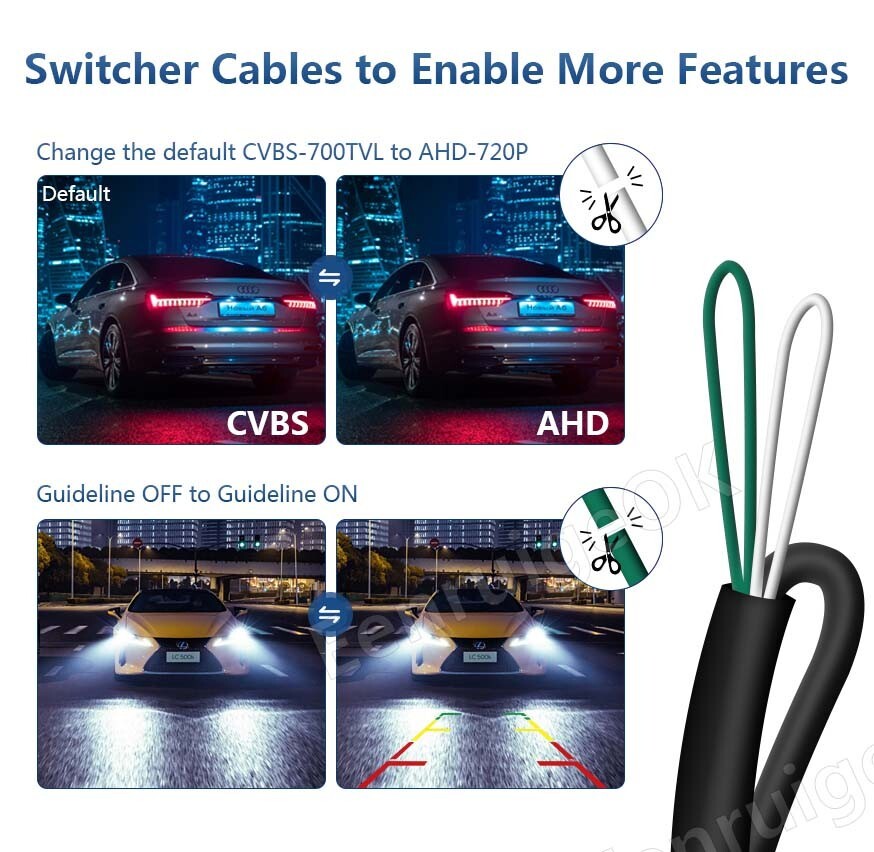

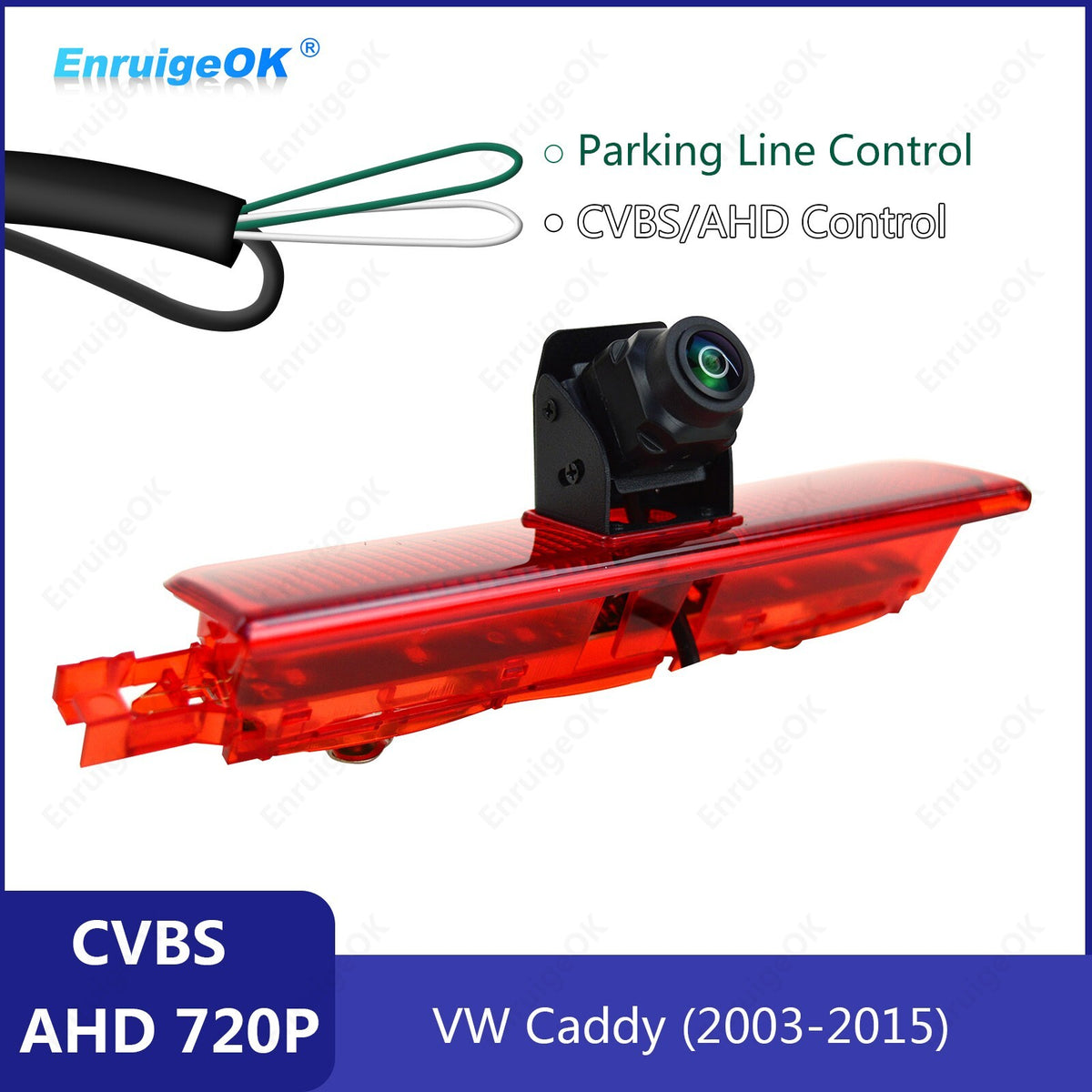

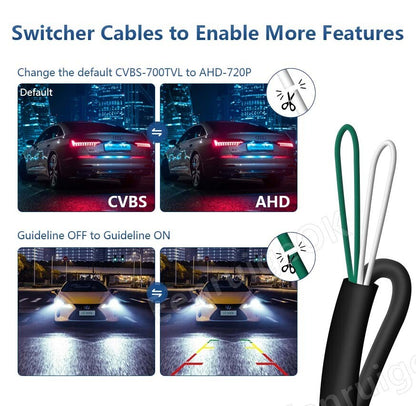

This camera defaults to a CVBS 480TVL signal and supports AHD 720P signal (by cutting the white wire).

If your Android device or monitor supports AHD 720P, you can cut the white wire to switch to AHD 720P. If it does not support AHD 720P, please leave the white wire intact. Thank you!

Features:

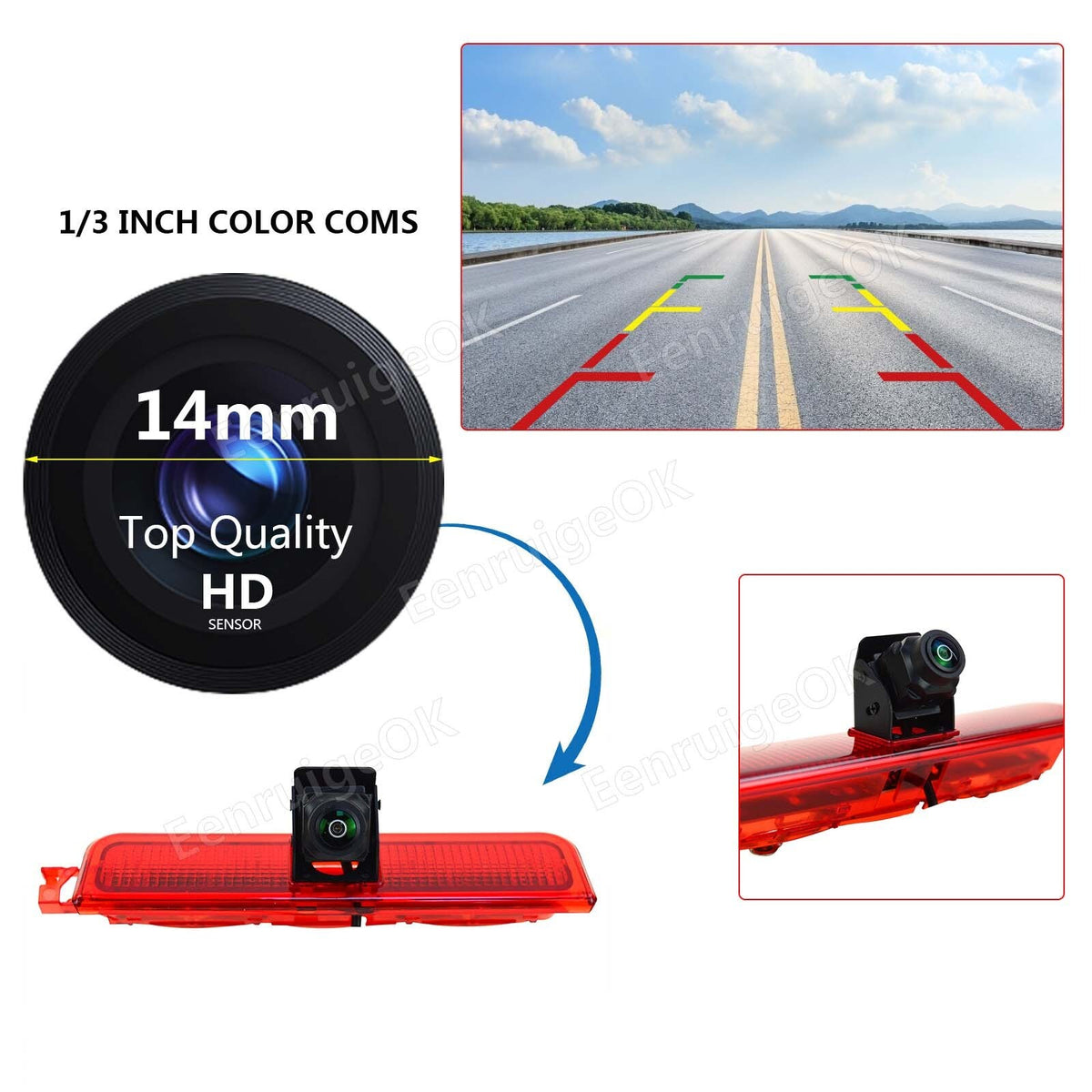

High quality image. This Brake light camera used 1/3" CMOS Sensor which have more color

Image. Integrated in 6pcs LED Brake light.

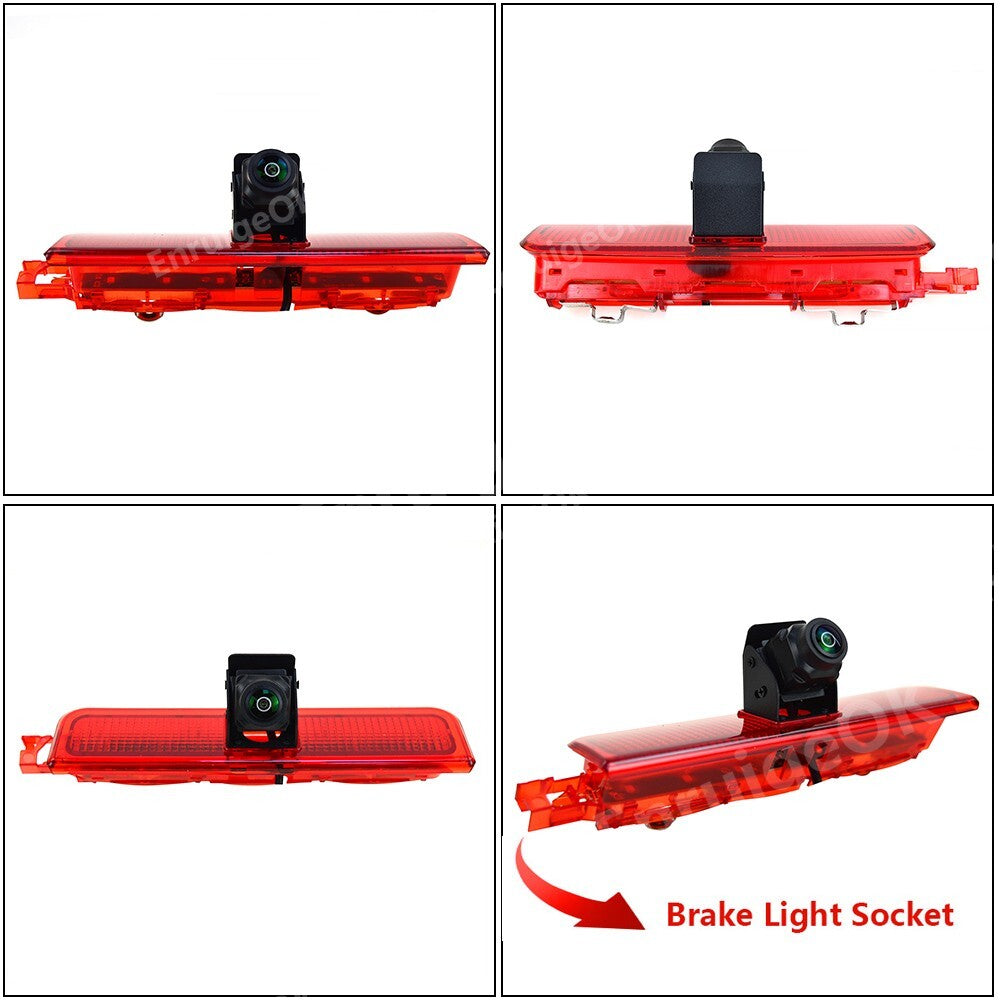

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Dustproof, shockproof, anti-shake.

Specifications

Material: ABS+PC

Sensor: 1/3" COMS

Resolution: CVBS NTSC: 960(H)×480(V)pixels;  AHD PAL:1920(H)x720(V)

TV Line: 700TV Line / AHD 720P

Min illumination: 0Lux (LED ON)

Night Vision distance: 35ft

Waterproof: IP68

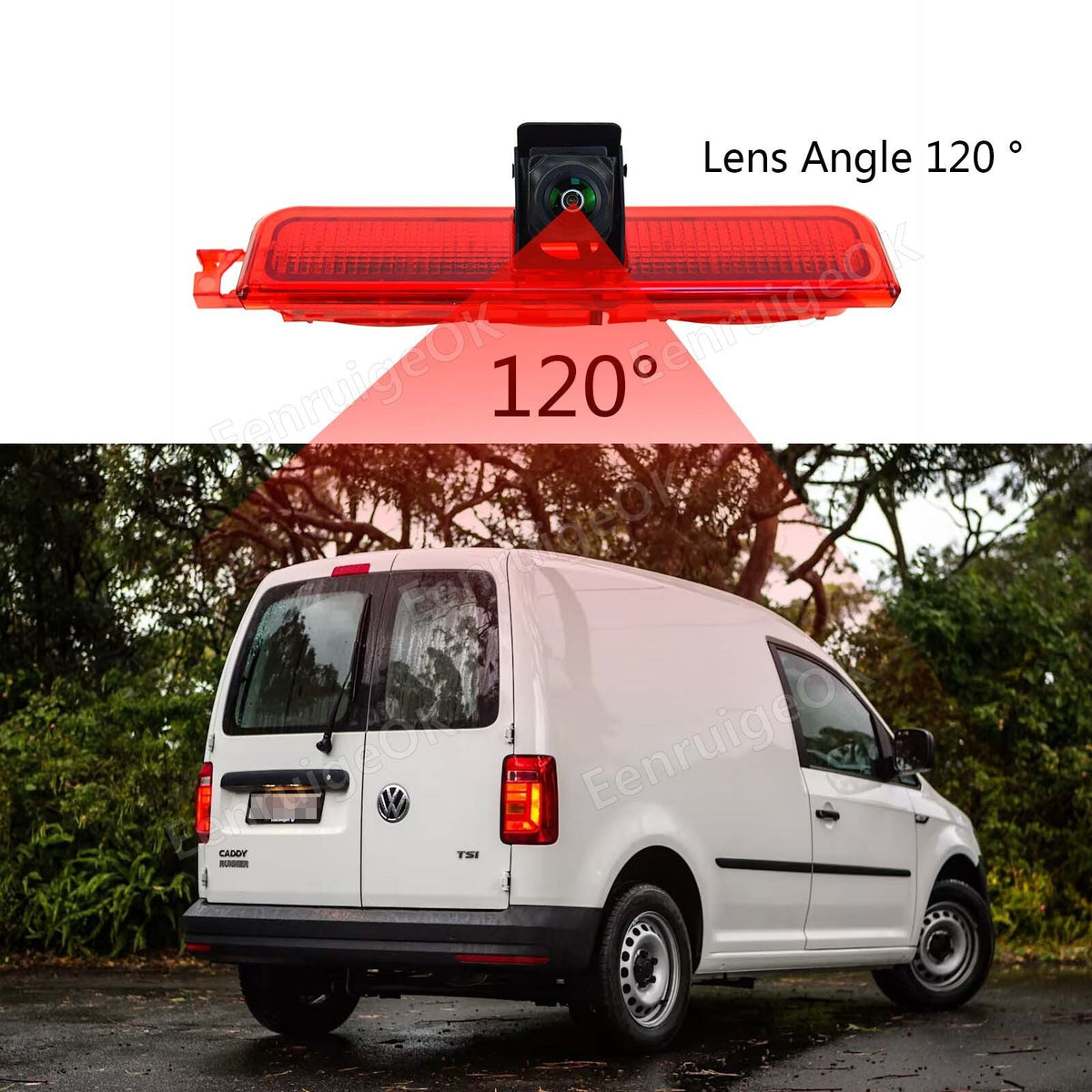

View angle: 120°

Power voltage: 12V

Operation Temp: -20℃~+70℃

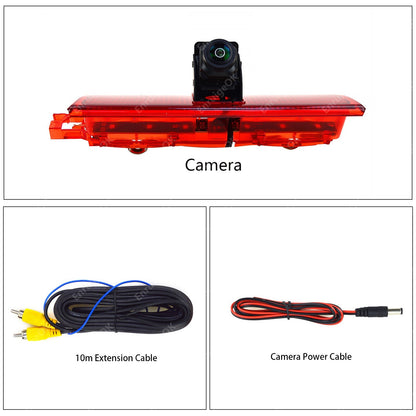

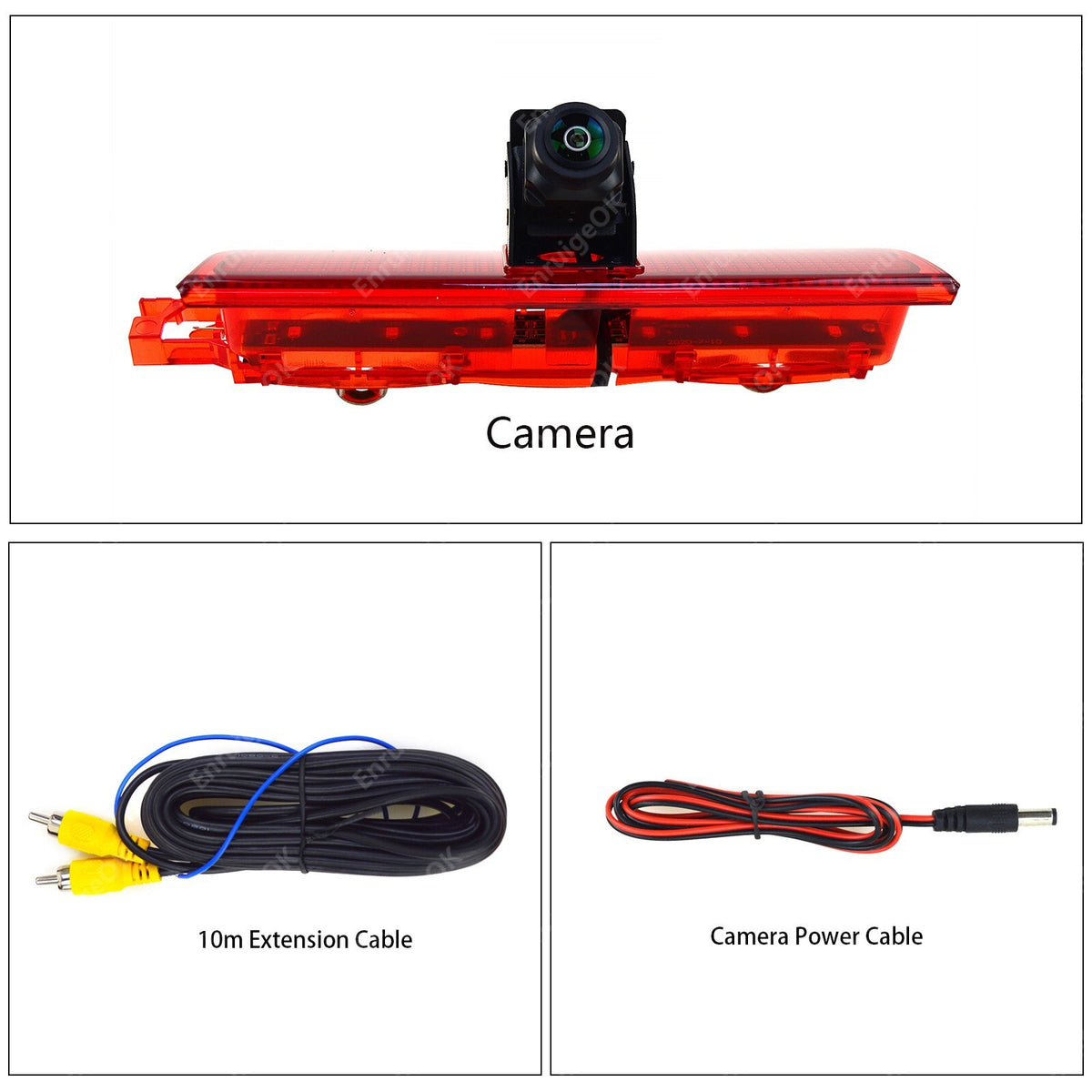

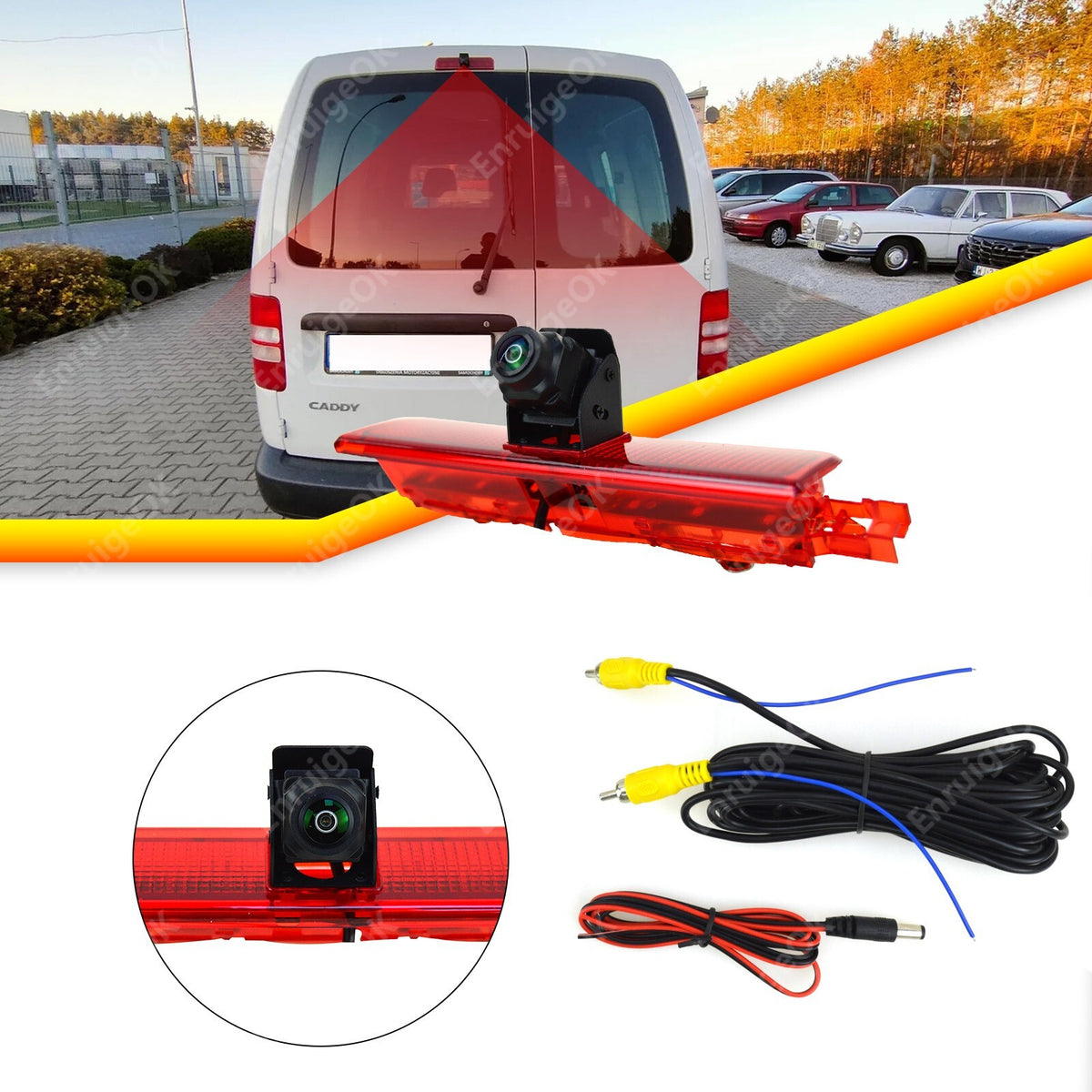

Package content :

1 X Reversing camera

1 X 10 meters extension cable

1 X Power cable

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
