Reverse Camera Kit for VW Crafter MK2 & MAN TGE Rear Brake Light (2017-Onwards)

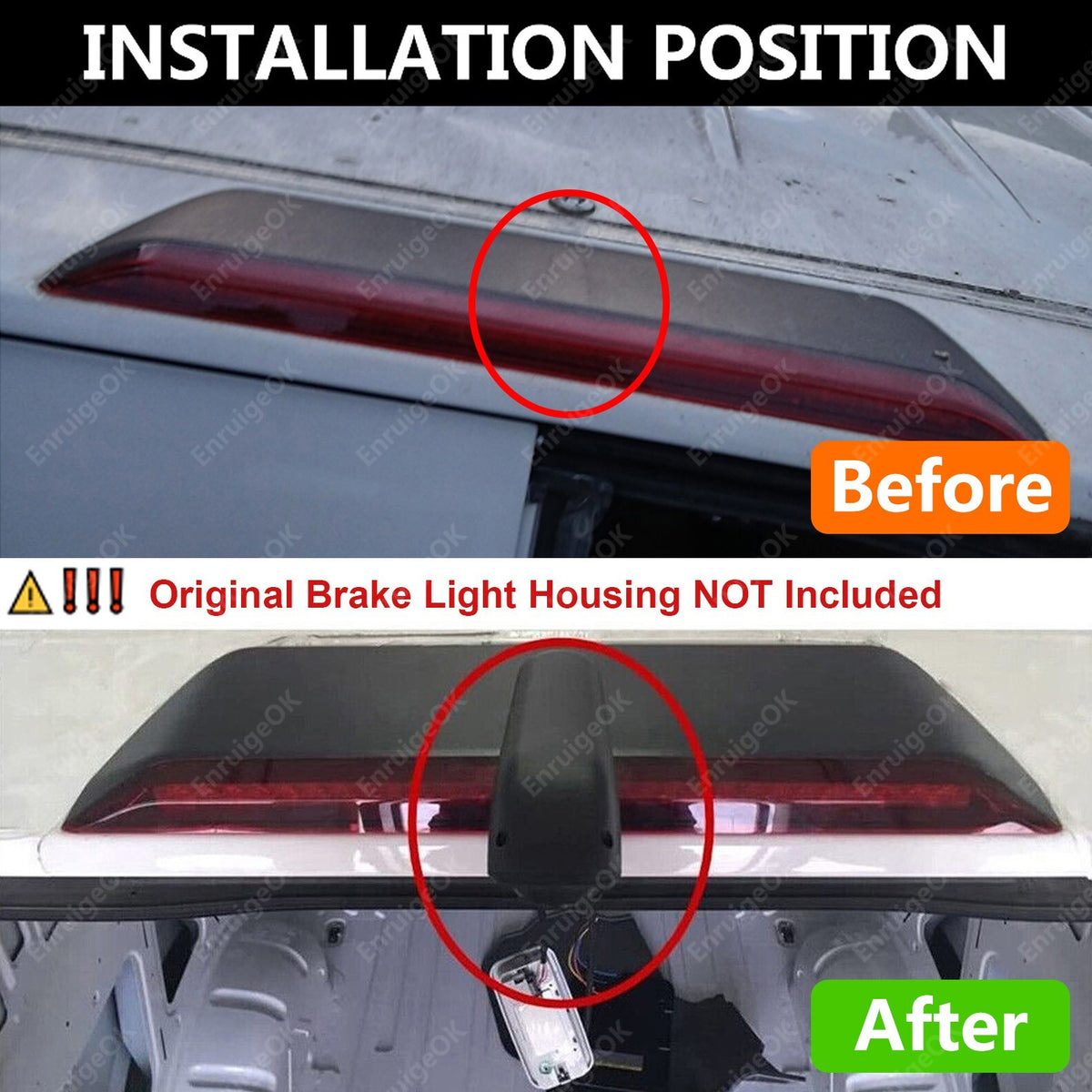

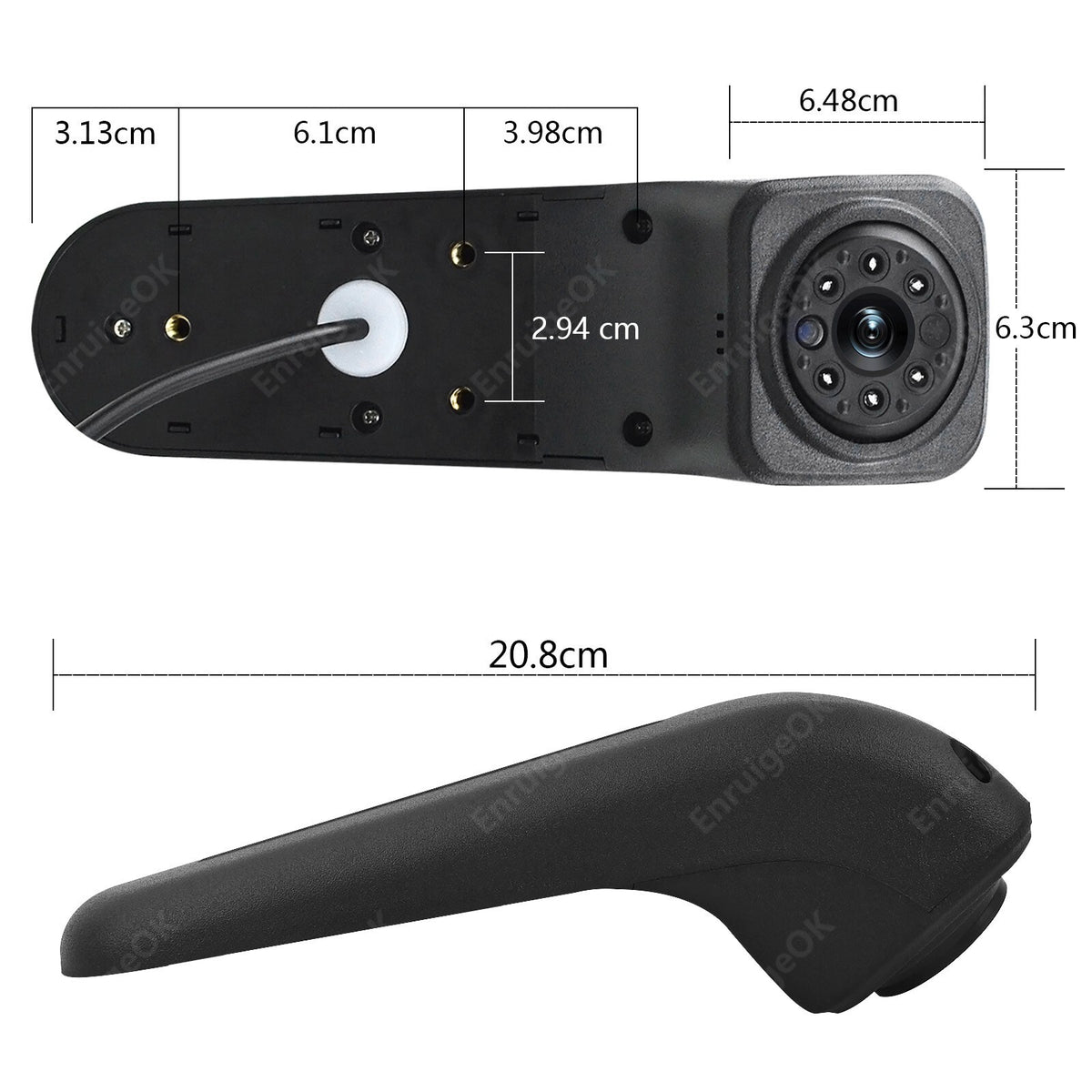

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

Camera Compatibility

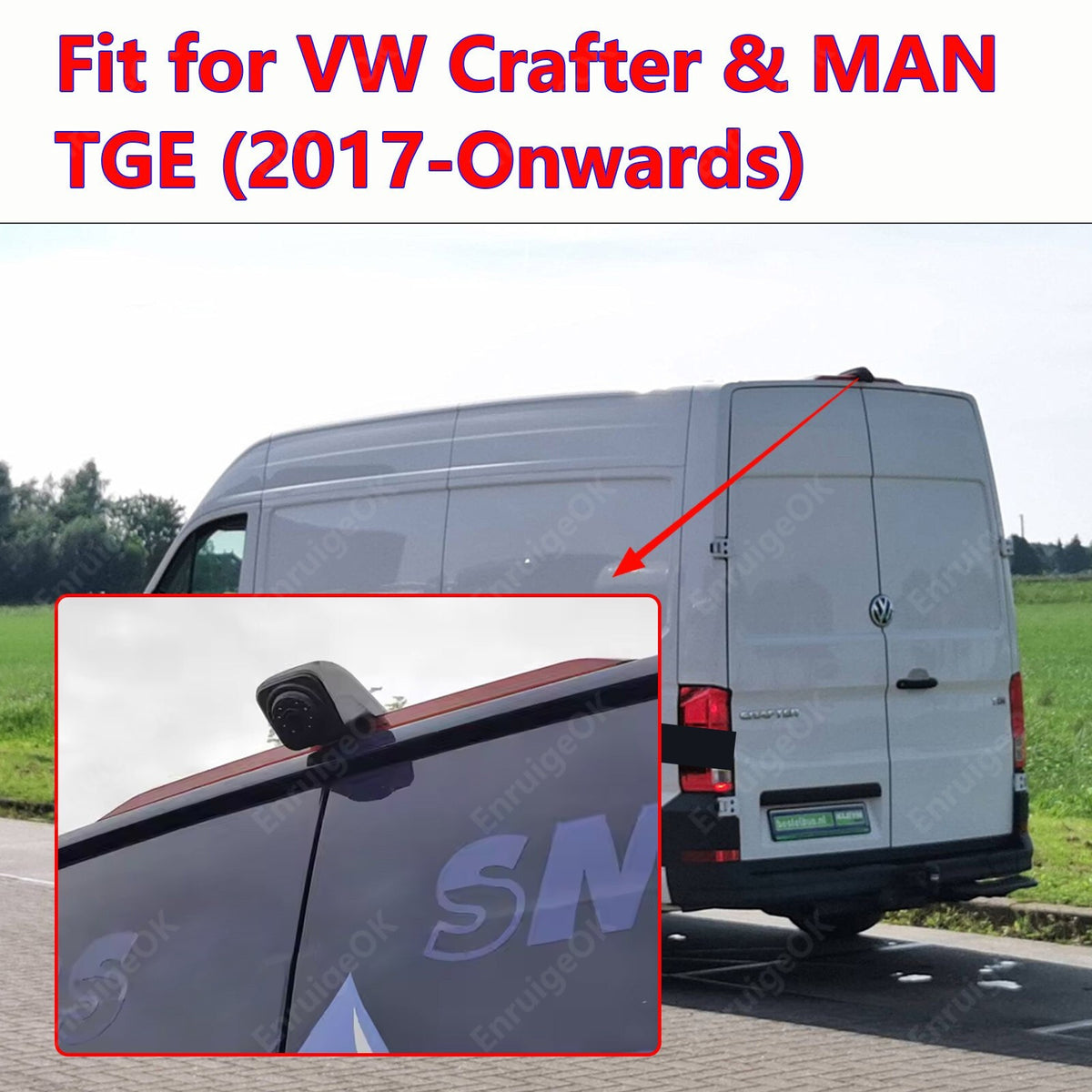

Designed for VW Crafter & Man TGE (2017-Onwards)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

Description

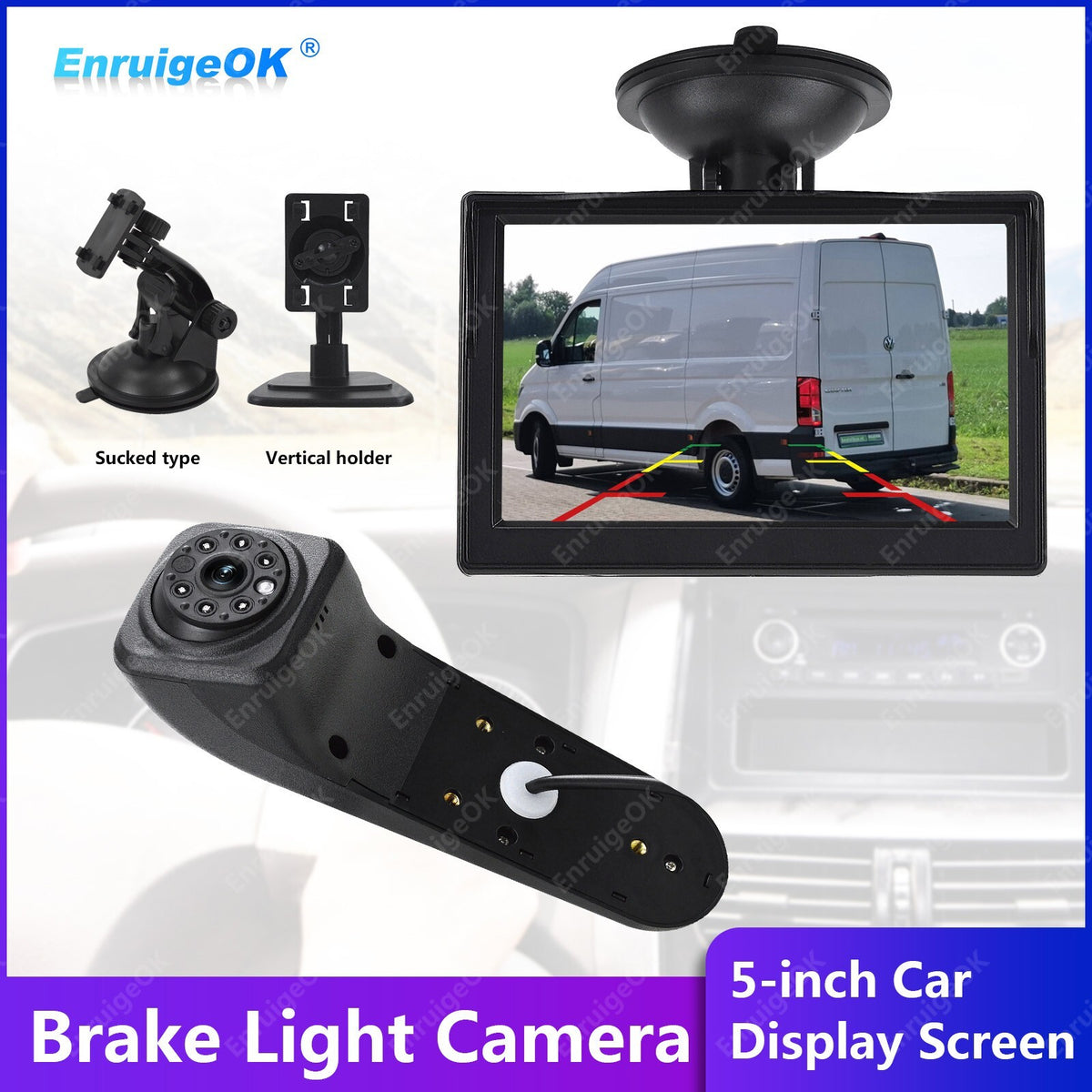

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

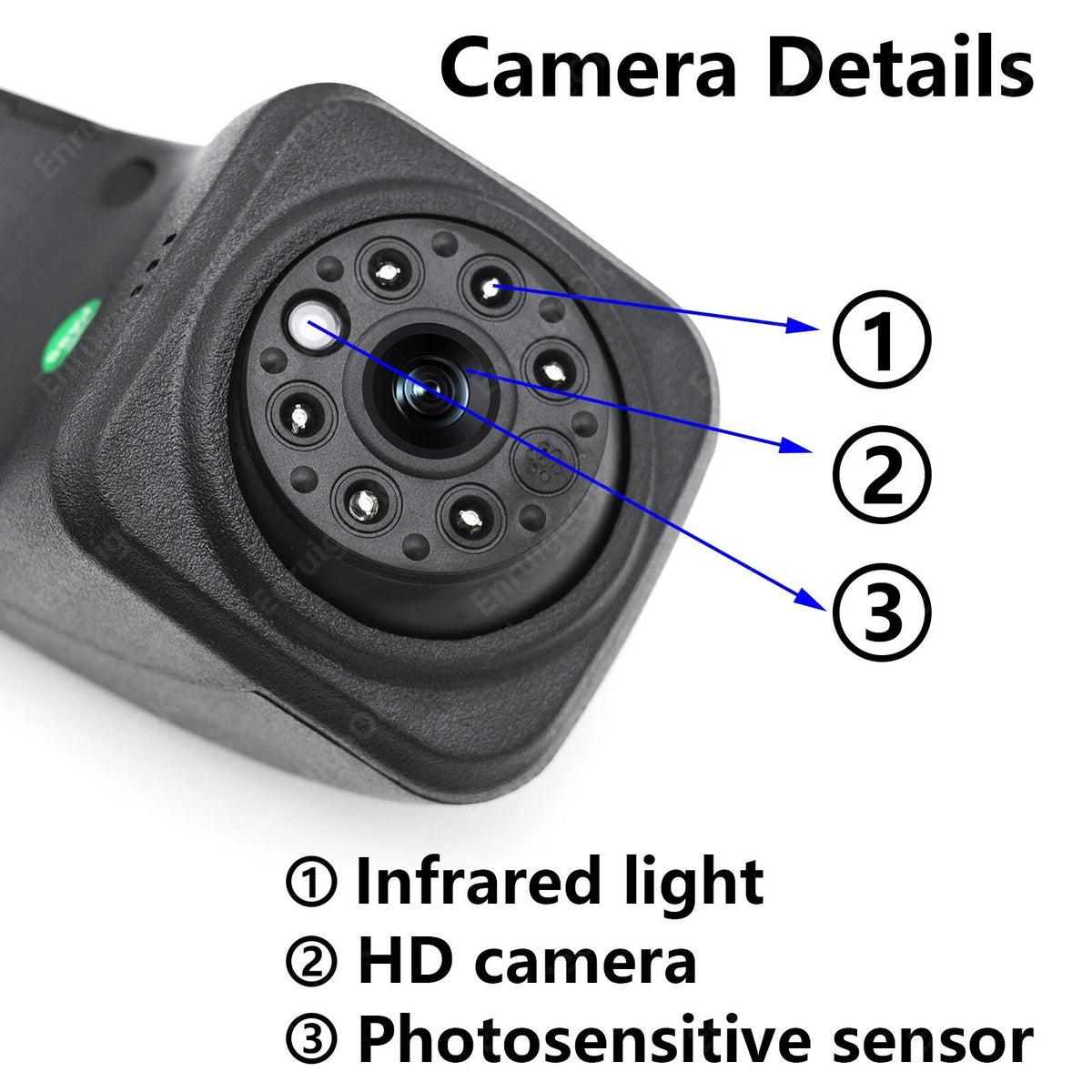

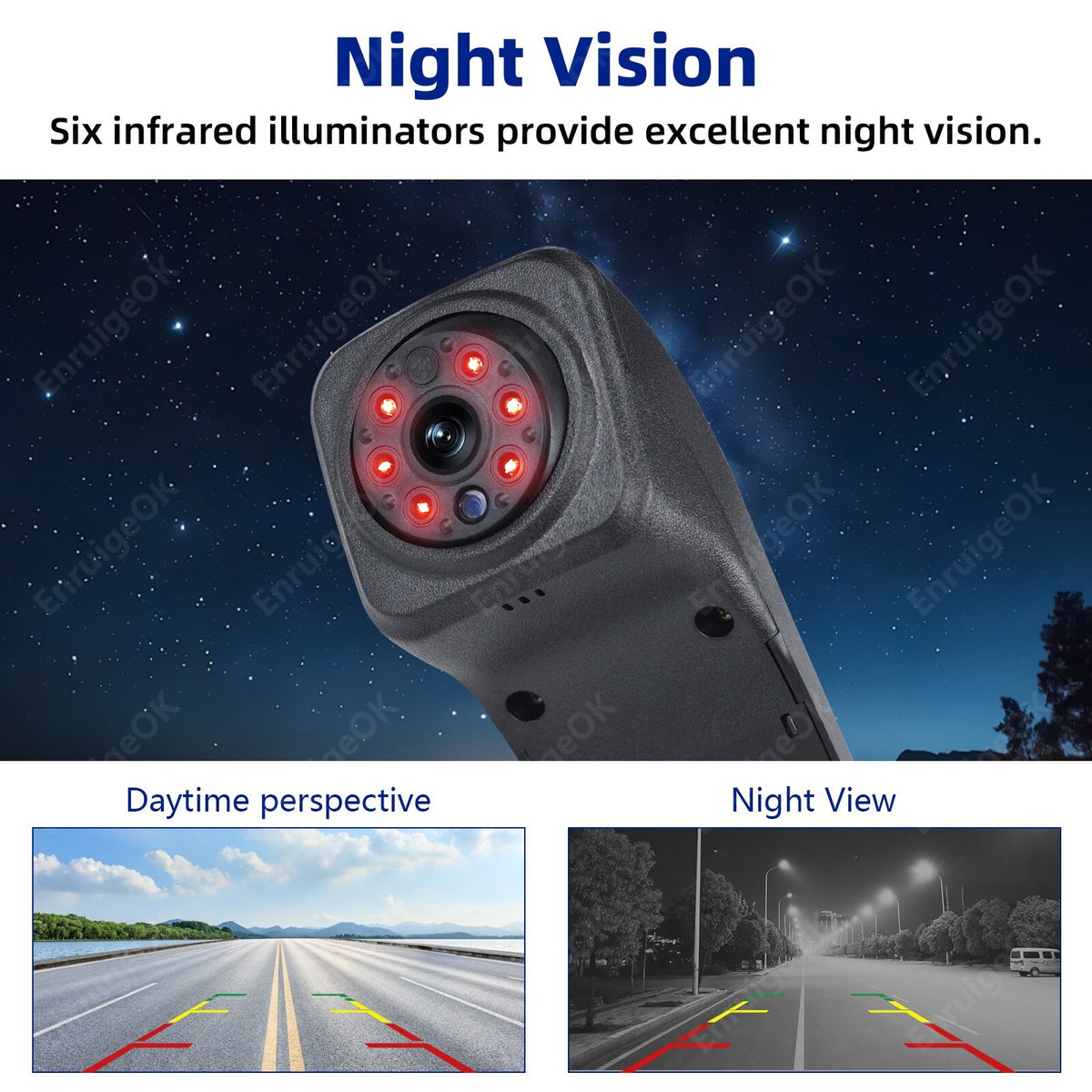

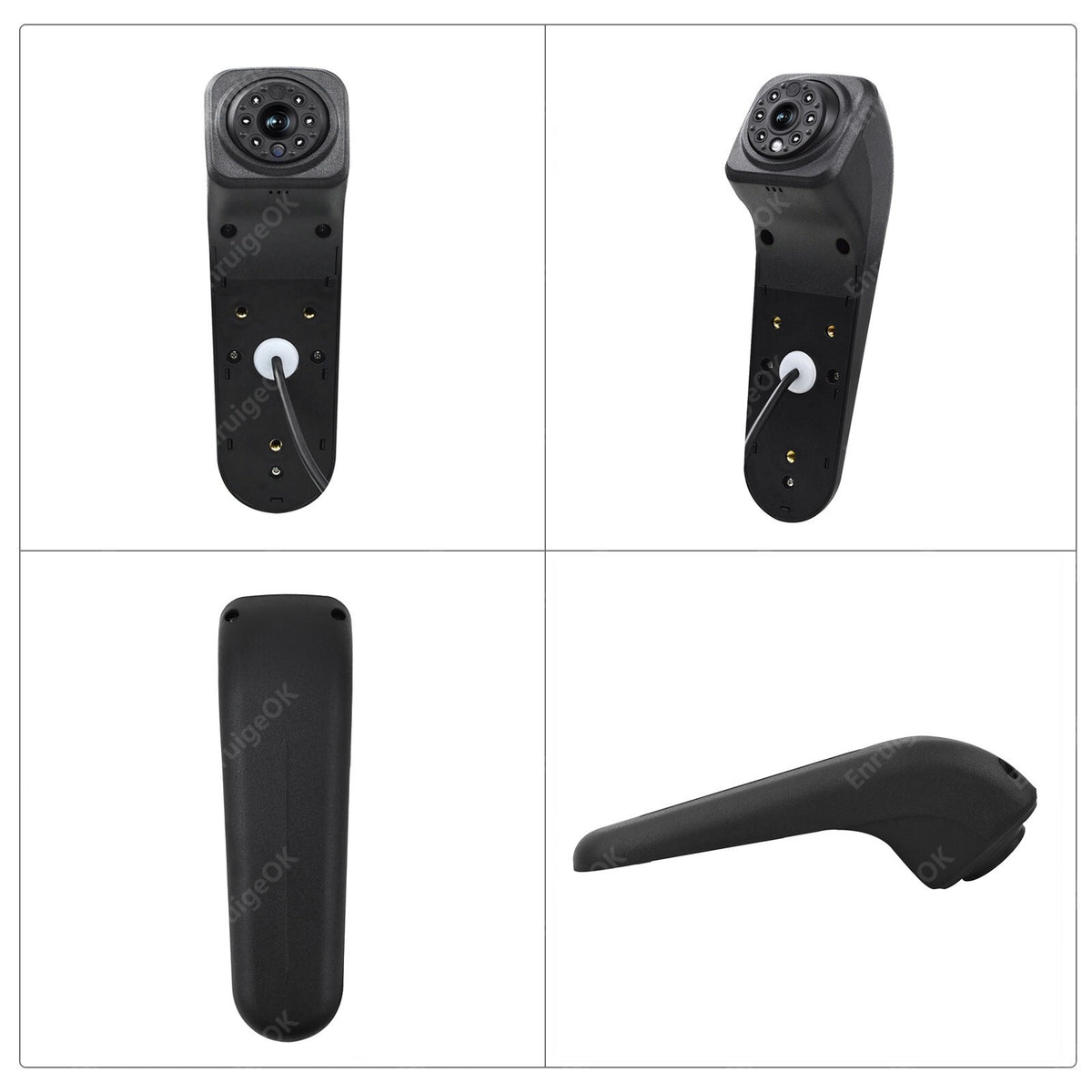

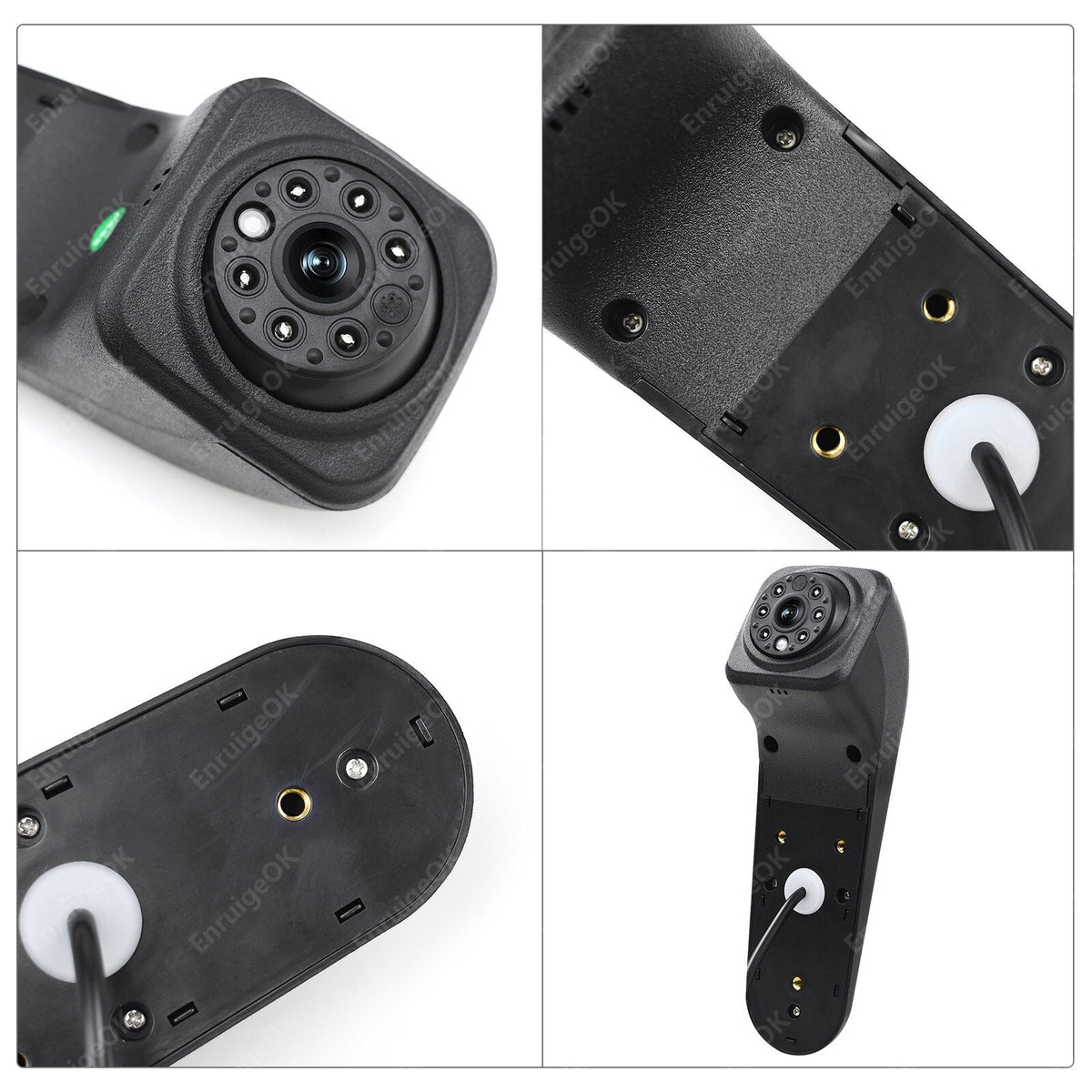

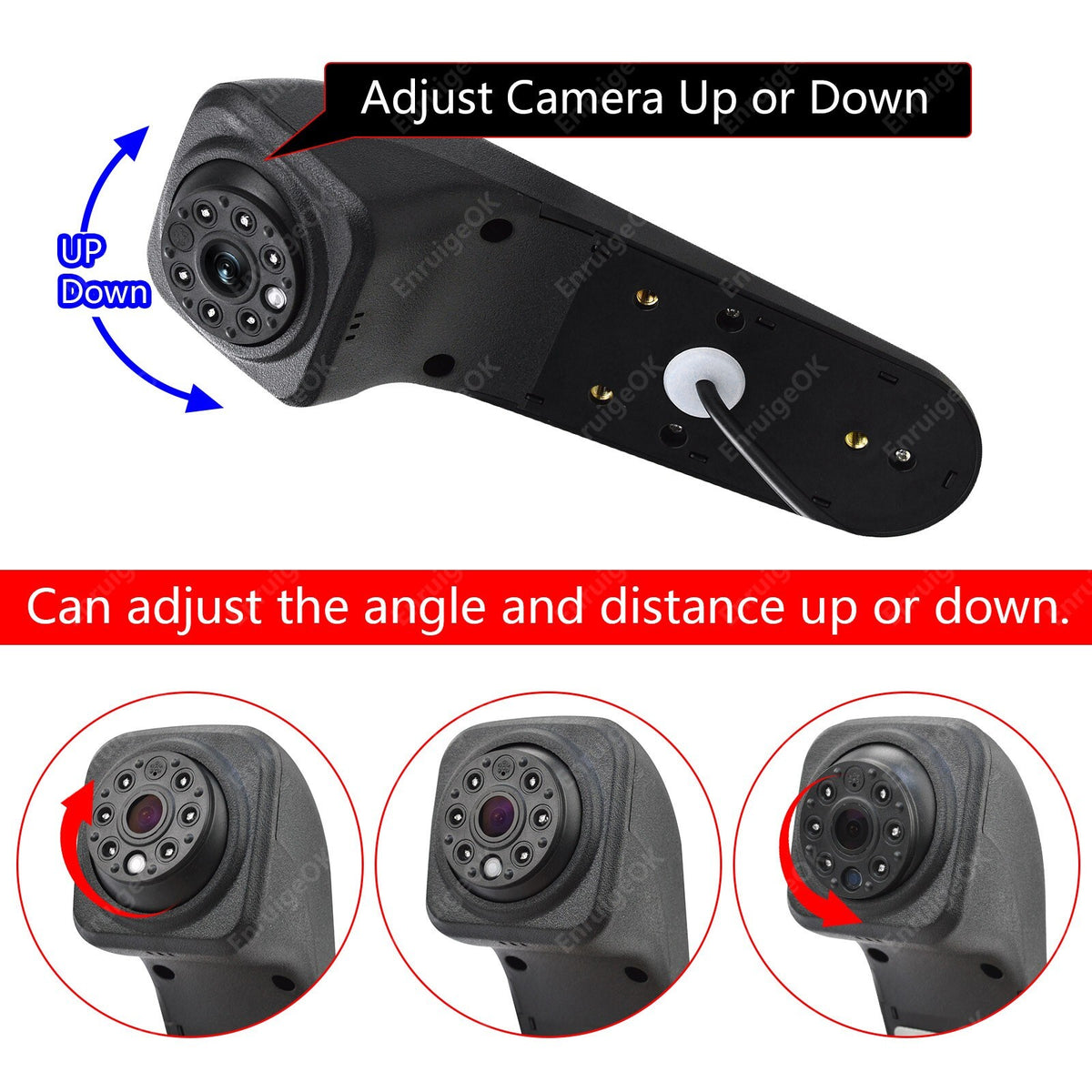

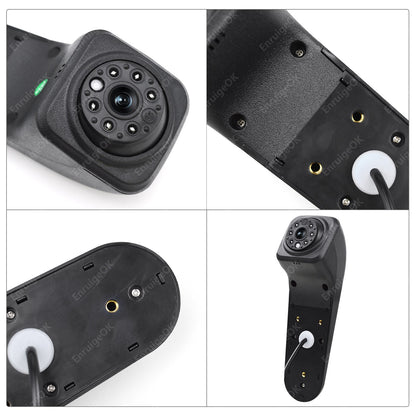

This brake light camera uses a 1/4" CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

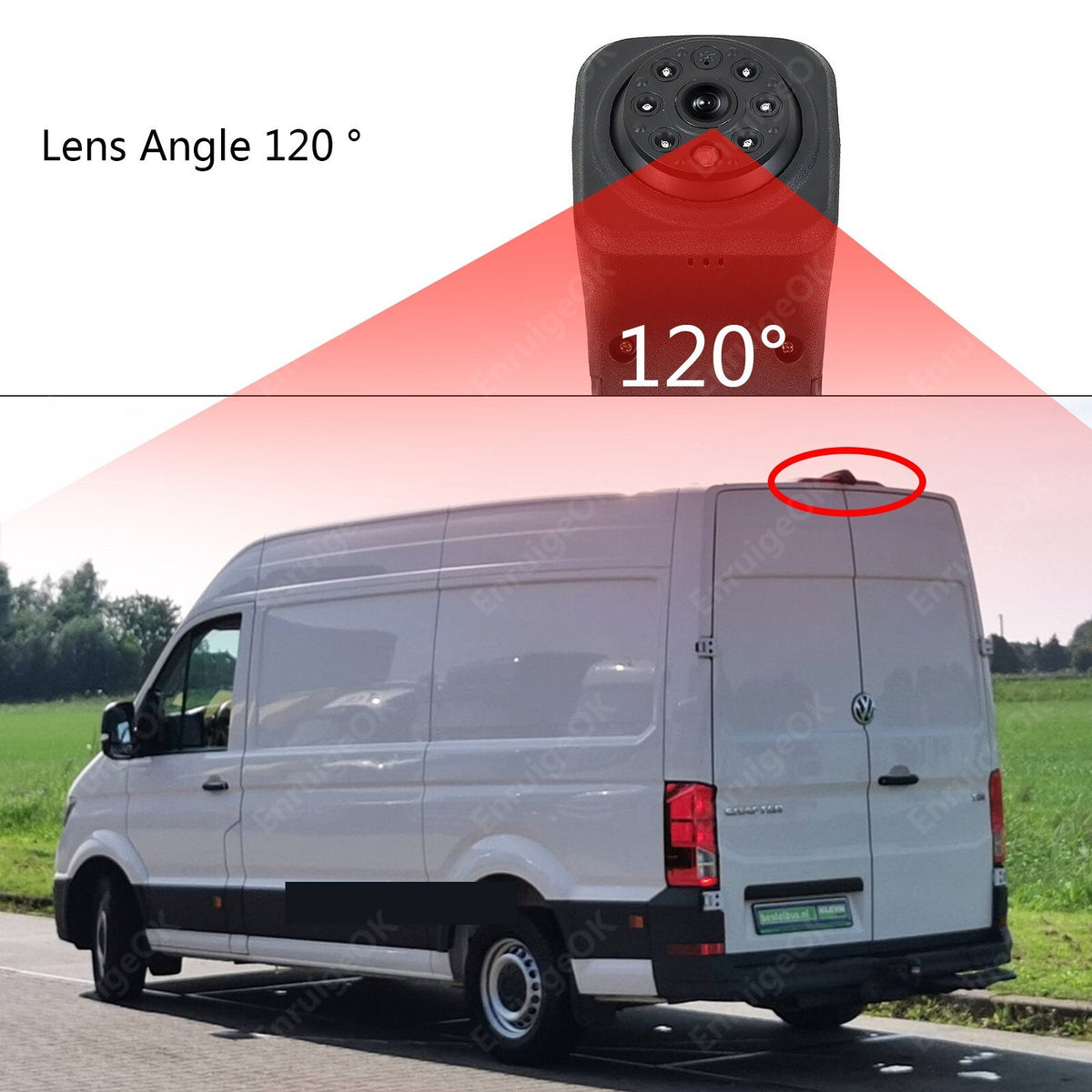

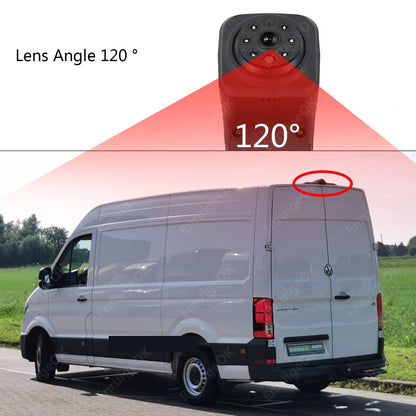

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

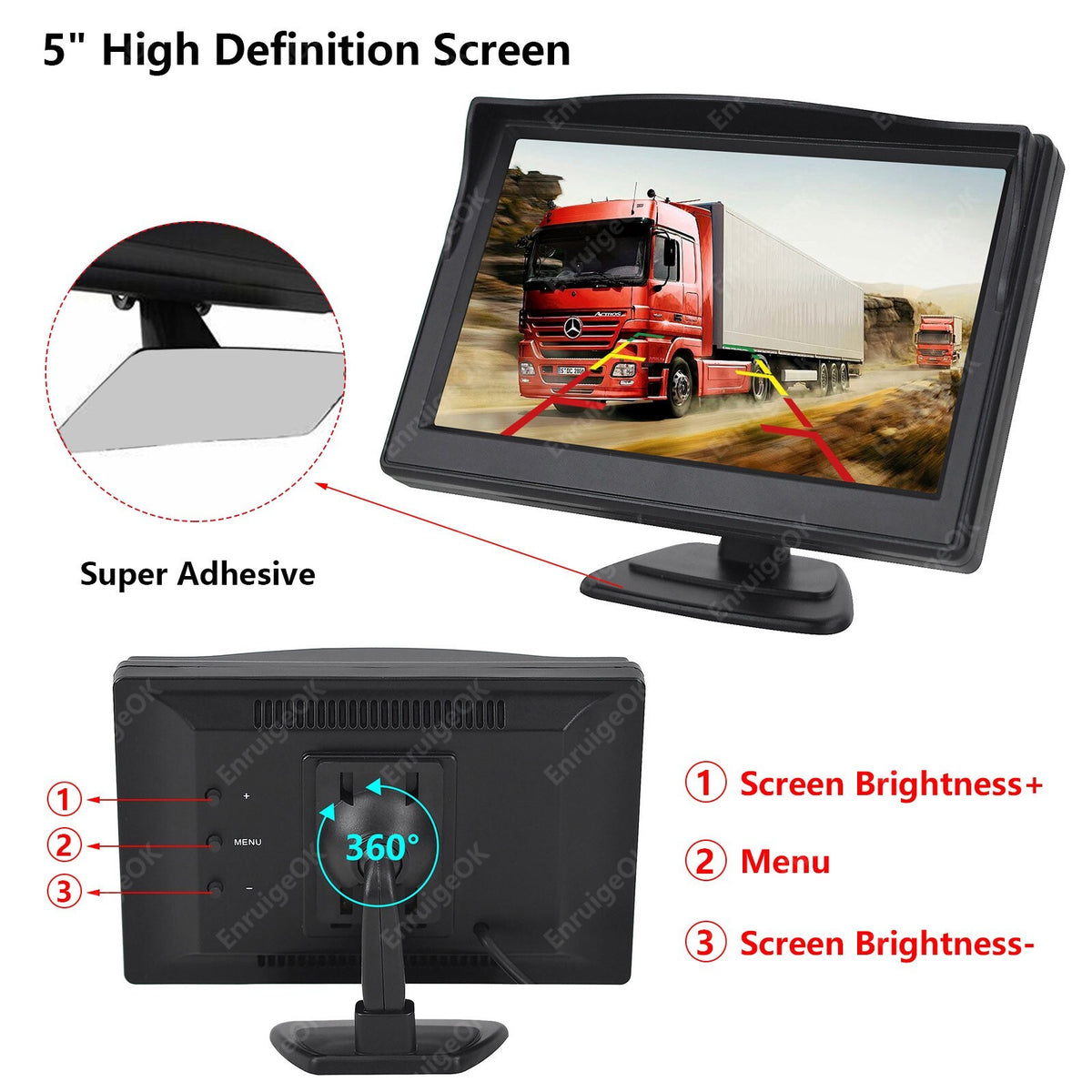

The 5" Color IPS display Monitor features 2 video inputs and an 480*272 (RGB) resolution, making it compatible with the brake light rearview camera.

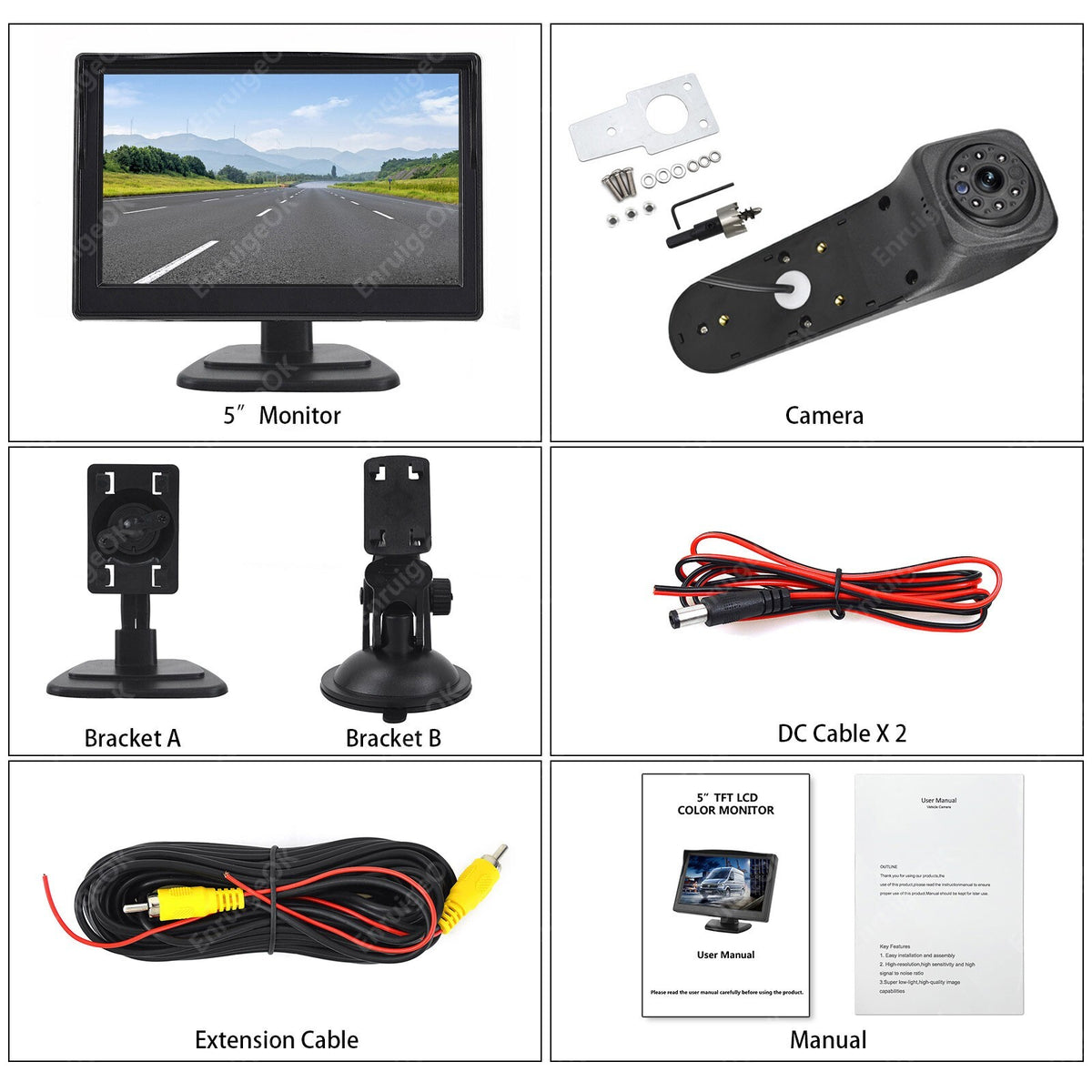

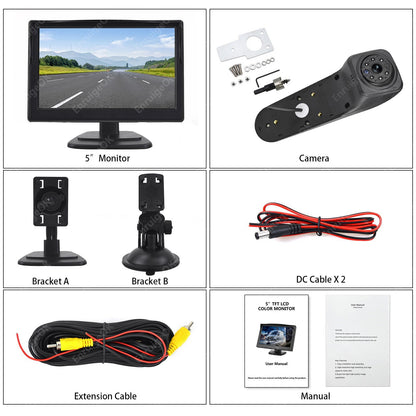

Package contents

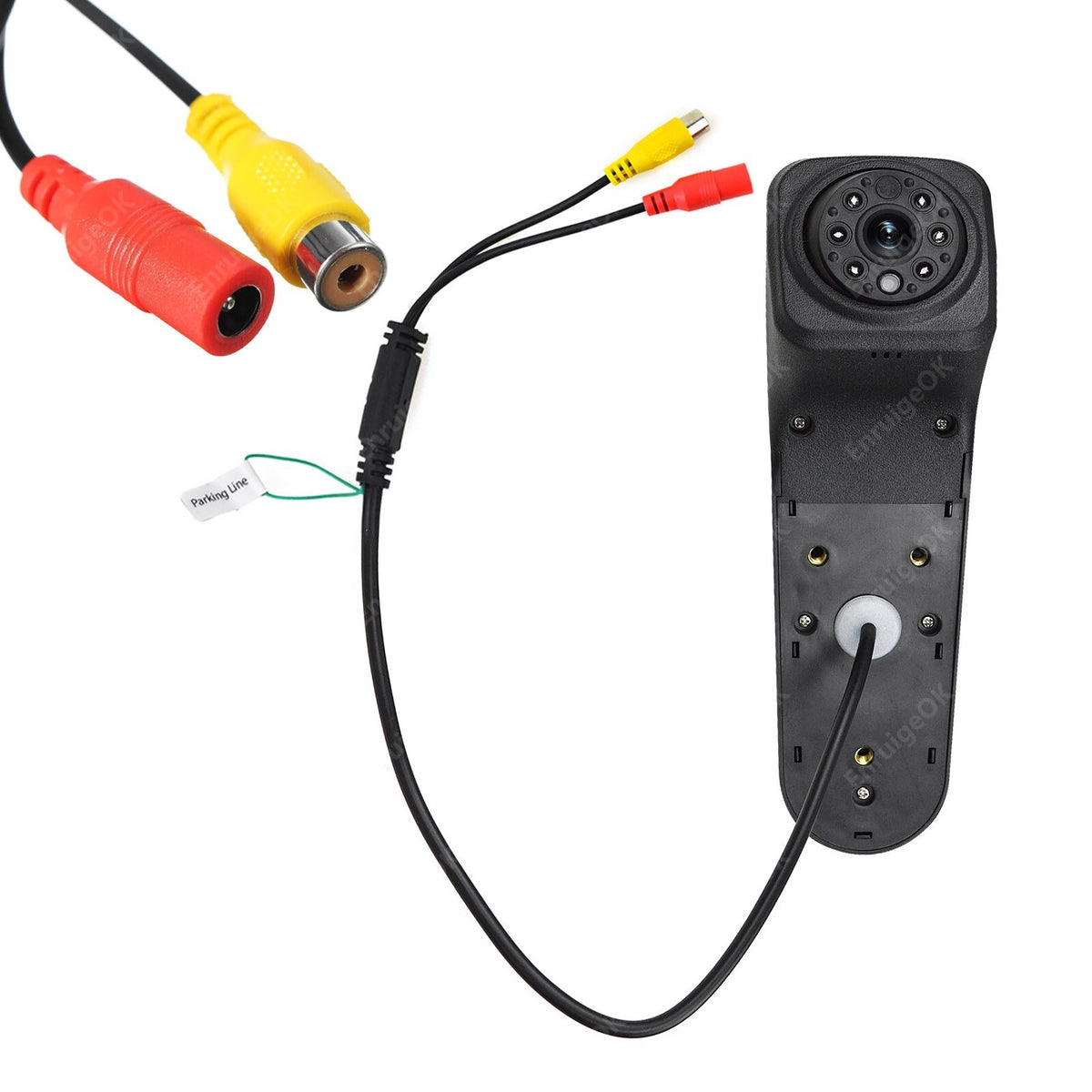

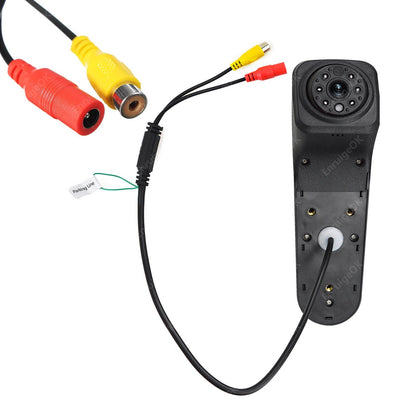

1 X Brake light camera

1 X 5'' IPS display monitor

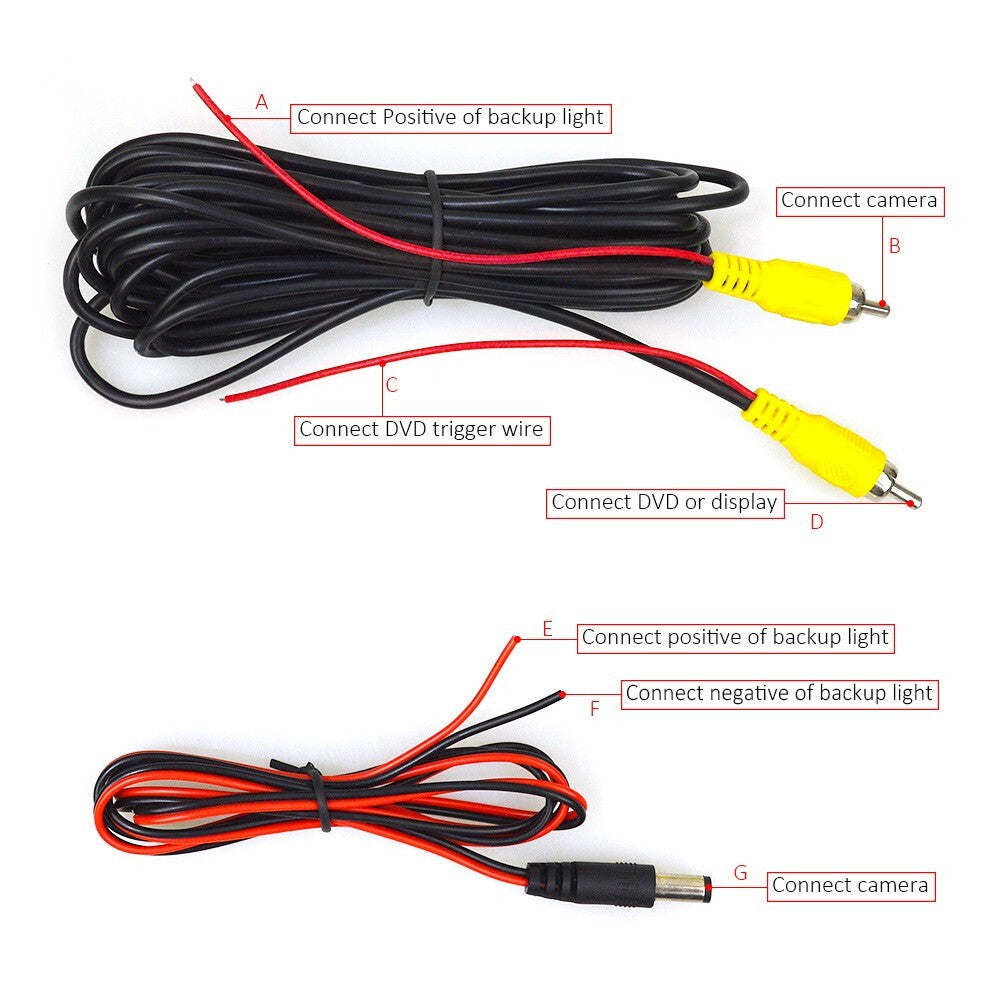

1 X 10m/33ft. extension cable

2 X DC Power cables

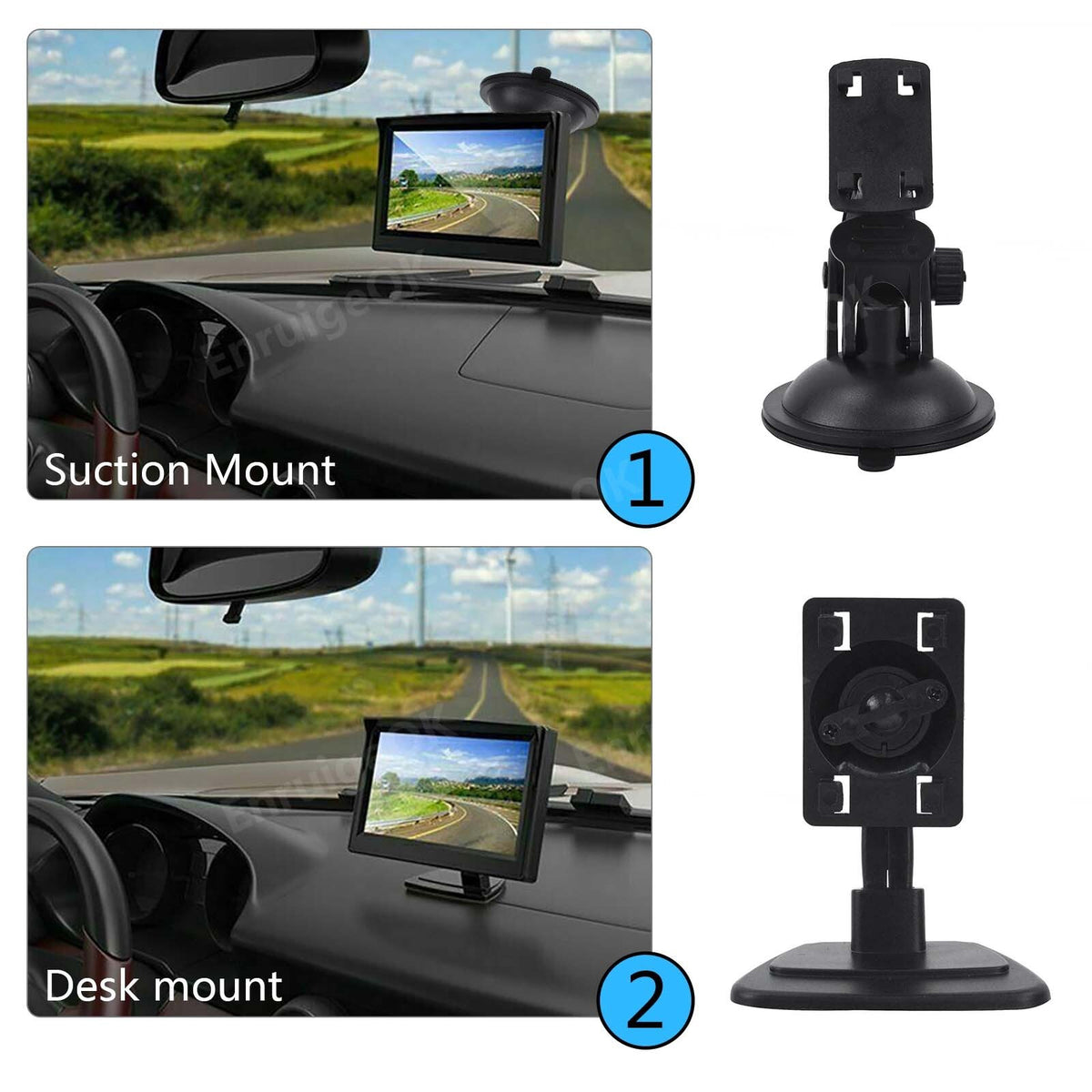

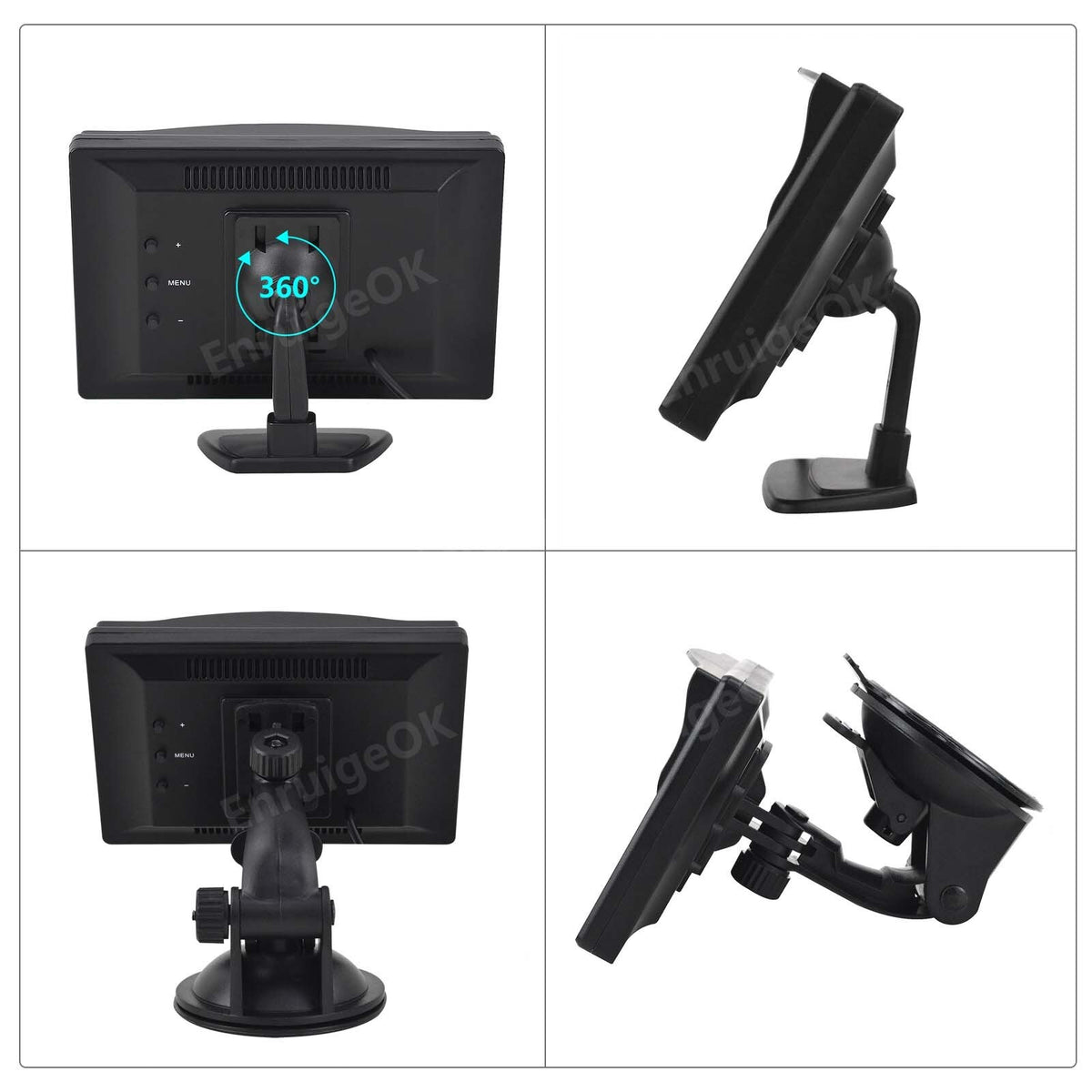

1 X Dashboard mount stand

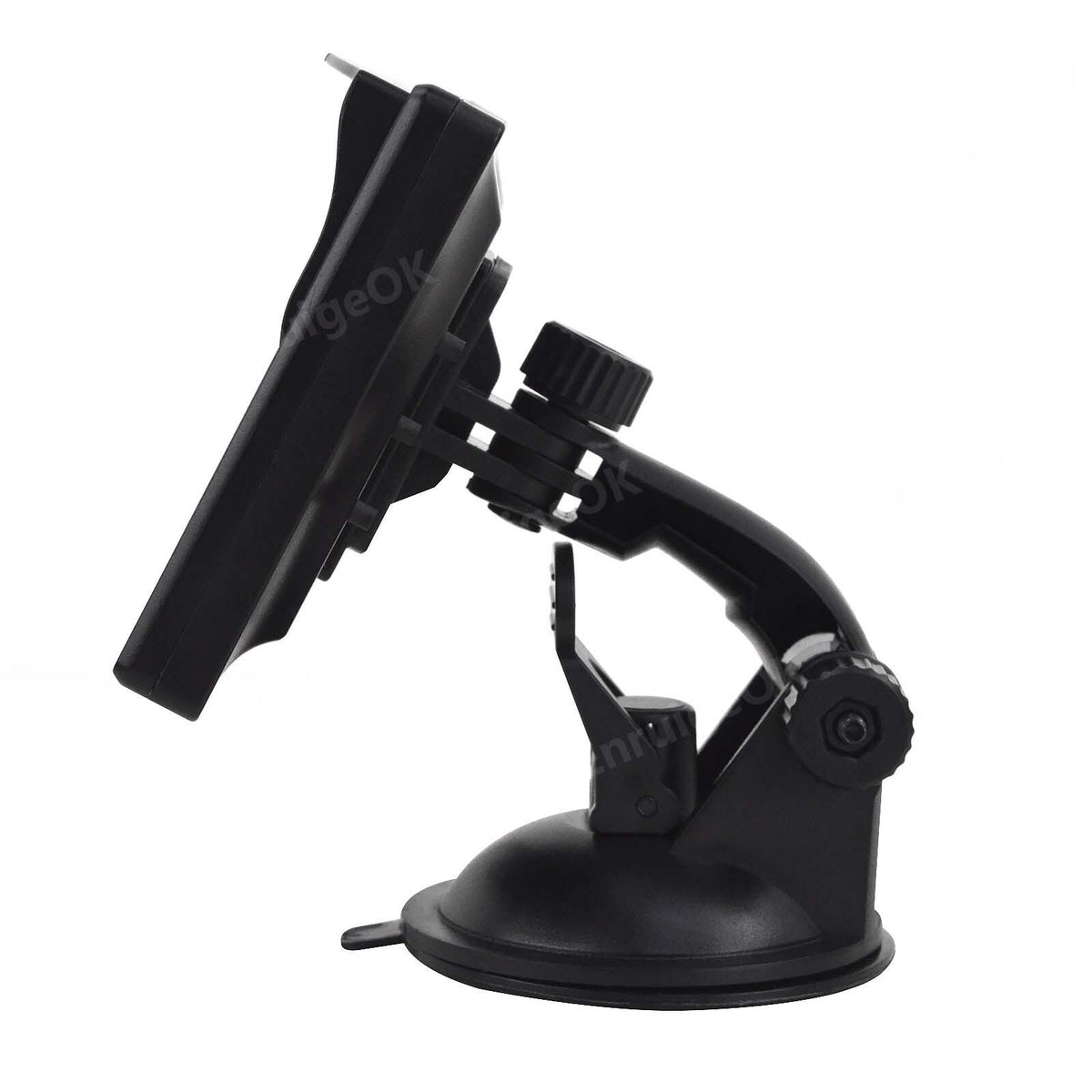

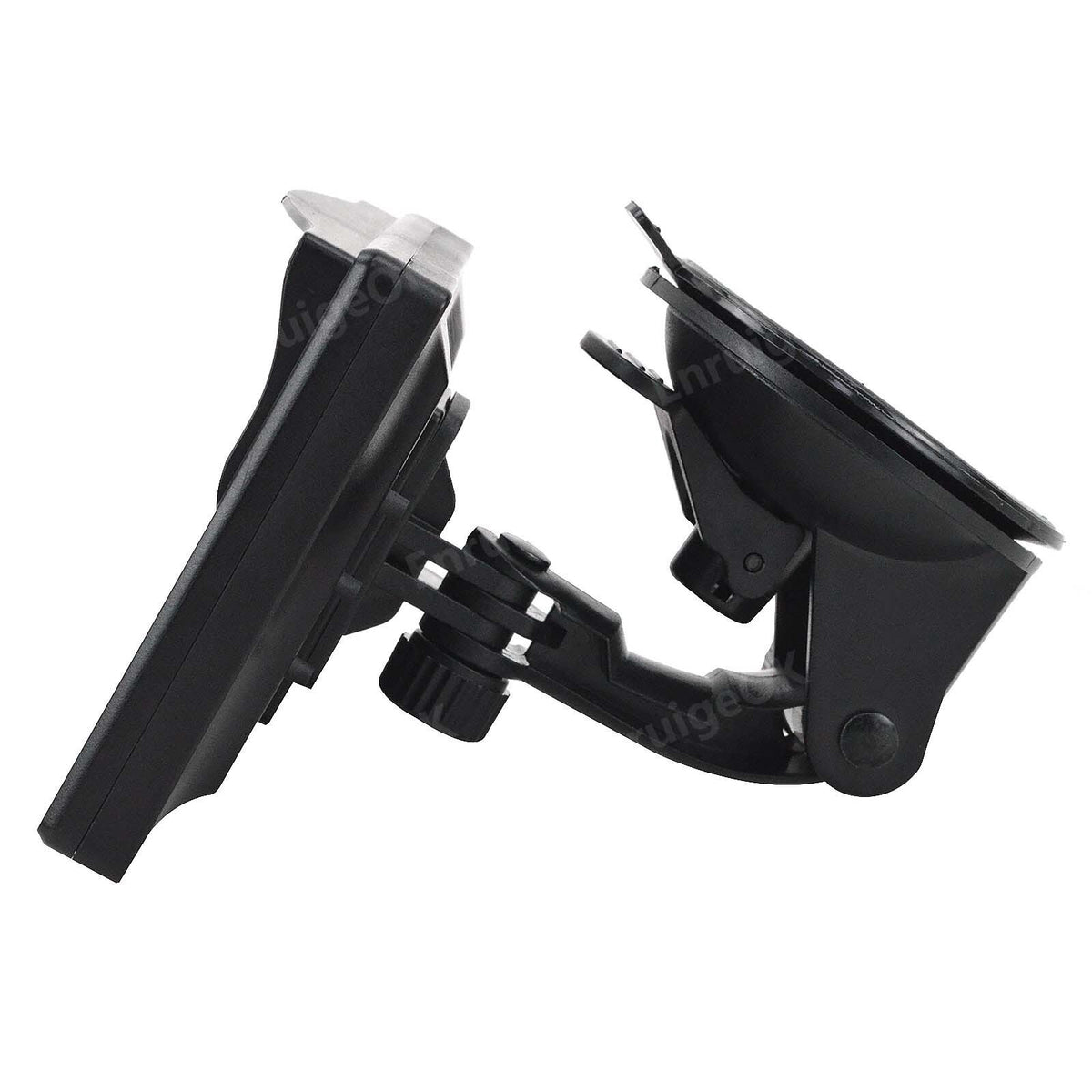

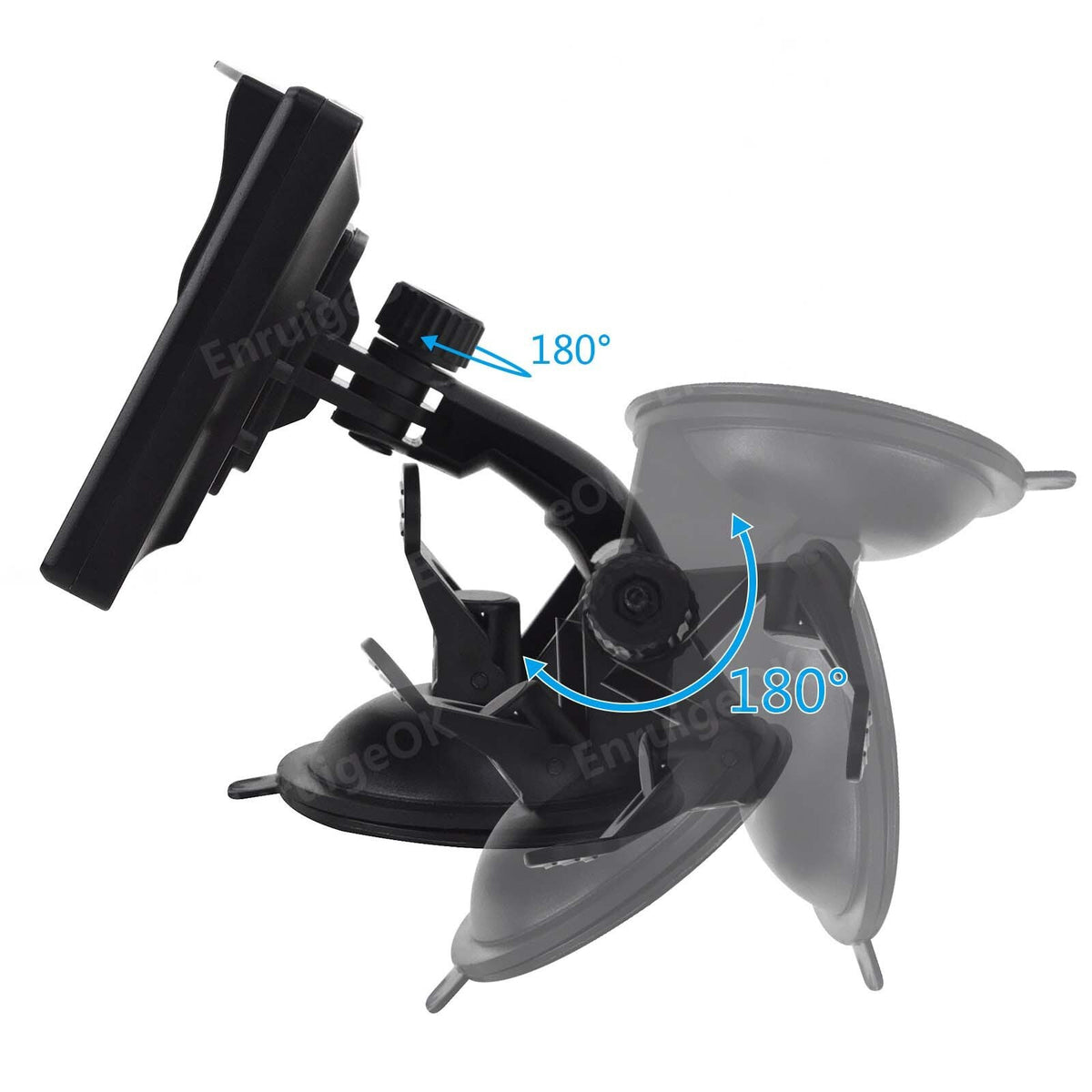

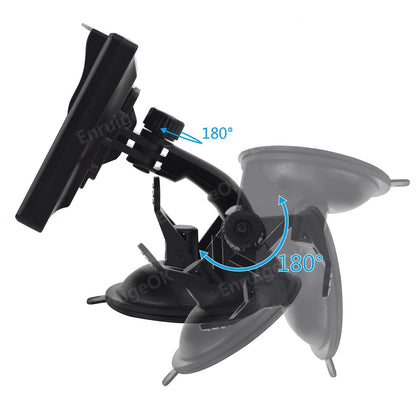

1 X Suction cup mount stand

1 X Screw kit

1 X Manual

Camera Specifications

Image sensor: 1/4" CMOS

Lens: 2.8mm

Effective pixel: 733(H)x493(V)

TV Line: 480TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dBCurrent consumption: < 150mAMinimum illumination: 0 Lux (IR LED on)Power: DC12V

Operating temperature: -20℃ to +70℃

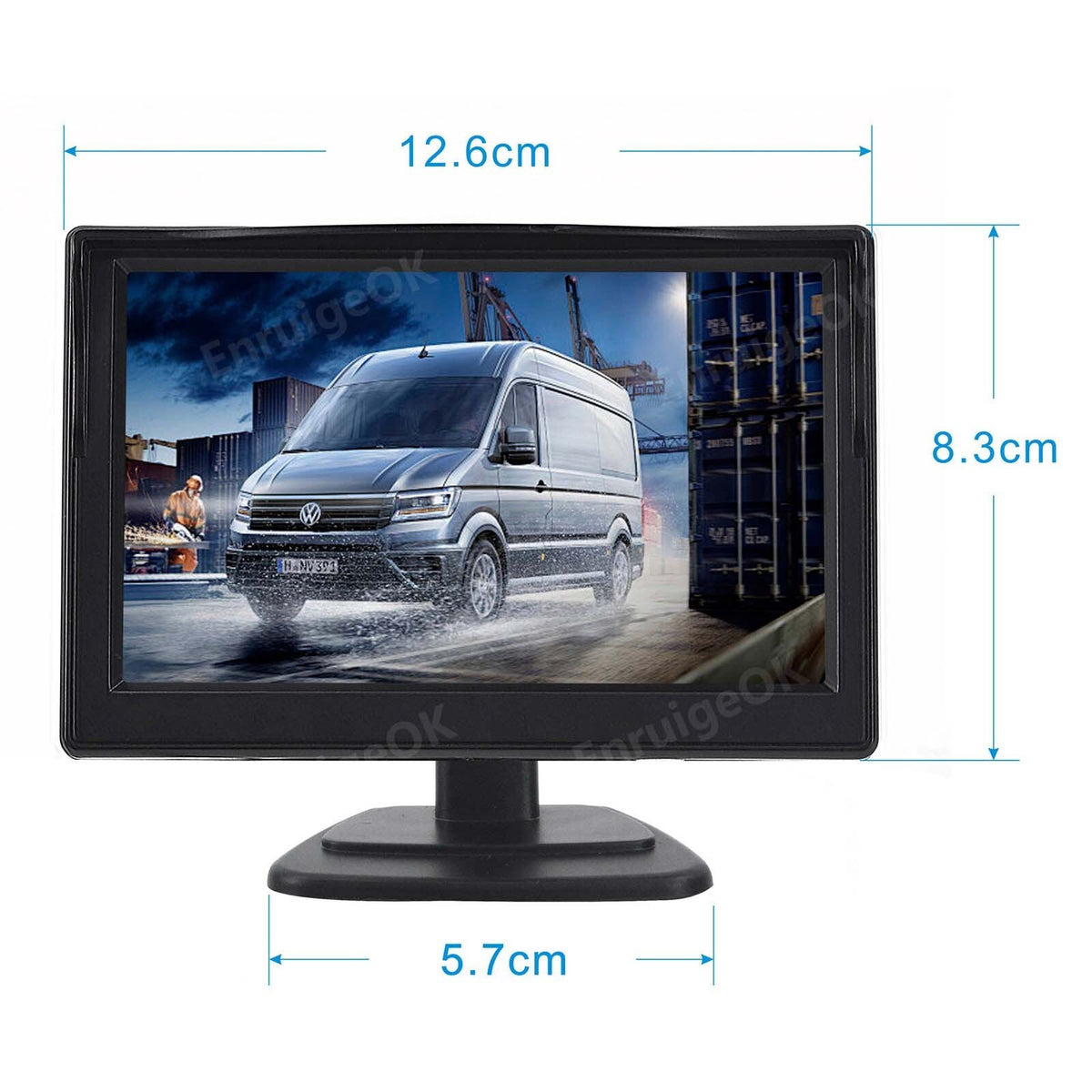

Monitor Specifications

Screen size: 5 inch

Display format: 16: 9

Video system: NTSC / PAL auto switch

Contrast: 300: 1

Brightness: 400 CD/㎡

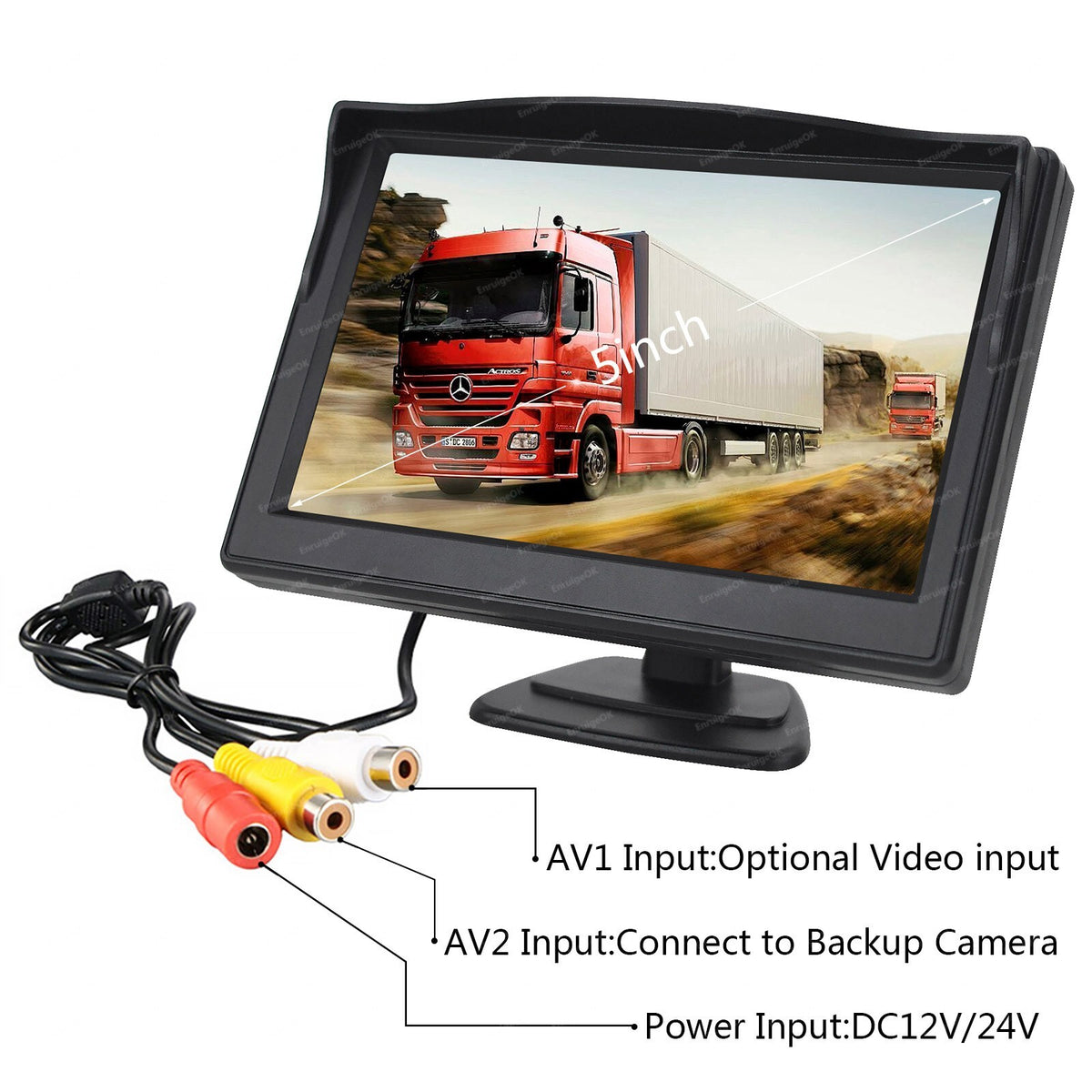

Video: 2-channel video input; AV1 and AV2(For reversing camera) switching, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

Resolution: 480 (H) x 272 (V)

Power supply: DC 12V

Current consumption: <4W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
