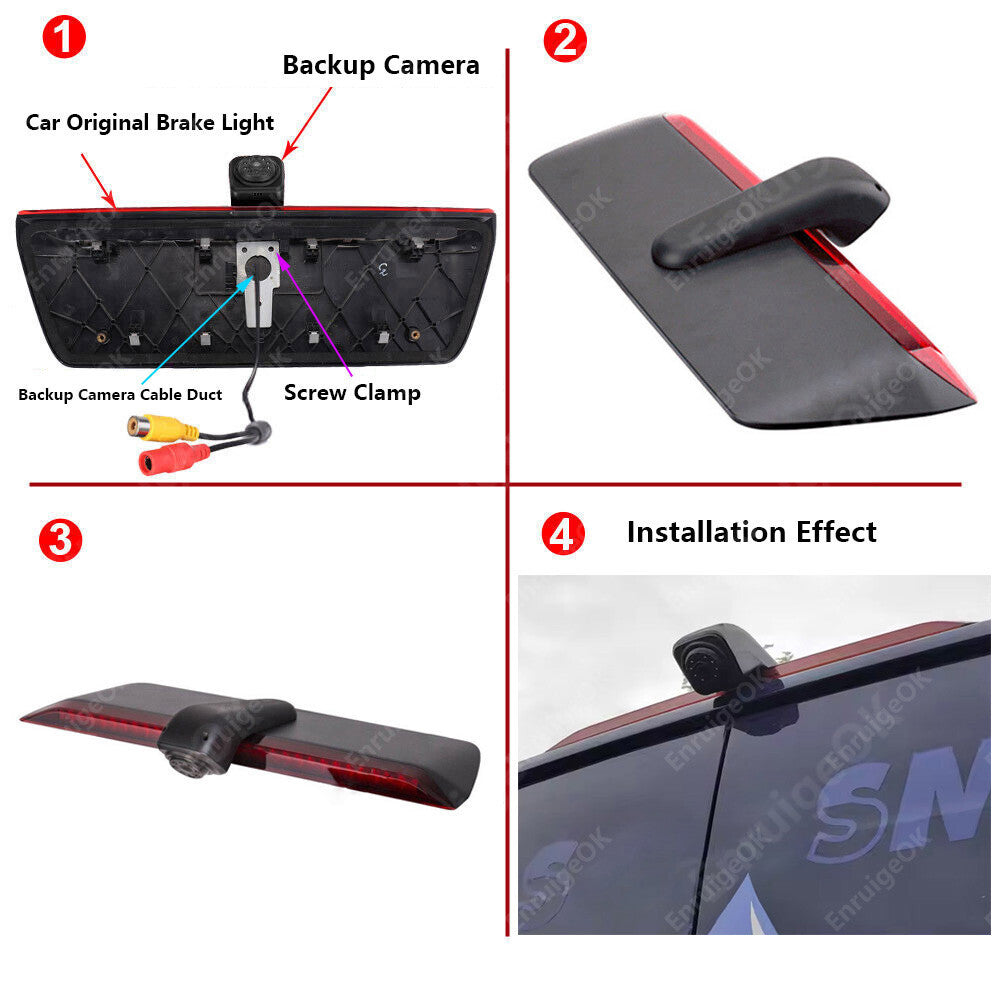

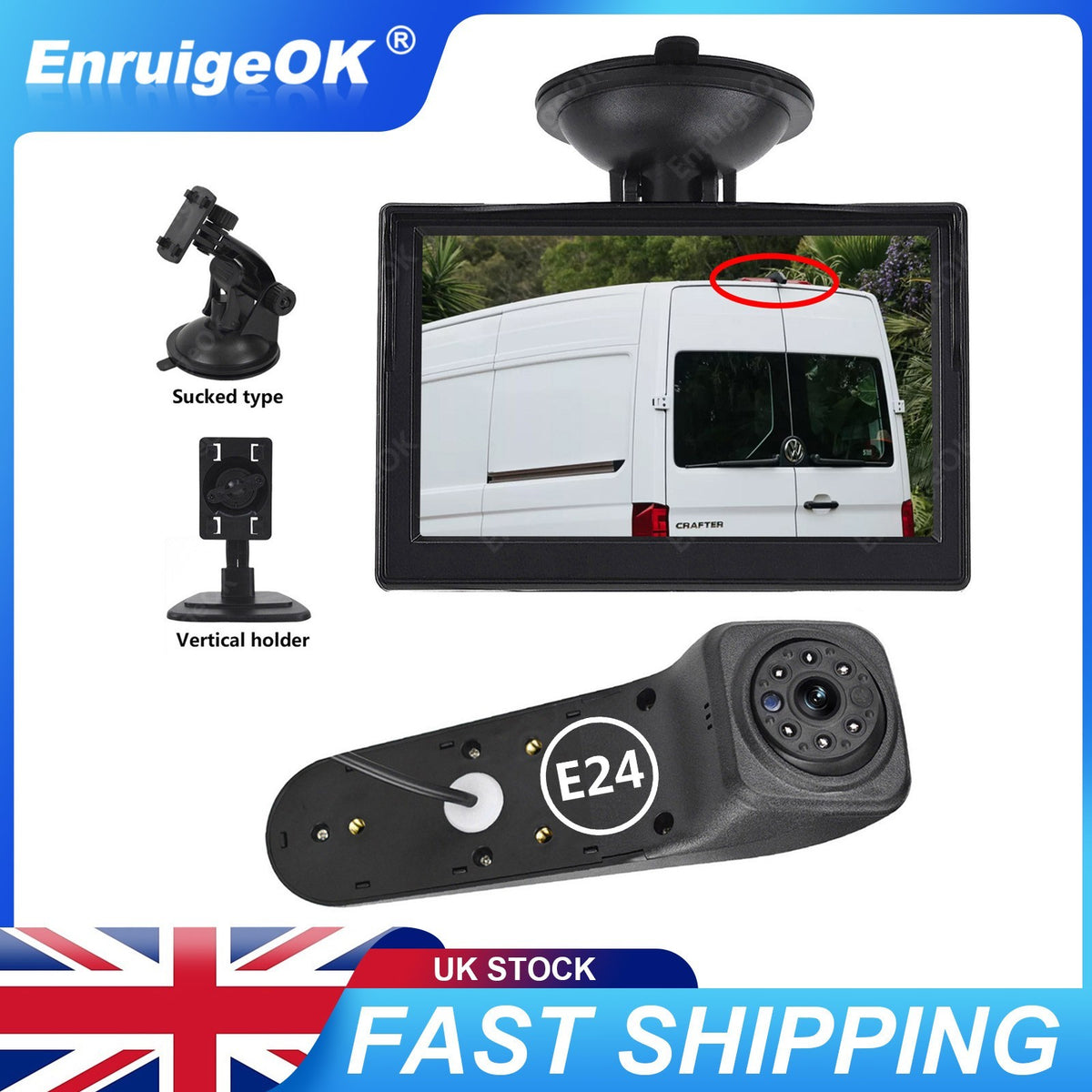

Reverse Camera for VW Crafter MK2 & MAN TGE Rear Brake Light &5" Suction Monitor

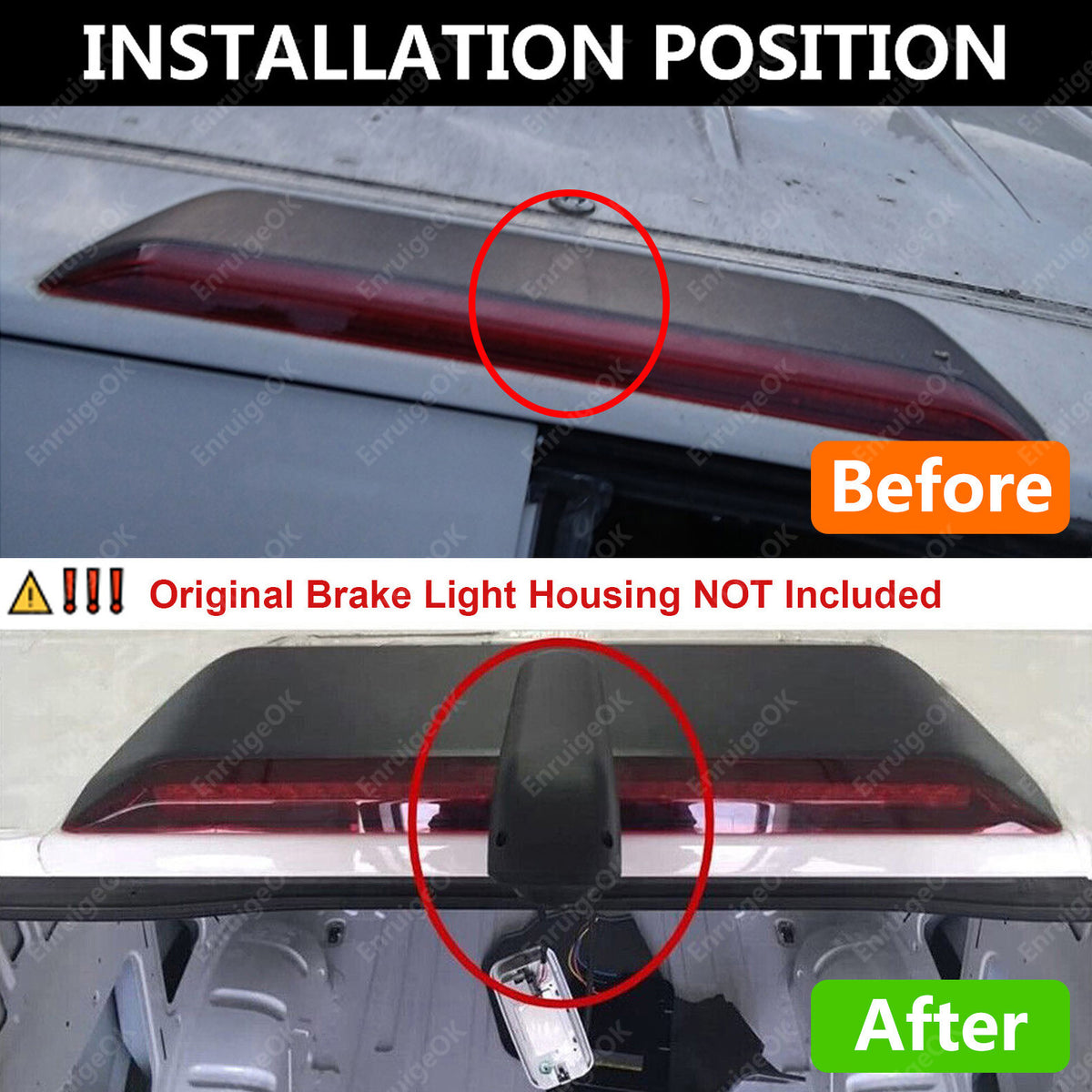

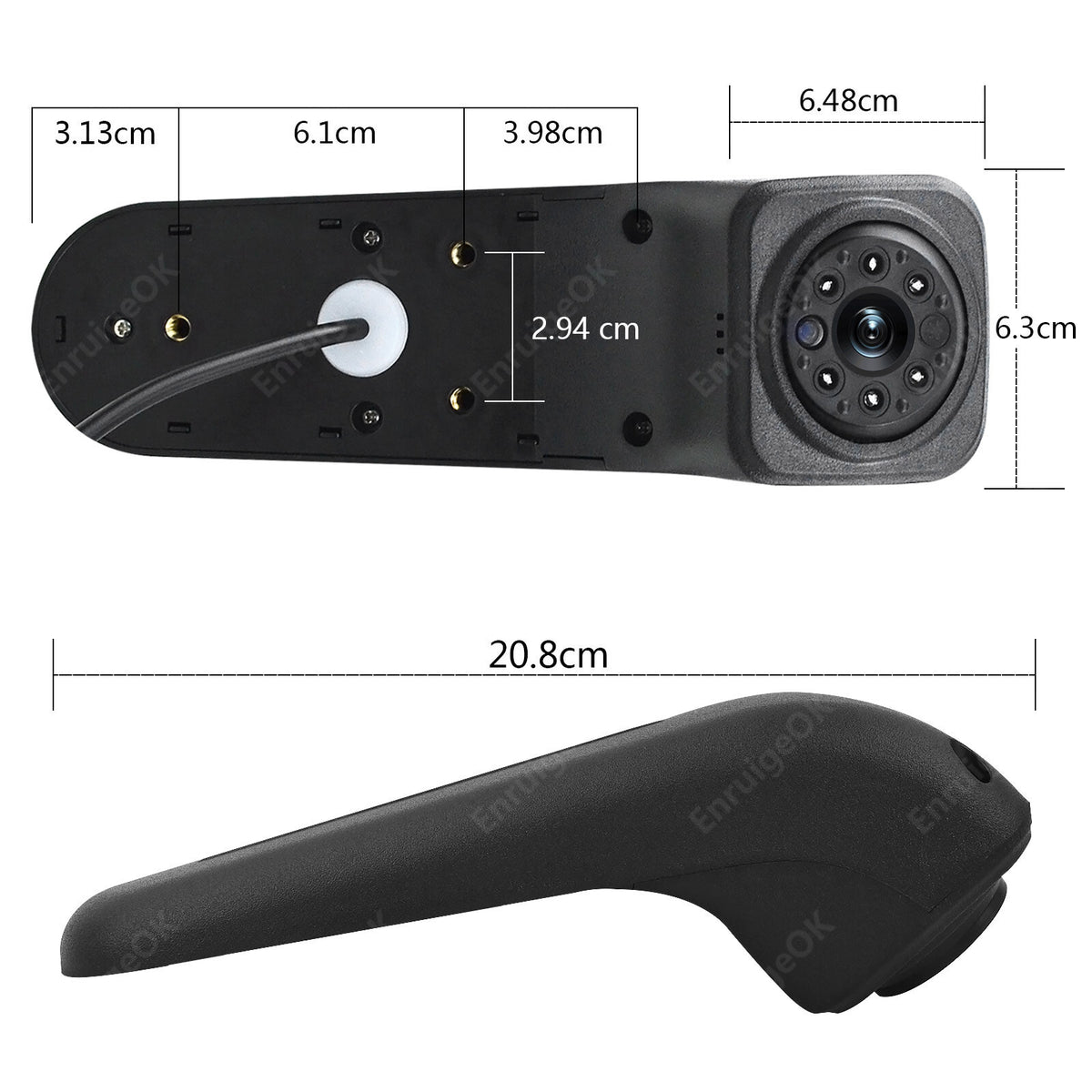

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

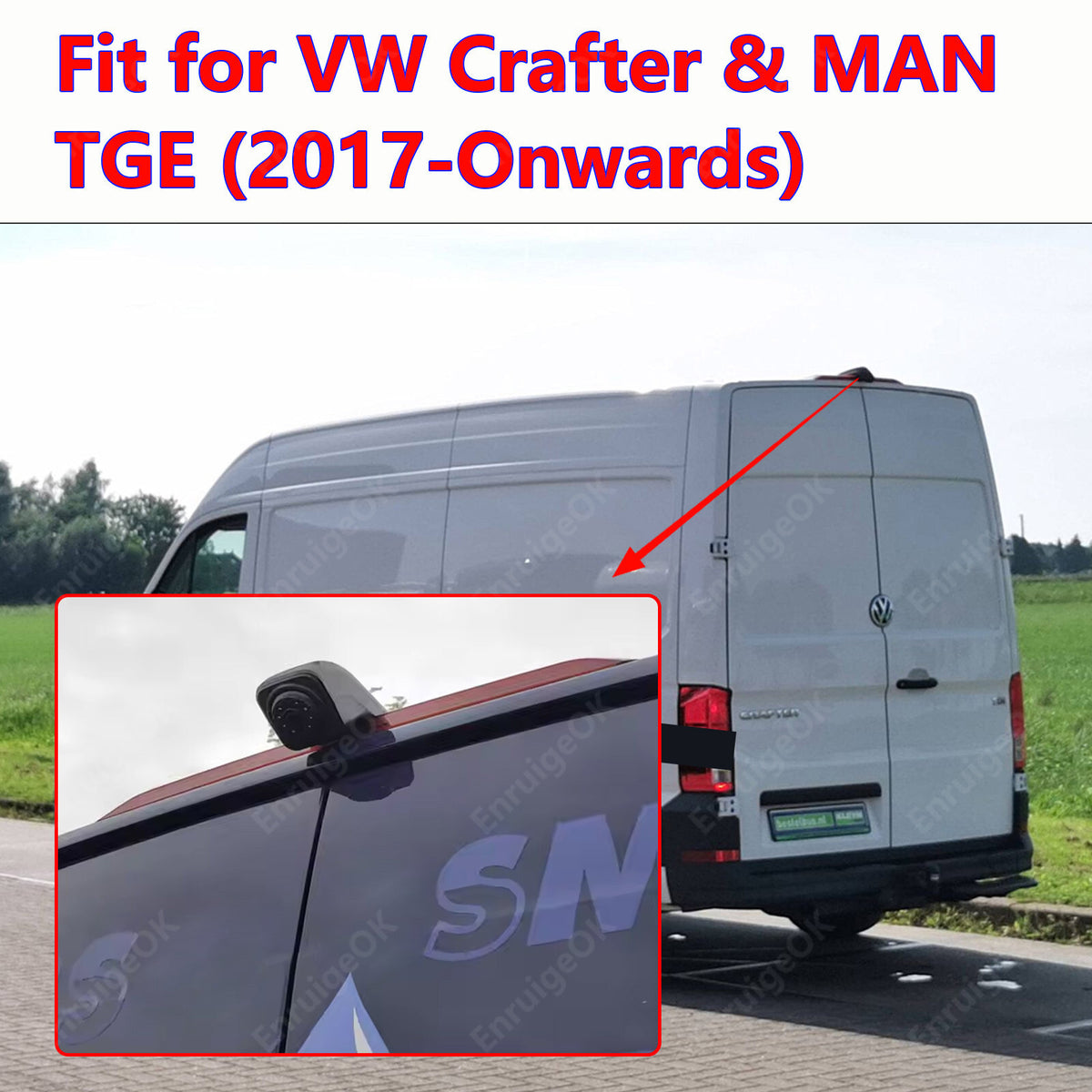

Camera Compatibility

✅Volkswagen Crafter [MK2] (2017-On)

✅MAN TGE (2017-On)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

Description

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

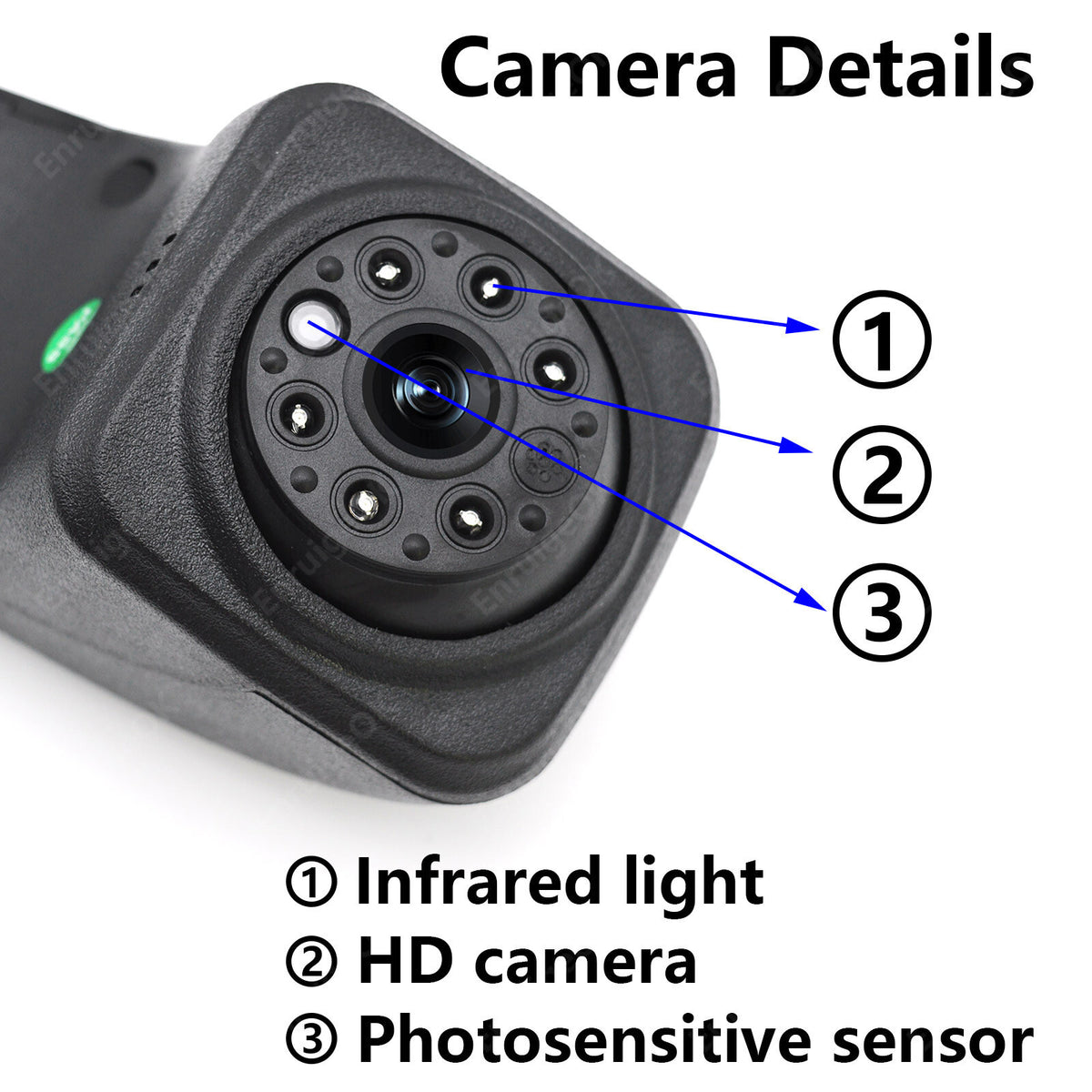

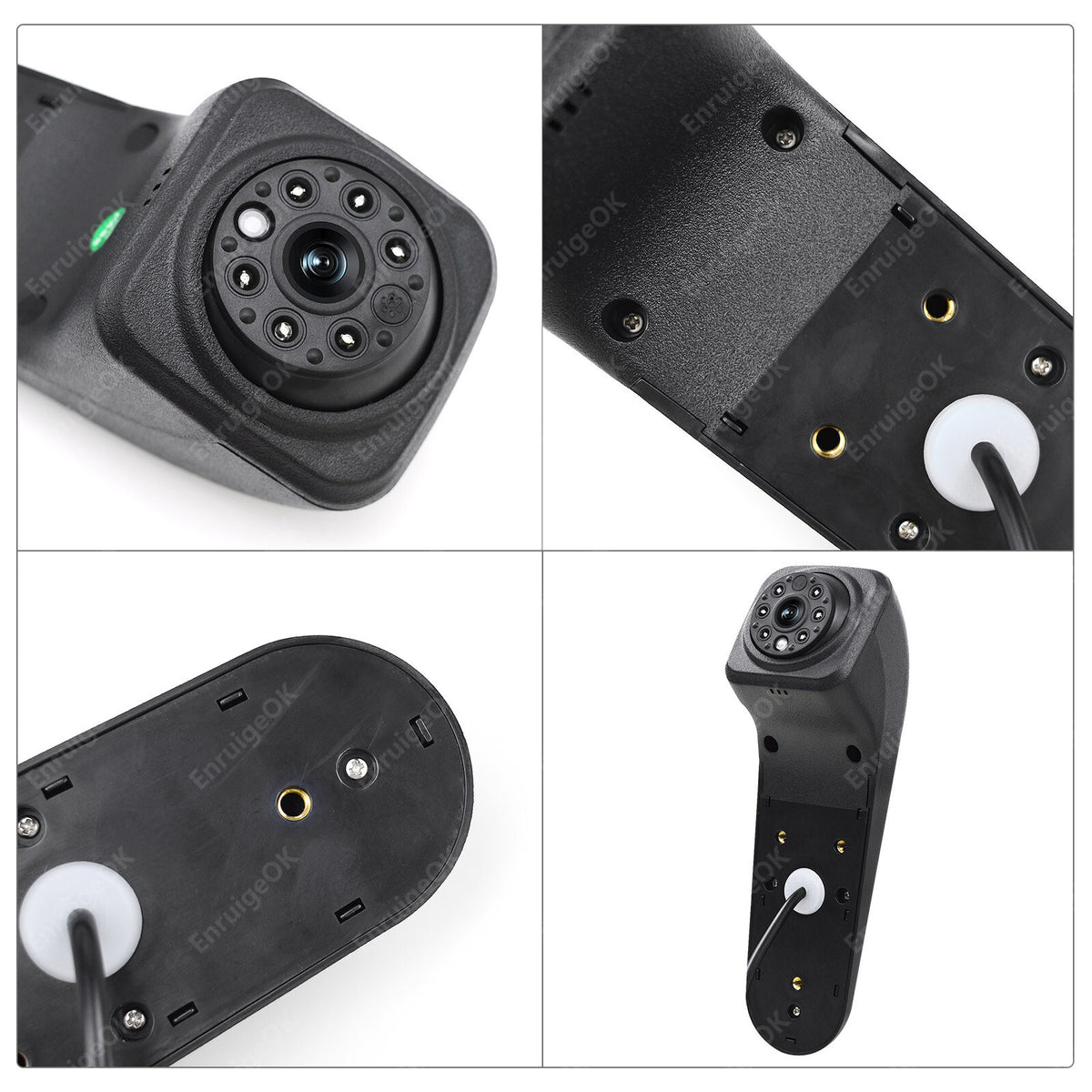

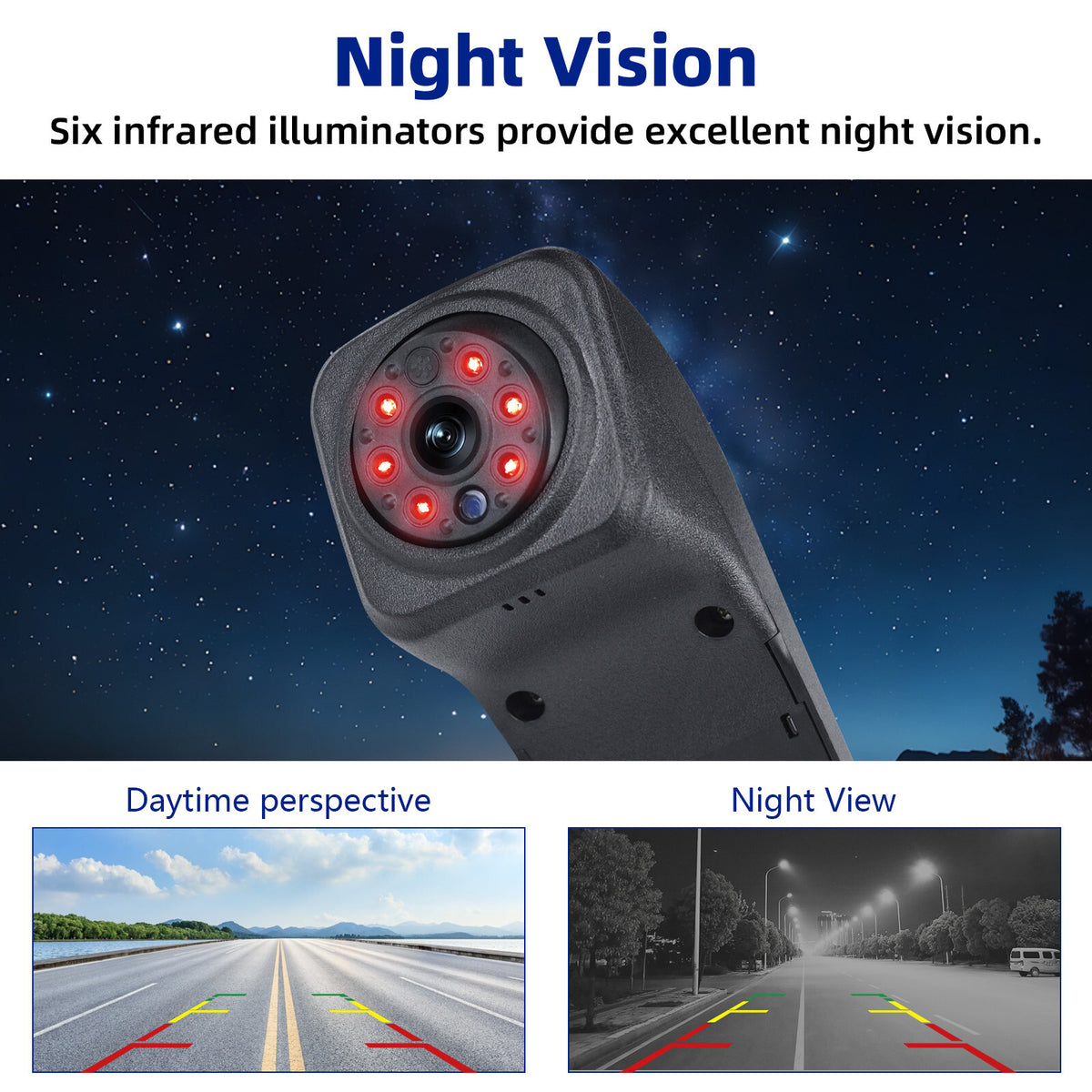

This brake light camera uses a 1/4" CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

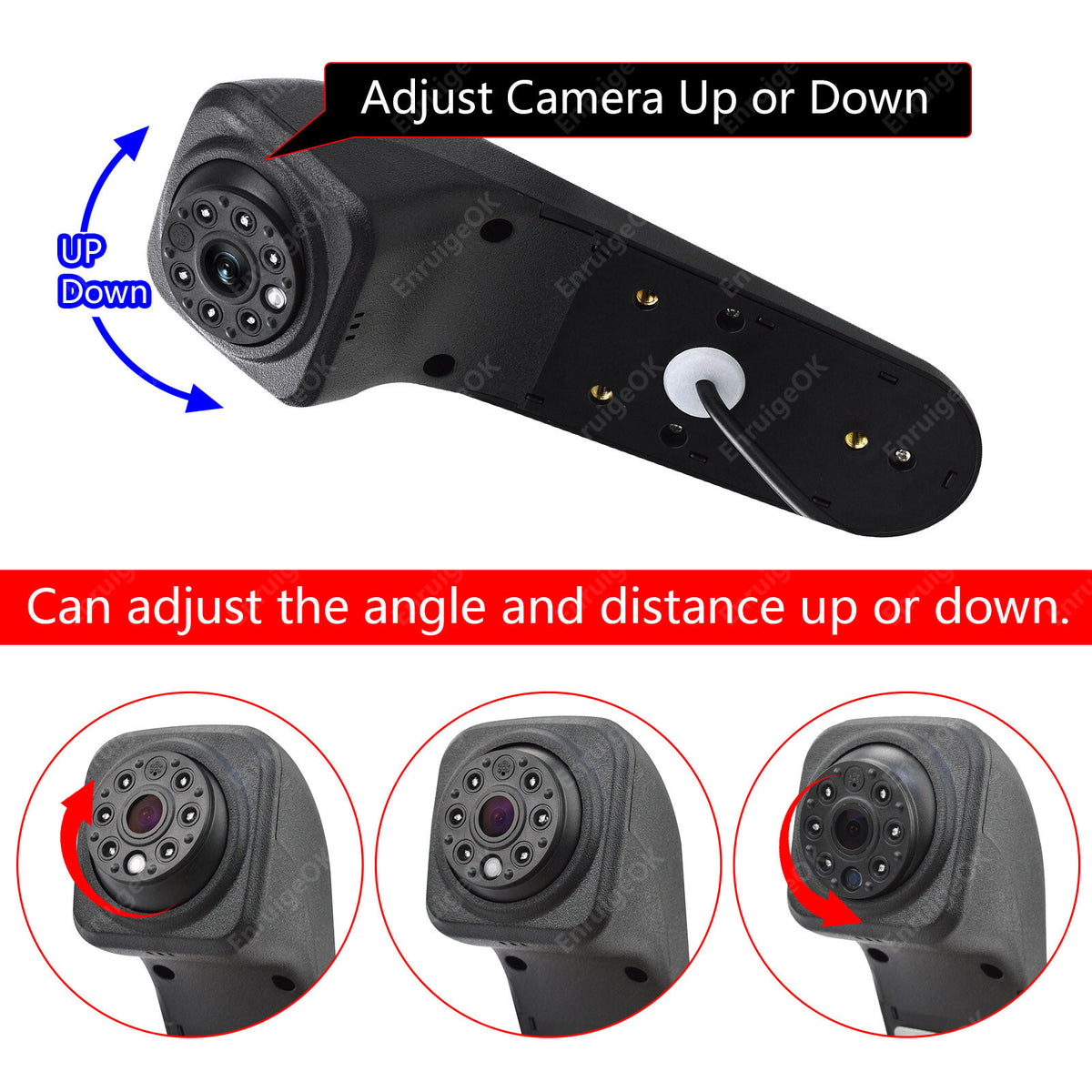

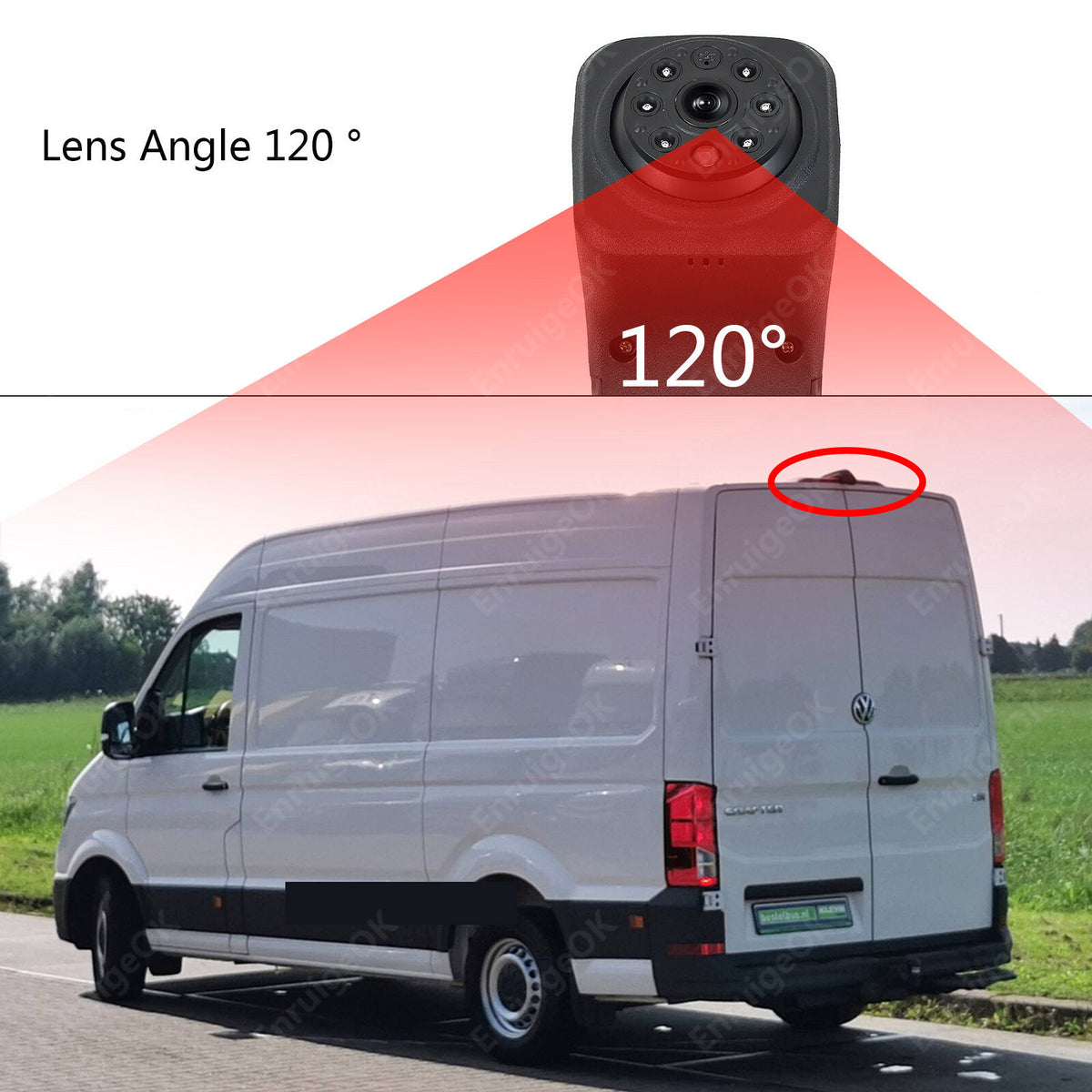

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

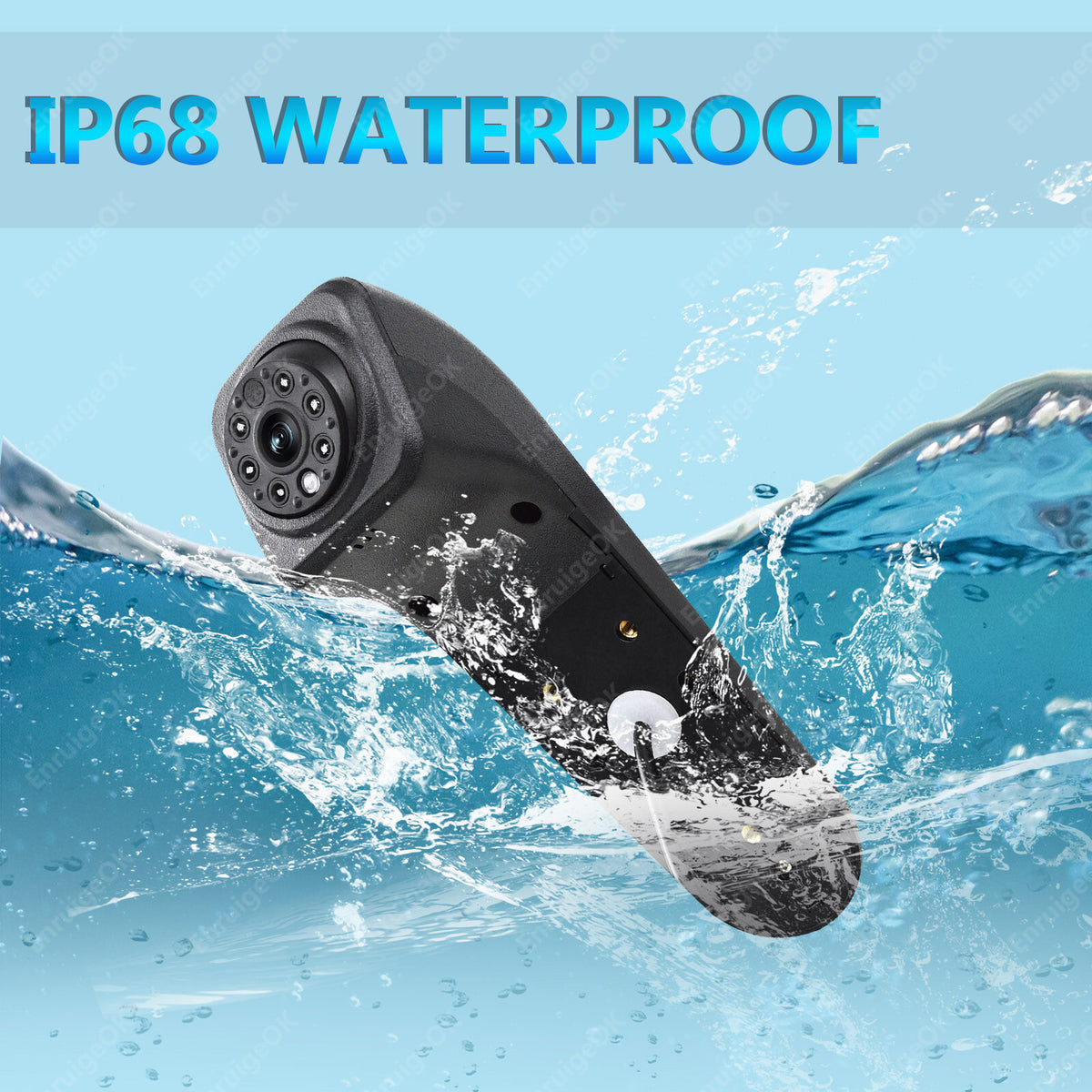

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

The 5" Color IPS display Monitor features 2 video inputs and an 480*272 (RGB) resolution, making it compatible with the brake light rearview camera.

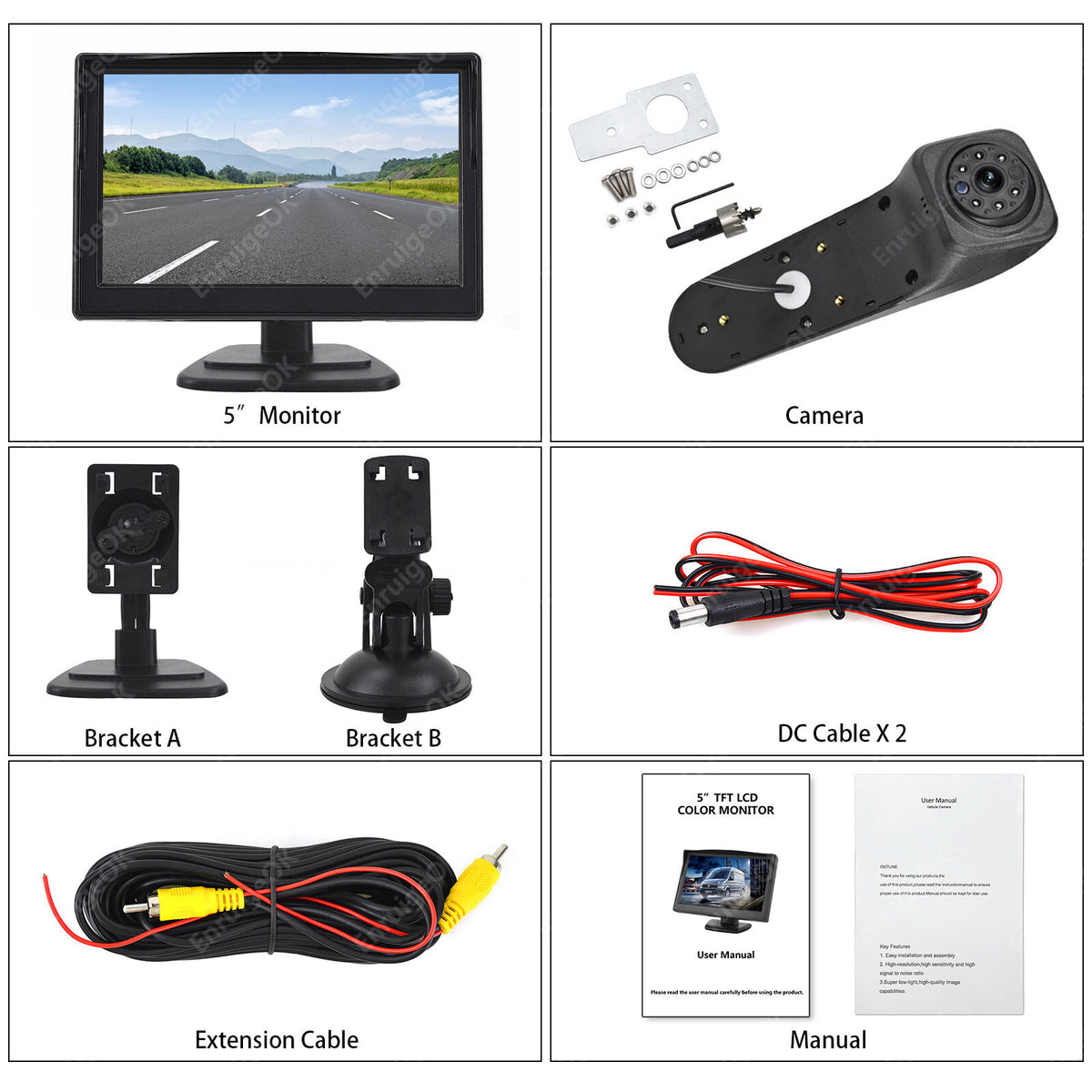

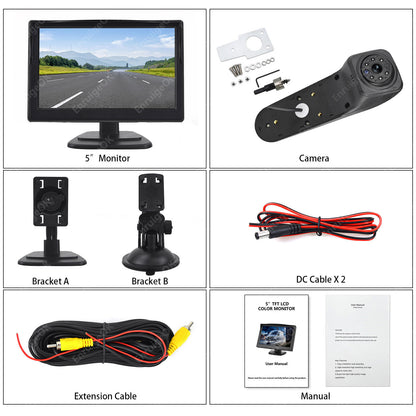

Package contents

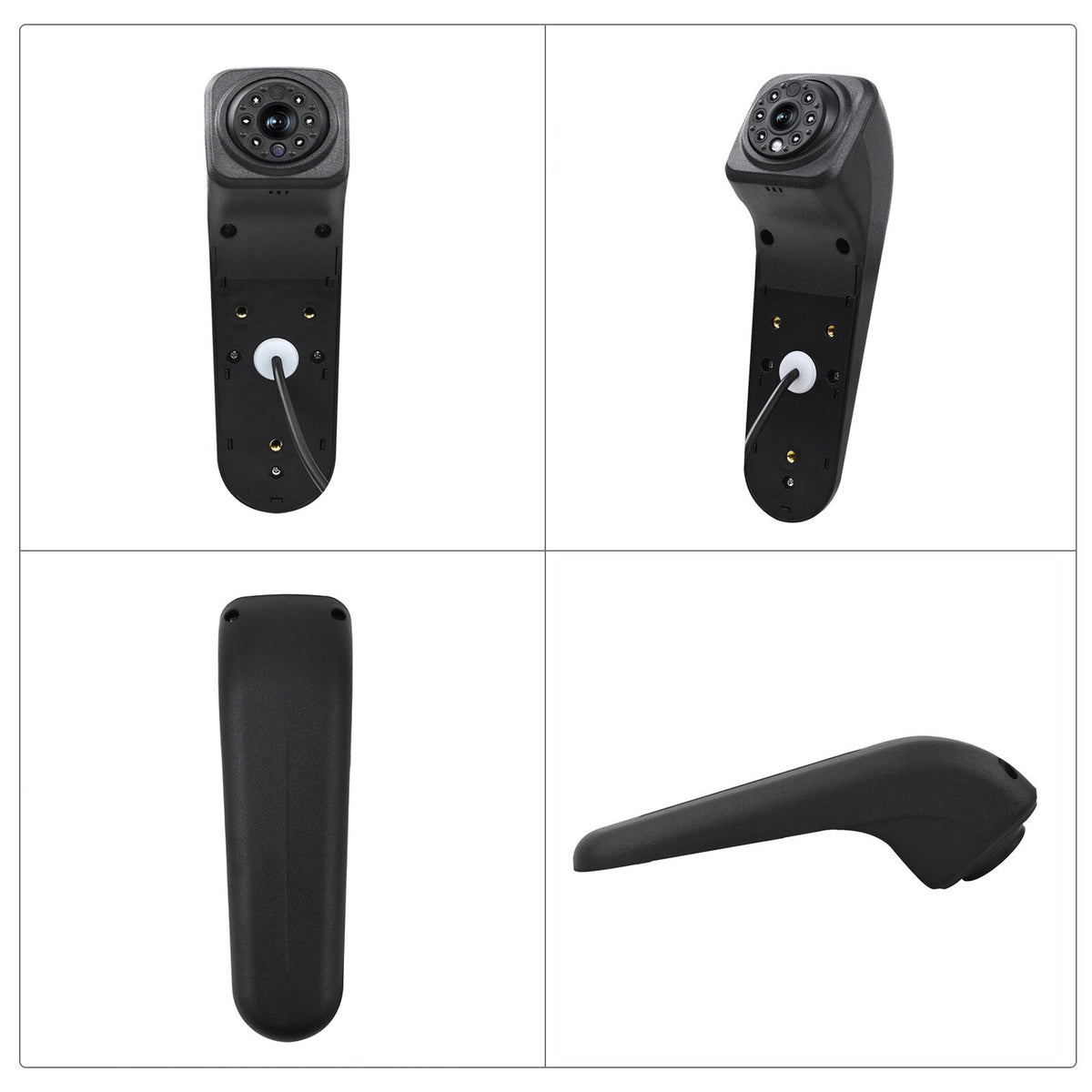

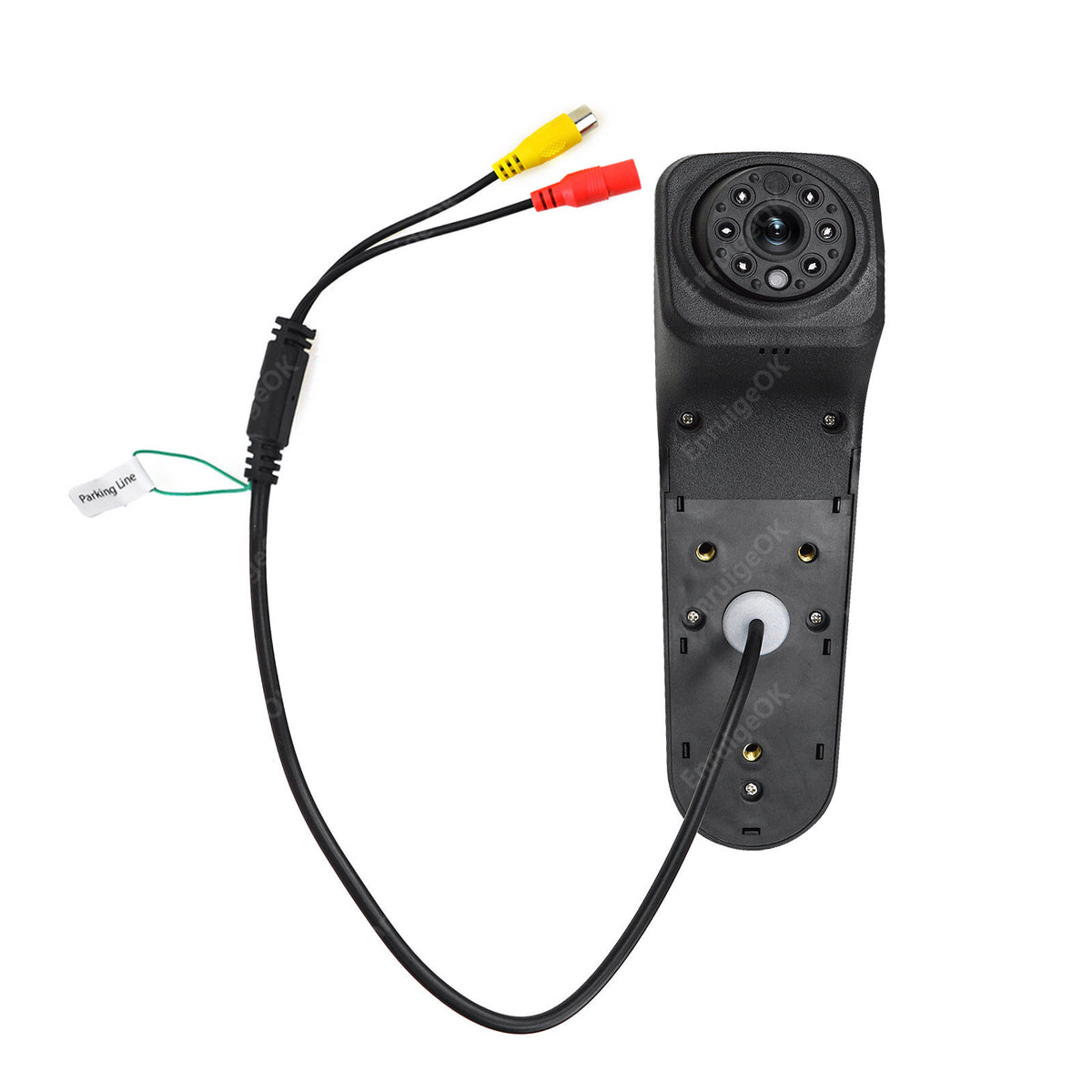

1 X Brake light camera

1 X 5'' IPS display monitor

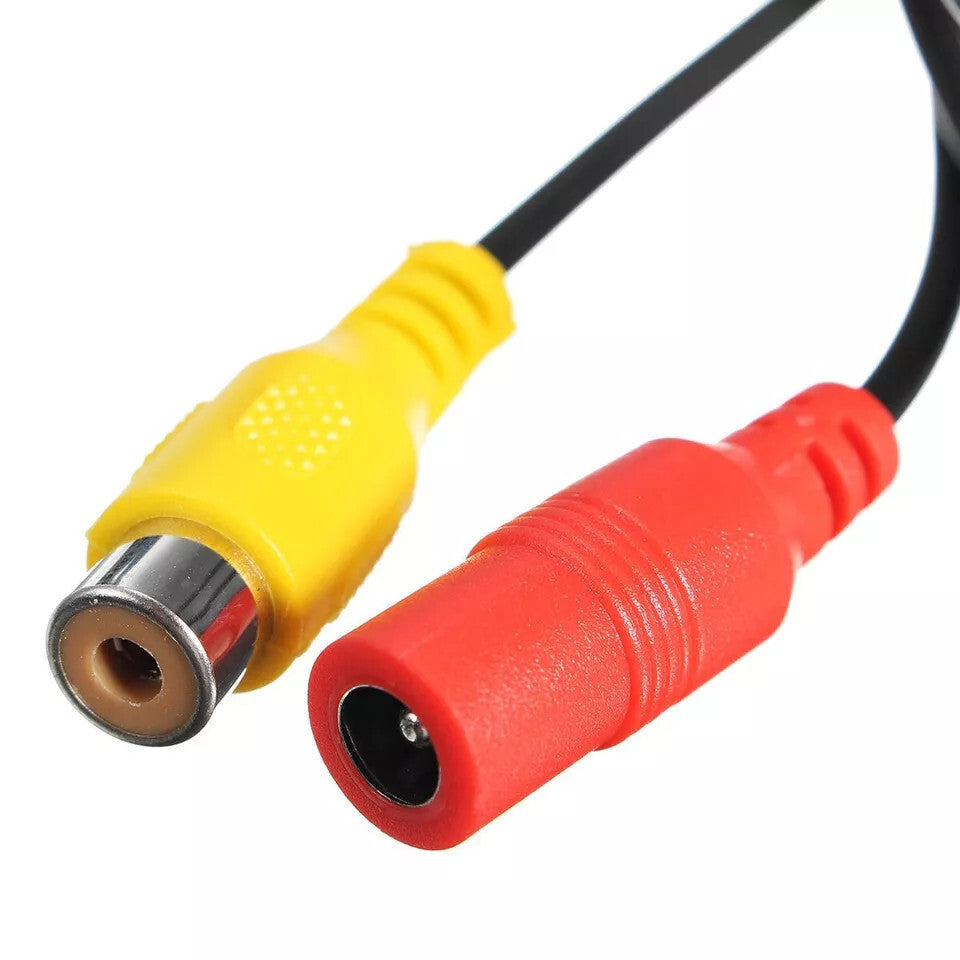

1 X 10m/33ft. extension cable

2 X DC Power cables

1 X Dashboard mount stand

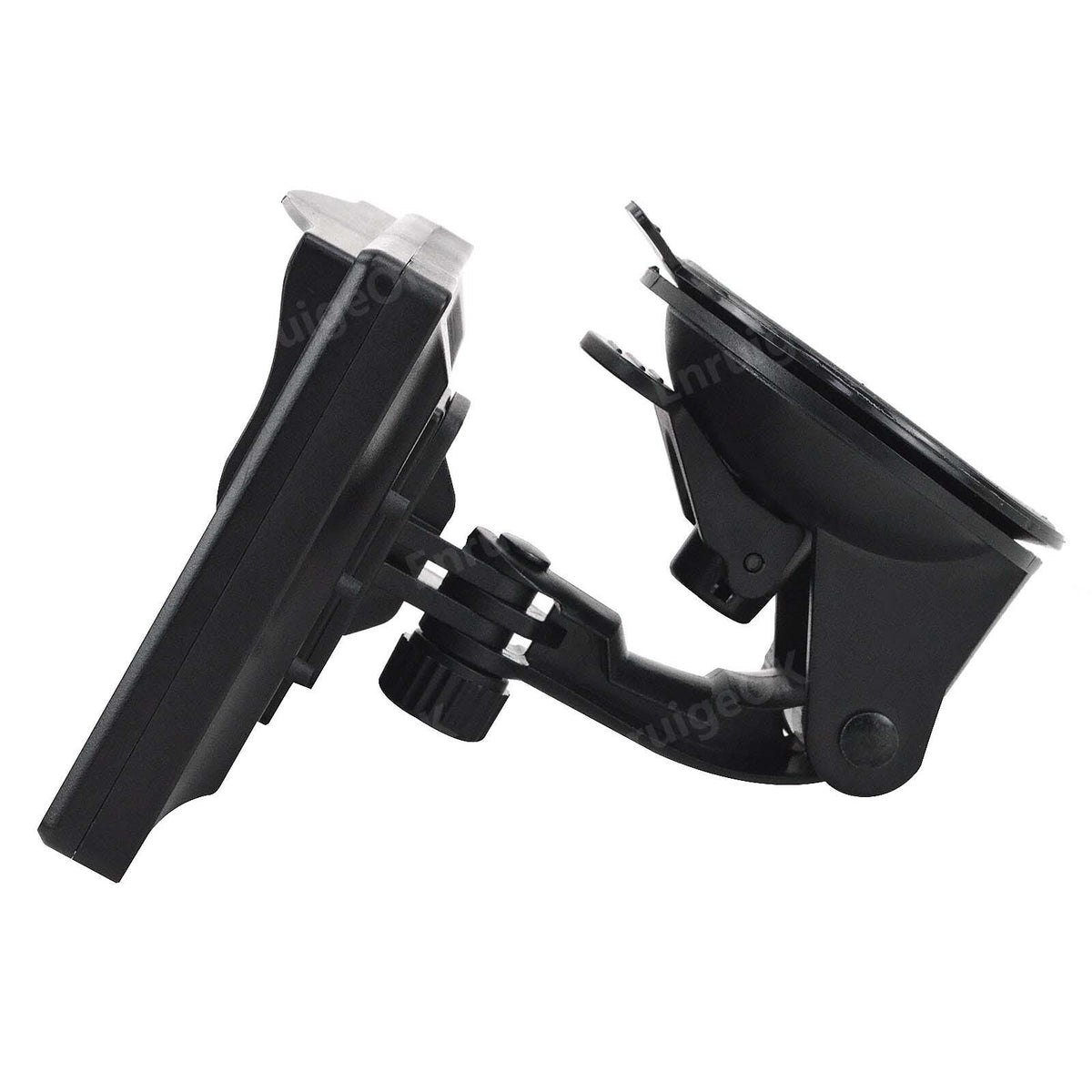

1 X Suction cup mount stand

1 X Screw kit

1 X Manual

Camera Specifications

Image sensor: 1/4" CMOS

Lens: 2.8mm

Effective pixel: 733(H)x493(V)

TV Line: 480TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0 Lux (IR LED on)

Power: DC12V

Operating temperature: -20℃ to +70℃

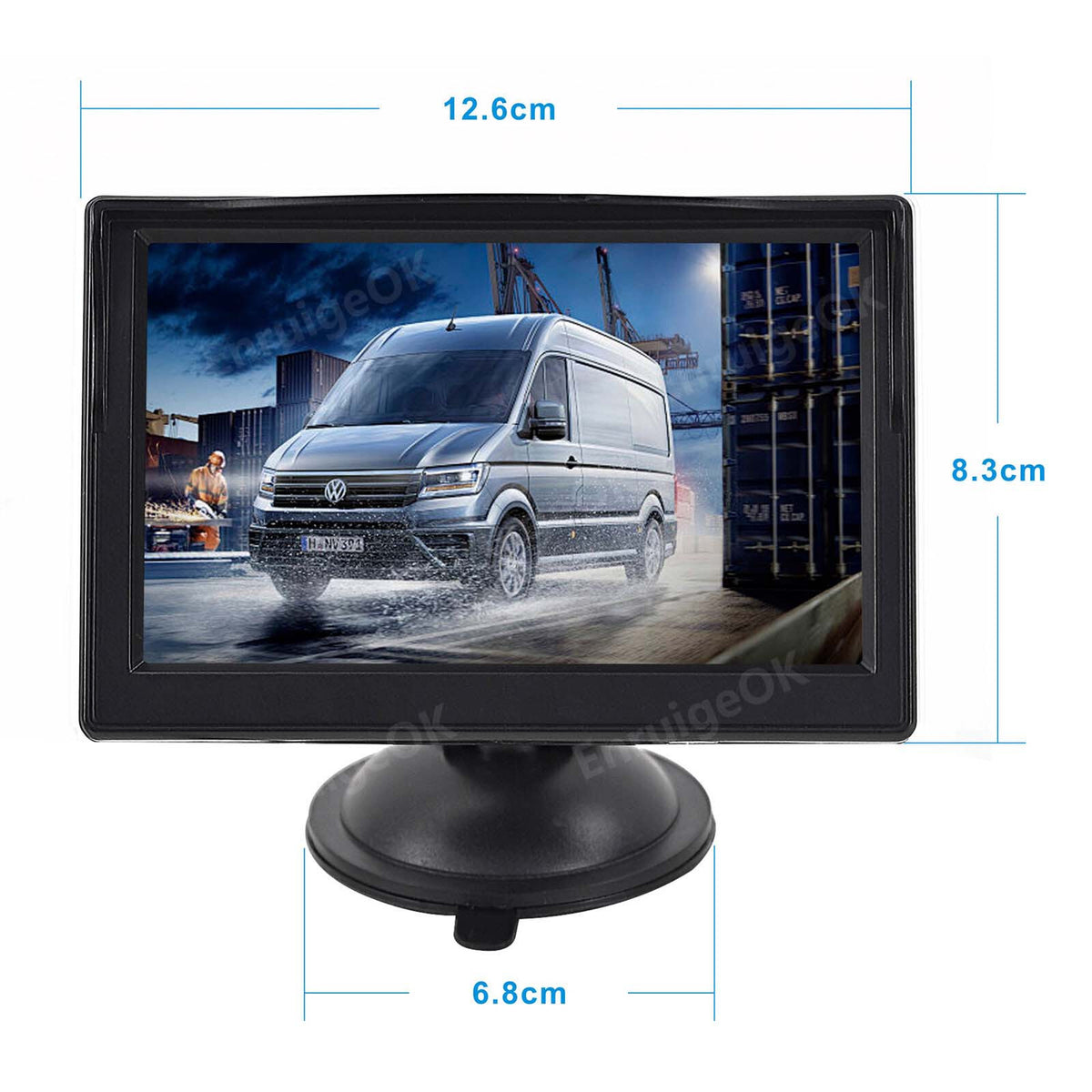

Monitor Specifications

Screen size: 5 inchs

Display format: 4: 3

Resolution: 800*480 IPS

Power supply: DC 12-24V

Video system: NTSC / PAL auto switch

Video Input: Dual video inputs, AV1 and AV2 (For reversing camera), the monitor will continuously display the rear view camera image.

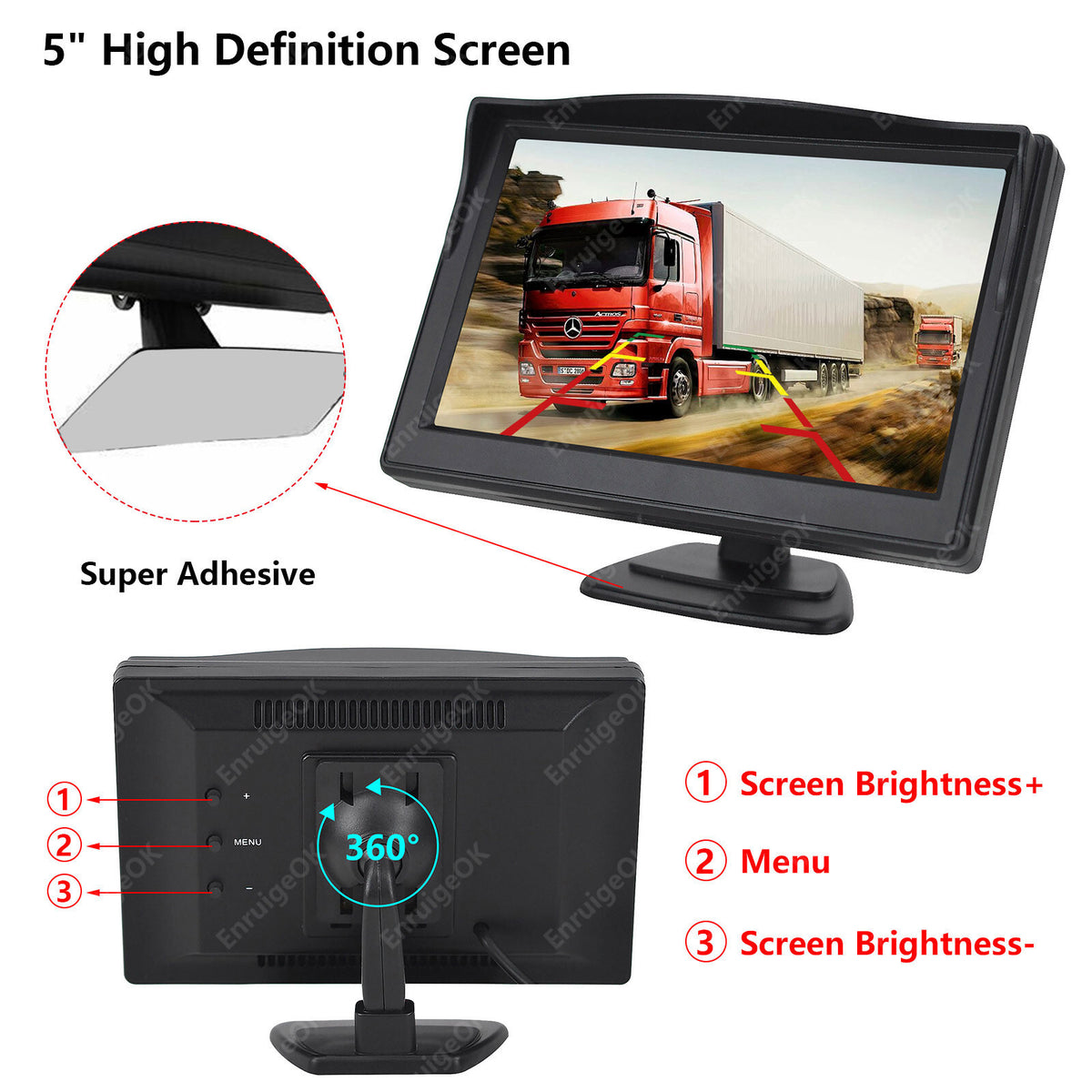

With menu button, brightness/contrast/saturation adjustable.

Blue screen displayed when no signal is detected.

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
