Reverse Camera For Mercedes Sprinter VW Crafter Brake Light Rear & 5" Monitor

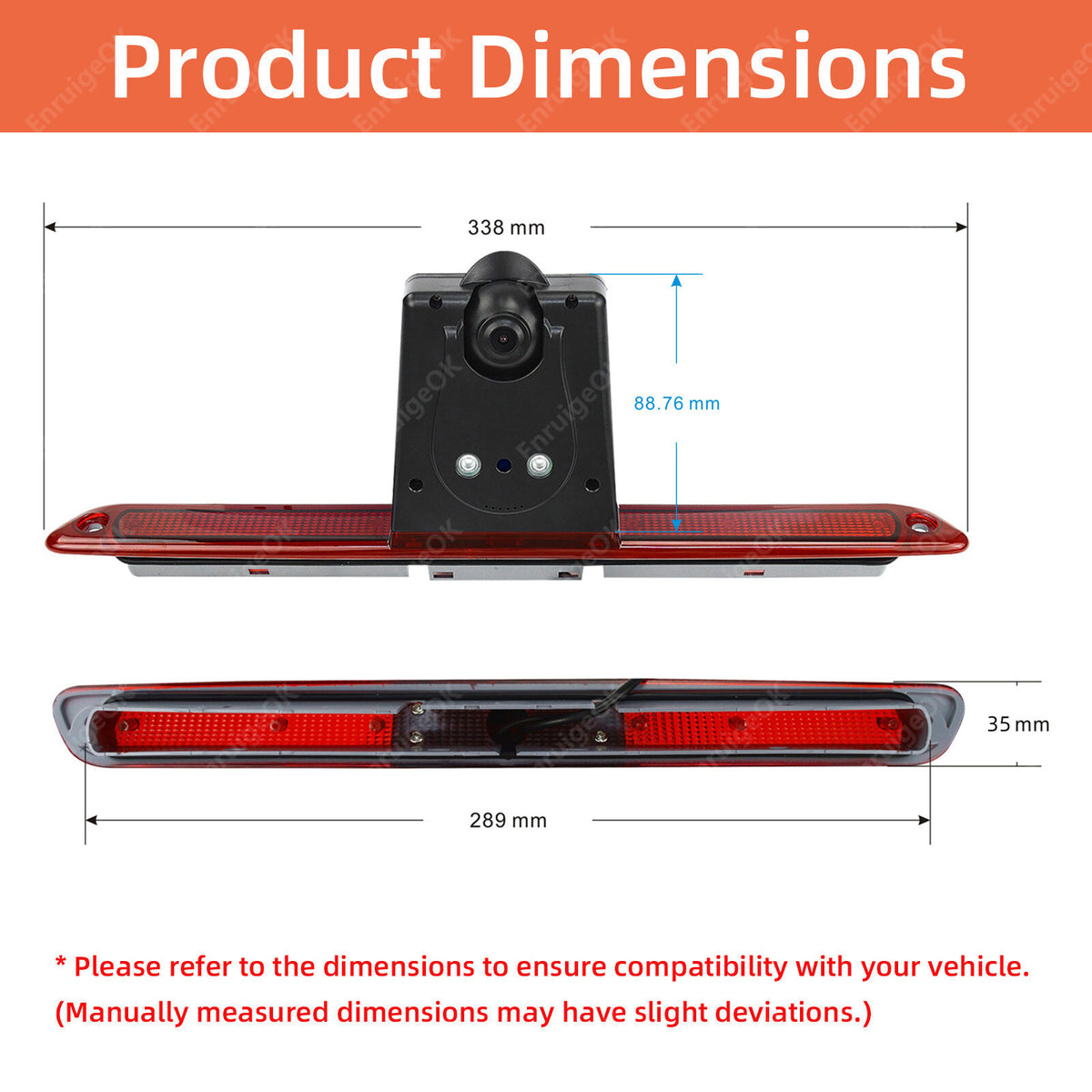

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK reversing camera kit with 5" dash and suction mount monitor is designed for Mercedes Sprinter and VW Crafter van, offering a safer and more convenient reversing experience. Featuring a motorized brake light camera, the system automatically adjusts the viewing angle depending on driving or reversing mode.

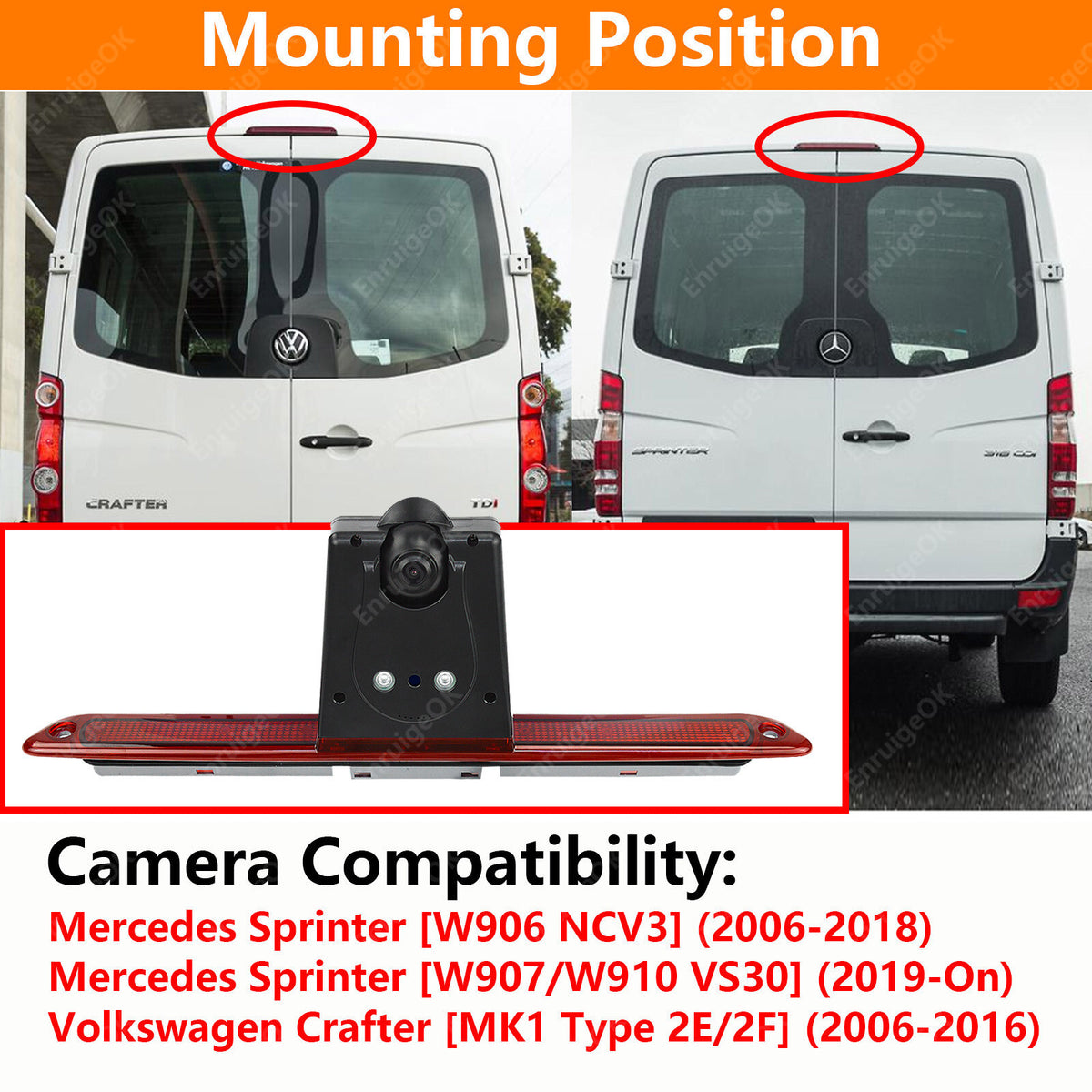

Camera Compatibility

✅Mercedes Sprinter [W906 NCV3] (2006-2018)

✅Mercedes Sprinter [W907/W910 VS30] (2019-On)

✅Volkswagen Crafter [MK1 Type 2E/2F] (2006-2016)

【No LED brake light strip】

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

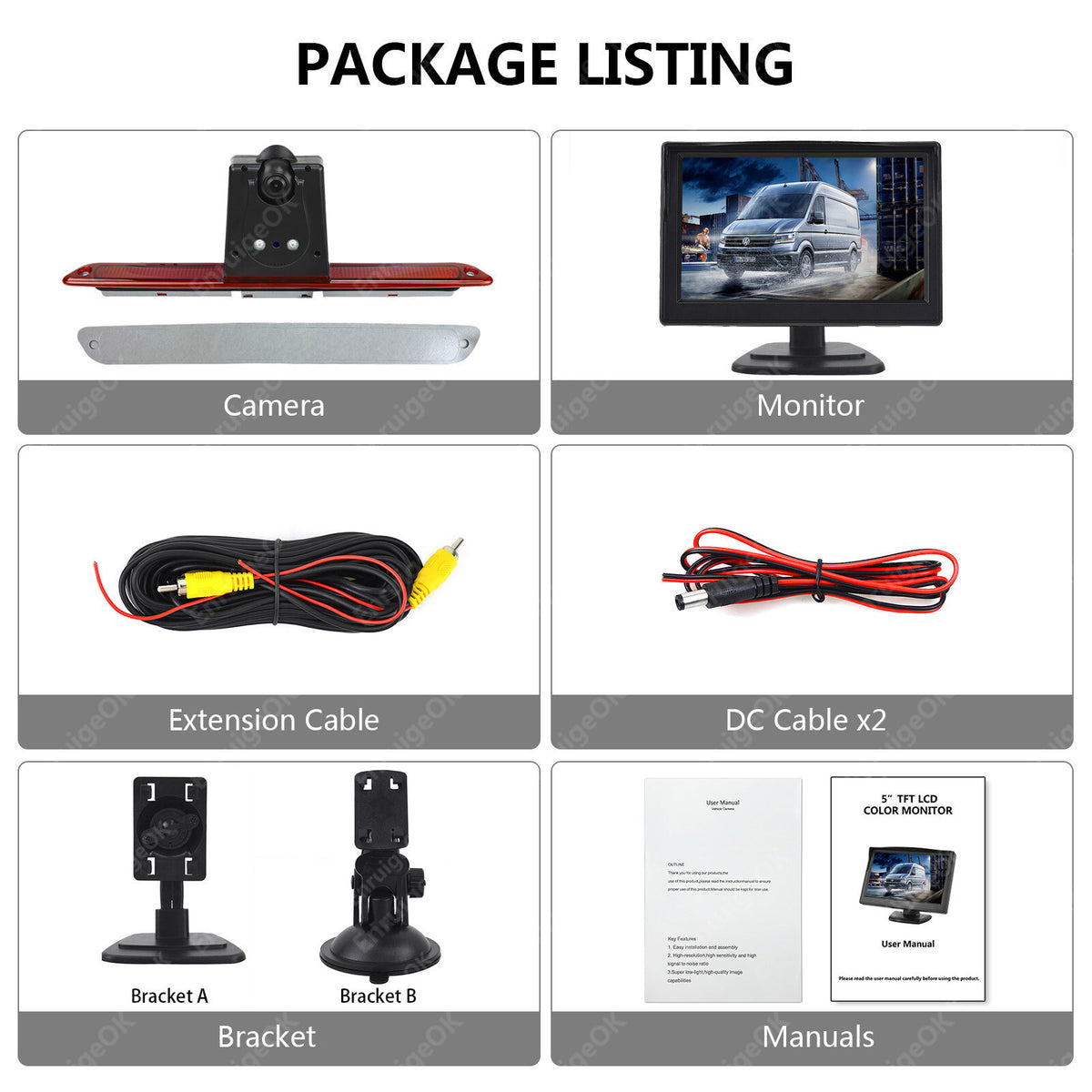

Package contents

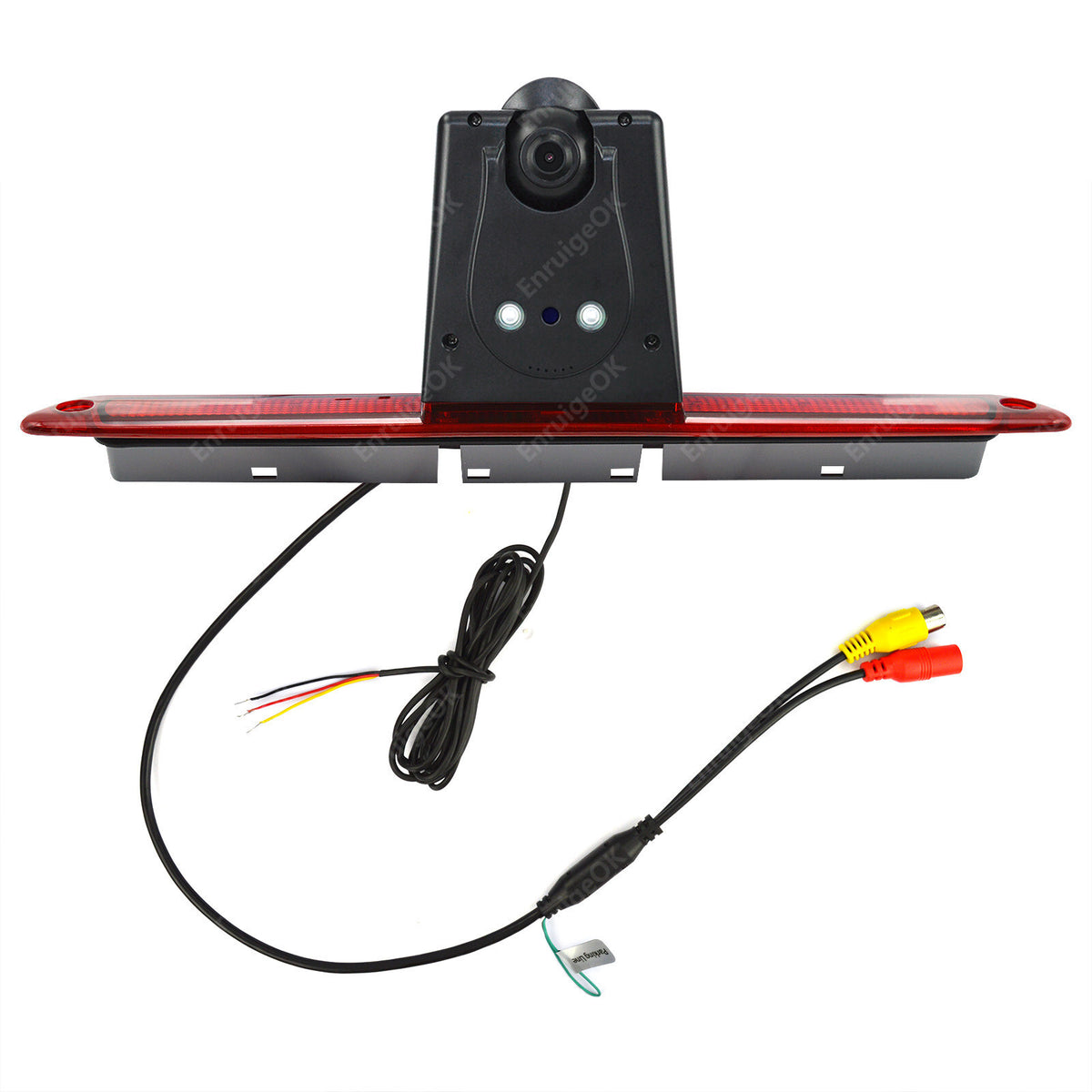

1 X Brake light camera

1 X 5'' monitor

1 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X Dashboard mount stand

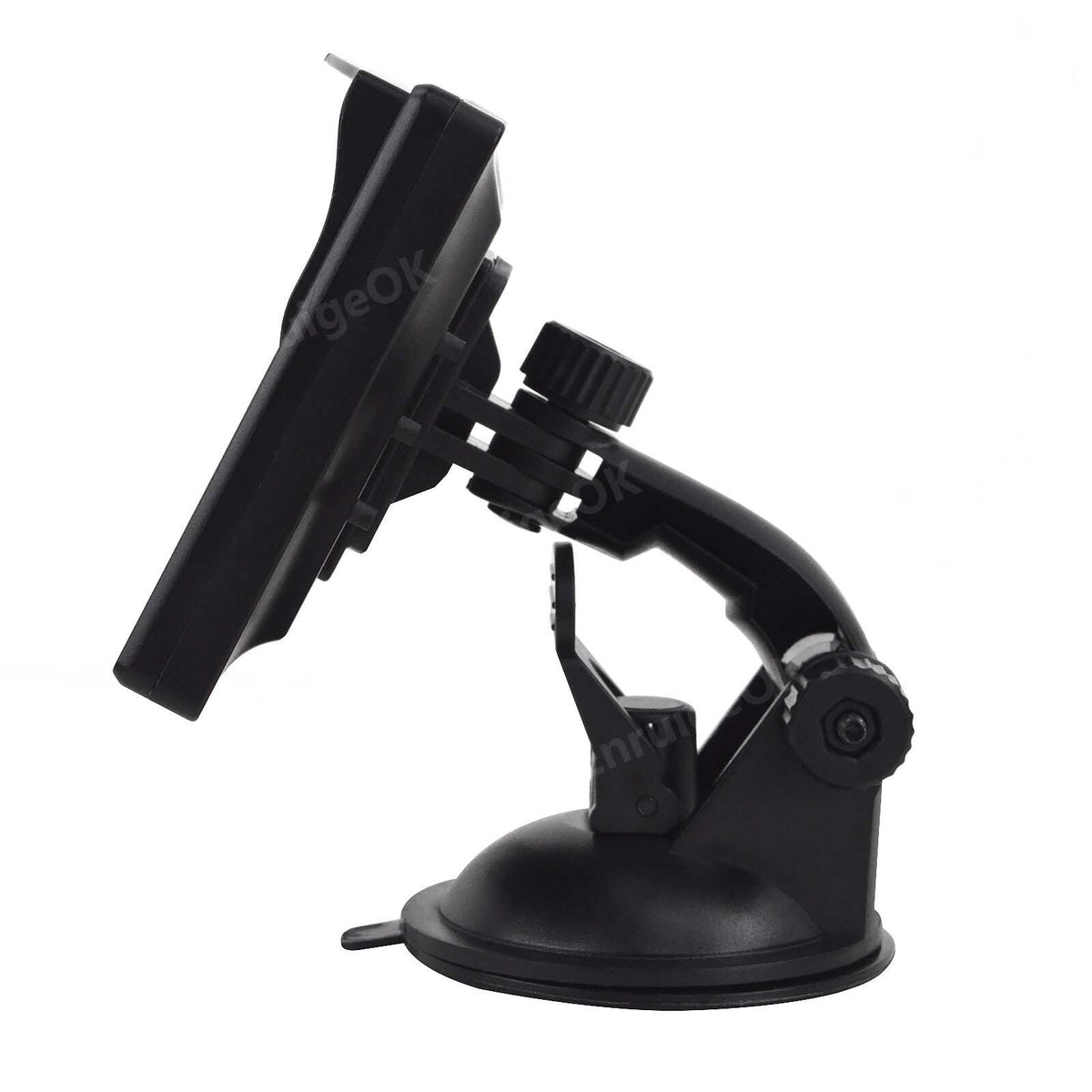

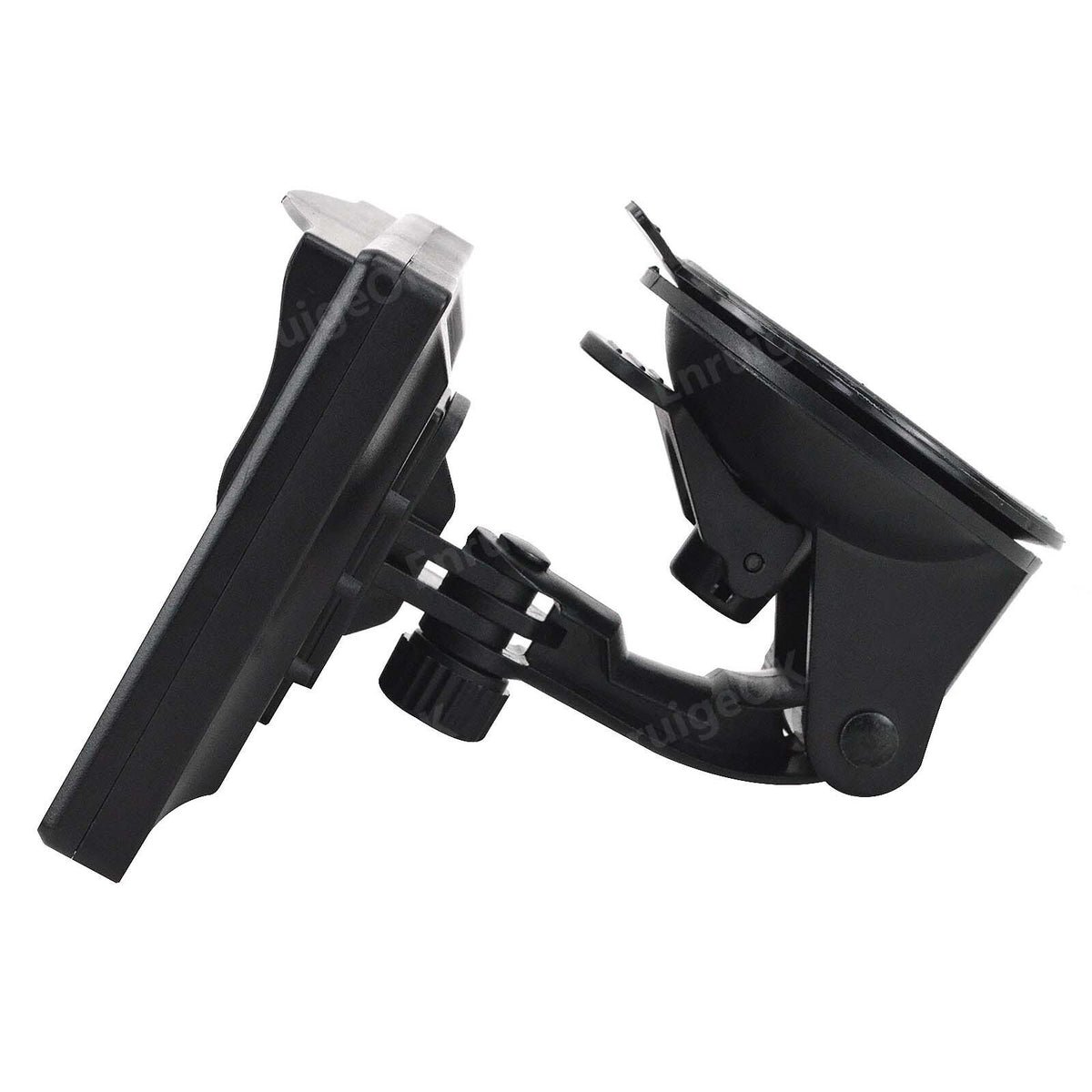

1 X Suction cup mount stand

1 X Manual

Description

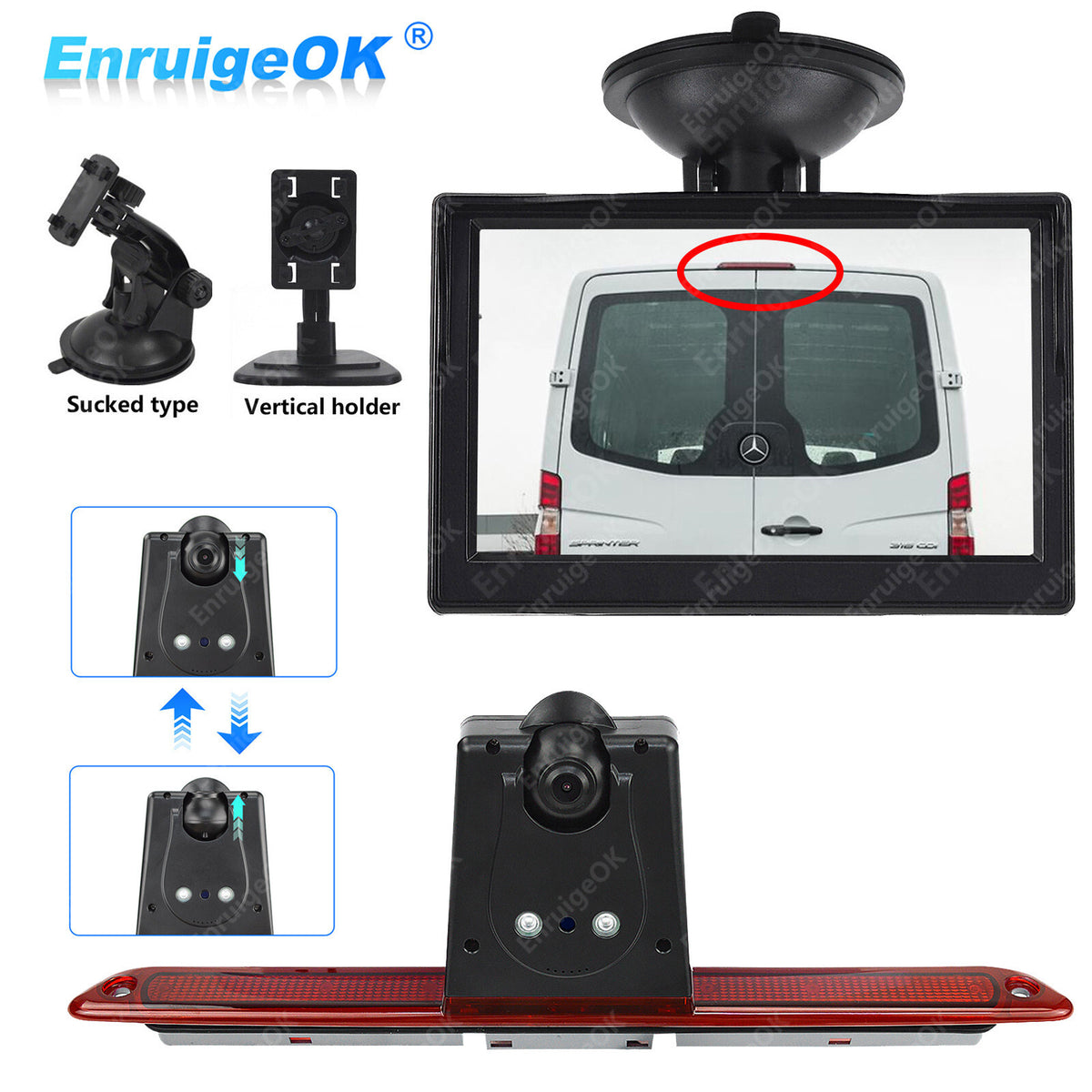

This kit includes a motorized brake light backup camera and a 5" IPS monitor. When reversing, the monitor displays real-time rear view footage, helping you park safely and accurately.

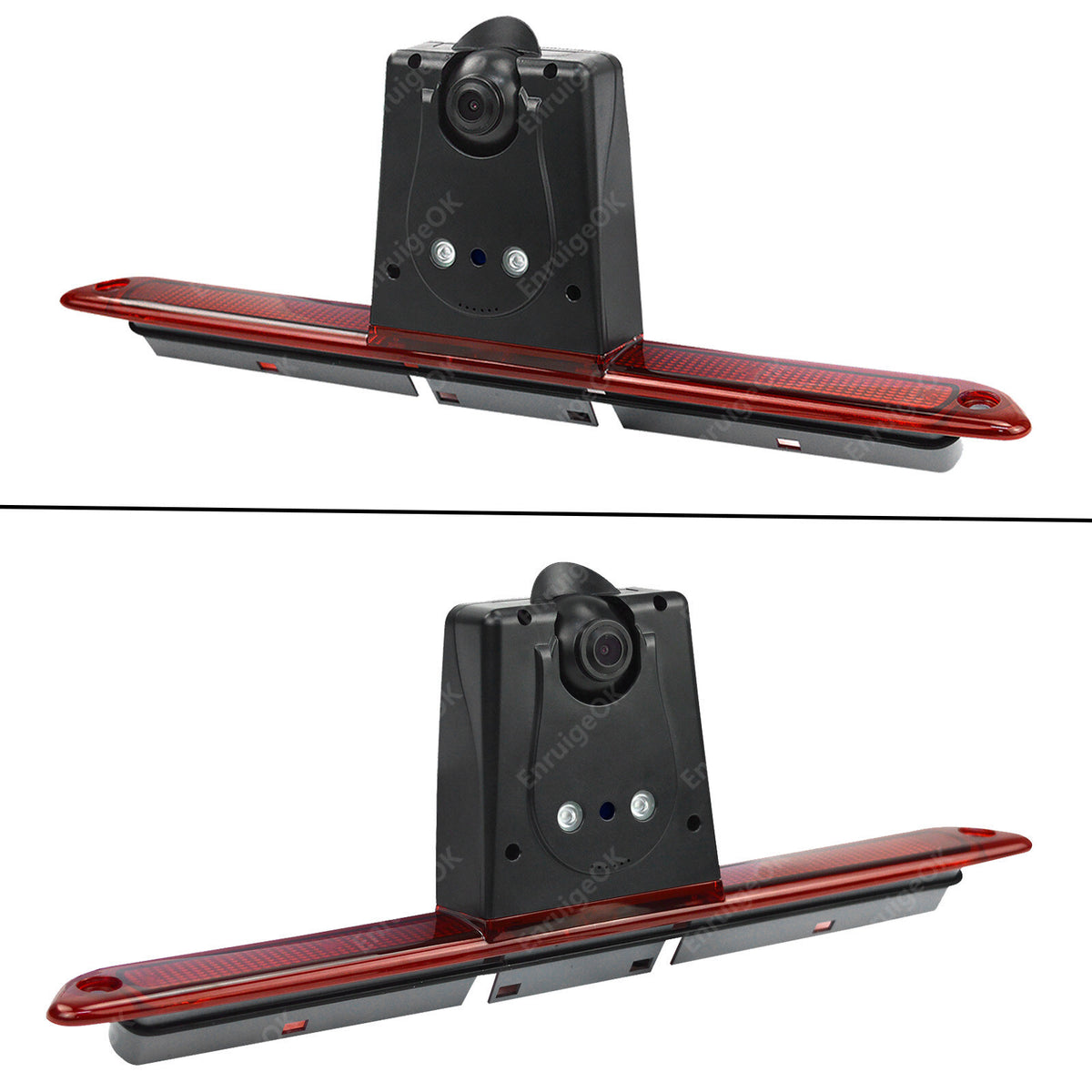

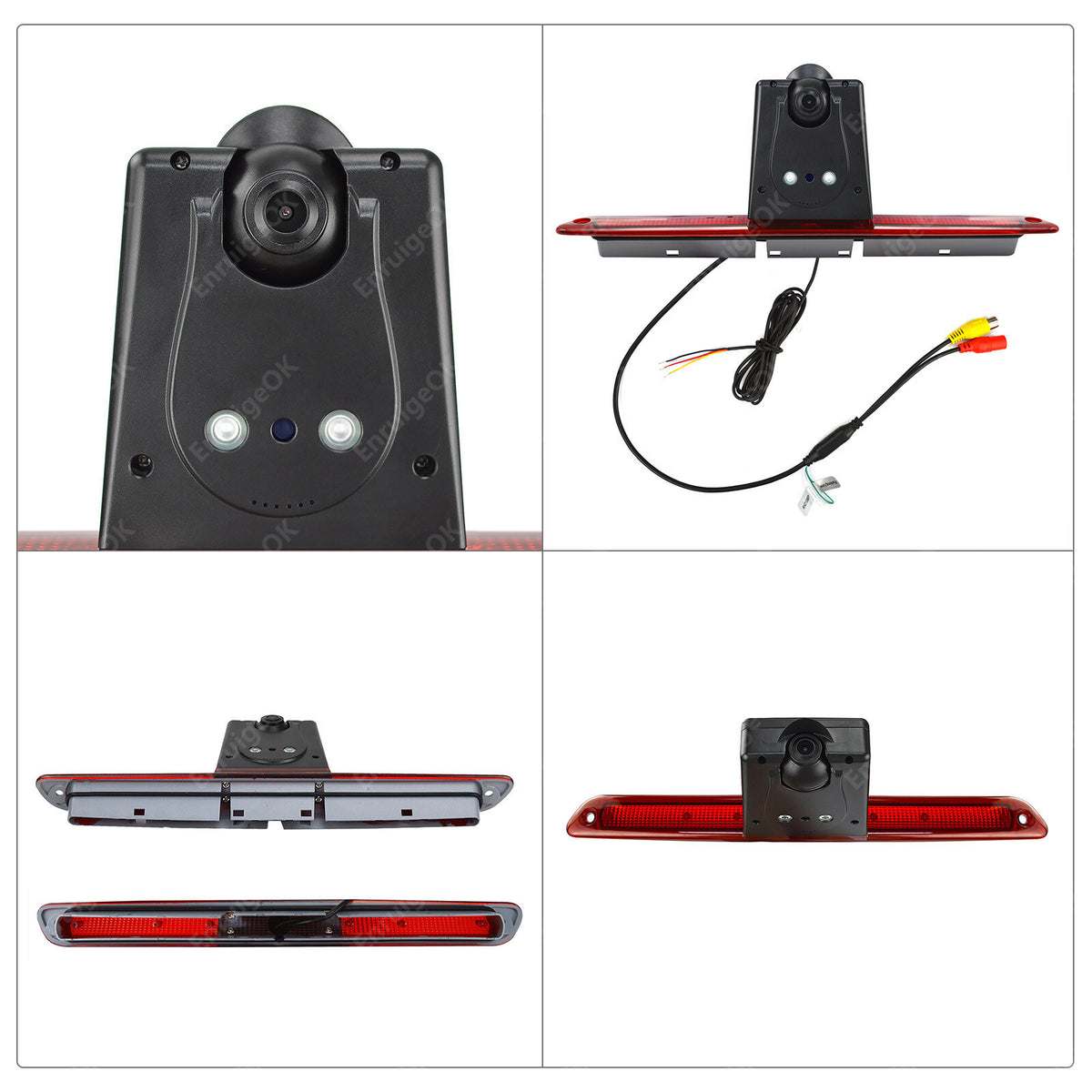

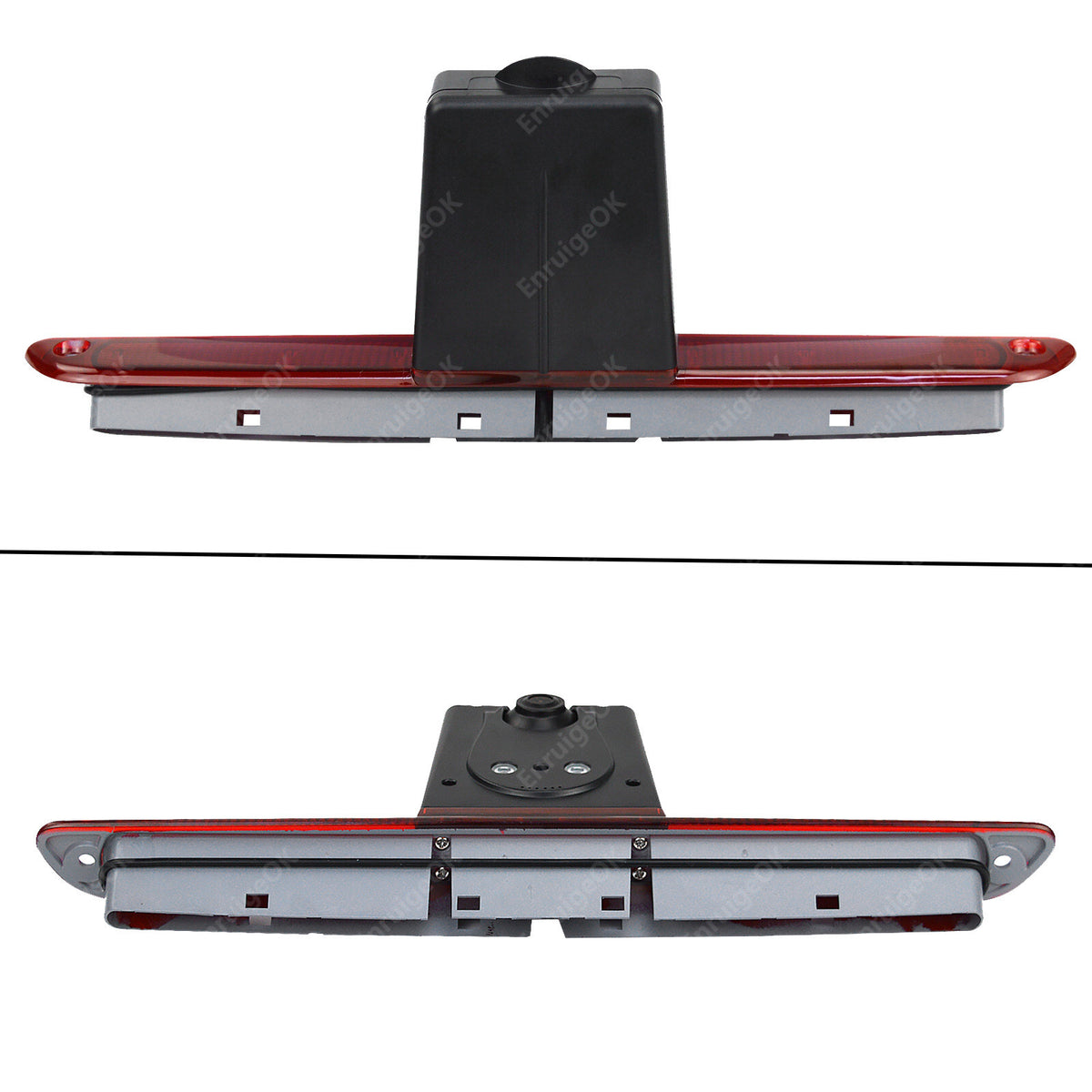

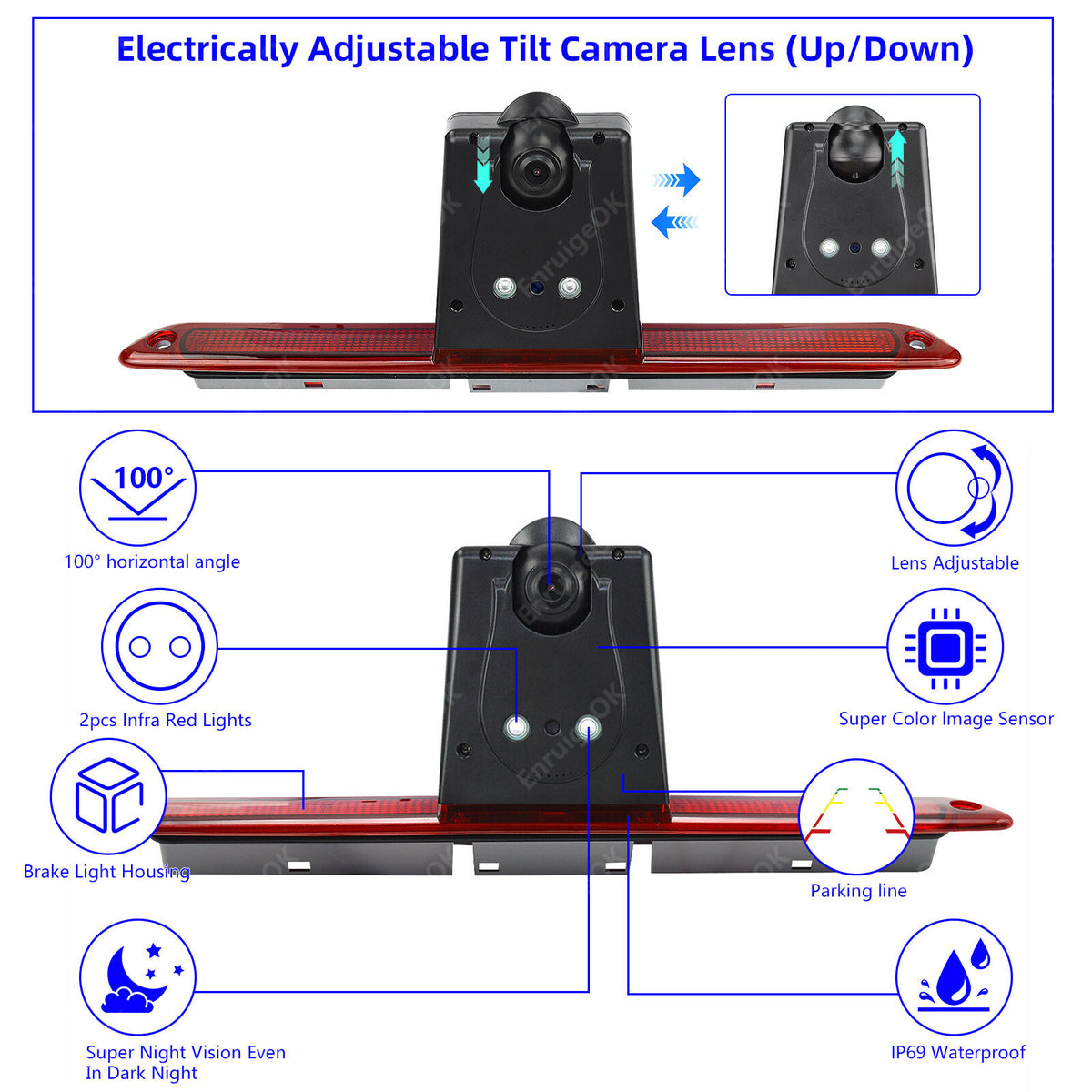

Electric Brake Light Camera: Designed to replace your factory brake light, this camera features a motorized tilt function.

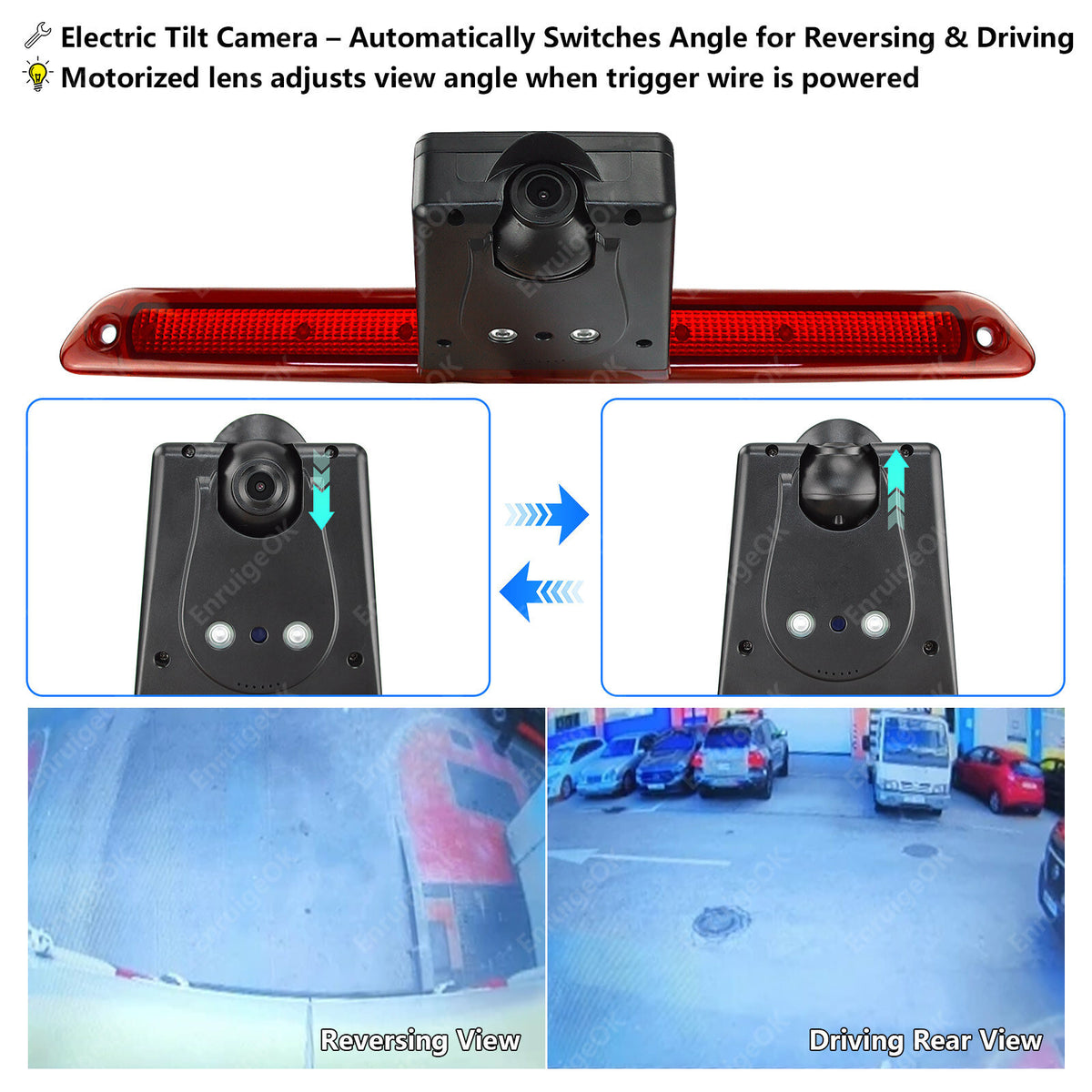

Dual Viewing Angles: In normal driving mode, the camera tilts upward to provide a distant rear-view mirror effect. When the vehicle is put into reverse gear, it automatically tilts downward to display the parking area clearly.

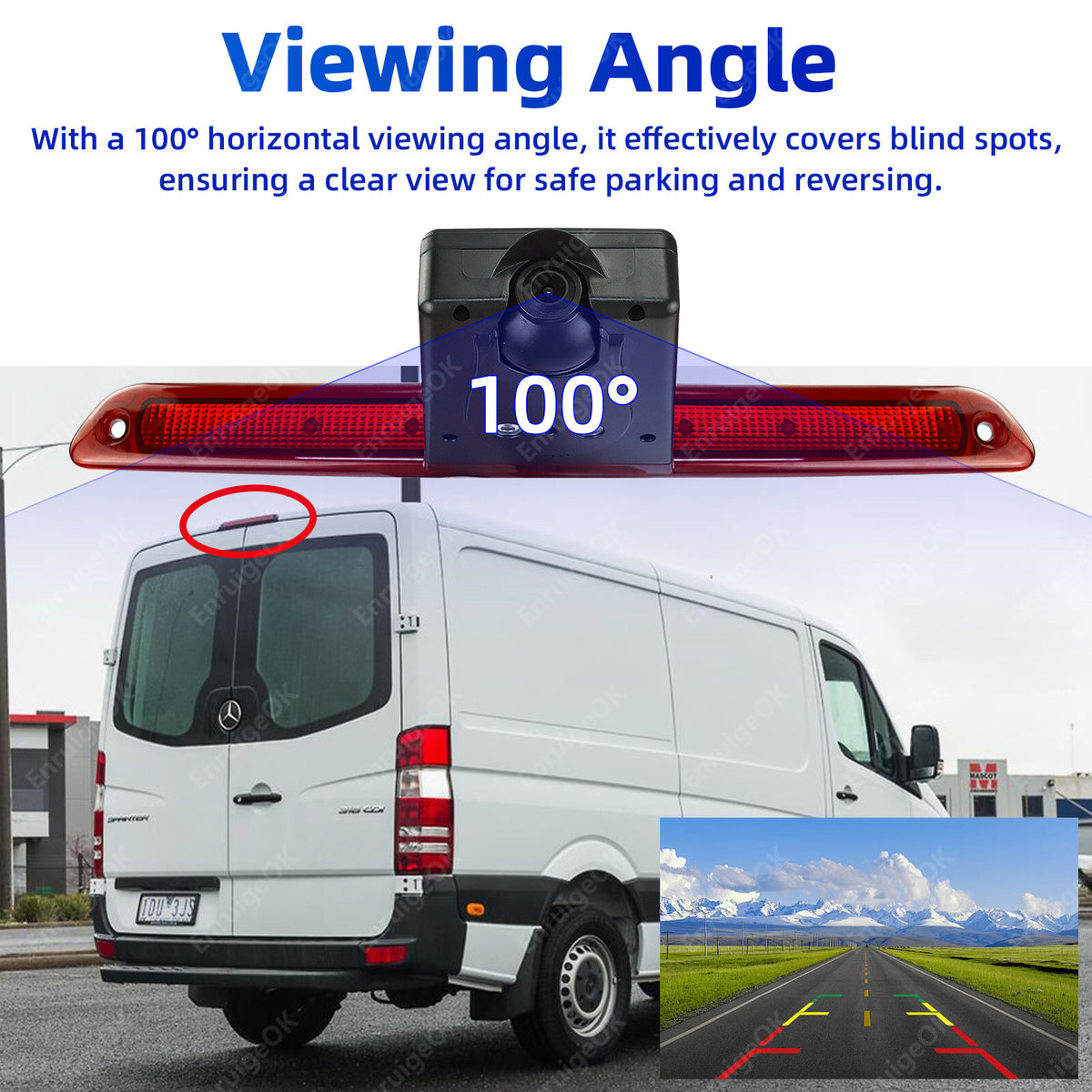

Wide Viewing Angle: A 100° horizontal field of view offers broad and detailed coverage of the area behind your vehicle.

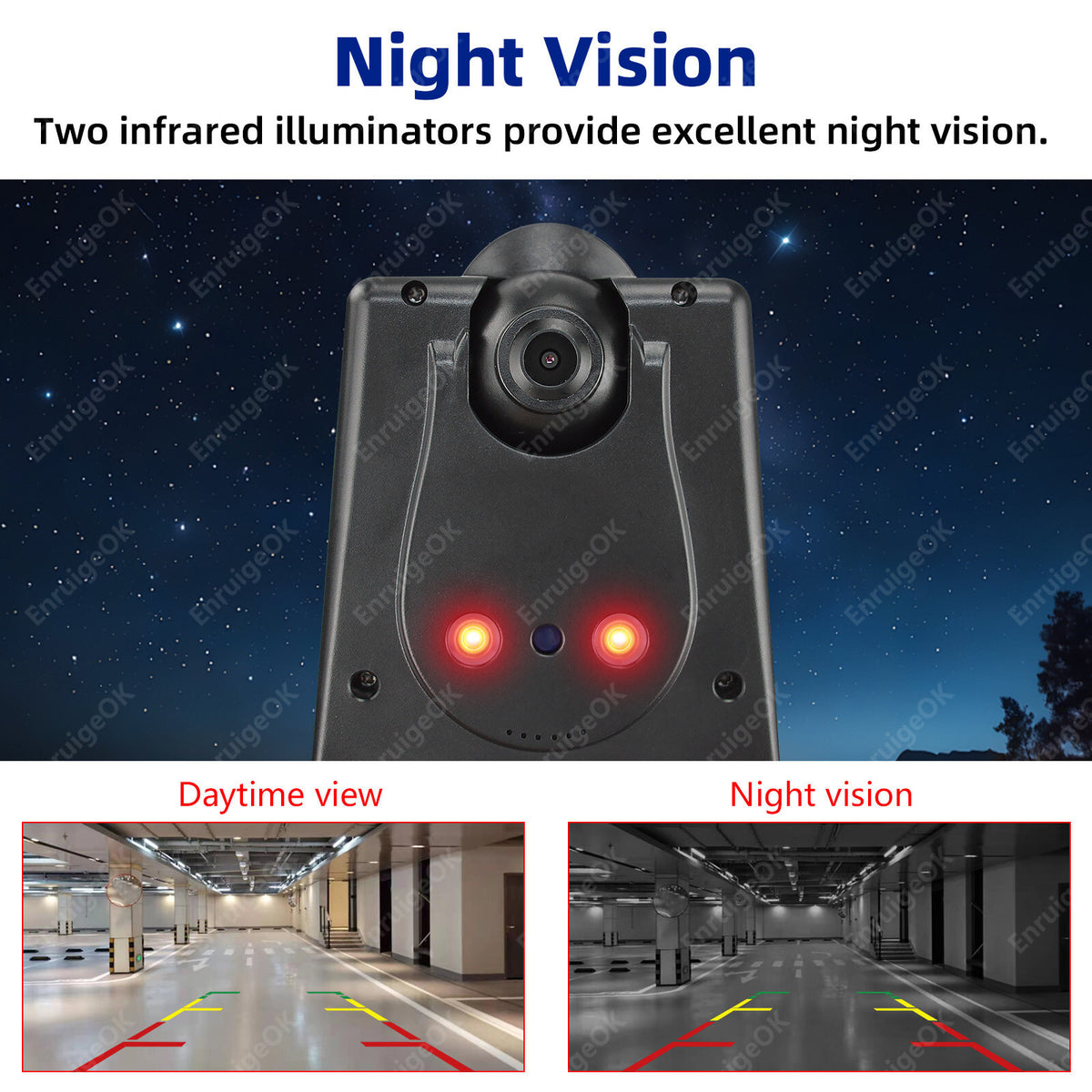

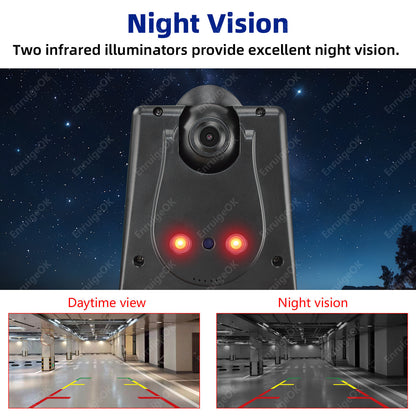

Superior Night Vision: Two high-performance infrared LEDs provide strong night visibility, ensuring a safe drive even in low light.

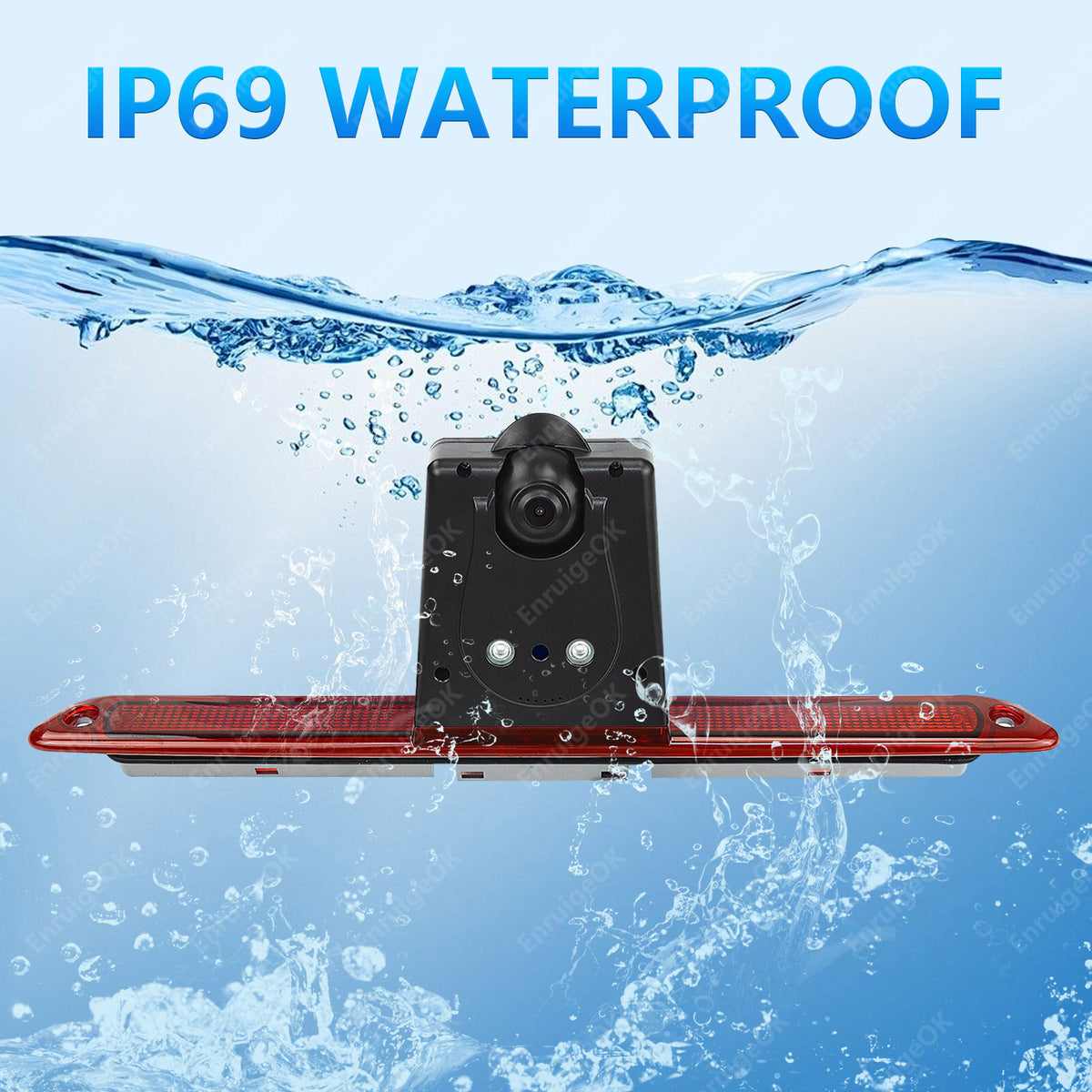

IP69 Waterproof Rating: Engineered to withstand rain, dirt, and harsh environments for long-term outdoor use.

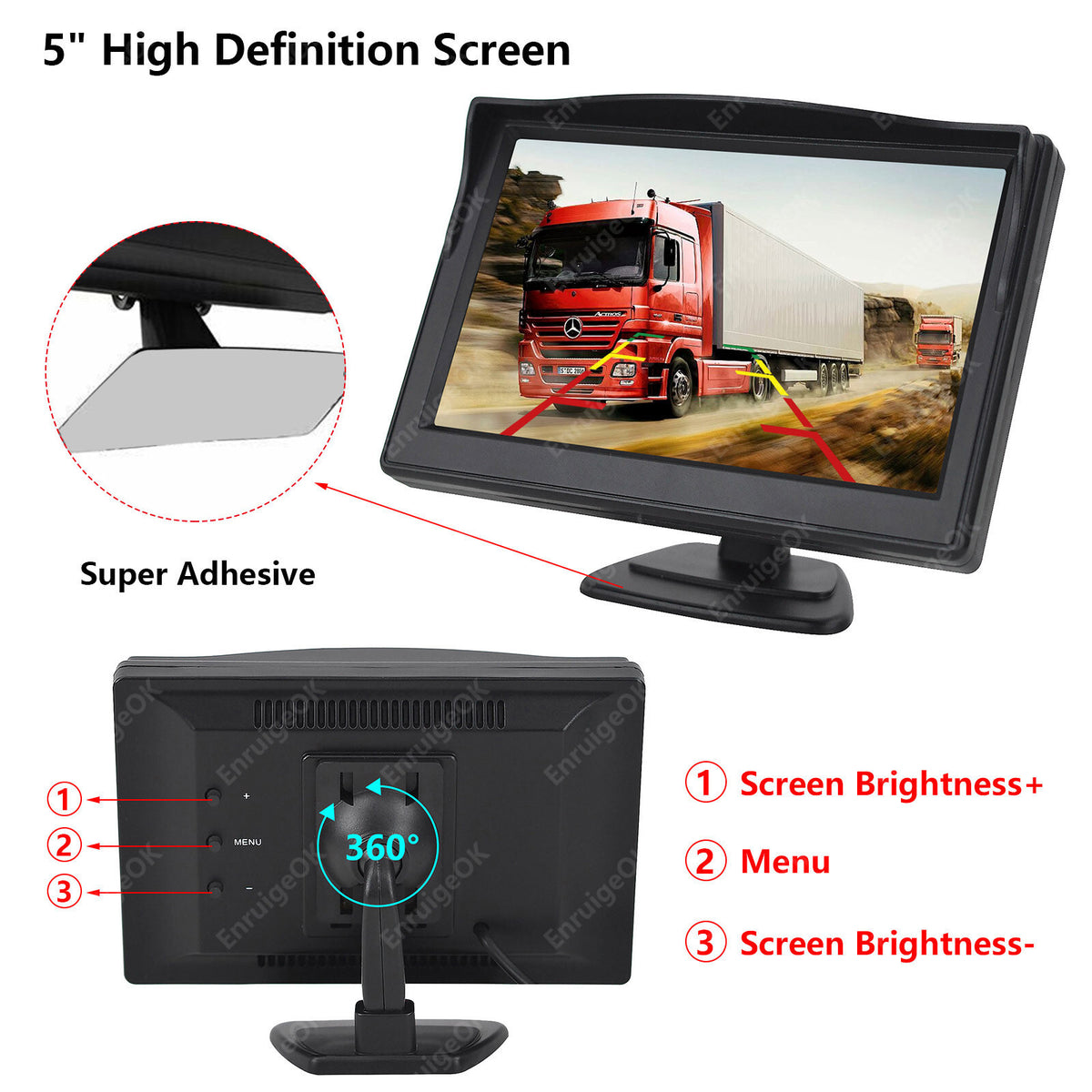

5" IPS Monitor: The included high-resolution IPS color monitor (800×480 RGB) features dual video inputs and works seamlessly with the motorized camera.

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 733(H)x493(V)

Resolution: 700TVL

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal angle: 100°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Screen size: 4.3 inchs

Display format: 4: 3

Resolution: 800*480 IPS

Power supply: DC 12-24V

Video system: NTSC / PAL auto switch

Video Input: Dual video inputs, select AV1 or AV2 video input.

Blue screen displayed when no signal is detected.

With menu button, brightness/contrast/saturation adjustable.

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
