Reverse Camera for Mercedes-Benz Vito W447 Tailgate Brake Light & 5" Monitor

About This Reversing Camera Kit

This kit combines a replacement brake-light rear-view camera with a 5-inch IPS monitor to help you see behind the vehicle when reversing. The monitor provides two video inputs with V1/V2 switching and rear-view priority.

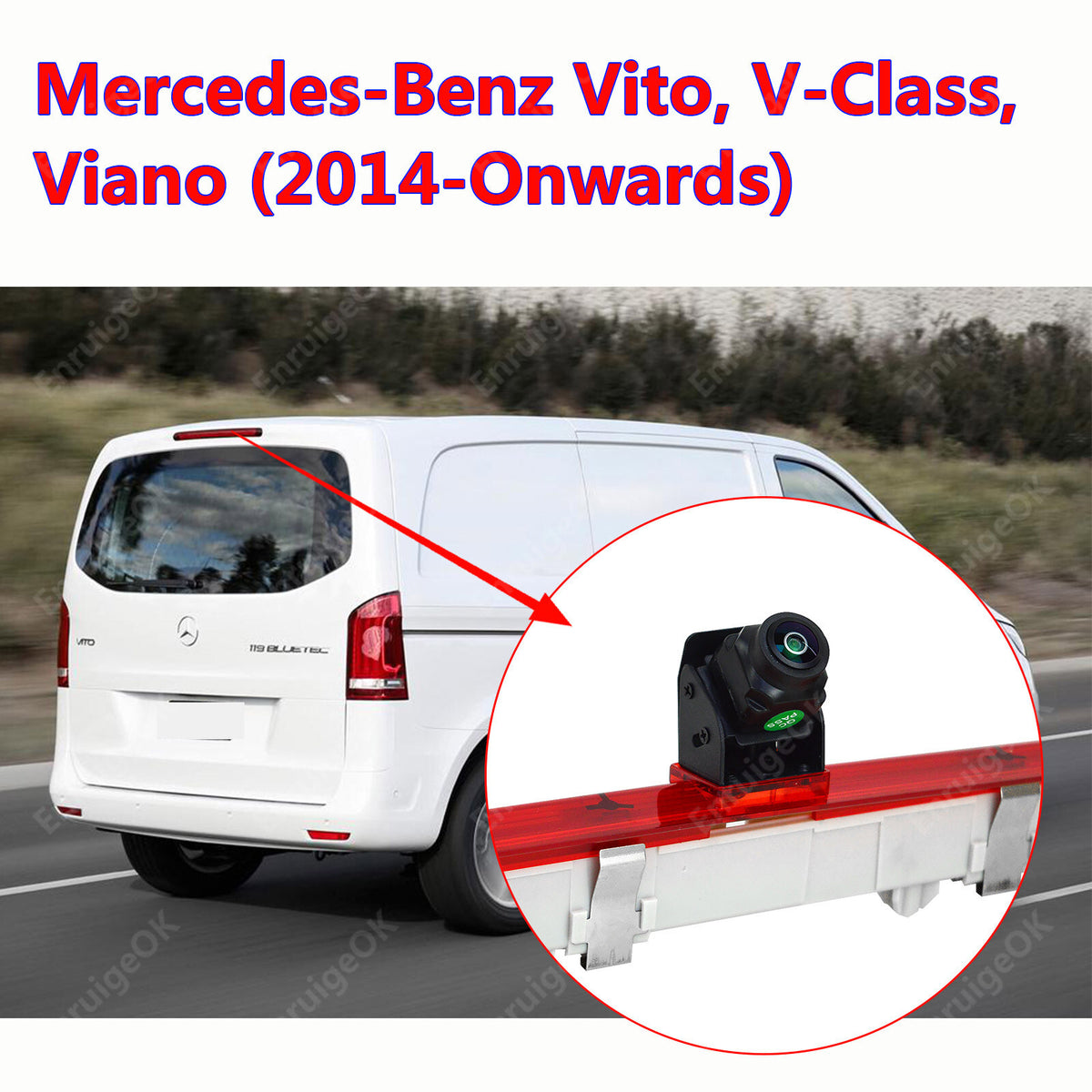

Vehicle Compatibility

• Mercedes-Benz Vito W447, tailgate version
• The original listing also identifies Mercedes-Benz V-Class and Viano, 2014 onwards.

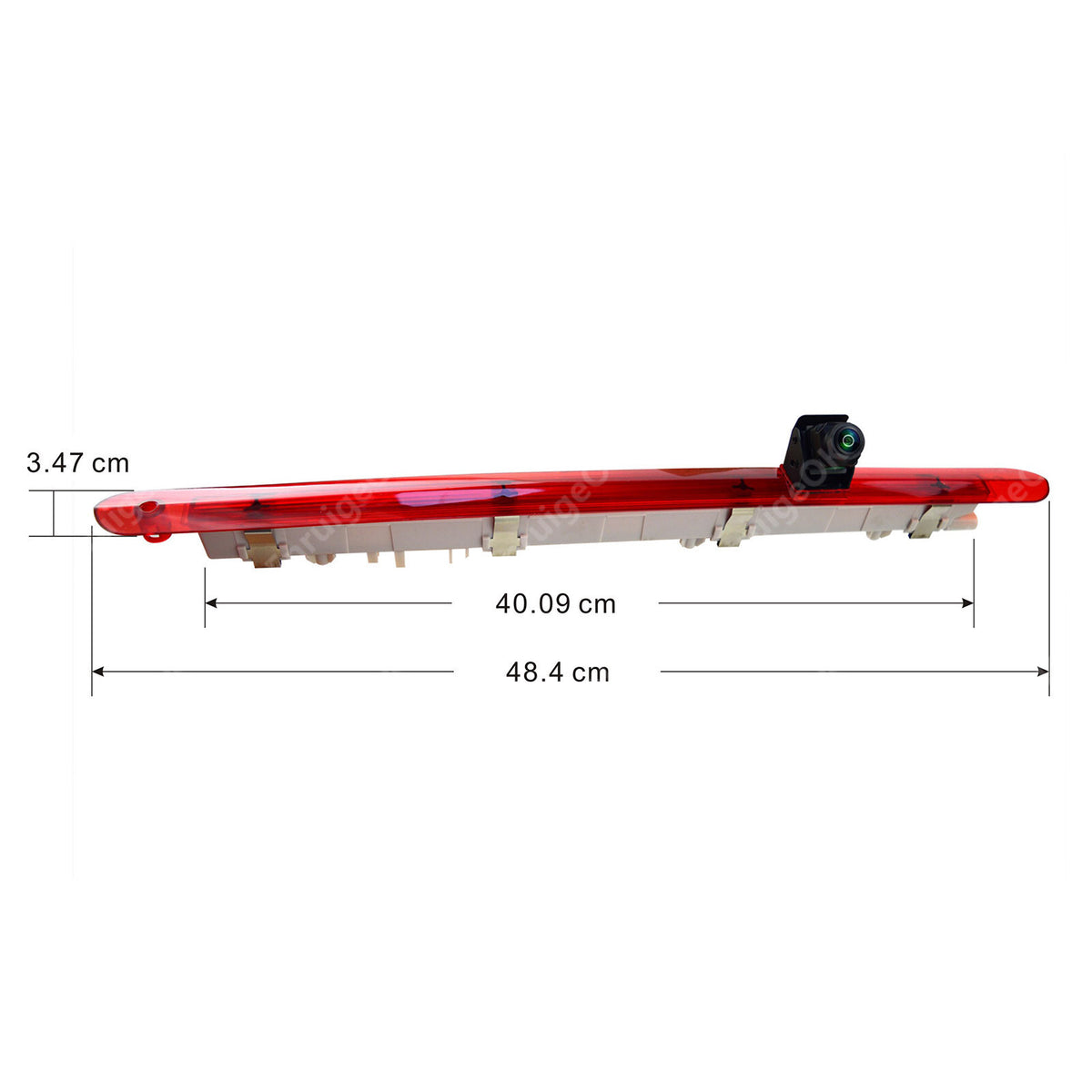

Check before ordering: Compare the camera images, dimensions and mounting shape with your vehicle's original brake-light housing. Tailgate configuration and housing fit must match. If you are unsure, contact support with your vehicle details and a photo of the existing brake light.

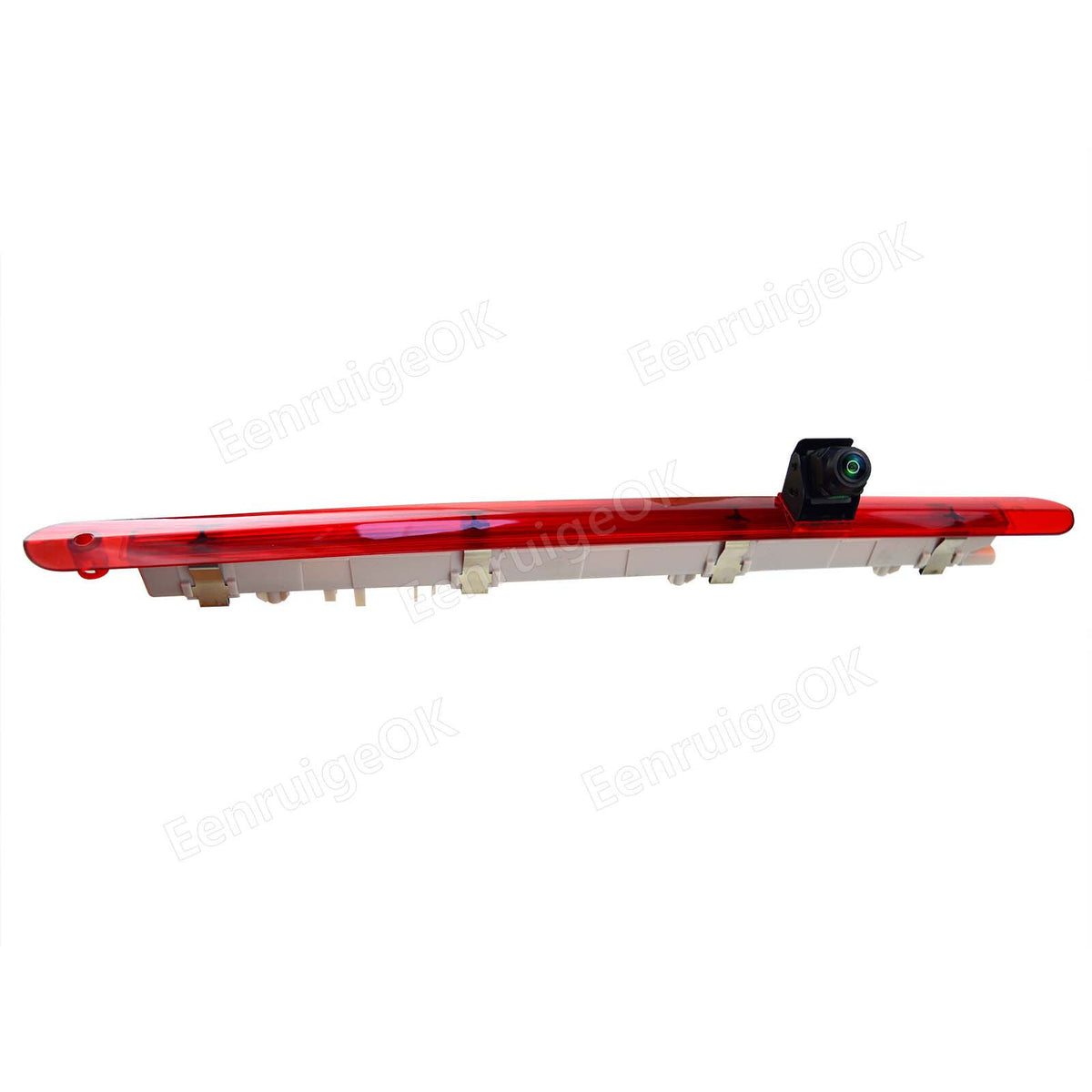

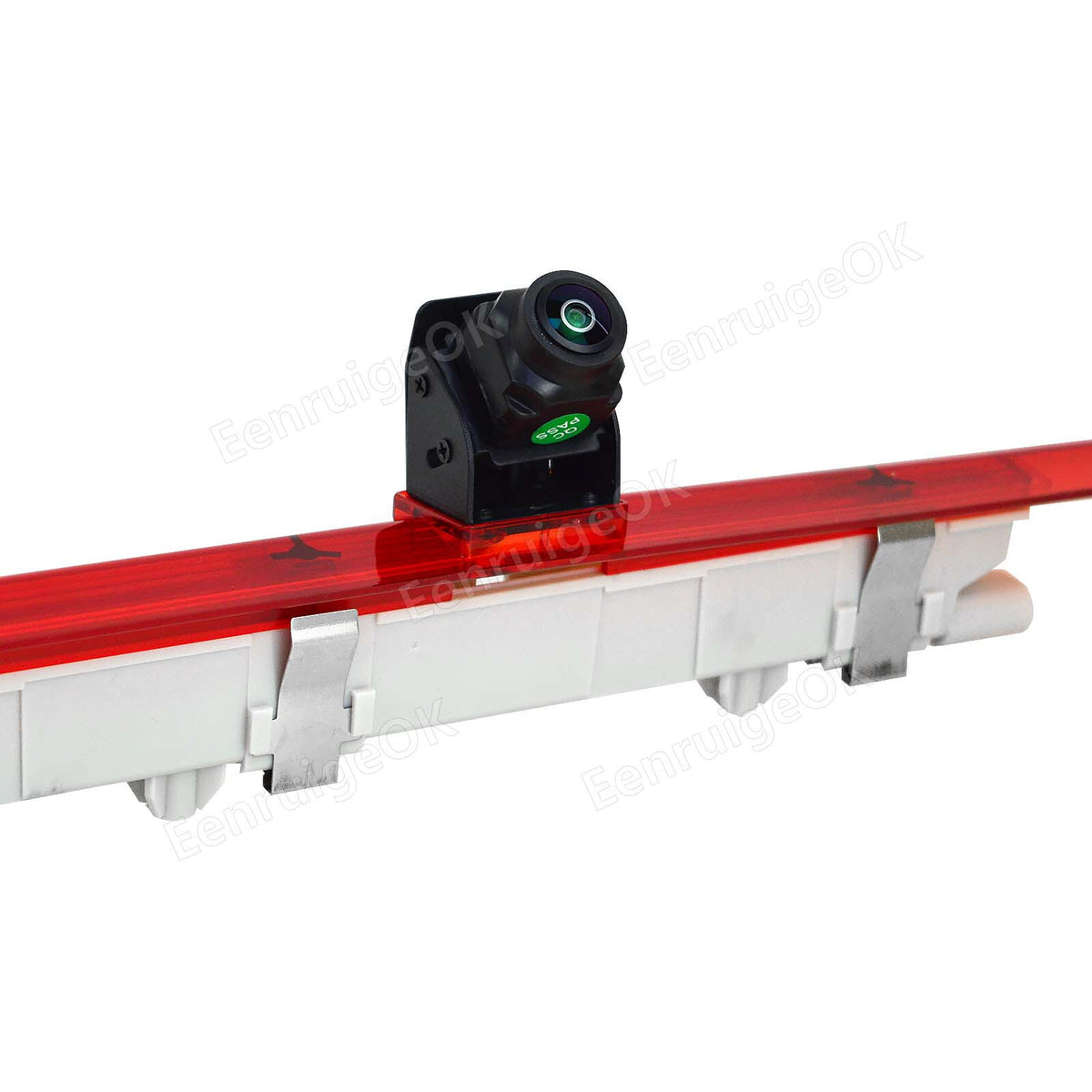

Camera Specifications

• Image sensor: 1/3-inch CMOS
• Lens: 2.8 mm
• Effective pixels: 960 (H) × 480 (V)
• Resolution: 700 TV lines

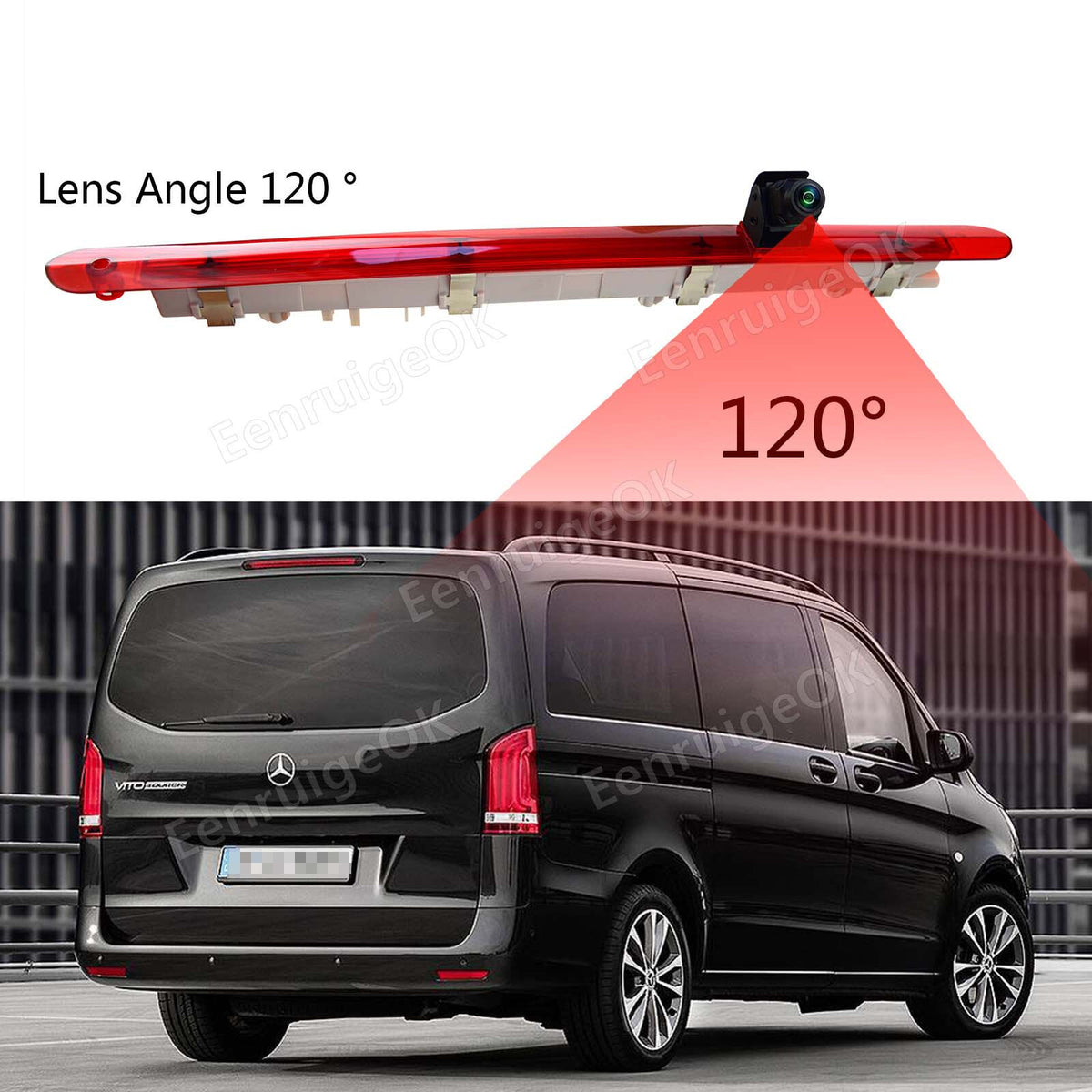

• Viewing angle: 120°
• Night vision distance: approximately 35 ft

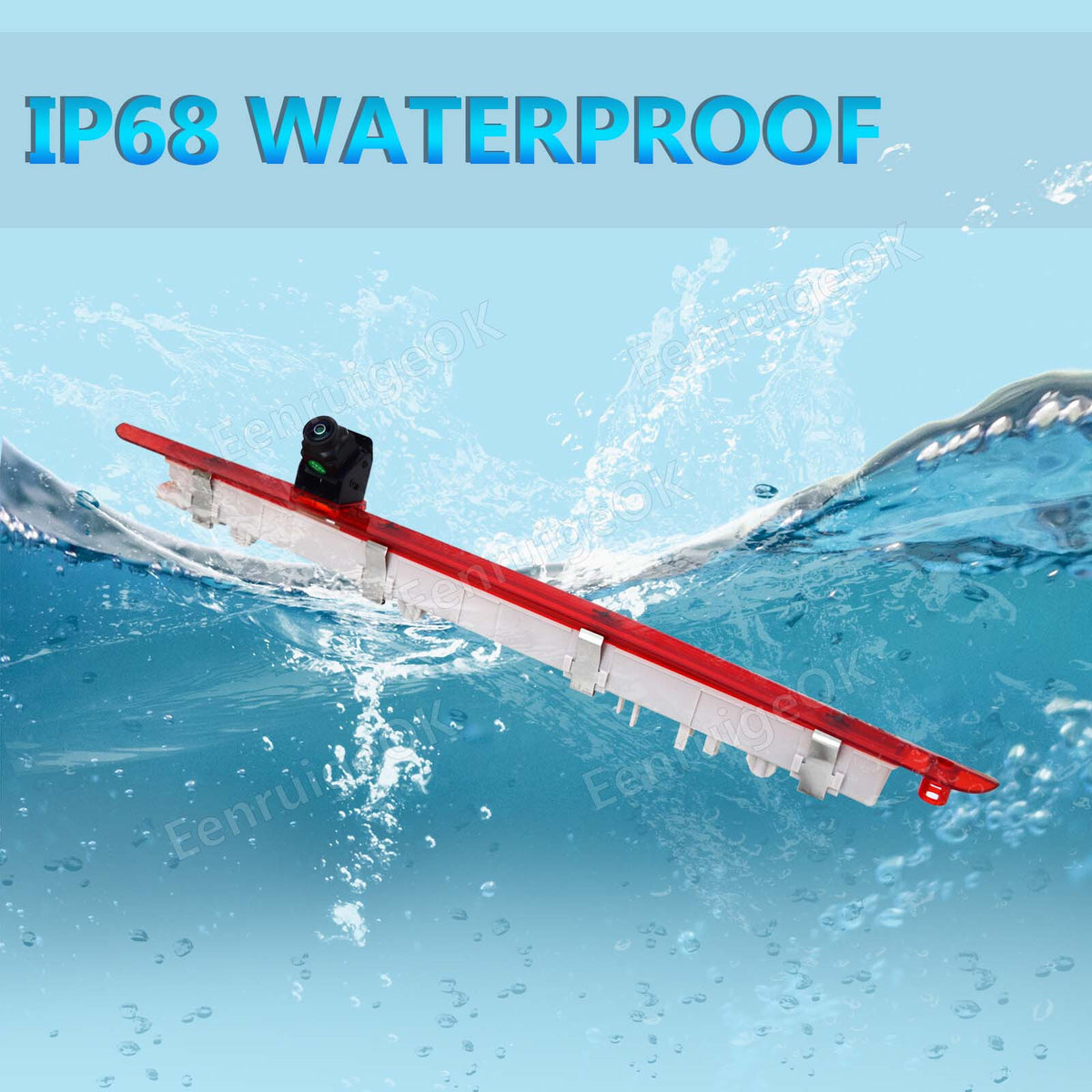

• Waterproof rating: IP68
• Video system: PAL / NTSC
• Signal-to-noise ratio: >48 dB
• Minimum illumination: 0.1–0.5 Lux / F1.2; 0 Lux with LEDs on
• Power supply: DC 12V
• Current consumption: <150 mA
• Operating temperature: −20°C to +70°C

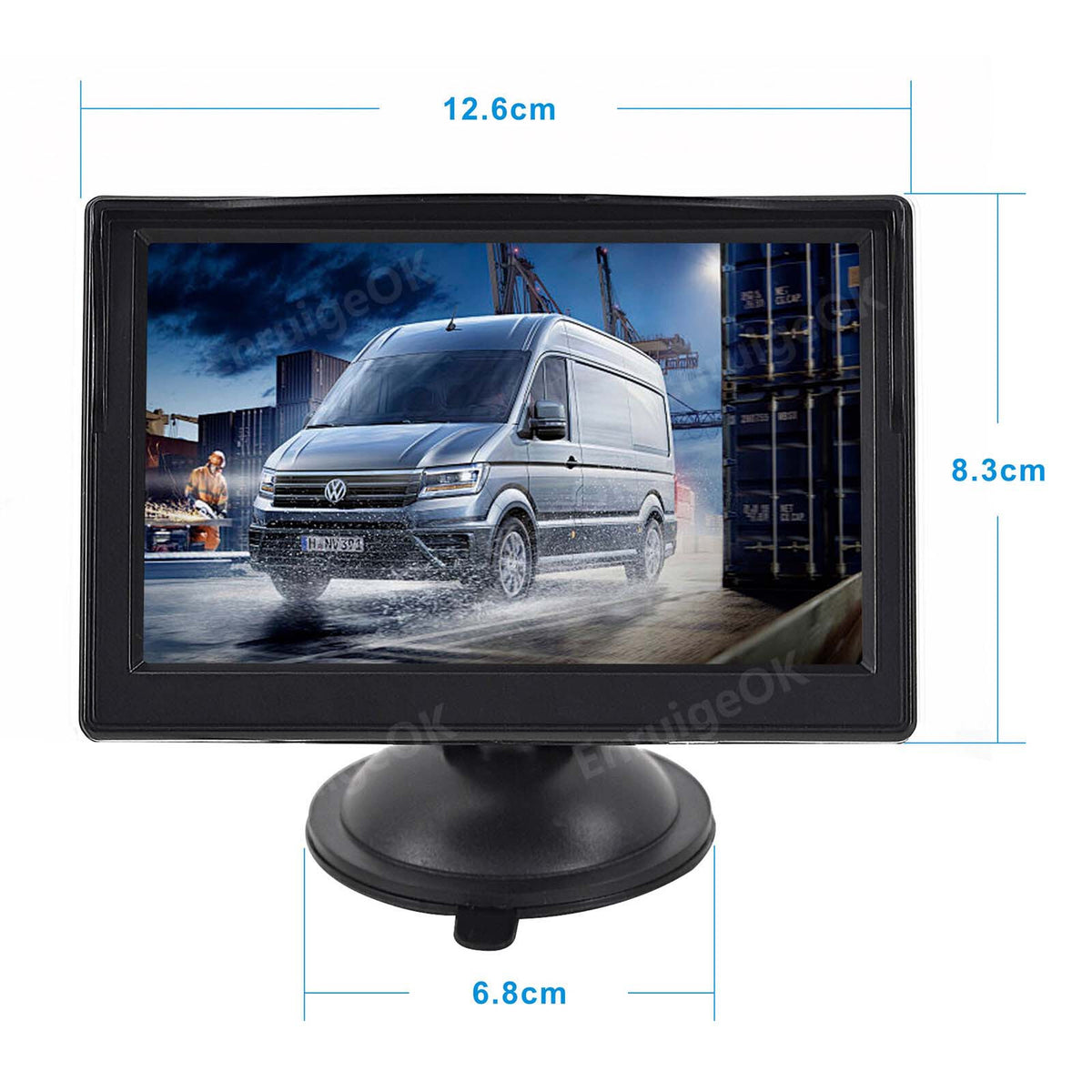

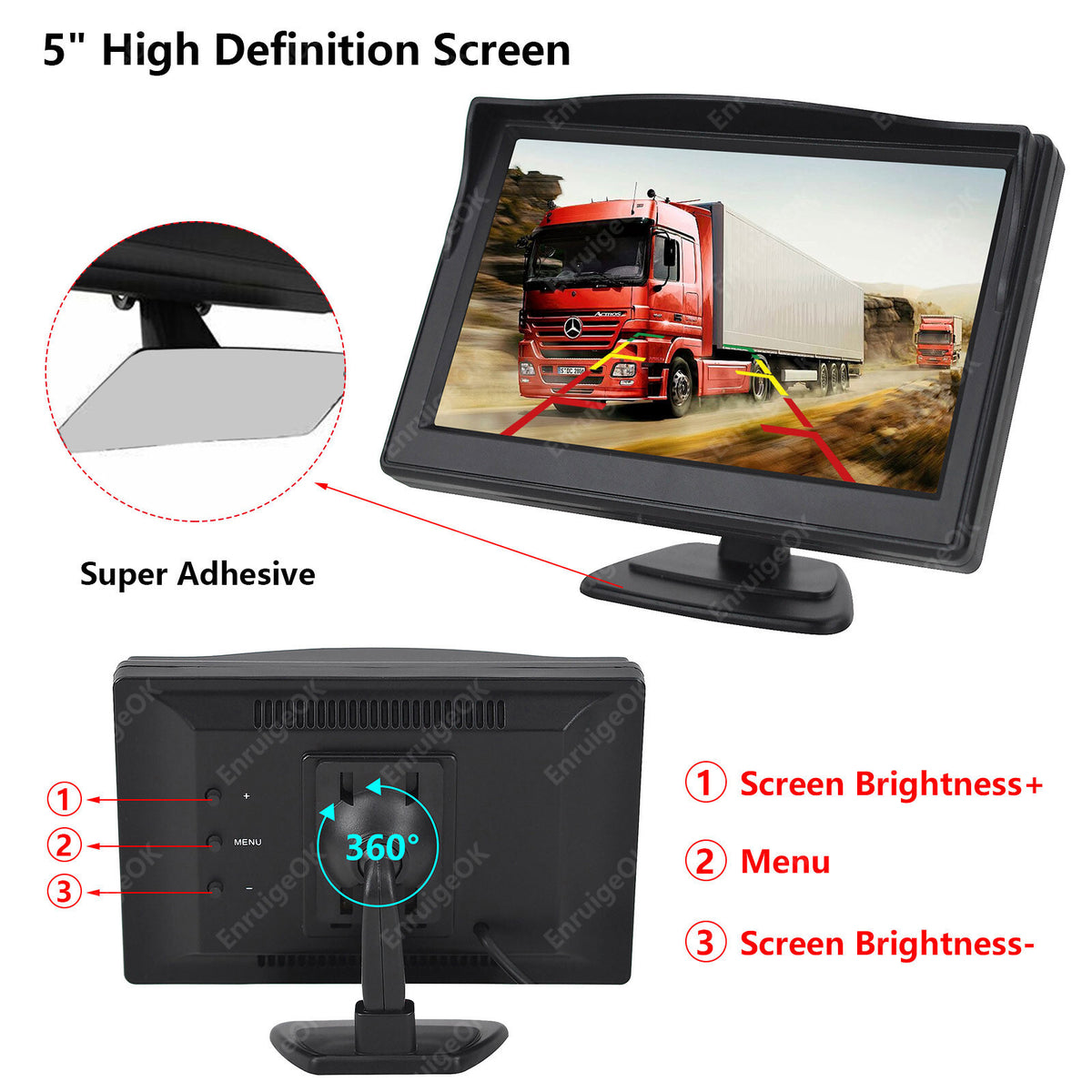

5-Inch Monitor Specifications

• Display: 5-inch color IPS, 16:9 format
• Resolution: 480 (H) × 272 (V)
• Contrast ratio: 300:1
• Brightness: 400 cd/m²
• Video inputs: two channels with V1/V2 switching
• Rear-view priority
• Video system: NTSC / PAL automatic switching
• Power supply: DC 12V
• Power consumption: <4W
• Operating and storage temperature: −20°C to +60°C

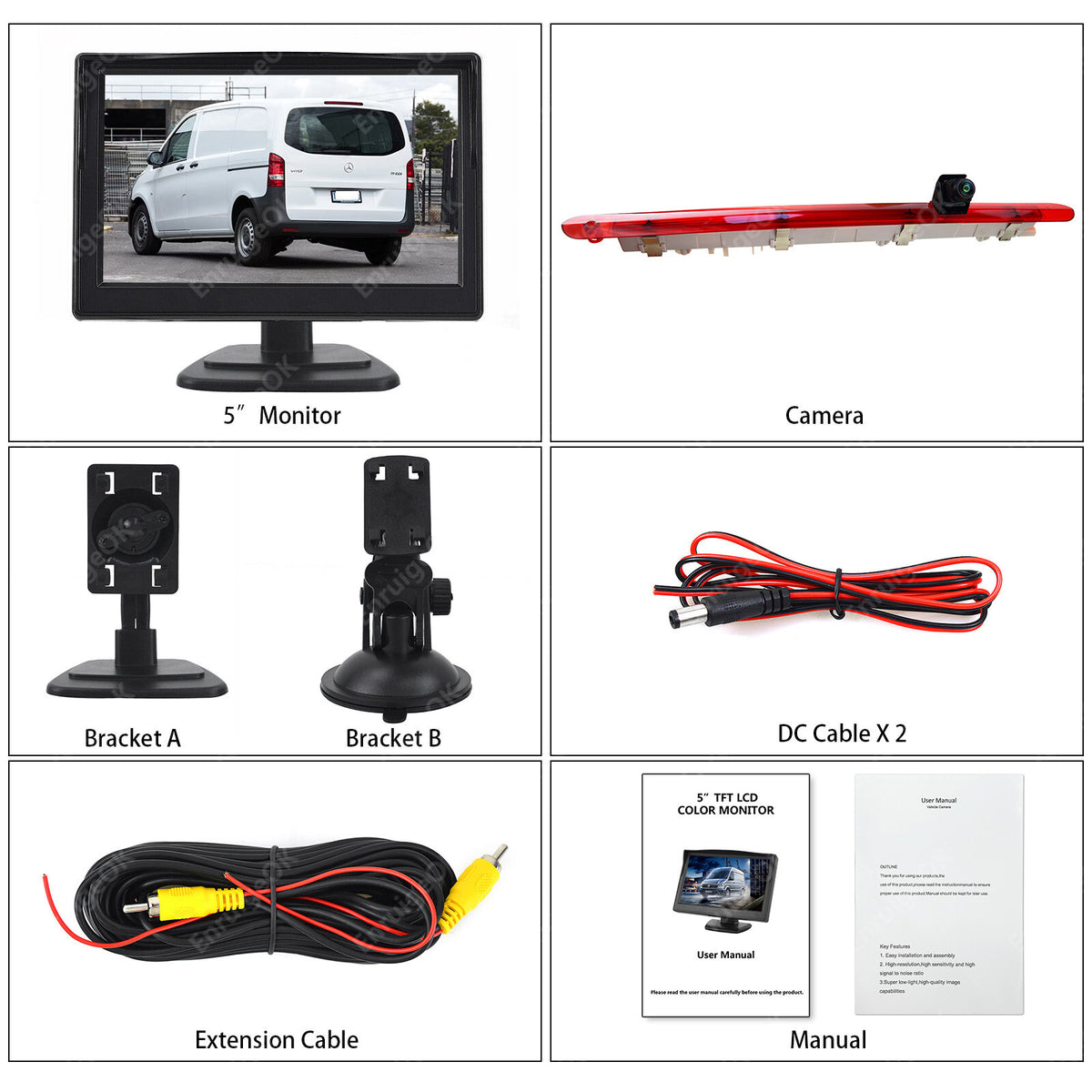

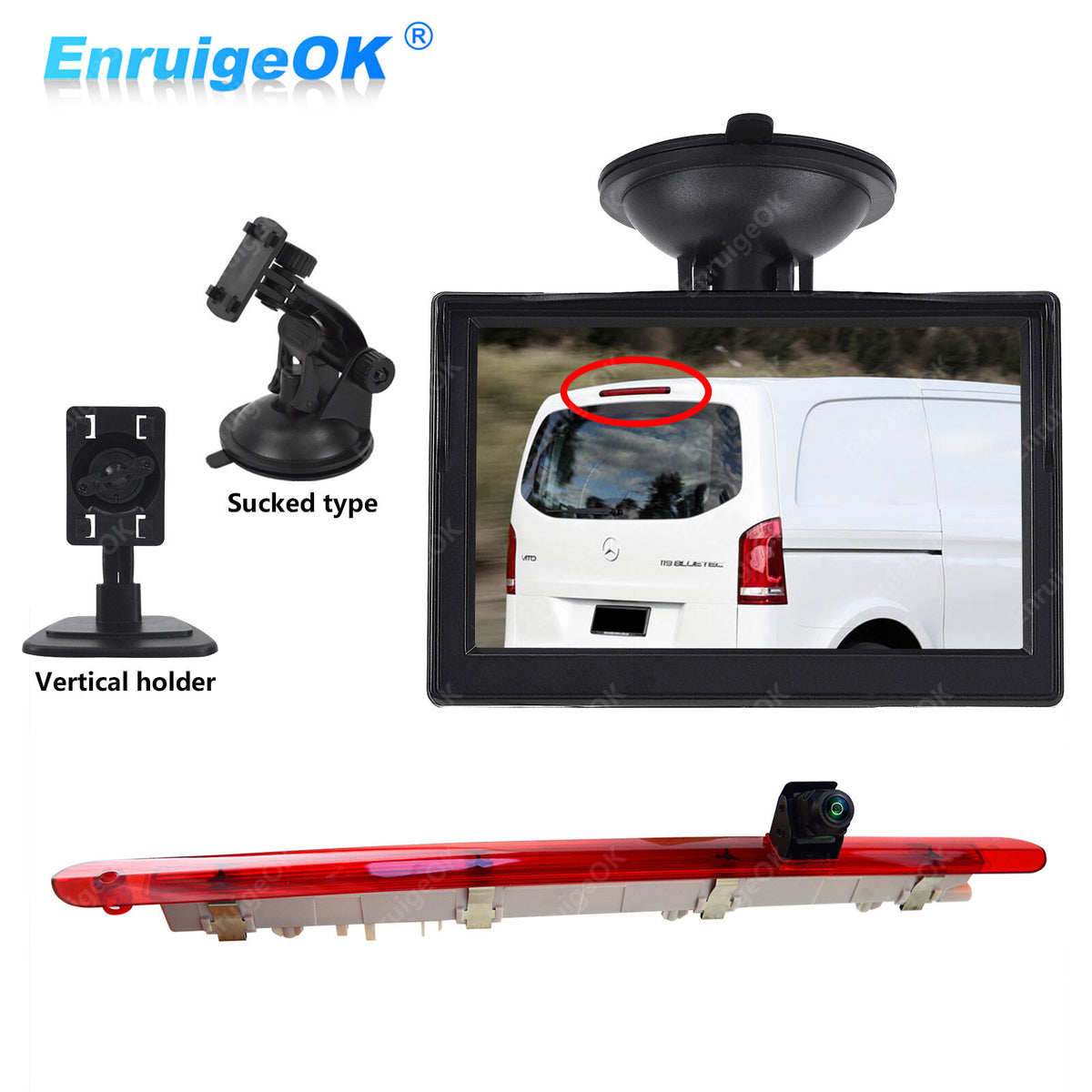

Package Includes

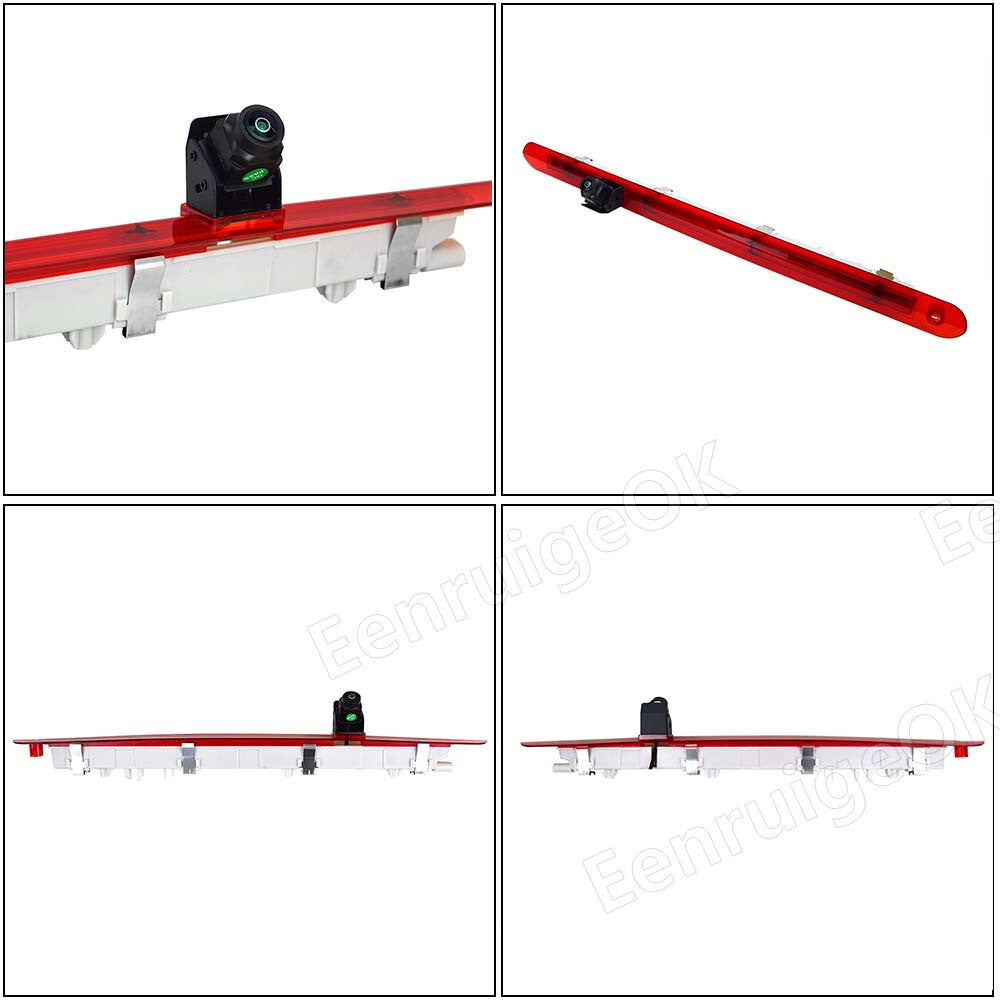

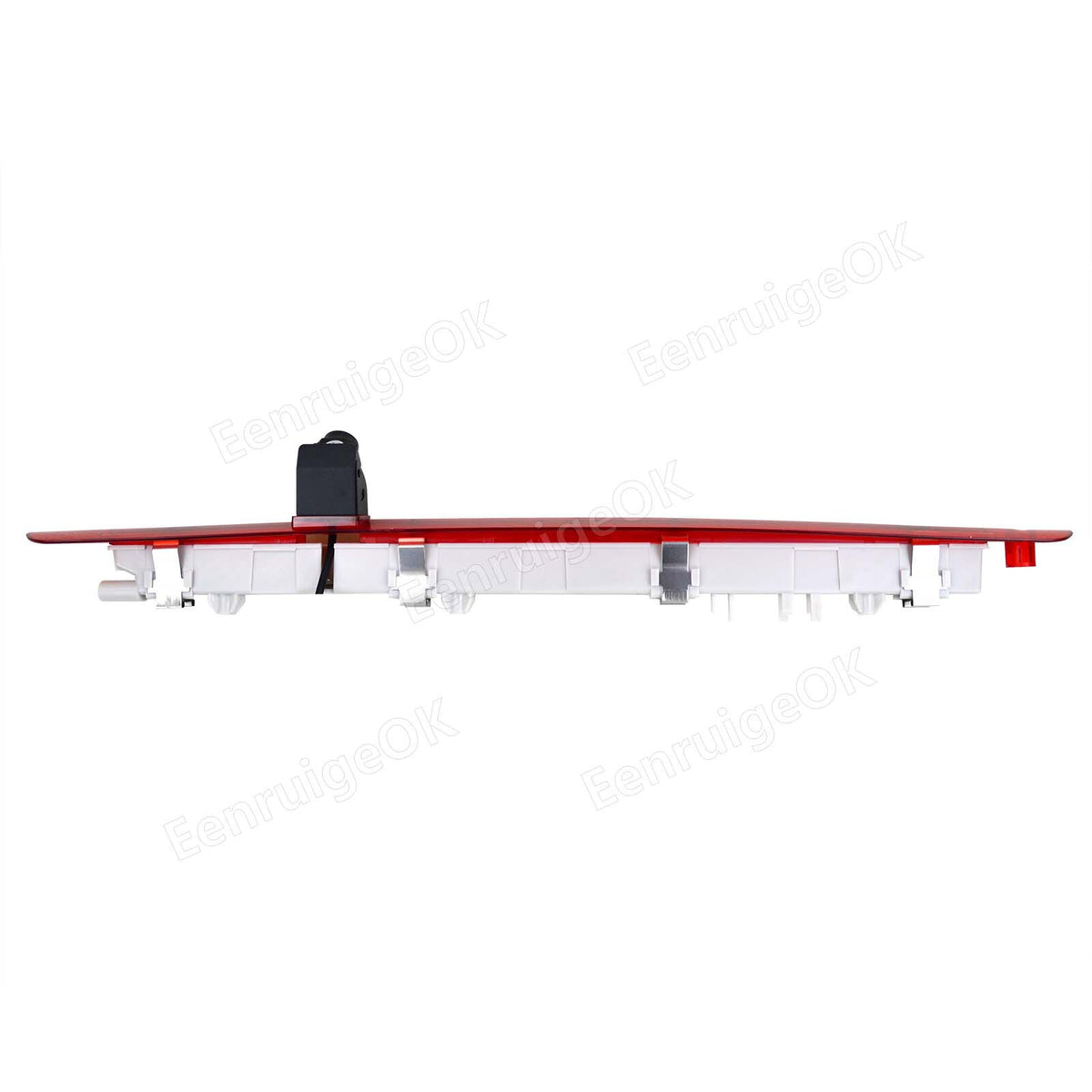

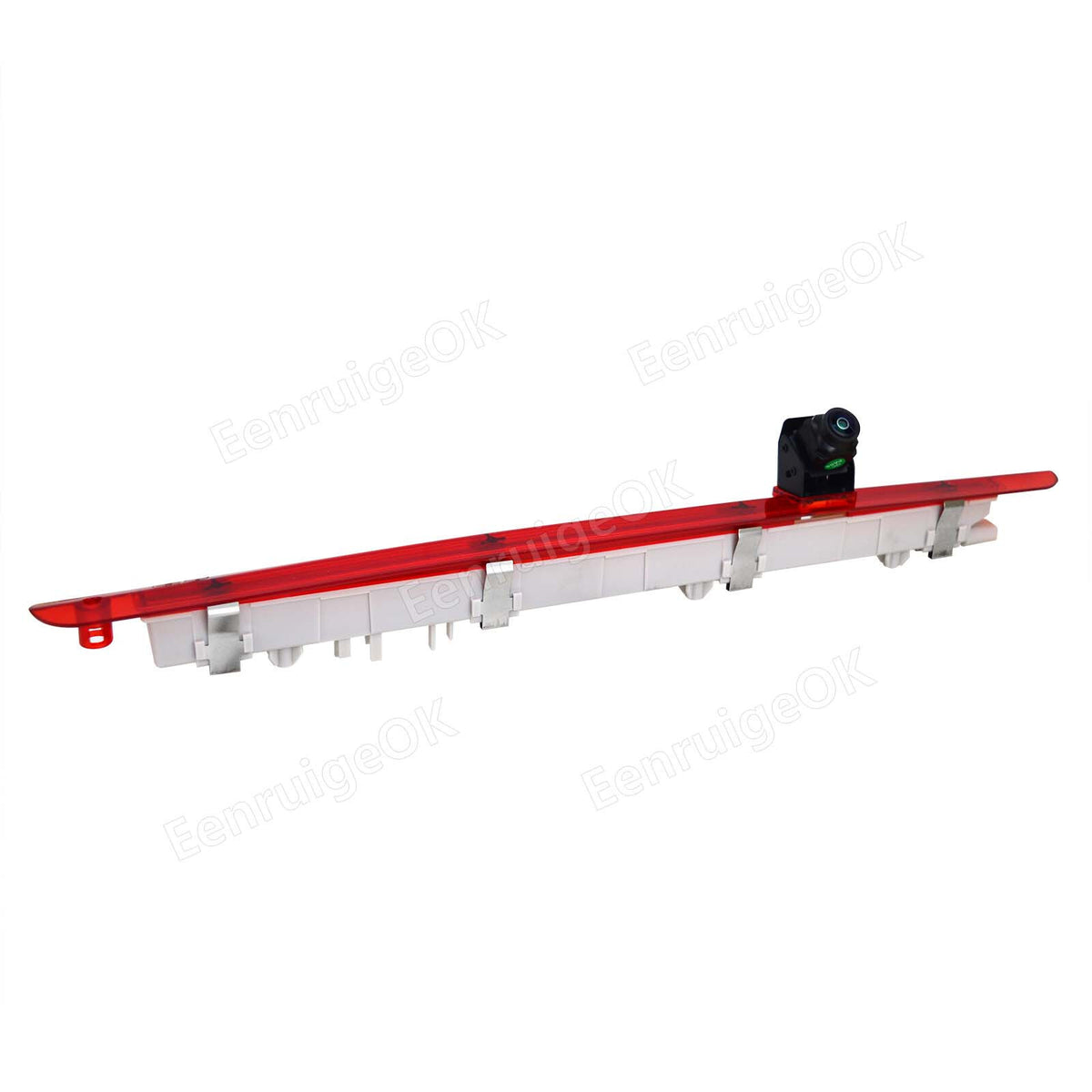

• 1 × Brake-light camera
• 1 × 5-inch IPS monitor
• 1 × 10 m / 33 ft extension cable
• 2 × DC power cables

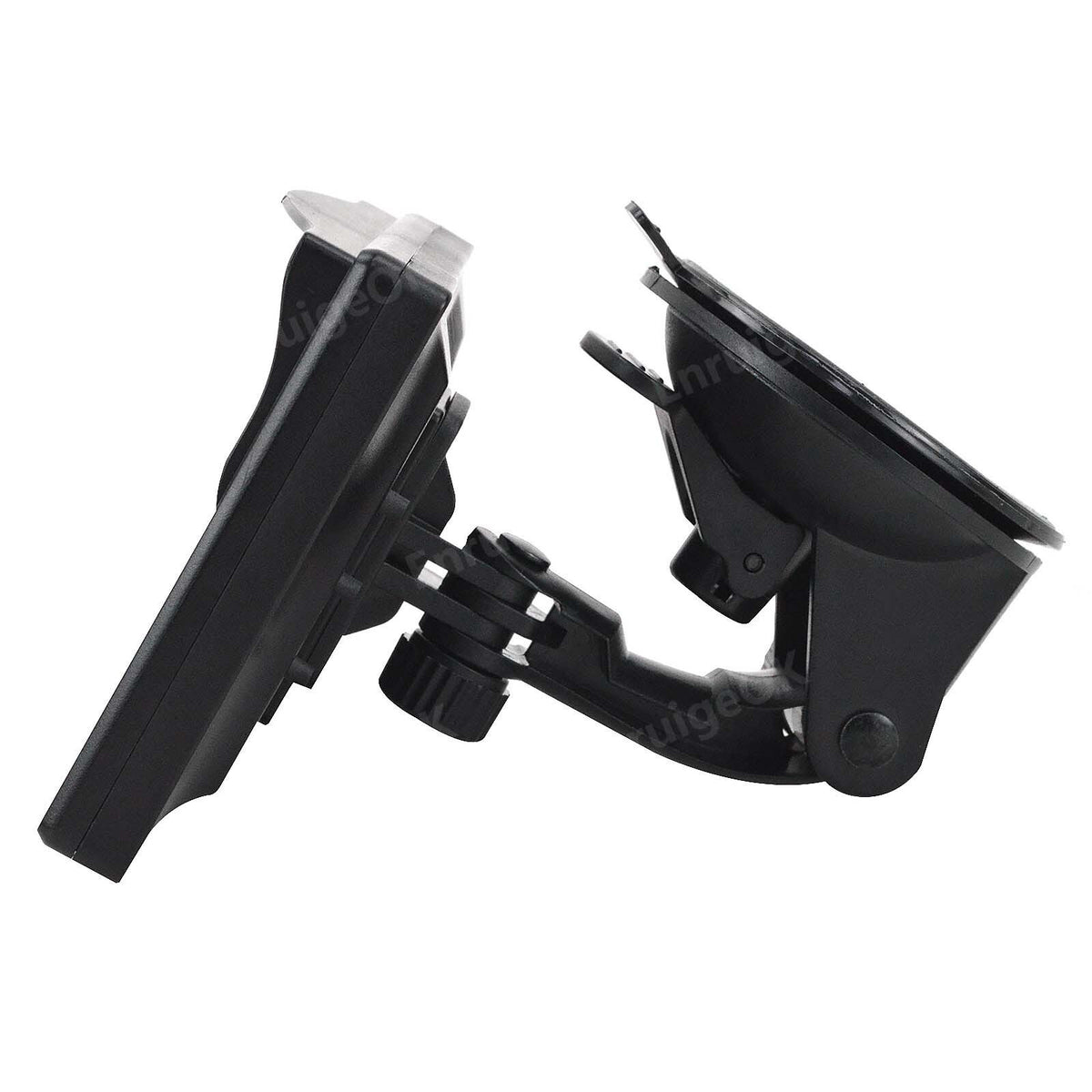

• 1 × Dashboard mount stand
• 1 × Suction-cup mount stand
• 1 × User manual
