Rear View Brake Light Reversing Camera Kit for Renault Kangoo Mercedes Citan

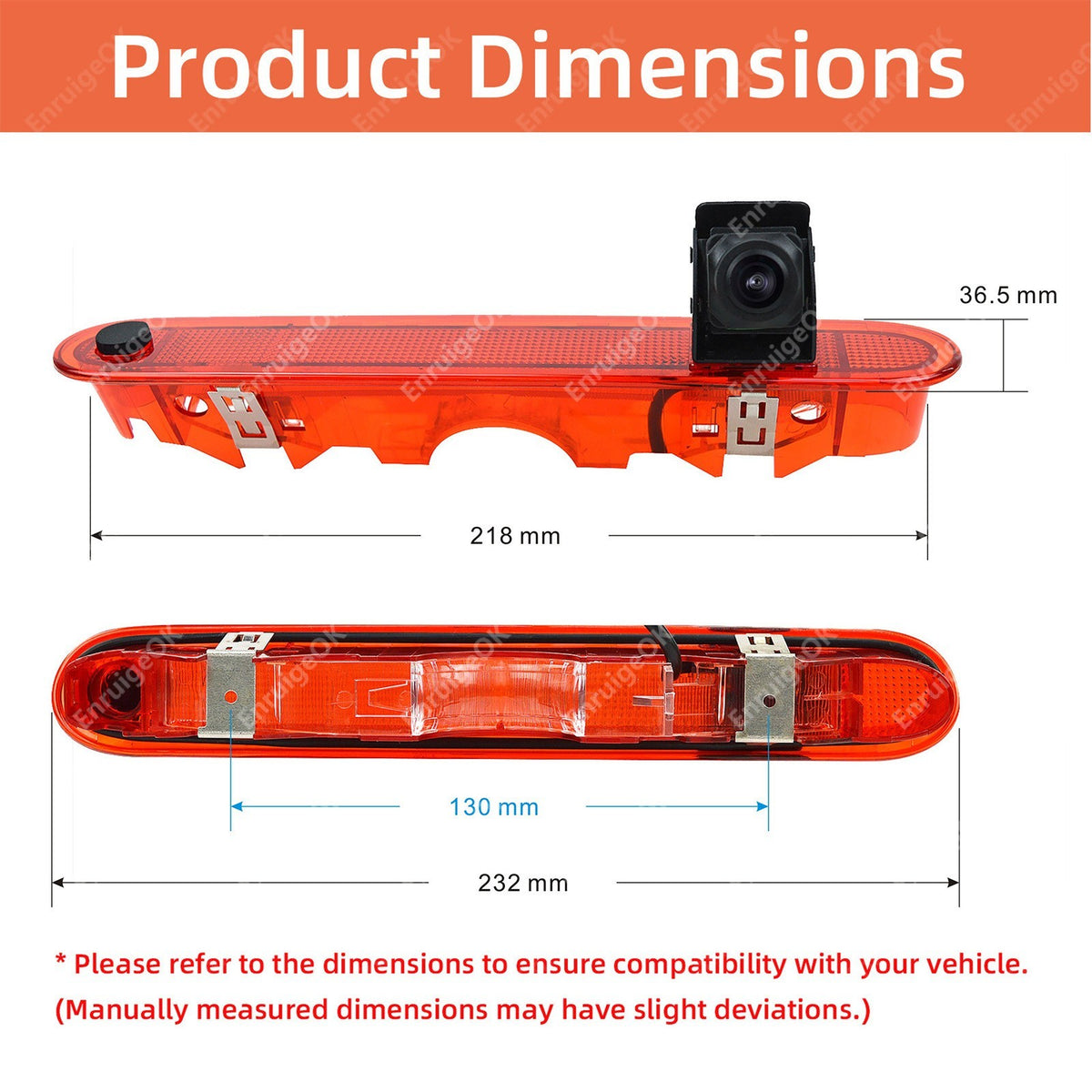

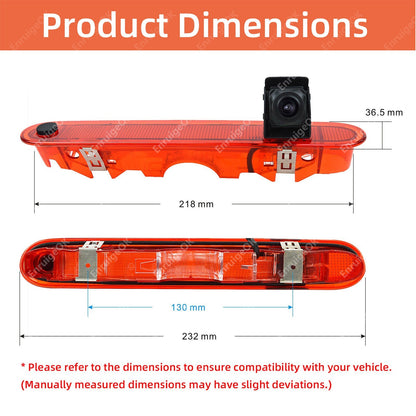

Note: Please check the camera size carefully before make the order.

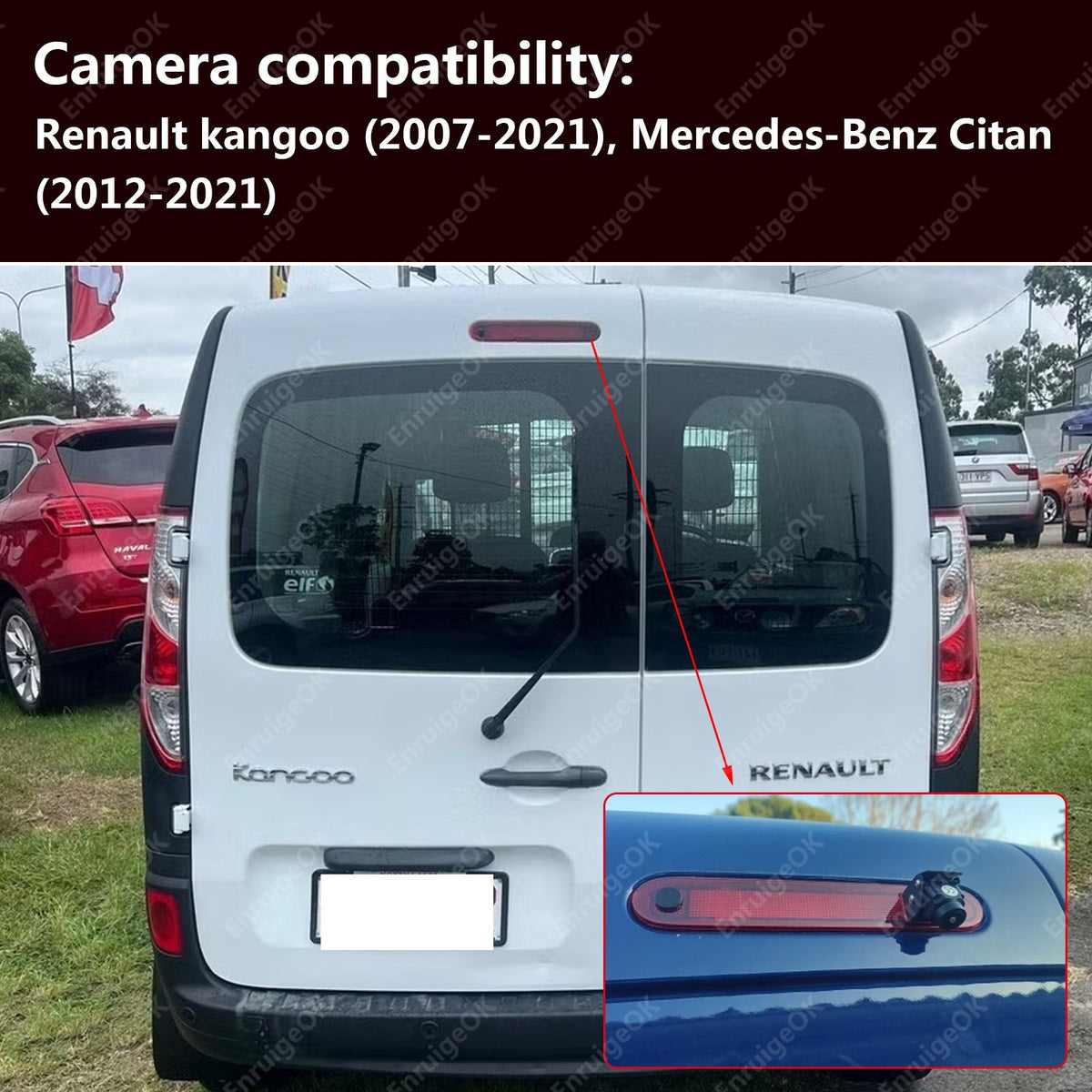

🚐Camera Compatibility:

✅Mercedes Benz Citan (2012-2021)

✅Renault Kangoo (2007-2021)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

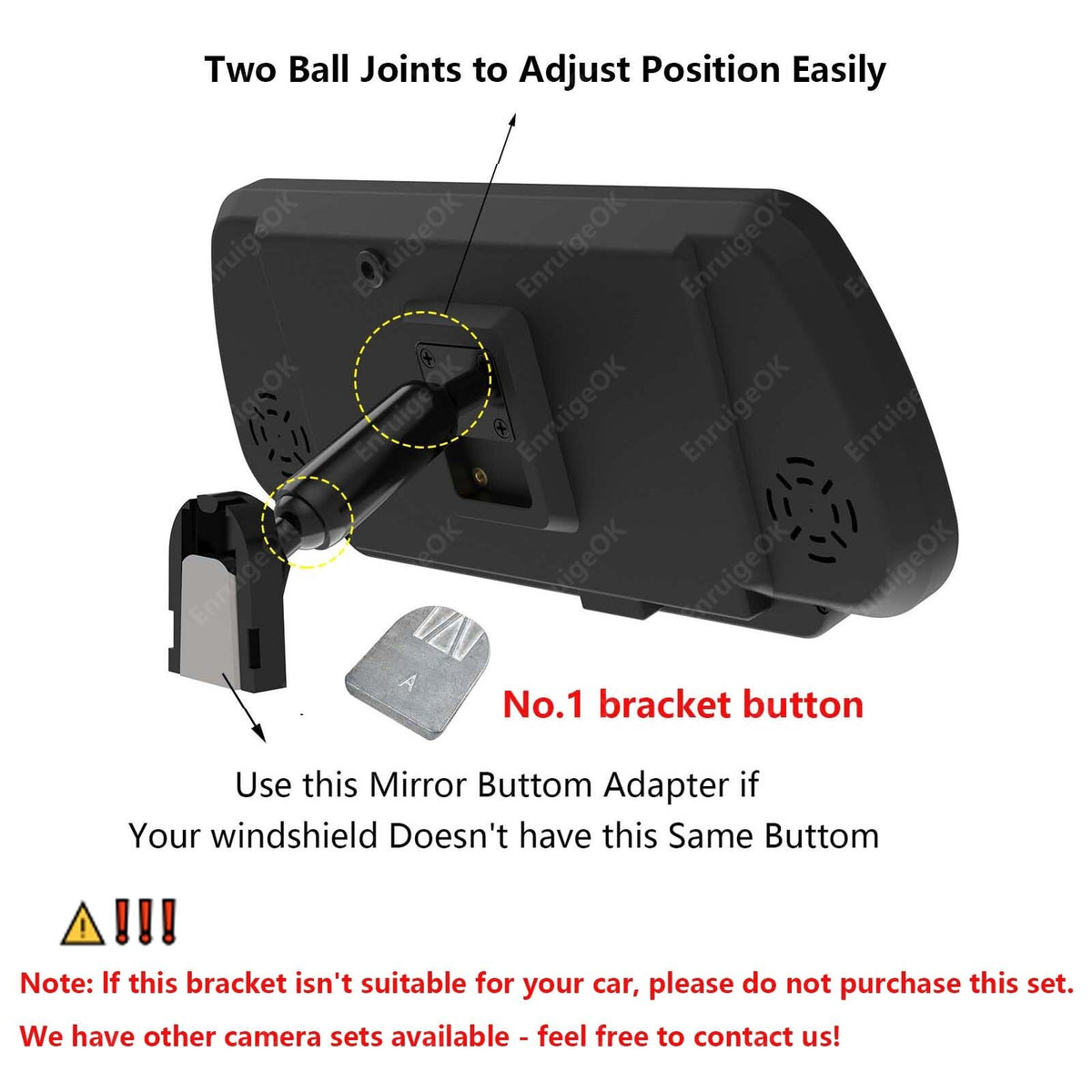

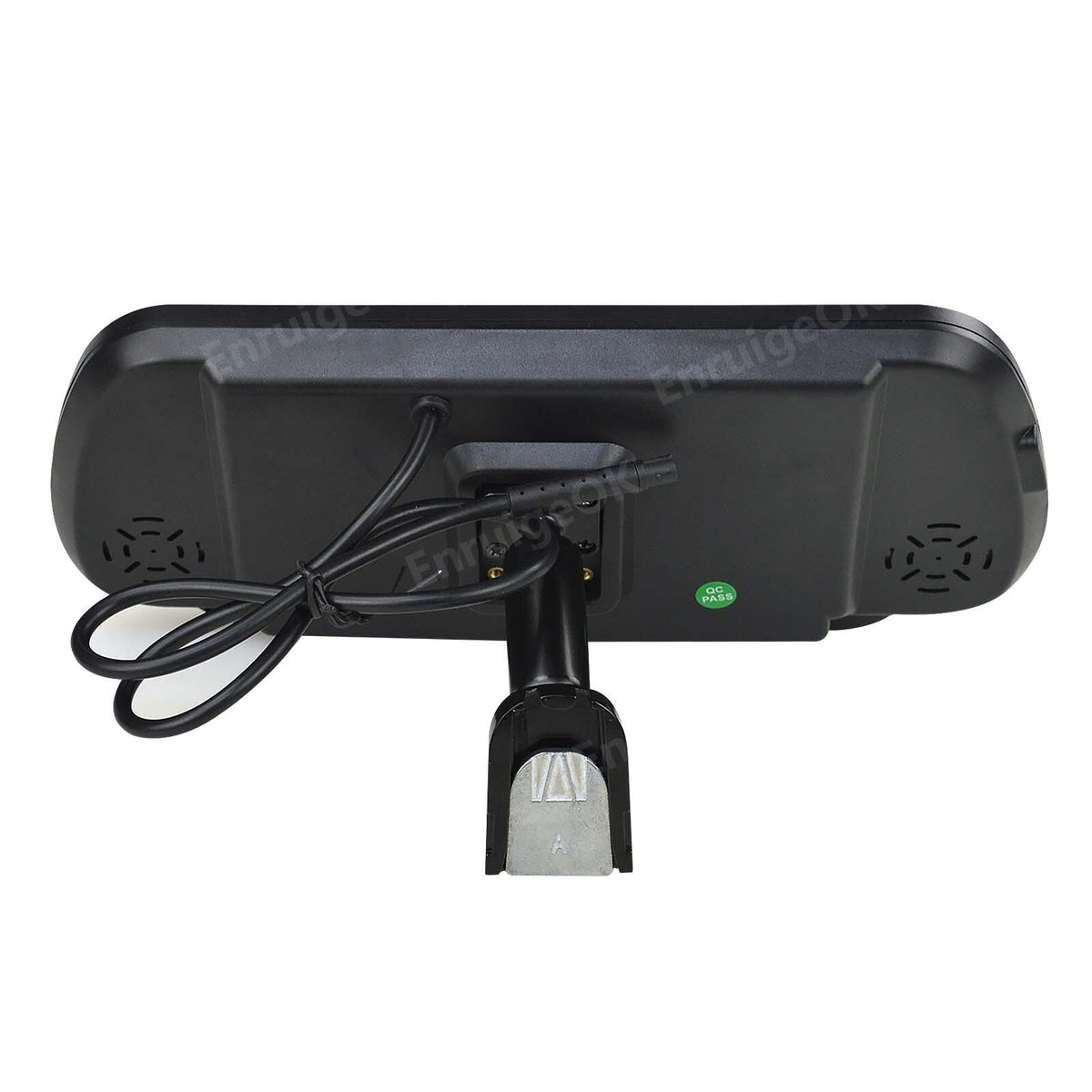

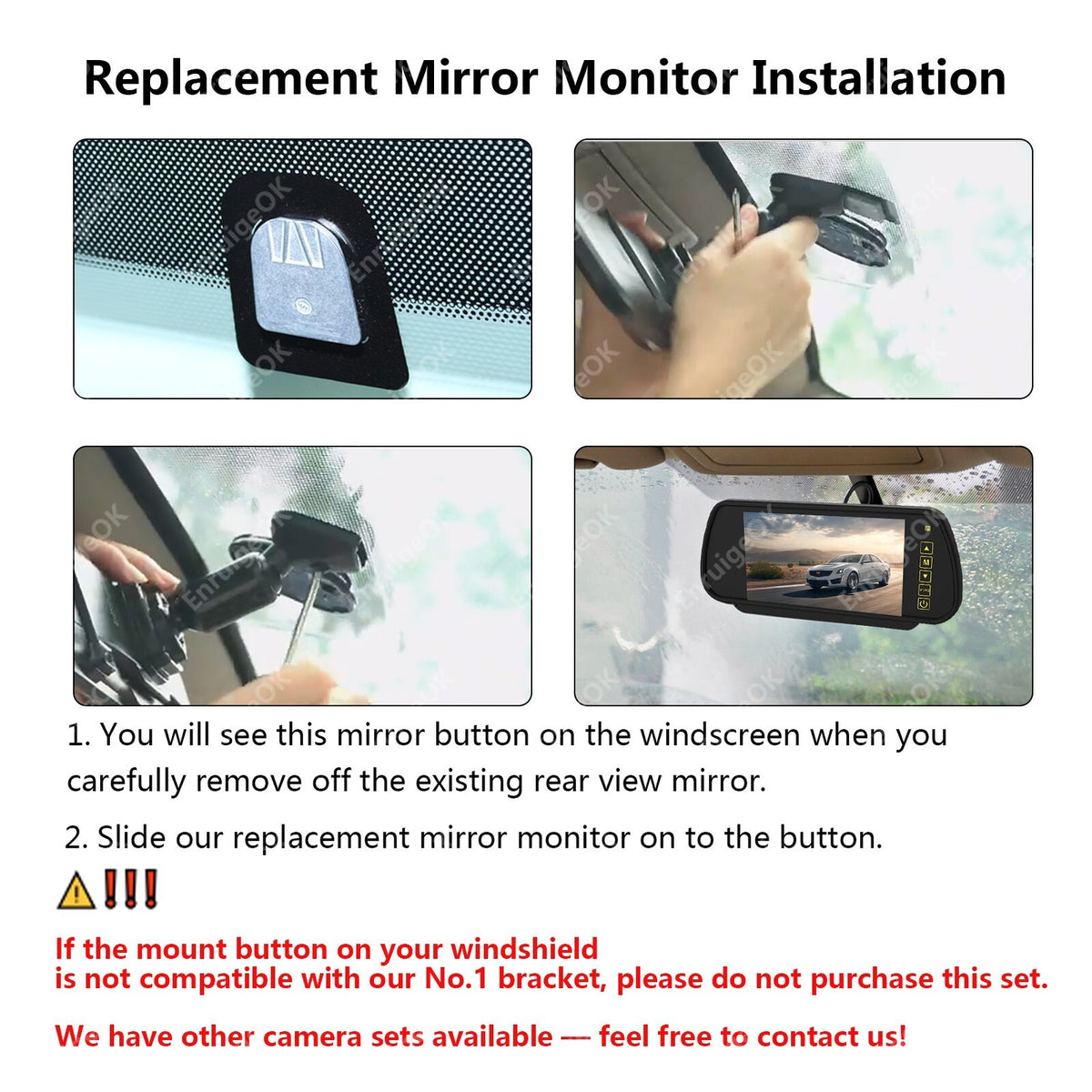

Monitor Bracket Note

This set comes with a #1 bracket by default. Please confirm compatibility by sending us a photo of your windshield button or mirror bracket if unsure.

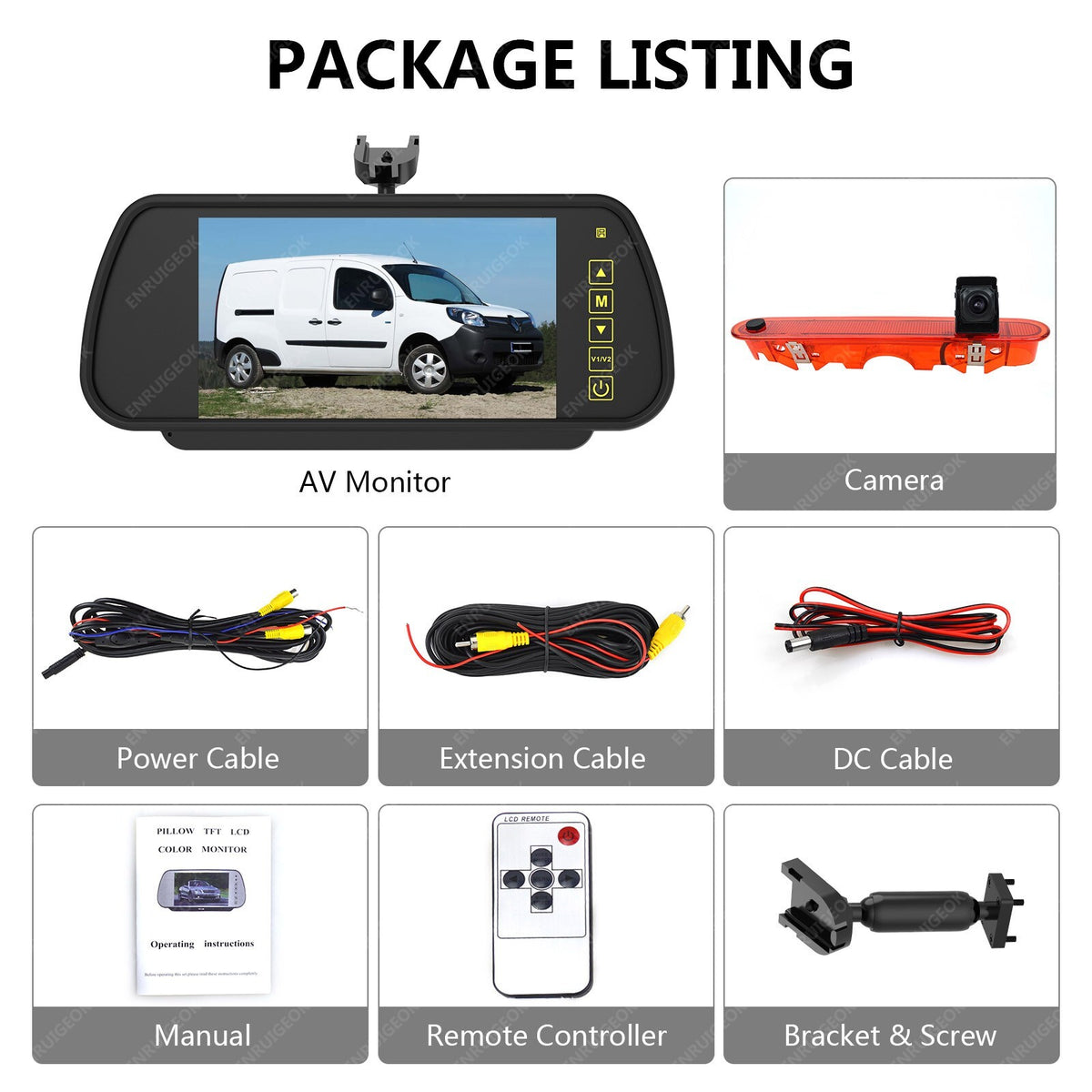

Package content

1 X Reversing camera

1 X 7'' Mirror monitor

1 X 10m/33ft. extension cable

1 X Monitor power cable

1 X DC Power cable

1 X Remote controller(battery not included)

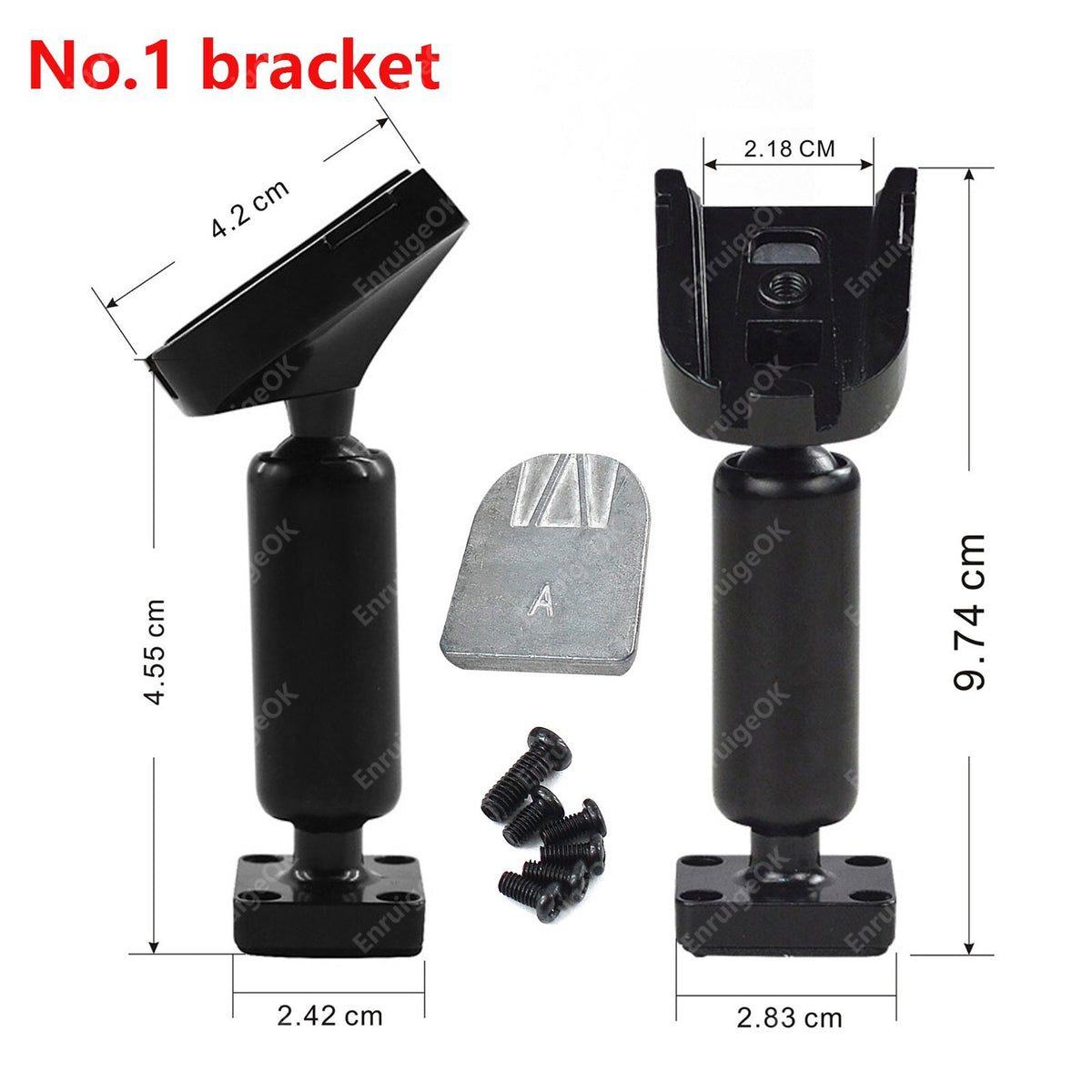

1 X #1 bracket(check your windshield button)

1 X Manual

Description

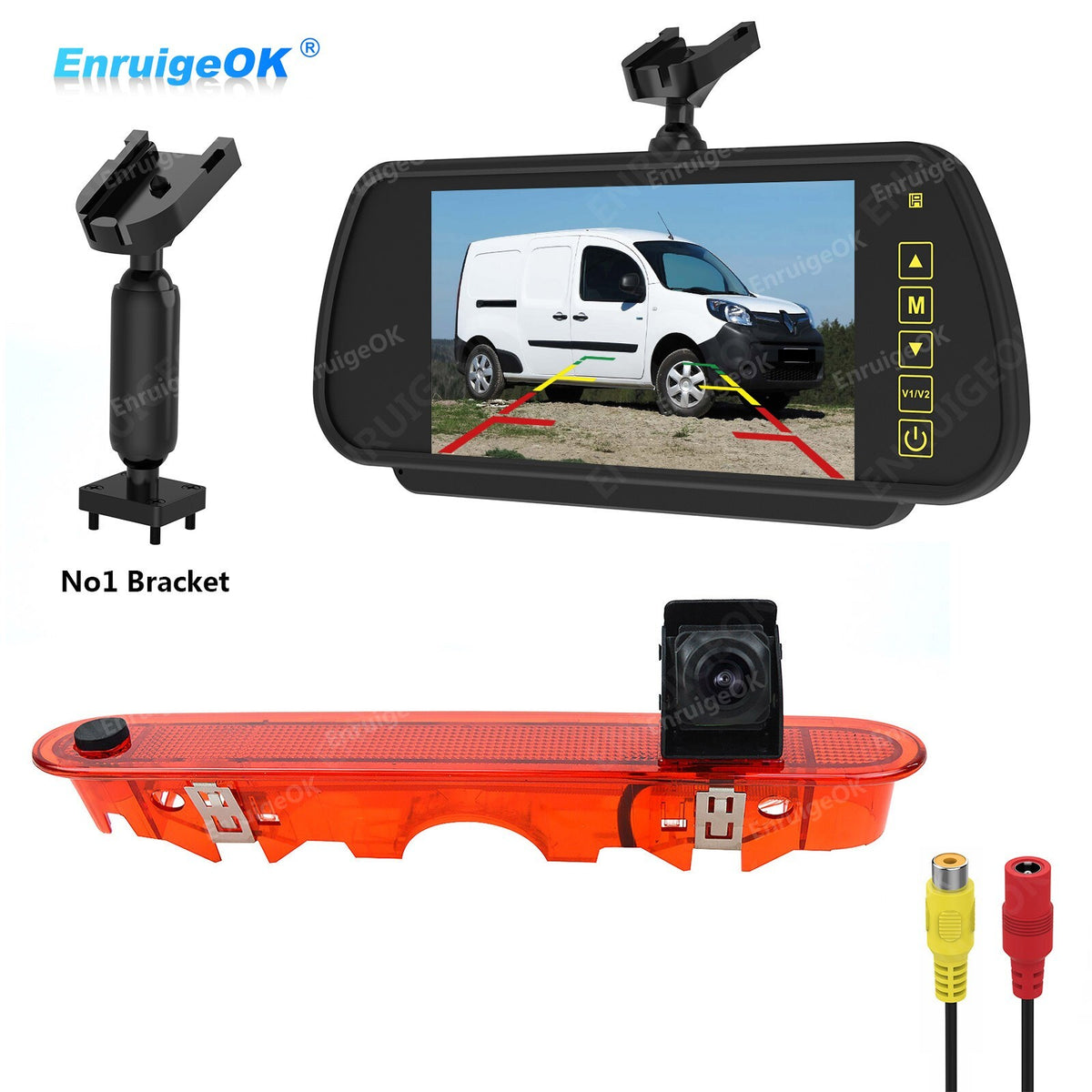

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

High quality image. This Brake light camera used 1/3" CMOS Sensor which have more color Image.

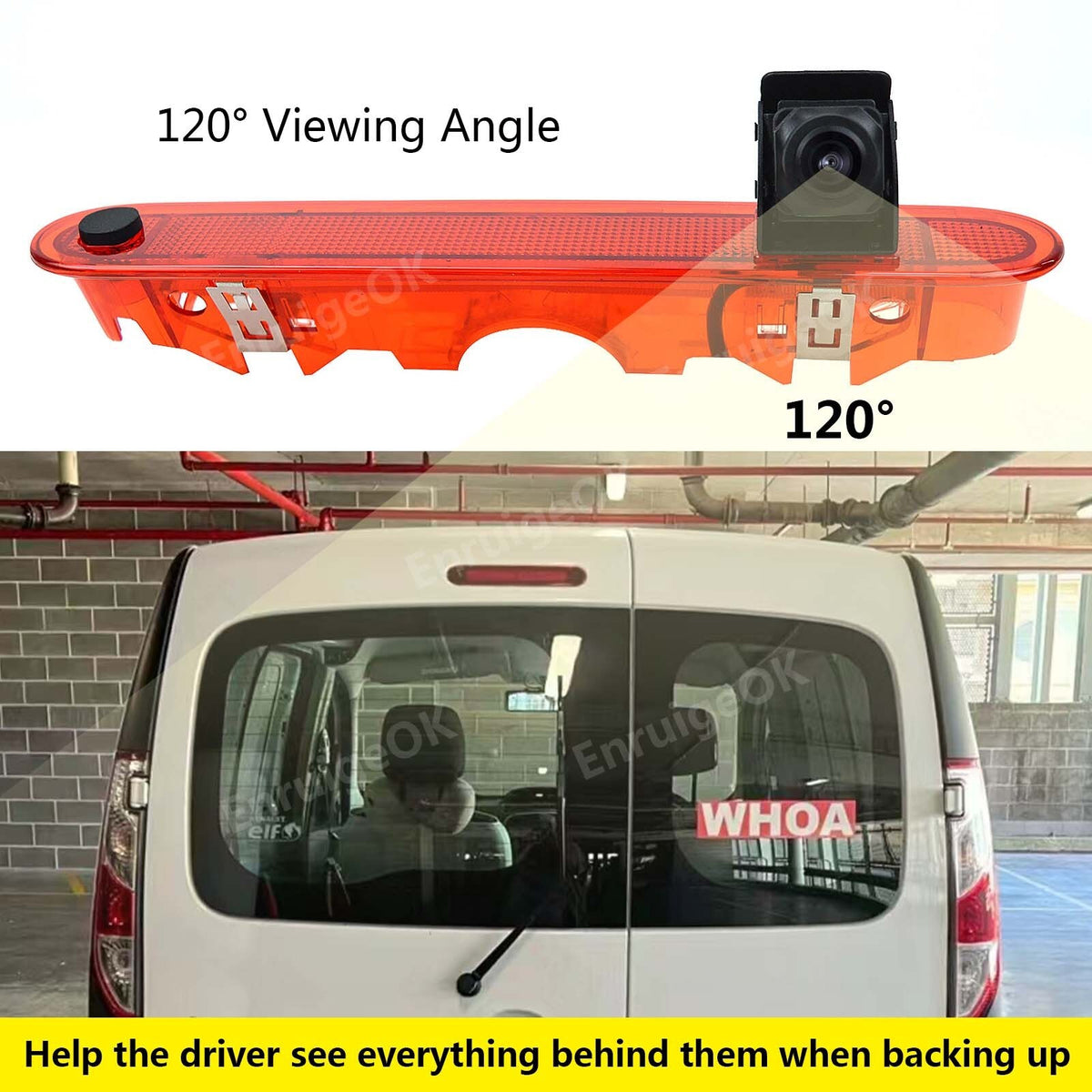

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

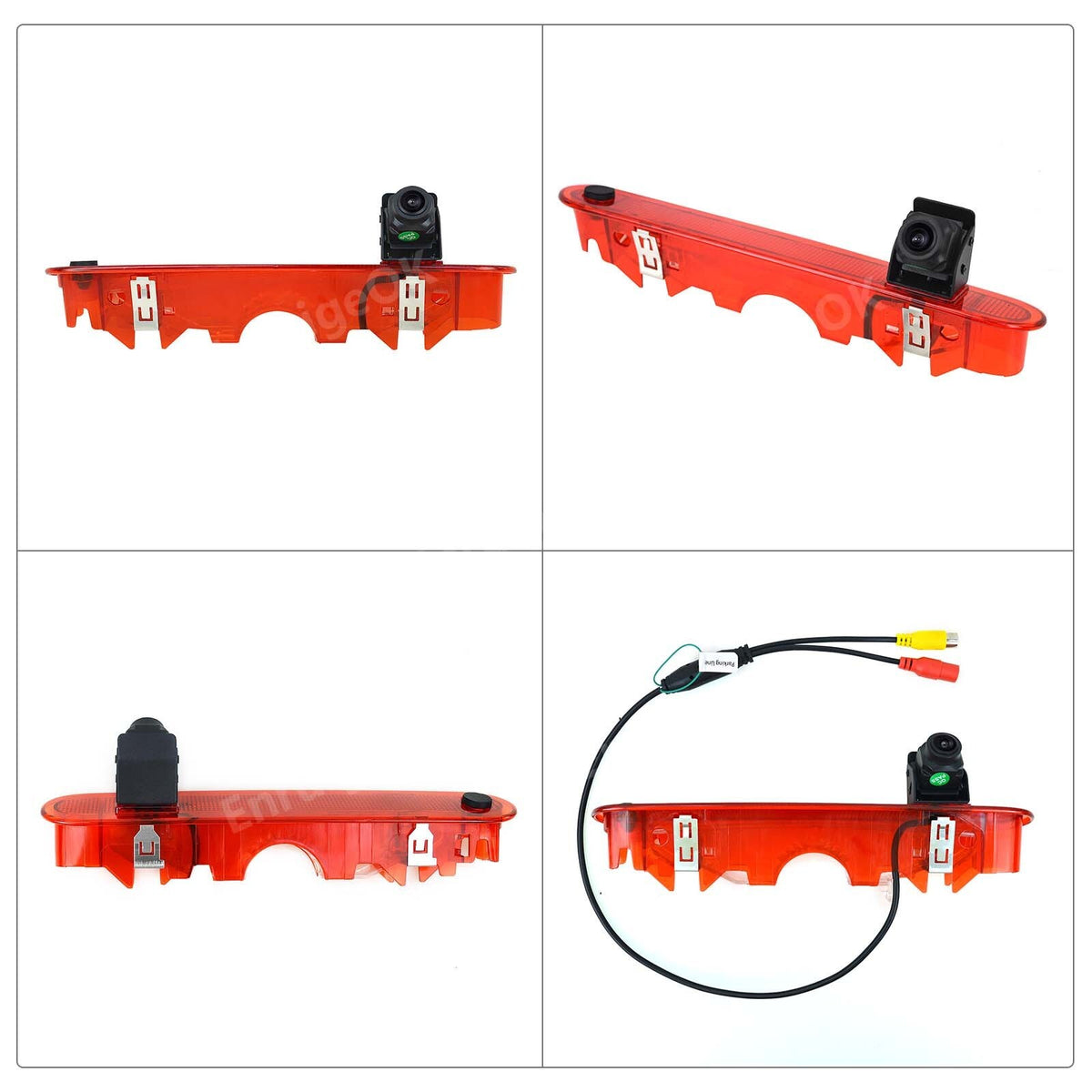

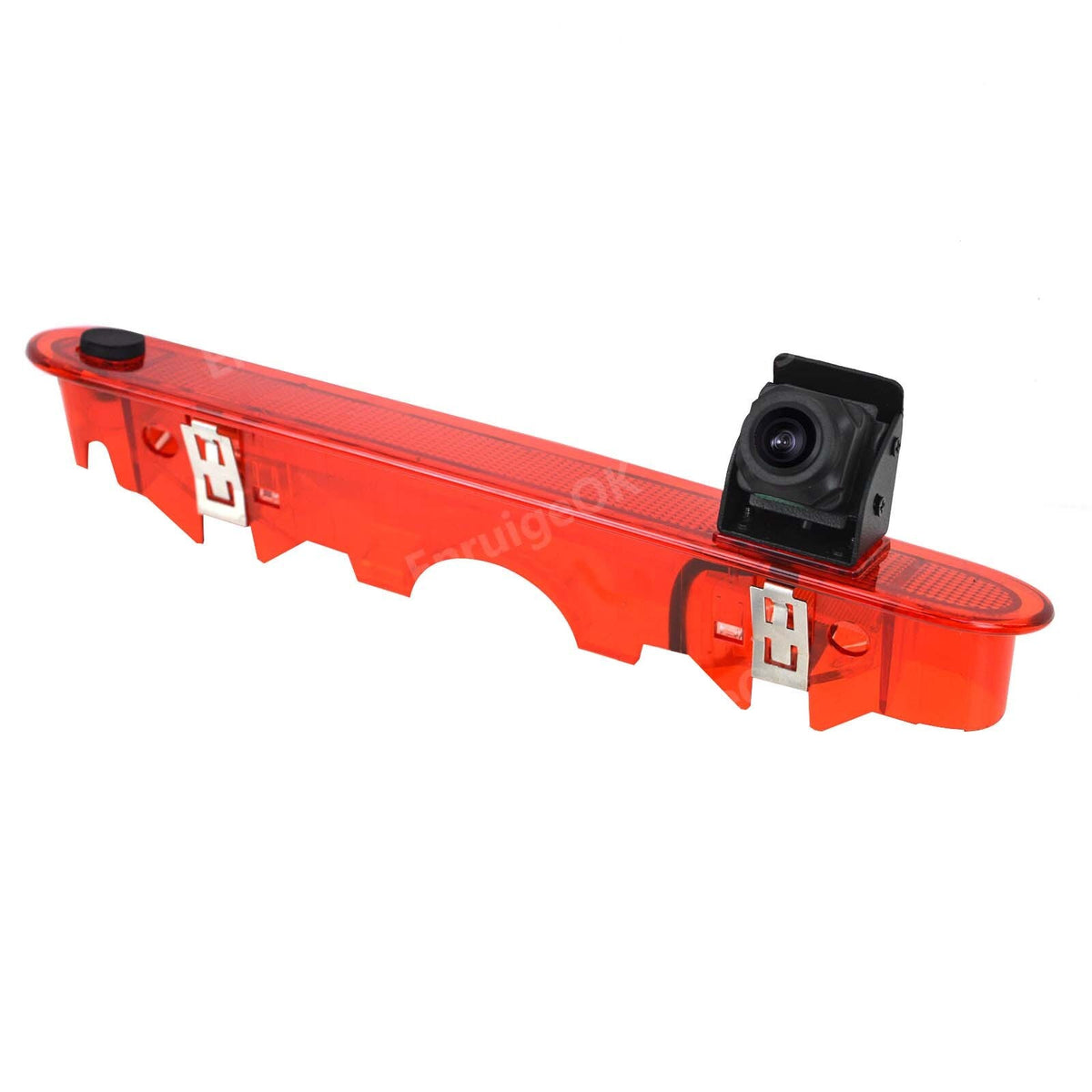

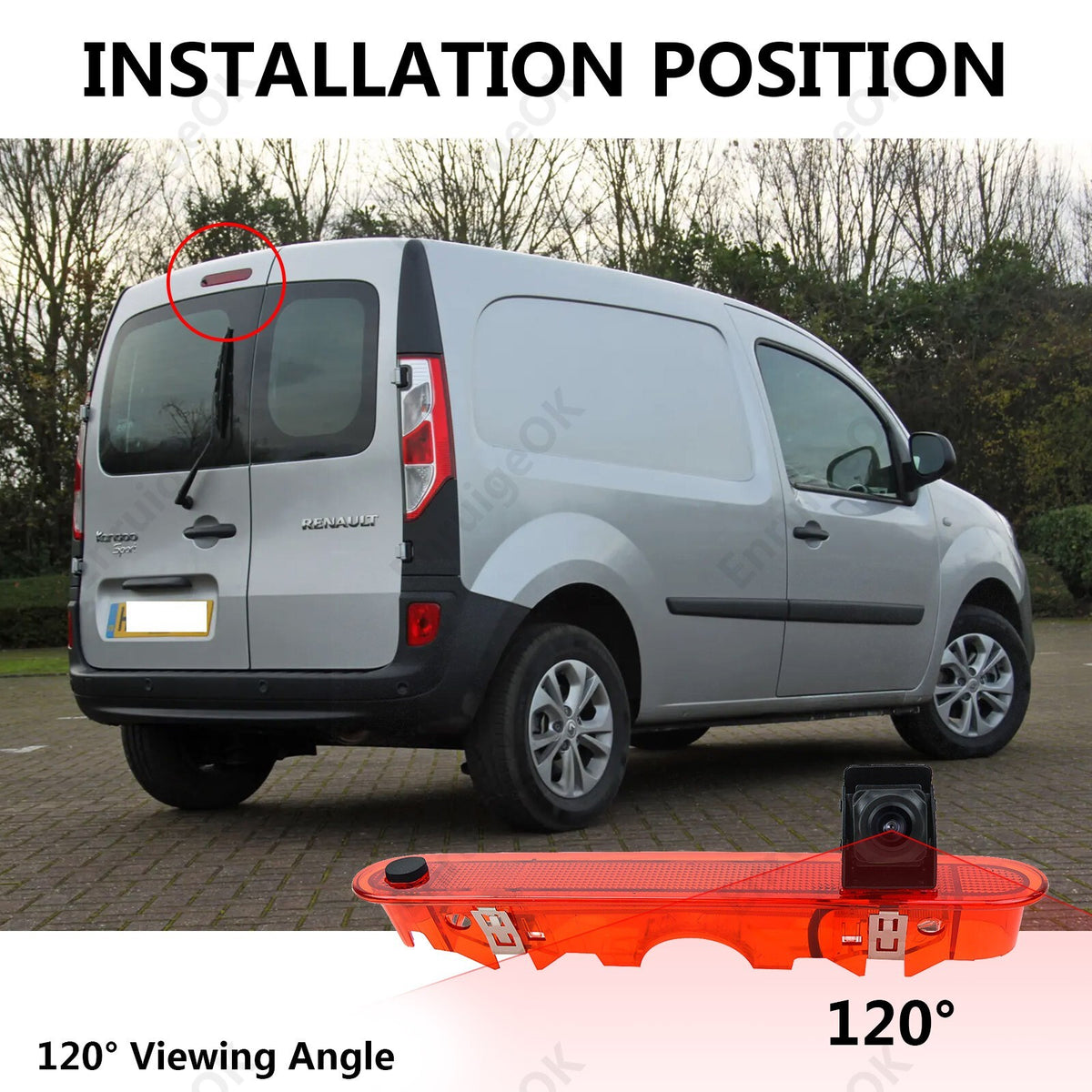

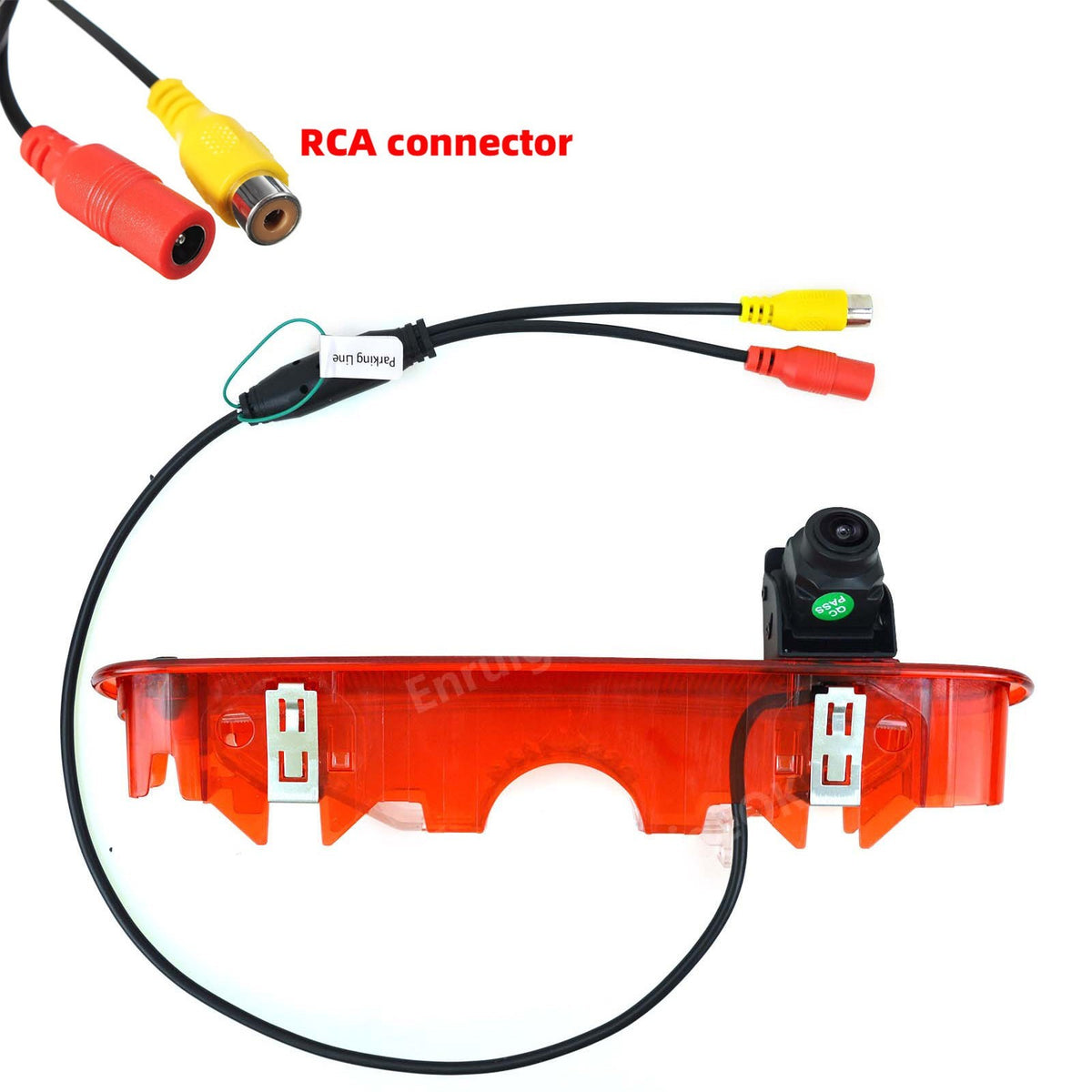

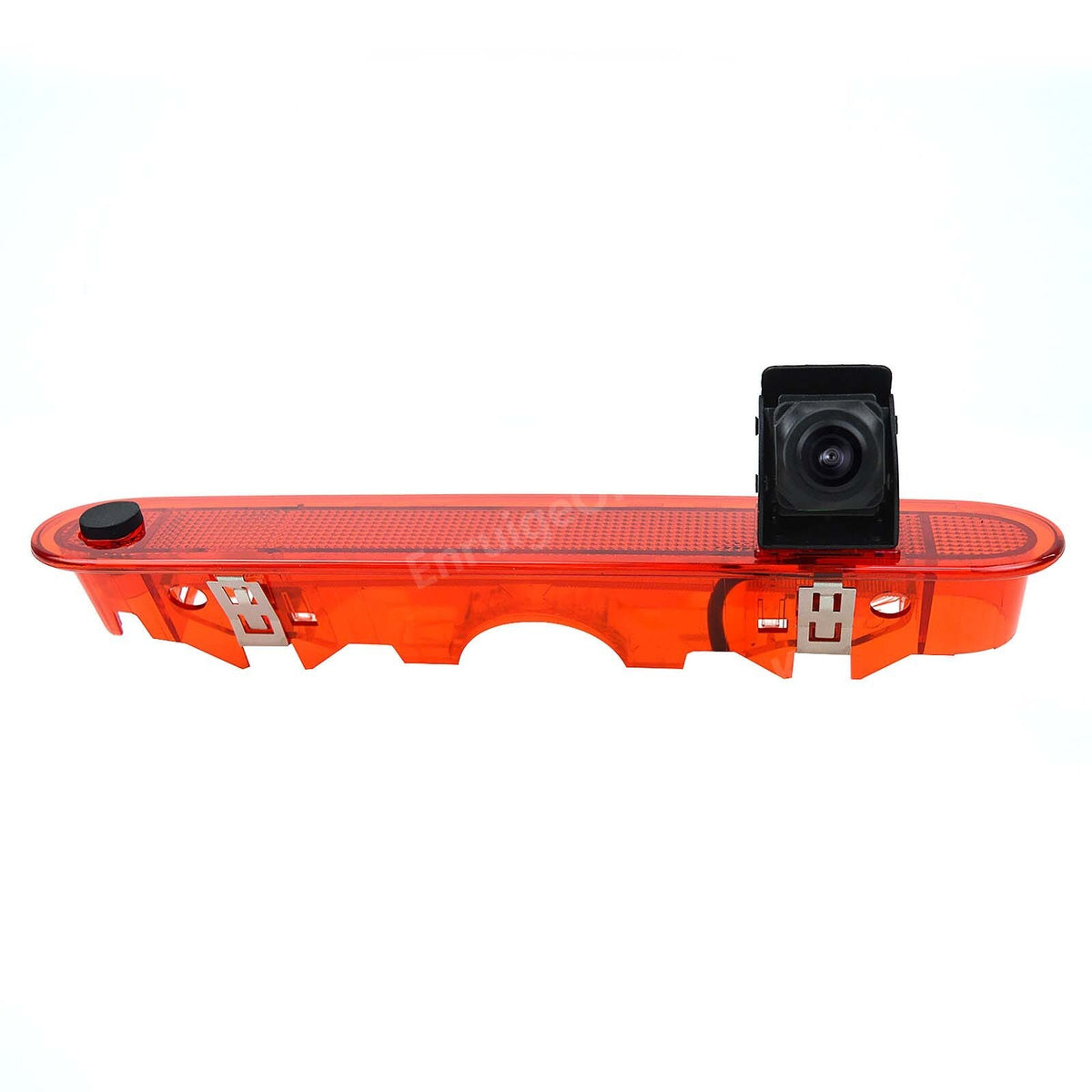

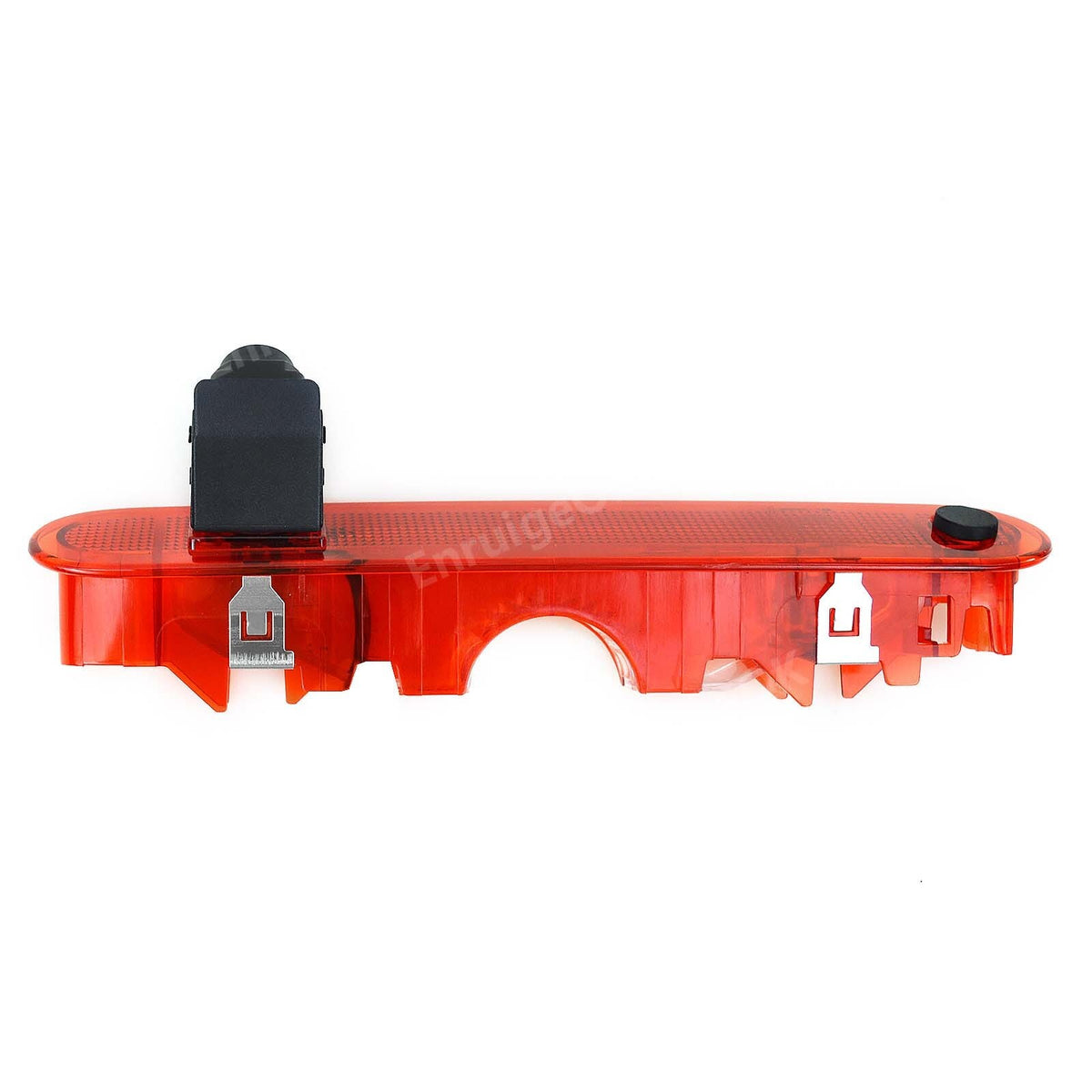

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

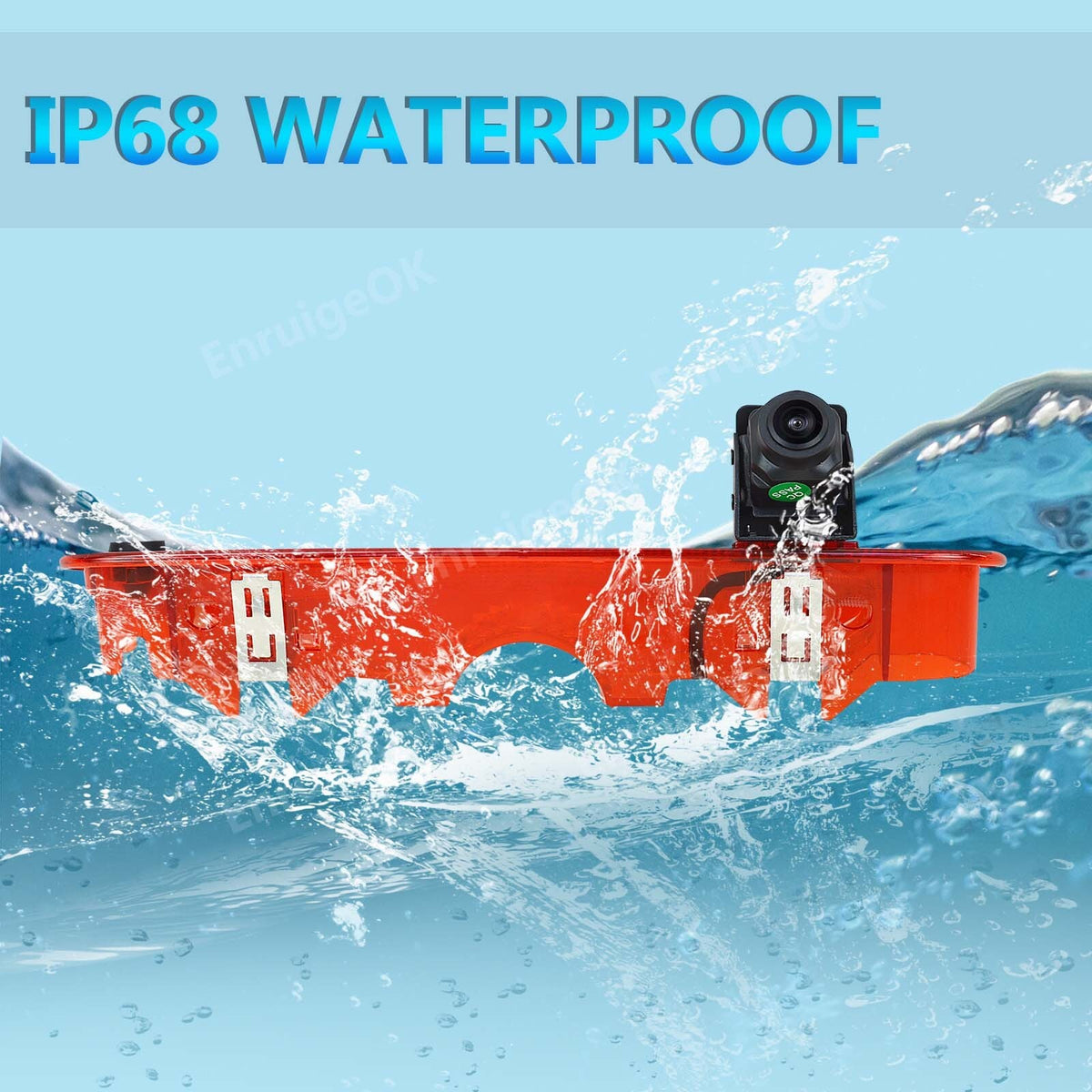

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Dustproof, shockproof, anti-shake.

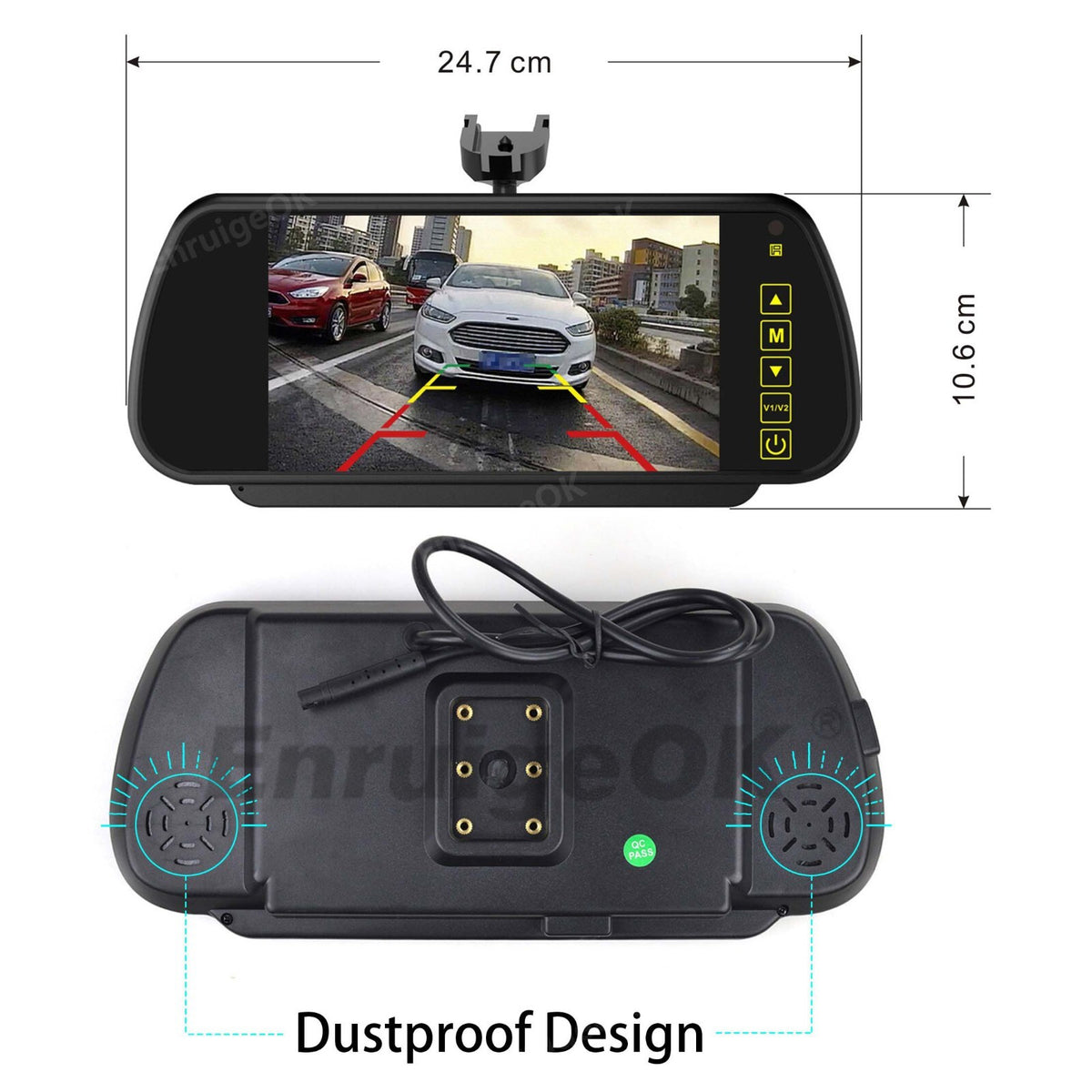

7" Color TFT HD Monitor with 2 video input,800*480(RGB) resolution works perfectly with brake light rear view camera.

Camera Specifications

Sensor: 1/3" COMS

Effective pixel: 733(H)x493(V)

Resolution: CVBS 700TVL

TV Tystem: PAL/NTSC

Lens: 2.8mm

Min illumination: 0.1Lux

Waterproof: IP68

View angle: 120°

Power voltage: DC 12V

Power: 5W

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

S/N Ratio: > 48dB

Current consumption: < 150mA

Operating temperature: -20℃ to +70℃

Monitor Specifications

Screen ratio 16:9/4:3 adjustable

Resolution: 800*480(RGB)

TV System: PAL/NTSC auto

Video Input: 2-CH video input

Control Mode: Touch button + Remote control

Power Supply: DC 9V/35V

Power Consumption: 6W

Video: Two-way video input

Rear watching: Image can be changed left and right

Operate mode: The key operation and remote control

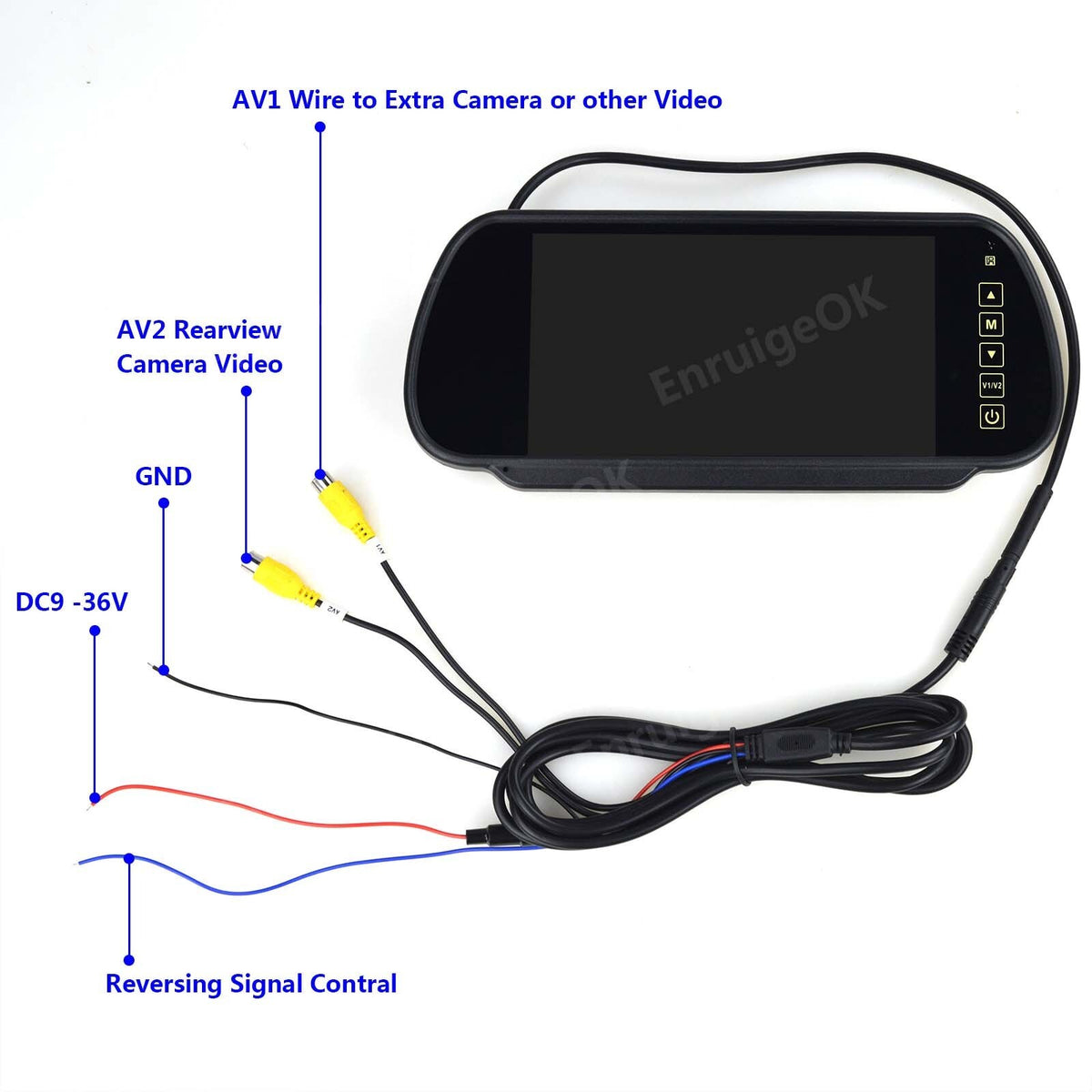

Dual video inputs: One For DVD/VCD/GPS/TV, the other for the rearview camera and parking sensor, automatically switch when reversing

Remote control function: Yes

Remote control: a CR2025 button battery (not included)

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
