Rear Reverse Camera Kit for Peugeot Expert Citroen Dispatch Vauxhall Vivaro

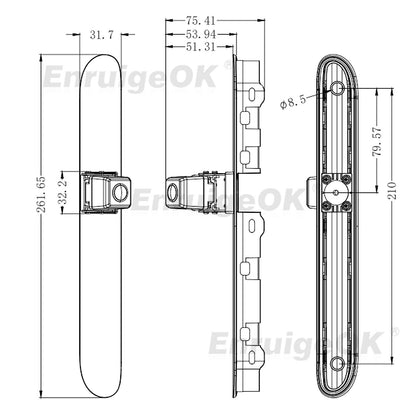

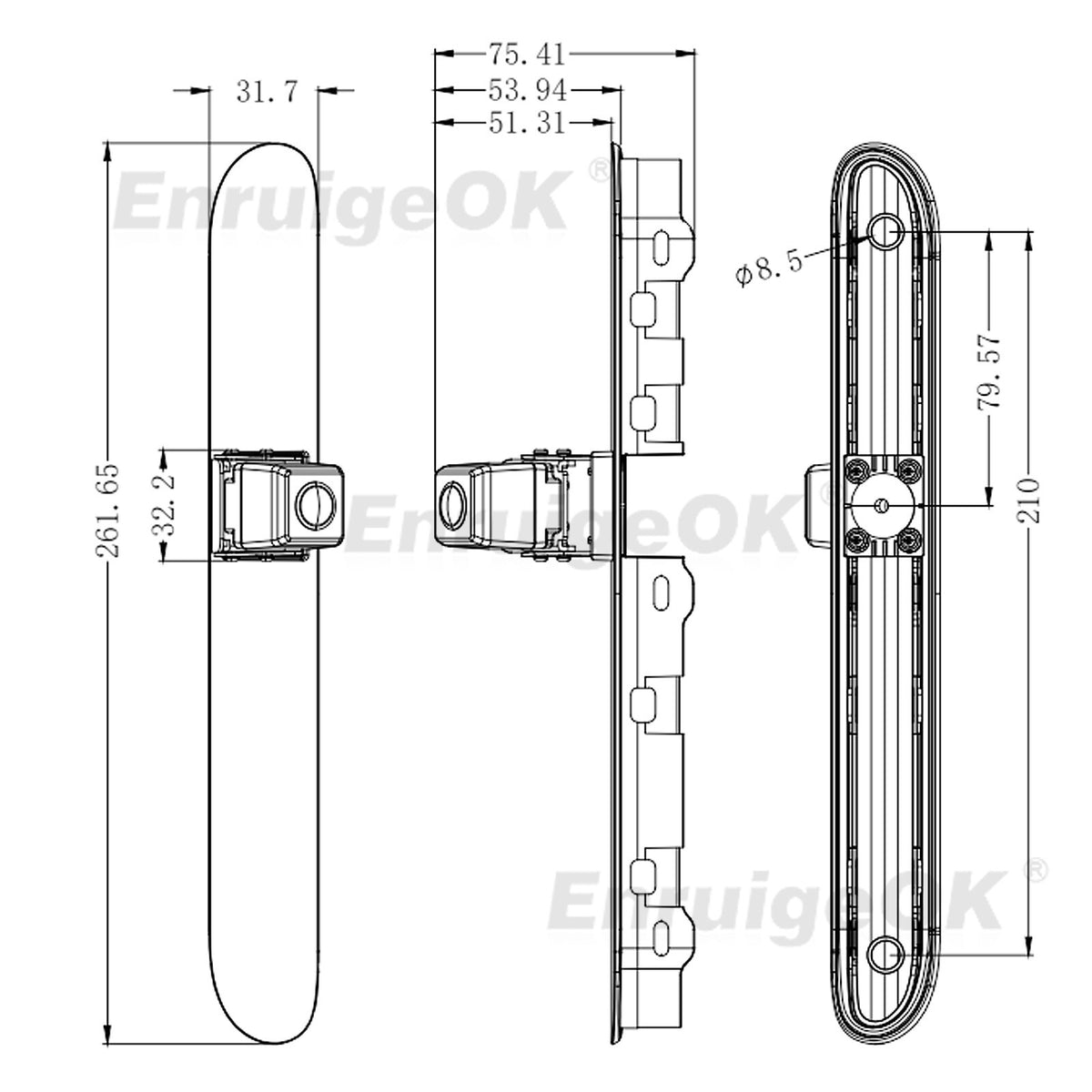

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

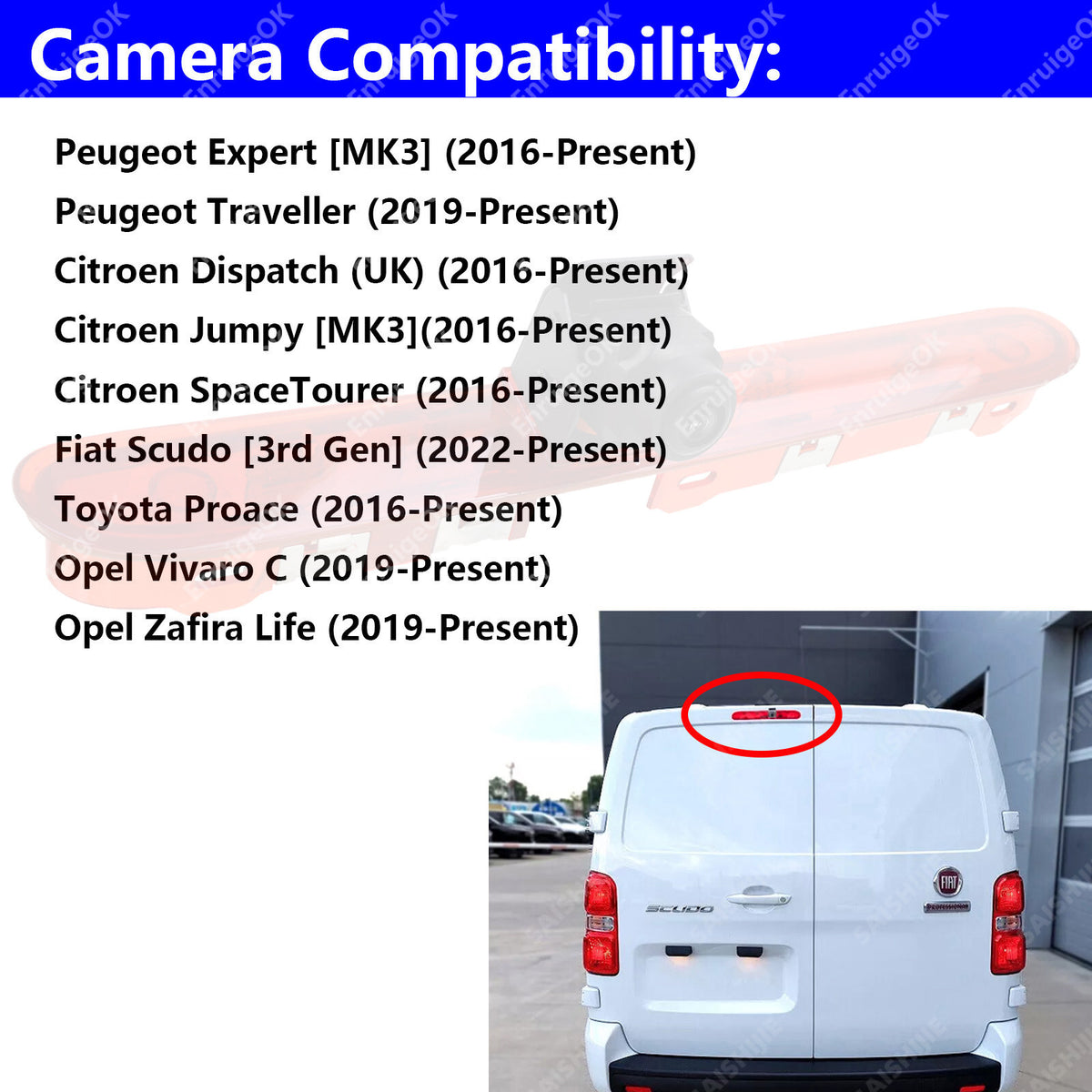

Camera Compatibility

✅Peugeot Expert [MK3] (2016-Present)

✅Citroen Dispatch (UK) (2016-Present)

✅Citroen Jumpy [MK3](2016-Present)

✅Citroen SpaceTourer (2016-Present)

✅Toyota Proace (2016-Present)

✅Peugeot Traveller (2019-Present)

✅Opel/Vauxhall Vivaro [C] (2019-Present)

✅Opel Zafira Life (2019-Present)

✅Fiat Scudo [3rd Gen] (2022-Present)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

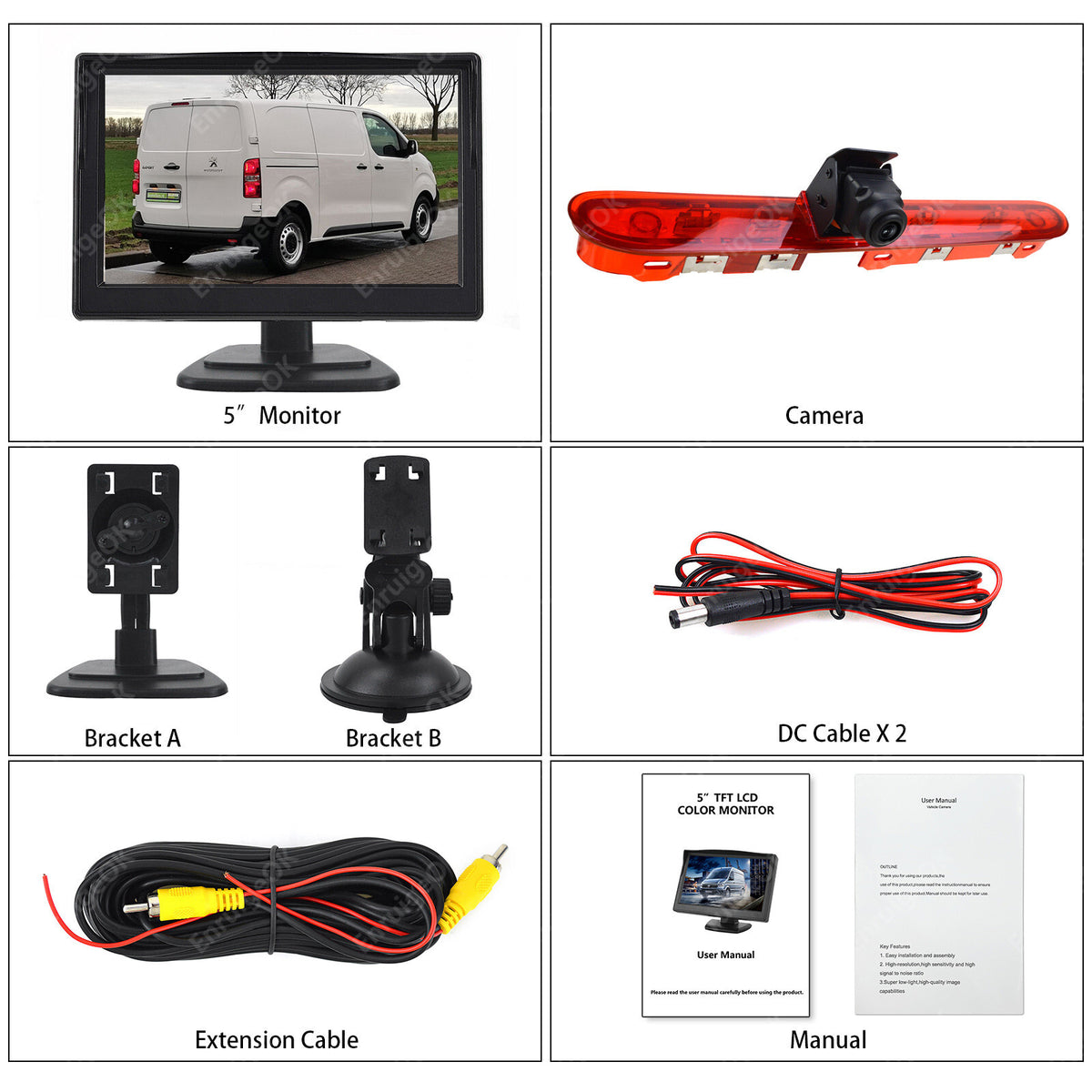

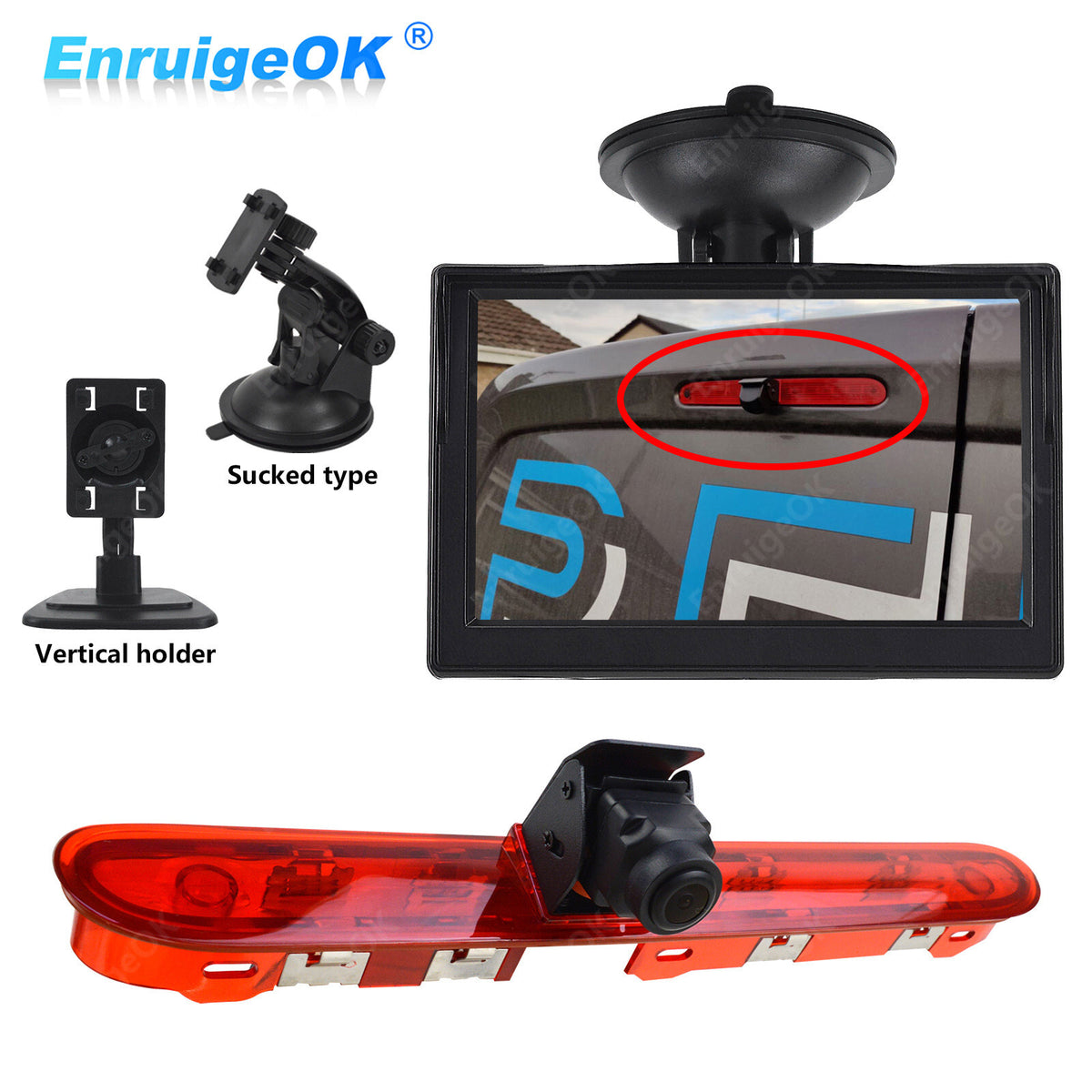

Package contents

1 X Brake light camera

1 X 5'' IPS display monitor

1 X 10m/33ft. extension cable

2 X DC Power cables

1 X Dashboard mount stand

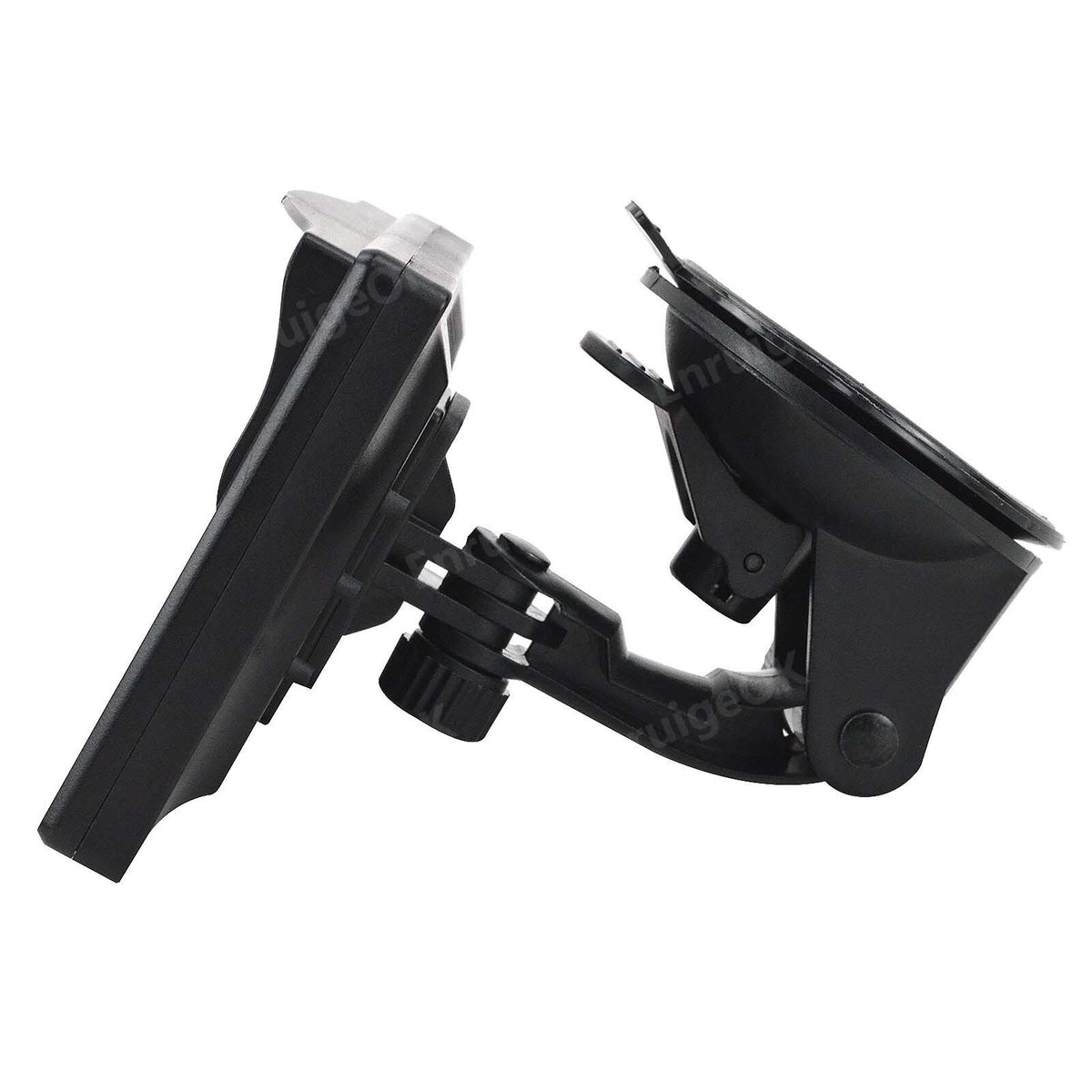

1 X Suction cup mount stand

1 X Manual

Description

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

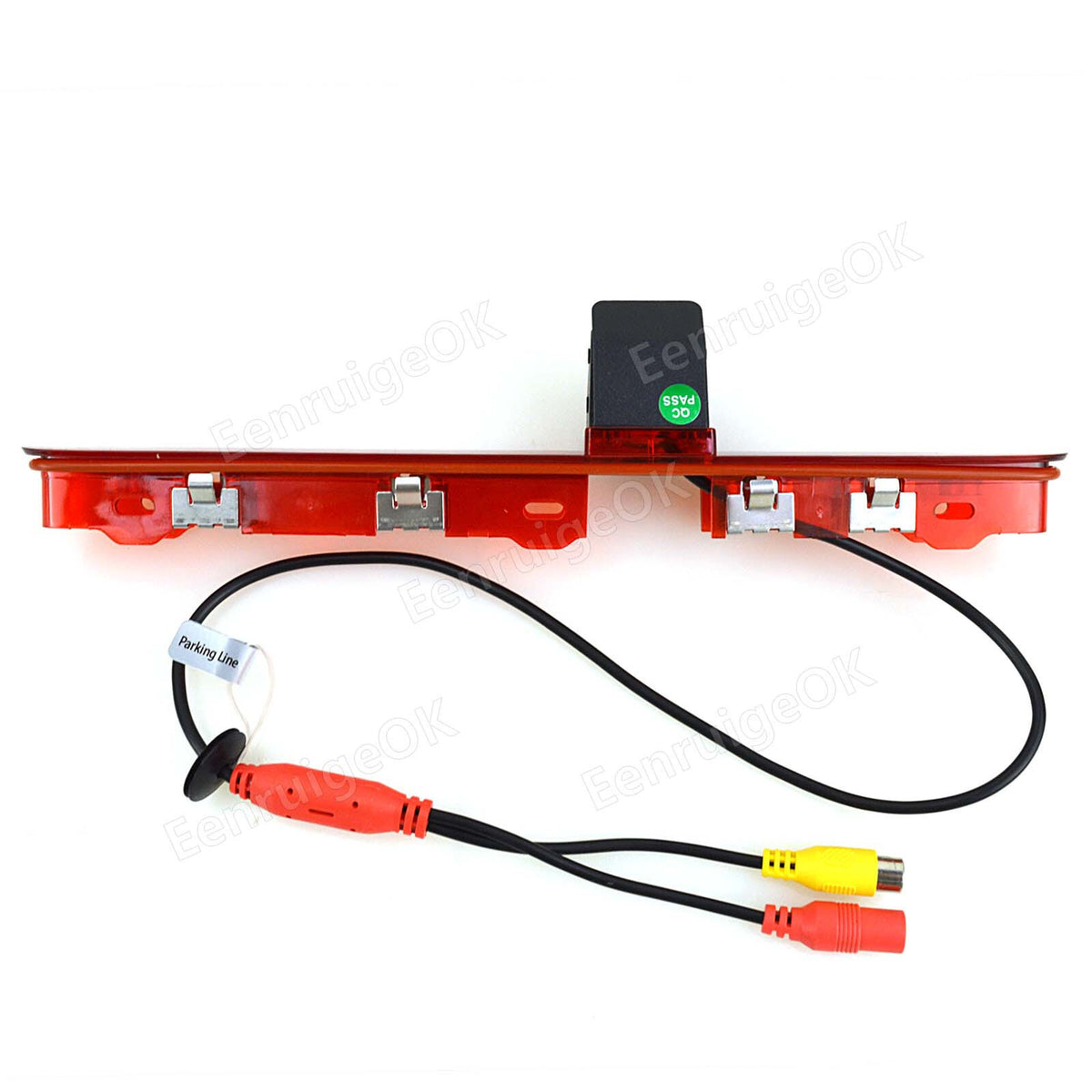

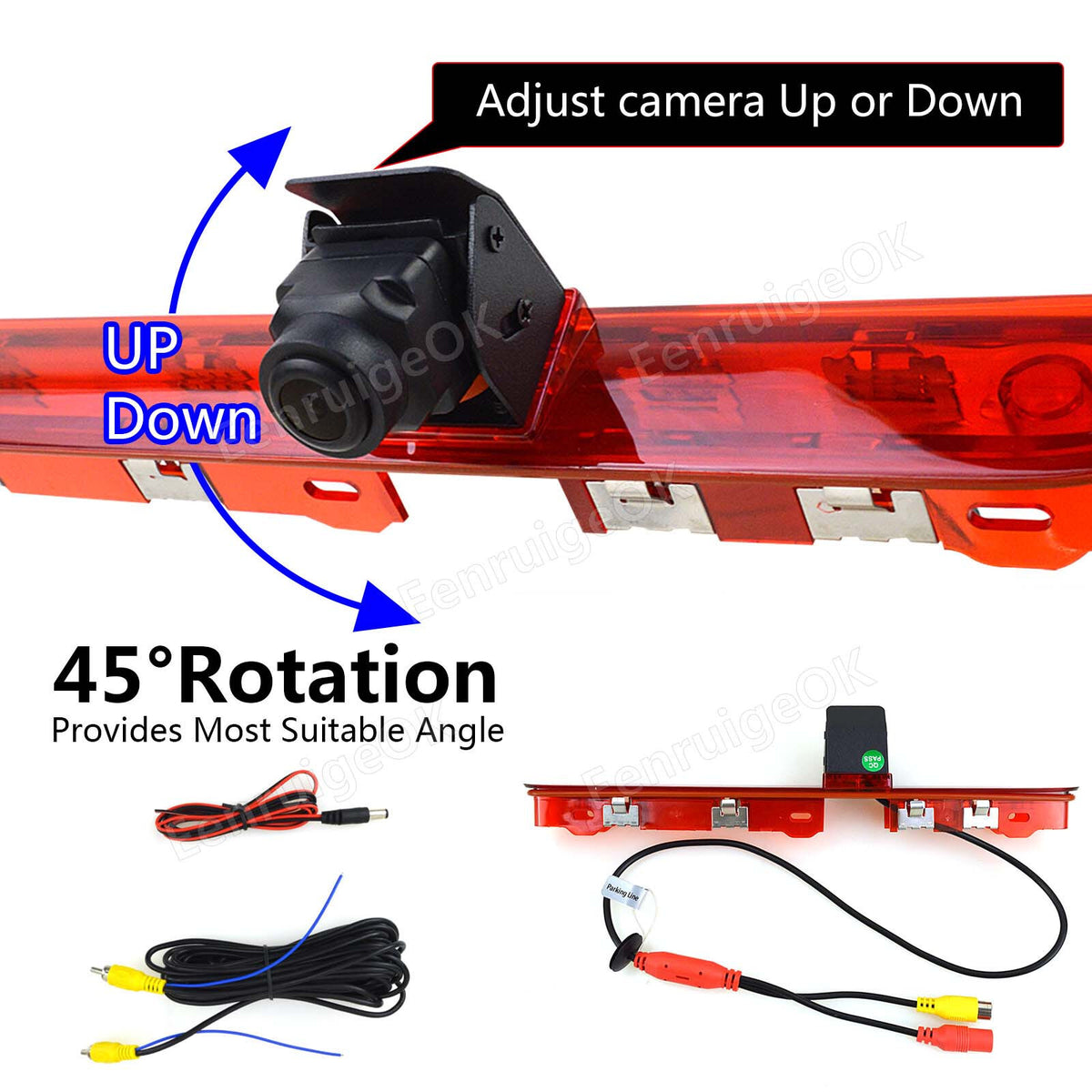

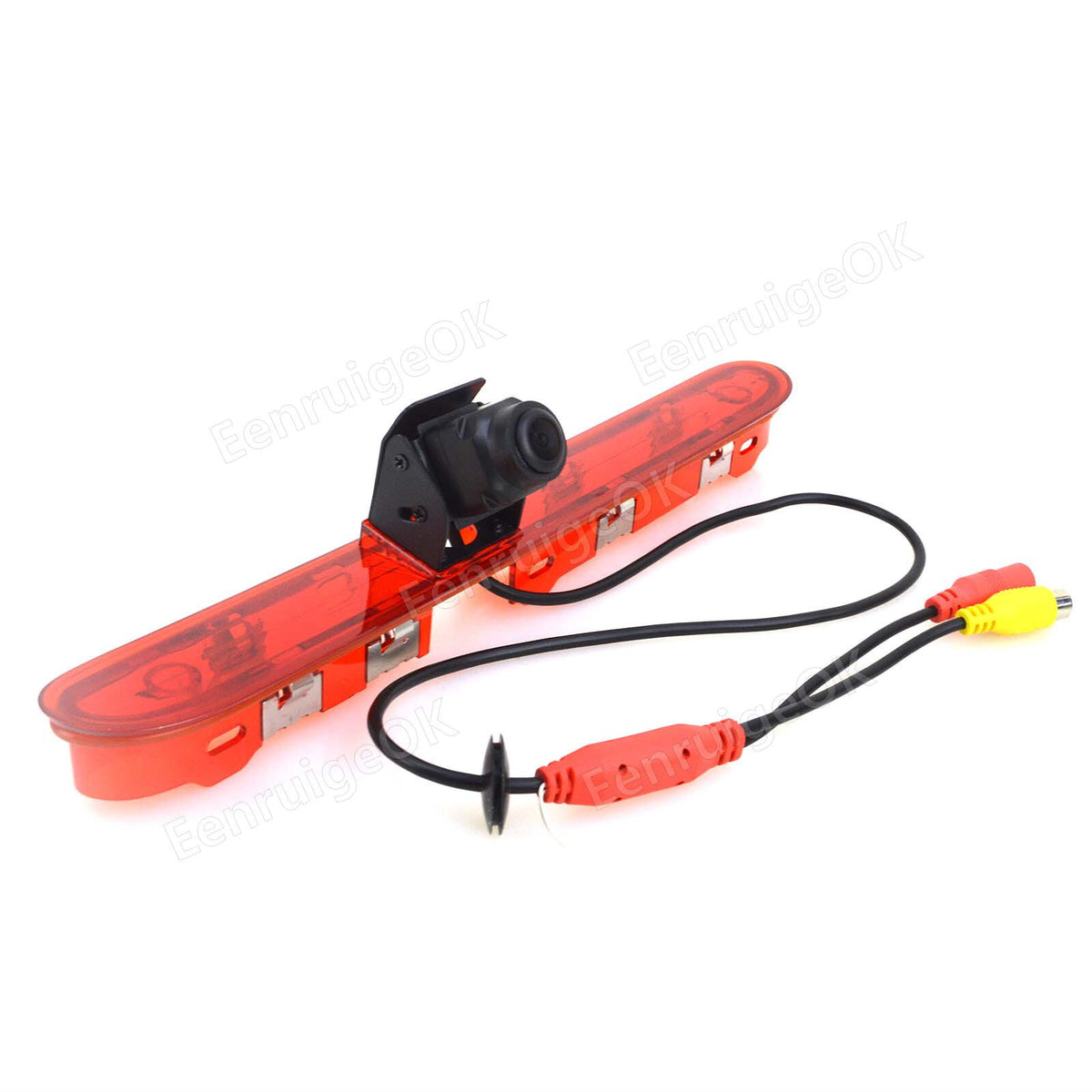

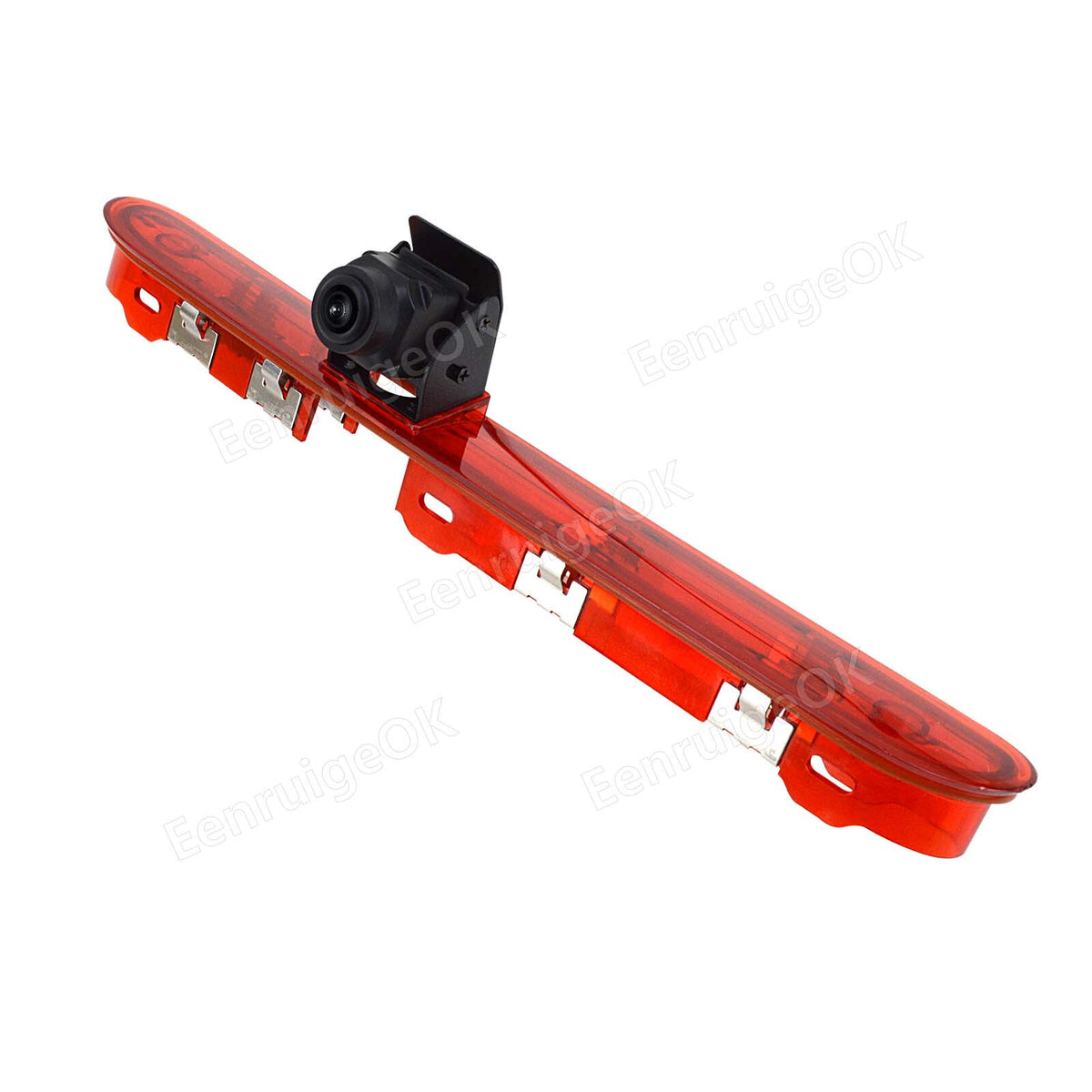

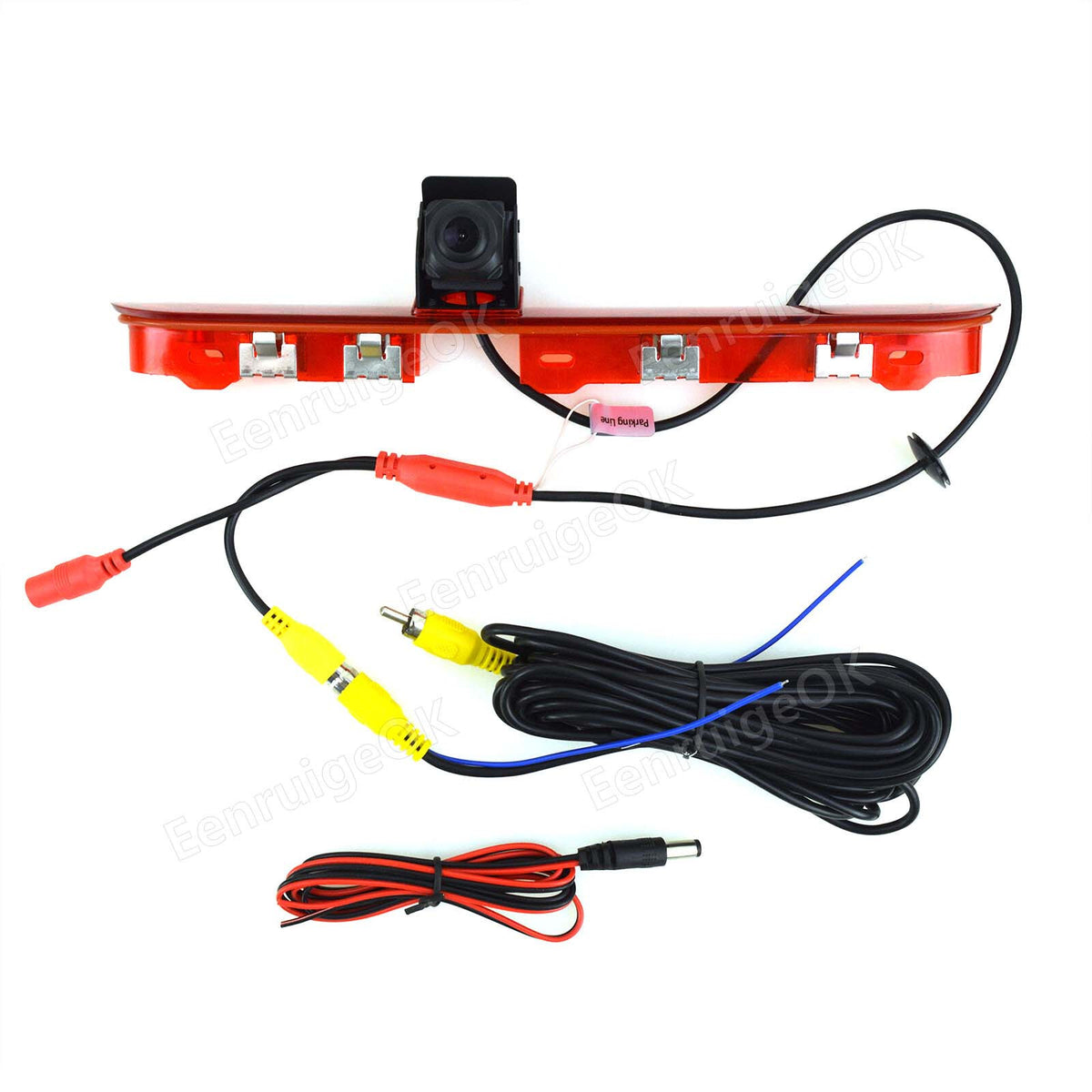

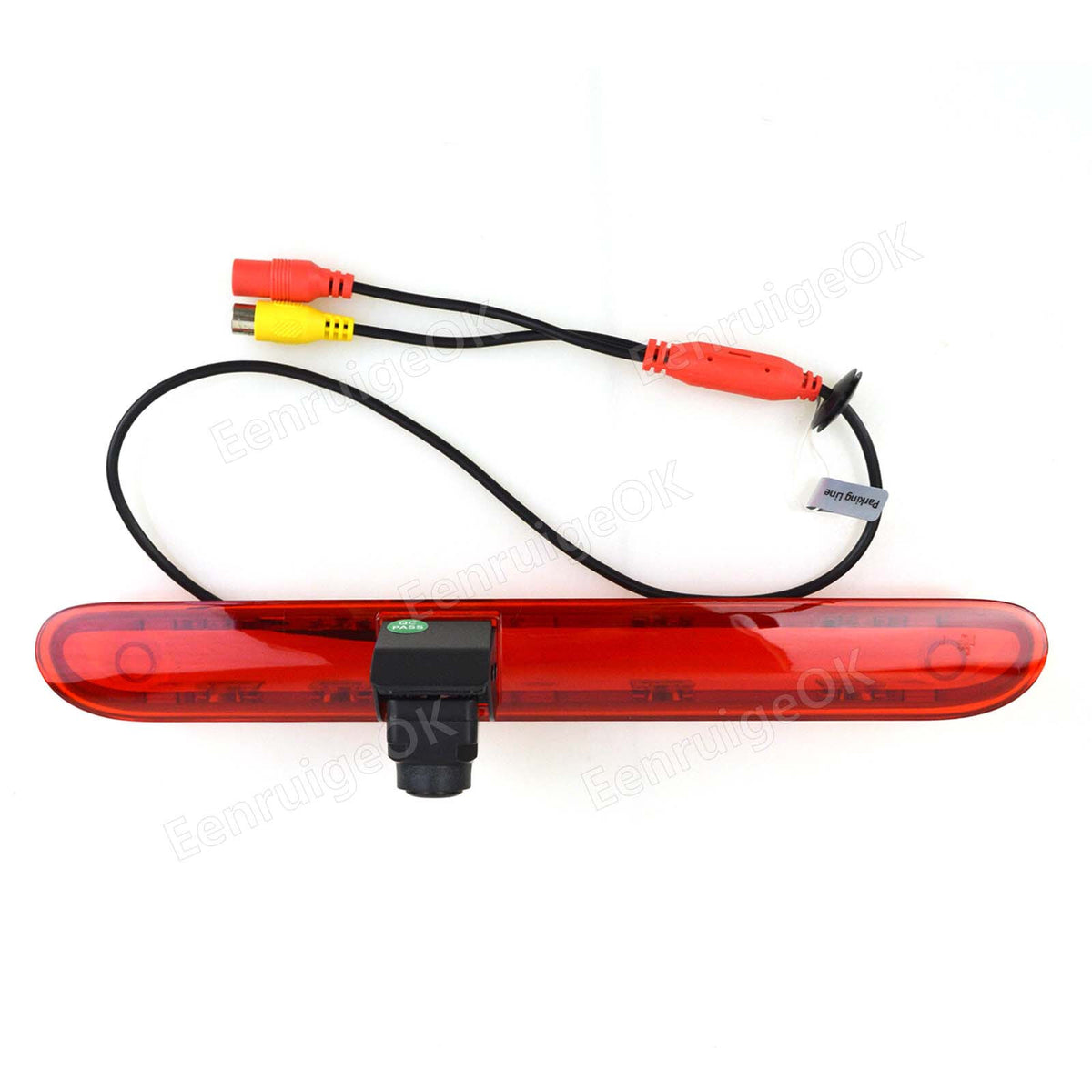

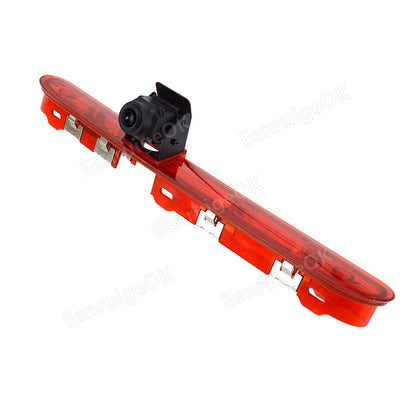

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

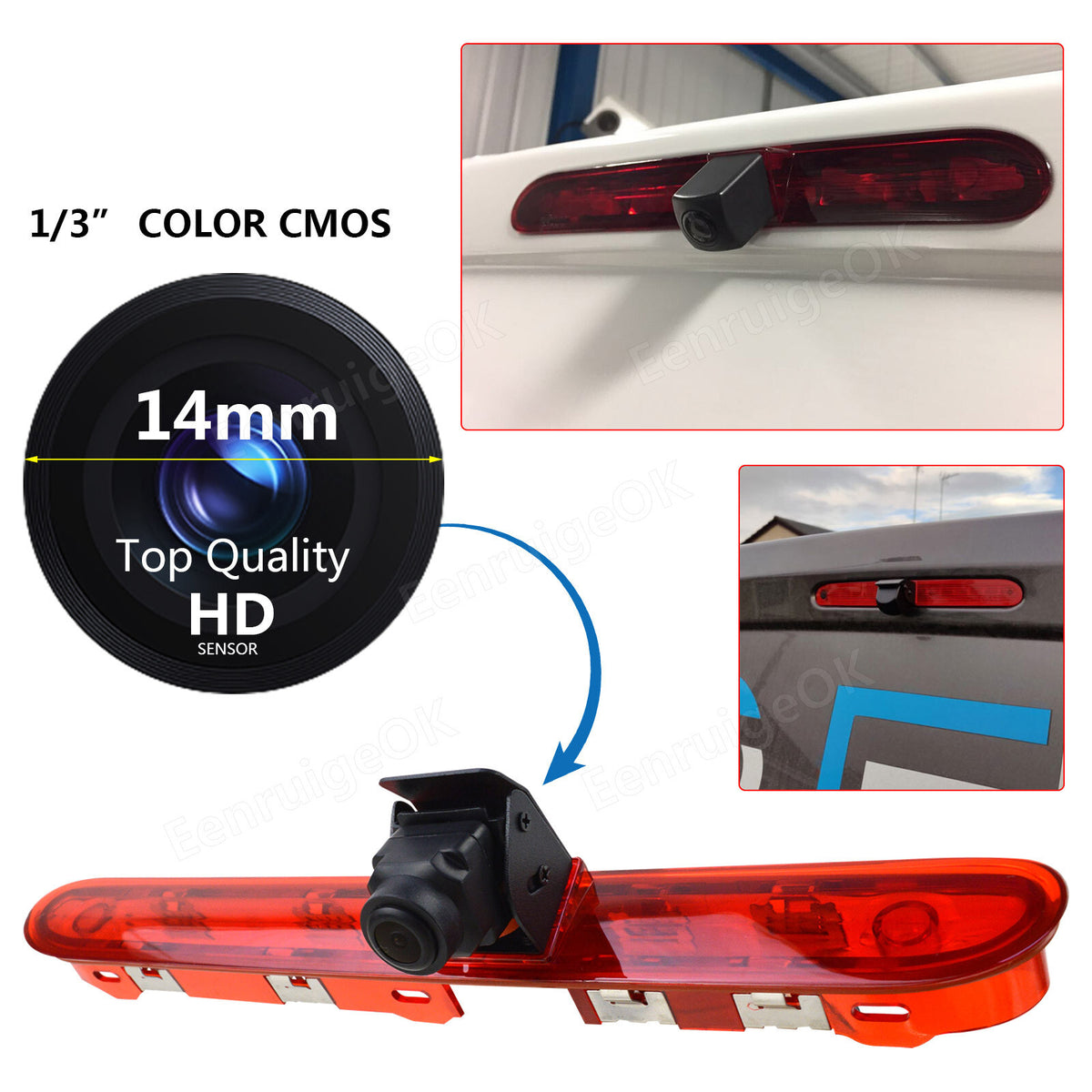

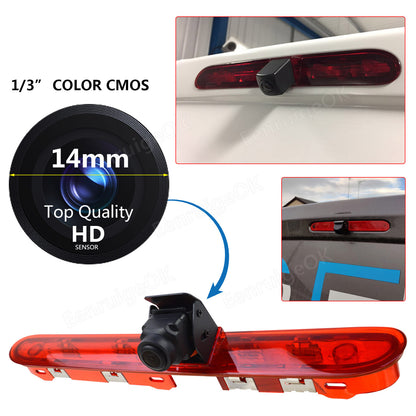

This brake light camera uses a 1/3" CMOS sensor with enhanced color imaging.

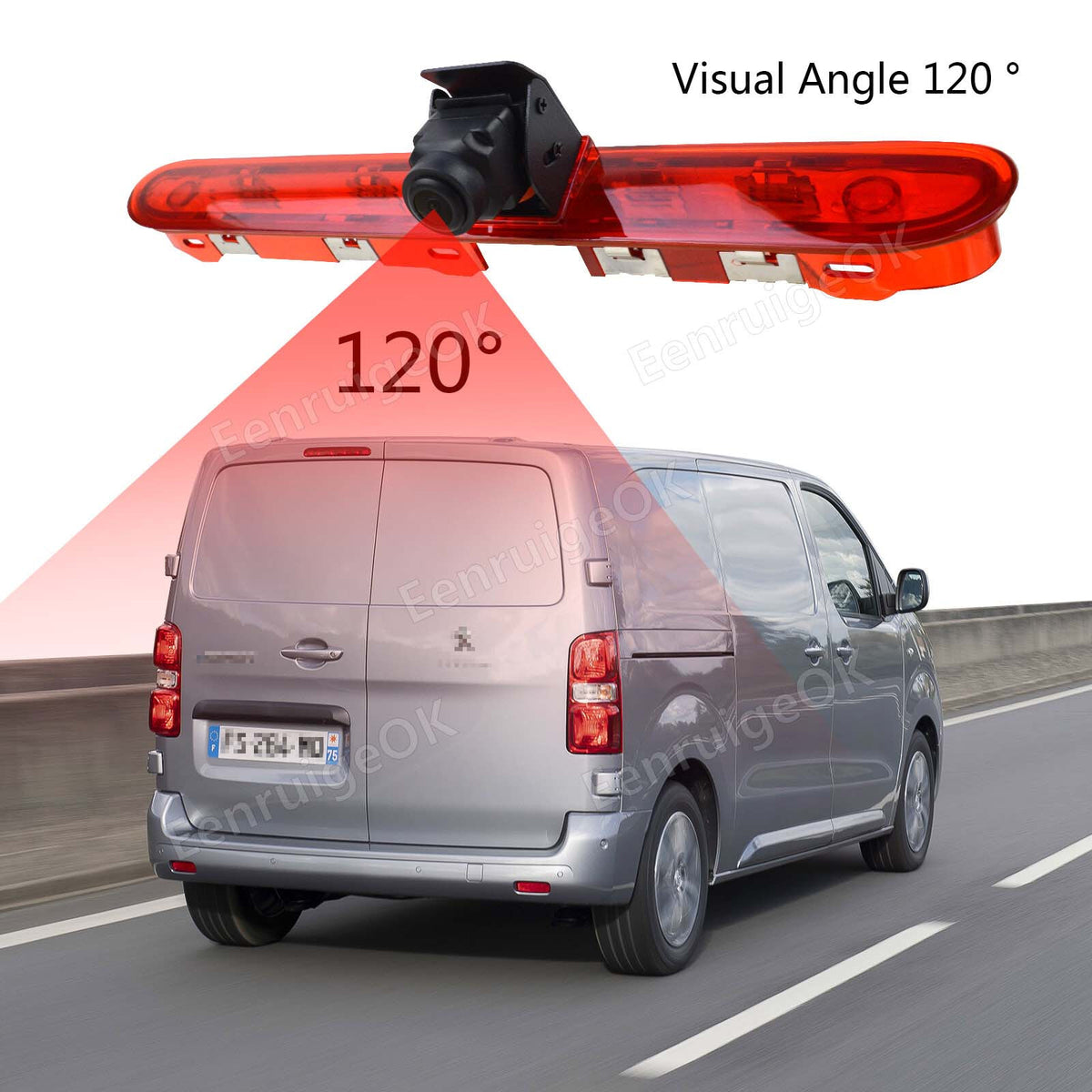

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

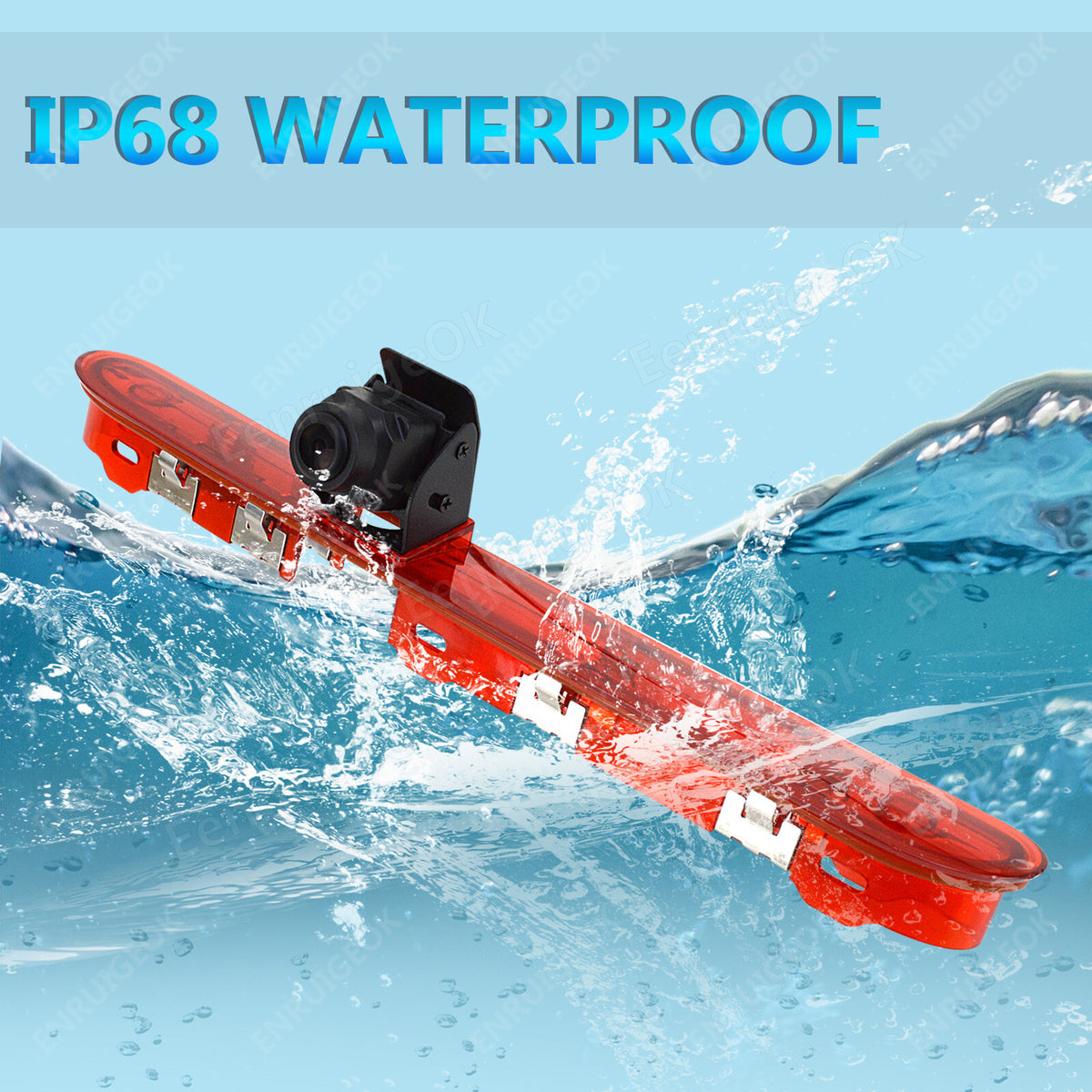

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

The 5" Color IPS display Monitor features 2 video inputs and an 480*272 (RGB) resolution, making it compatible with the brake light rearview camera.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2

Power: DC12V

Operating temperature: -20℃ to +70℃

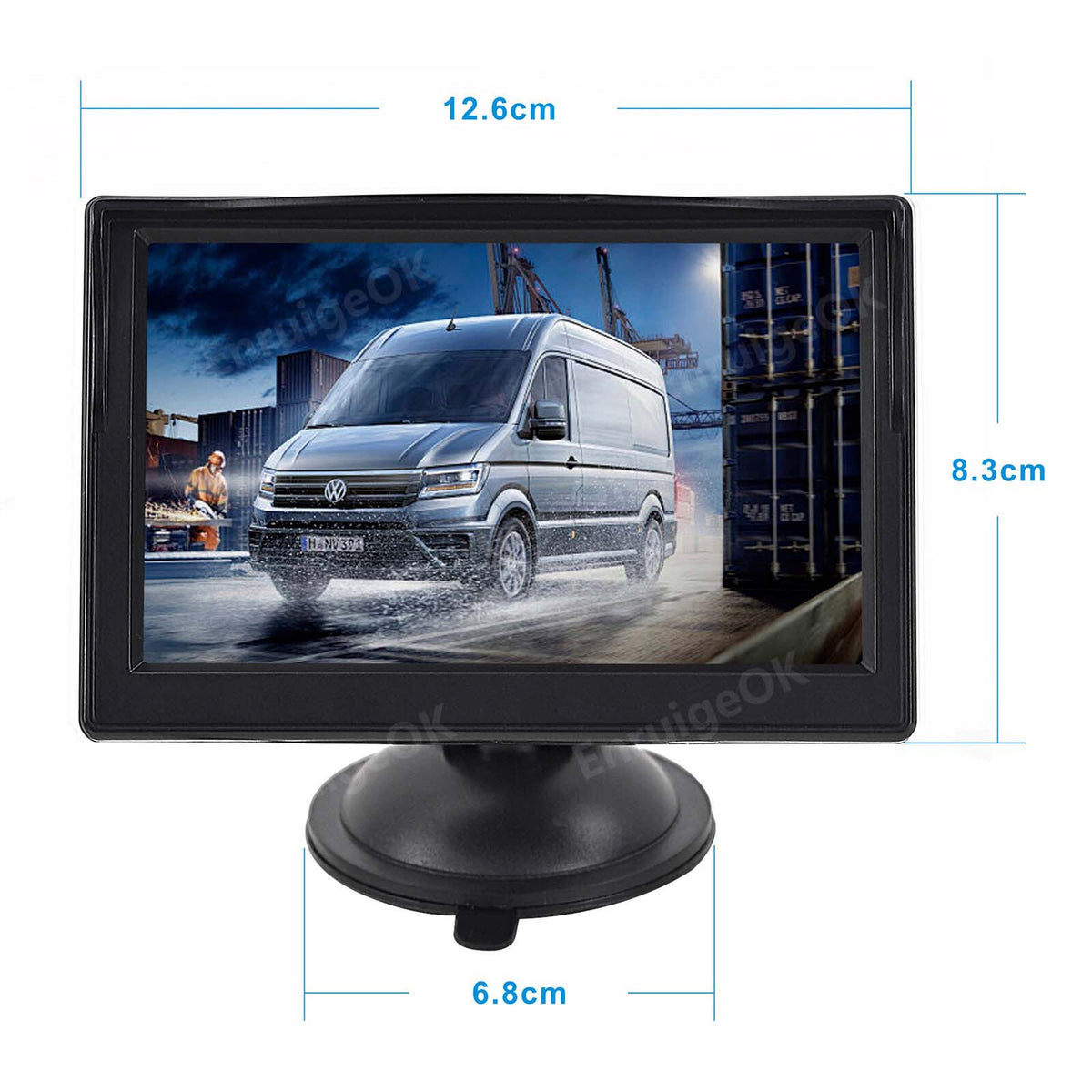

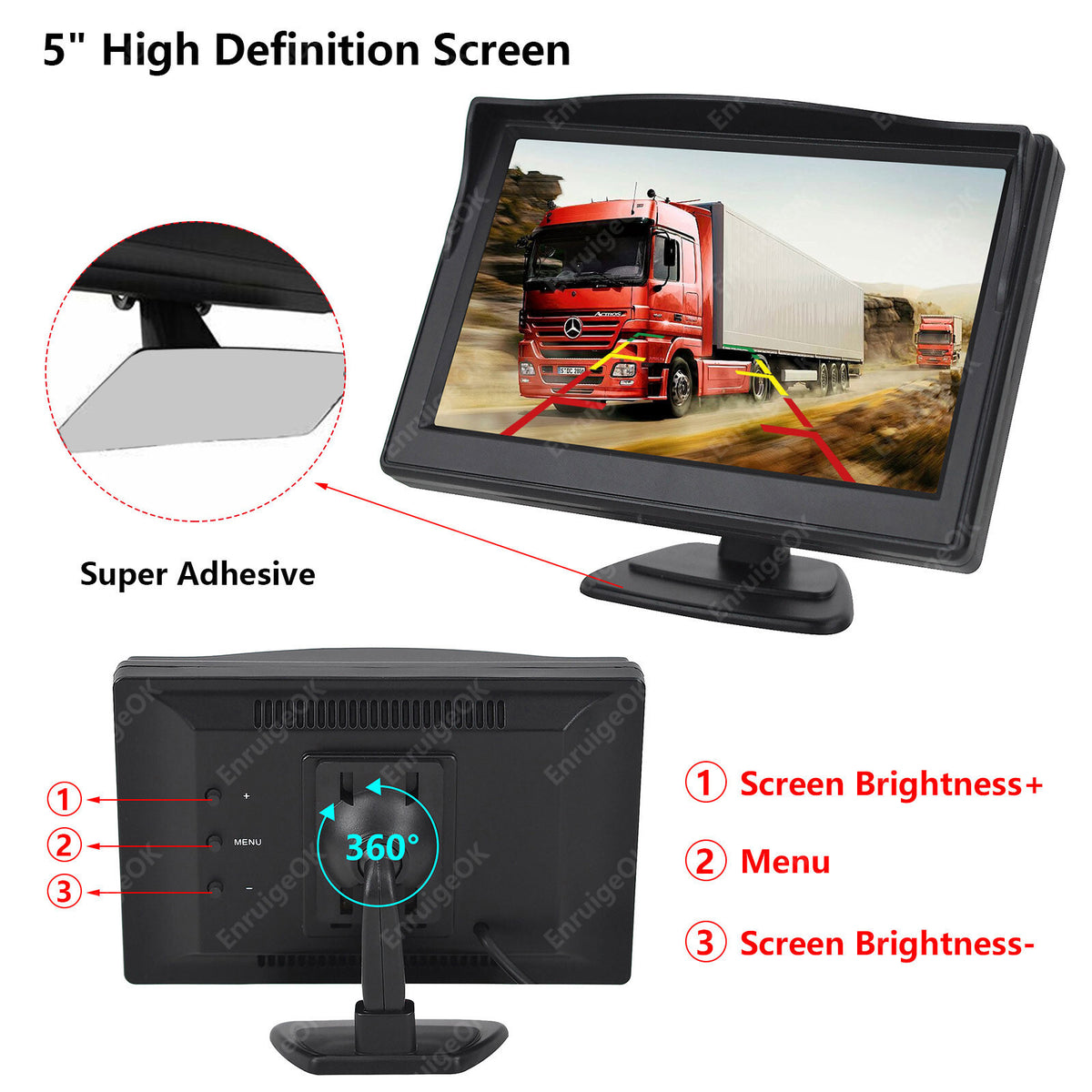

Monitor Specifications

Screen size: 5 inchs

Display format: 4: 3

Resolution: 800*480 IPS

Power supply: DC 12-24V

Video system: NTSC / PAL auto switch

Video Input: Dual video inputs, AV1 and AV2 (For reversing camera), the monitor will continuously display the rear view camera image.

With menu button, brightness/contrast/saturation adjustable.

Blue screen displayed when no signal is detected.

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
