Rear Brake Light Reversing Camera Kit for Vauxhall Vivaro Renault Trafic Mk3 X82

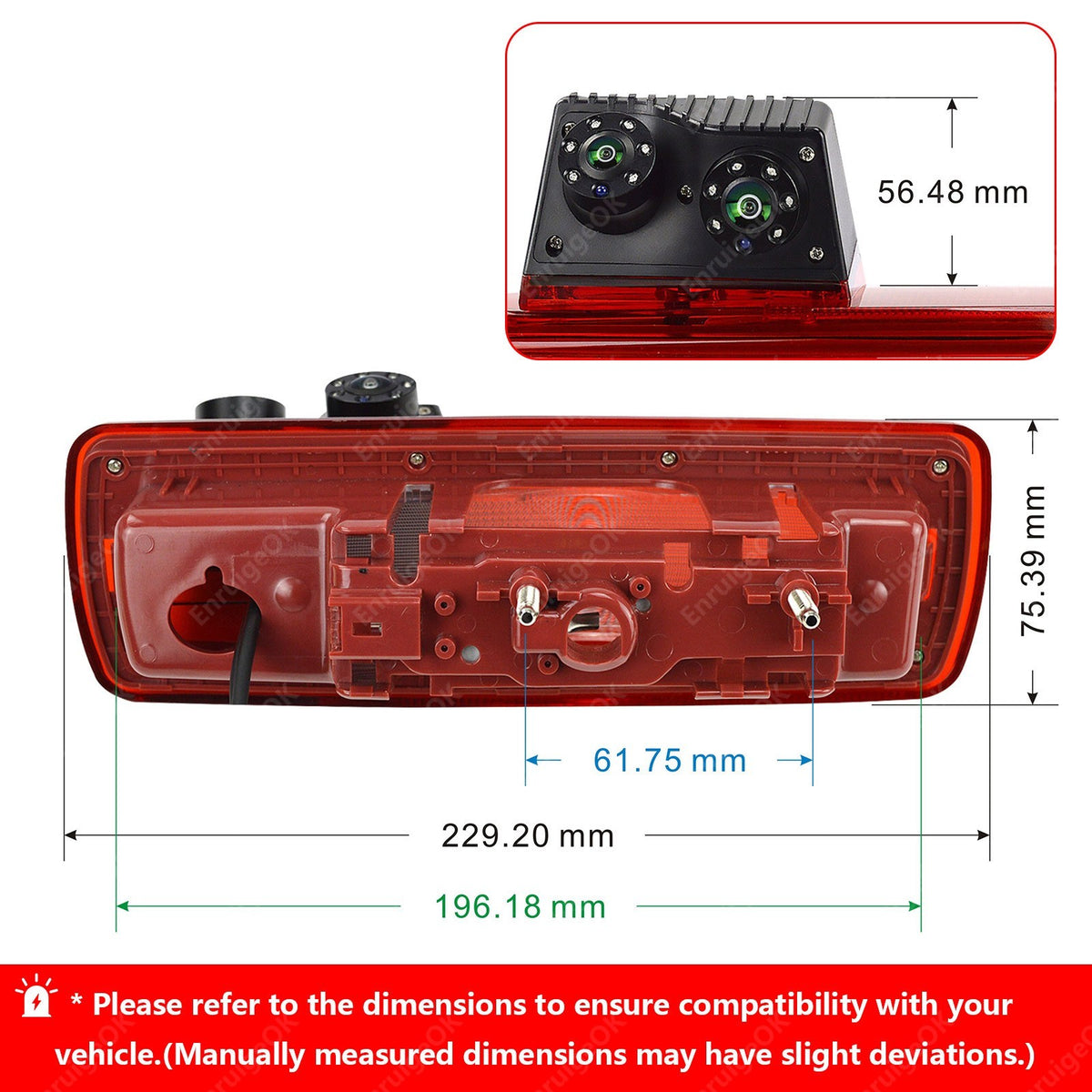

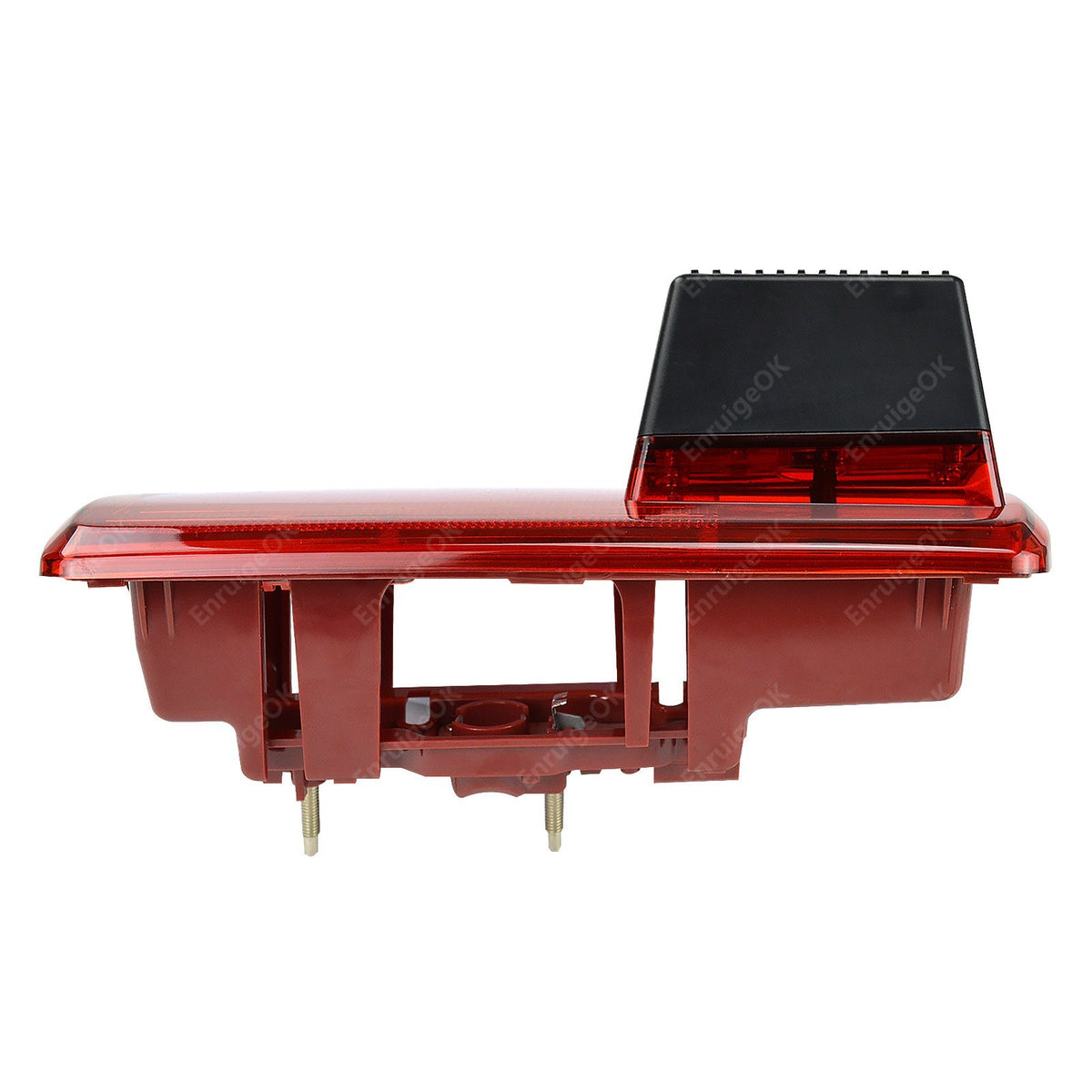

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

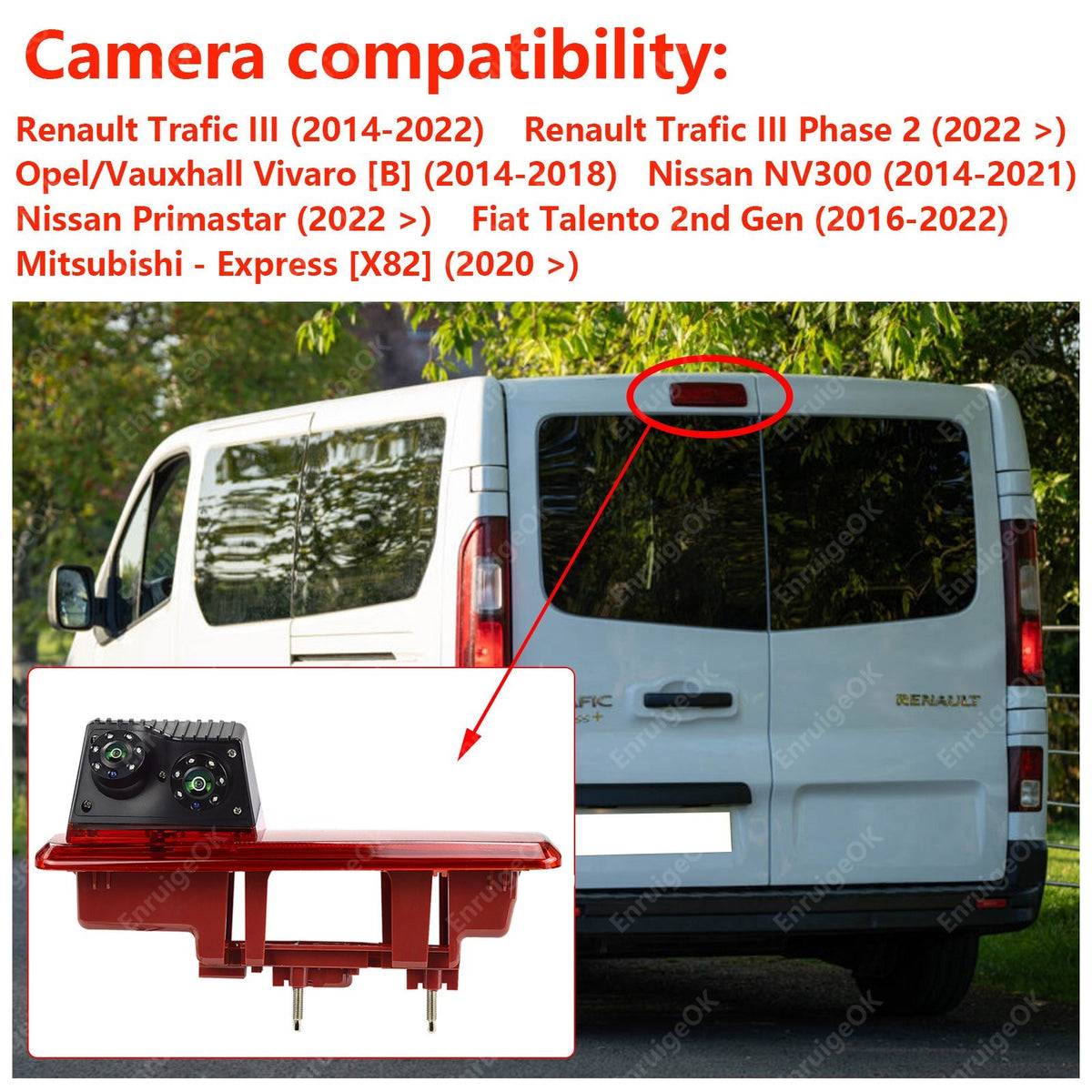

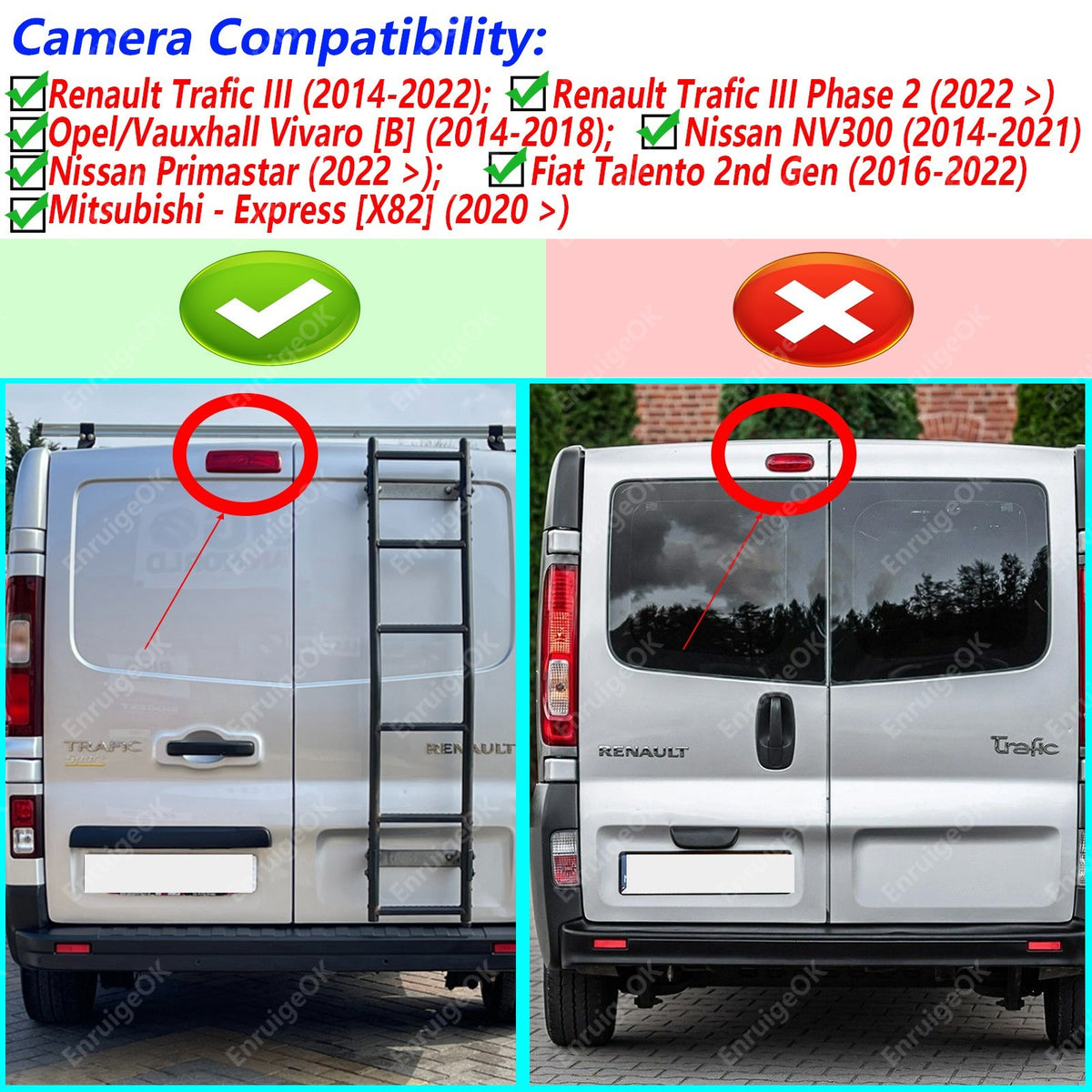

Camera Compatibility

✅Renault Trafic III (2014-2022)

✅Renault Trafic III Phase 2 (2022 >)

✅Vauxhall/Opel Vivaro [B] (2014-2018)

✅Nissan NV300 (2014-2021)

✅Nissan Primastar (2022 >)

✅Fiat Talento 2nd Gen (2016-2022)

✅Mitsubishi - Express [X82] (2020 >)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

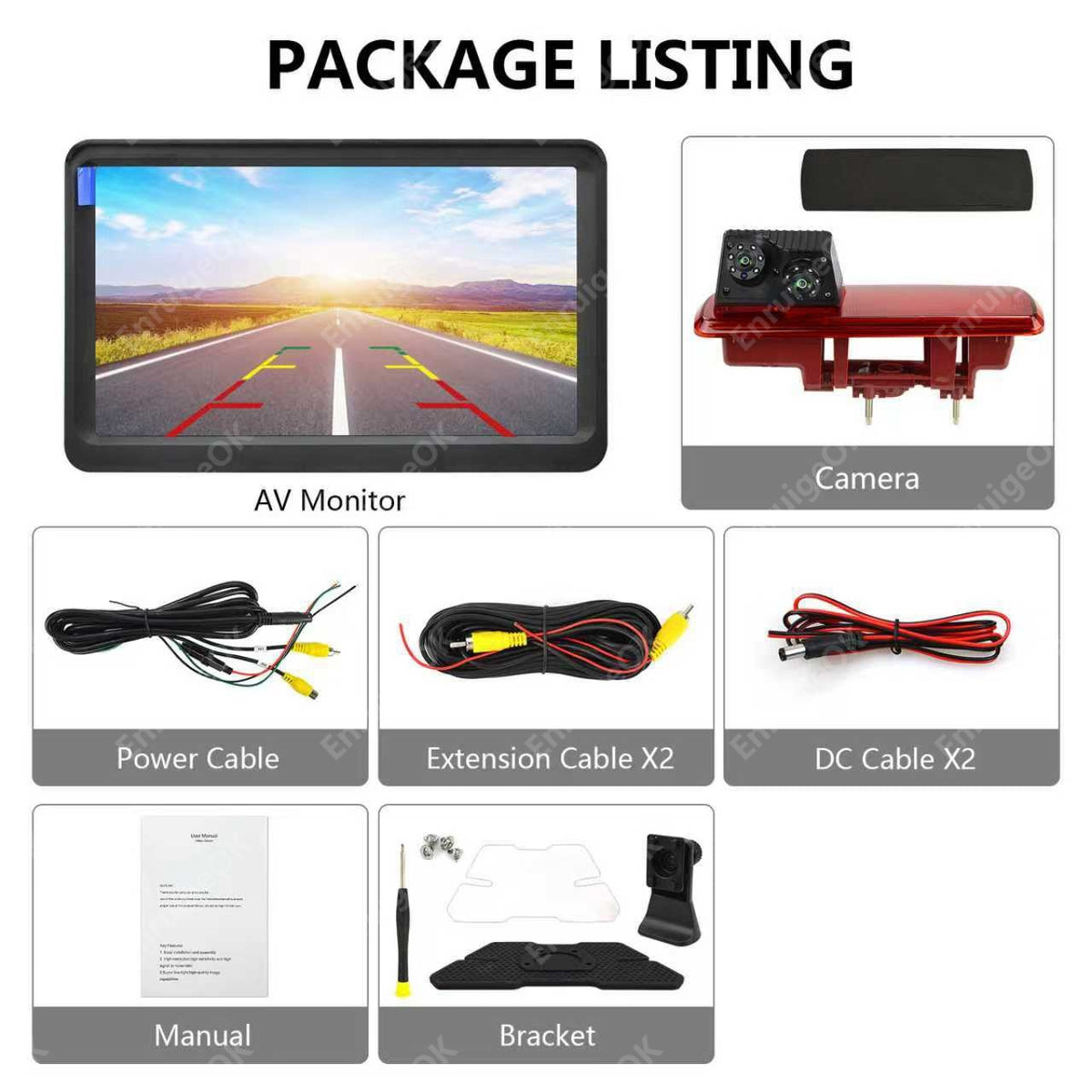

Package contents

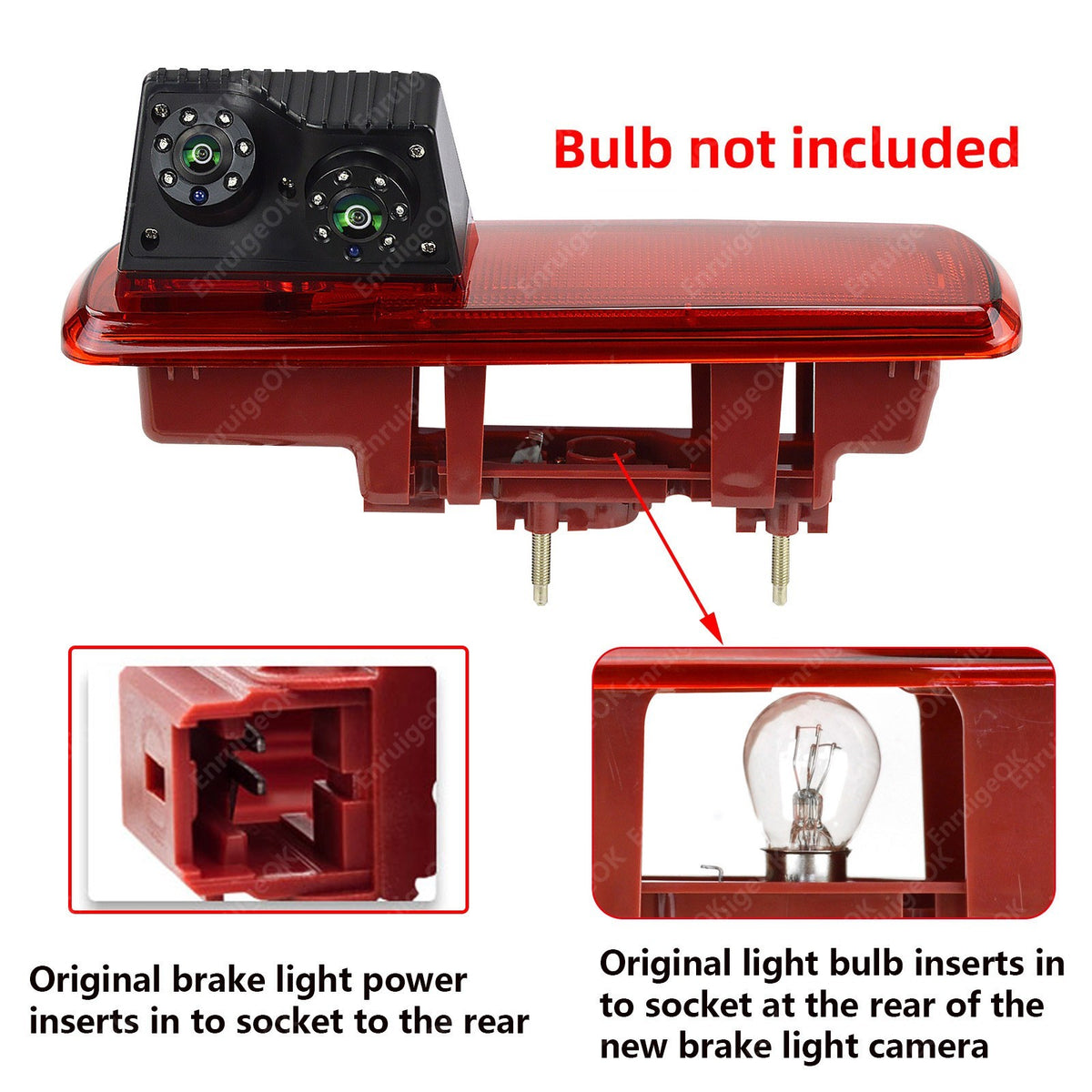

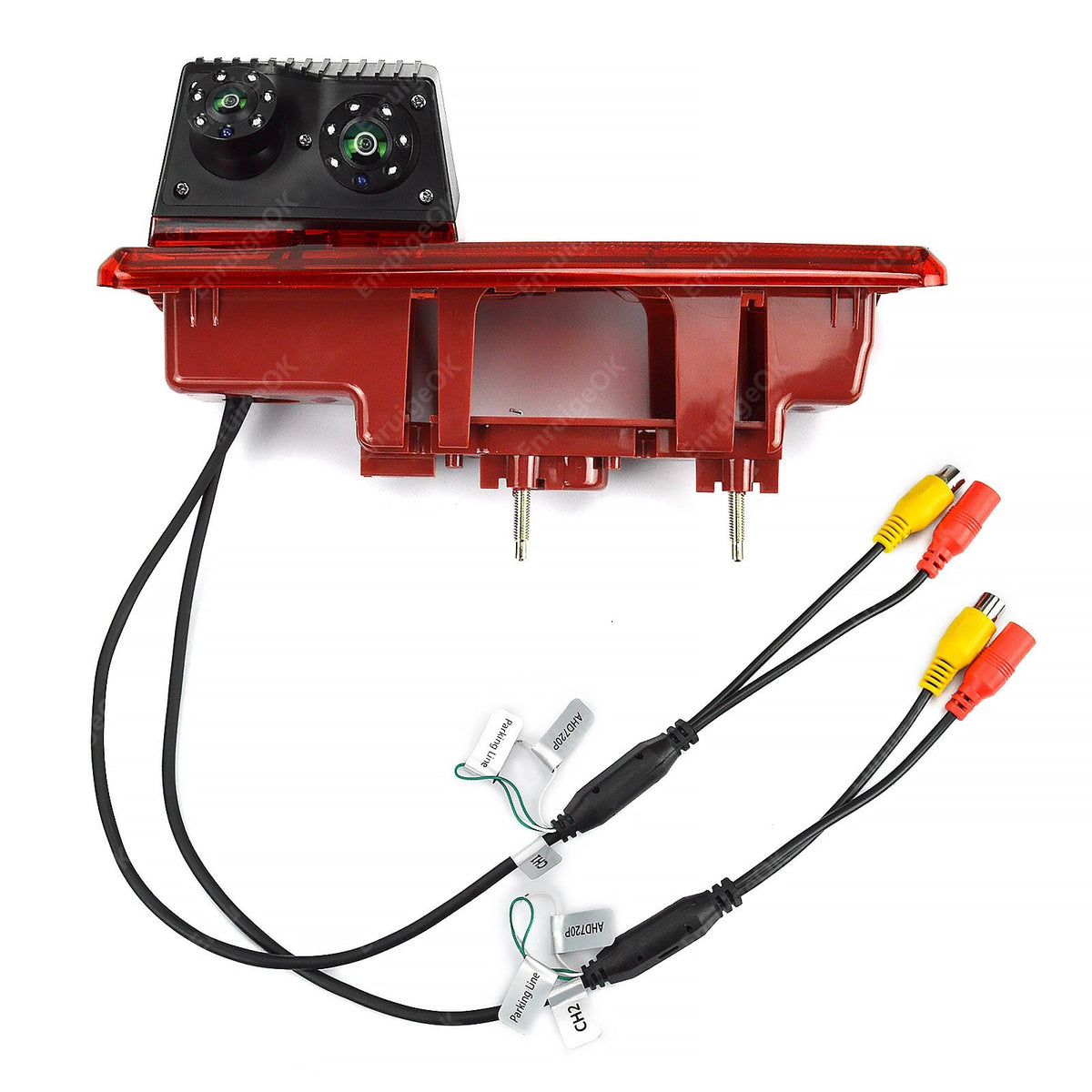

1 X Dual rear brake light reversing camera

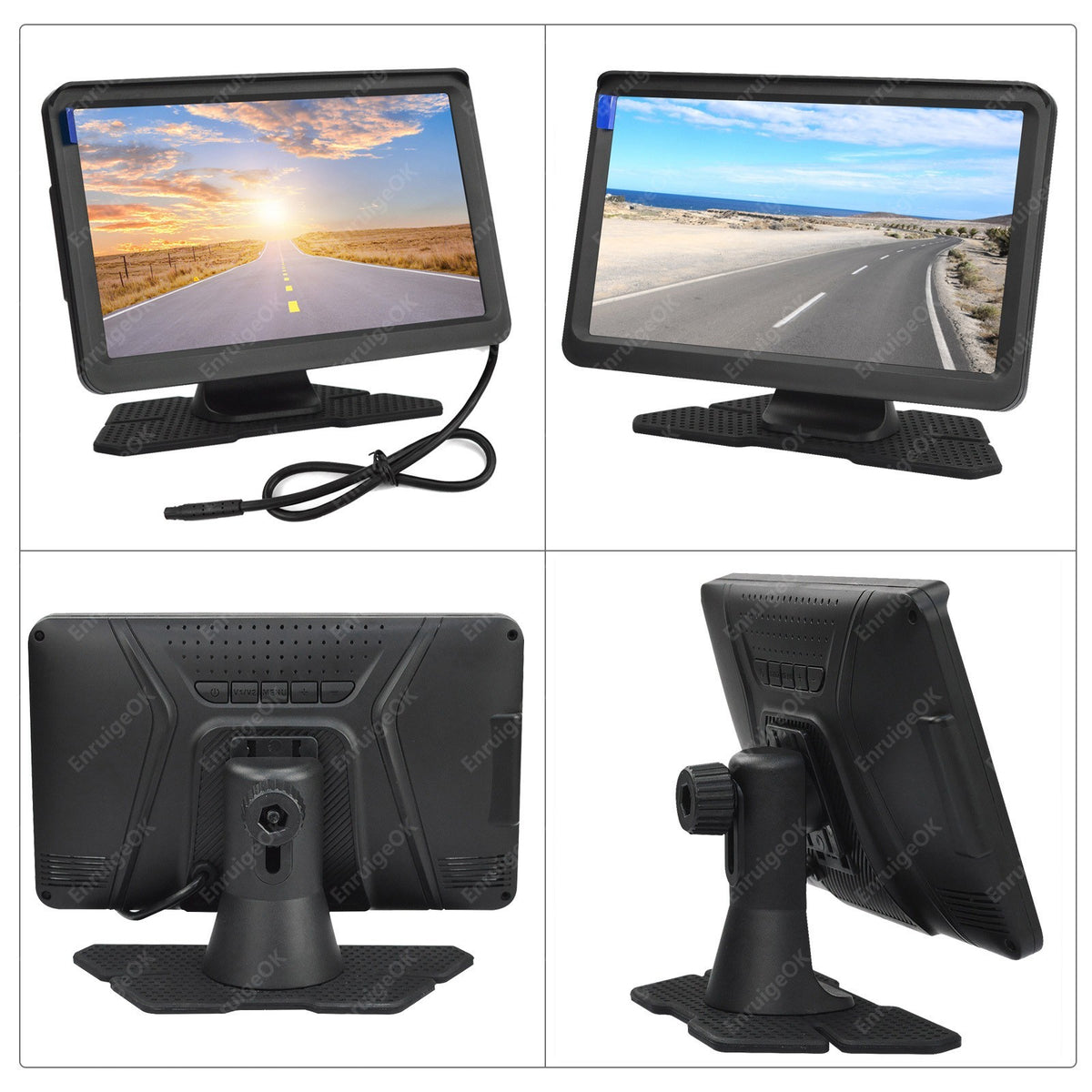

1 X 7'' HD monitor

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC Power cable

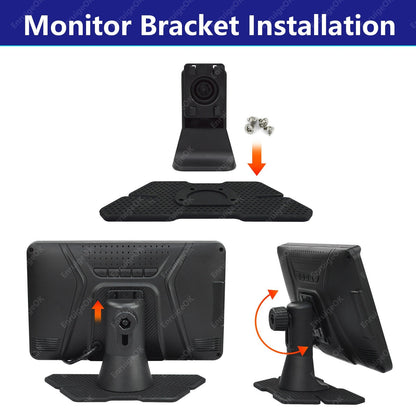

1 X Bracket

1 X Manual

Description

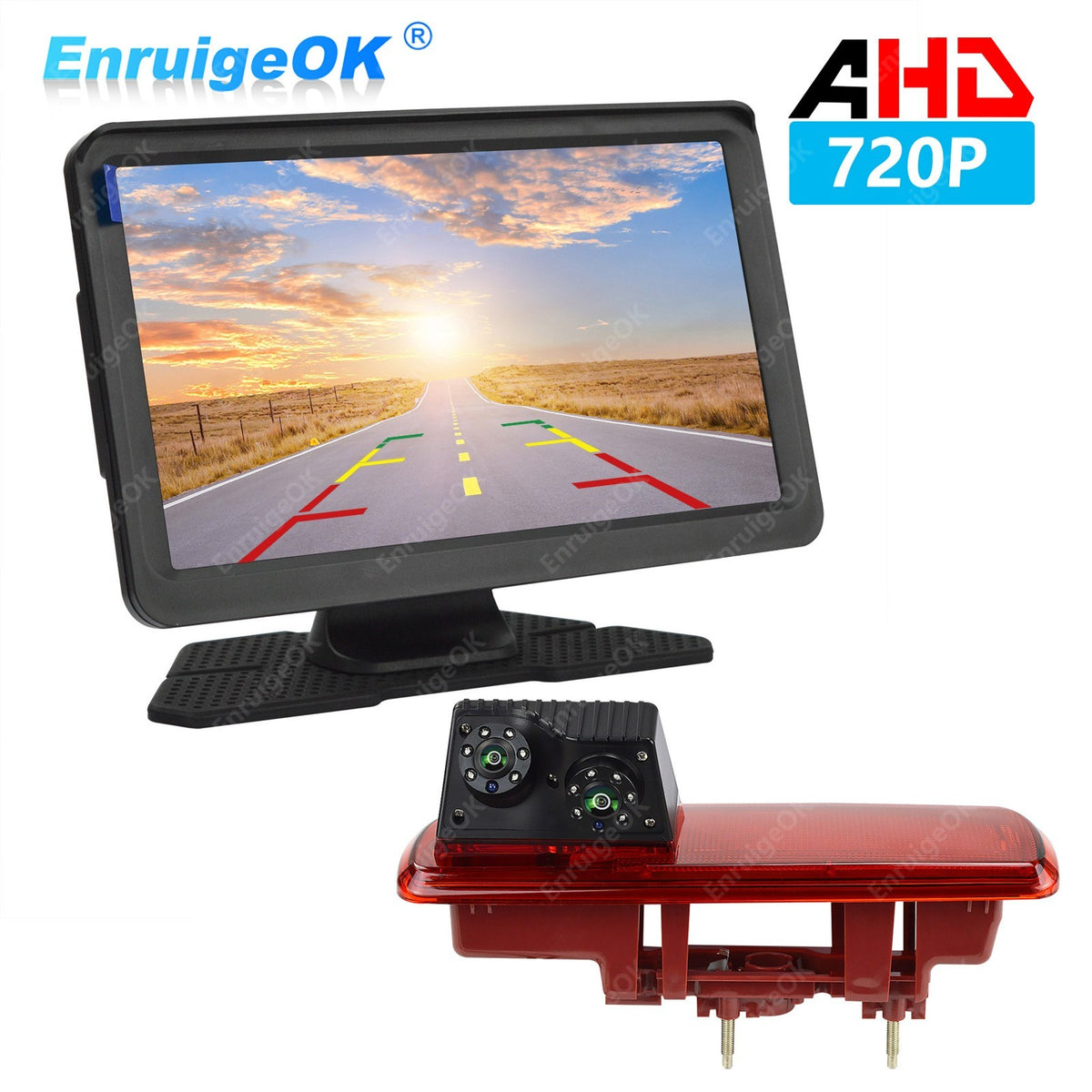

Complete Parking Aid: Includes a dual-lens reversing camera and a 7" TFT-LCD HD monitor. The monitor displays rear camera footage while reversing, ensuring safer parking.

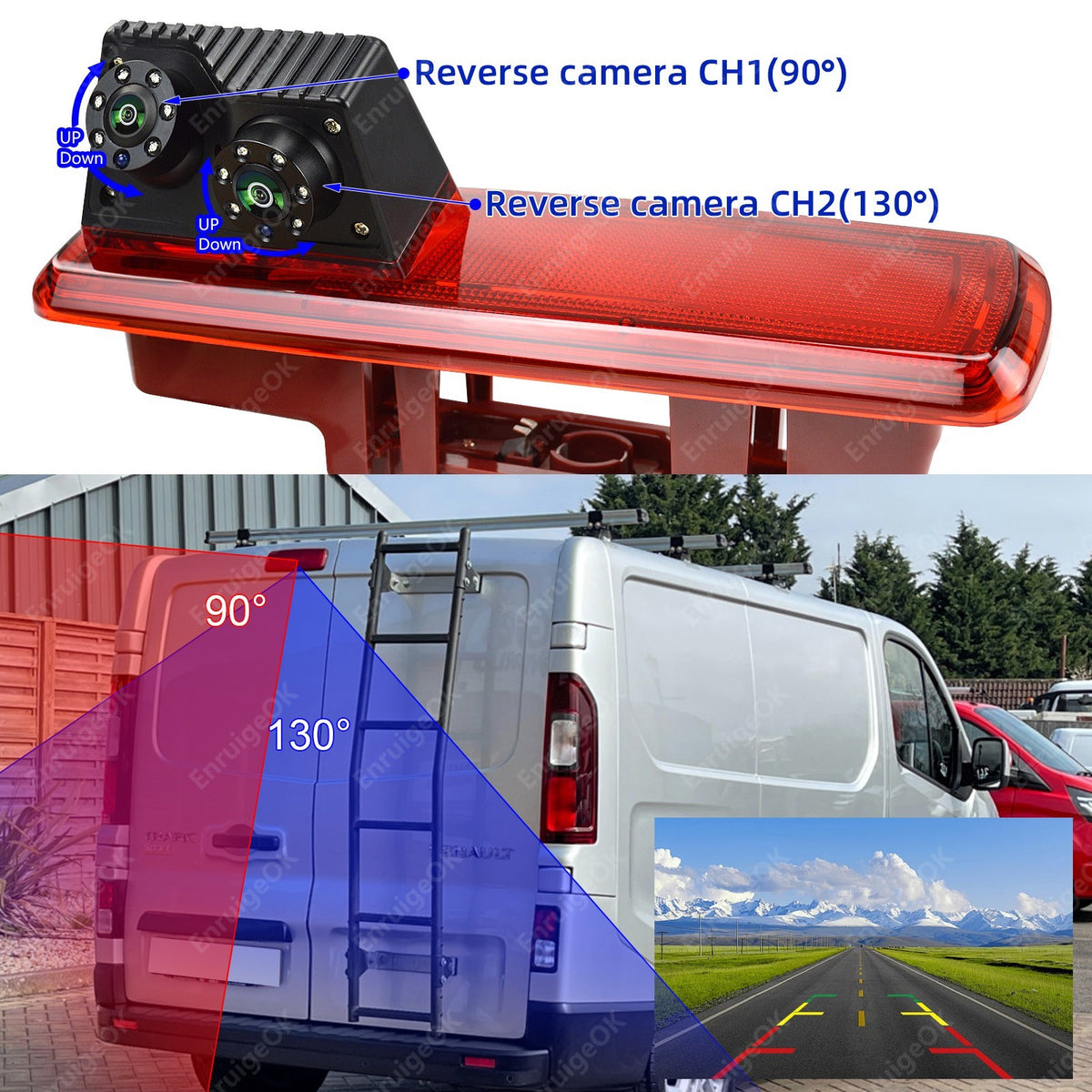

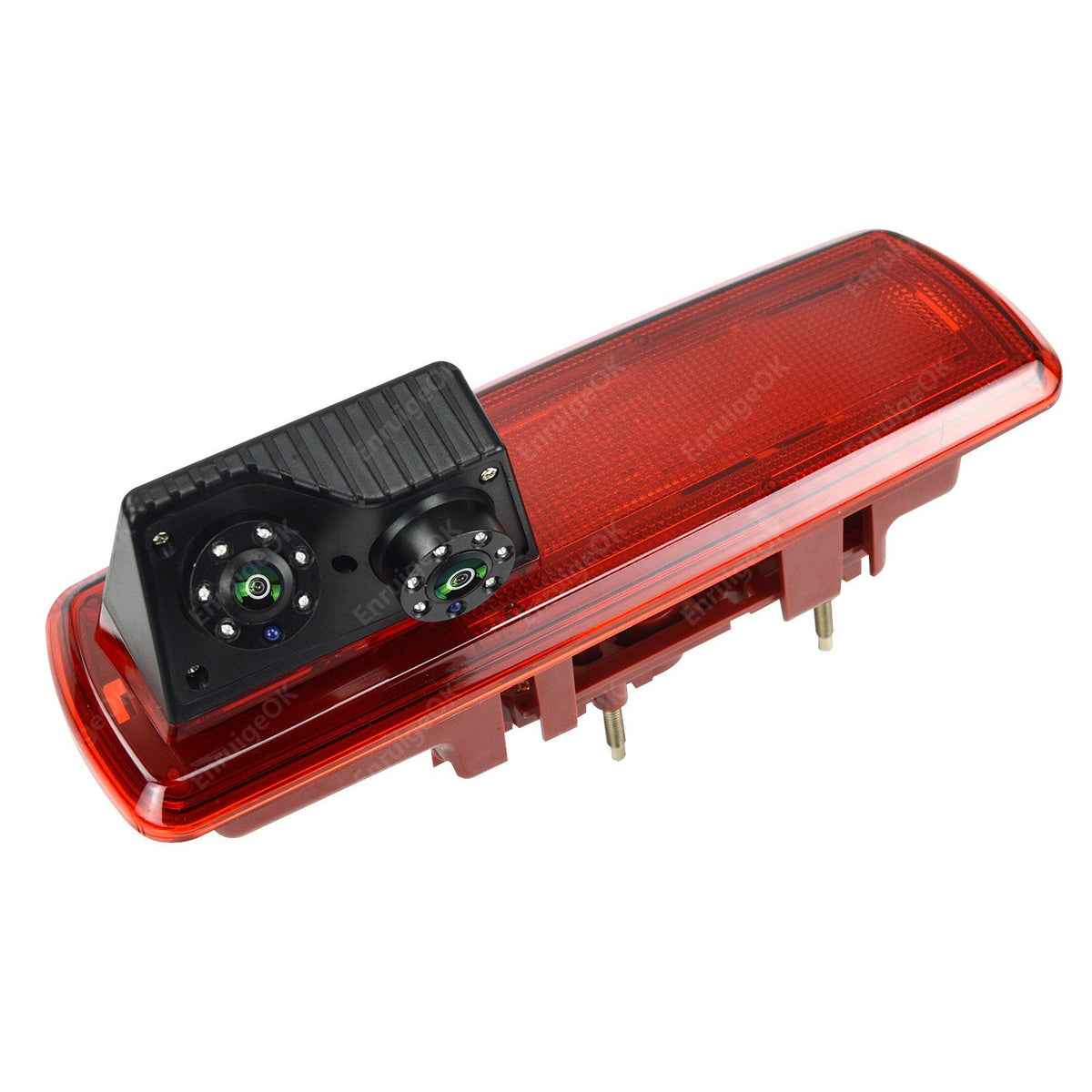

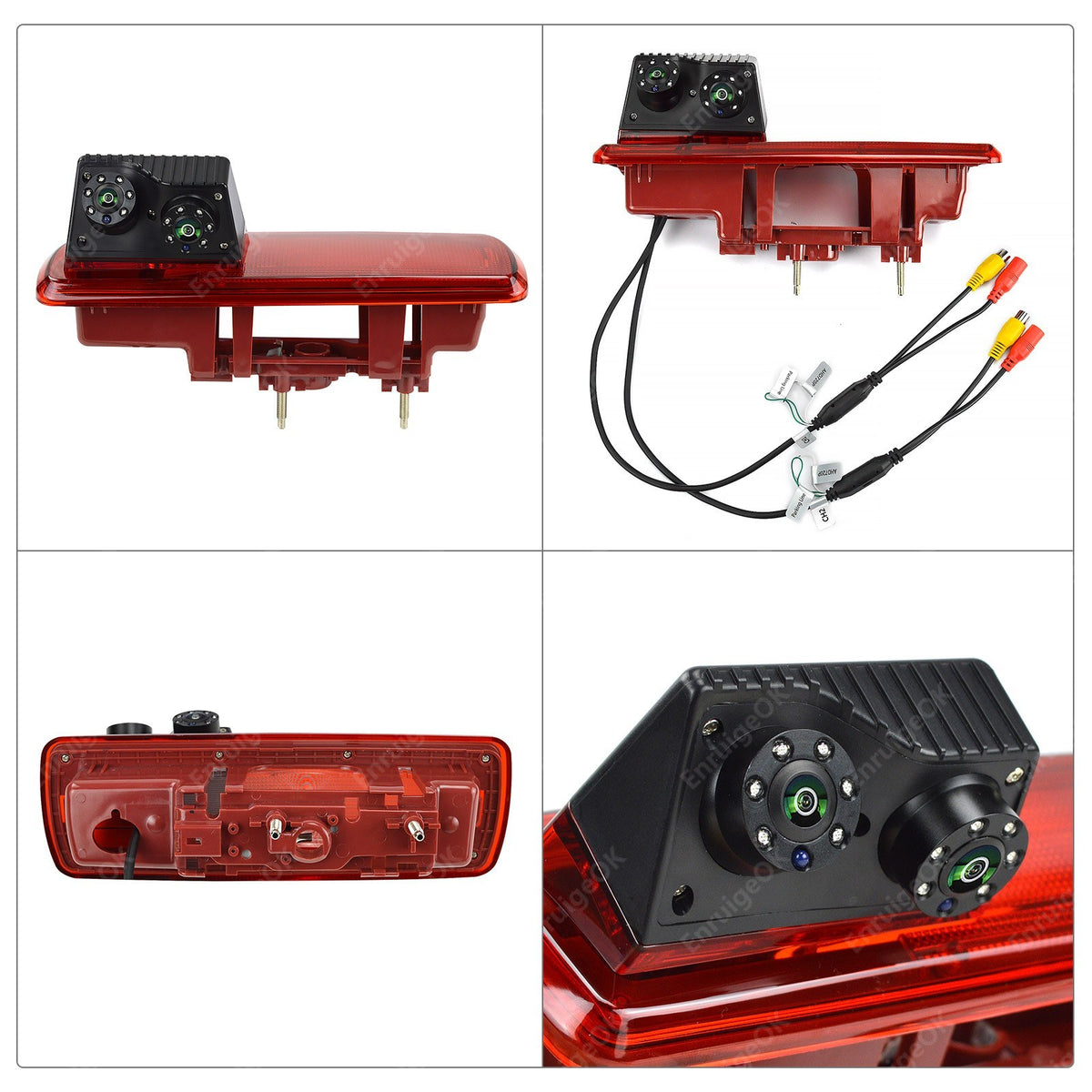

TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving(AV1), one for reversing view while parking(AV2).

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 12 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

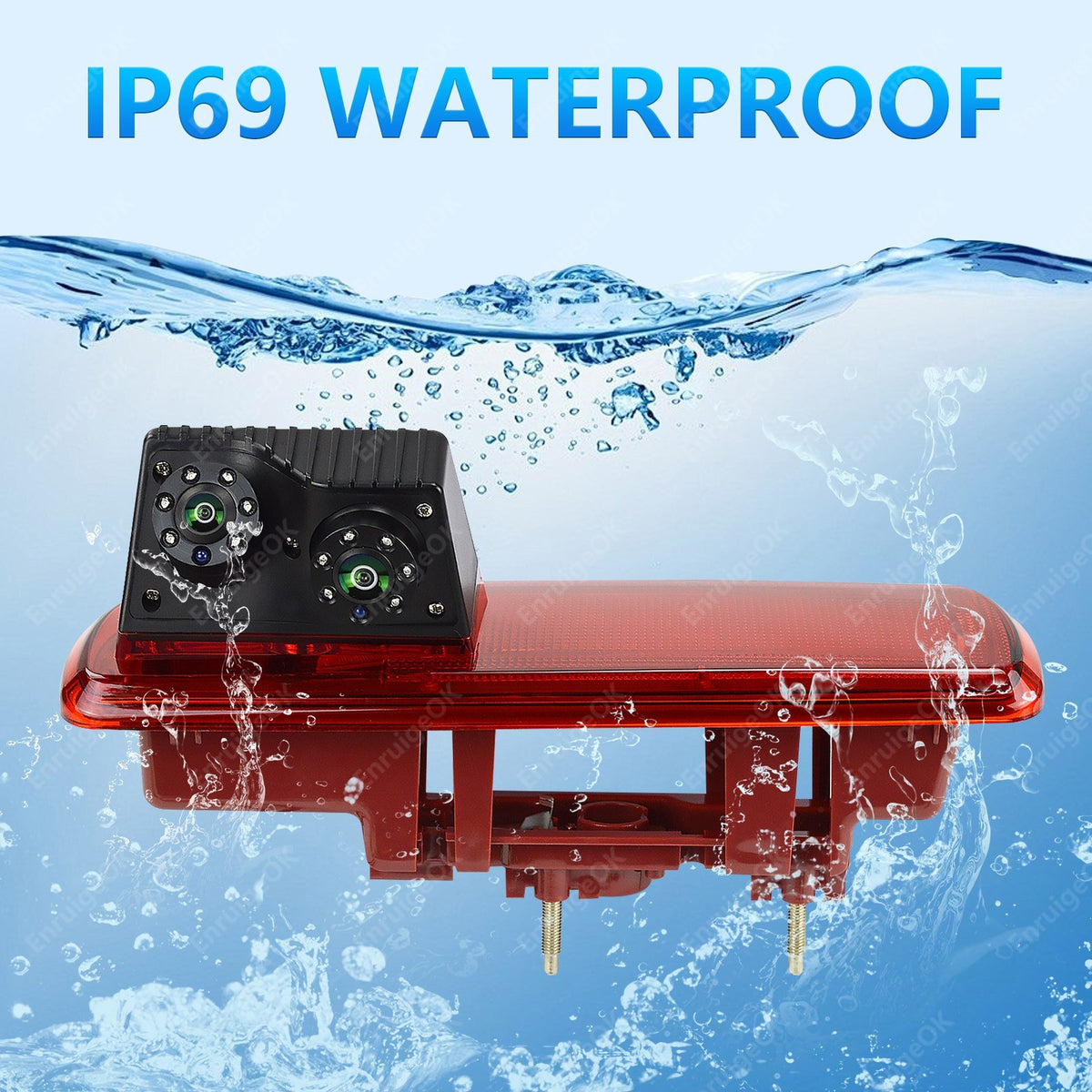

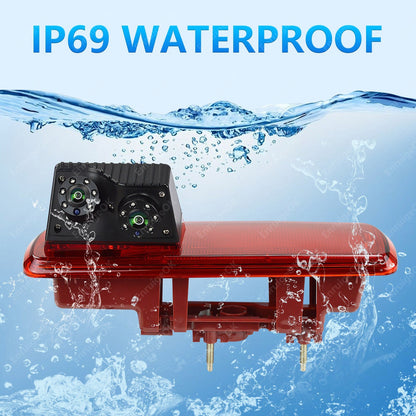

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: CMOS sensor

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal angle: 130°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +70℃

Monitor Specifications

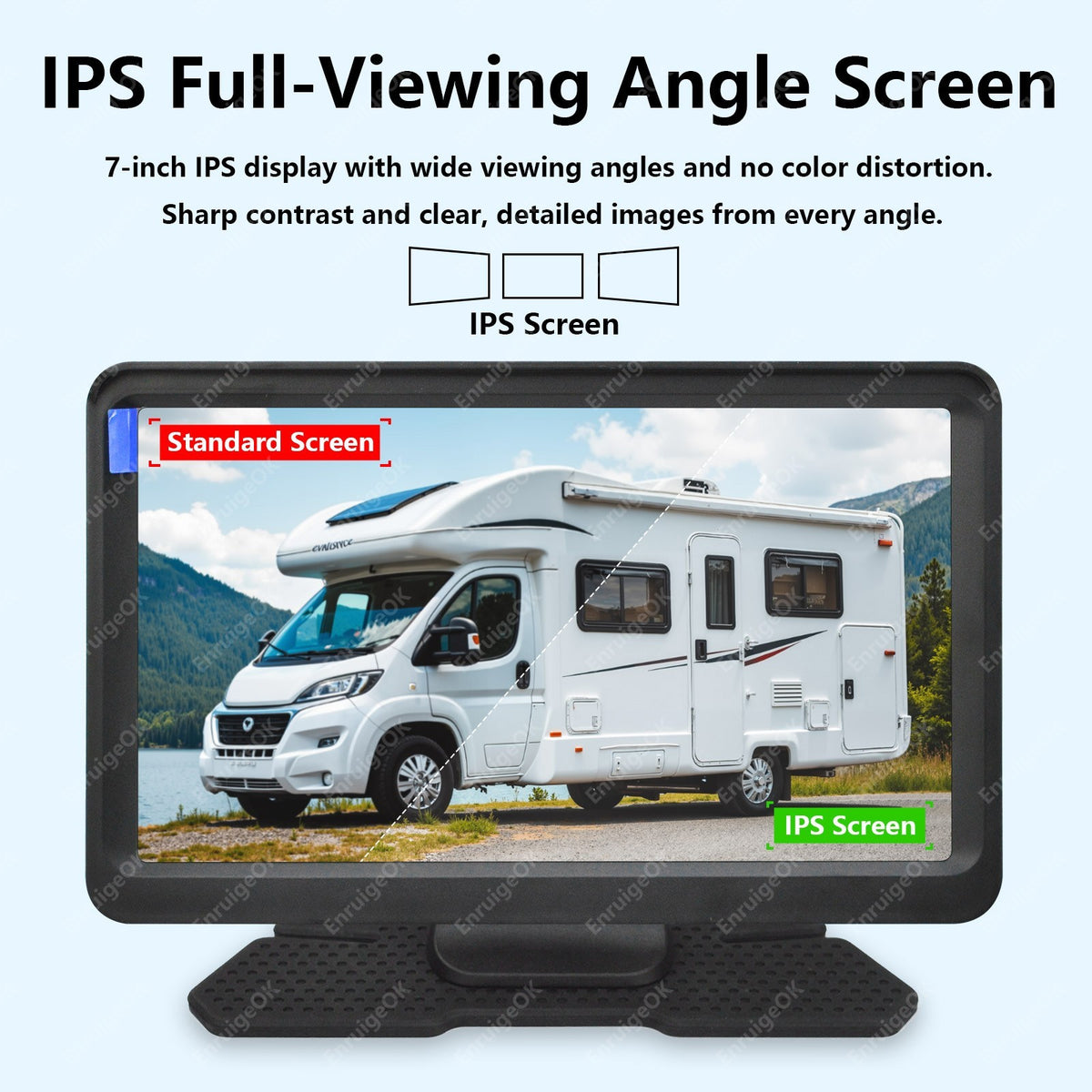

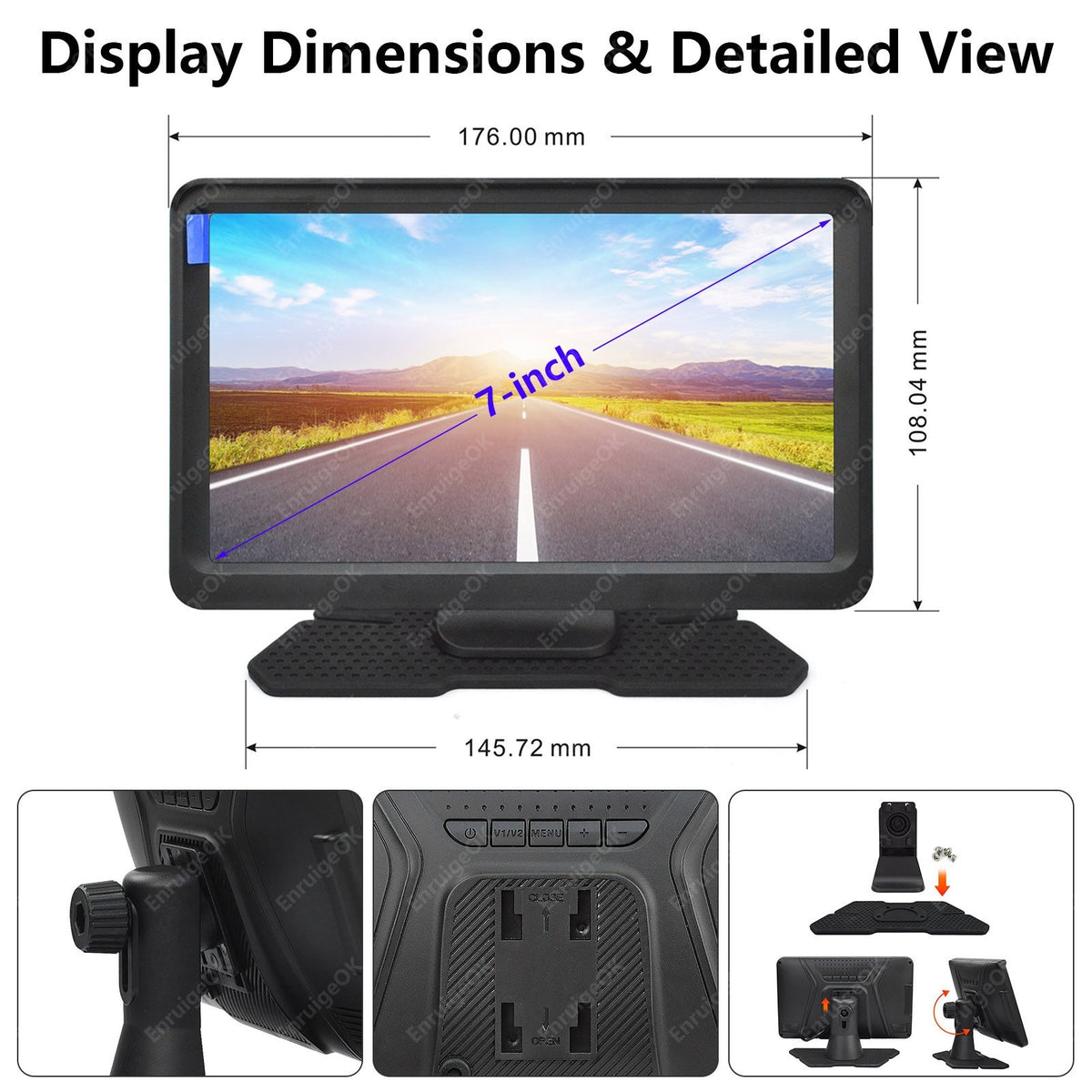

Display: 7-inch IPS display screen, 1024(RGB)x600 resolution

Aspect Ratio: 16:9 / 4:3 adjustable

TV System: PAL / NTSC auto-switching

Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

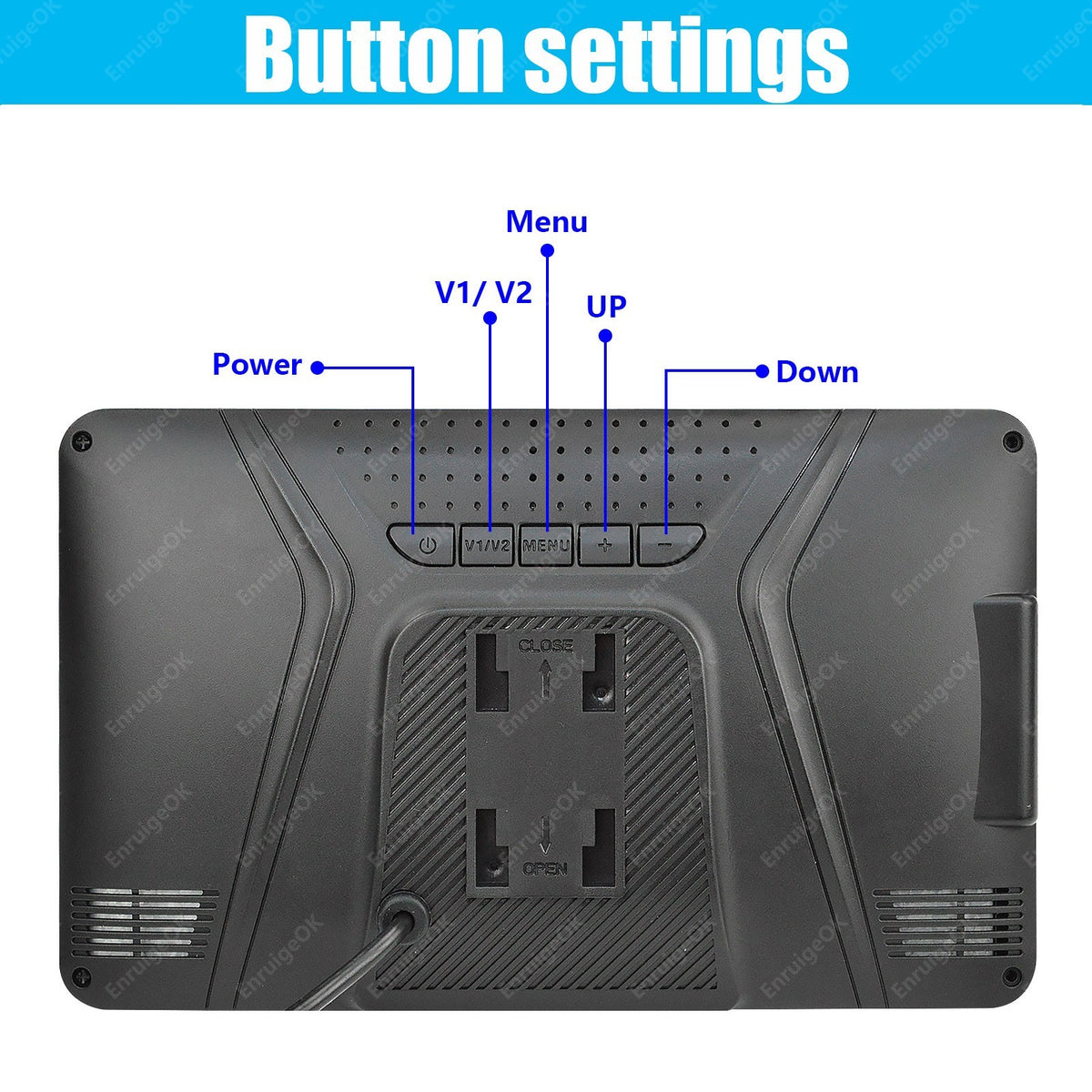

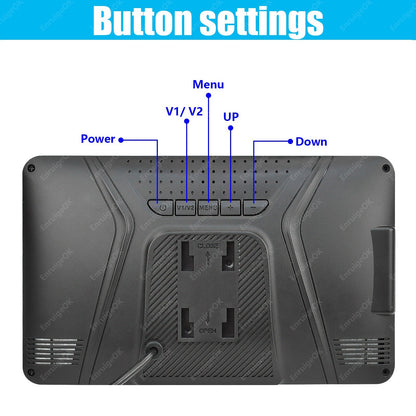

Image Modes: Normal / Day / Night / Vivid, switchable via +/- buttons

Mirror Function: Mirror/Original image selectable (ON/OFF)

Parking Guidelines: Ruler lines adjustable (ON/OFF) via menu

Reverse Delay: Adjustable delay after reversing (0–15 seconds)

Menu Settings: Brightness, Contrast, Saturation

Rear View Adjustments: Left/right image flip available

No Signal: Blue screen when no video input is detected

Power Supply: DC 9V–35V

OSD Language Options: English, Simplified Chinese, Traditional Chinese, Japanese, French, German, Korean, Russian

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
