Rear Brake Light Reversing Camera For Nissan NV200 Chevrolet City Express HD720P

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

For use with

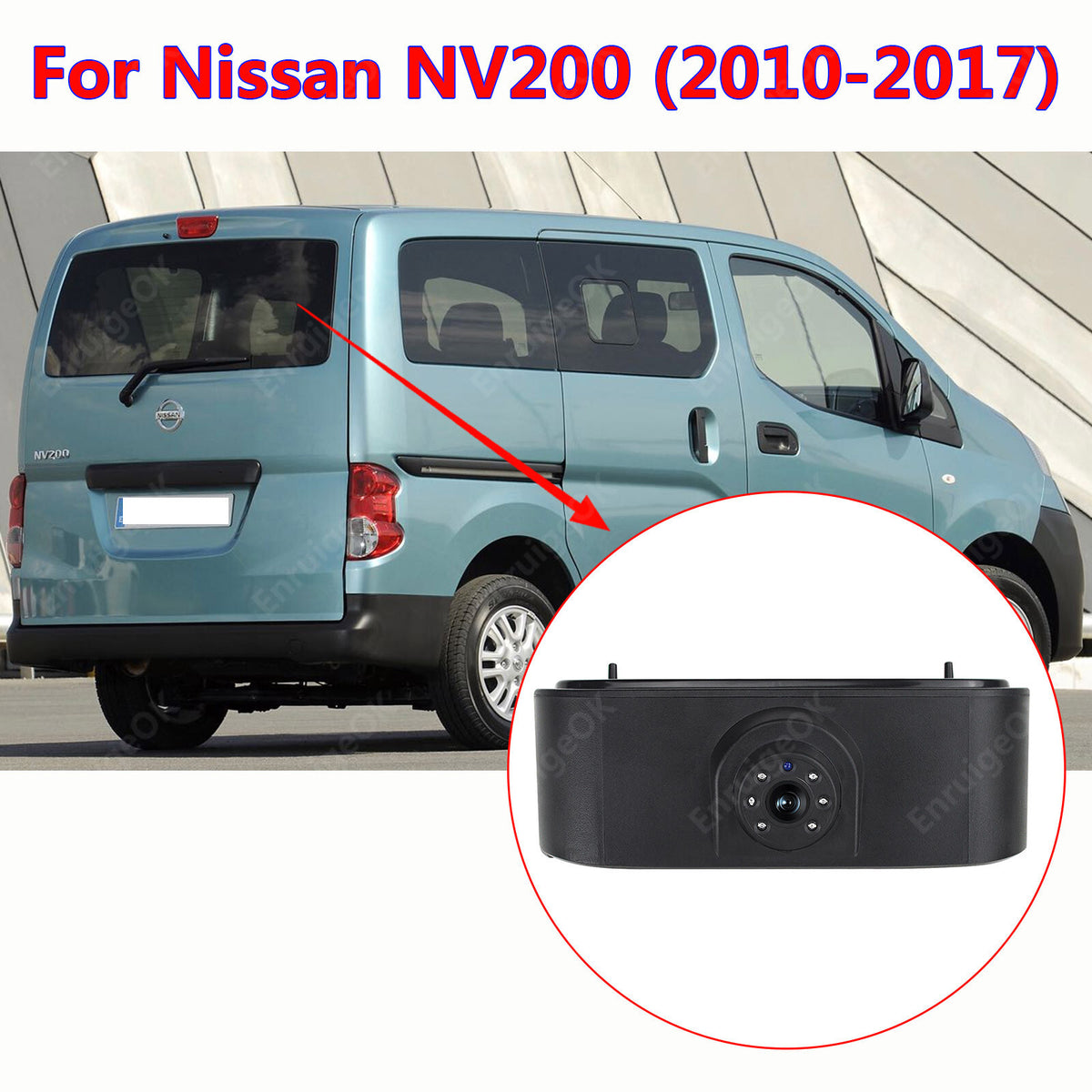

✅Nissan NV200 (2010-2017),

✅Chevrolet City Express(2010-2017)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

Reminder Friendly

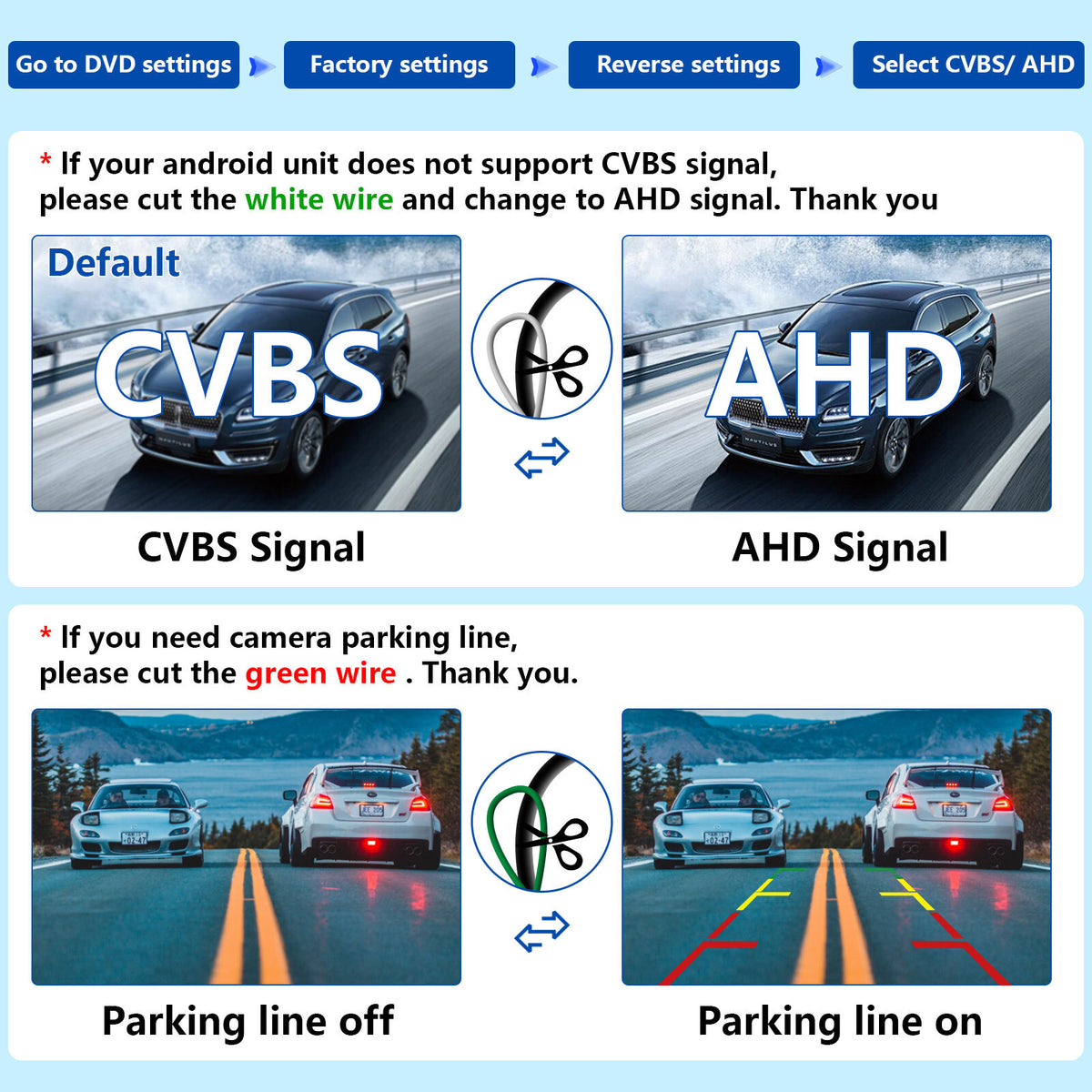

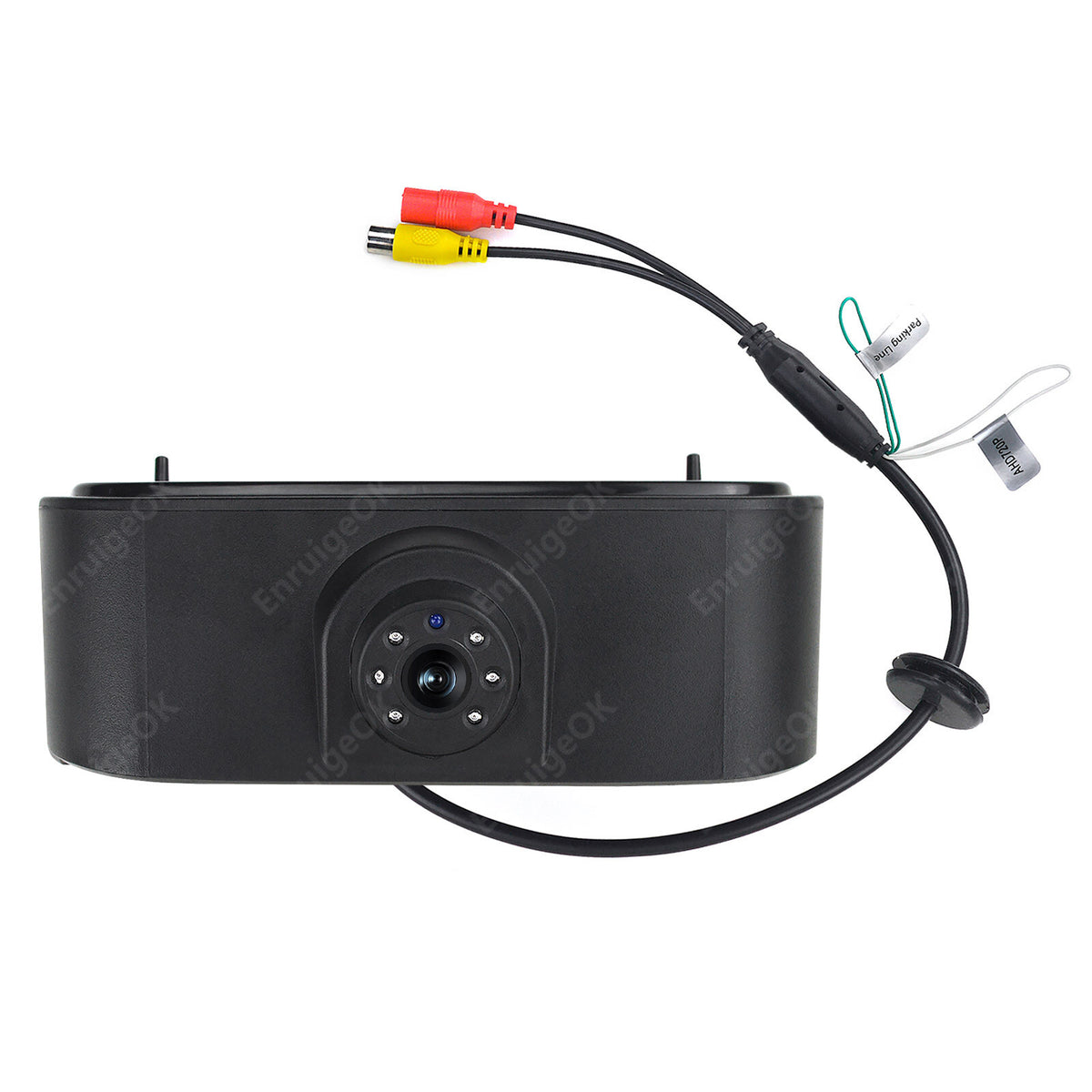

This camera defaults to a CVBS 480TVL signal and supports AHD 720P signal (by cutting the white wire).

If your Android device or monitor supports AHD 720P, you can cut the white wire to switch to AHD 720P. If it does not support AHD 720P, please leave the white wire intact. Thank you!

Description

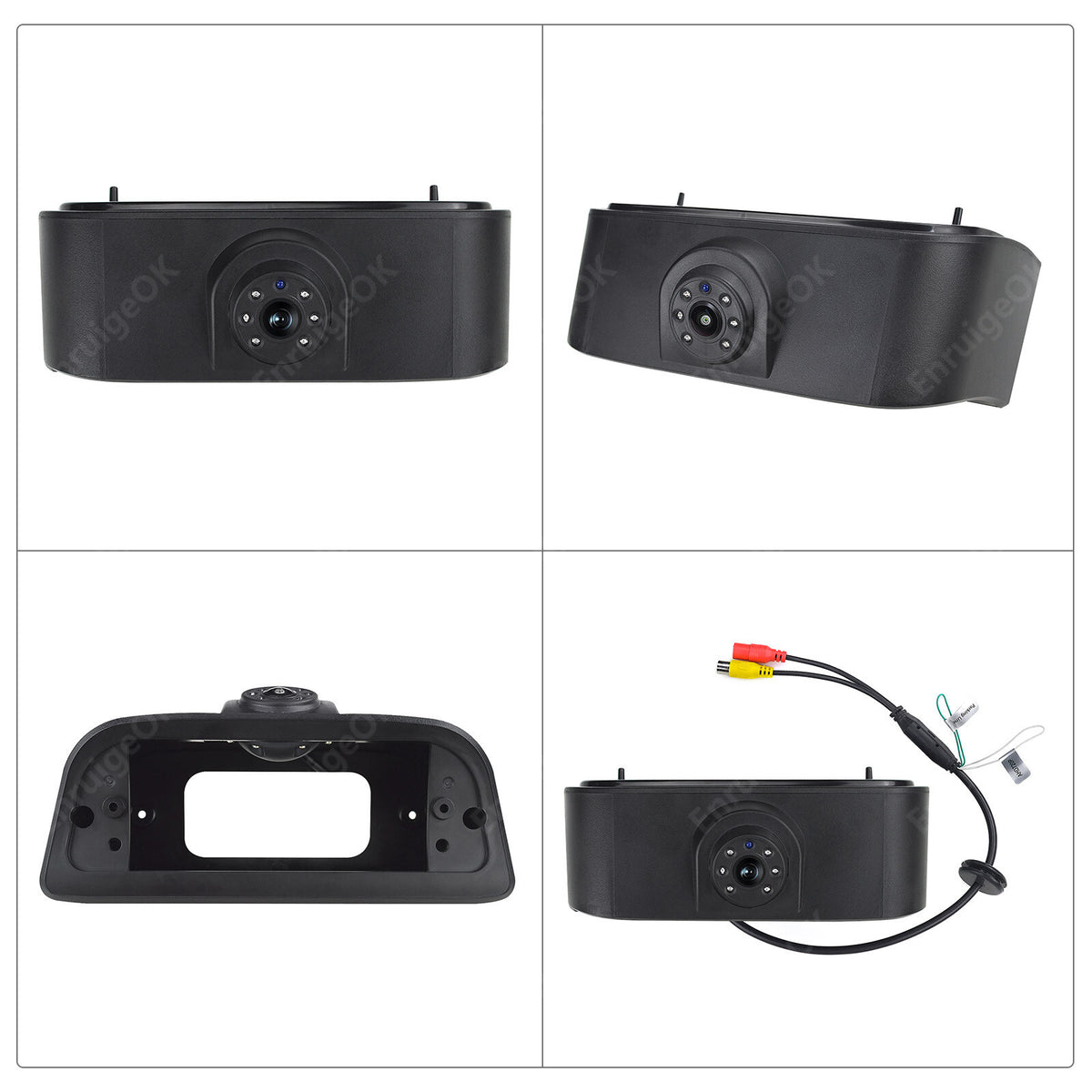

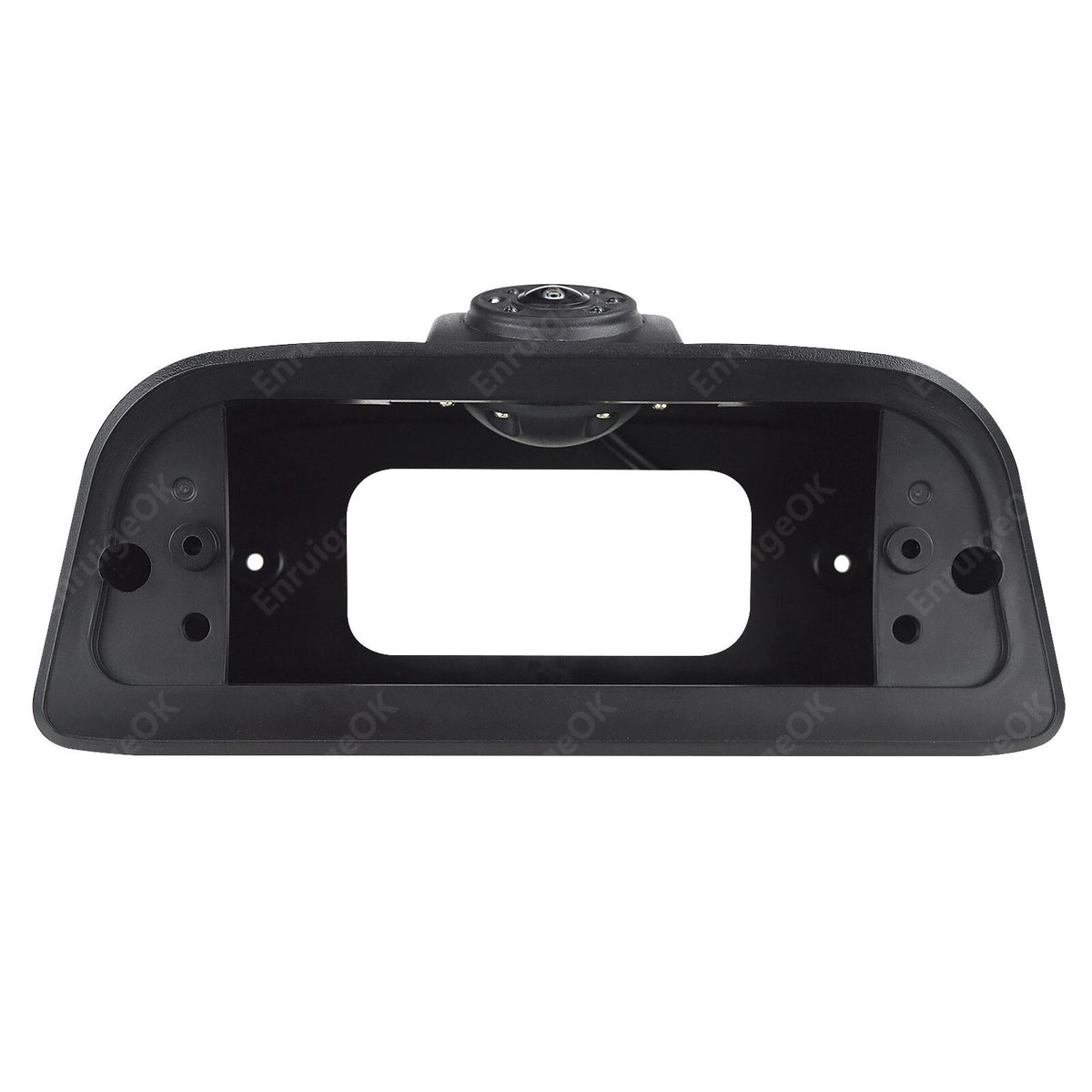

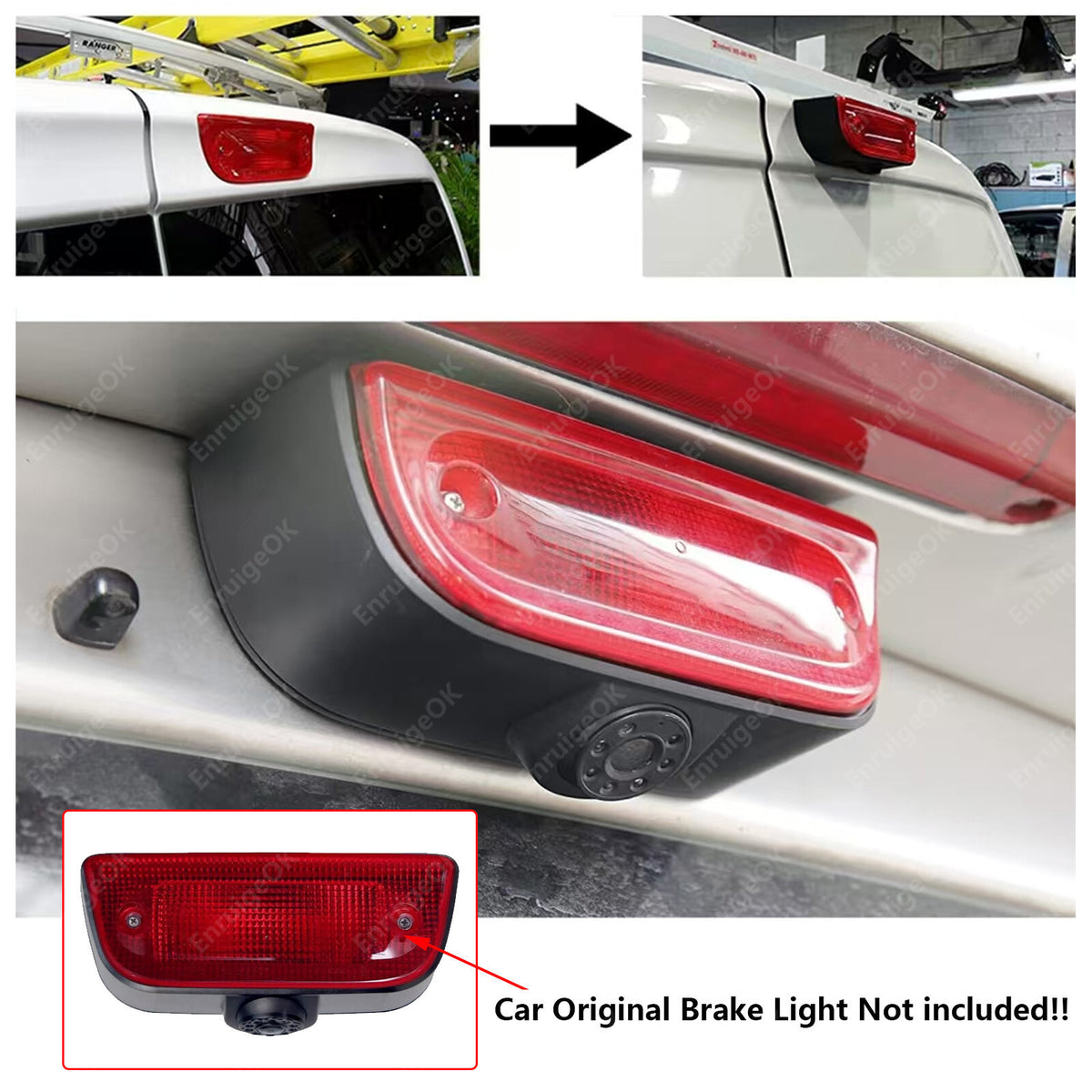

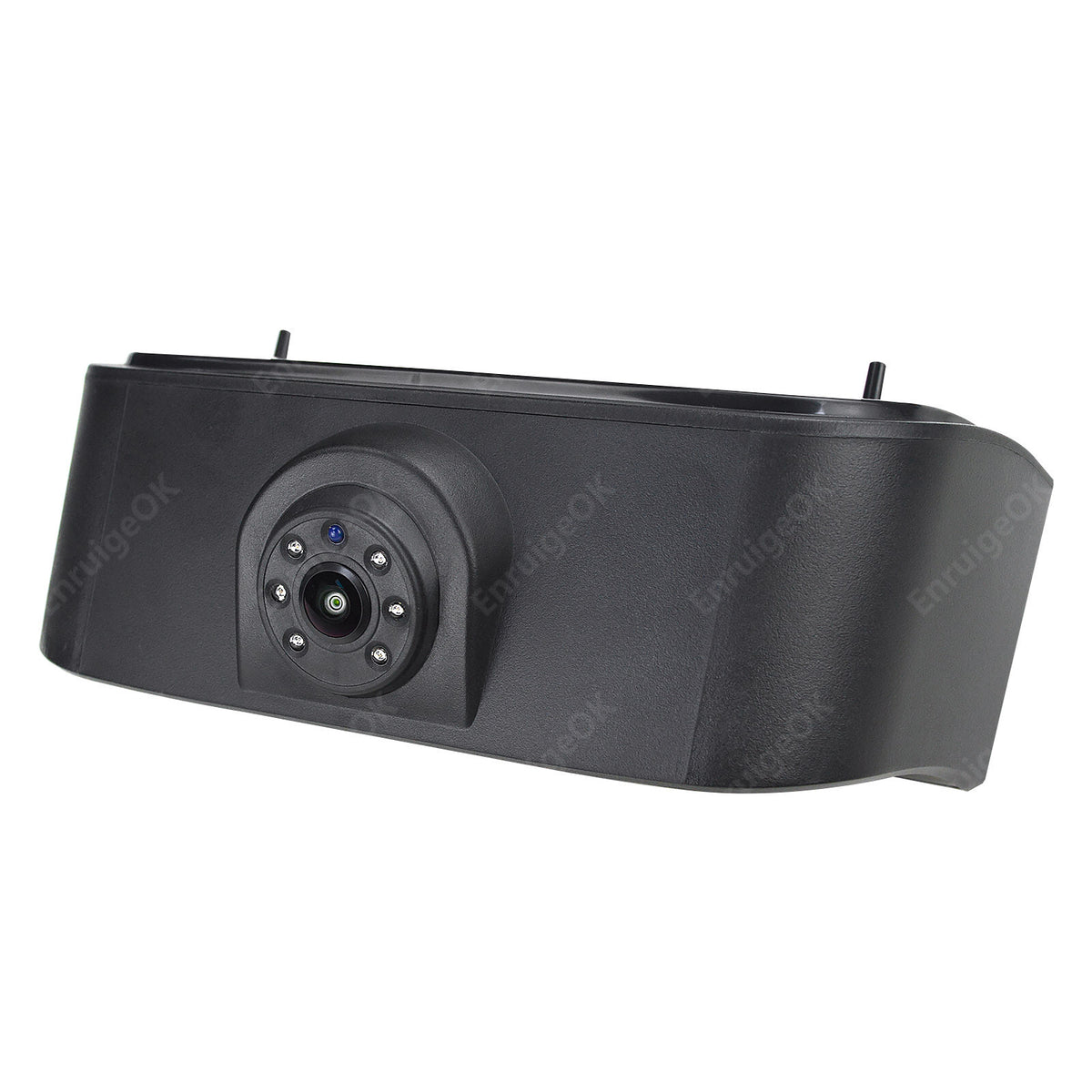

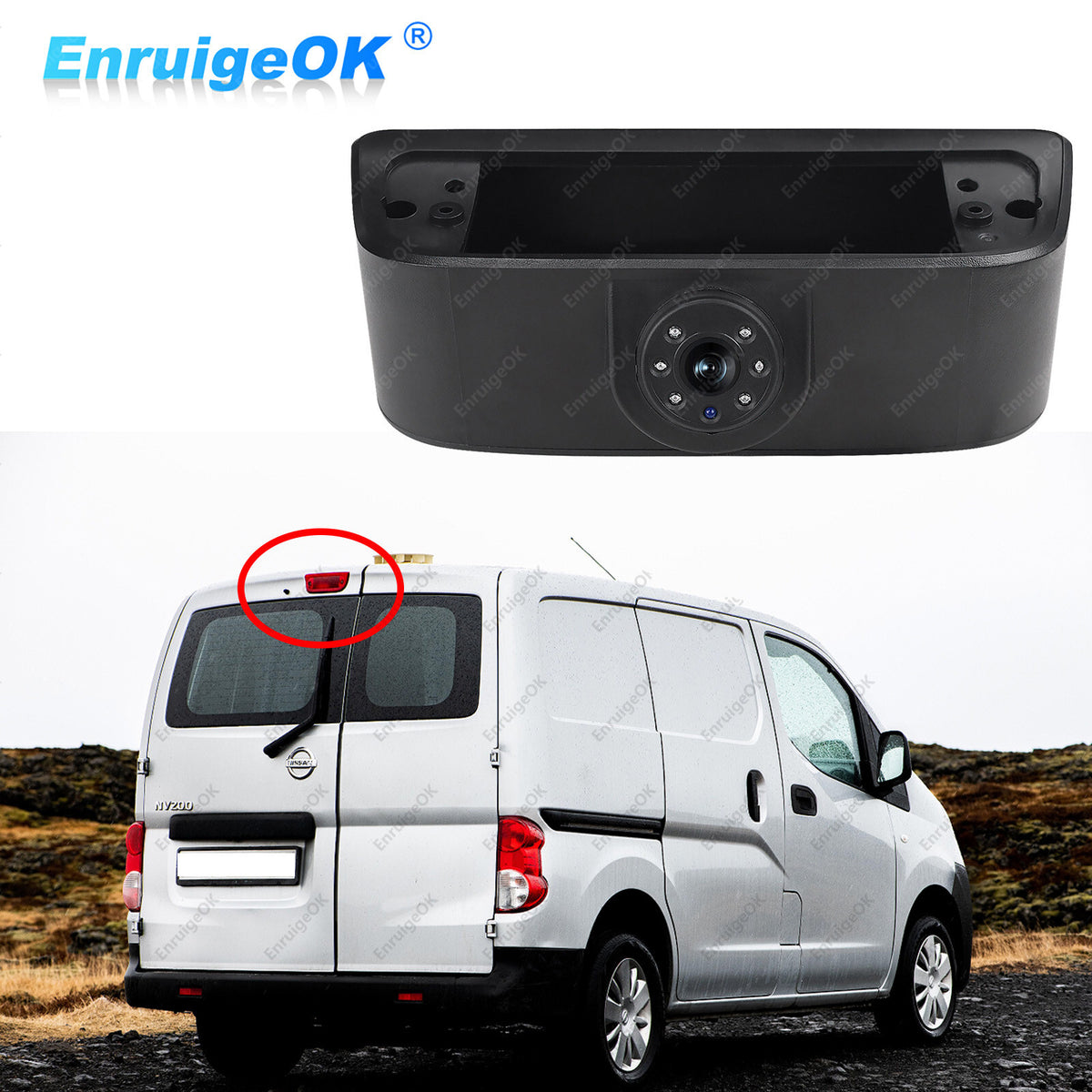

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

This brake light camera uses a 1/4" CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

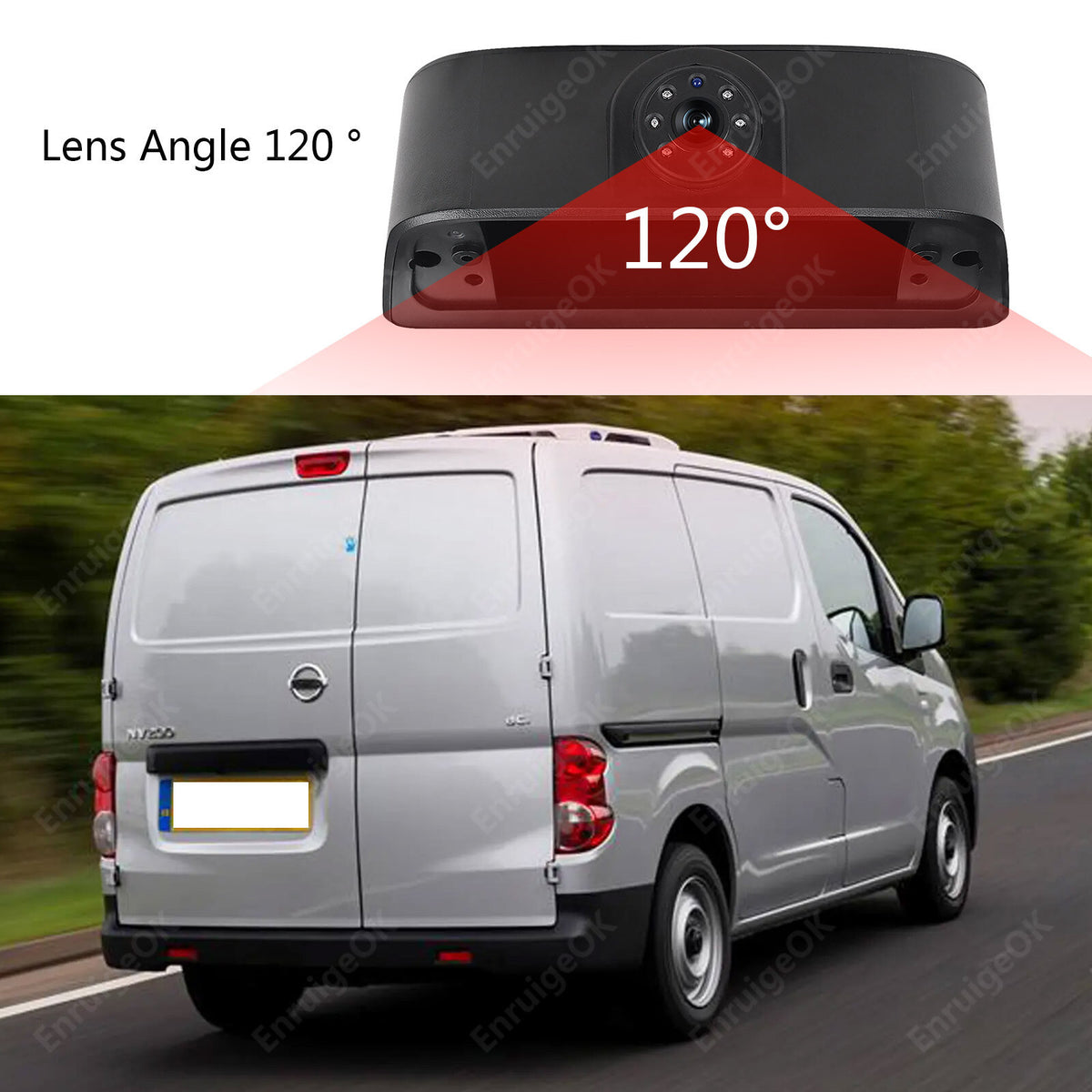

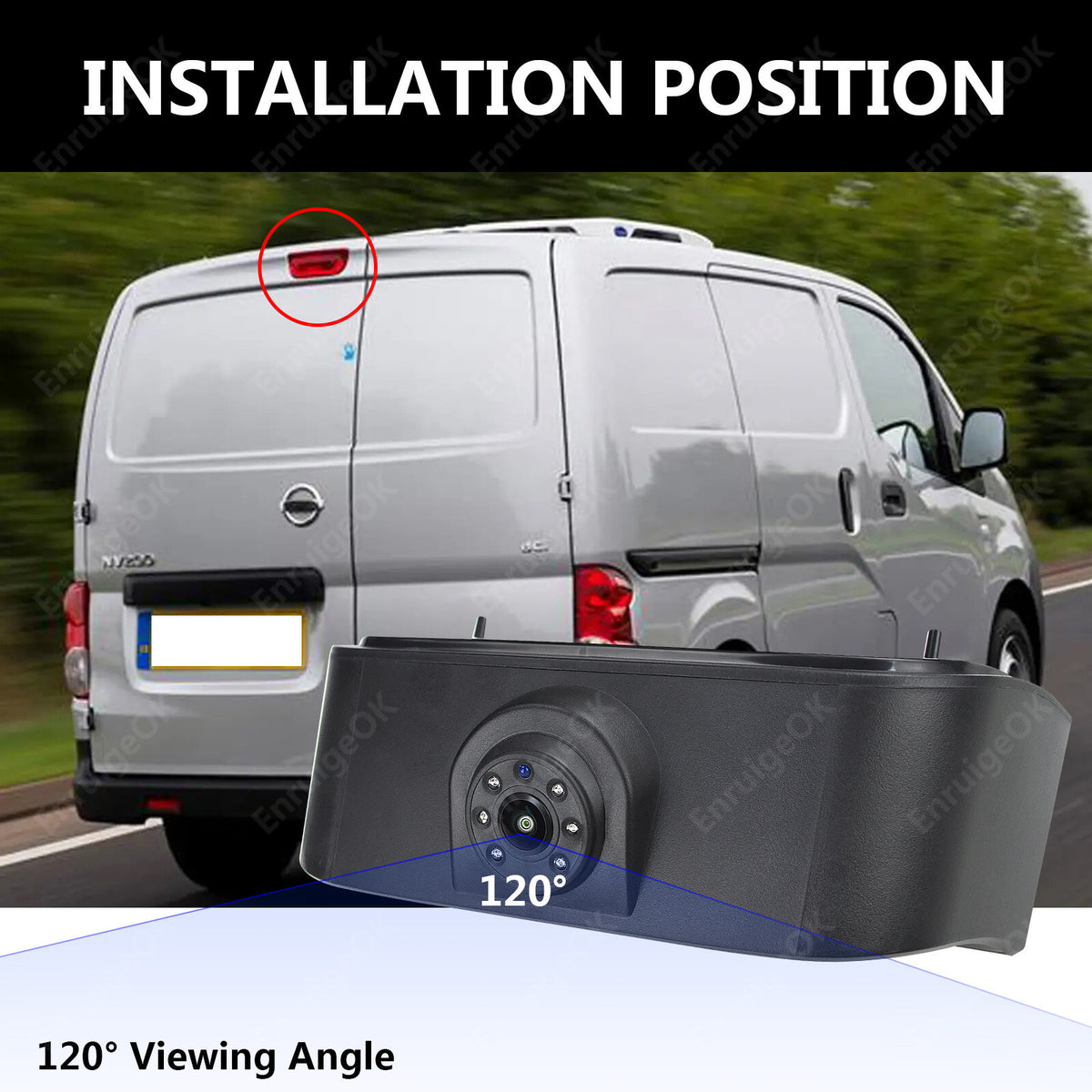

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

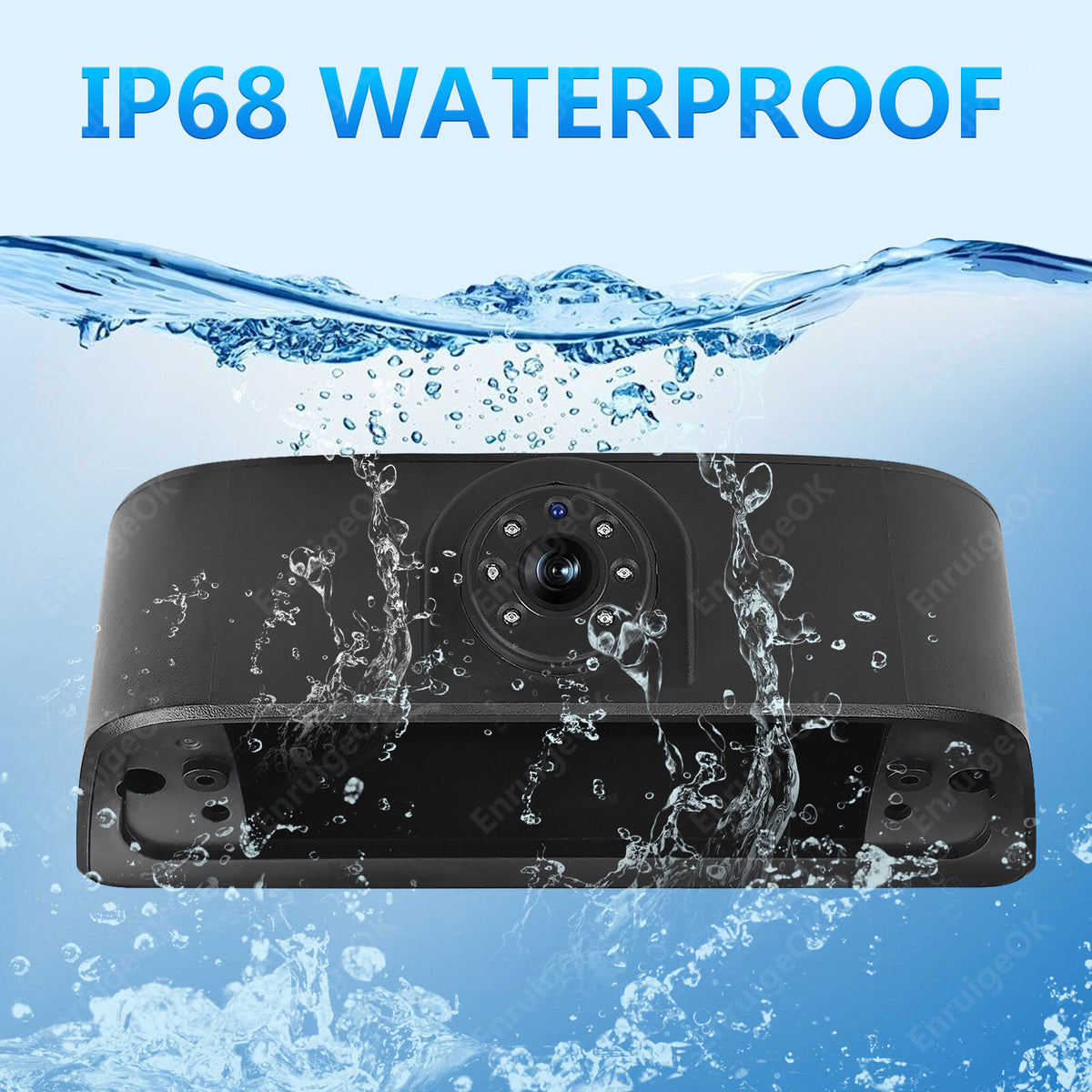

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

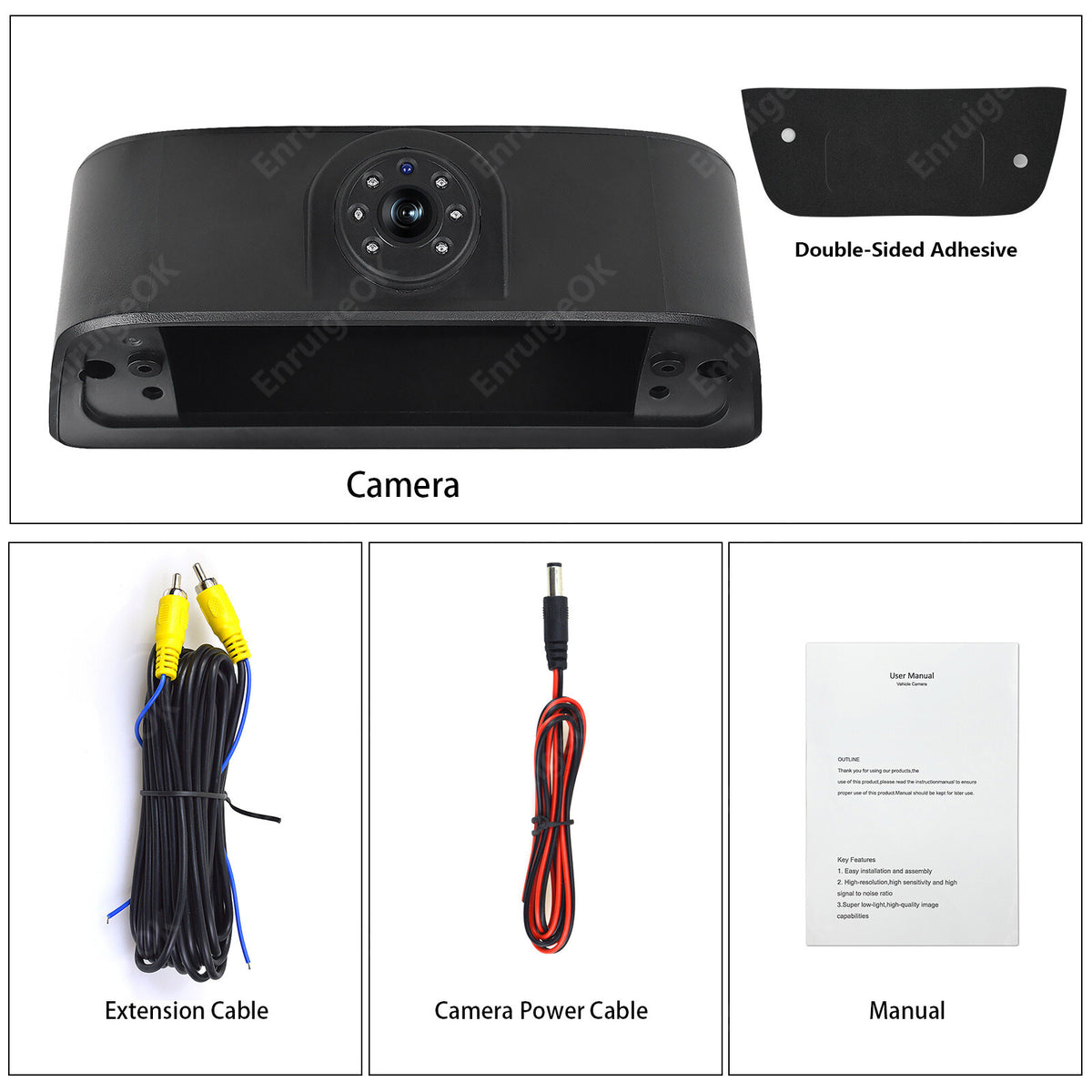

Package contents

1 X Brake light backup camera

2 X 10m/33ft. video extension cable

2 X 1m DC Power cable

1 X Manual

Camera Specifications

Image sensor: 1/4" CMOS

Lens: 2.8mm

Effective pixel: CVBS 733(H)x493(V); AHD 1920(H)x720(V)

Resolution: CVS 480TV Lines; AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC12V

Operating temperature: -20℃ to +70℃

Note

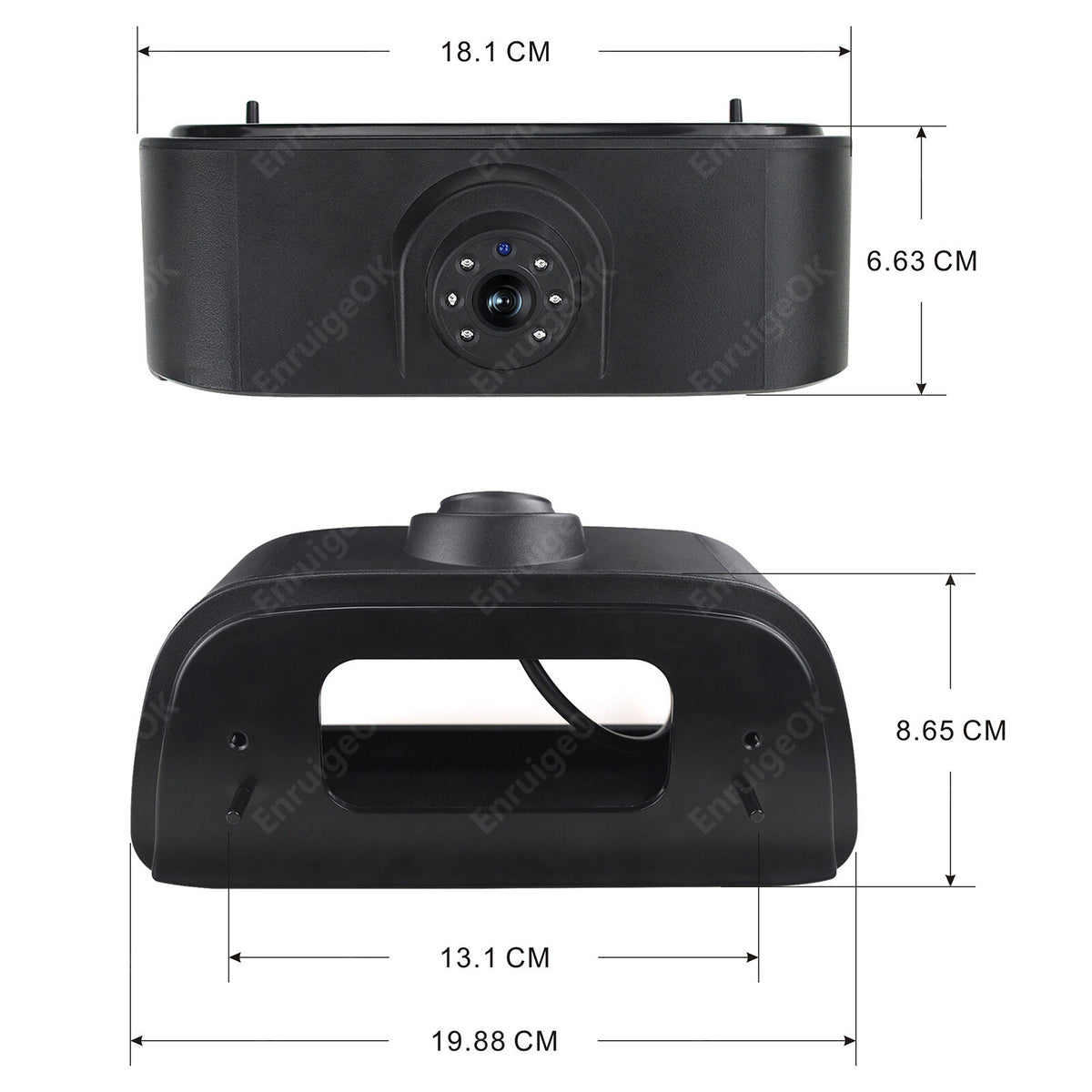

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
