Rear Brake Light Reversing Camera for Maxus Deliver 9 & 5" Suction Monitor Kit

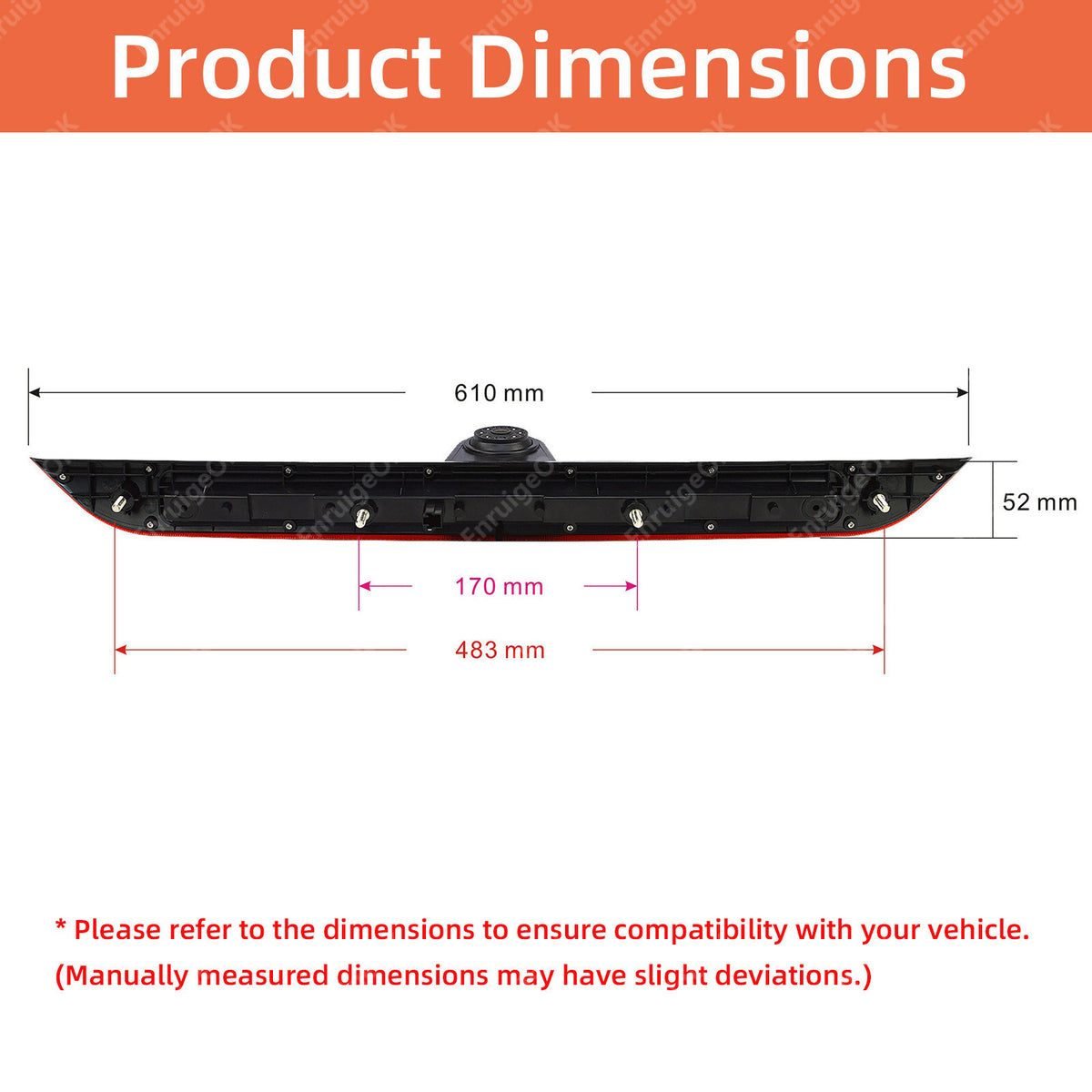

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK Rear Brake Light Reversing Camera For Maxus Deliver 9, e Deliver 9, V90 and LDV Deliver 9 Van

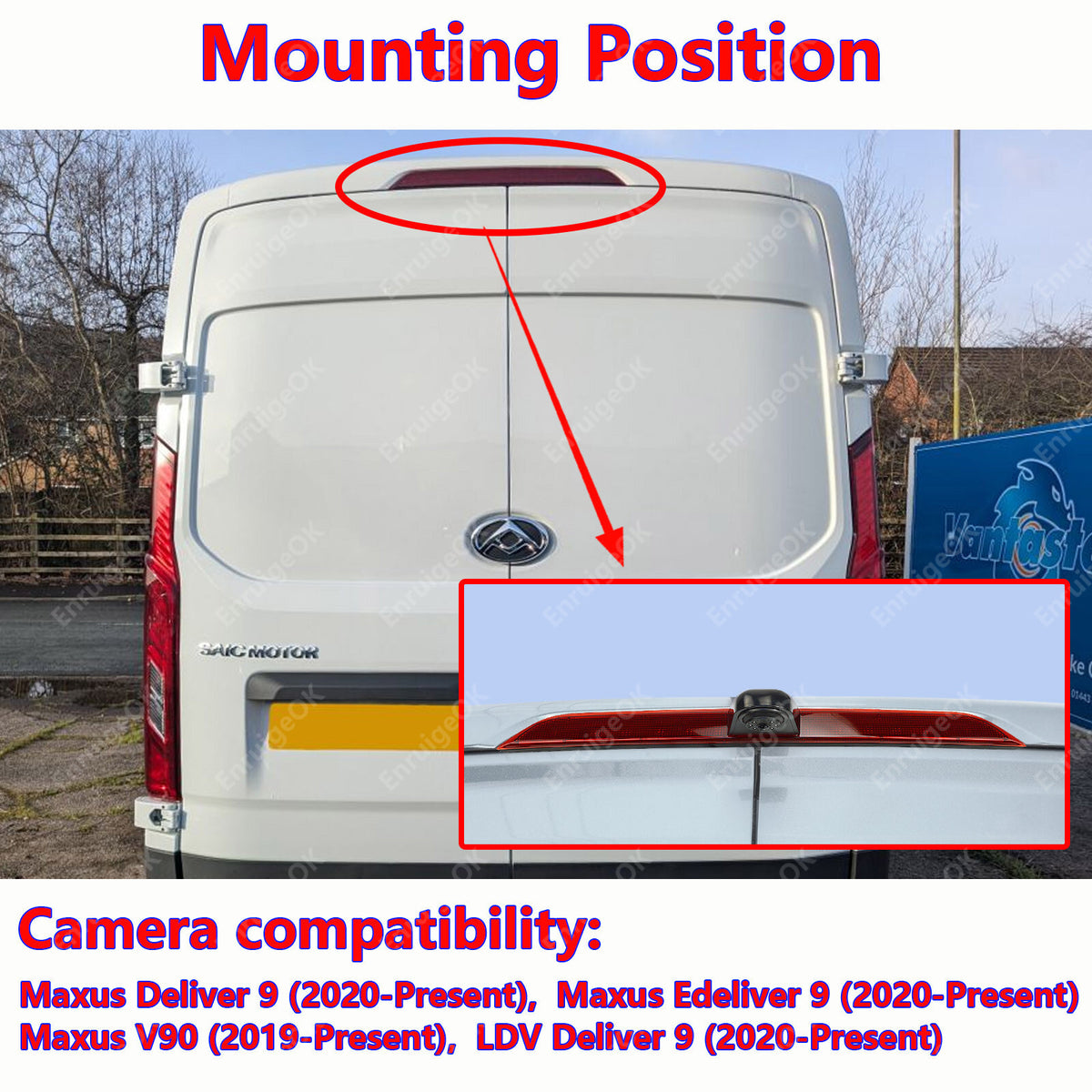

Camera Compatibility

Maxus Deliver 9 (2020-Present)

Maxus e Deliver 9 (2020-Present)

Maxus V90 (2019-Present)

LDV Deliver 9 (2020-Present)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

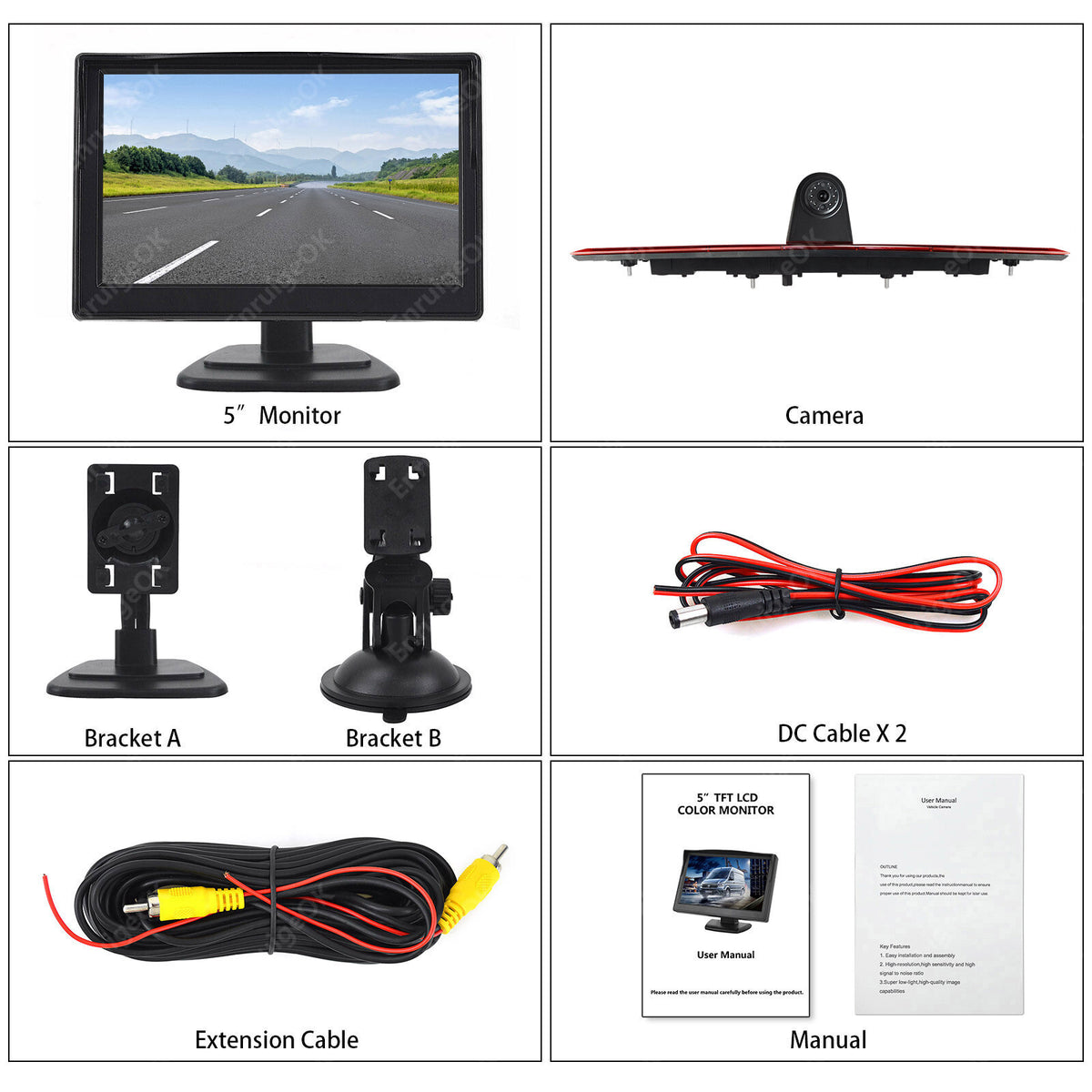

Package contents

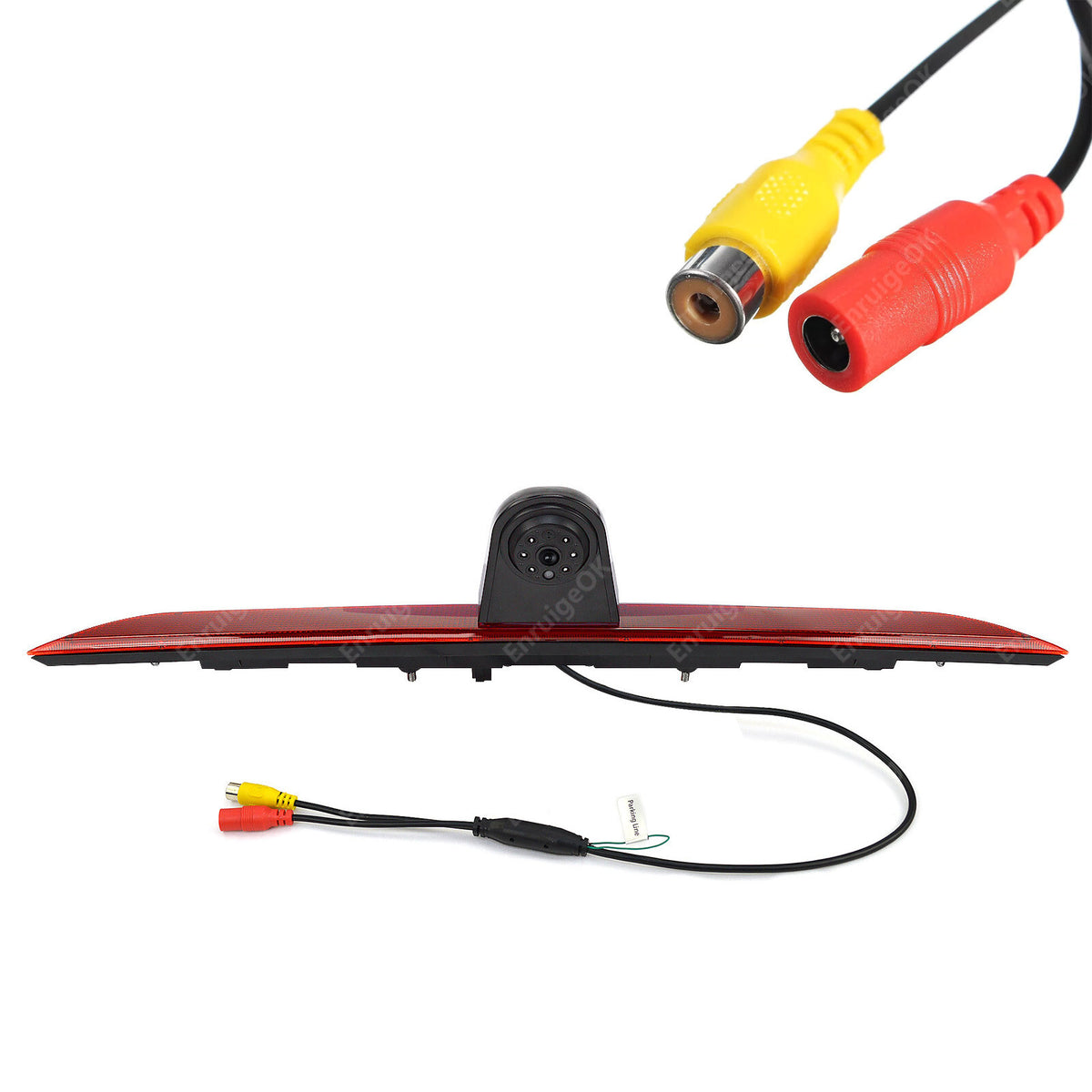

1 X Brake light camera

1 X 5'' IPS display monitor

1 X 10m/33ft. extension cable

2 X DC Power cables

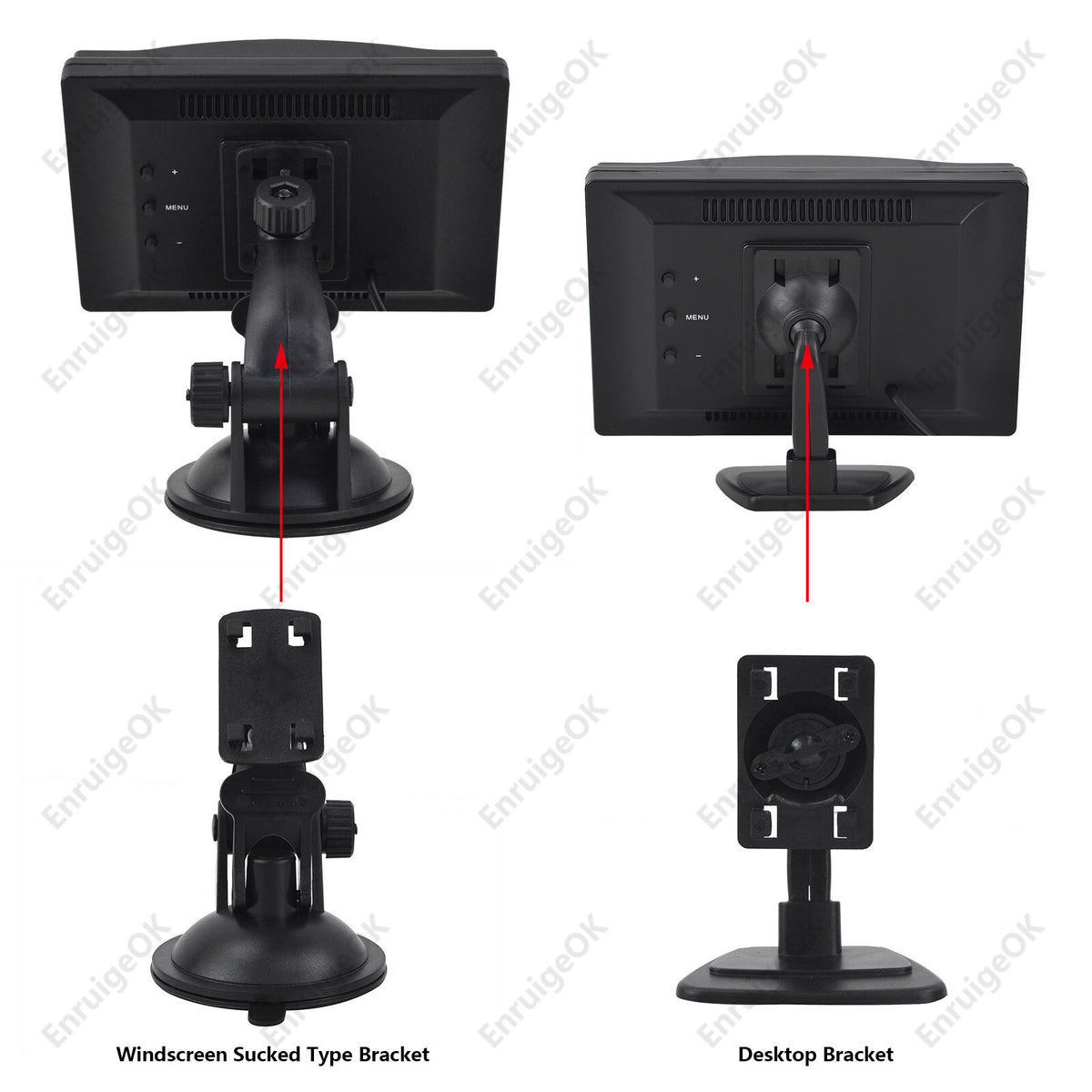

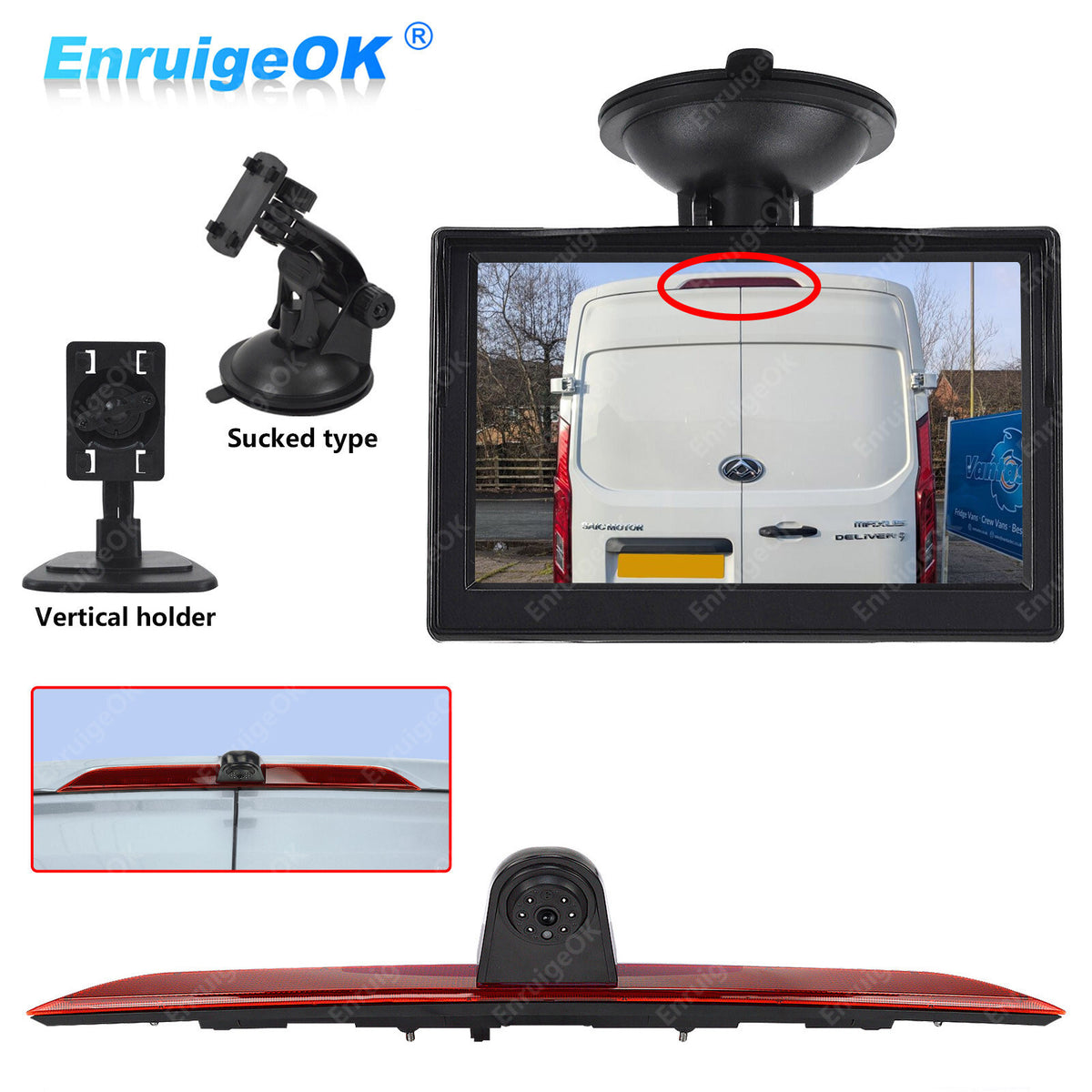

1 X Dashboard mount stand

1 X Suction cup mount stand

1 X Manual

Description

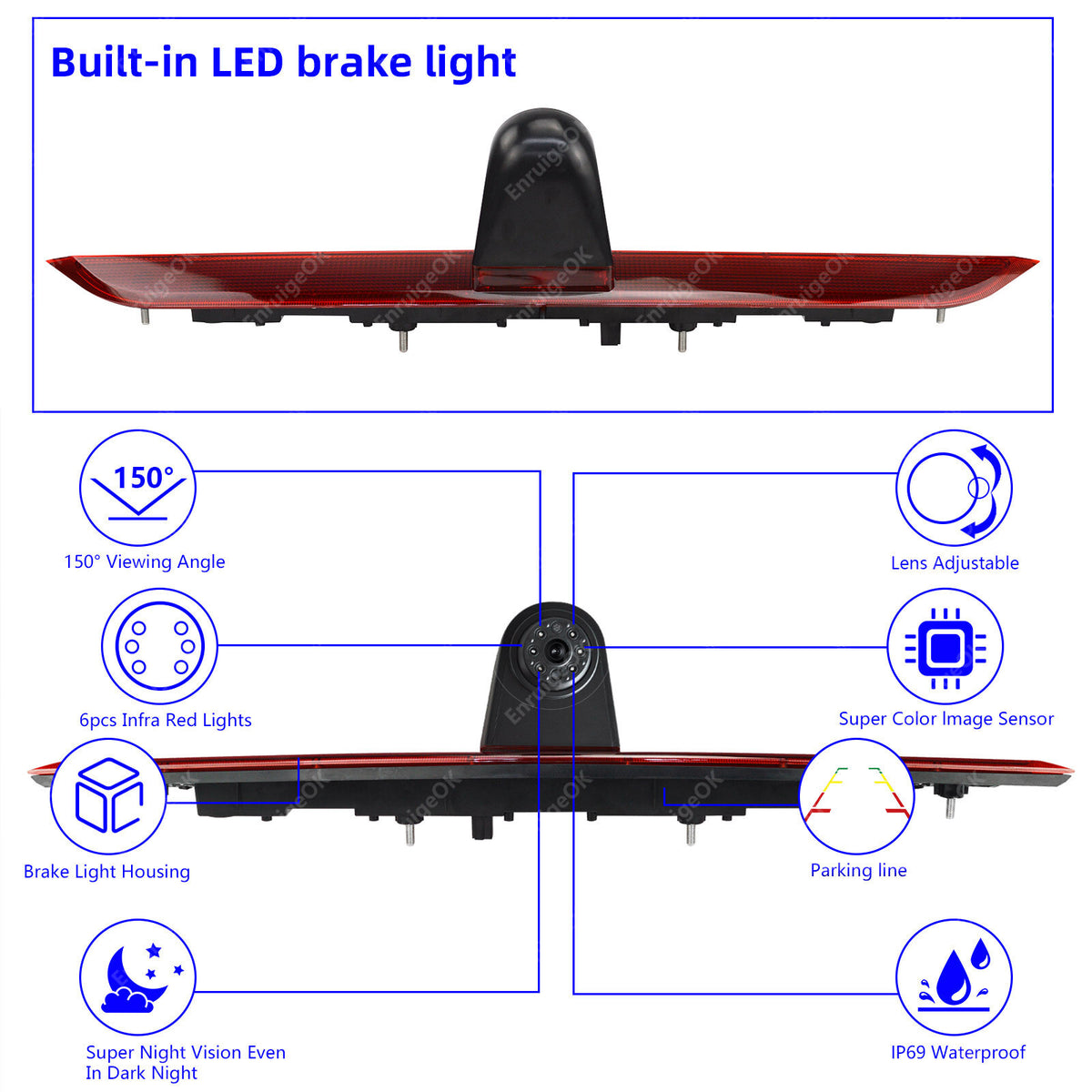

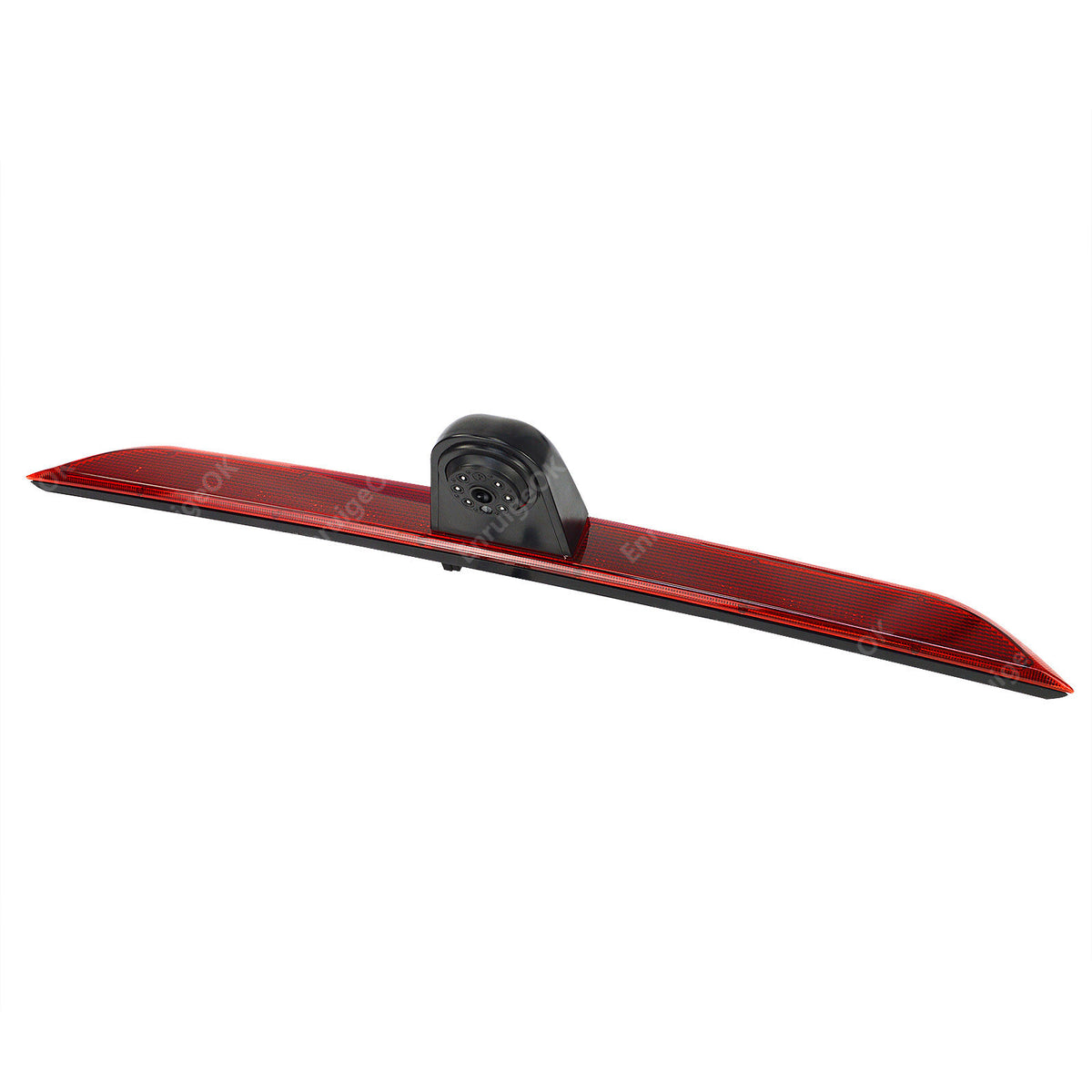

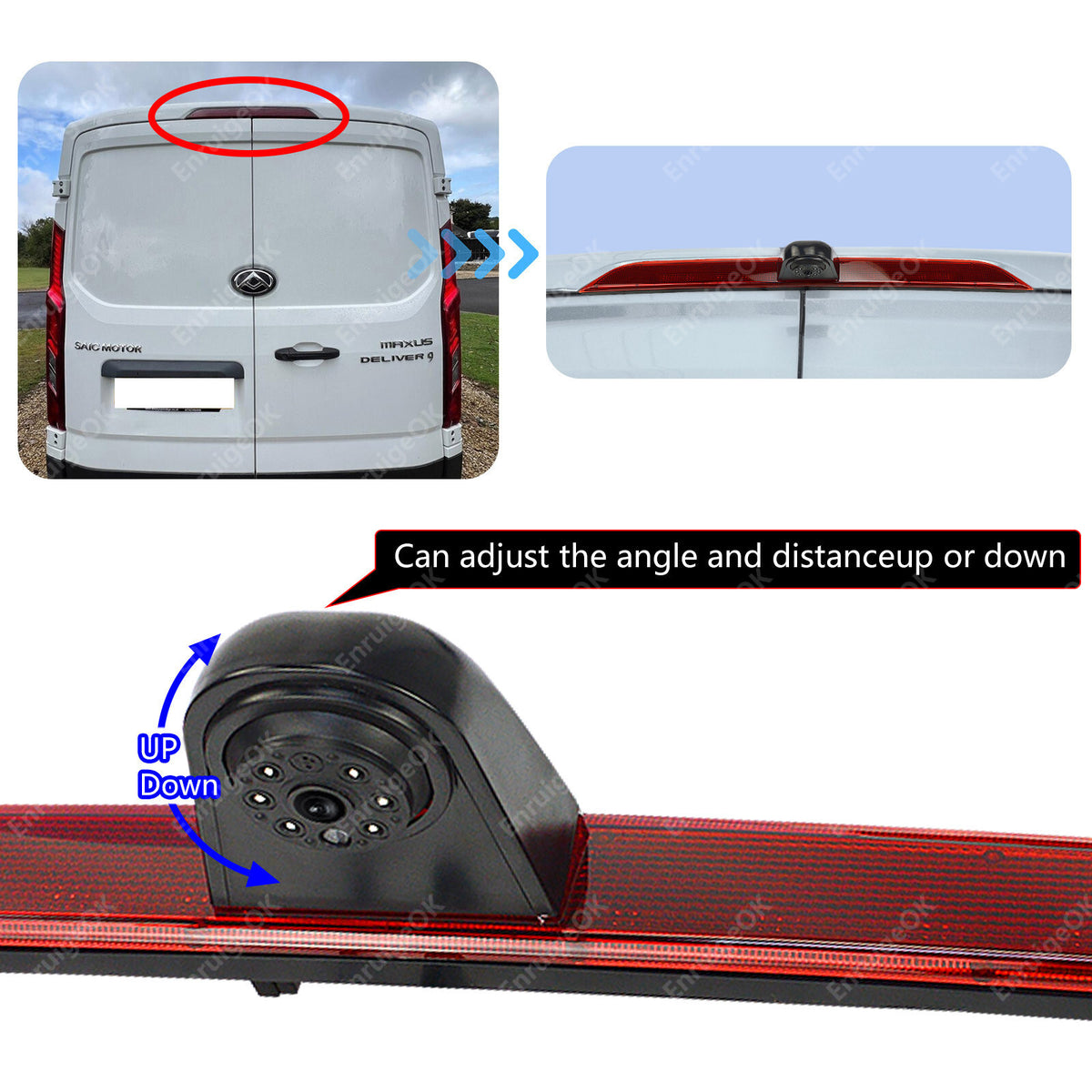

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

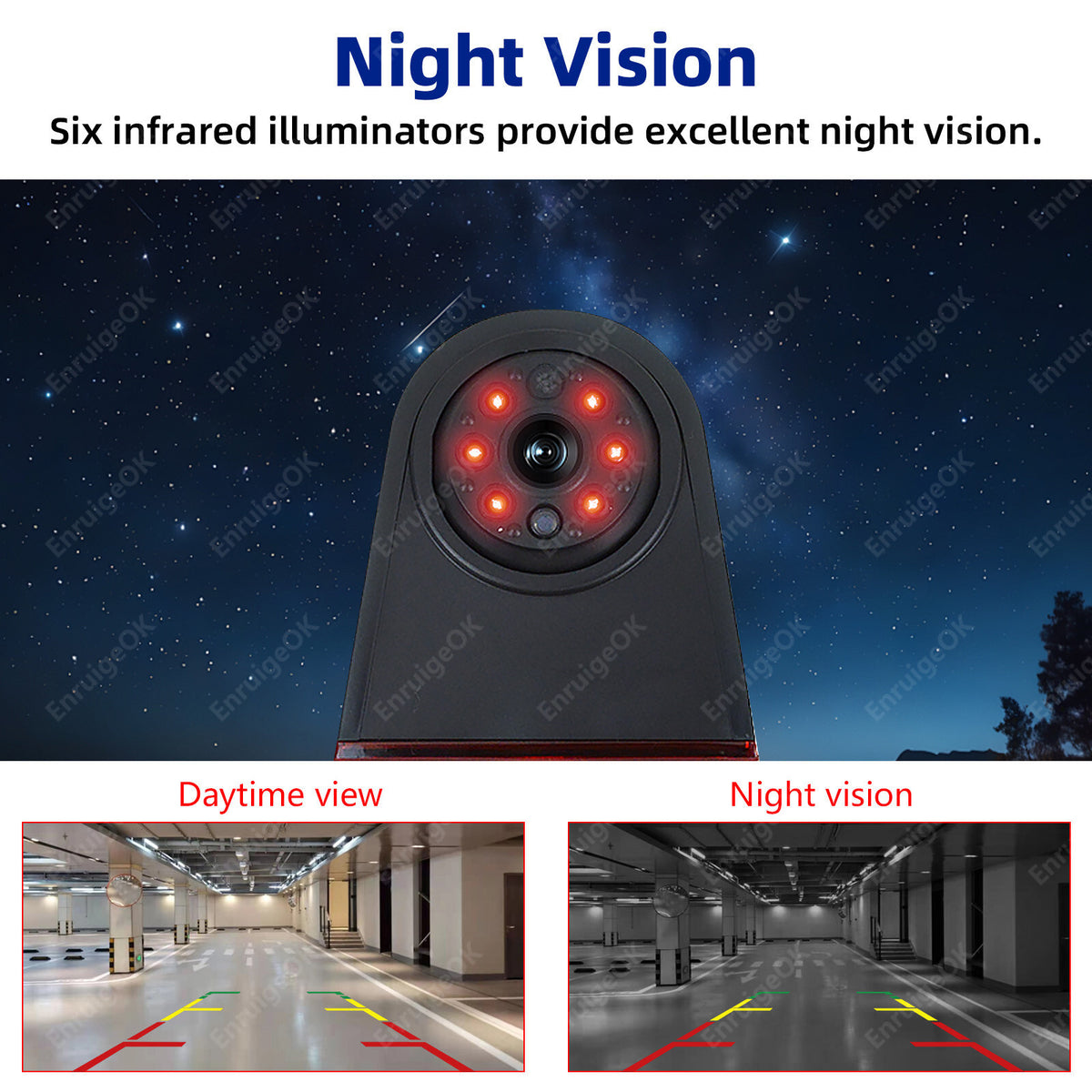

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

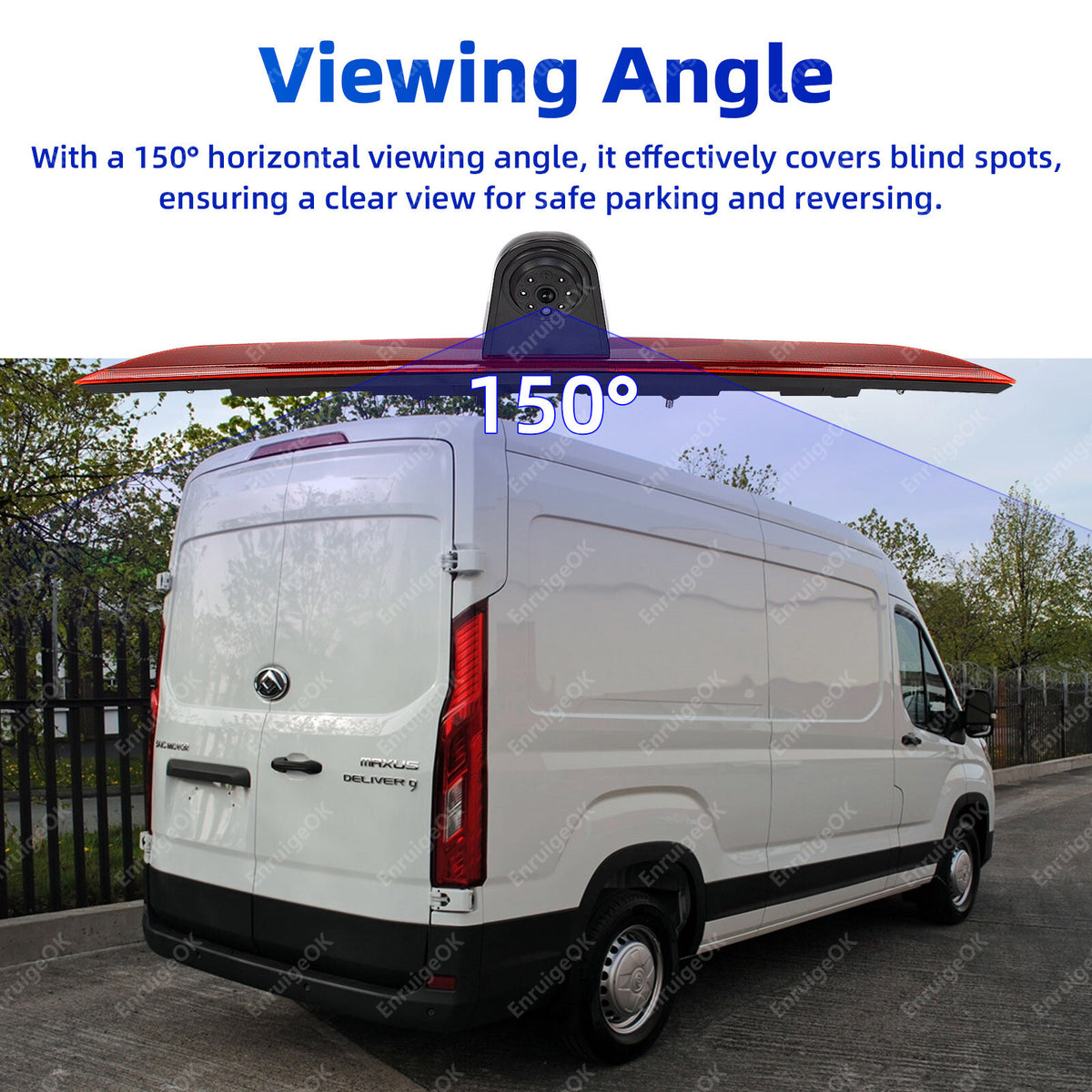

Horizontal Viewing Angle: With a 150-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

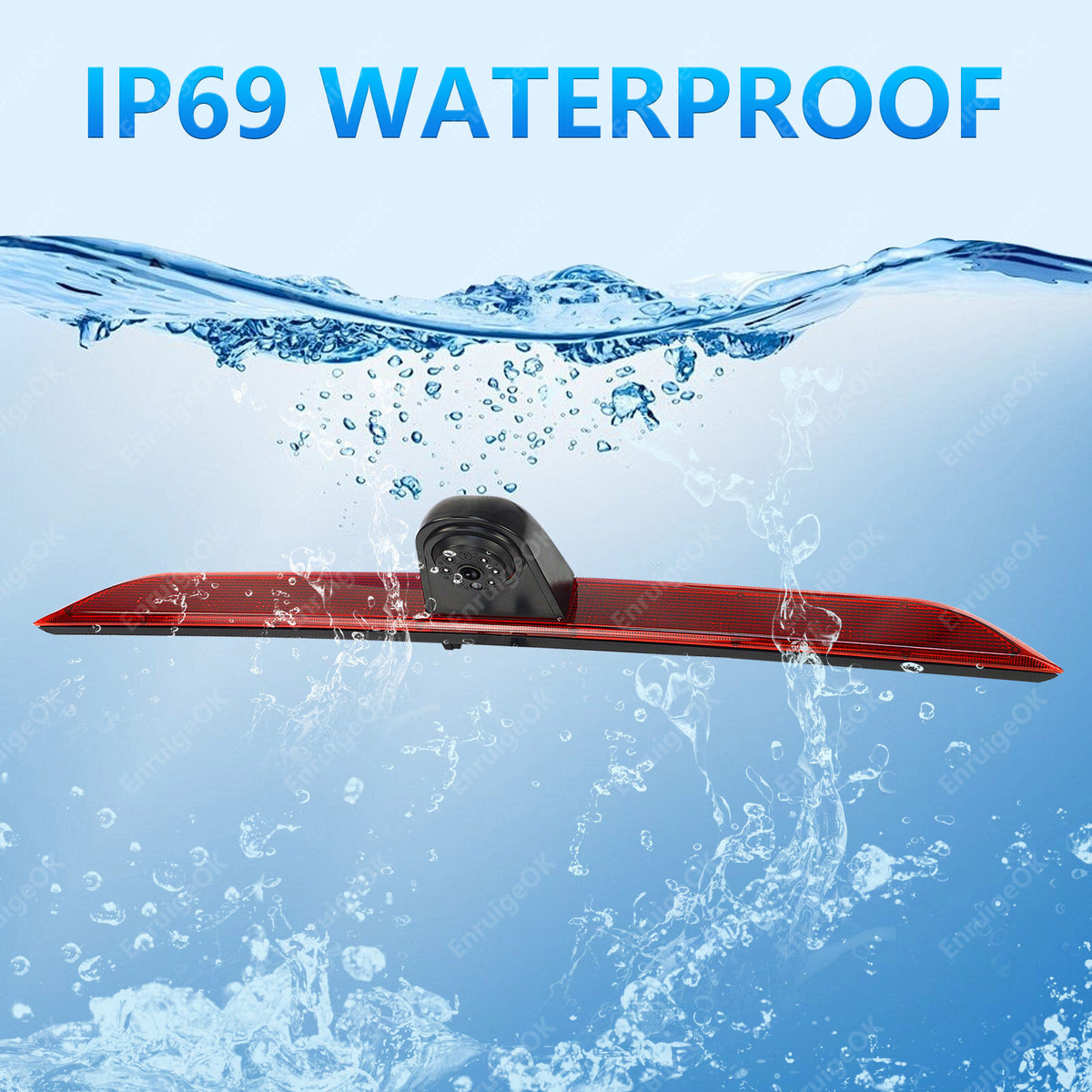

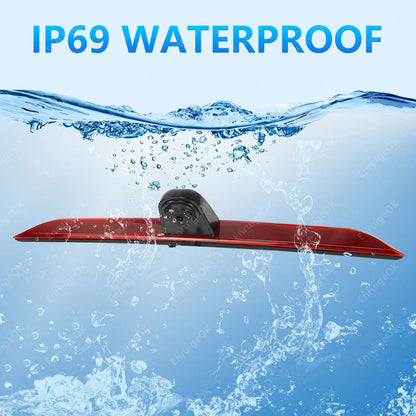

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

It includes a backup camera and 5" IPS display monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

Camera Specifications

Image sensor: Colour CMOS

Effective pixel: CVBS 733(H)x493(V)

Resolution: CVBS 480TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal angle: 150°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Screen size: 5 inch

Display format: 16: 9

Contrast: 300: 1

Brightness: 400 CD/㎡

Video: 2-channel video input; V1/V2 switching

Resolution: 480*272 IPS

Power supply: DC 12-24V

Rear view in priority

Video system: NTSC / PAL auto switch

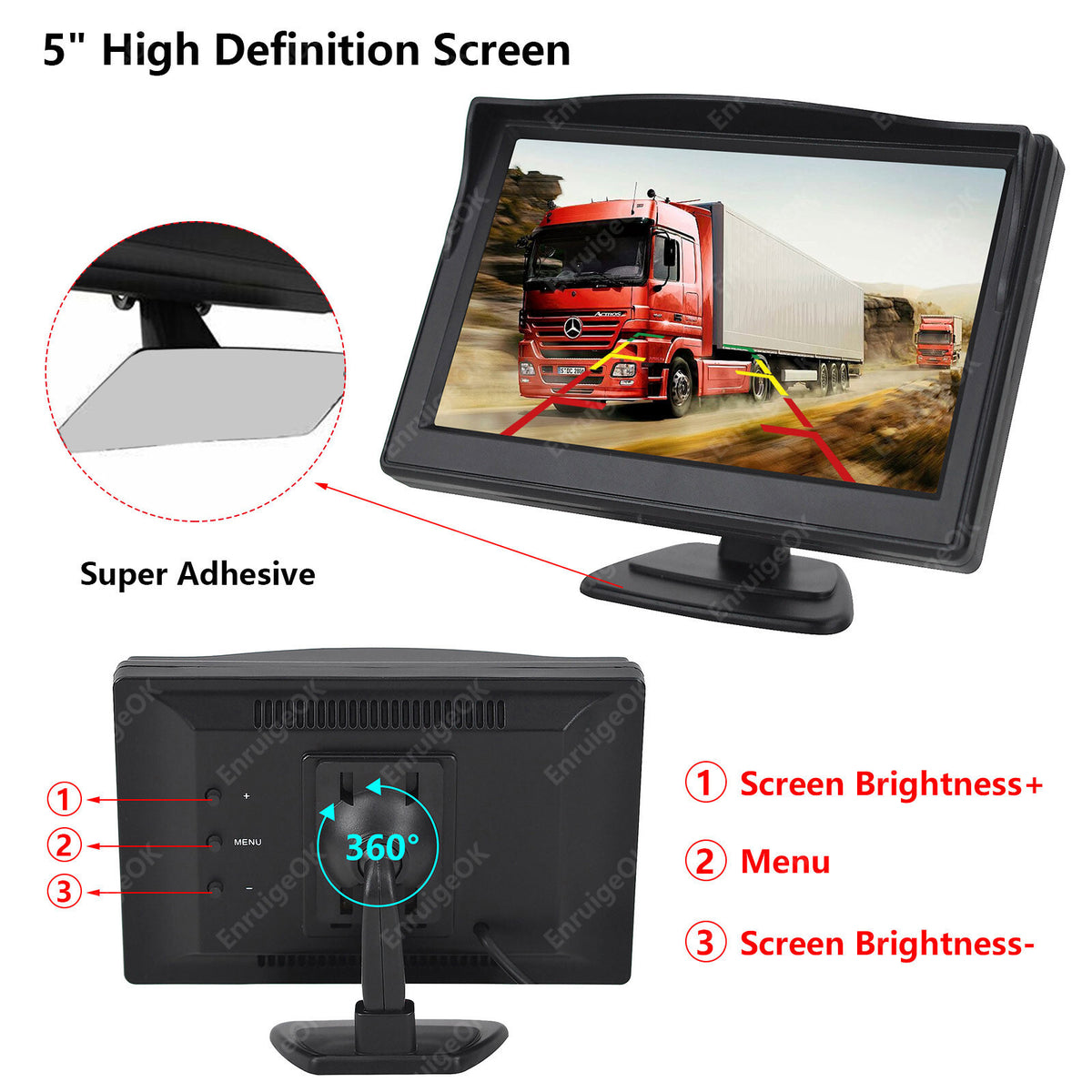

With menu button, brightness/contrast/saturation adjustable.

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
