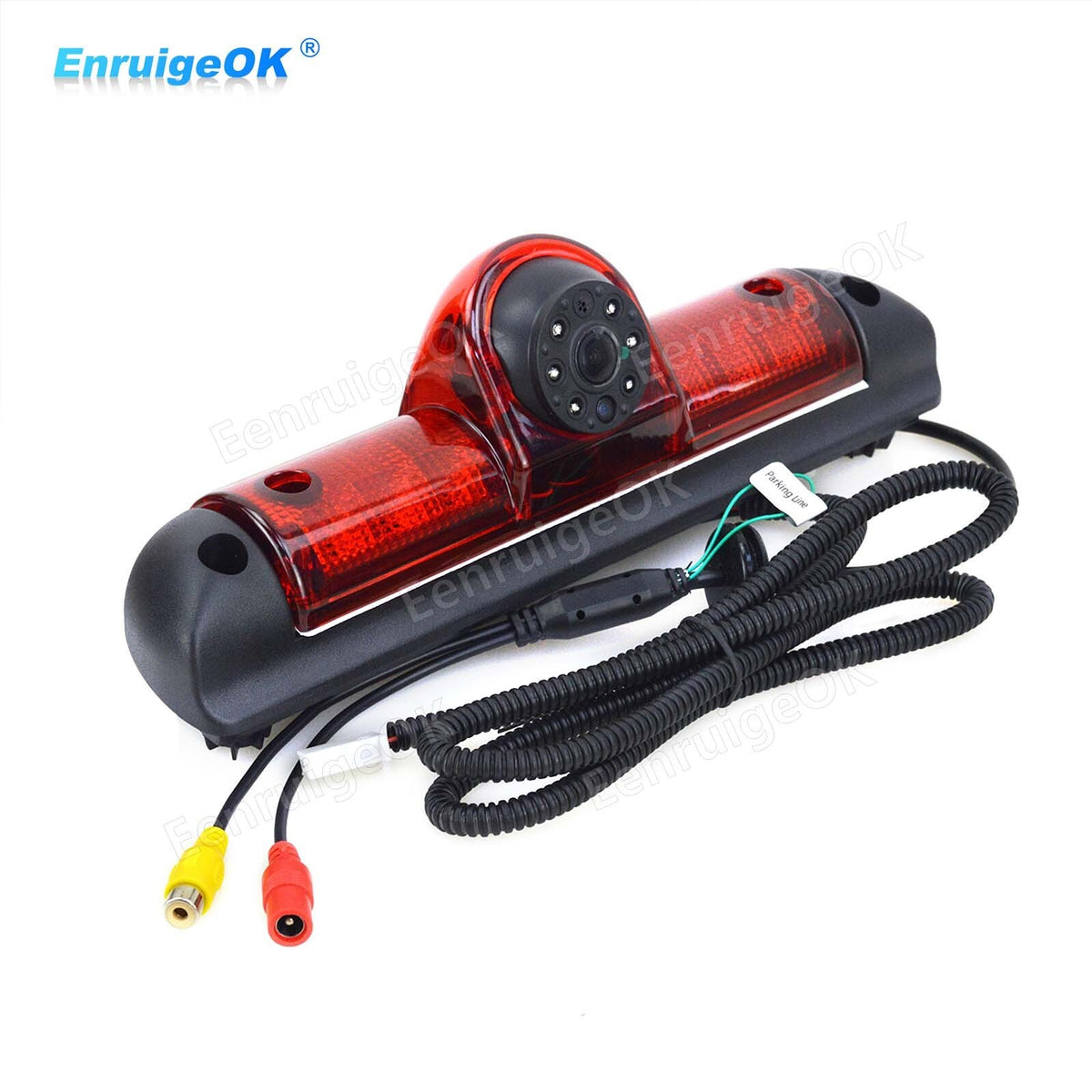

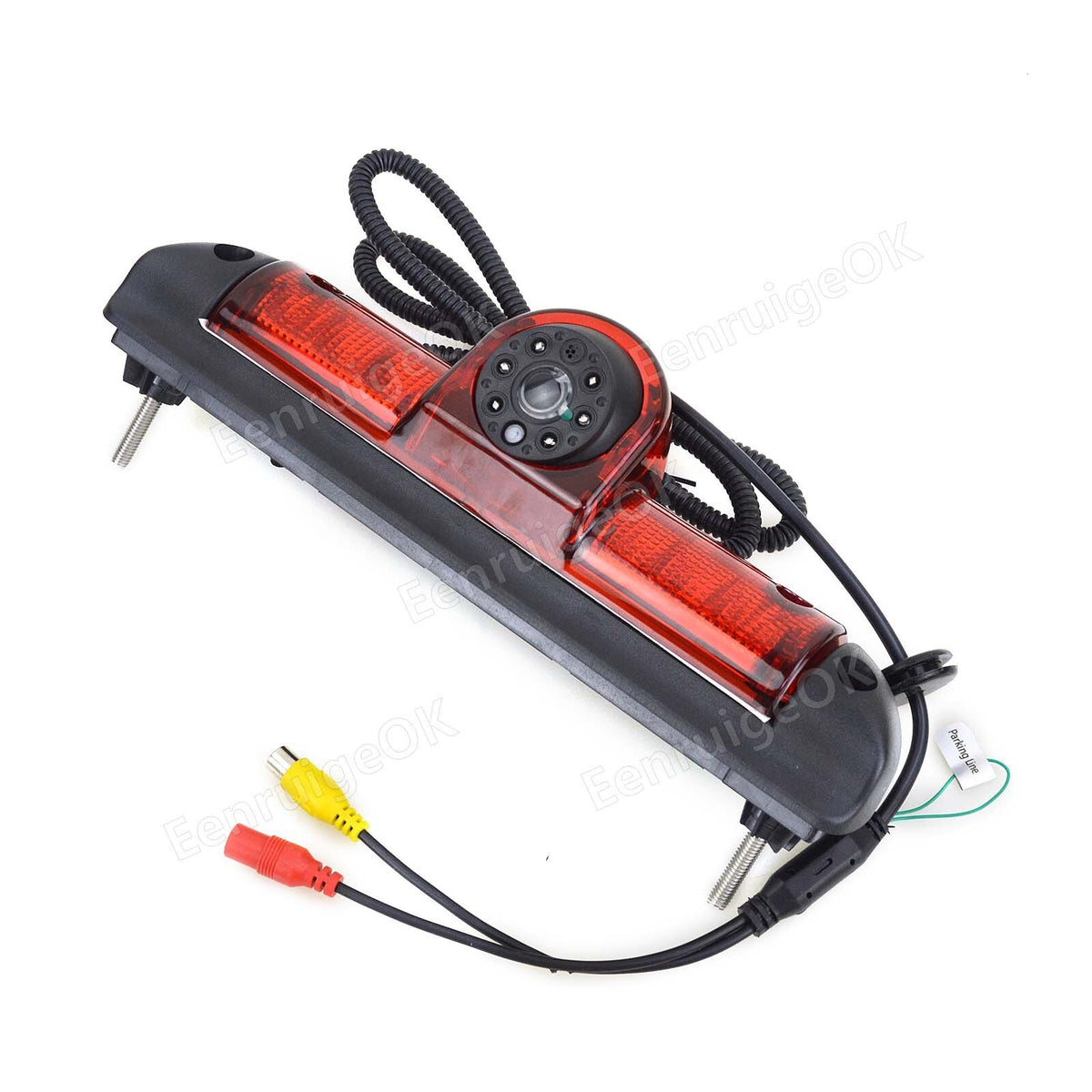

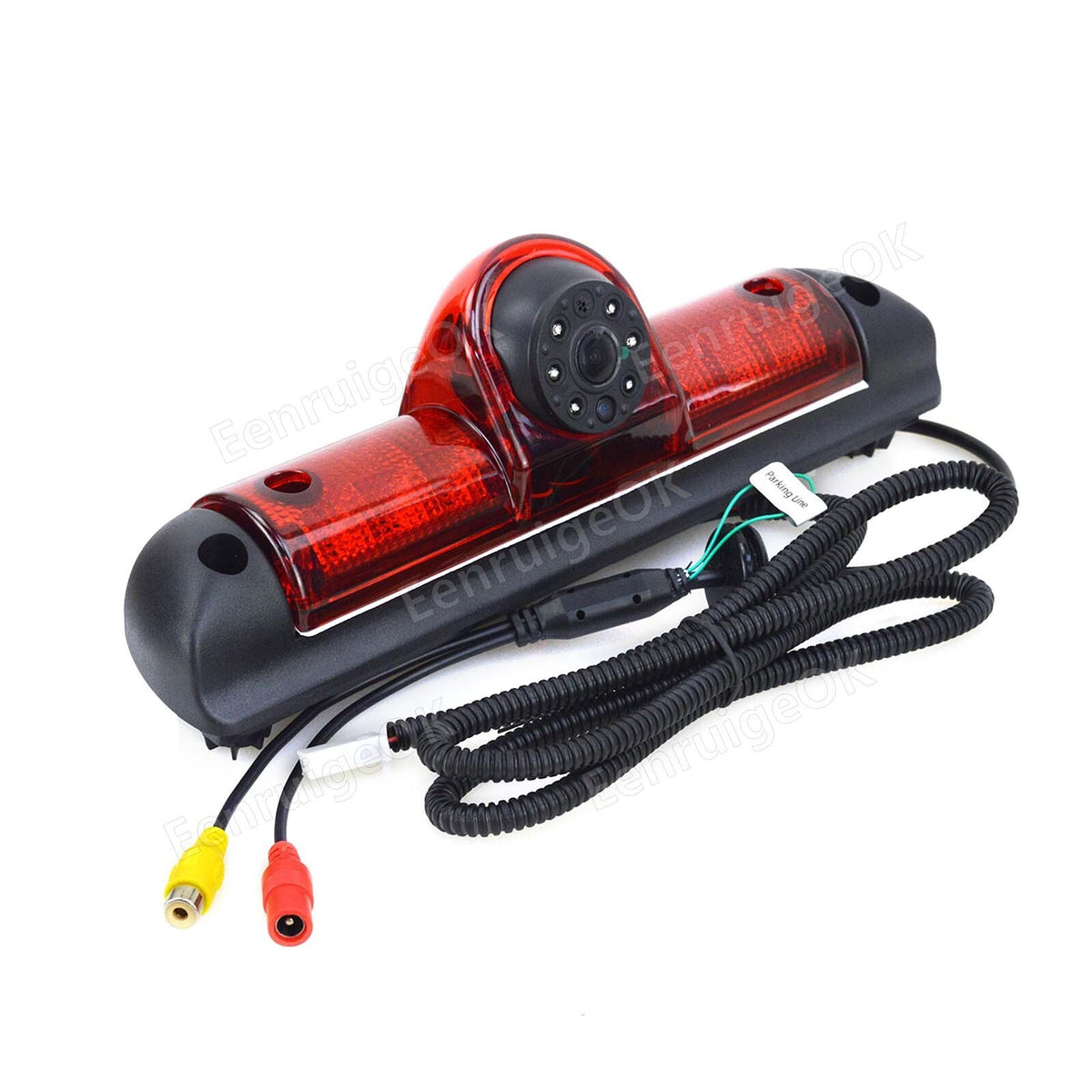

Rear Brake Light Reversing Camera for Fiat Ducato, Citroen Relay, Peugeot Boxer

Note: Please check the camera size carefully before make the order.

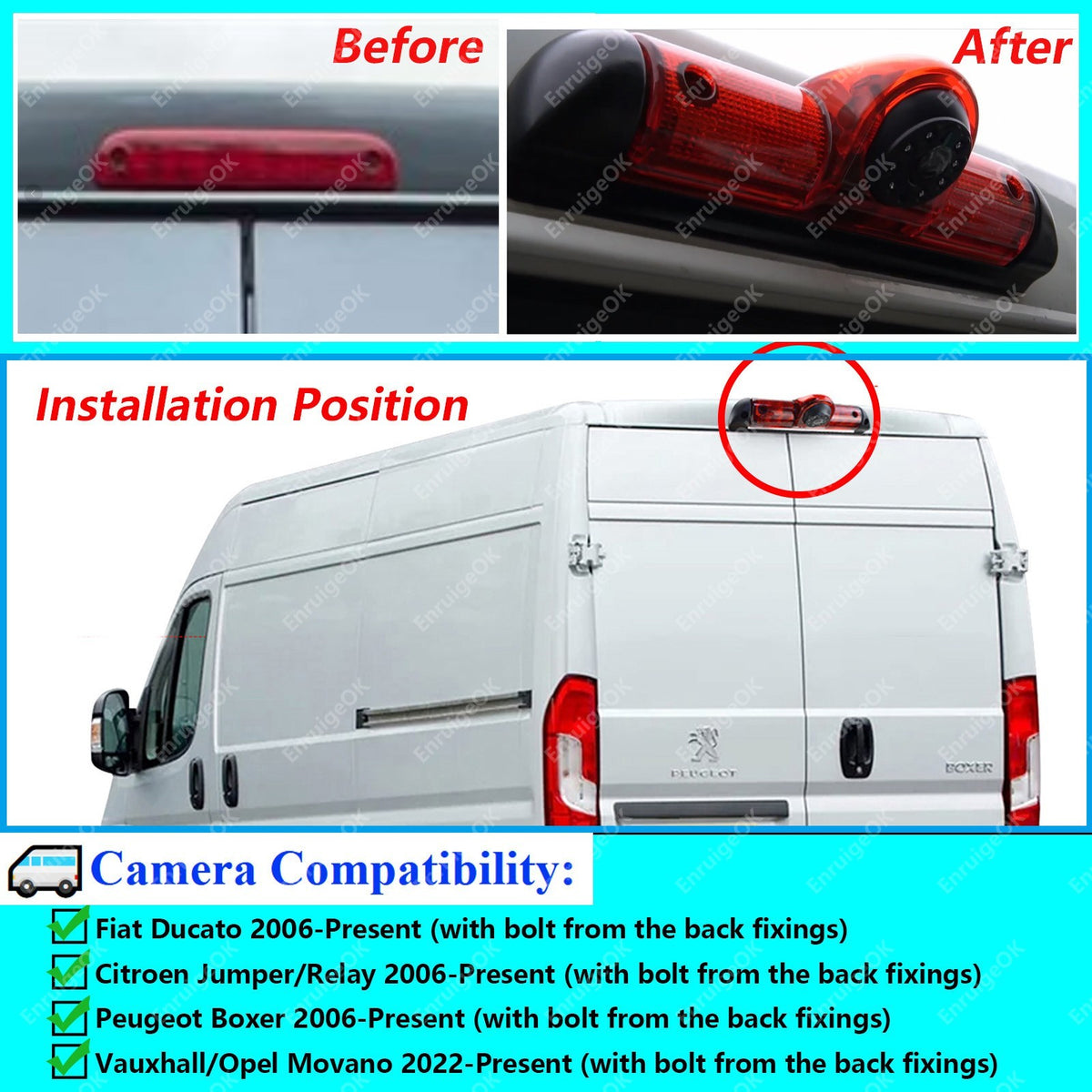

Camera Compatibility

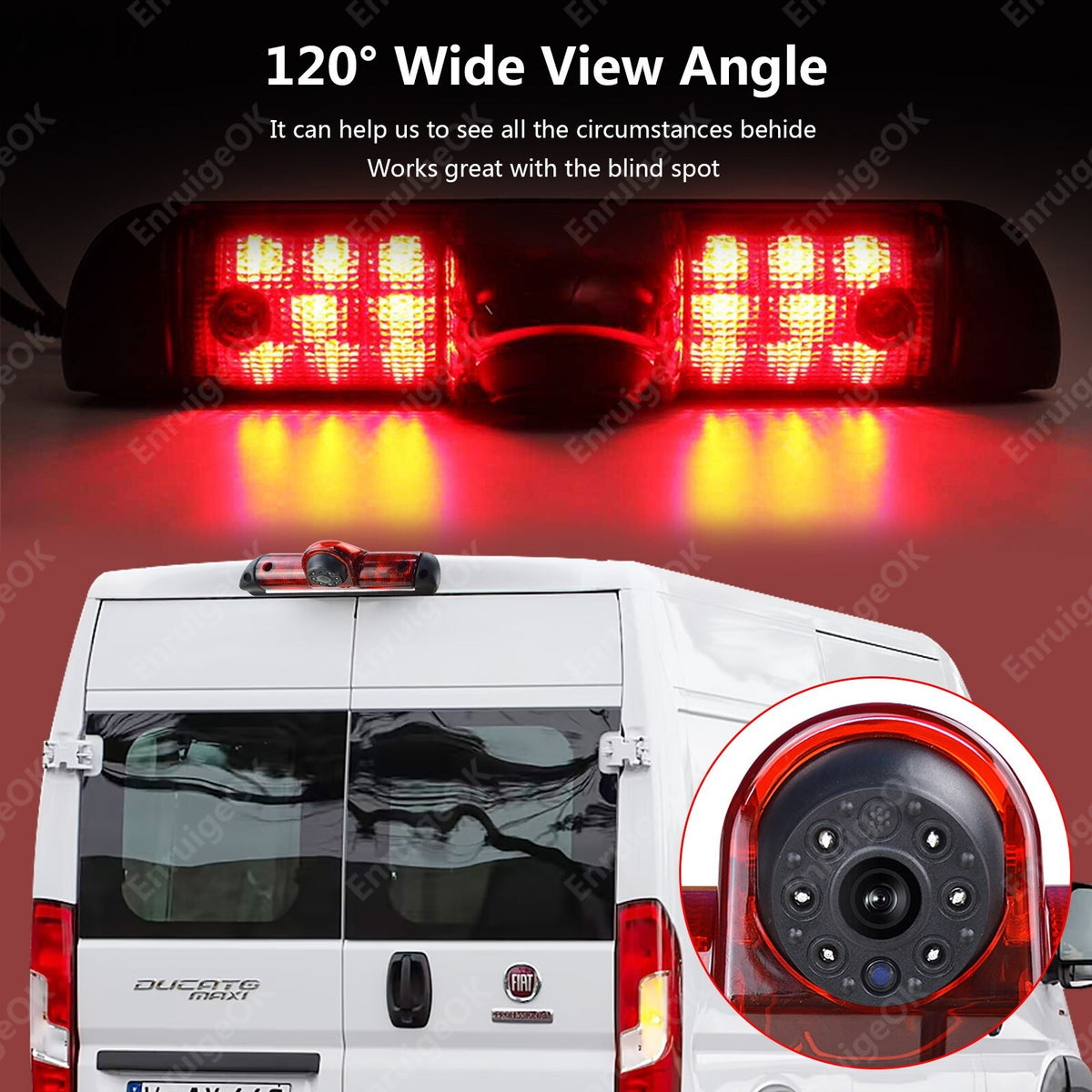

✅Fiat Ducato 2006-Present (with bolt from the back fixings)

✅Citroen Jumper/Relay 2006-Present (with bolt from the back fixings)

✅Peugeot Boxer 2006-Present (with bolt from the back fixings)

✅Vauxhall Movano 2022-Present (with bolt from the back fixings)

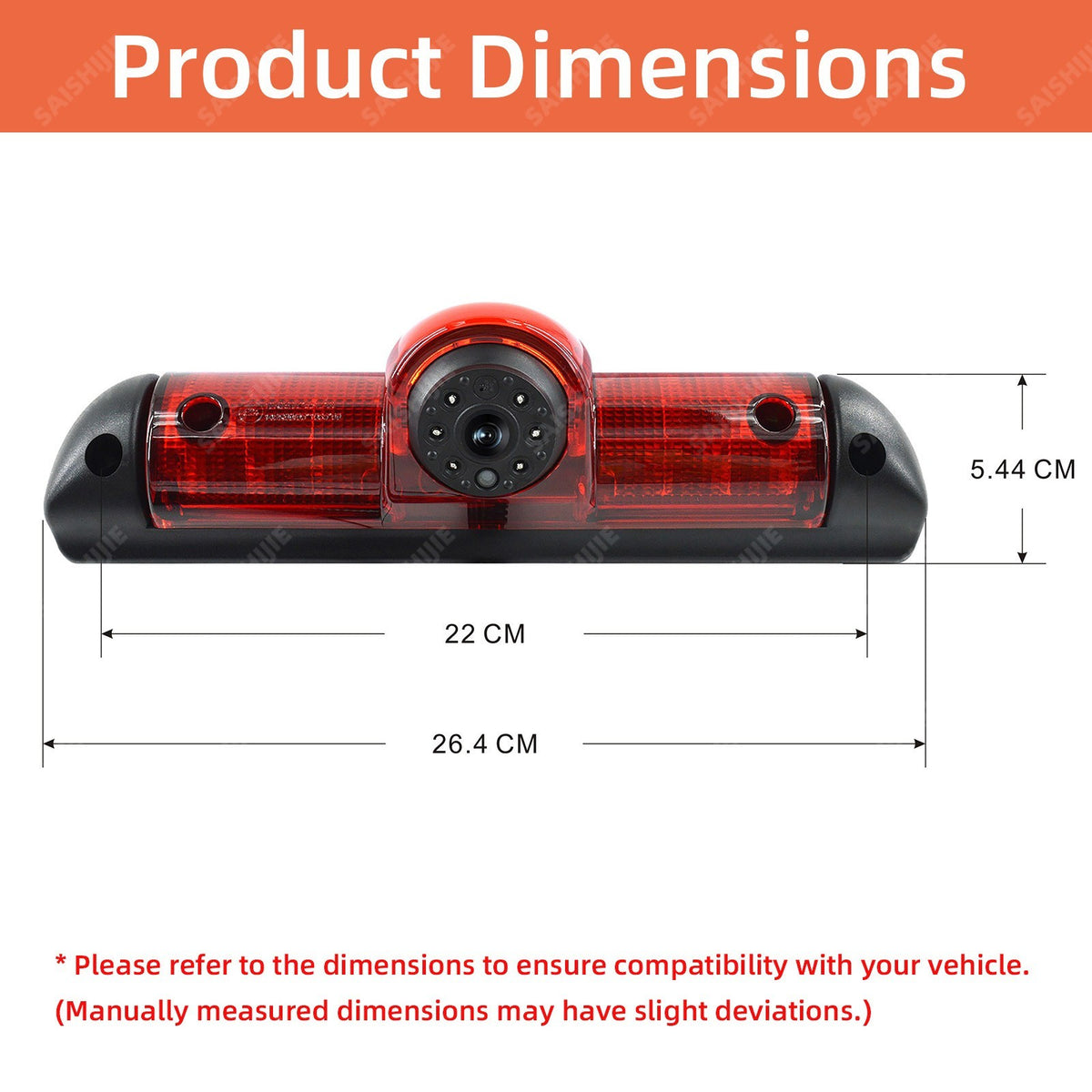

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

Features:

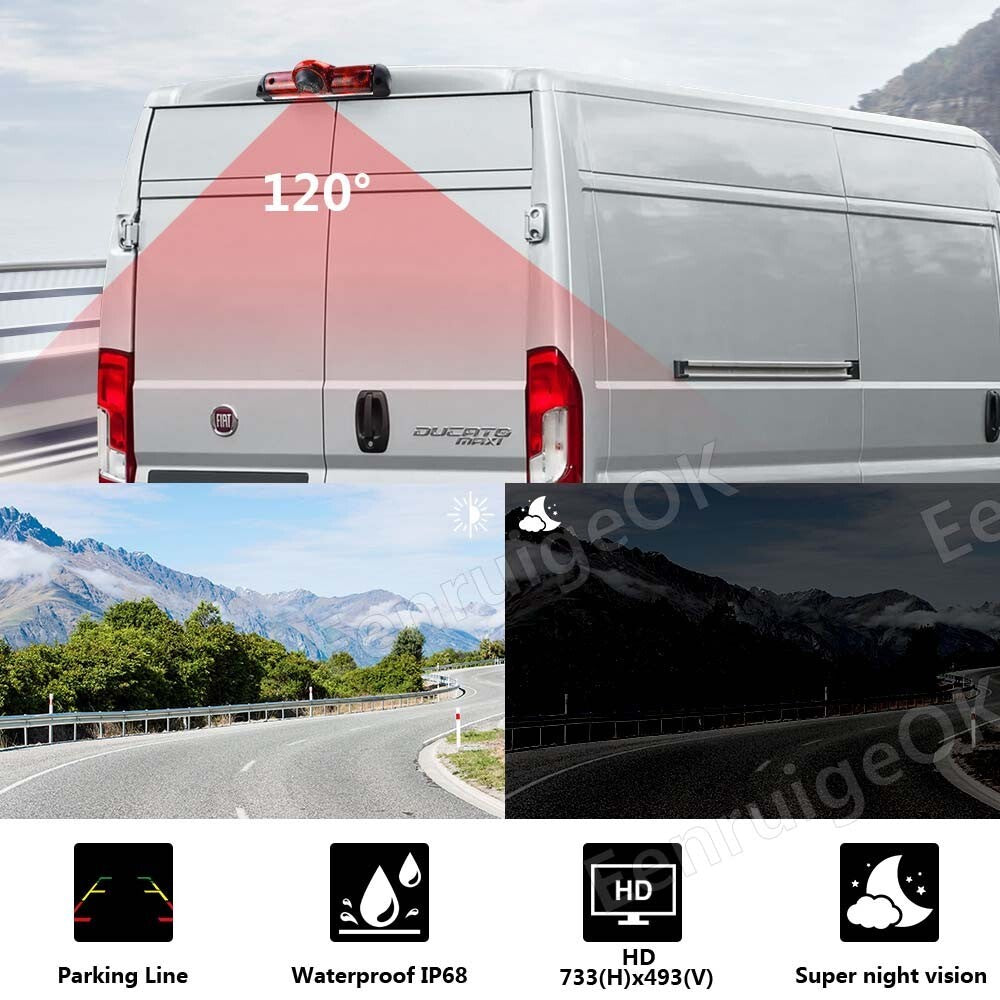

High quality image. This Brake light camera used 1/4" CMOS Sensor which have more color Image.

High definition and LED night vision.

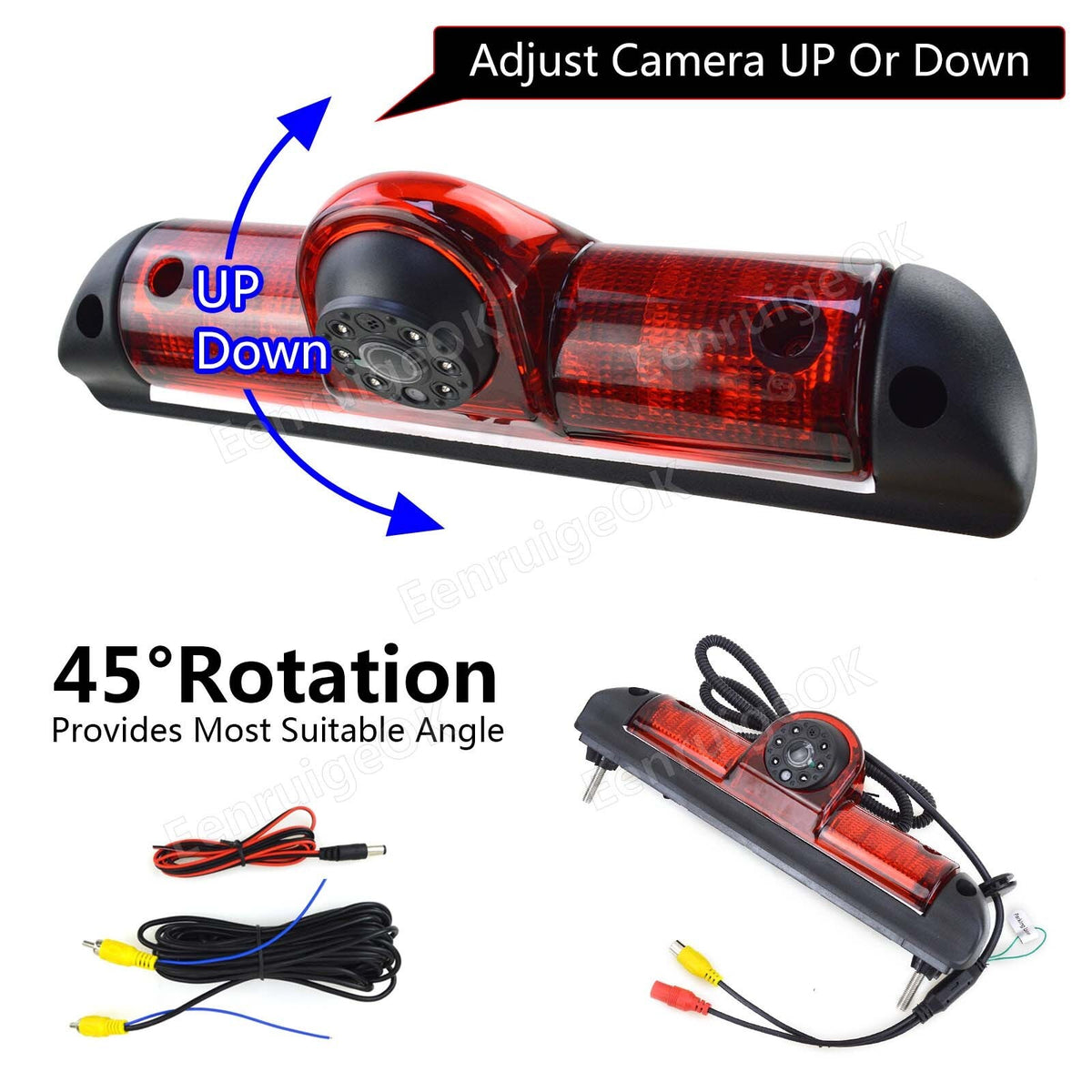

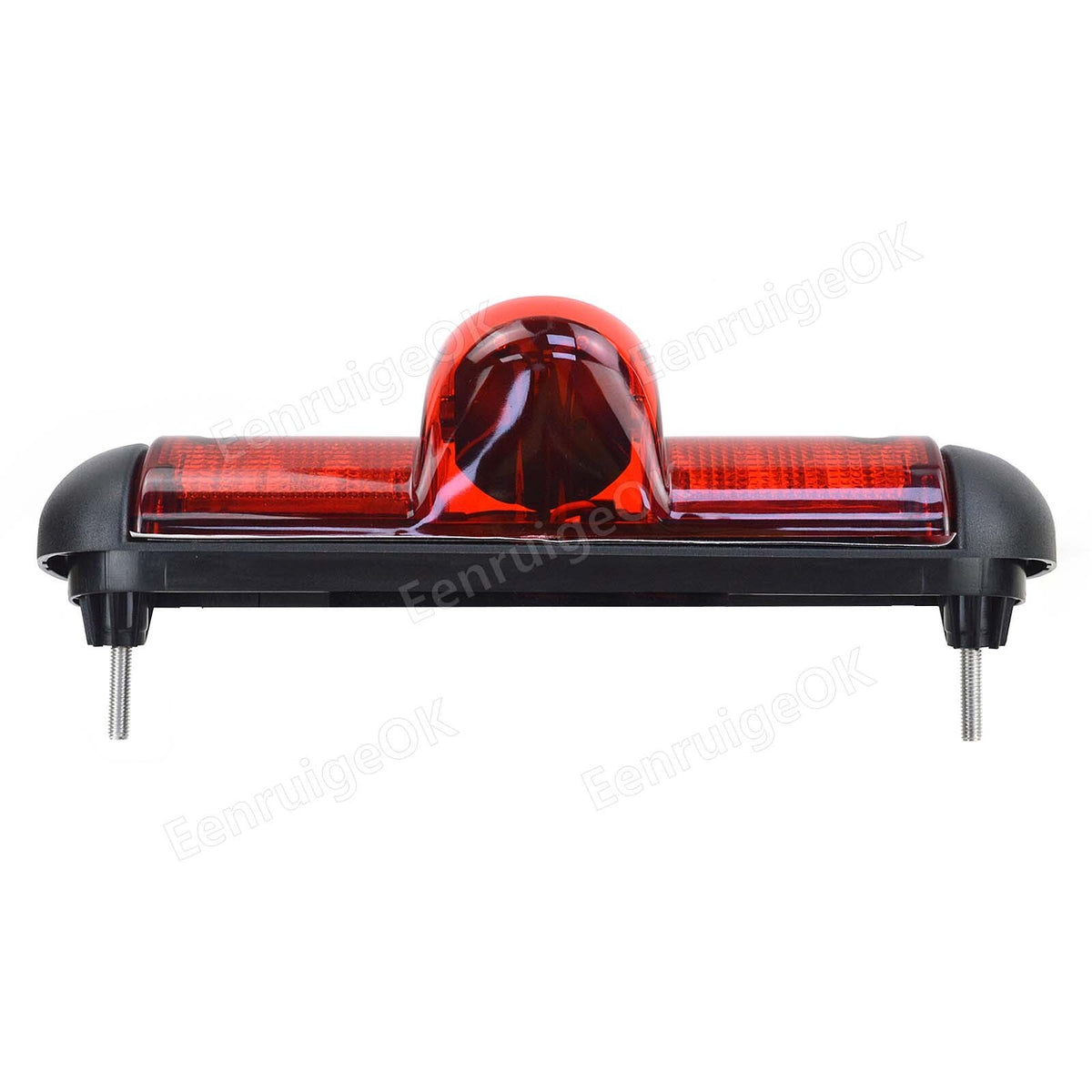

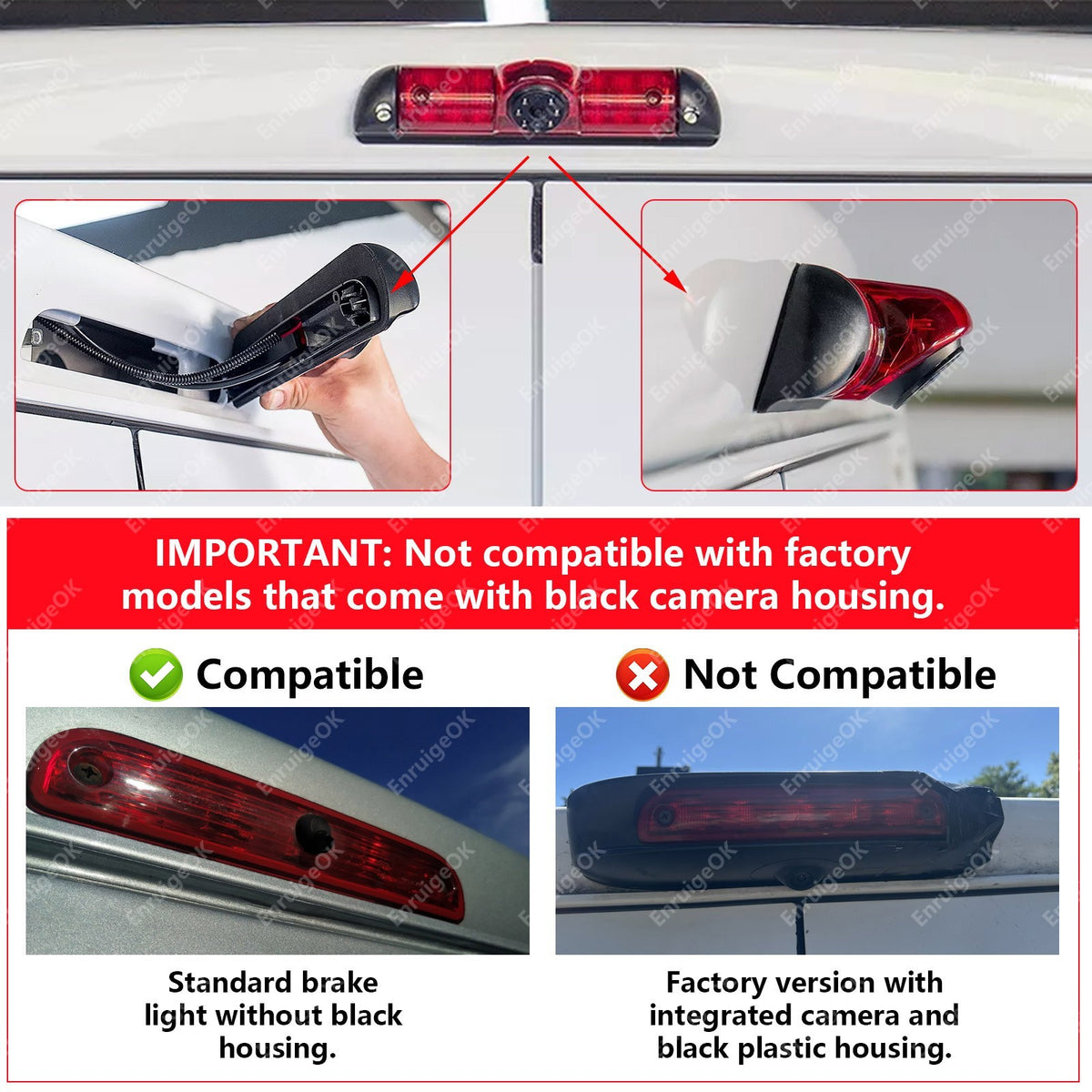

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

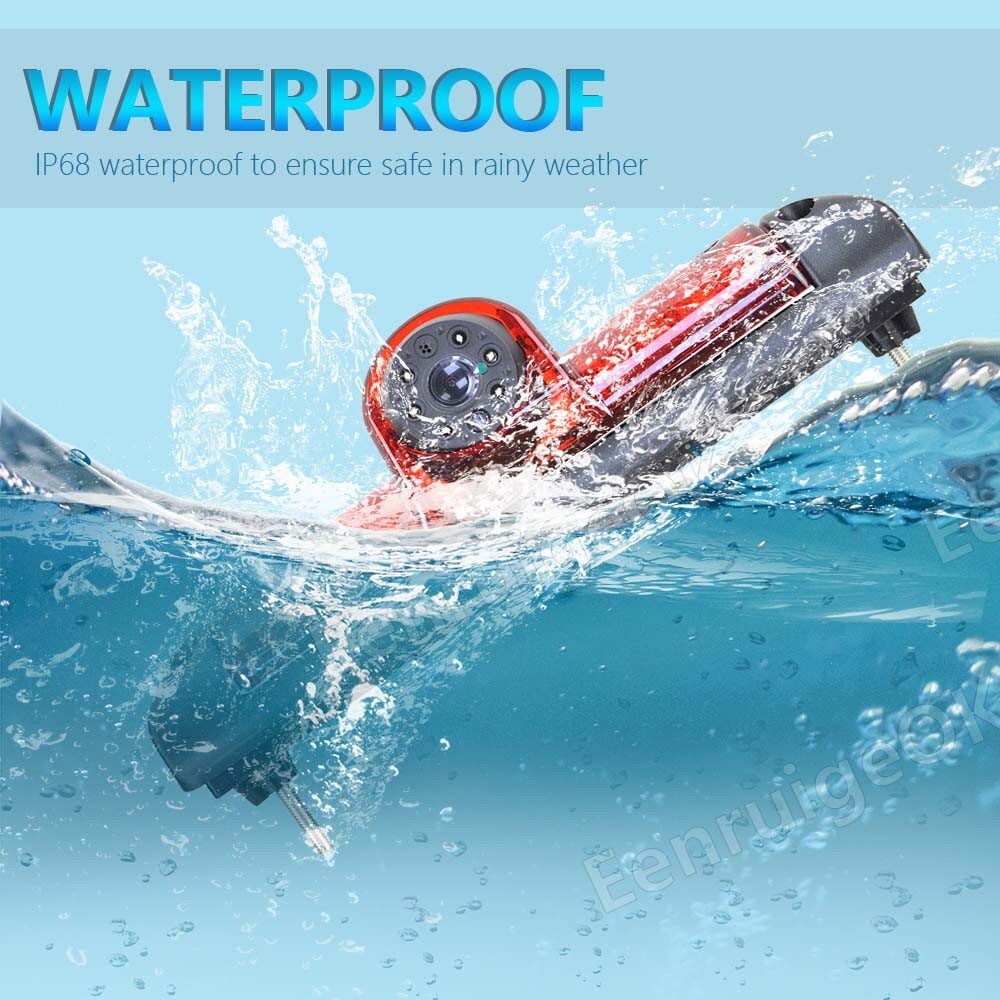

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Dustproof, shockproof, anti-shake.

Specifications

Lens Material: Glass

Image sensor: 1/4" CMOS

TV system: PAL/NTSC

Waterproof rating: IP68

Effective pixel: 733(H)x493(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: 480TV Lines

S/N Ratio: more than 48dB

Current consumption: no more than 150mA

Minimum illumination: 0Lux(IR LED ON)

Power supply: DC12V

Power: 5W

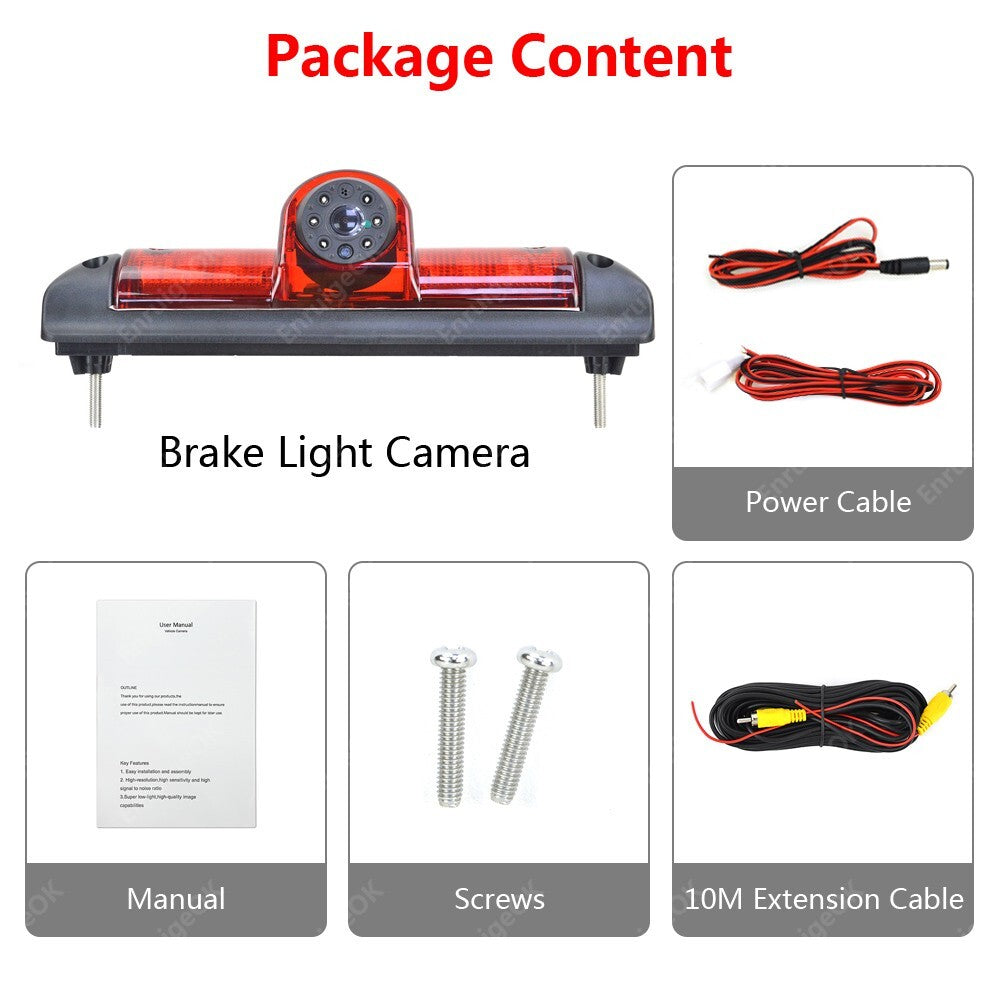

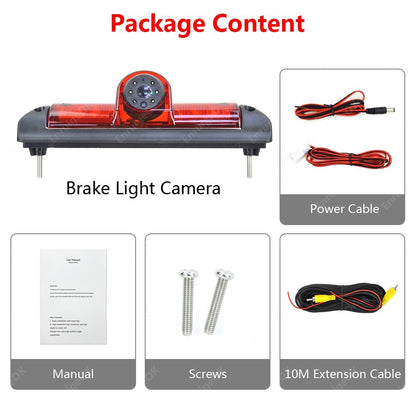

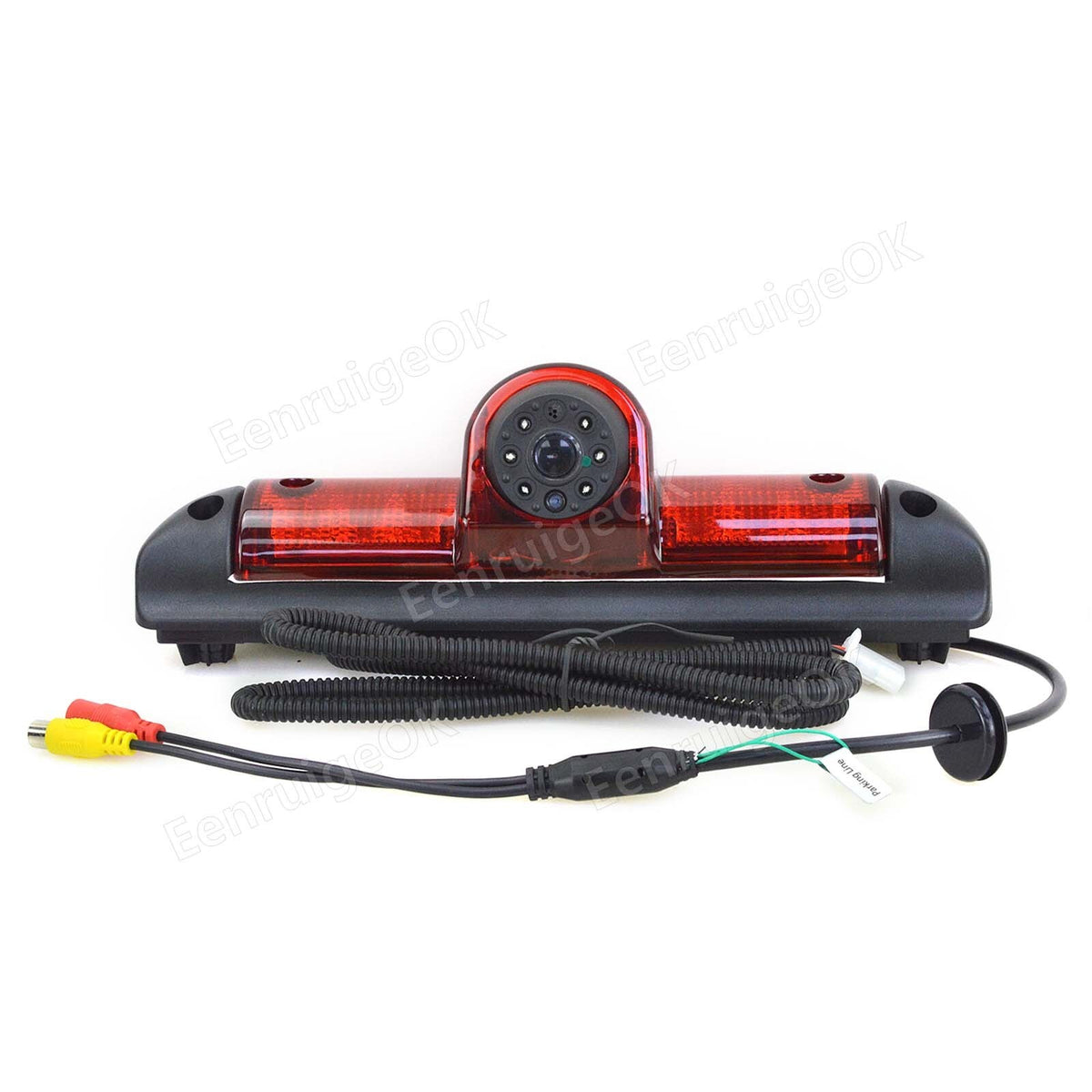

Package Includes:

1 x Rear View Camera

1 x 10M RCA video cable

1 x Brake light power cable

1 x DC cable

1 x Manual

1 x Screws

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
