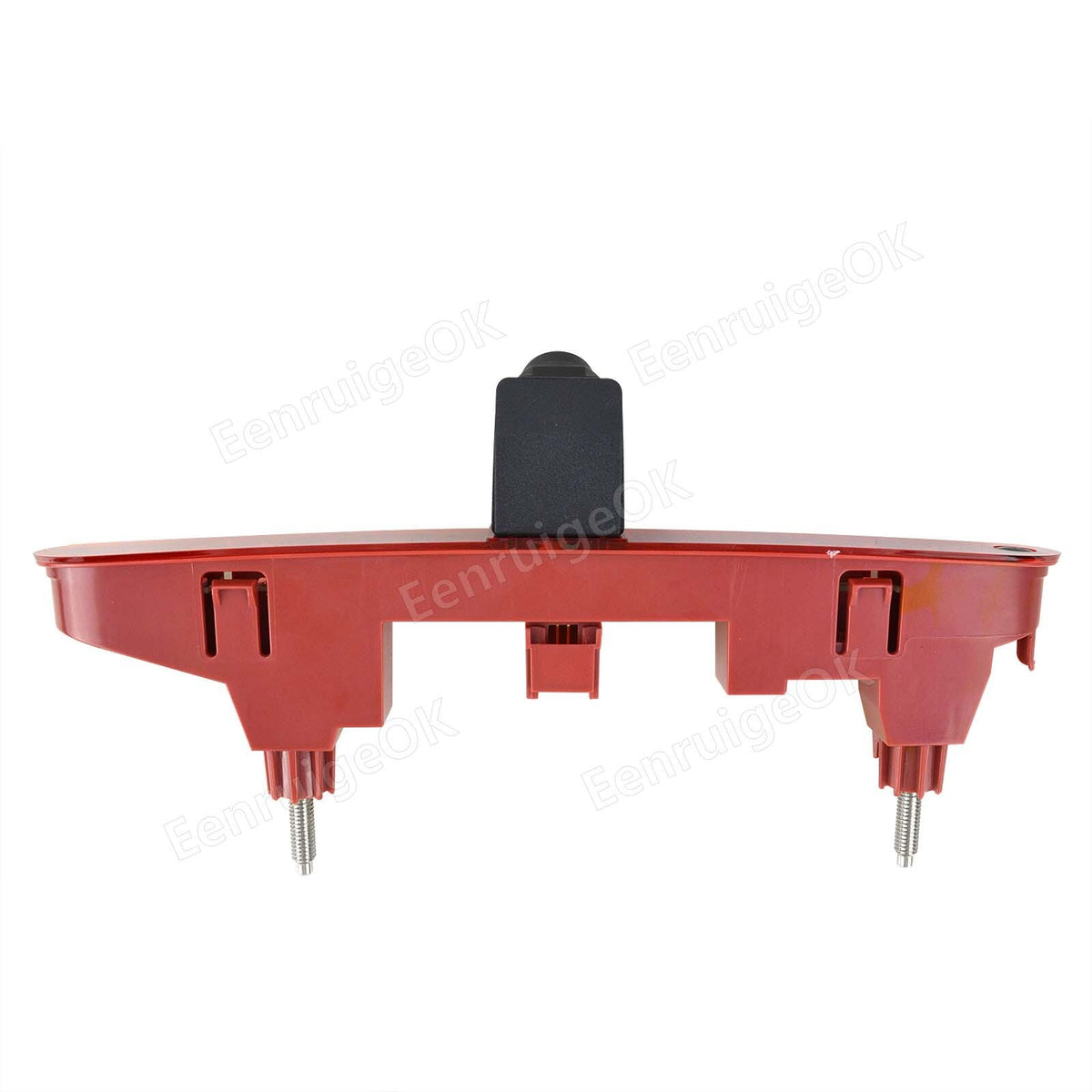

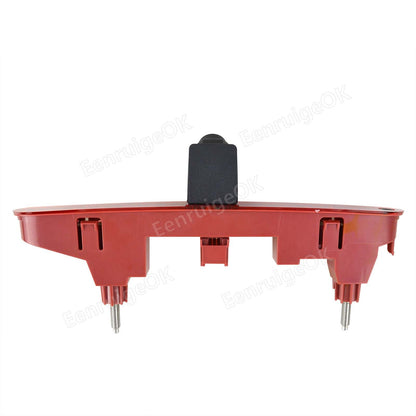

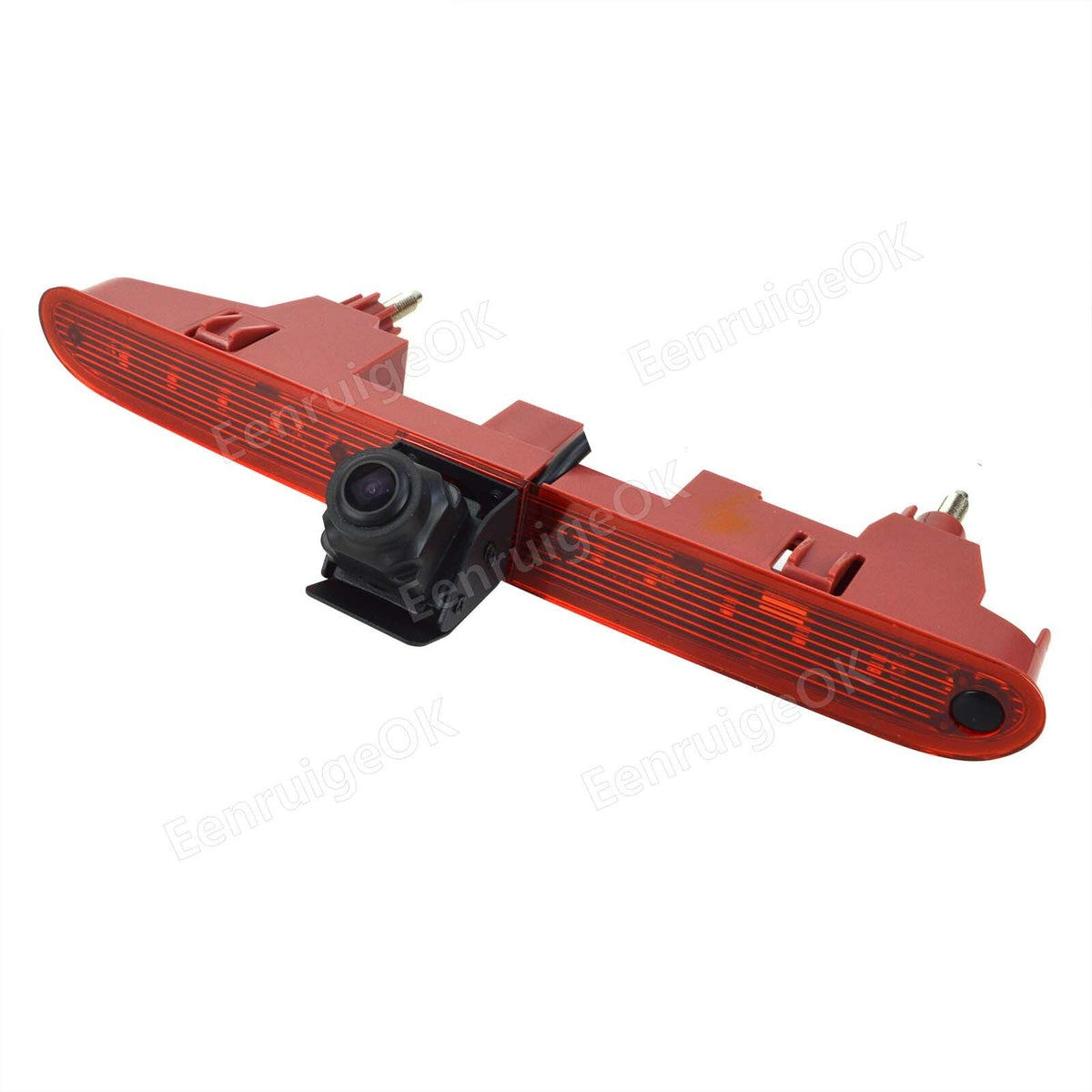

Rear Brake Light Reversing Camera for Citroen Berlingo Peugeot Partner Mk2 Mk3

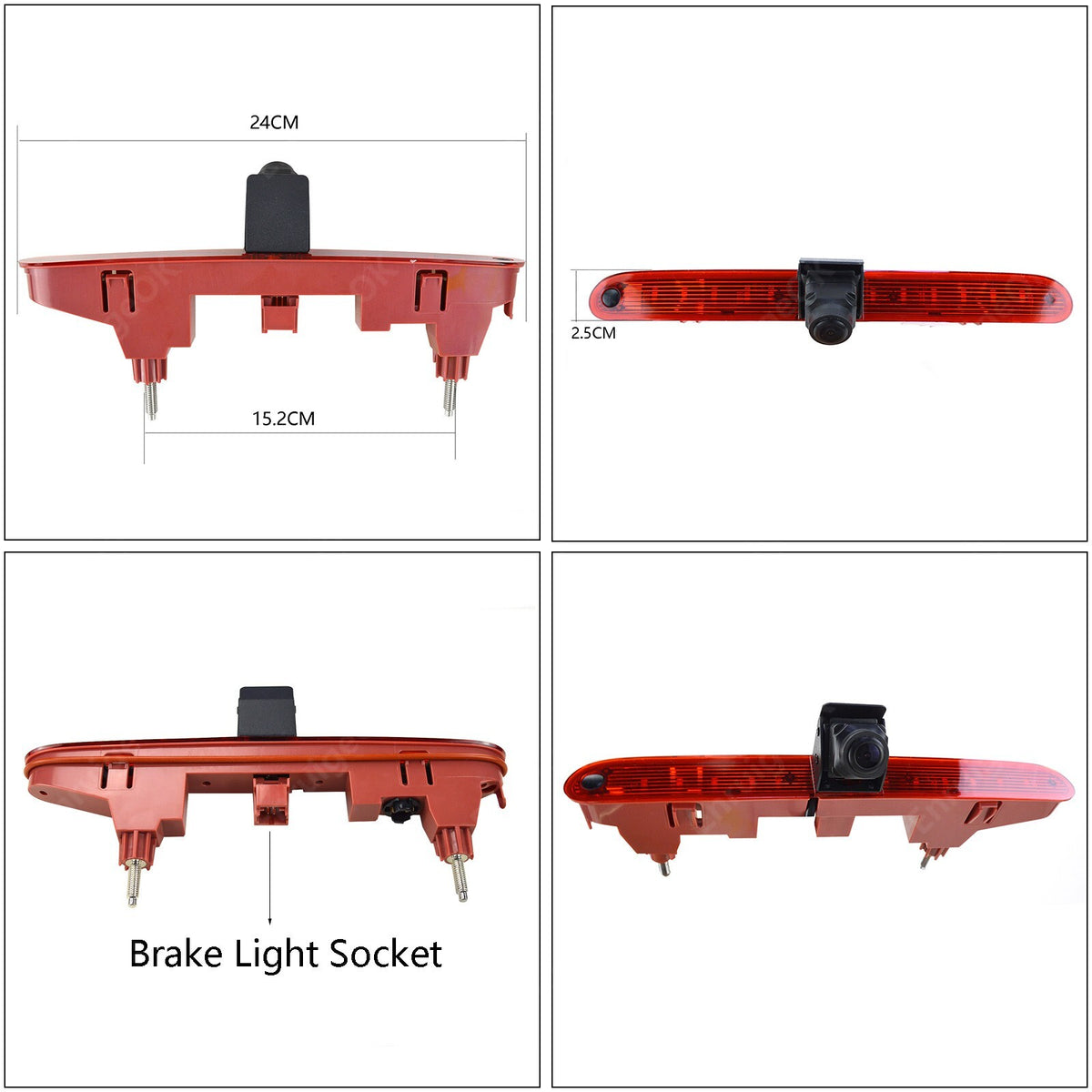

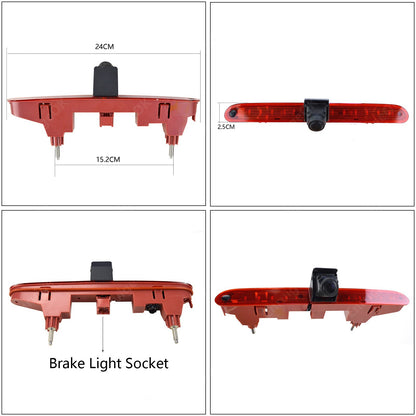

Note: Please check the camera size carefully before make the order.

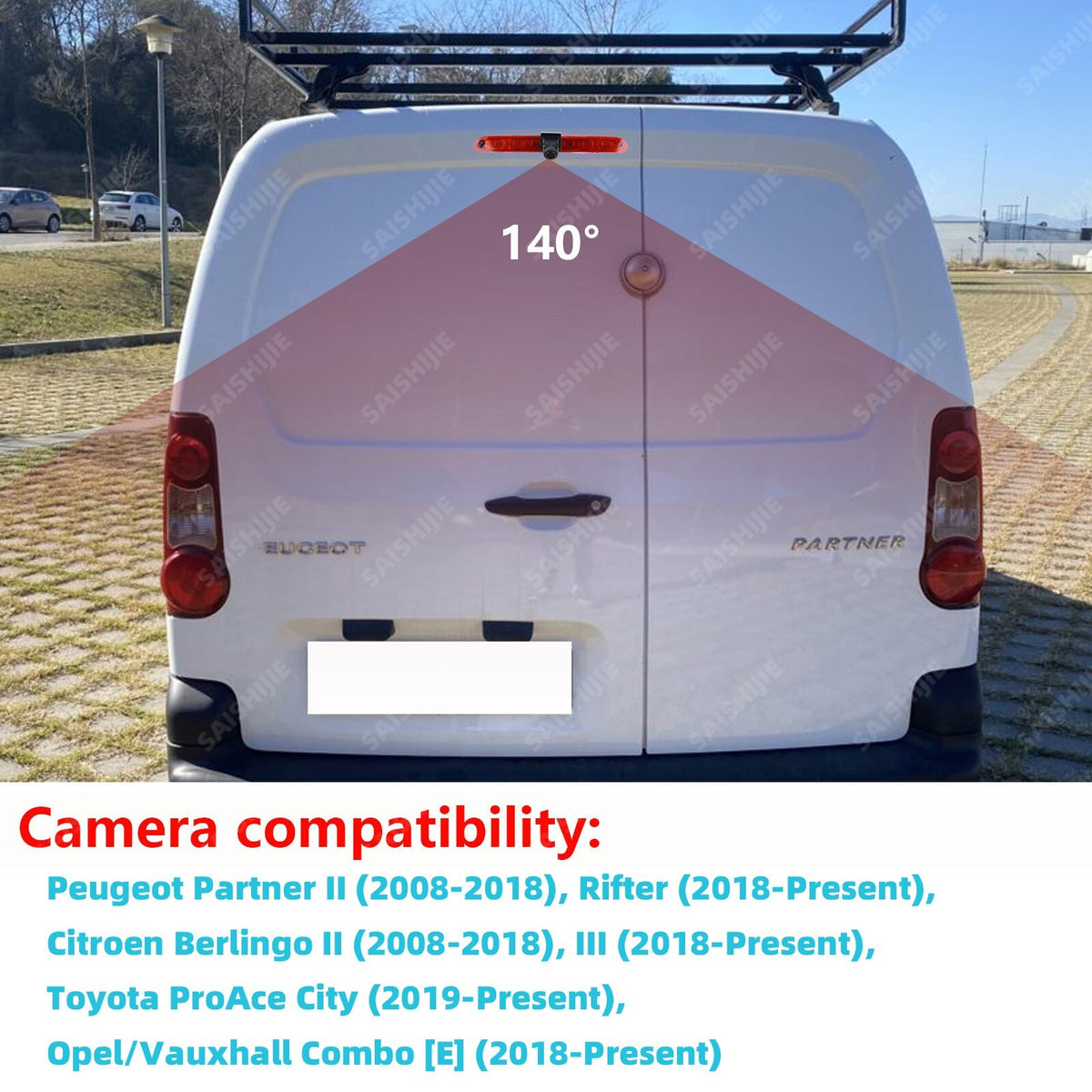

Camera Compatibility

Citroen Berlingo MK2 (2008-2018), MK3 (2018-Present),

Peugeot Partner MK2 (2008-2018),

Peugeot Rifter (2018–Present),

Toyota ProAce City (2019-Present),

Opel/Vauxhall Combo [E] (2018-Present)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

Reminder Friendly

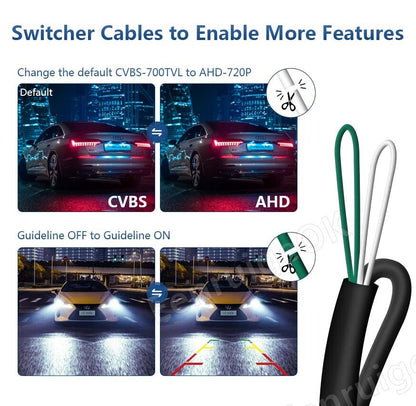

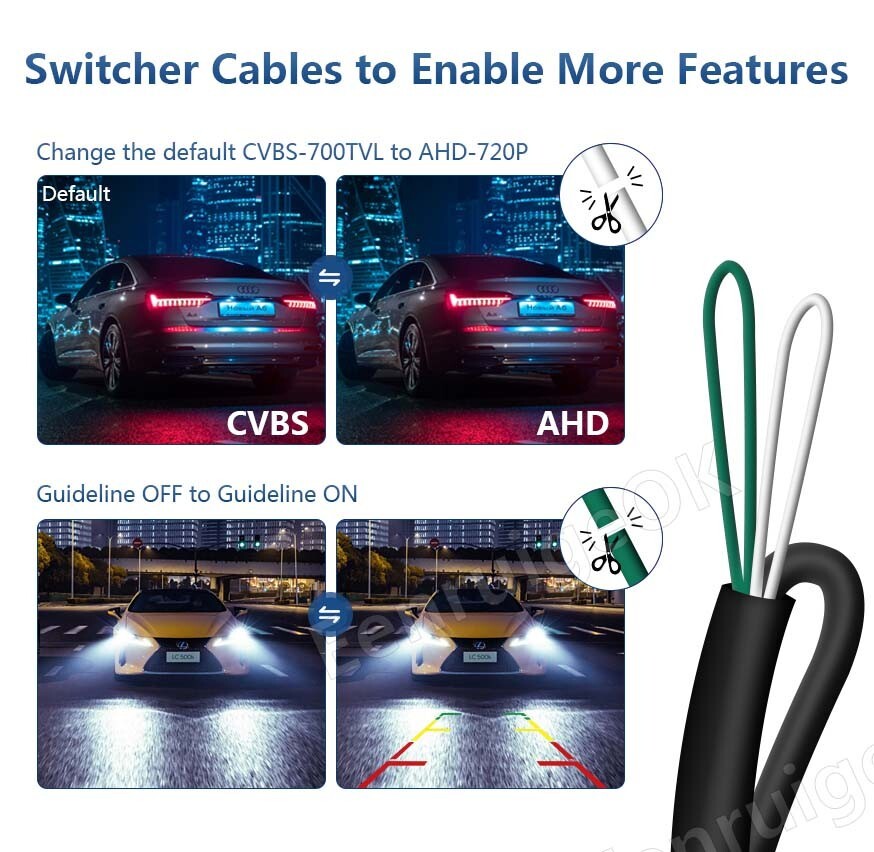

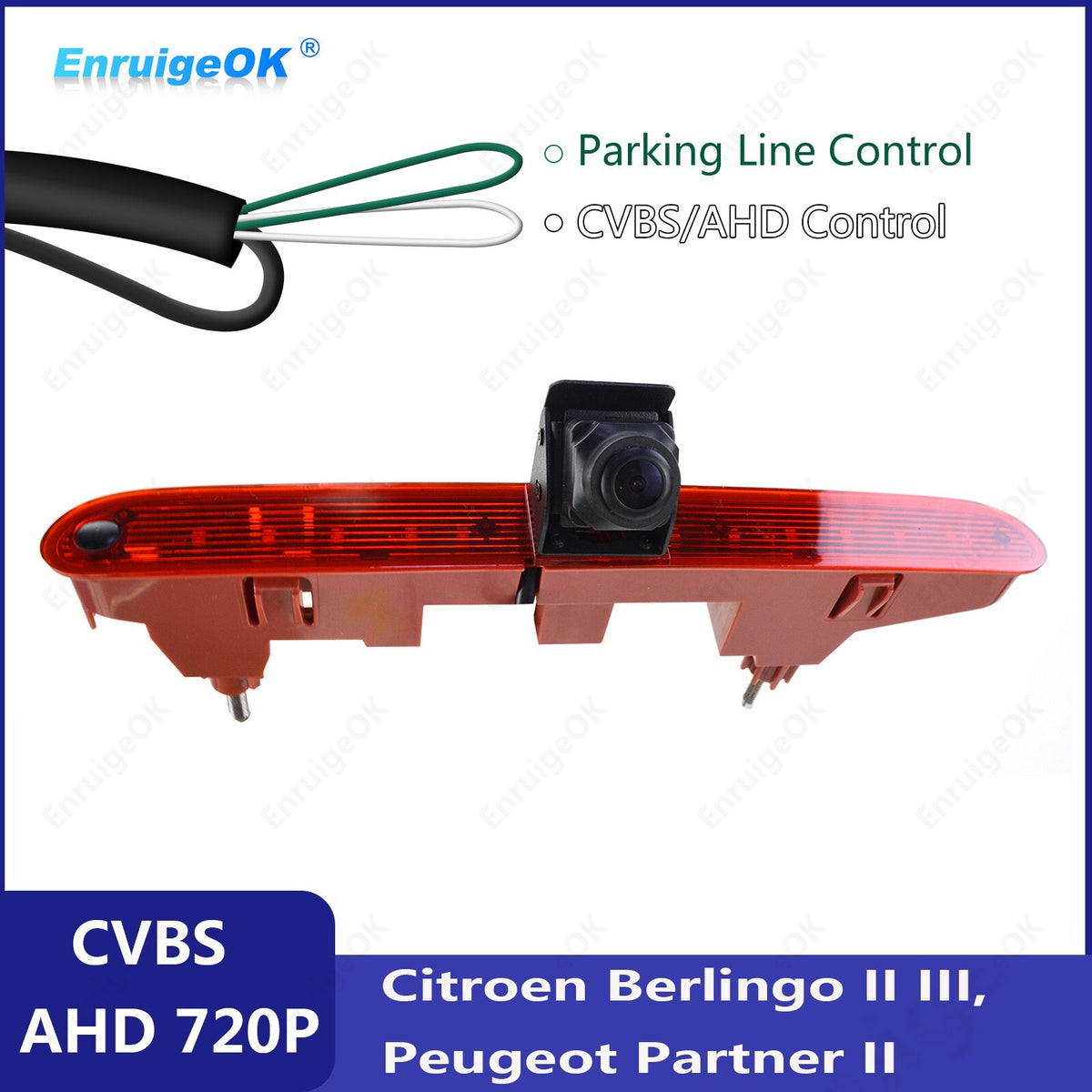

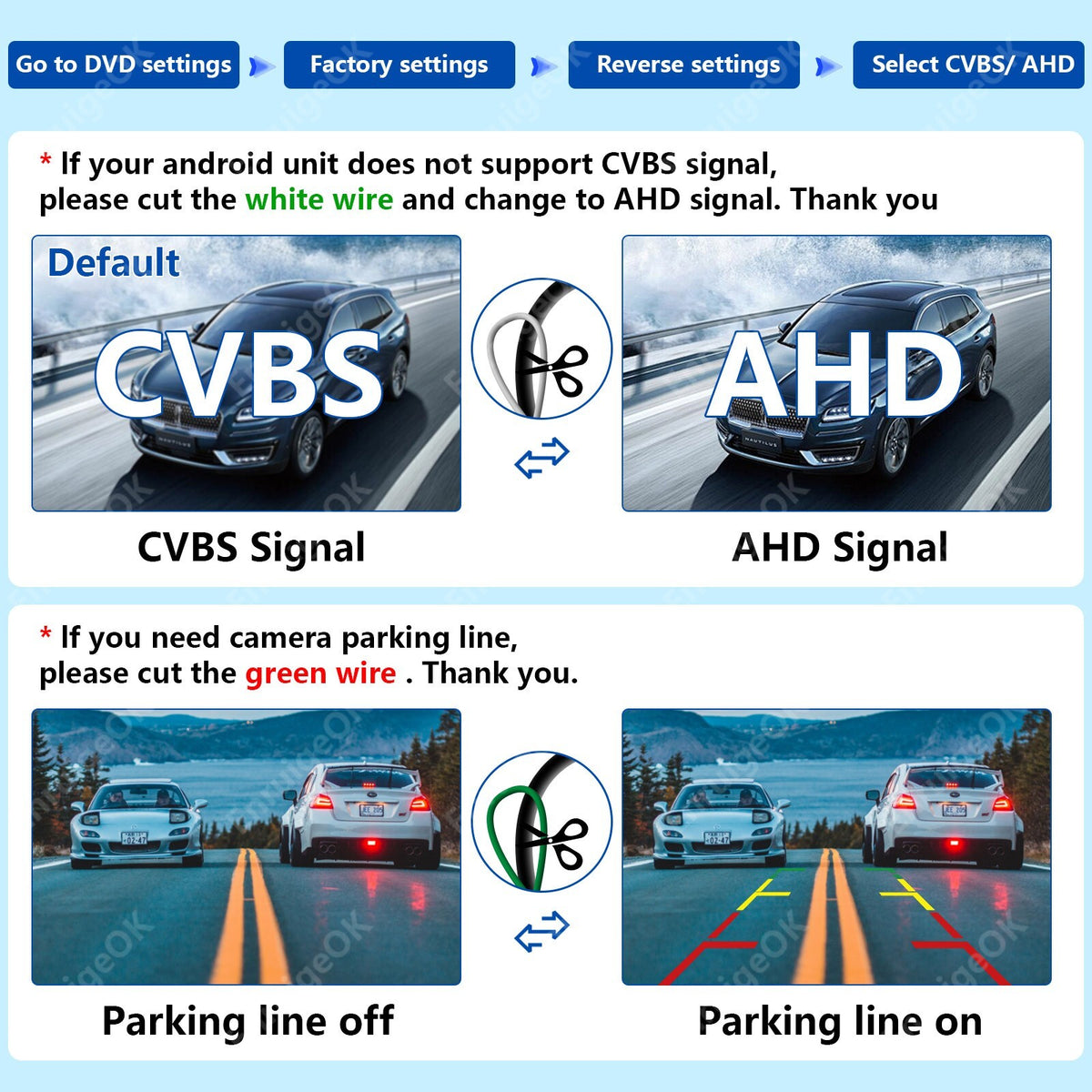

This camera defaults to a CVBS 480TVL signal and supports AHD 720P signal (by cutting the white wire).

If your Android device or monitor supports AHD 720P, you can cut the white wire to switch to AHD 720P. If it does not support AHD 720P, please leave the white wire intact. Thank you!

Features:

-Rear view camera specifically for use on vans.

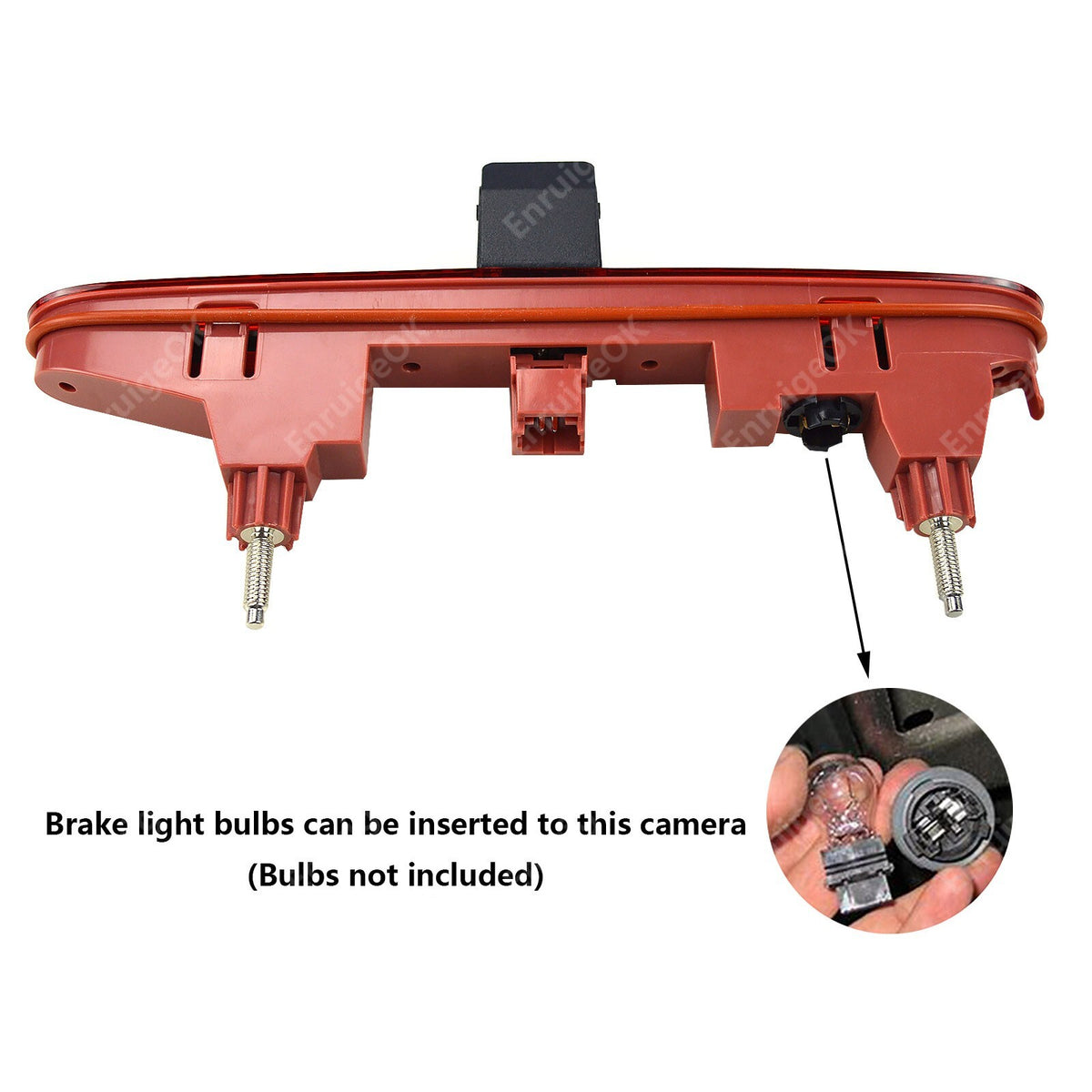

-Easy replacement for the factory 3rd brake light.

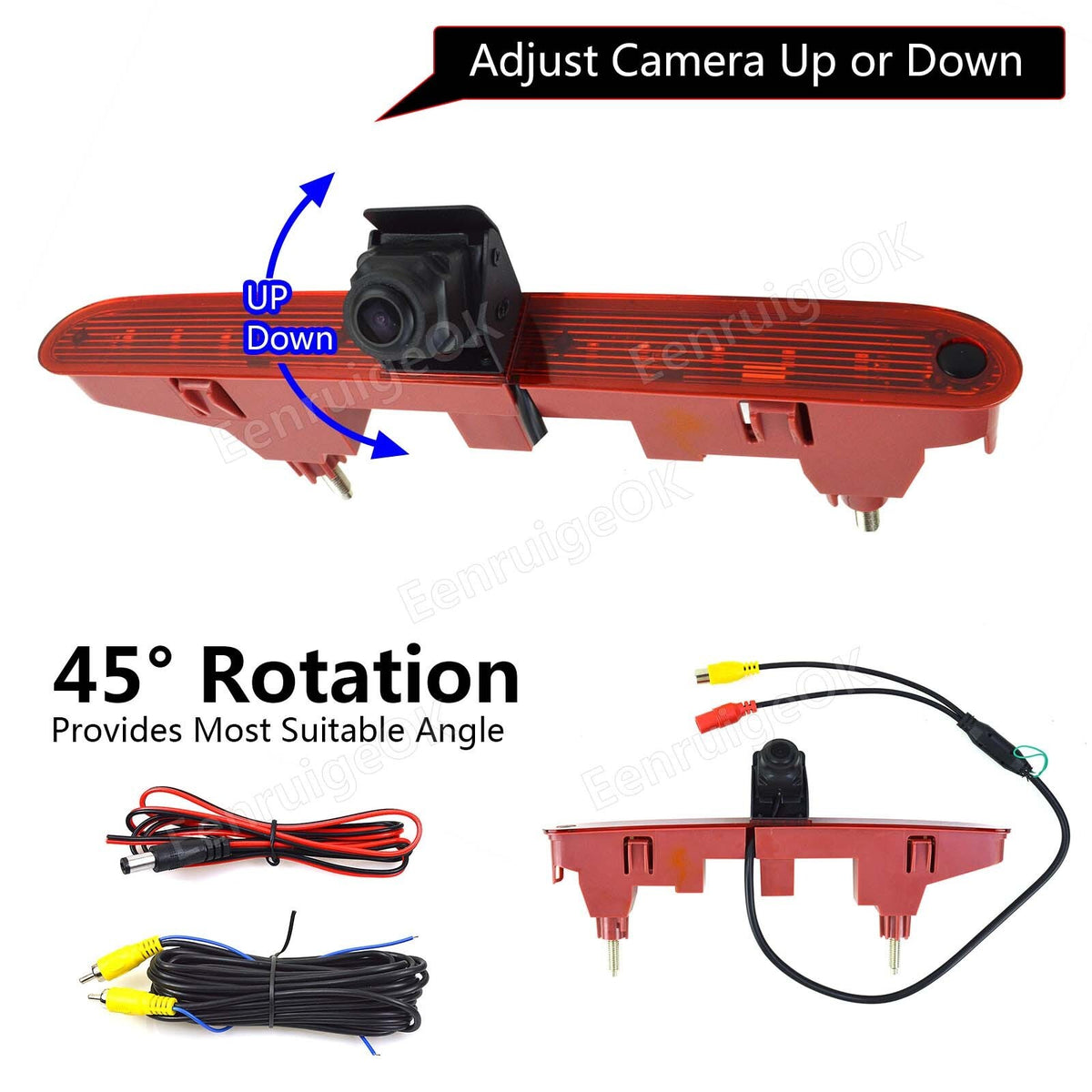

-Fixed vertical detection angle for optimal viewing angle.

-Can be used with all monitors that have an RCA video input.

-High-quality workmanship and visually appealing design.

Specifications

- Image sensor: 1/3 "CMOS

- TV system: PAL/NTSC

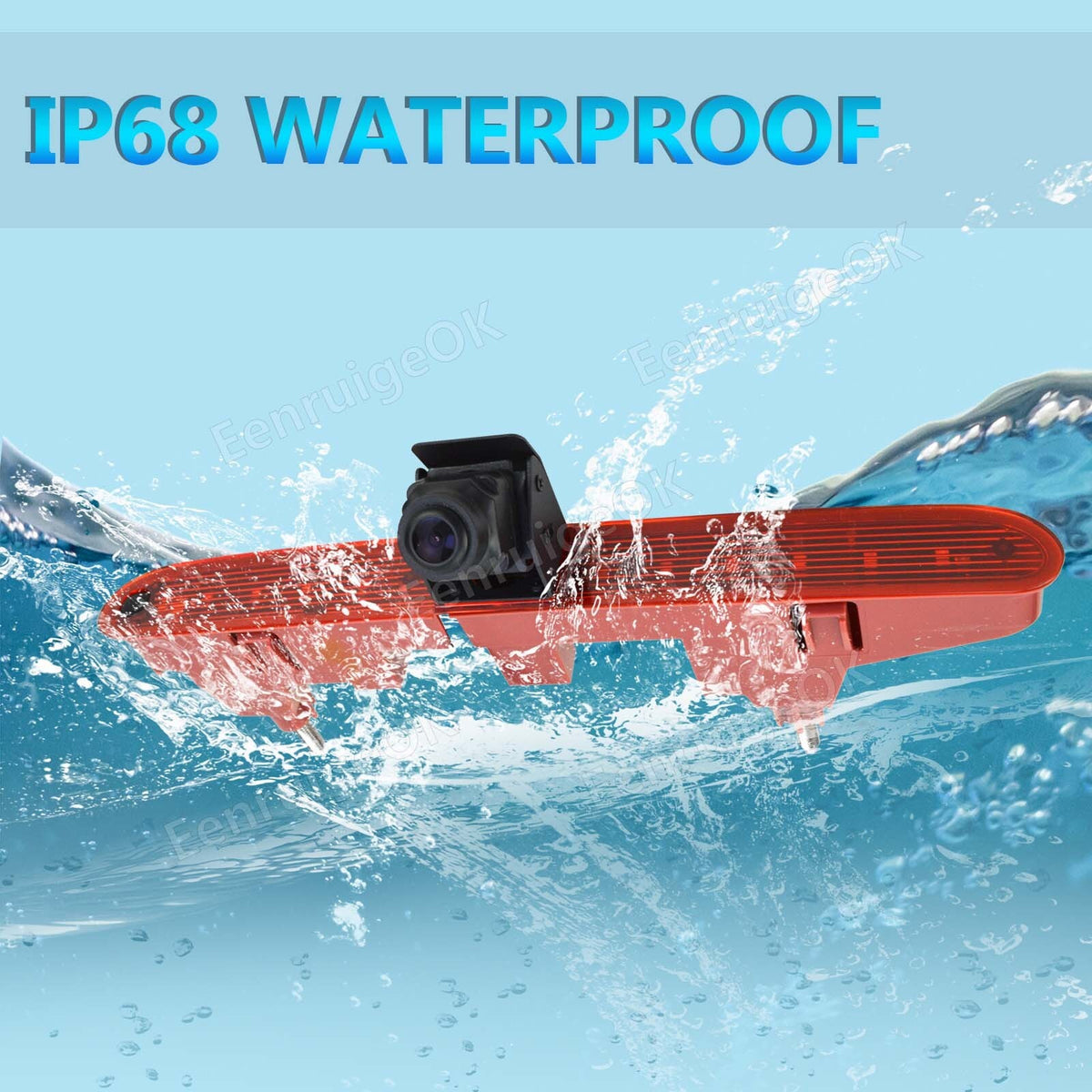

- waterproof rating: IP68

- Viewing angle: 120 °

- Effective pixel: CVBS: 960(H)x480(V); AHD: 1920(H)x720(V)

- Horizontal sync frequency: 15.625KHZ

- Scanning system: 2:1 interface

- Sync system: Internal

- ACG: Auto

- BLC: Auto

- Resolution: CVBS 700TV Lines; AHD 720P

- S/N Ratio: > 48dB

- Current consumption: < 150mA

- Minimum illumination: 0.1-0.5Lux / F = 1.2

- Power supply: DC12V

- Power: 5W

- Operating temperature: -20℃ to +70℃

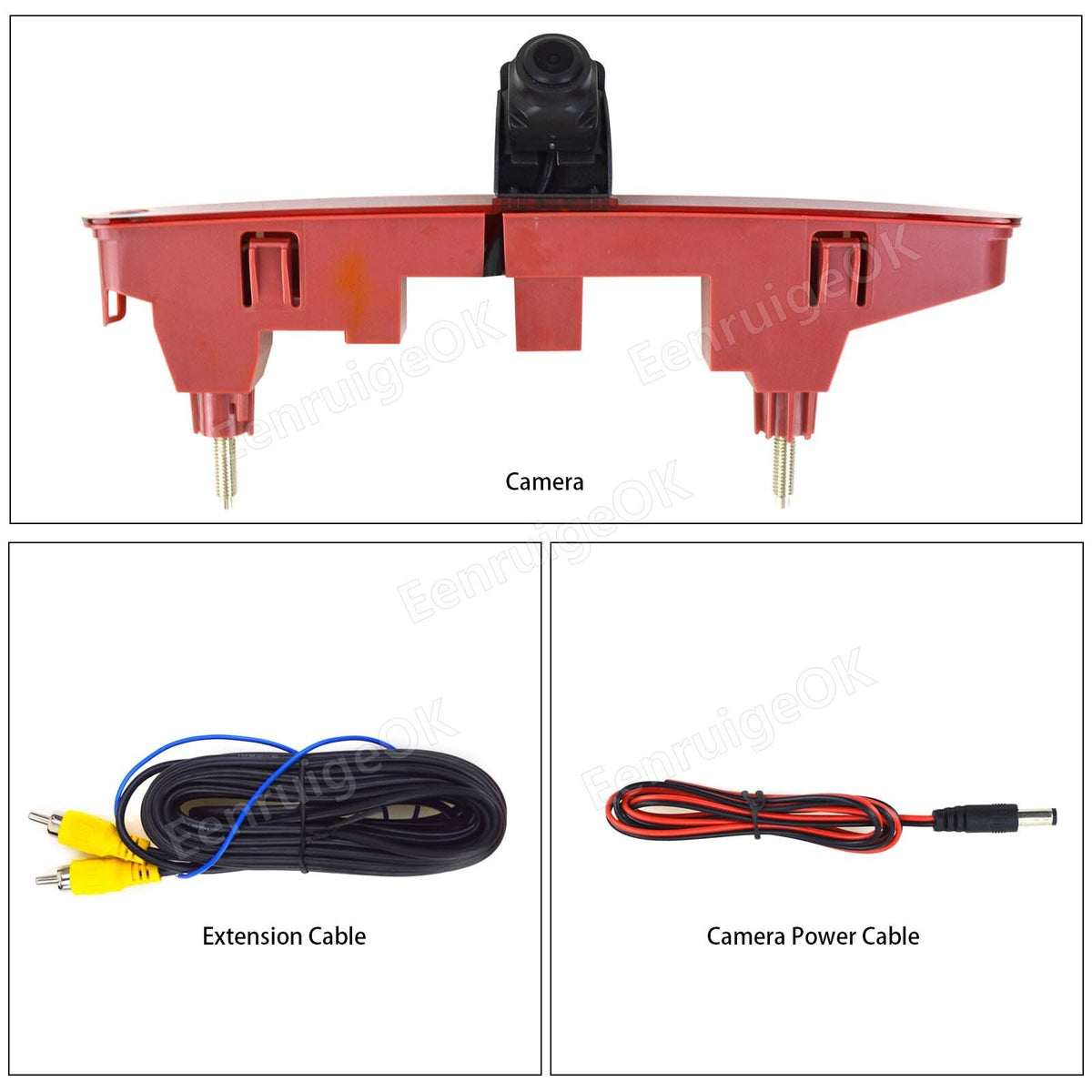

Package Included

1 X Reversing camera

1 X 10 meters extension cable

1 X Power cable

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
