Rear Brake Light Reverse Camera Kit for Fiat Ducato Citroen Relay Peugeot Boxer

Note: Please check the camera size carefully before make the order.

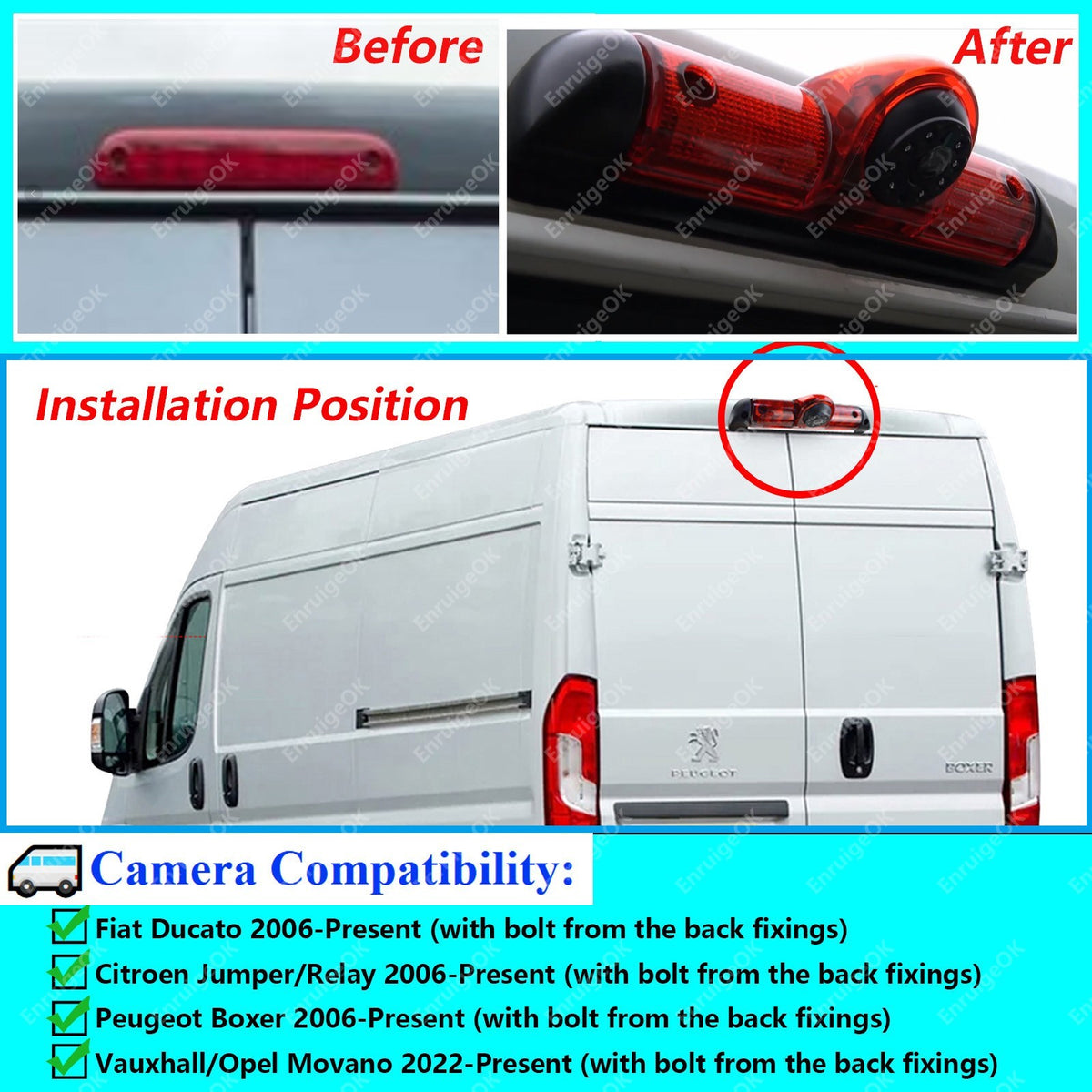

Camera Compatibility

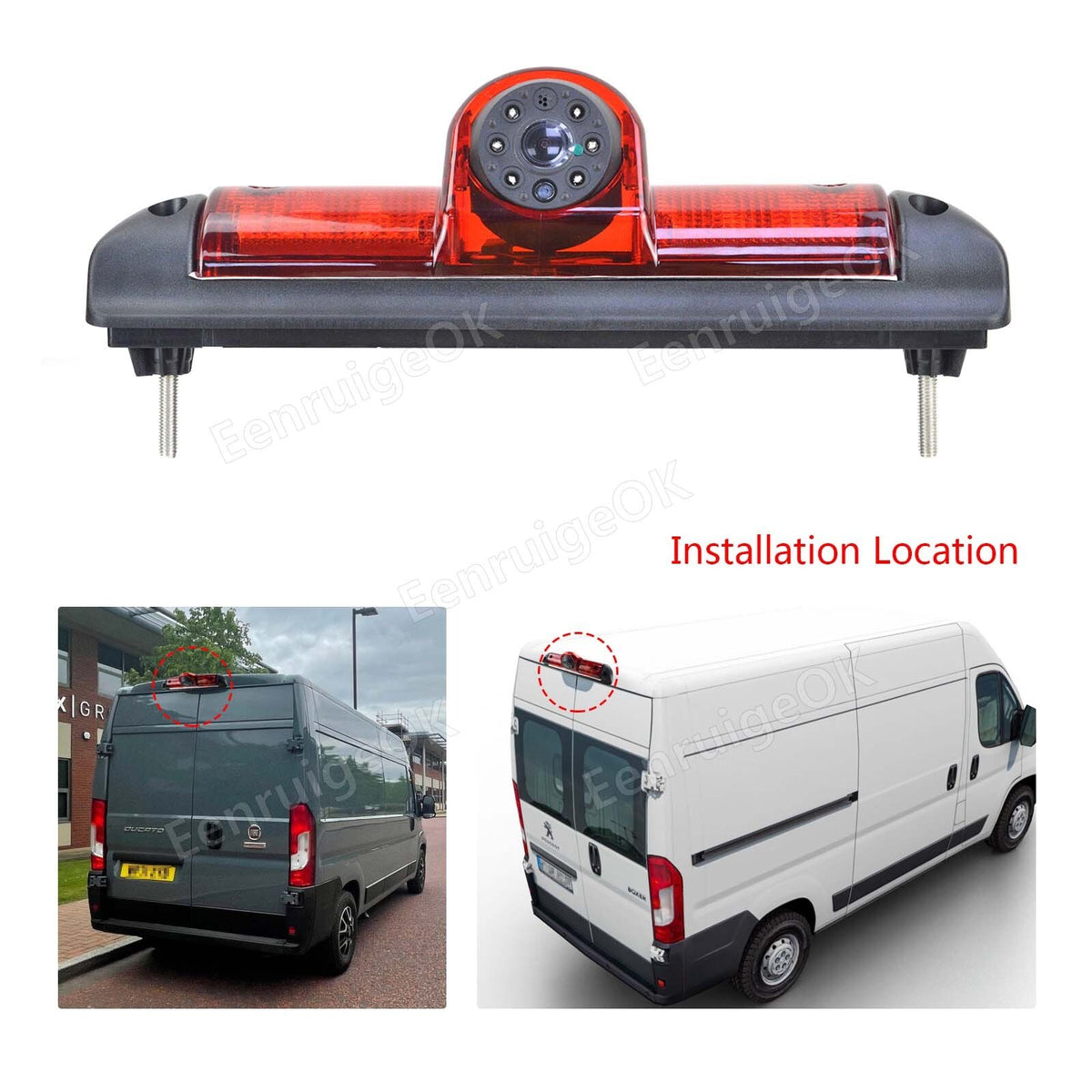

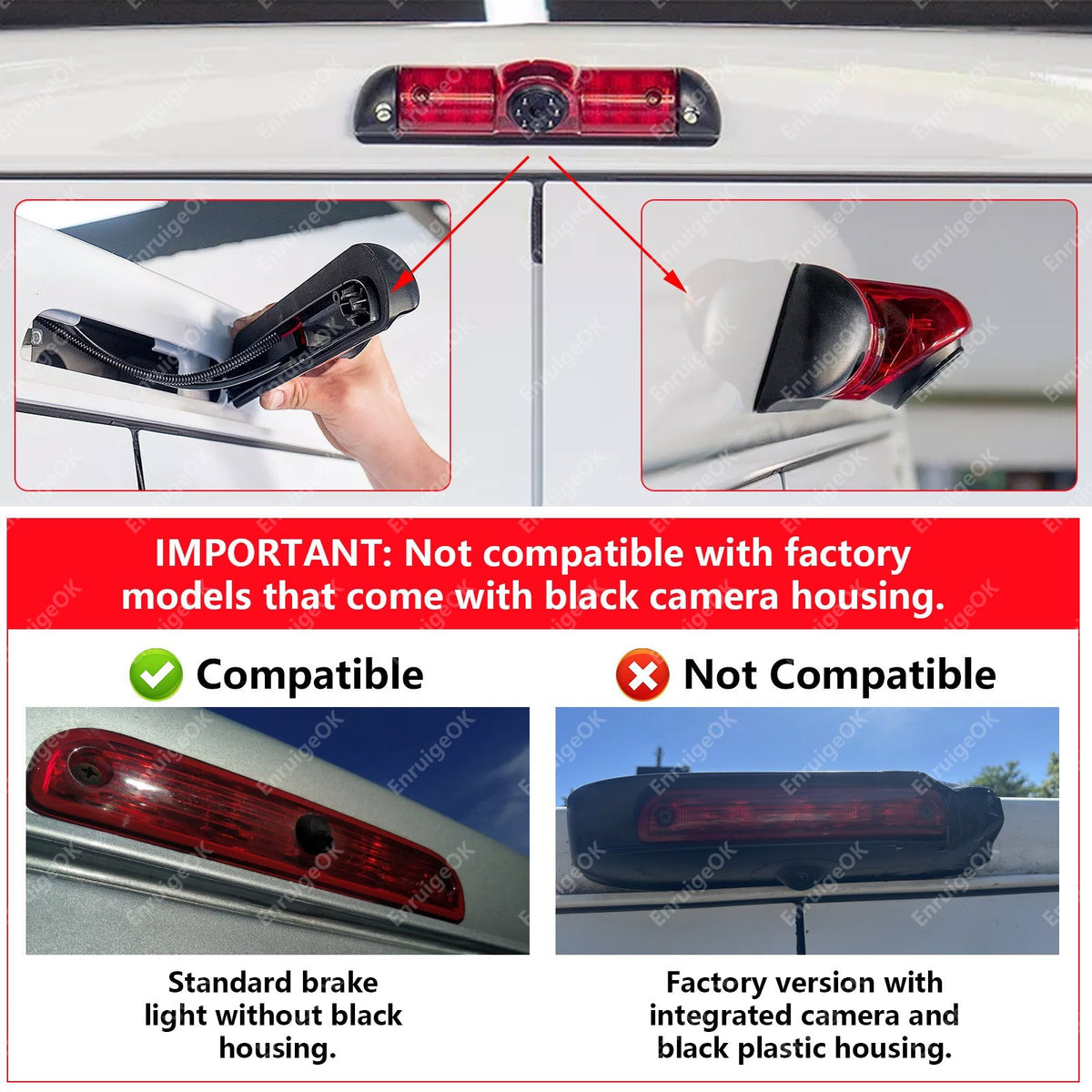

✅Fiat Ducato 2006-Present (with bolt from the back fixings)

✅Citroen Jumper/Relay 2006-Present (with bolt from the back fixings)

✅Peugeot Boxer 2006-Present (with bolt from the back fixings)

✅Vauxhall Movano 2022-Present (with bolt from the back fixings)

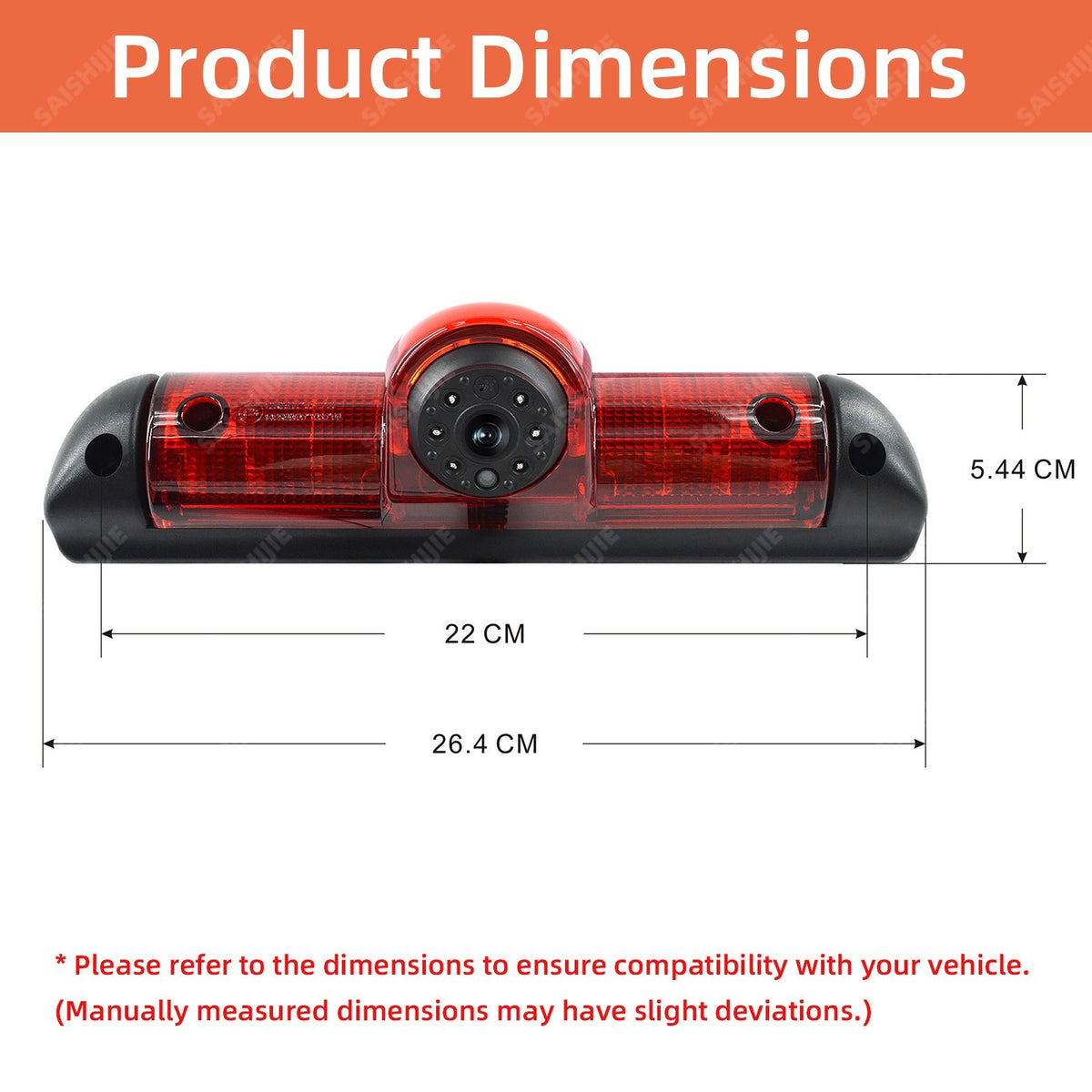

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

Features:

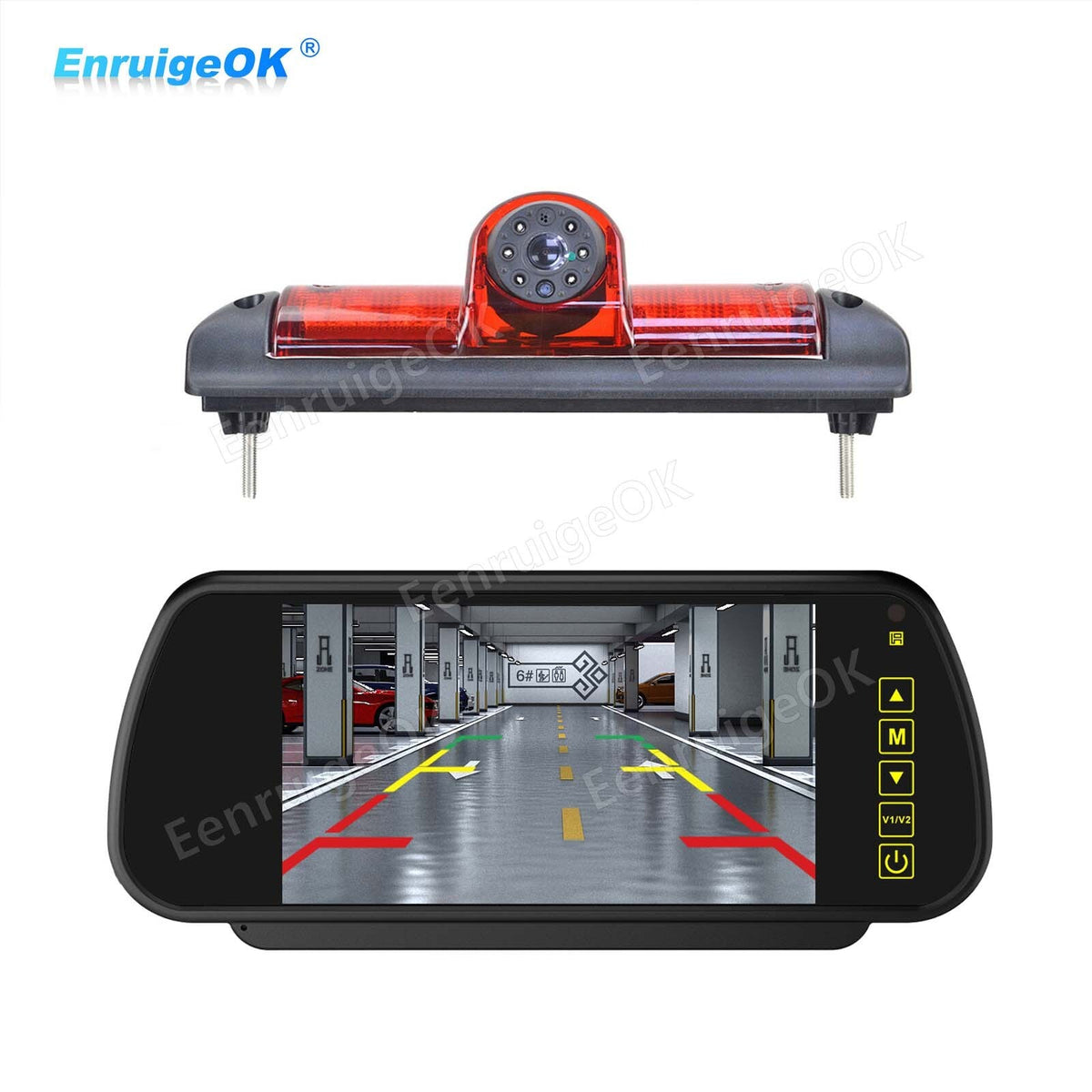

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

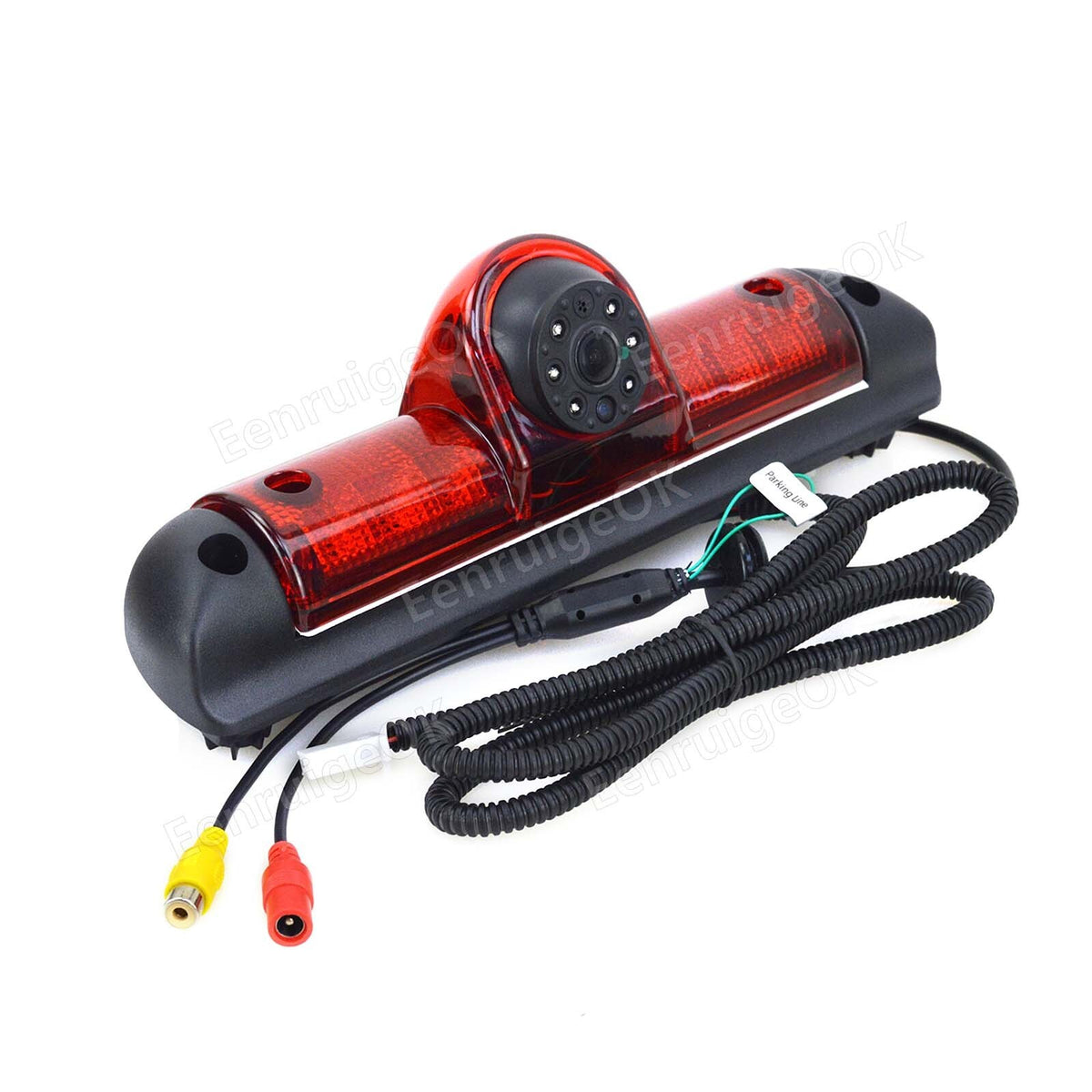

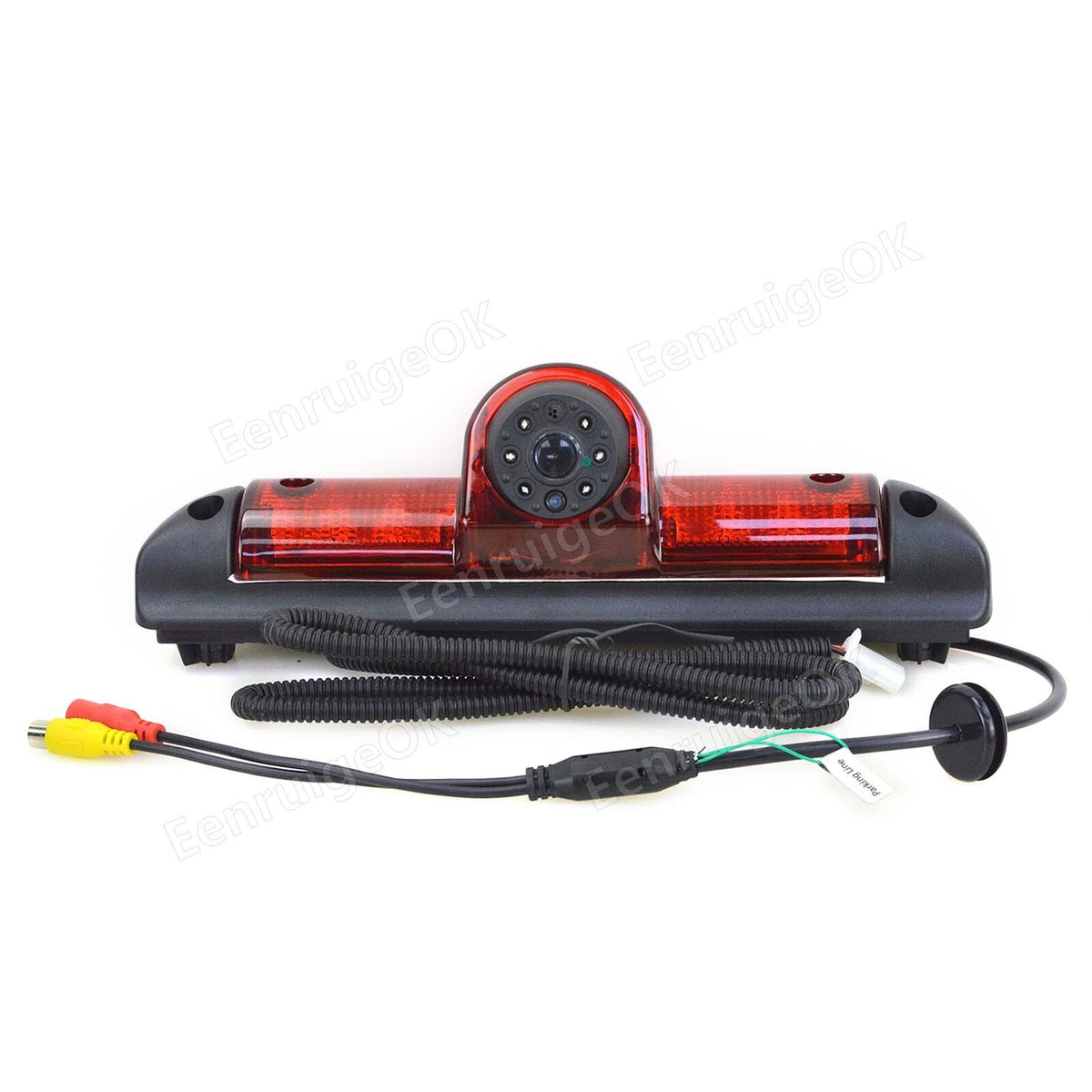

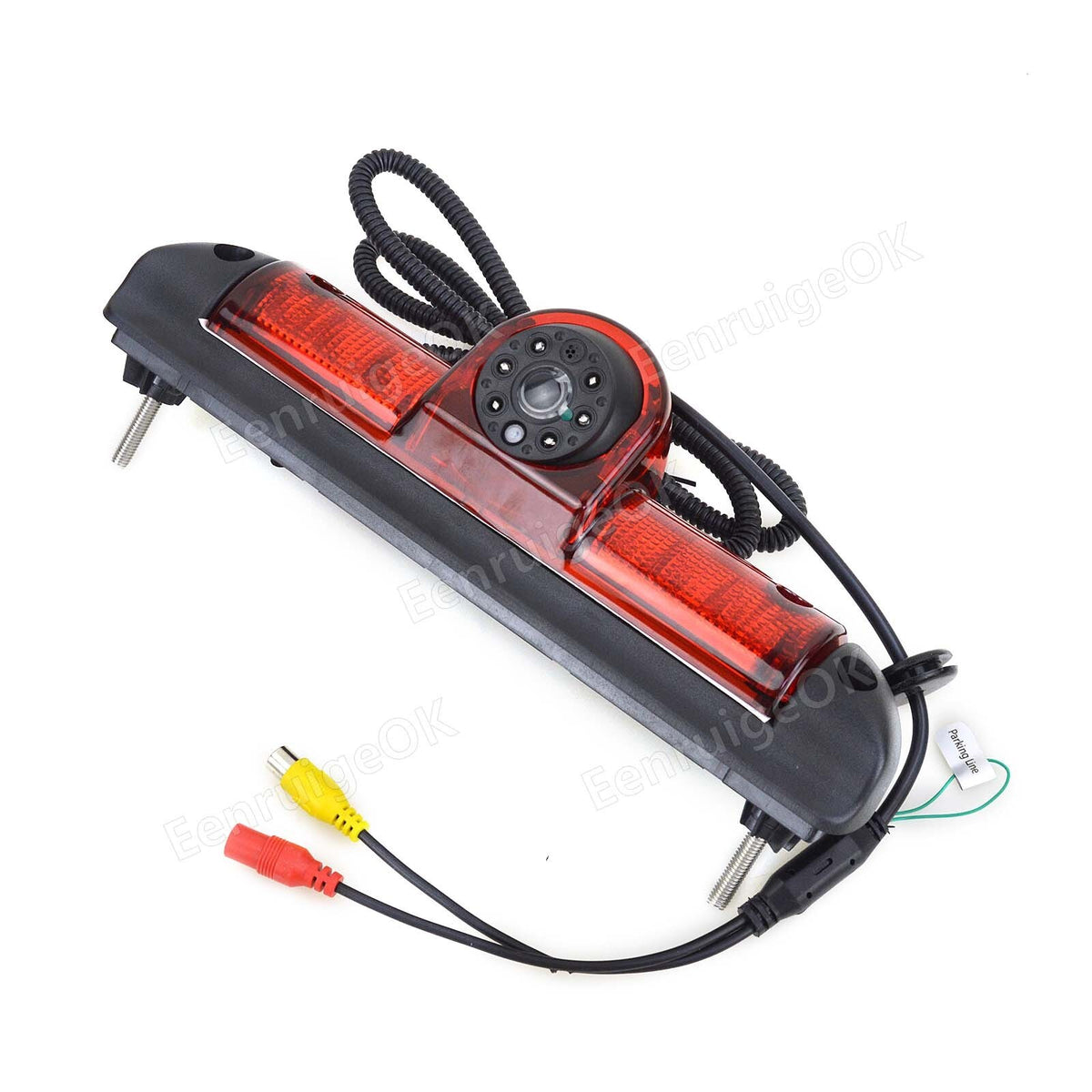

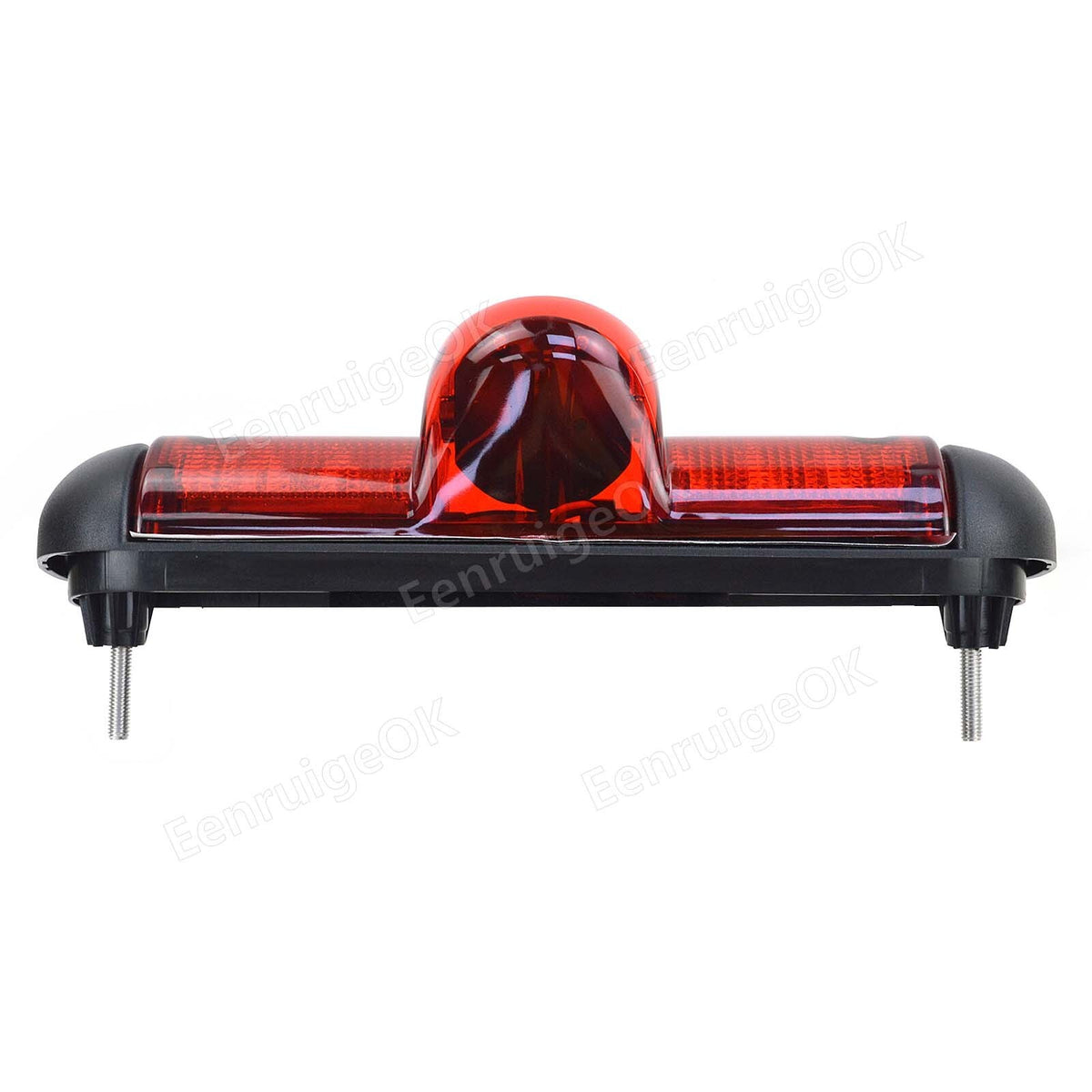

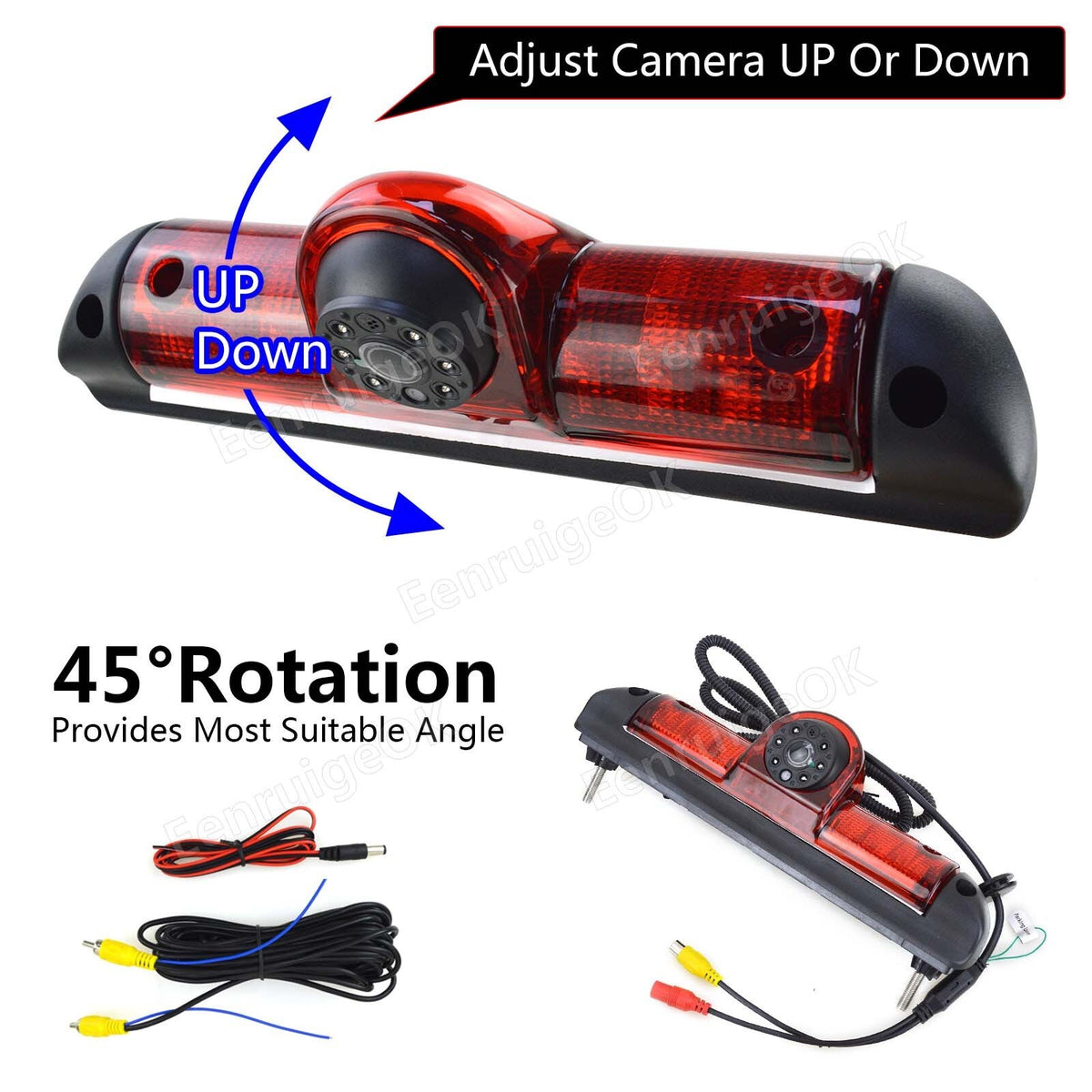

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

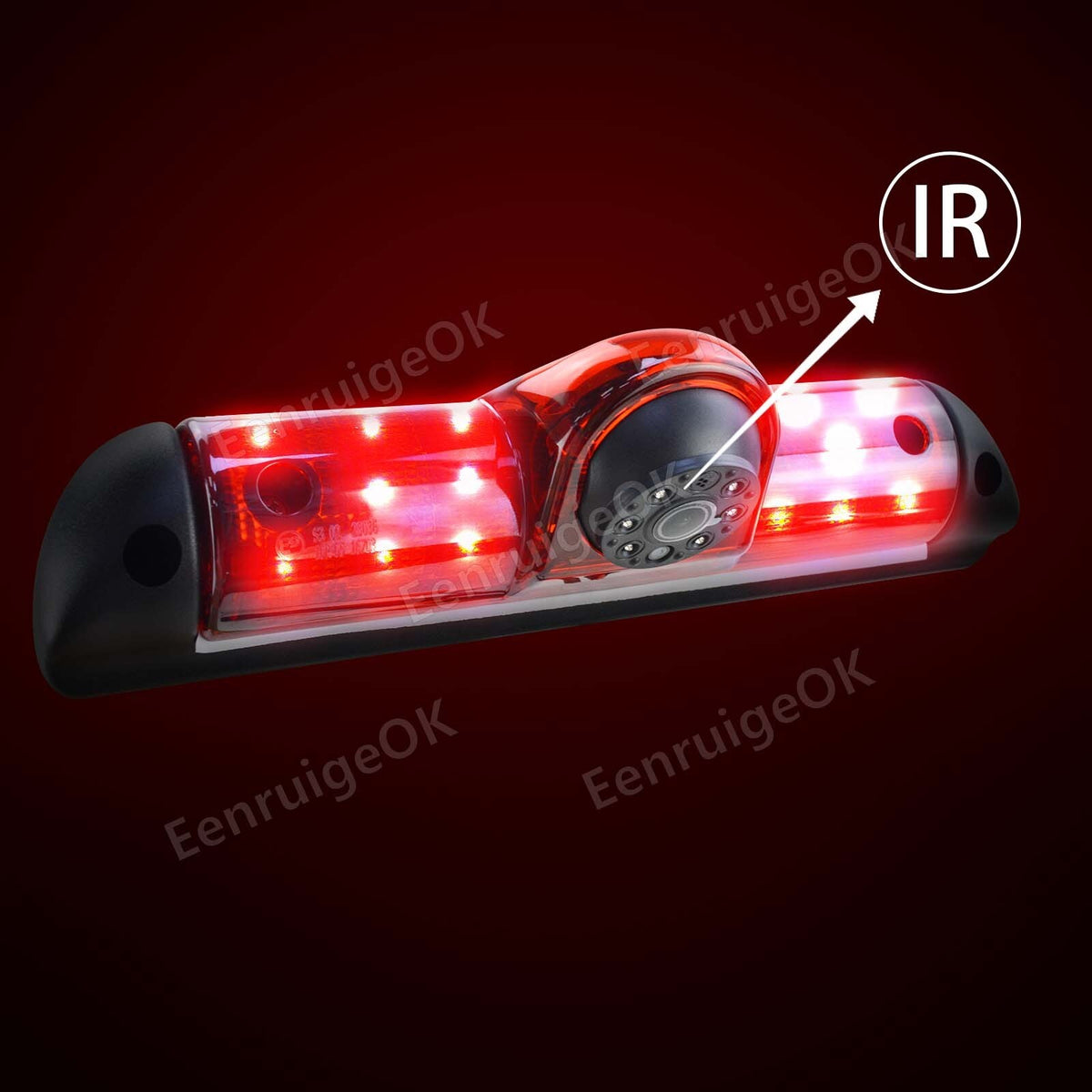

This brake light camera uses a 1/4" CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

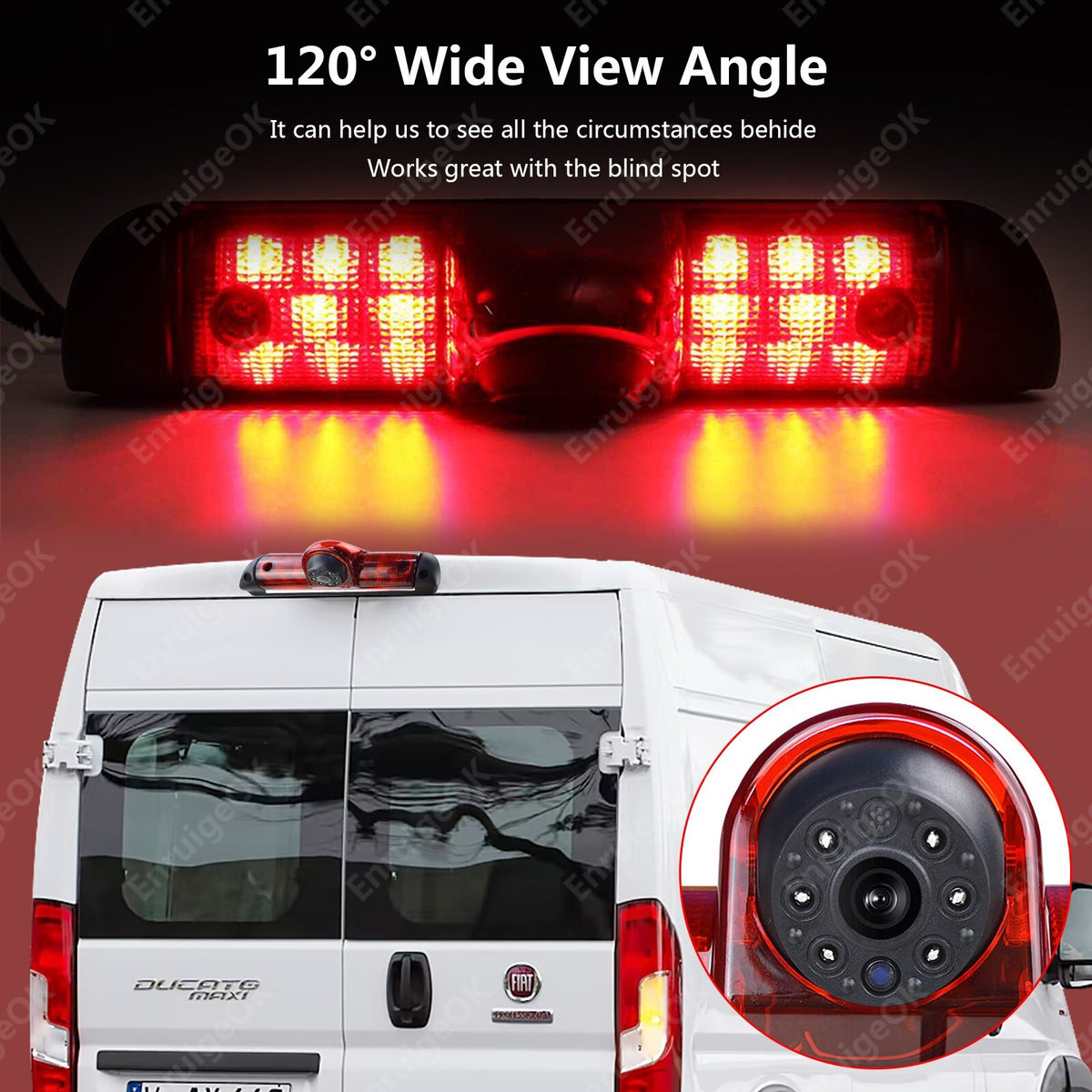

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

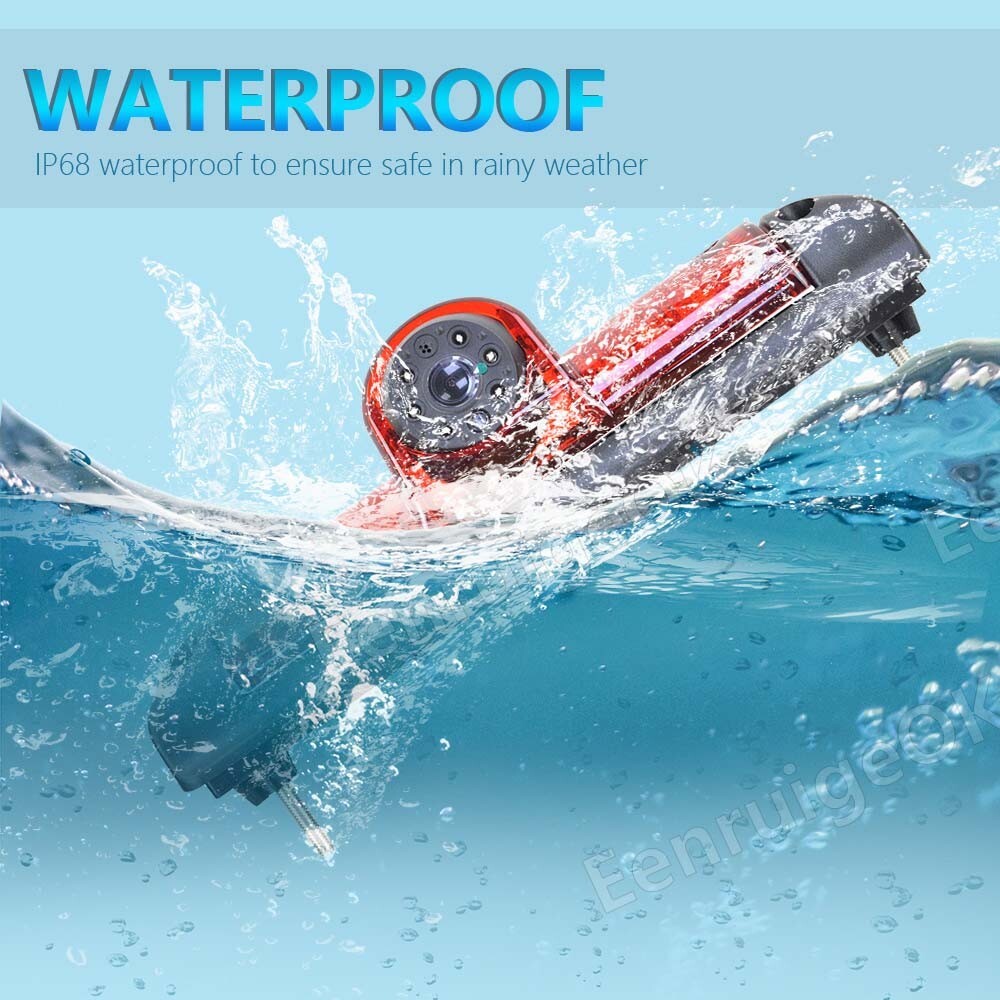

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

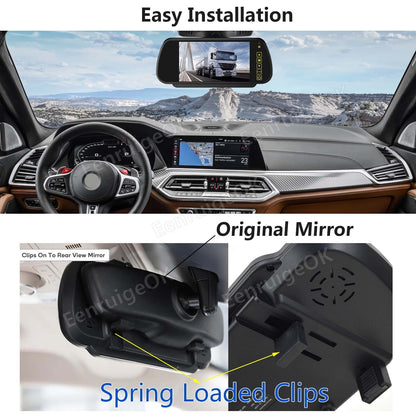

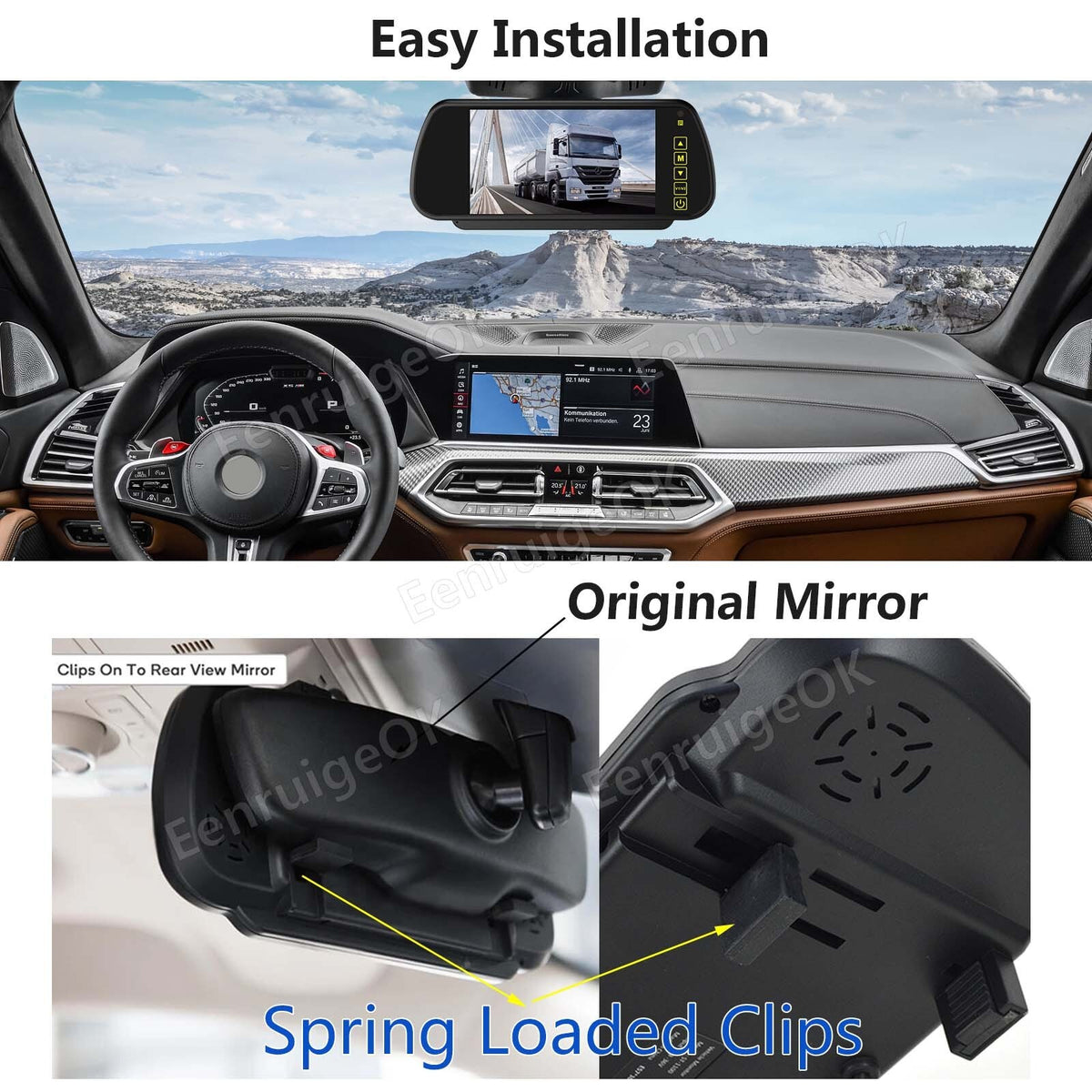

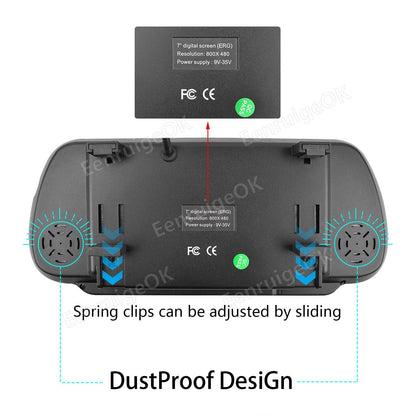

The 7" Color TFT-LCD Monitor features 2 video inputs and an 800*480 (RGB) resolution, making it compatible with the brake light rearview camera and supporting other CVBS video inputs

Camera Specifications

- Image sensor: 1/4 "CMOS

- TV system: PAL/NTSC

- waterproof rating: IP68

- Viewing angle: 120 °

- Effective pixel: 733(H)x493(V)

- Horizontal sync frequency: 15.625KHZ

- Scanning system: 2:1 interface

- Sync system: Internal

- ACG: Auto

- BLC: Auto

- Resolution: 480TV Lines

- S/N Ratio: > 48dB

- Current consumption: < 150mA

- Minimum illumination: 0.1-0.5Lux / F = 1.2

- Power supply: DC12V

- Operating temperature: -20℃ to +70℃

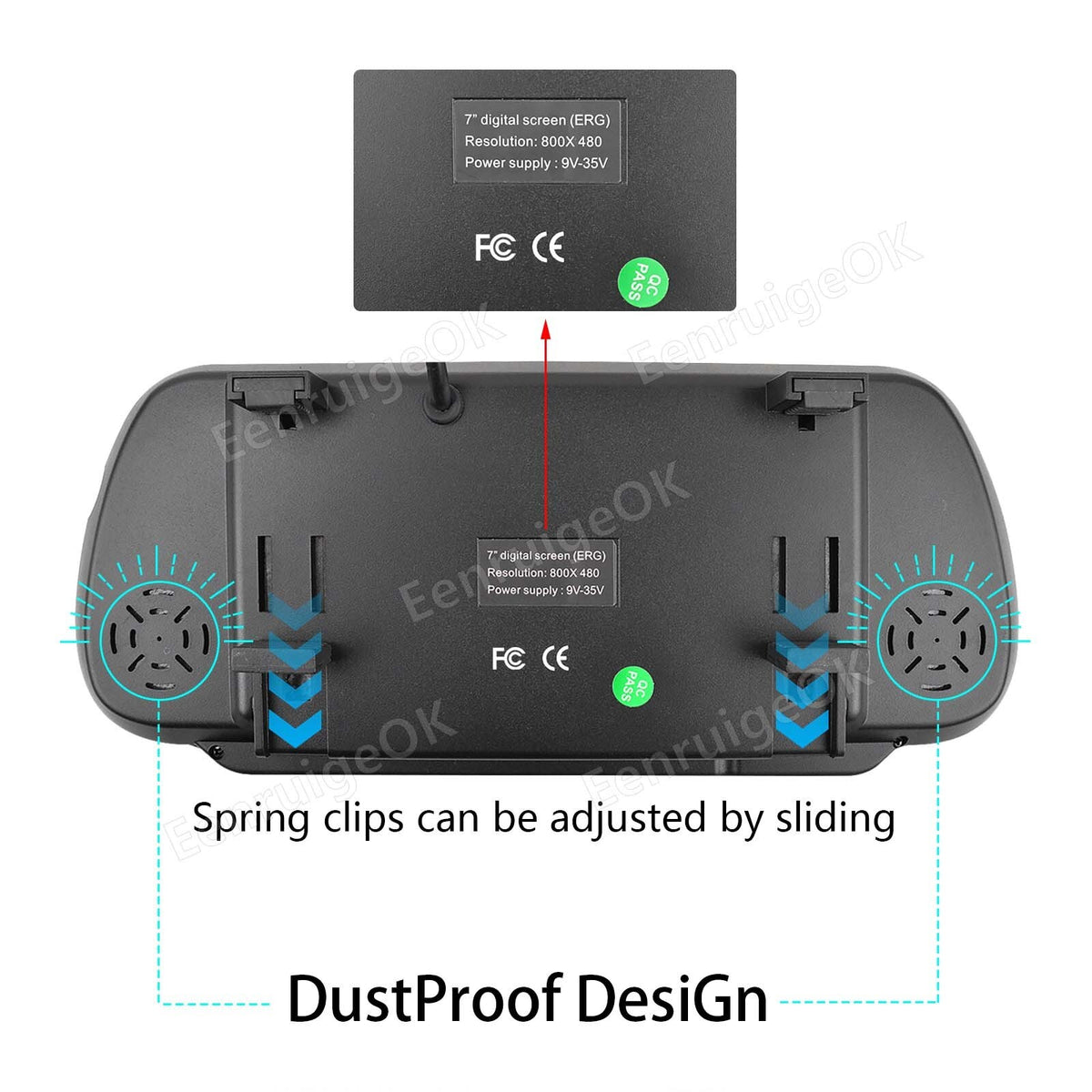

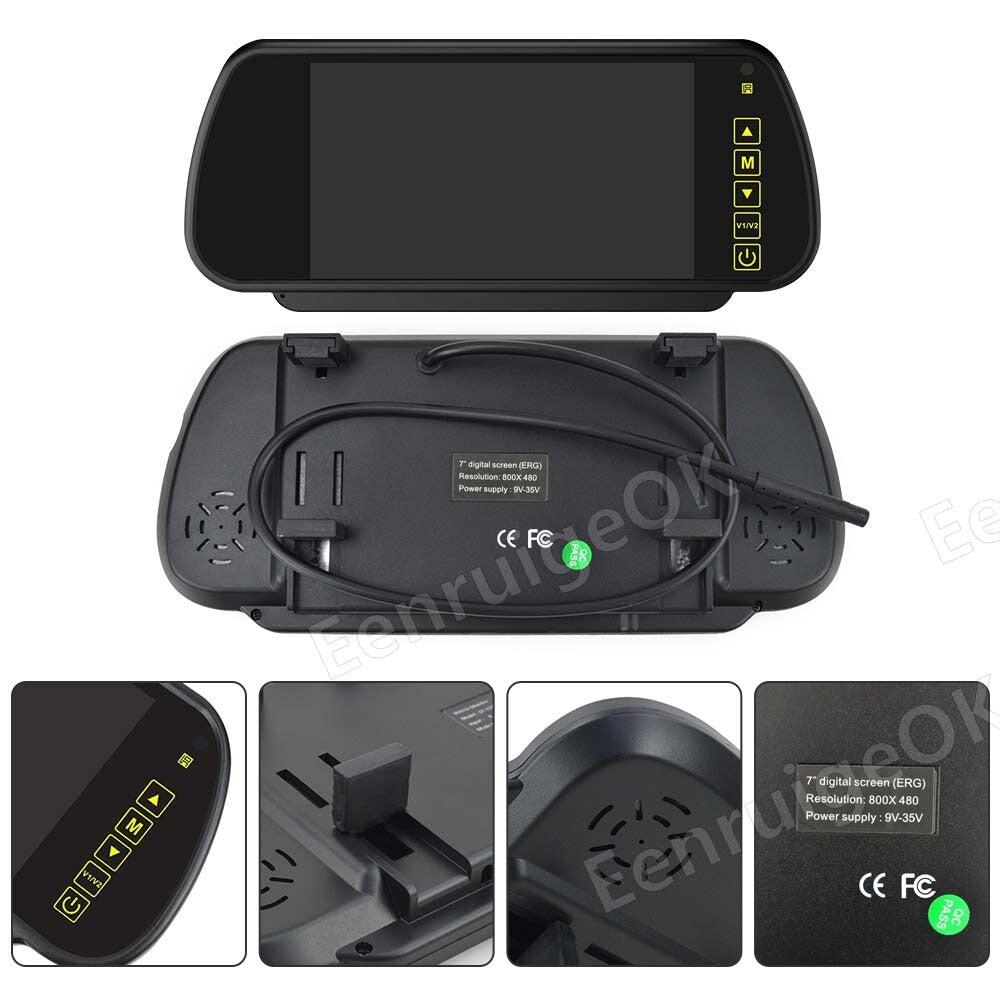

Monitor Specifications

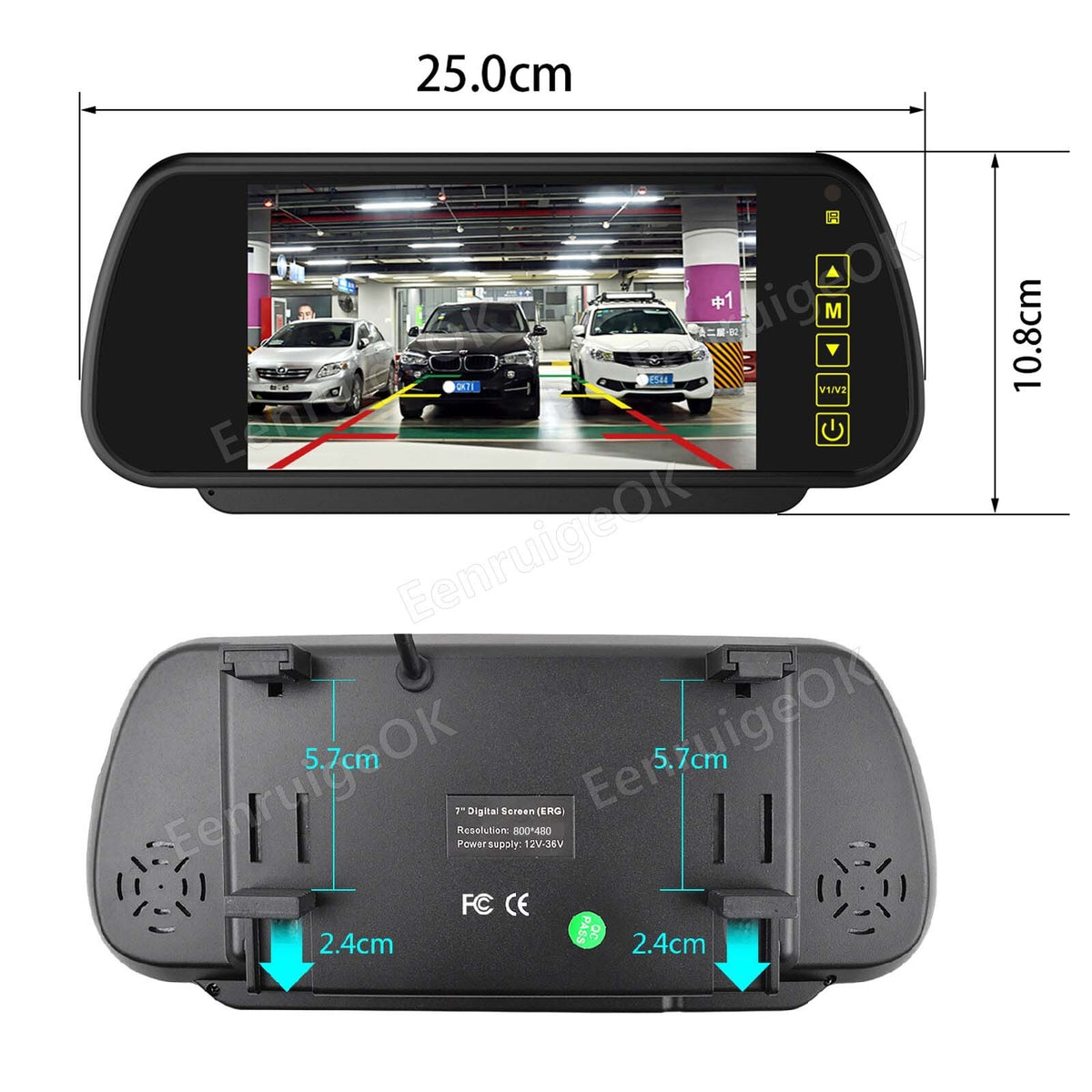

-Screen: 7 inch

-Resolution: 800*480(RGB)

-Video Input: 2-CH video input

-Control mode: Touch button + Remote control

-Power Supply: DC 9V/35V

-Power consumption: 6W

-Video: Two-way video input

-Rear watching: Image can be changed left and right

-Operate mode: The key operation and remote control

-Dual video inputs: One For DVD/VCD/GPS/TV, the other for the rearview camera and parking sensor, automatically switch when reversing

-Applicable models: Universal – Fits in any car

-Remote control function: Yes

-Remote control: a CR2025 button battery (not included)

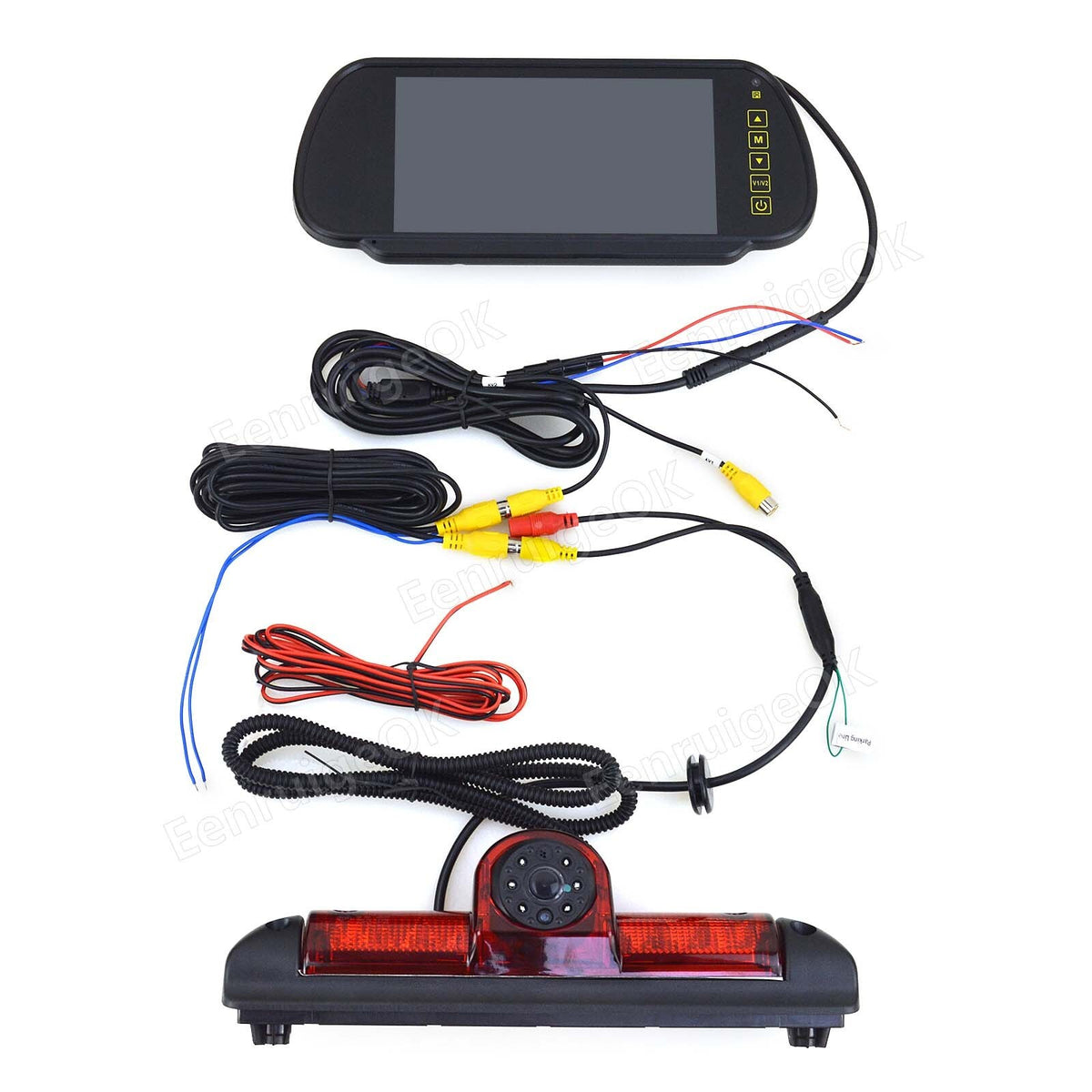

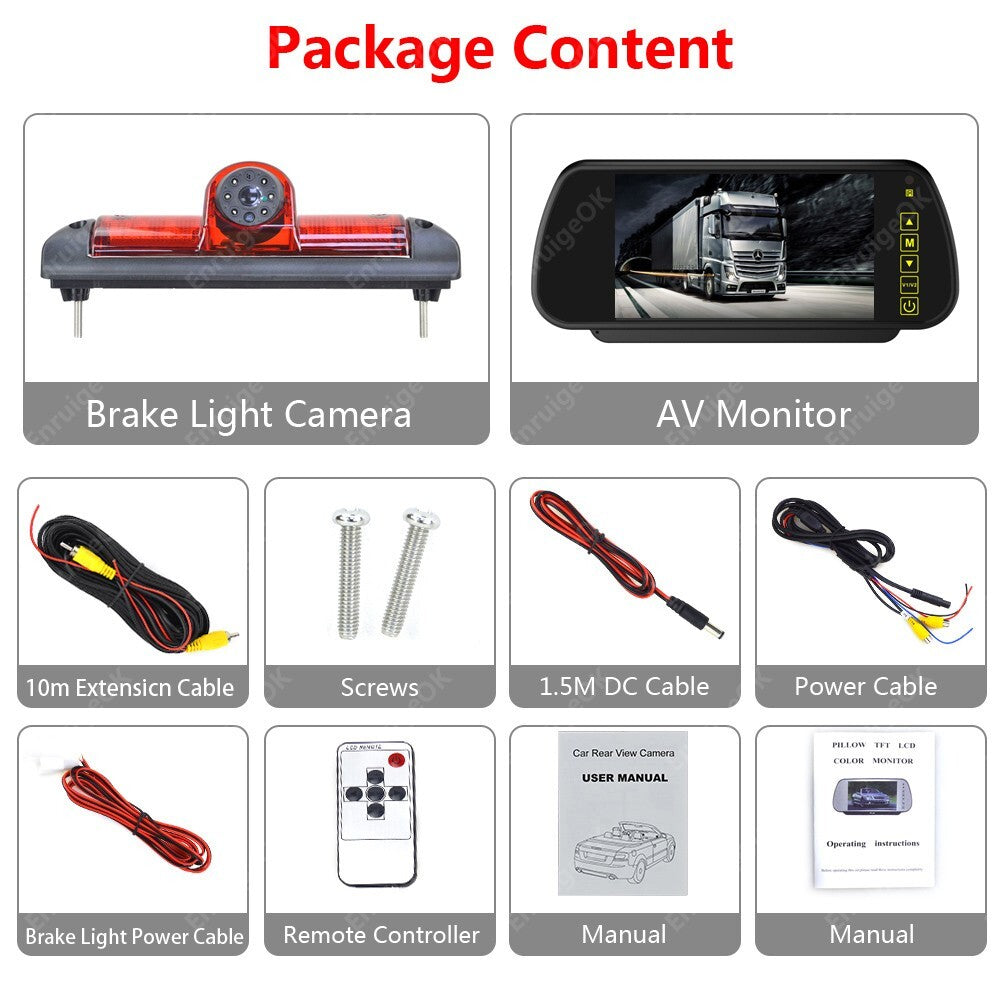

Package content :

1 X Reversing camera

1 X 7'' mirror monitor

1 X 10m/33ft. extension cable

1 X Monitor Power cable

1 X DC power cable

1 X Brake light power cable

1 X Remote controller(battery not included)

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
