Peugeot Expert / Citroen Dispatch Dual Rear Brake Light Reverse Camera Kit

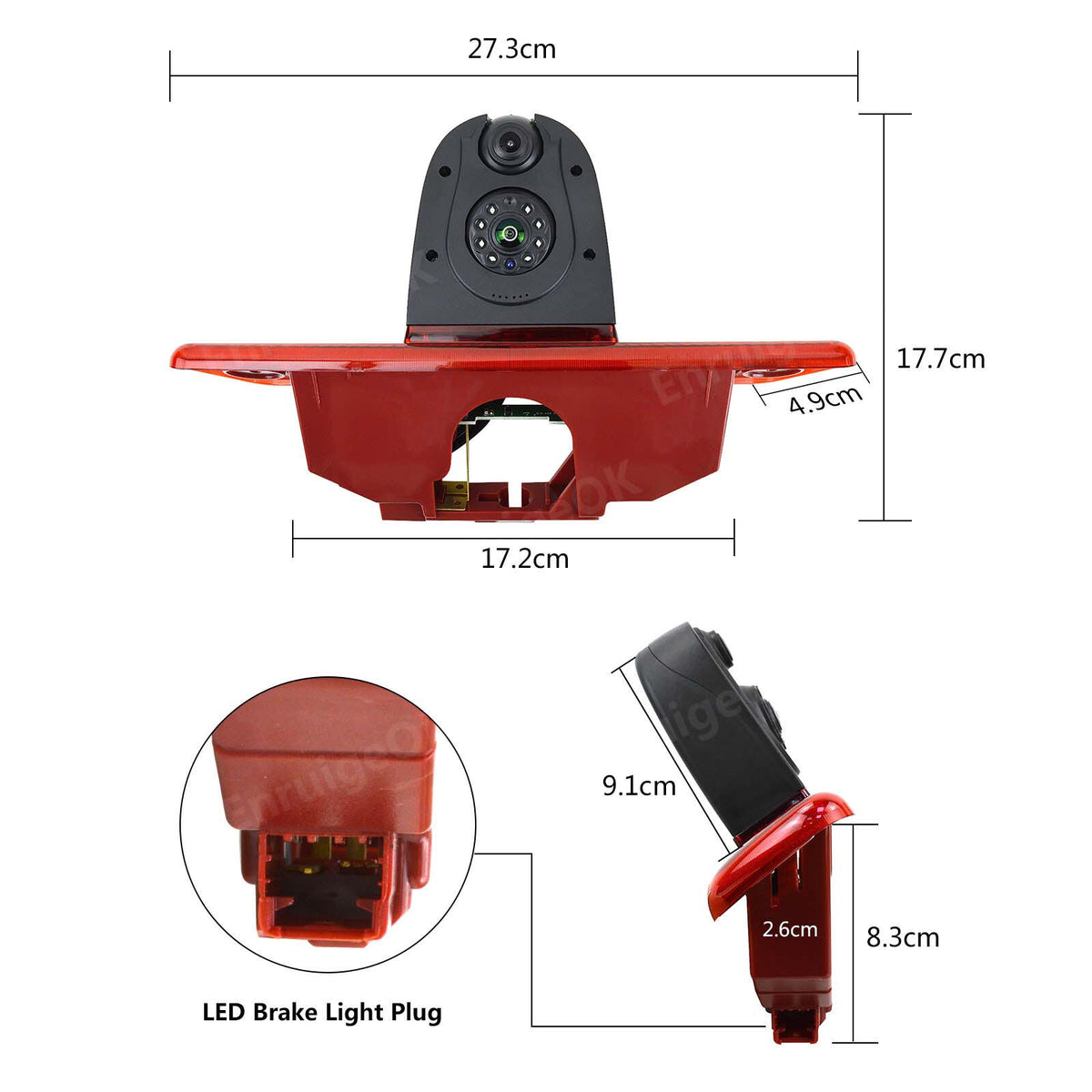

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

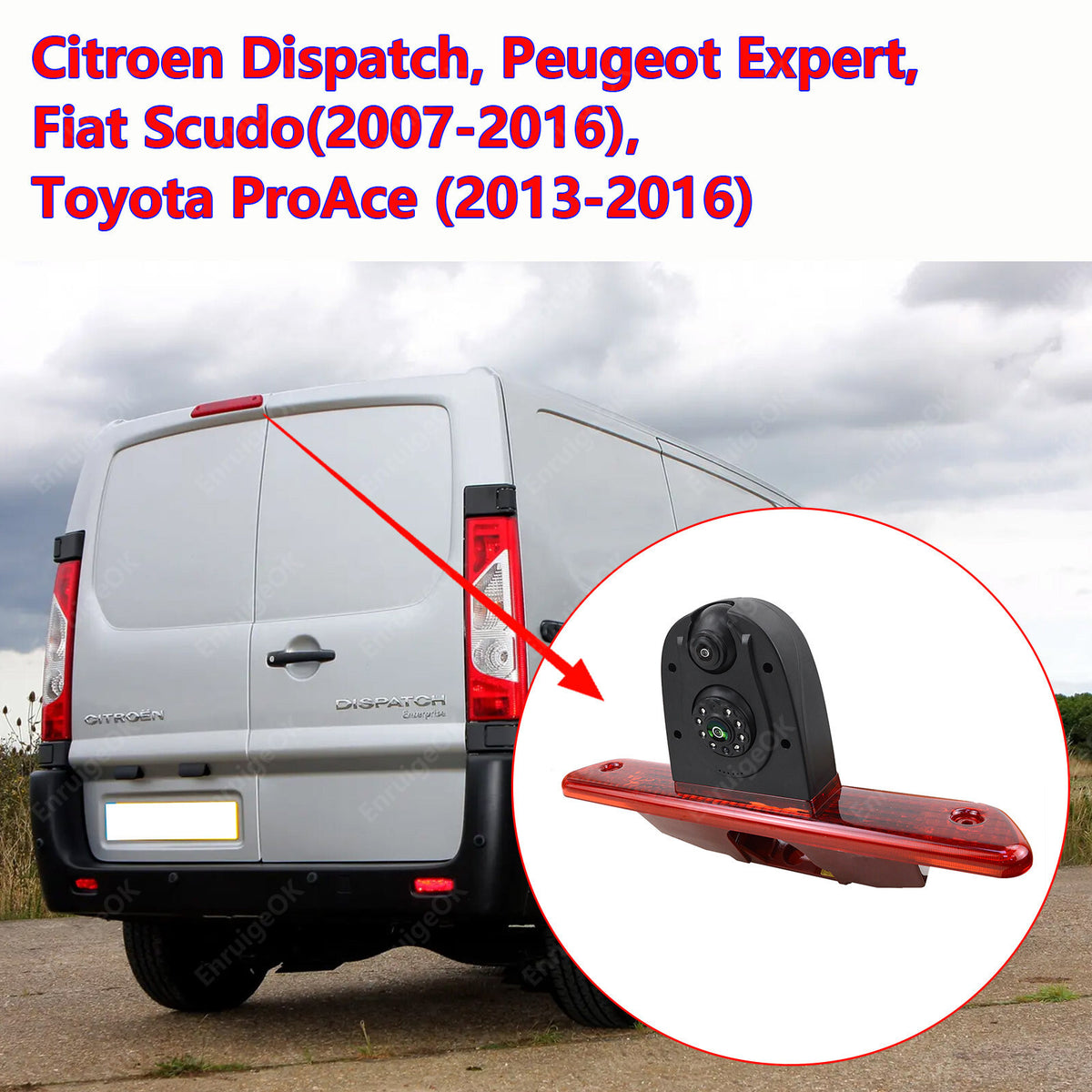

Camera Compatibility

✅Citroen SpaceTourer (2013-2016)

✅Citroen Dispatch [2nd GEN] (2007-2016)

✅Citroen Jumpy (2007-2016)

✅Fiat Scudo (2007-2016)

✅Peugeot Expert [MK2] (2007-2016)

✅Toyota ProAce [Generation 3] (2013-2016)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

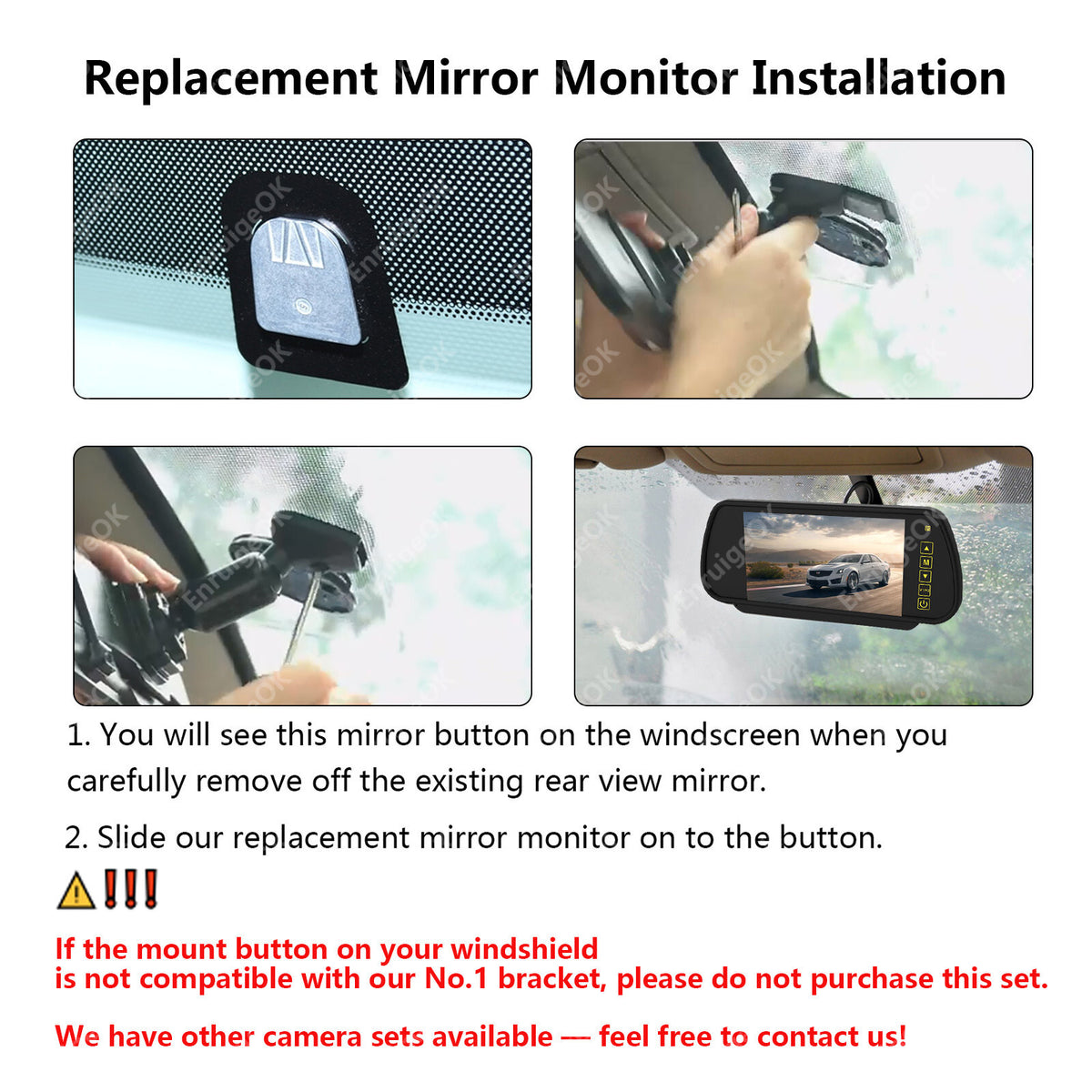

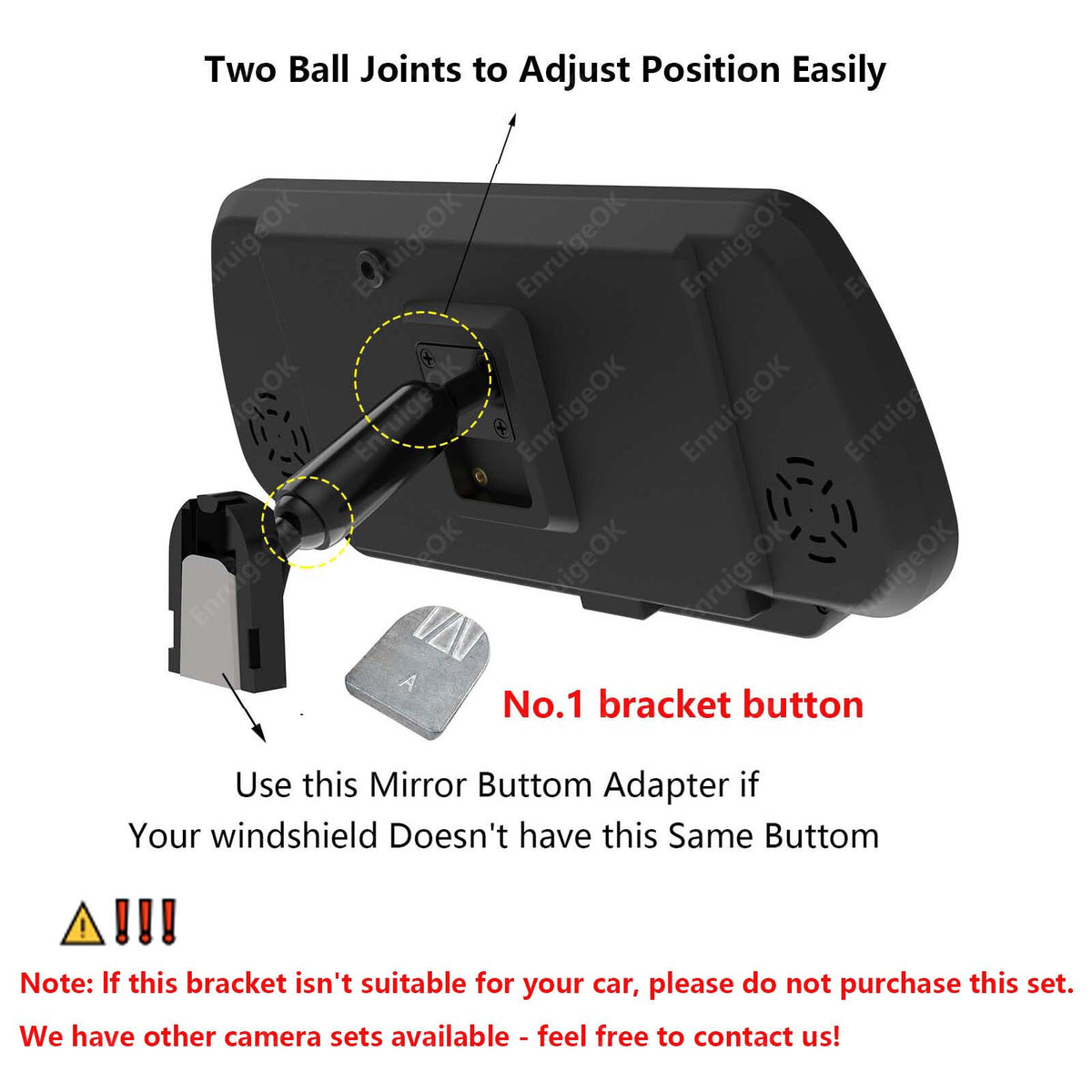

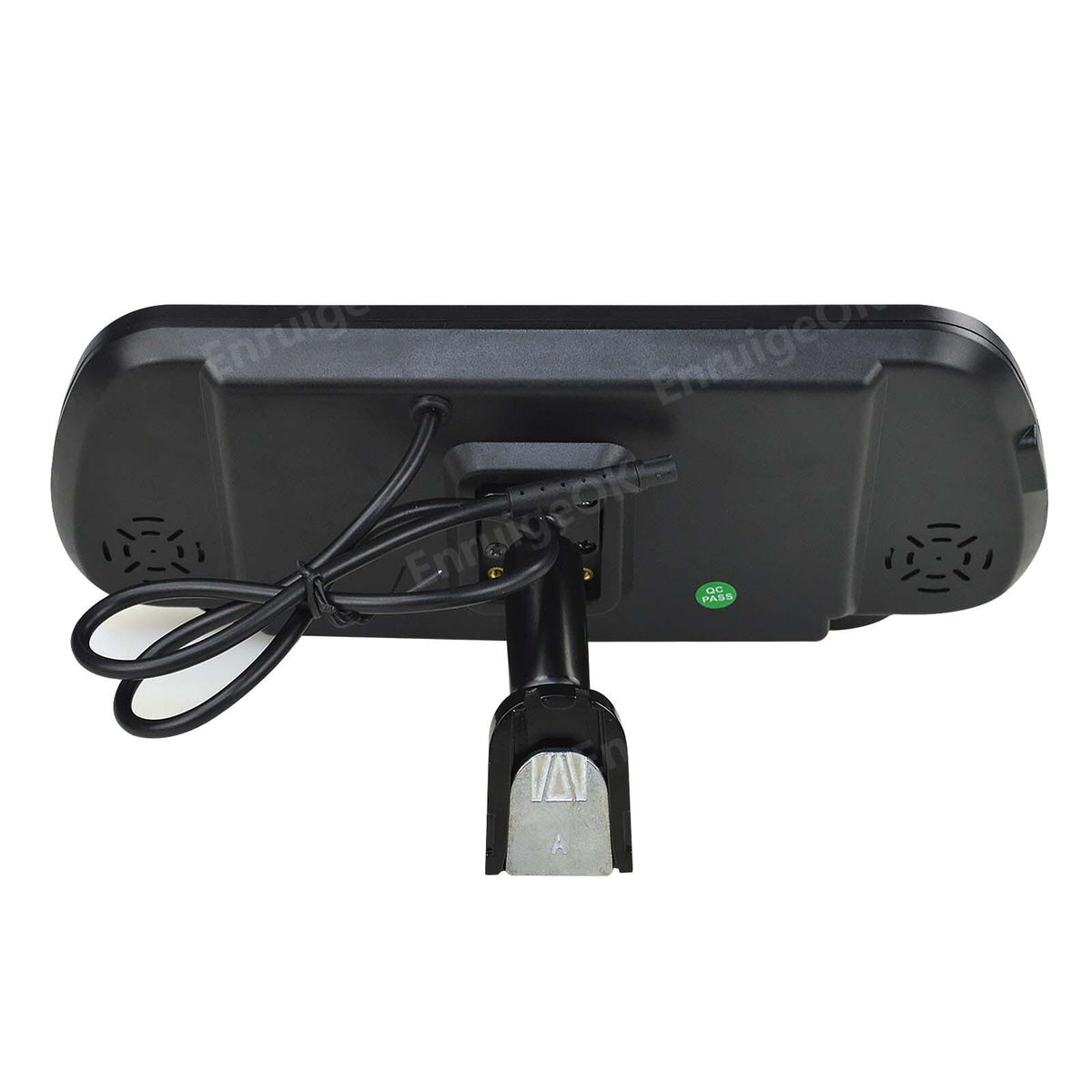

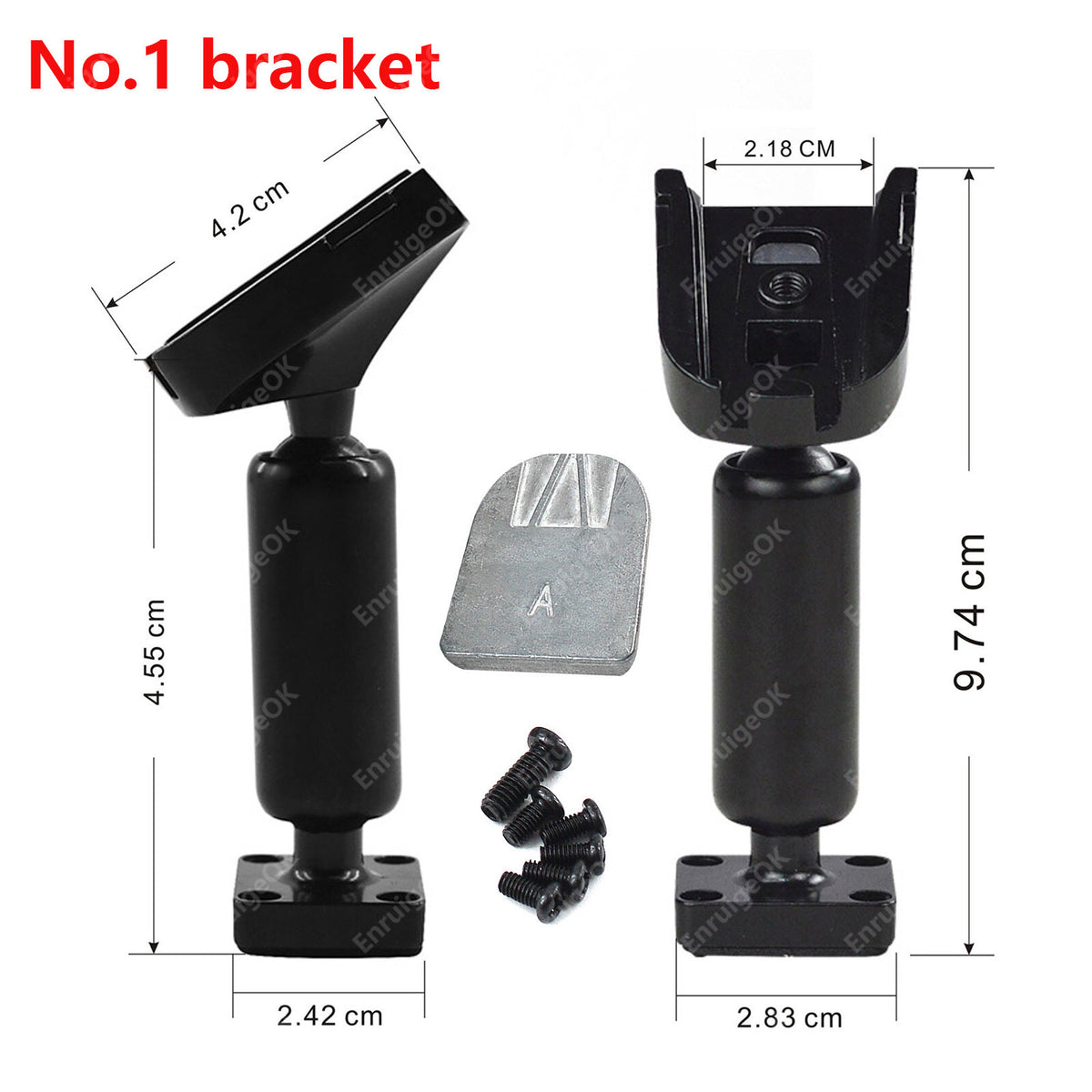

Monitor Bracket Note

This set comes with a #1 bracket by default. If you're unsure about compatibility, please send us a photo of your windshield mounting button or mirror bracket mounting point for confirmation.

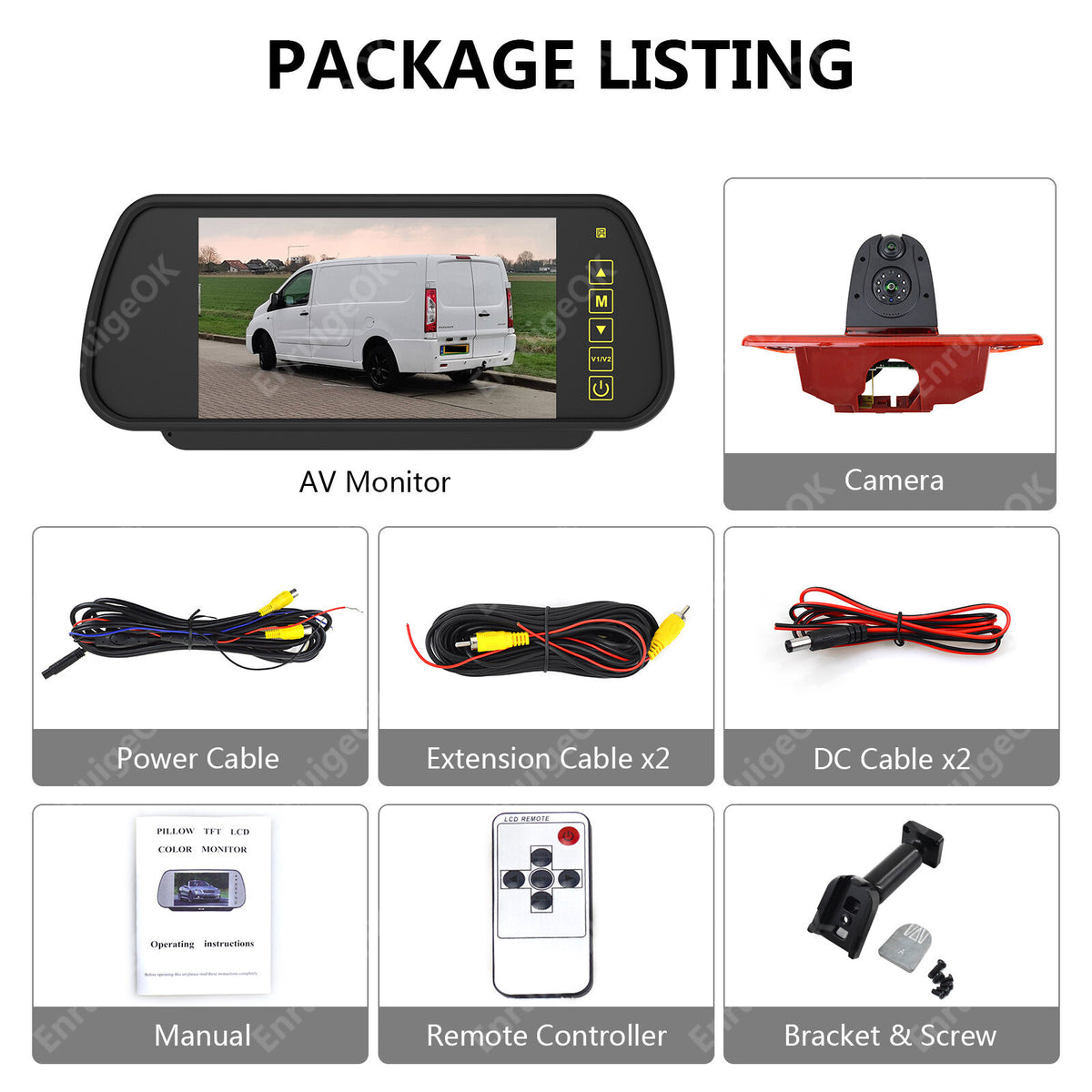

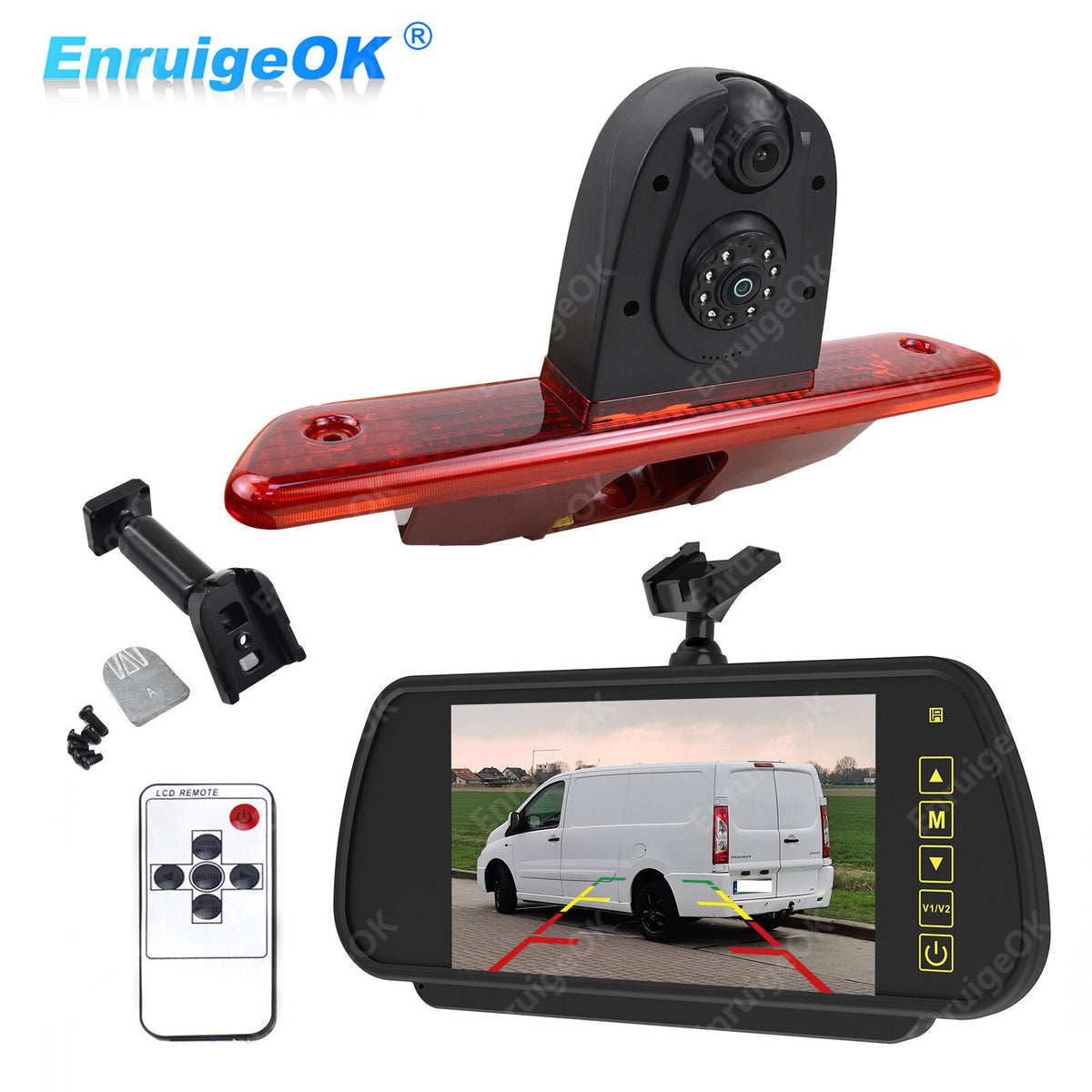

Package contents

1 X Brake light camera

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X #1 Bracket(check your windshield button)

1 X Manual

Description

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

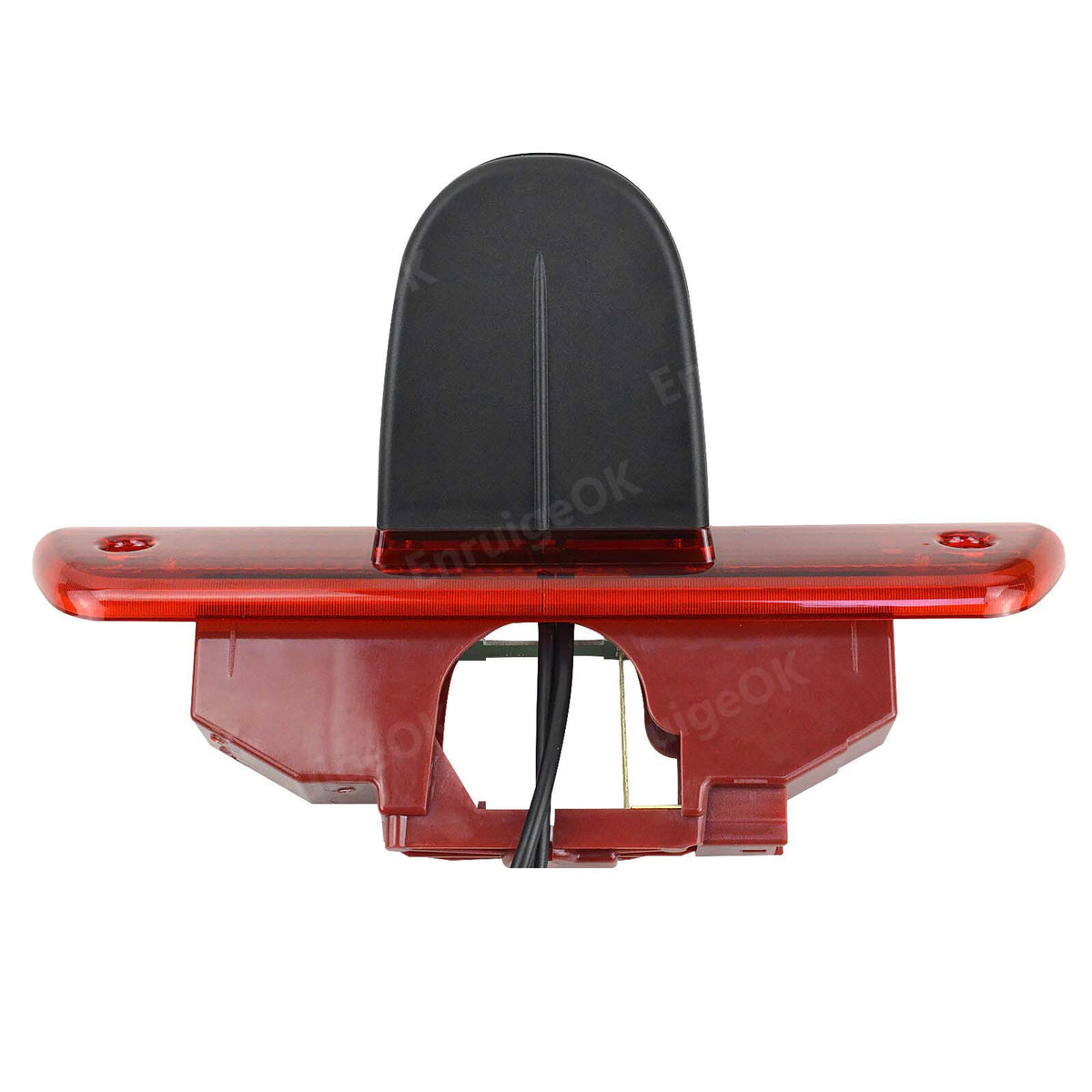

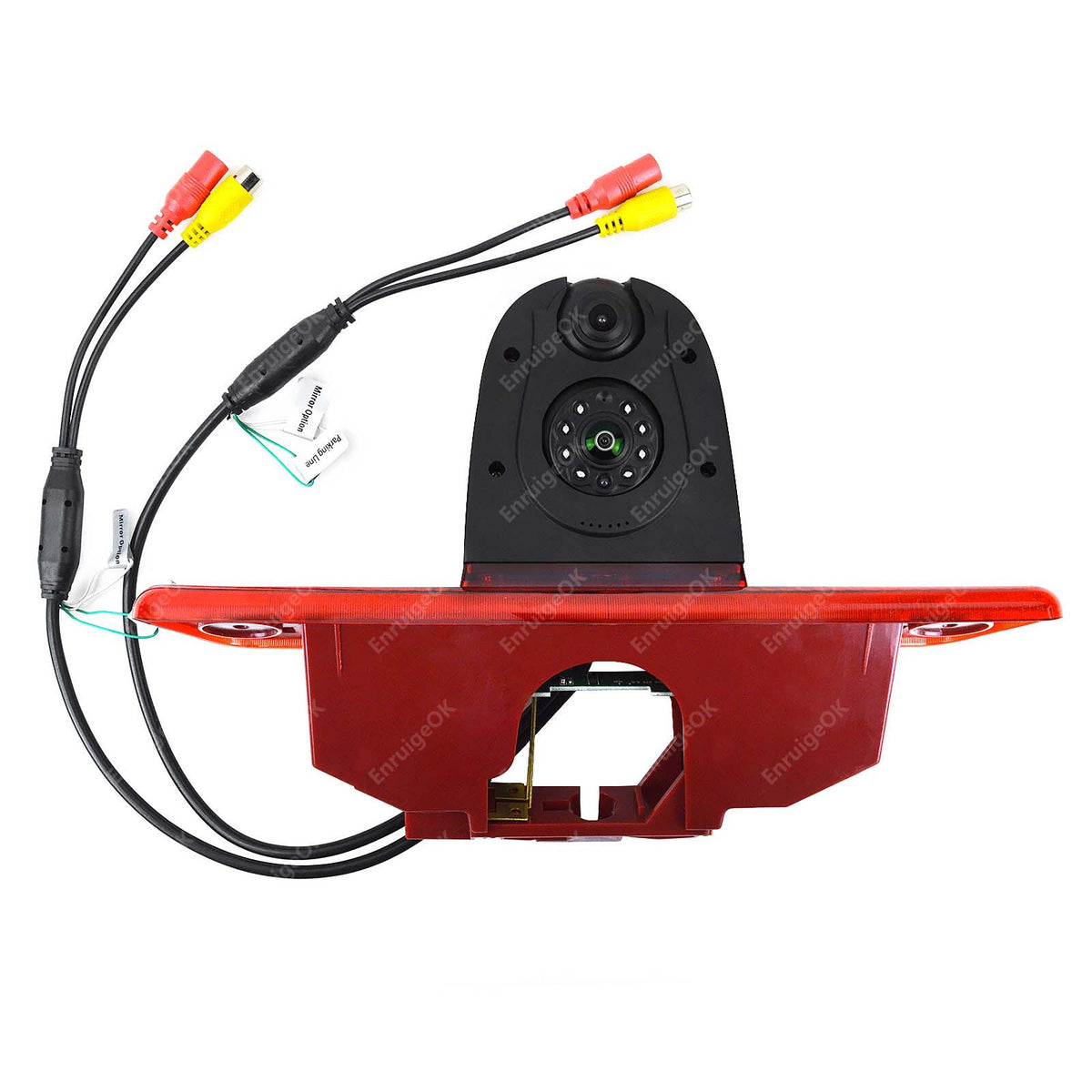

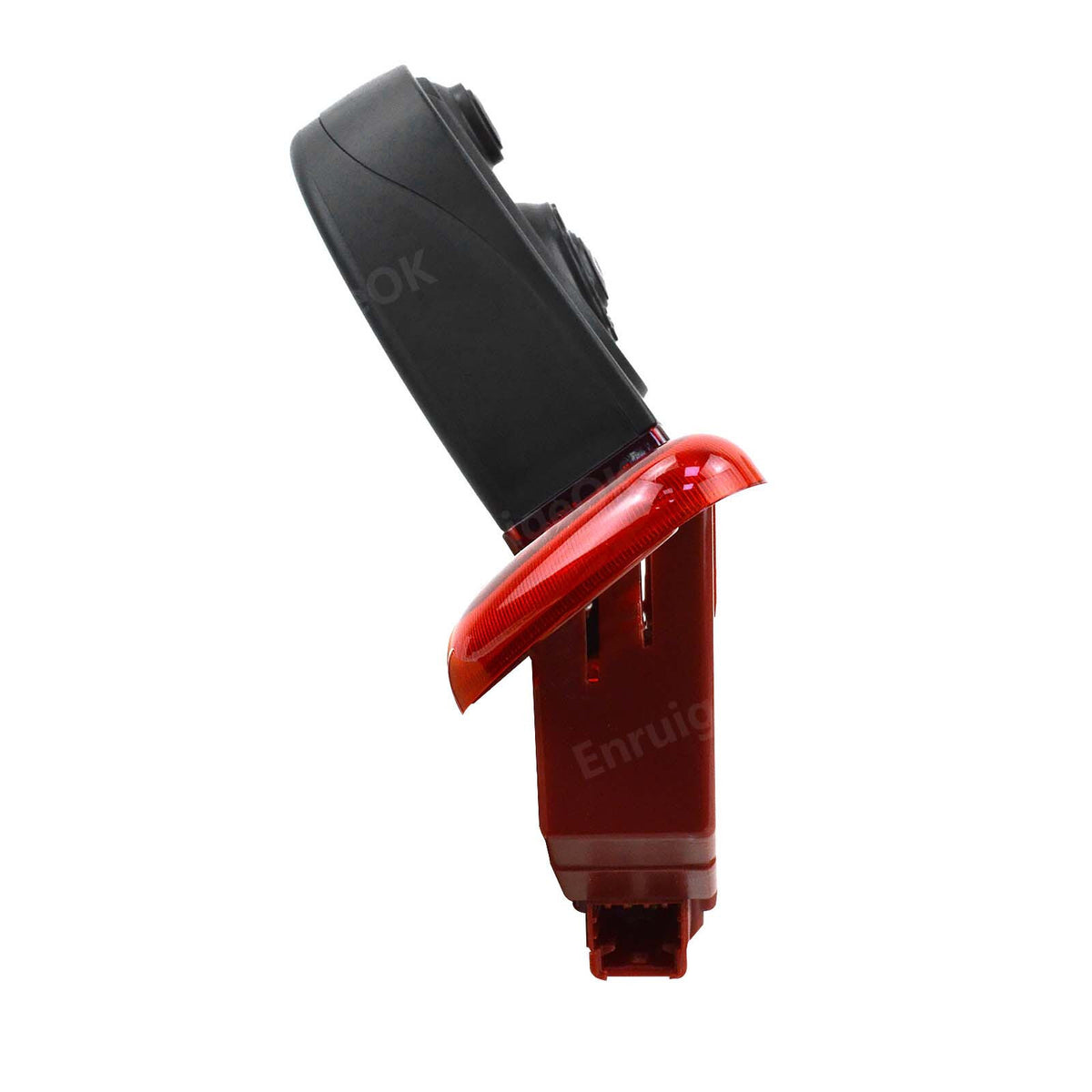

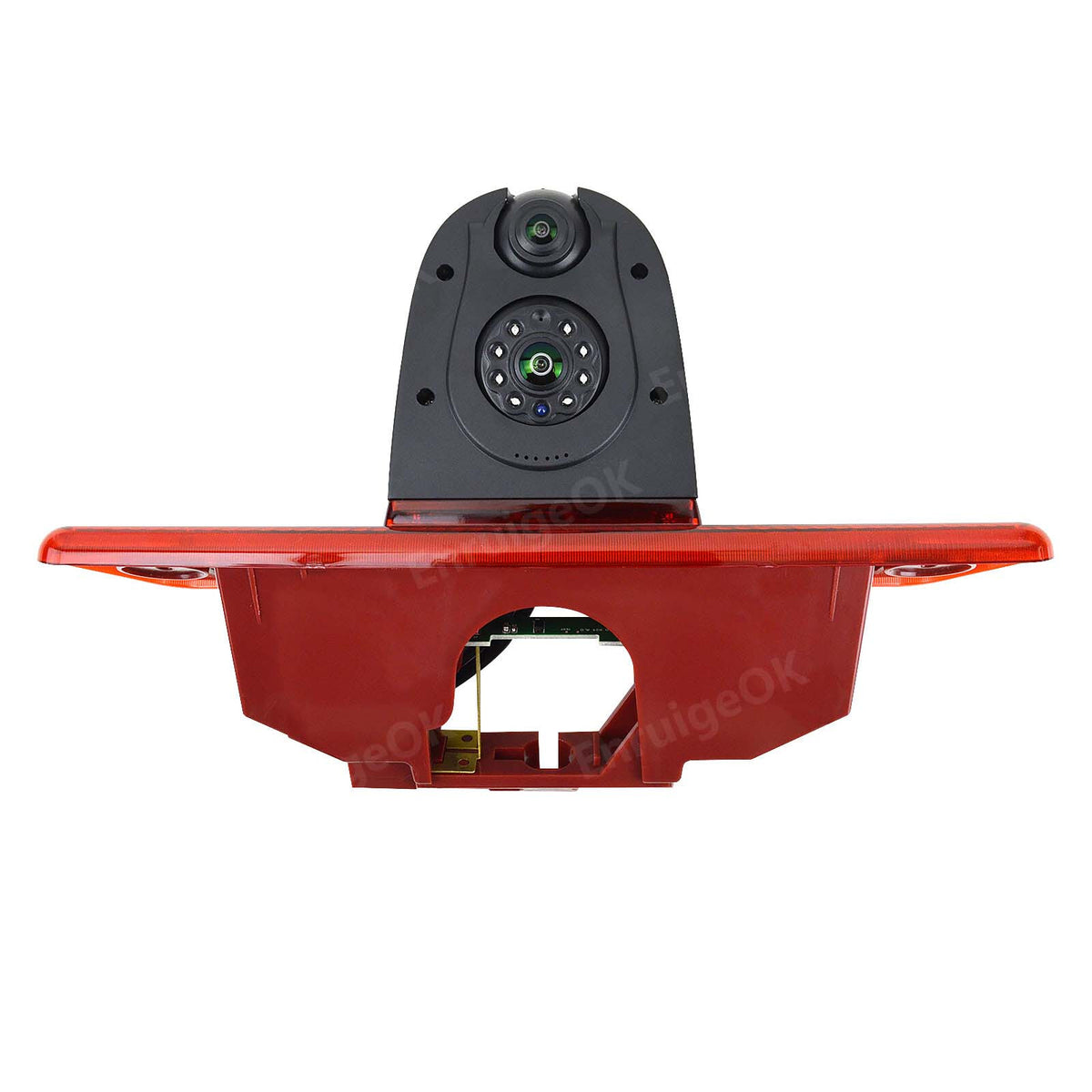

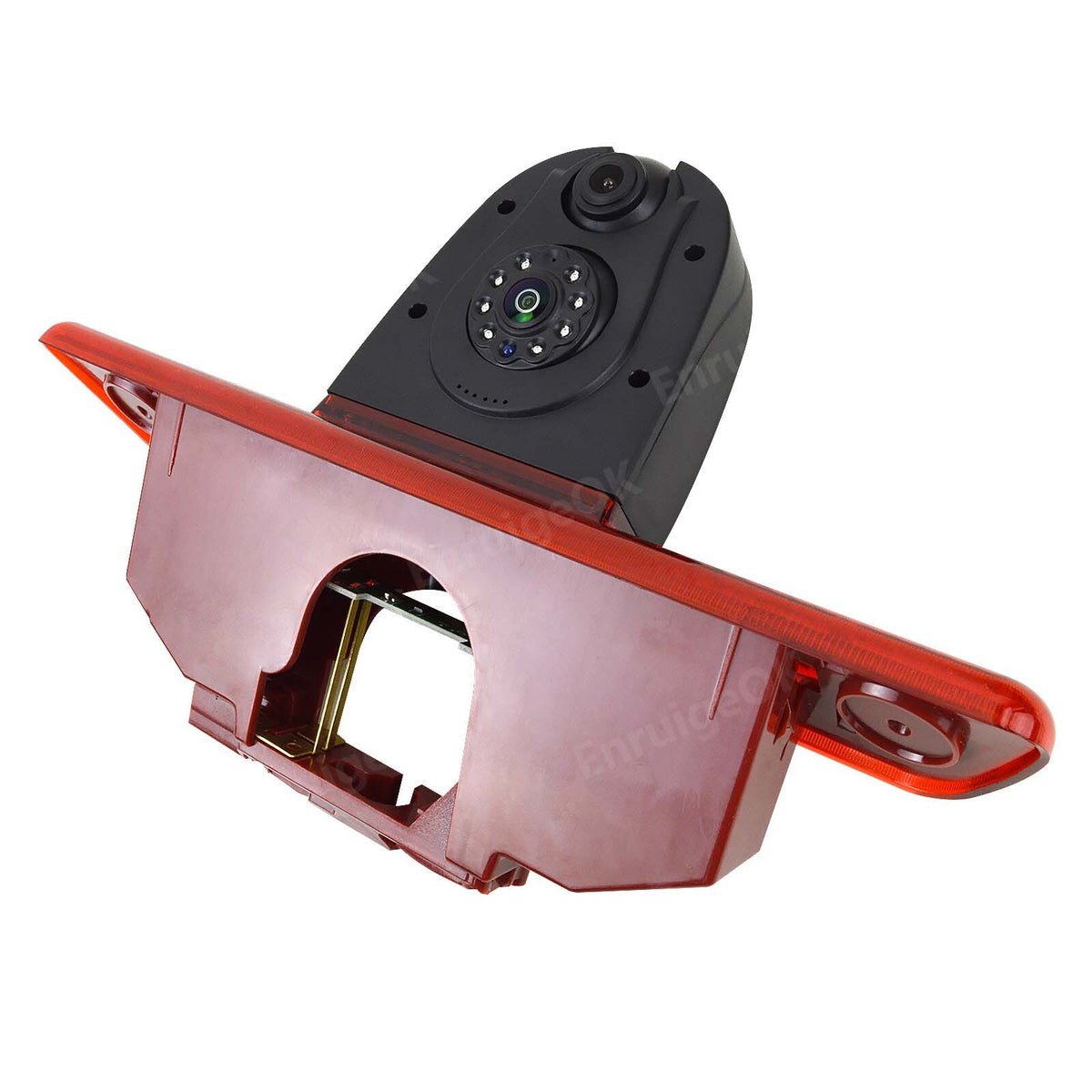

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

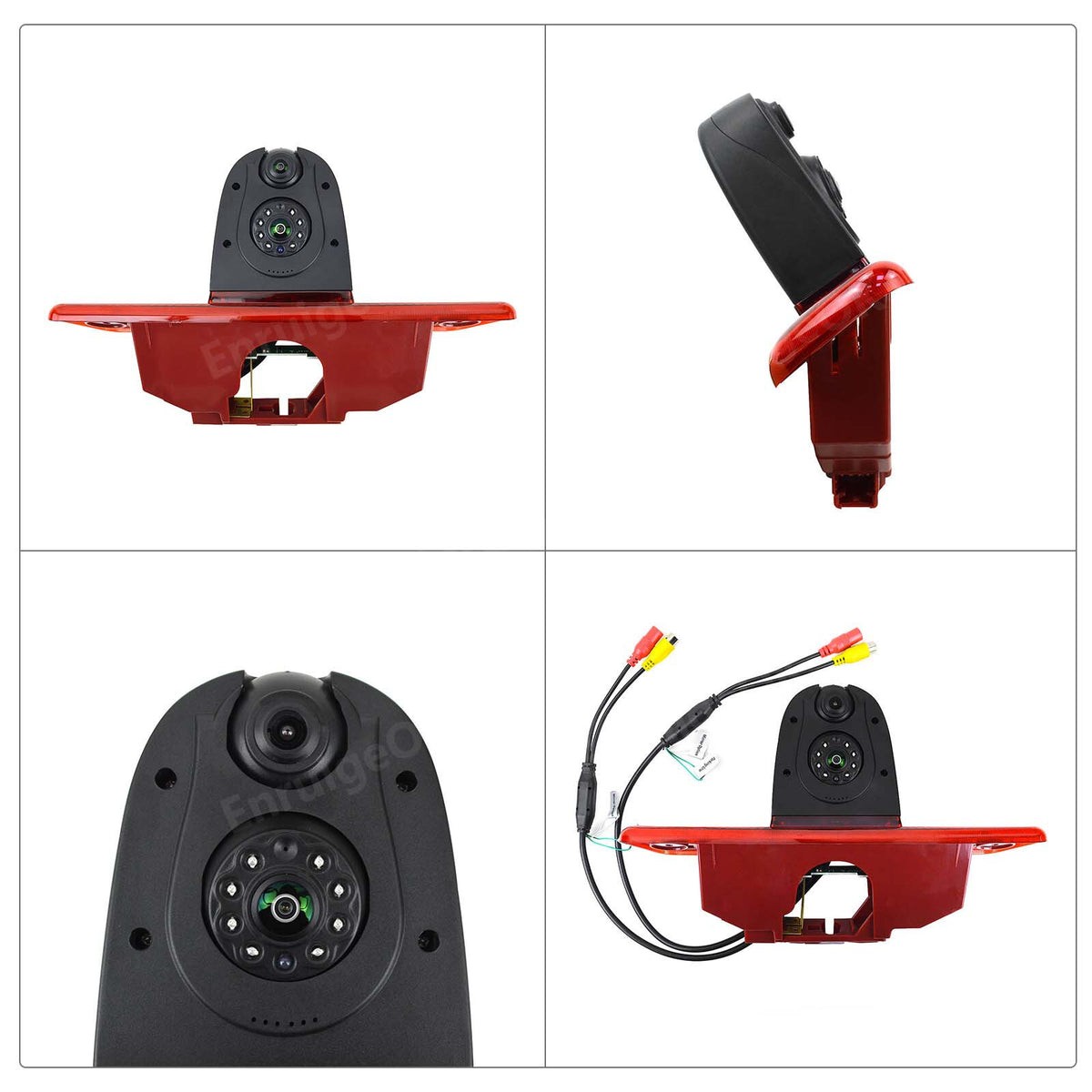

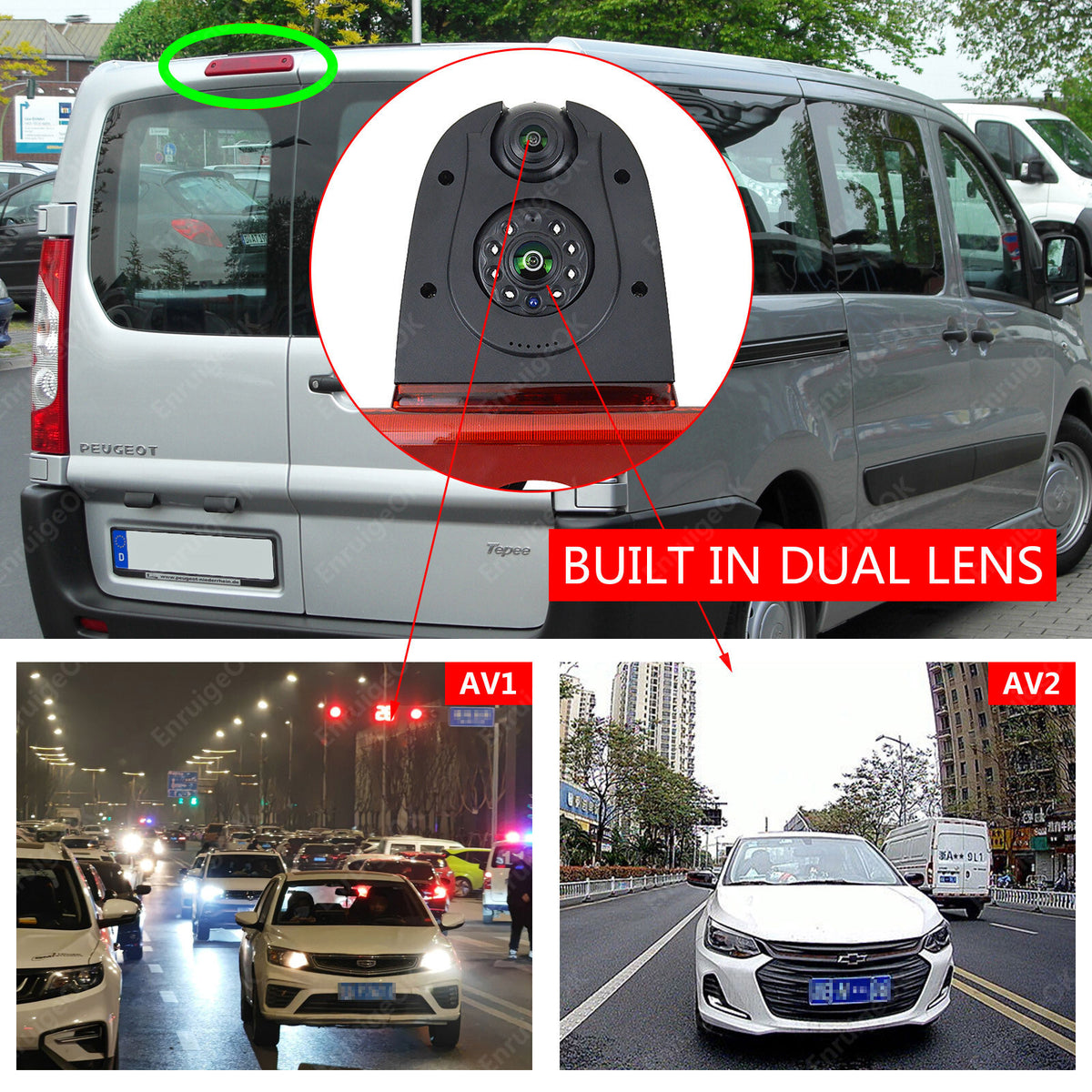

TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving, one for reversing view while parking.

Wide Voltage Range(DC 9V-35V): Supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

The 7" Color TFT-LCD Monitor features 2 video inputs and an 800*480 (RGB) resolution, making it compatible with the brake light rearview camera.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm&3.6mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC12V

Operating temperature: -20℃ to +70℃

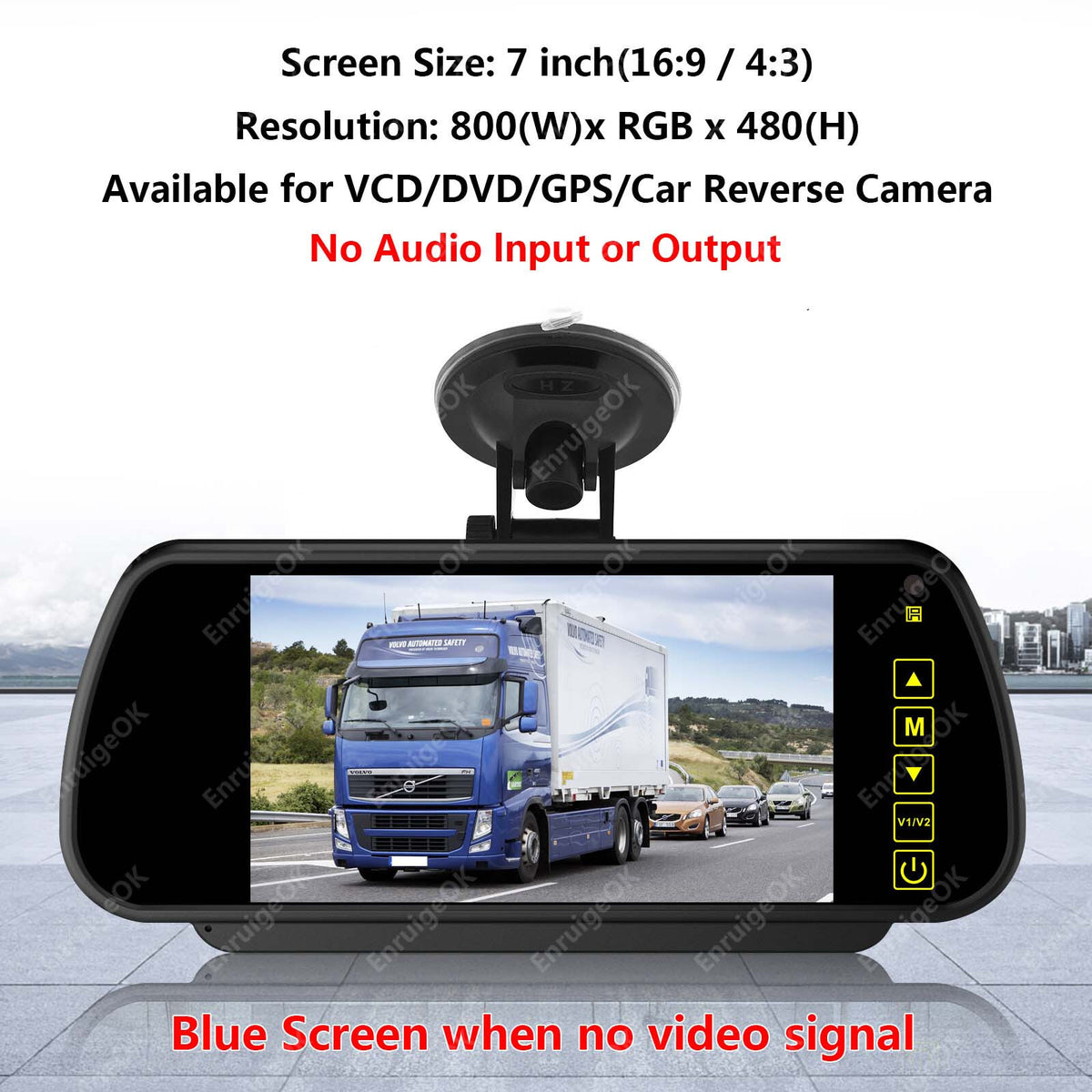

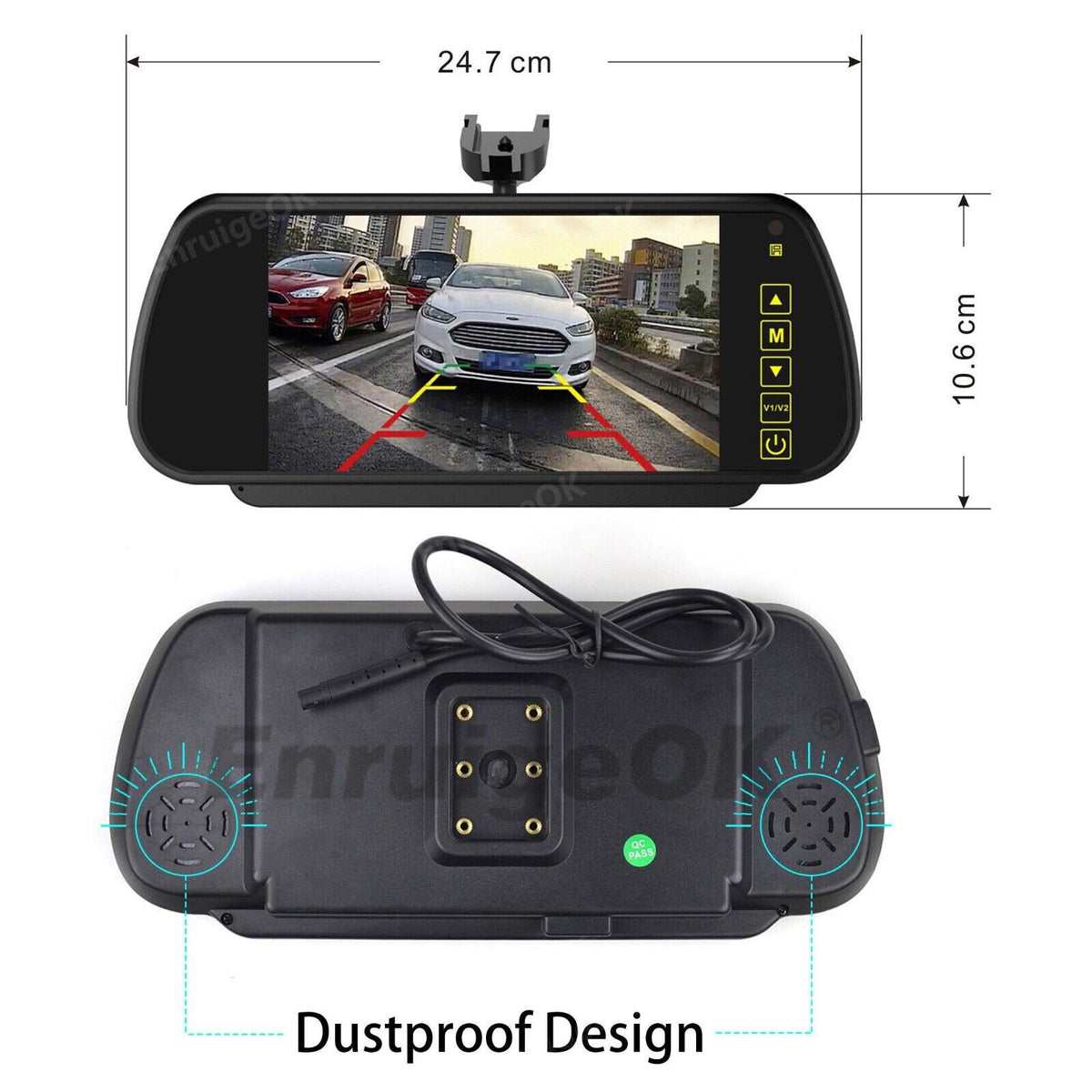

Monitor Specifications

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

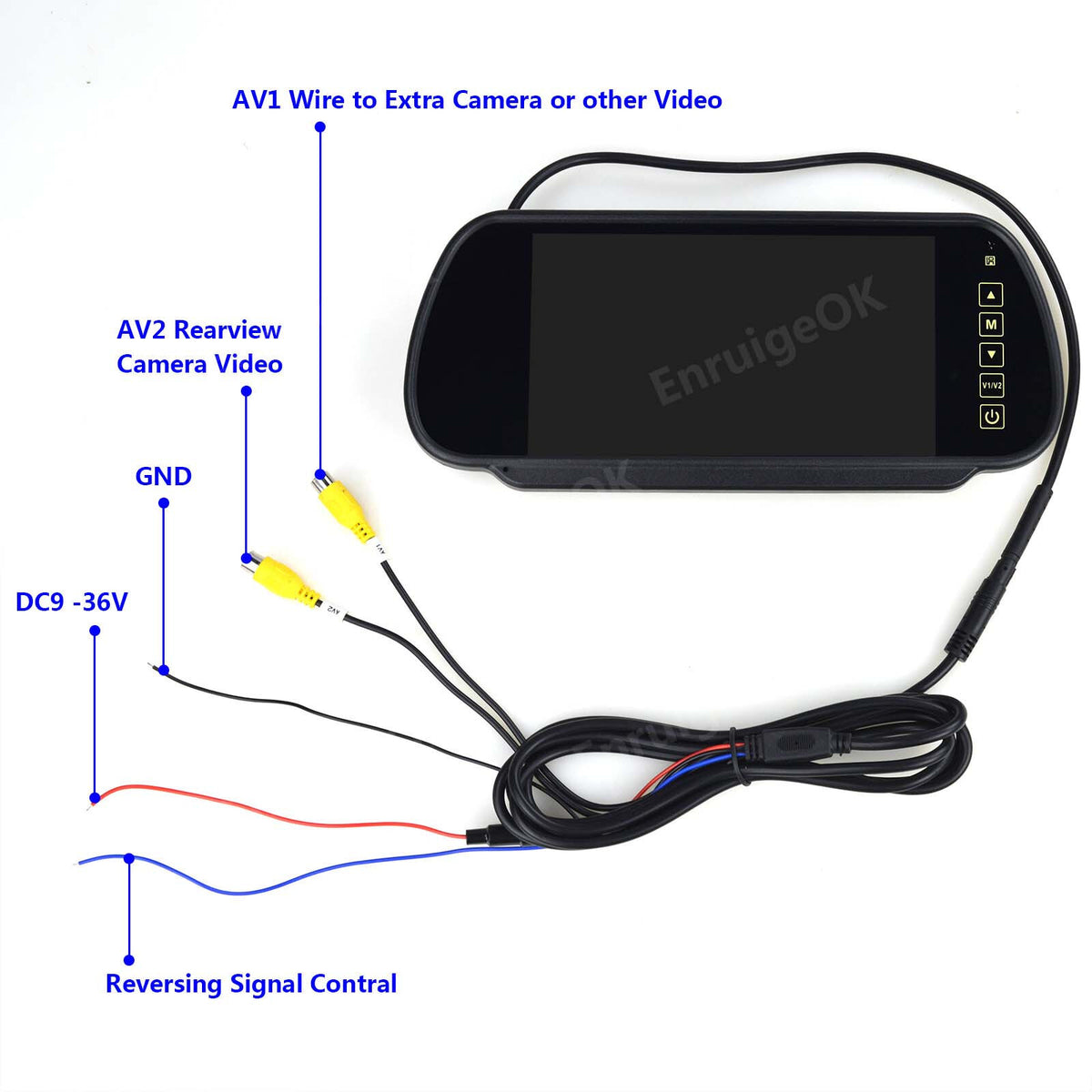

Video Input: Dual video inputs, AV(For driving rear view) and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the reversing camera (image) when the reversing gear is engaged.

Blue screen displayed when no signal is detected.

Parking Guidelines: Adjustable (ON/OFF via monitor settings).

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
