Mini Flush Mount 120° Car Rear View Reverse Backup Camera Nightvision Waterproof

About This Camera

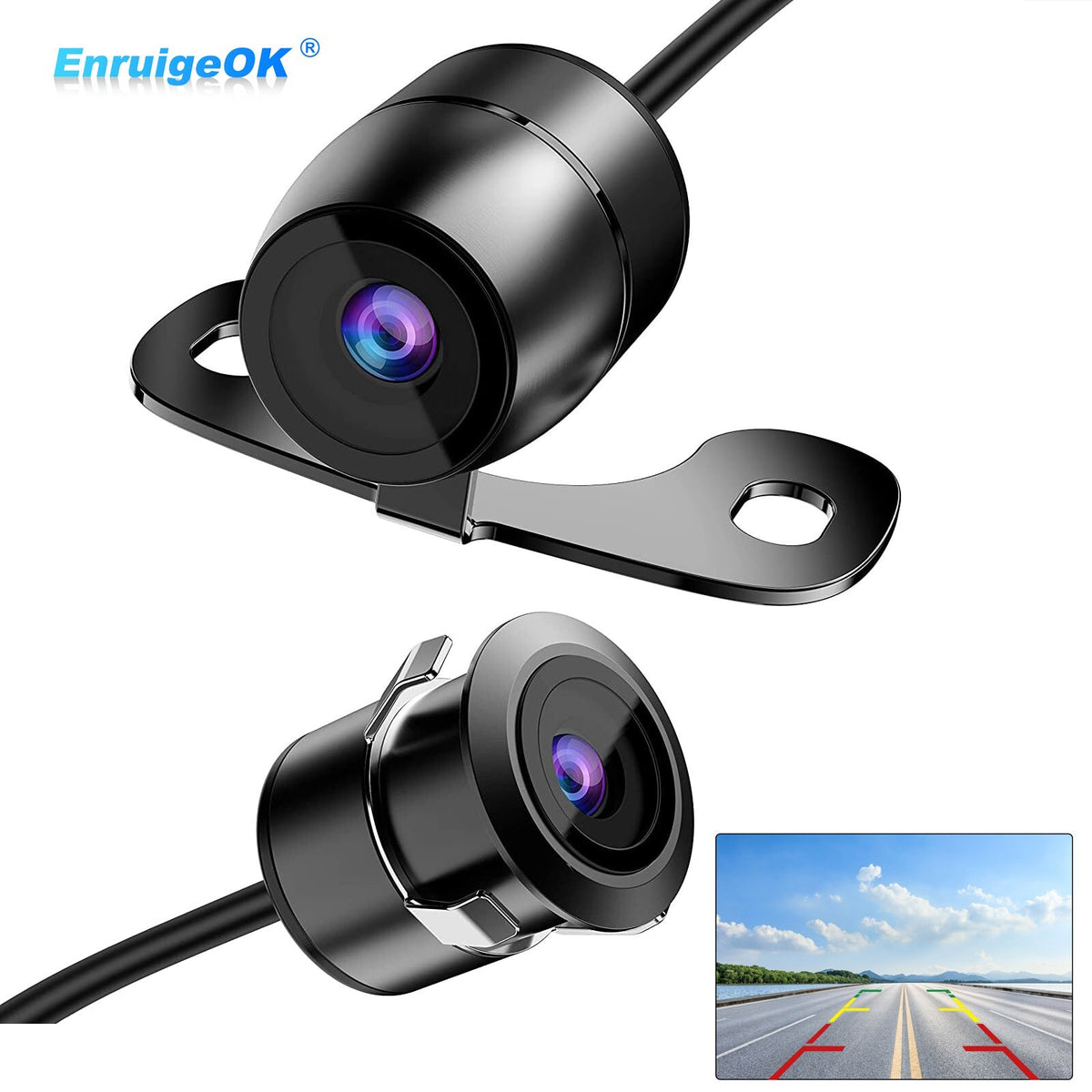

This compact universal backup camera supports flush-mount installation and can also be used with a number-plate-style butterfly mounting position. It is designed for rear, front or side-view use with compatible RCA displays.

Key Features

• 120° imaging angle

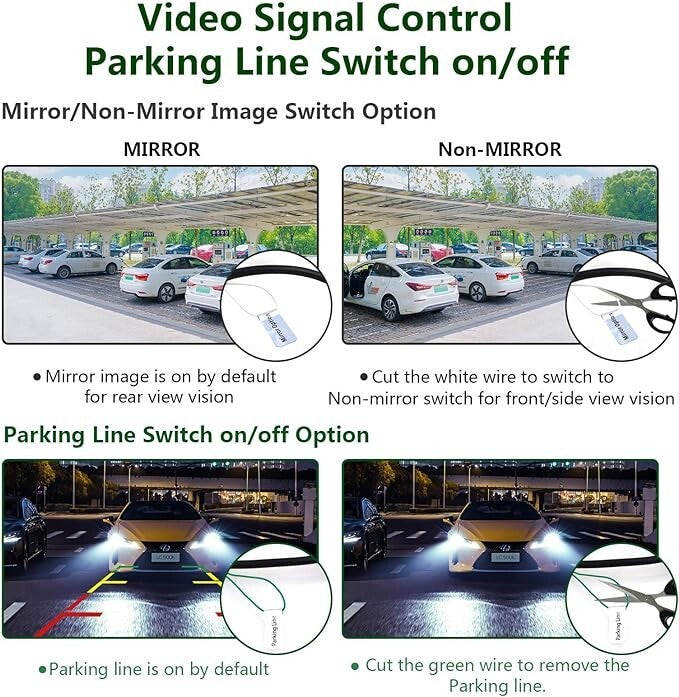

• Default mirrored image for rear-view use

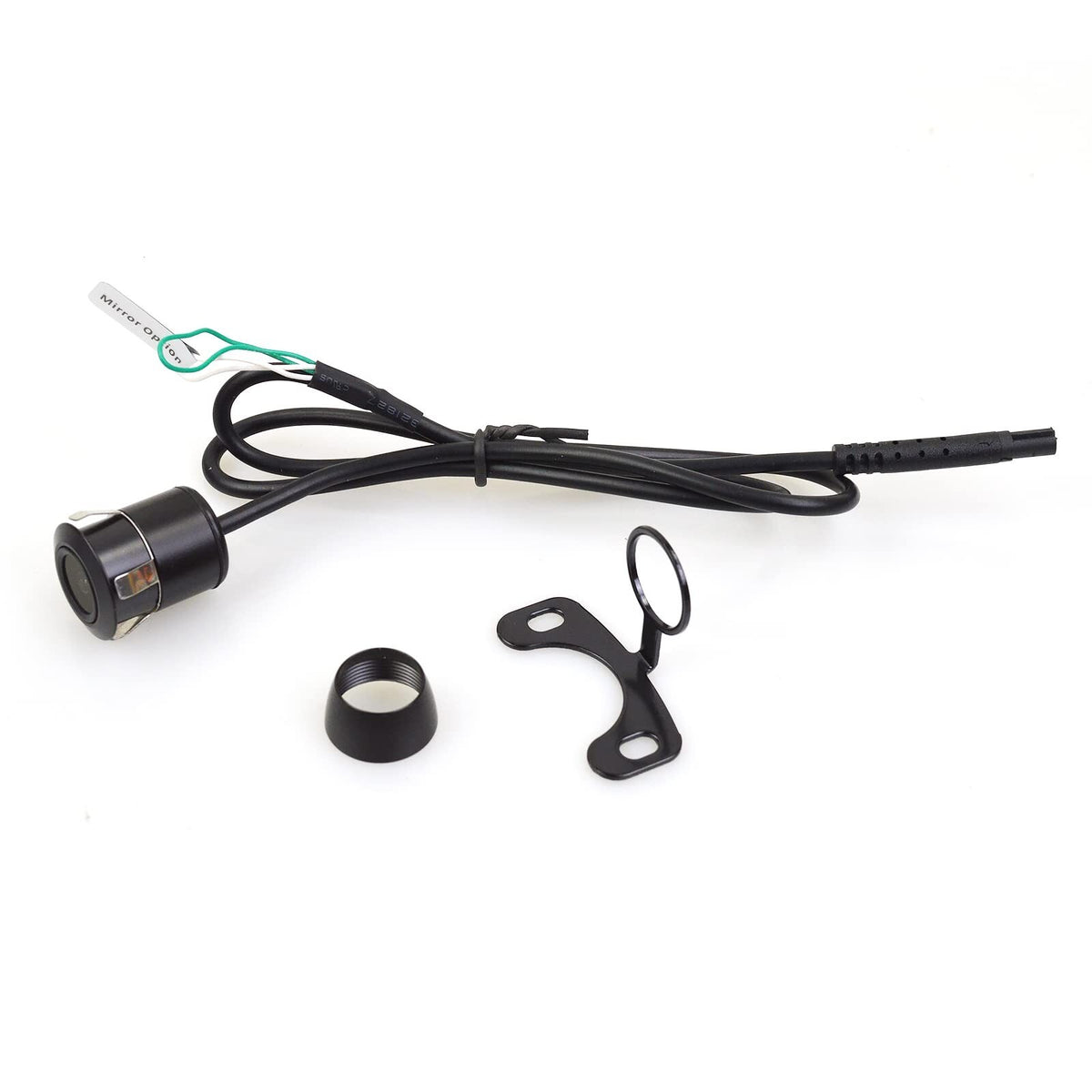

• Switchable to non-mirrored image by cutting the image switch wire
• Parking guideline enabled by default and removable by cutting the guideline switch wire

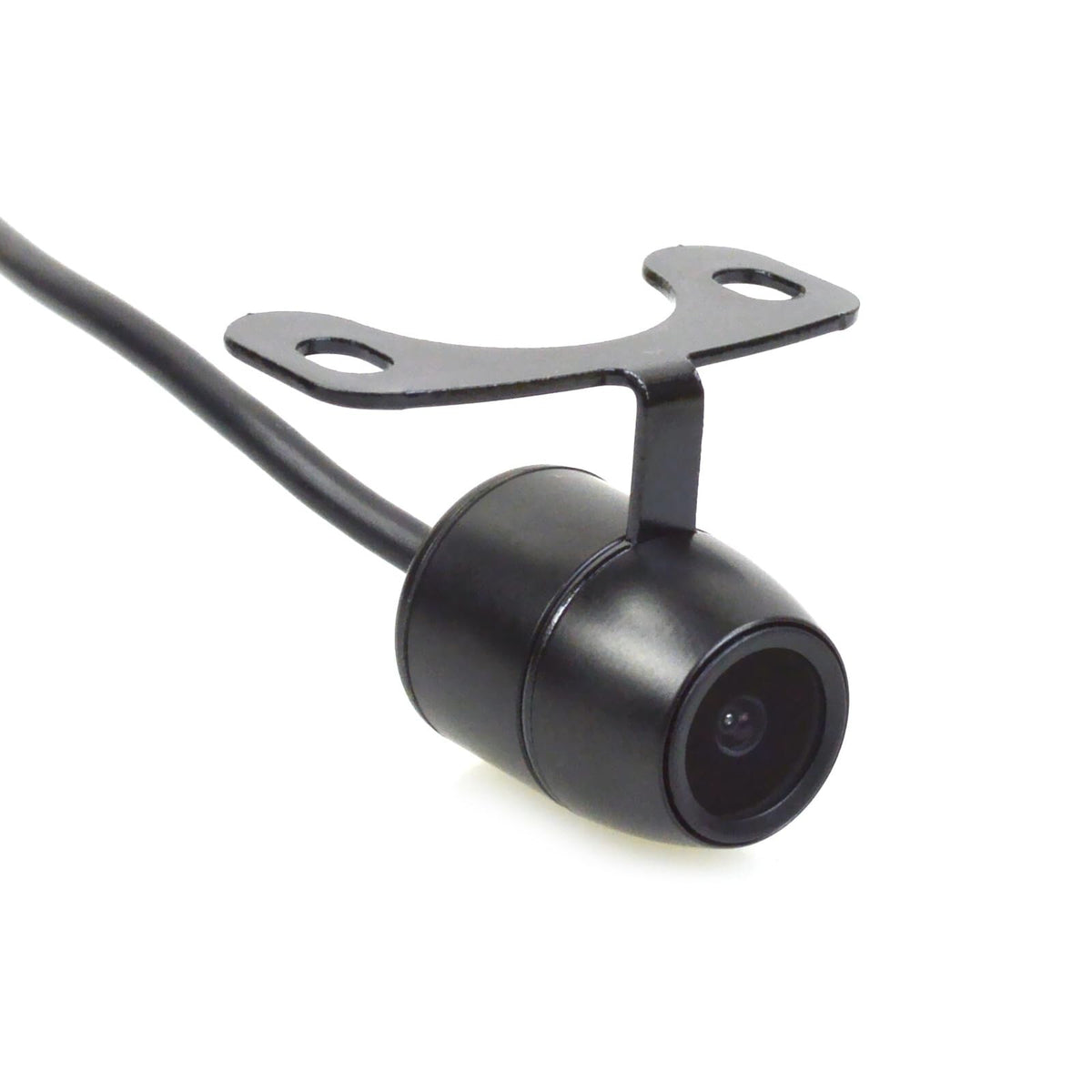

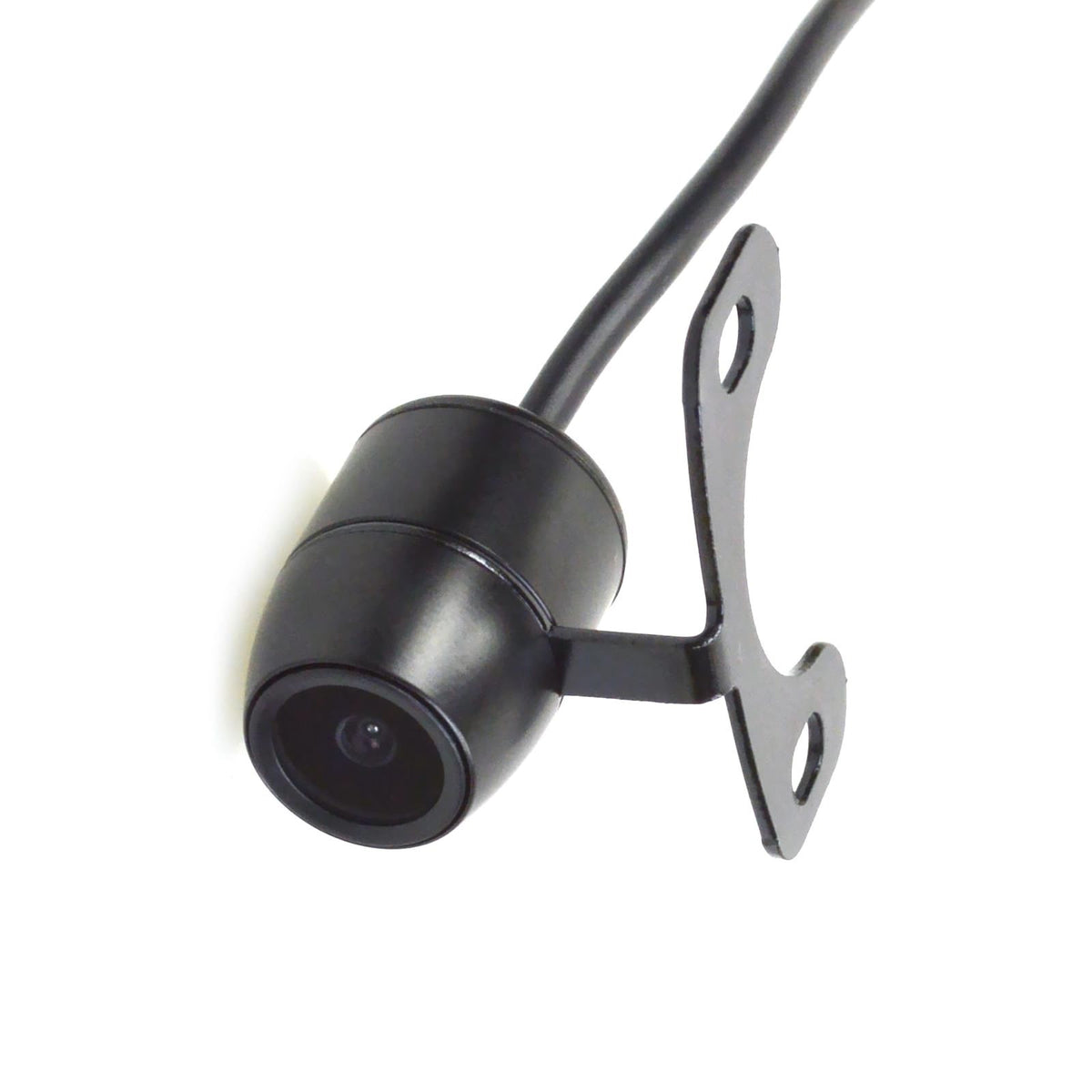

• Flush-mount or butterfly-wing installation
• Compatible with standard RCA monitor inputs
• Low-light performance for day and night use
• IP68 waterproof, shockproof and shatter-resistant housing

Specifications

• Housing material: zinc alloy
• Image sensor: H7440HS
• Optical format: 1/4 inch
• Video system: PAL / NTSC
• Lens diameter: 16.5mm / 0.65 inch
• Imaging angle: 120°
• Horizontal angle: 100°
• Pixel array: 733(H) × 493(V)
• Resolution: 480 TV lines
• Signal-to-noise ratio: >48dB
• Minimum illumination: 0.1-0.5 Lux / F1.2
• Power supply: DC 12V
• Power: 5W
• Current consumption: ≤150mA
• Waterproof rating: IP68
• Operating temperature: -30°C to +80°C

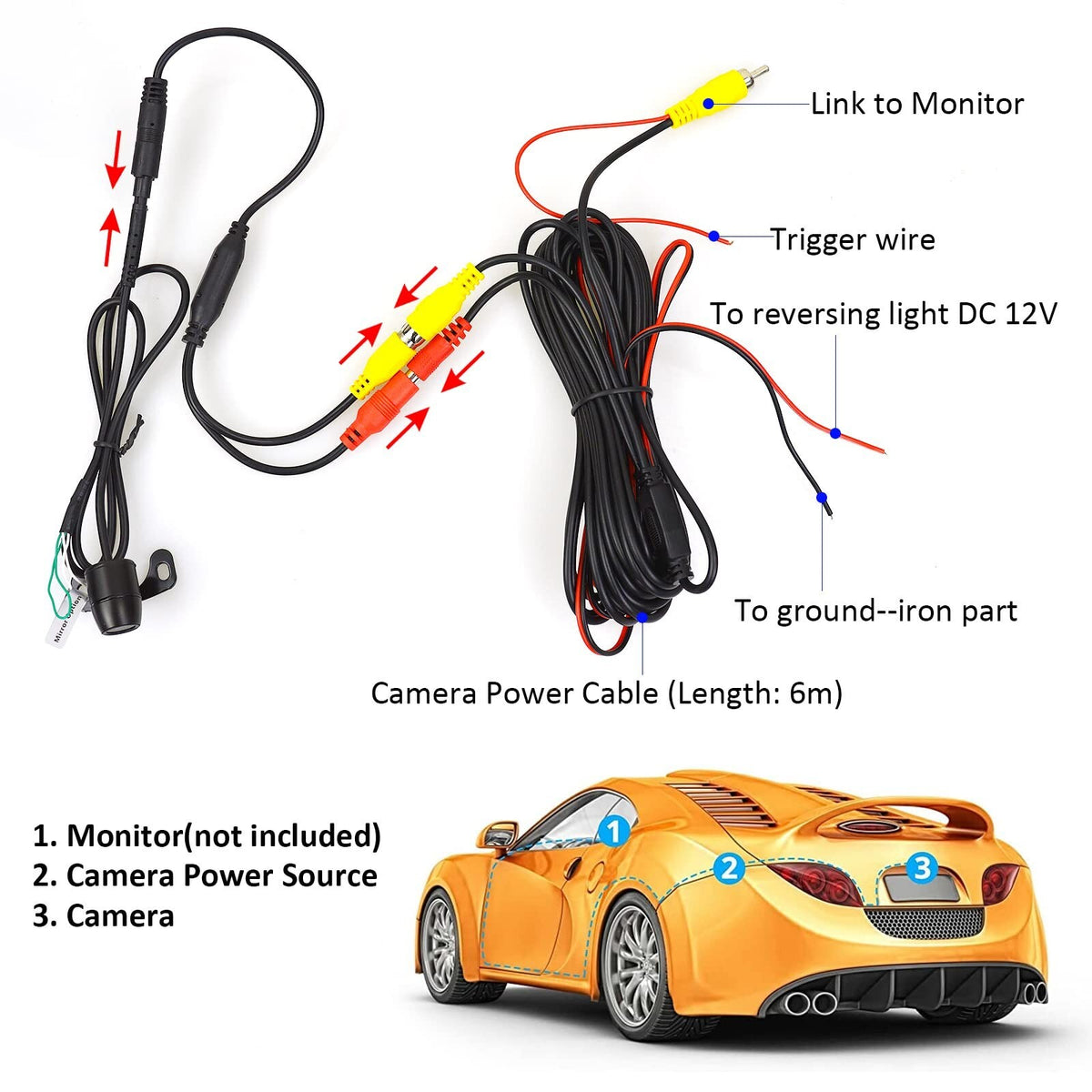

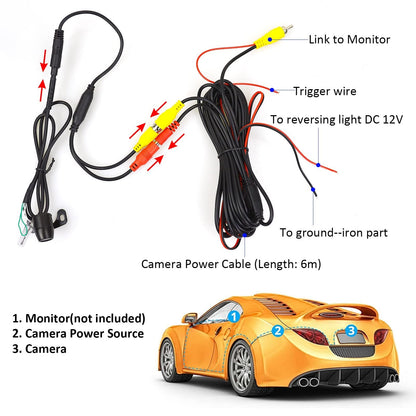

Installation

1. Choose a suitable mounting position, such as above the license plate or on the bumper.
2. Connect the red power wire to the vehicle DC 12V power system.
3. Connect the yellow RCA video output to the vehicle monitor or display.
4. Power on the system and confirm the camera image before completing installation.

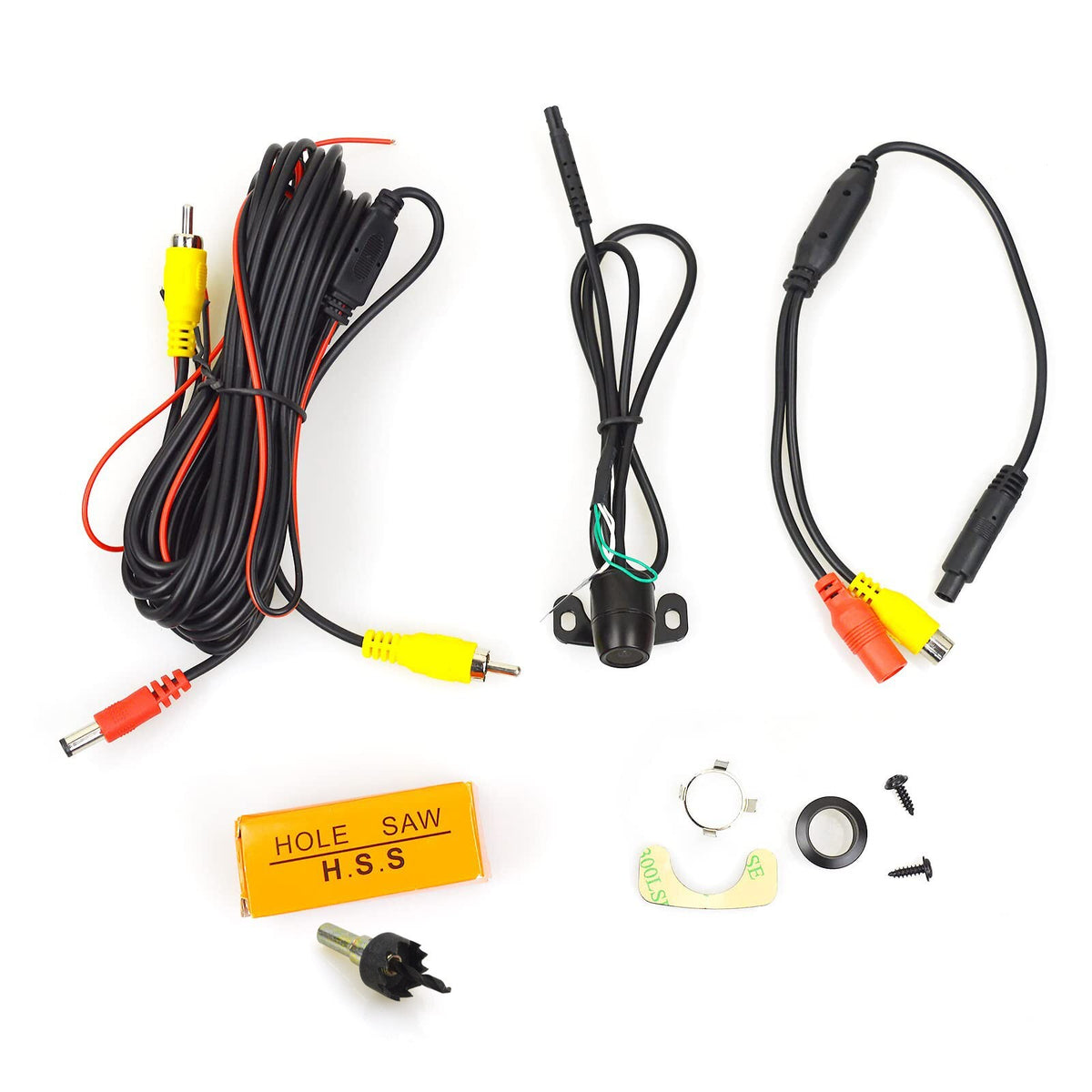

Package Includes

• 1 × Car camera
• 1 × Power cable
• 1 × Video cable
• 1 × Flush-mount hole drill
• Mounting accessories
• 1 × User manual
