High Roof 3rd Brake Light Backup Camera Kit for Coachmen Class C RVs Motorhome

Note: Please check the camera size carefully before make the order.

EnruigeOK 3rd Third Brake Light Backup Camera Kit for Coachmen RV Class C Leprechaun Freelander Jayco, Clearance LED Tail Light Bar Lamp Reverse Rear View Camera for Travel Trailer Pickup RV Camper Motorhome

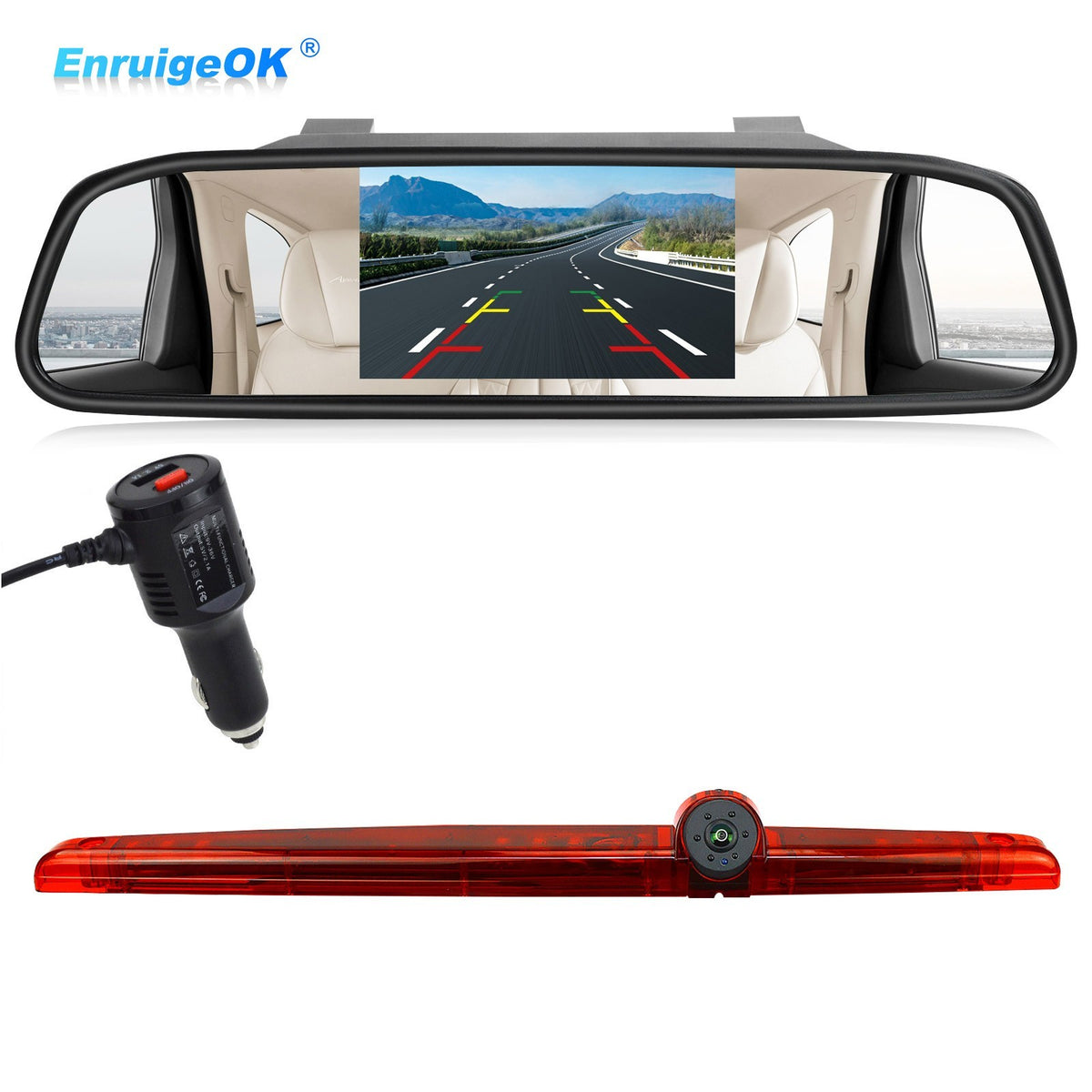

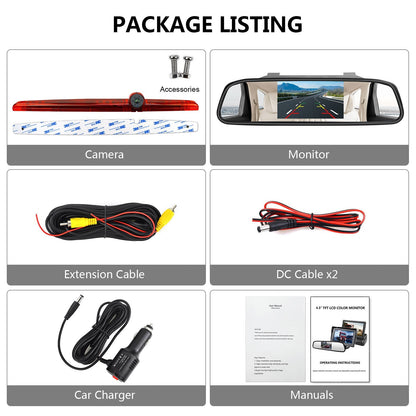

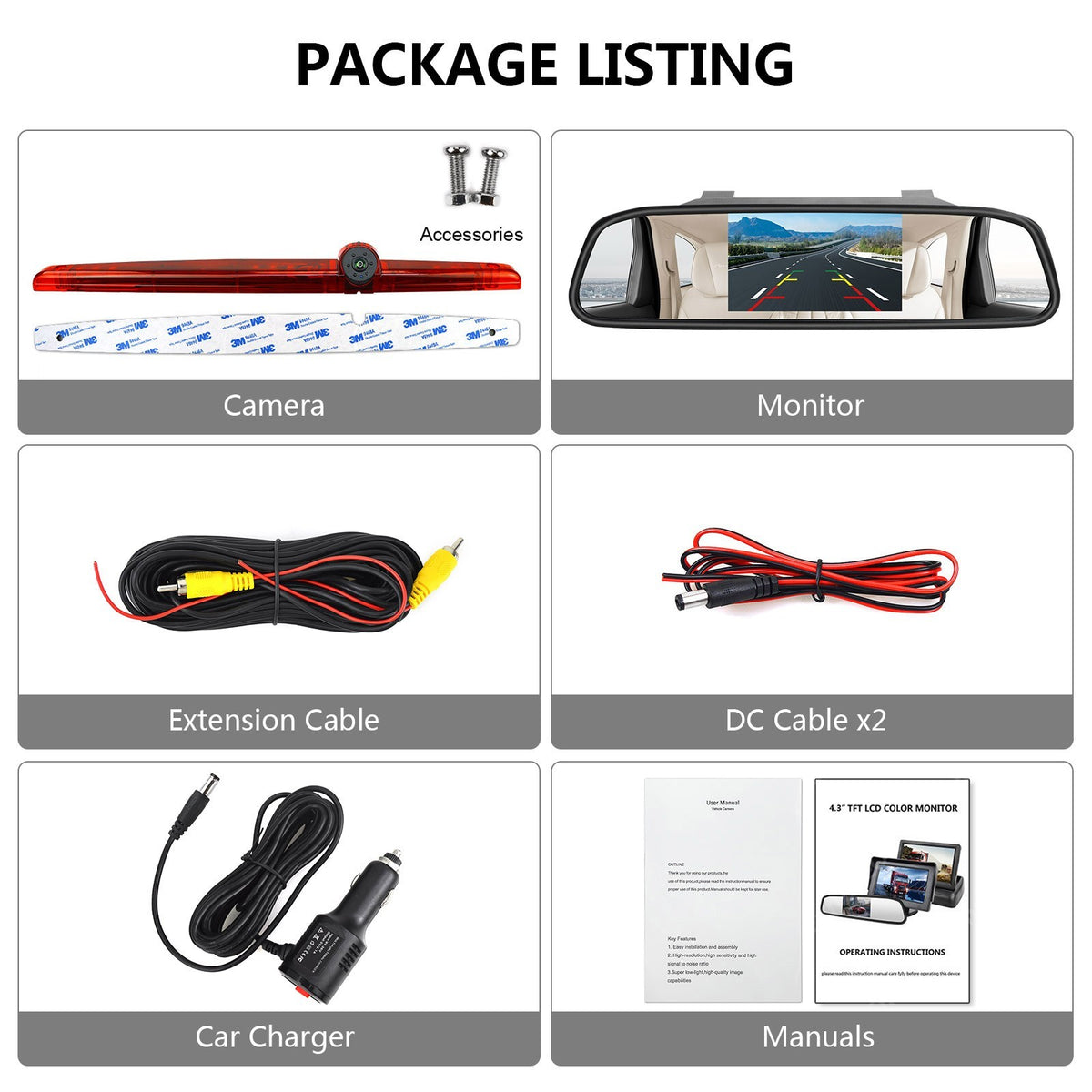

Package contents

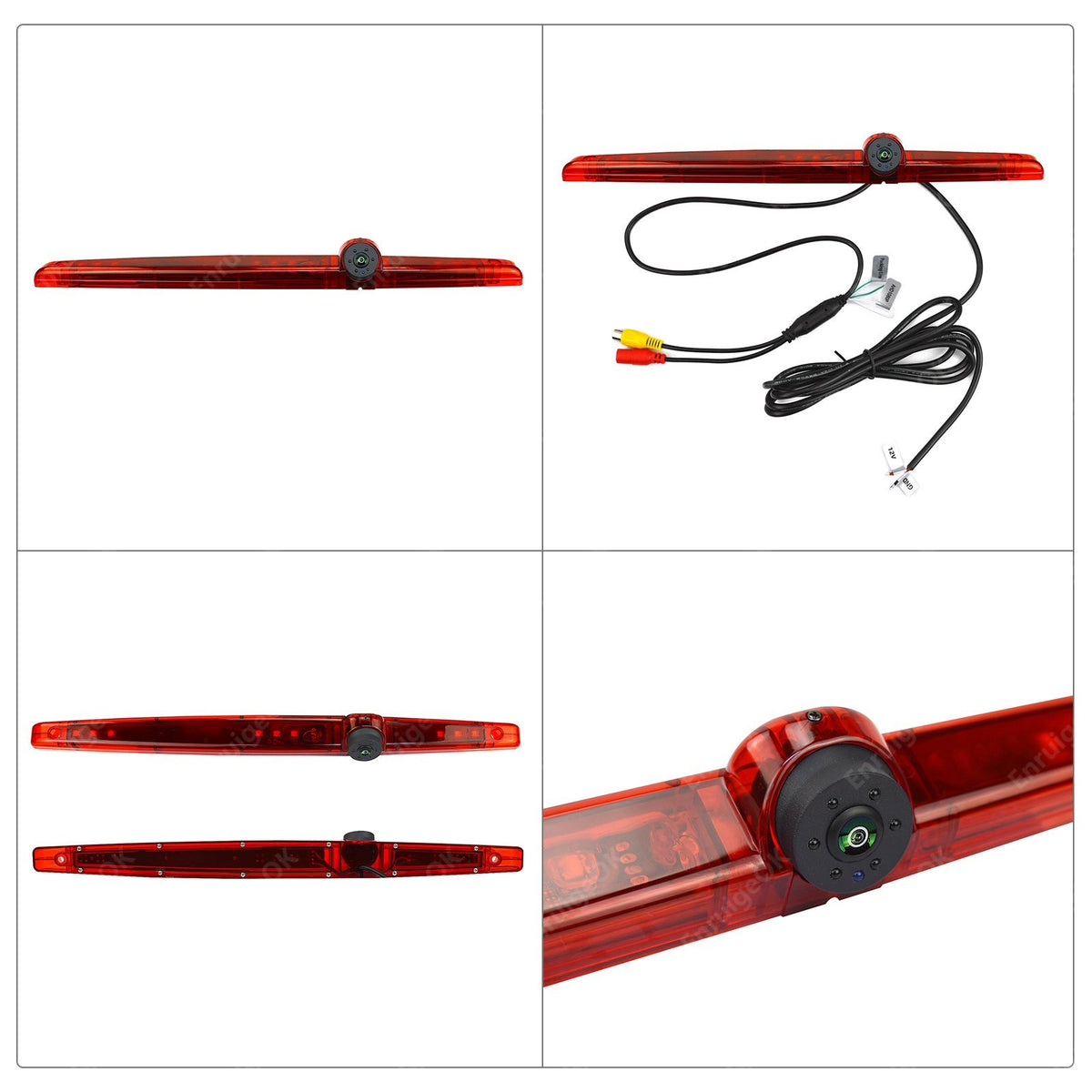

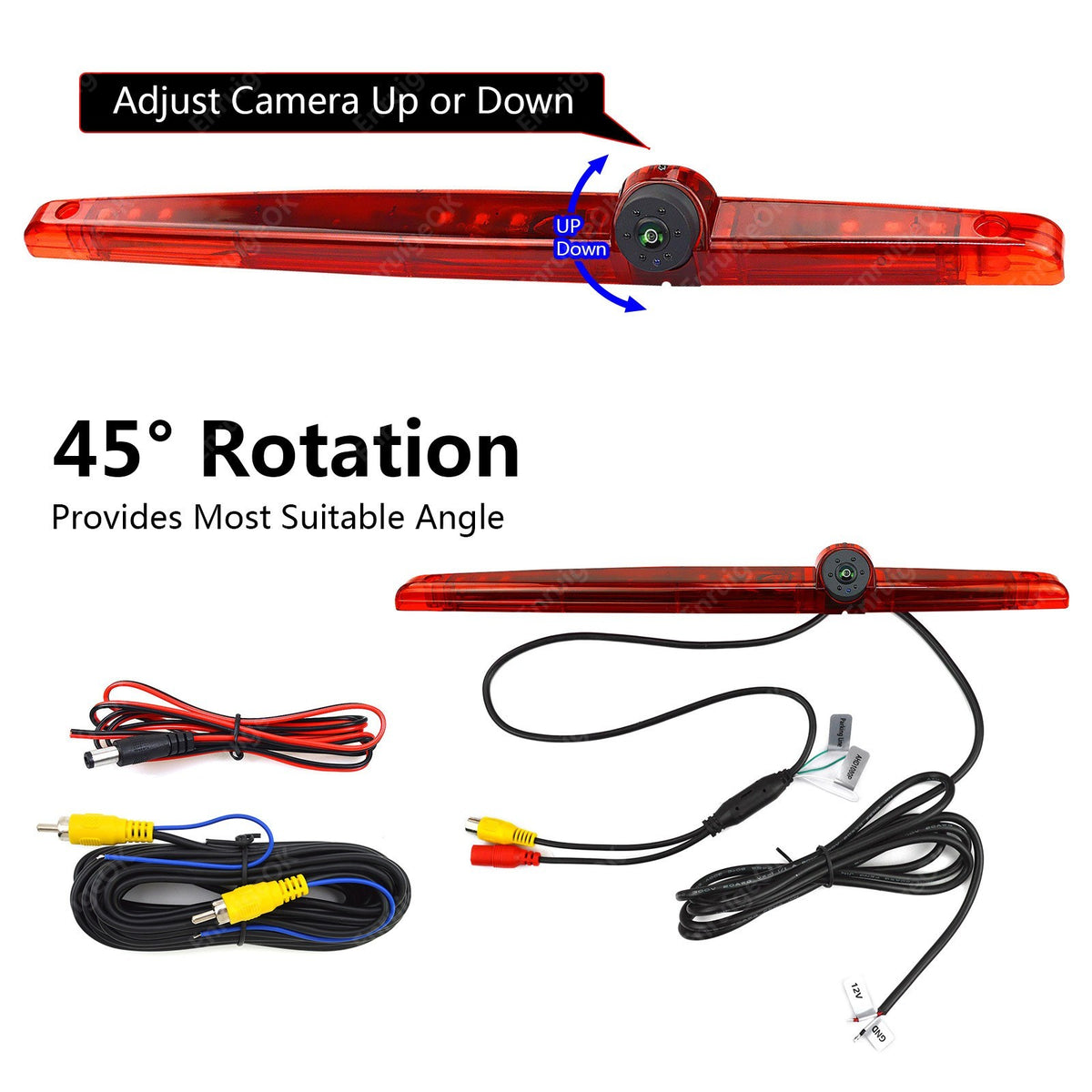

1 X Brake light camera

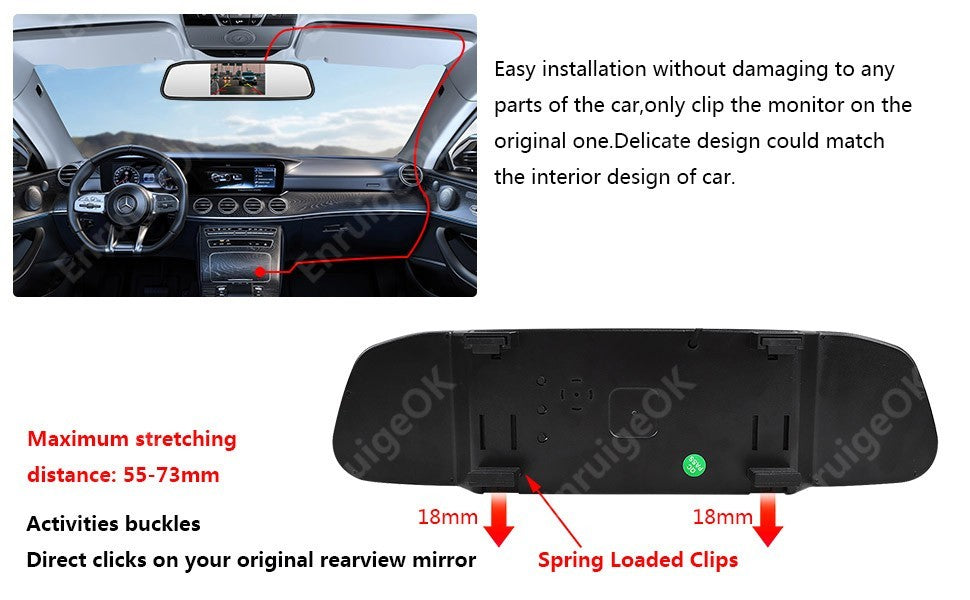

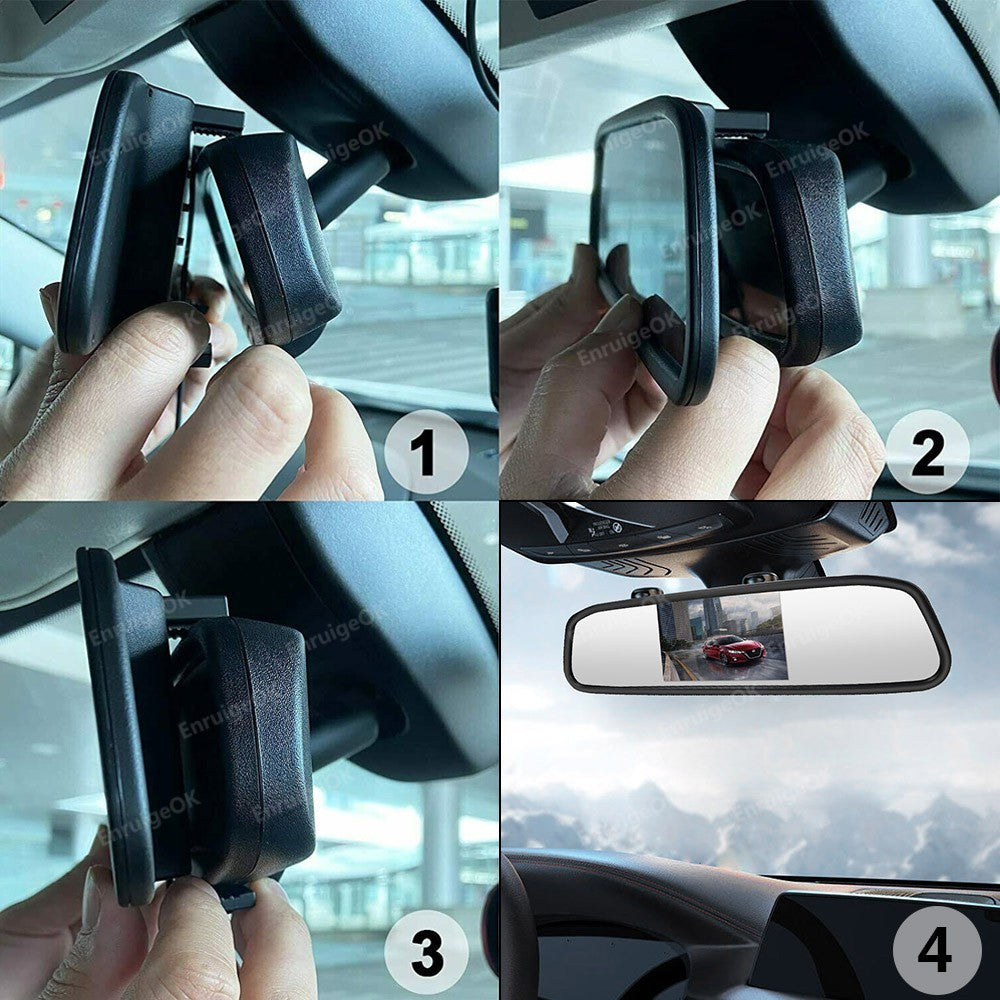

1 X 4.3'' mirror monitor

1 X 10m/33ft. video extension cable

2 X 1m DC Power cable

1 X Cigarette lighter power cord(For monitor)

1 X Manual

Description

It includes a backup camera and 4.3" 480*272 IPS display monitor. The car monitor will continuously displays the rear camera images to help you park safely.

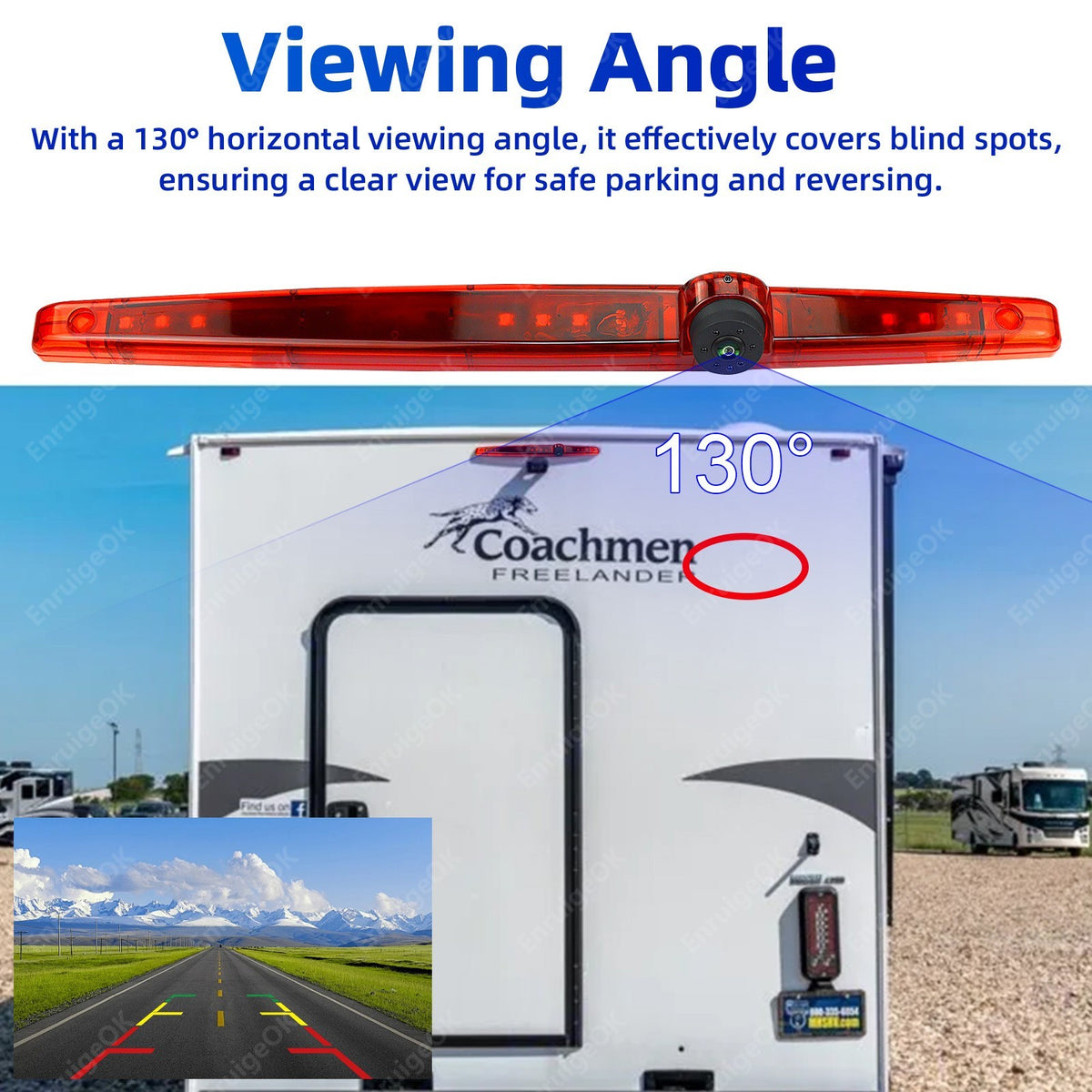

Horizontal Viewing Angle: With a 130-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

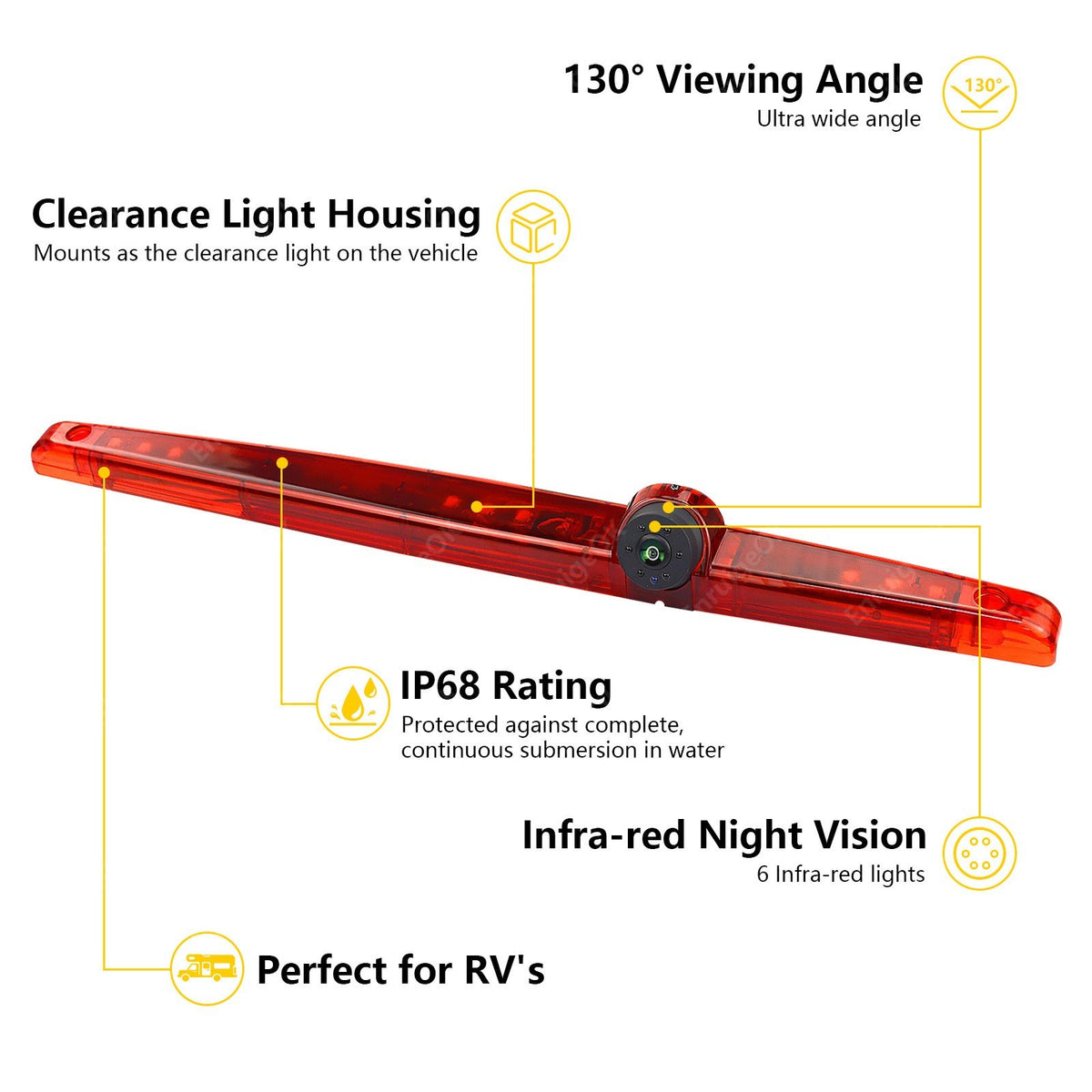

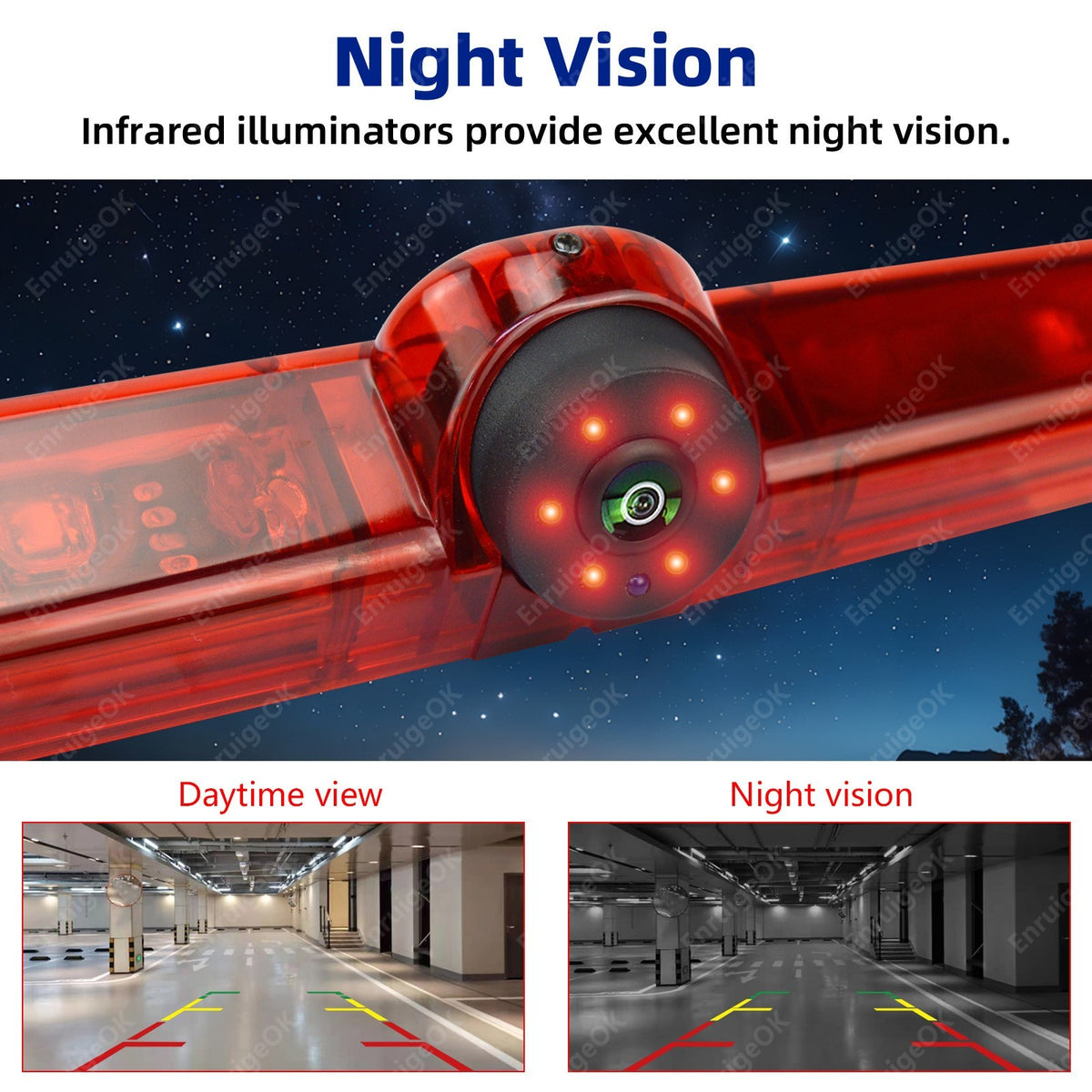

Clear View Day & Night: Featuring a high-quality CMOS sensor and IR-CUT filter, plus 6 infrared lights, this camera ensures excellent visibility even in the dark.

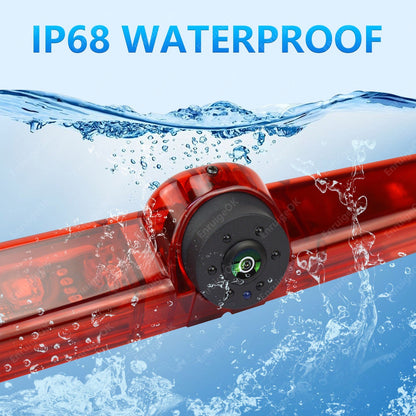

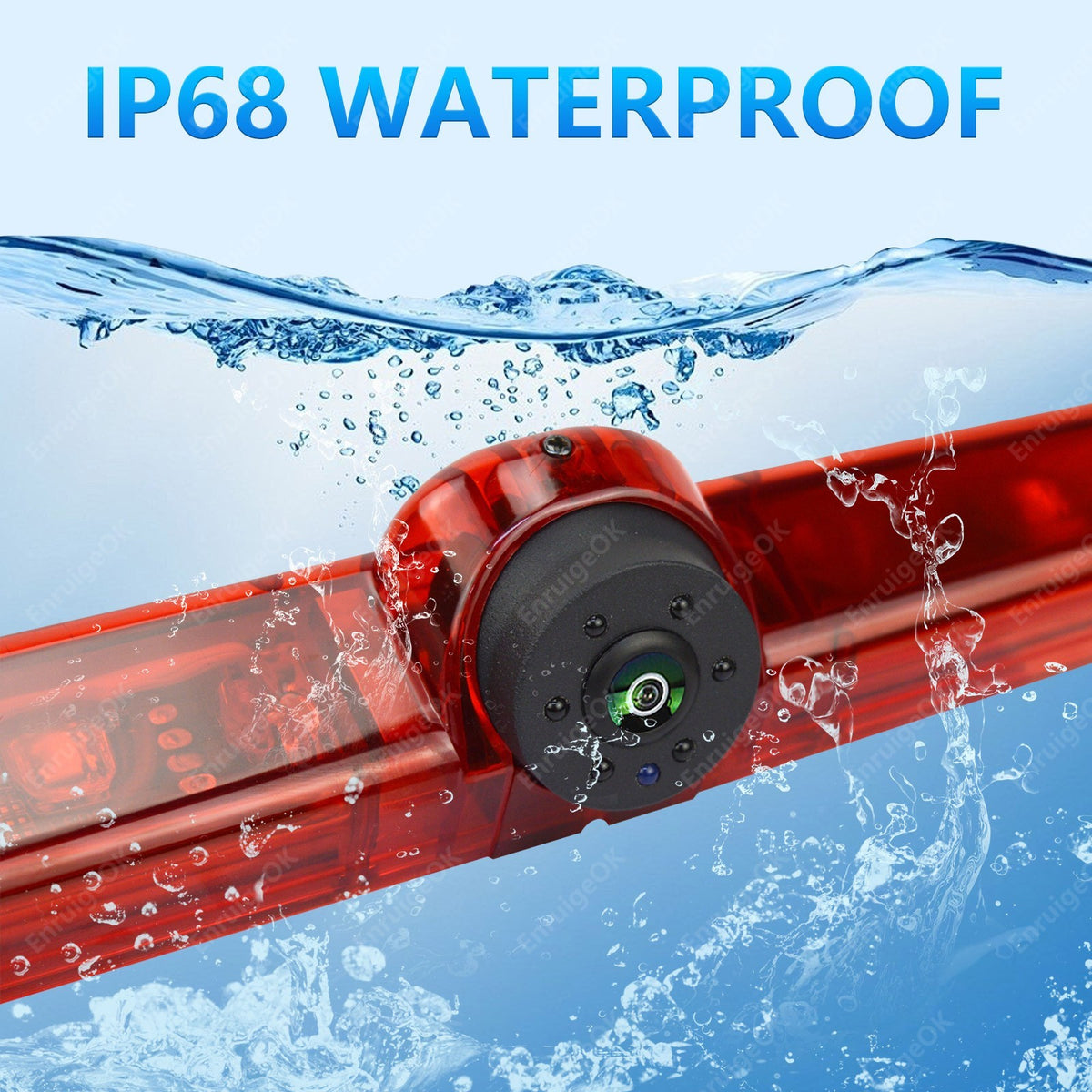

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: Colour CMOS

Effective pixel: CVBS 733(H)x493(V)

Resolution: CVBS 480TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal angle: 130°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +70℃

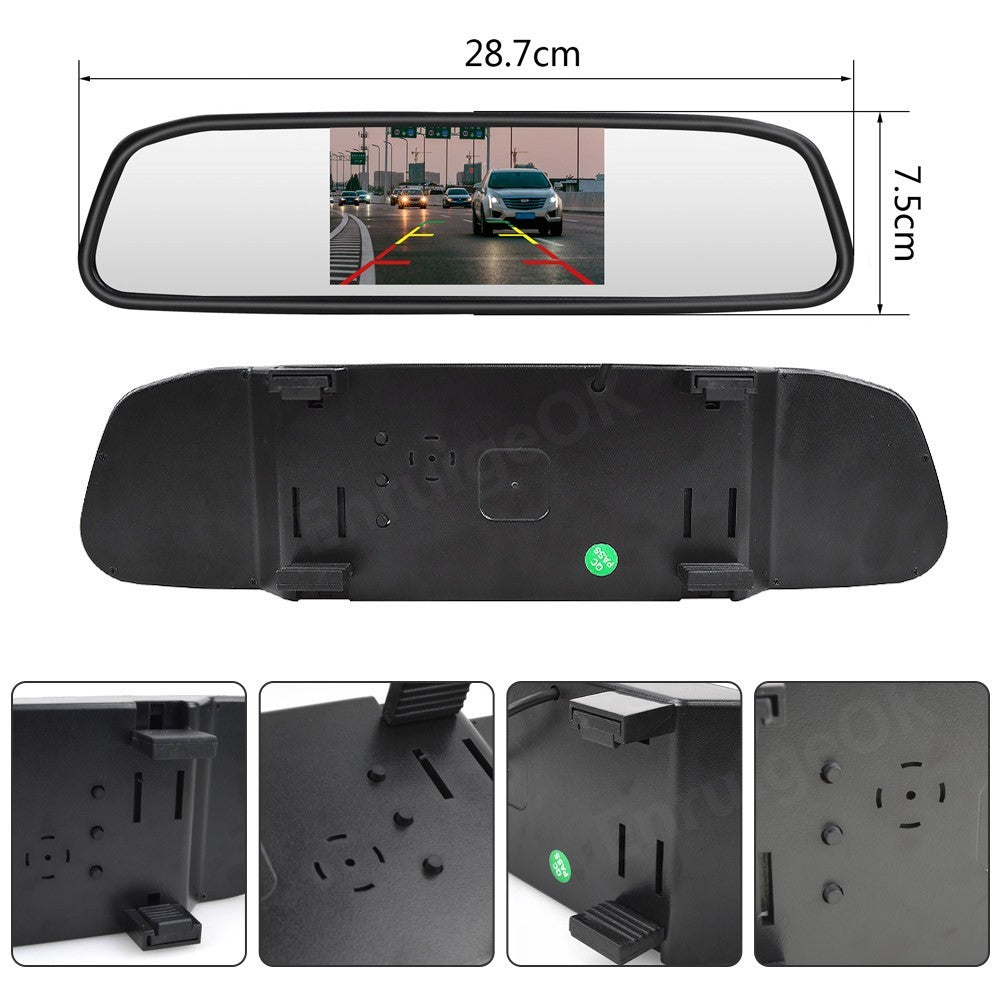

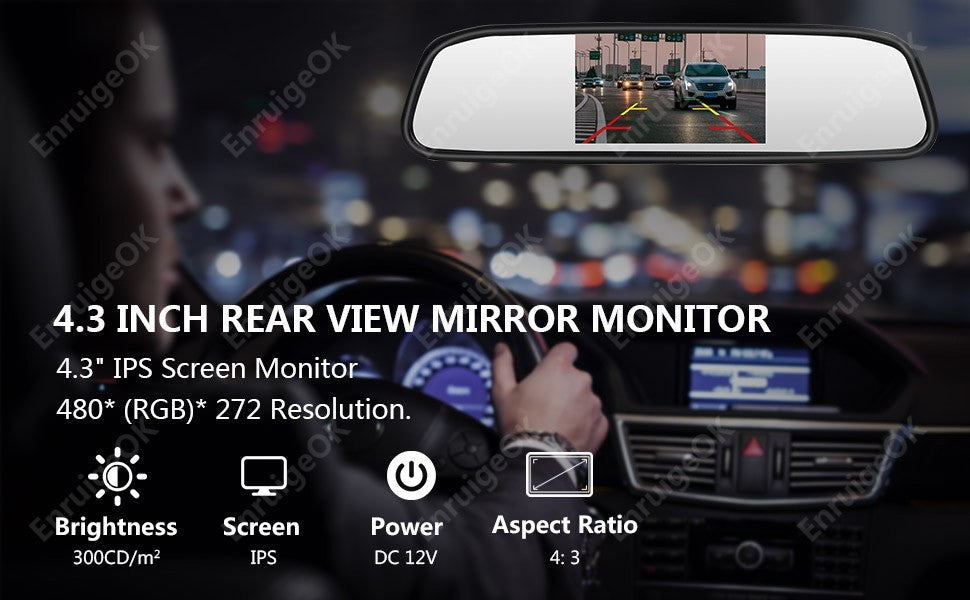

Monitor Specifications

Screen size: 4.3 inch

Display format: 4: 3

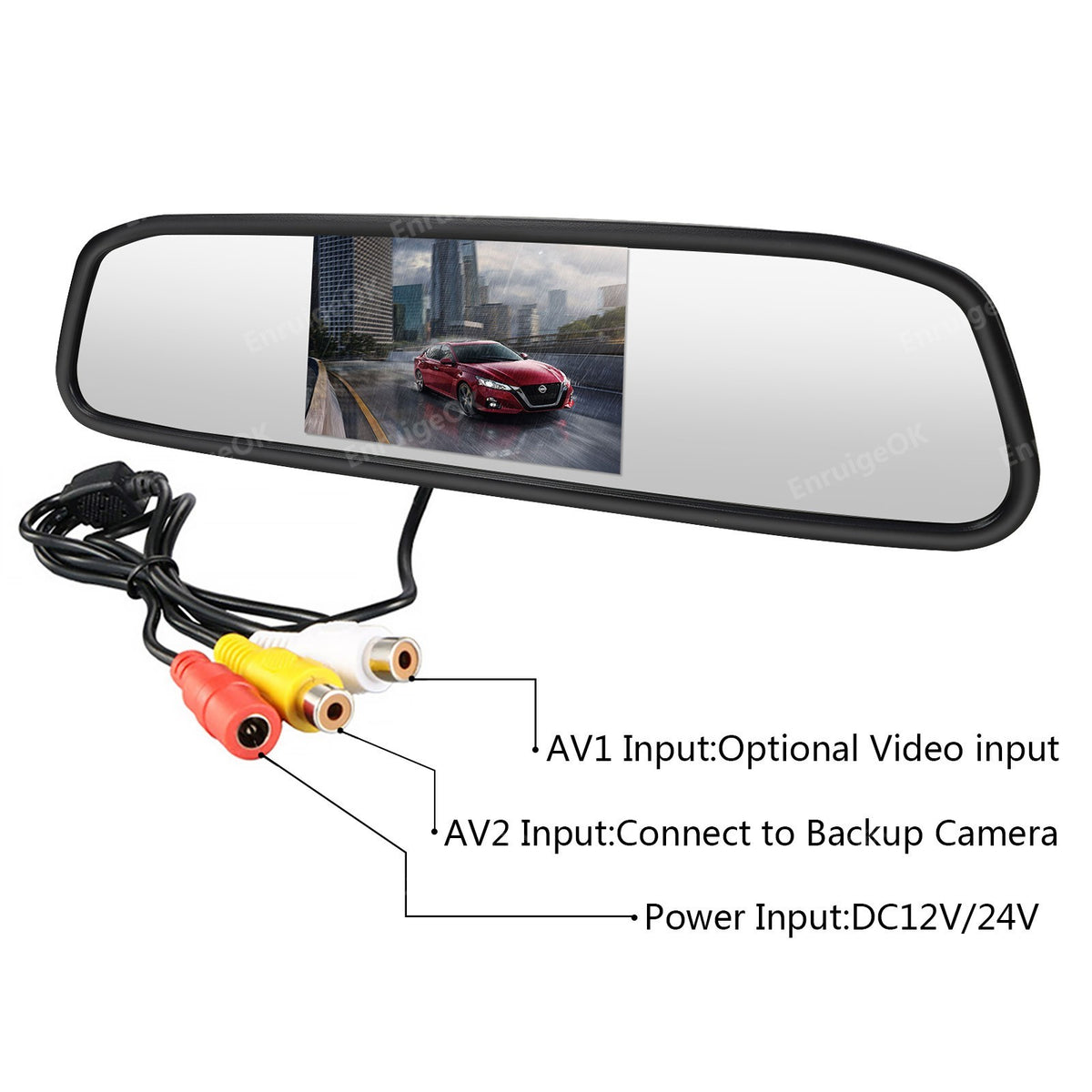

Video: 2-channel video input; V1/V2 switching

Resolution: 480*272 IPS

Power supply: DC 12-24V

Rear view in priority

Video system: NTSC / PAL auto switch

With menu button, brightness/contrast/saturation adjustable.

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
