High Level Brake Light Reversing Camera For VW Transporter T5 & T6 2010-Onward

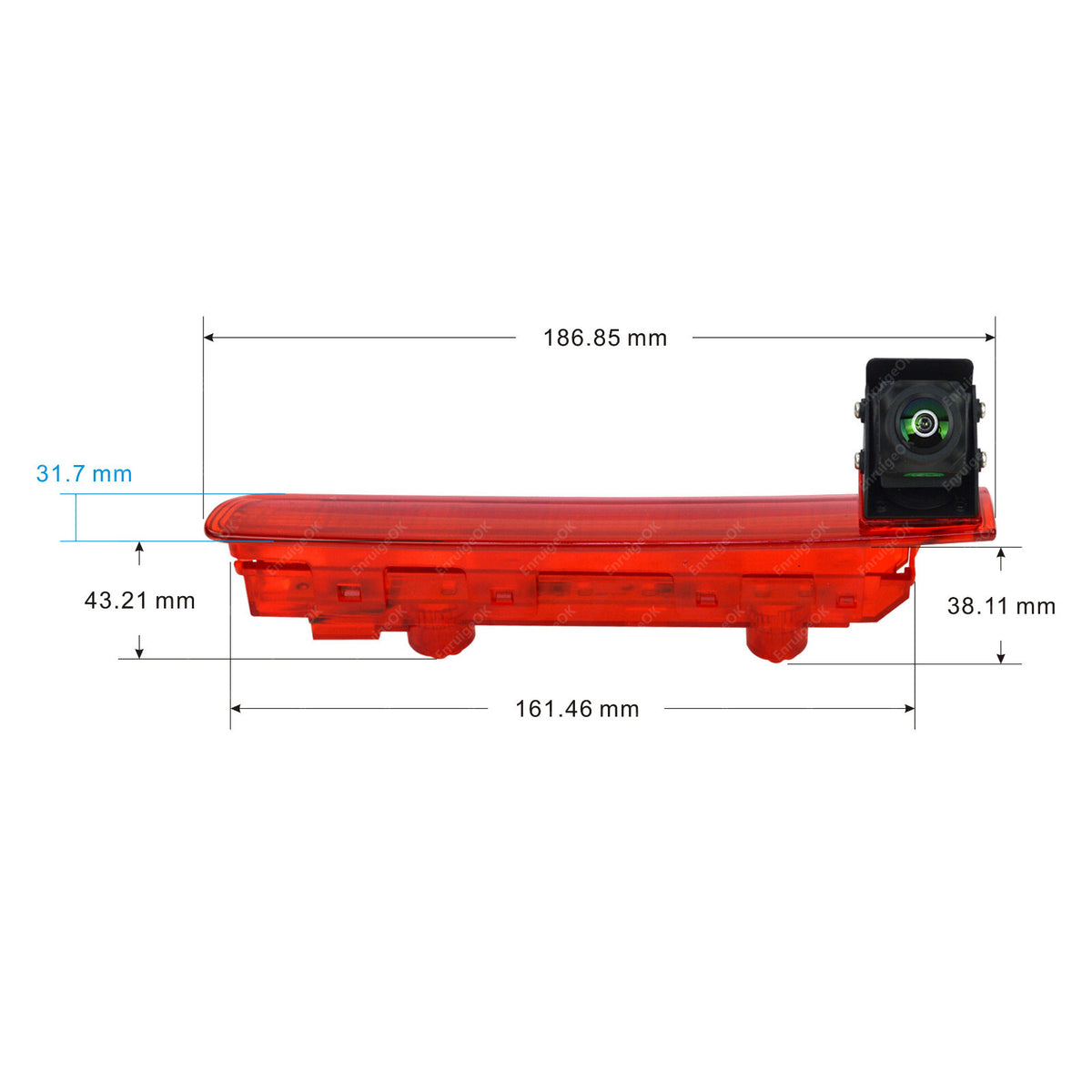

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

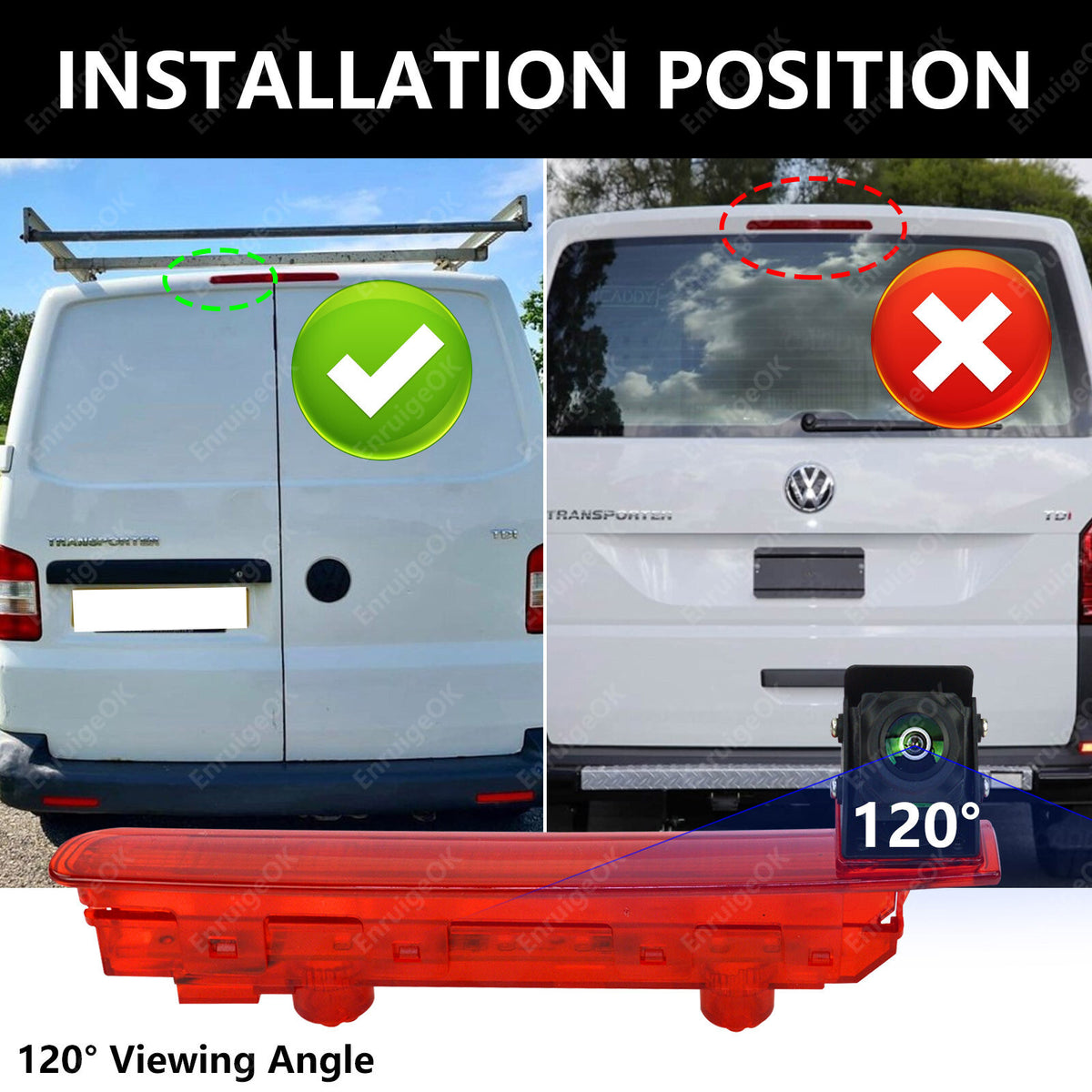

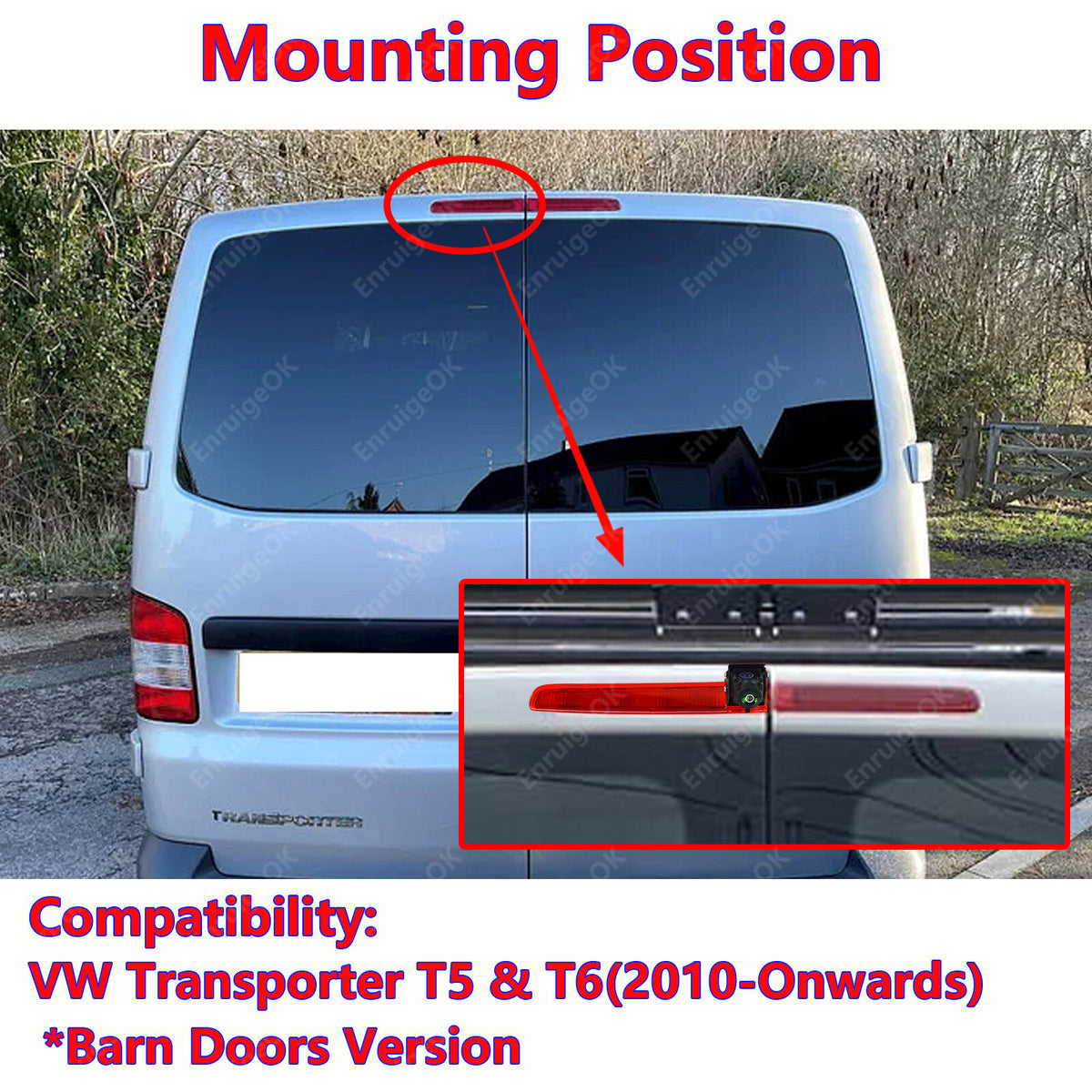

Camera Compatibility

✅VW Transporter T5 & T6 (2010-Onwards)

Barn Doors Only

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

Reminder Friendly

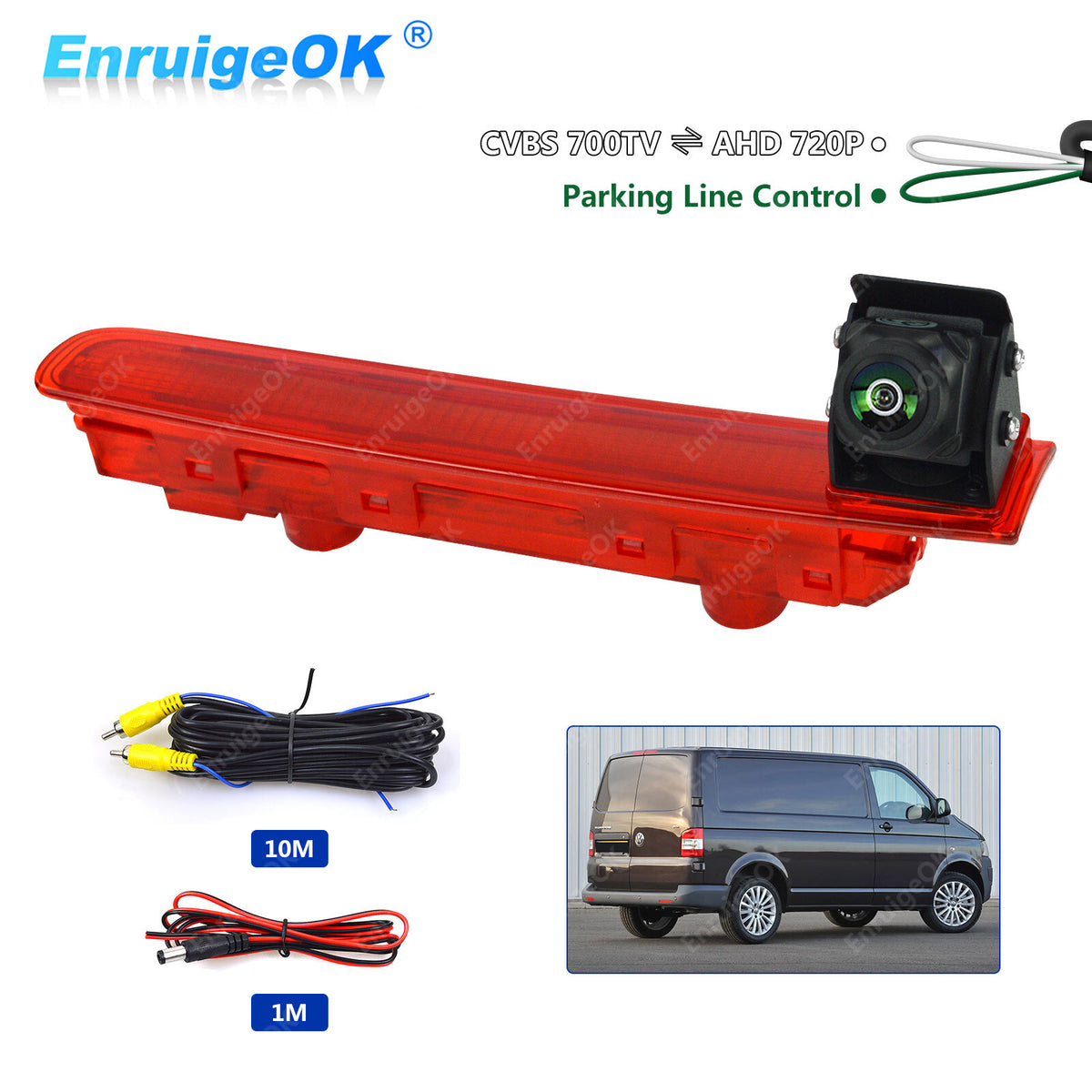

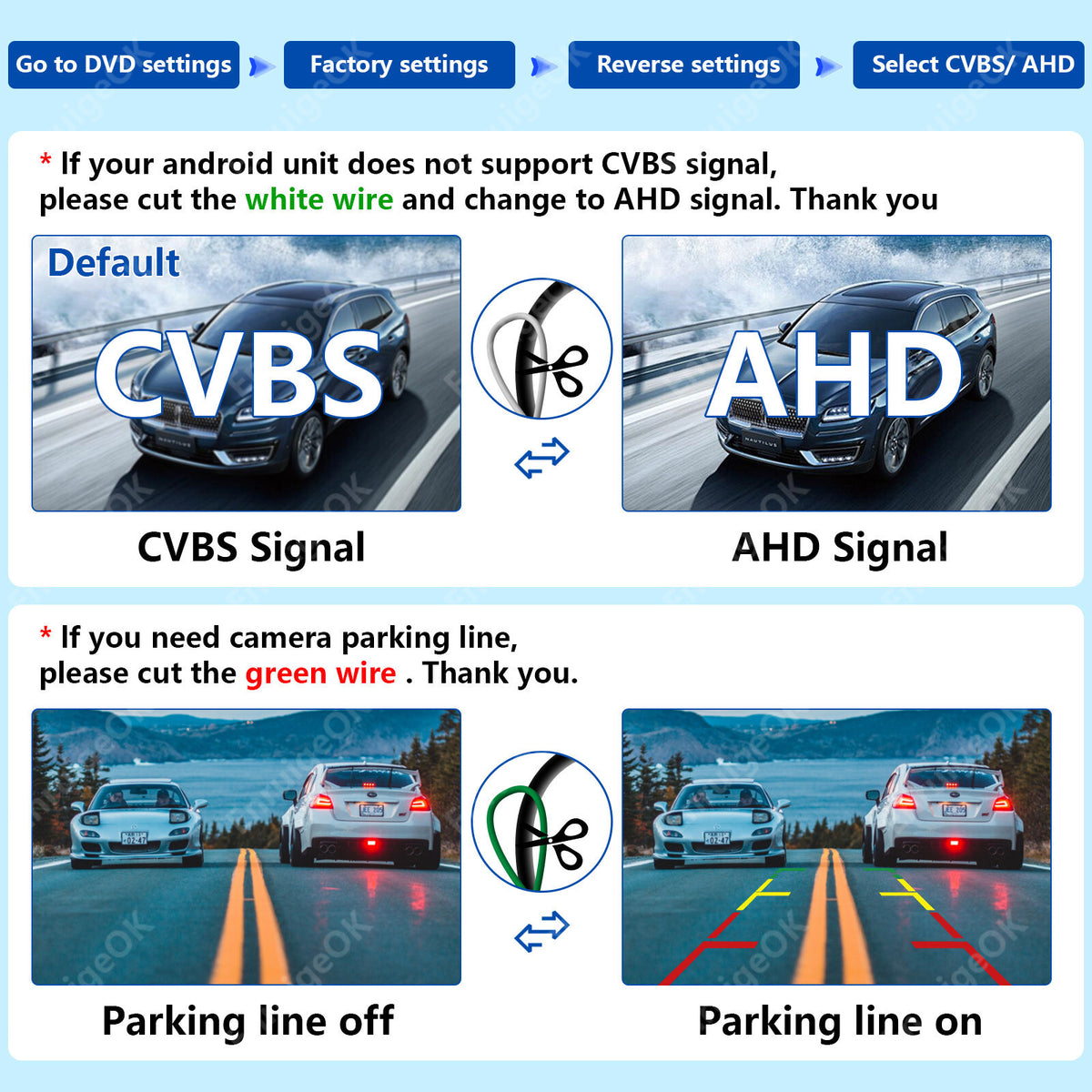

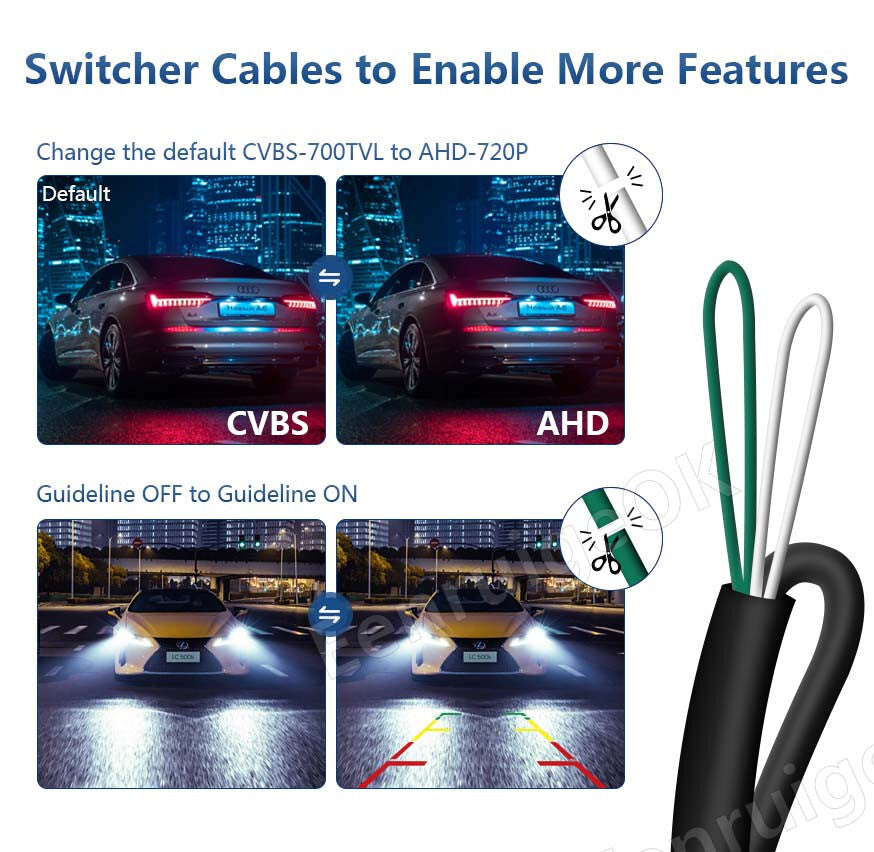

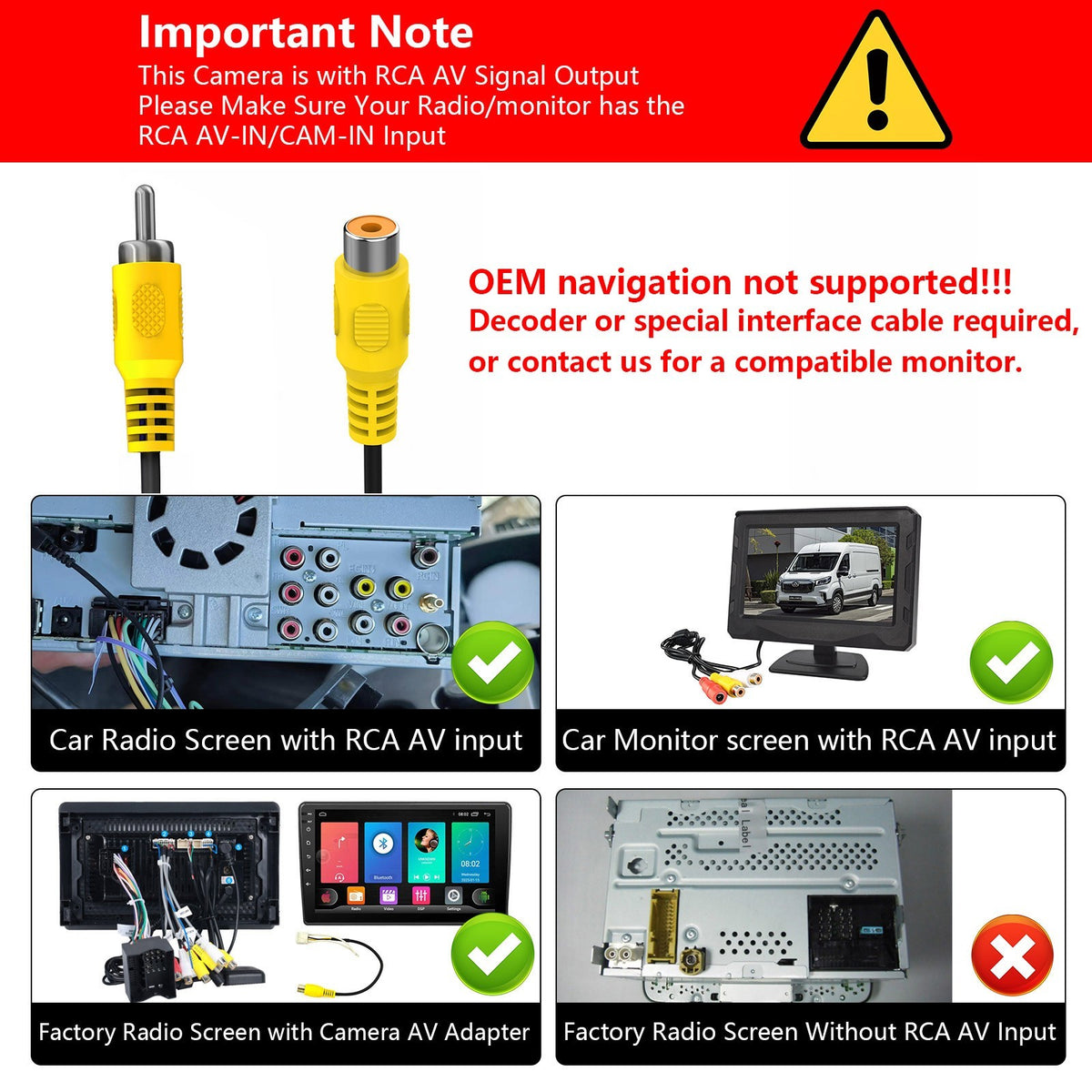

The camera defaults to CVBS 700TVL signal and supports AHD 720P signal (by cutting the white wire). If your Android device or monitor doesn't support CVBS 700TVL signal, please cut the white wire to switch to AHD 720P signal. Thank you.

Description

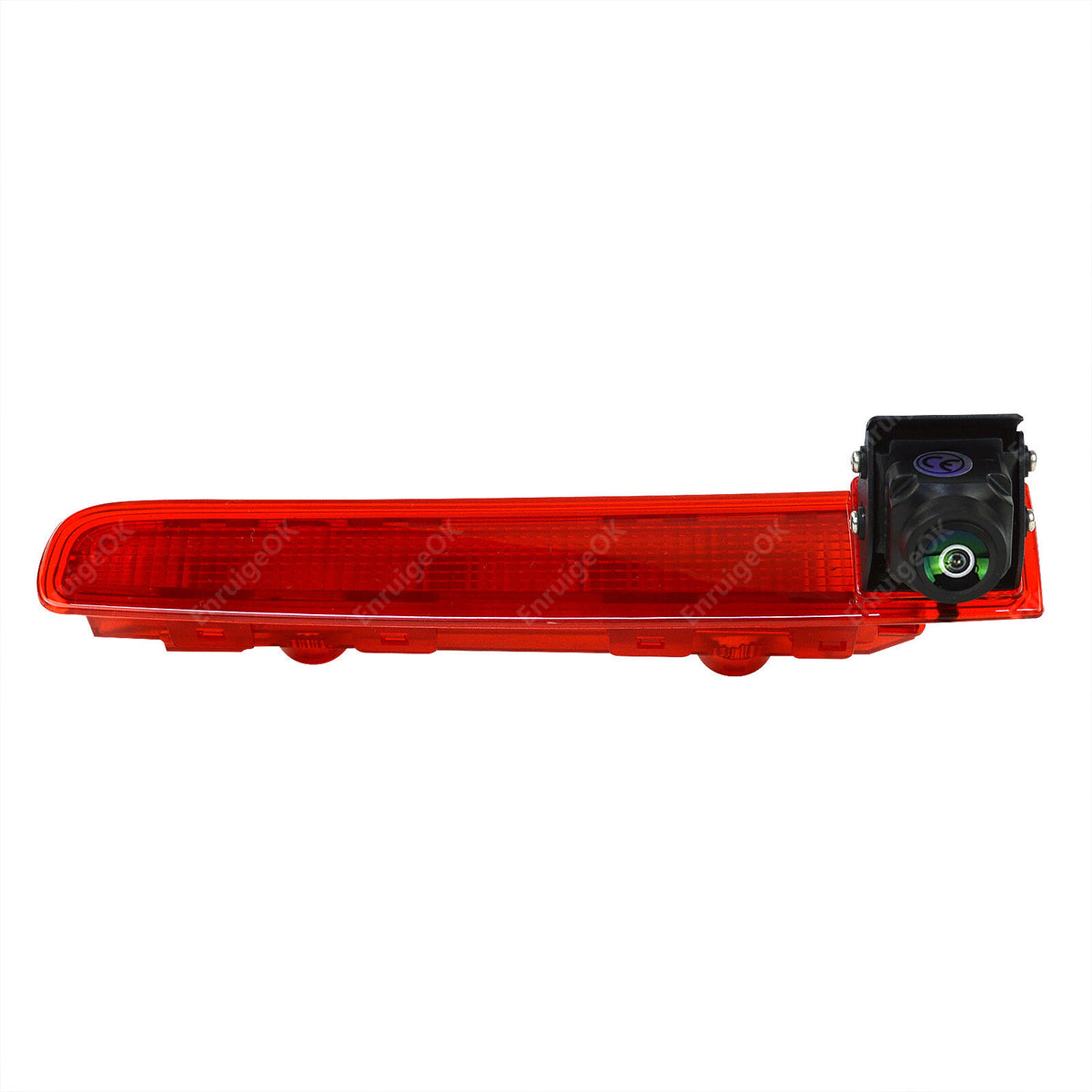

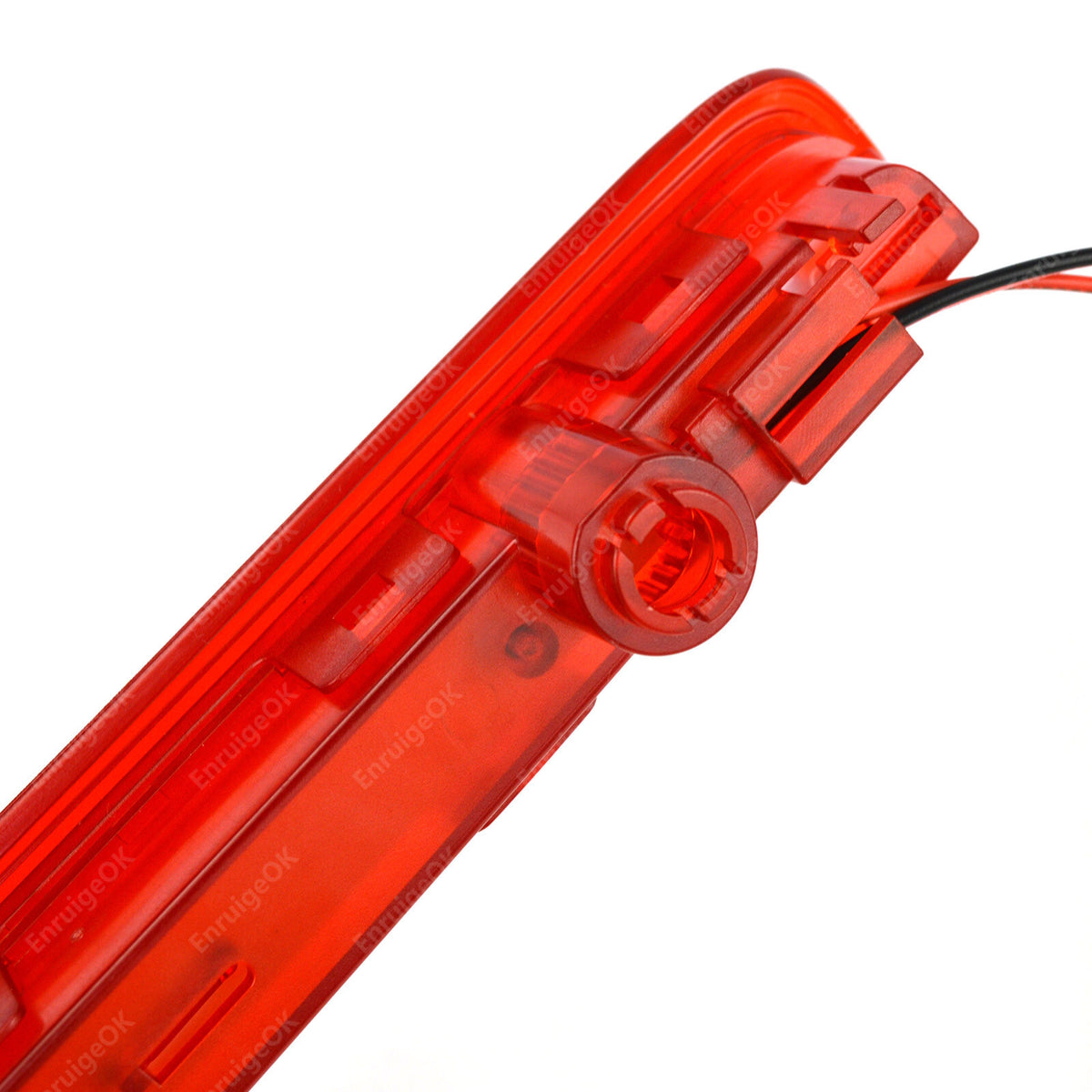

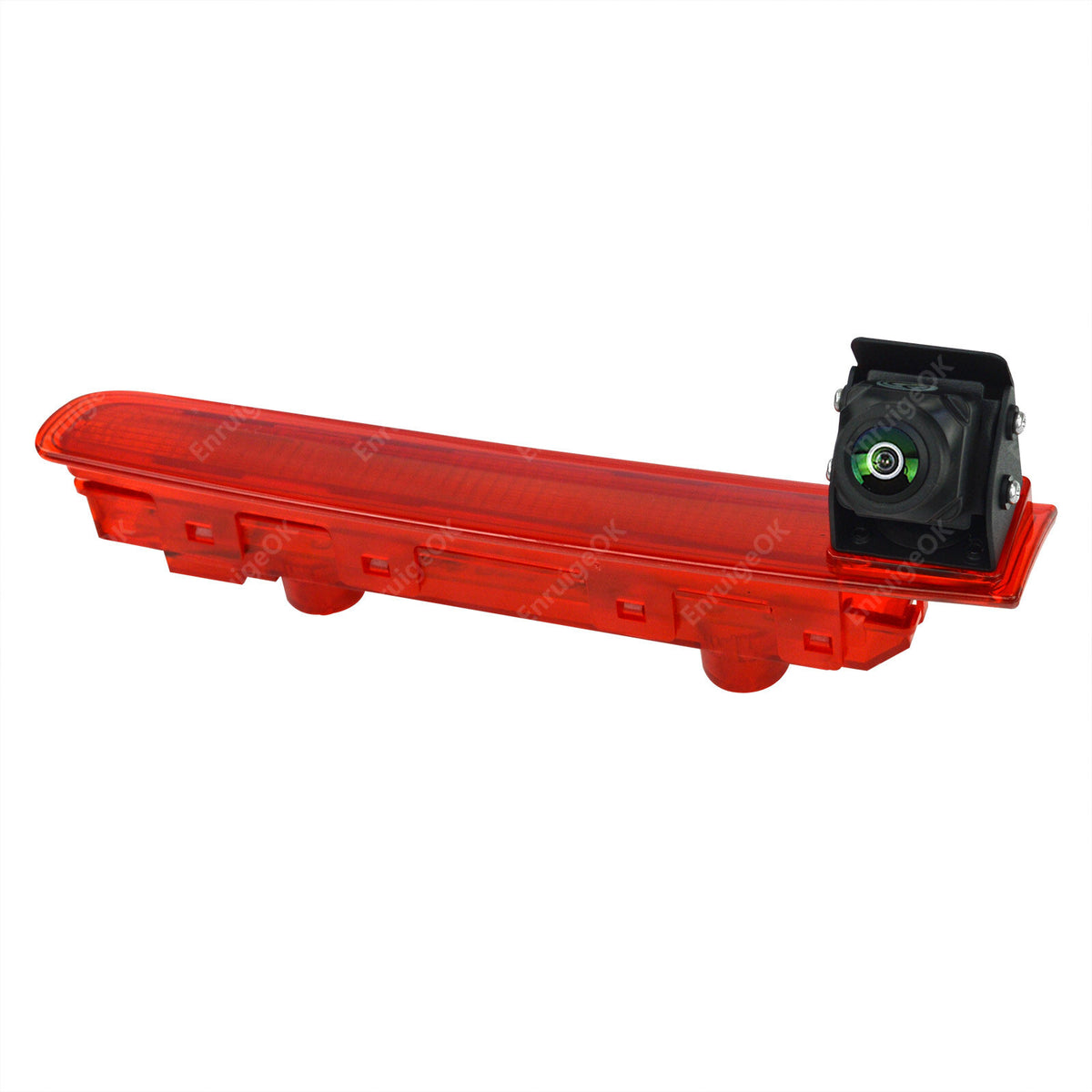

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

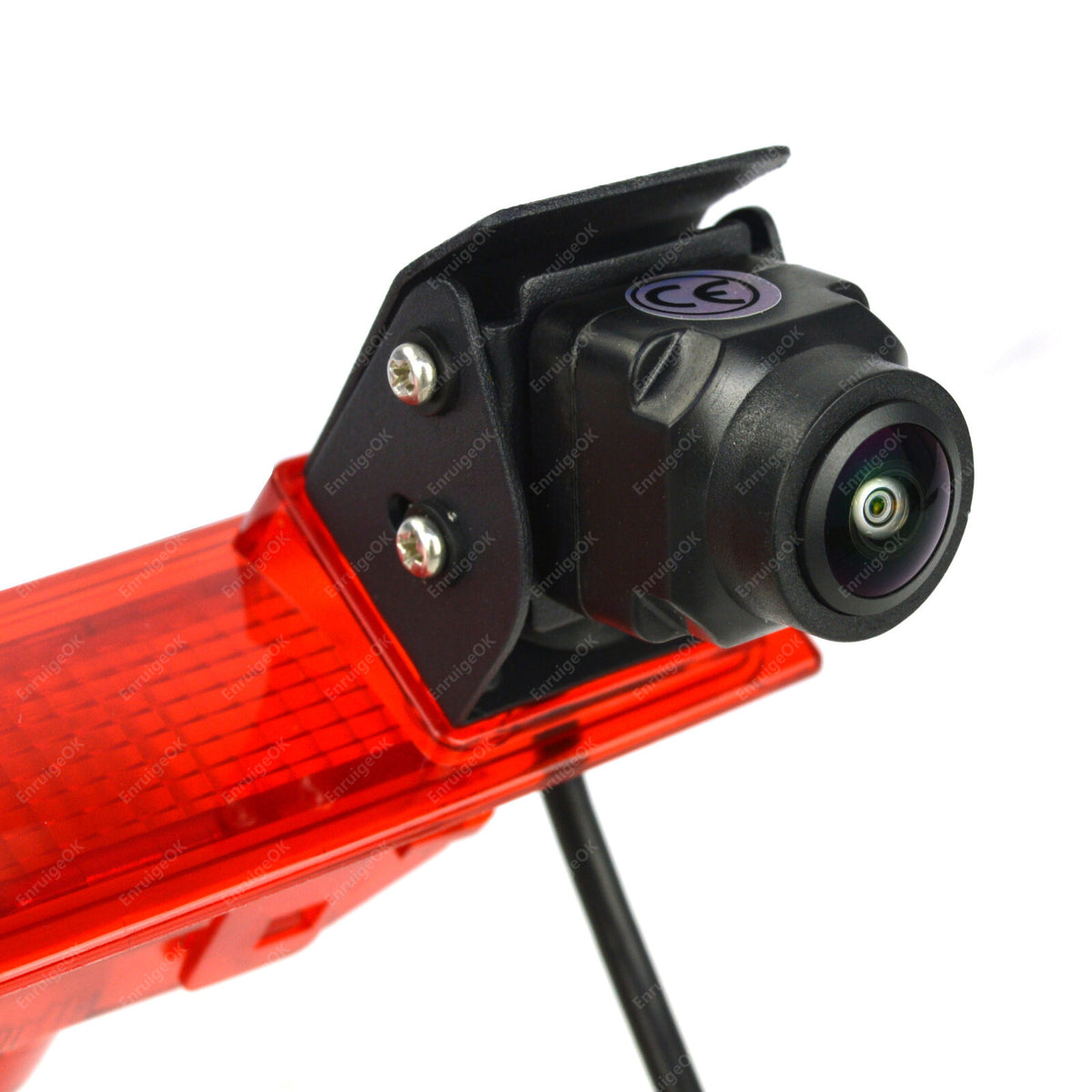

This brake light camera uses a 1/3" CMOS sensor with enhanced color imaging.

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2(0 Lux with LED on)

Power: DC12V

Operating temperature: -20℃ to +70℃

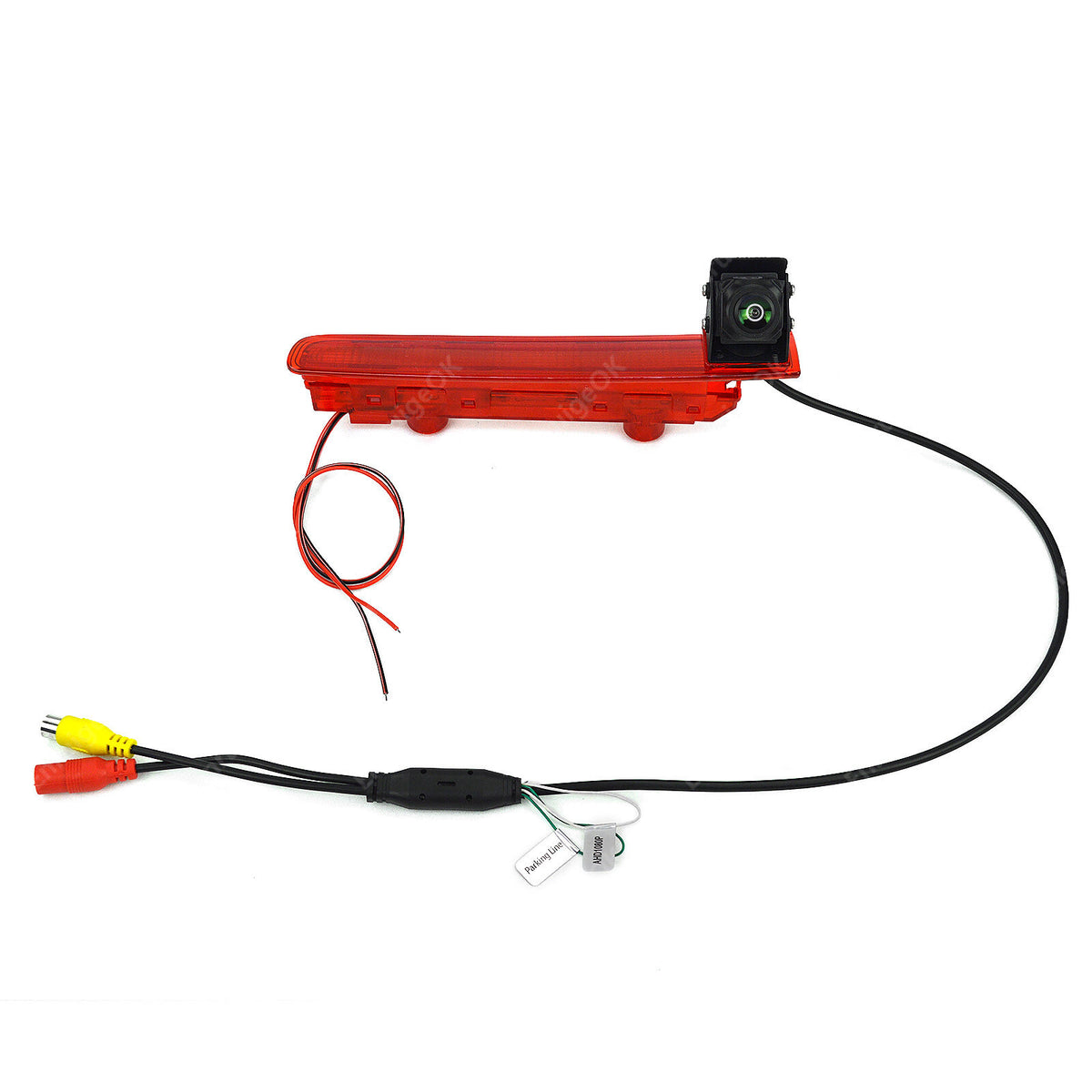

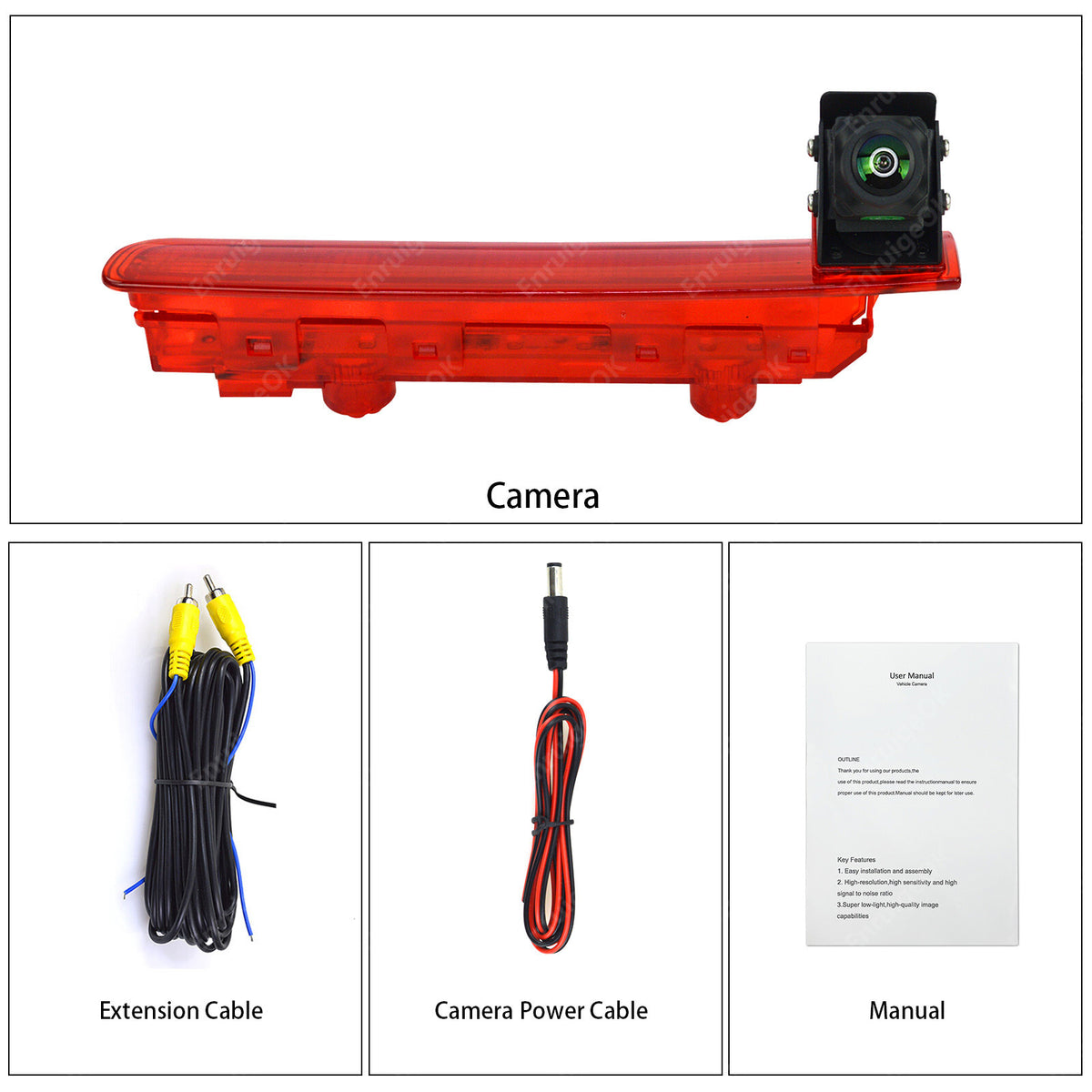

Package contents

1 X Brake light camera

1 X 10m/33ft. video extension cable

1 X 1m DC power cable

1 X Manual

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
