For Mercedes Sprinter VW Crafter Dual Rear View Brake Light Reversing Camera Kit

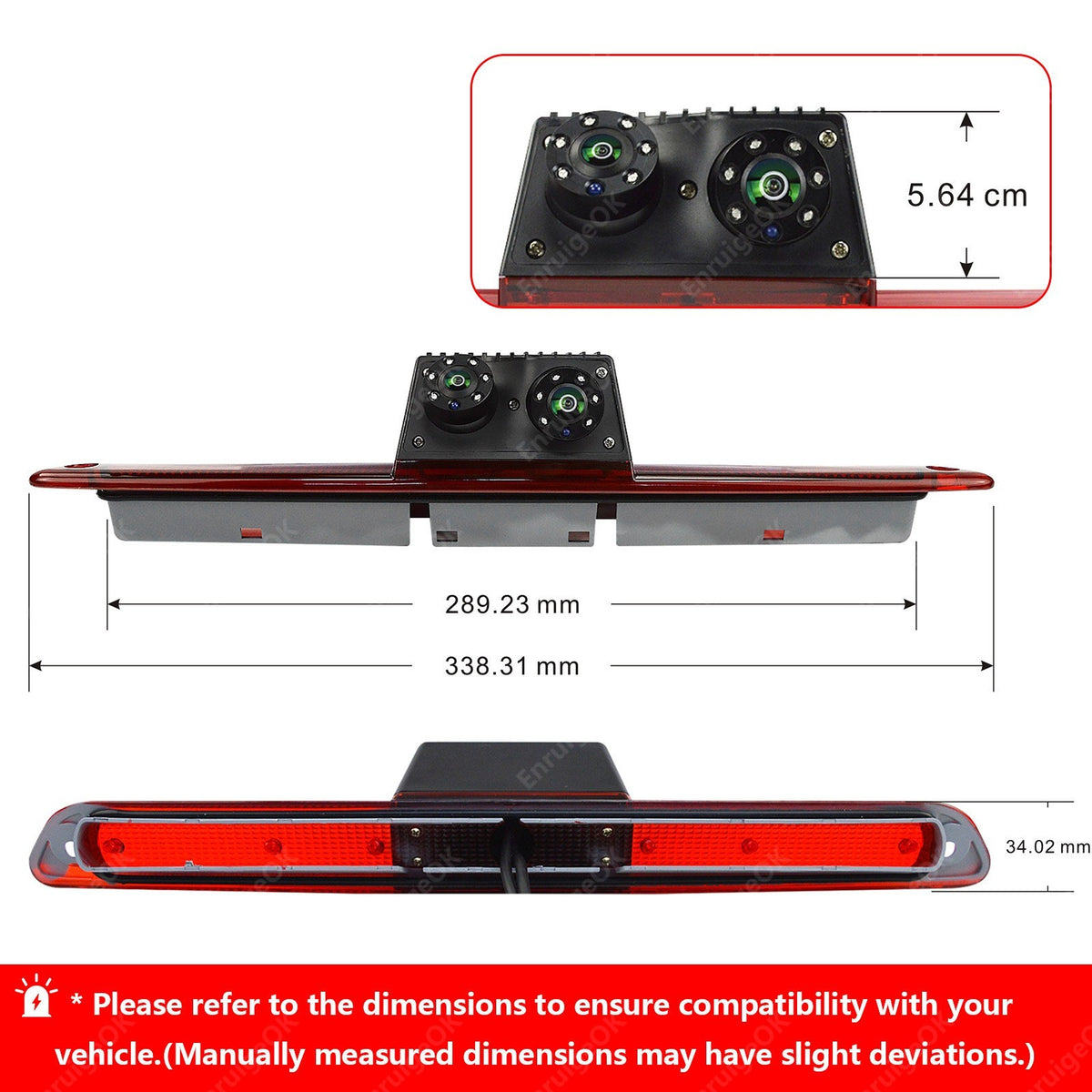

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

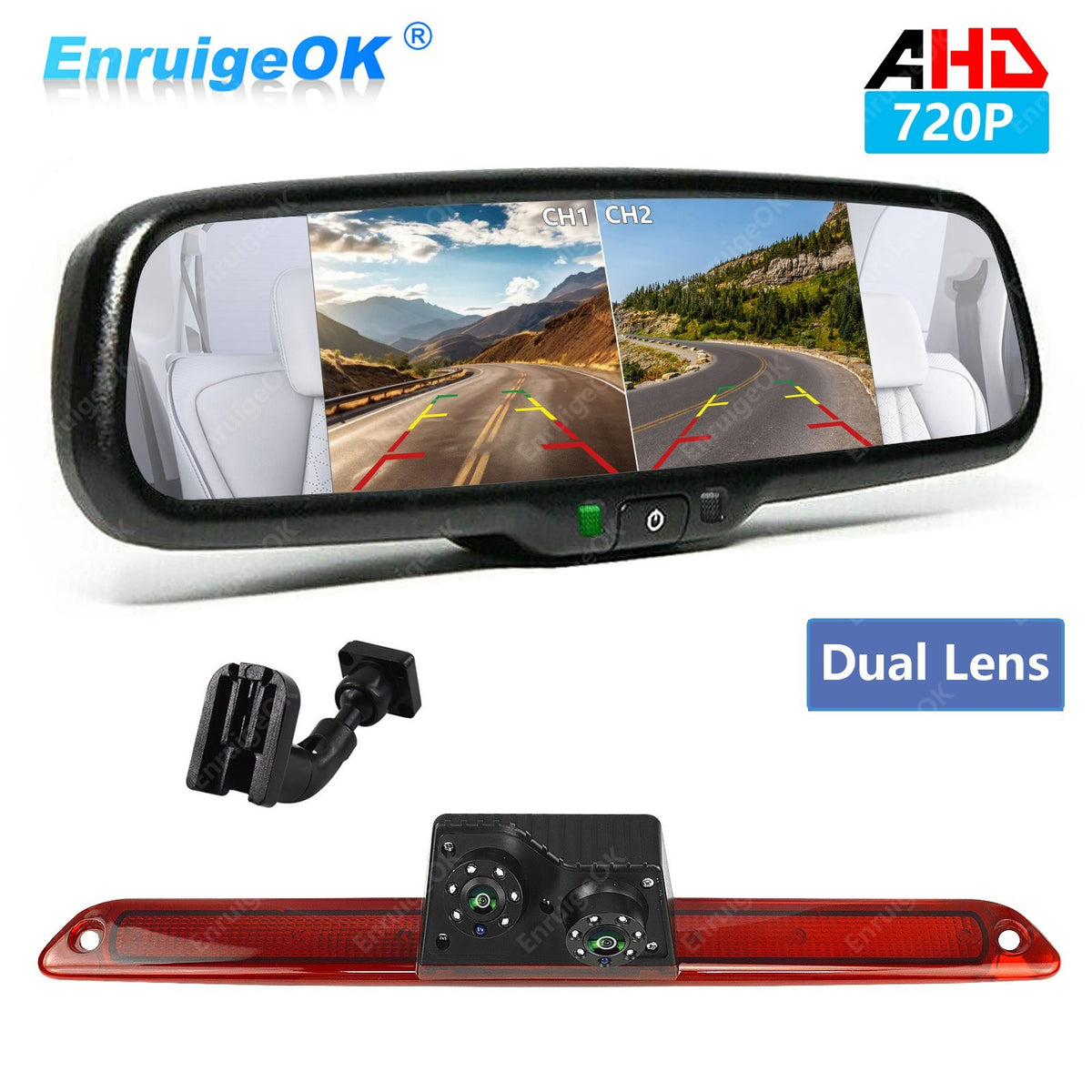

EnruigeOK 6.86" Dual Split Screen Mirror Monitor with #1 OEM Bracket & Dual Lens Rear Brake Light Reversing Camera For Mercedes Sprinter Van

Camera Compatibility

✅Mercedes Sprinter [W906 NCV3] (2006-2018)

✅Mercedes Sprinter [W907/W910 VS30] (2019-On)

✅Volkswagen Crafter [MK1 Type 2E/2F] (2006-2016)

【No LED brake light strip】

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

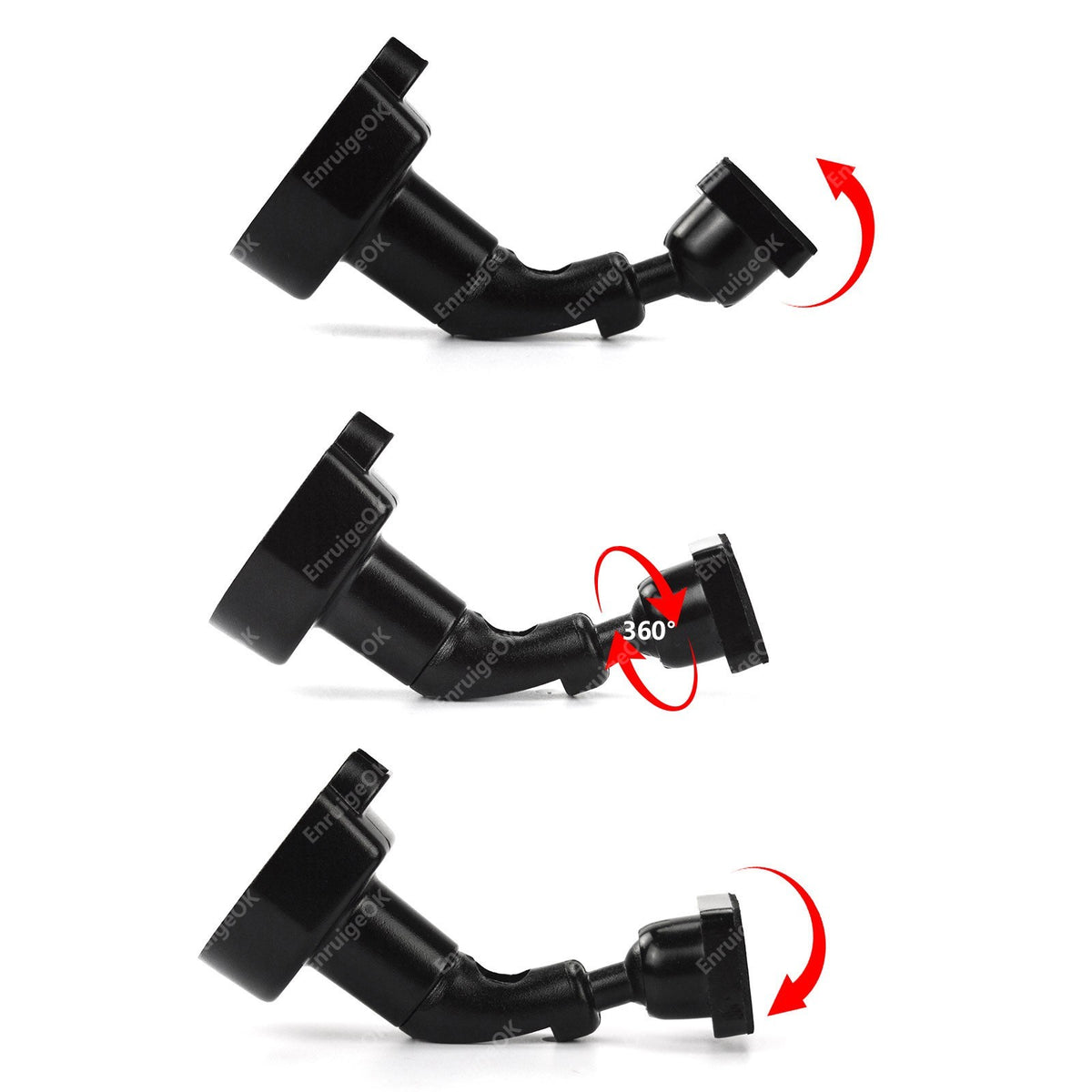

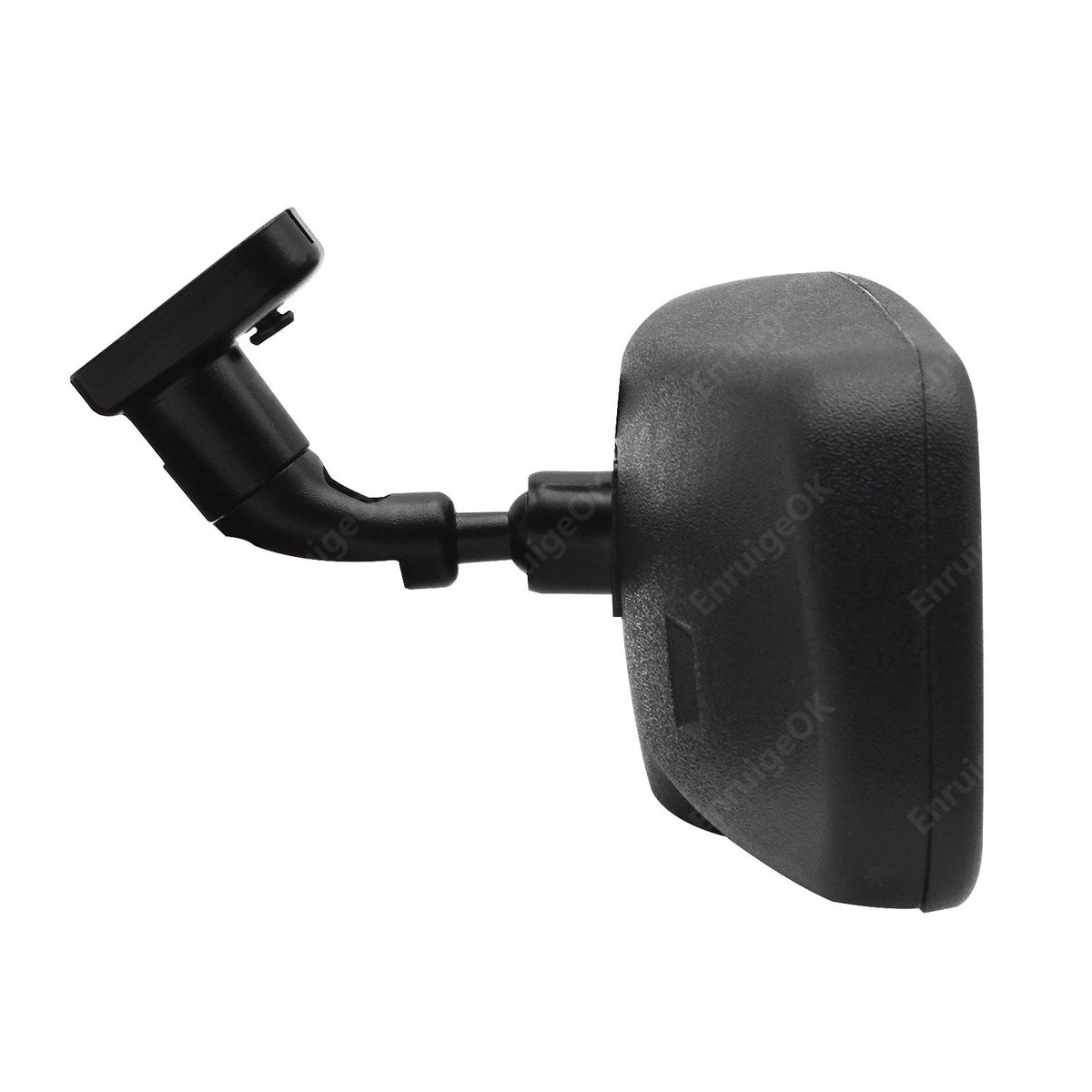

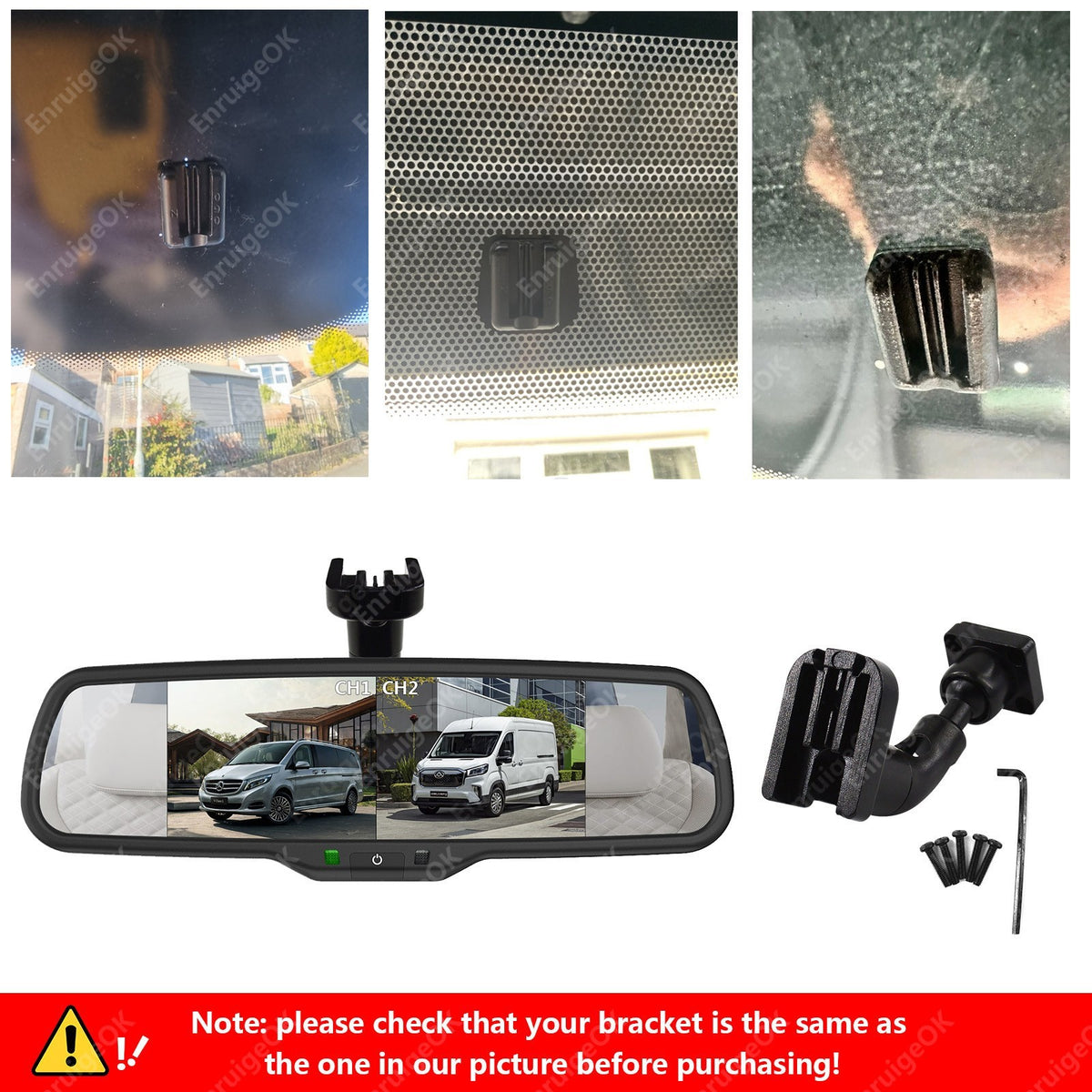

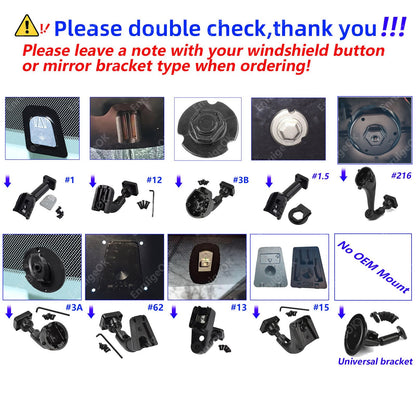

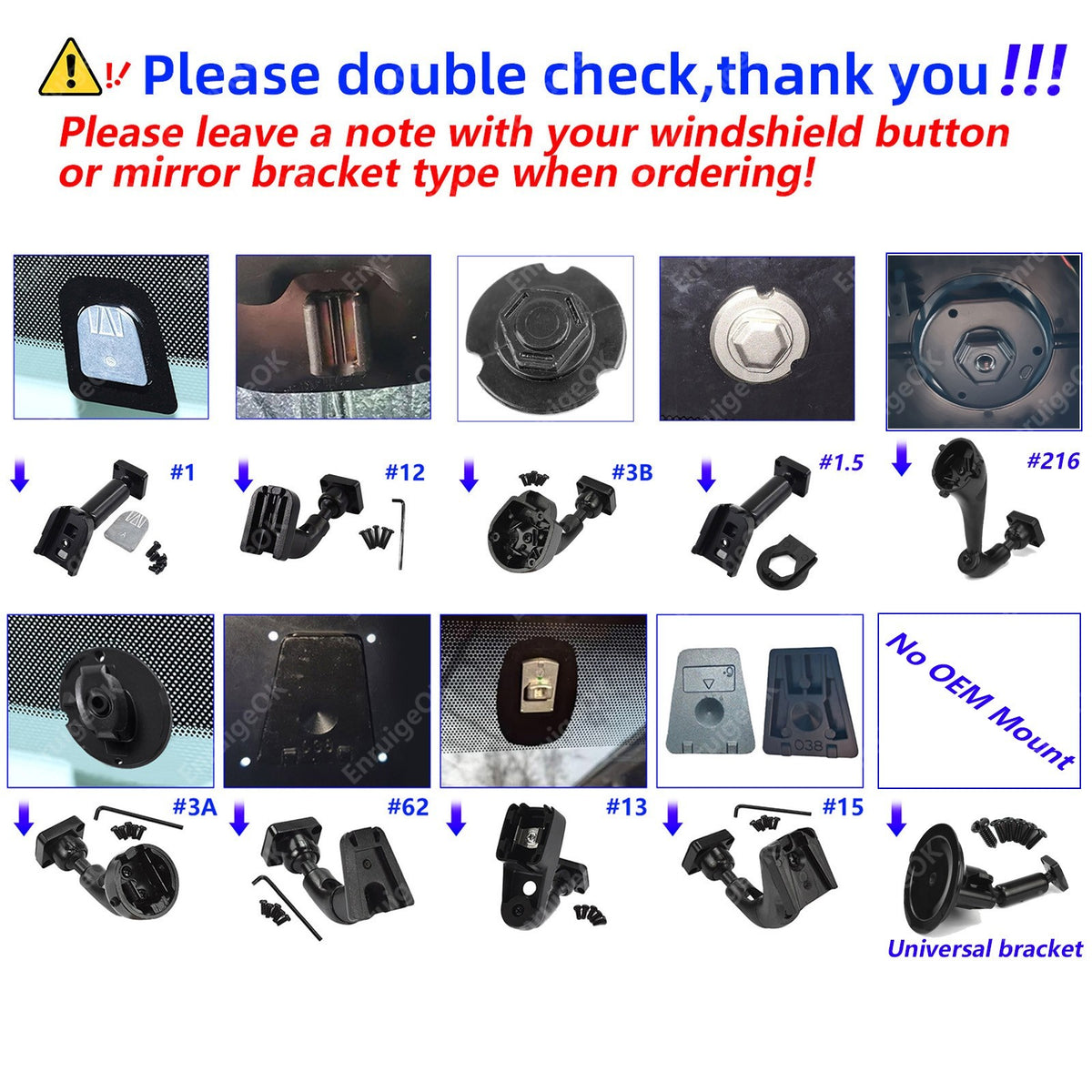

Monitor Bracket Note

This kit includes the #12 bracket by default. If unsure about compatibility, please send a clear photo of your windshield button or original mirror bracket when ordering. We have other bracket styles that may fit your vehicle.

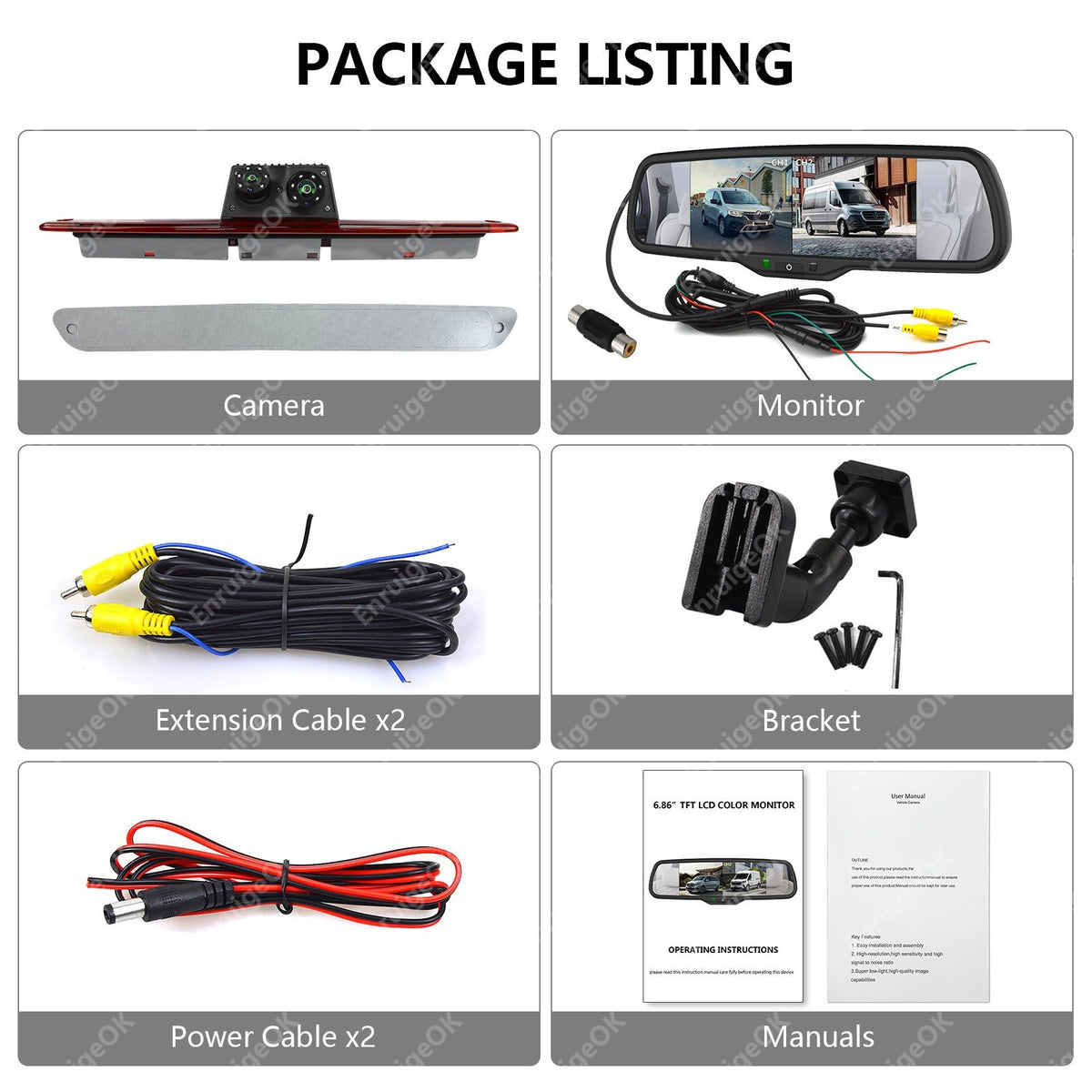

Package contents

1 X EnruigeOK Brake light camera

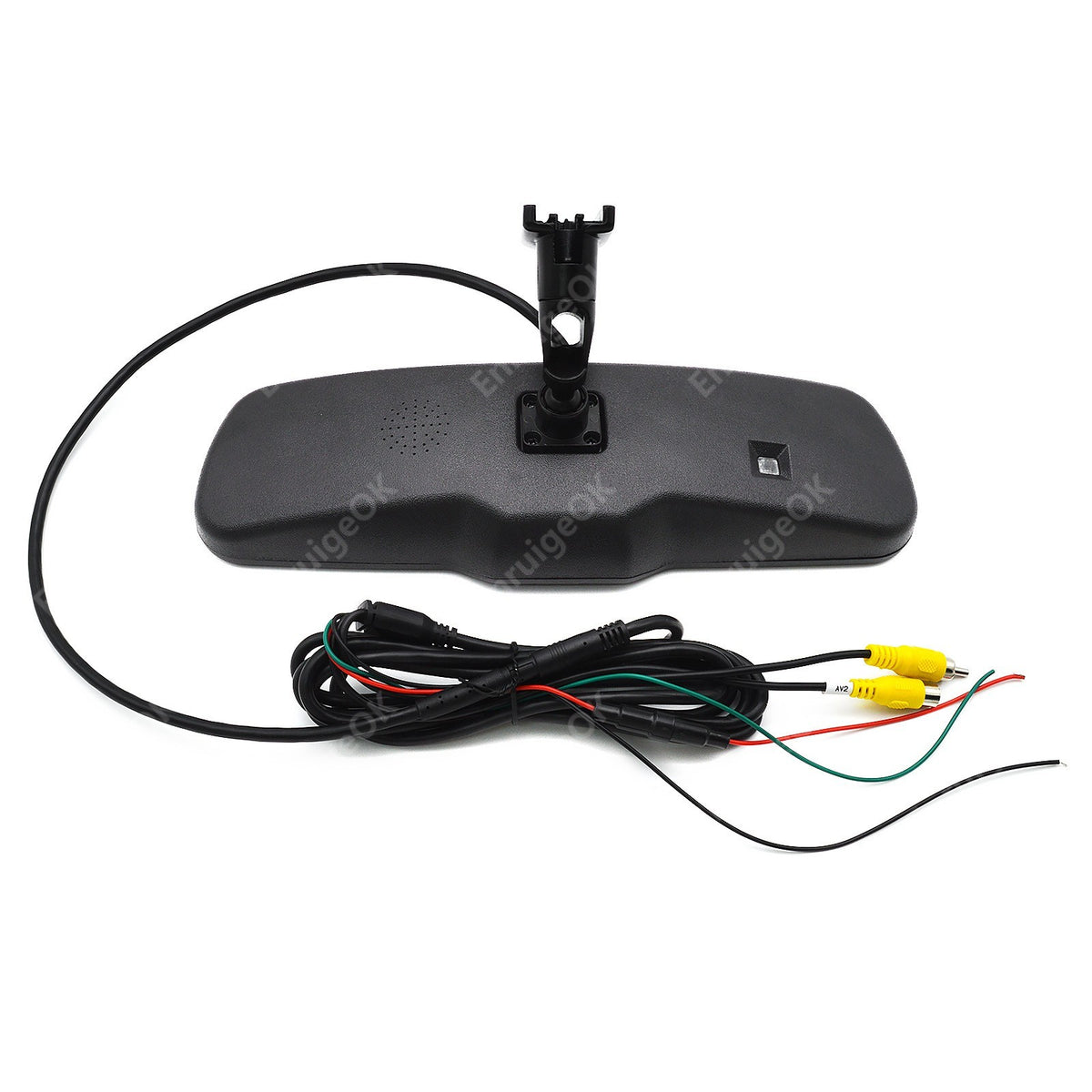

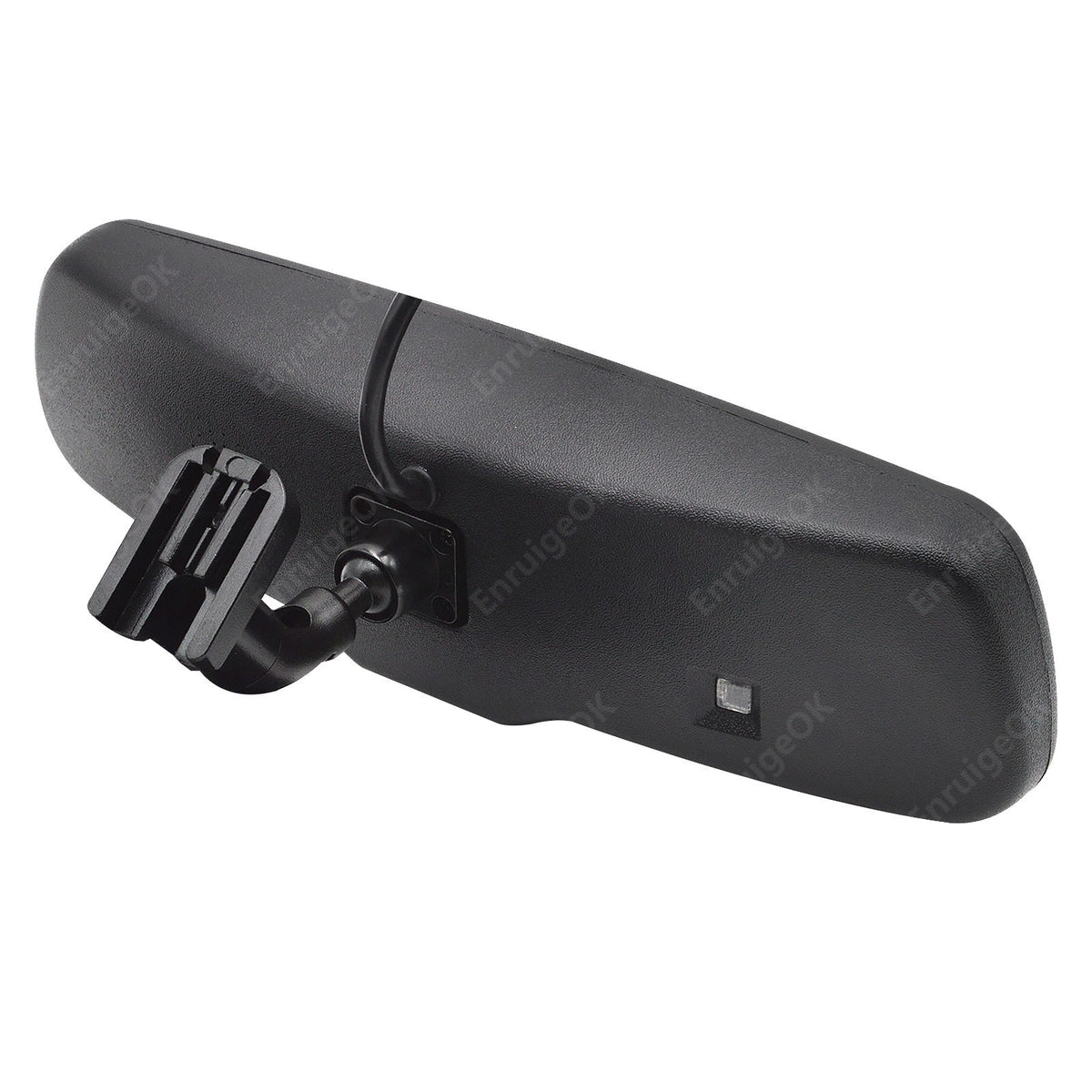

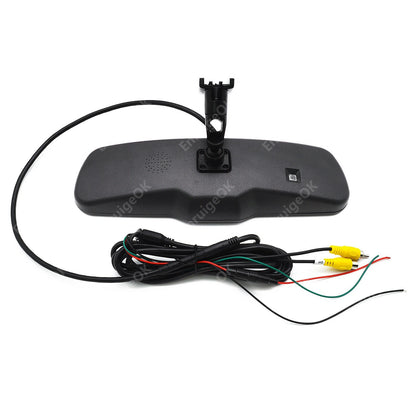

1 X 6.86'' Mirror monitor

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1.5m DC power cable

1 X Female to female adapter

1 X #12 bracket(check your windshield metal clip)

1 X Manual

Description

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.

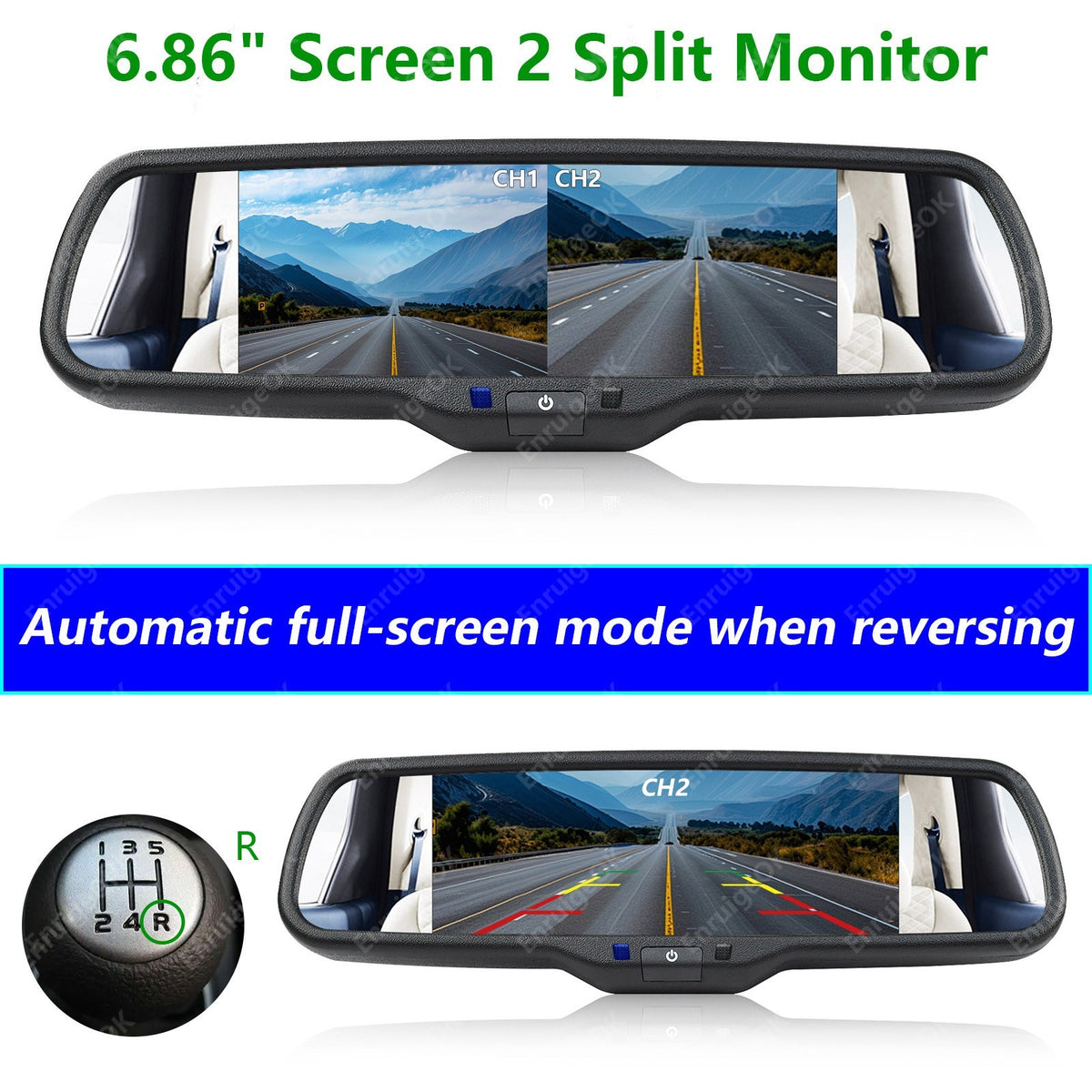

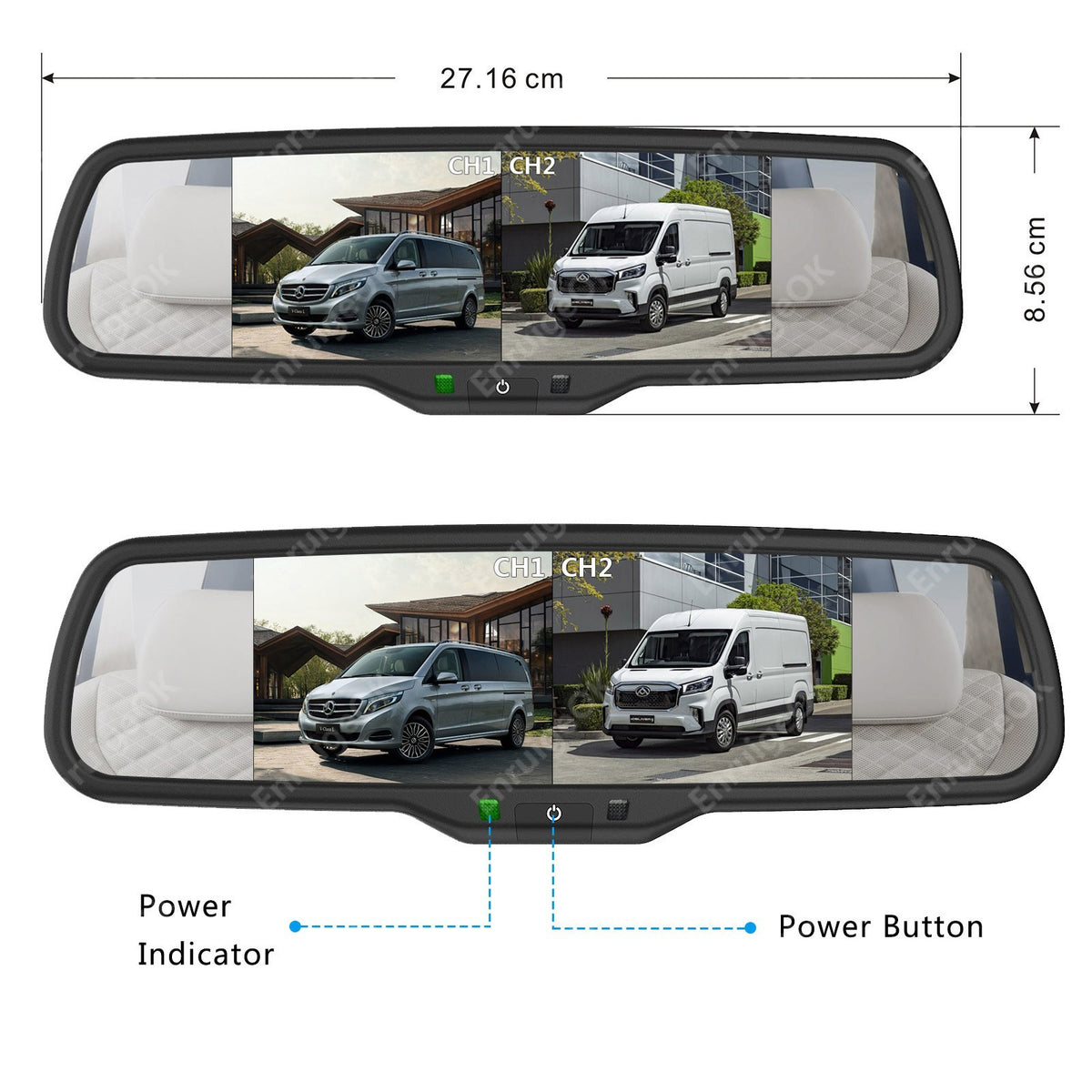

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

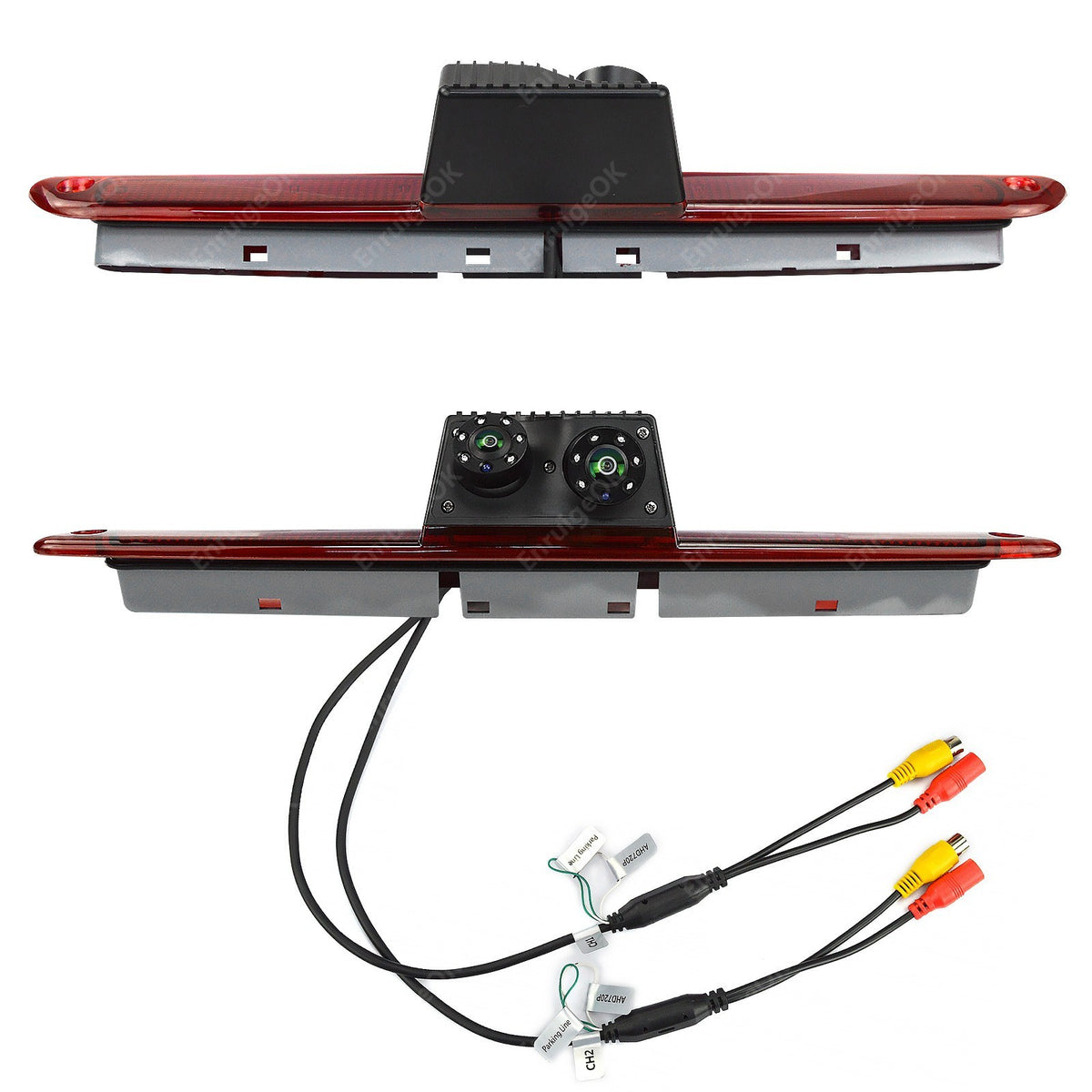

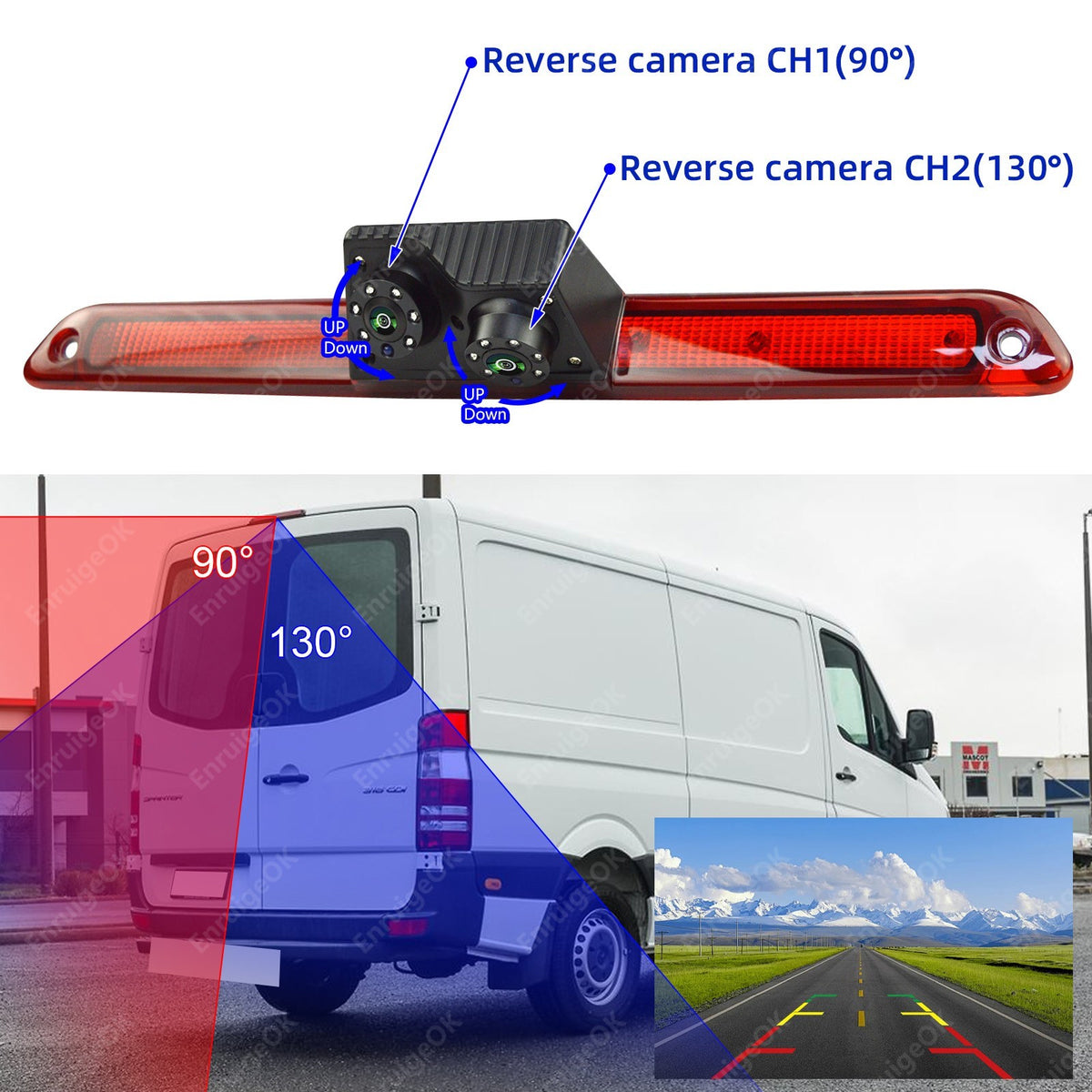

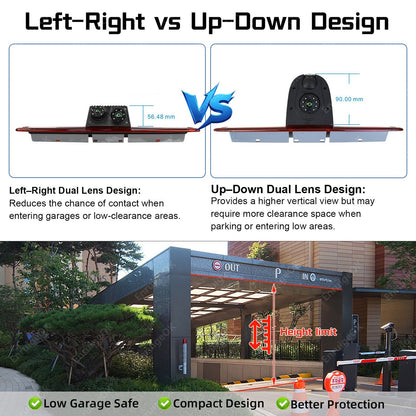

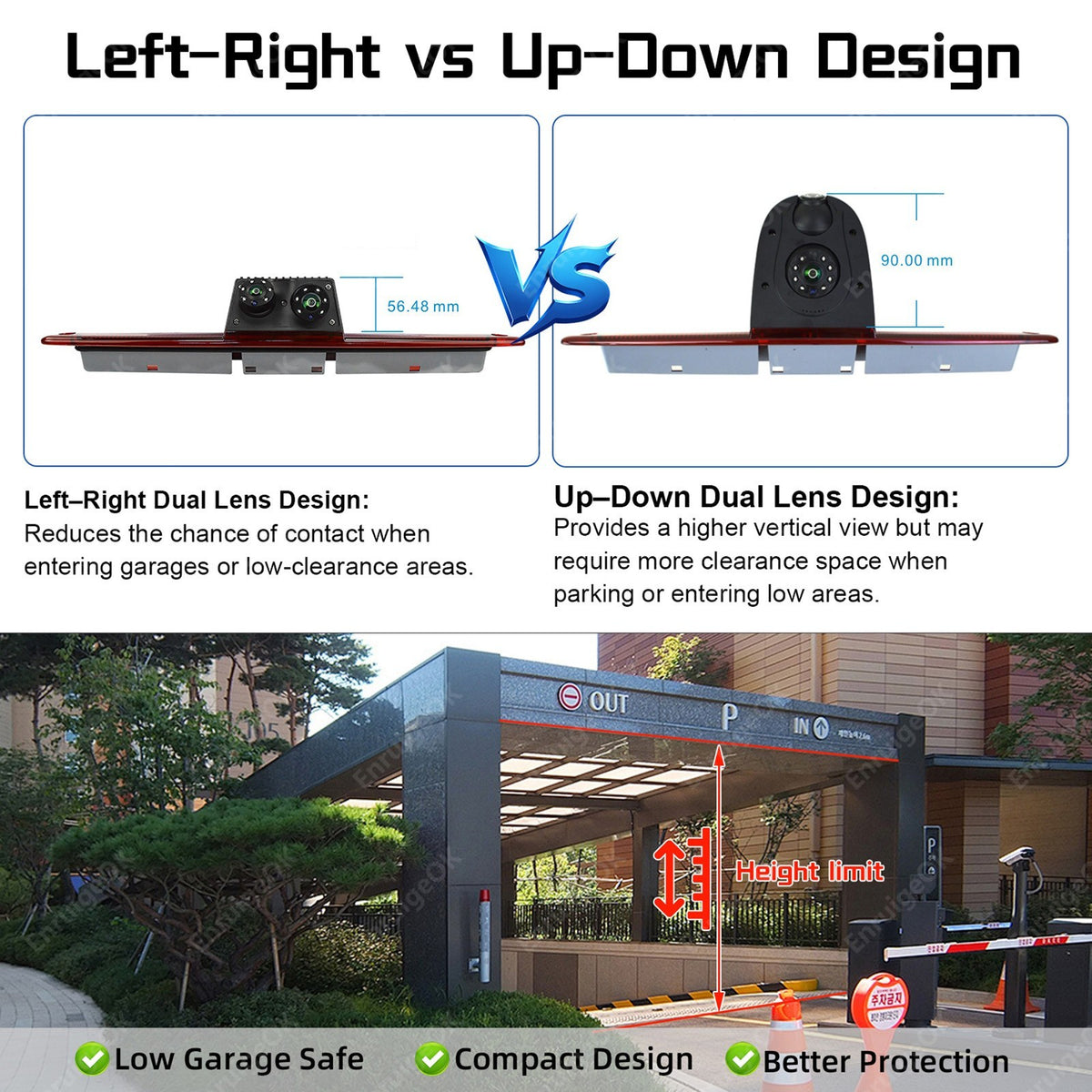

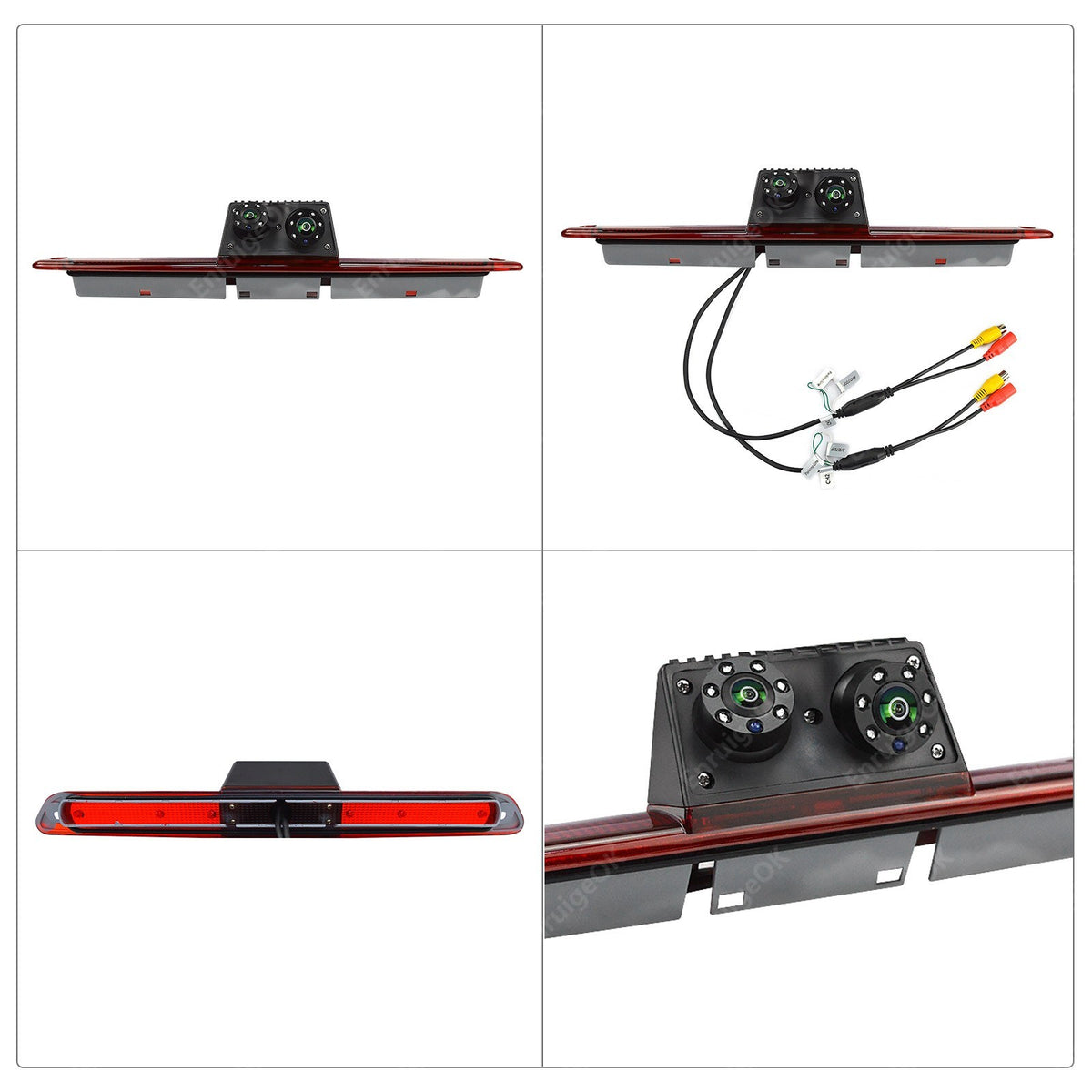

TWIN LENS !!! Dual lens reversing camera: One(CH1) showing the road or area behind the vehicle, and the other(CH2) looking directly down to help the driver see the vehicle's rear end.

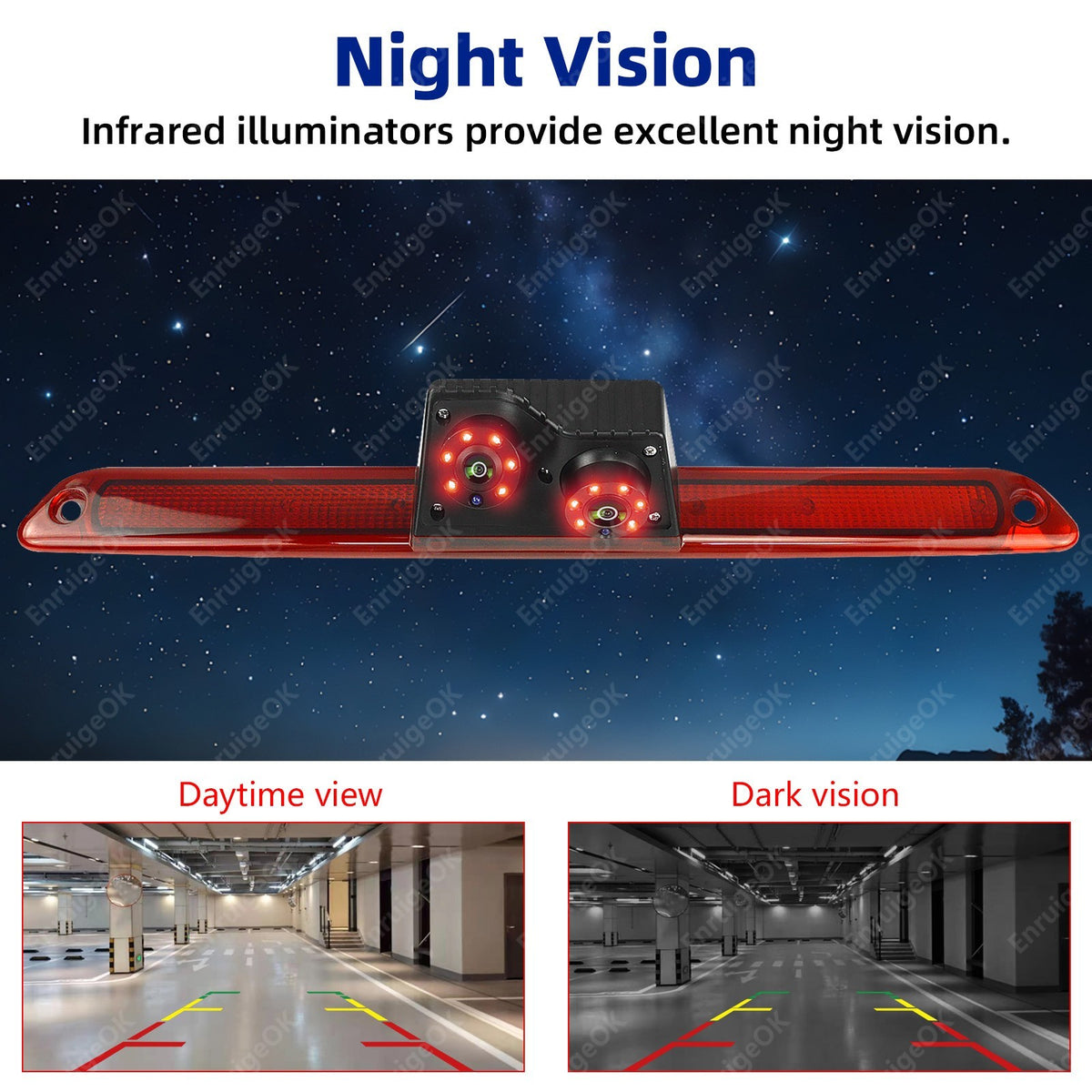

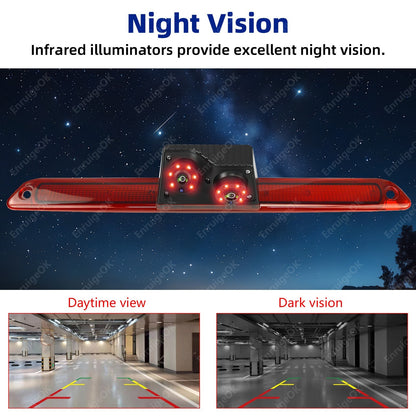

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 12 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

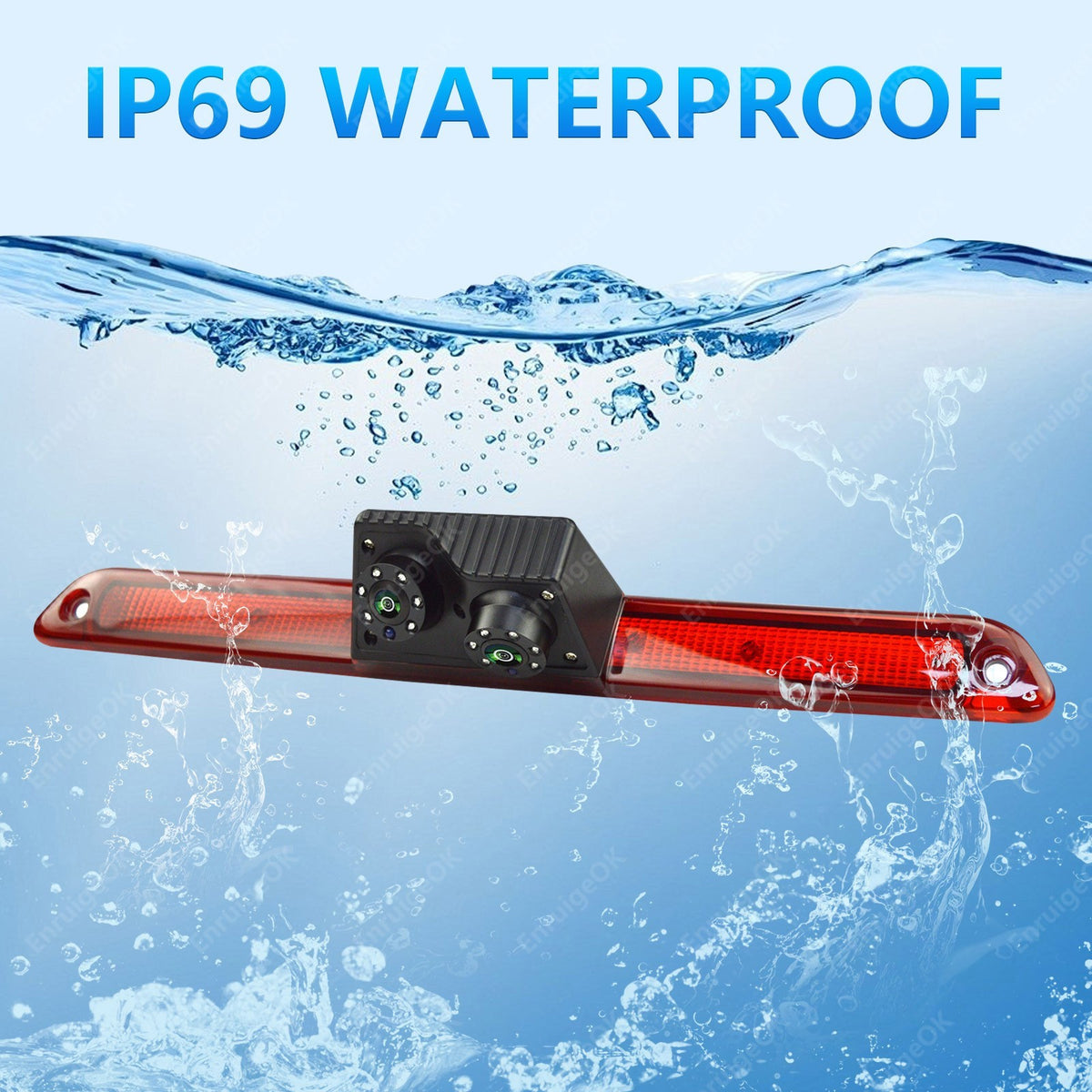

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Viewing angle: 130°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9V-35V

Operating temperature: -20℃ to +70℃

Monitor Specifications

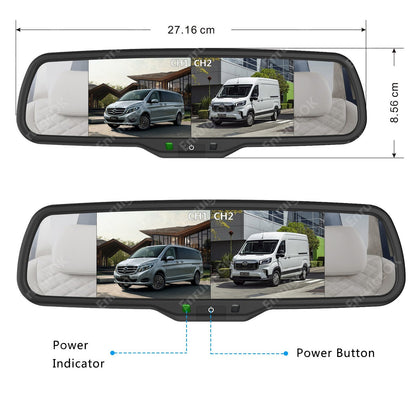

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

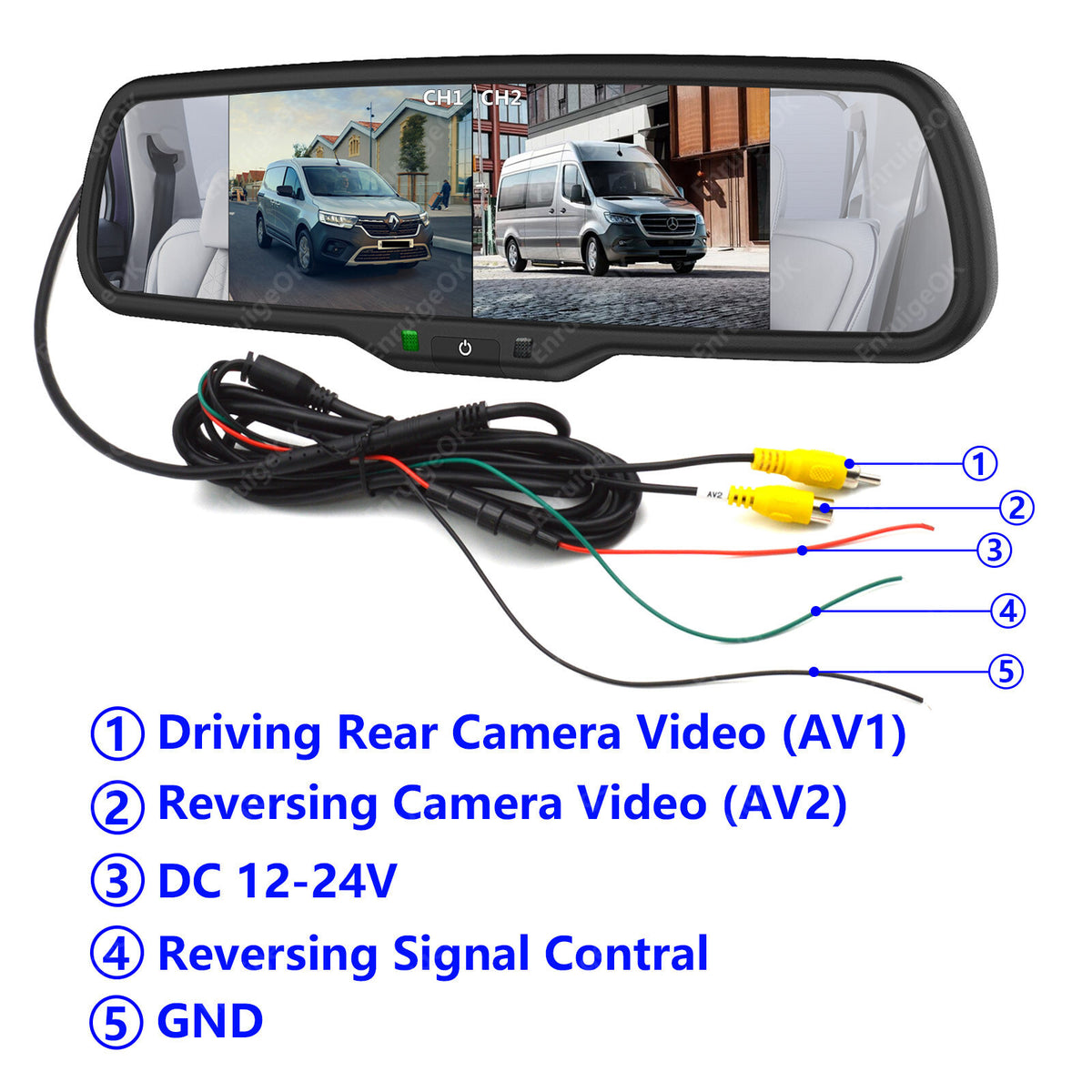

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), automatic full-screen switch during reversing

Blue screen displayed when no signal is detected.

Power Supply: DC 12V-24V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
