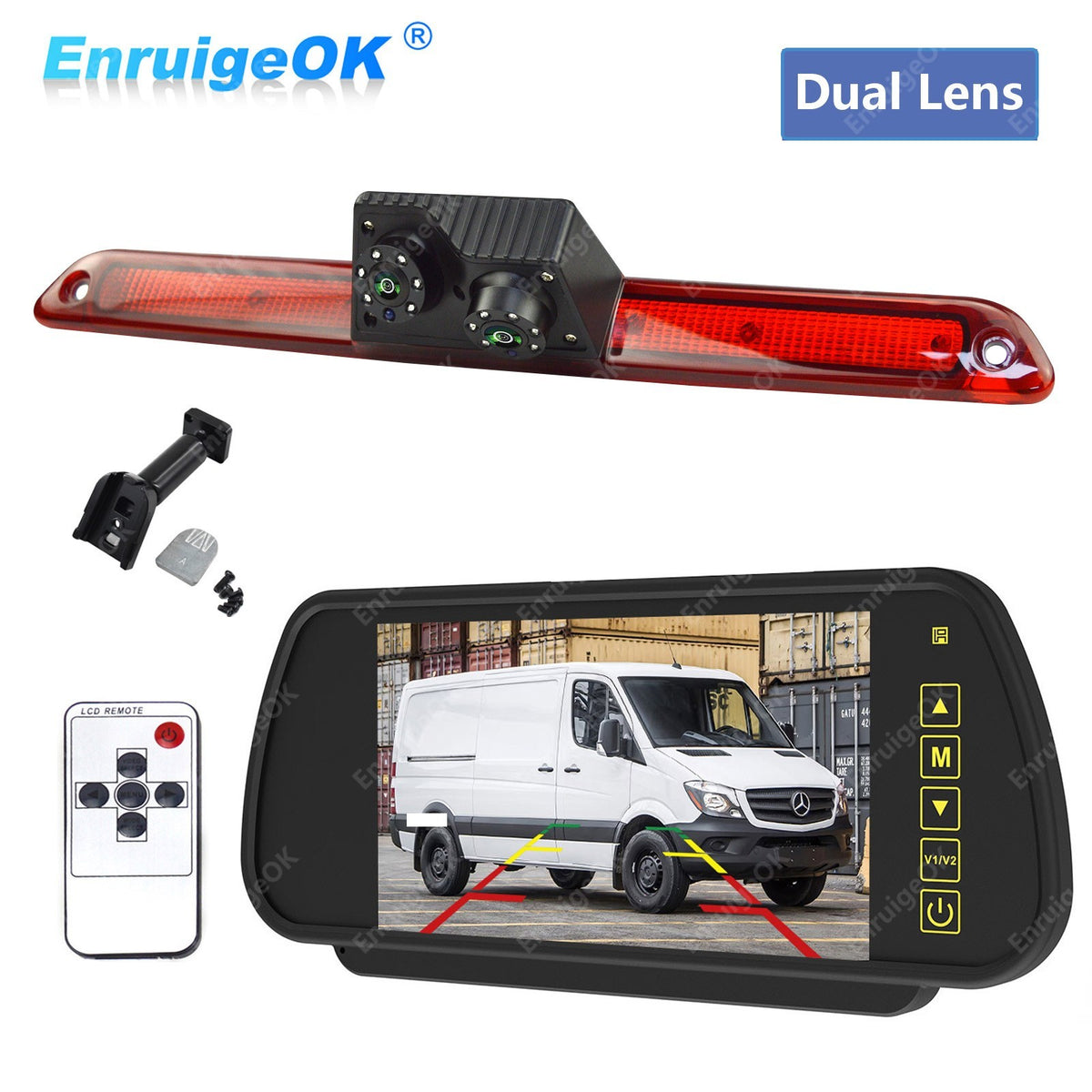

For Mercedes-Benz Sprinter Dual Lens Brake Light Reverse Camera & 7" Monitor Kit

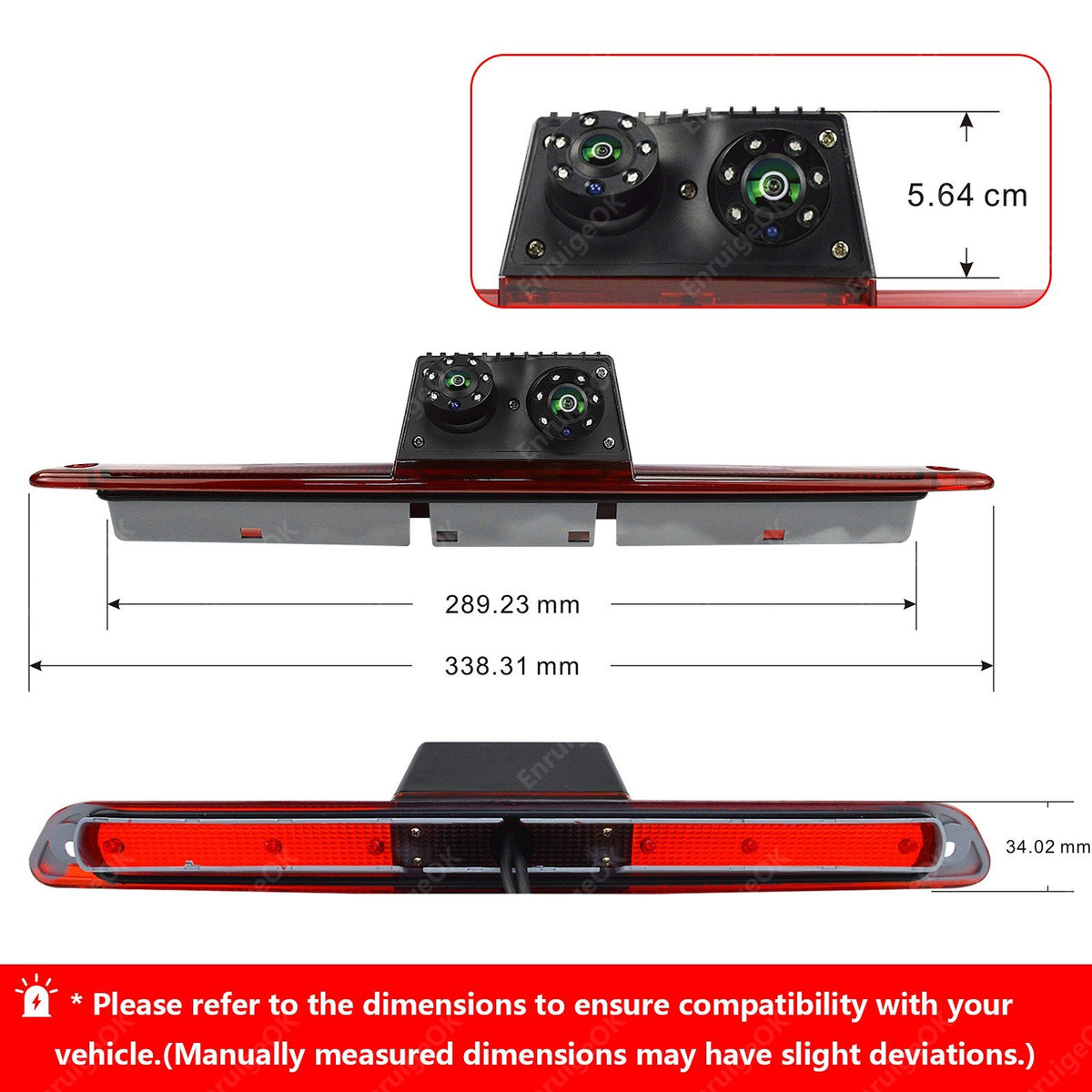

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

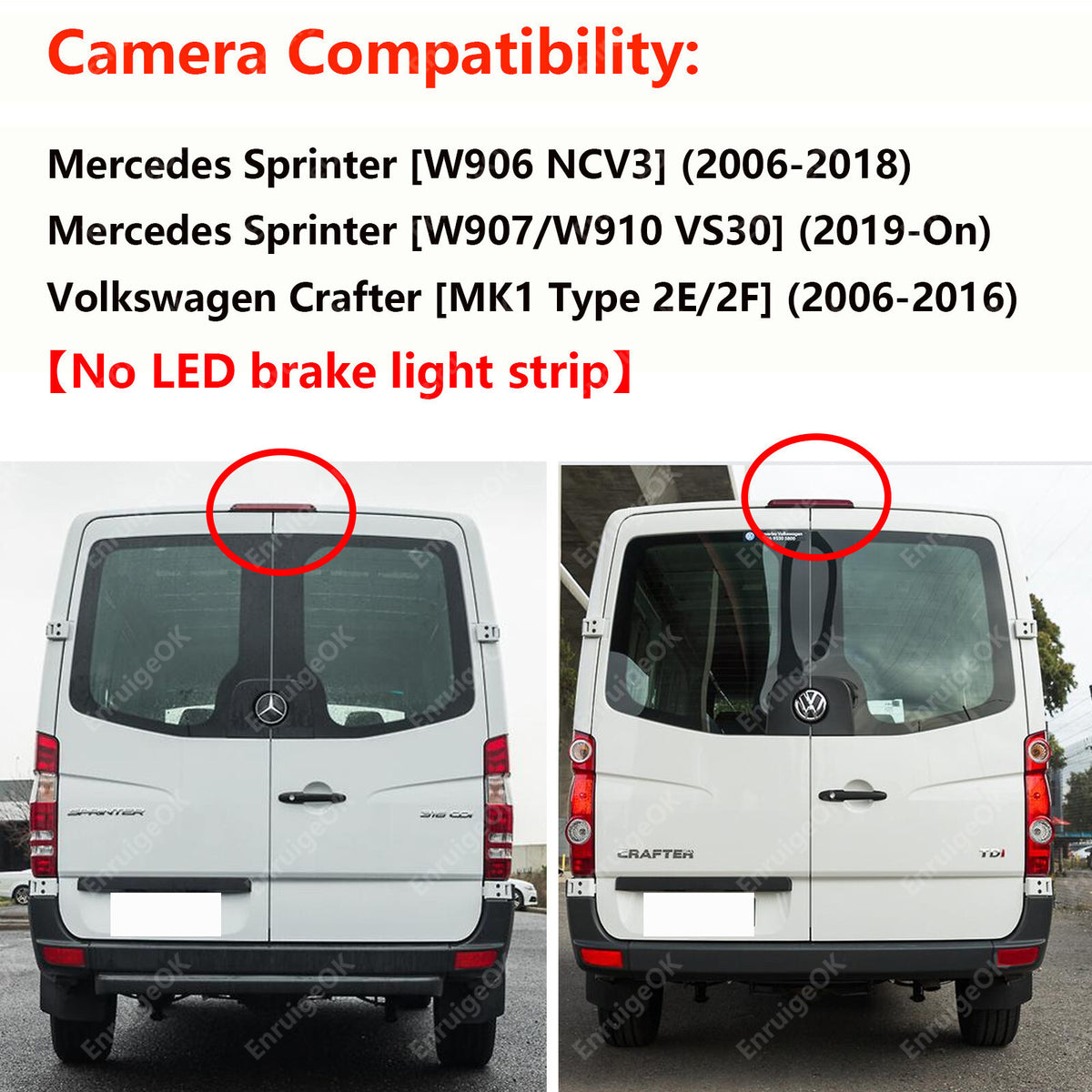

Camera Compatibility

✅Mercedes Sprinter [W906 NCV3] (2006-2018)

✅Mercedes Sprinter [W907/W910 VS30] (2019-On)

✅Volkswagen Crafter [MK1 Type 2E/2F] (2006-2016)

【No LED brake light strip】

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

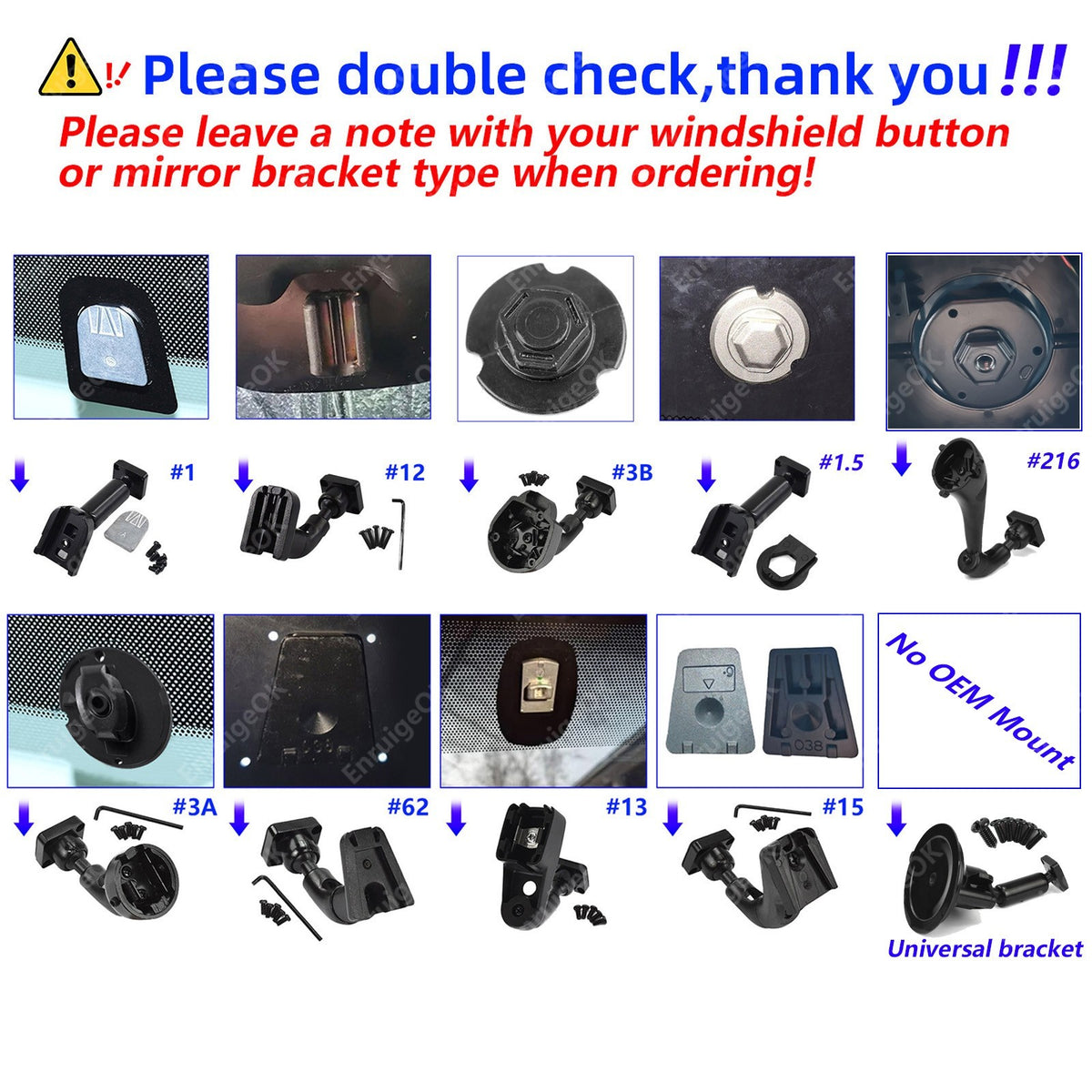

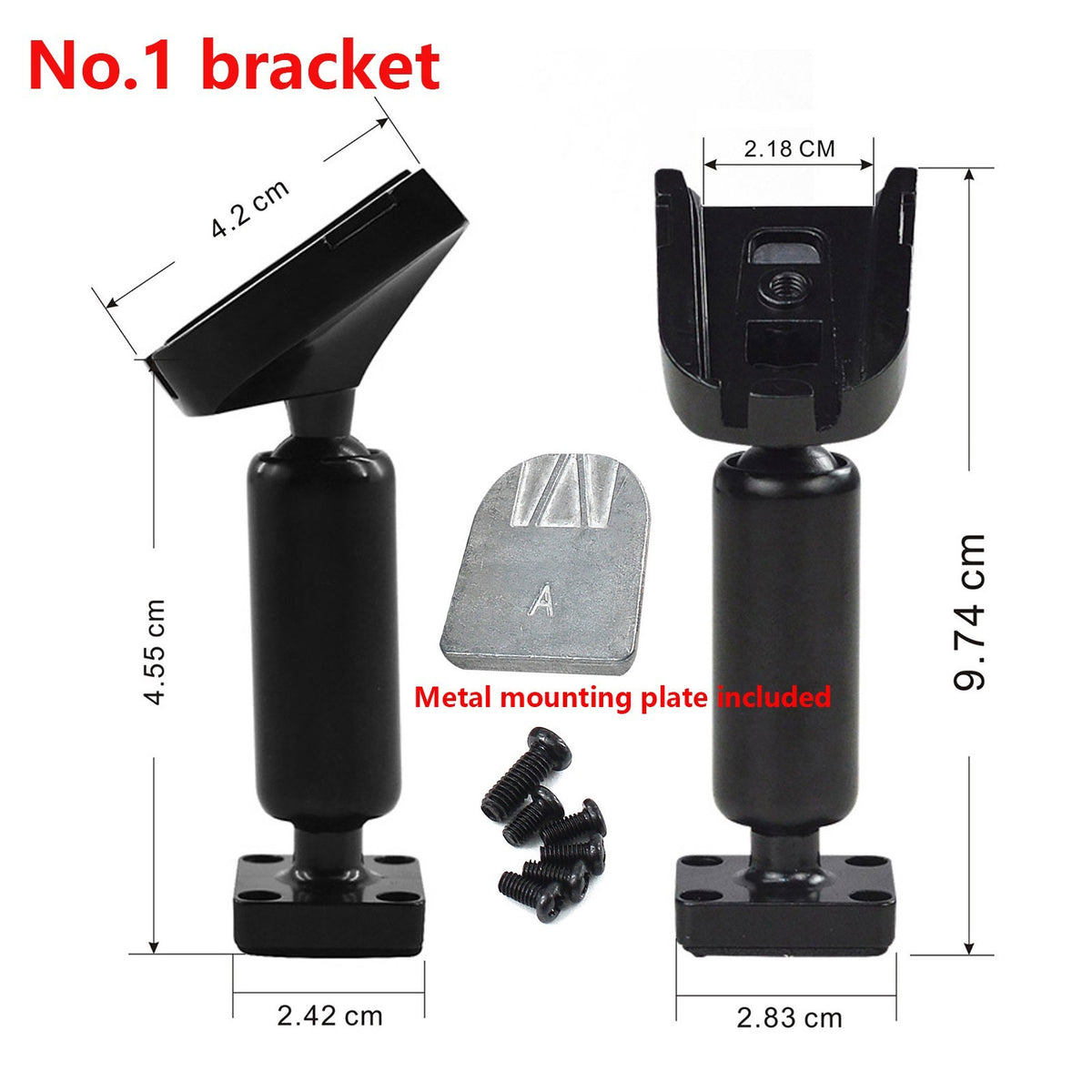

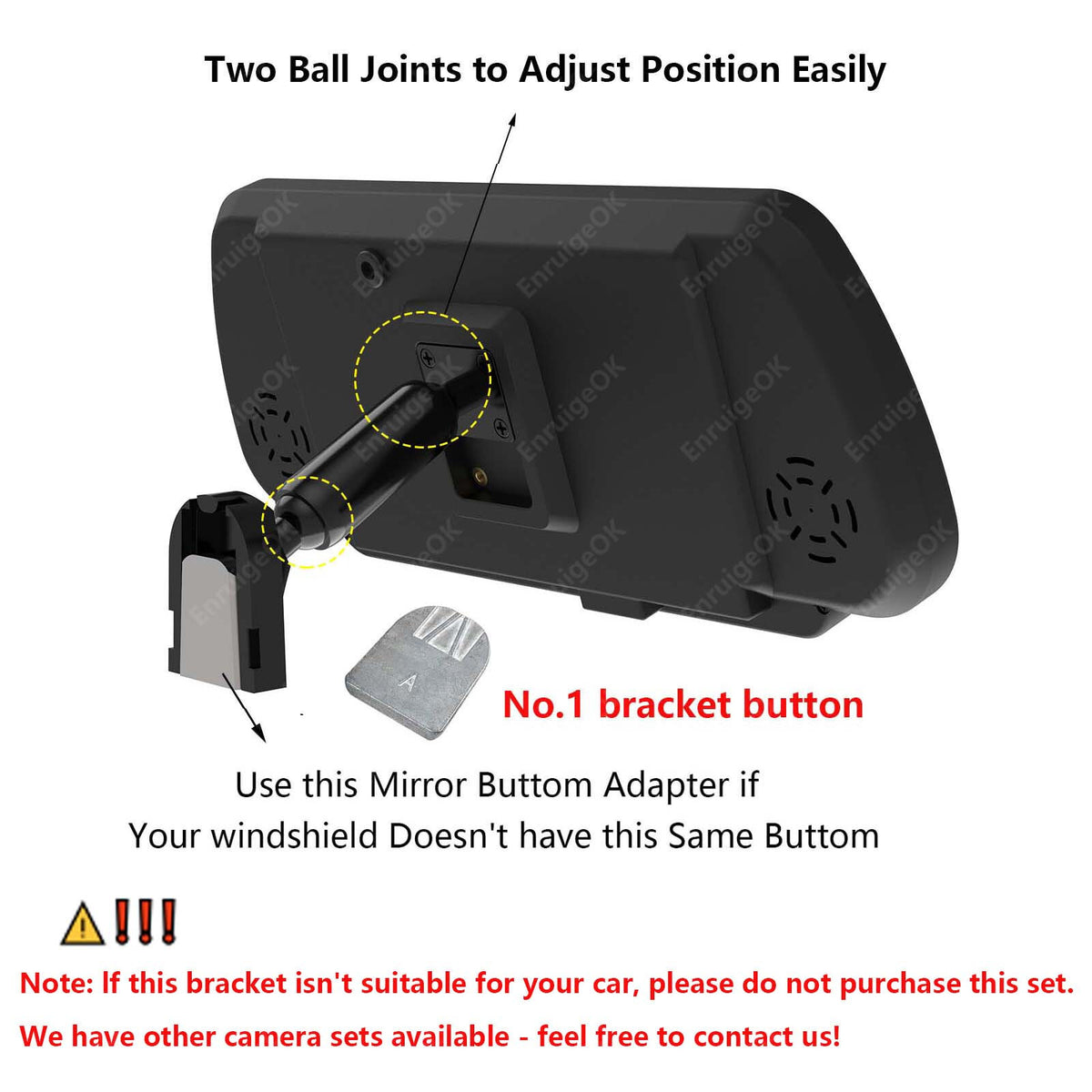

Monitor Bracket Note

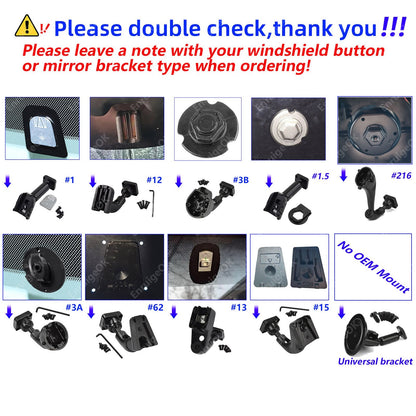

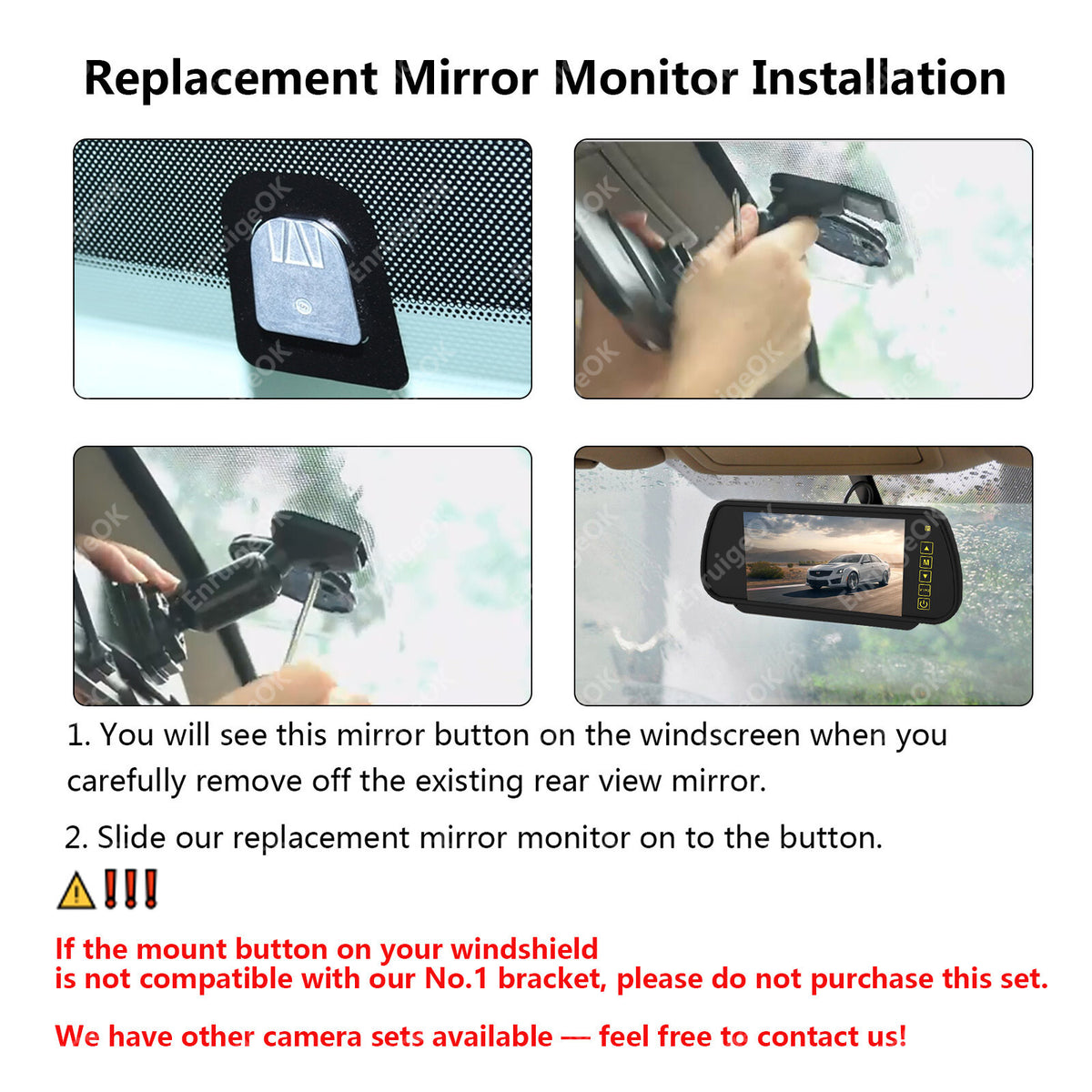

This kit includes the #1 bracket by default. If unsure about compatibility, please send a clear photo of your windshield button or original mirror bracket when ordering. We have other bracket styles that may fit your vehicle.

Description

Complete Parking Aid: Includes a dual-lens reversing camera and a 7" TFT-LCD monitor. The monitor displays rear camera footage while reversing, ensuring safer parking.

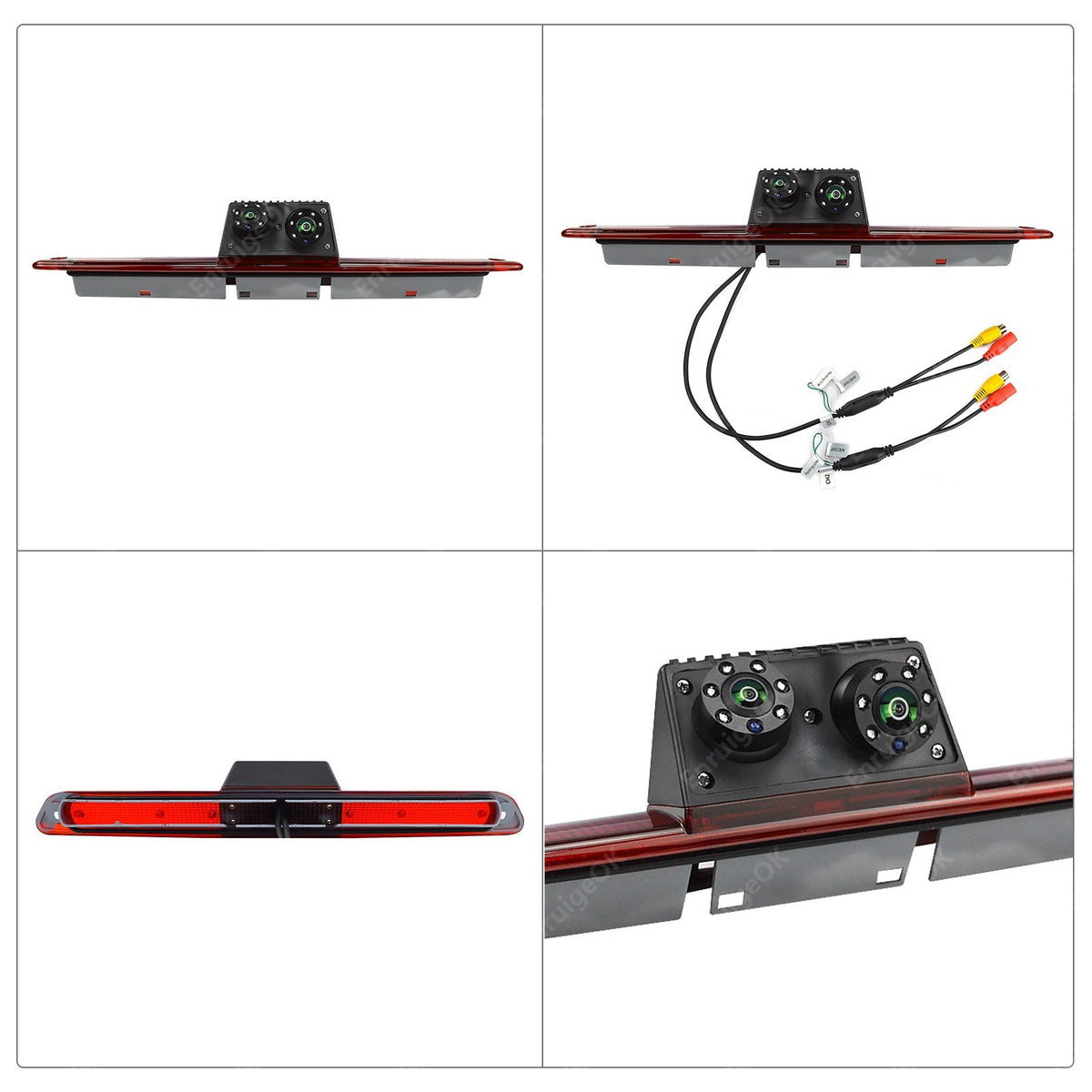

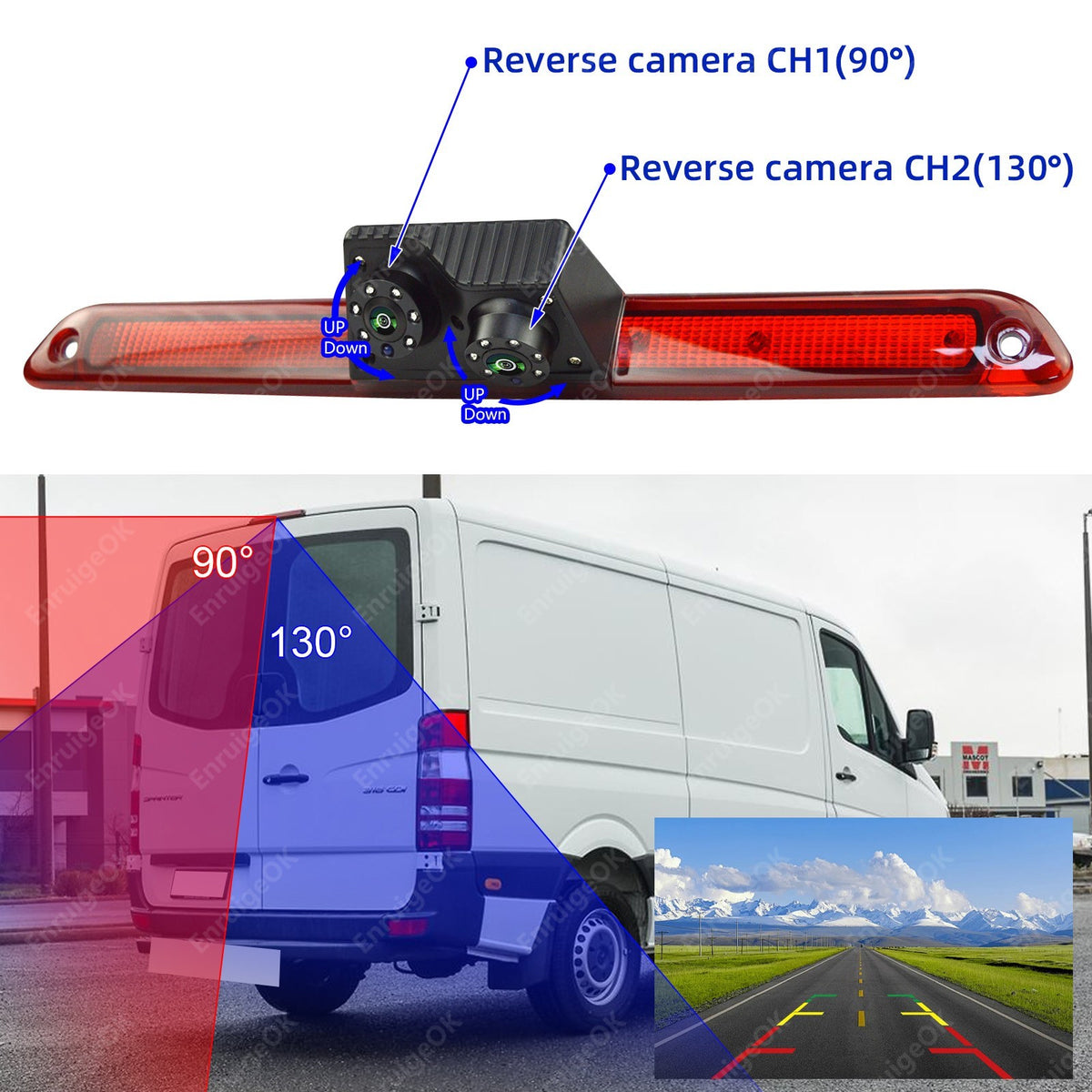

TWIN LENS !!! Dual lens reversing camera: One(CH1) showing the road or area behind the vehicle, and the other(CH2) looking directly down to help the driver see the vehicle's rear end.

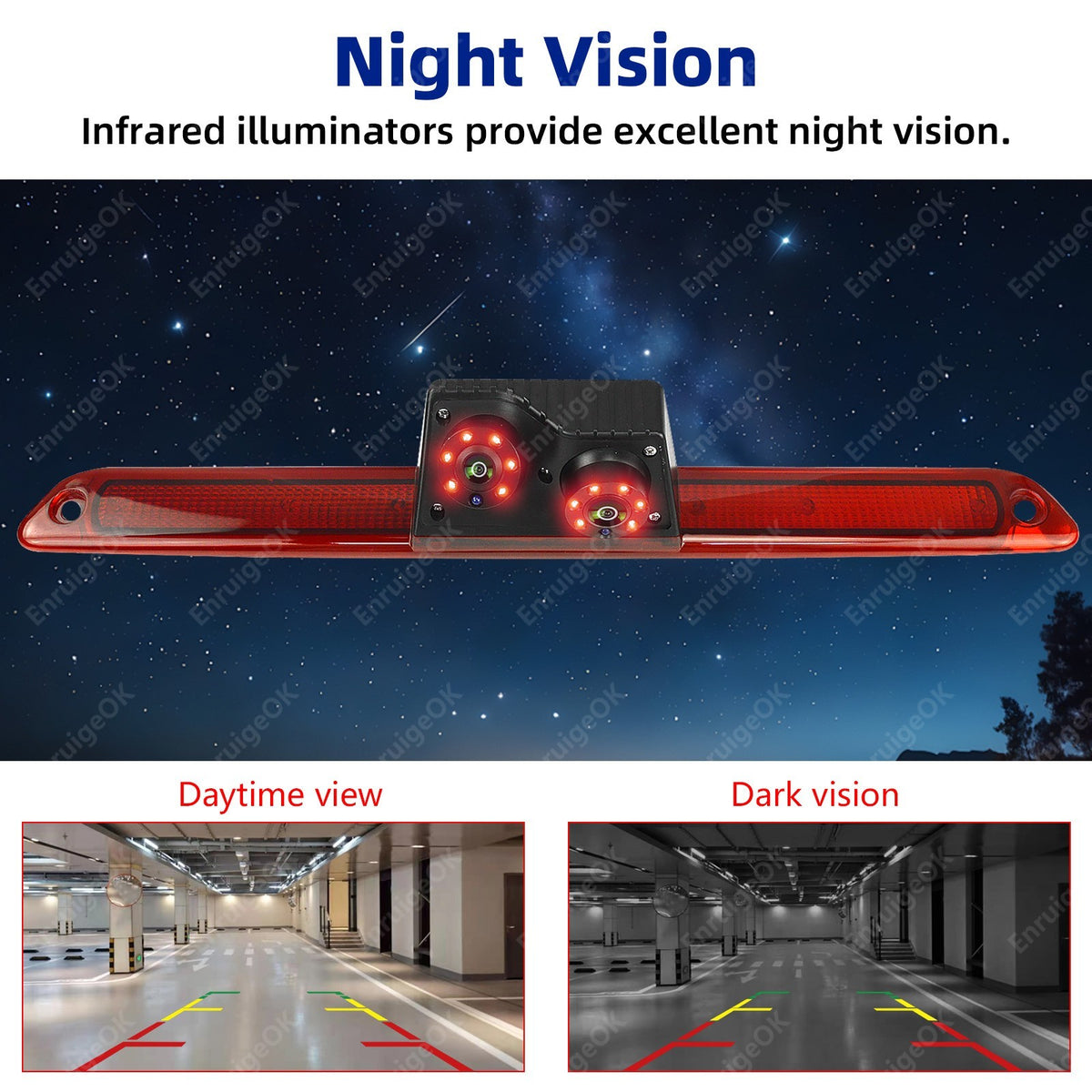

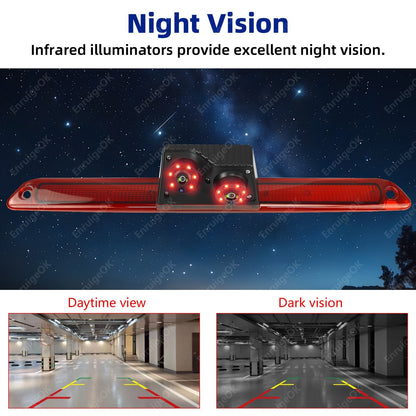

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 12 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

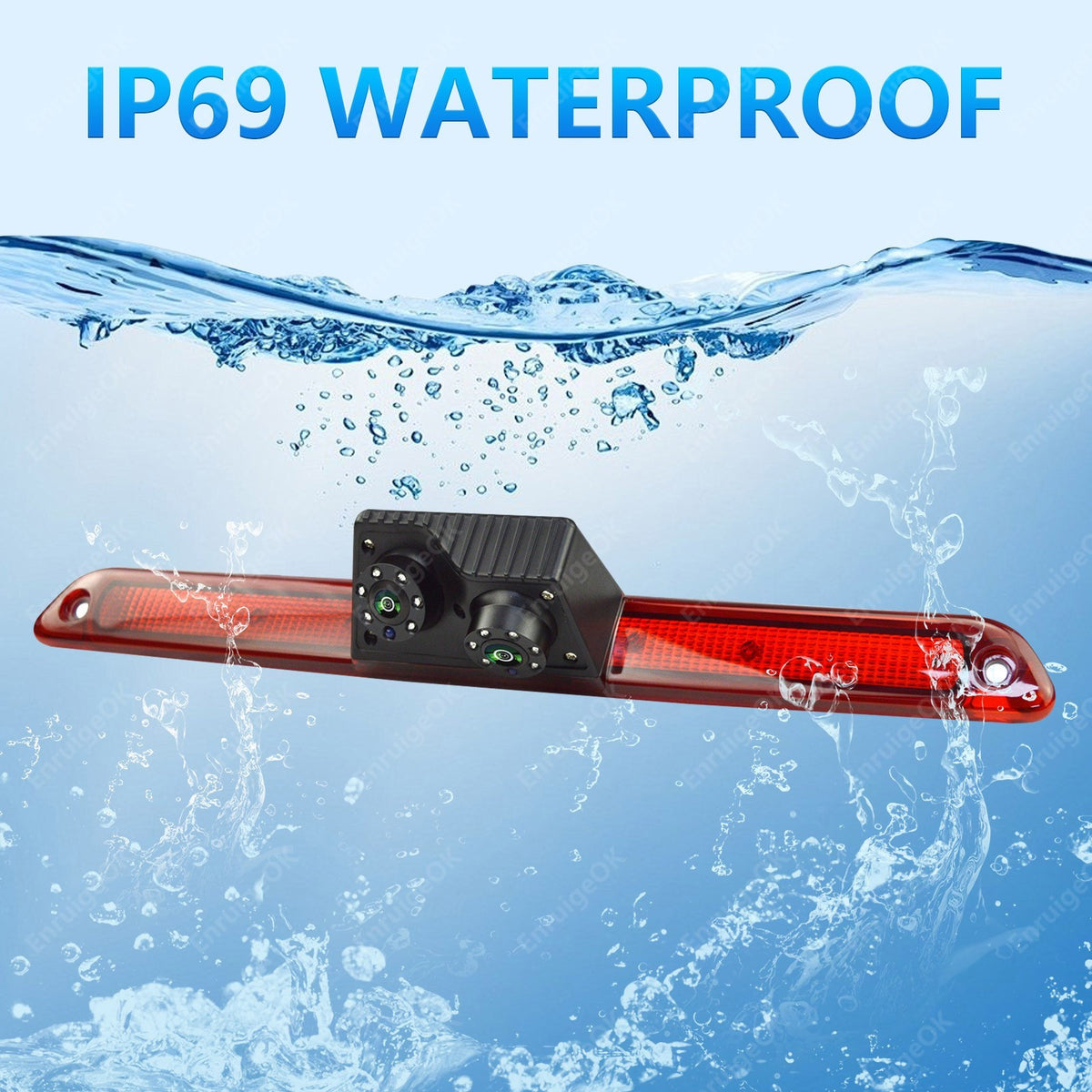

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Viewing angle: 130°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9V-35V

Operating temperature: -20℃ to +70℃

Monitor Specifications

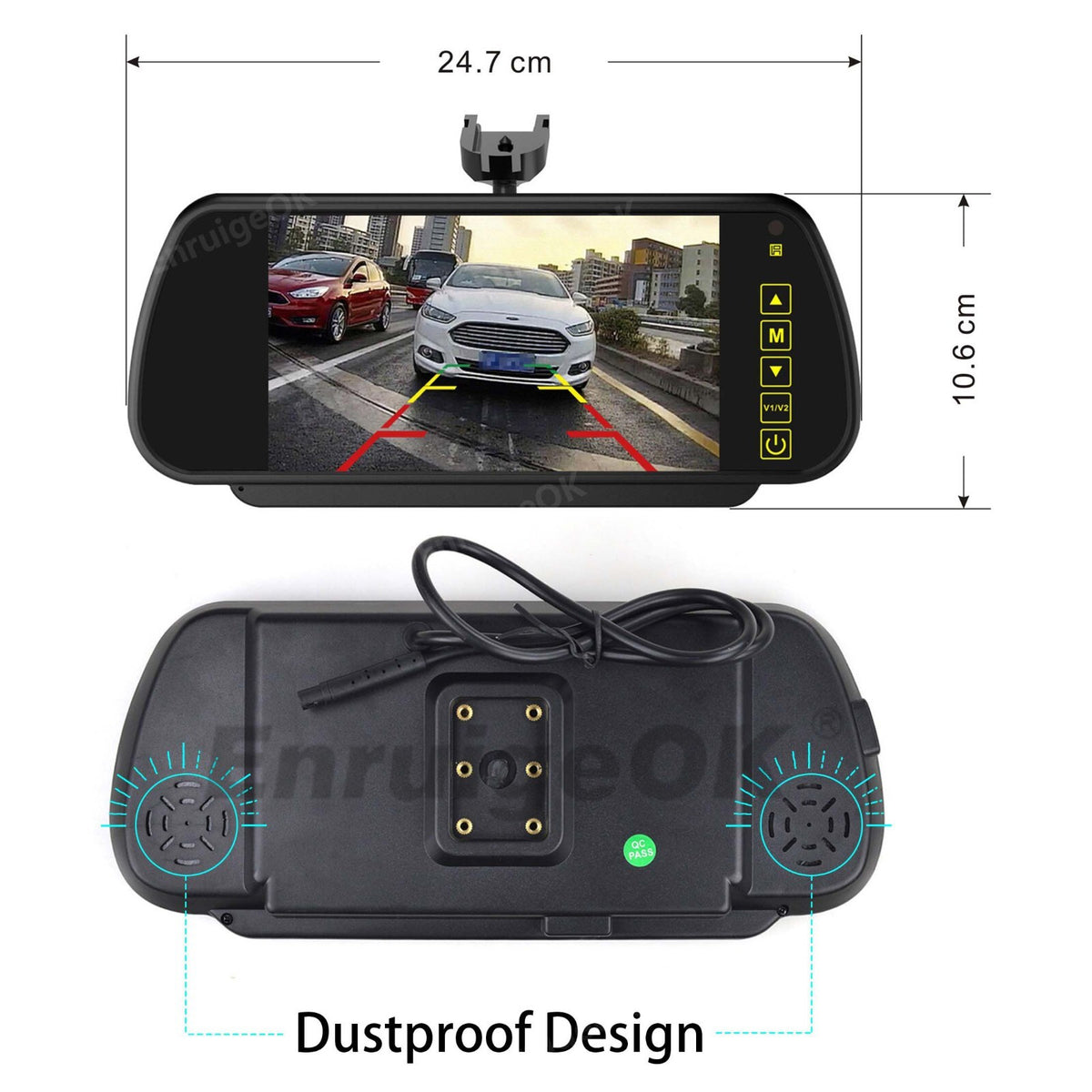

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

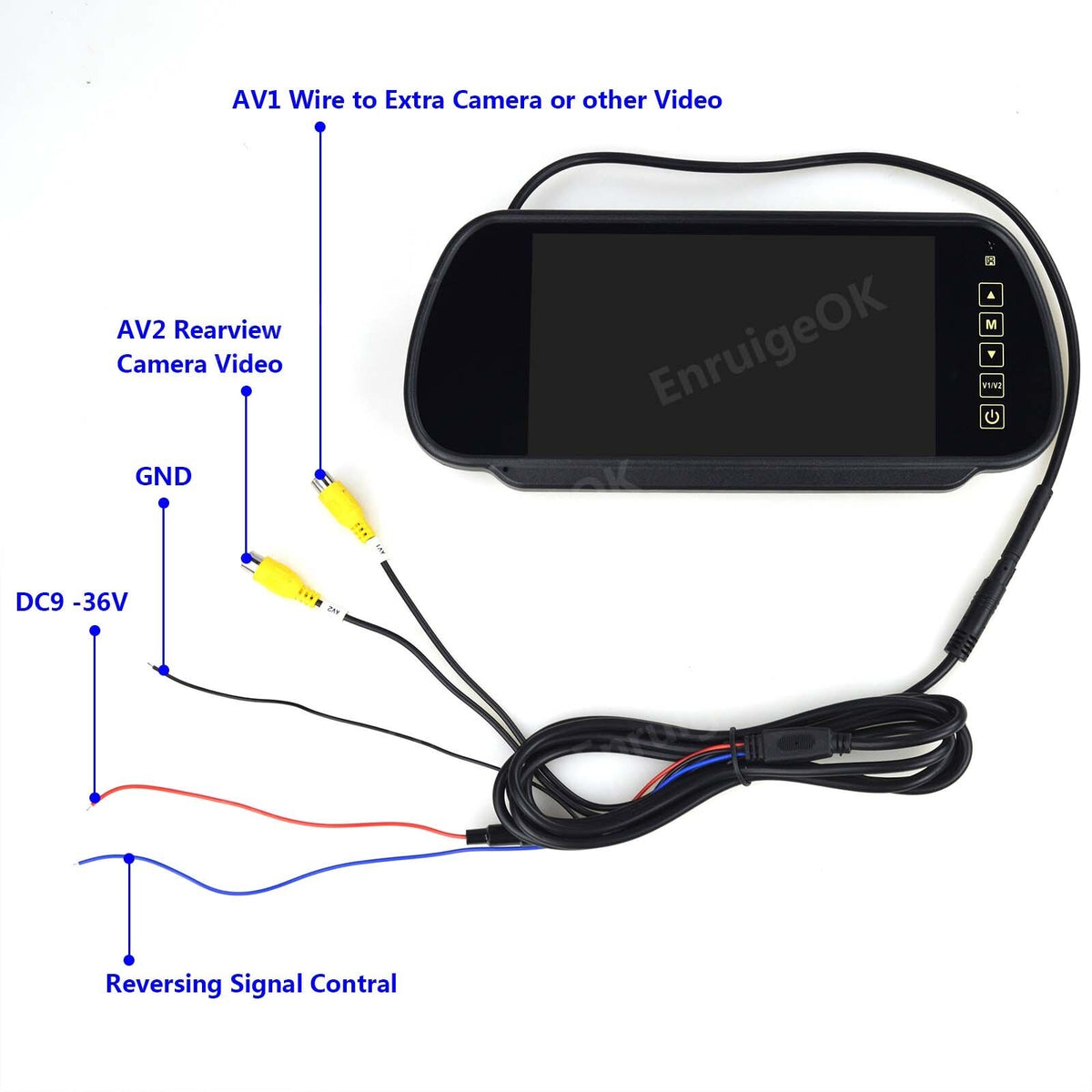

Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

Blue screen displayed when no signal is detected.

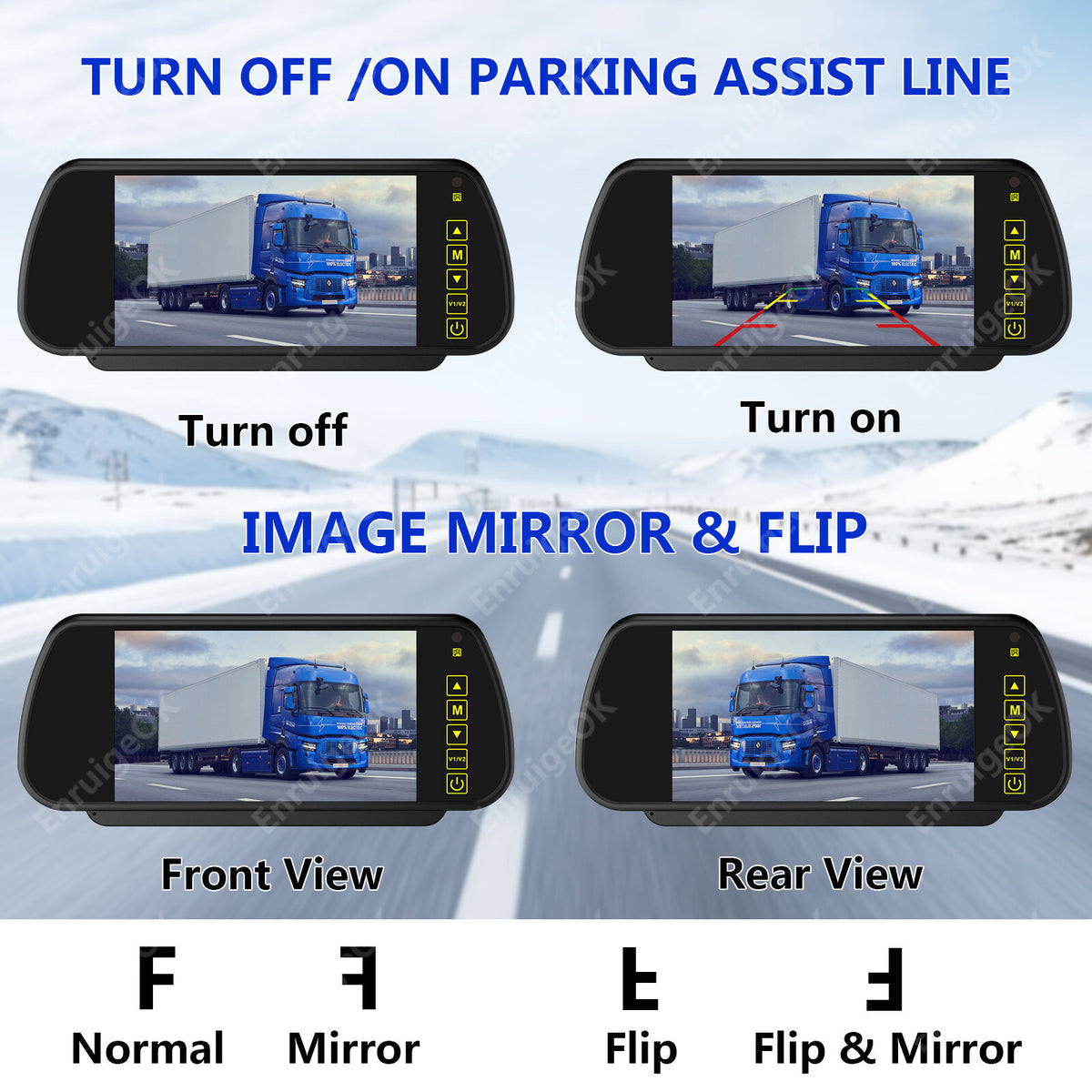

Parking Guidelines: Adjustable (ON/OFF via monitor settings).

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

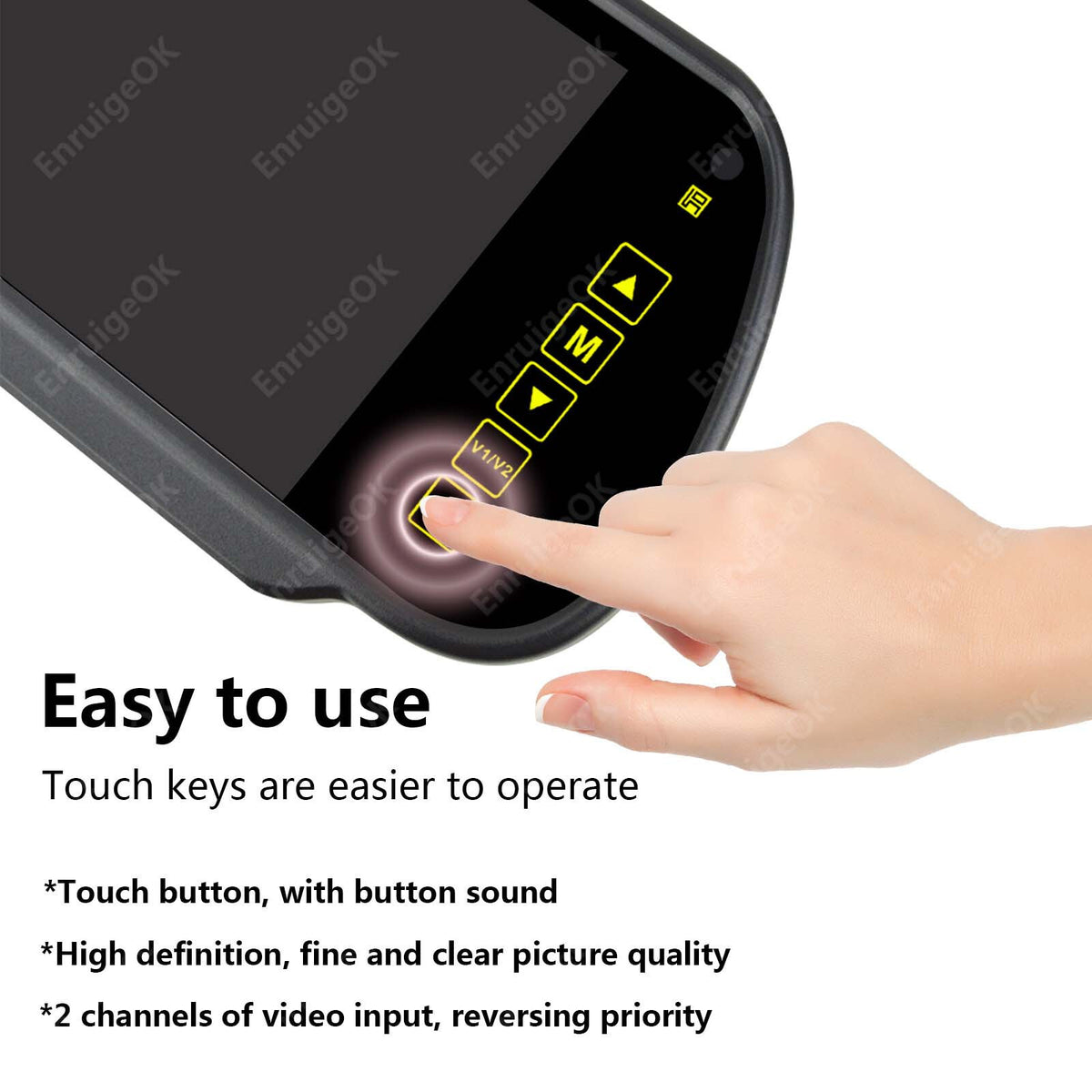

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

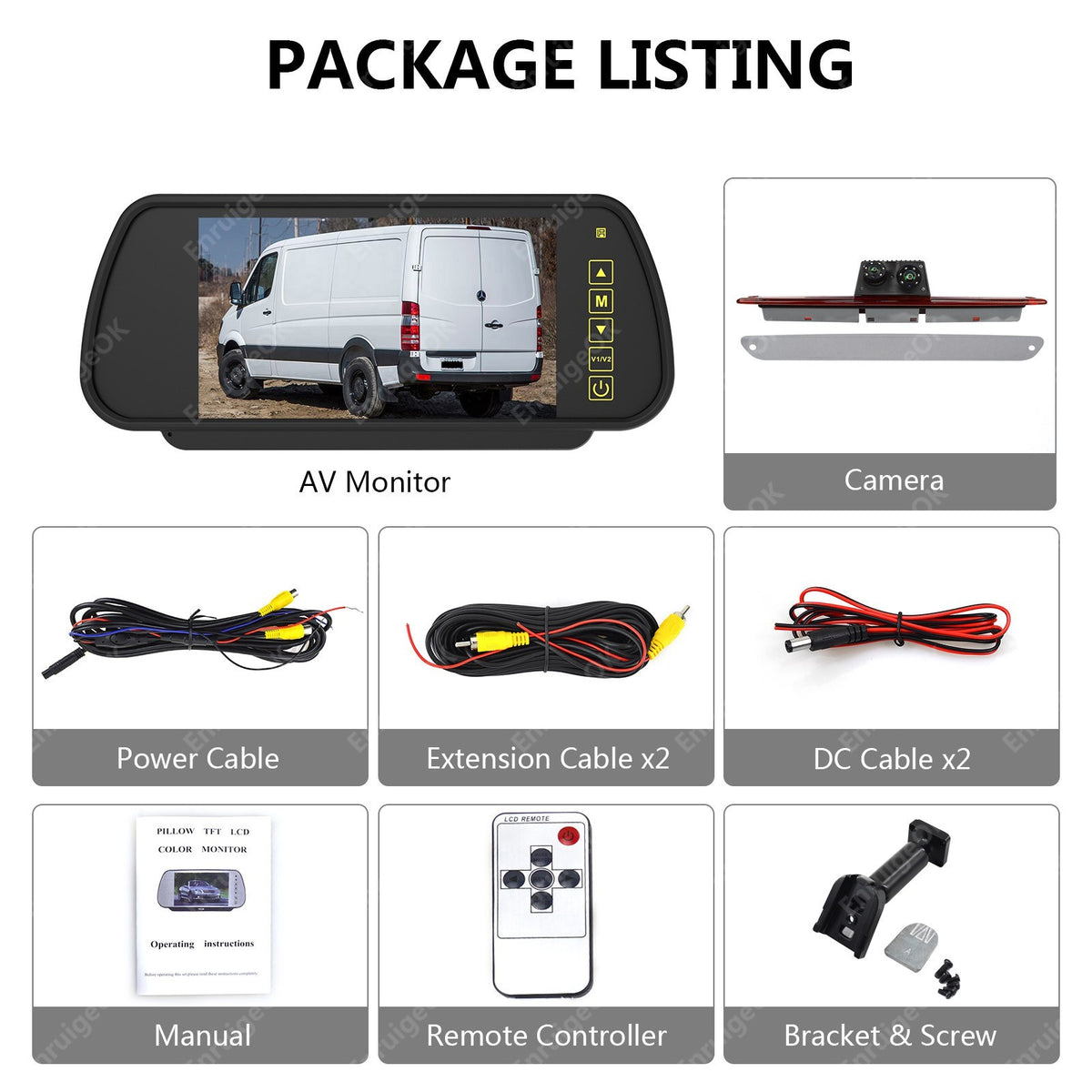

Package contents

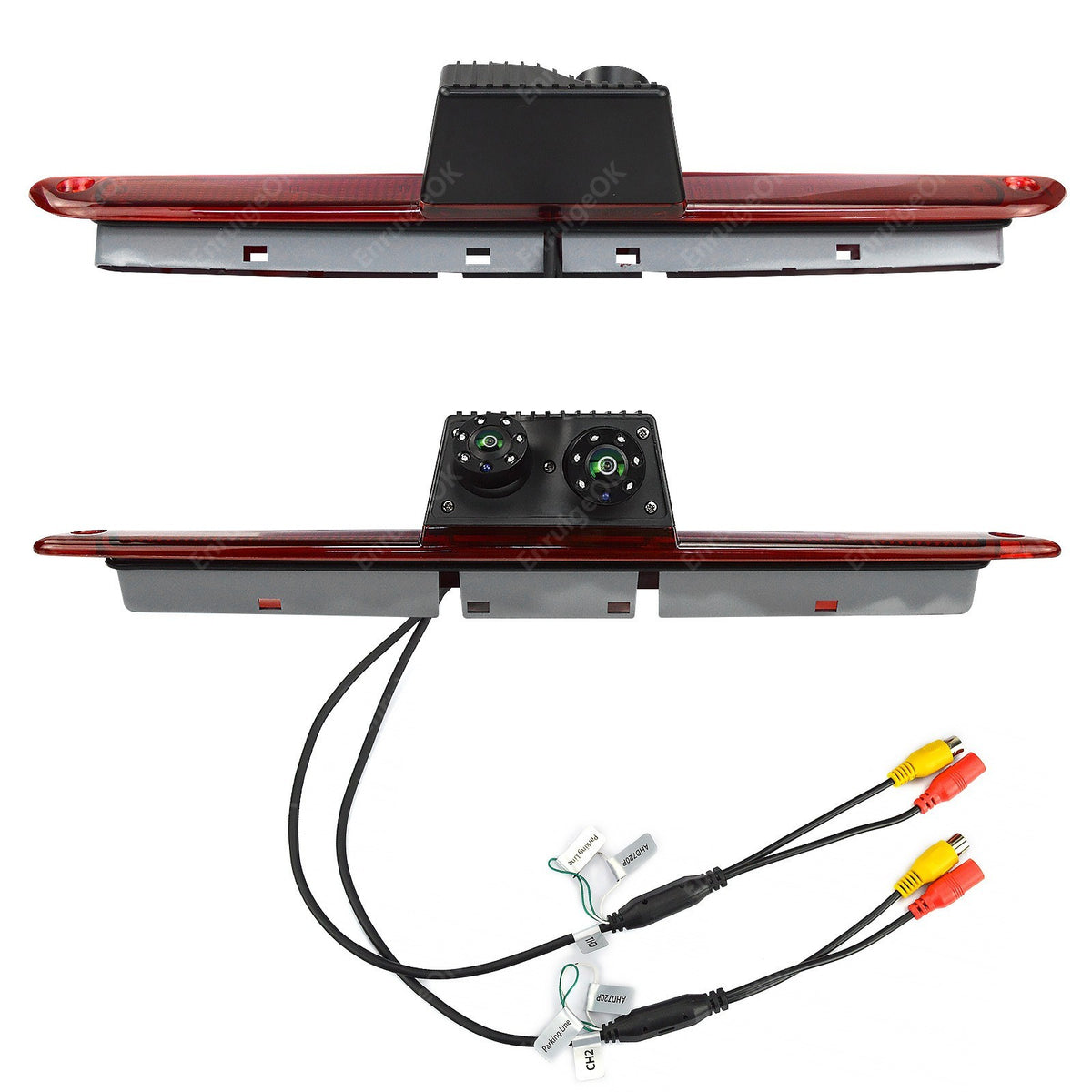

1 X Brake light camera

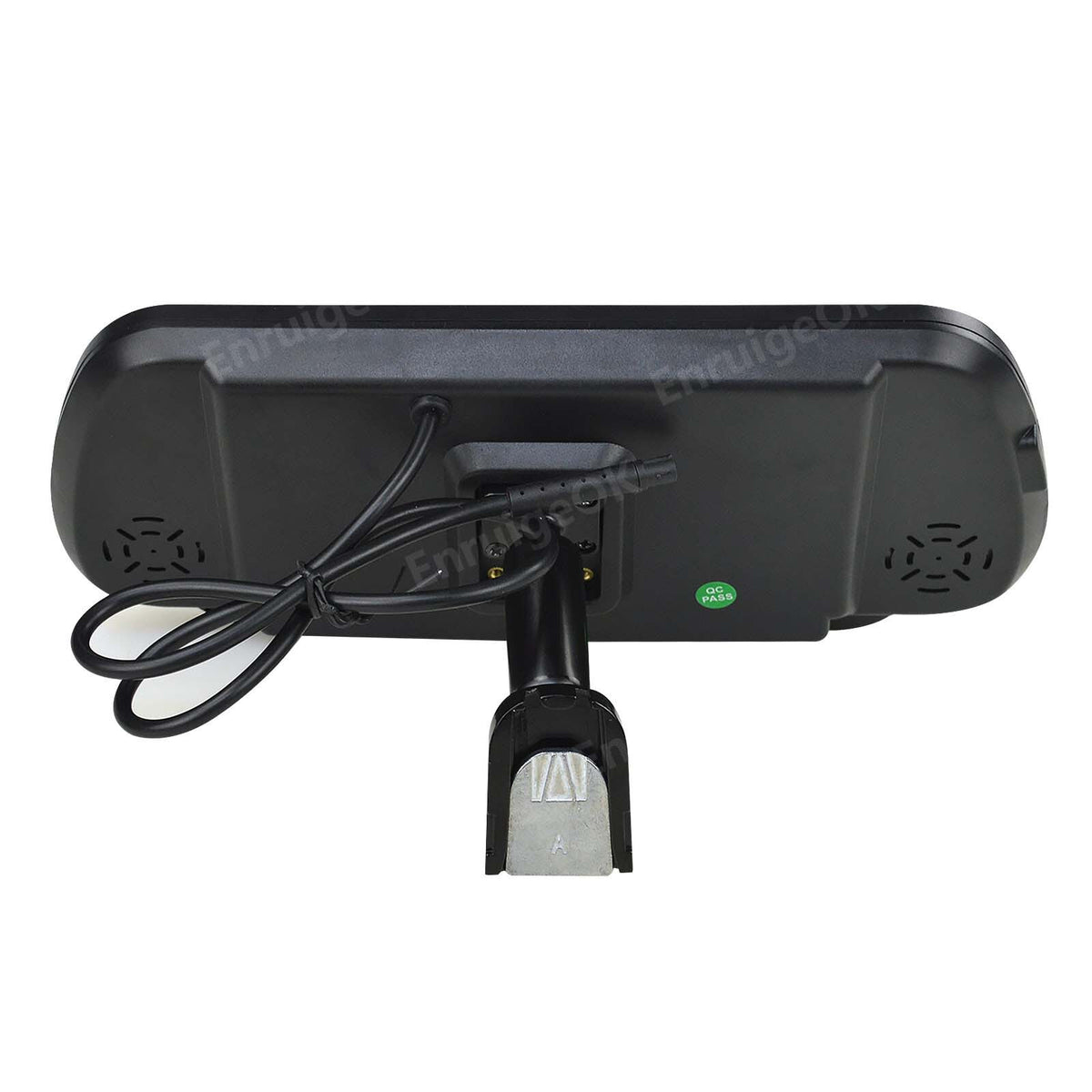

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

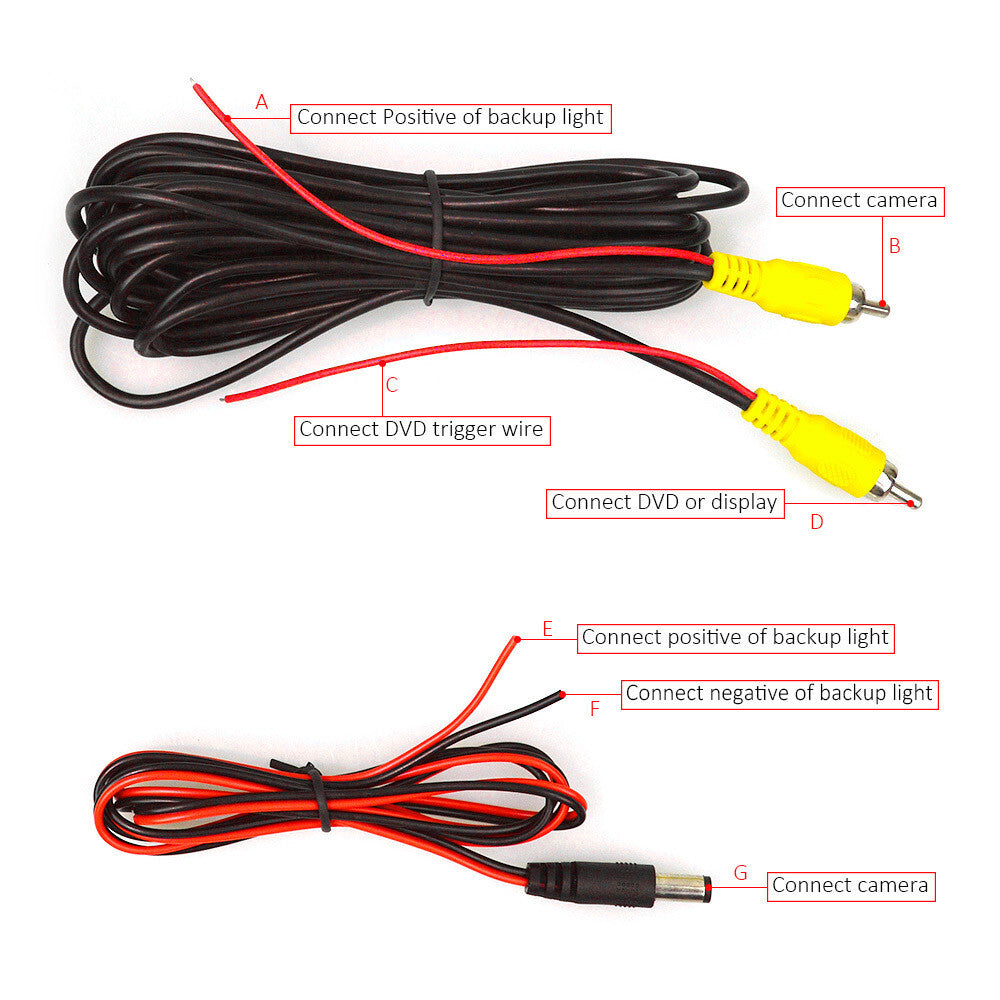

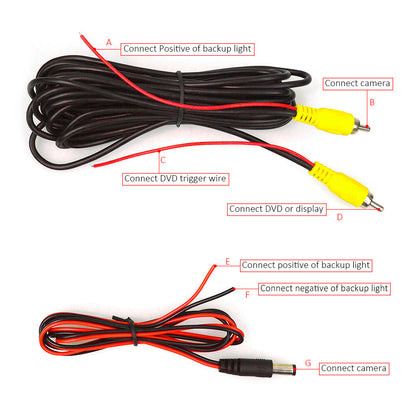

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X #1 Bracket(check your windshield metal clip)

1 X Manual

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
