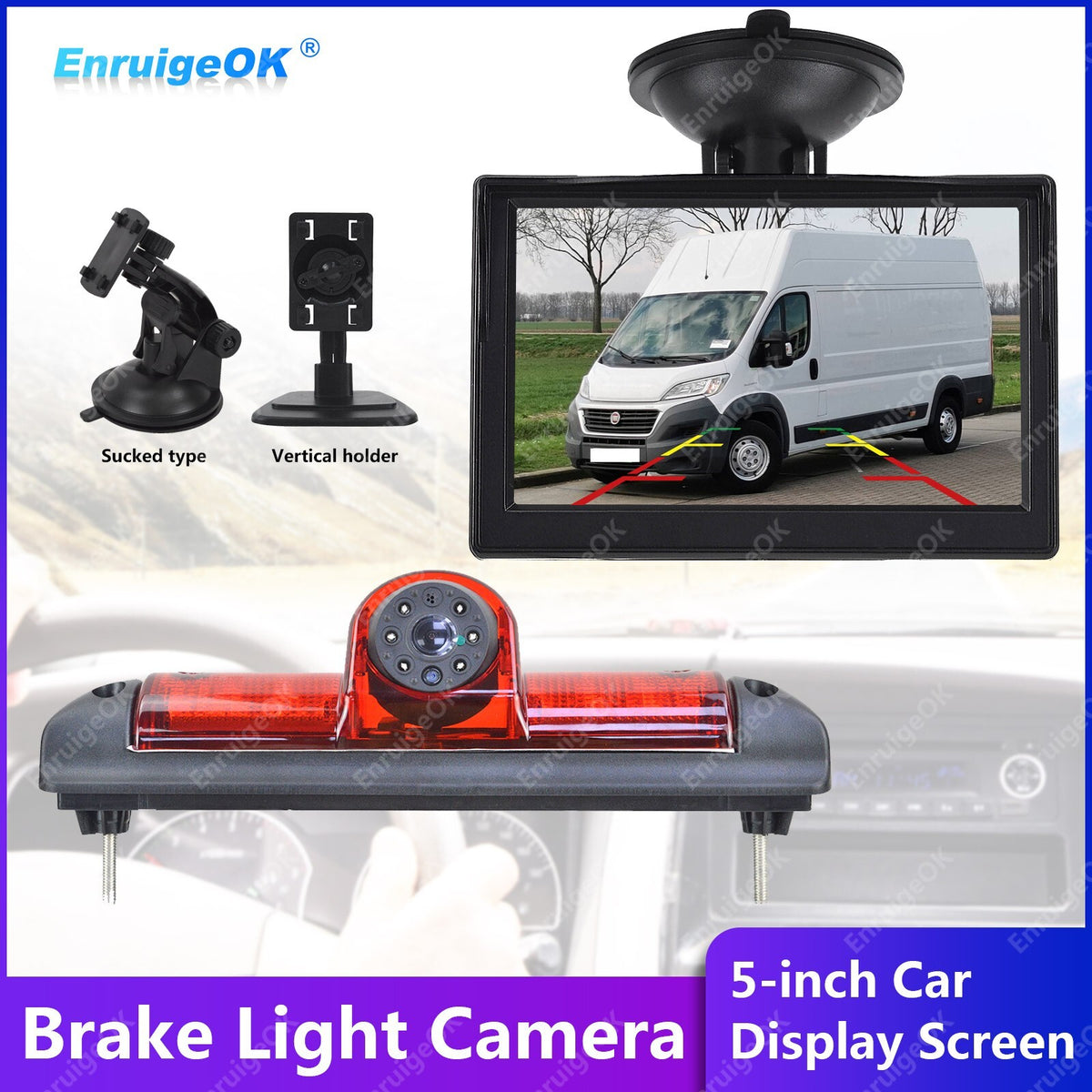

For Fiat Ducato, Citroen Relay, Peugeot Boxer, Brake Light Reversing Camera Kit

Note: Please check the camera size carefully before make the order.

For use with

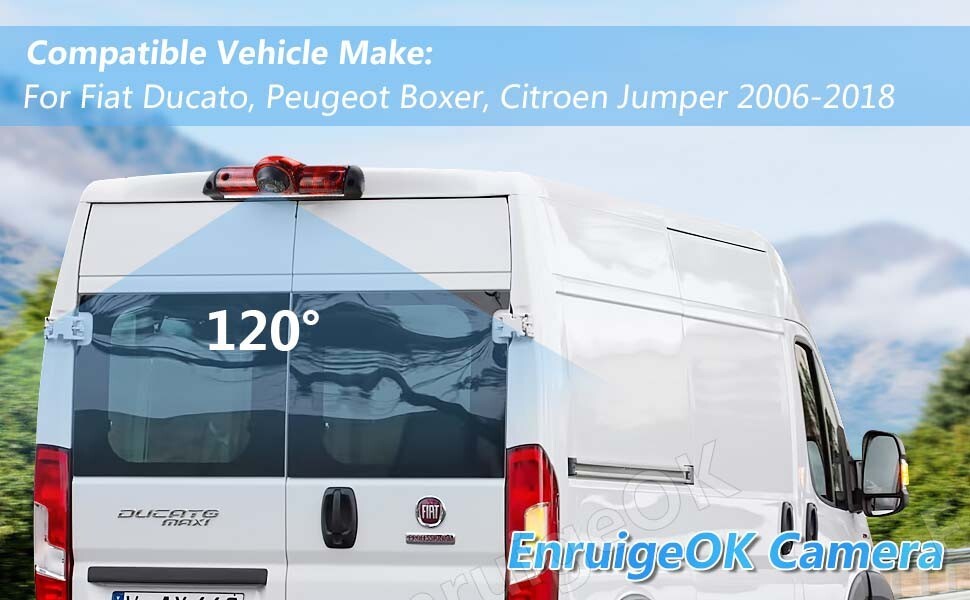

Fiat Ducato, Peugeot Boxer, Citroen Jumper/Relay (2006-2018)

Description

5" Color IPS display Monitor with 2 video input, 480*272(RGB) resolution works perfectly with brake light rear view camera.

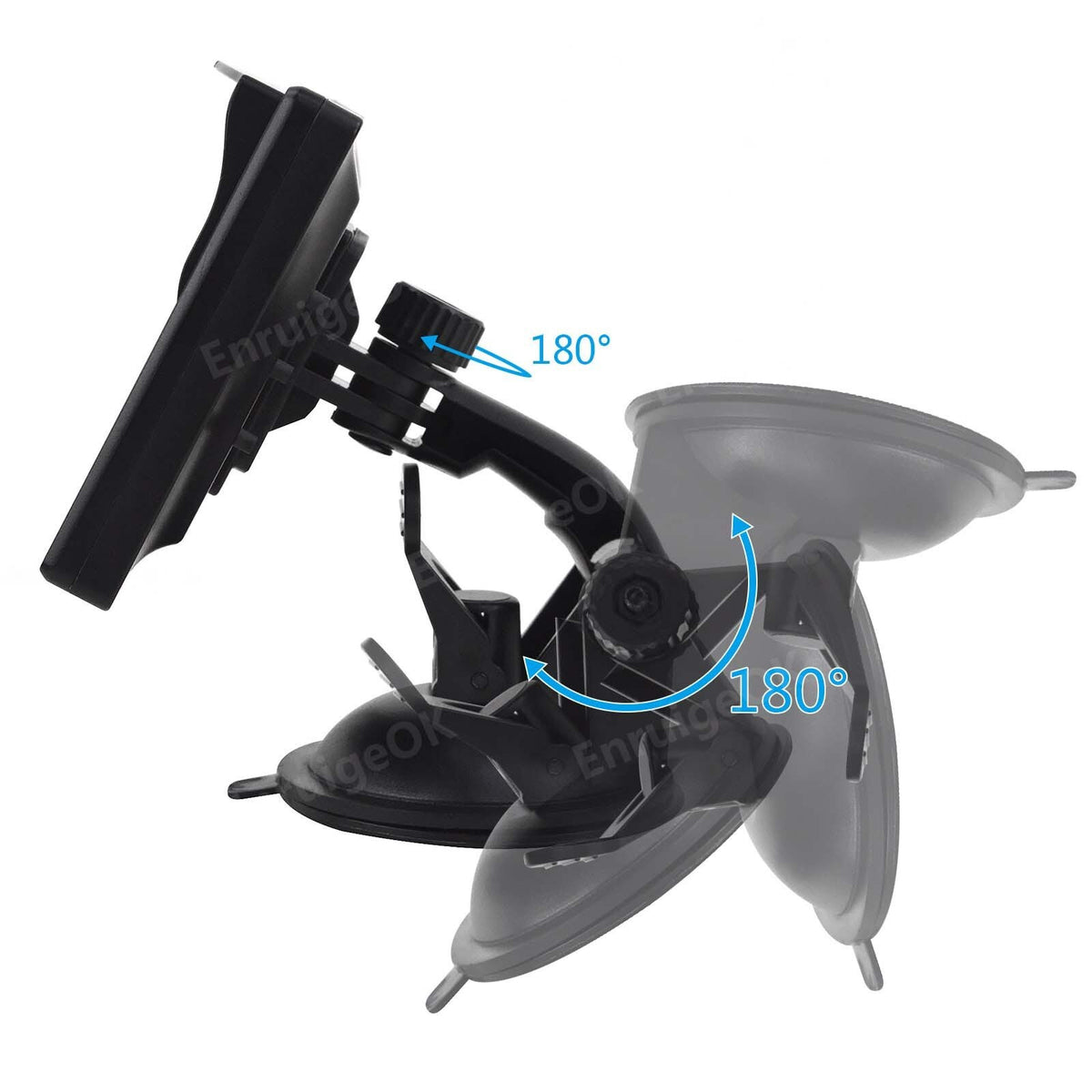

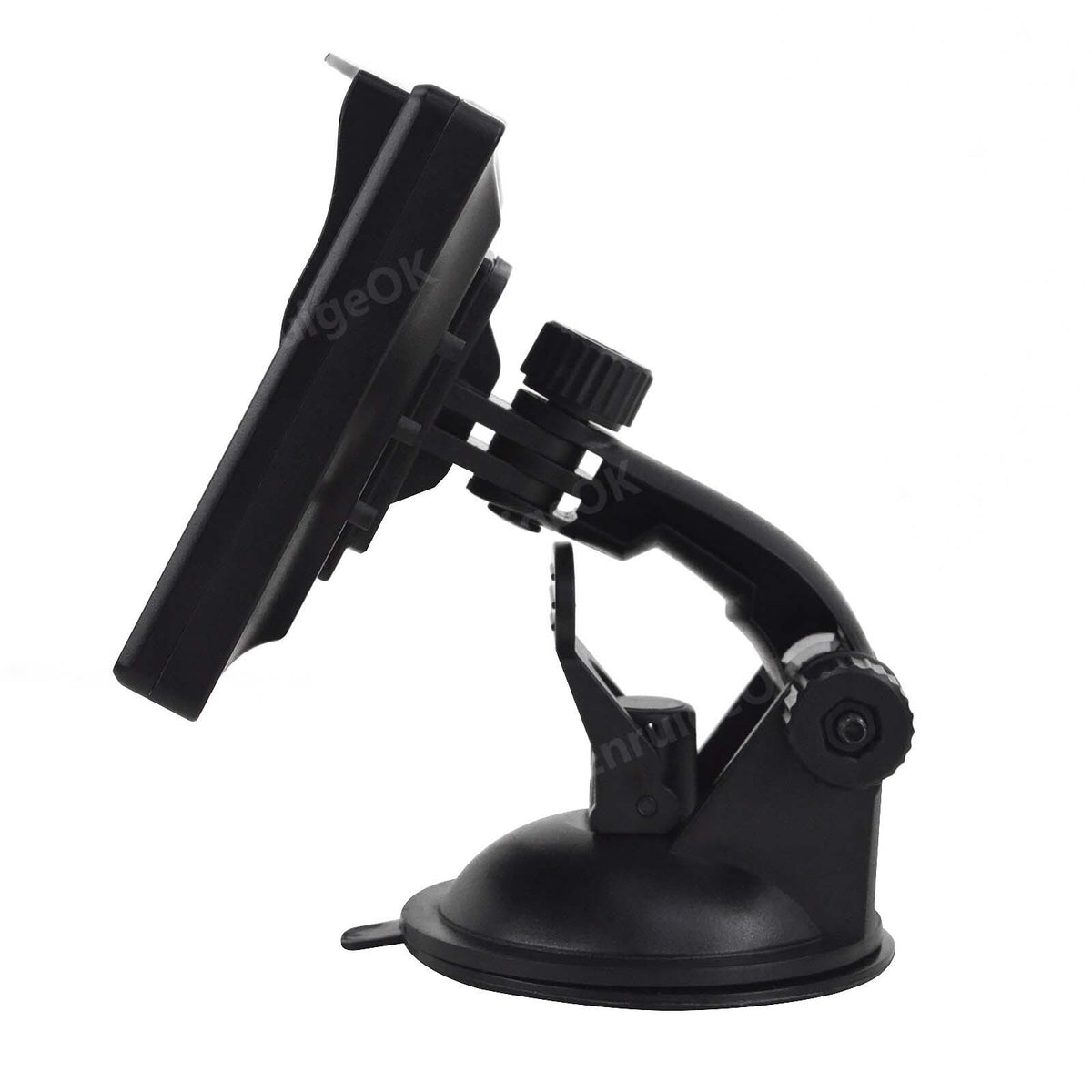

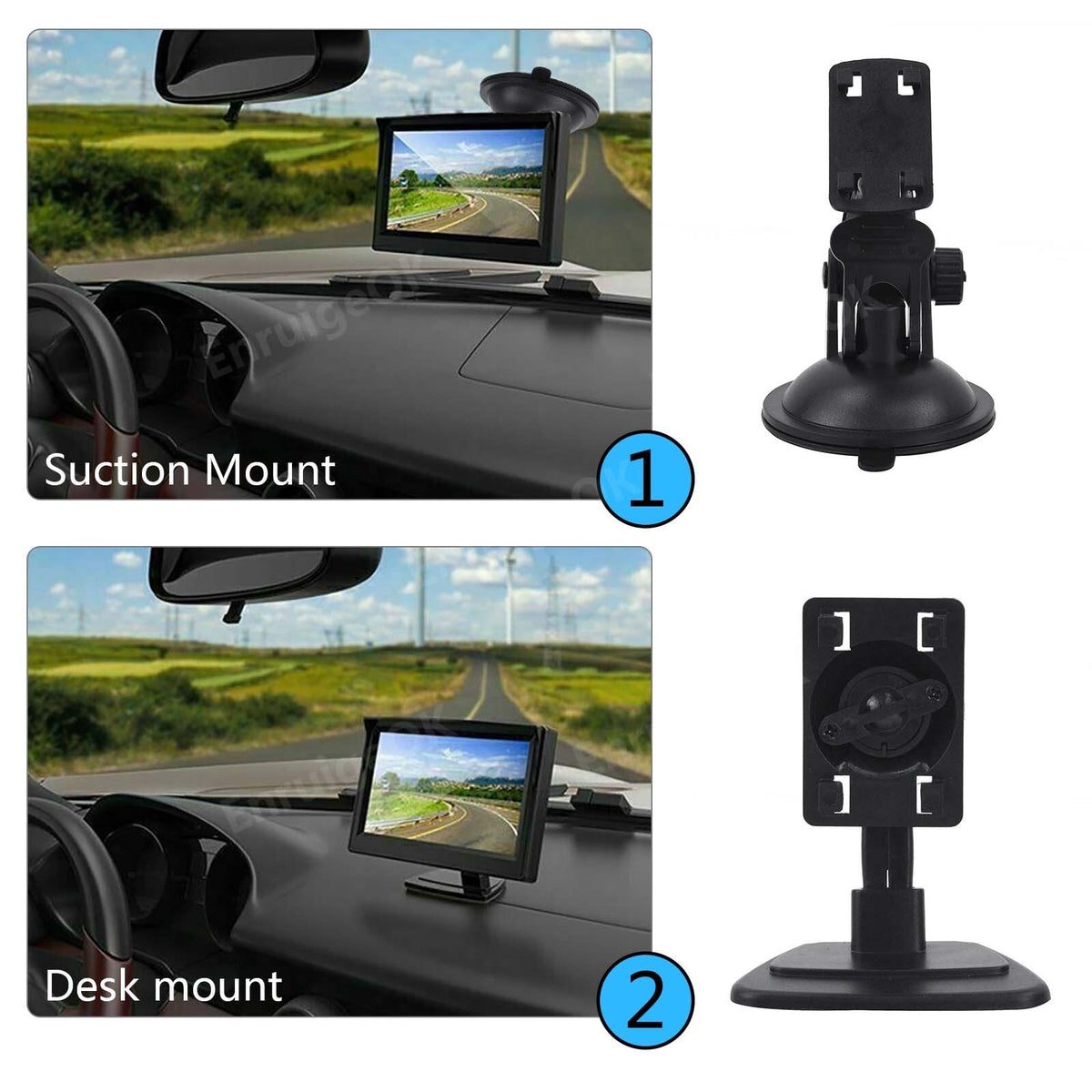

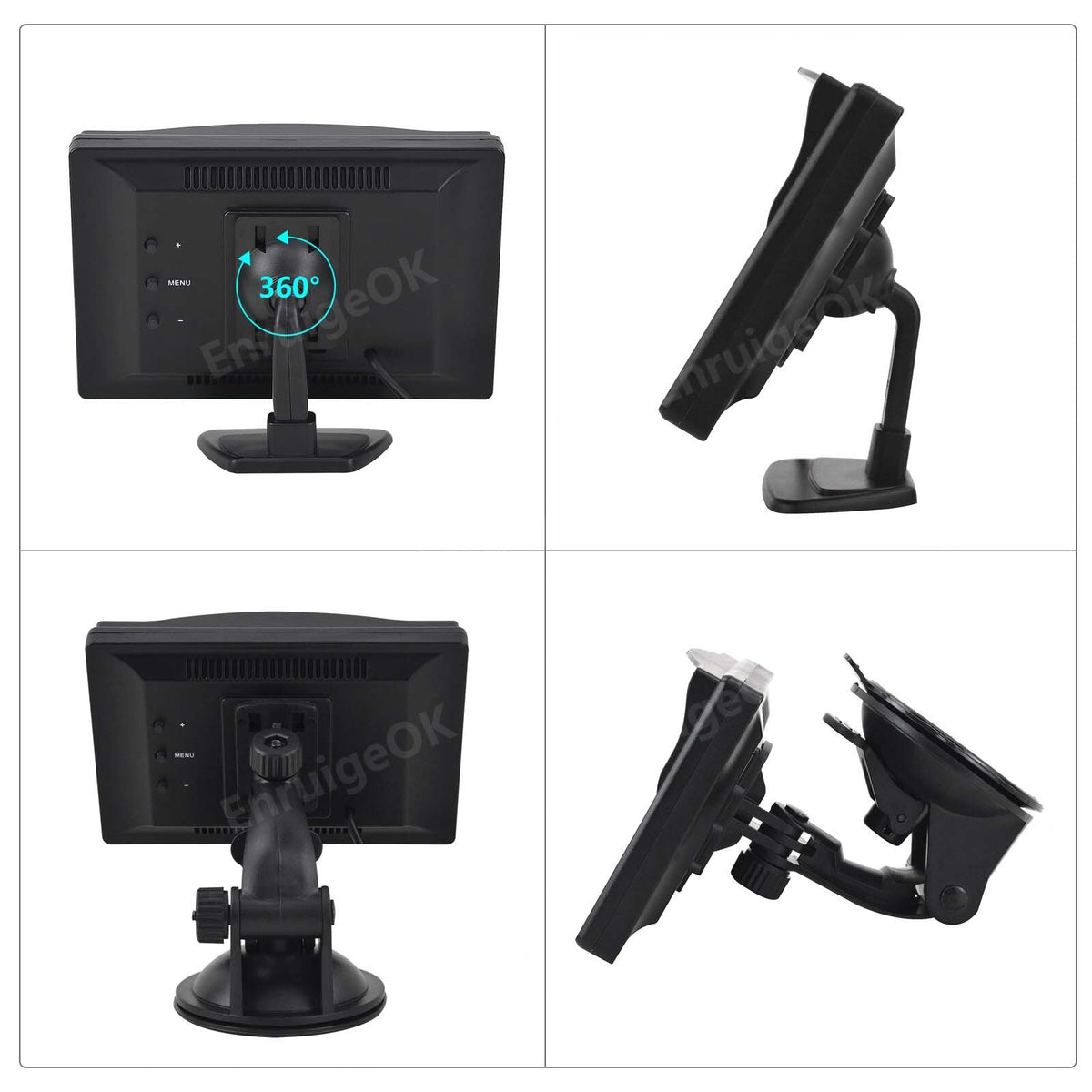

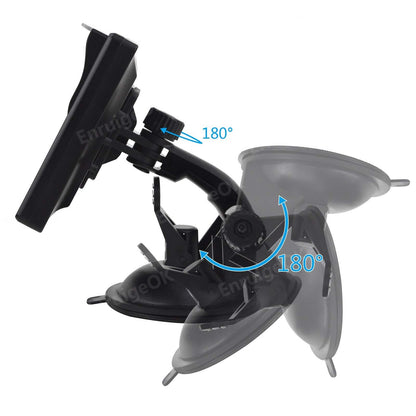

Monitor have two installation methods. Desk mount and windscreen suction mount.

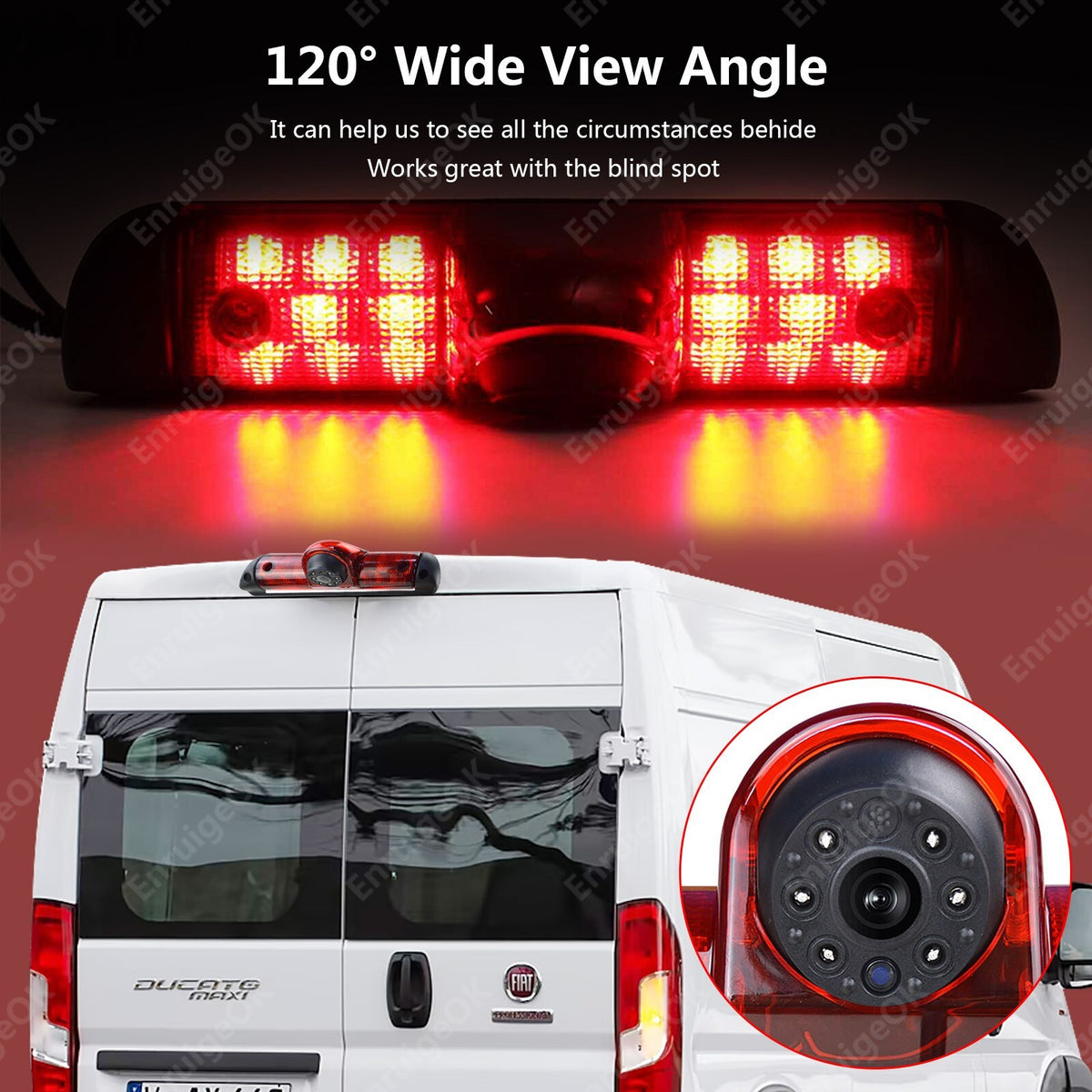

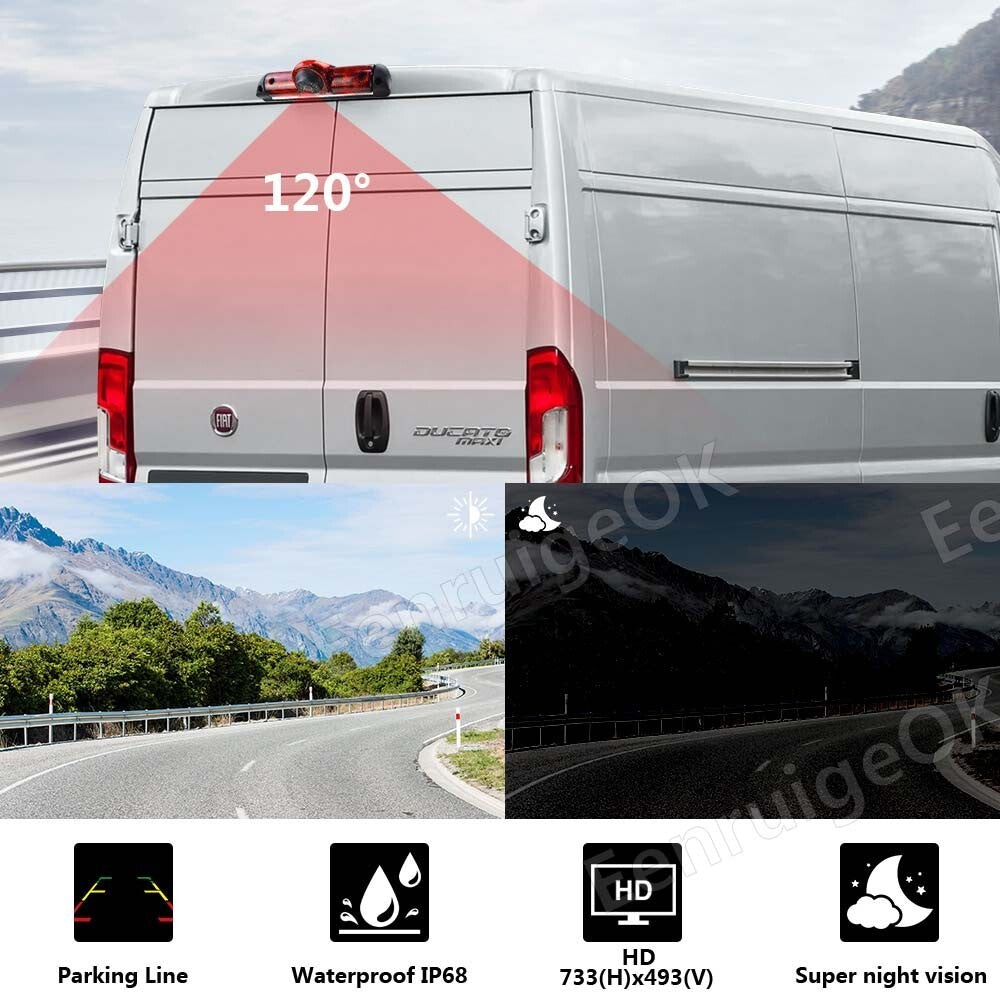

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

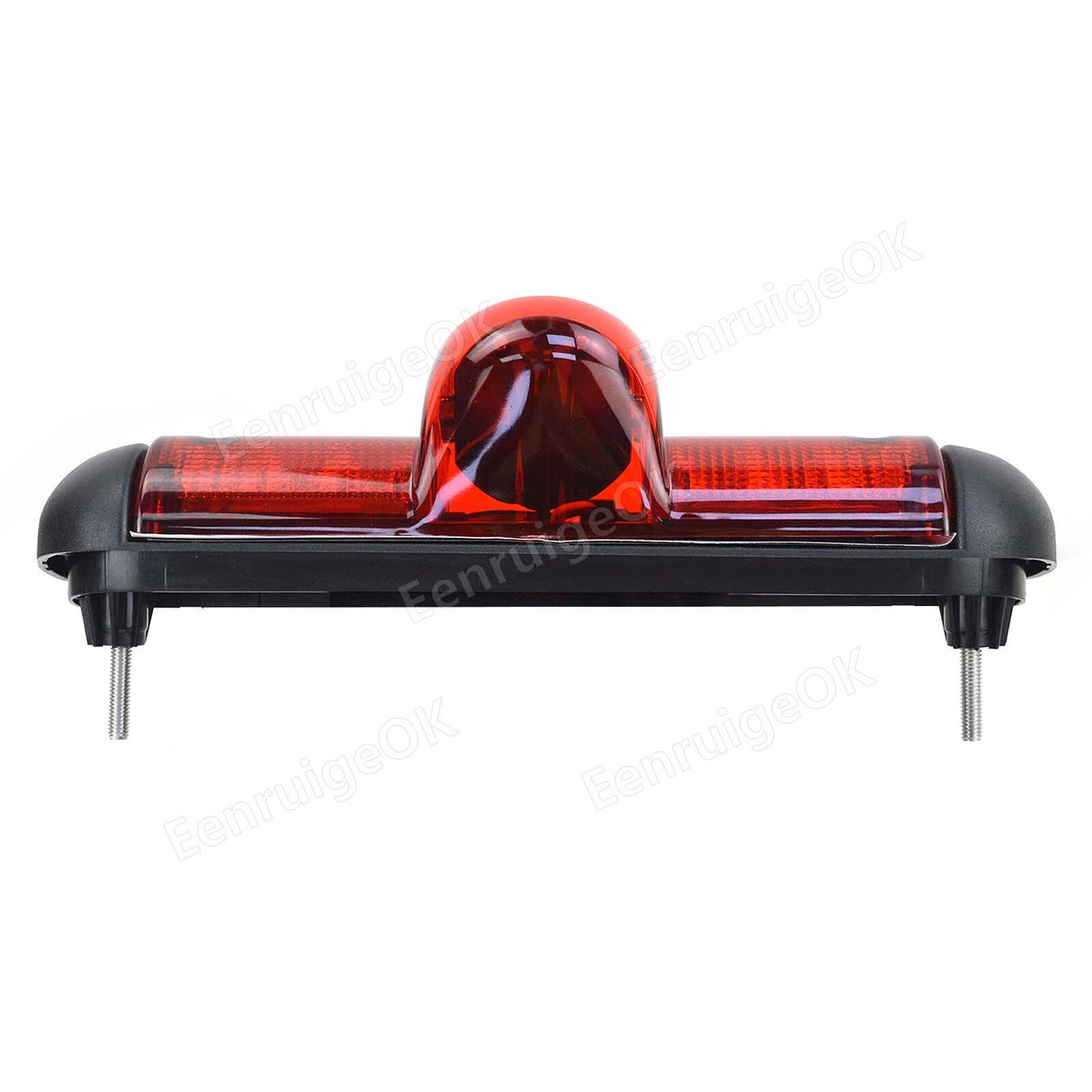

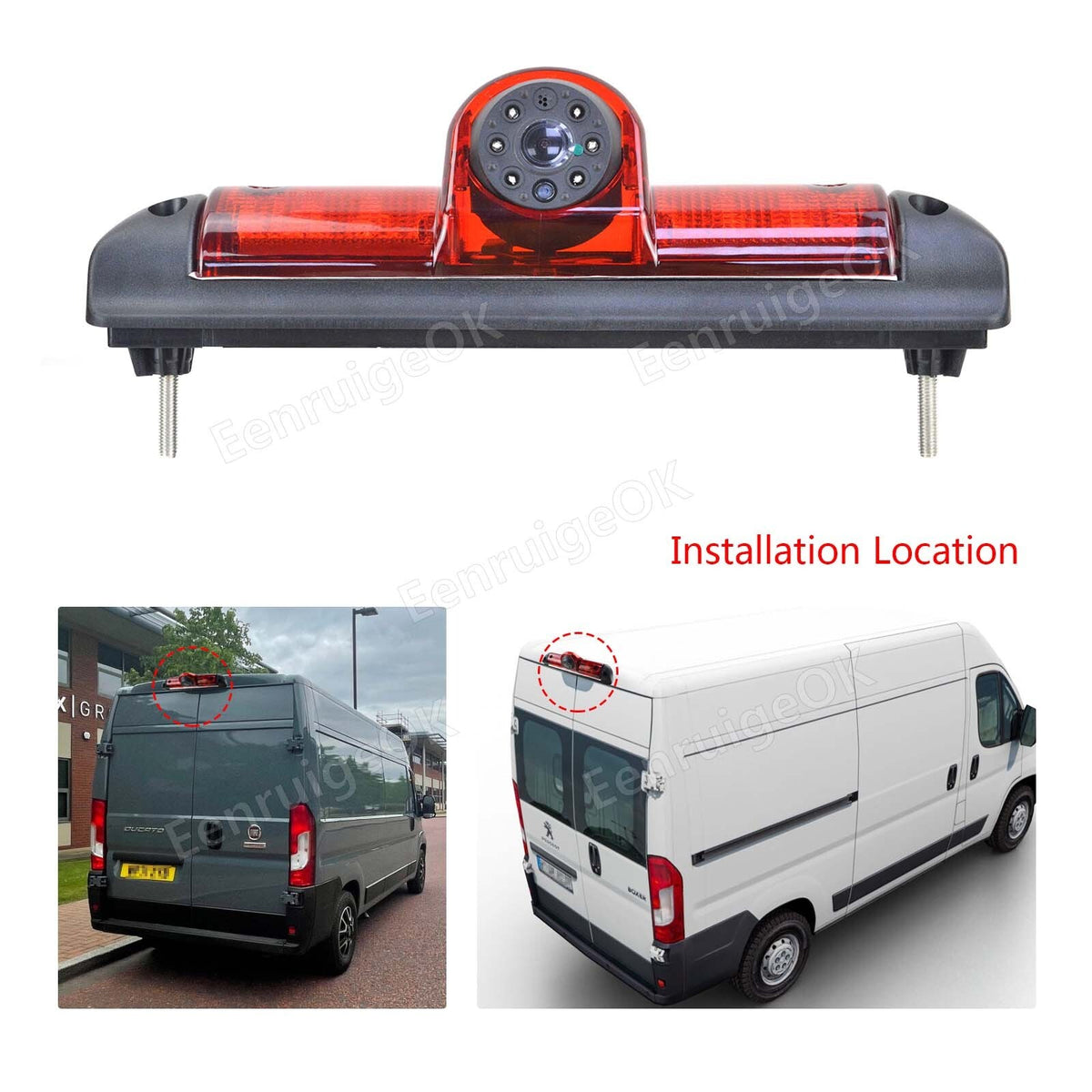

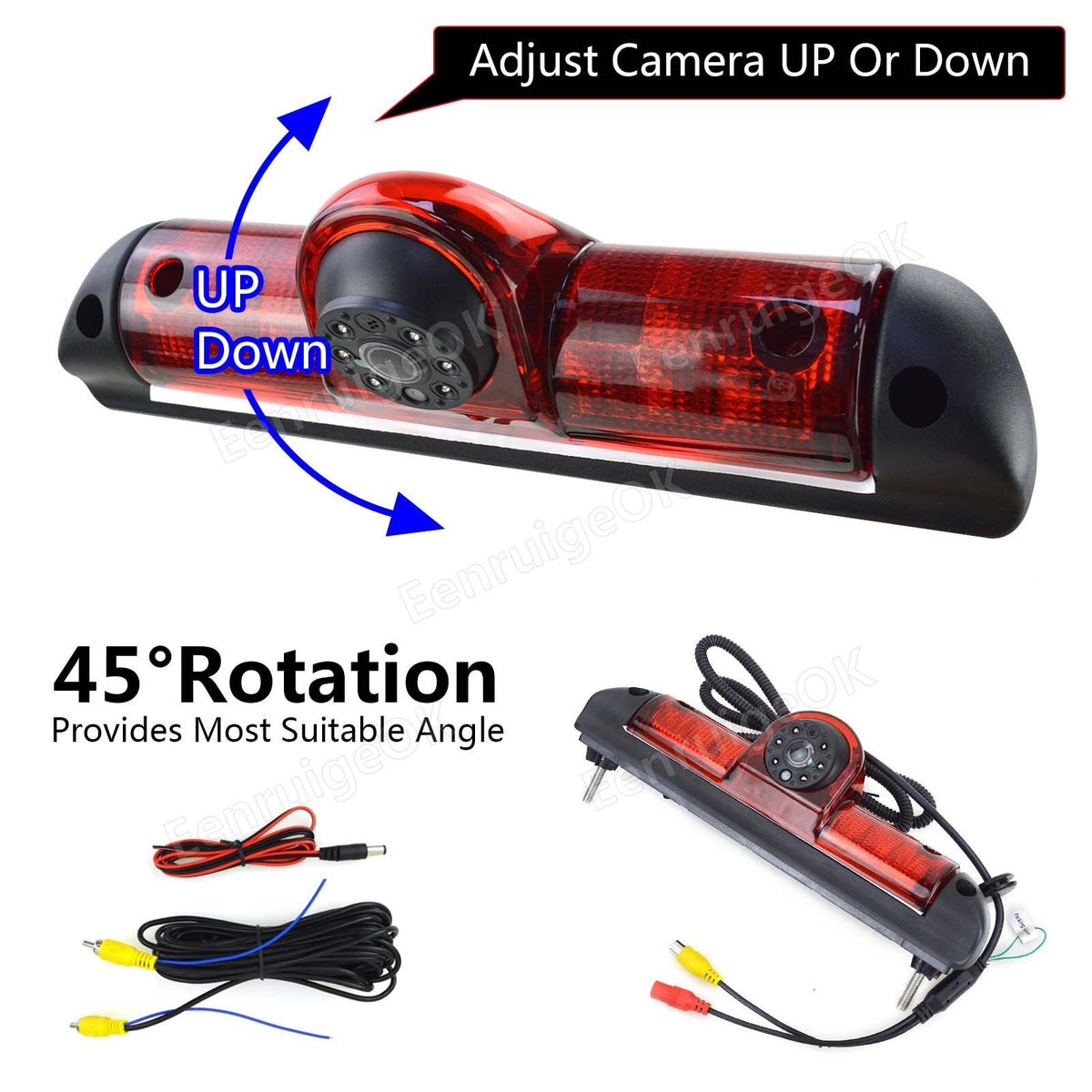

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

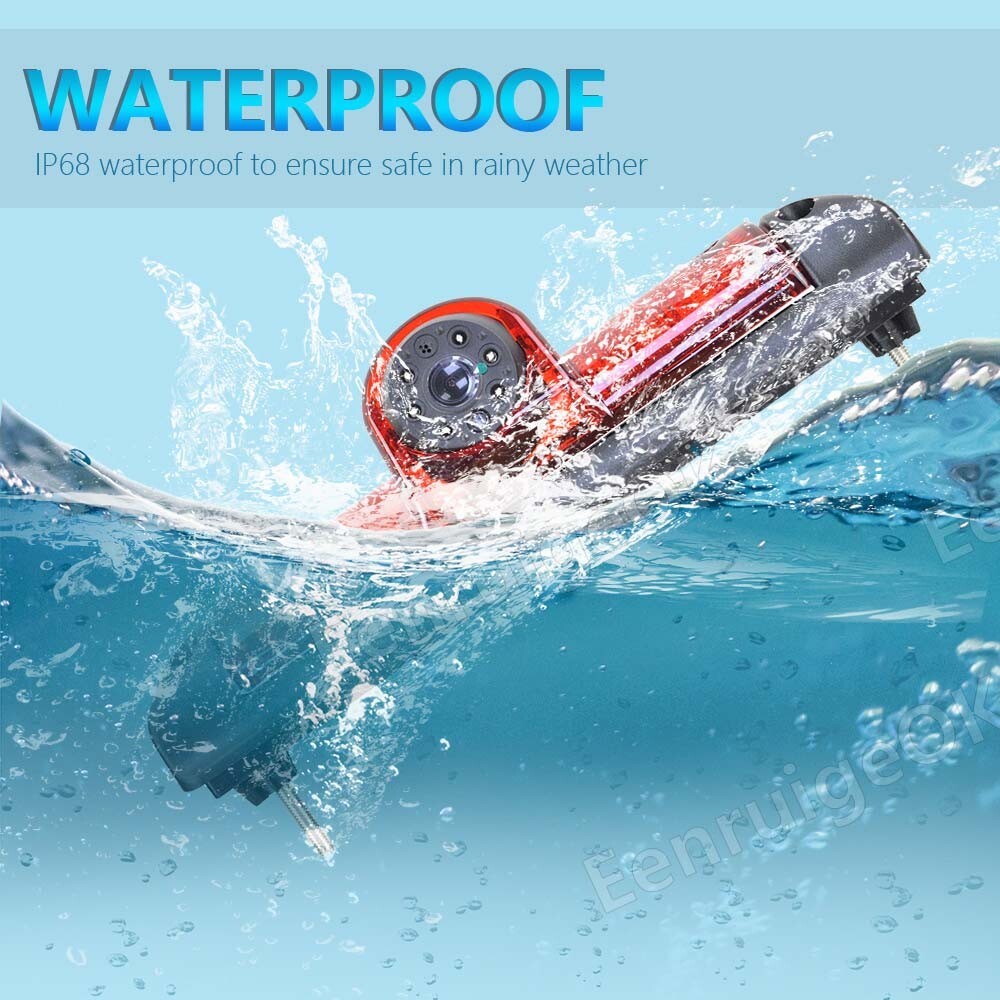

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

TV system: PAL/NTSC option

Waterproof rating: IP68

Viewing angle: 120°

Effective pixel: 733(H)x493(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: 700TV Lines

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux / F = 1.2

Power supply: DC12V

Power: 5W

Operating temperature: -20℃ to +70℃

Monitor Specifications

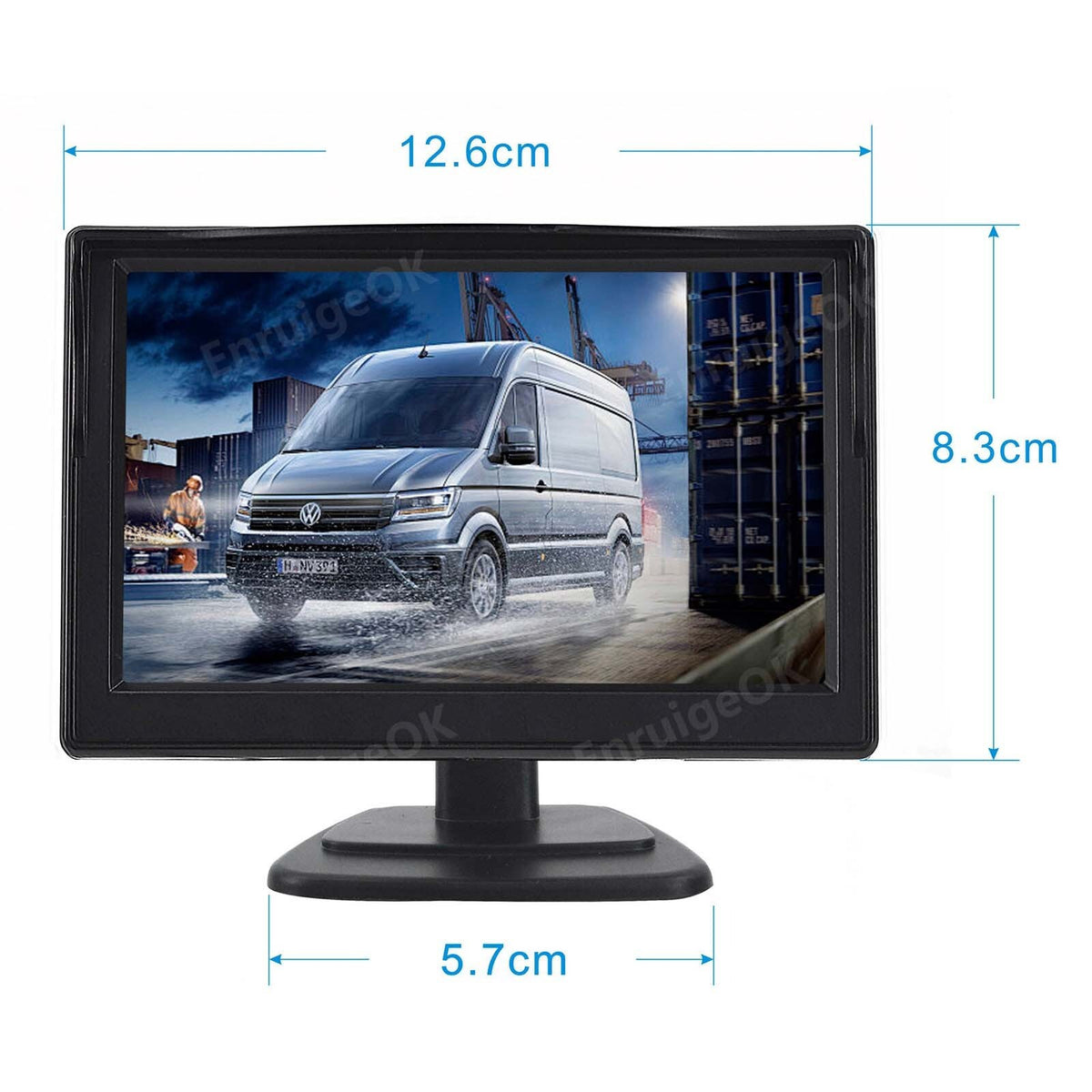

Screen size: 5 inch

Screen Display: IPS Display

Contrast: 300: 1

Brightness: 300 CD/㎡

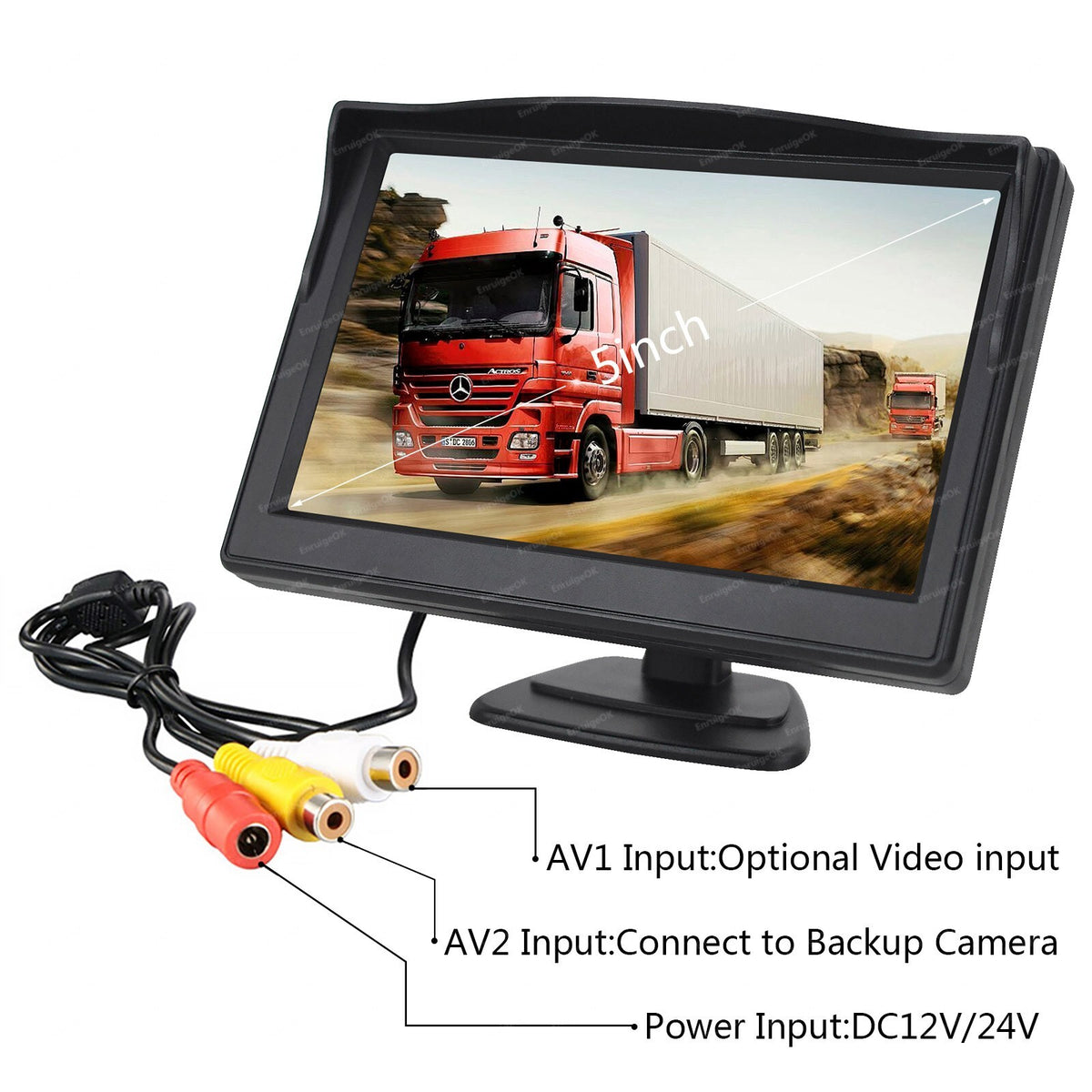

Video: 2-channel video input; V1/V2 switching

Resolution: 480 (H) x 272 (V)

Power supply: DC 12V

Rear view in priority

Blue screen on no signal

Video system: NTSC / PAL auto switch

Current consumption: <4W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

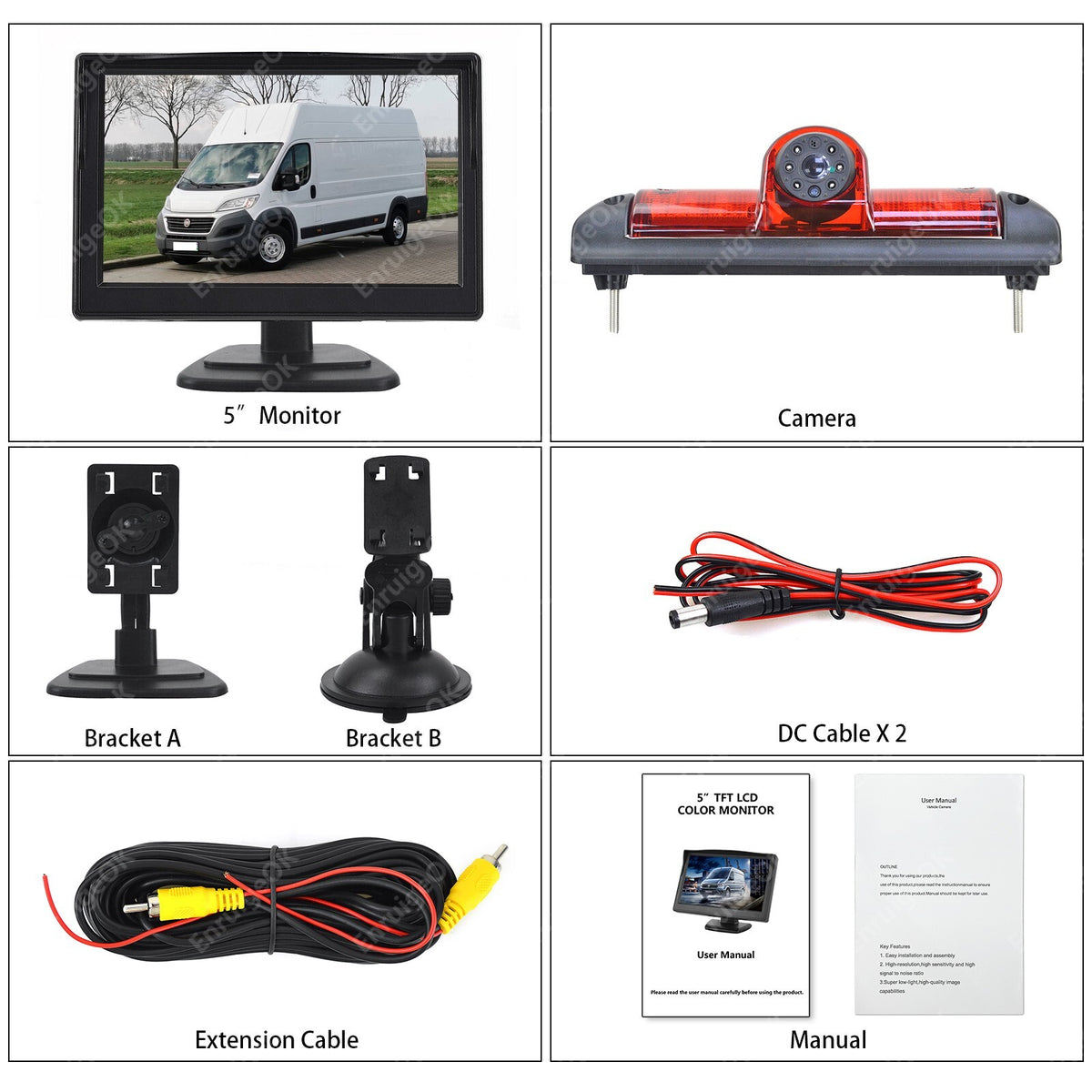

Package contents

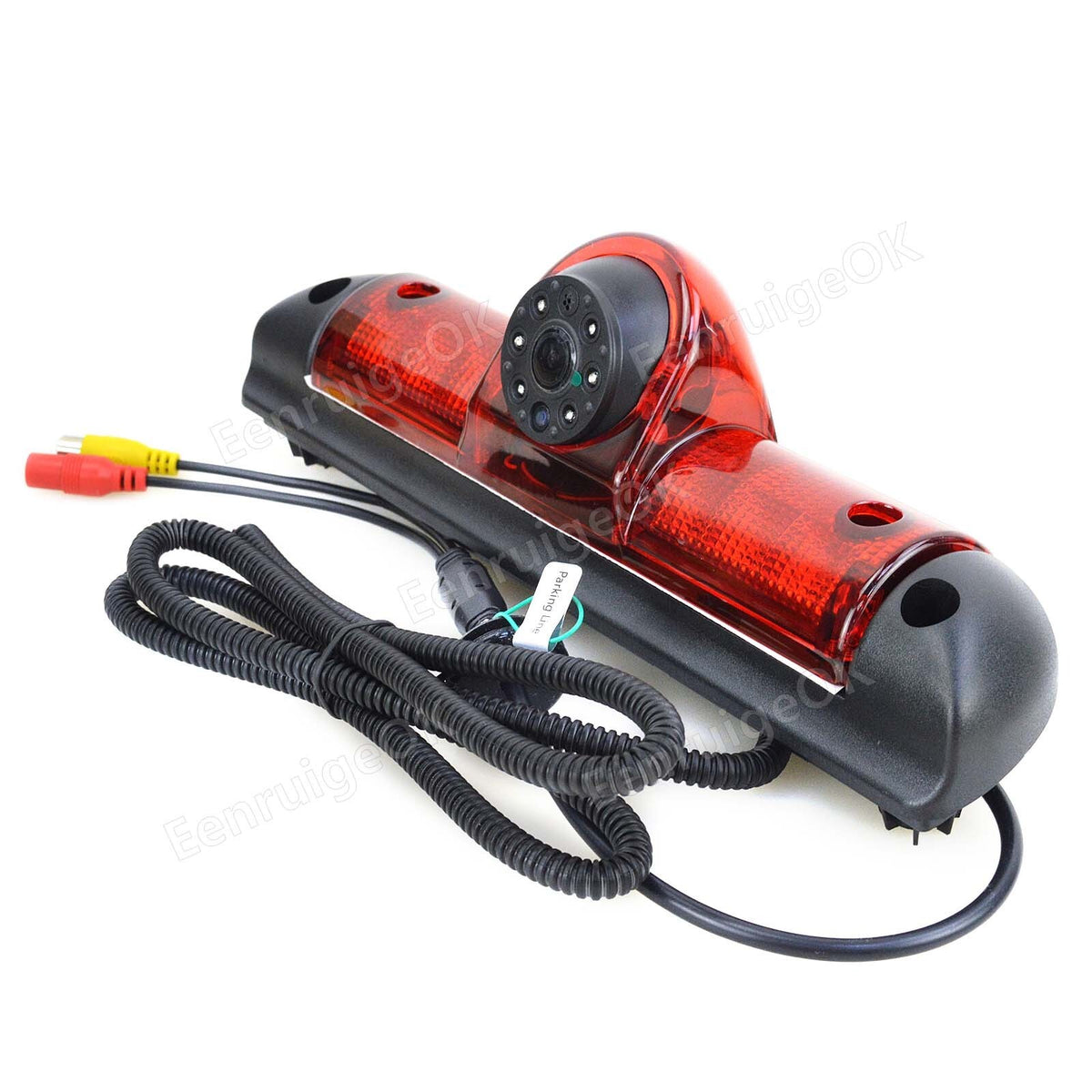

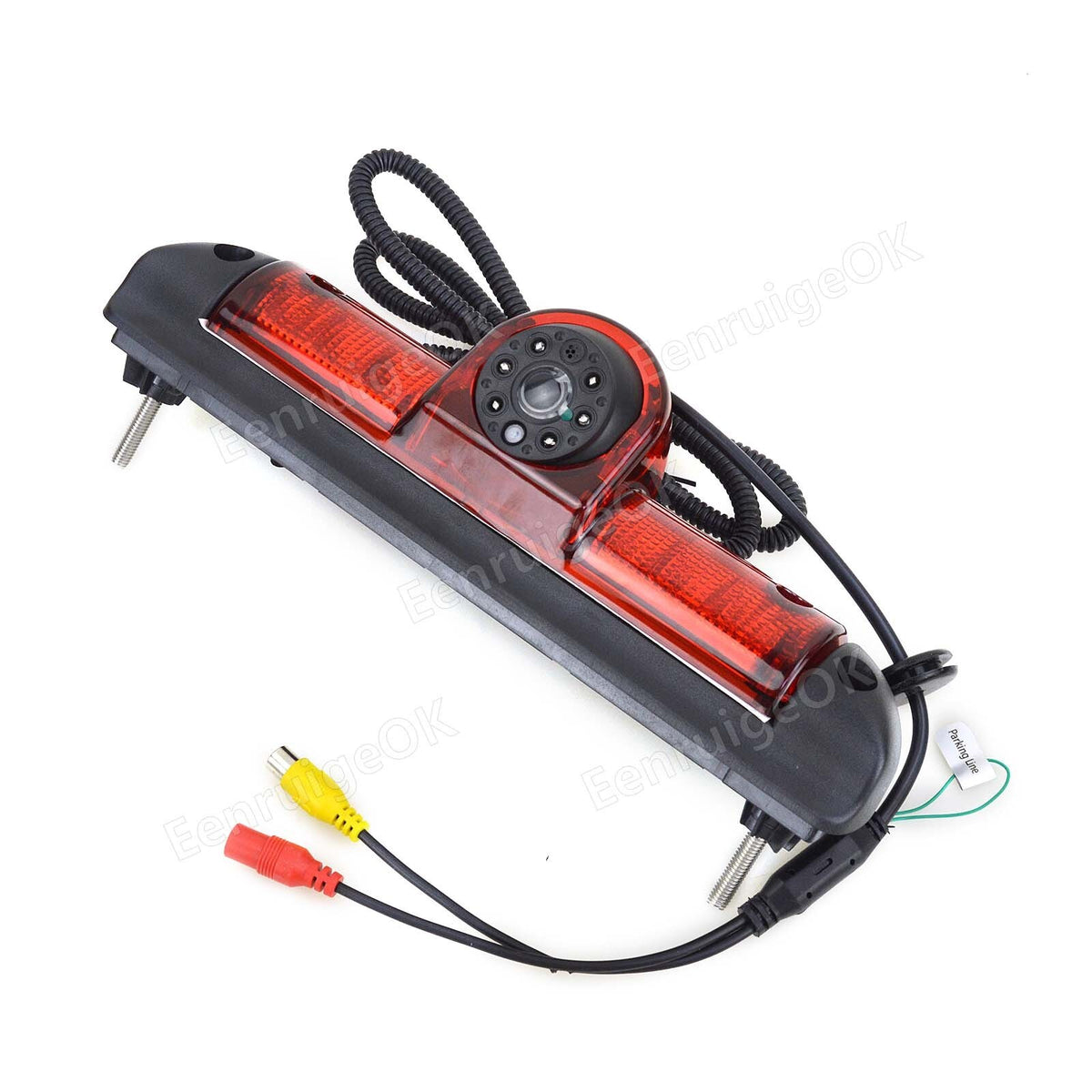

1 X Brake Light Rear View Camera

1 X 5'' IPS display monitor

1 X 10m/33ft. extension cable

1 X Brake light power cable

2 X DC Power cable

2 X Bracket

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
