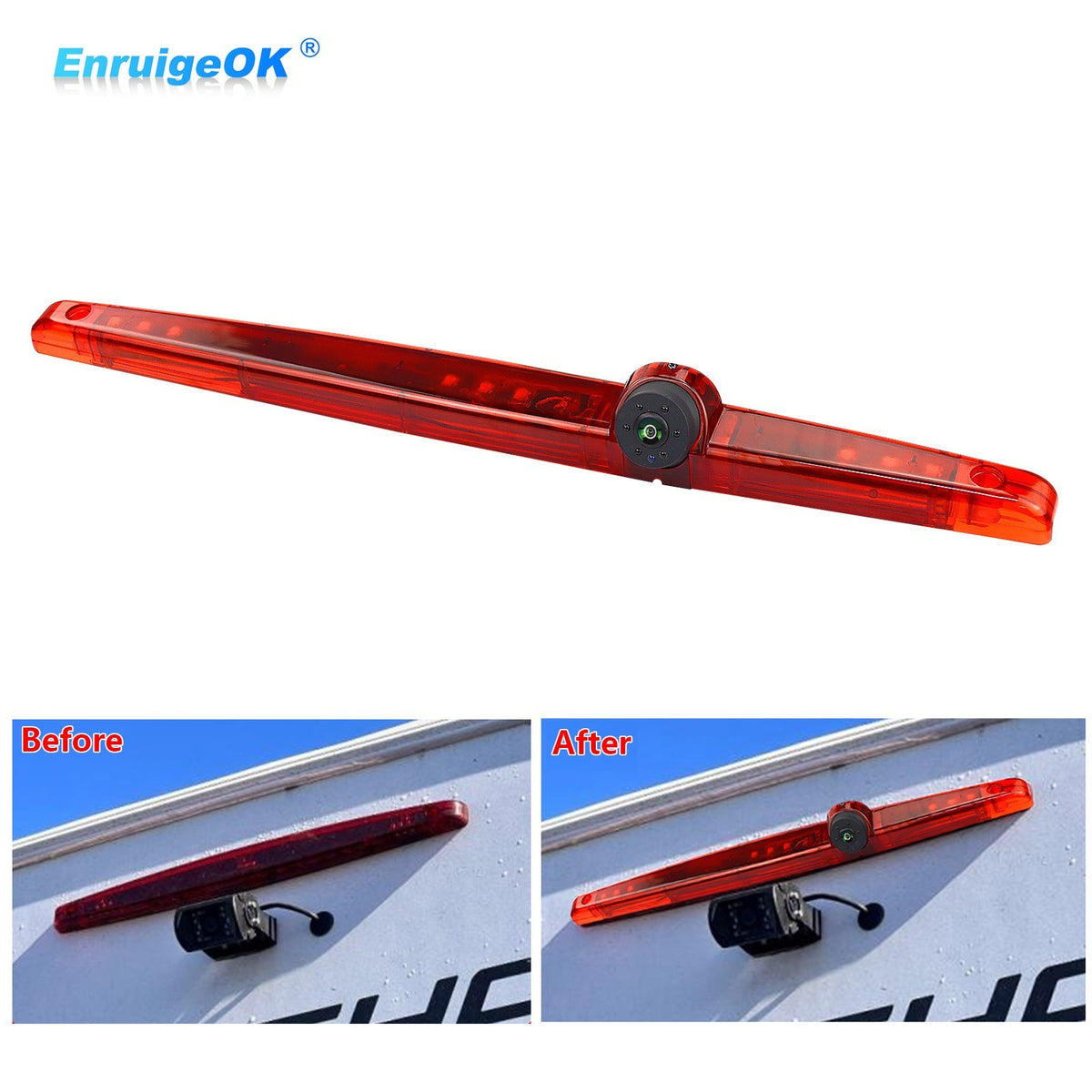

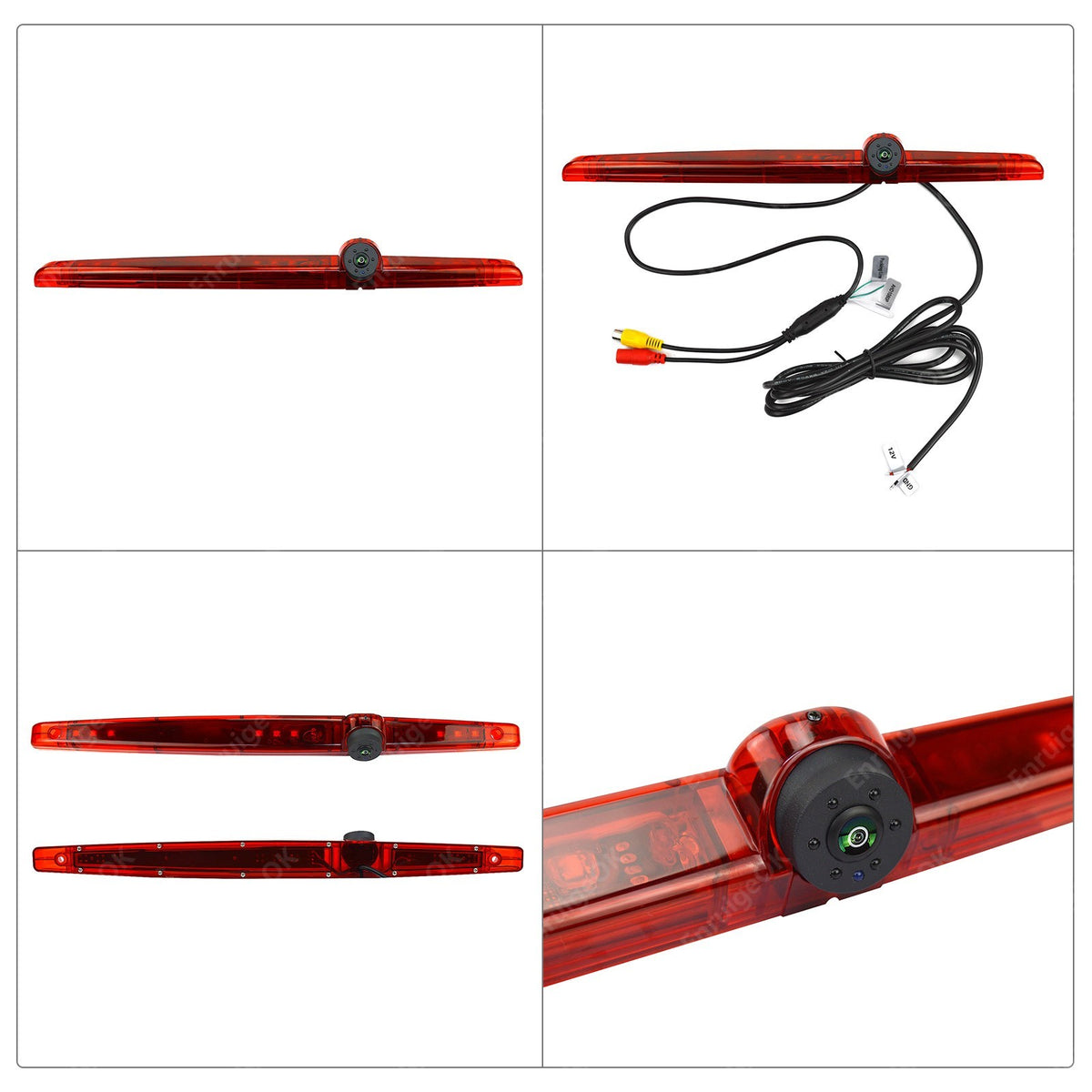

EnruigeOK Surface Mounted 3rd Brake Light Backup Camera Universal for Vans RVs

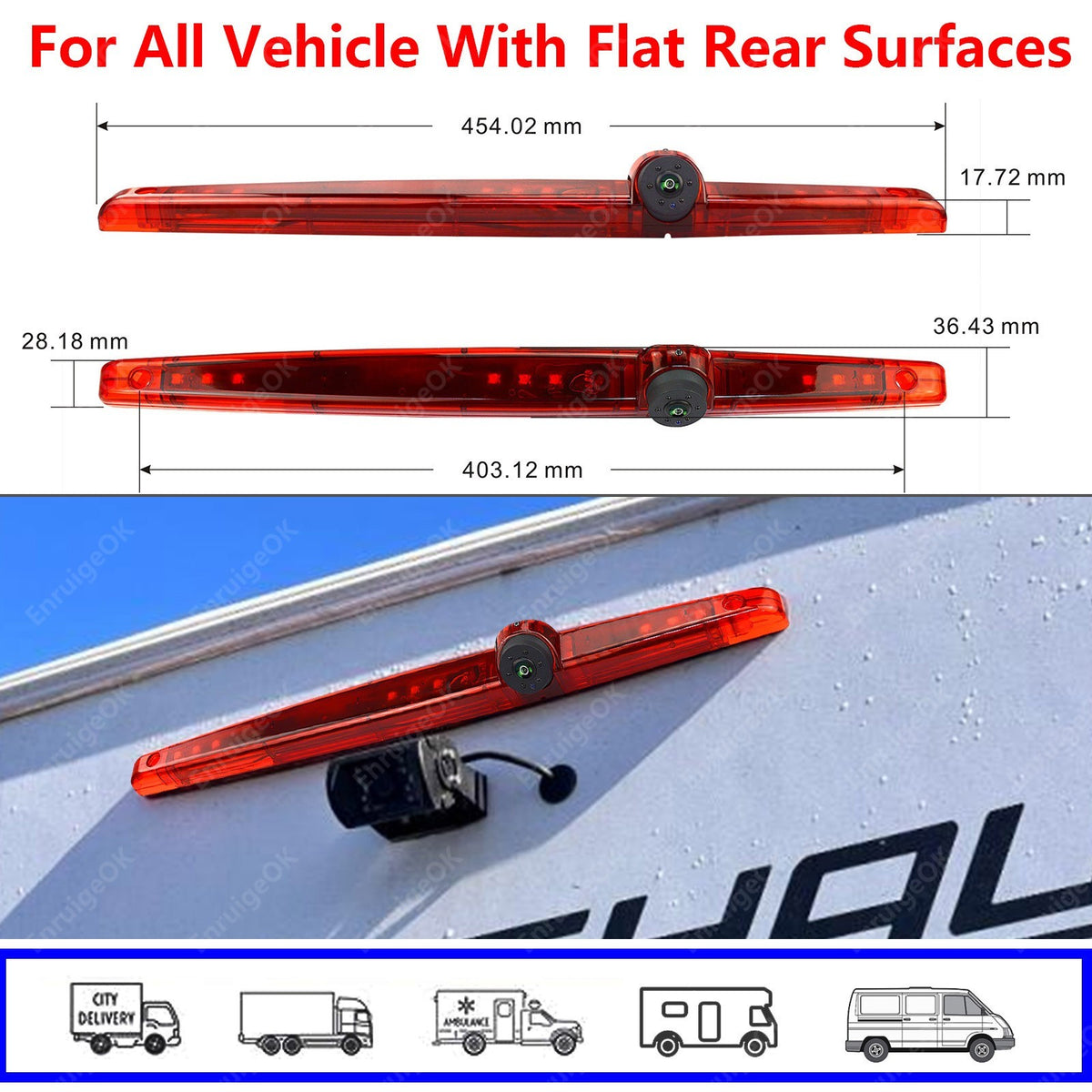

Note: Please check the camera size carefully before make the order.

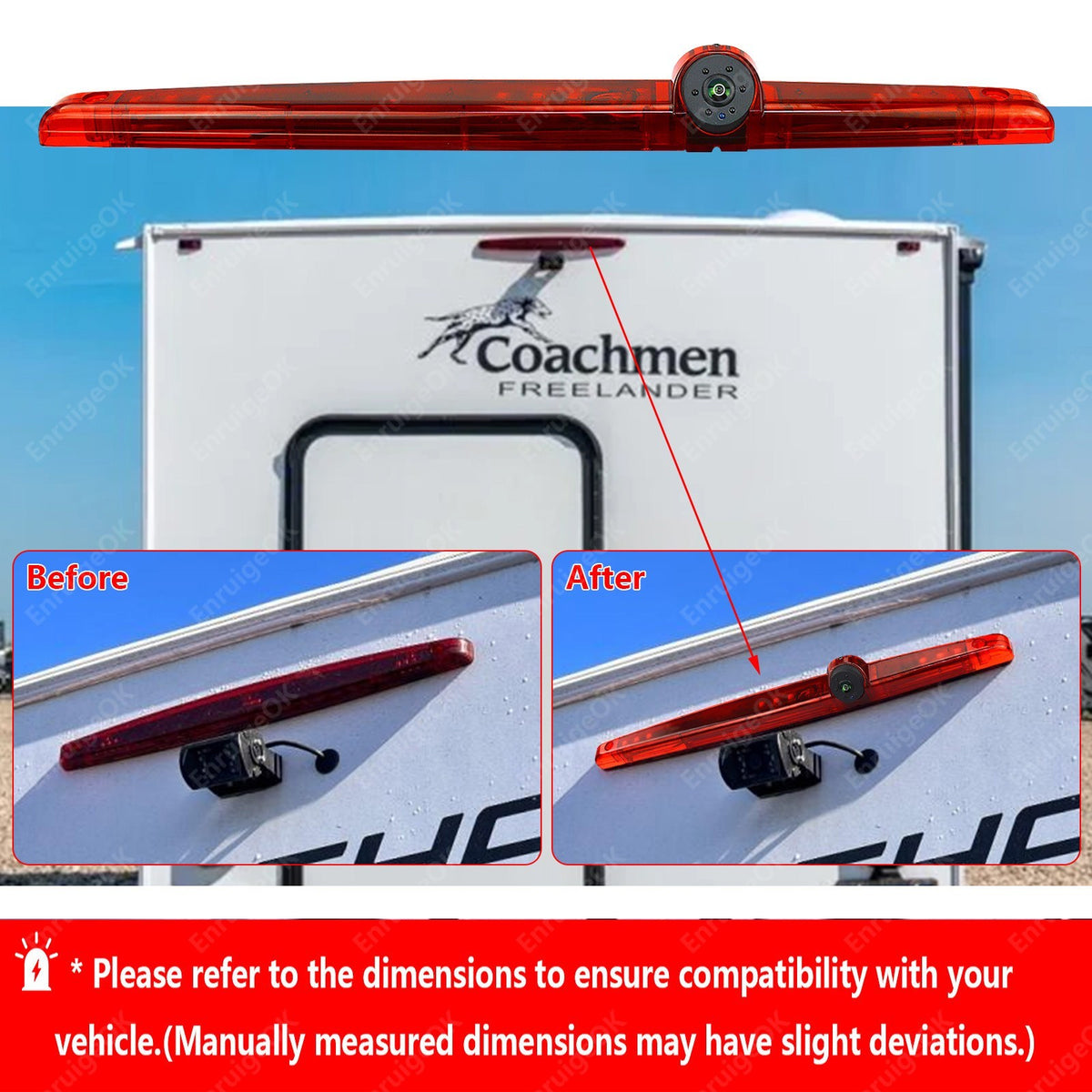

EnruigeOK High Roof Mount 3rd Brake Light Backup Camera for Coachmen RV Class C — Leprechaun / Freelander — Chevy 4500 / Ford 450 Camper, Trailer, Motorhome, LED Tail Light Lamp Reverse Camera for Travel Trailer, Pickup, RV, Camper, Motorhome, Direct Fit for RCA Connector Aftermarket Monitors

Reminder Friendly

This camera defaults to a CVBS 480TVL signal and supports AHD 720P signal (by cutting the white wire).

If your Android device or monitor supports AHD 720P, you can cut the white wire to switch to AHD 720P. If it does not support AHD 720P, please leave the white wire intact. Thank you!

Description

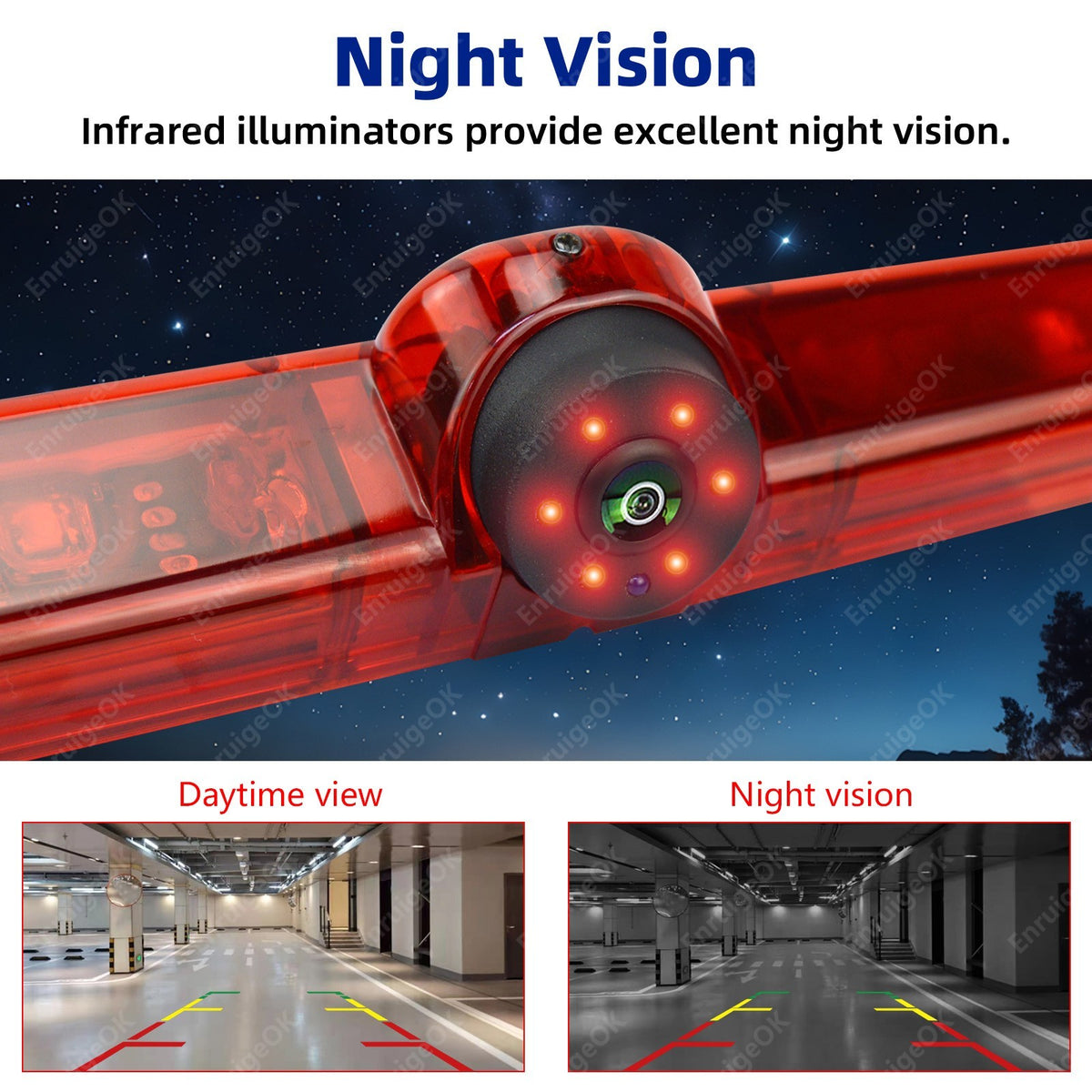

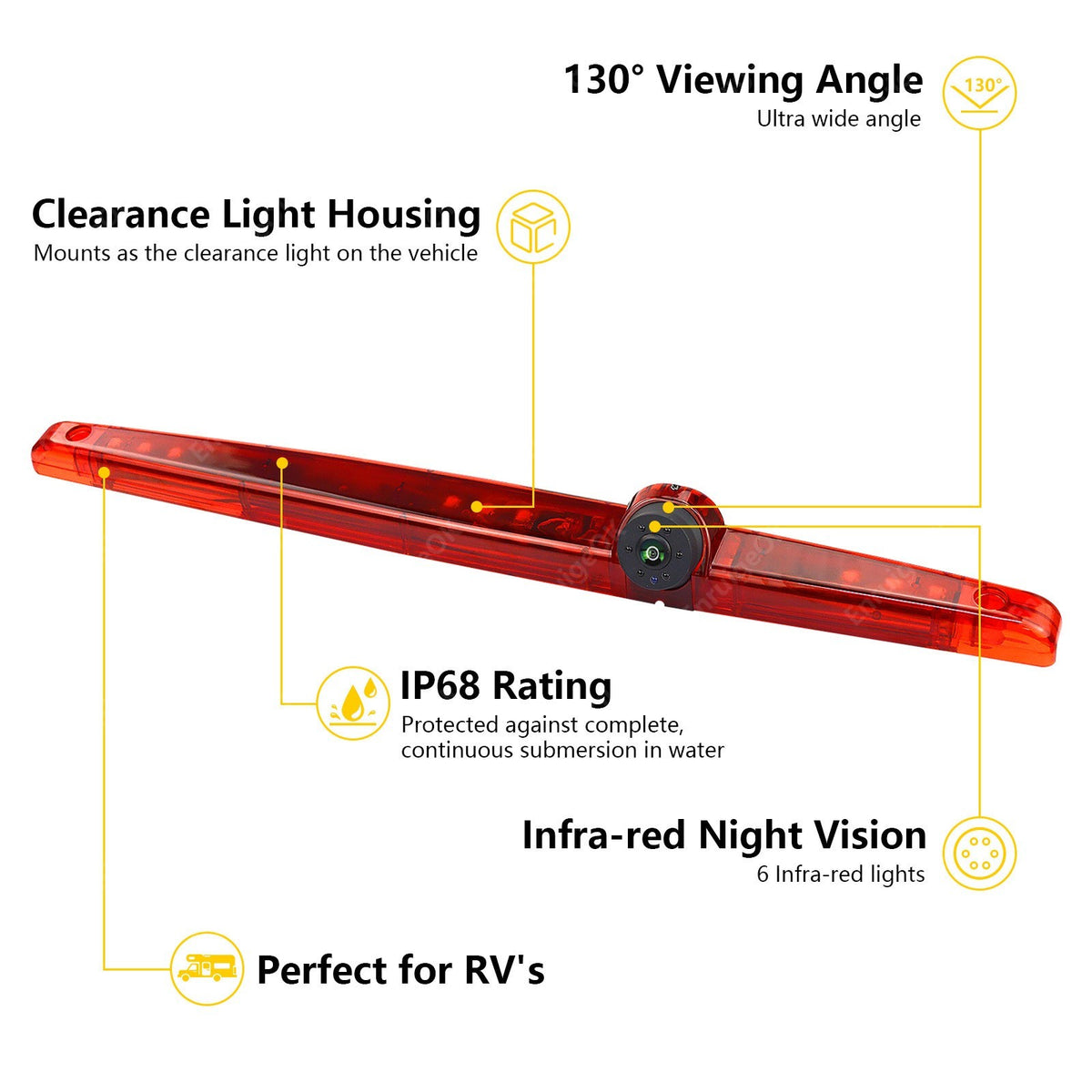

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging. Equipped with a built-in IR-CUT, the camera features 6 infrared lights around the lens to ensure excellent night vision.

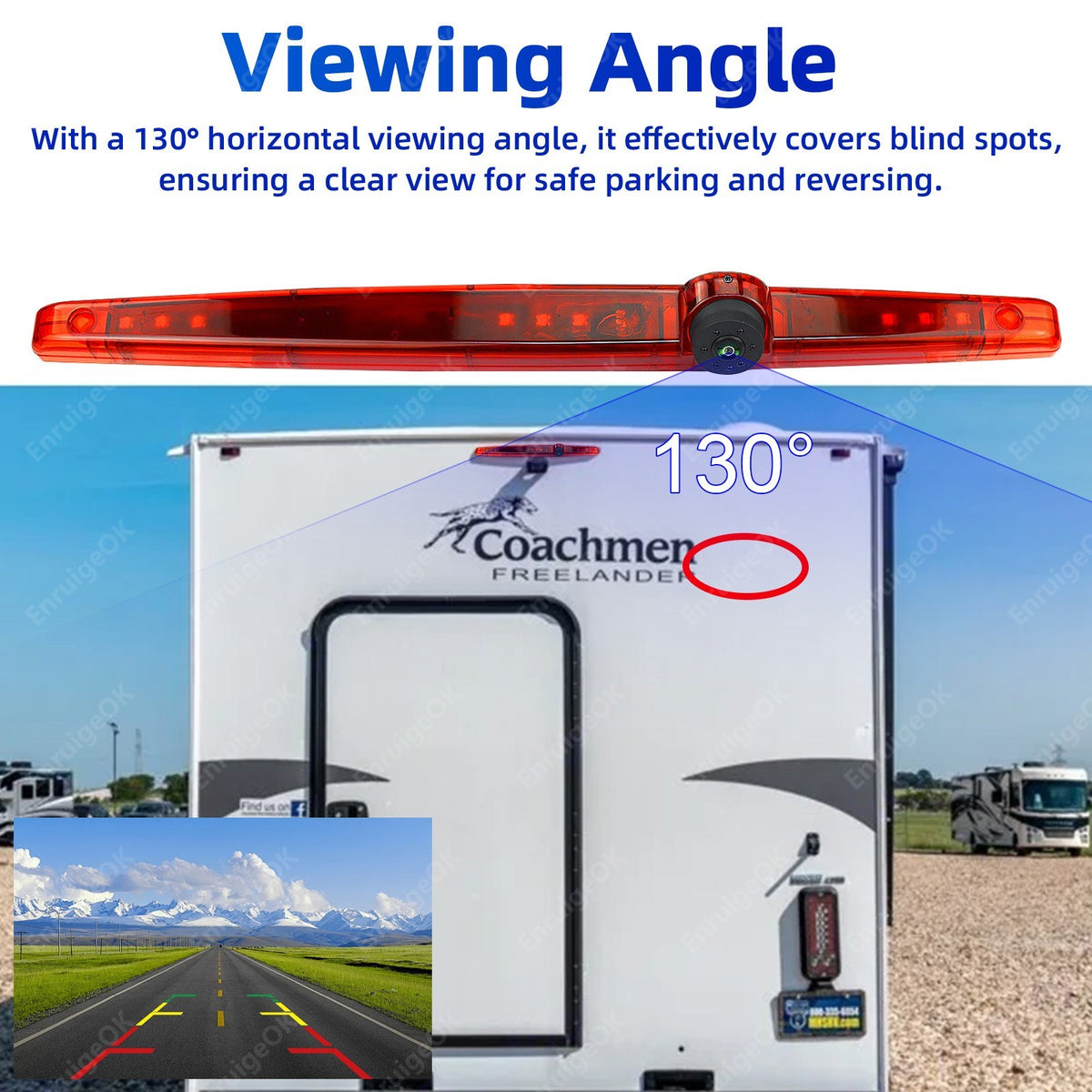

Horizontal Viewing Angle: With a 130-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

Wide Voltage Range(DC 9V-35V): Supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: Colour CMOS

Effective pixel: CVBS 733(H)x493(V); AHD 1280(H)x720(V)

Resolution: CVBS 480TV Lines; AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal angle: 130°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +70℃

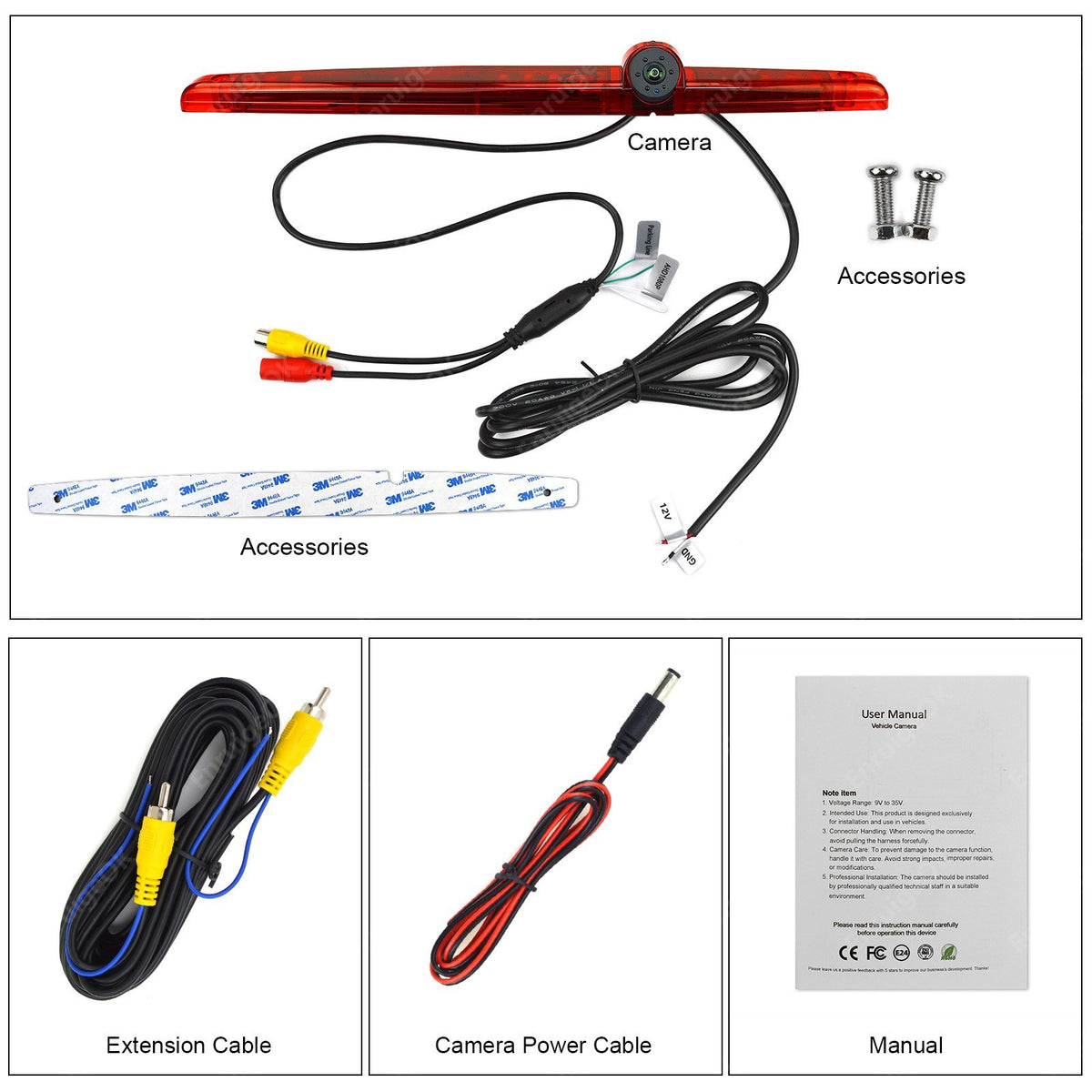

Package contents

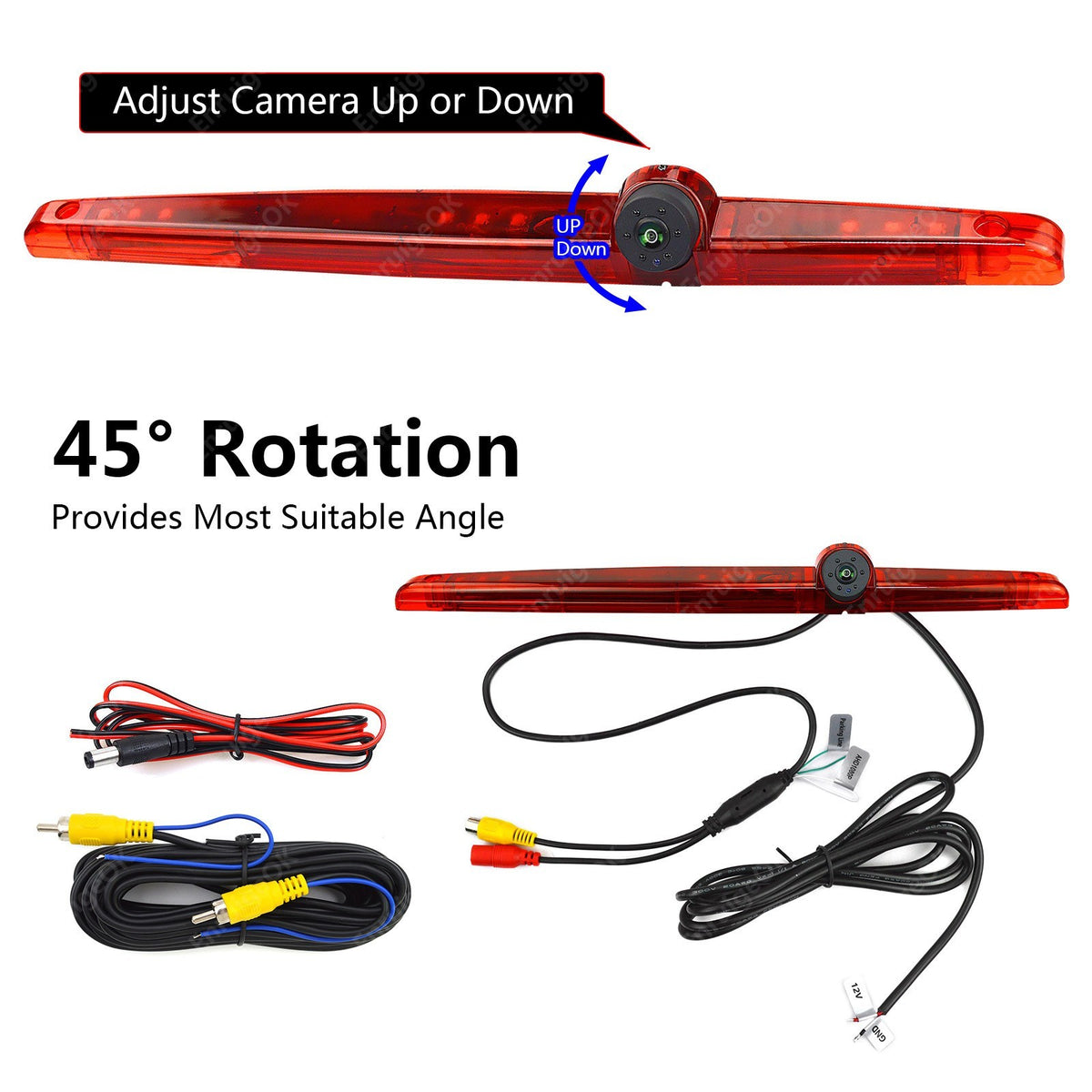

1 X Brake light camera

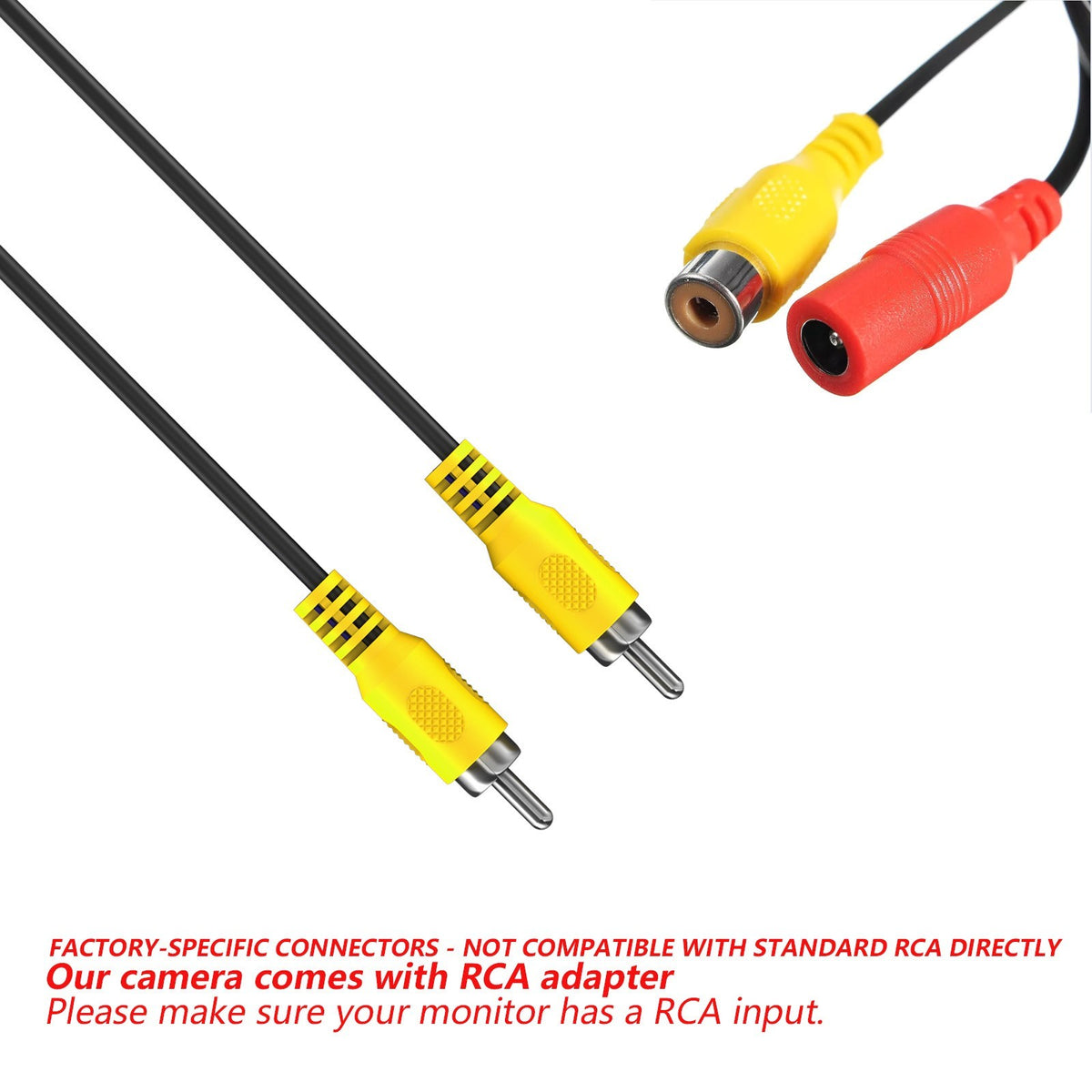

1 X 10m/33ft. RCA video extension cable

1 X 1m DC Power cable

1 X Manual

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
