Dual Twin Rear View Reversing Camera for Motorhome Van & 6.86" Split Screen

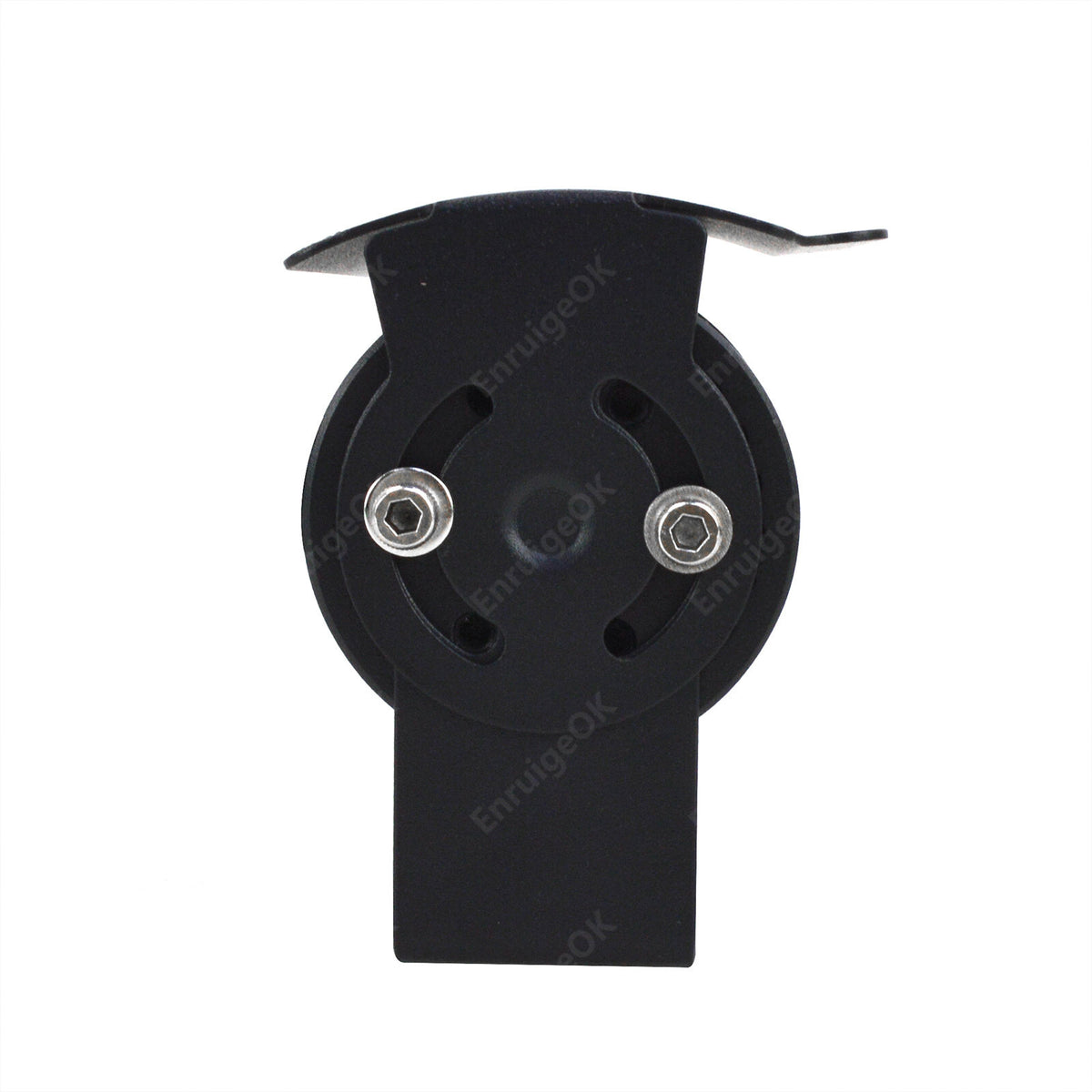

Monitor Bracket Note

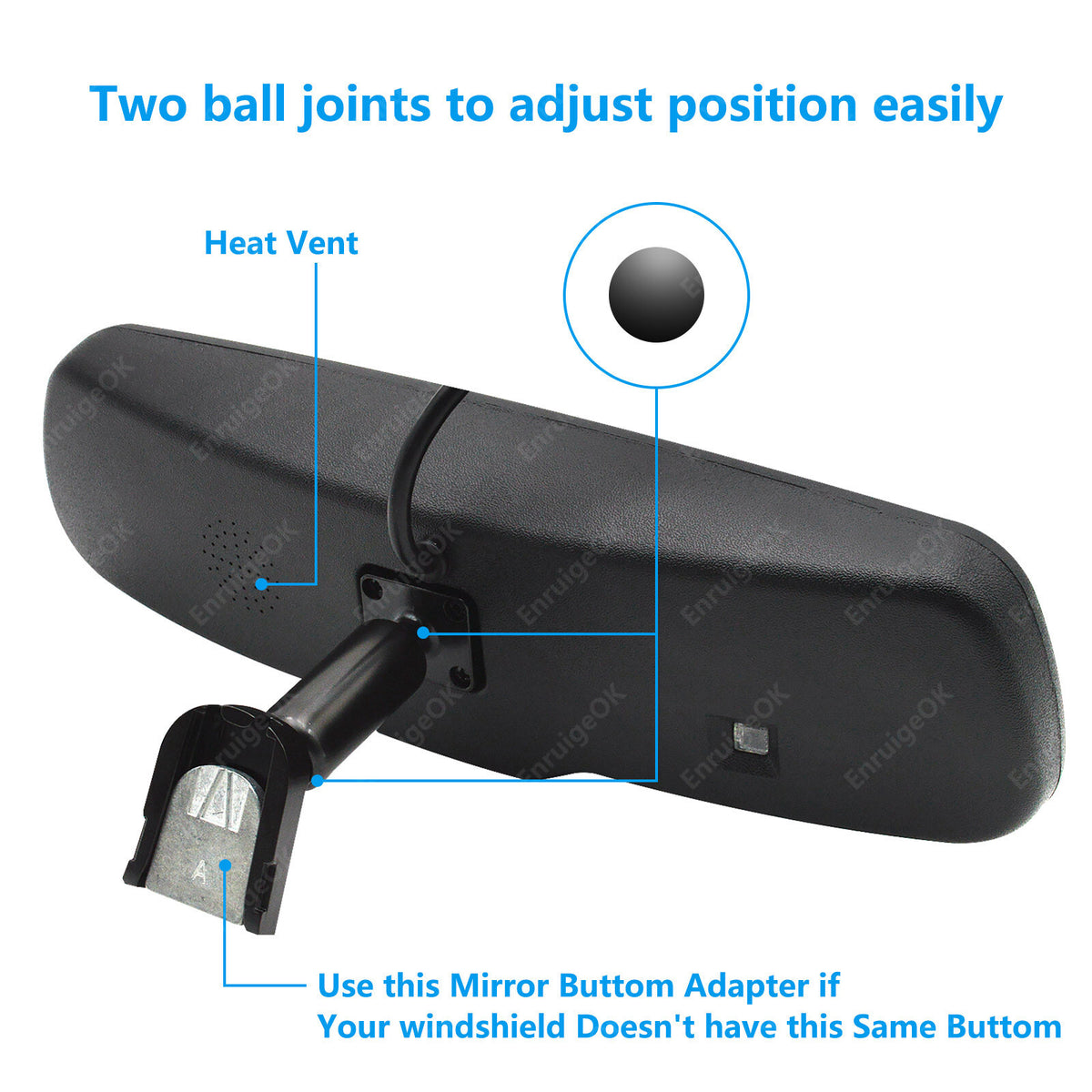

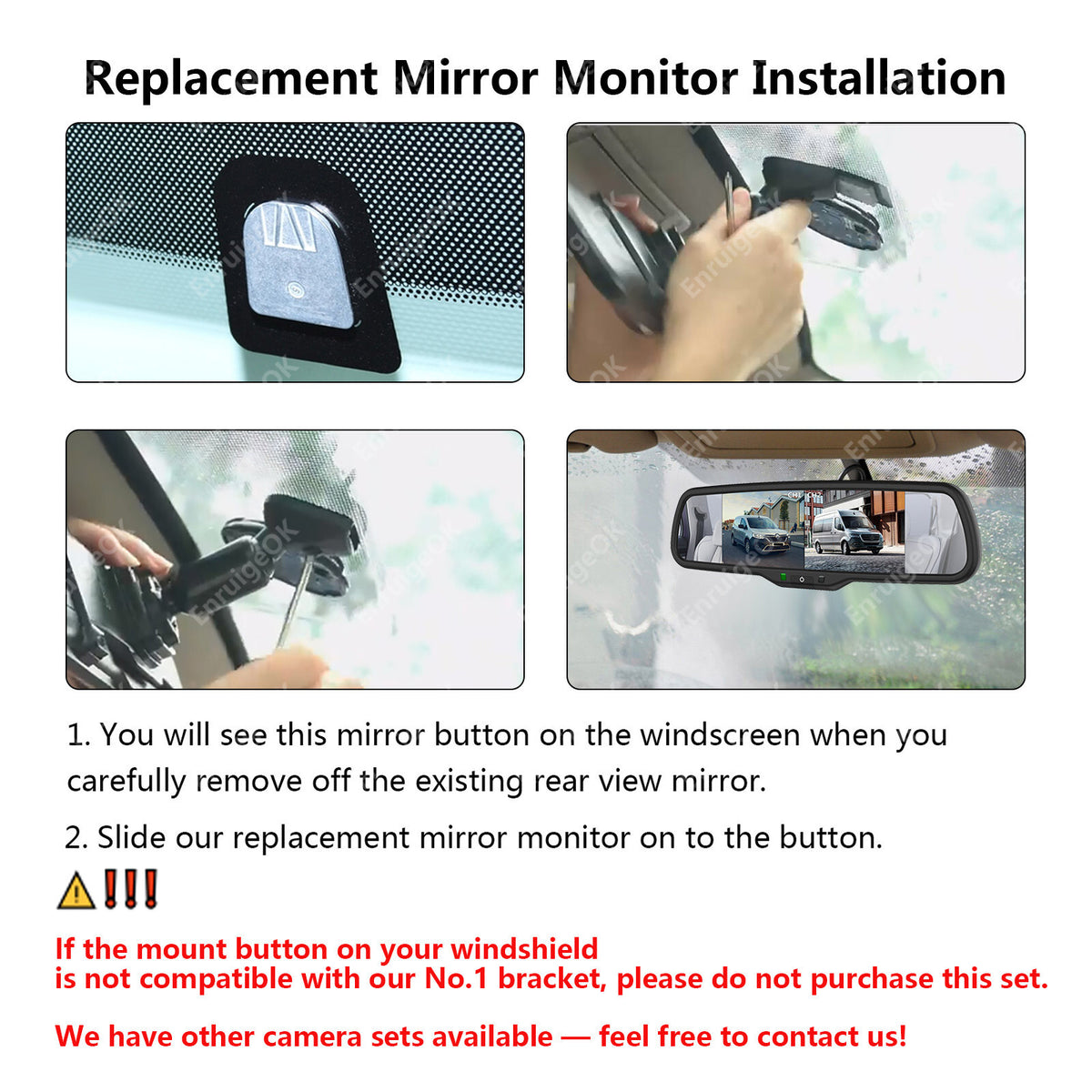

This set comes with a #1 bracket by default. Please confirm compatibility by sending us a photo of your windshield button or mirror bracket if unsure.

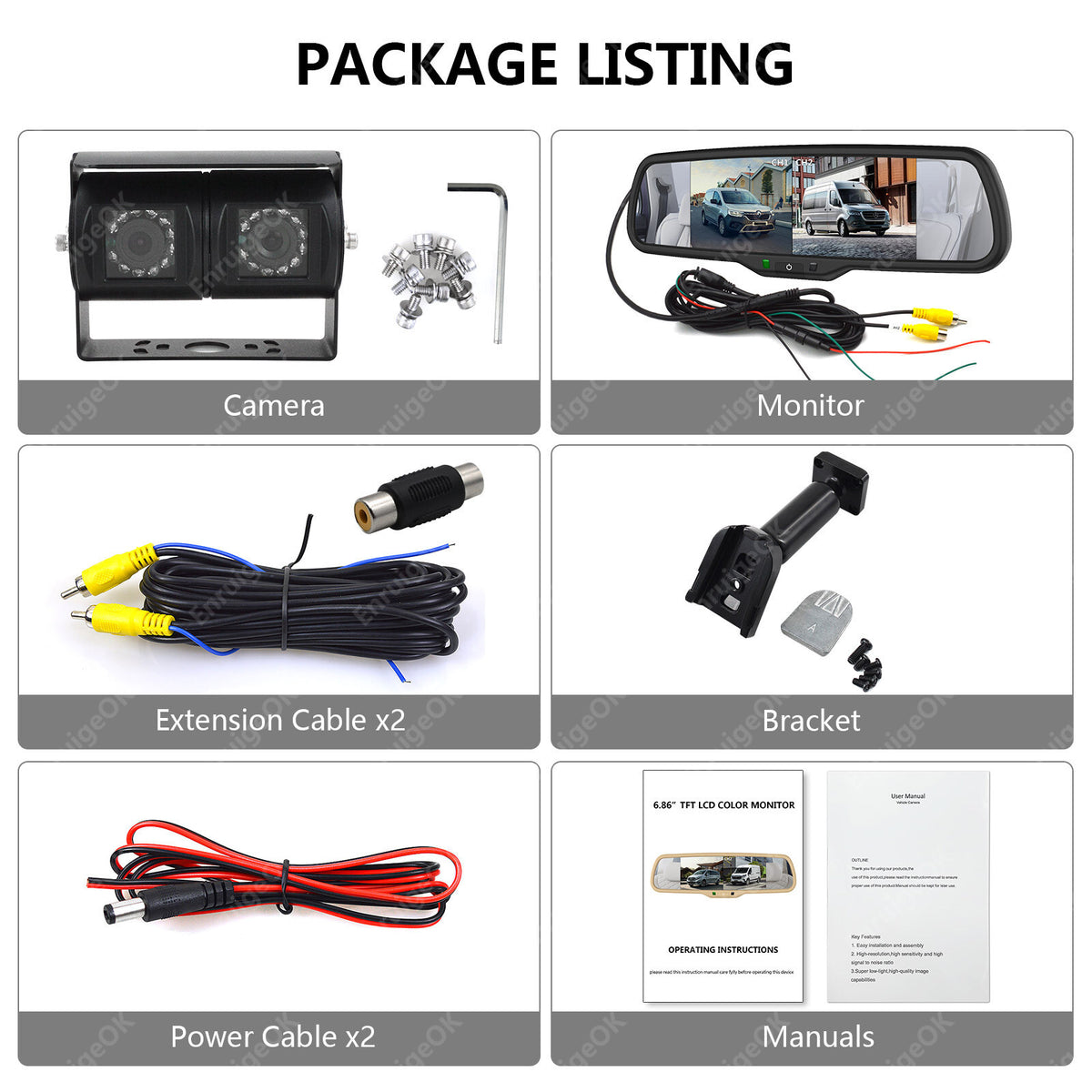

Package contents

1 X Dual lens rear view camera

1 X 6.86'' Mirror monitor

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X Female to female adapter

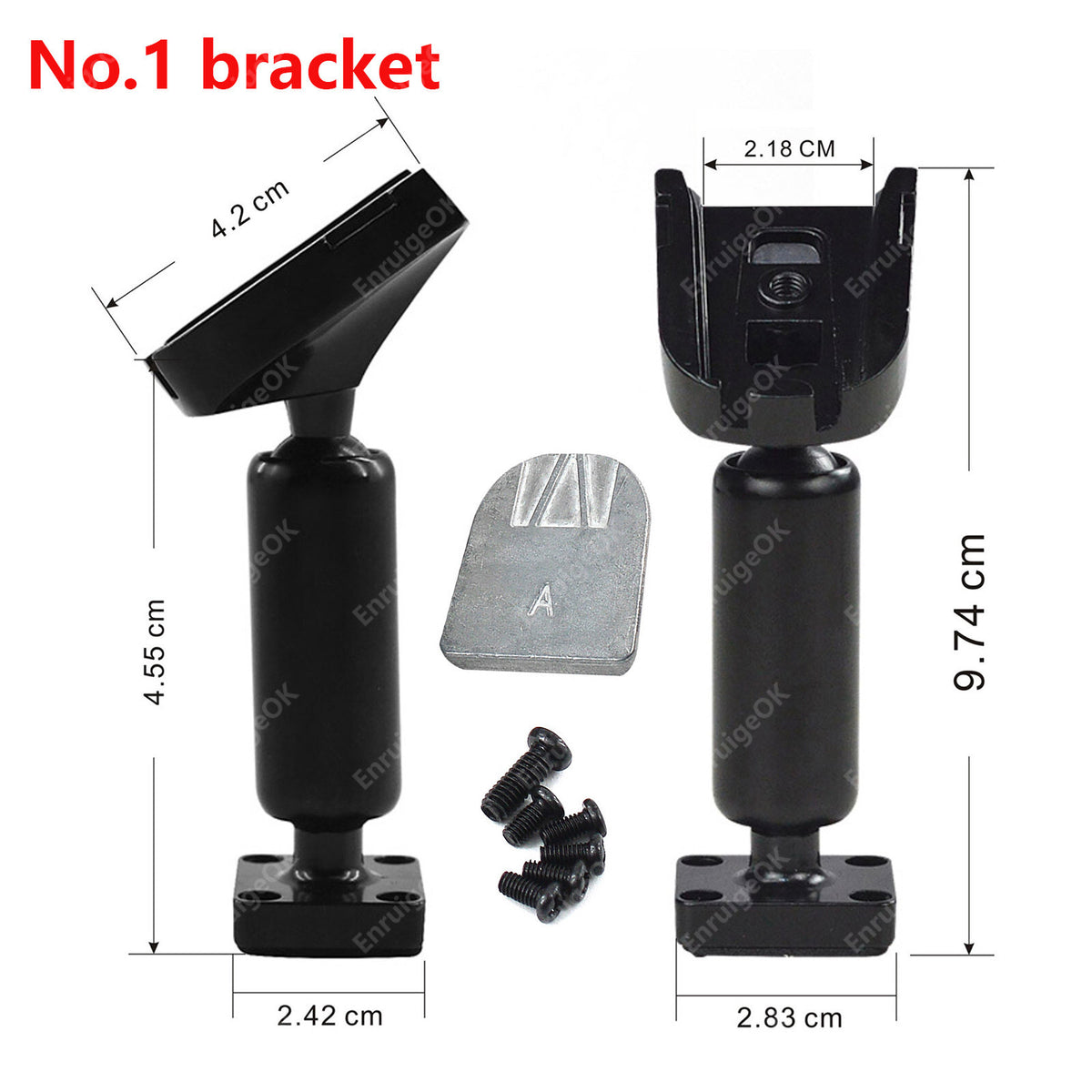

1 X #1 bracket(check your windshield button)

1 X Manual

Screws

Descriptions:

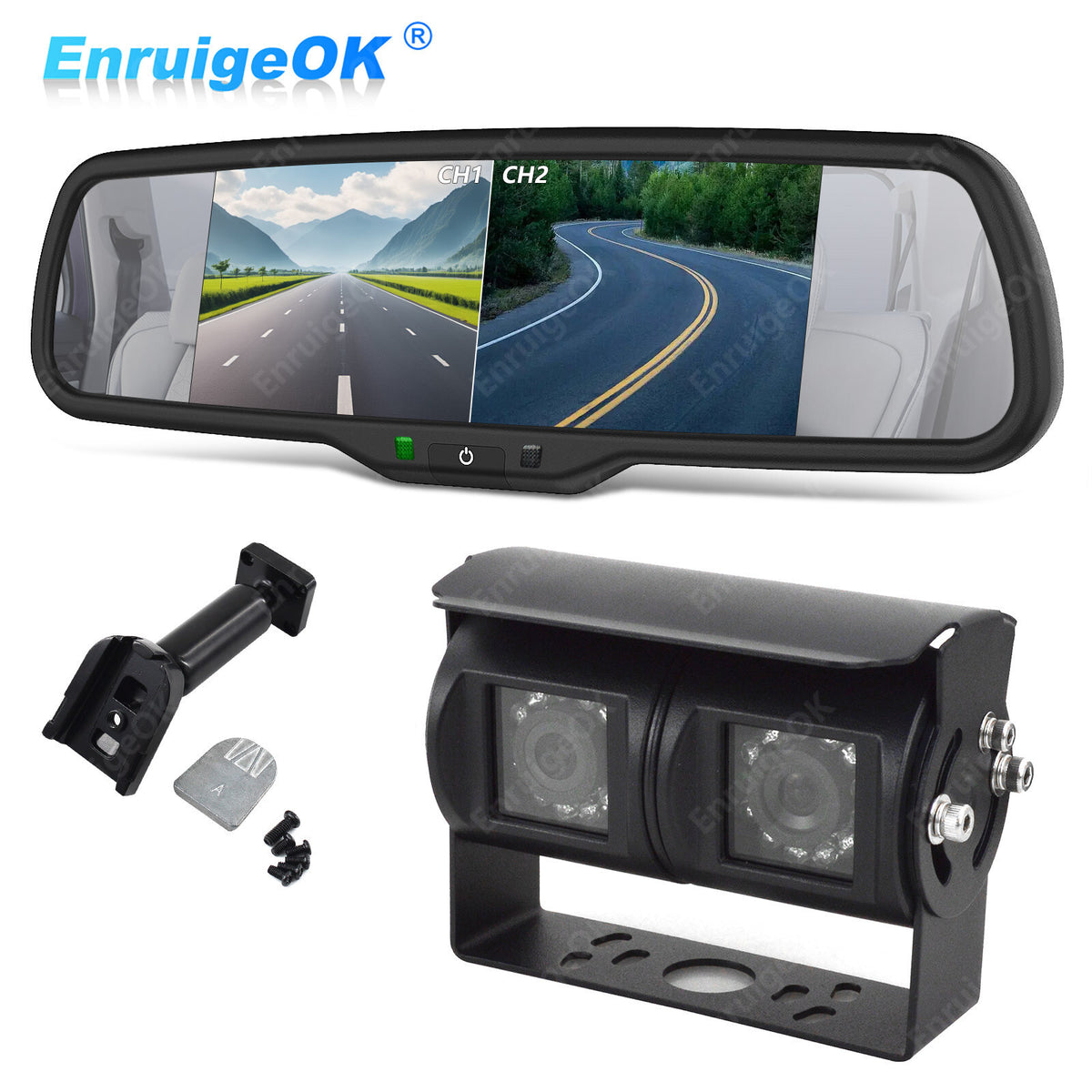

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens camera for enhanced visibility and parking safety.

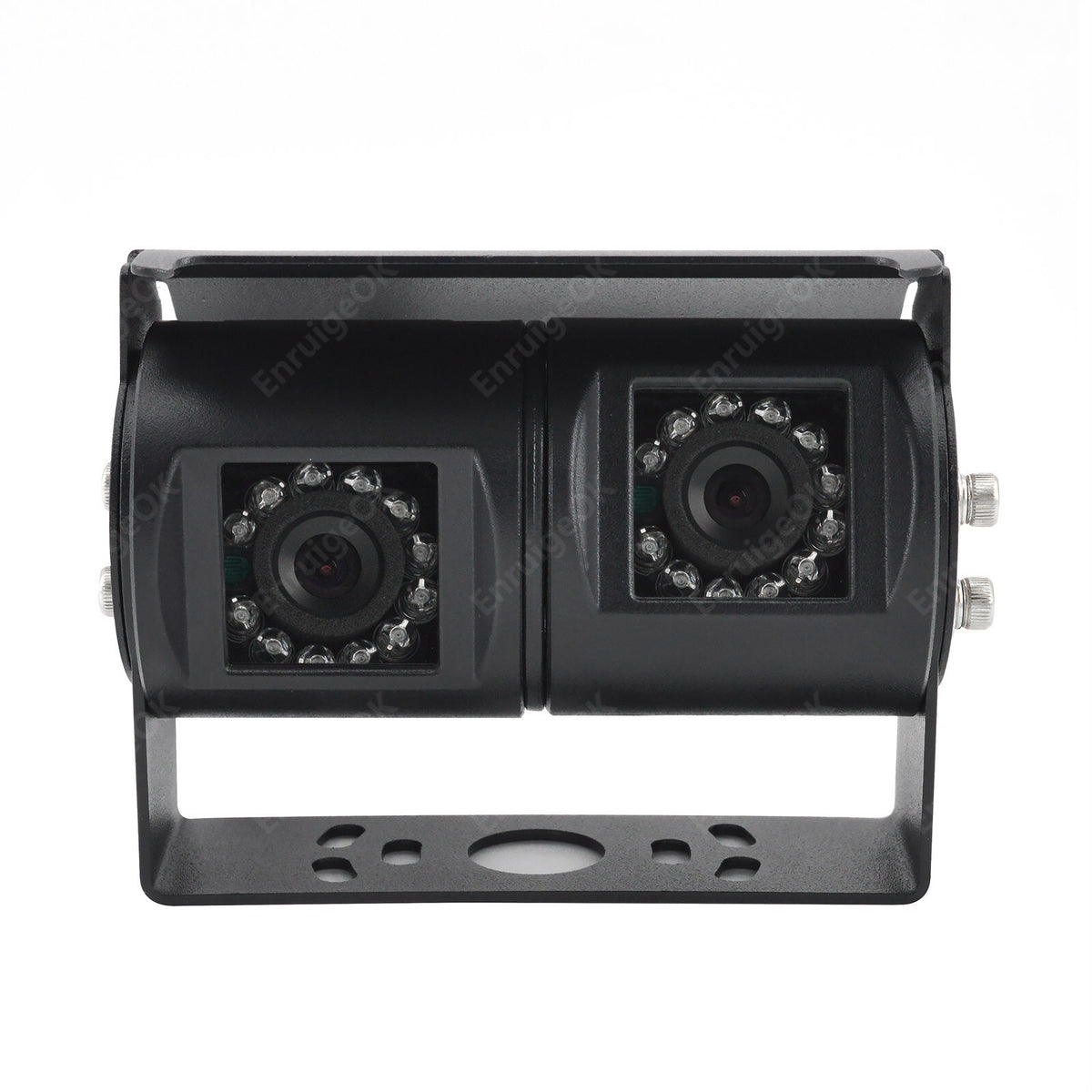

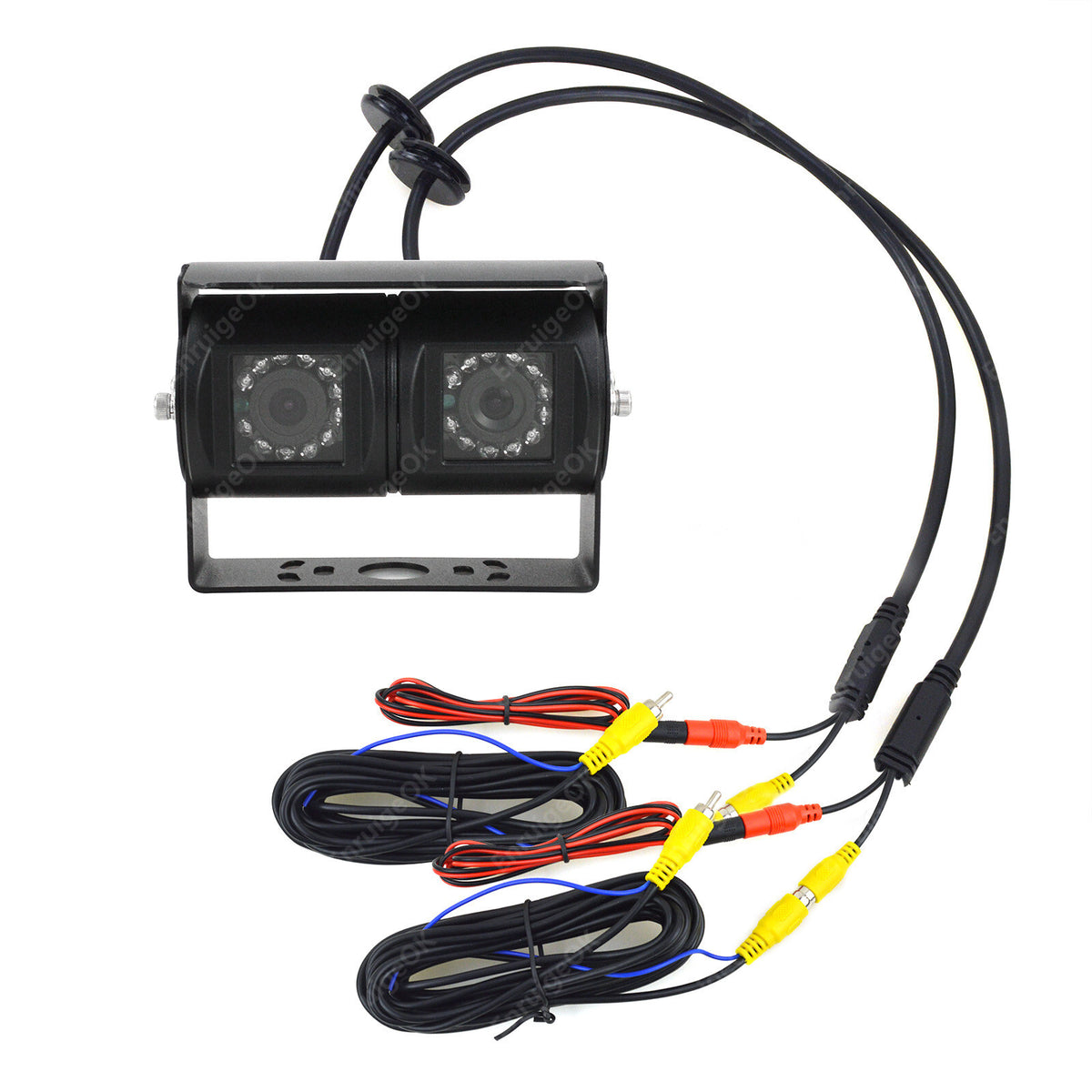

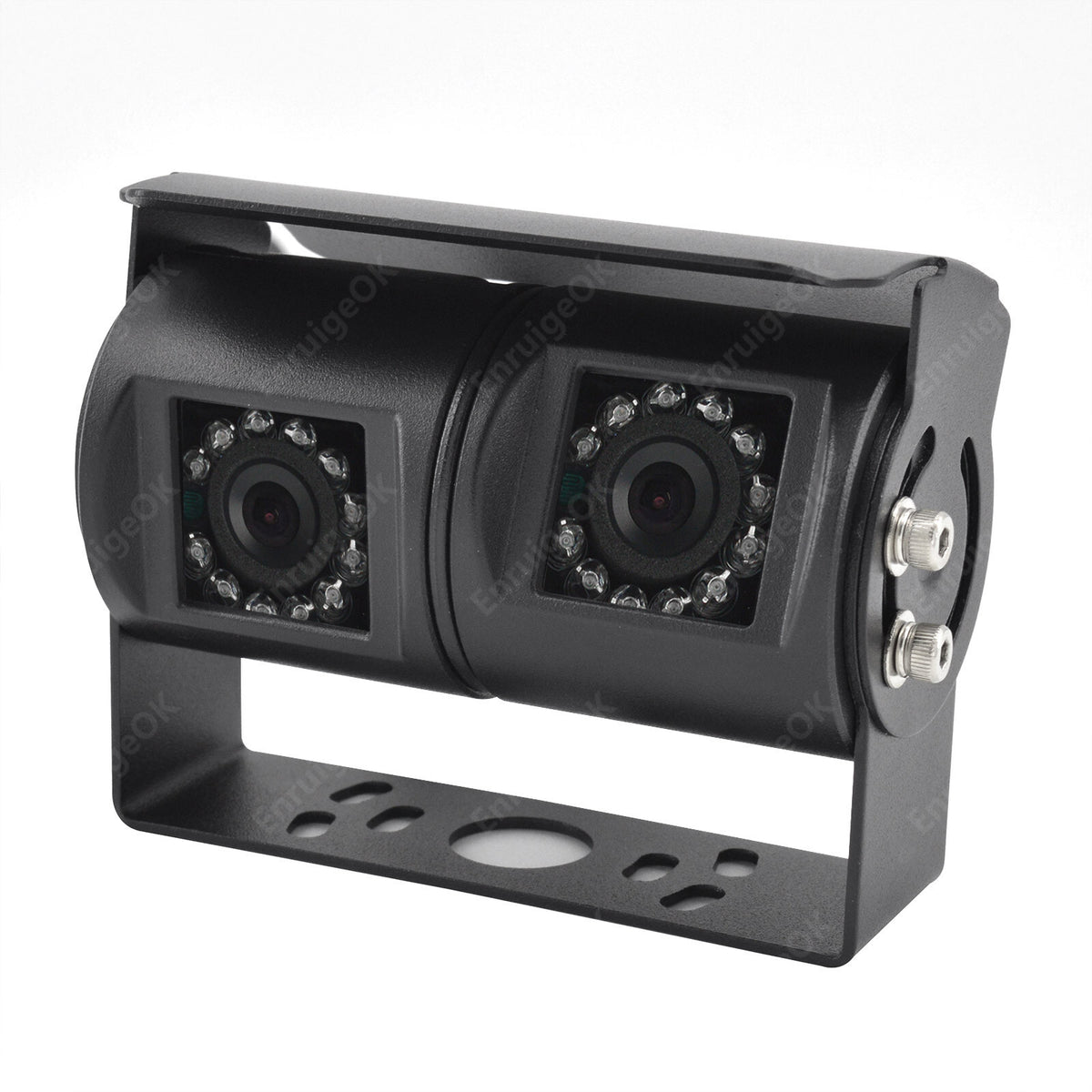

TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving, one for reversing view while parking.

Enhanced Night Vision: 24 IR LEDs (12 per lens) provide clear images even in low light.

High-Quality CMOS Sensor: 1/3" sensor delivers sharp color images day and night.

120° Wide Angle: Reduces blind spots to help prevent accidents and injuries.

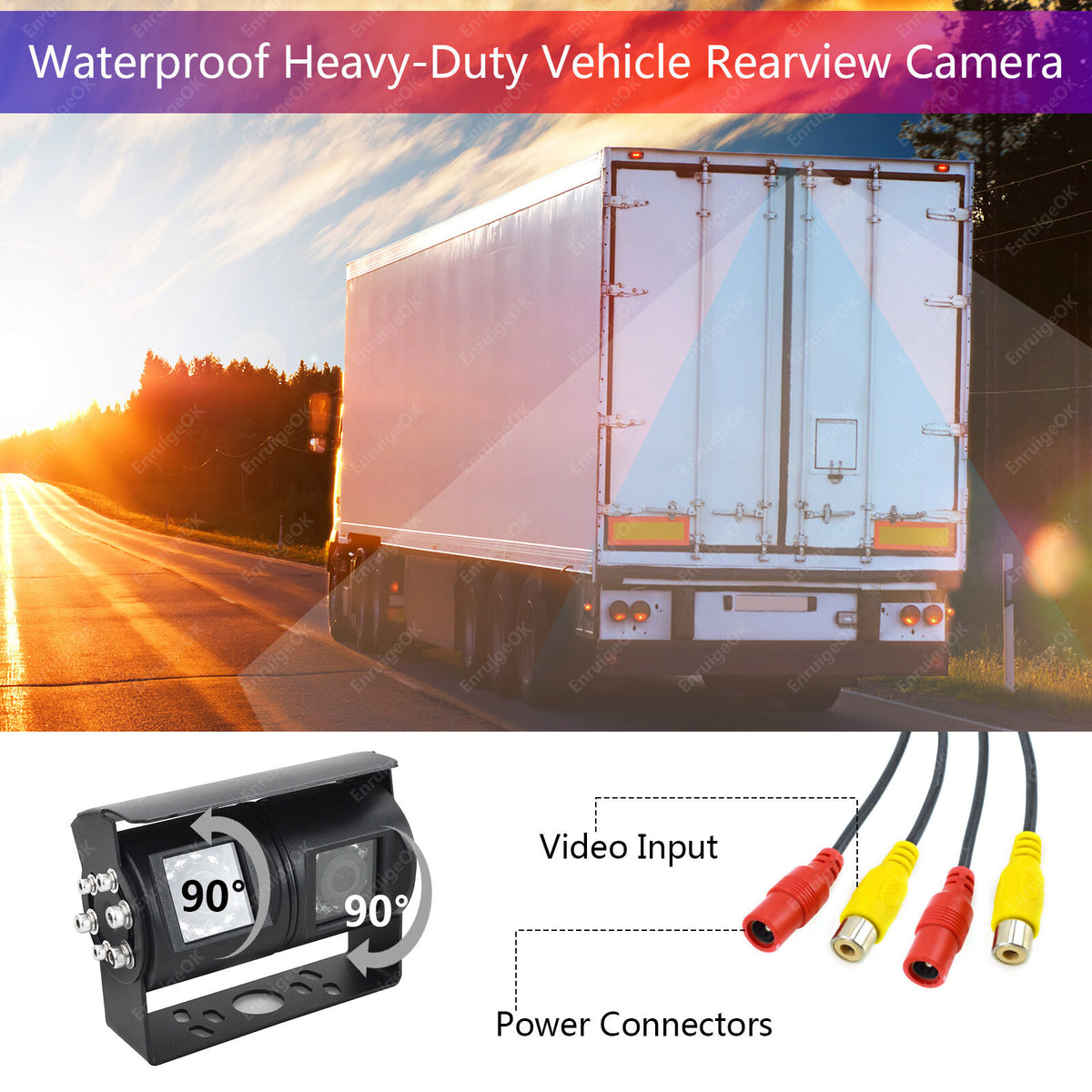

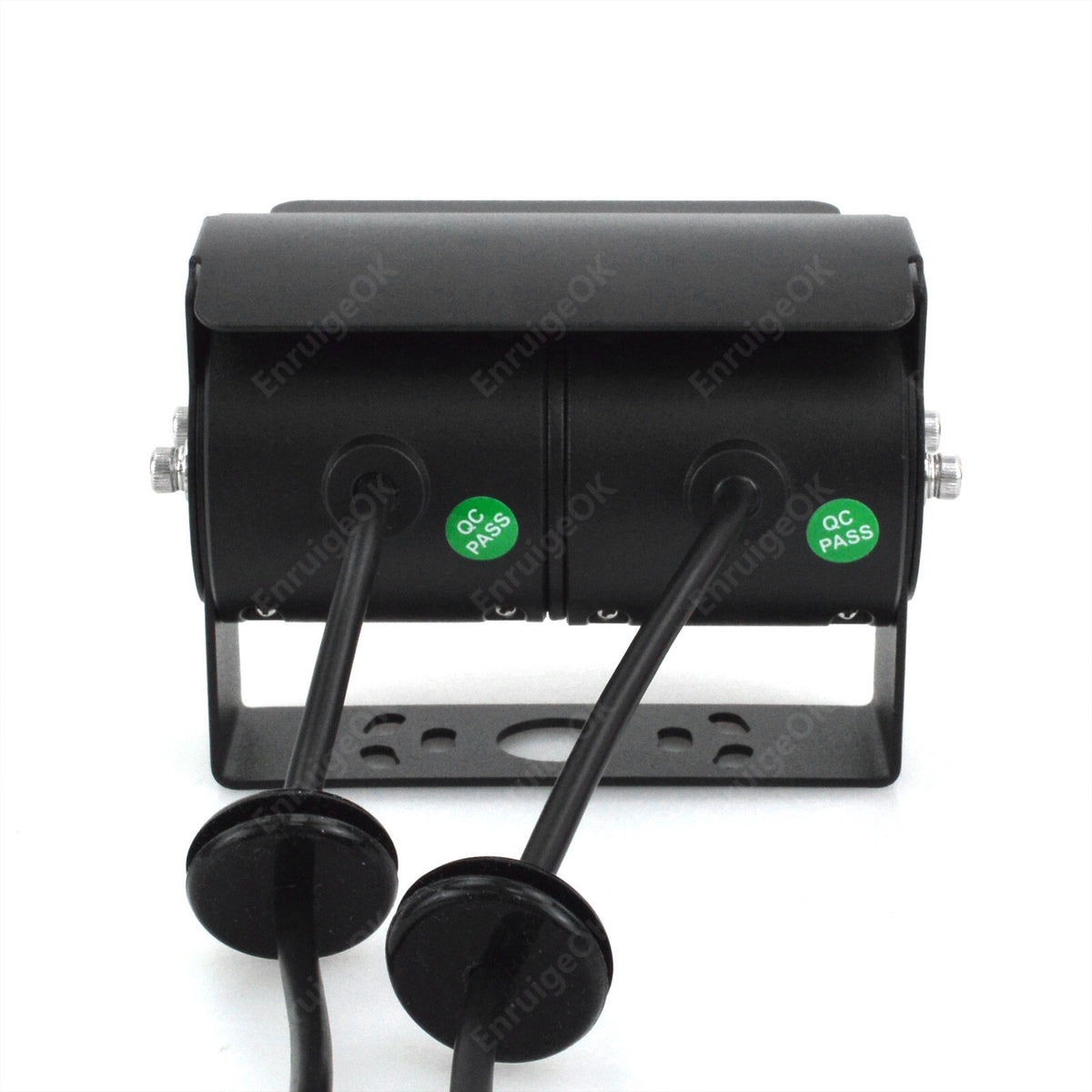

Rugged Waterproof Design: IP68-rated for all-weather durability, ideal for continuous outdoor use.

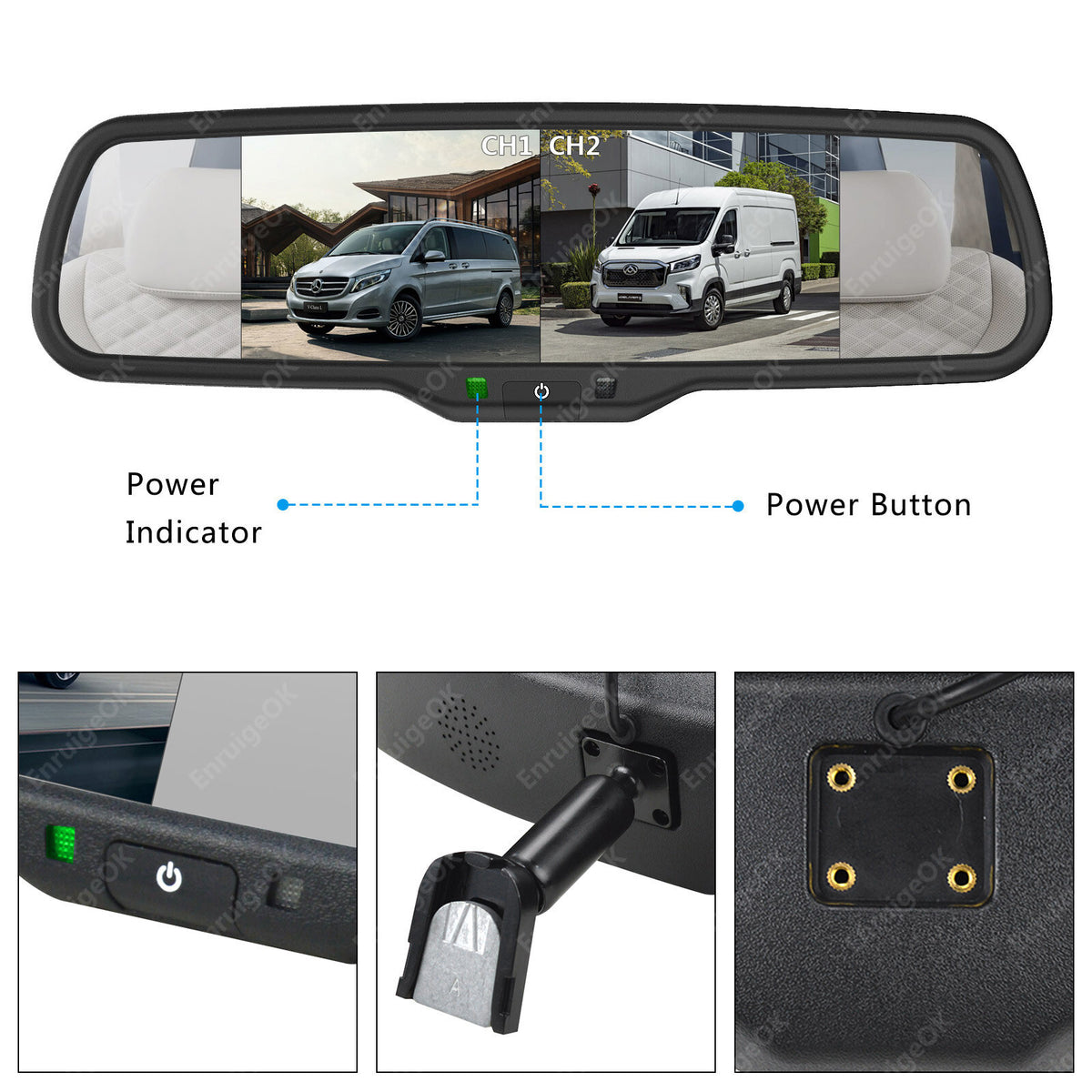

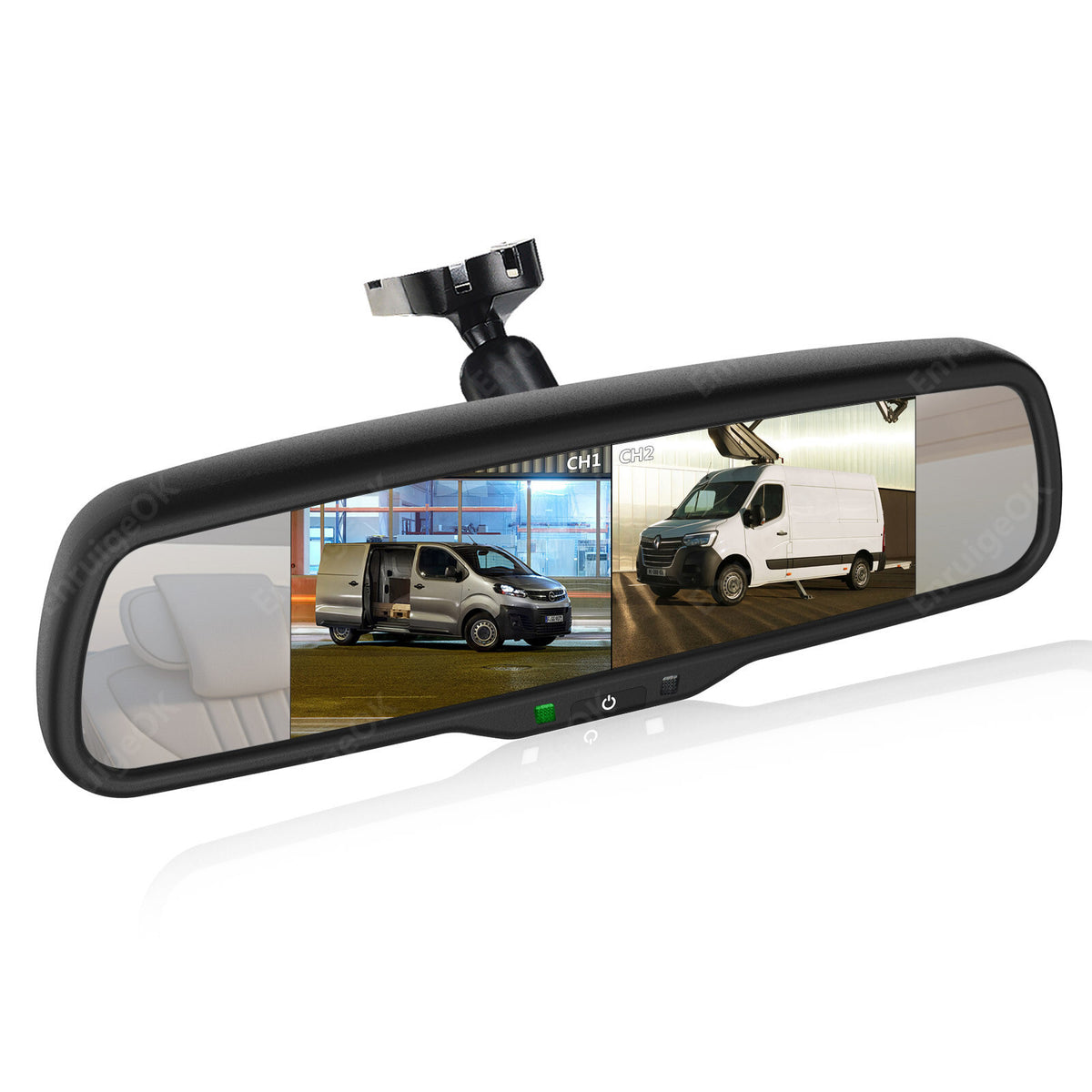

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

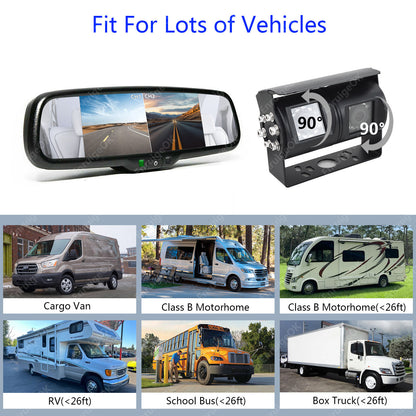

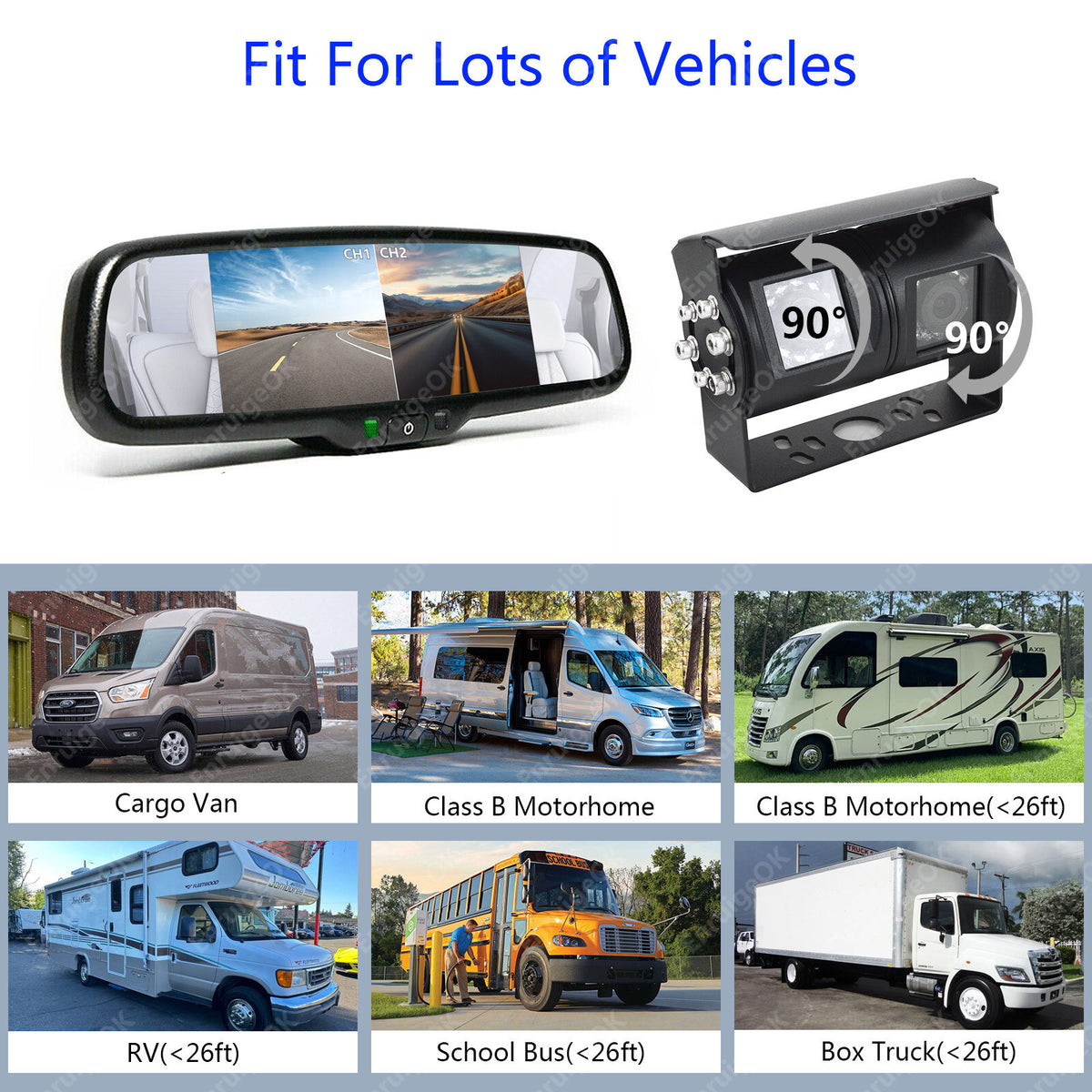

Improved Safety: Provides a clear rear view, perfect for maneuvering larger vehicles like buses, caravans, and trailers.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm&3.6mm

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP68

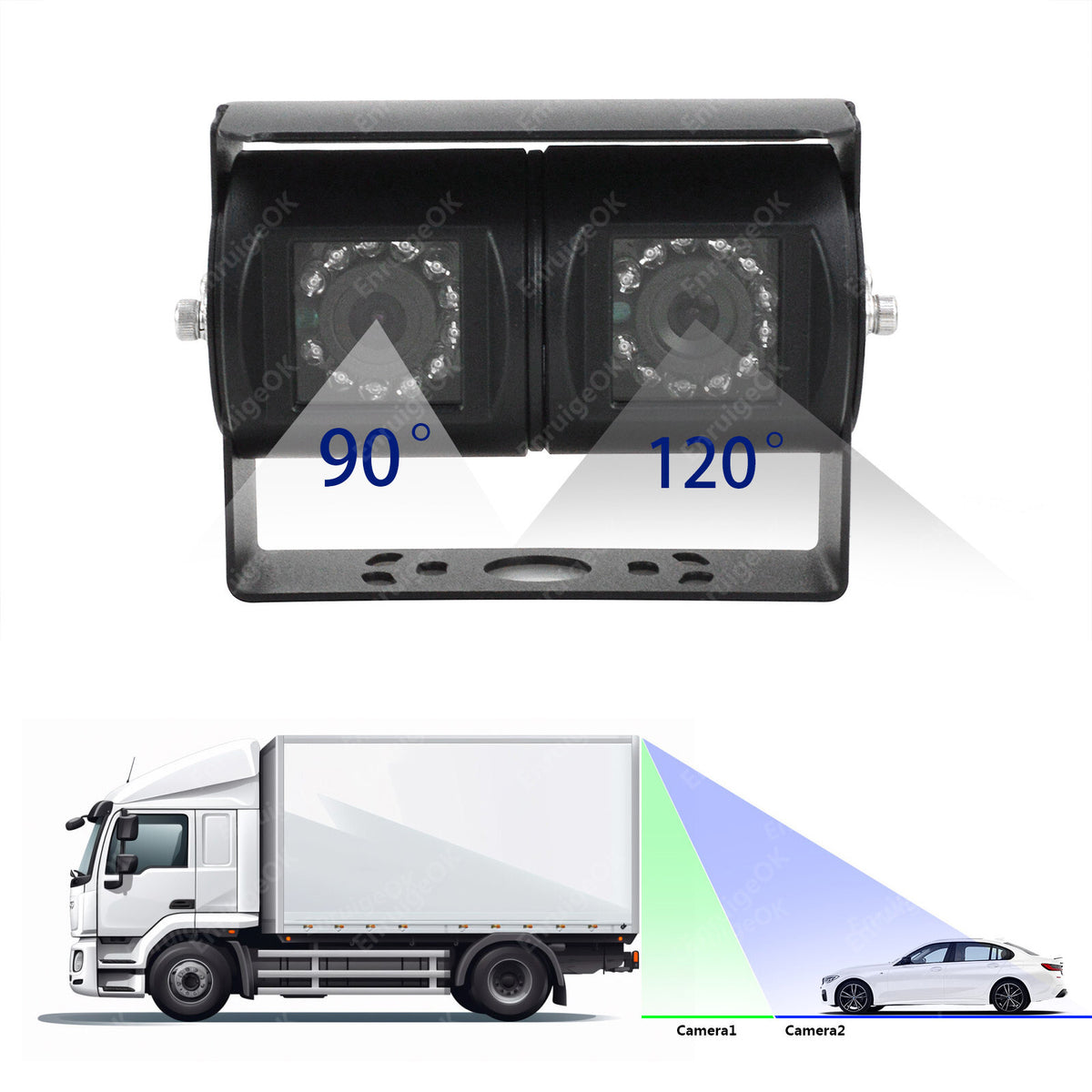

Viewing angle: 120°& 90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Material: ABS+glass

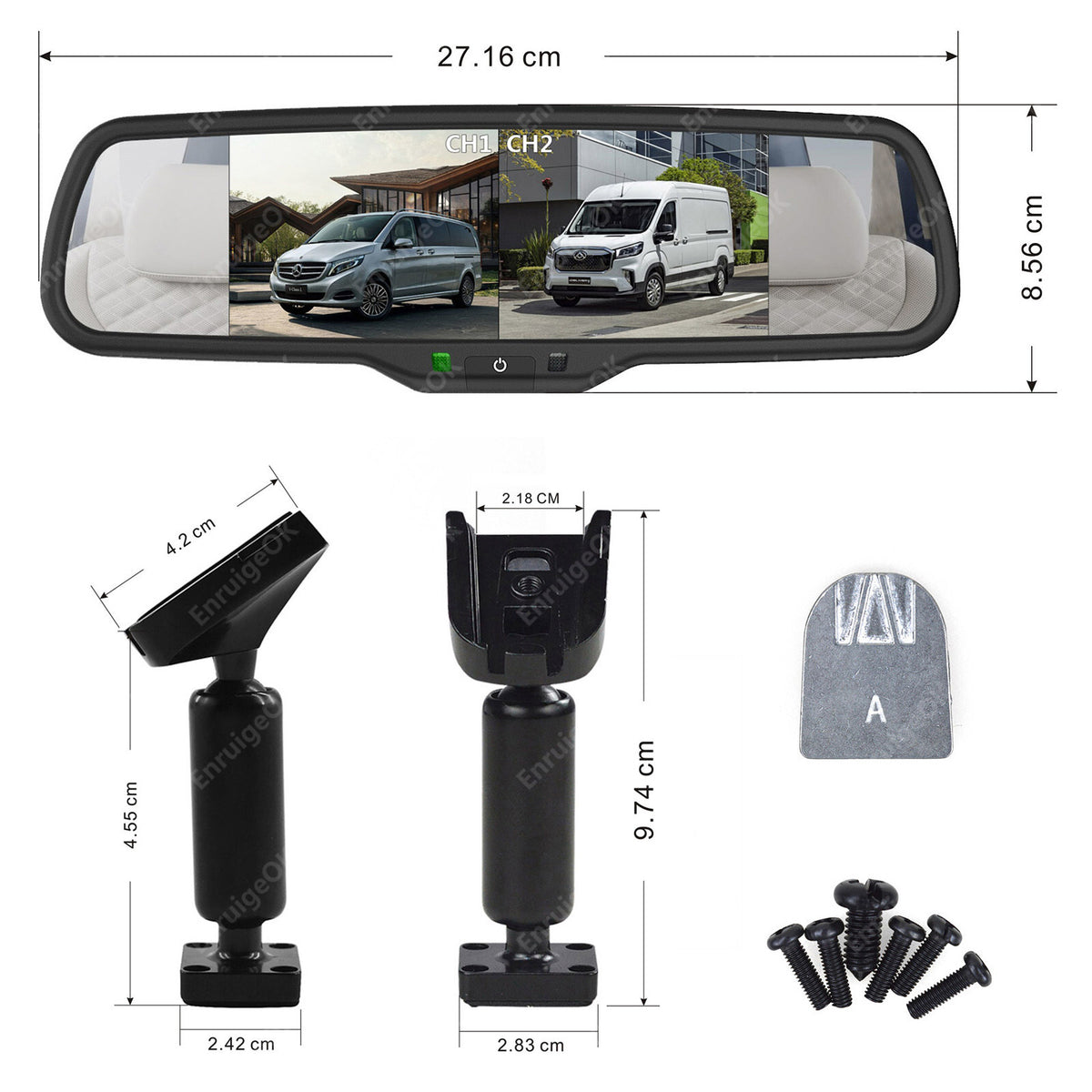

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

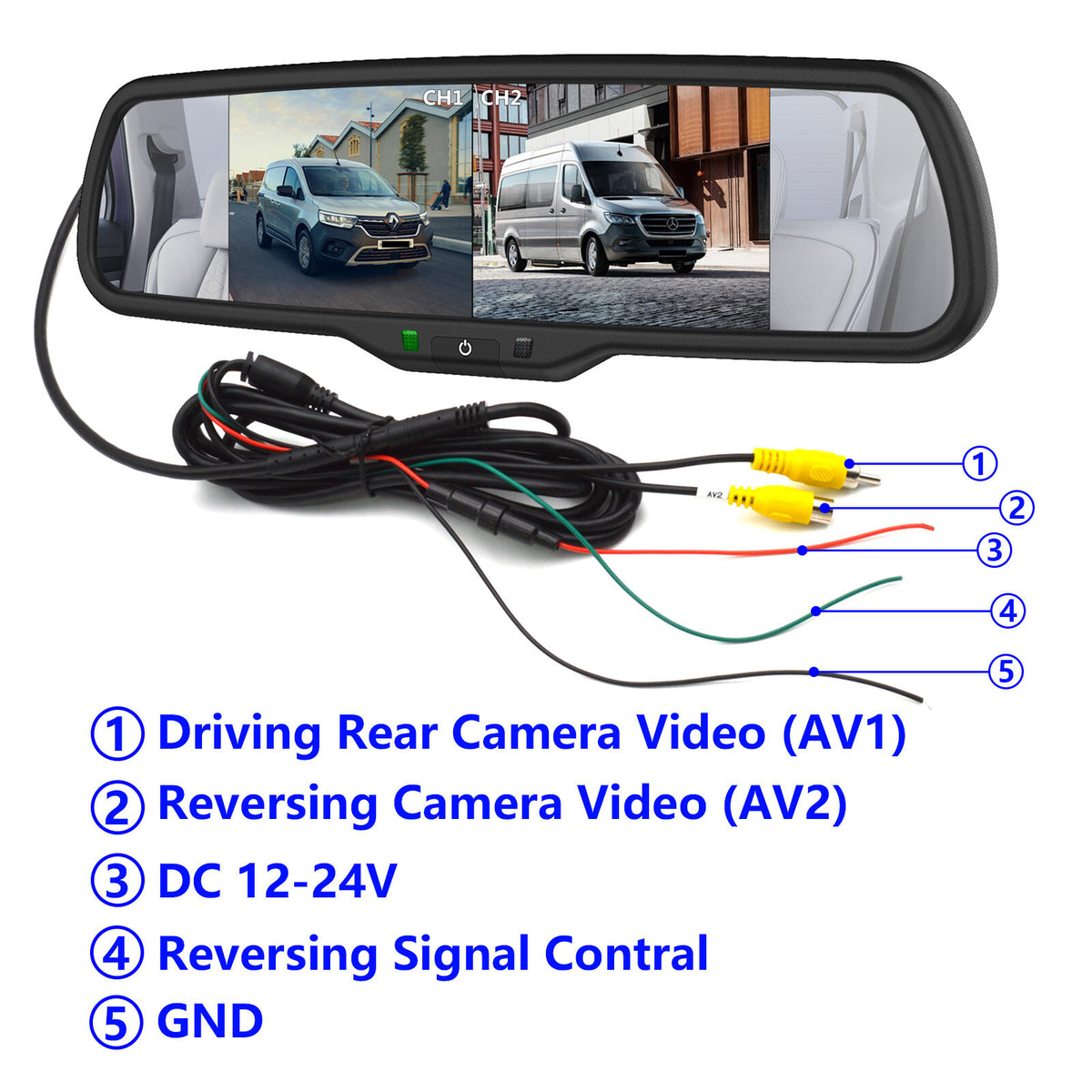

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), automatic full-screen switch during reversing

Blue screen displayed when no signal is detected.

Power Supply: DC 12V-24V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
