Dual Reversing Camera For Citroen Berlingo Peugeot Partner Mk2 Mk3 6.86" Monitor

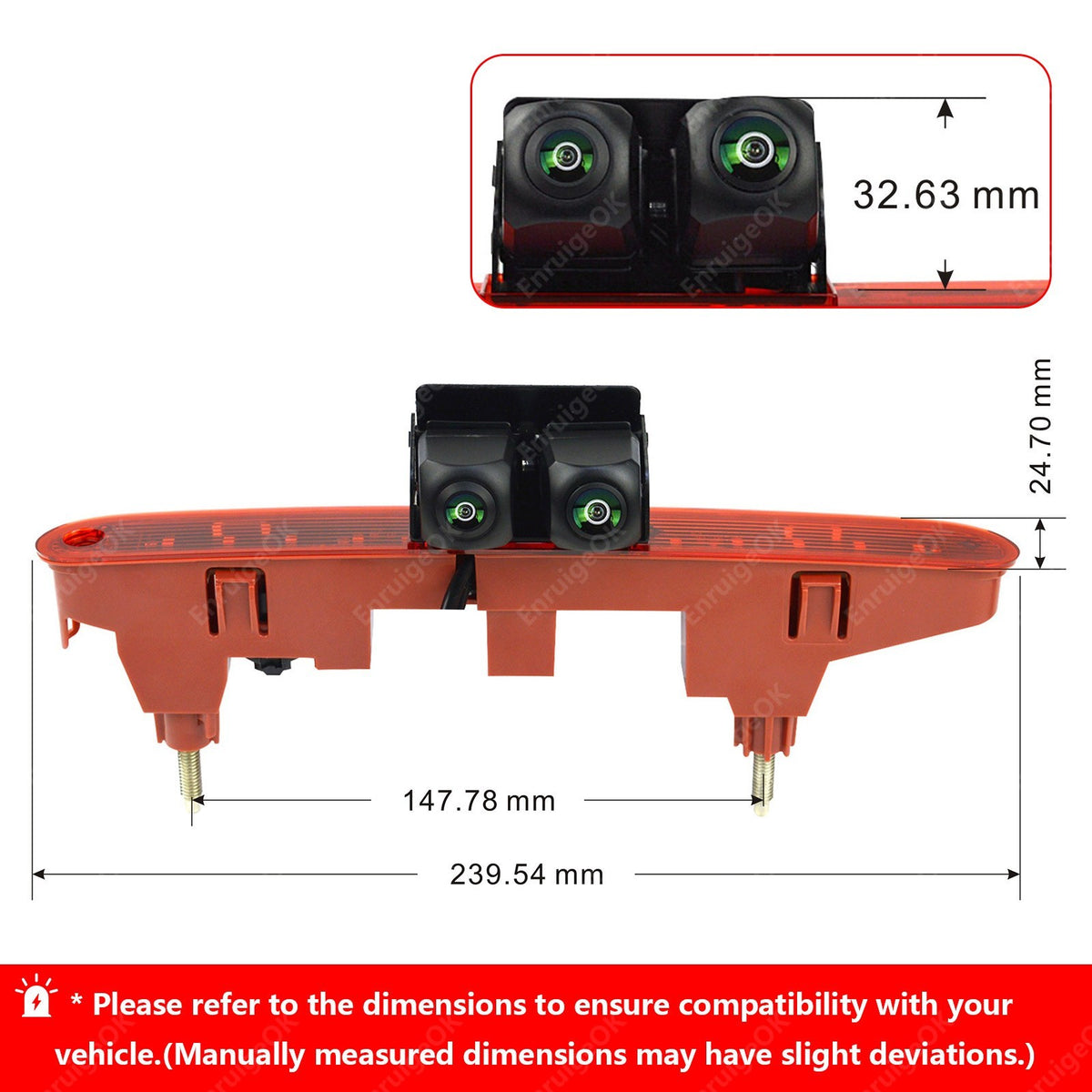

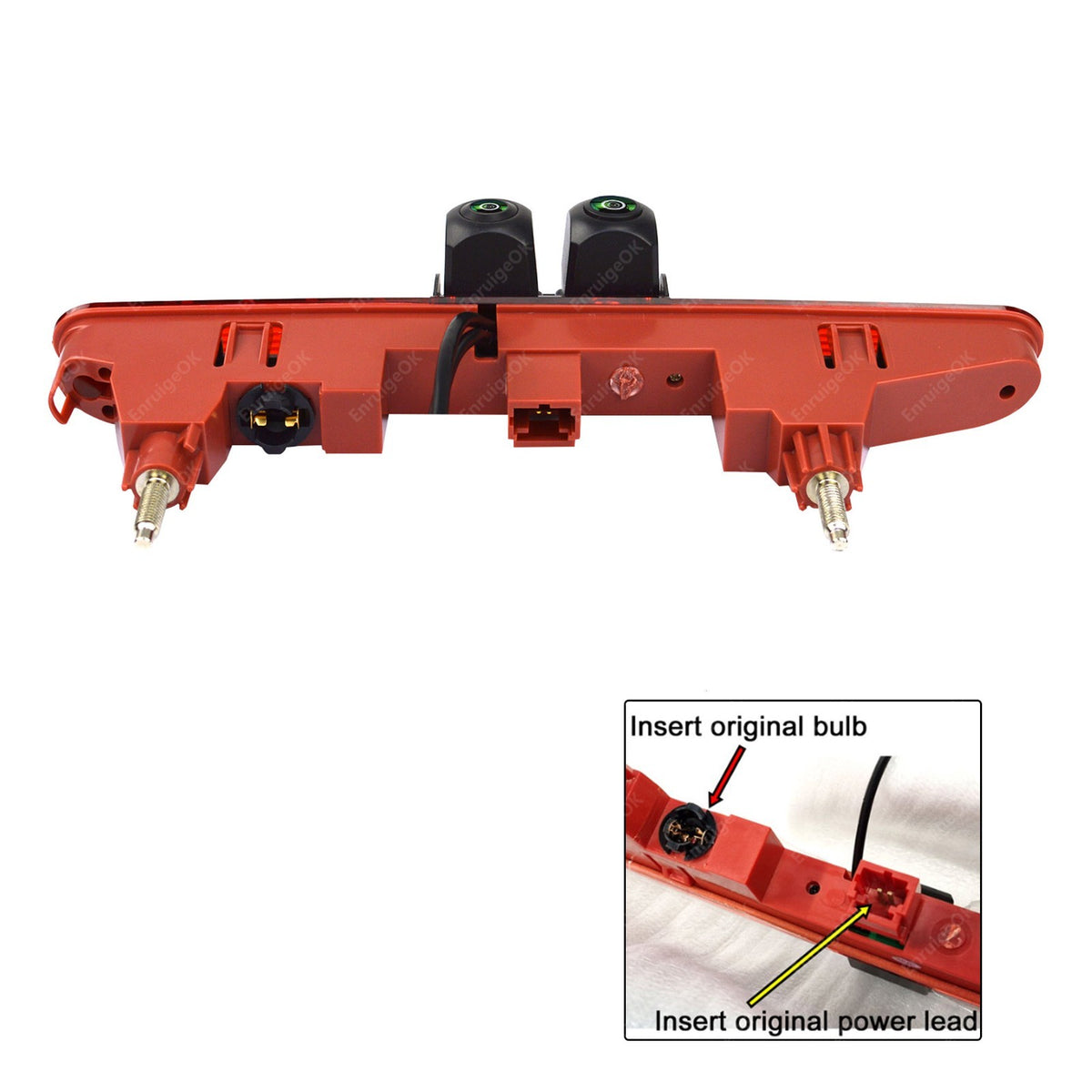

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

Camera Compatibility

Citroen Berlingo MK2 (2008-2018), MK3 (2018-Present),

Peugeot Partner MK2 (2008-2018),

Peugeot Rifter (2018–Present),

Toyota ProAce City (2019-Present),

Opel/Vauxhall Combo [E] (2018-Present)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

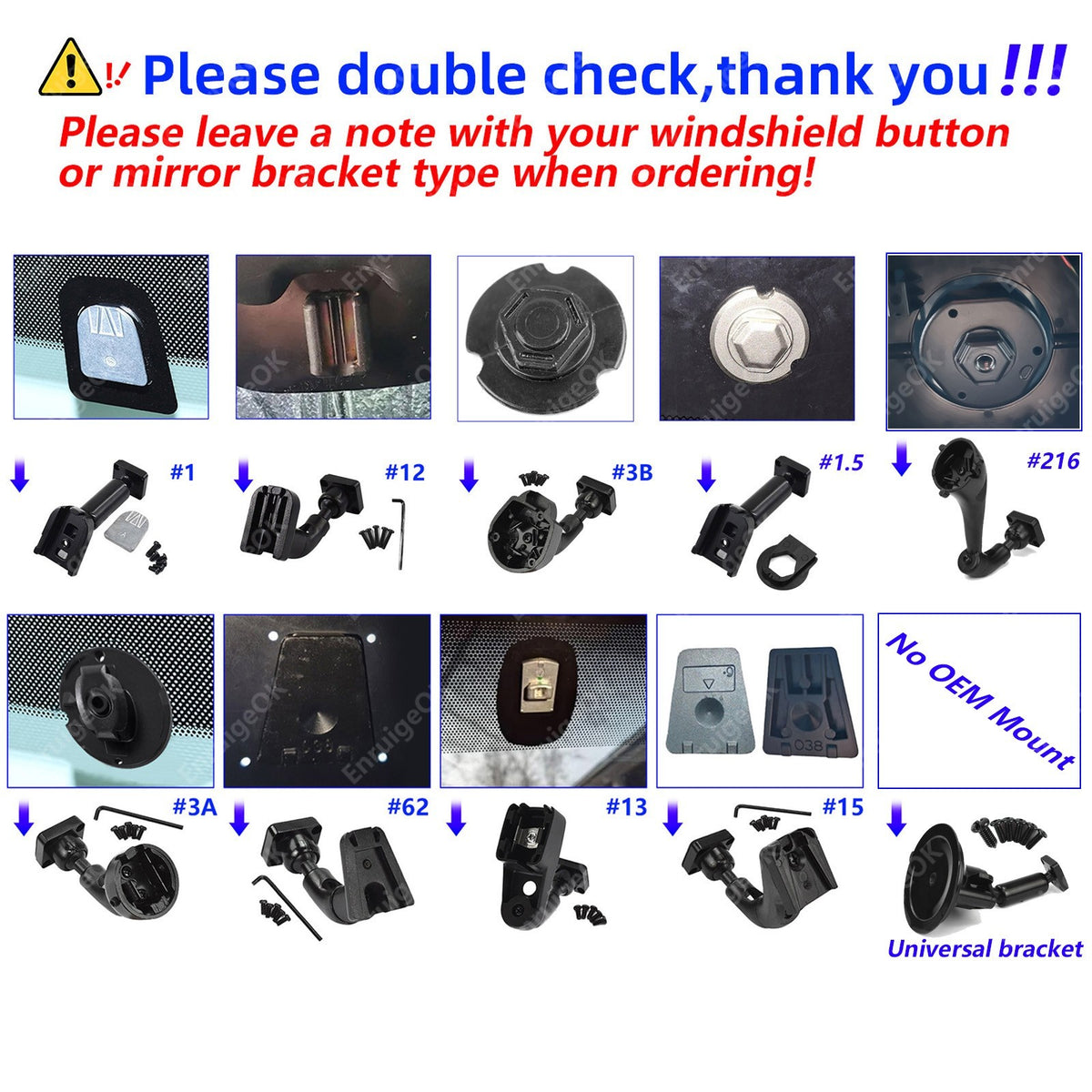

Monitor Bracket Note

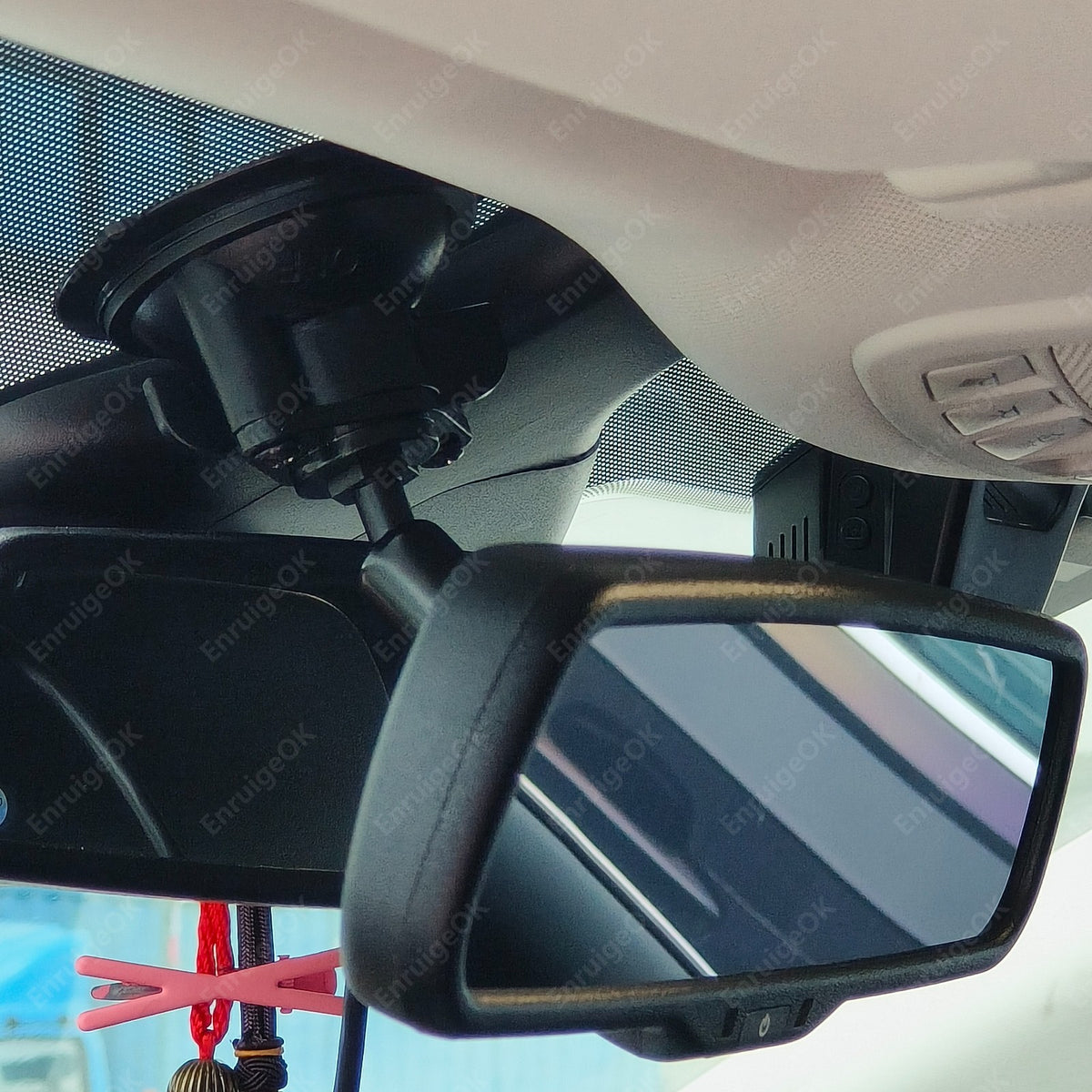

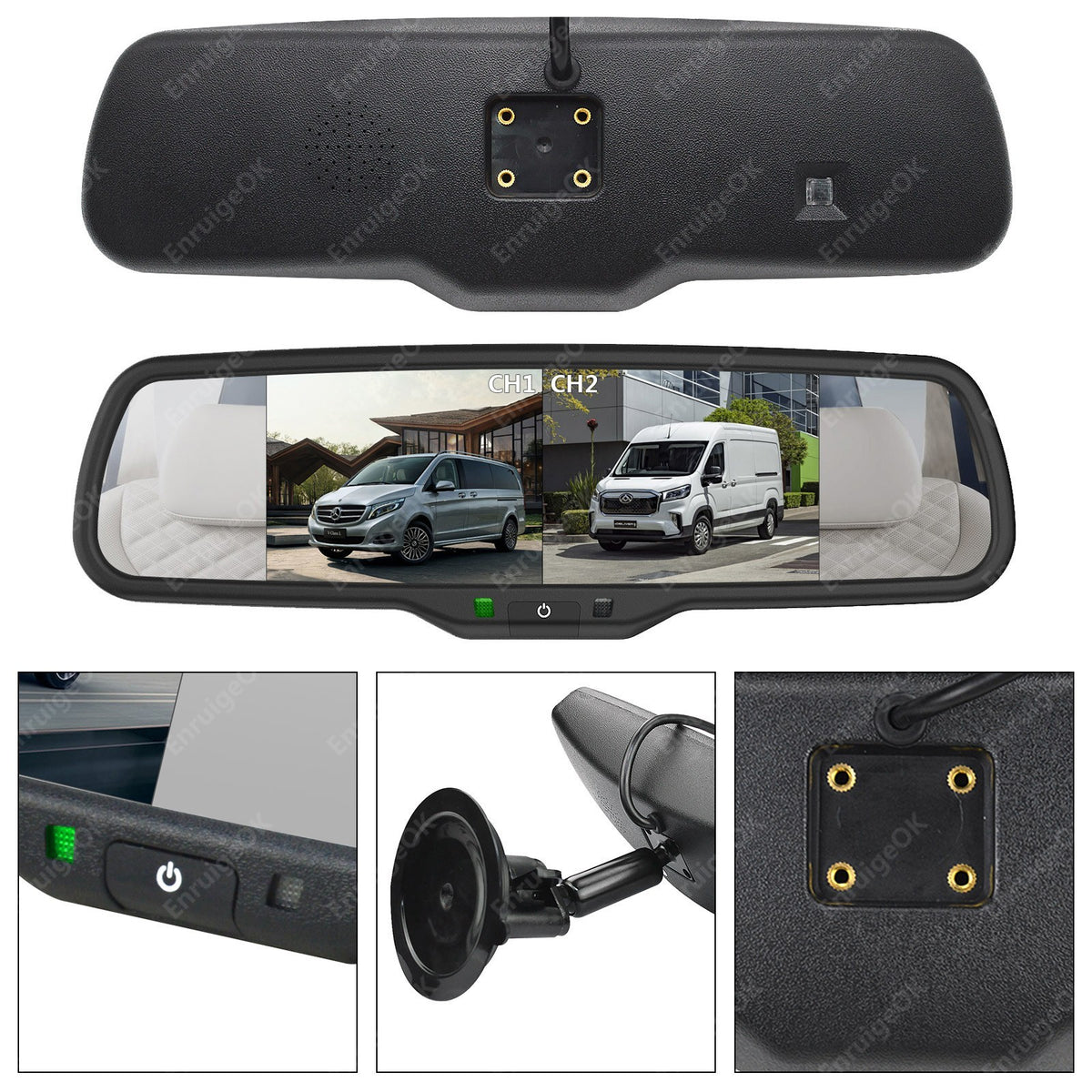

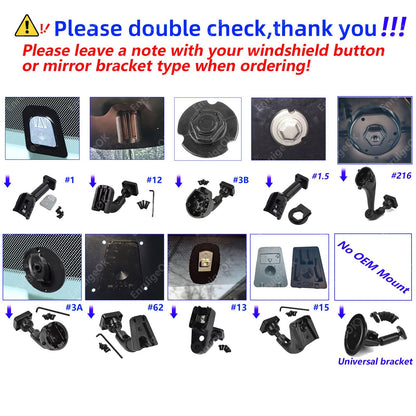

This kit includes the universal suction cup bracket by default. Please send a clear photo of your windshield button or original mirror bracket when ordering. We have other bracket styles that may fit your vehicle.

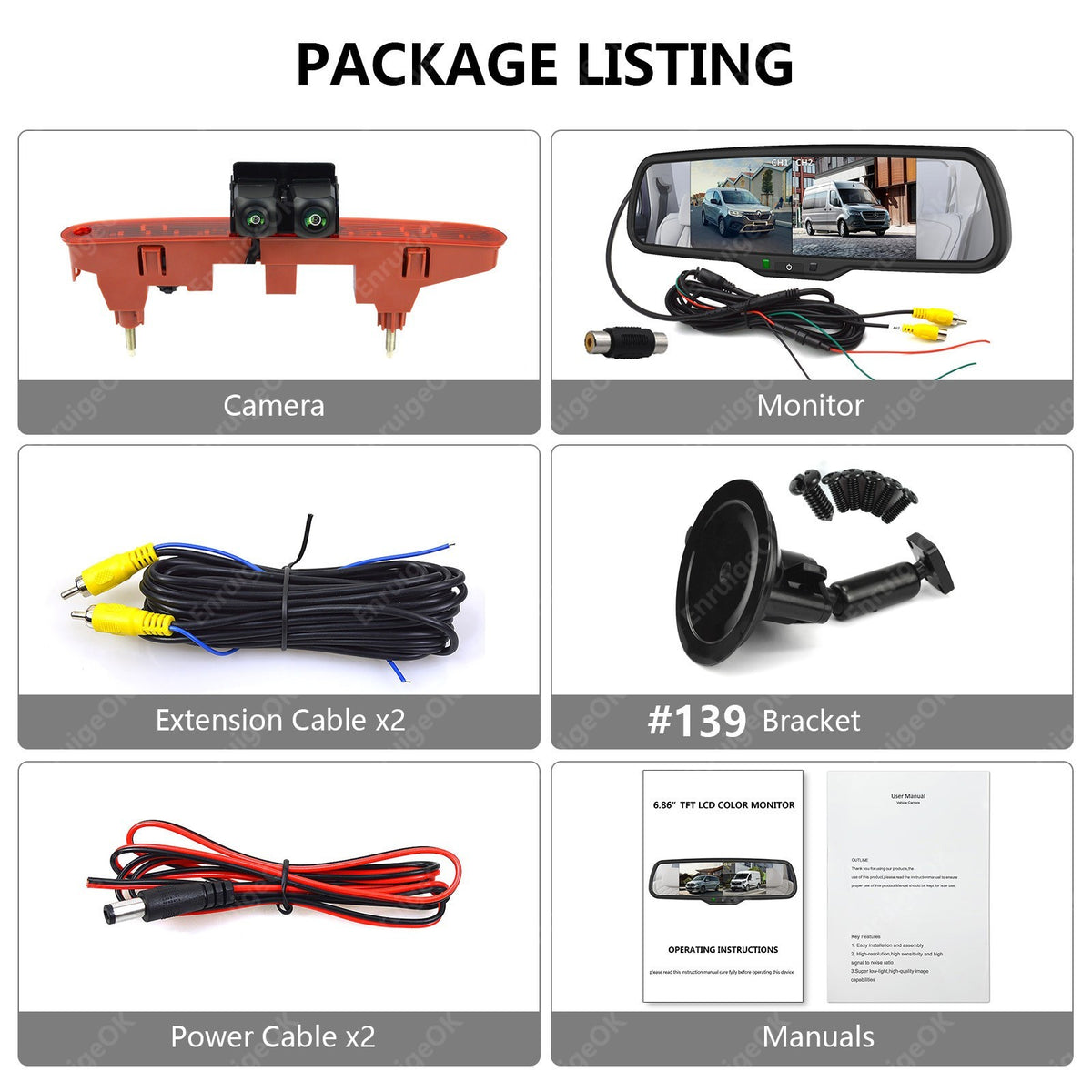

Package contents

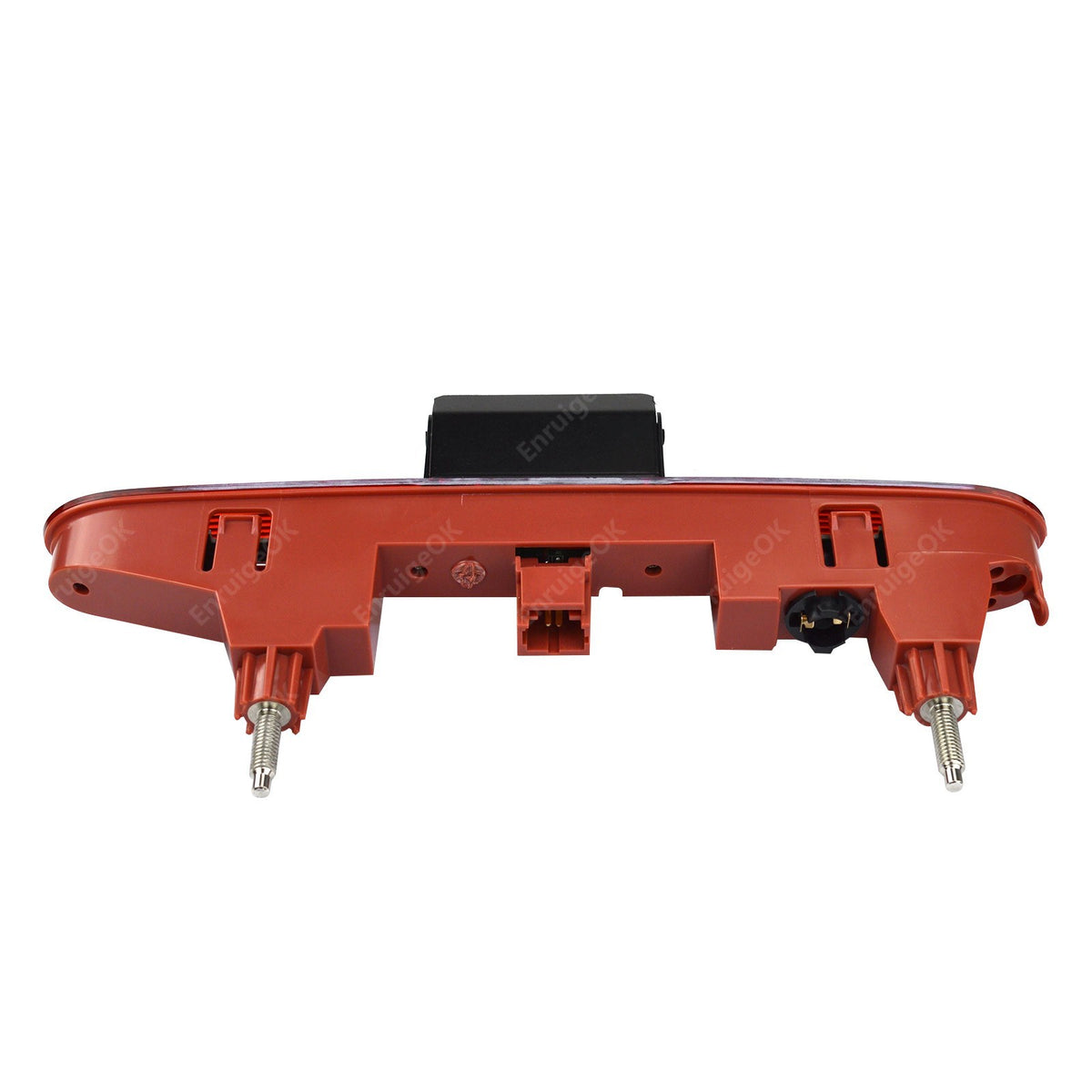

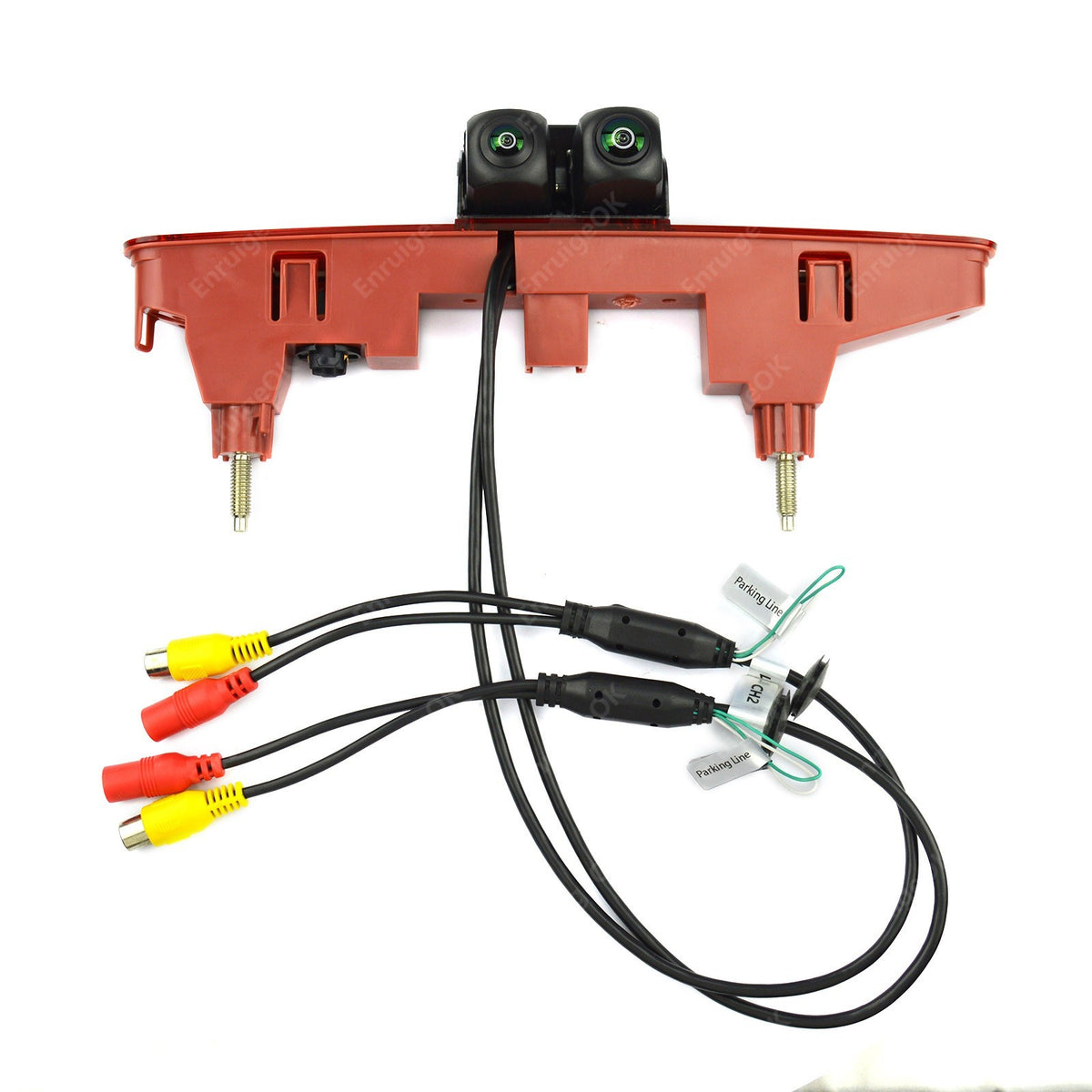

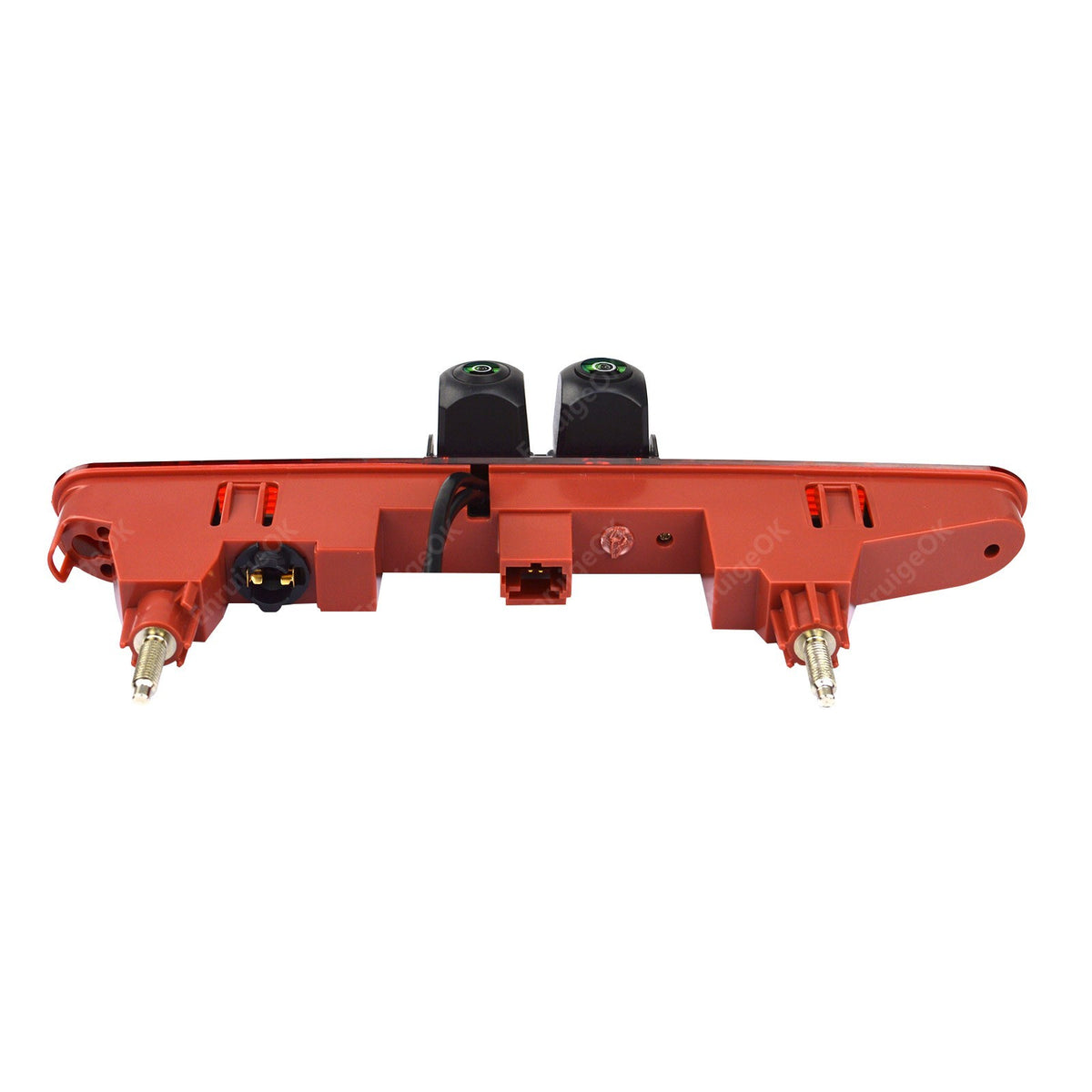

1 X EnruigeOK Brake light camera

1 X 6.86'' Mirror monitor

1 X Monitor power cable

2 X Video extension cable

2 X DC power cable

1 X Female to female adapter

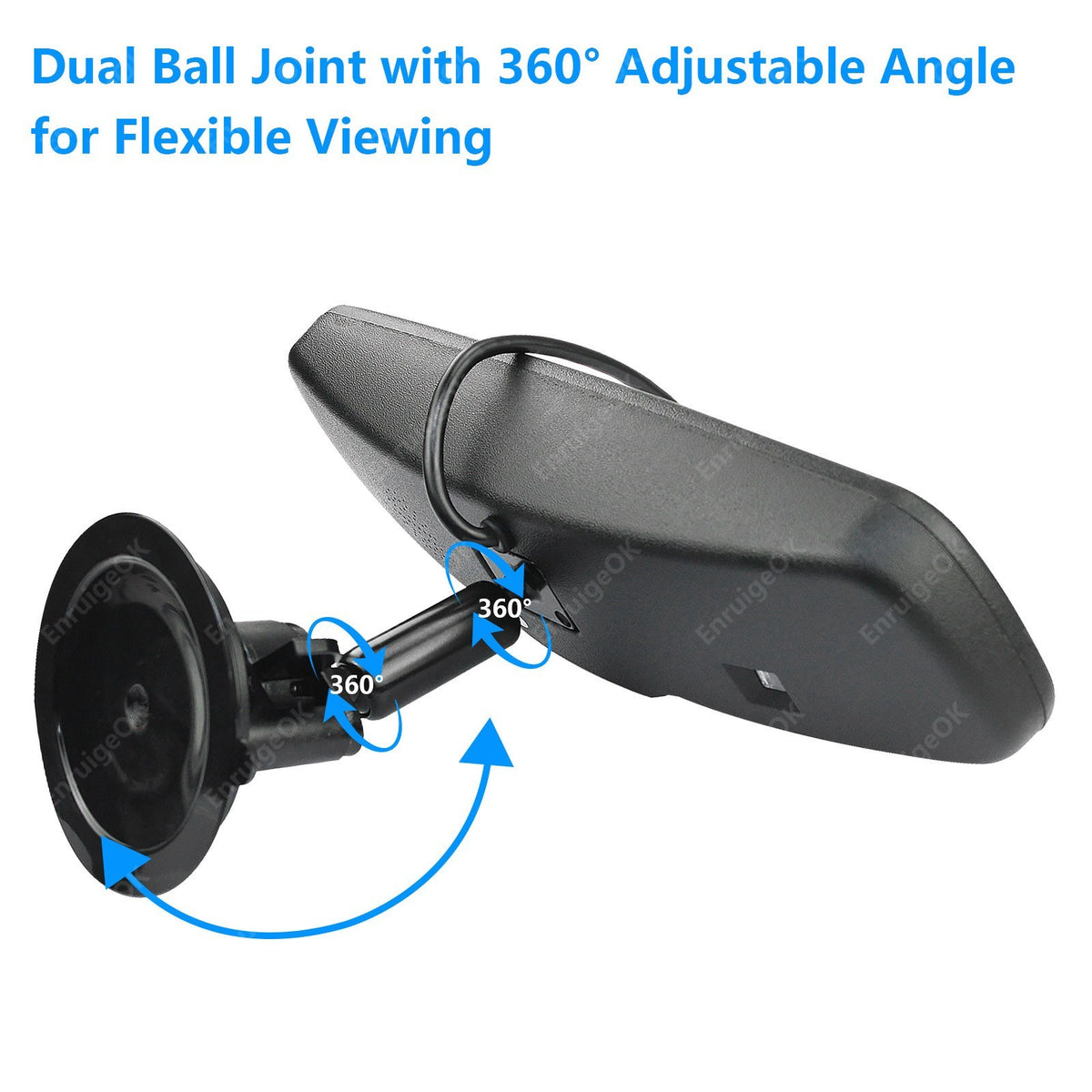

1 X Universal suction cup bracket(check your windshield button)

1 X Manual

Description

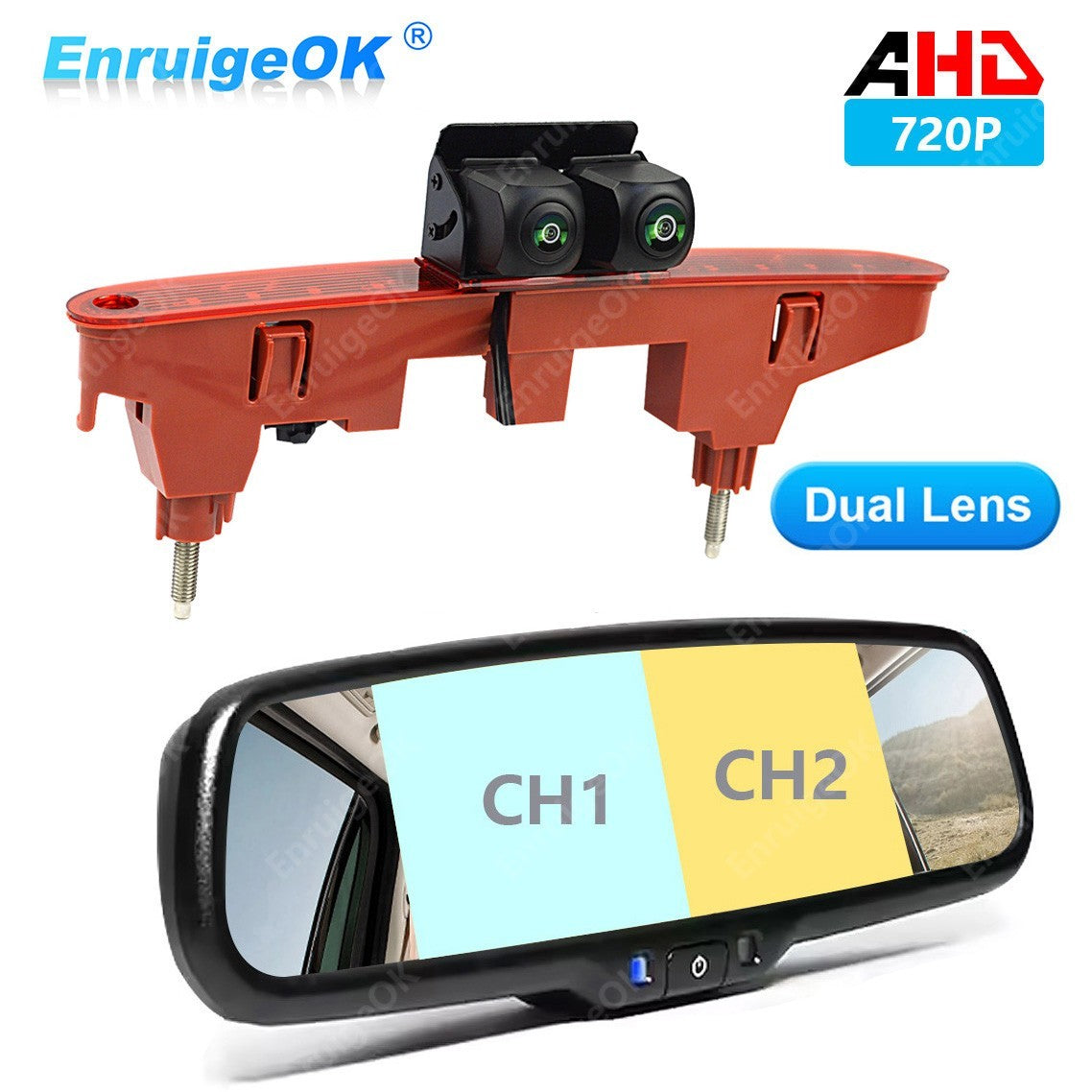

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.

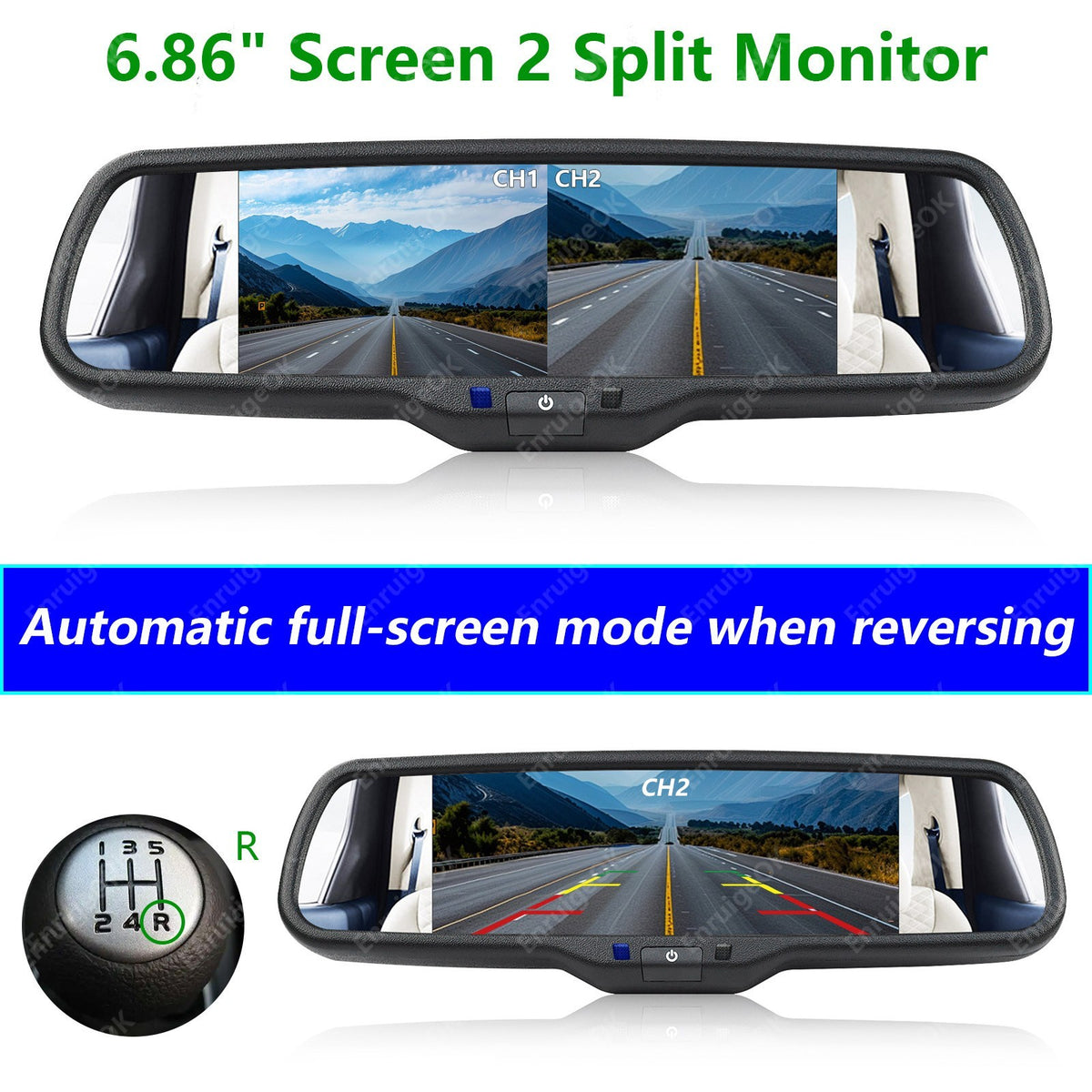

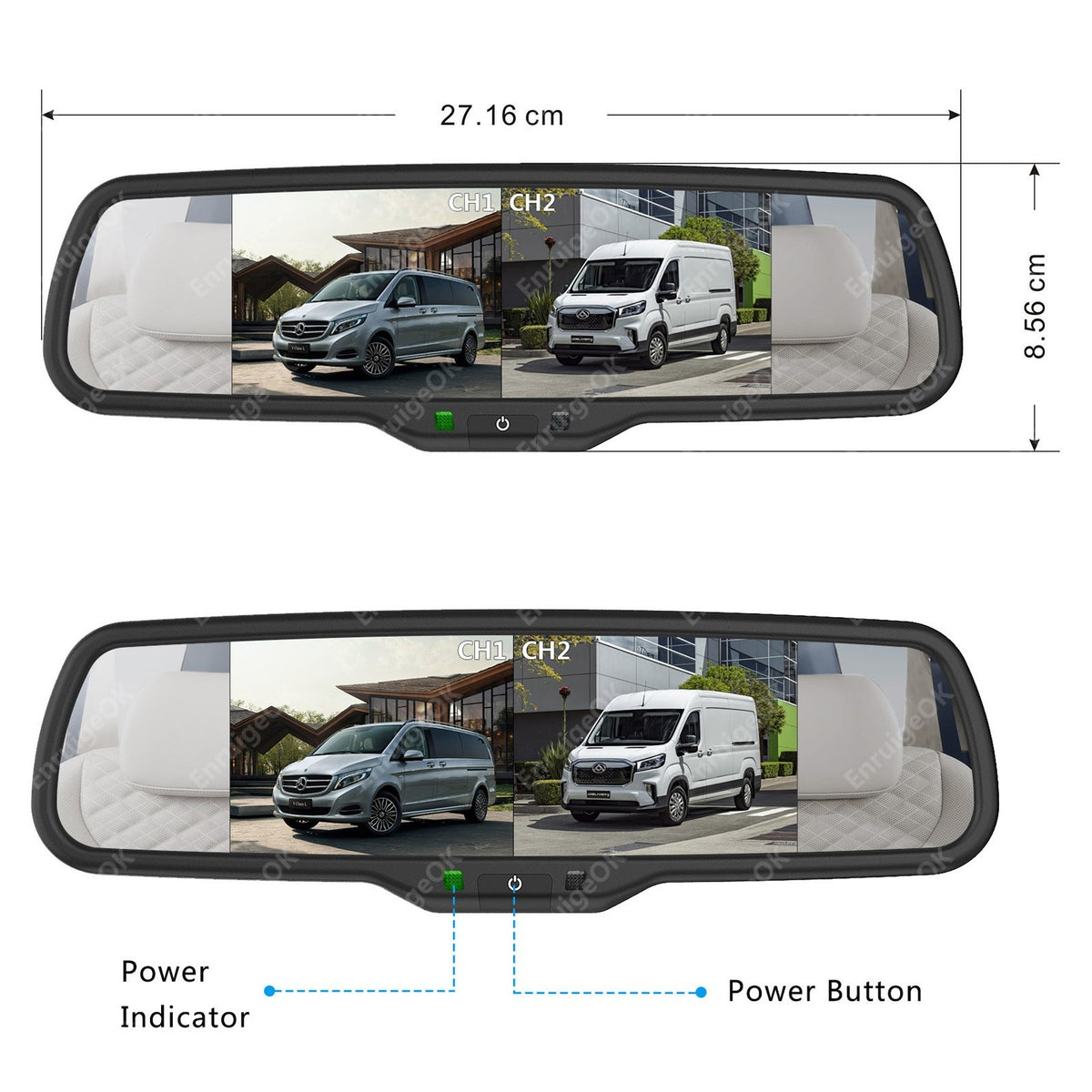

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

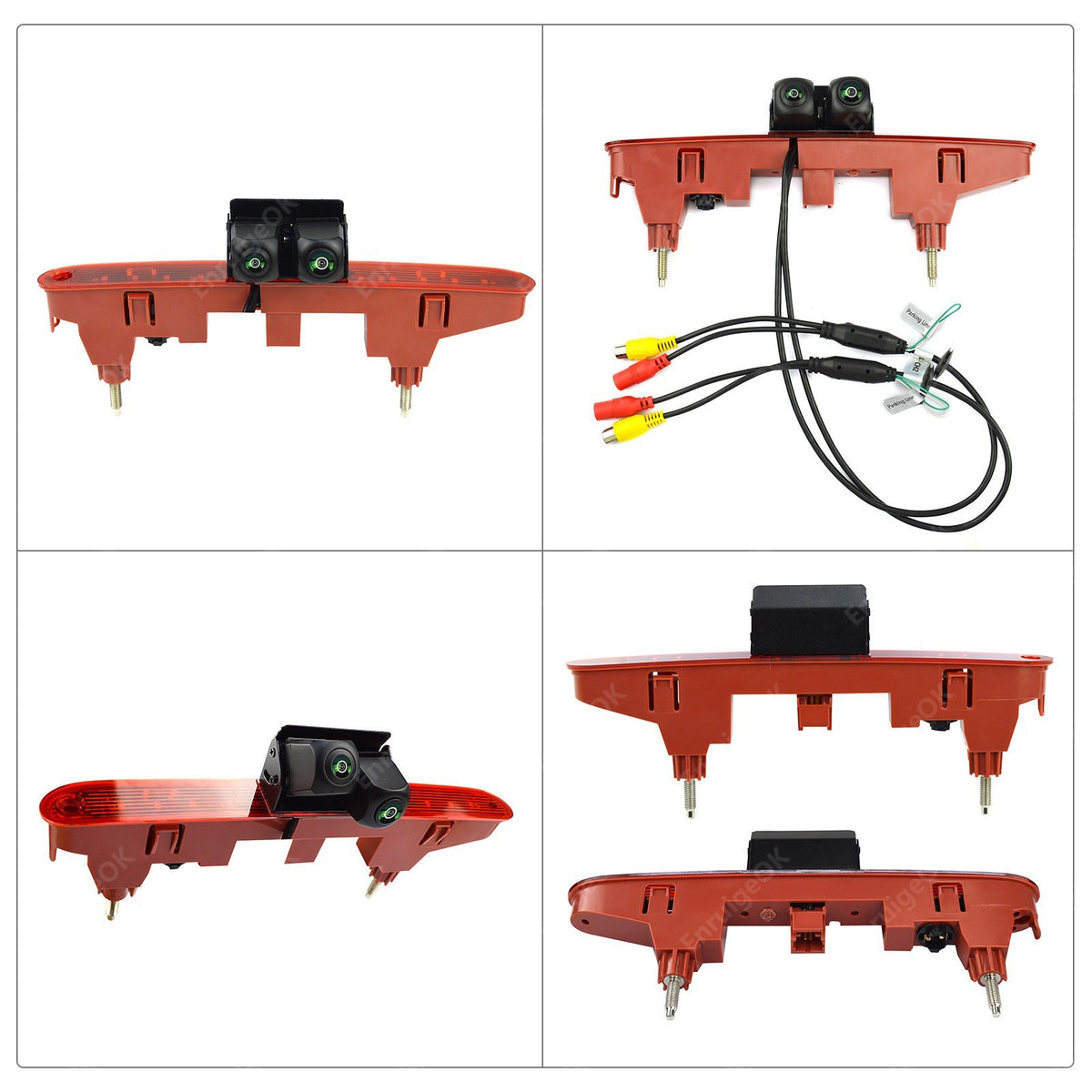

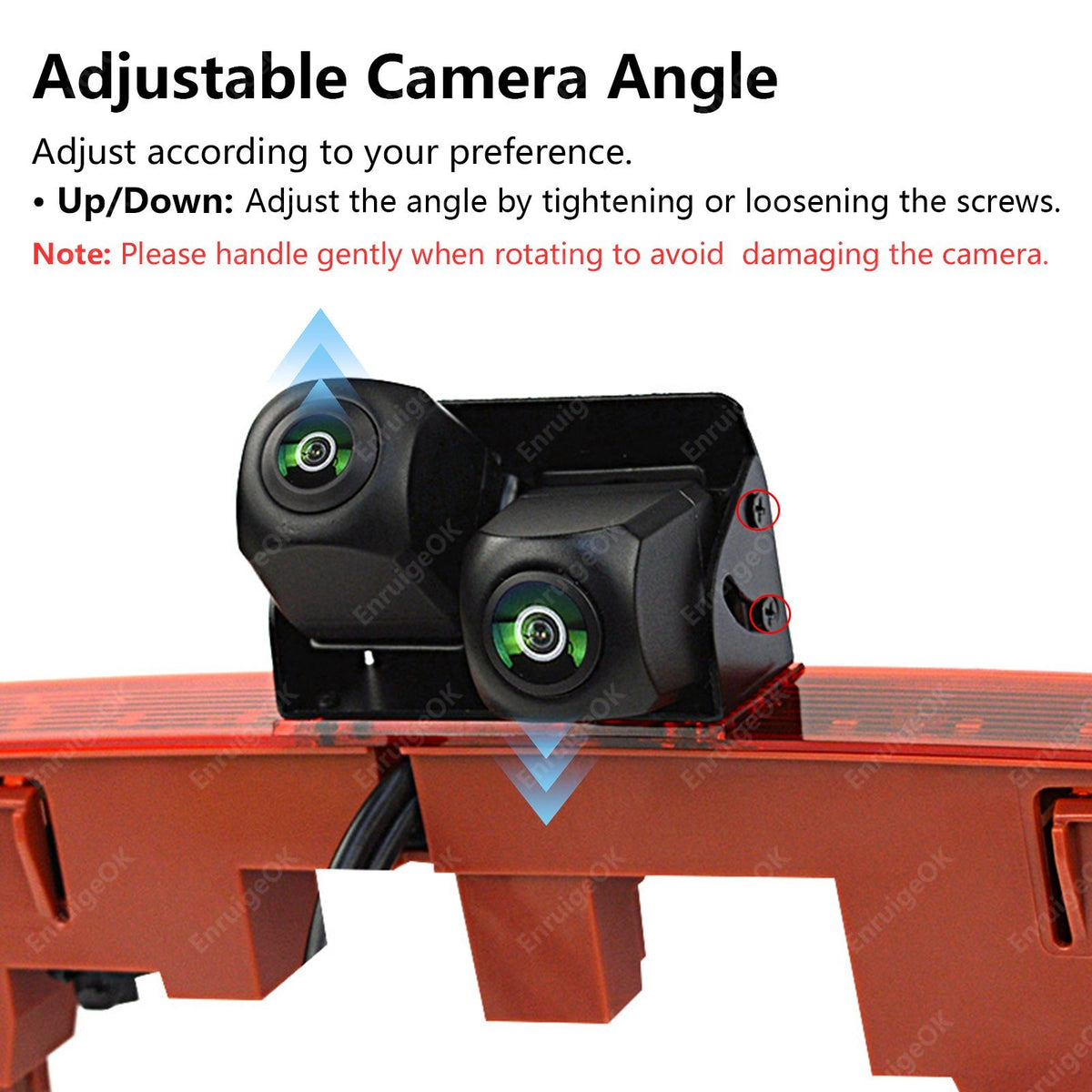

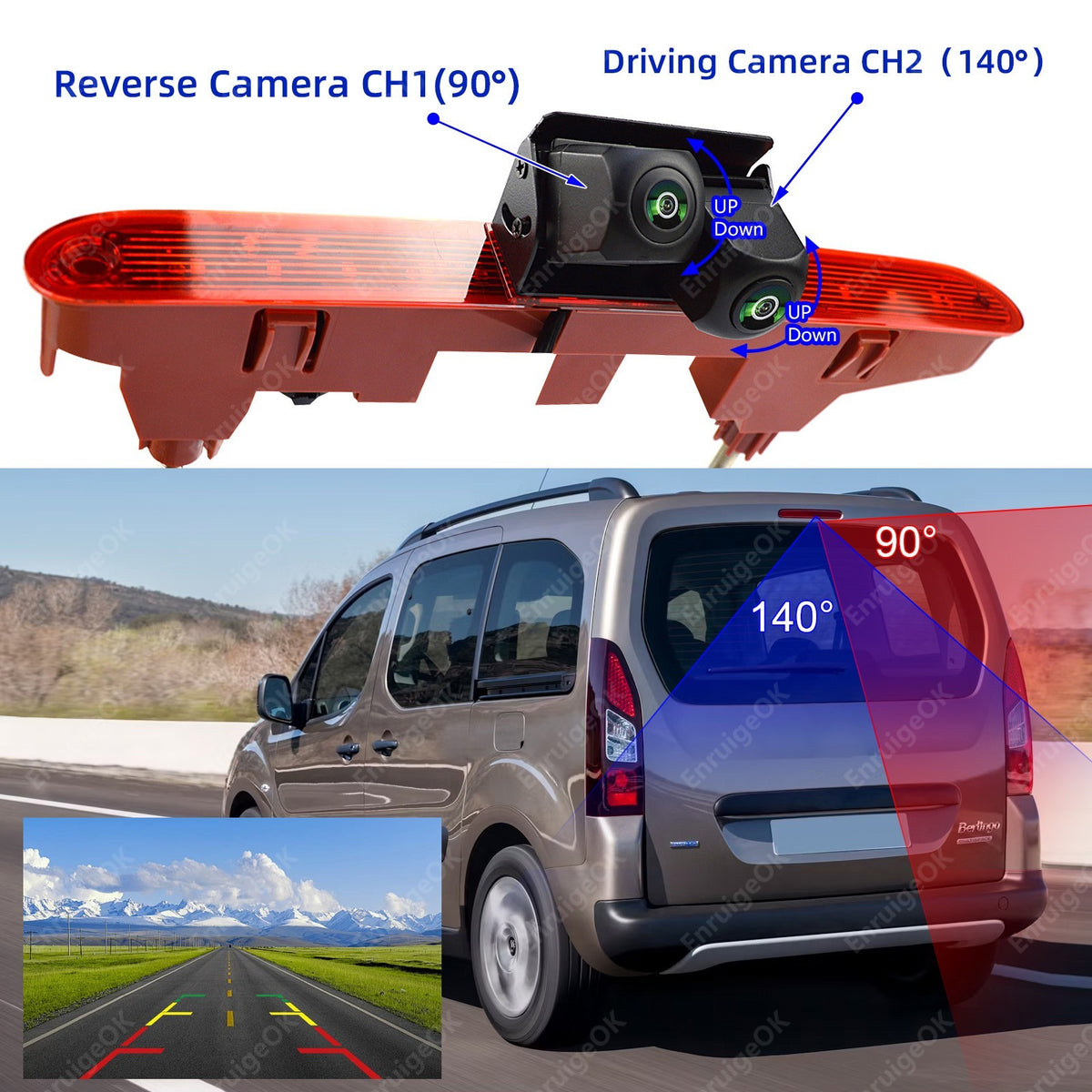

TWIN LENS !!! Dual lens reversing camera: One showing the road or area behind the vehicle, and the other looking directly down to help the driver see the vehicle's rear end.

High Resolution AHD 720P Camera: Provides clear and sharp image quality with enhanced detail for safer driving and reversing.

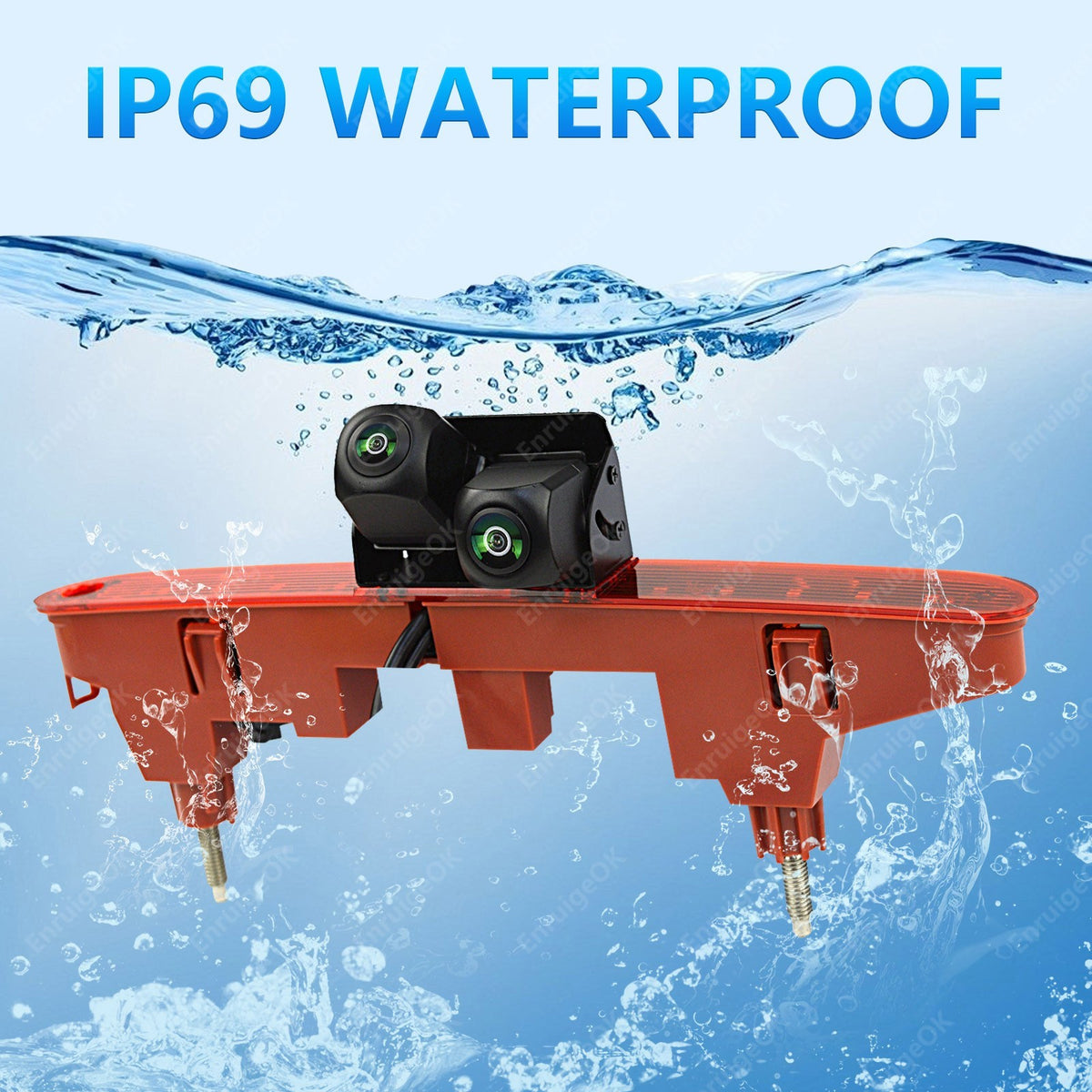

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Horizontal view angle: 140°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1Lux

Power: DC 9V-35V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

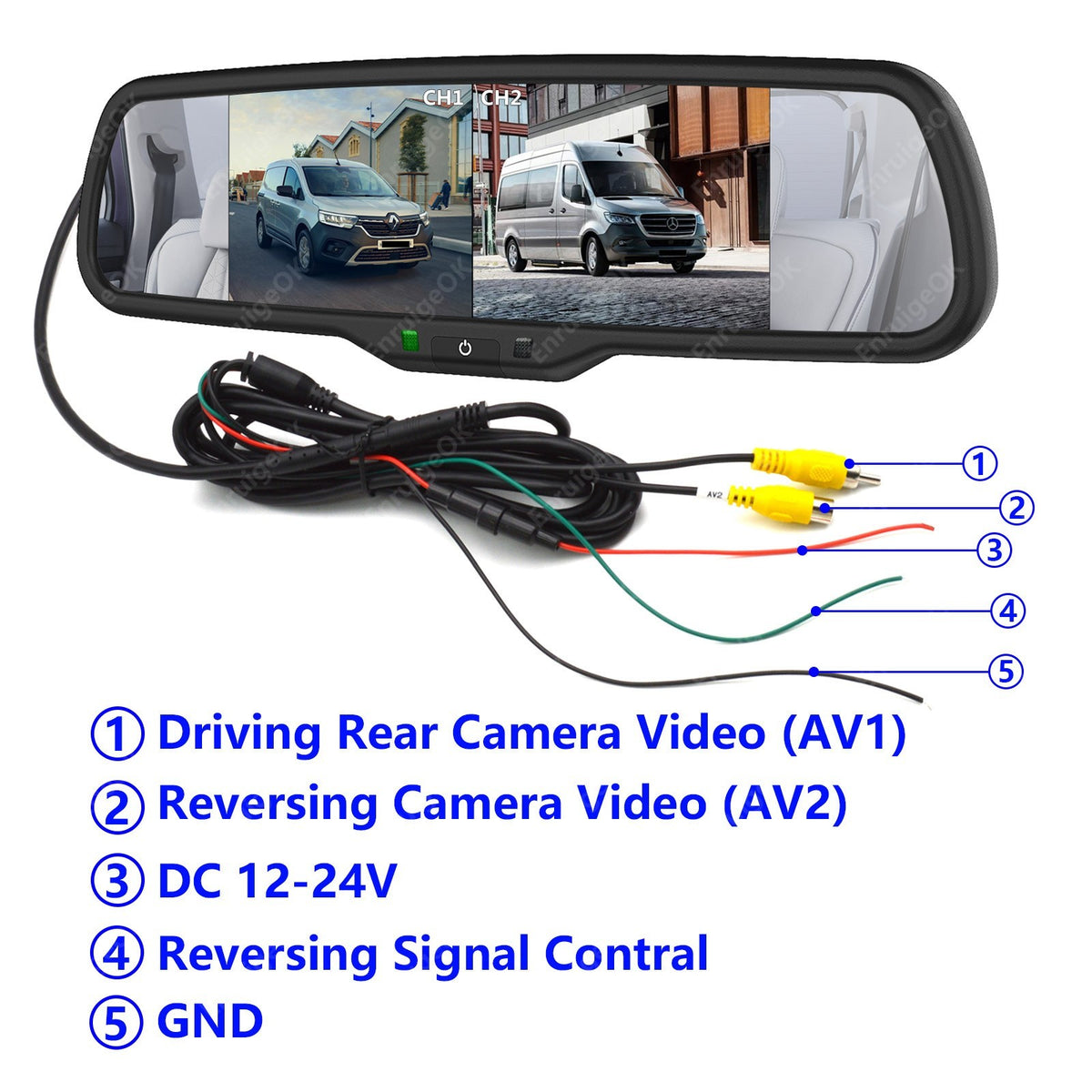

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), automatic full-screen switch during reversing

Blue screen displayed when no signal is detected.

Power Supply: DC 12V-24V

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
