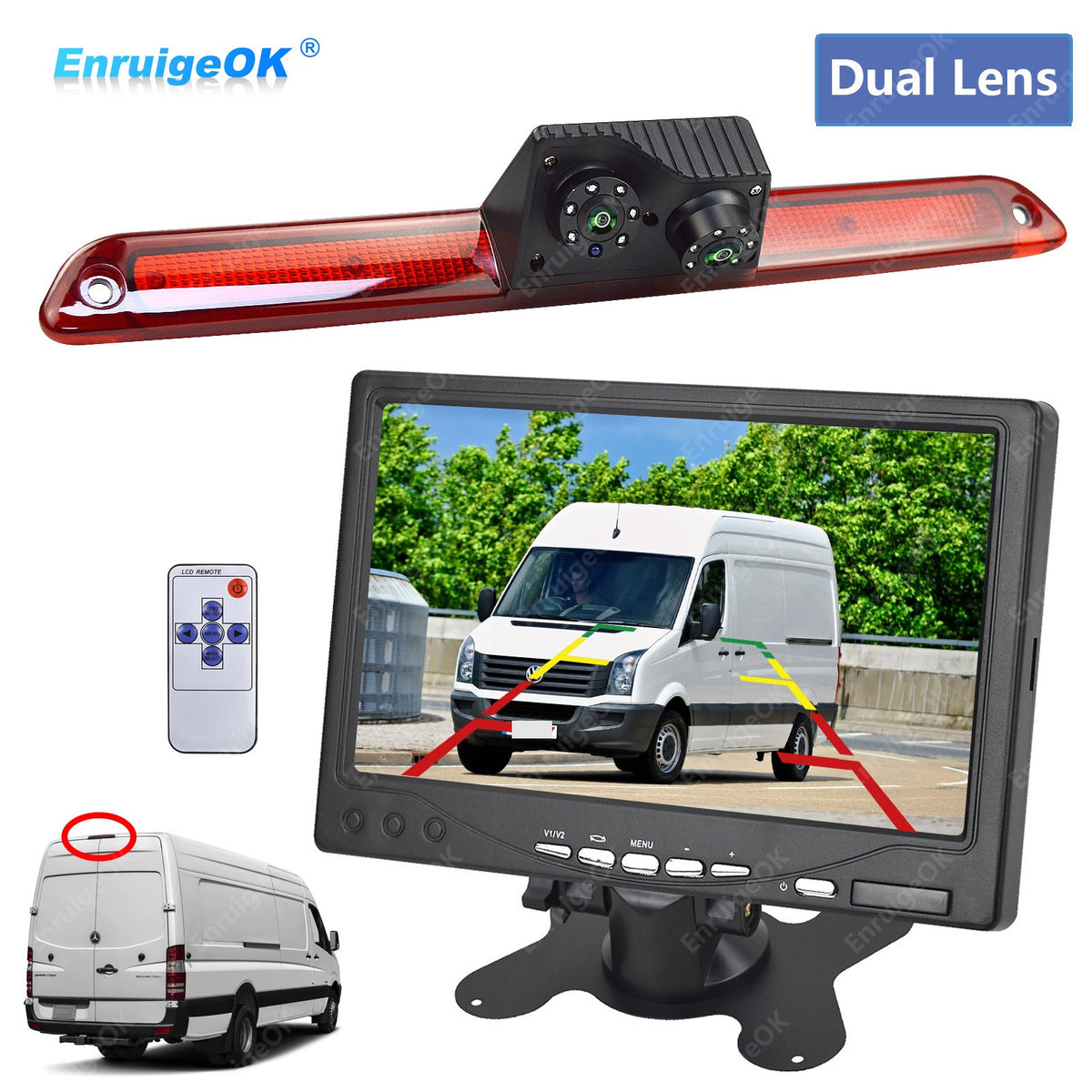

Dual Reverse Camera Kit For VW Crafter Mercedes Sprinter W639 Brake Light Rear

About This Kit

This dual-lens brake-light reversing camera kit combines a vehicle-specific rear camera with a 7-inch monitor. One lens provides a wider rear-road view while the second looks downward toward the rear bumper, helping with both driving visibility and close-range reversing.

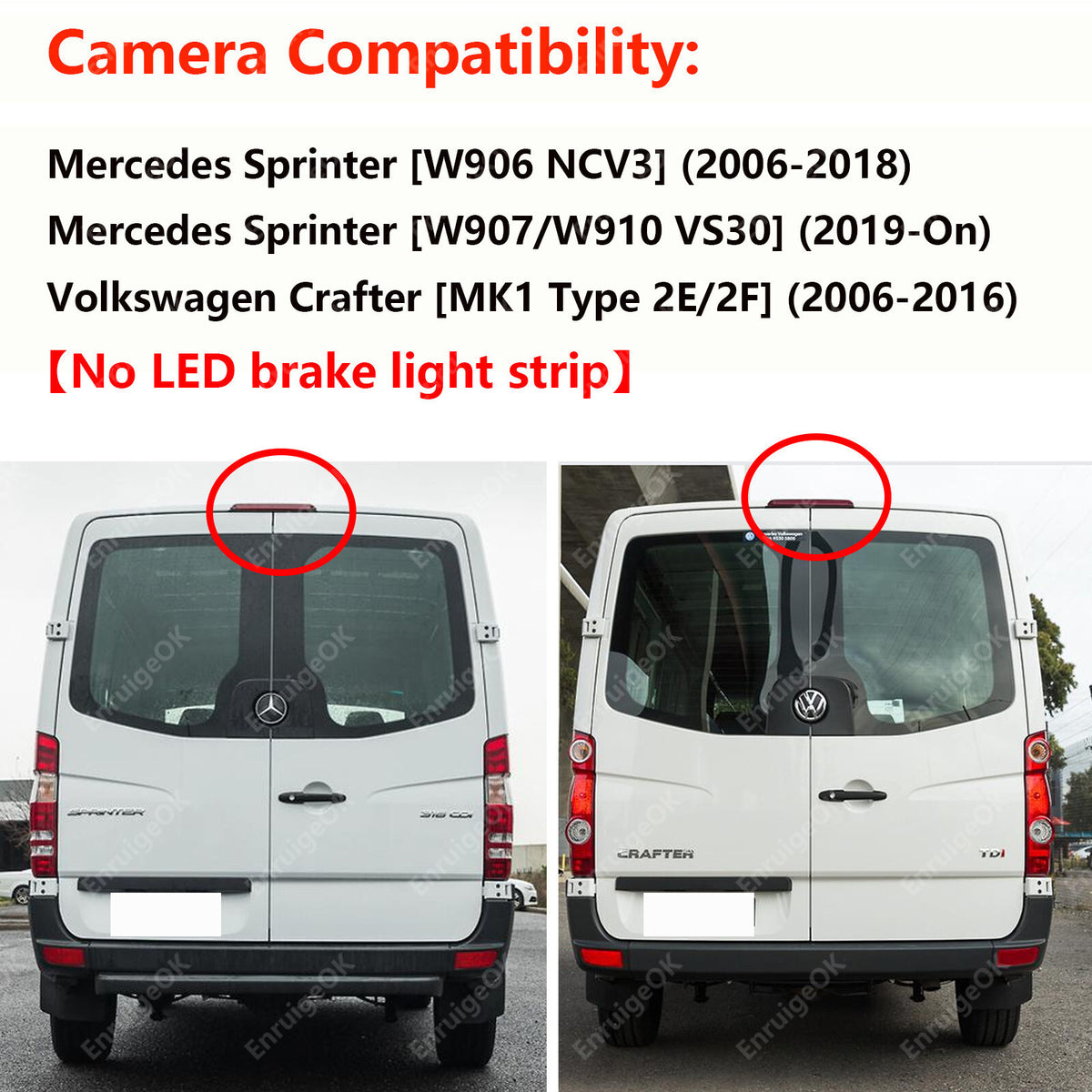

Vehicle Compatibility

• Mercedes-Benz Sprinter W906 / NCV3 (2006-2018)
• Mercedes-Benz Sprinter W907 / W910 / VS30 (2019-on)
• Volkswagen Crafter MK1 Type 2E / 2F (2006-2016), versions without an LED brake-light strip

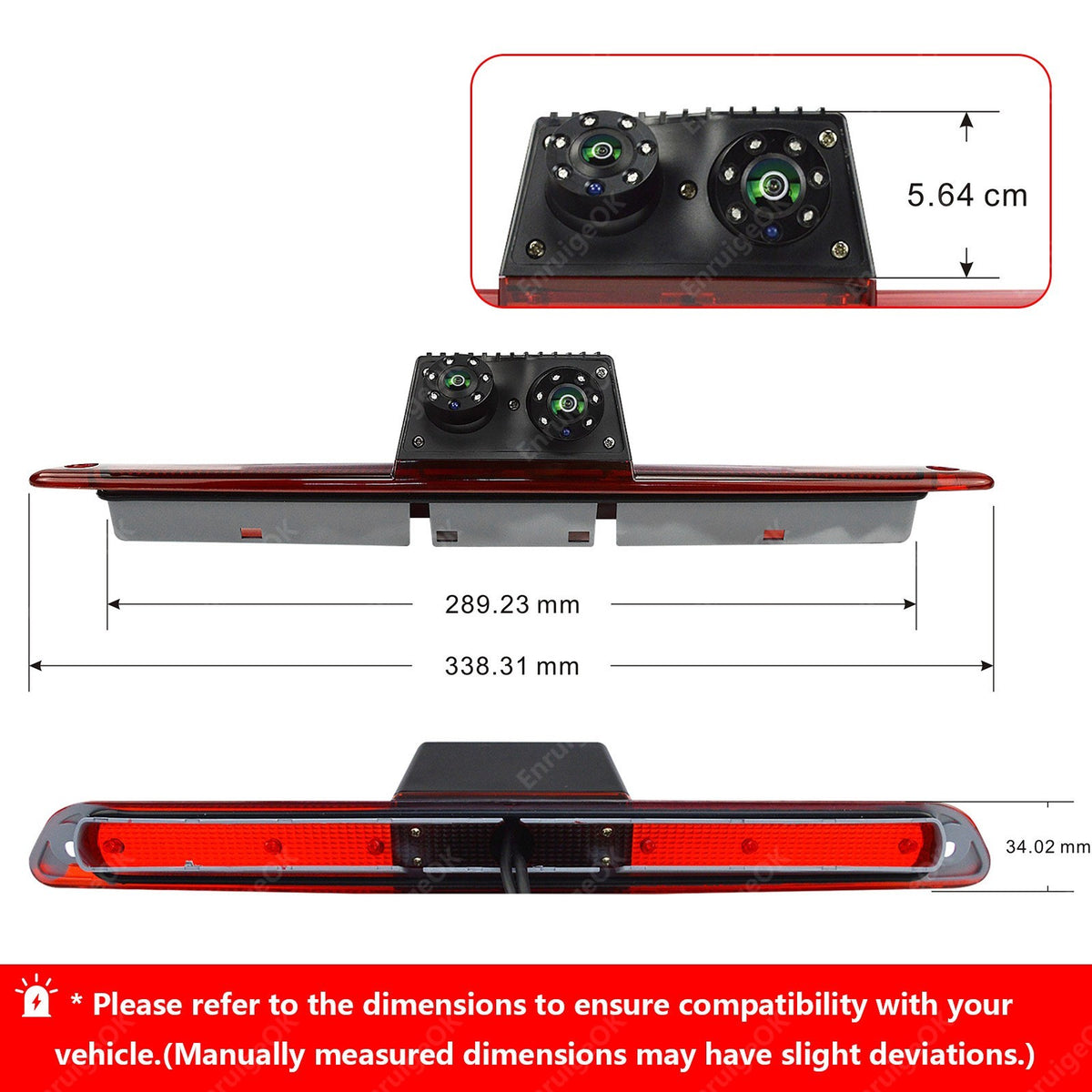

Please compare the product images and brake-light housing dimensions with your vehicle before ordering.

Key Features

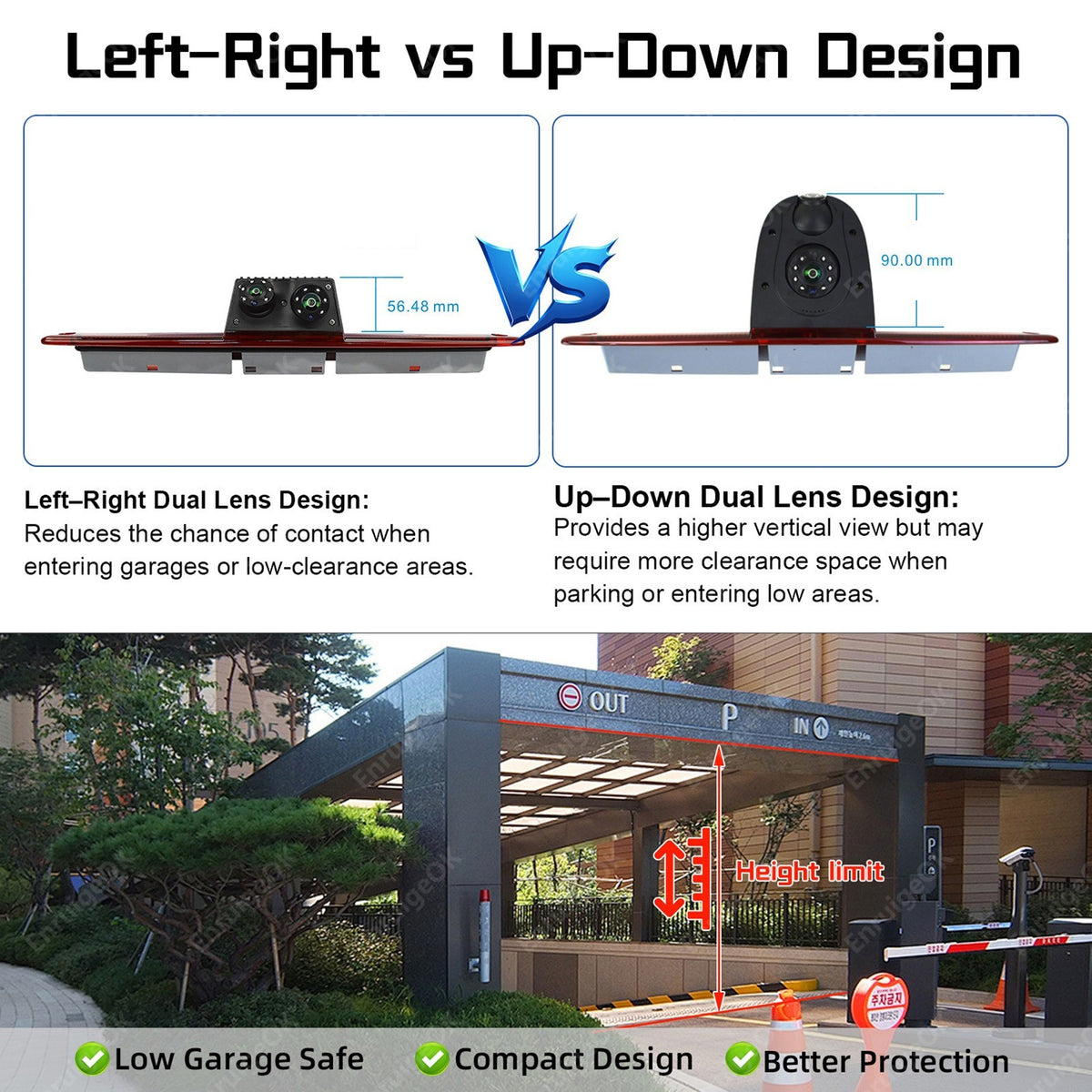

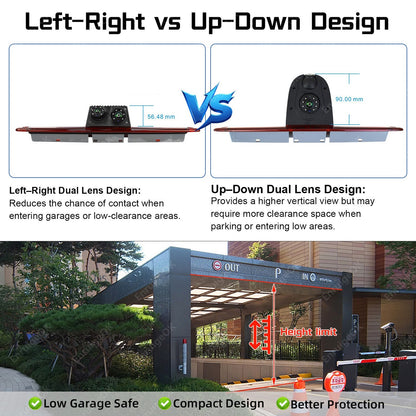

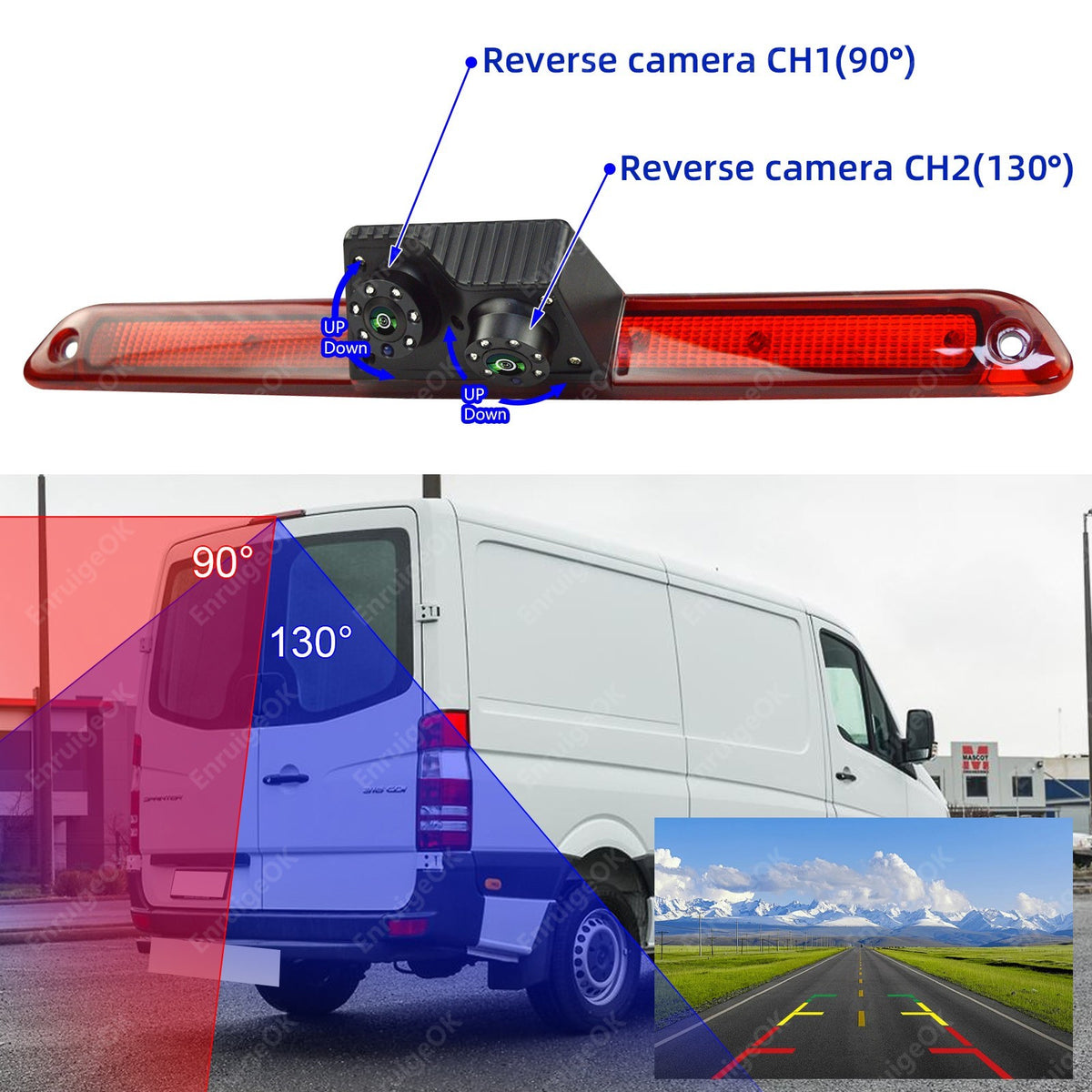

• Dual-lens design: rear-road view plus downward bumper view

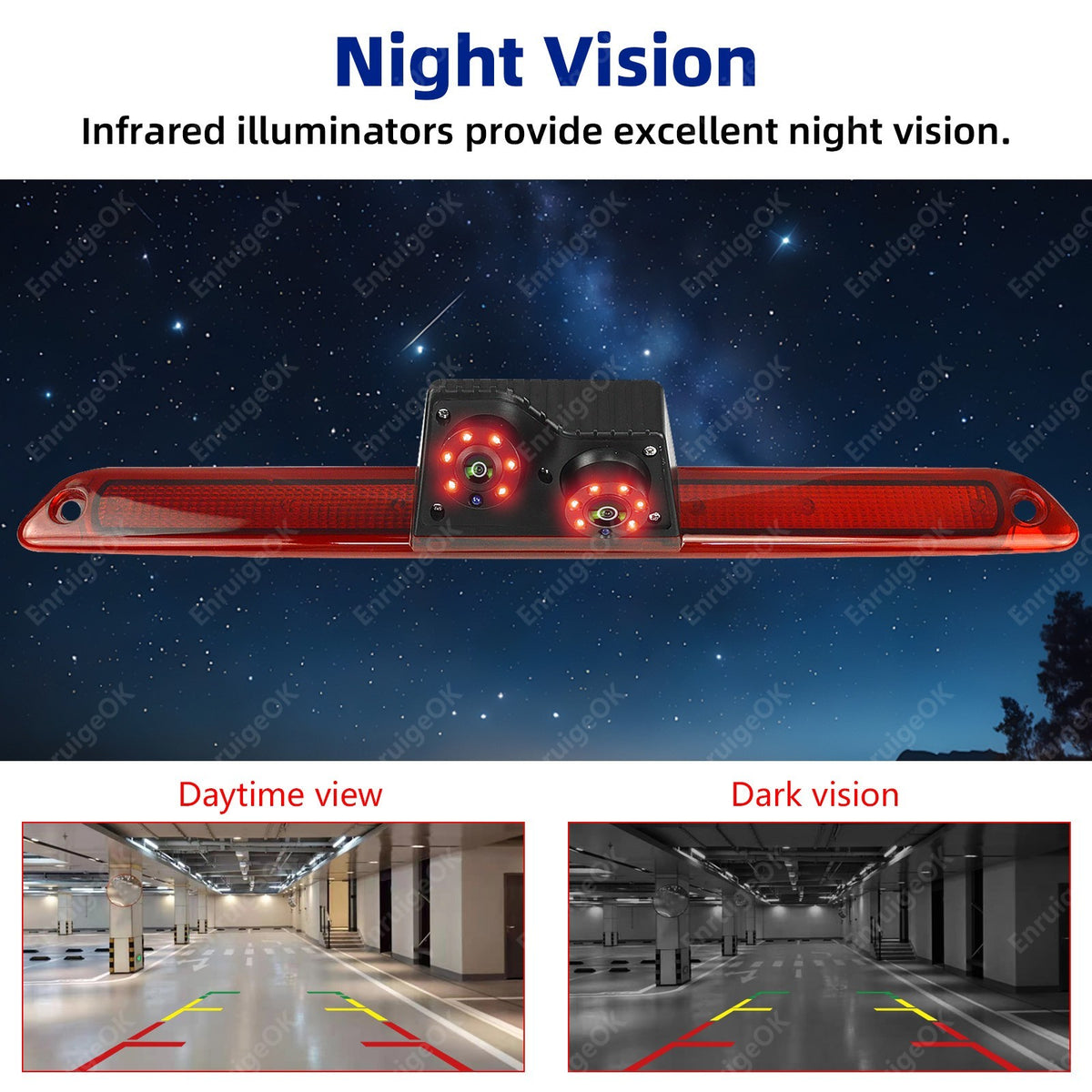

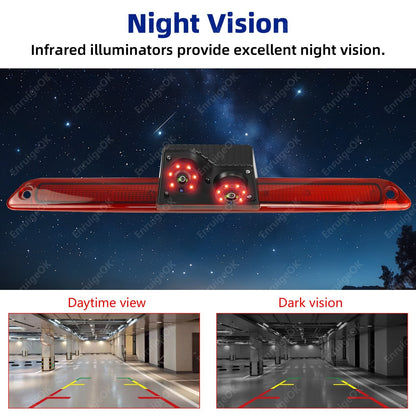

• 12 infrared LEDs for night vision

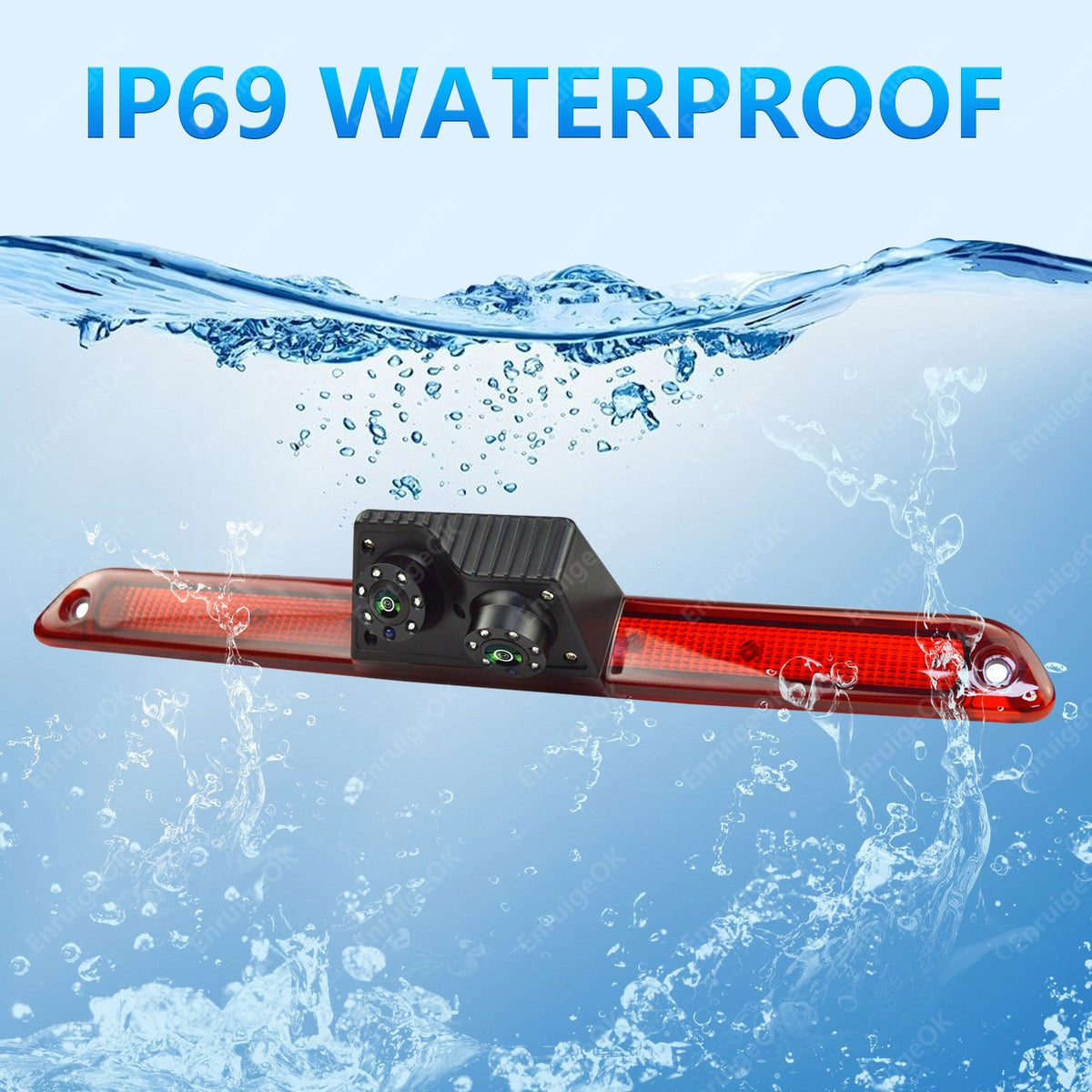

• IP69 waterproof camera construction
• Wide-voltage DC 9V-35V operation

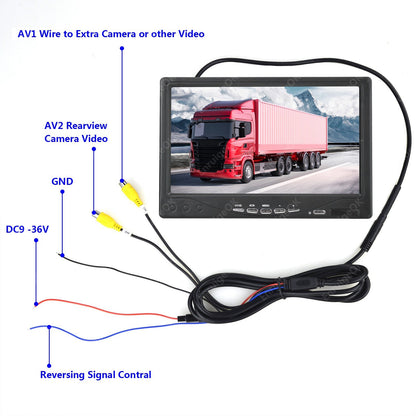

• 7-inch monitor with dual video inputs
• Automatic rear-view switching when reverse gear is engaged
• PAL / NTSC support

Camera Specifications

• Image sensor: 1/3" CMOS
• Effective pixels: 733(H) × 493(V)
• Resolution: 700 TV lines
• Viewing angles: approximately 130° and 90°
• Night-vision distance: approximately 35ft / 10.7m
• Waterproof rating: IP69
• Video system: PAL / NTSC
• Signal-to-noise ratio: >48dB
• Minimum illumination: 0 Lux with IR LEDs on
• Current consumption: <150mA
• Power supply: DC 9V-35V
• Operating temperature: -20°C to +70°C

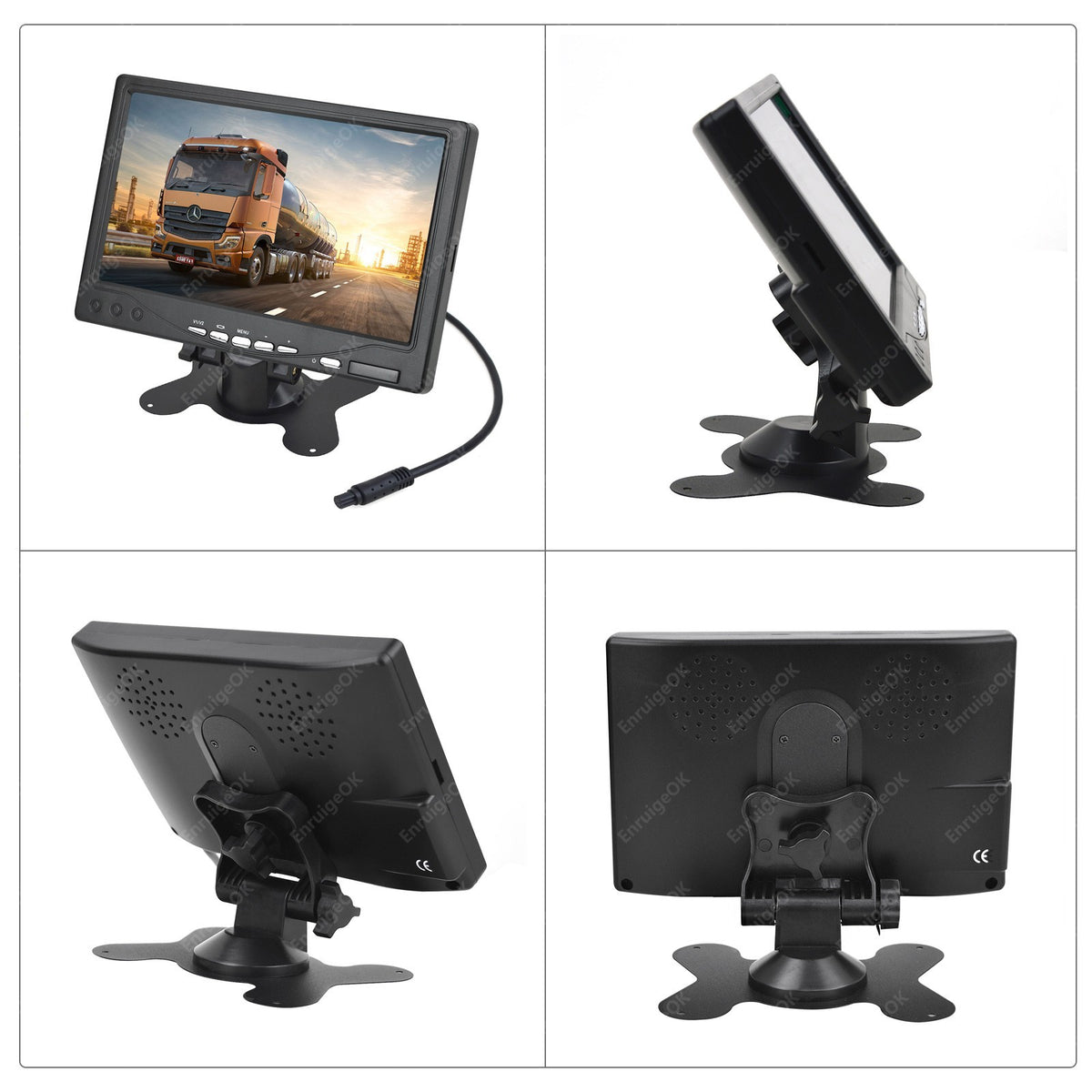

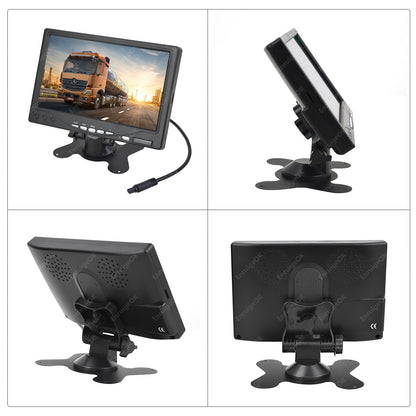

7-Inch Monitor Specifications

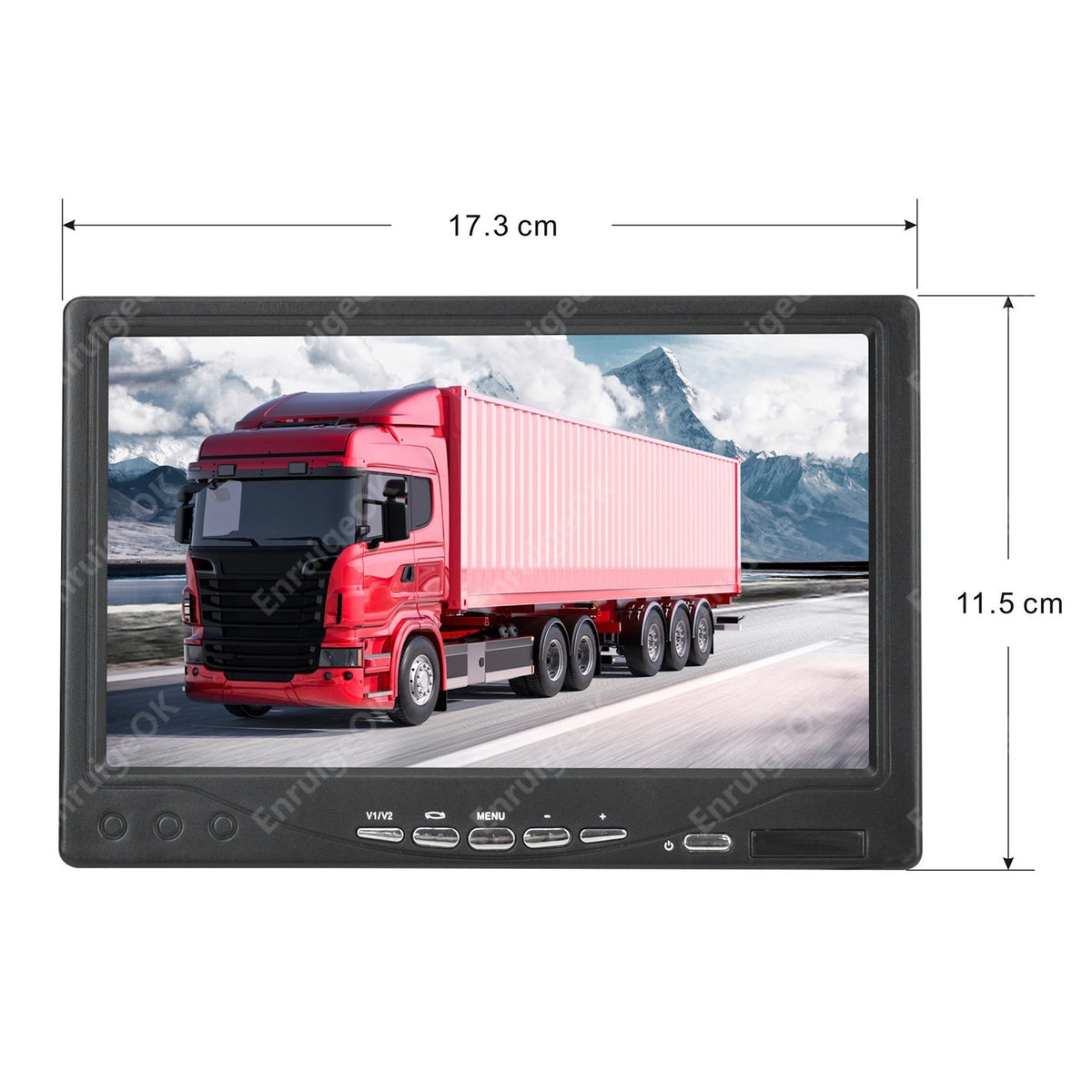

• Screen size: 7 inch
• Resolution: 800 × 480
• Video system: PAL / NTSC automatic
• Aspect ratio: 16:9 / 4:3 adjustable

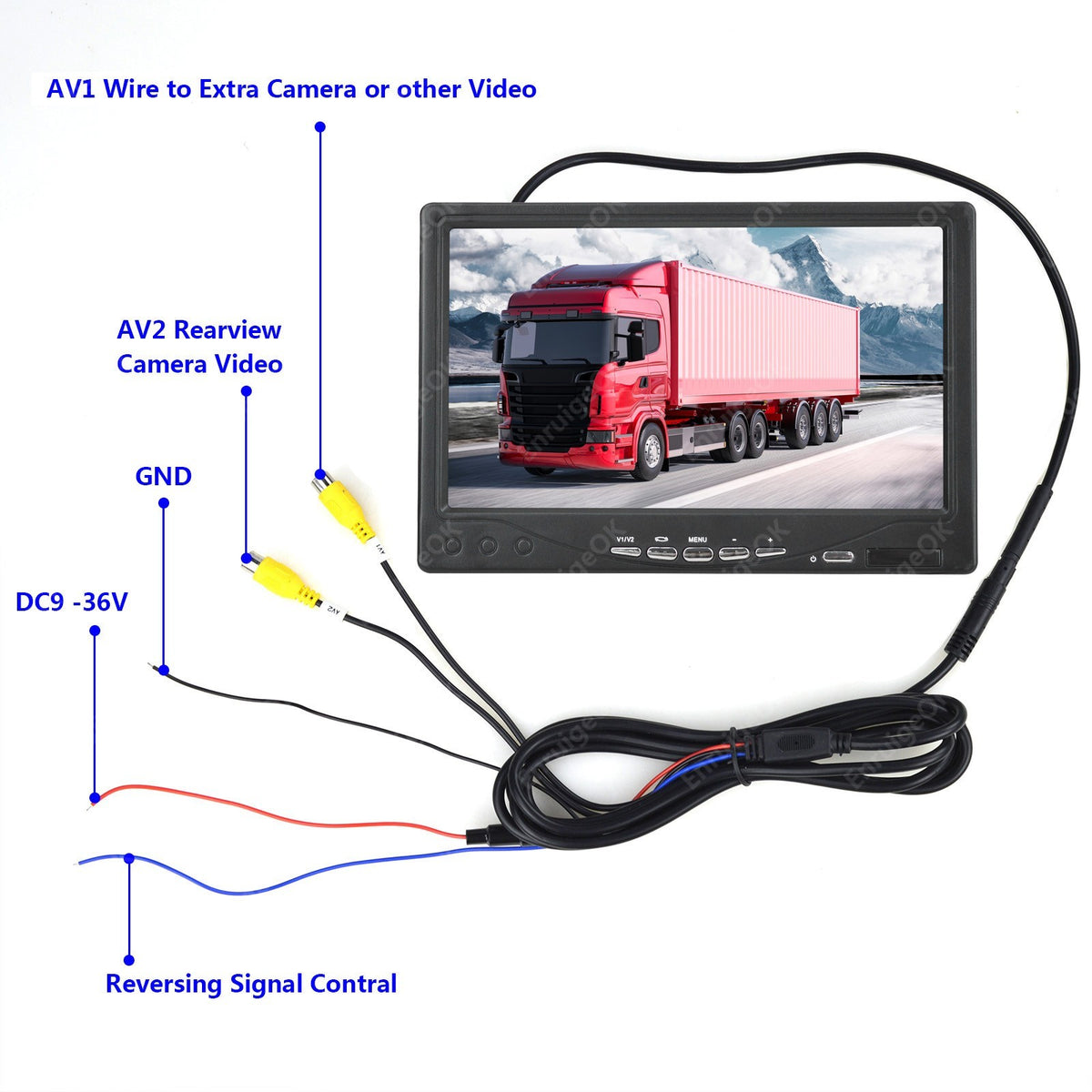

• Video inputs: AV1 and AV2
• Automatic reverse-camera priority
• Blue screen when no signal is detected

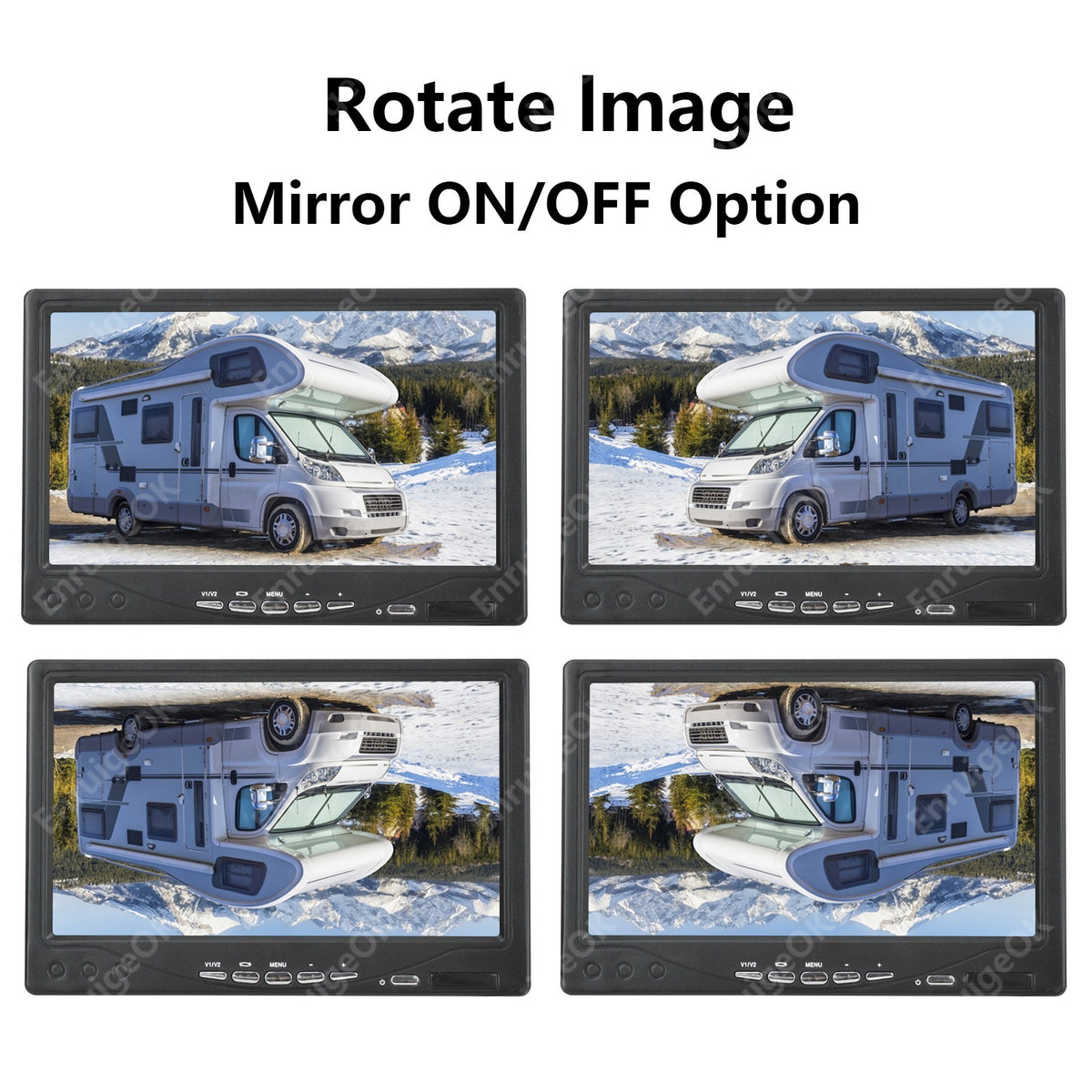

• Image left/right mirror adjustment

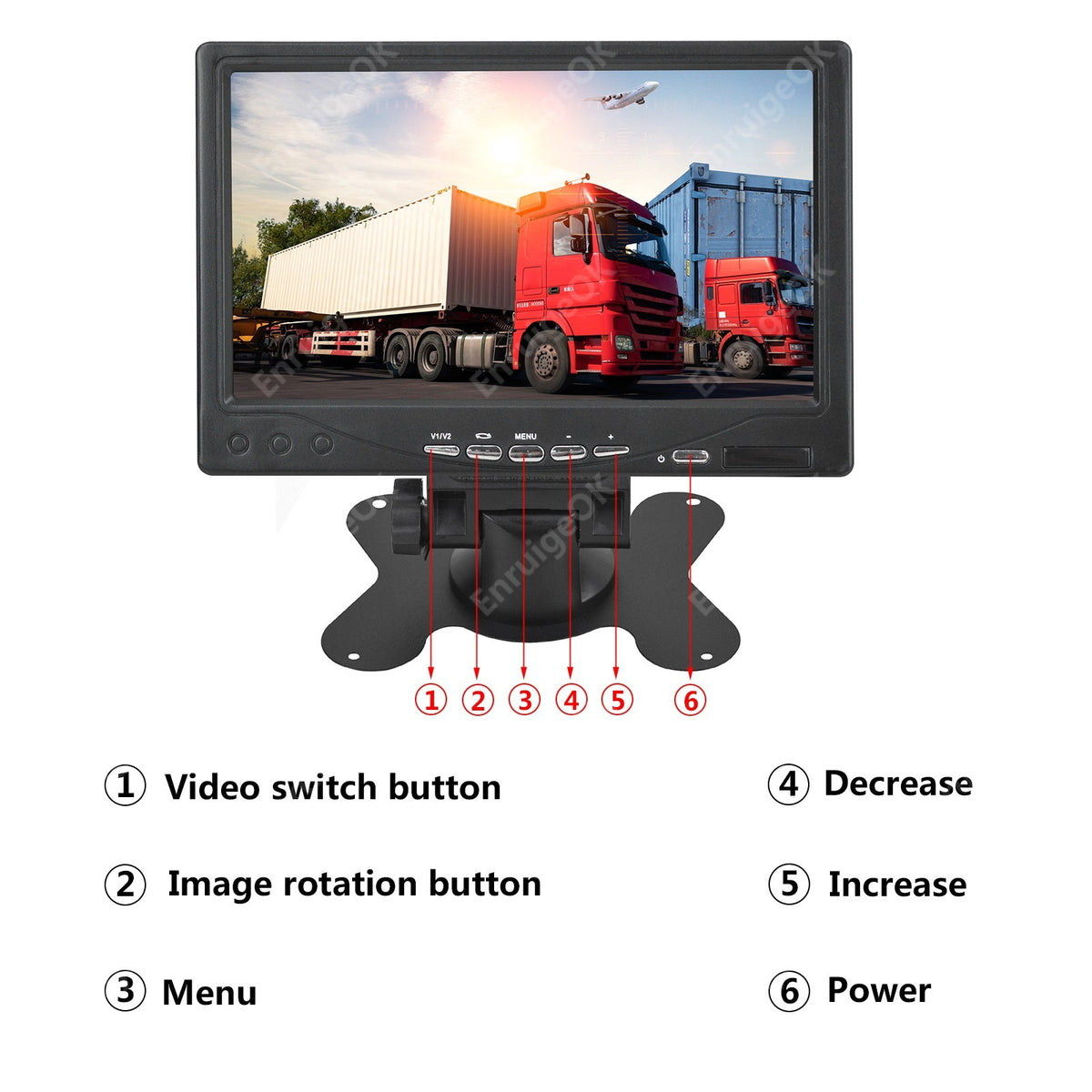

• Operation: touch keys and remote control
• Power supply: DC 9V-35V

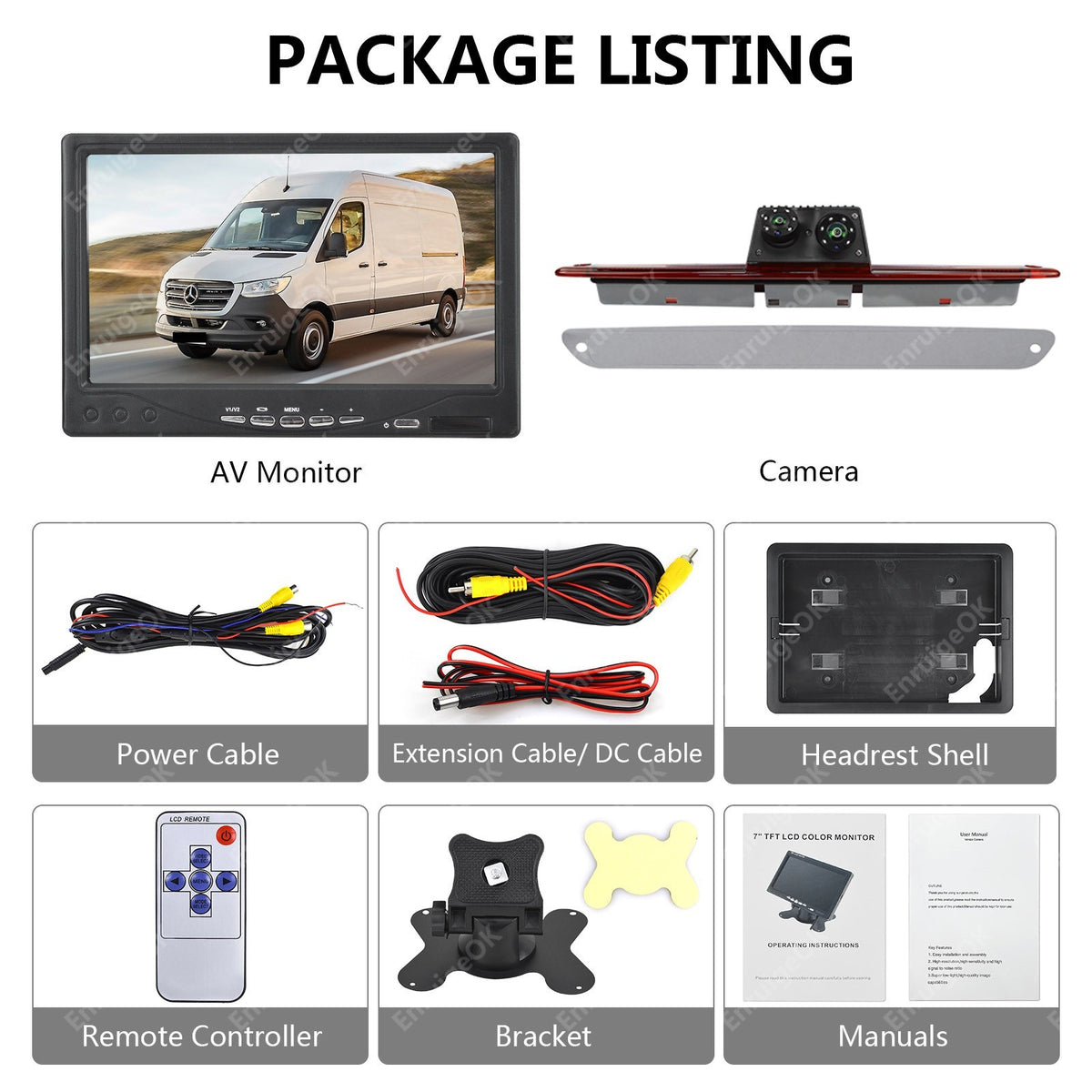

Package Includes

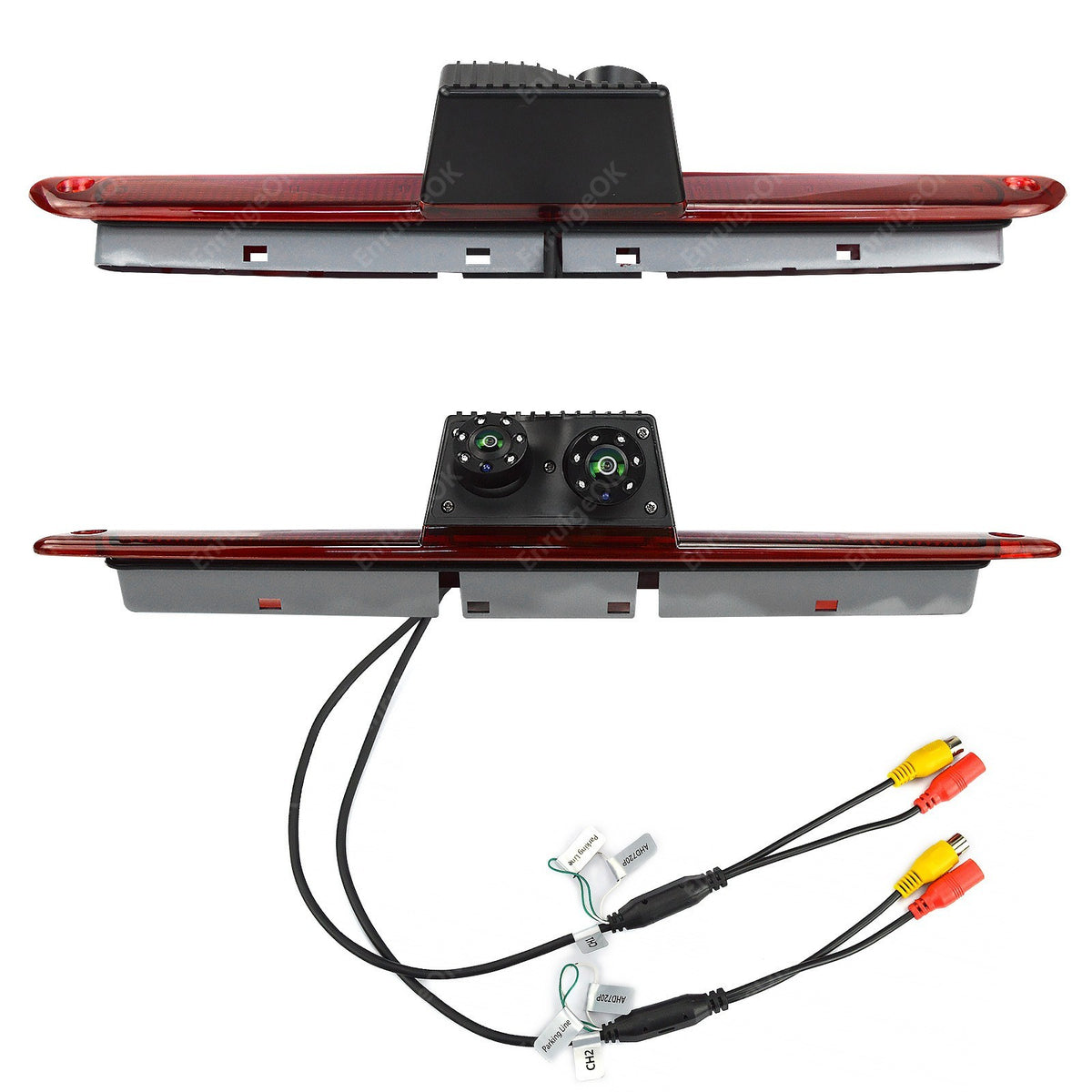

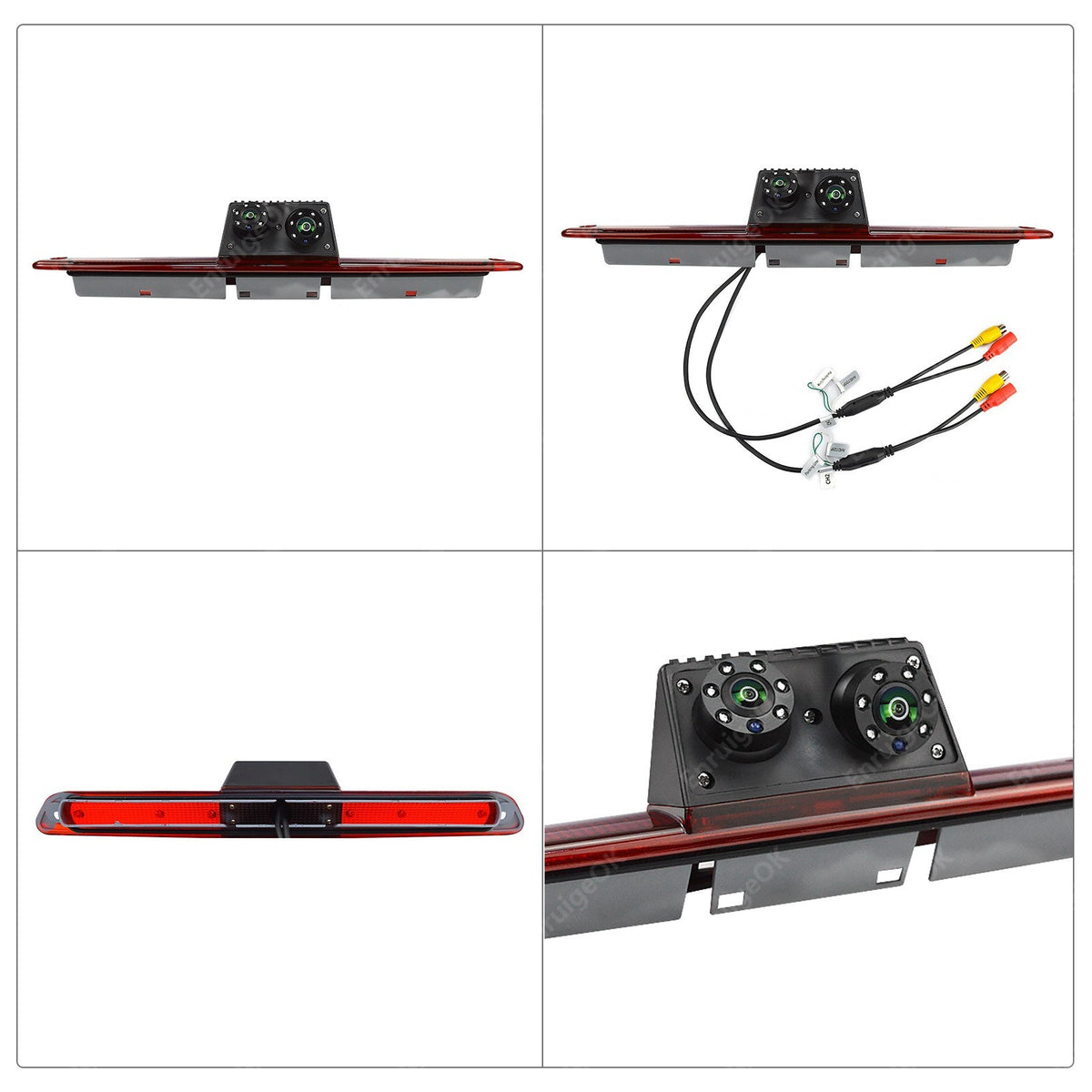

• 1 × Dual-lens brake-light camera
• 1 × 7-inch dash-mount monitor
• 1 × Remote controller (CR2025 battery not included)
• 1 × 2.5m monitor power cable

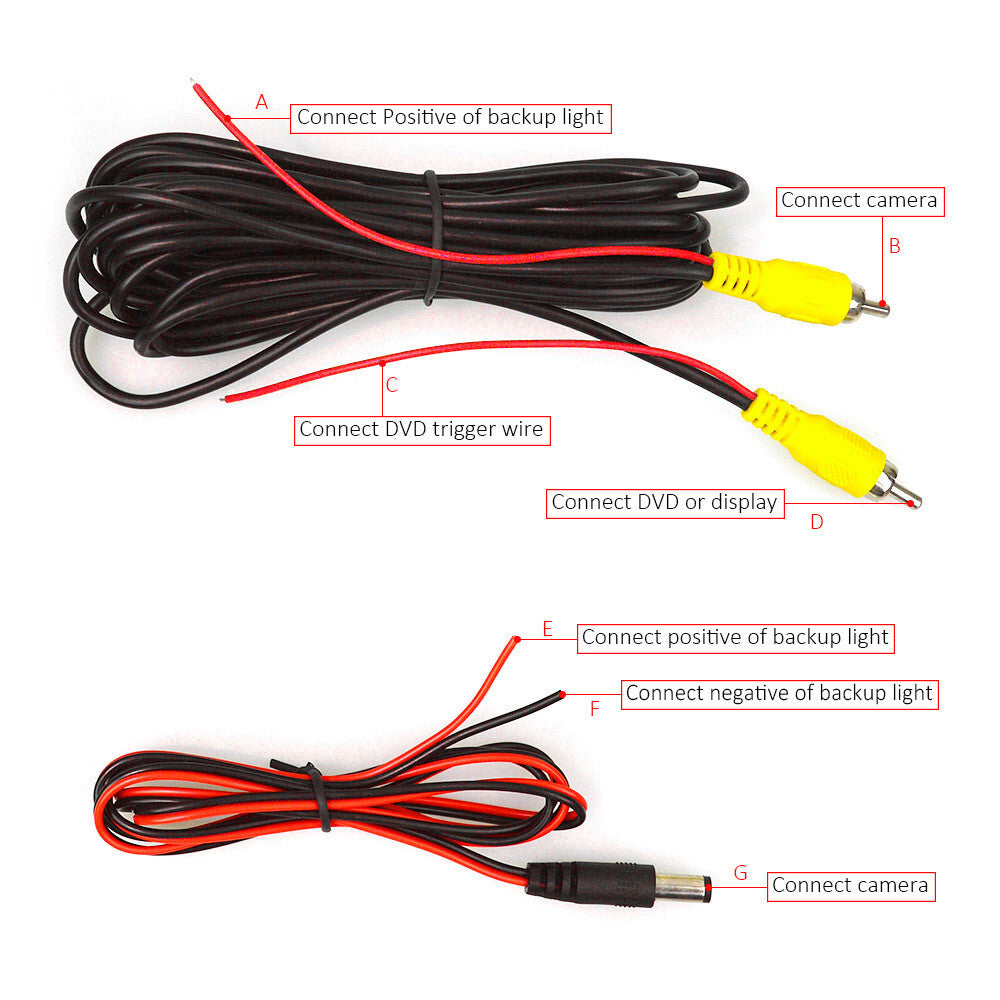

• 2 × 10m / 33ft video extension cables
• 2 × 1.5m DC power cables

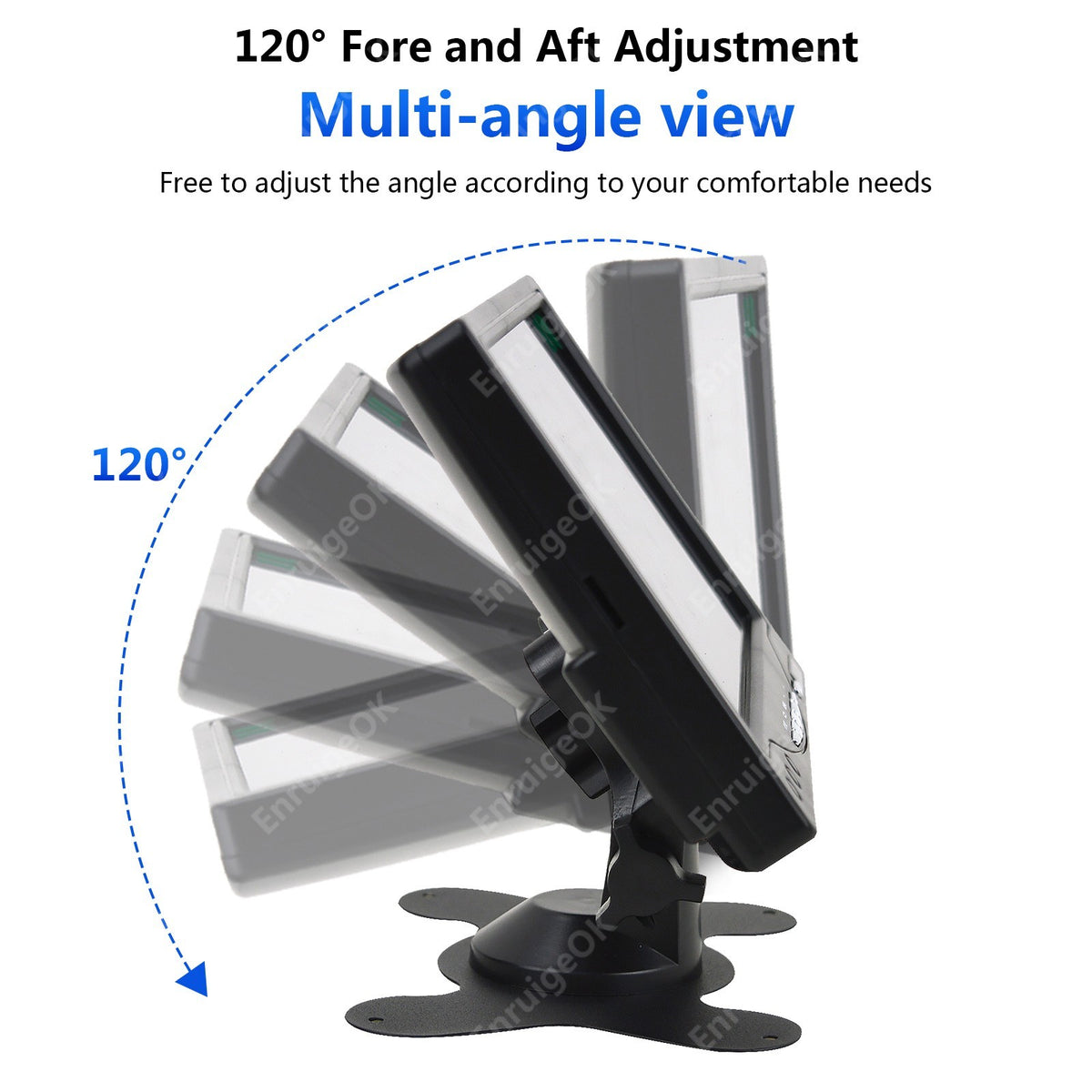

• 1 × Dashboard mount stand

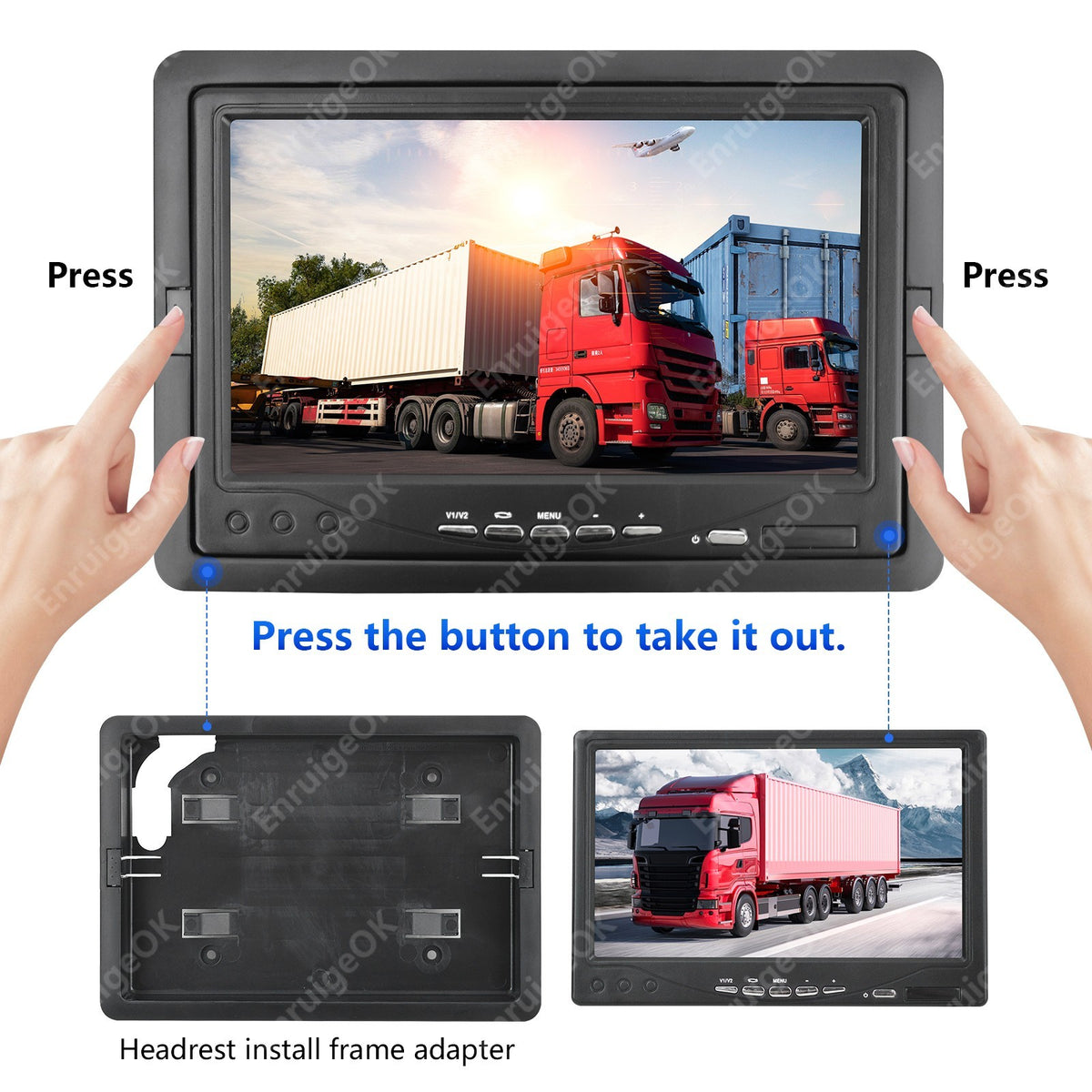

• 1 × Headrest shell
• 1 × User manual
