Dual Rear View Reverse Camera Kit for Mercedes Benz Sprinter Van Roof Mount

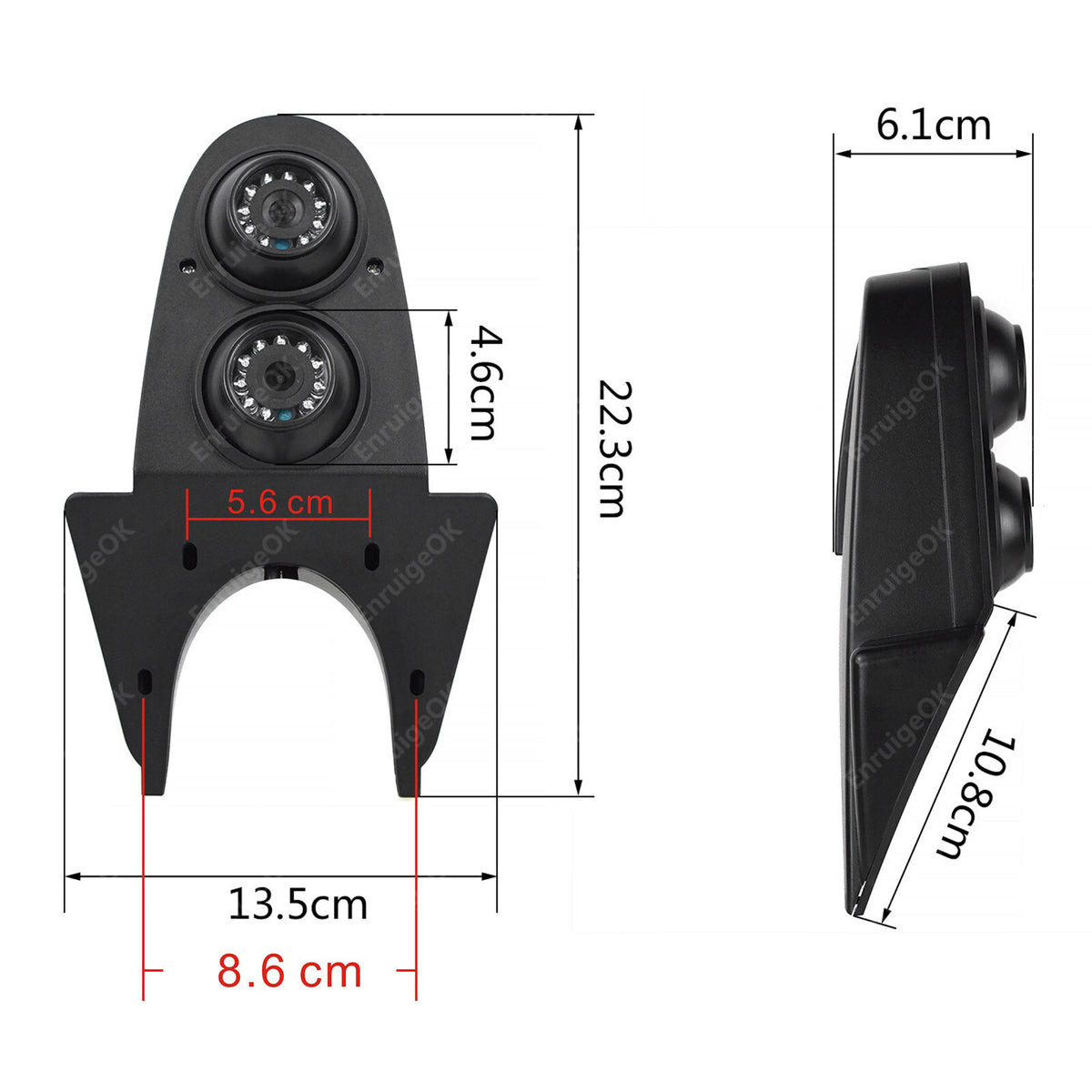

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the case housing on the vehicle.

Camera Compatibility

Designed for Mercedes-Benz Sprinter Van

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

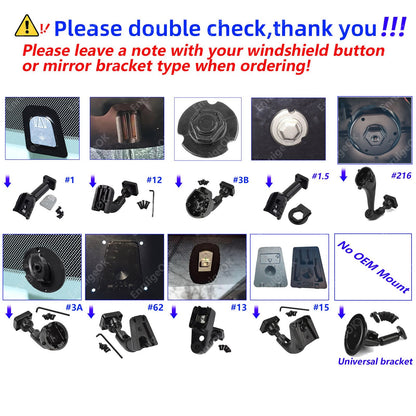

Monitor Bracket Note

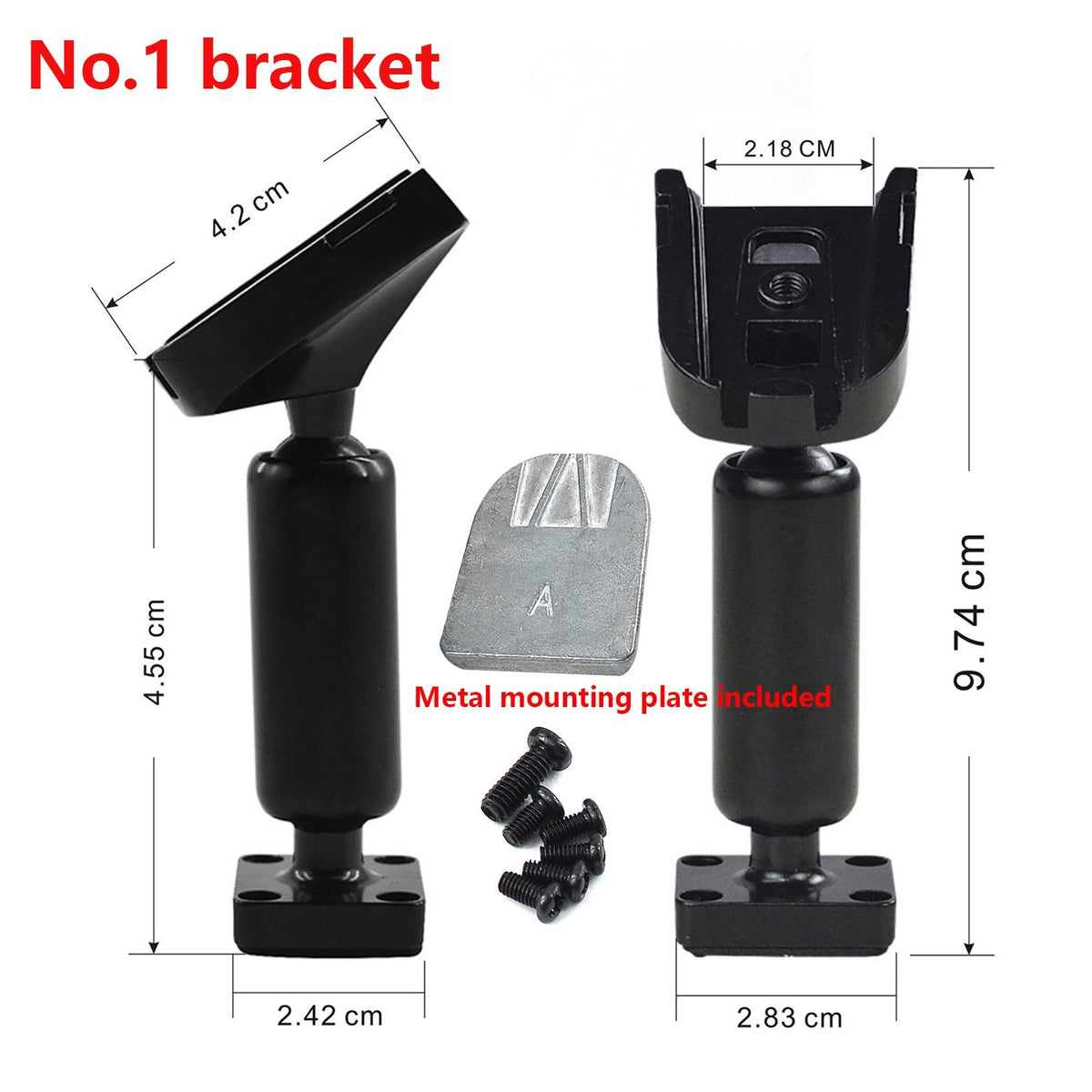

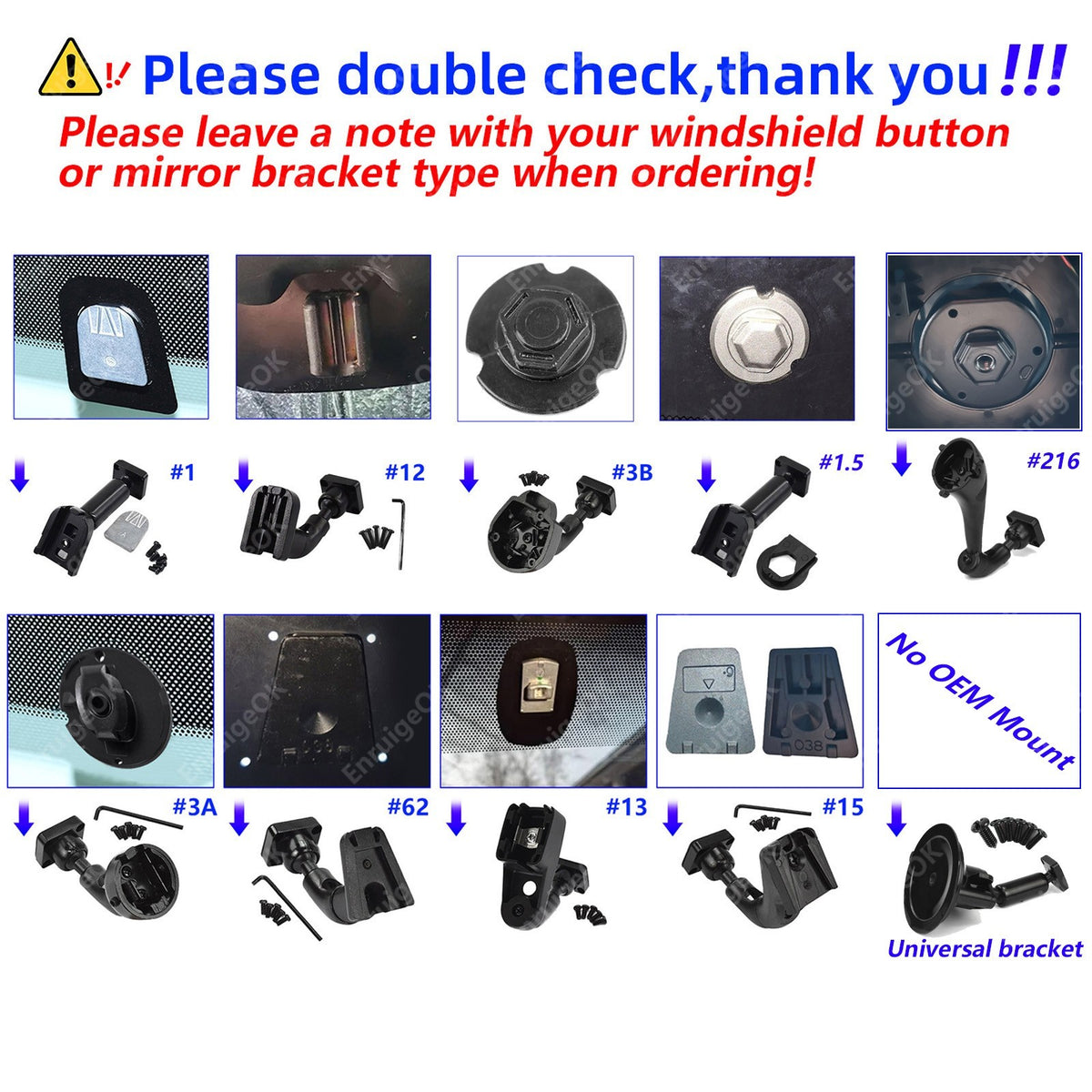

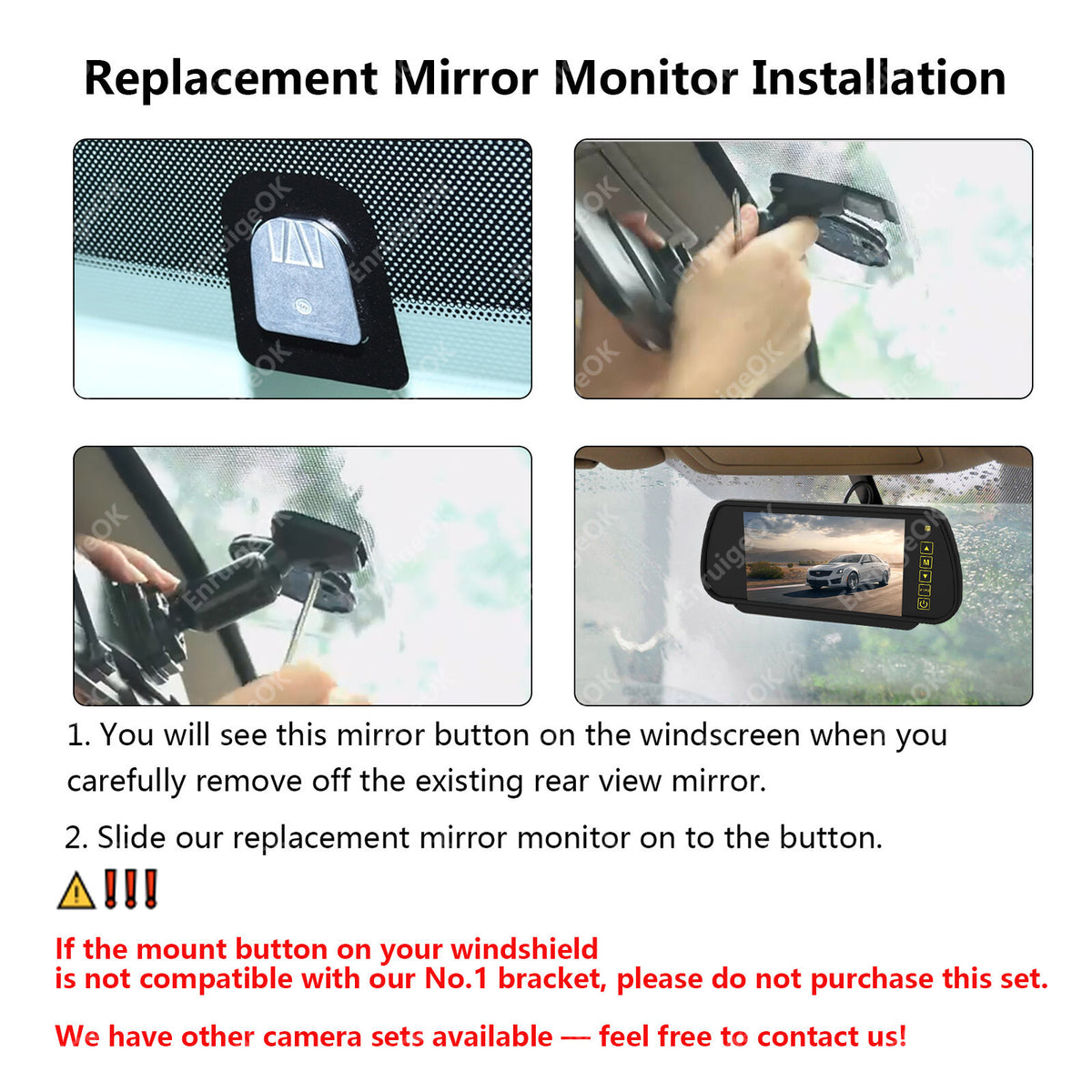

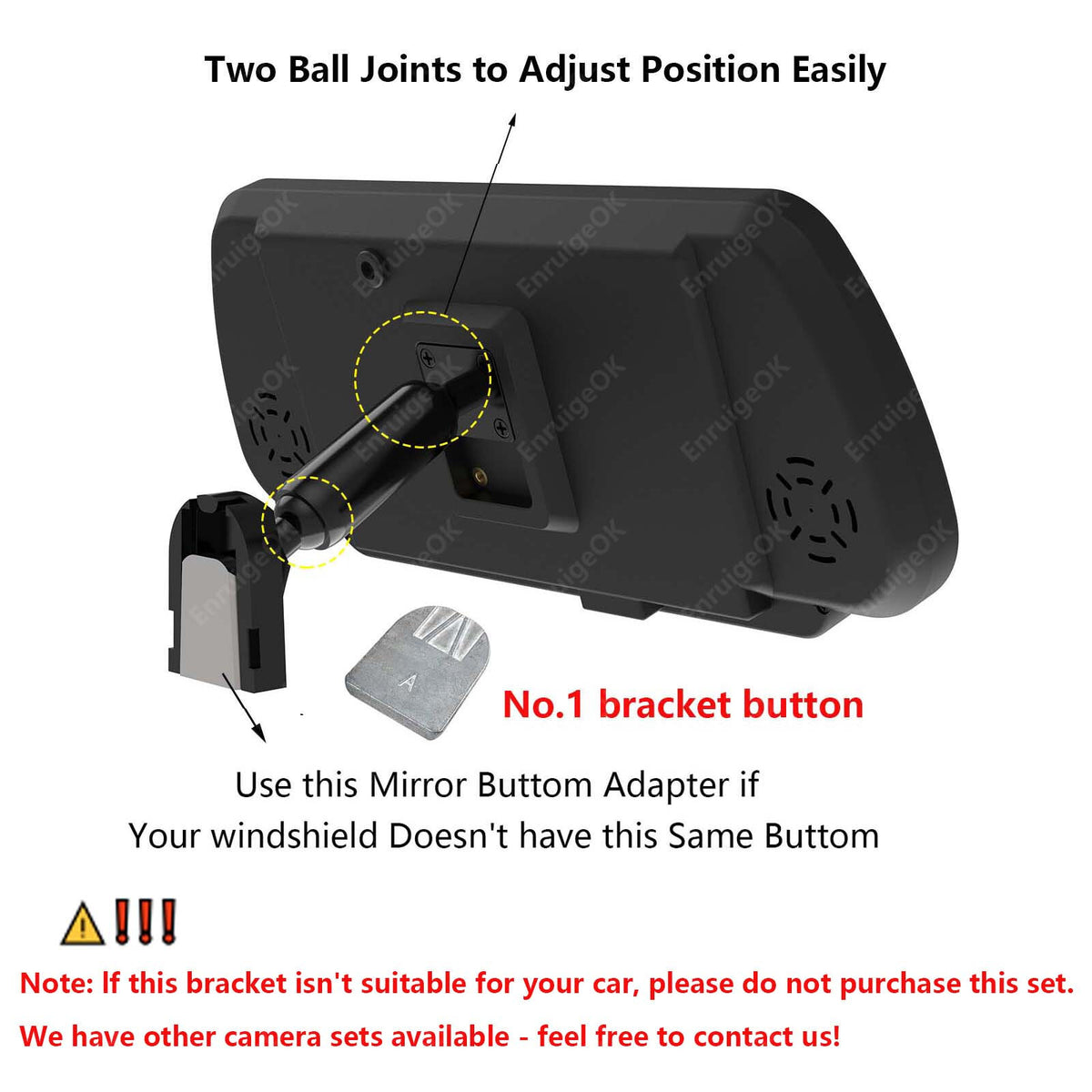

This kit includes the #1 bracket by default. If unsure about compatibility, please send a clear photo of your windshield button or original mirror bracket when ordering. We have other bracket styles that may fit your vehicle.

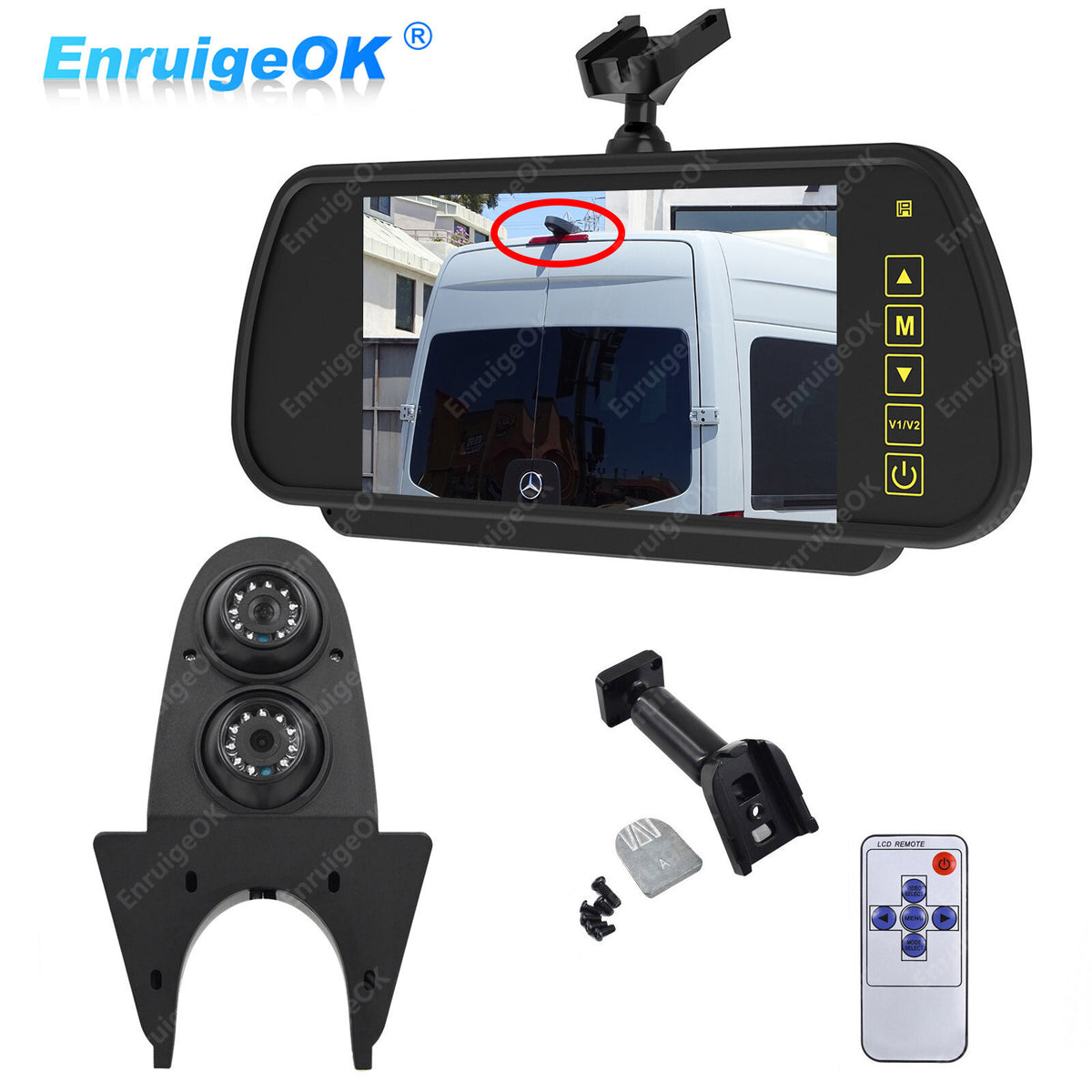

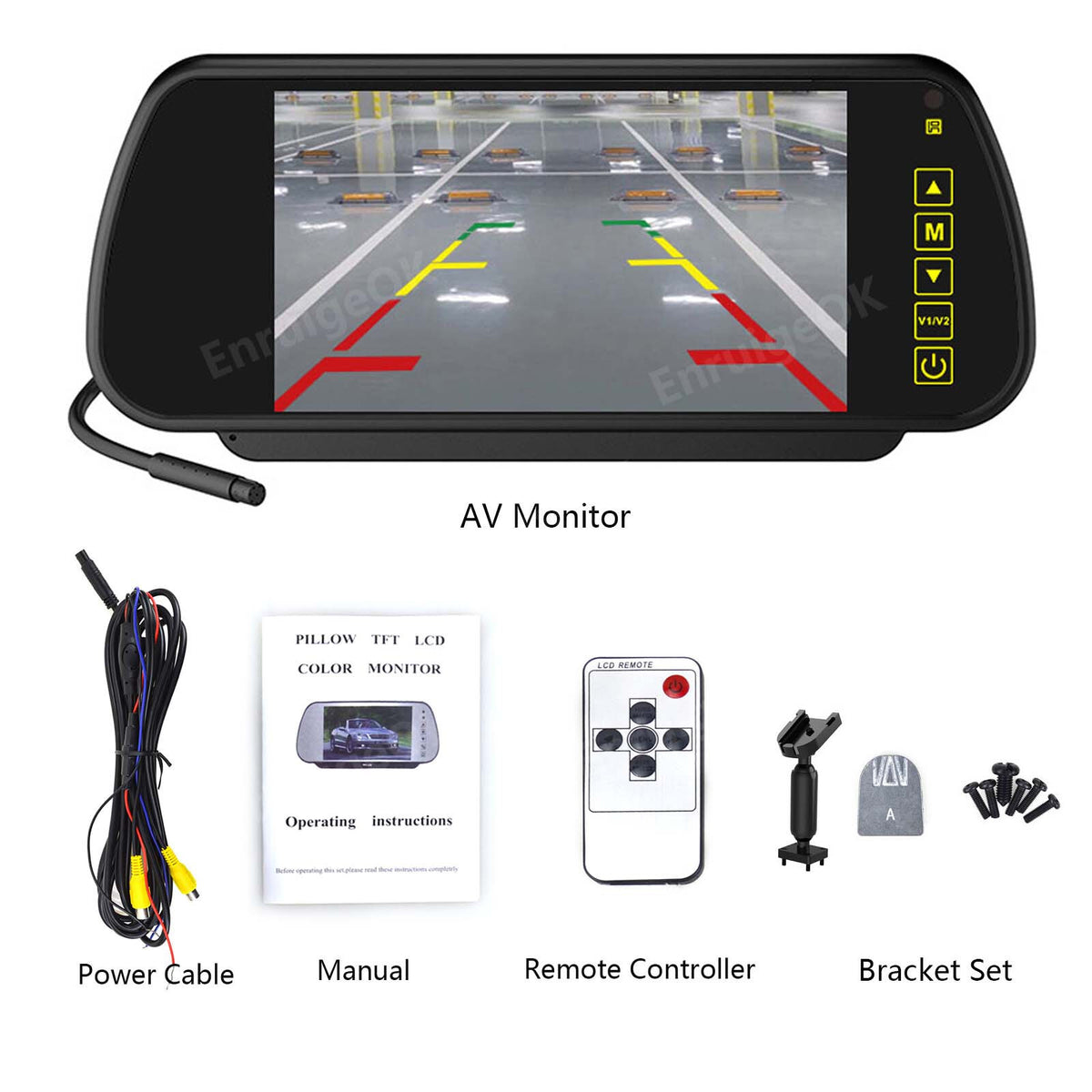

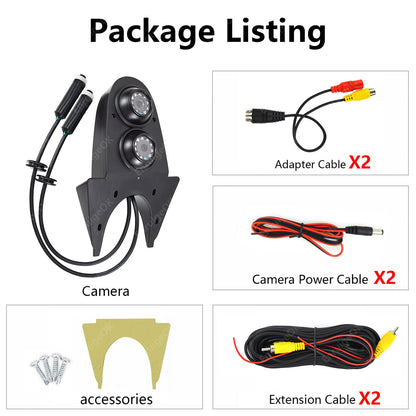

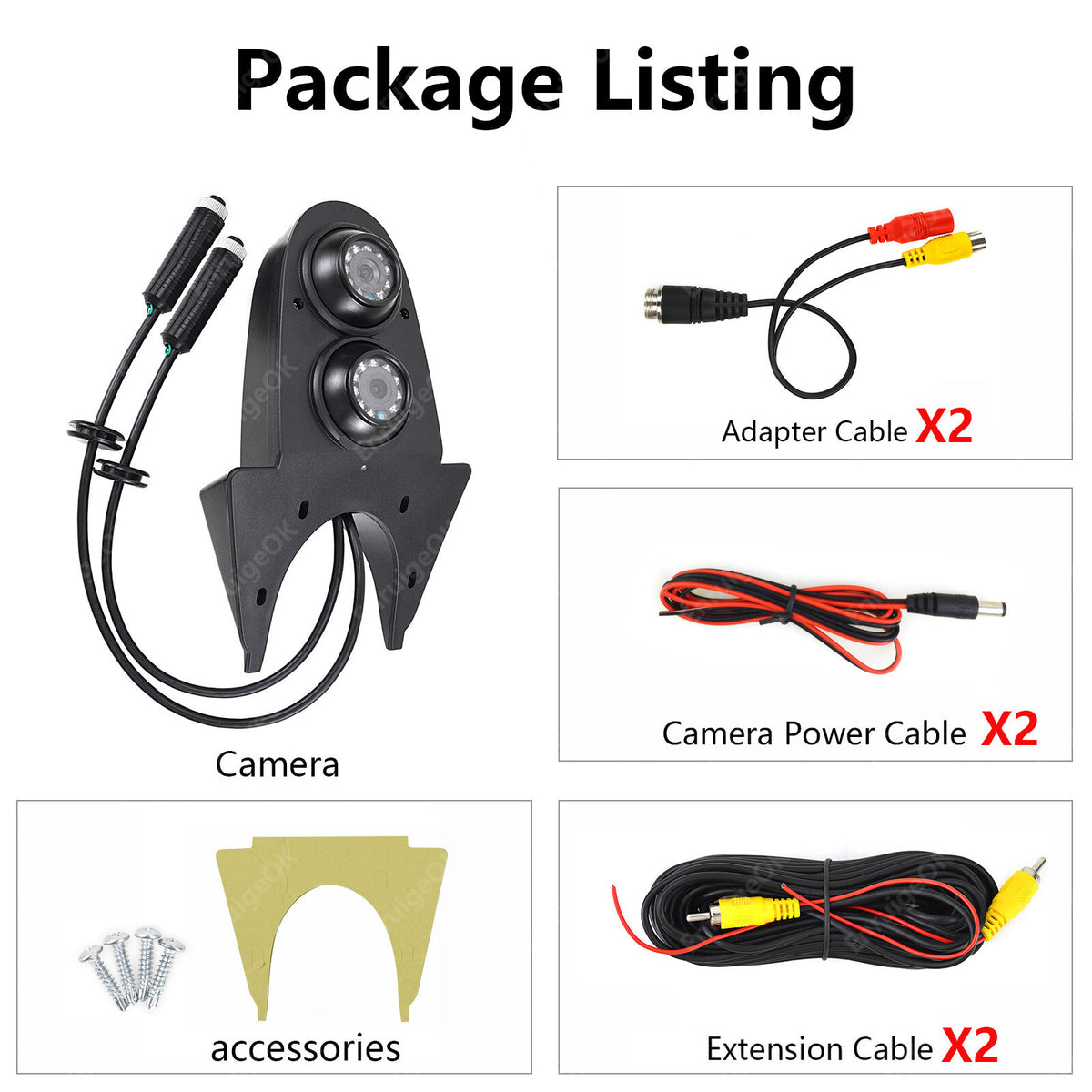

Package Includes:

1 X Rear View camera

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

2 X Adapter Cable

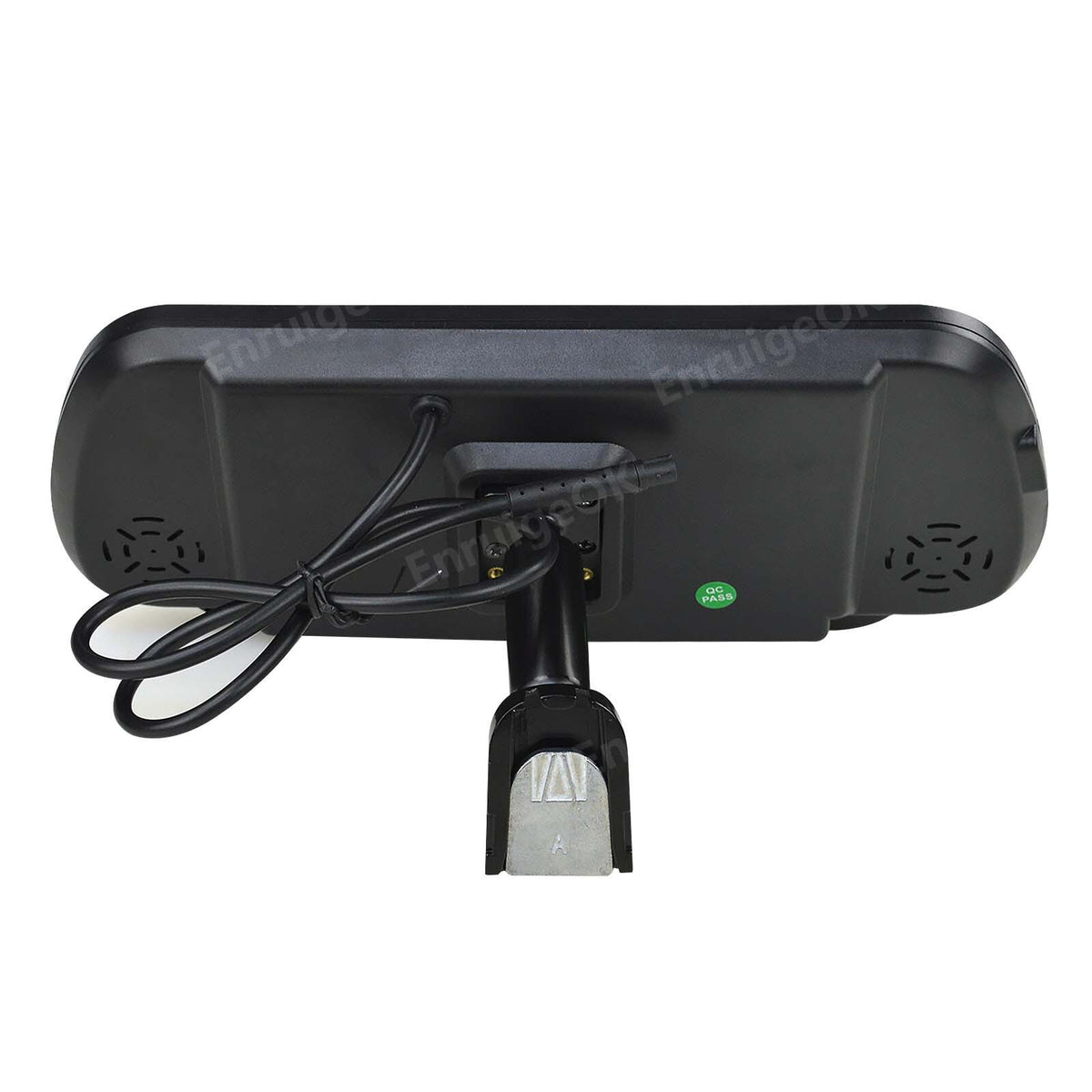

1 X #1 Bracket(check your windshield button)

1 X Screws kit

1 X Manual

Features:

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

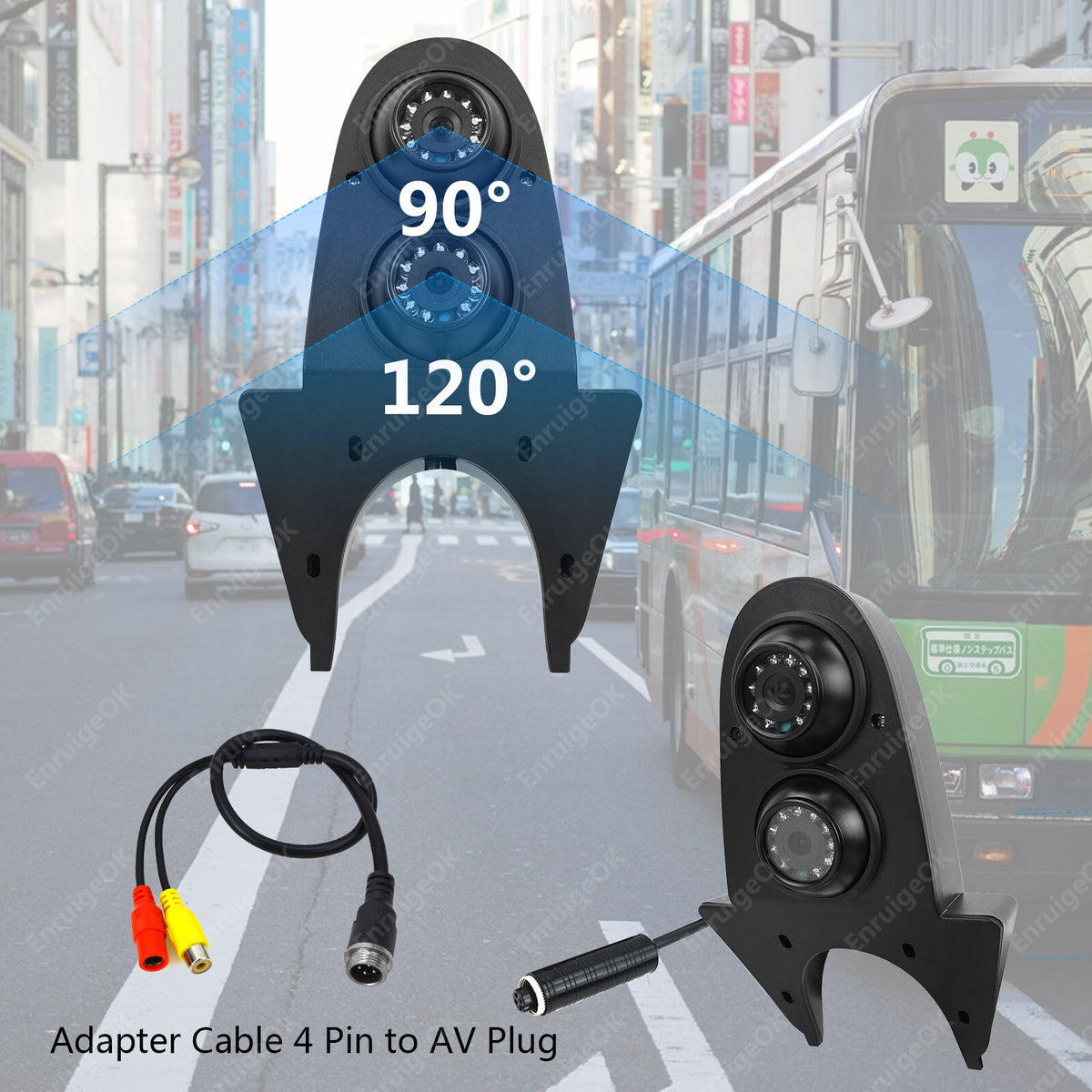

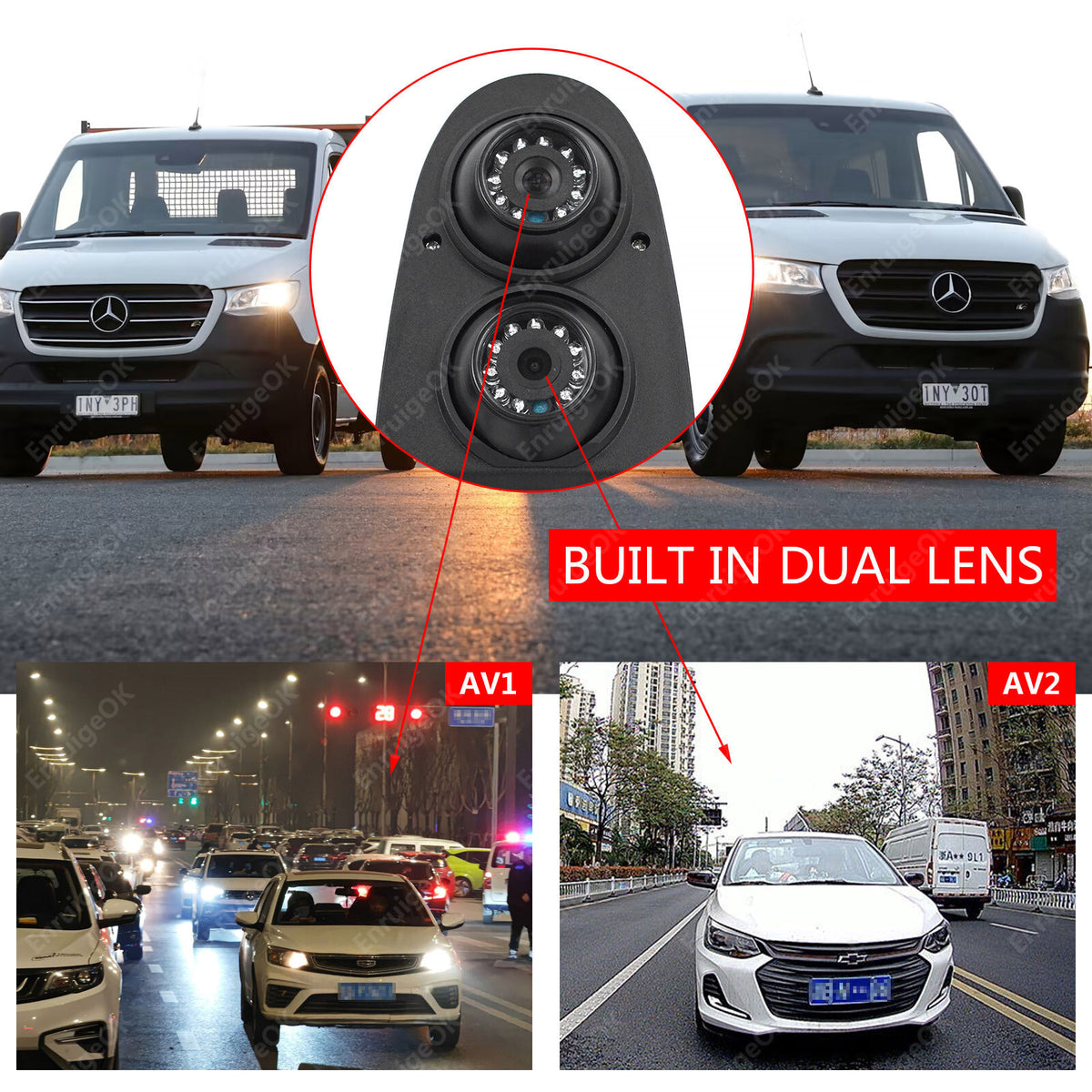

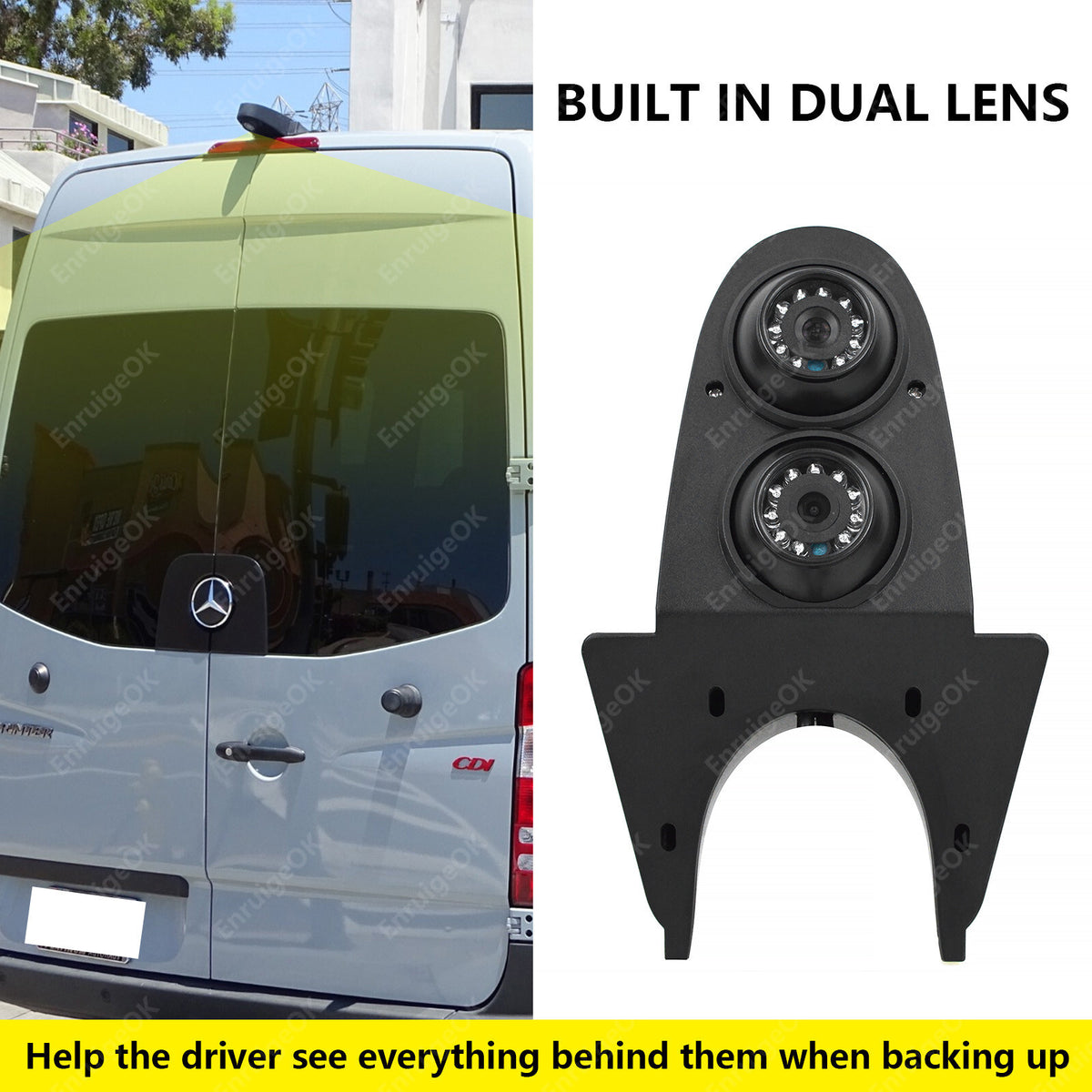

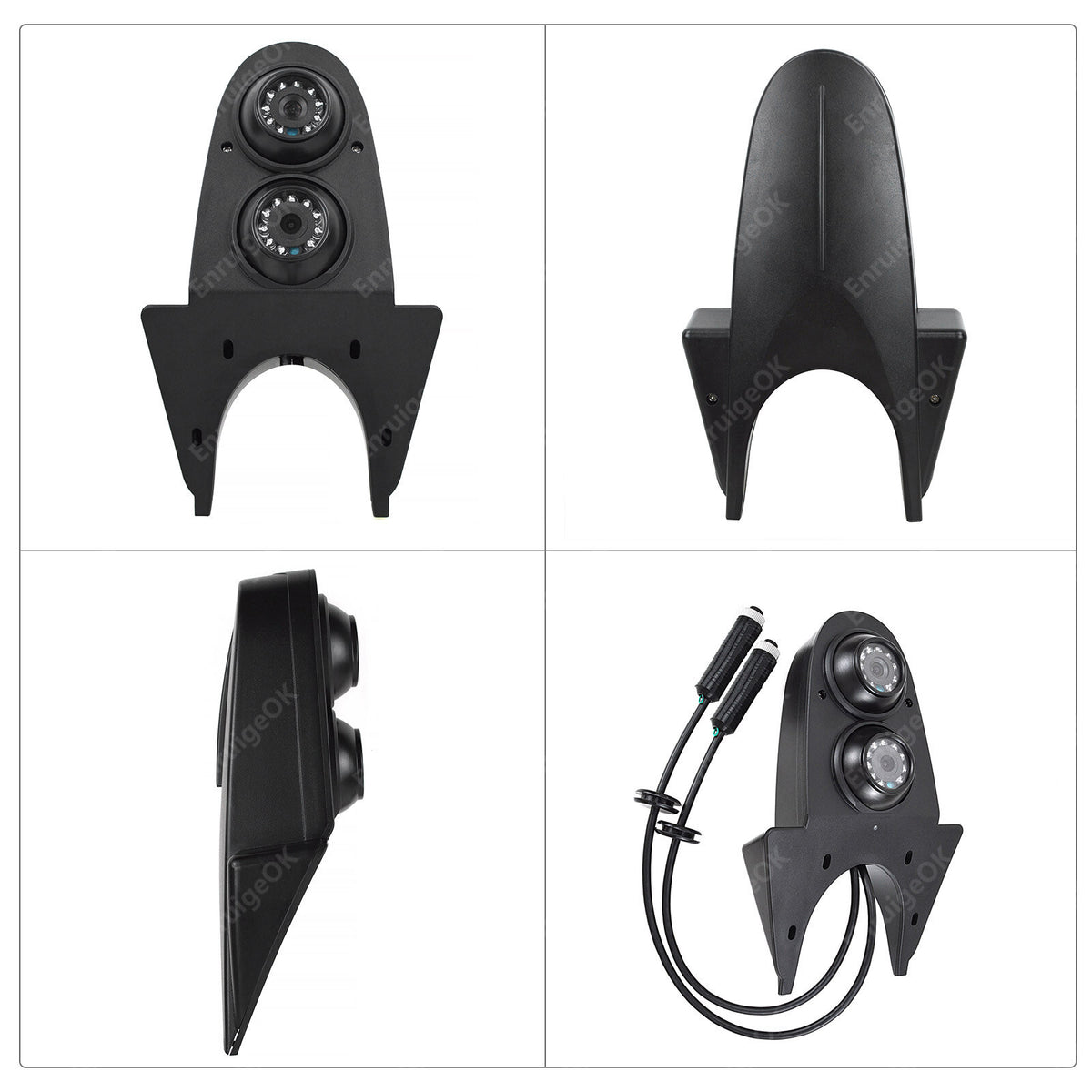

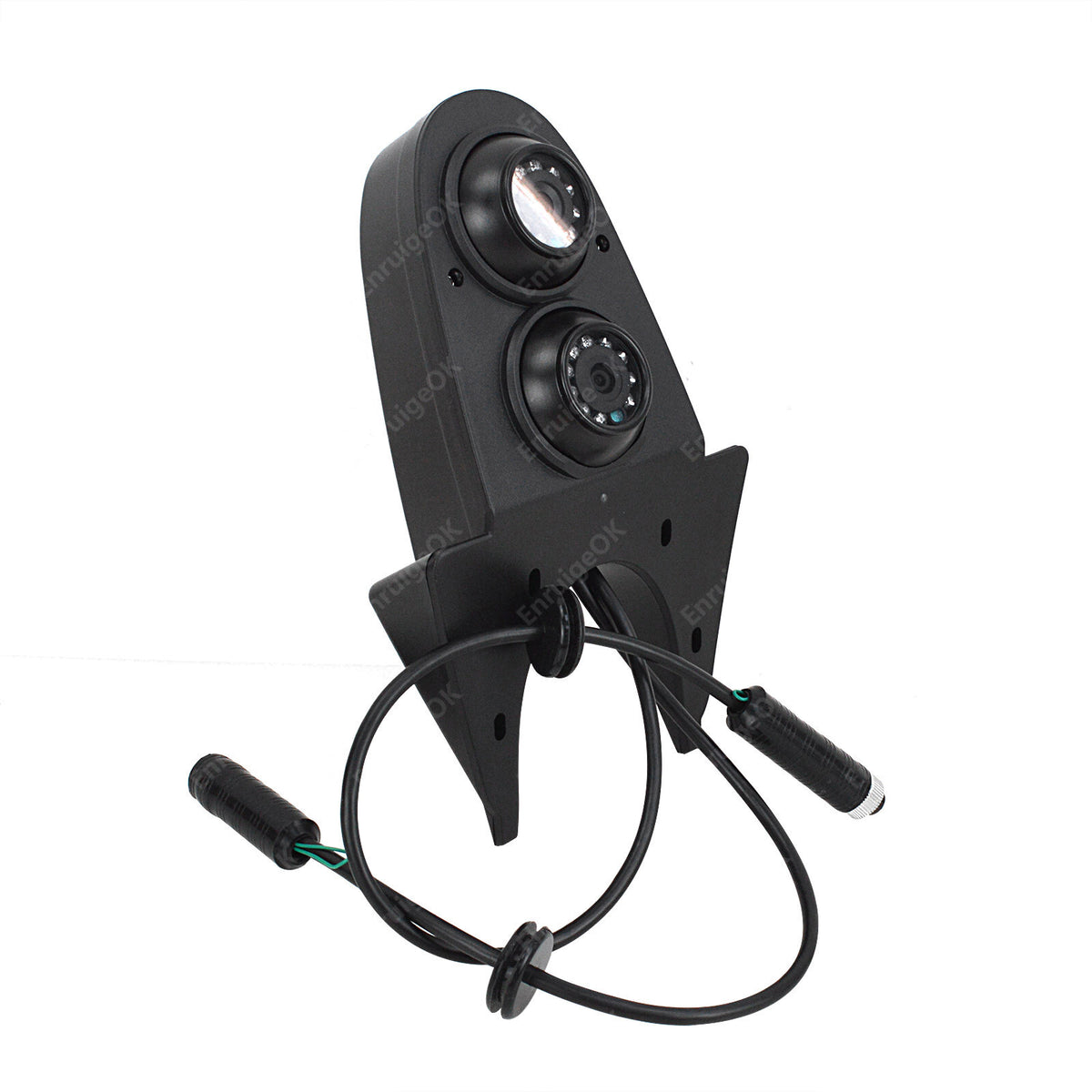

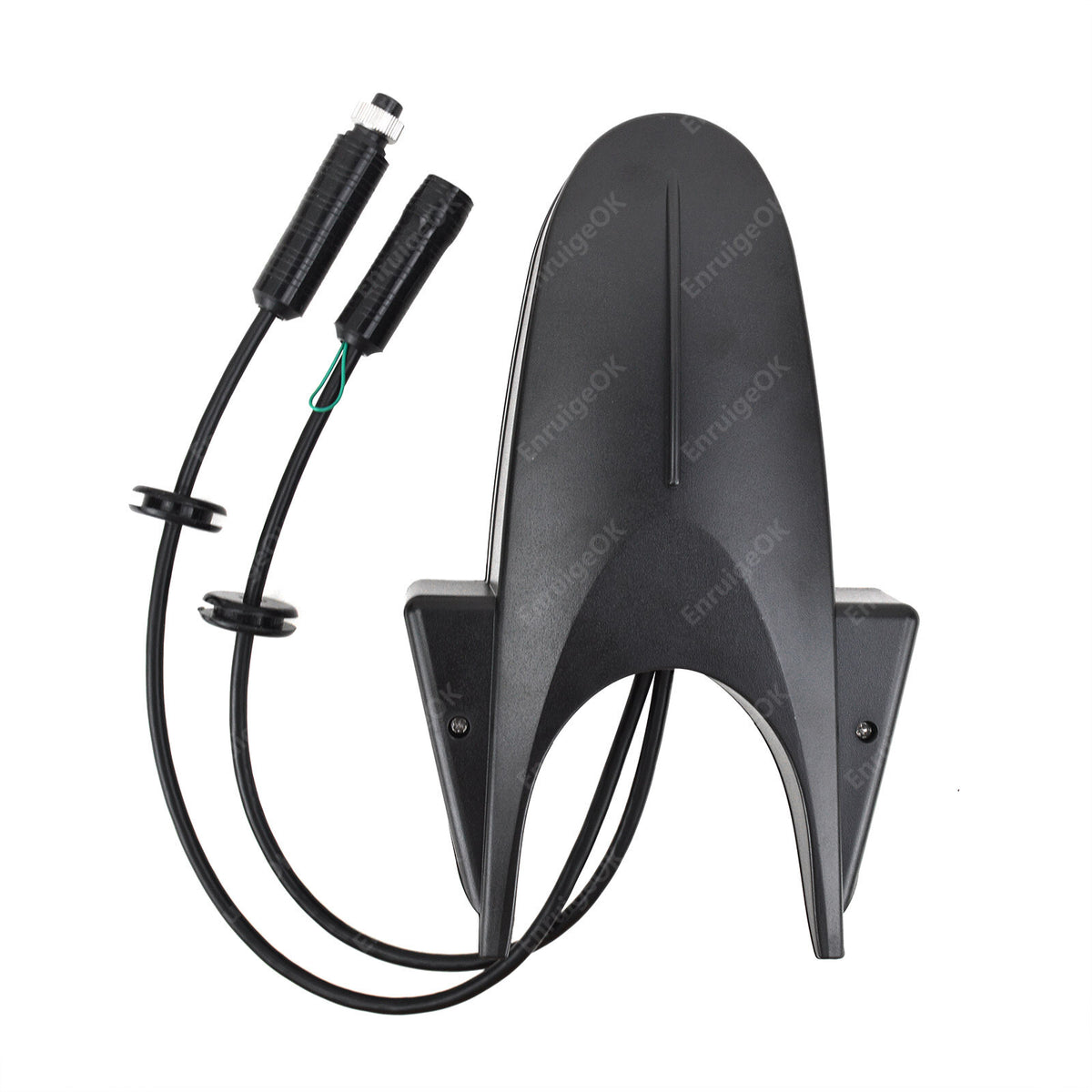

Dual lens Sprinter backup camera. Its unique design allows to have one mounting with 2 cameras with different viewpoints. One reversing camera to view traffic, another to see the trailer hitch and rear bumper.

This brake light camera uses a 1/3" CMOS sensor with enhanced color imaging, and features 20 infrared lights around the lens to ensure excellent night vision.

The 7" Color TFT-LCD Monitor features 2 video inputs and an 800*480 (RGB) resolution, making it compatible with the brake light rearview camera.

Dustproof, shockproof, anti-shake.

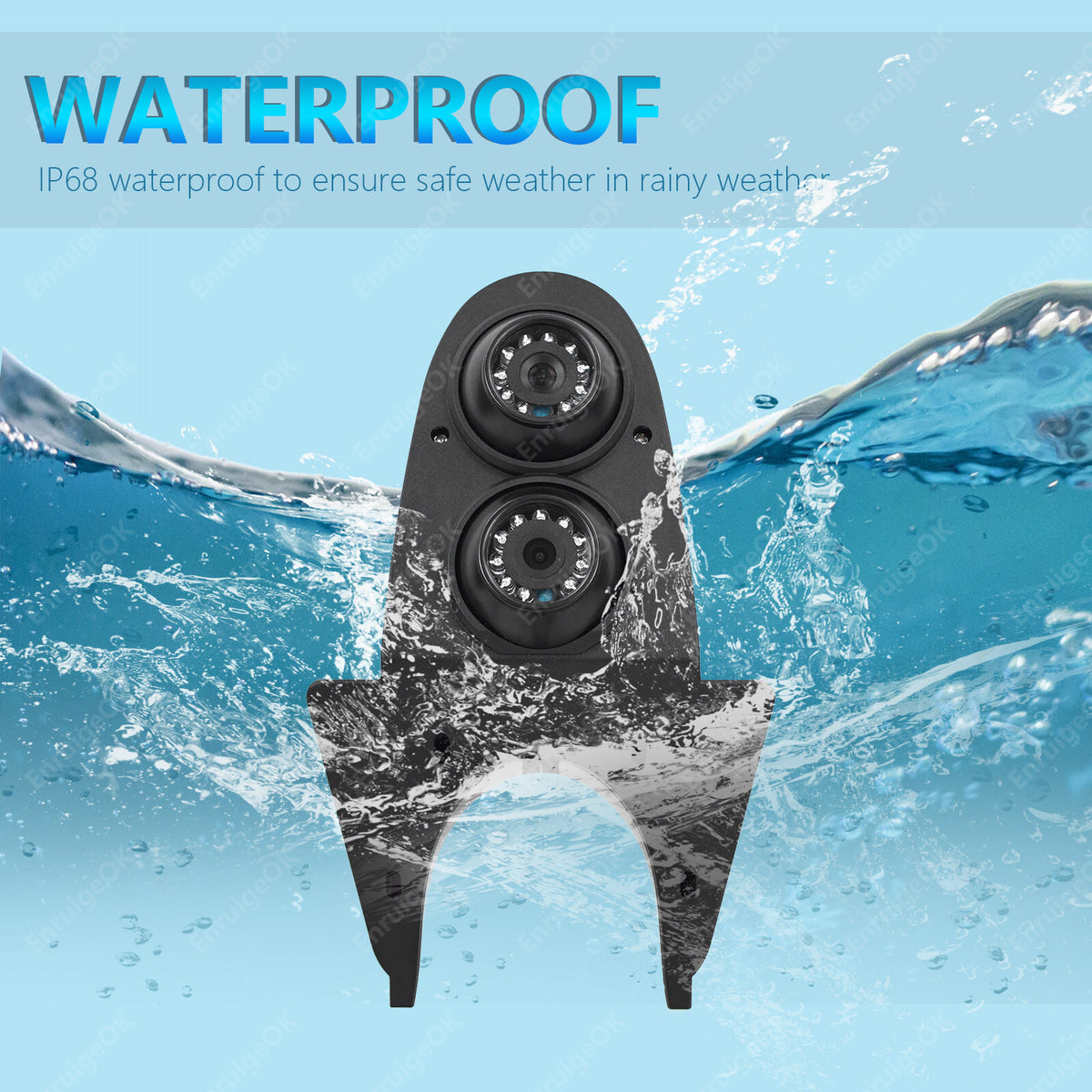

Built with IP68 rating, which make it 100% waterproof.

This backup camera supports a wide voltage range from 9V to 35V, ensuring stable performance across the vehicle.

Camera Specifications

- Image sensor: 1/3" CMOS

- TV system: PAL/NTSC

- Waterproof rating: IP68

- Viewing angle: 120°&90°

- Effective pixel: 733(H)x493(V)

- Resolution: 700TV Lines

- Horizontal sync frequency: 15.625KHZ

- Scanning system: 2:1 interface

- Sync system: Internal

- ACG: Auto

- BLC: Auto

- S/N Ratio: > 48dB

- Current consumption: < 150mA

- Minimum illumination: 0Lux(IR ON)

- Power supply: DC 9-35V

- Operating temperature: -20℃ to +70℃

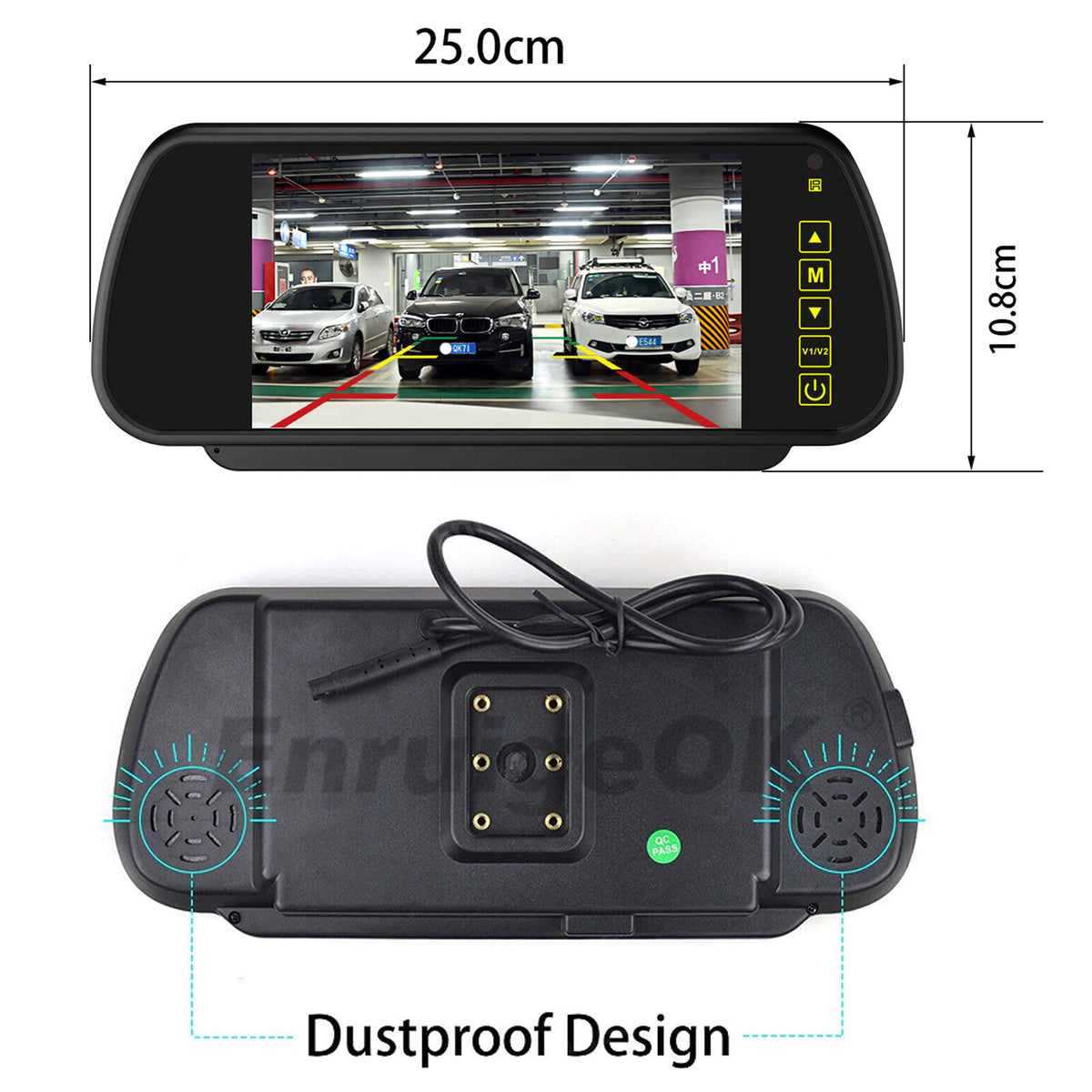

Monitor Specifications

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: 2AV video input

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)
