Dual Rear Brake Light Reverse Camera for Mercedes Sprinter Van + 6.86" Monitor

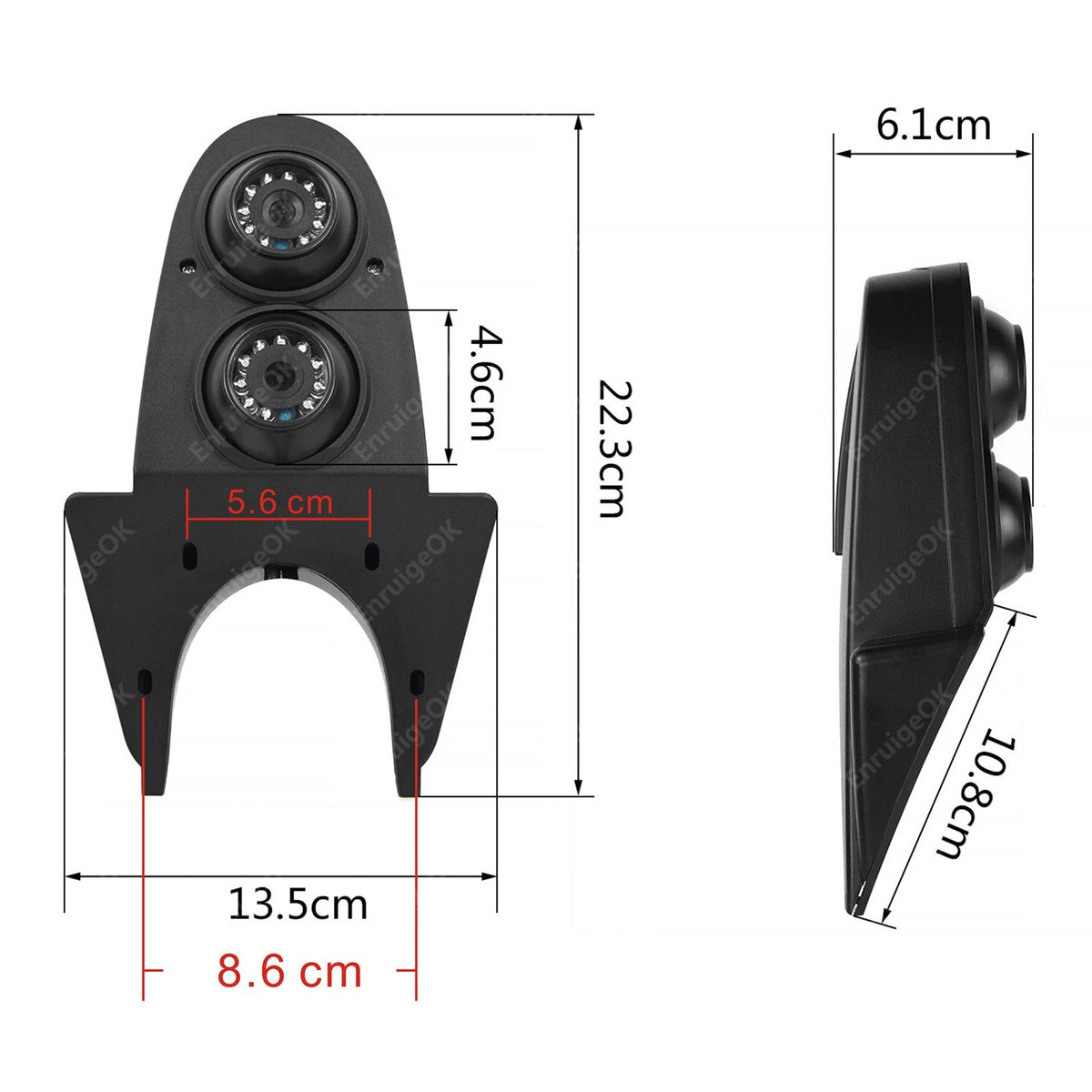

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK 6.86" Dual Split Screen Mirror Monitor with #12 OEM Bracket & Dual Lens Rear Brake Light Reversing Camera For VW Crafter, Mercedes-Benz Sprinter Van

Camera Compatibility

Specially developed for transporters, universally applicable for all common transporter vehicle types:

For all transporters, vans and caravans

Mercedes-Benz: Citan, Sprinter, Vario, Viano, Vito

Citroen: Berlingo, Jumper, Jumpy, Nemo

Dacia: Dokker Van

Fiat: Cargo, Doblo, Ducato, Fiorino, Scudo, Strada

Ford: Tourneo, Transit, Transit Connect

Hyundai: H1

Isuzu: D-Max

Iveco: Daily, Eurocargo

Mitsubishi: Canter, L200

Nissan: Navara

Opel: Combo, Movano, Vivaro

Peugeot: Bipper, Boxer, Expert, Partner

Renault: Champions

Seat: Inca

Skoda: Felicia, Praktik, Roomster

Toyota: Hilux, Hiace

Volkswagen (VW): Amarok, Caddy, Crafter, T5, Master

(Compatibility is for reference only. Please make sure the item fits your vehicle.)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

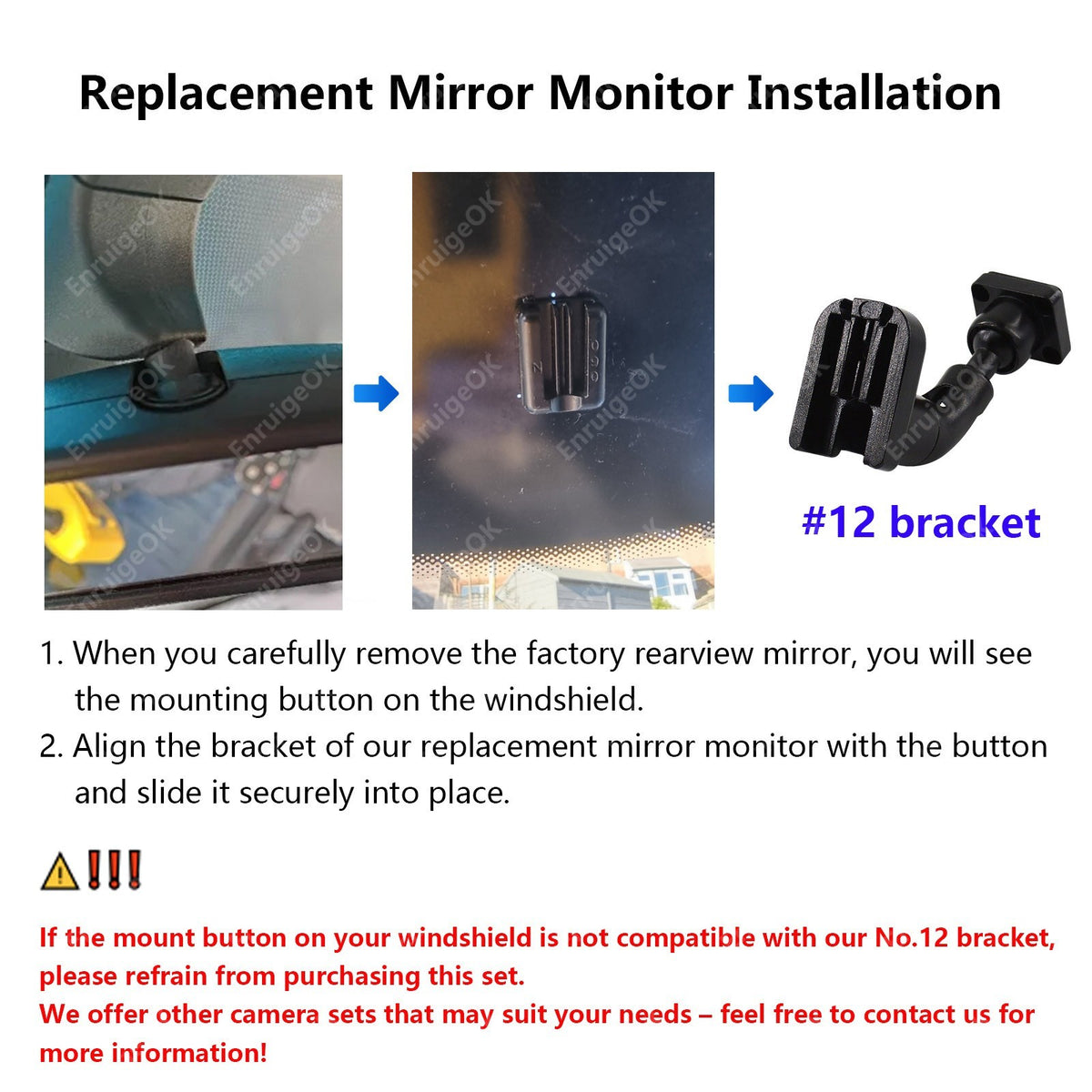

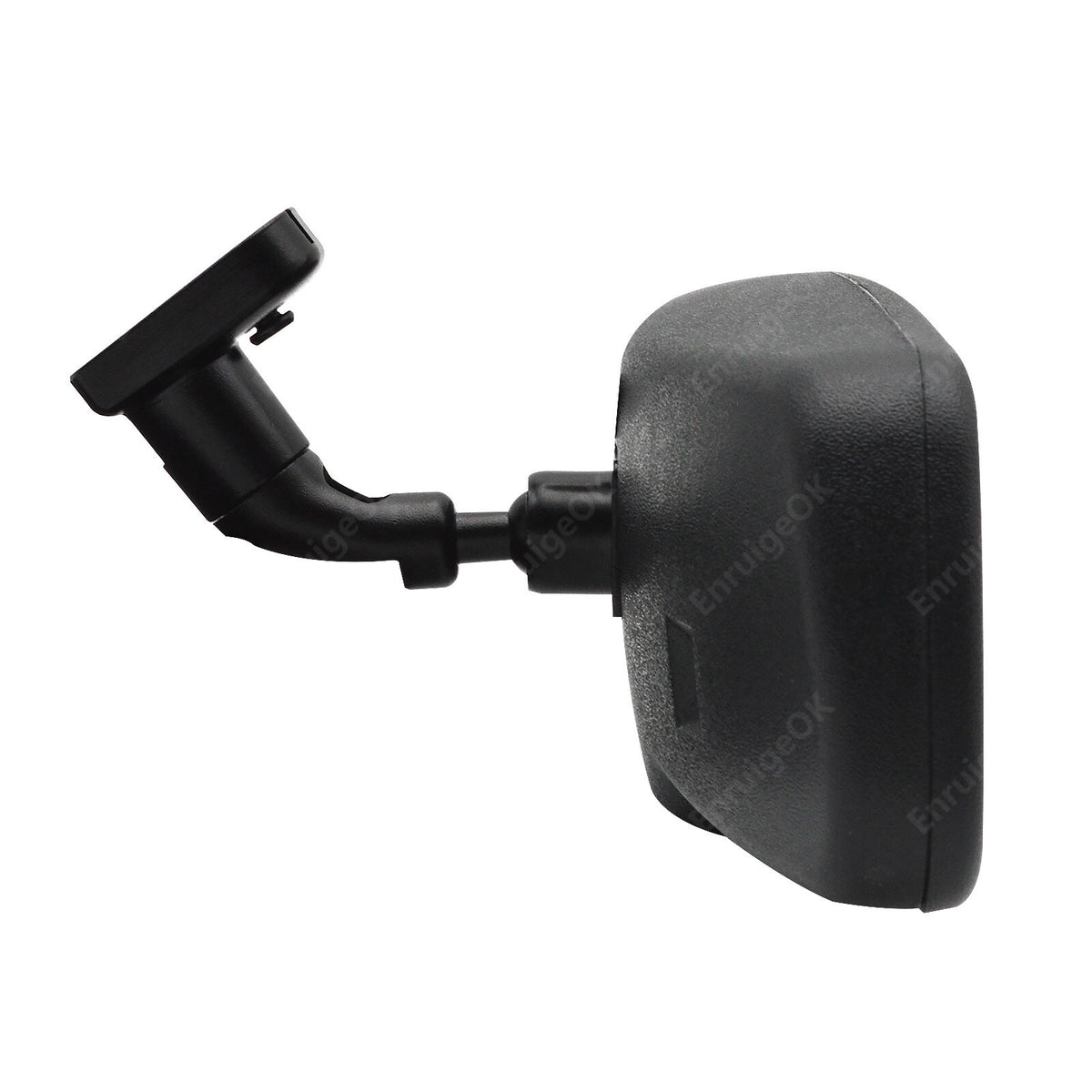

Monitor Bracket Note

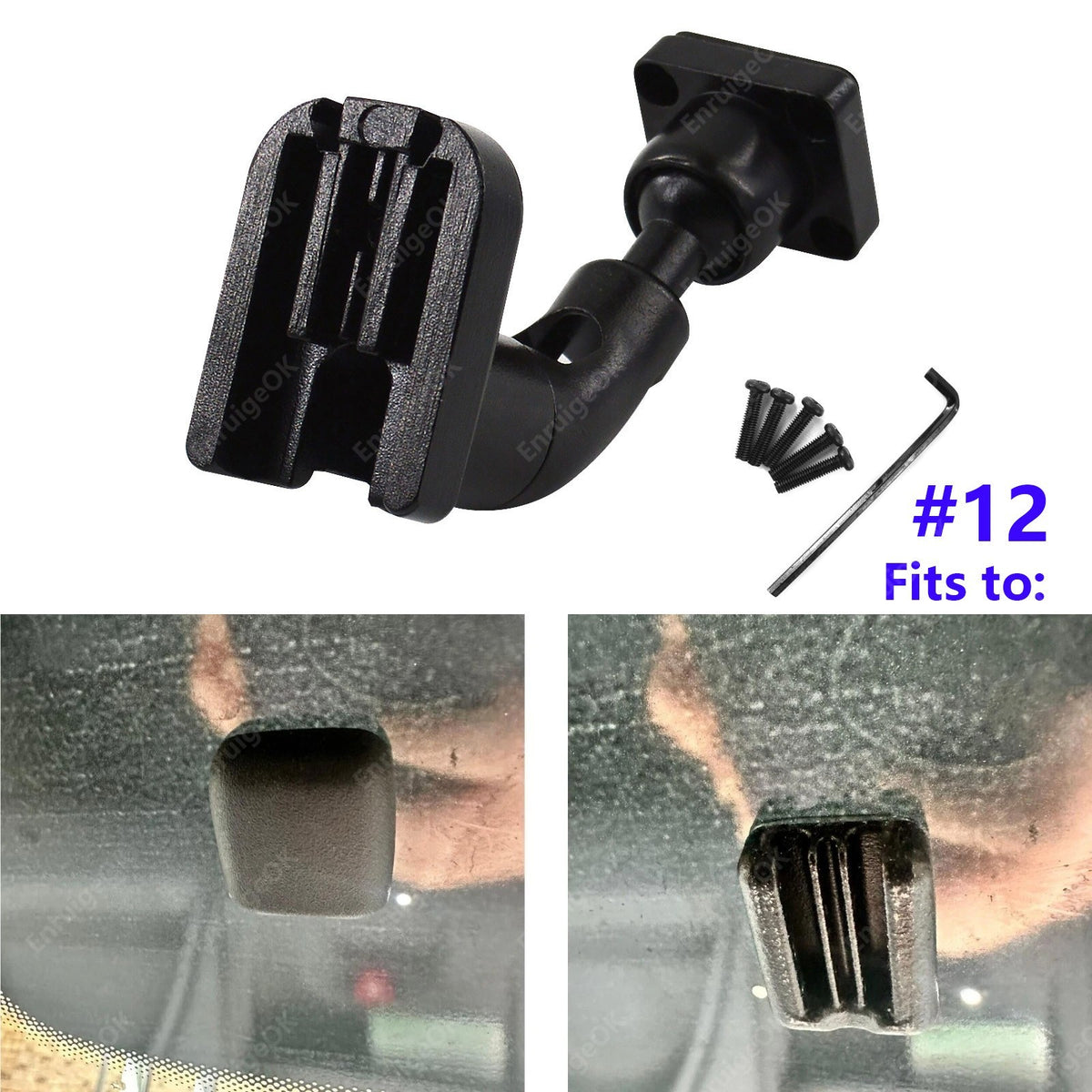

This set comes with a #12 bracket by default. If you're unsure about compatibility, please send us a photo of your windshield mounting button or mirror bracket mounting point for confirmation. If it doesn't fit your fitting, please do not place the order.

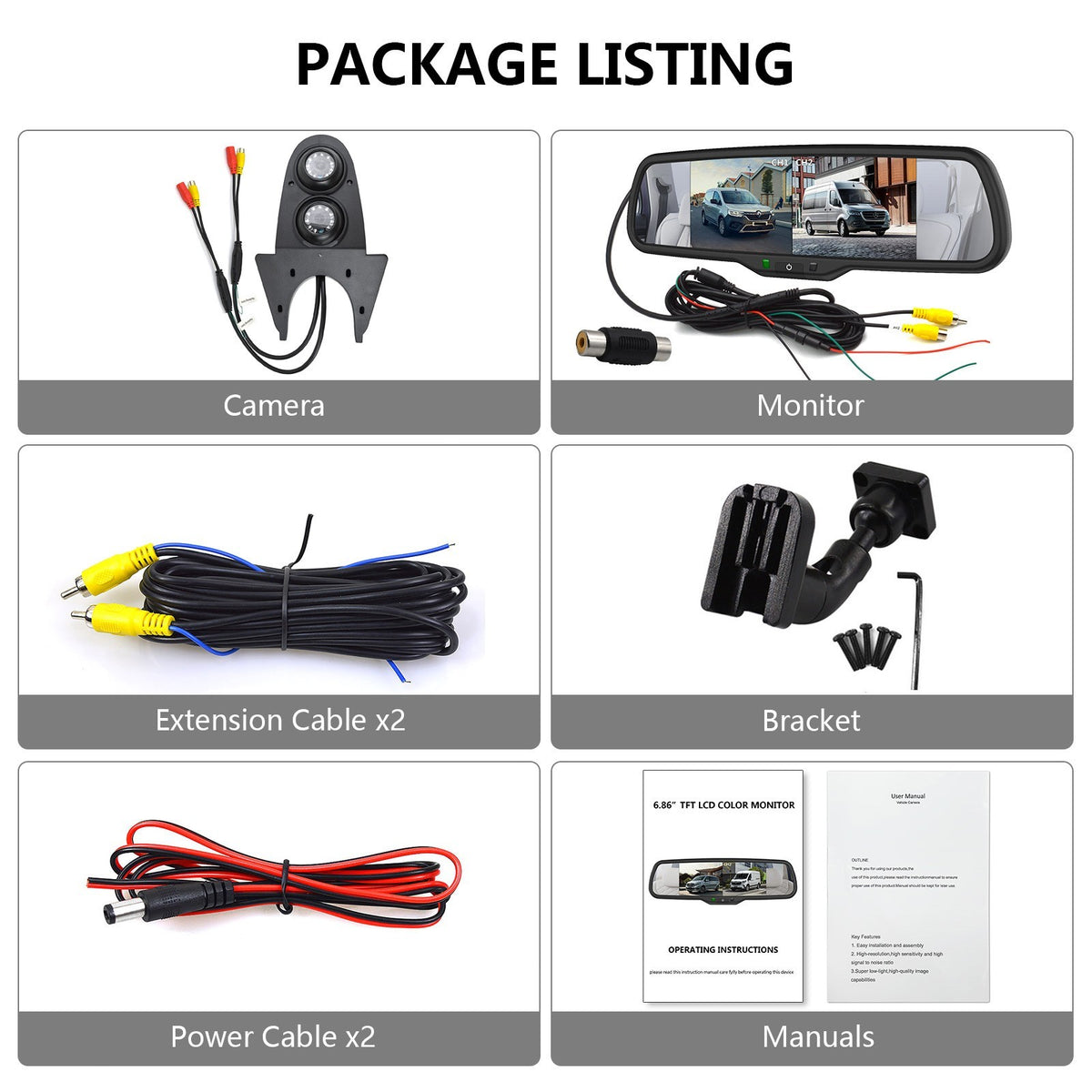

Package contents

1 X EnruigeOK reverse camera

1 X 6.86'' Mirror monitor

1 X Monitor power cable

2 X Video extension cable

2 X DC power cable

1 X Female to female adapter

1 X #12 bracket(check your windshield button)

1 X Manual

Description

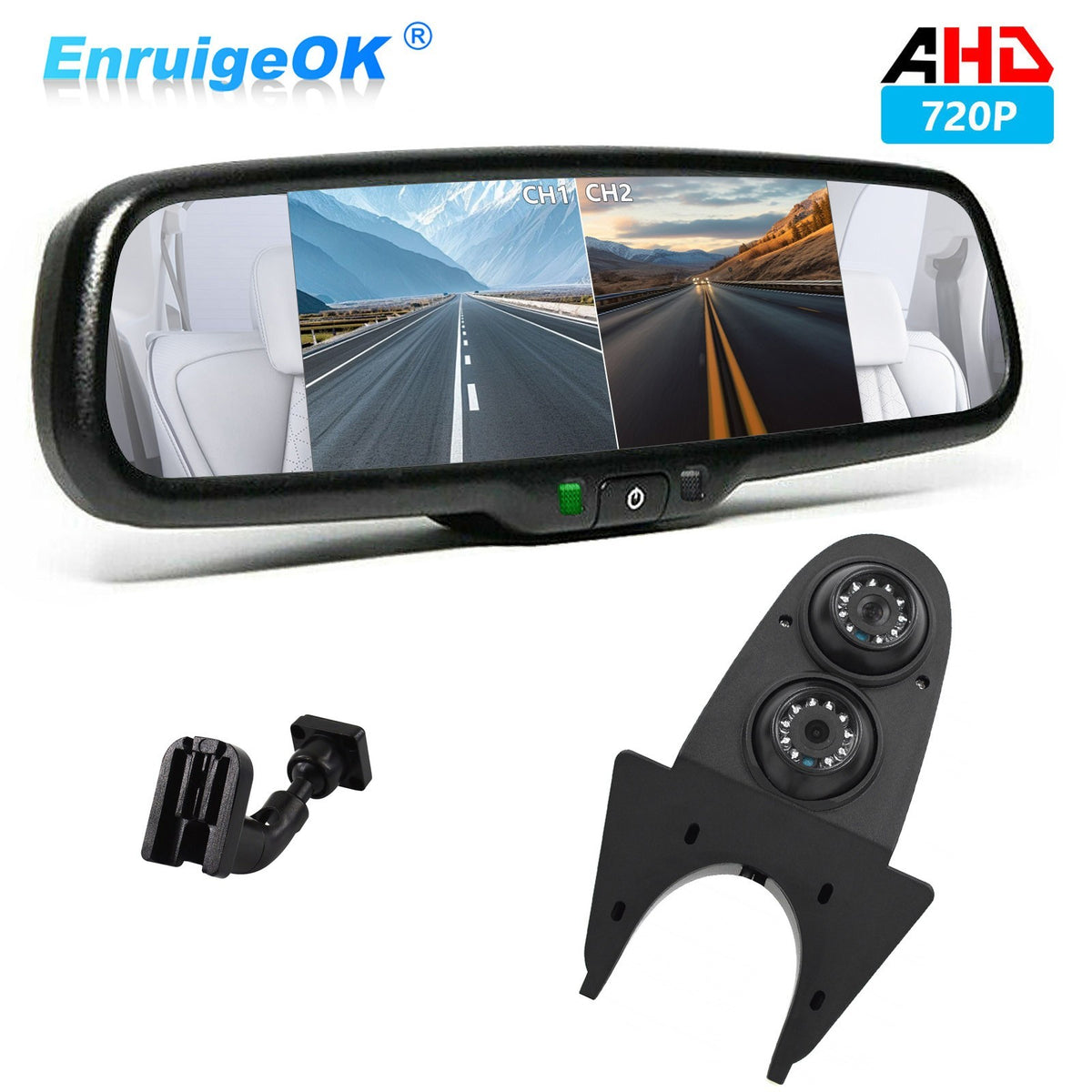

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.

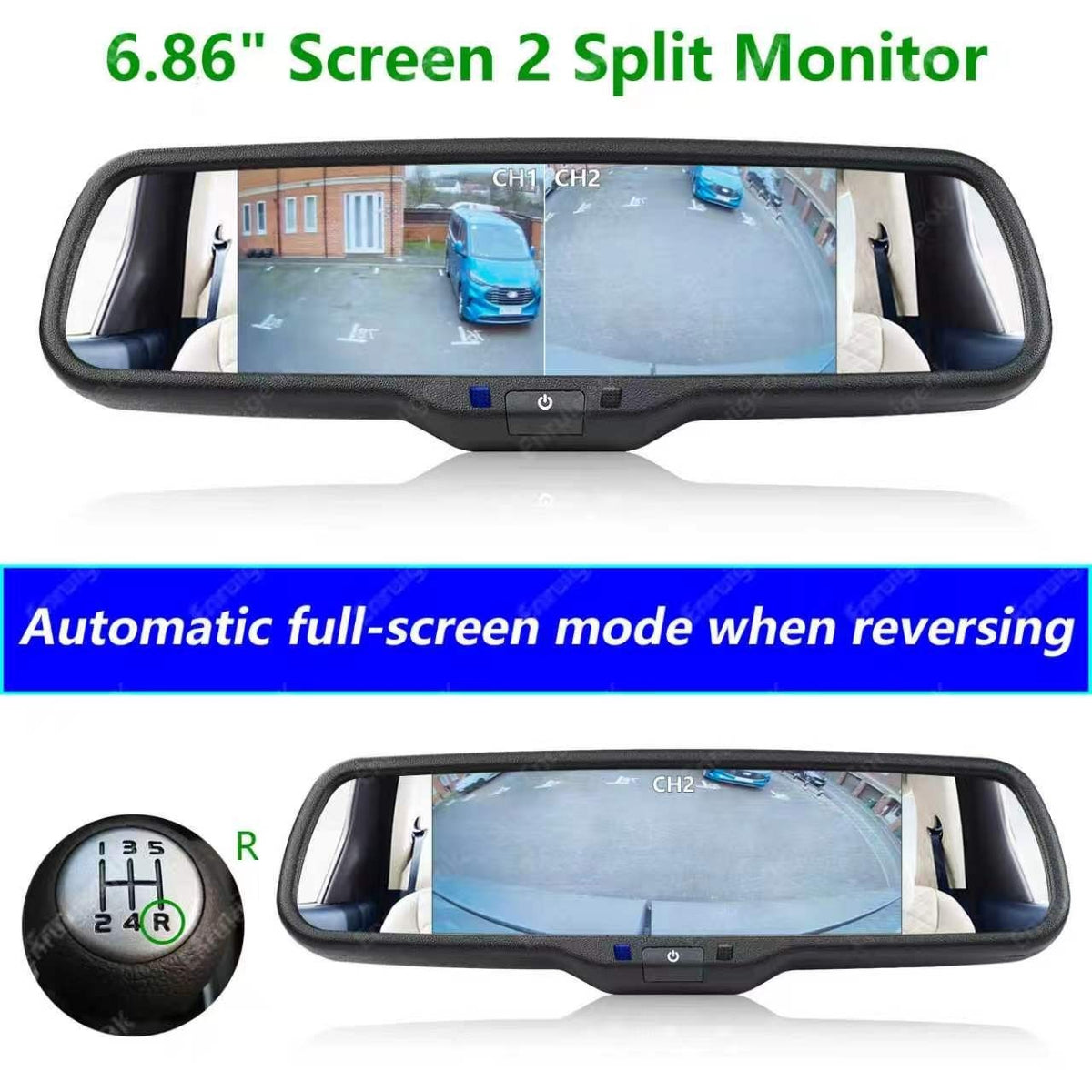

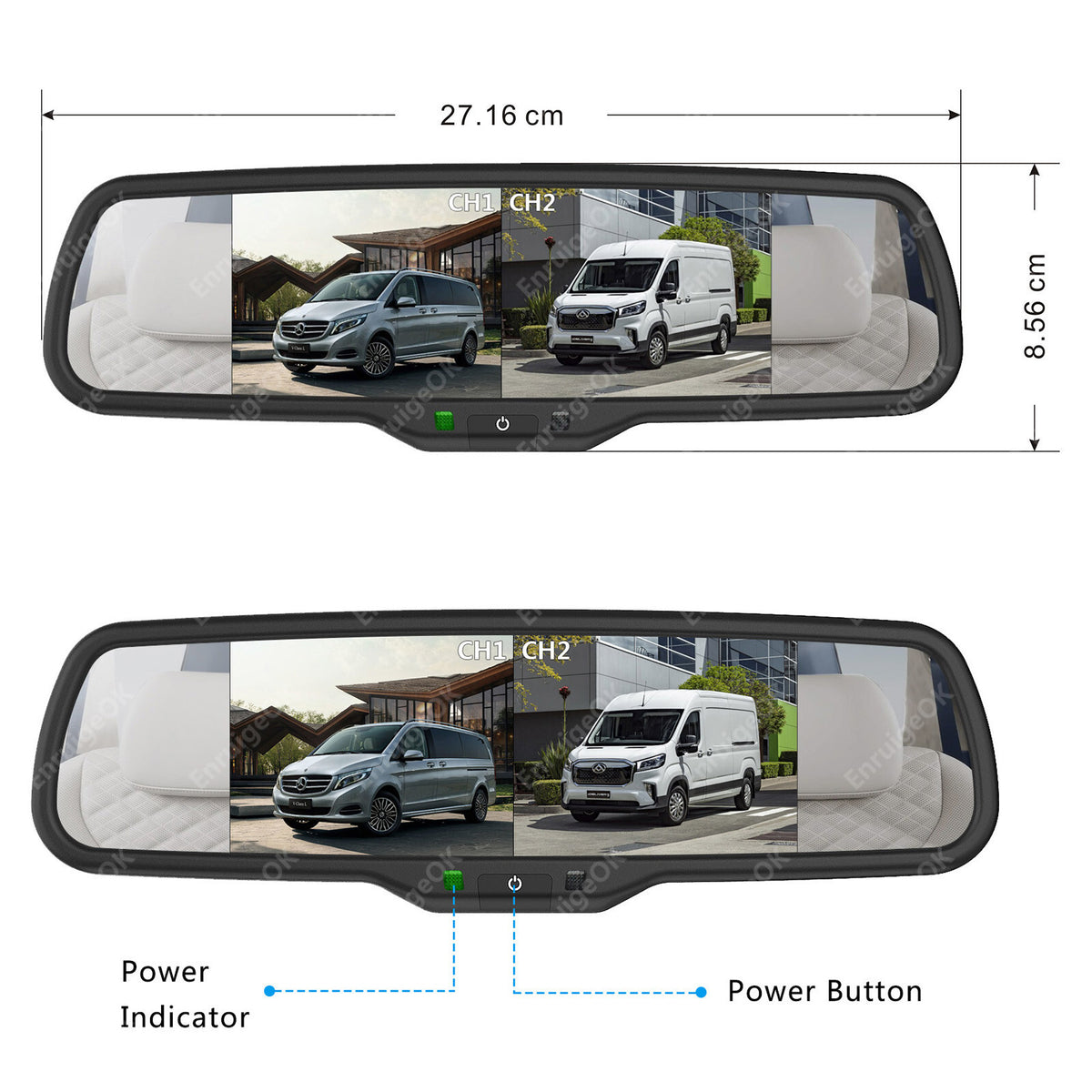

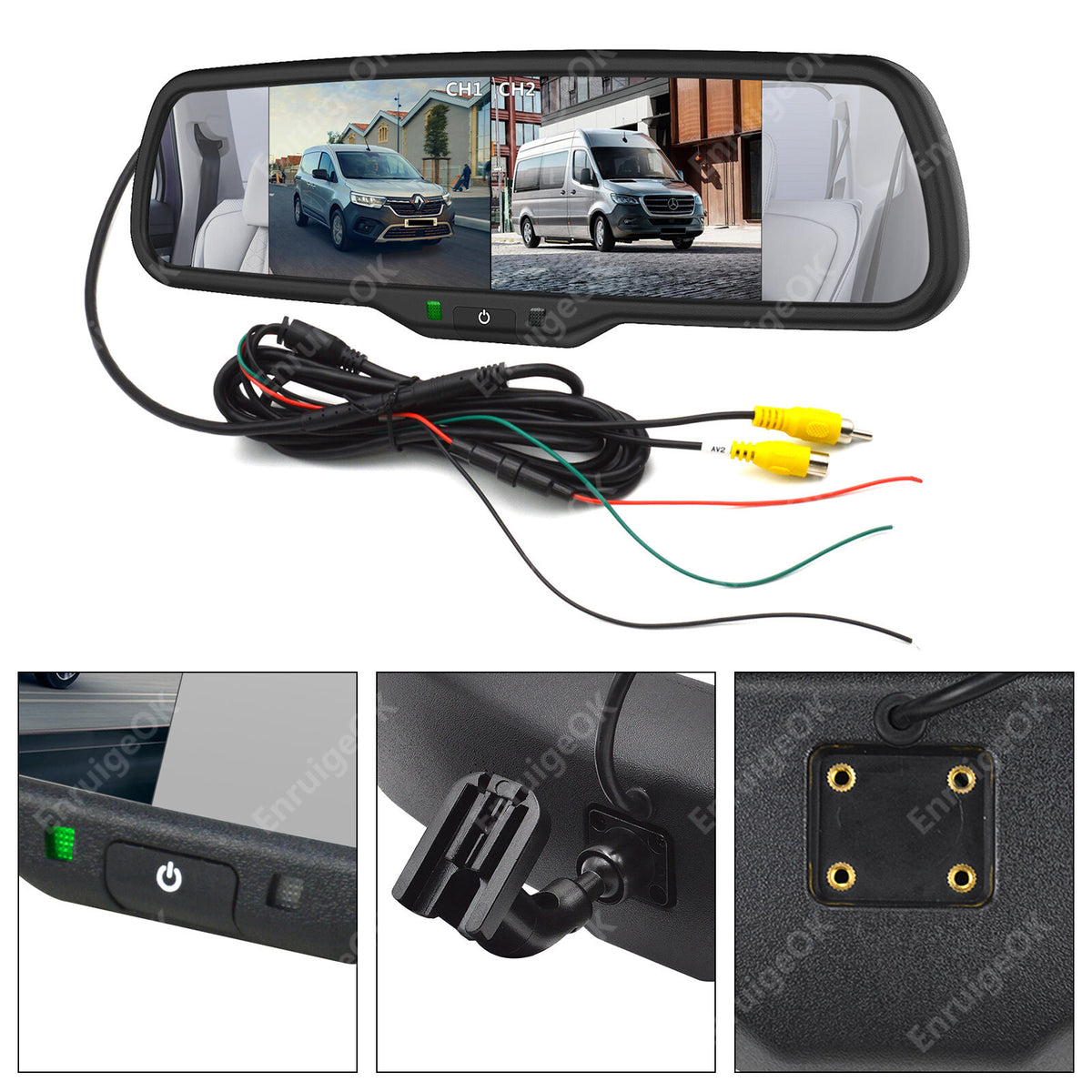

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

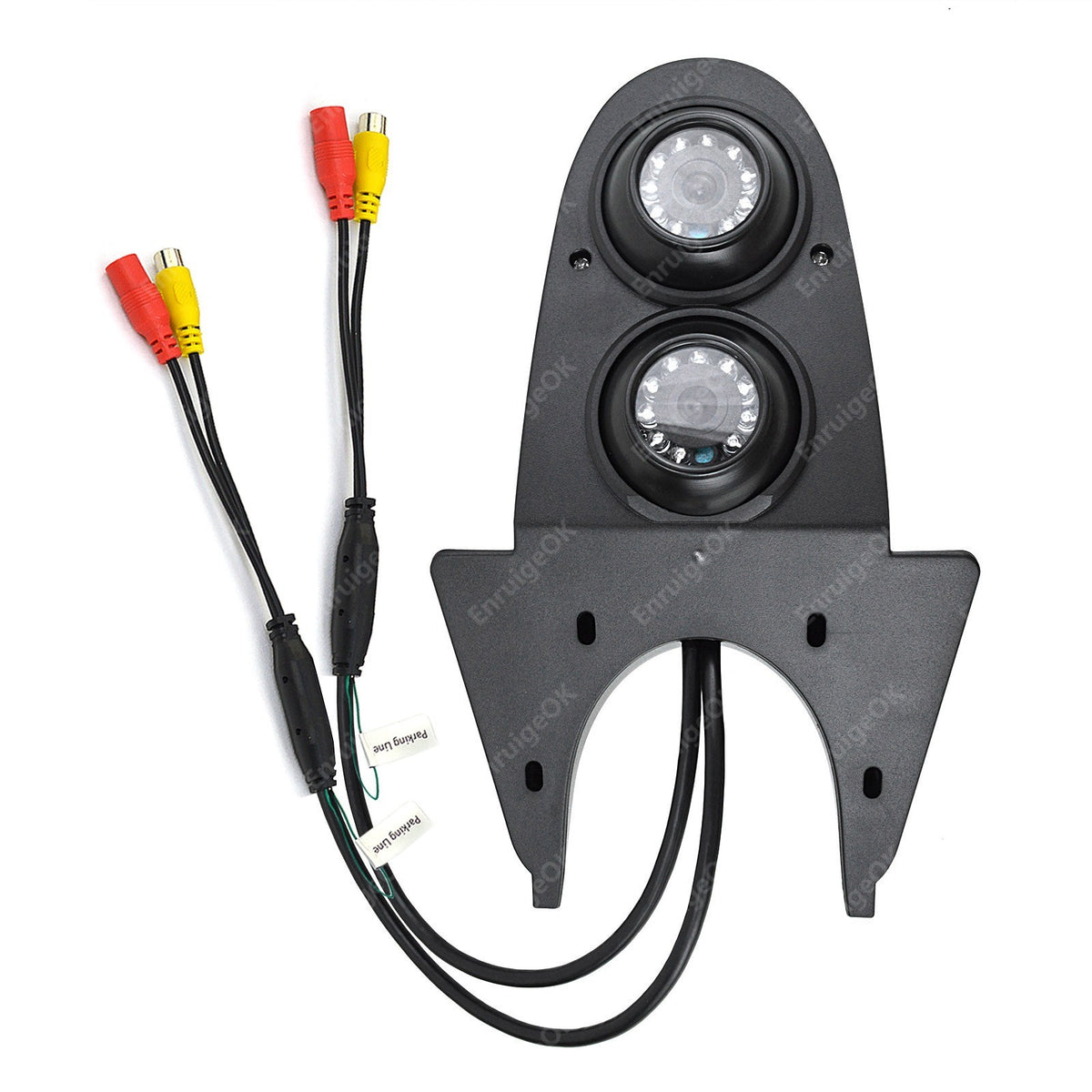

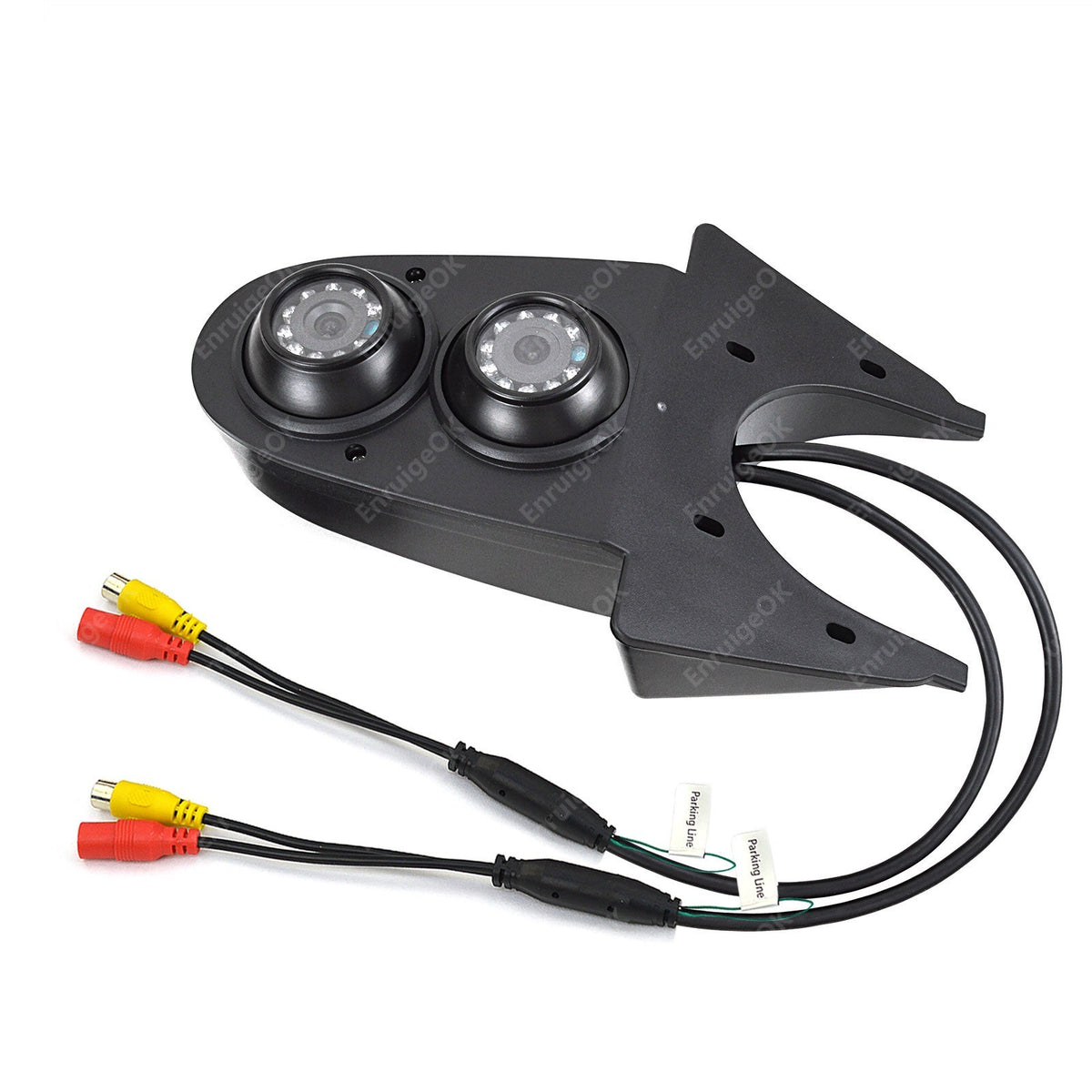

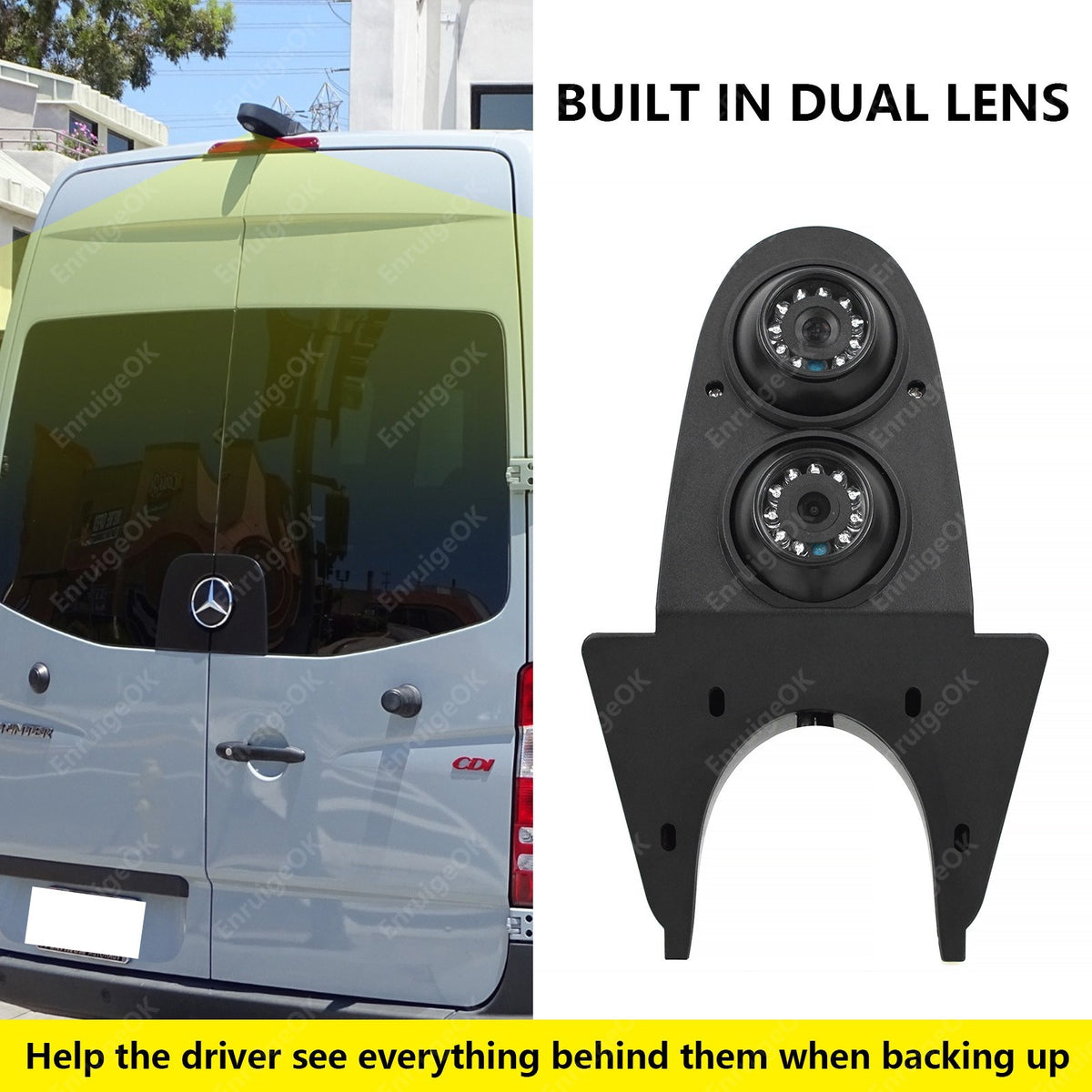

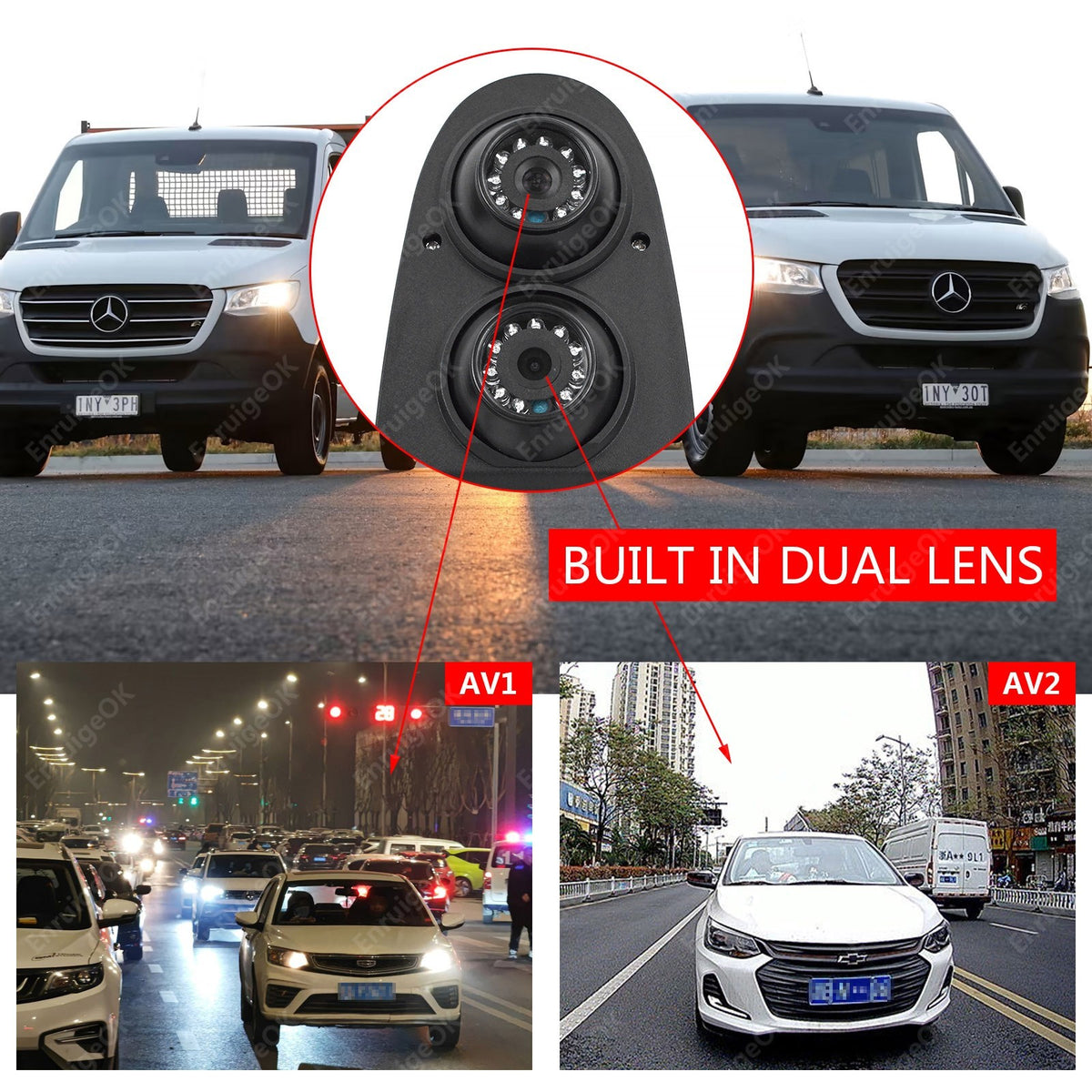

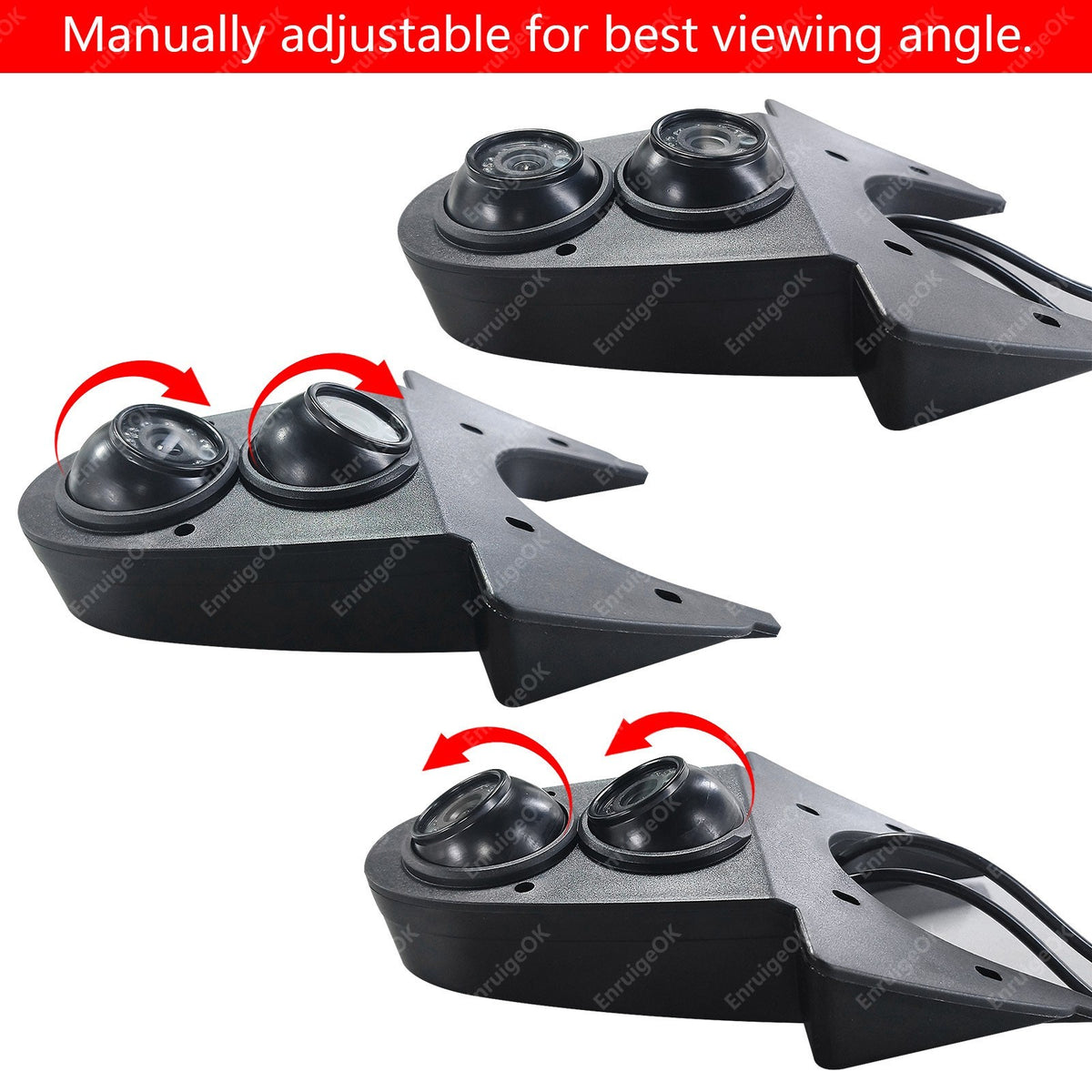

TWIN LENS !!! Dual lens reversing camera: One(CH1) showing the road or area behind the vehicle, and the other(CH2) looking directly down to help the driver see the vehicle's rear end.

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 20 infrared lights around the lens to ensure excellent night vision.

Waterproof Rating: Built with an IP68 rating, this camera is fully waterproof.

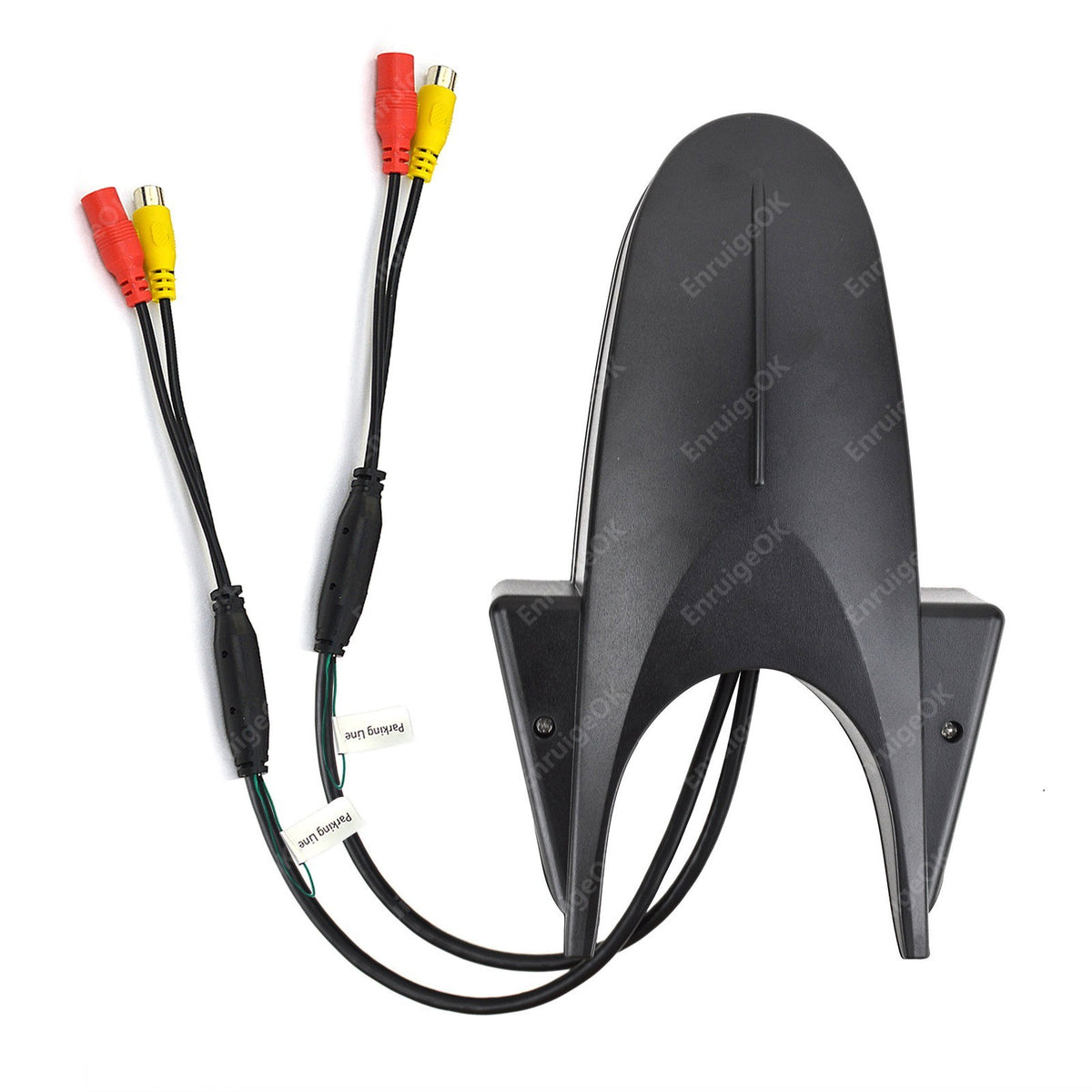

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

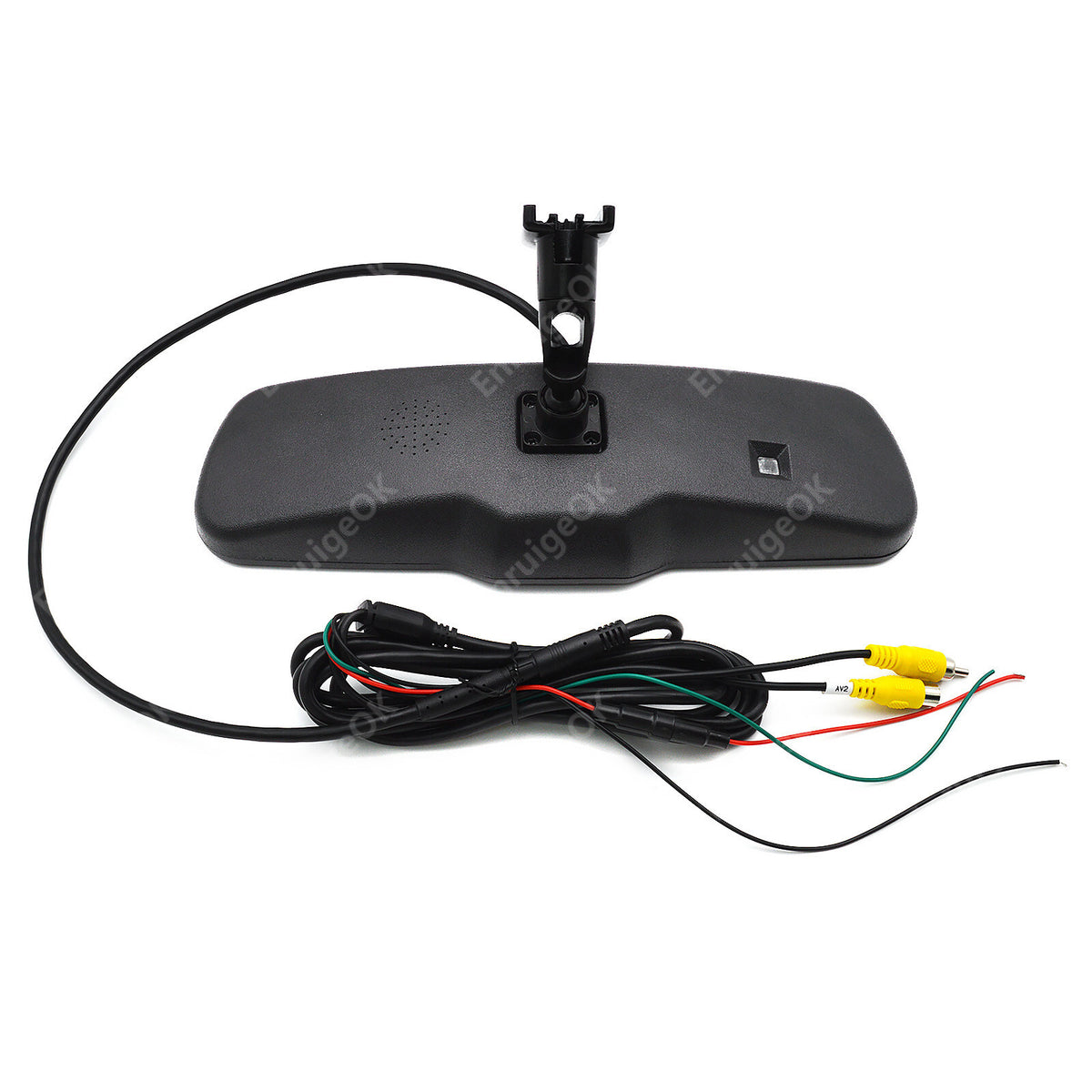

Monitor Specifications

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

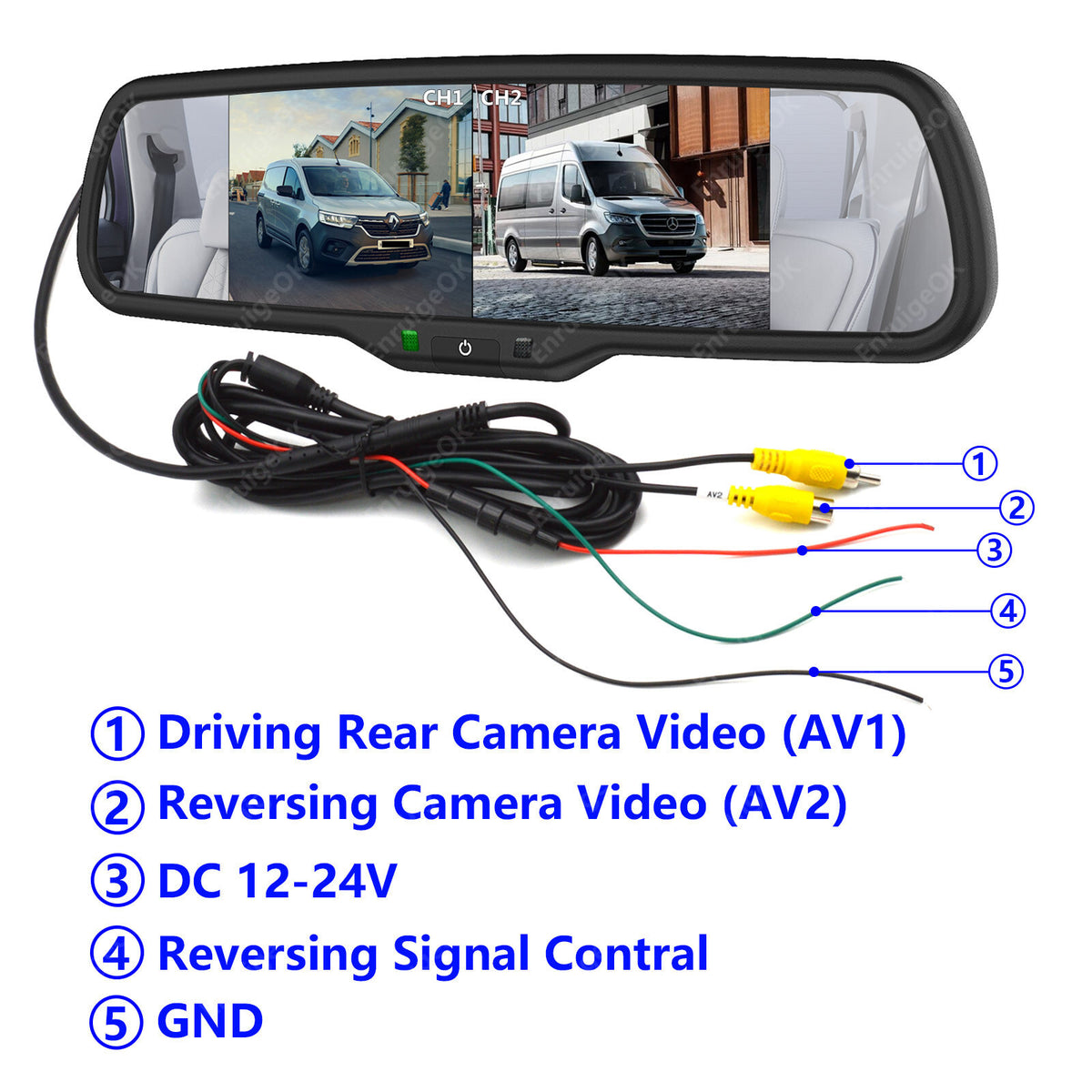

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), support 2-Split Screen, automatic full-screen switch during reversing

Blue screen displayed when no signal is detected.

Power Supply: DC 12V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
