Dual Lens Reversing Camera & Split Screen Mirror Monitor Kit for Commercial Van

EnruigeOK 6.86" Dual Split Screen Mirror Monitor with Dual Twin Lens Reversing Camera Kit, Strong Windshield Suction Mount, for Vands Campers Bus Motorhome

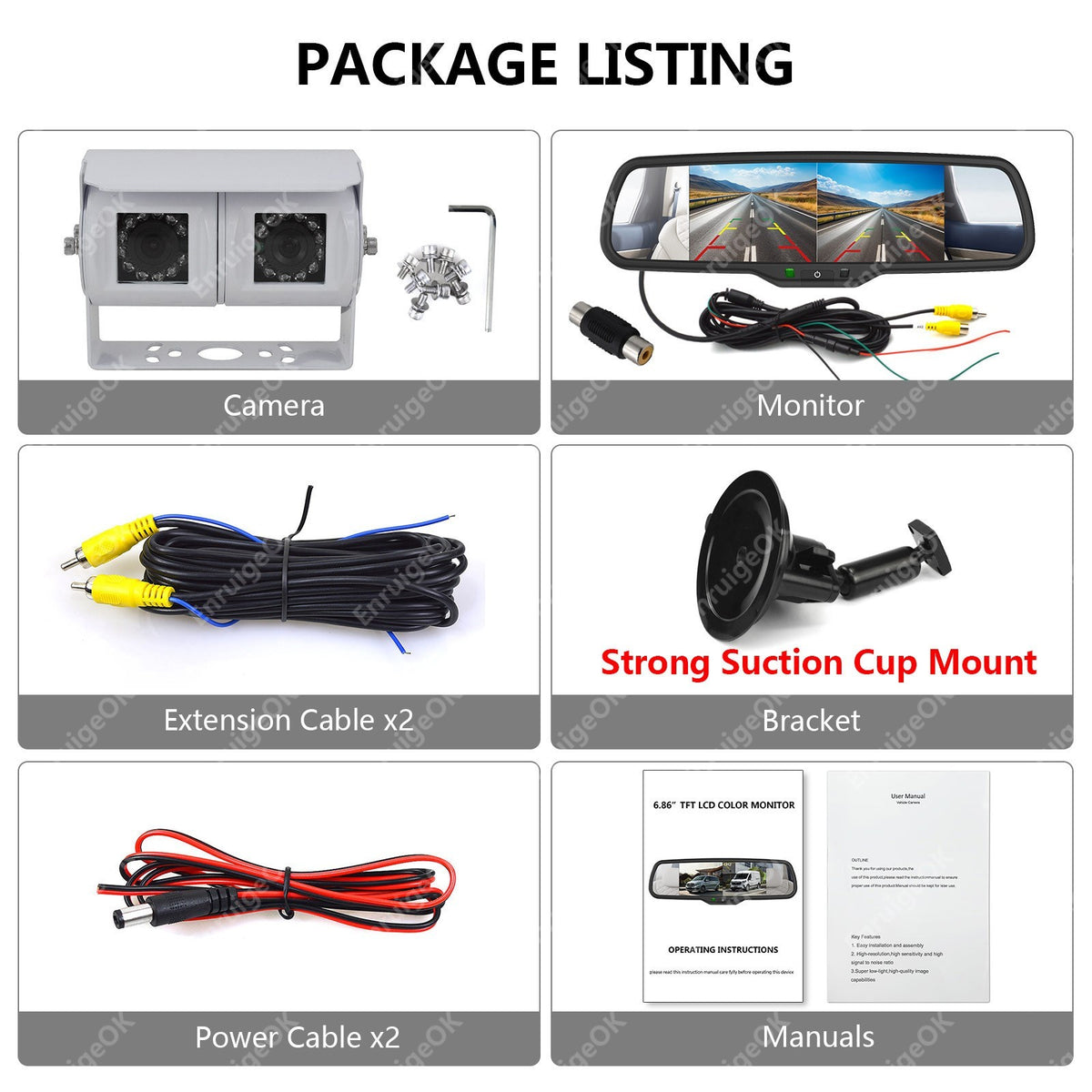

Package contents

1 X Dual lens rear view camera

1 X 6.86'' Mirror monitor

1 X Monitor power cable

2 X Video extension cable

2 X DC power cable

1 X Female to female adapter

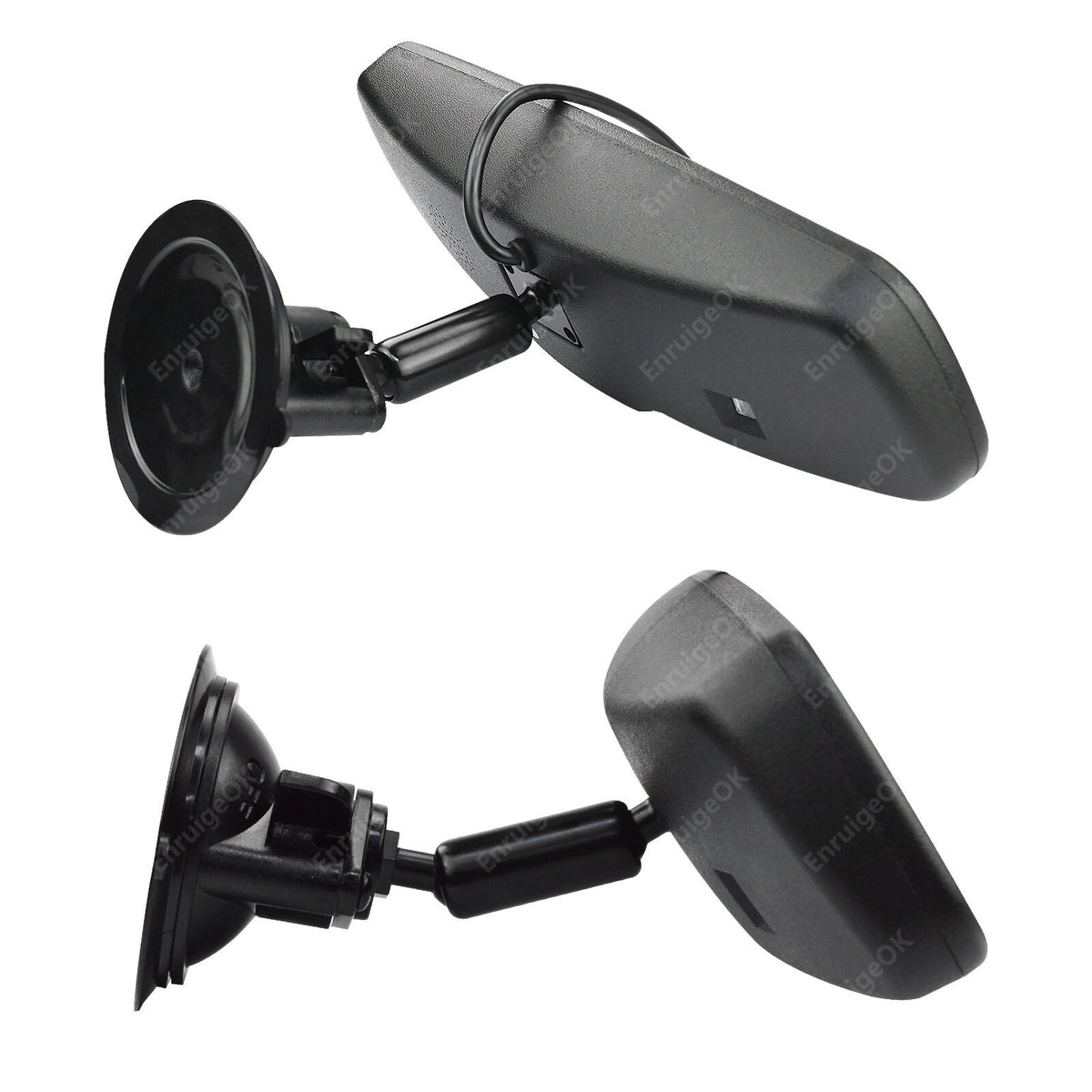

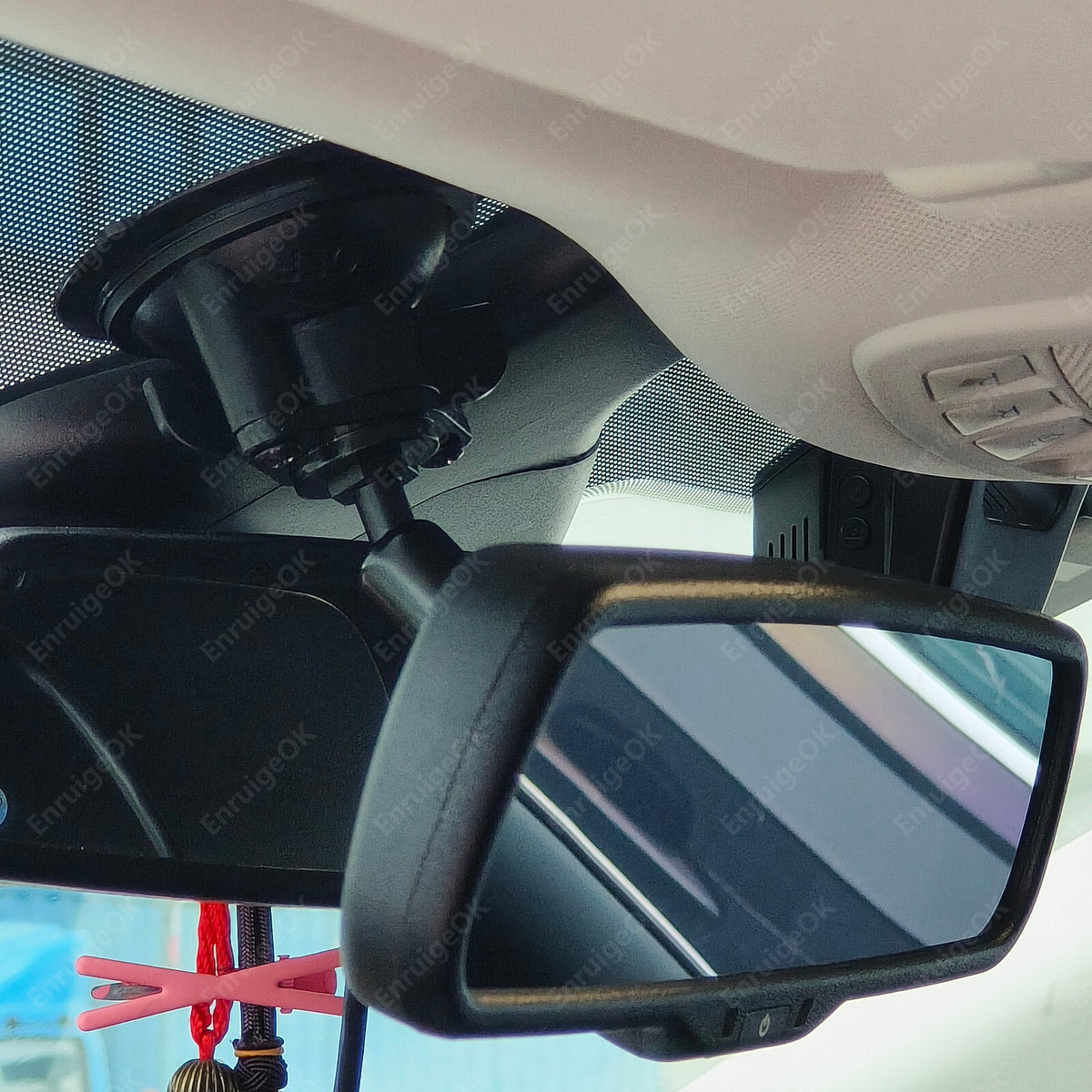

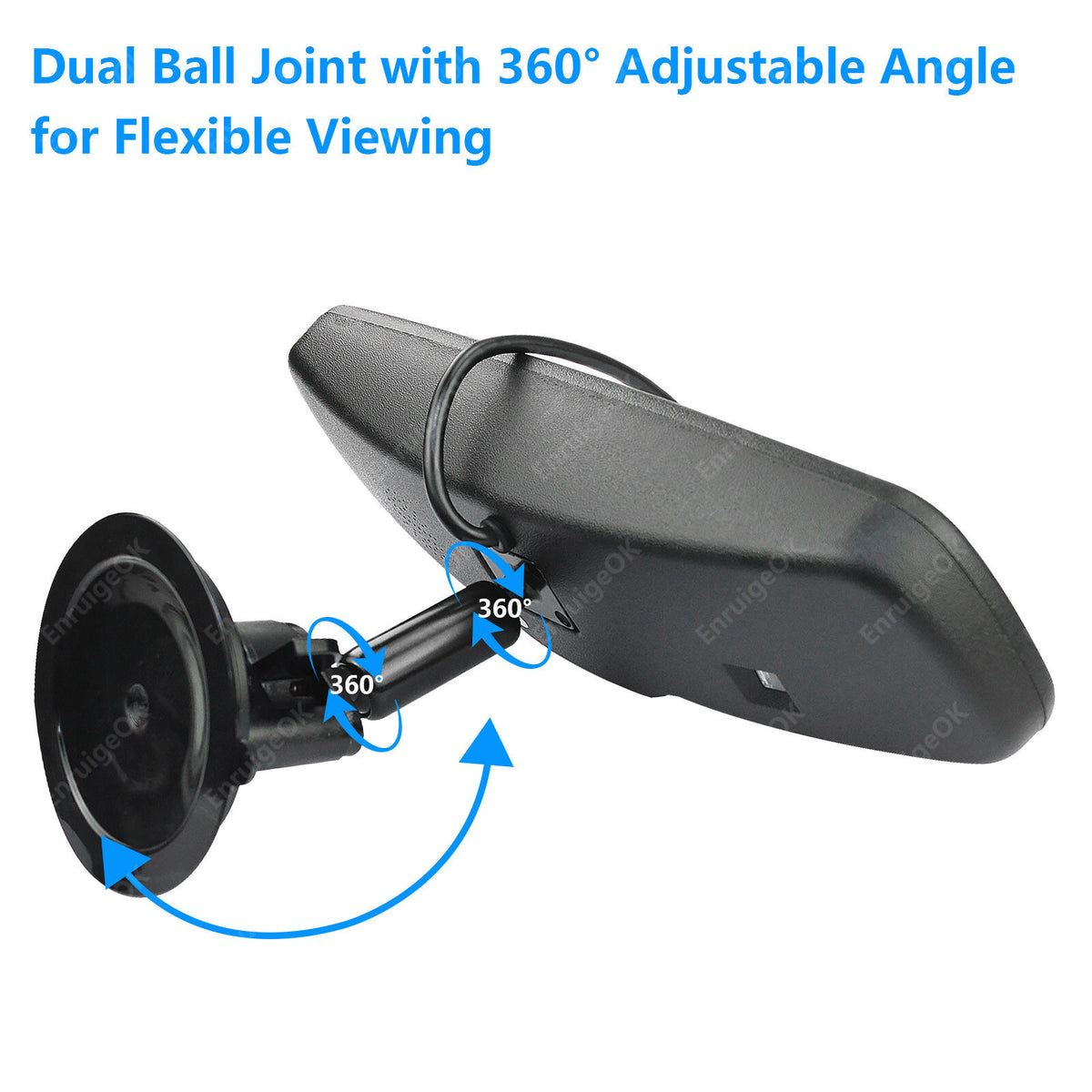

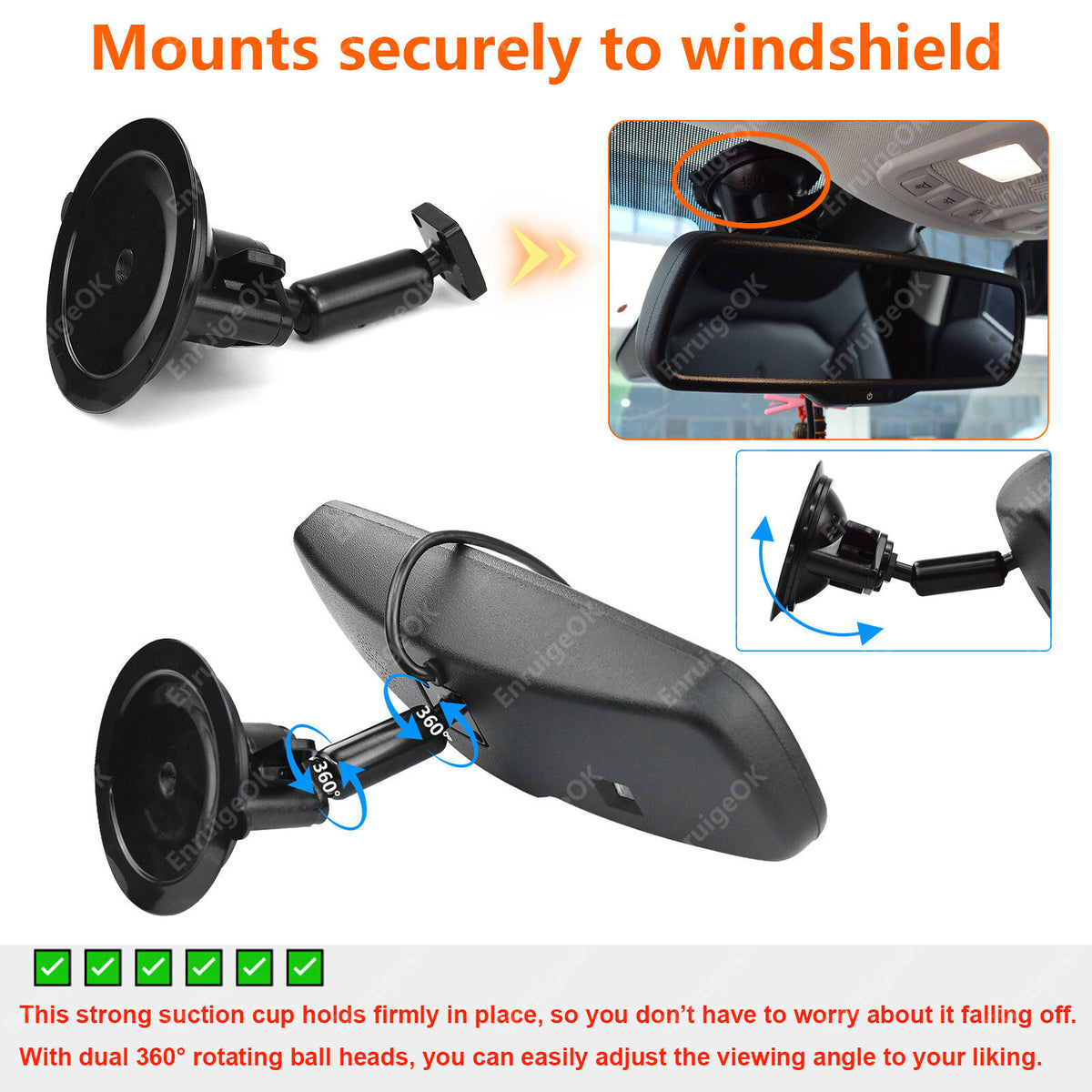

1 X Suction cup bracket

1 X Manual

1 X Screws kit

Descriptions:

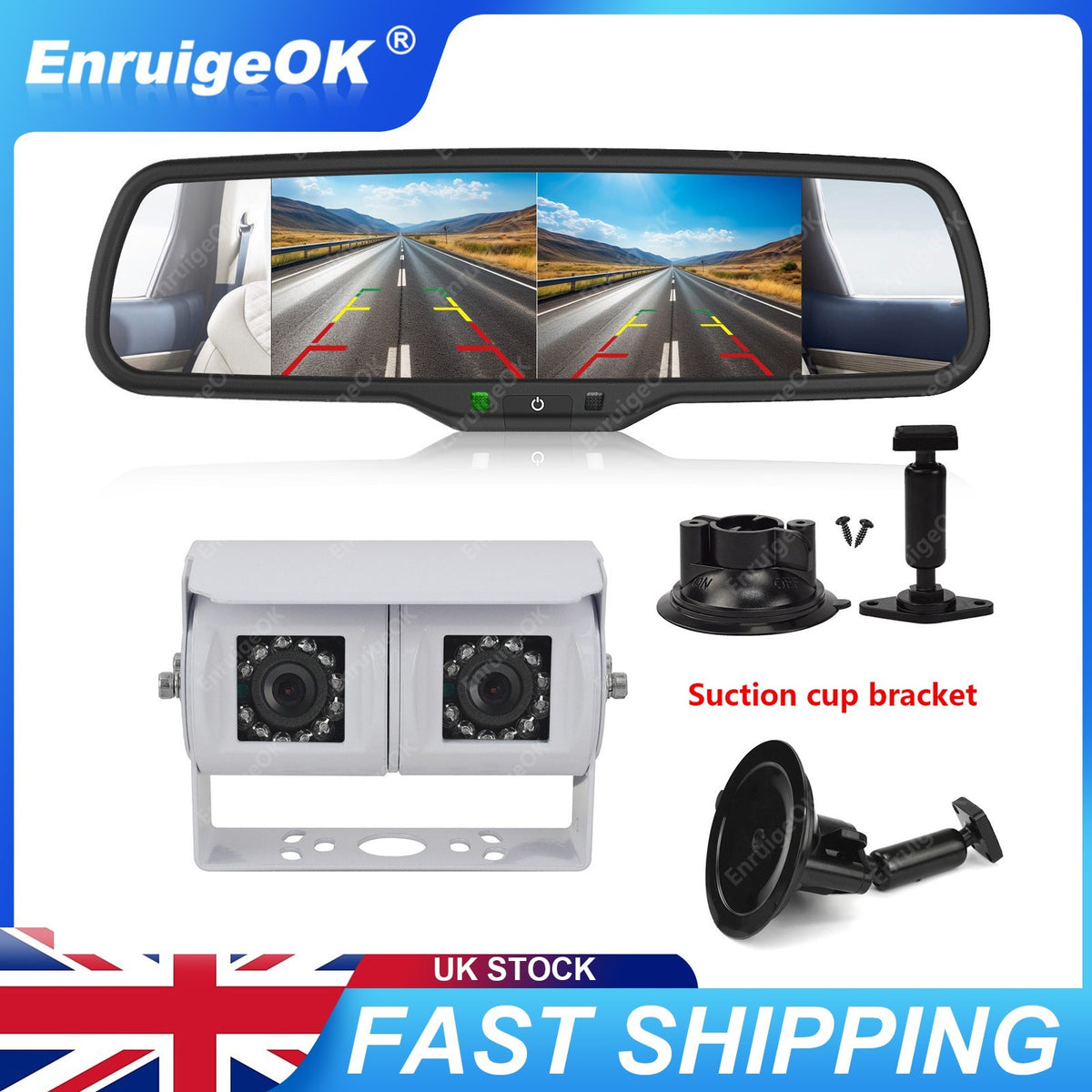

Complete Rearview System: Includes a 6.86-inch dual-screen mirror monitor and Twin-lens camera for enhanced visibility and parking safety.

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen view, auto full-screen view when reversing.

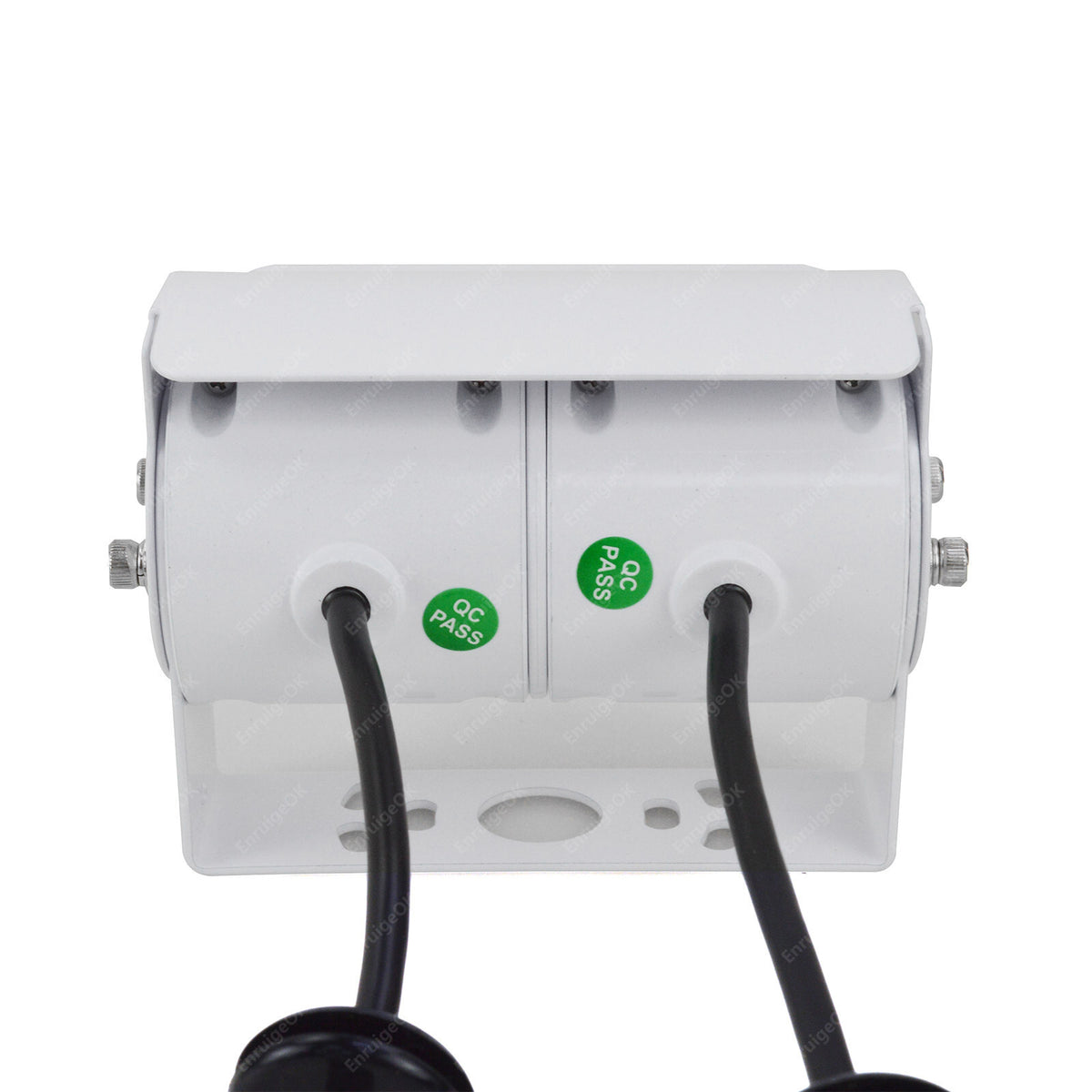

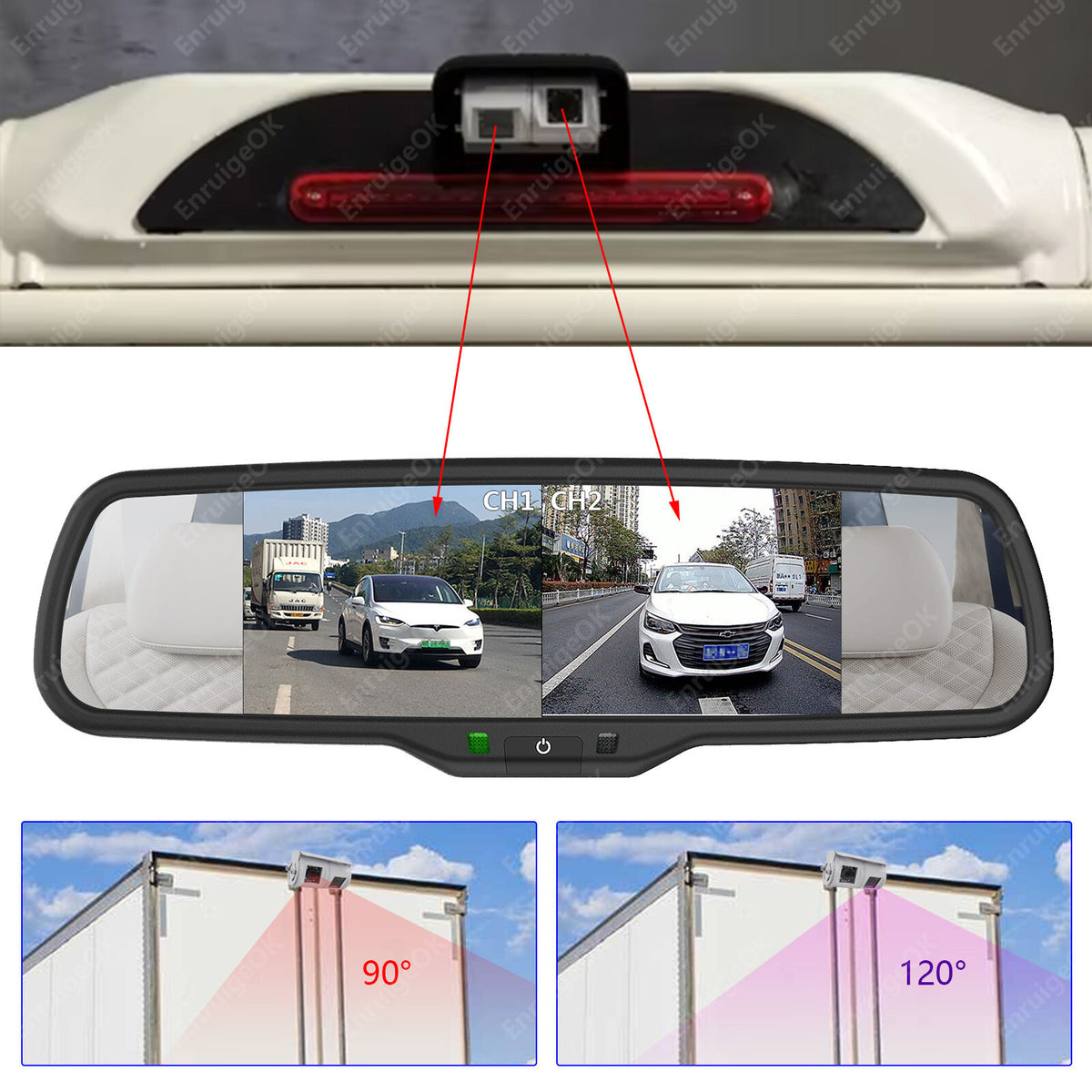

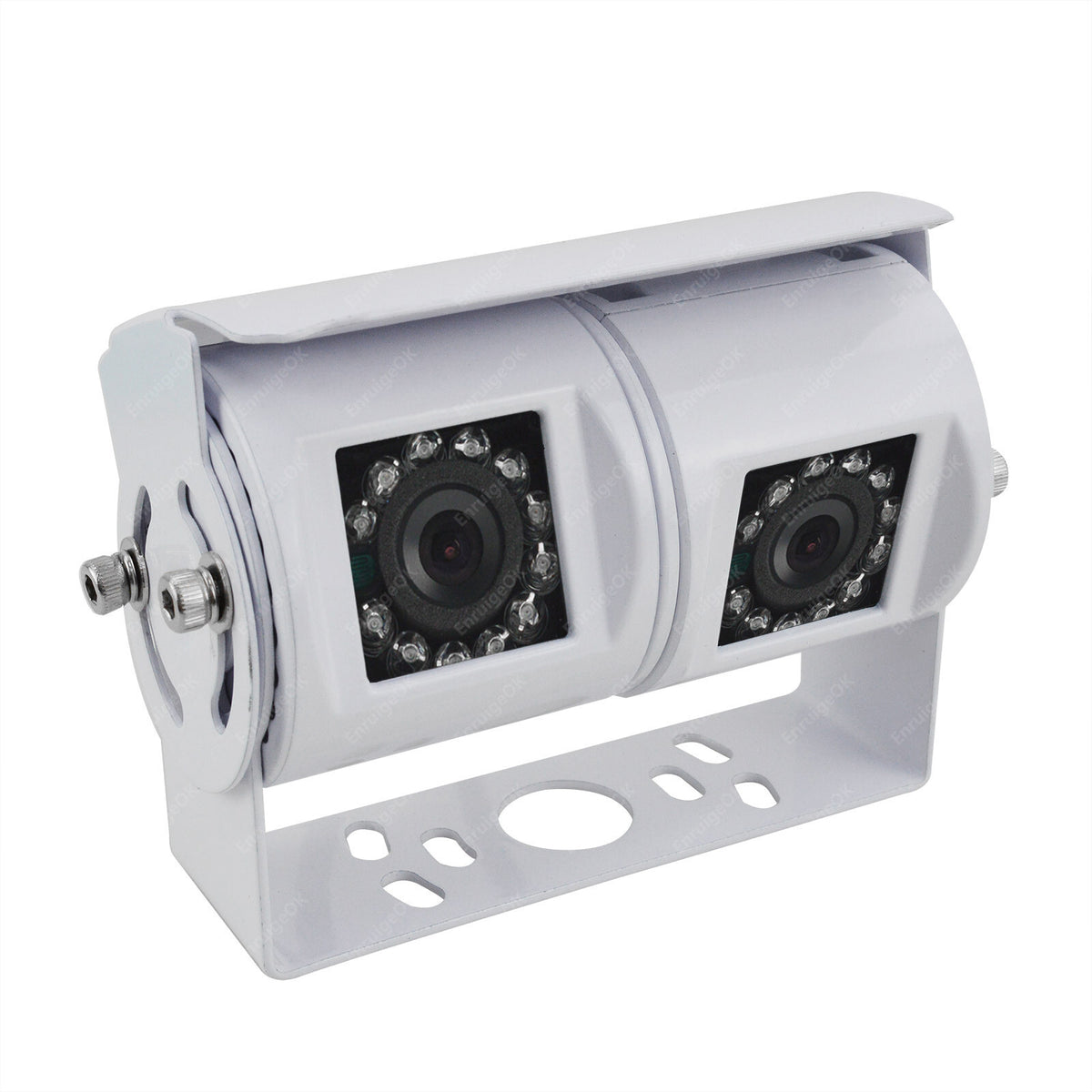

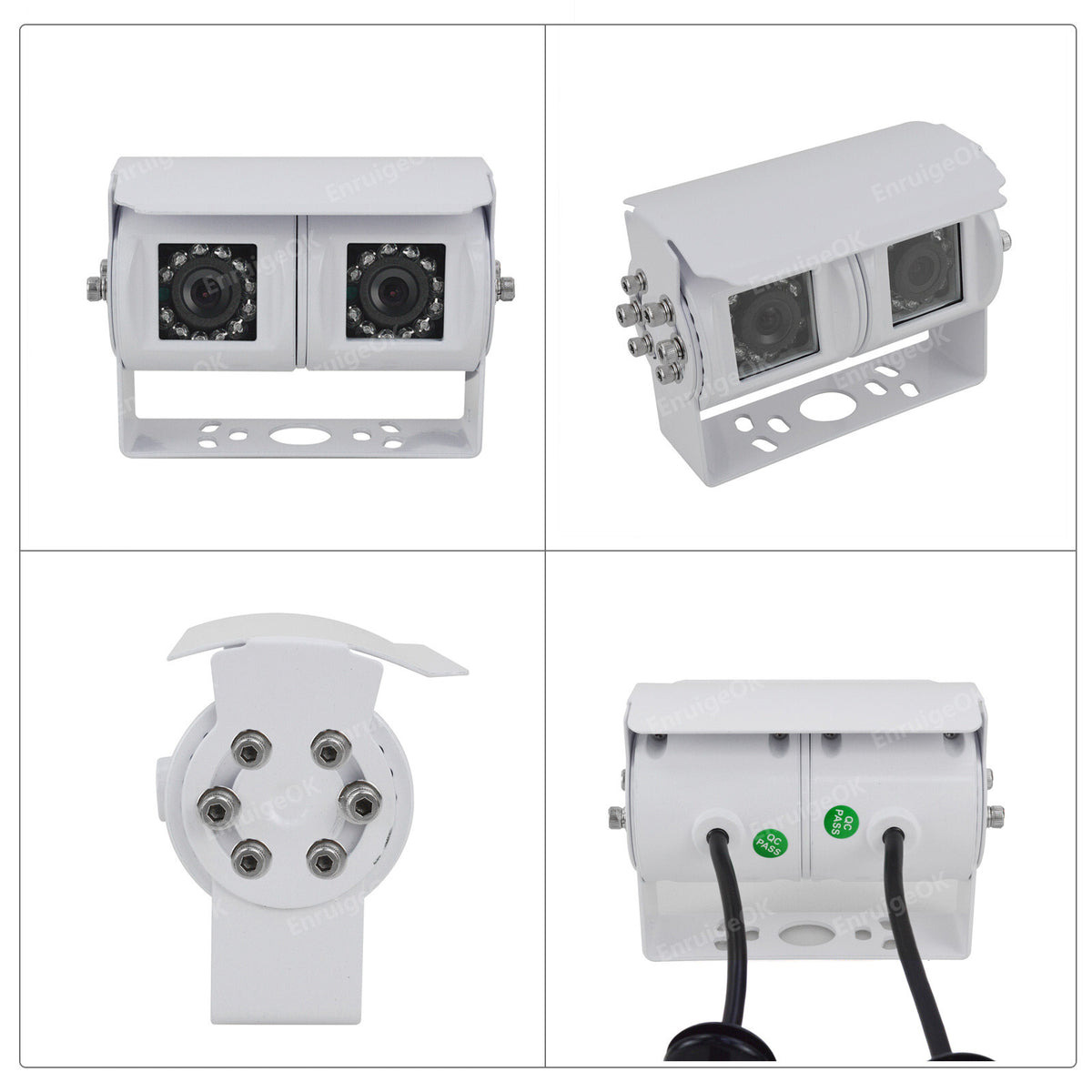

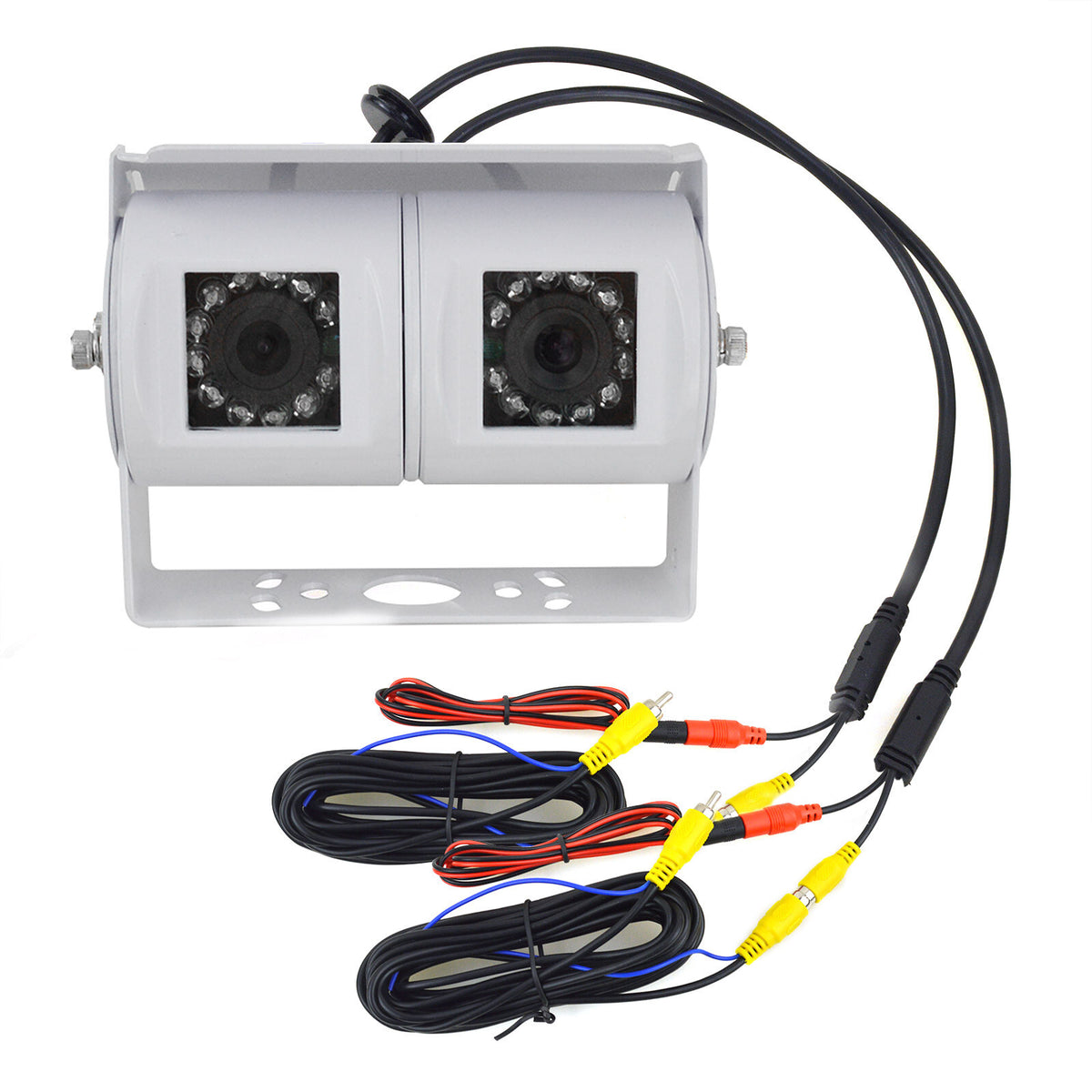

TWIN LENS !!! Dual lens reversing camera: One(CH1) showing the road or area behind the vehicle, and the other(CH2) looking directly down to help the driver see the vehicle's rear end.

High-resolution AHD 720P camera with enhanced night vision: Provides clear and sharp image quality with improved details, even in low light thanks to 24 IR LEDs (12 per lens).

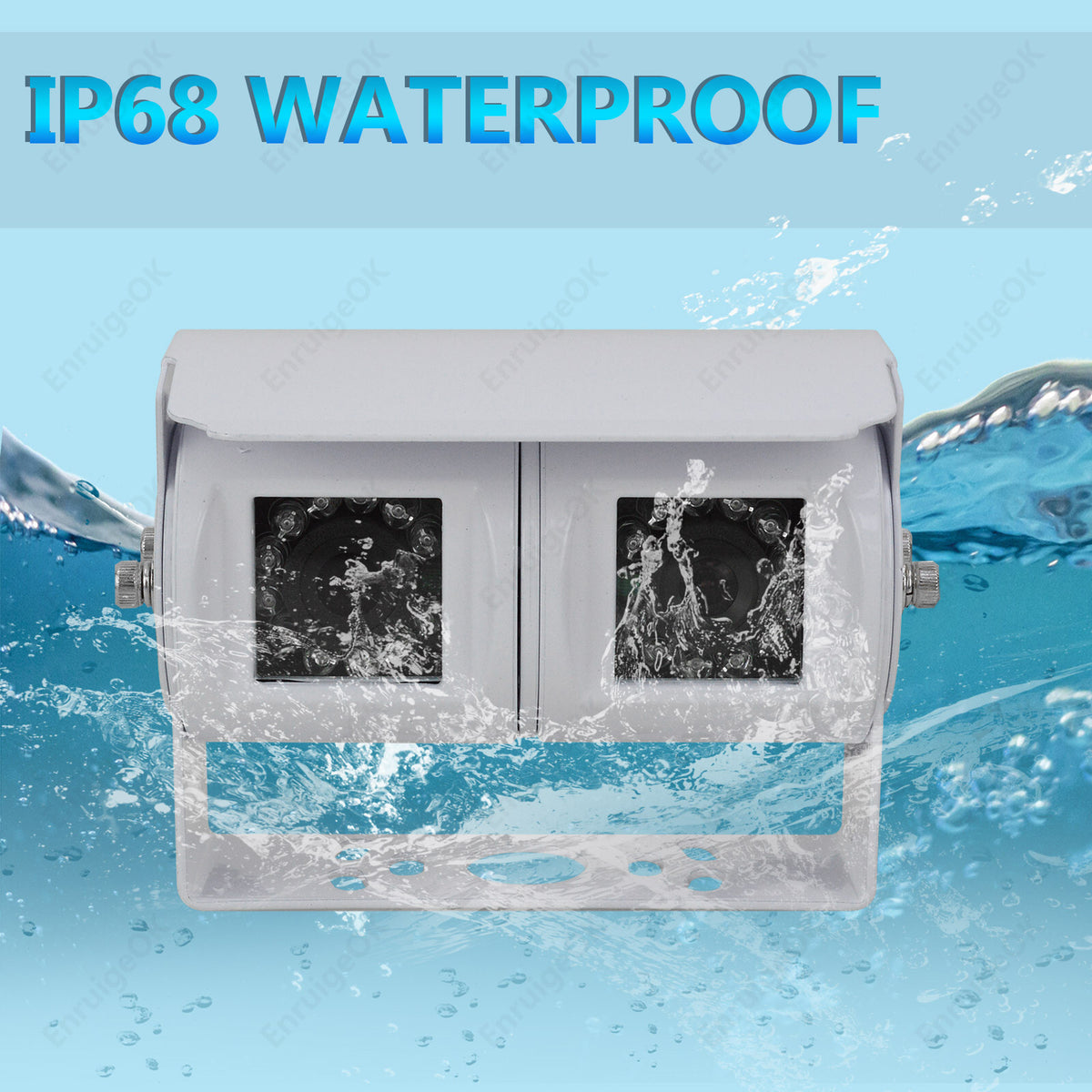

Rugged Waterproof Design: IP68-rated for all-weather durability, ideal for continuous outdoor use.

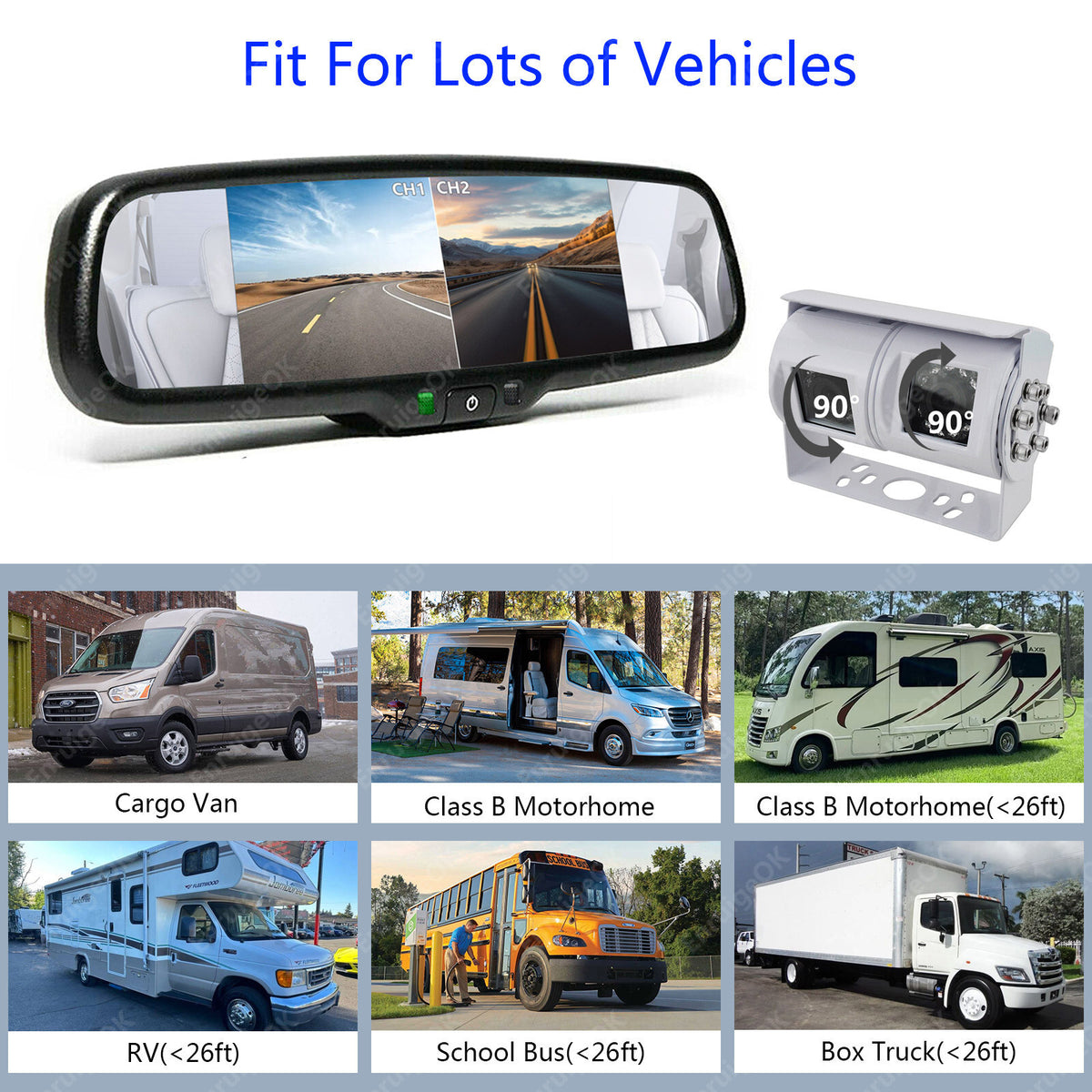

Improved Safety: Provides a clear rear view, ideal for various vehicles such as Truck bus van trailer caravan motorhome, etc.

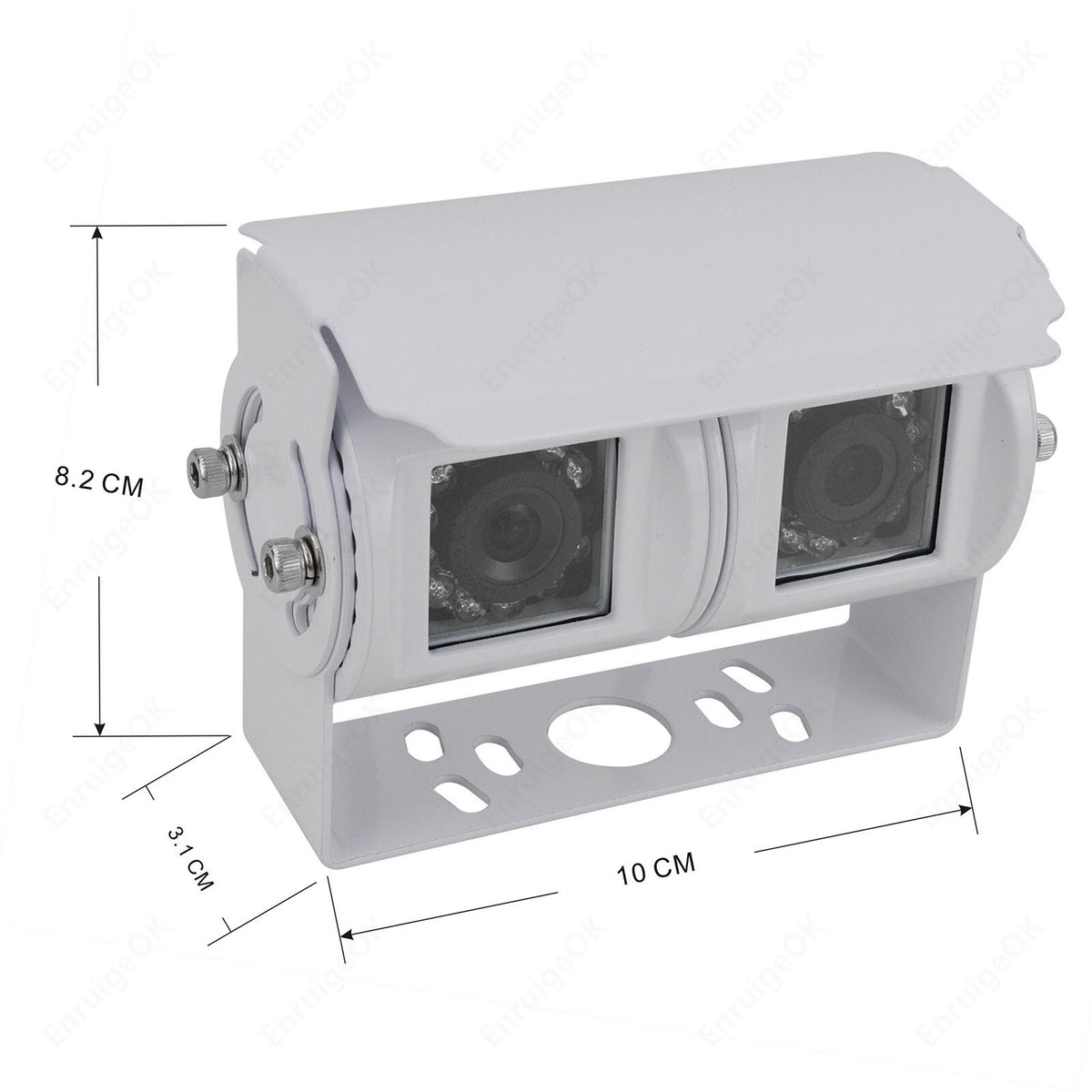

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP68

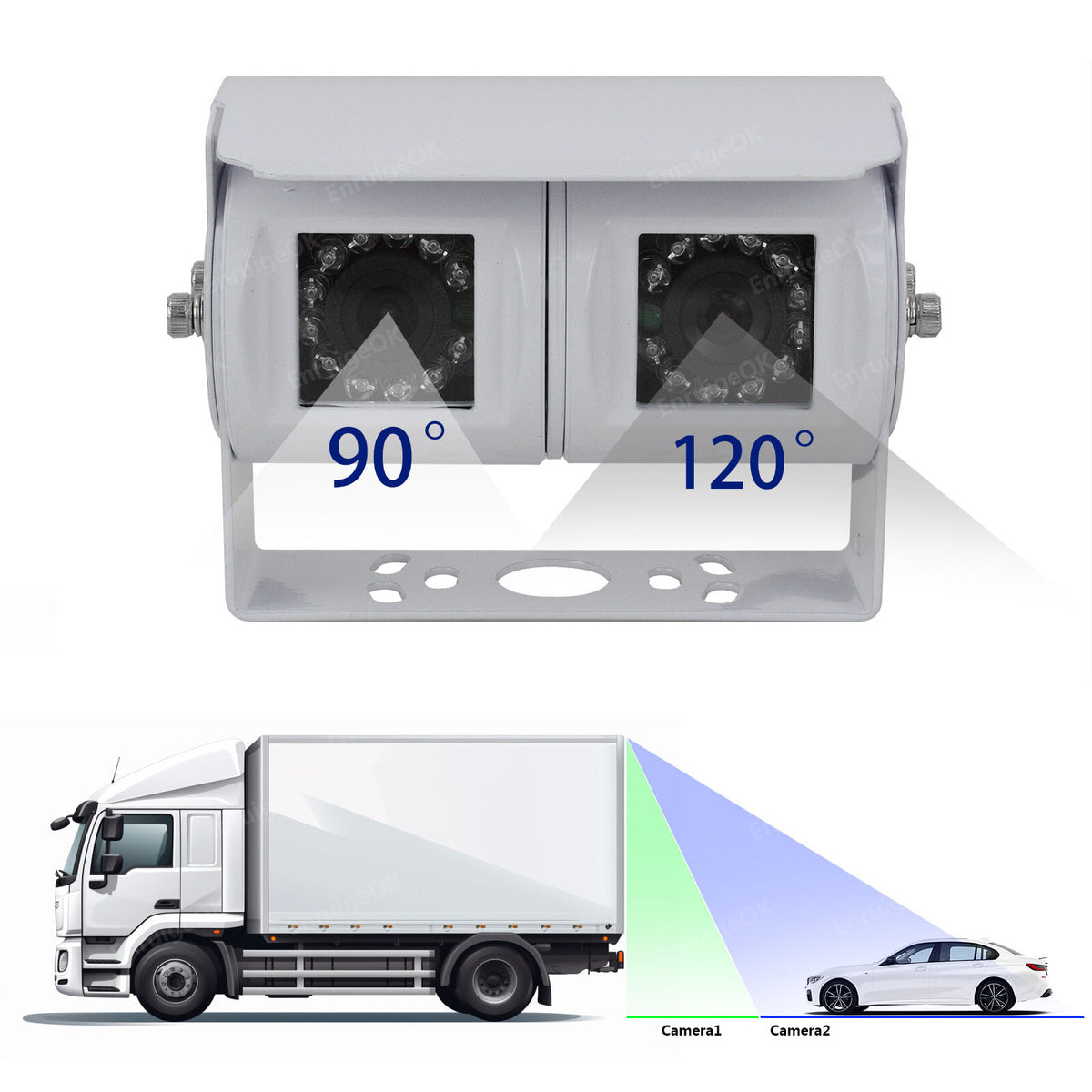

Viewing angle: 120°& 90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

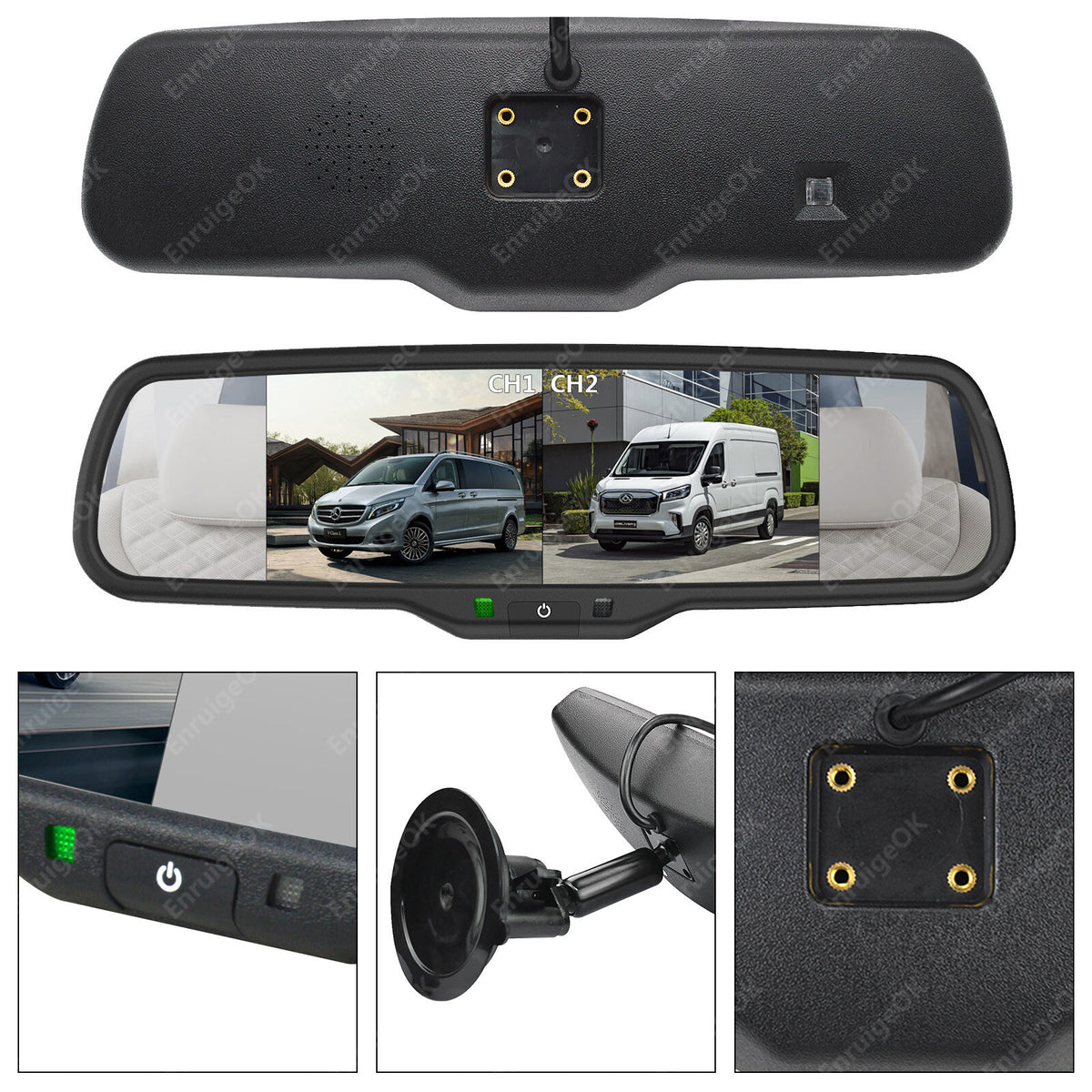

Monitor Specifications

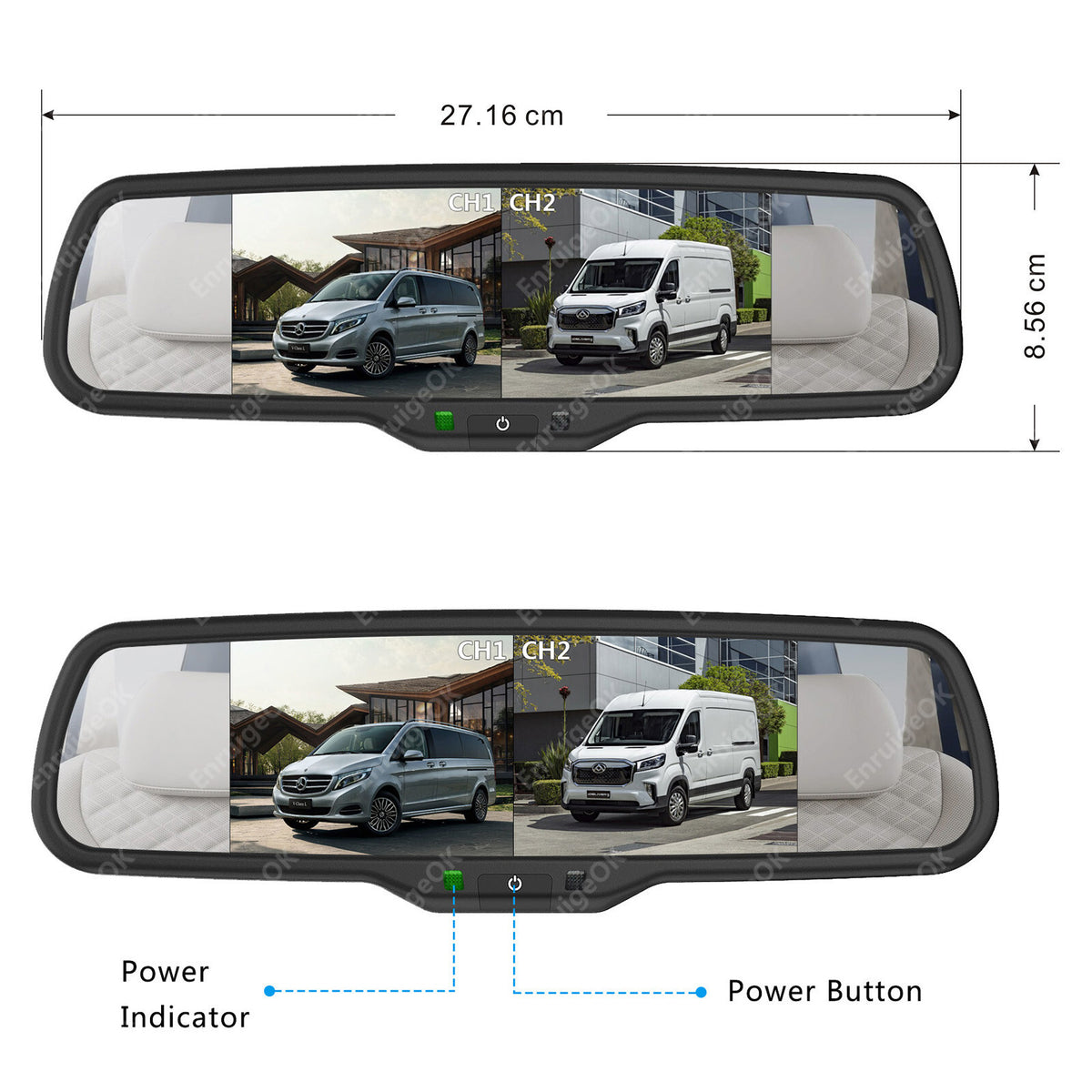

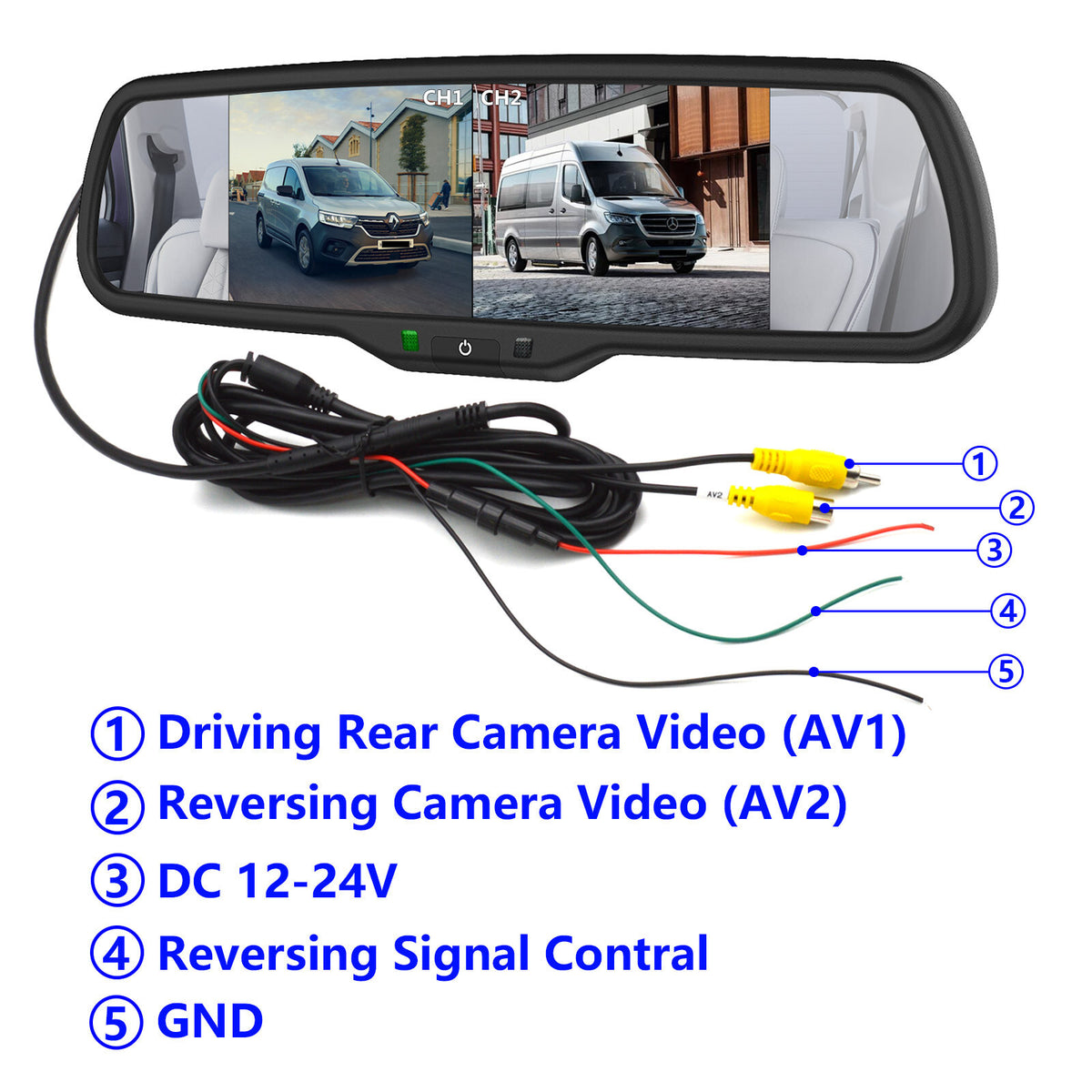

Screen: 6.86 inch 2 split screen, long press the power button to switch to full screen.

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: Dual video input. One(CH1) showing the road or area behind the vehicle, and the other(CH2) looking directly down to help the driver see the vehicle's rear end.

Blue screen displayed when no signal is detected.

Power Supply: DC 12V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
