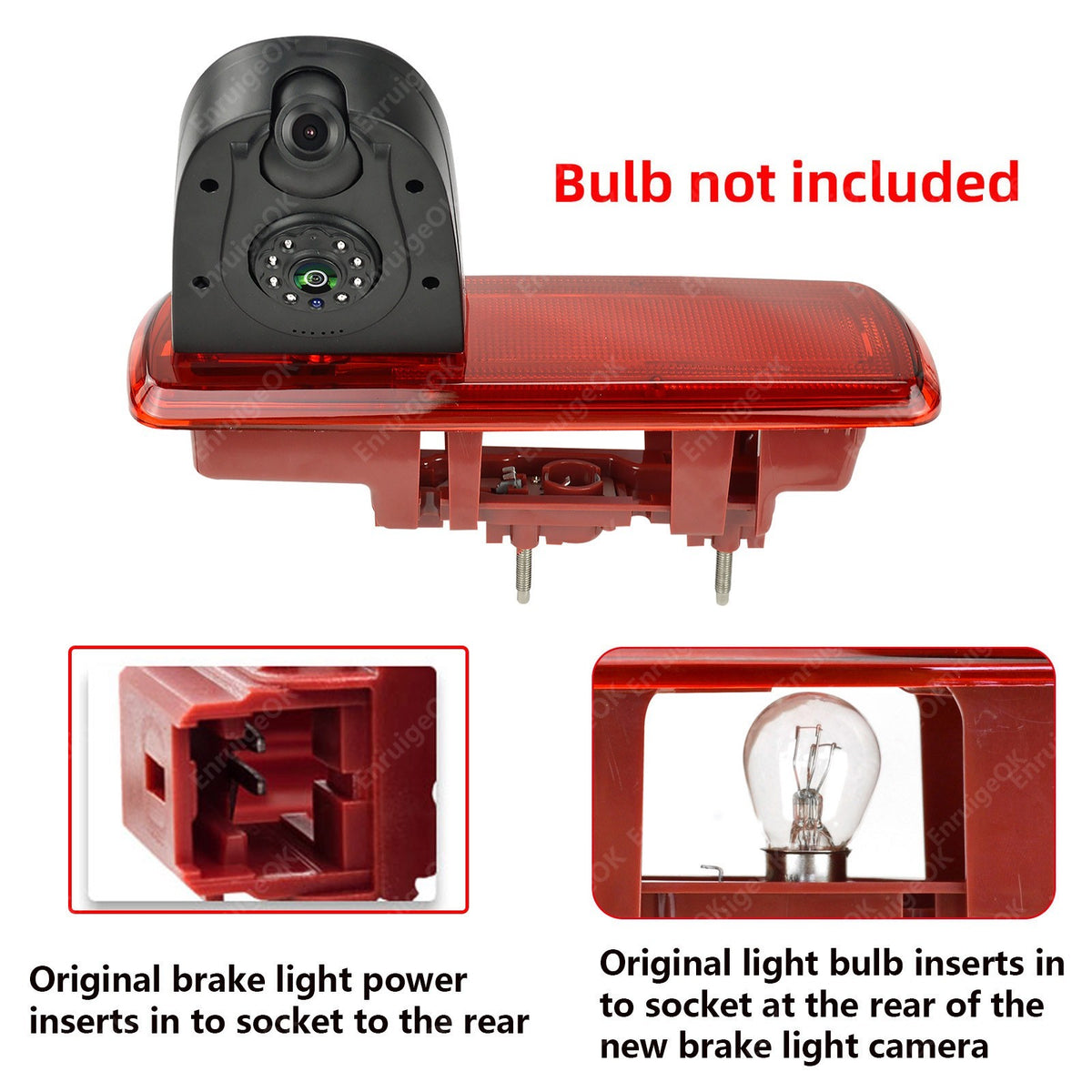

Dual Lens Rear Brake Light Reversing Camera Kit for Opel Vivaro Renault Trafic 3

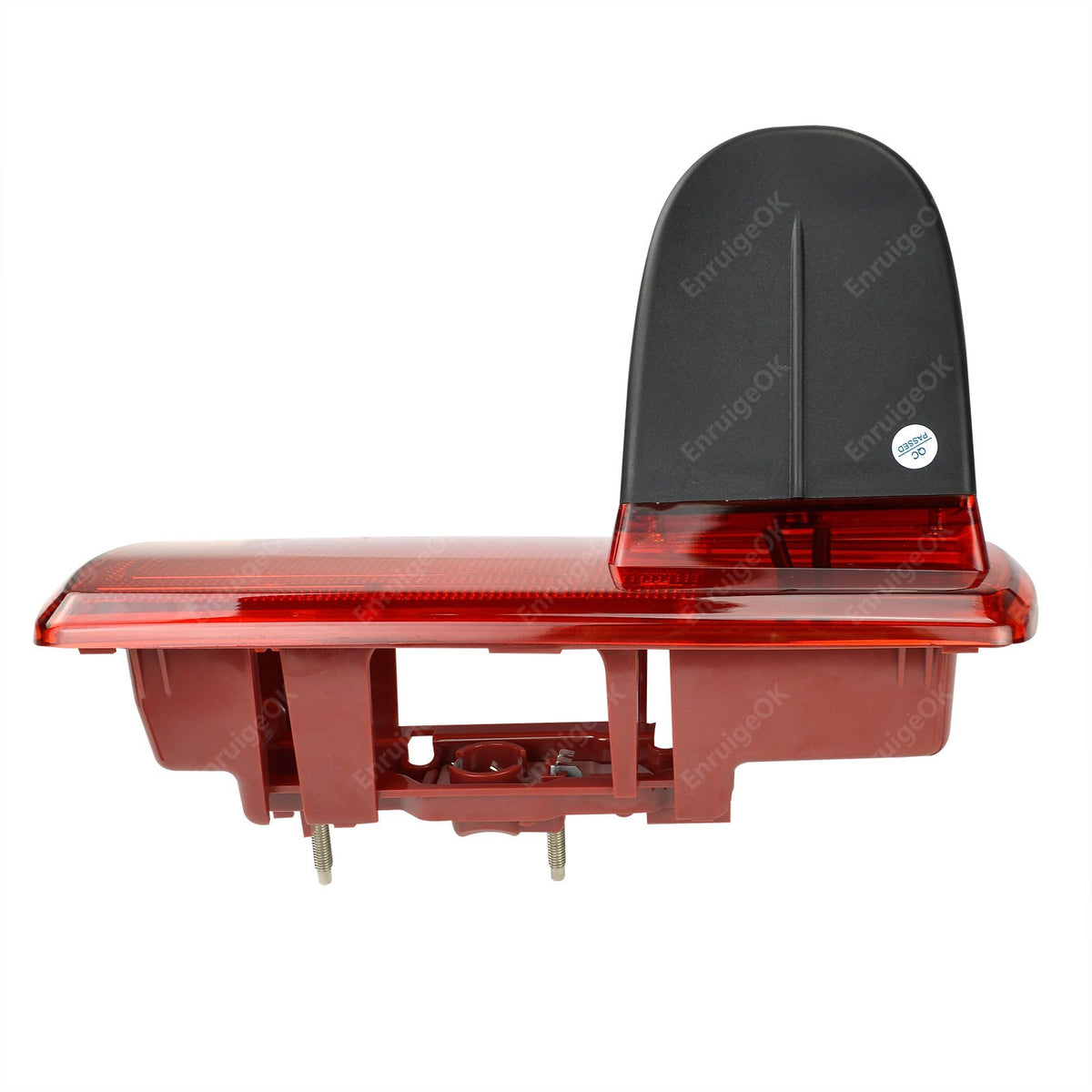

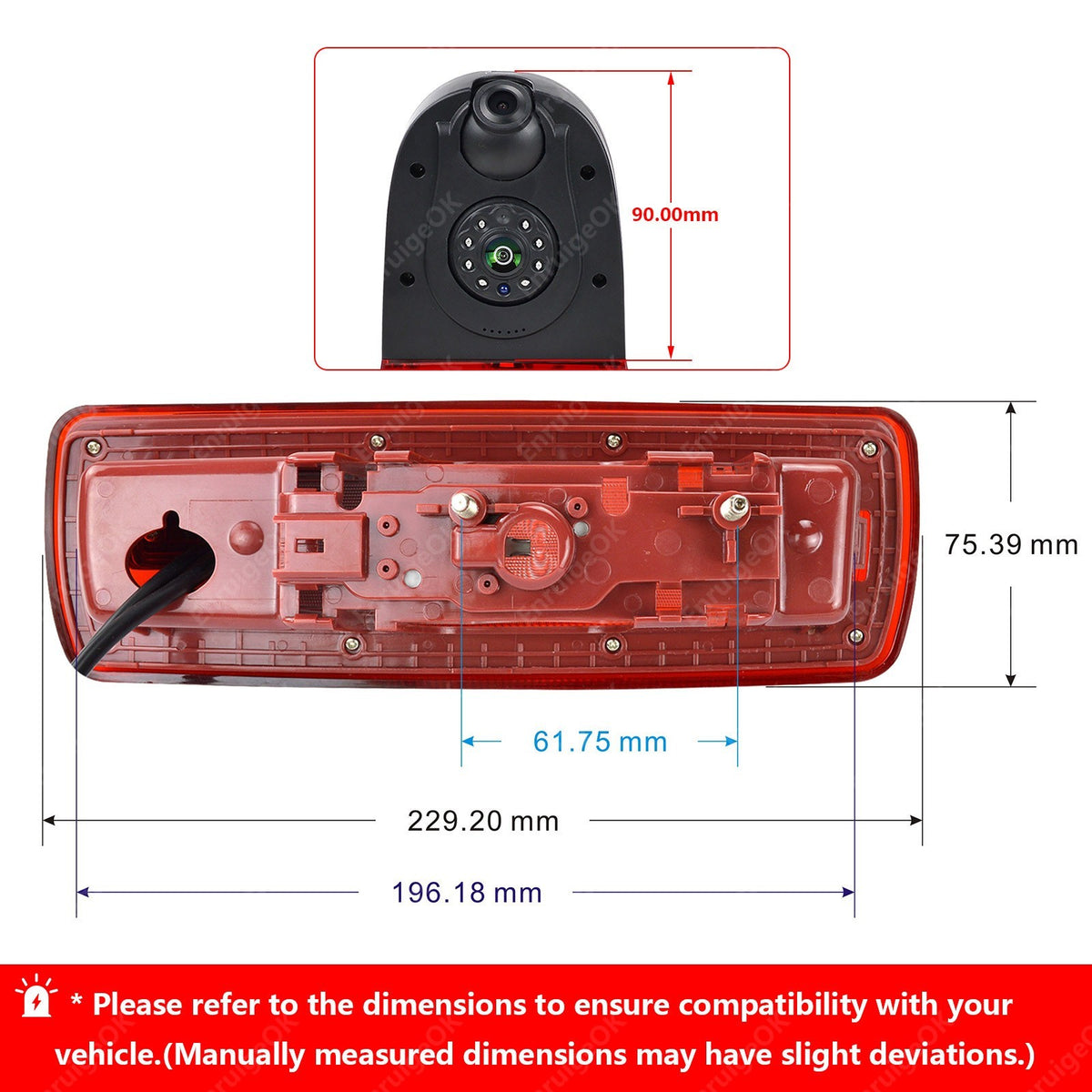

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK 6.86" Dual Split-Screen Monitor + Dual Rear Brake Light Camera for Renault Trafic Vauxhall Vivaro Nissan NV300 Nissan Primastar

EnruigeOK dual-lens rear reverse camera is equipped with two lenses: one for reversing, helping the driver back up safely; and the other for monitoring traffic behind the vehicle while driving, providing a wider rear view. Paired with a 6.86" split-screen monitor, it provides clear coverage of the vehicle's rear, enhancing overall driving safety.

Camera Compatibility

✅Renault Trafic III (2014-2022)

✅Renault Trafic III Phase 2 (2022 >)

✅Vauxhall/Opel Vivaro [B] (2014-2018)

✅Nissan NV300 (2014-2021)

✅Nissan Primastar (2022 >)

✅Fiat Talento 2nd Gen (2016-2022)

✅Mitsubishi - Express [X82] (2020 >)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

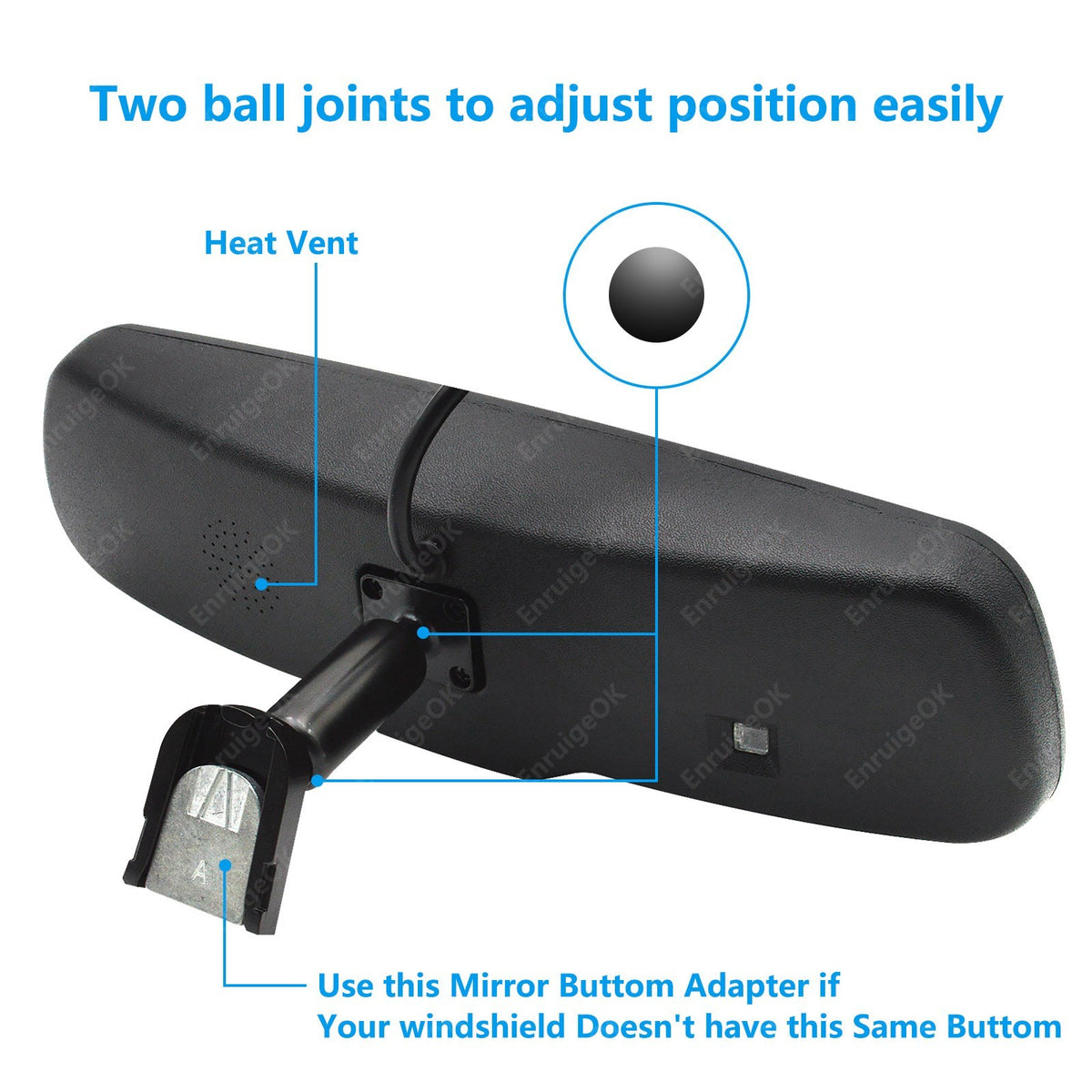

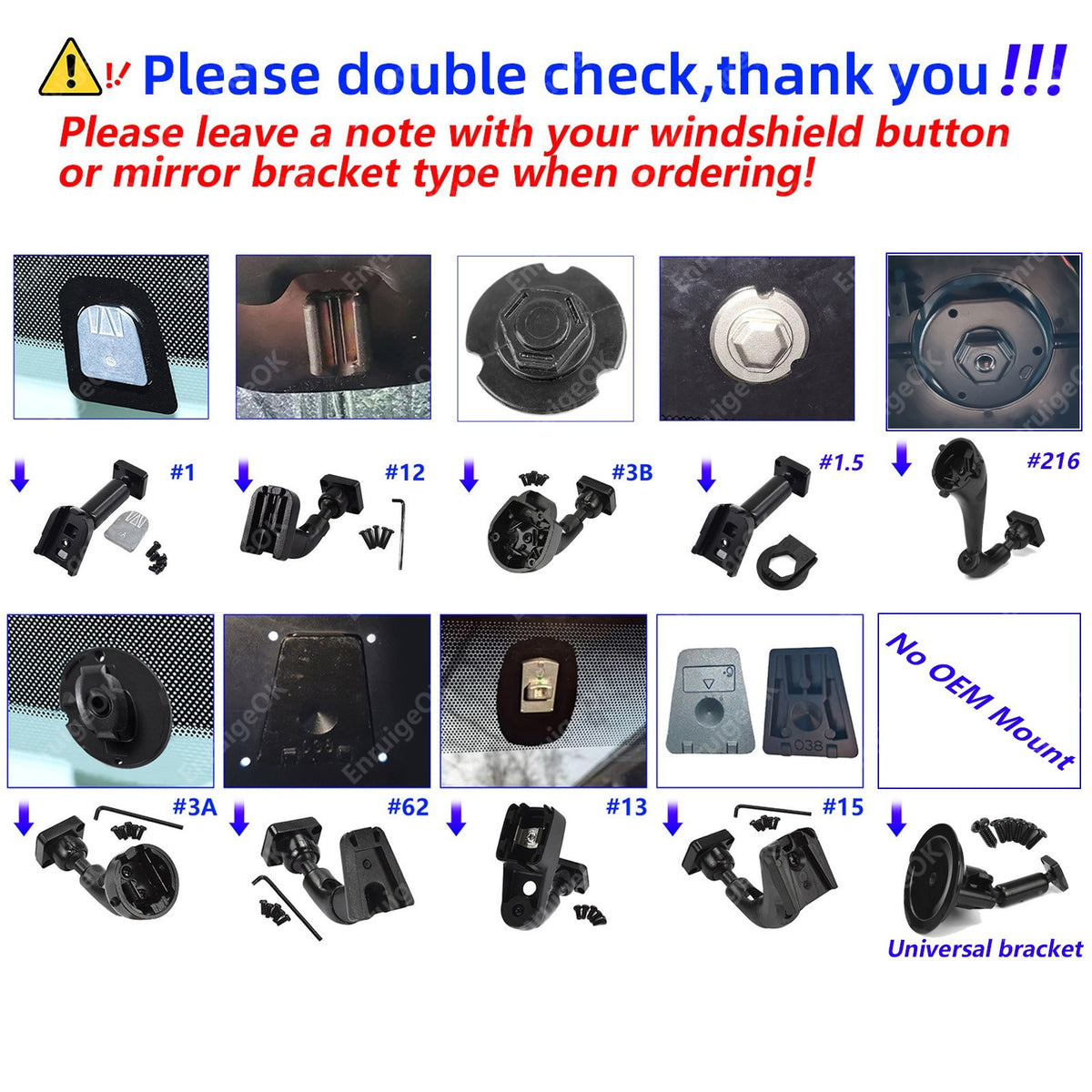

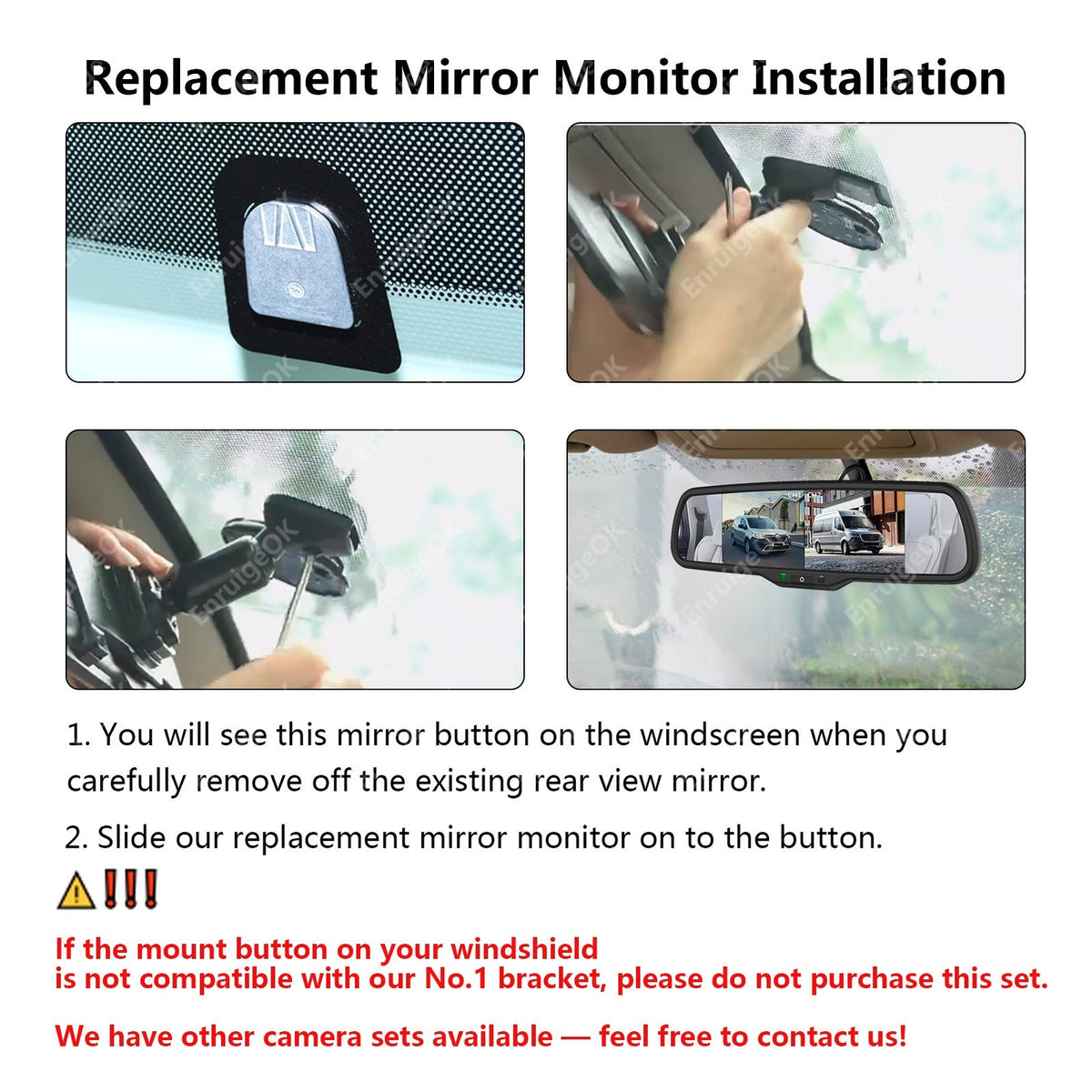

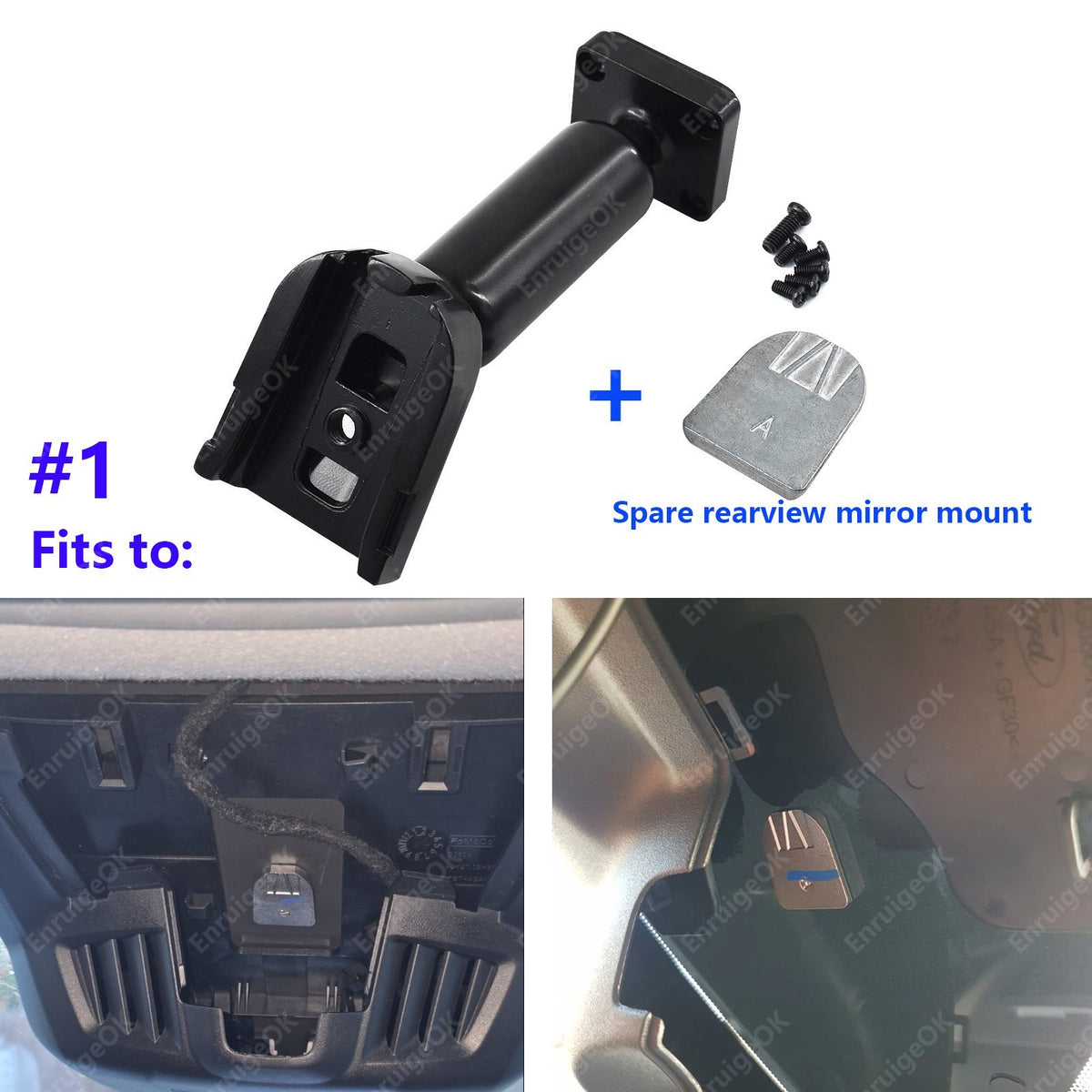

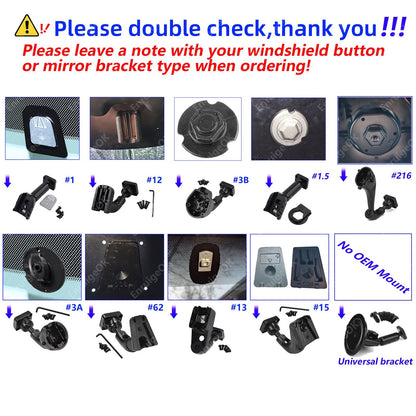

Monitor Bracket Note

This kit includes the #1 bracket by default. If unsure about compatibility, please send a clear photo of your windshield button or original mirror bracket when ordering. We have other bracket styles that may fit your vehicle.

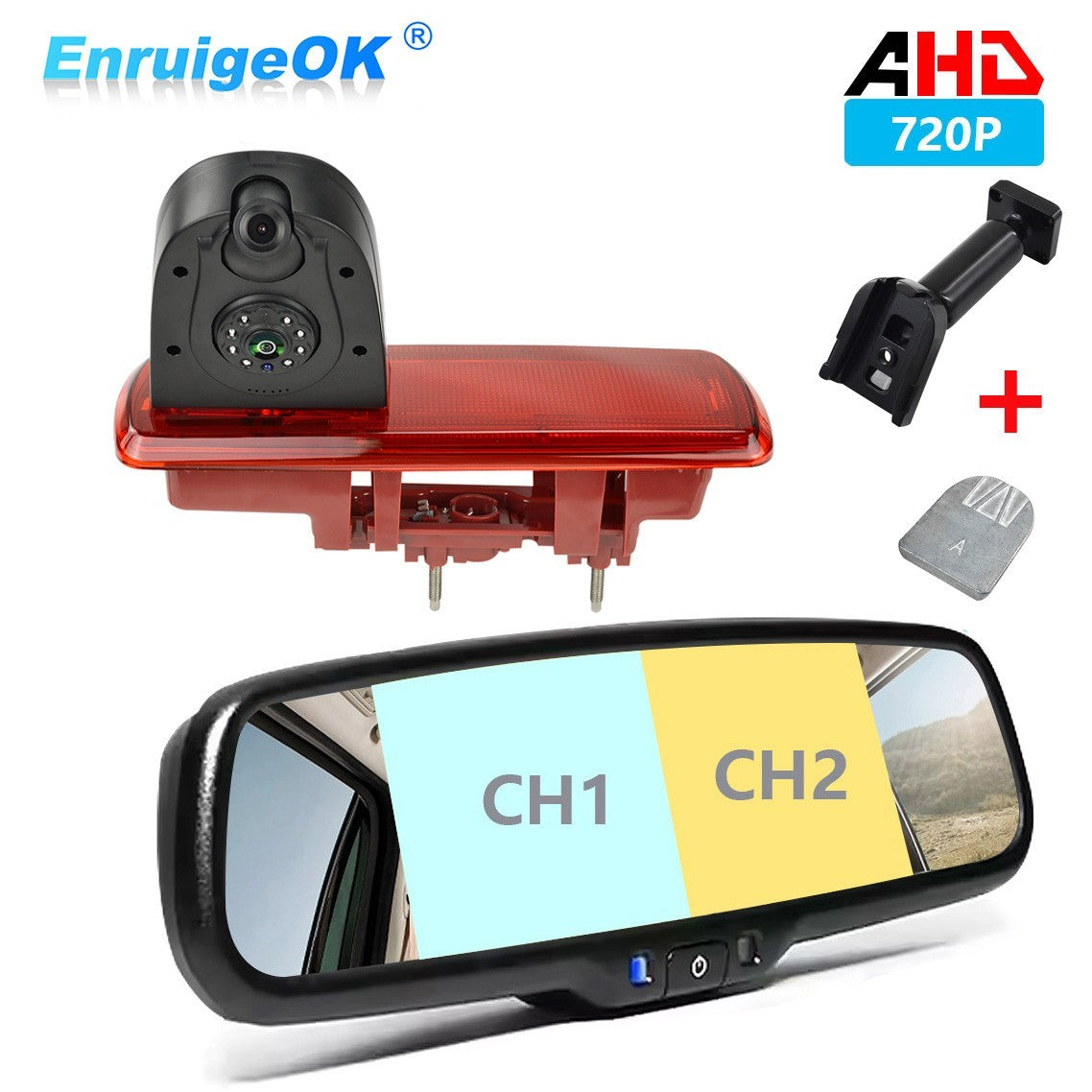

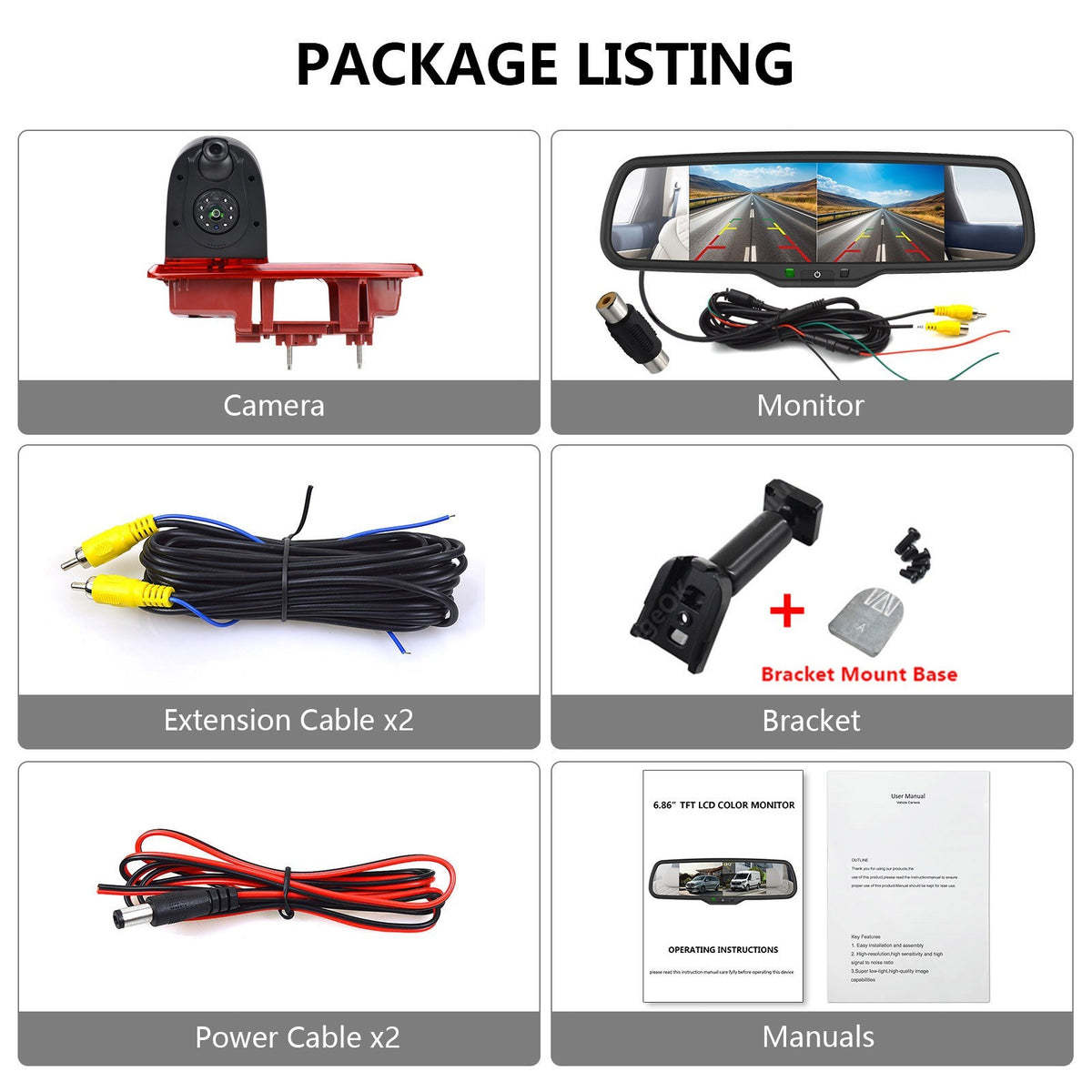

Package contents

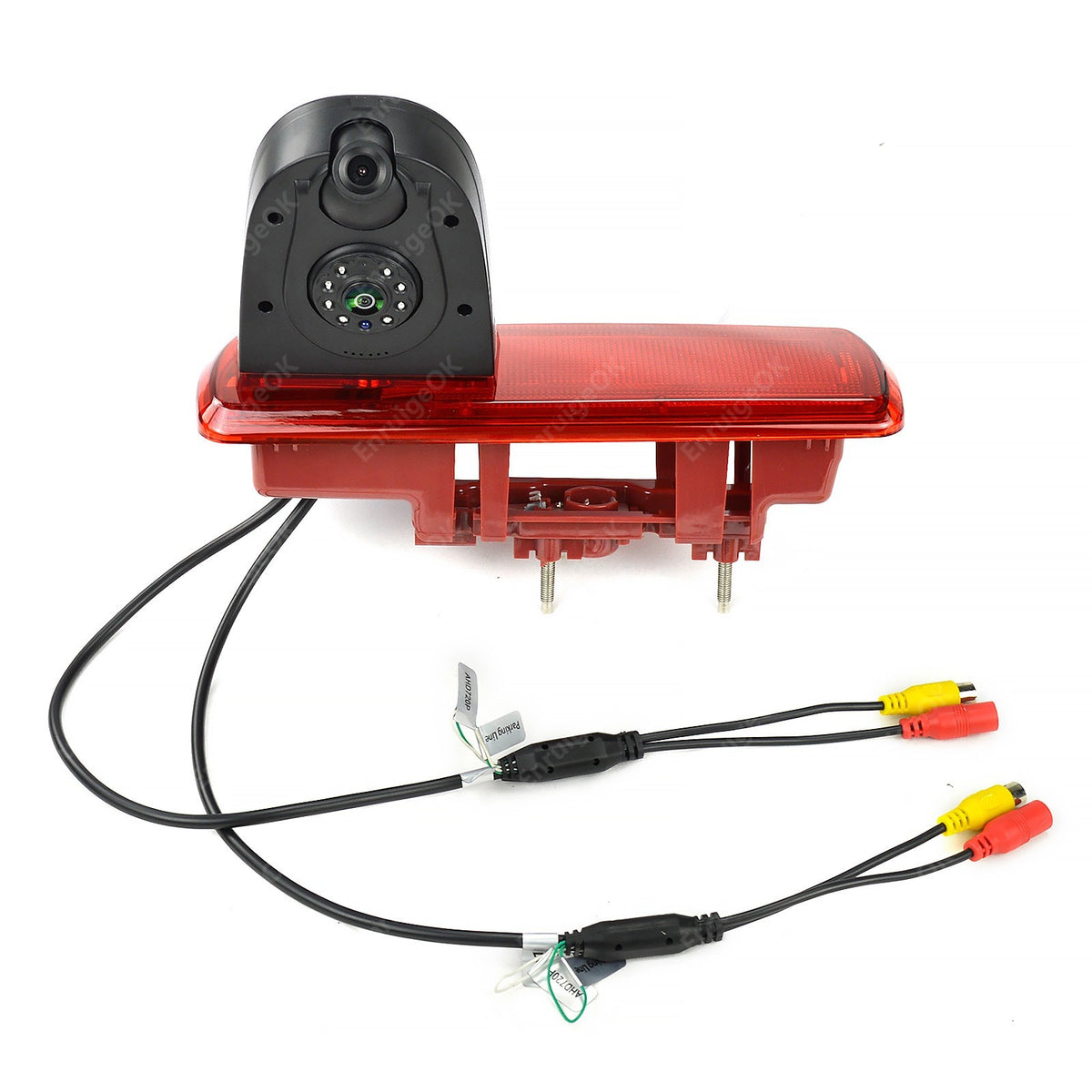

1 X EnruigeOK Brake light camera

1 X 6.86'' Mirror monitor

1 X Monitor power cable

2 X Video extension cable

2 X DC power cable

1 X Female to female adapter

1 X #1 Bracket(check your windshield metal clip)

1 X Manuall

Description

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.

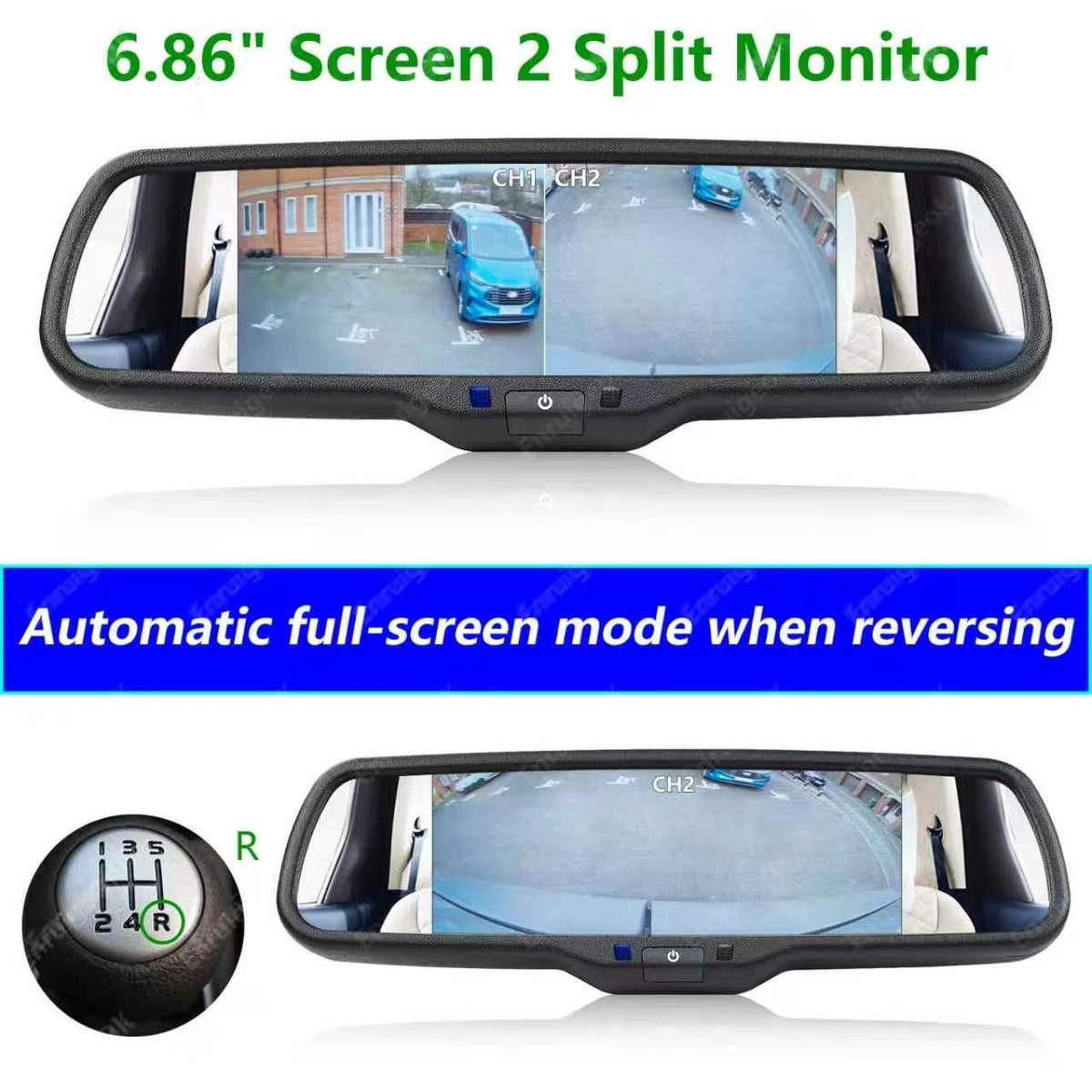

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

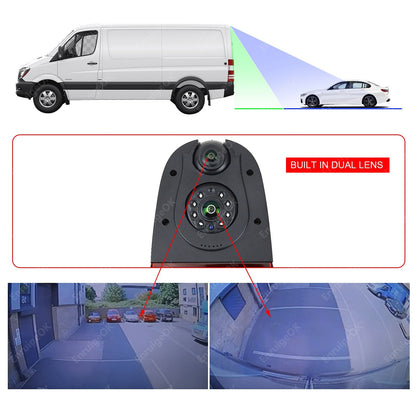

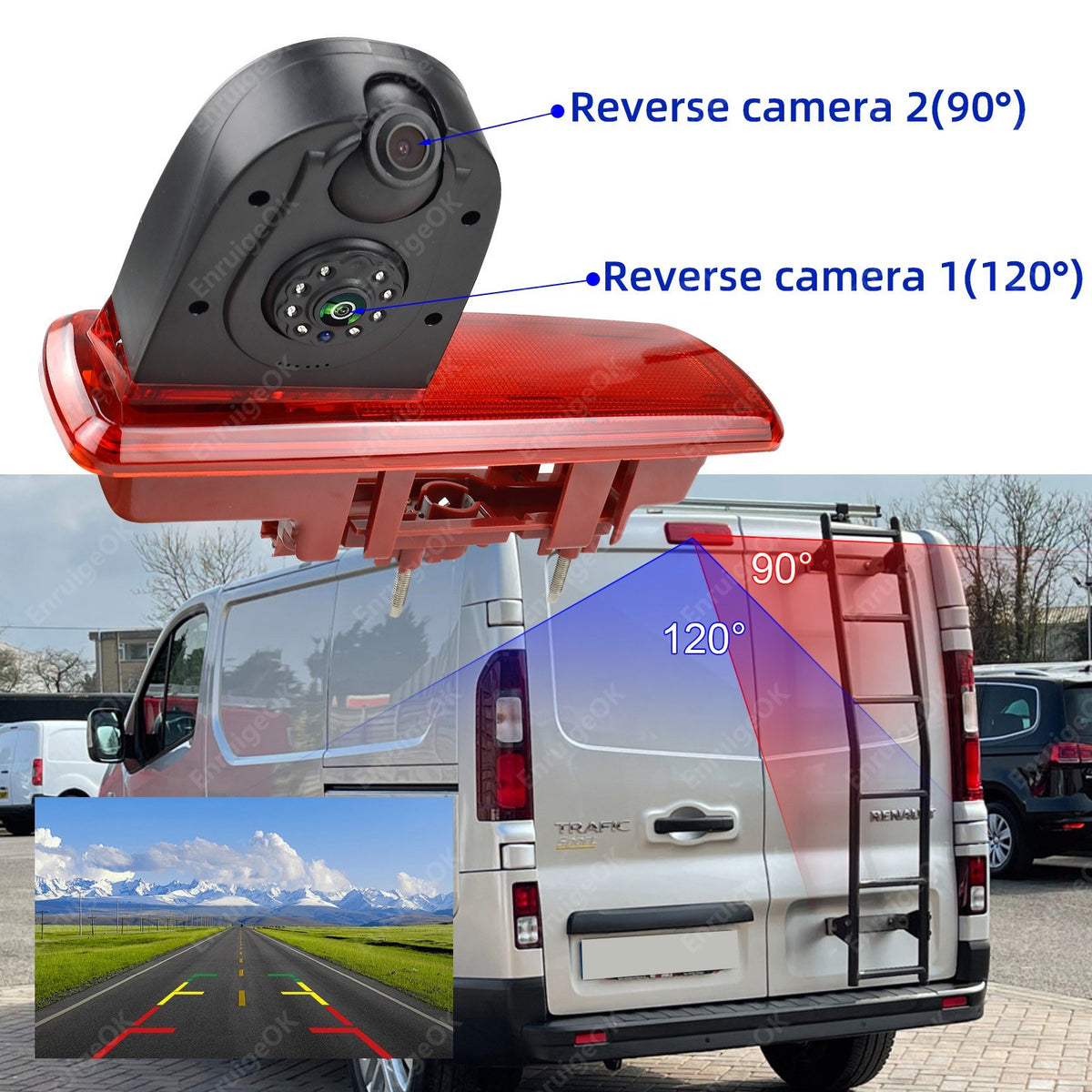

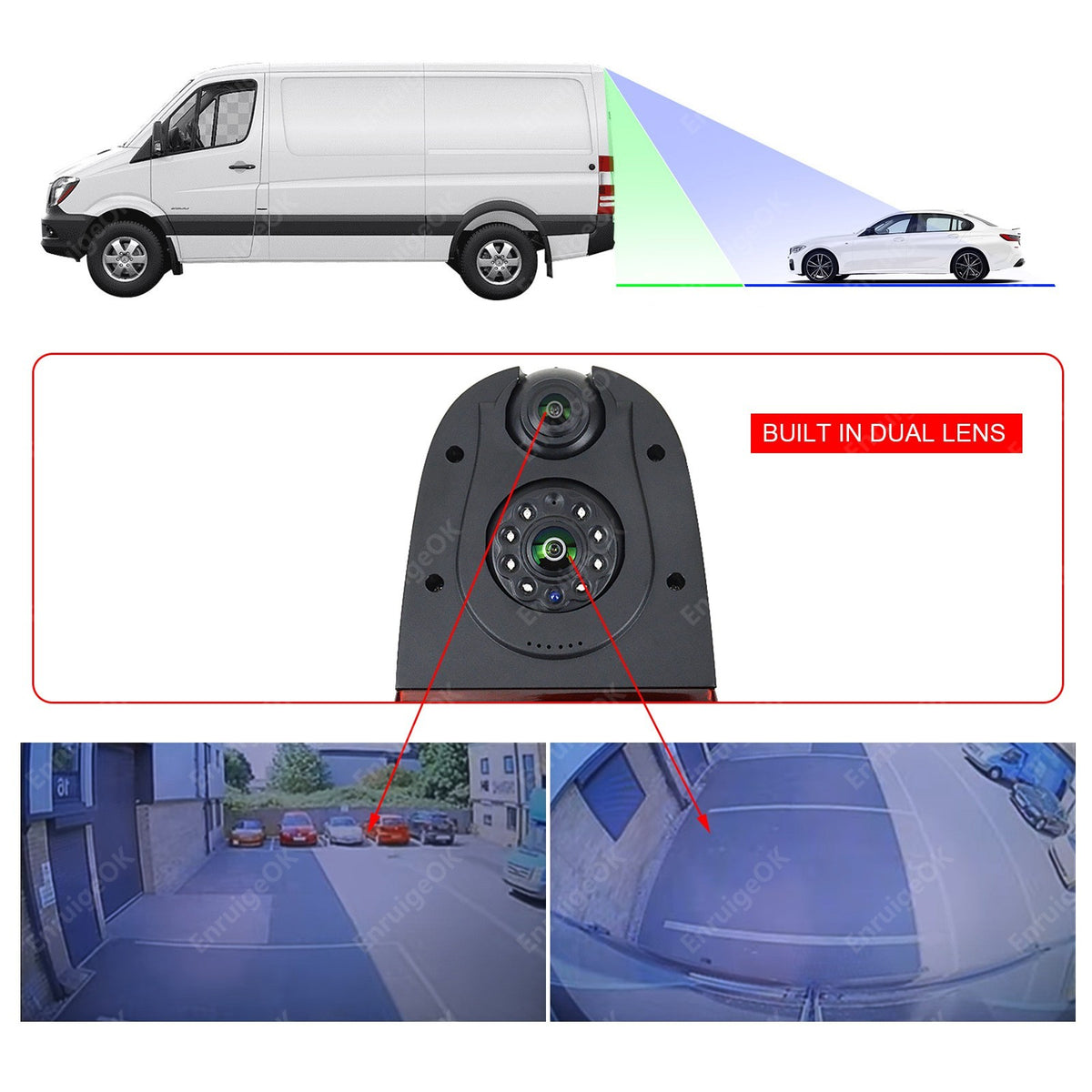

TWIN LENS !!! Dual lens reversing camera: One(CH1) showing the road or area behind the vehicle, and the other(CH2) looking directly down to help the driver see the vehicle's rear end.

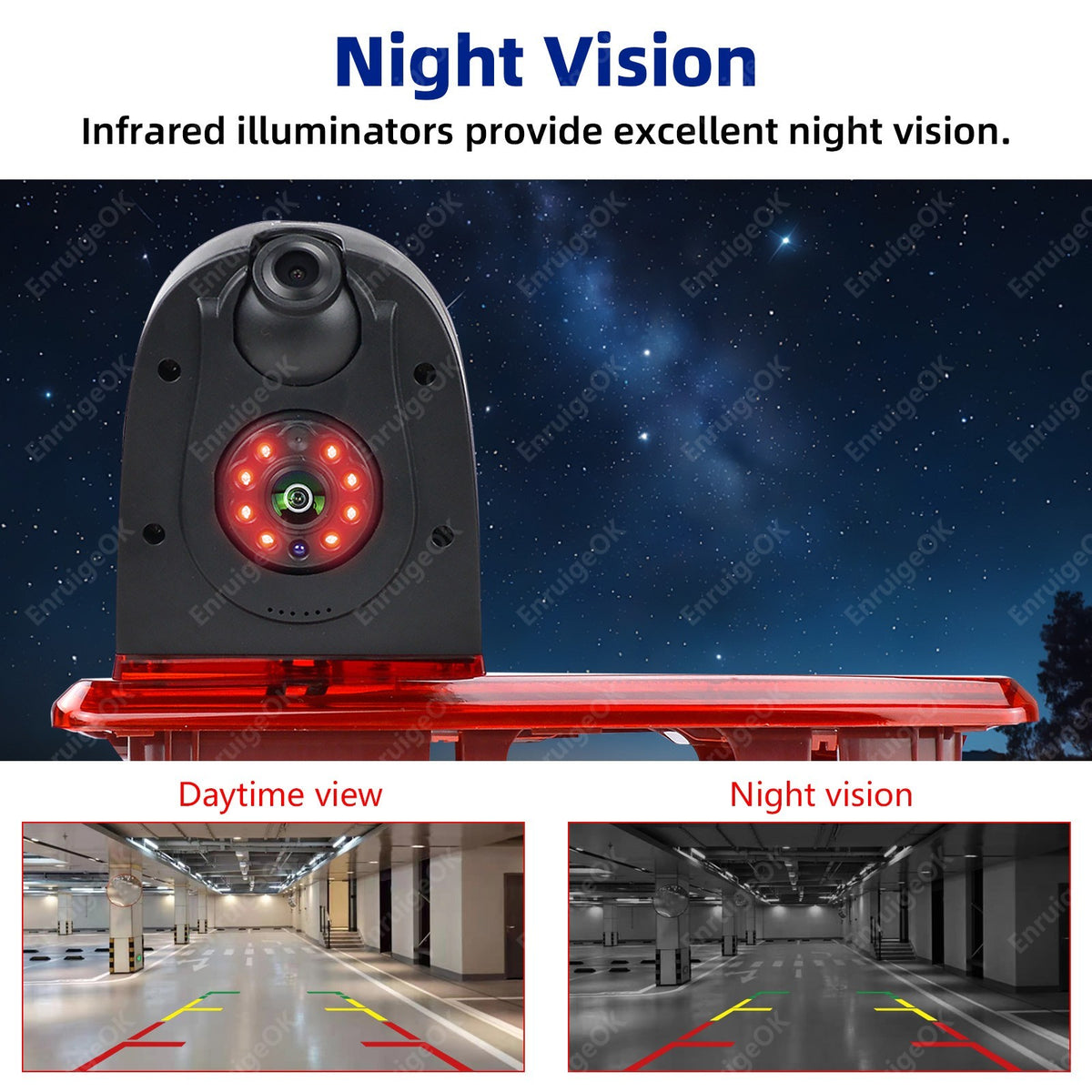

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

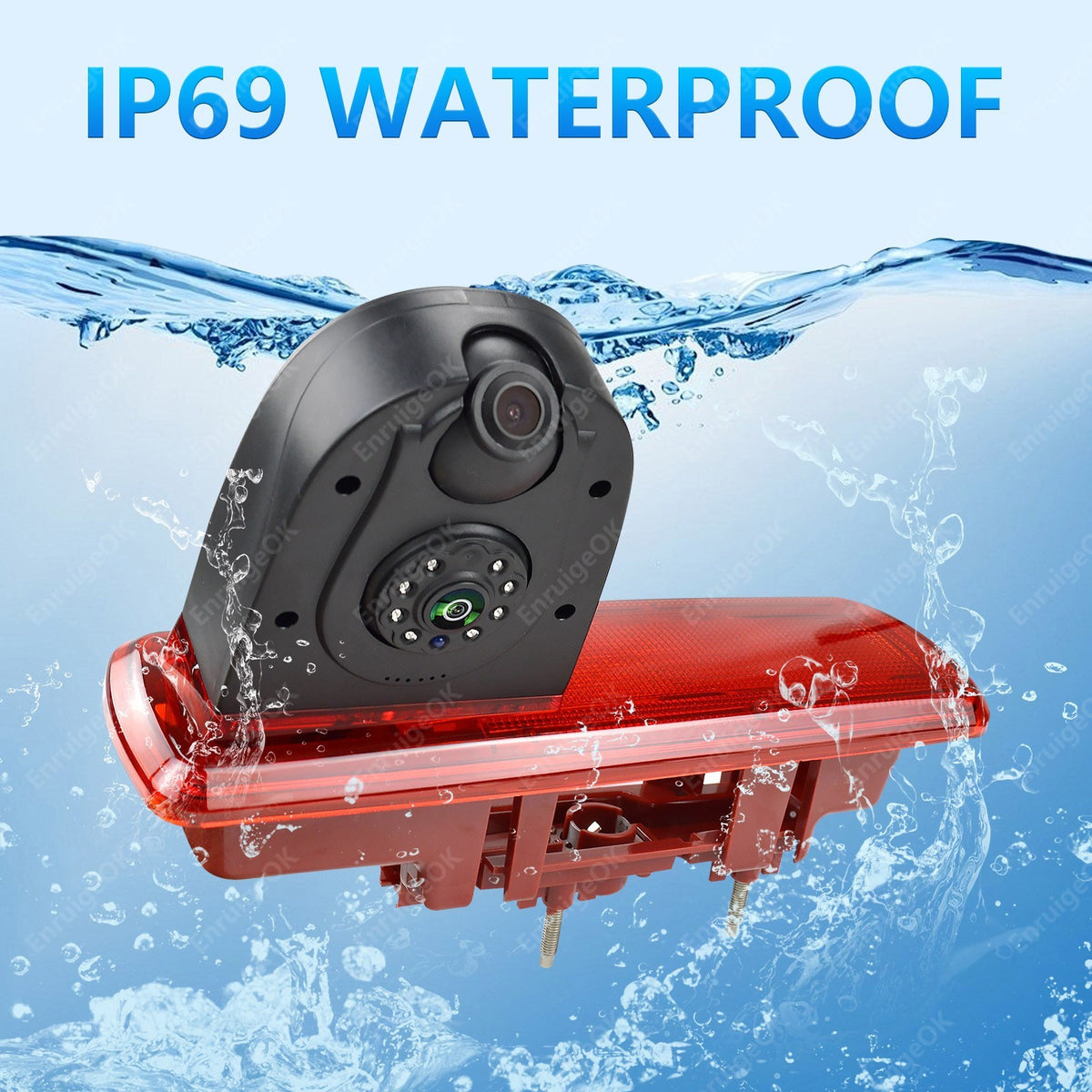

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°& 90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +80℃

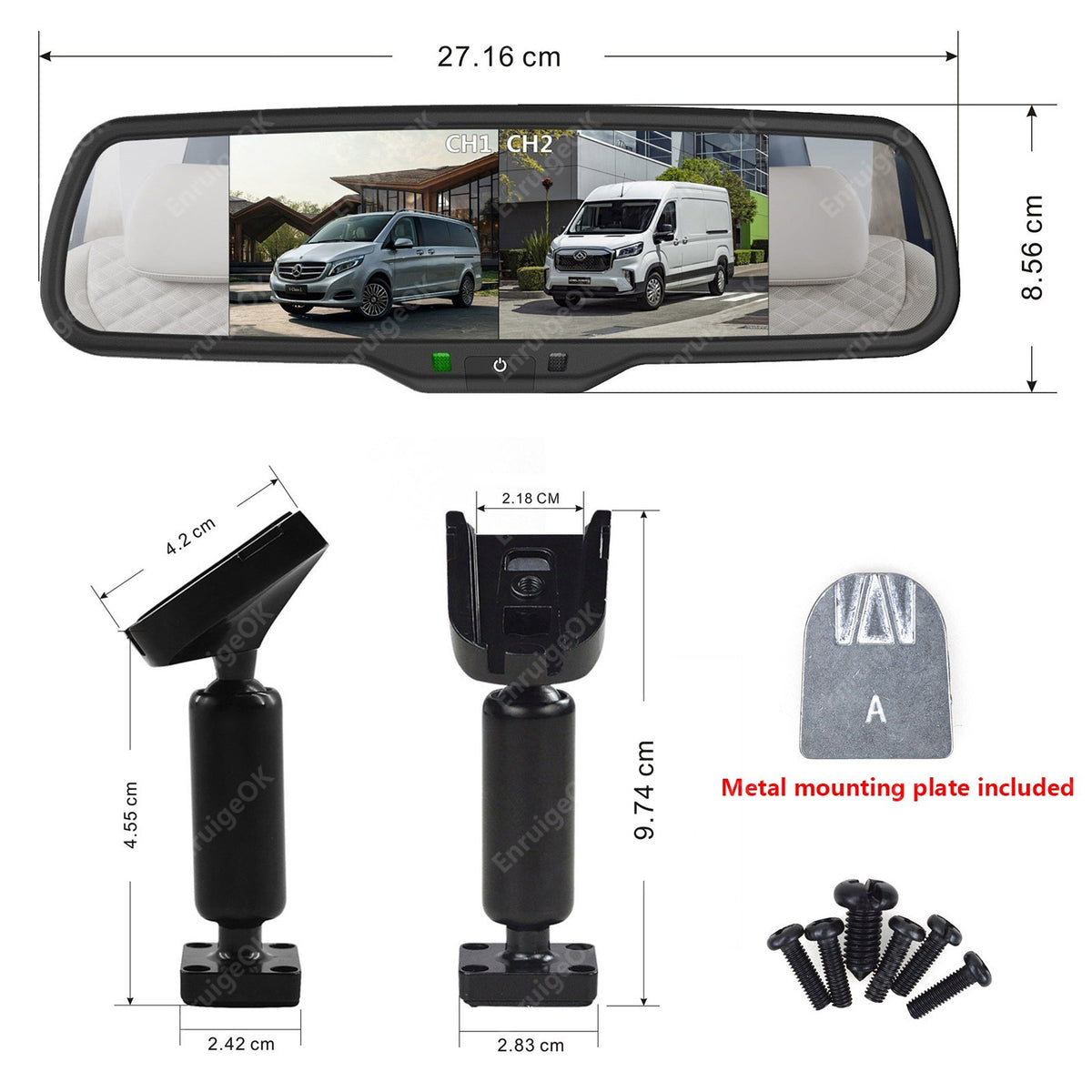

Monitor Specifications

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

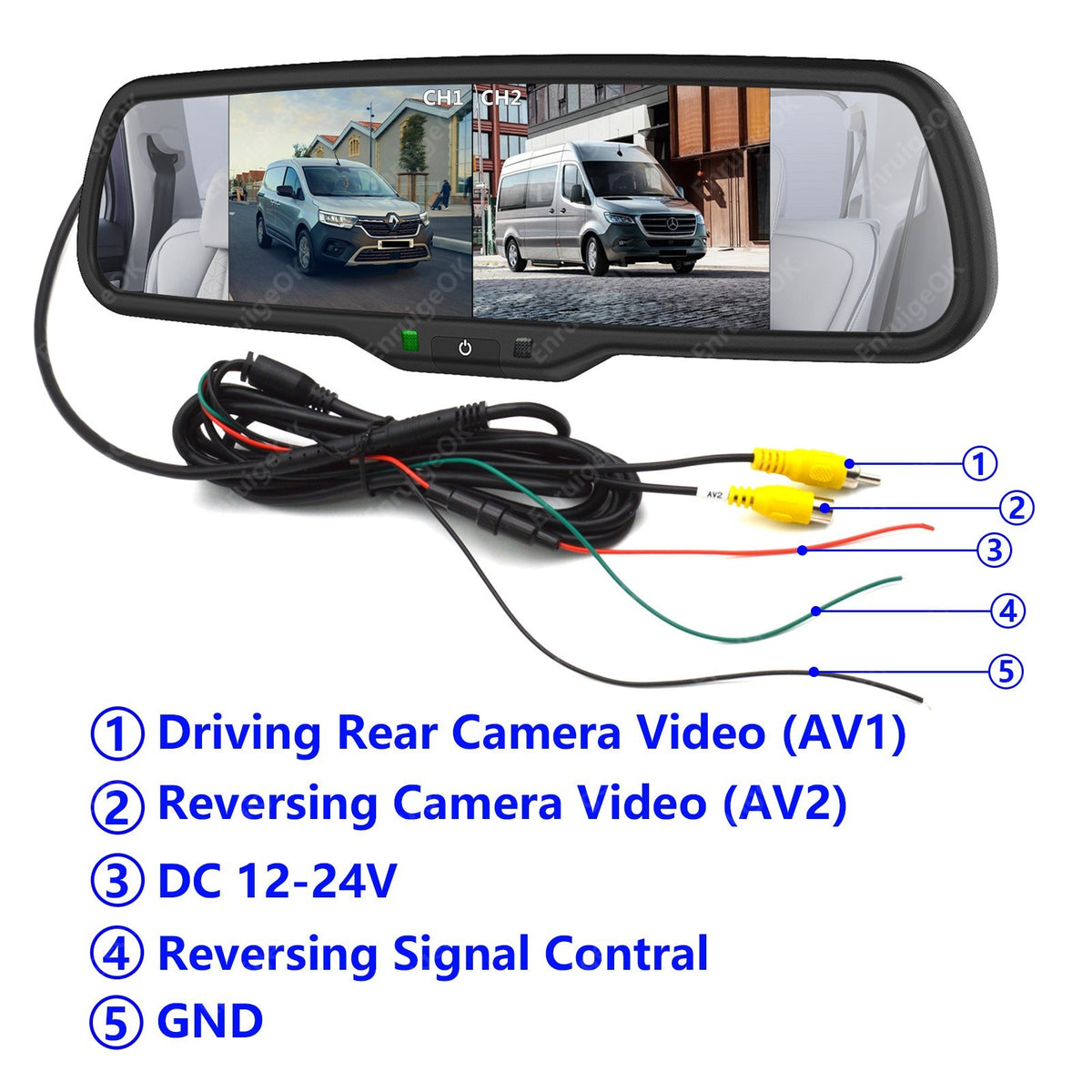

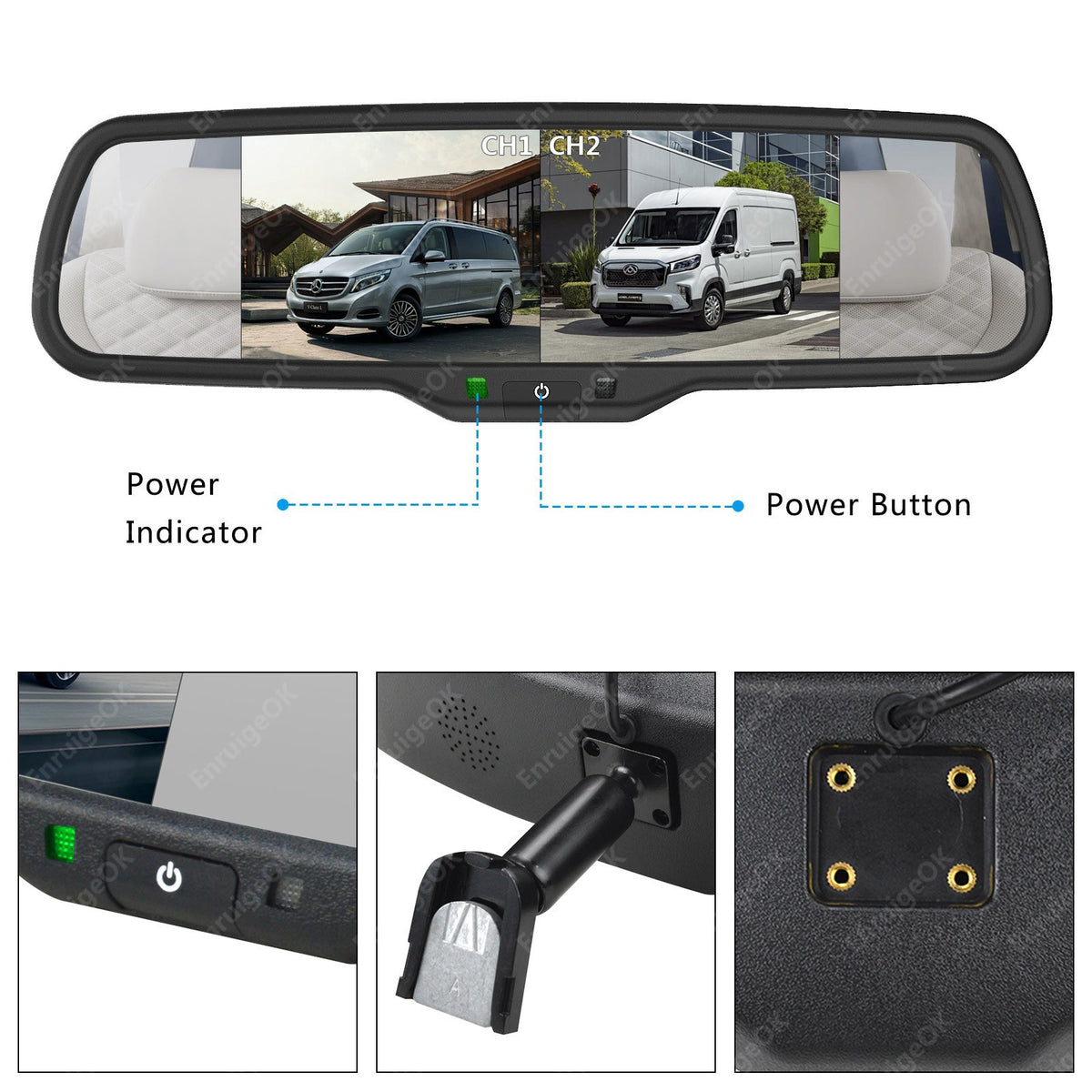

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), automatic full-screen switch during reversing, Long press the power button to turn off the display.

Blue screen displayed when no signal is detected.

Power Supply: DC 12V-24V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃
