Dual-Lens Brake Light Reverse Camera Kit for Mercedes-Benz Sprinter VW Crafter

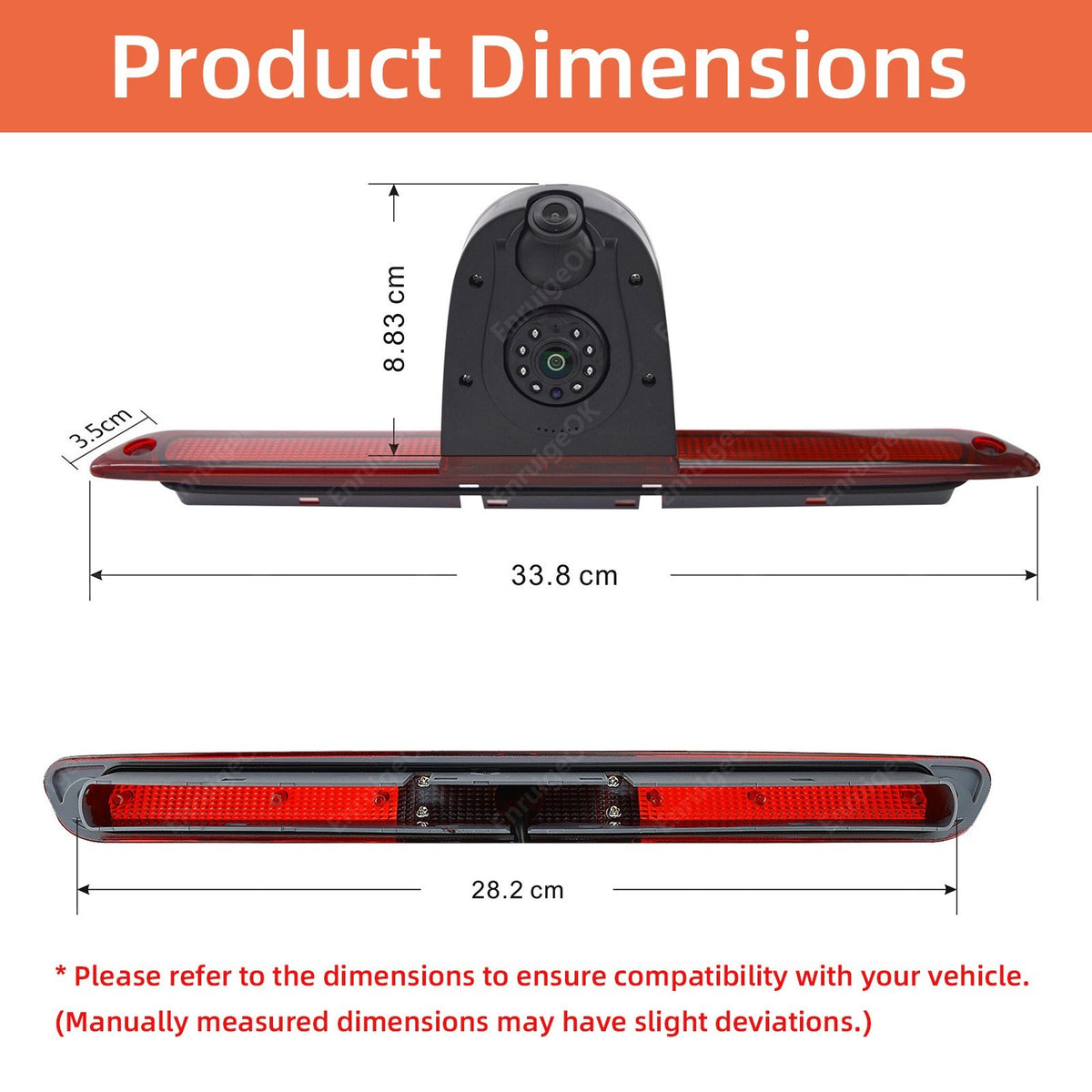

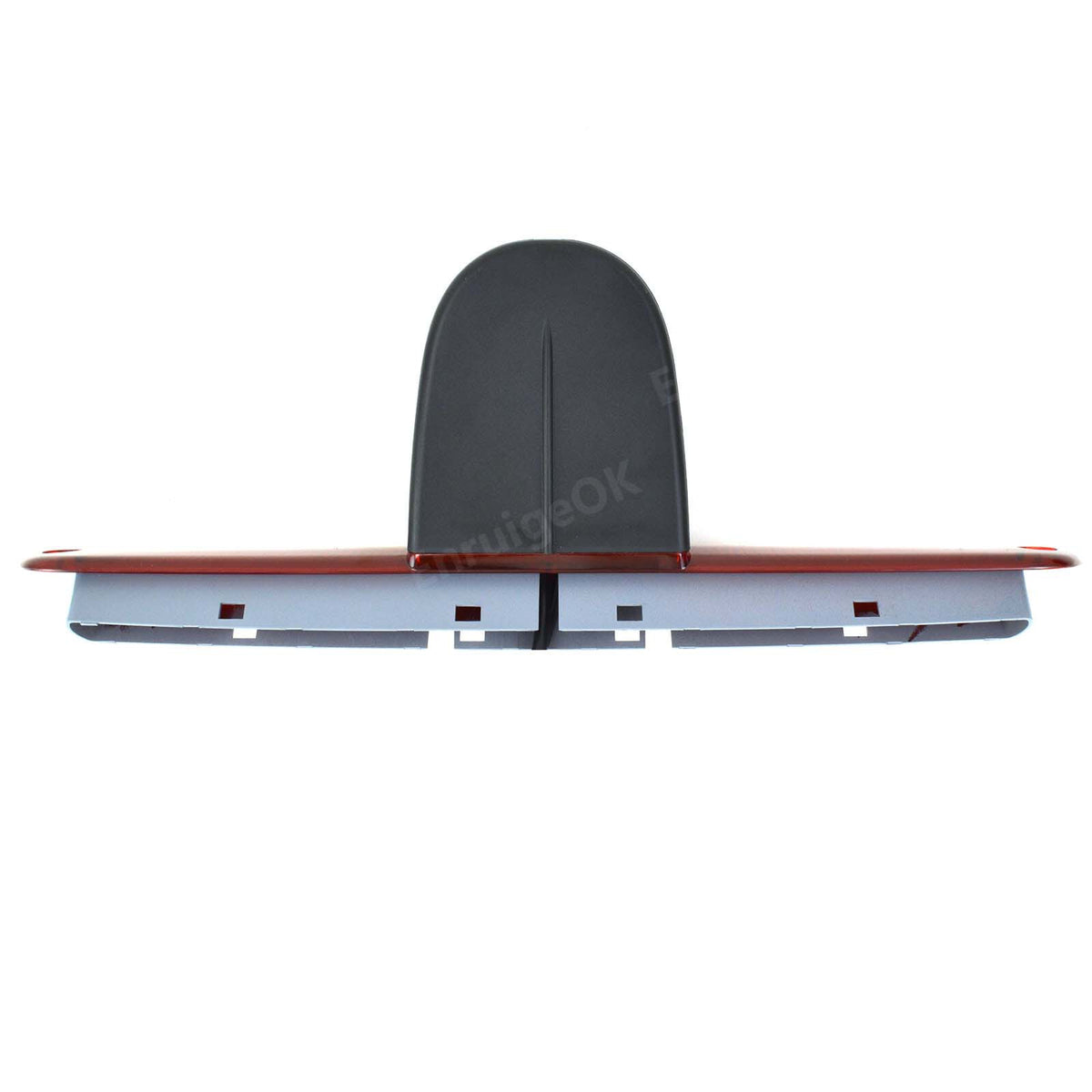

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK 6.86" Dual Split Screen Mirror Monitor with #1 OEM Bracket & Dual Lens Rear Brake Light Reversing Camera For Mercedes Sprinter Van

Camera Compatibility

✅Mercedes Sprinter [W906 NCV3] (2006-2018)

✅Mercedes Sprinter [W907/W910 VS30] (2019-On)

✅Volkswagen Crafter [MK1 Type 2E/2F] (2006-2016)

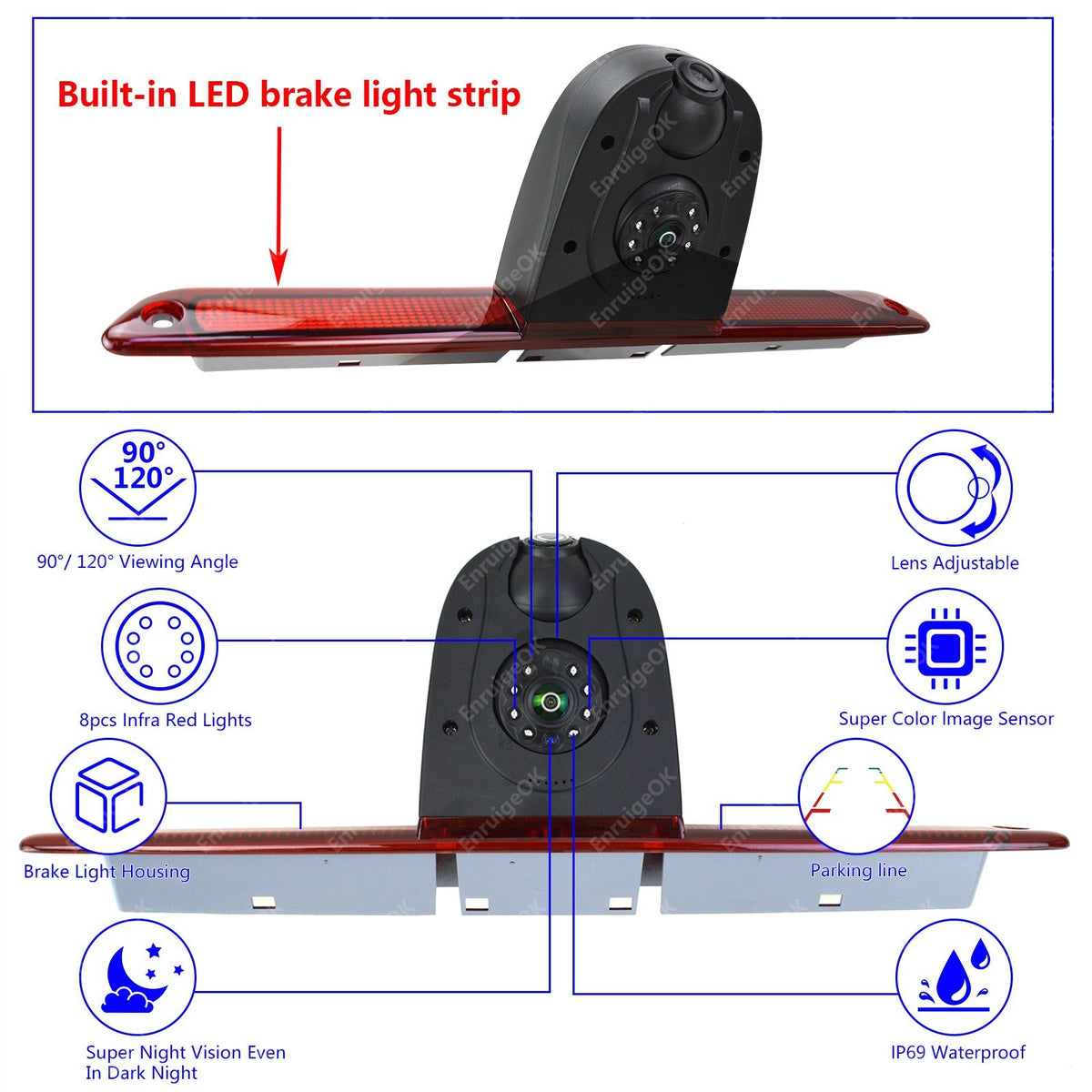

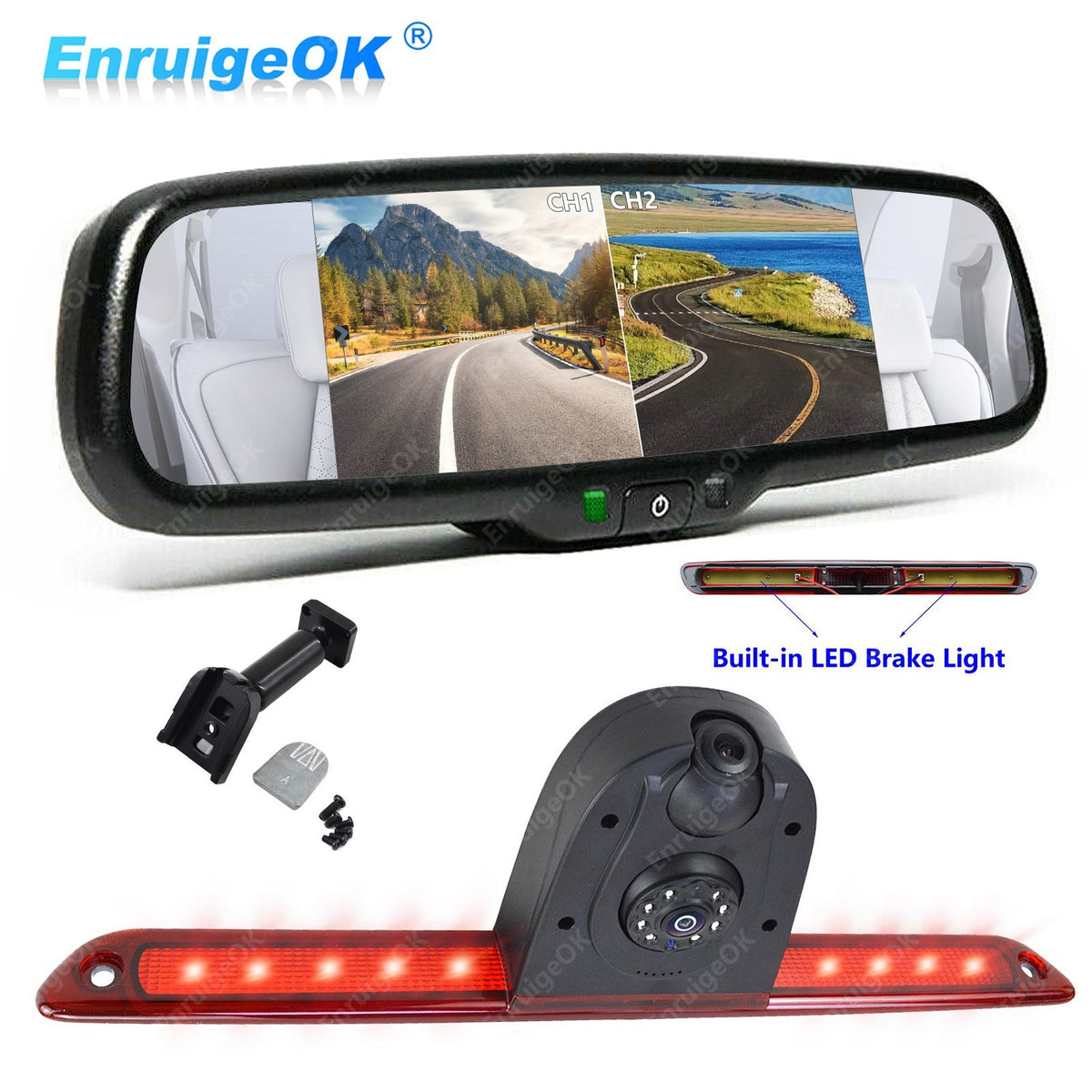

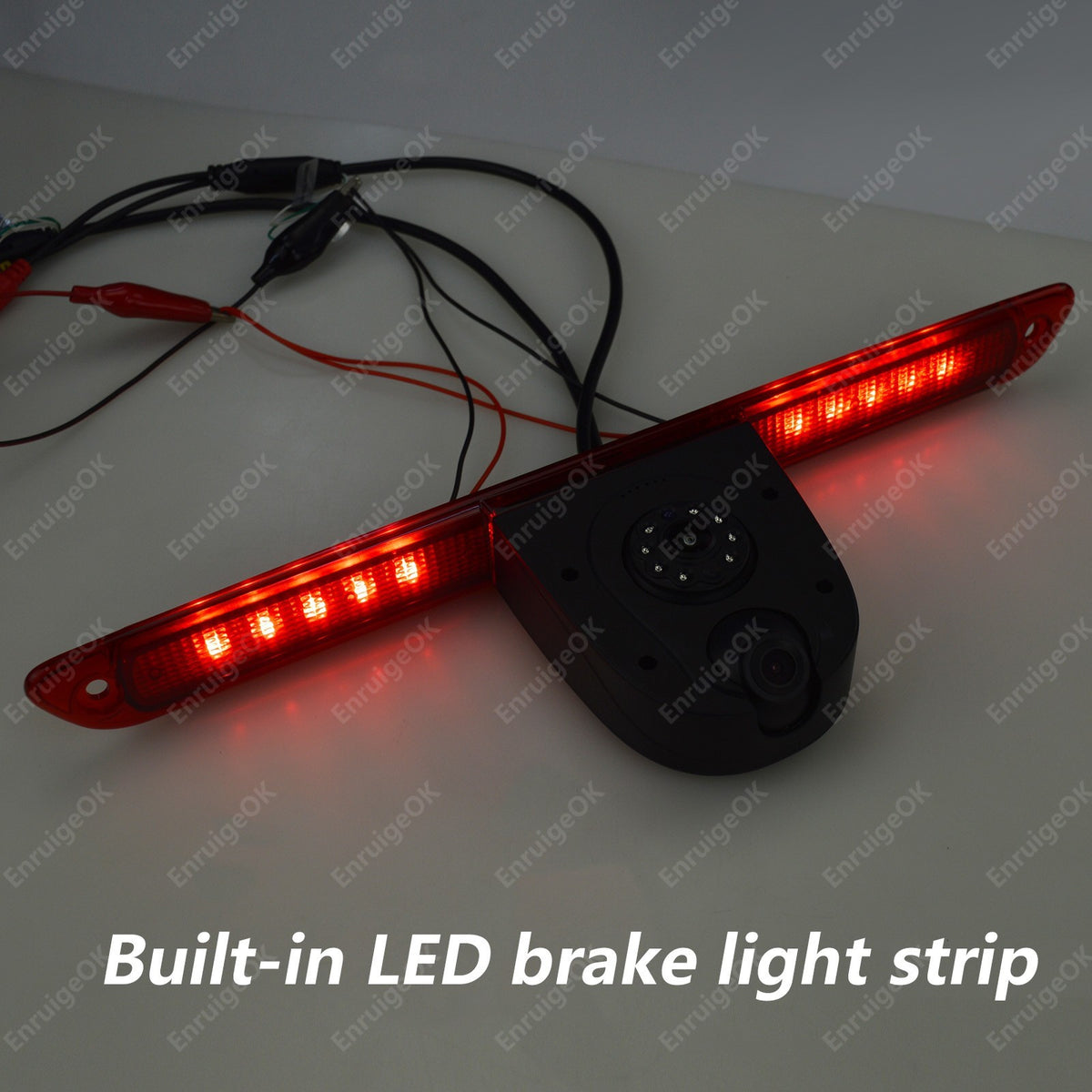

【Built-in LED brake light strip】

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

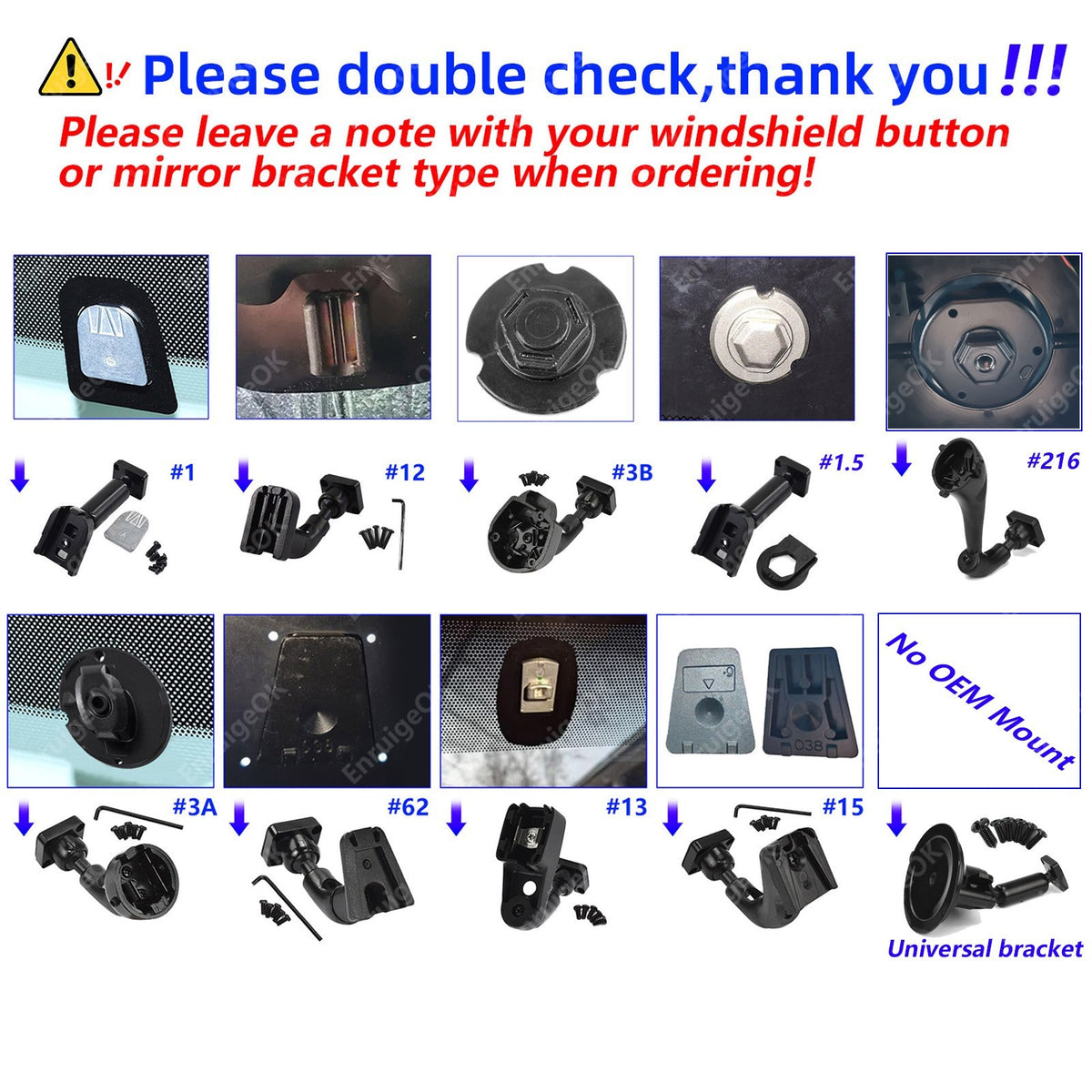

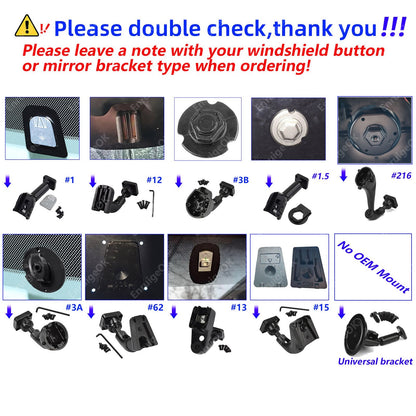

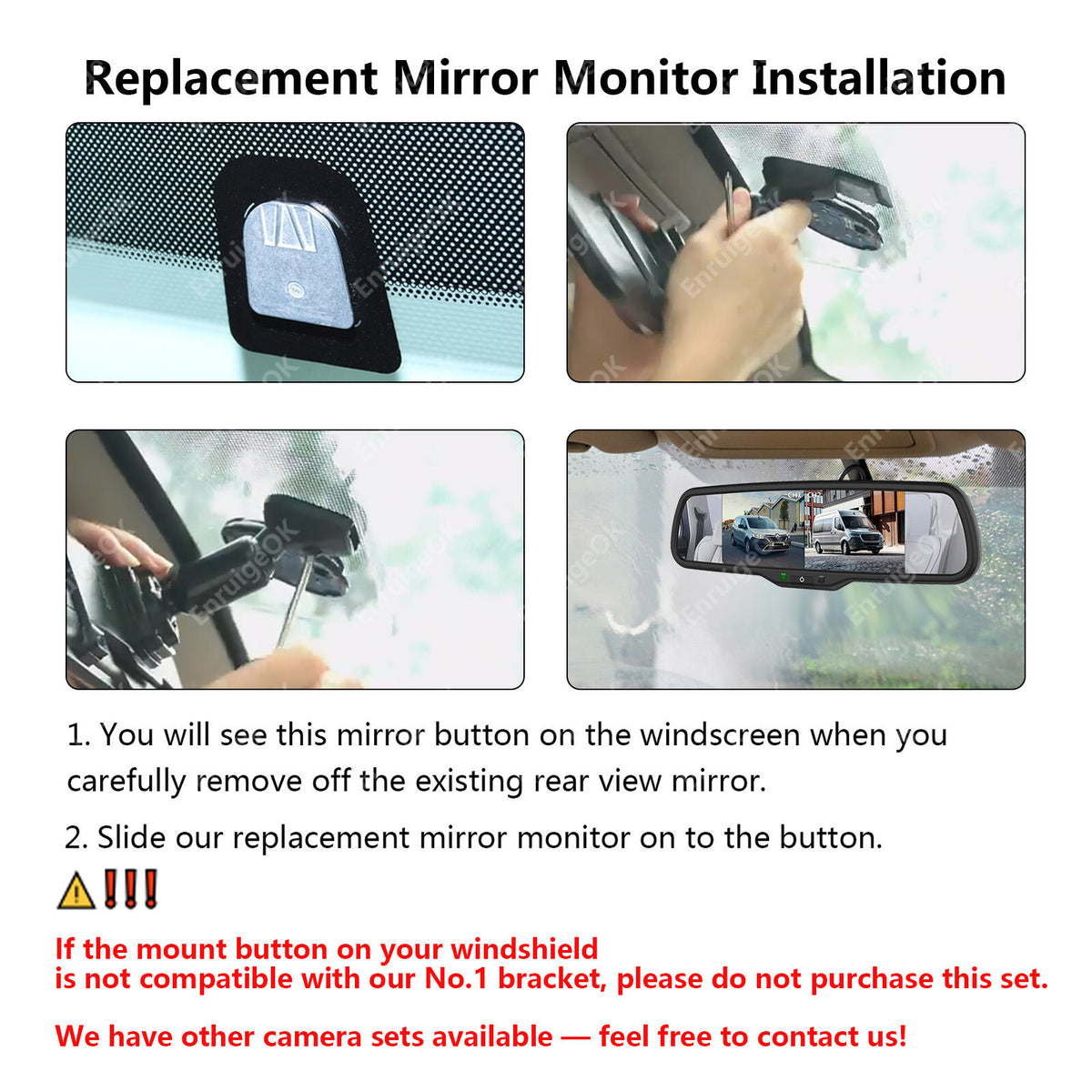

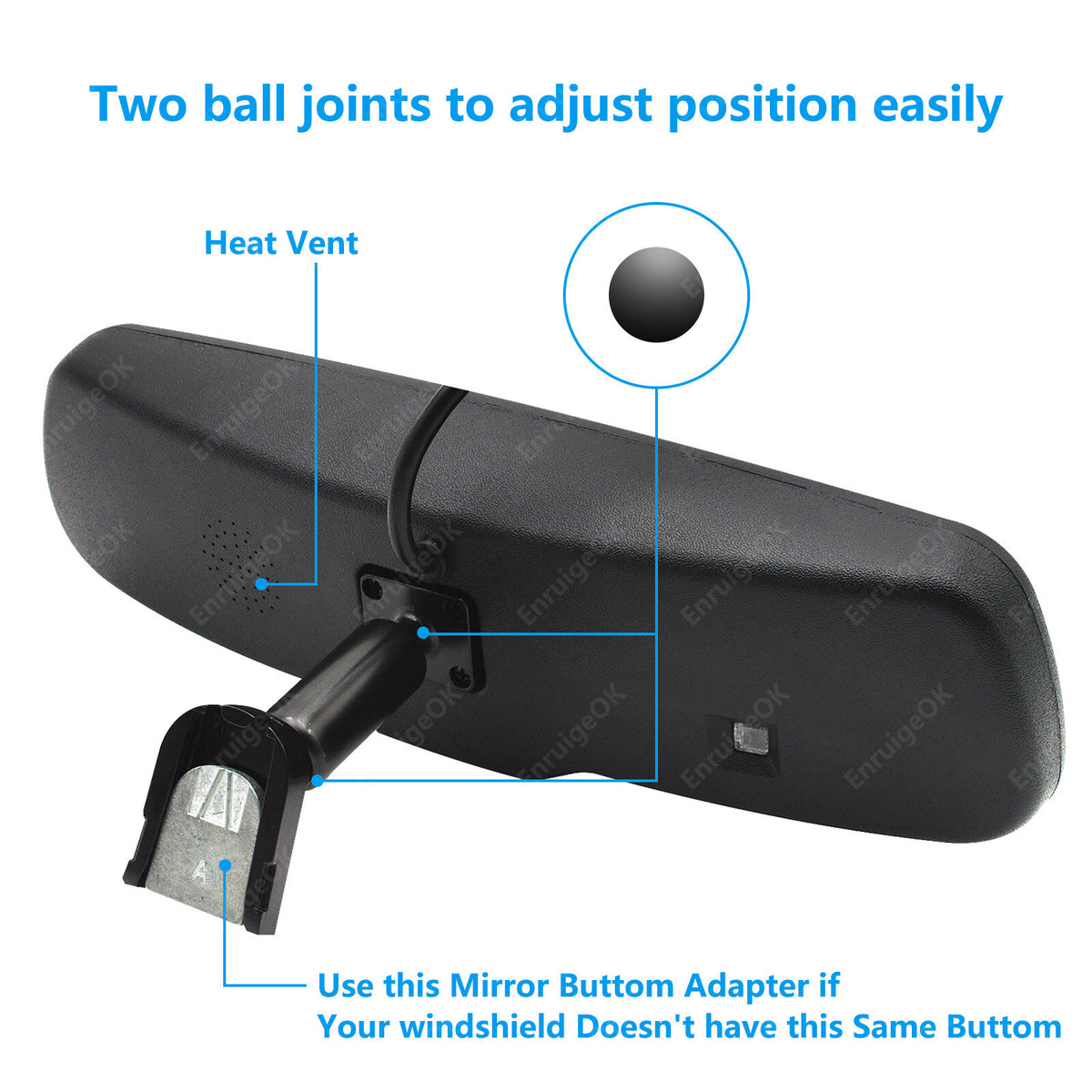

Monitor Bracket Note

This kit includes the #1 bracket by default. If unsure about compatibility, please send a clear photo of your windshield button or original mirror bracket when ordering. We have other bracket styles that may fit your vehicle.

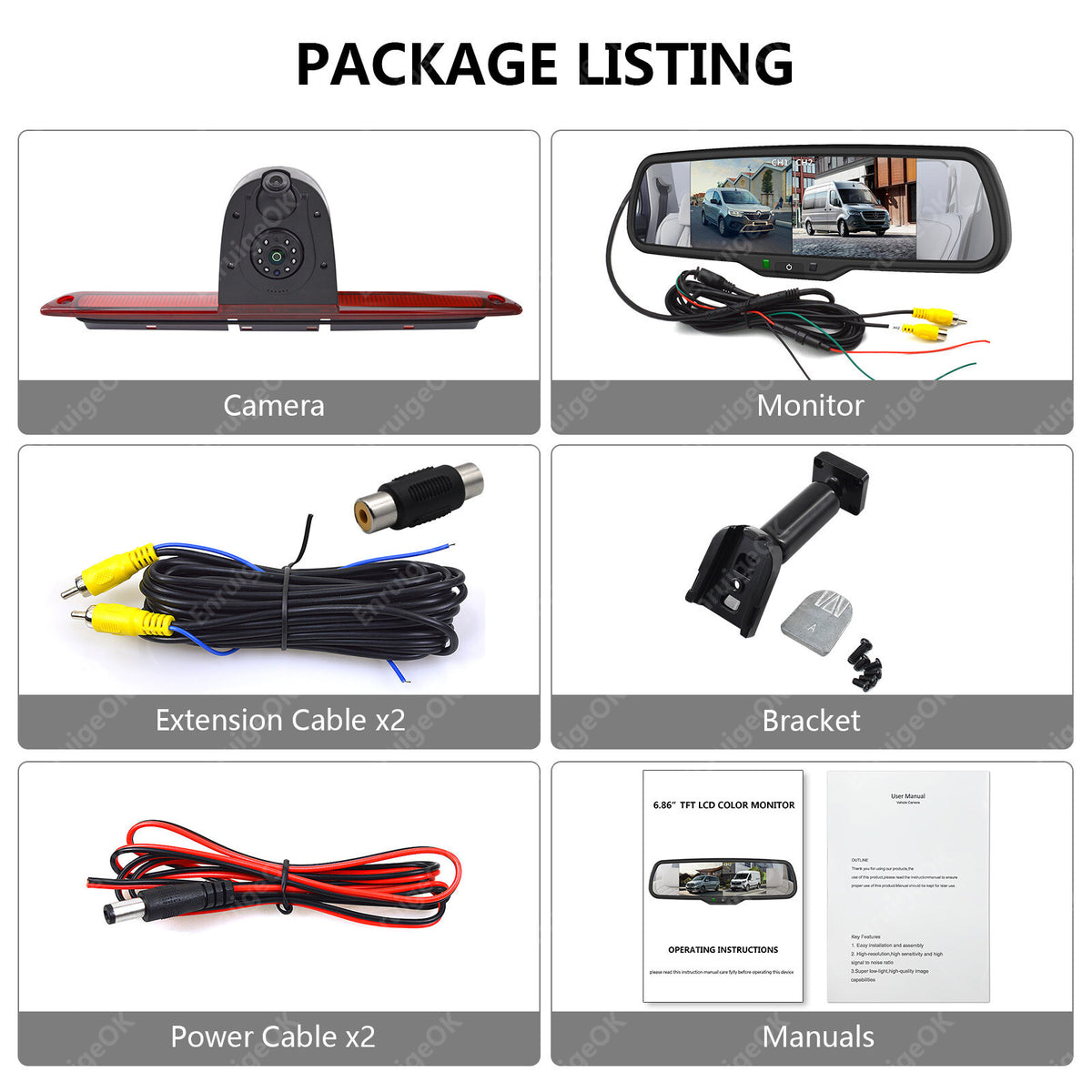

Package contents

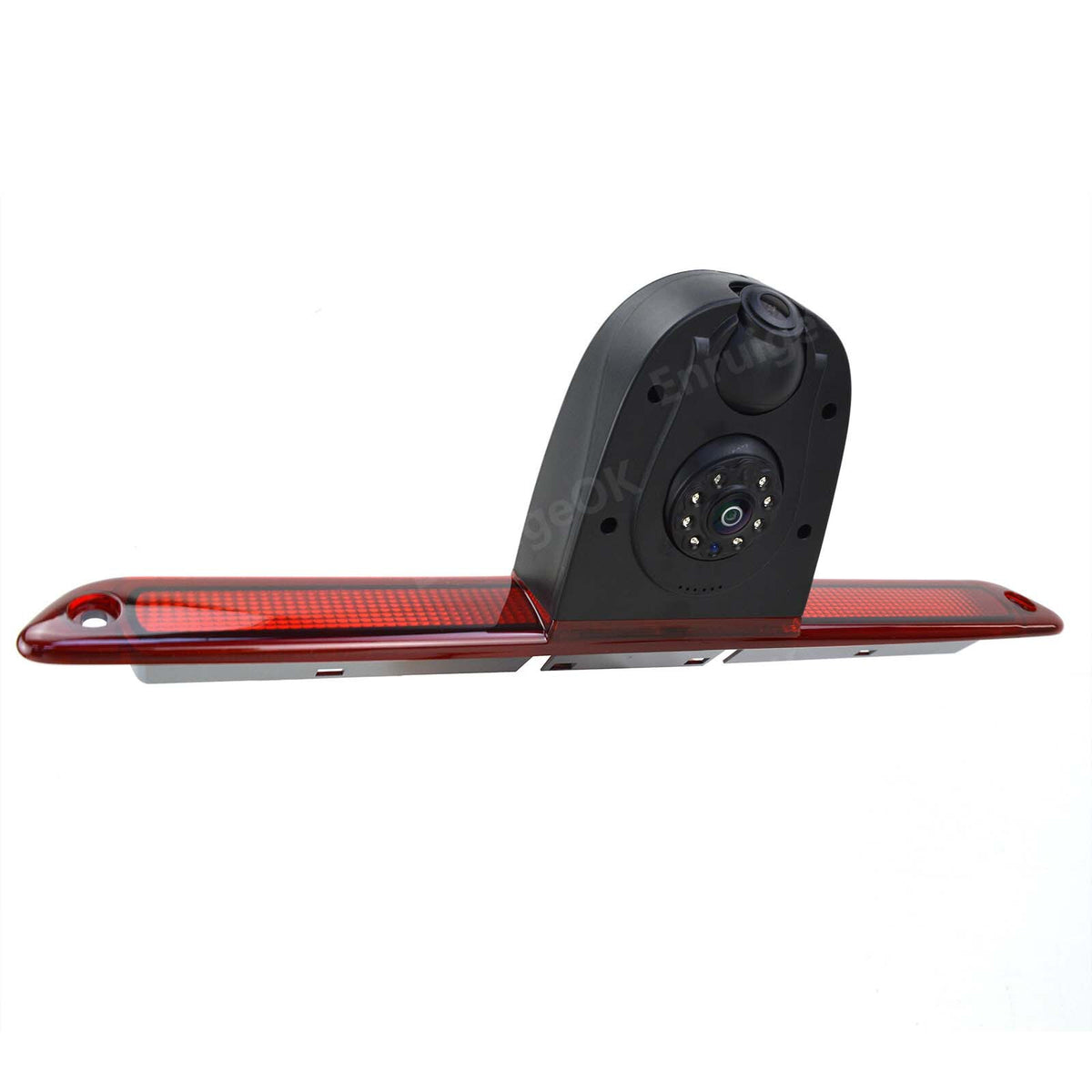

1 X Brake light camera

1 X 6.86'' Mirror monitor

1 X Monitor power cable

2 X 10m/33ft. video extension cable

2 X DC power cable

1 X Female to female adapter

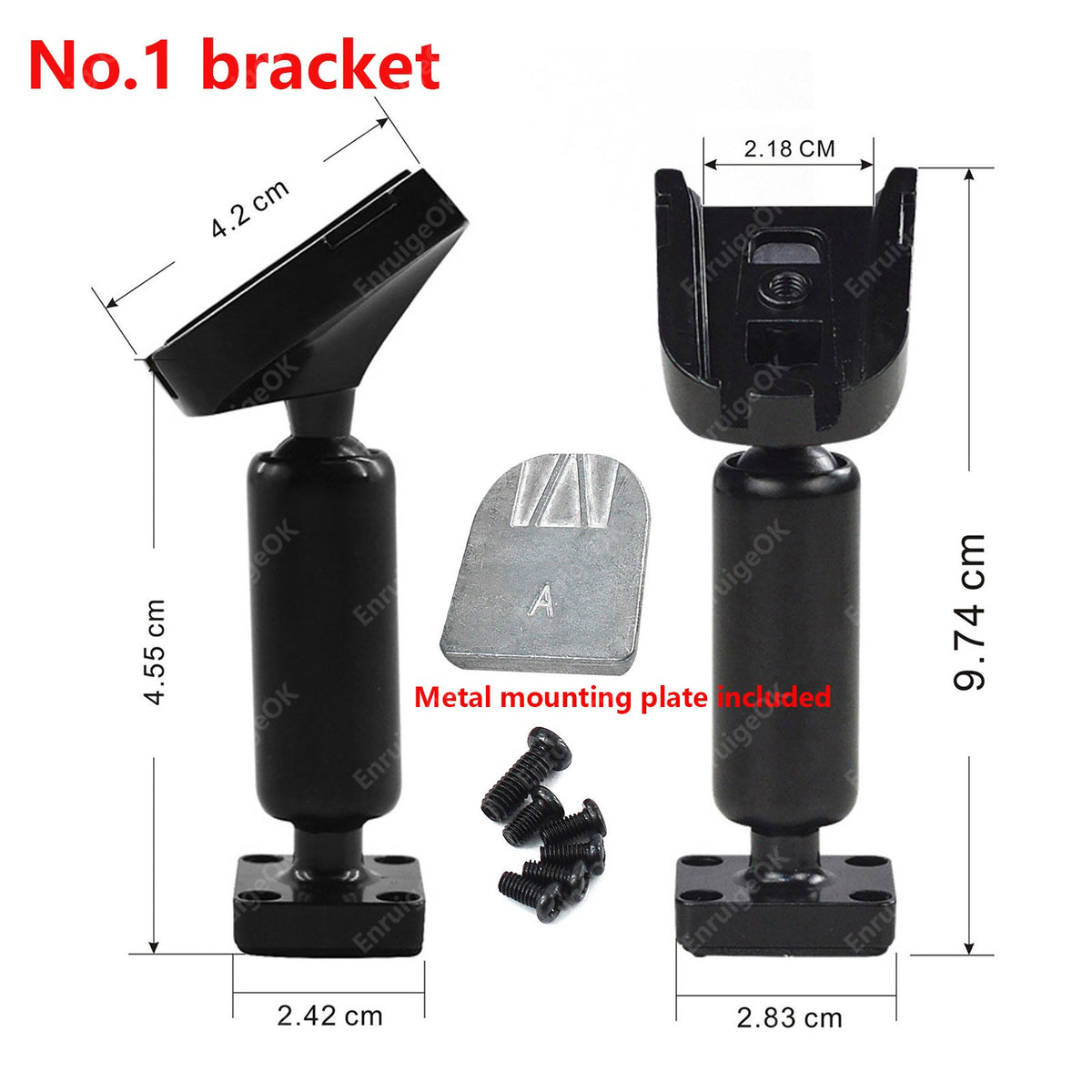

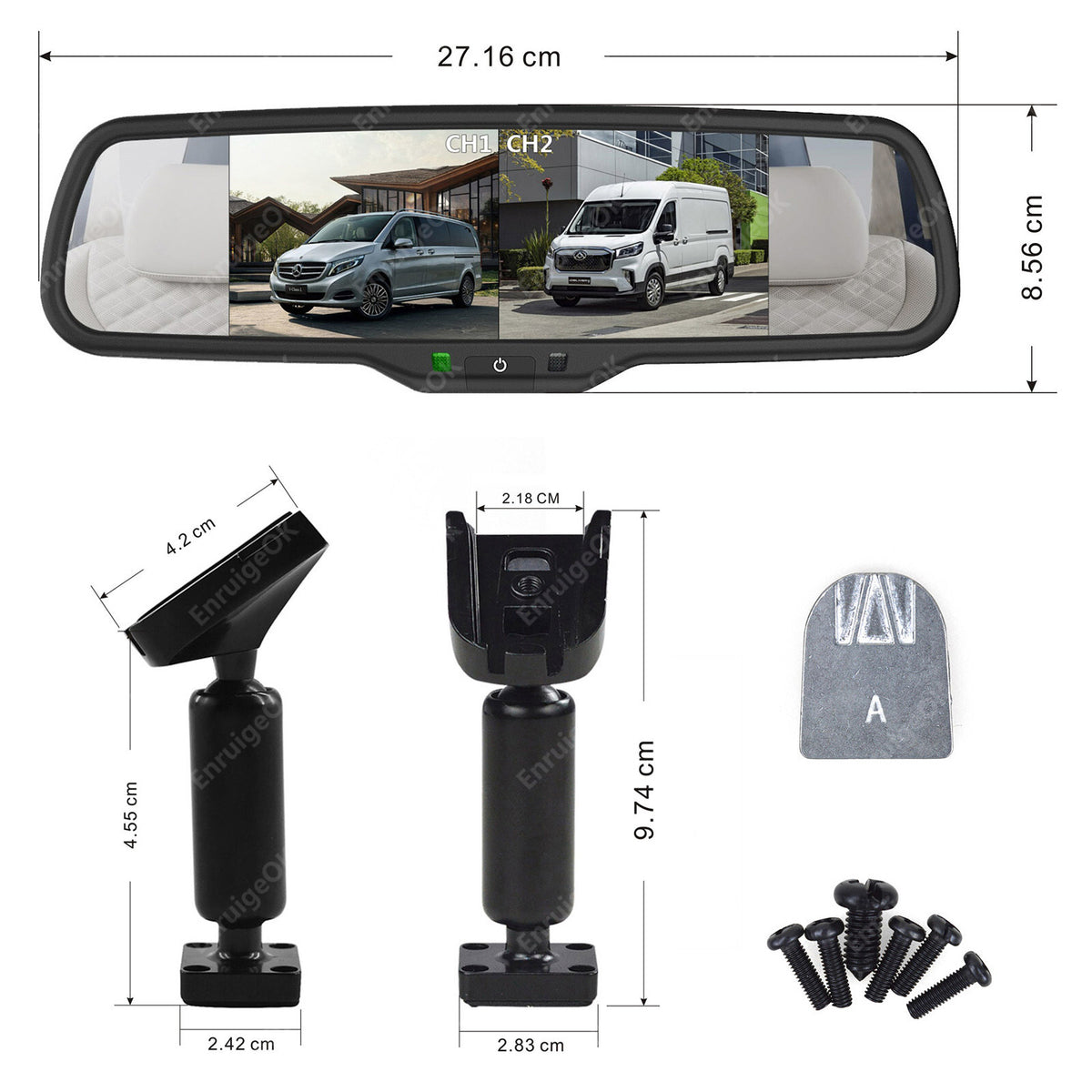

1 X #1 bracket(check your windshield button)

1 X #1 Metal Bracket Mount Base

1 X Manual

Description

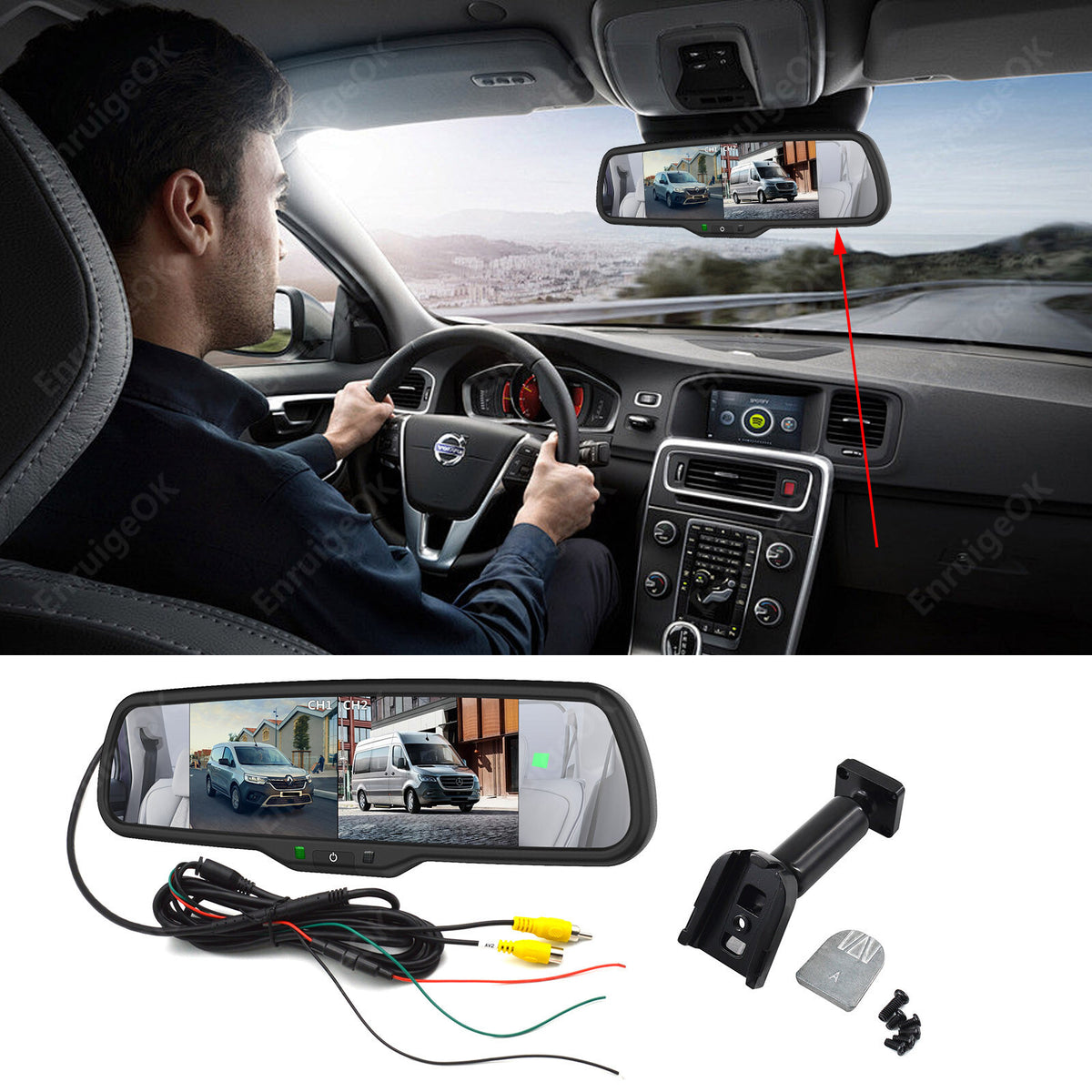

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.

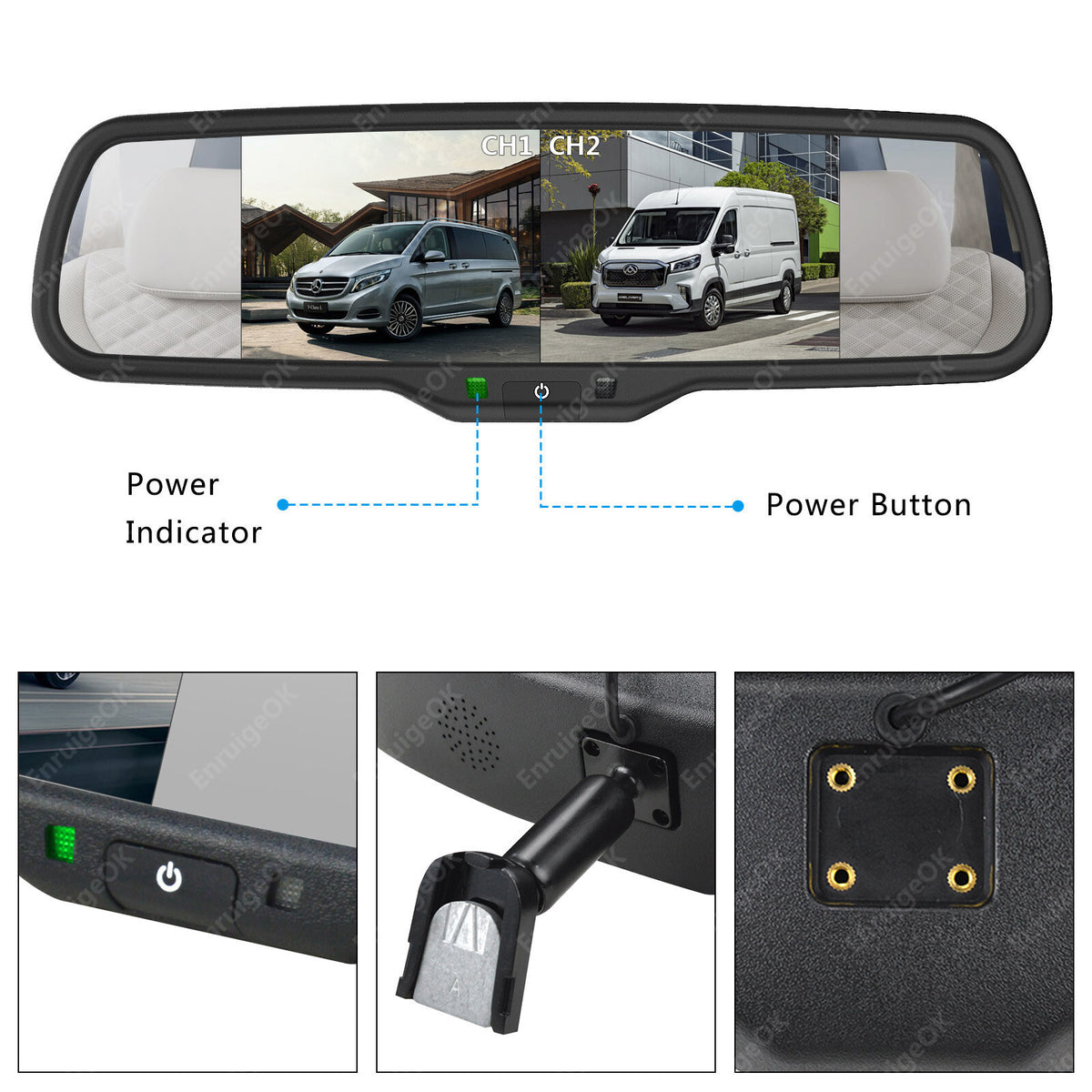

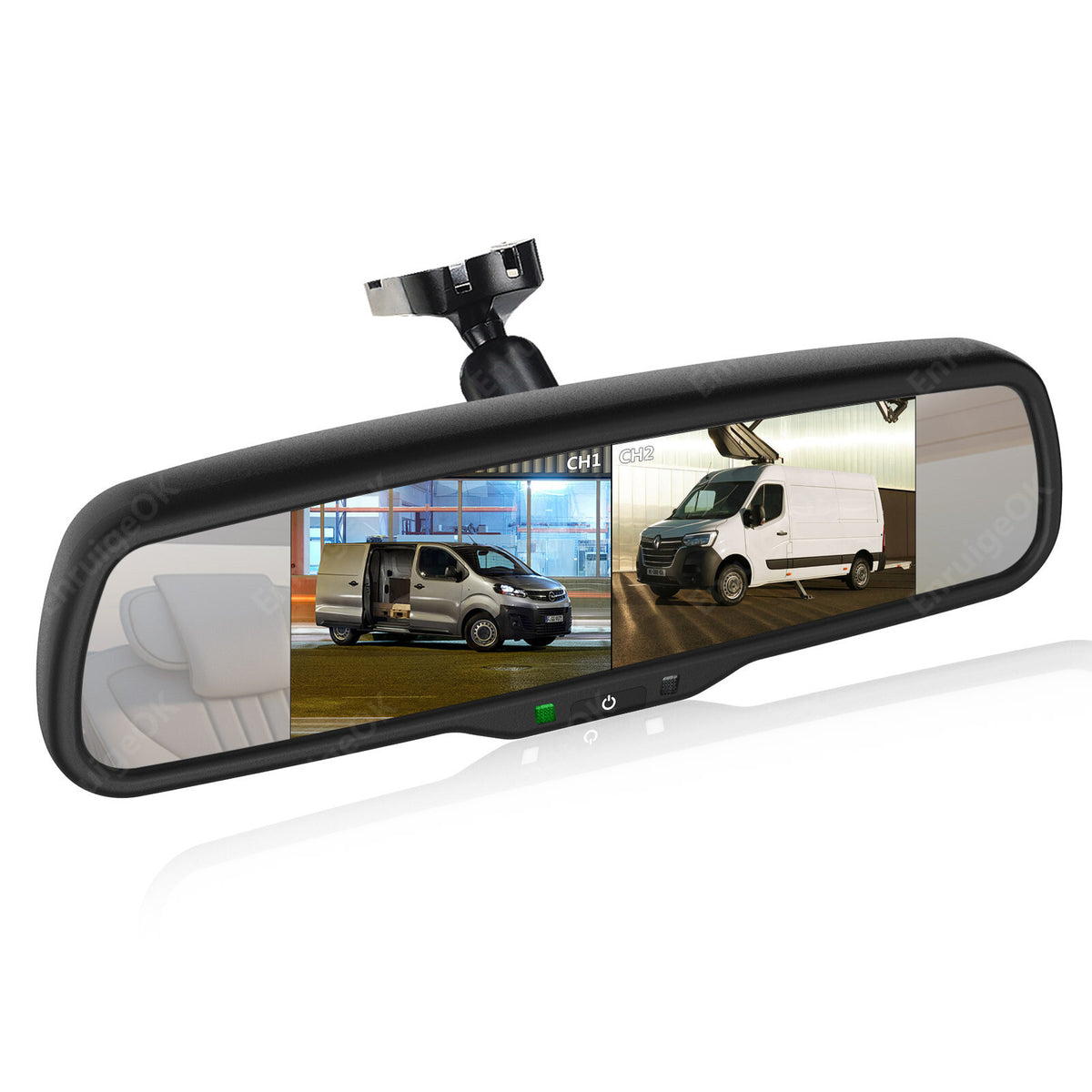

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

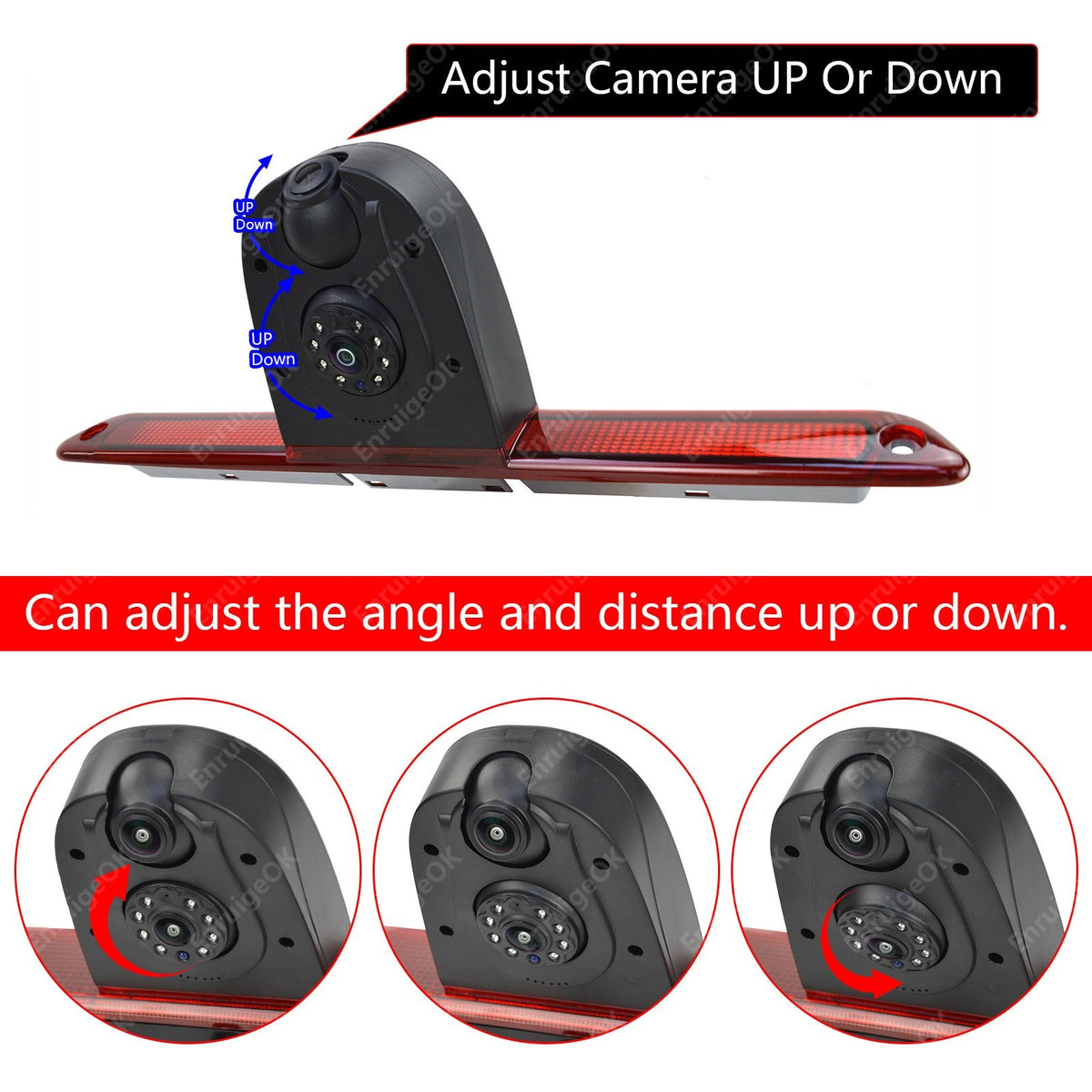

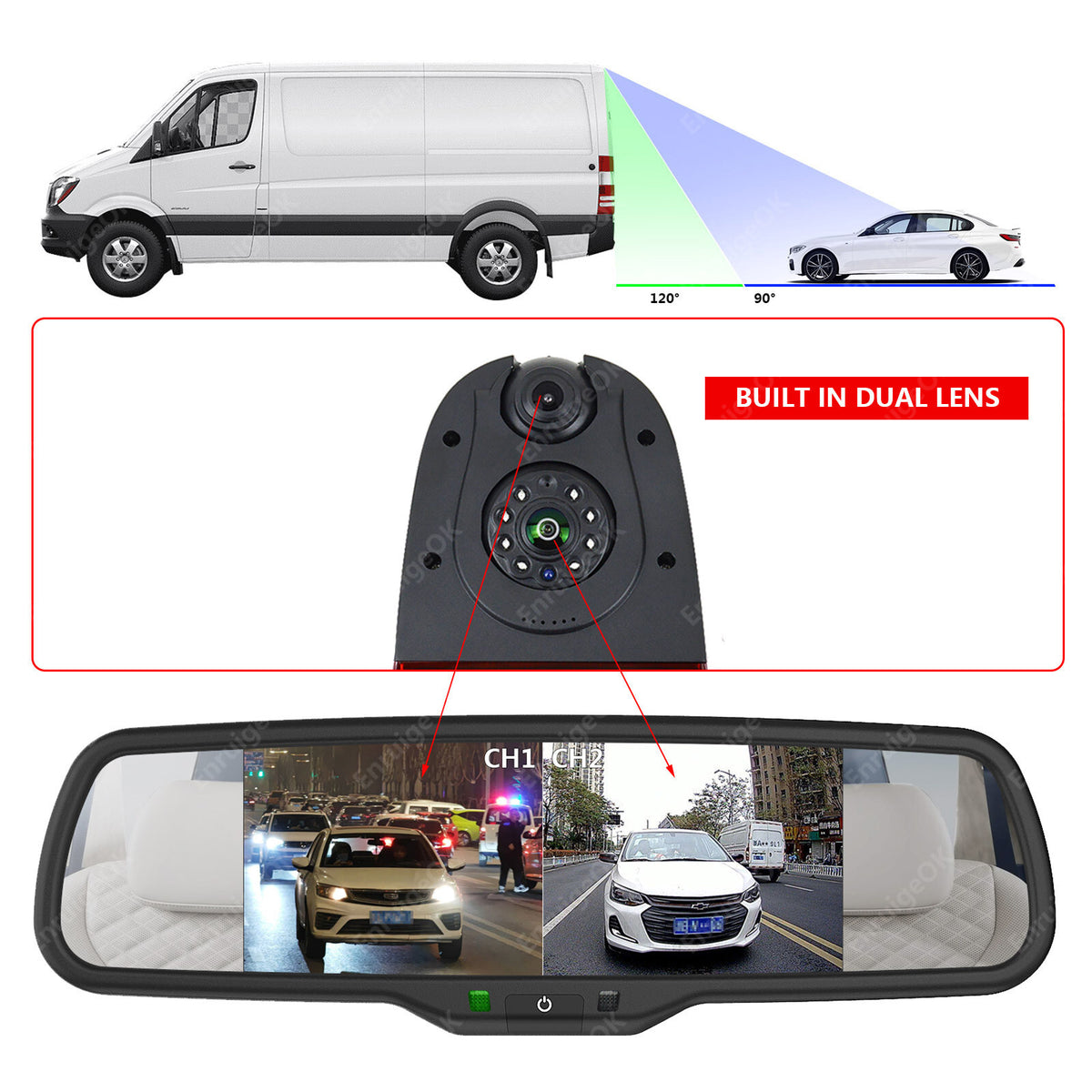

TWIN LENS !!! Dual lens reversing camera: One(CH1) showing the road or area behind the vehicle, and the other(CH2) looking directly down to help the driver see the vehicle's rear end.

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Viewing angle: 120°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

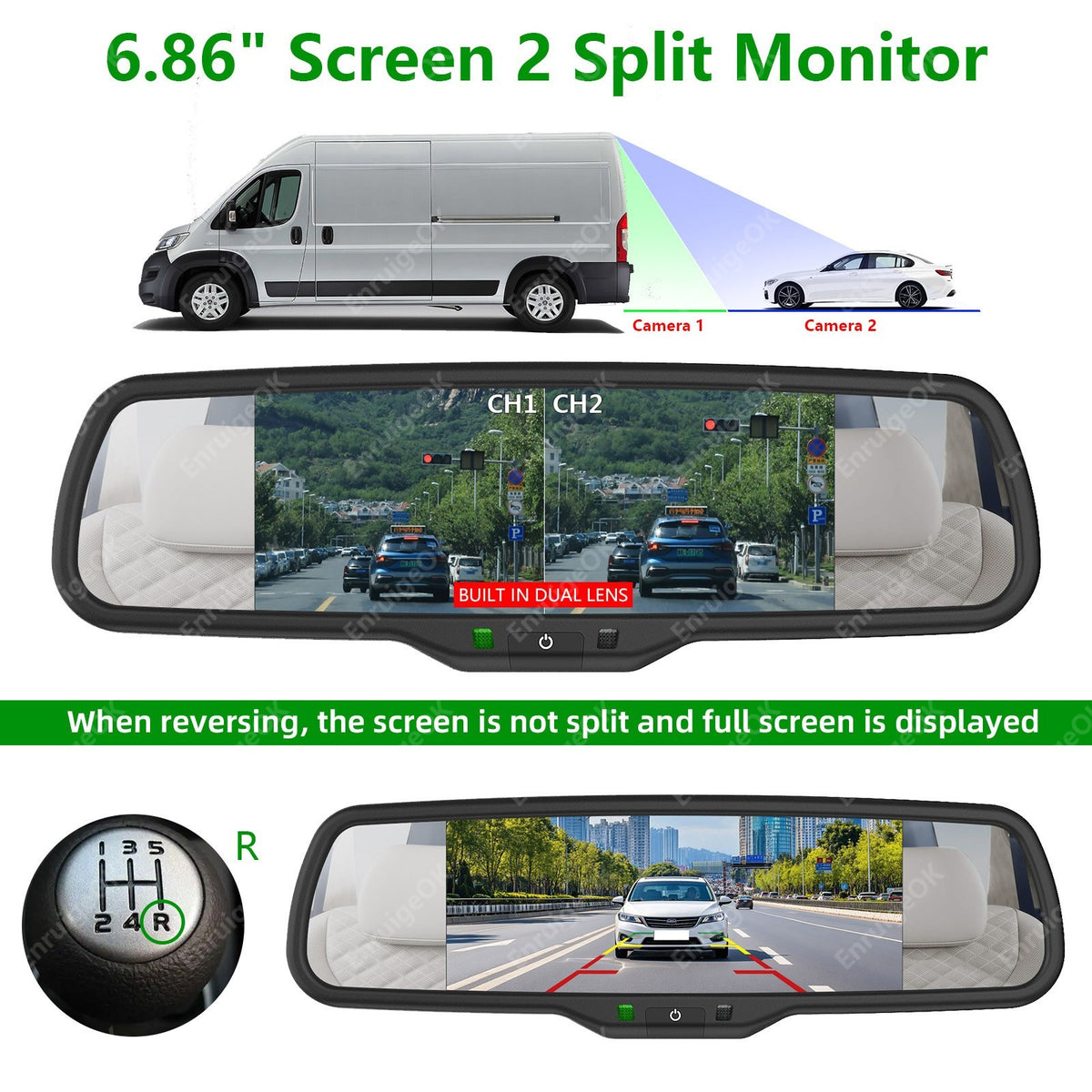

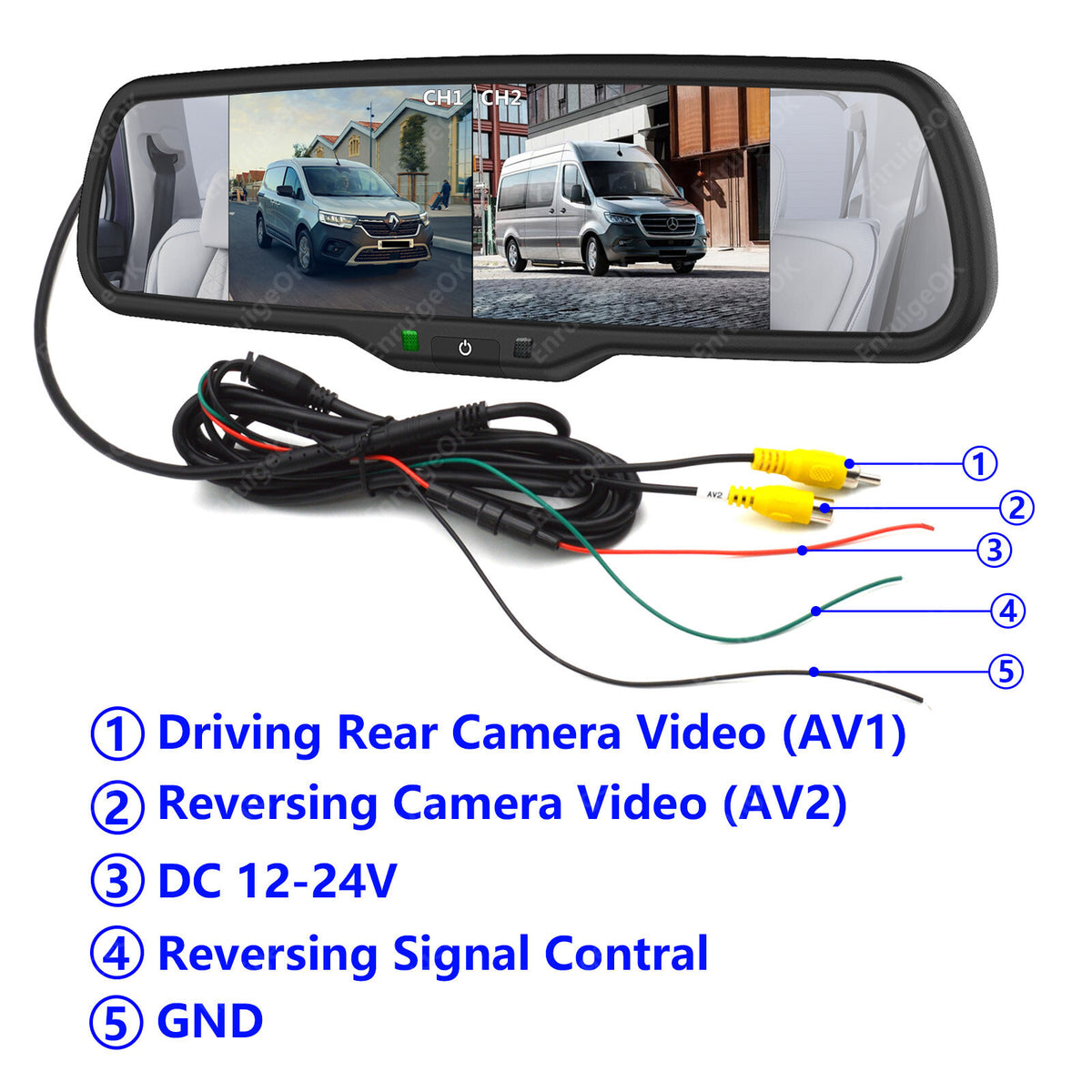

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), support 2-Split Screen, automatic full-screen switch during reversing

Blue screen displayed when no signal is detected.

Power Supply: DC 12V-24V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
