Dual Lens Brake Light Reverse Camera for Maxus Deliver 9 Van & 9" Mirror Monitor

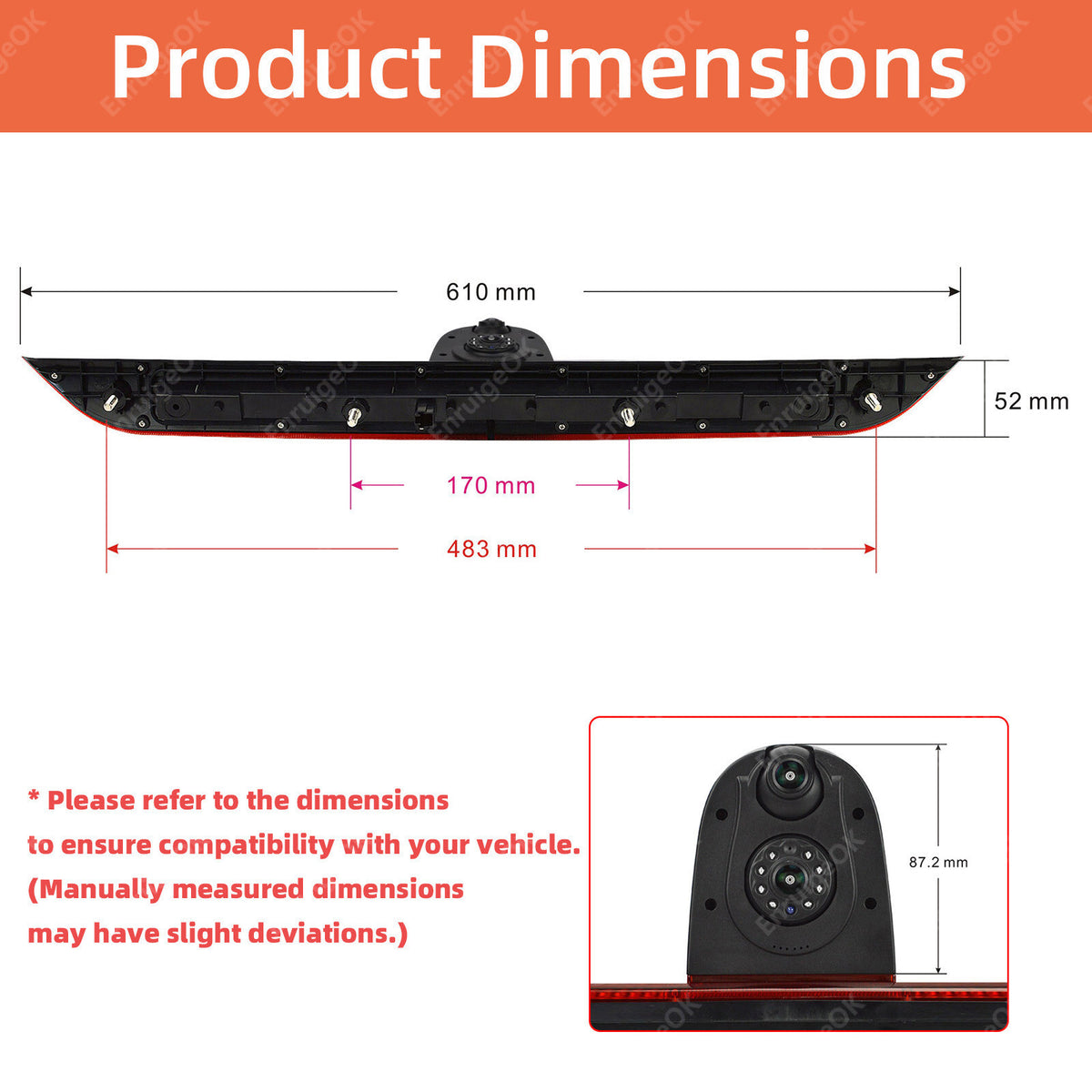

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK Rear Brake Light Reversing Camera For Maxus Deliver 9, e Deliver 9, V90 and LDV Deliver 9 Van

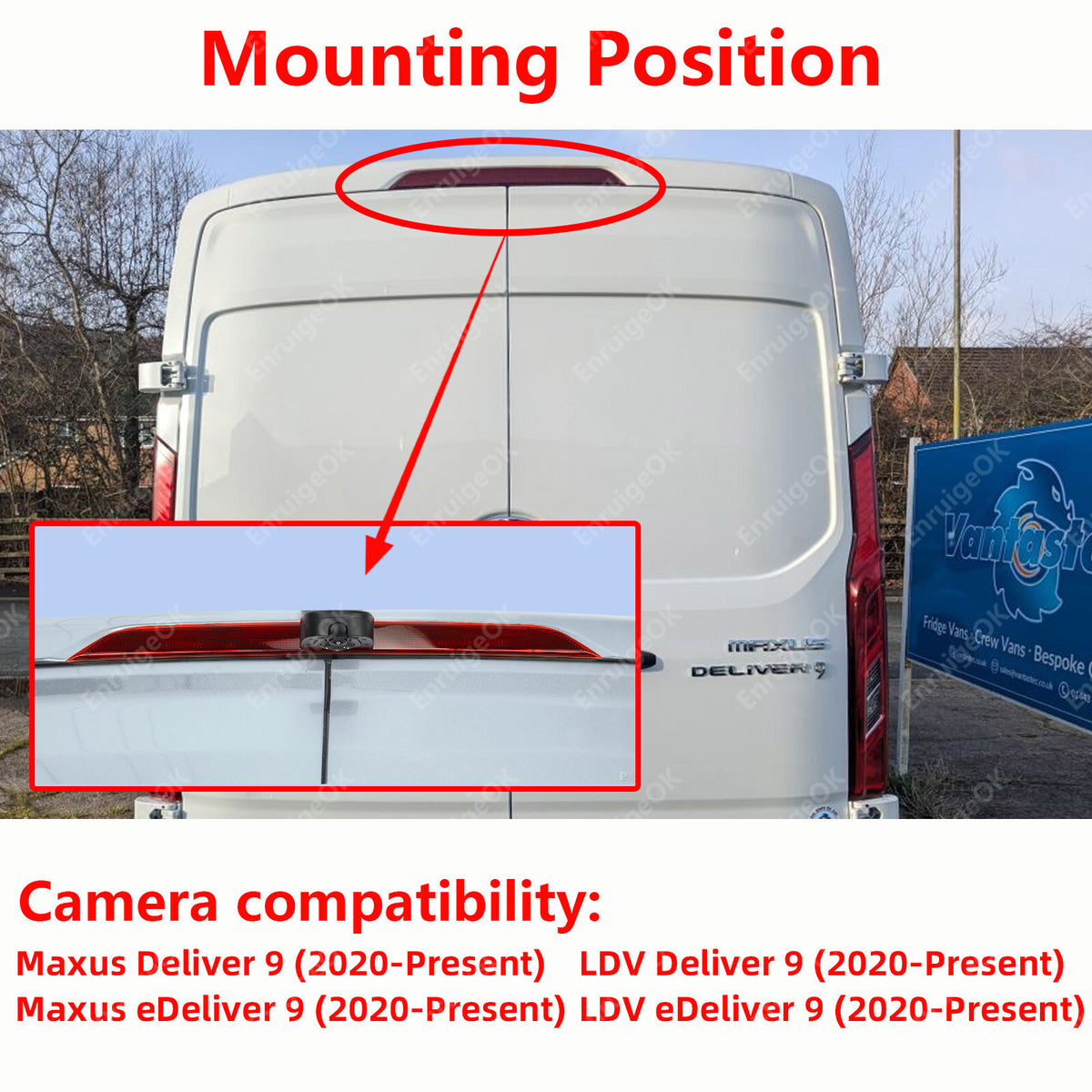

Camera Compatibility

Maxus Deliver 9 (2020-Present)

Maxus e Deliver 9 (2020-Present)

LDV Deliver 9 (2020-Present)

LDV e Deliver 9 (2020-Present)

Maxus V90 (2019-Present)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

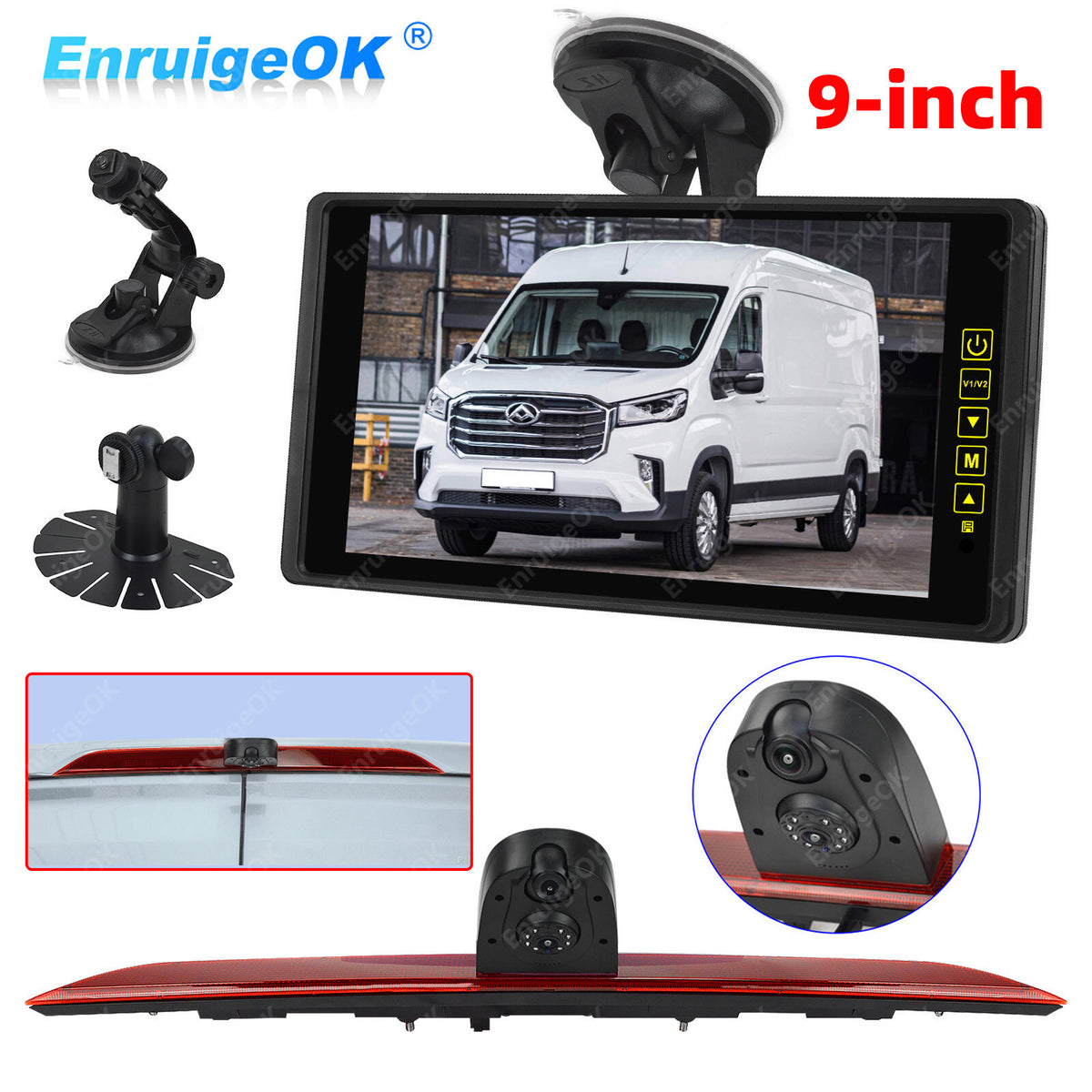

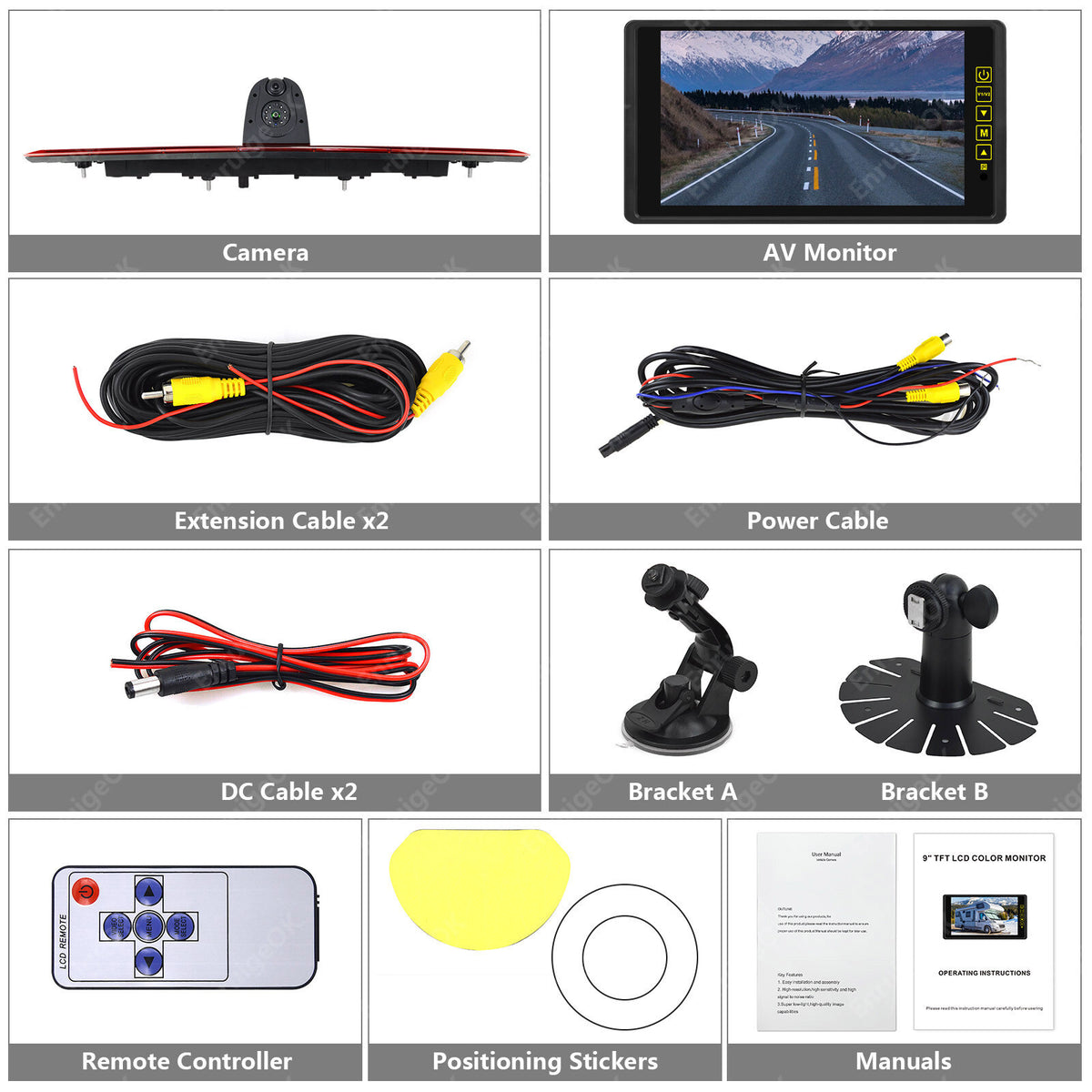

Package contents

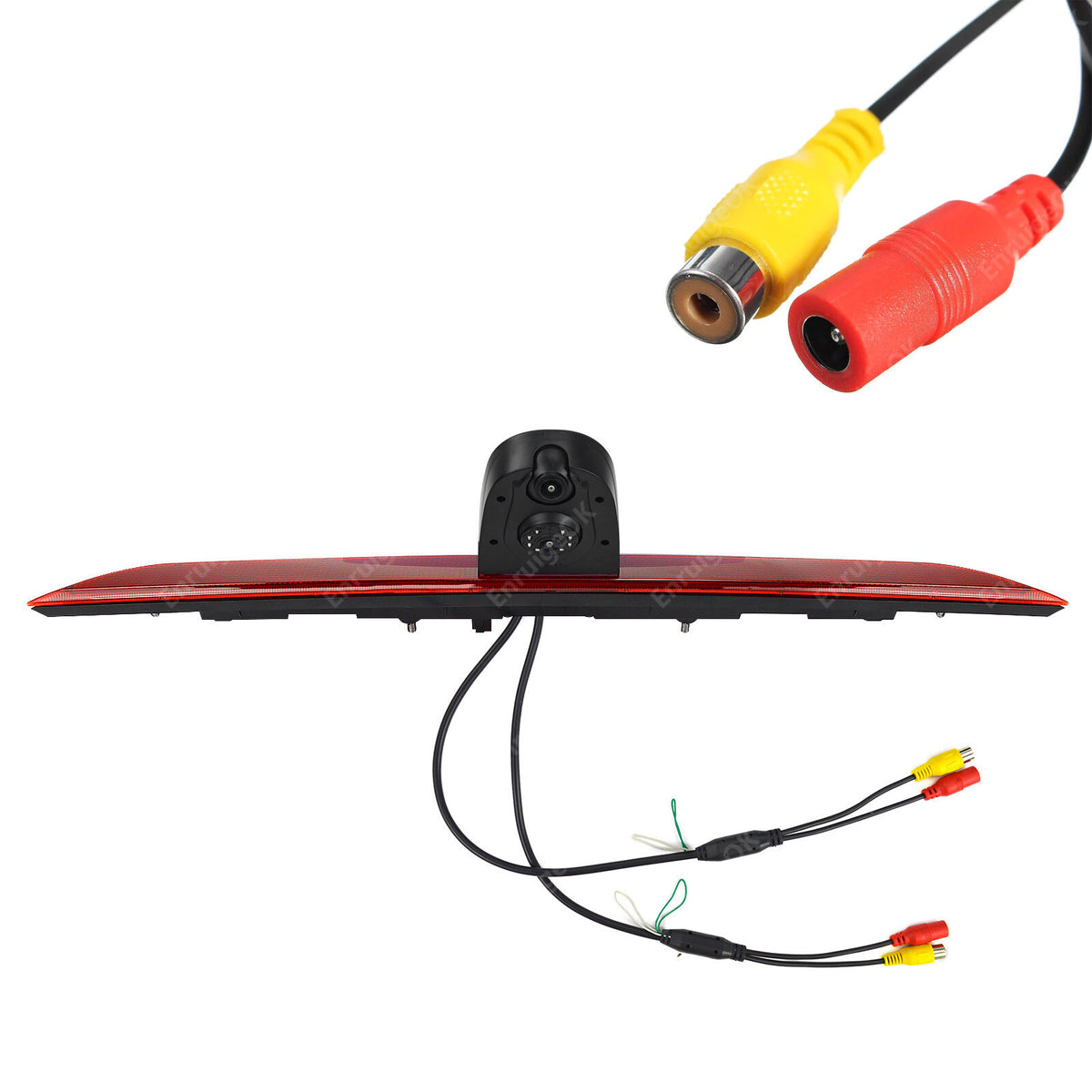

1 X Brake light camera

1 X 9" rear view mirror monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X Dashboard mount stand

1 X Suction cup mount stand

1 X Manual

Description

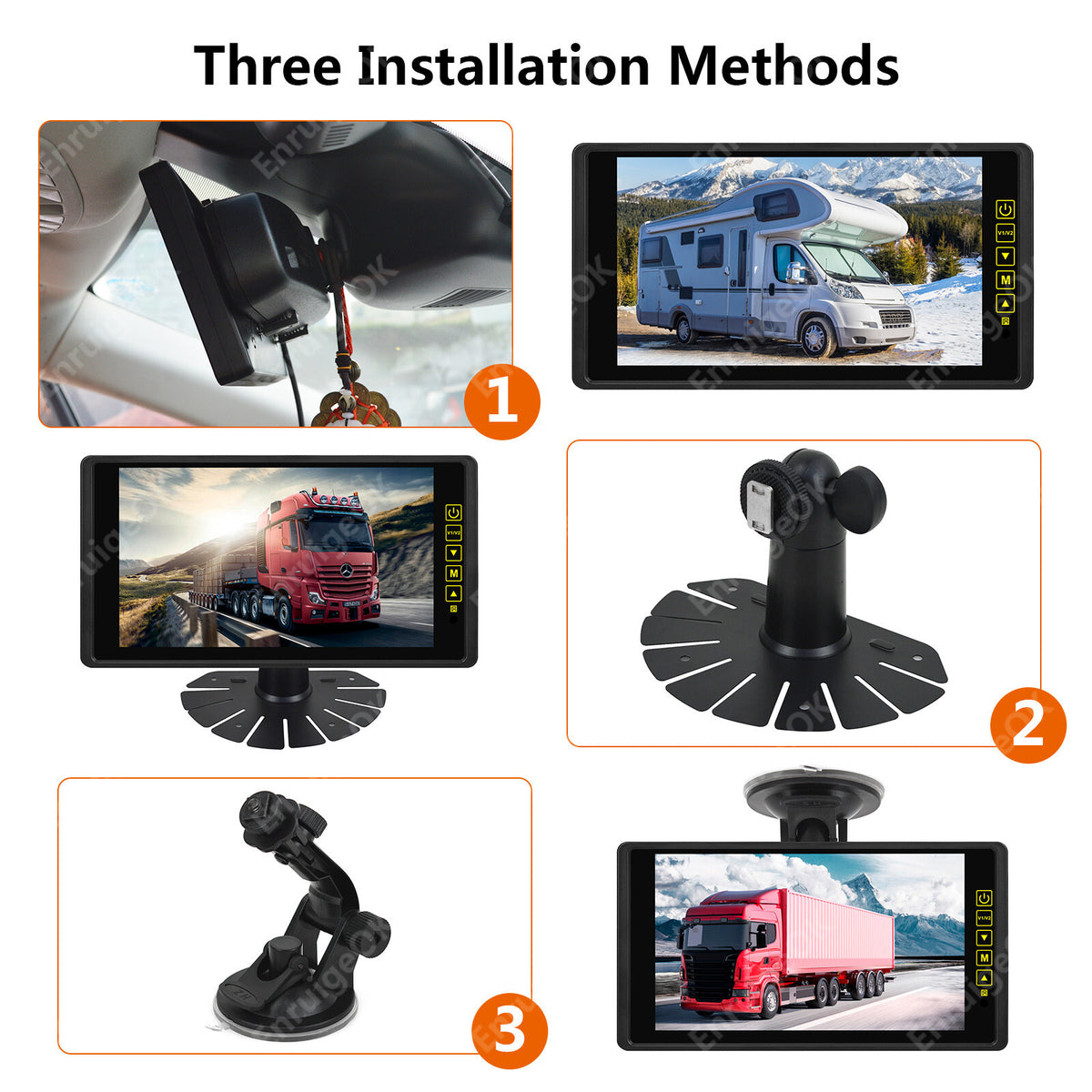

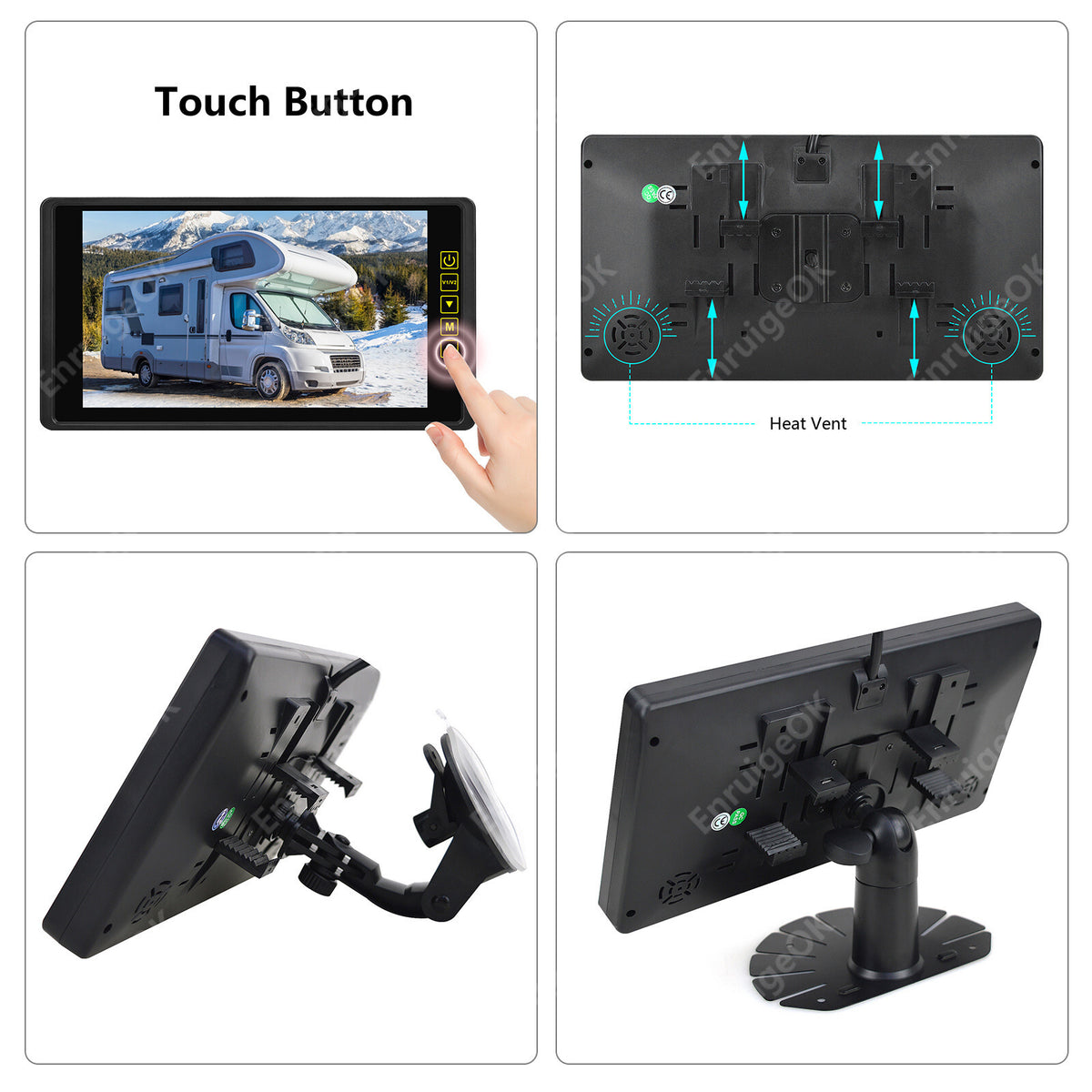

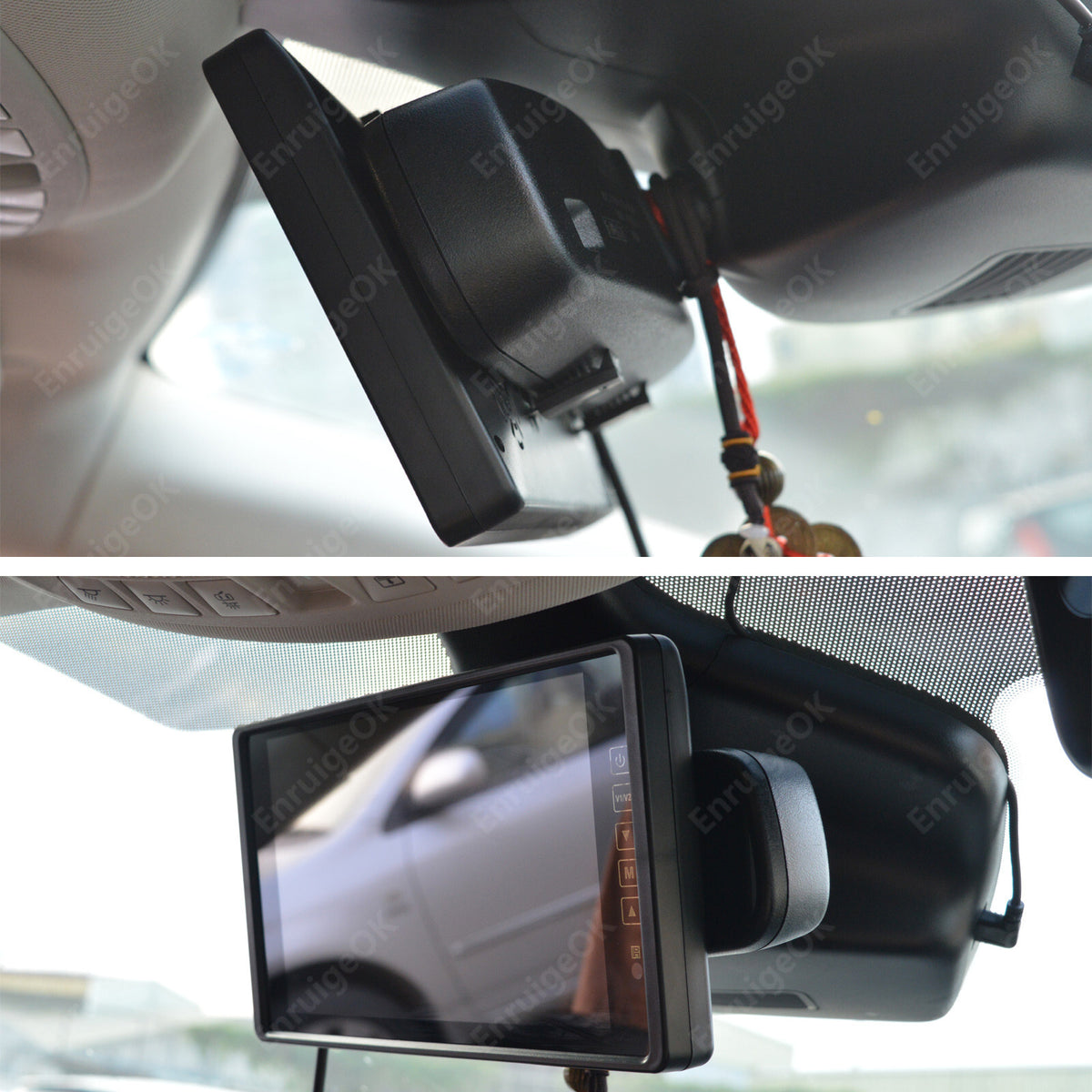

This monitor have three type installation methods. Snap-on Installation(Clips On To Rear View Mirror), Desktop mounting, and windscreen Suction Cup mounting.

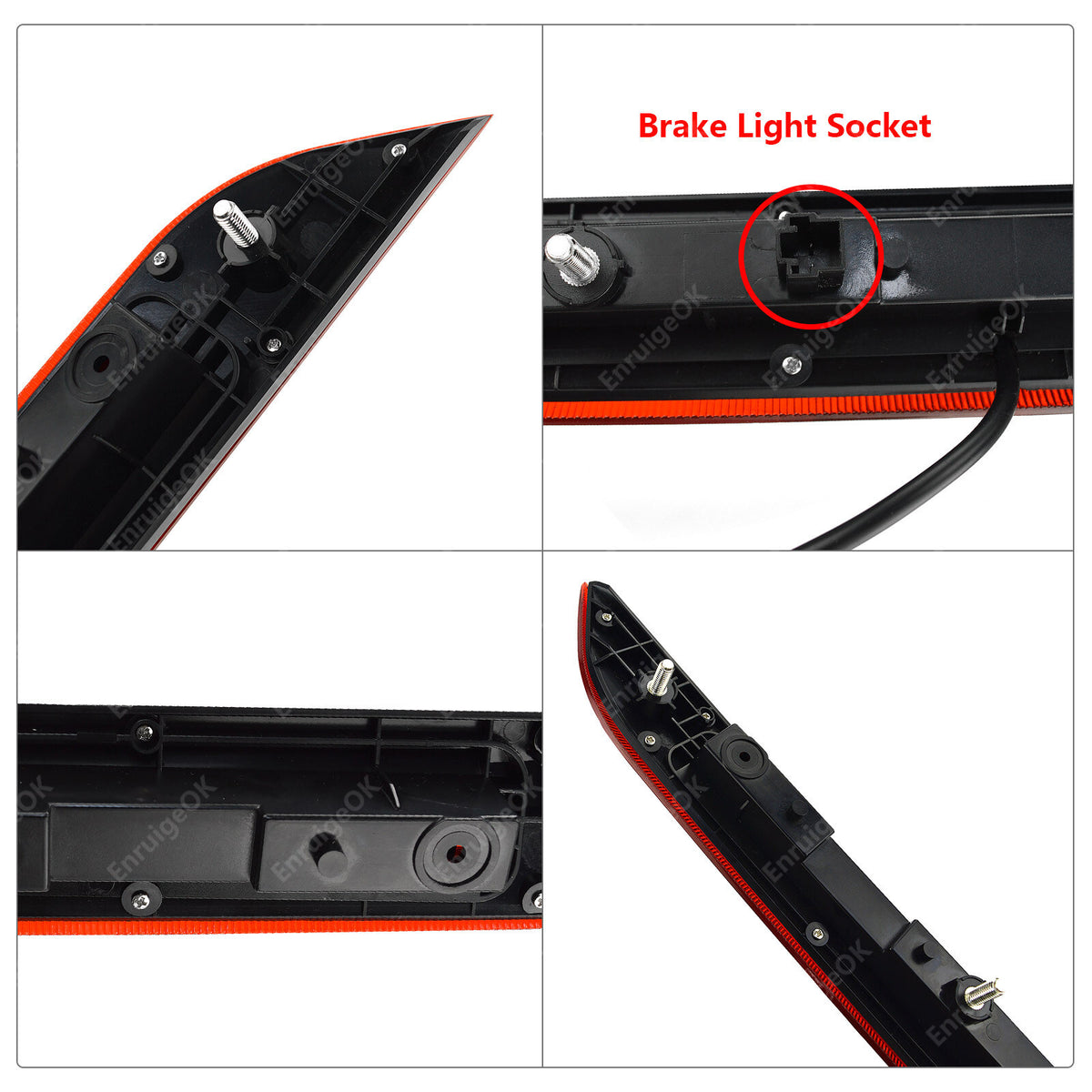

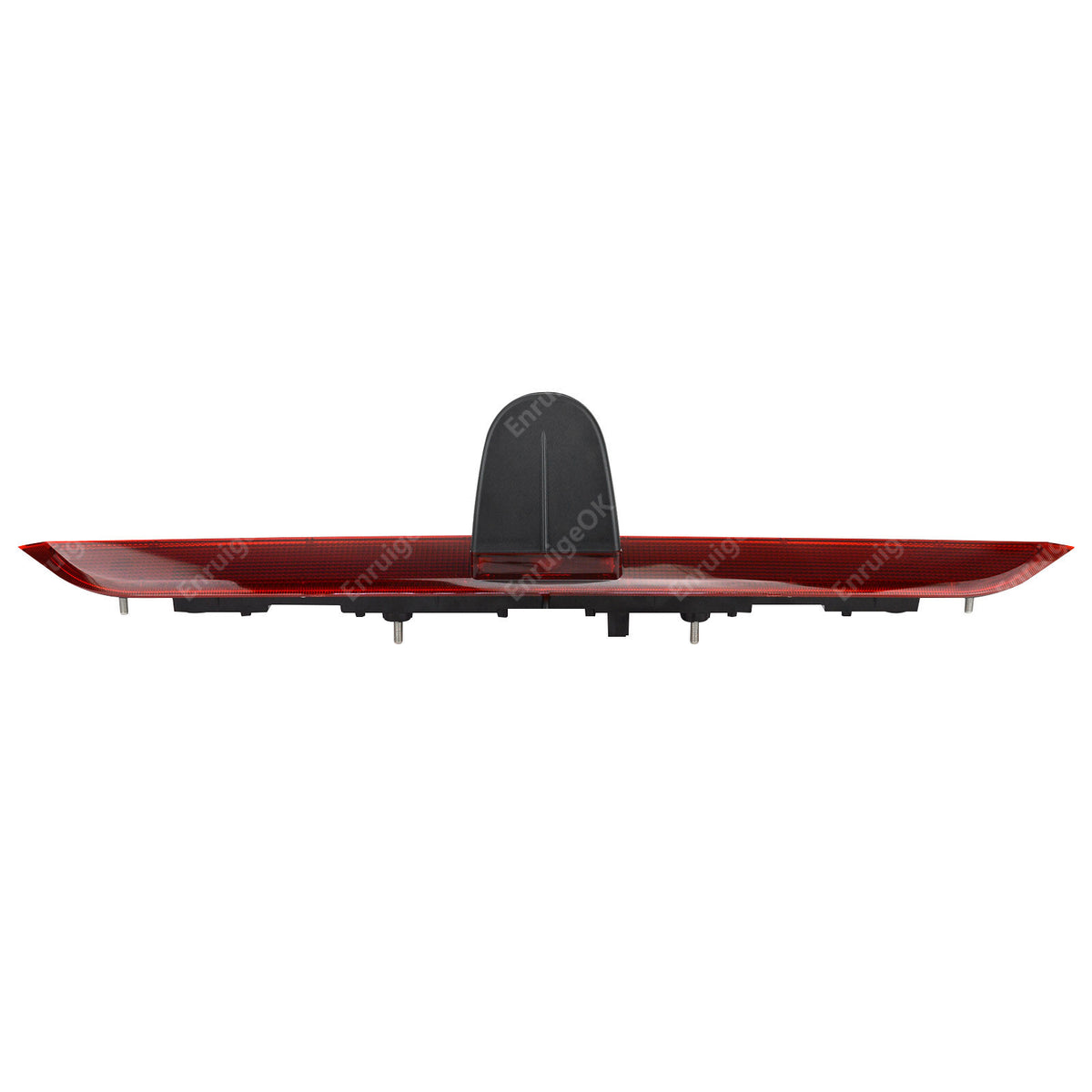

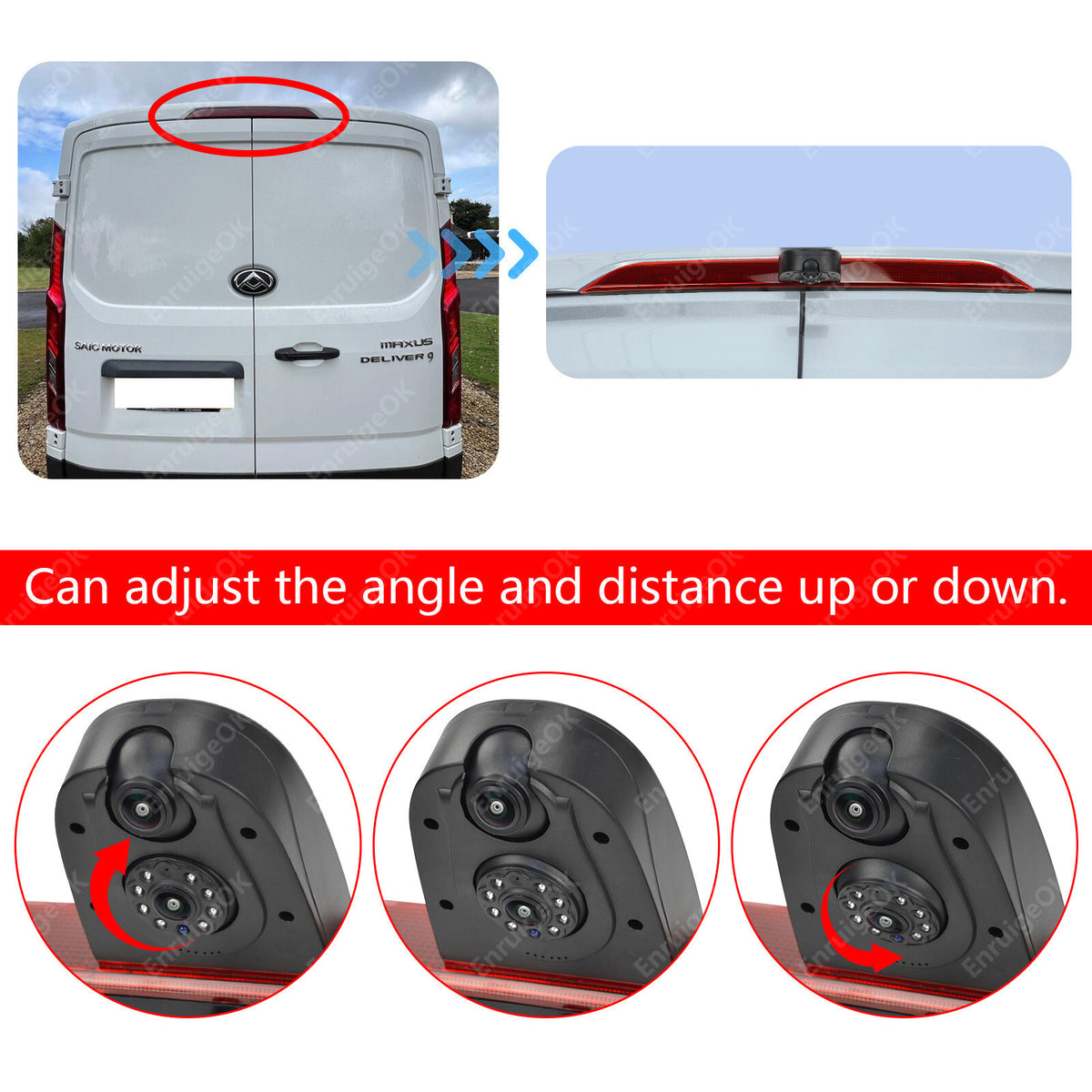

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

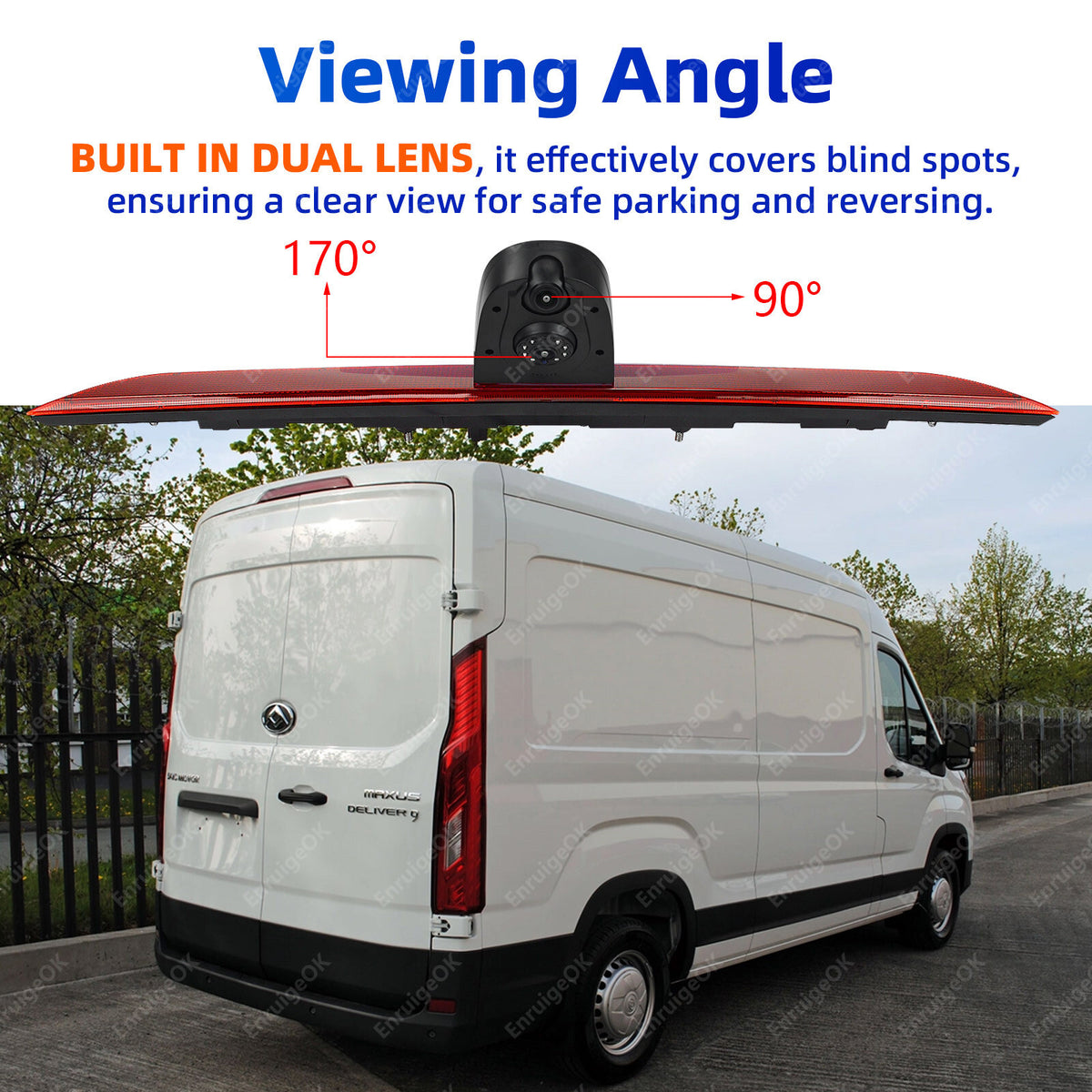

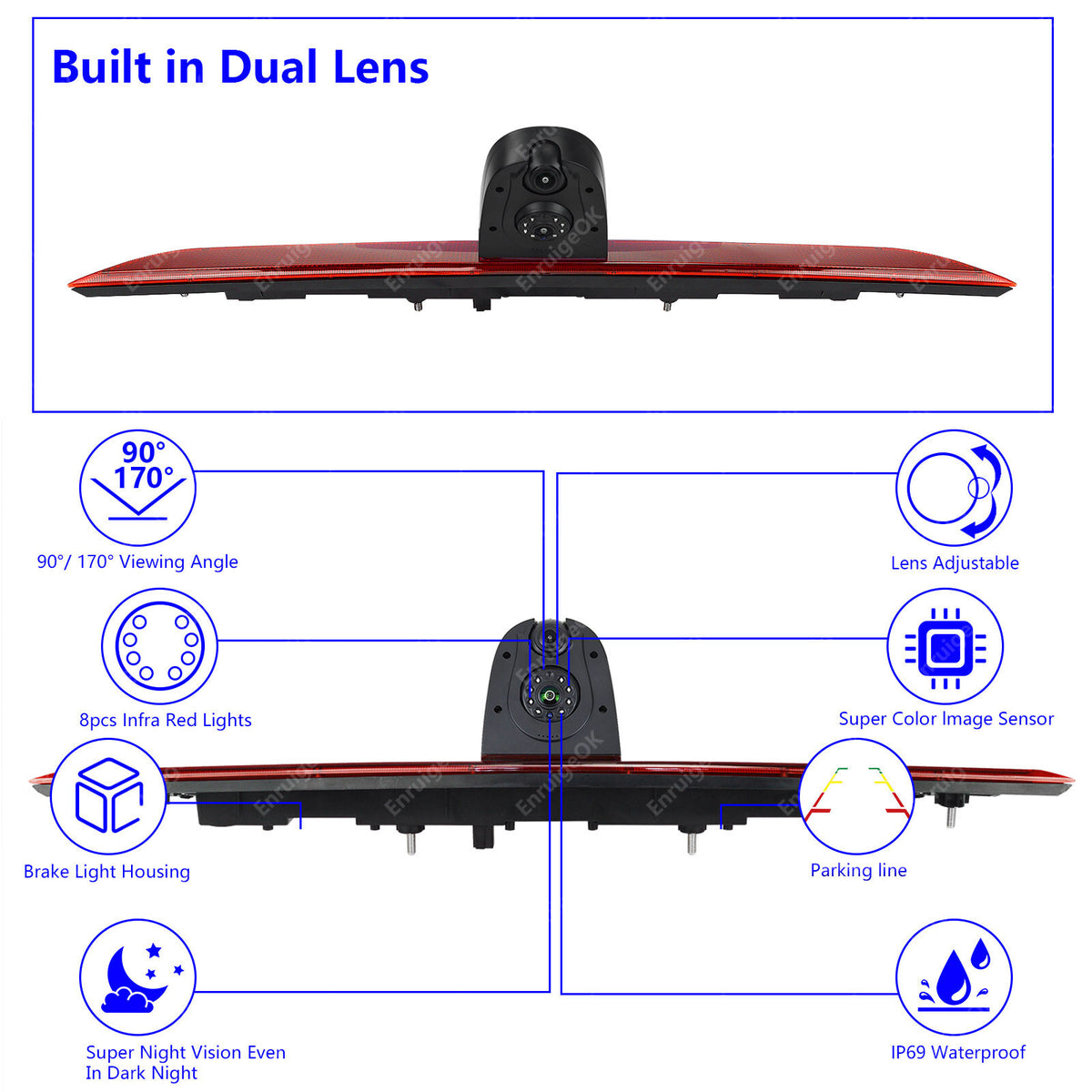

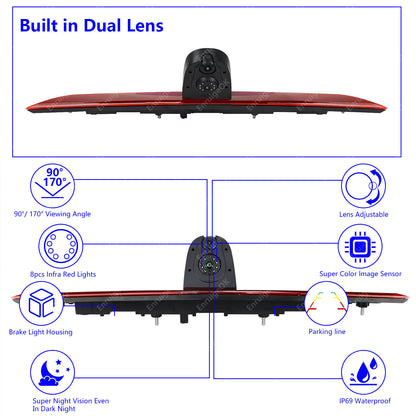

TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving, one for reversing view while parking.

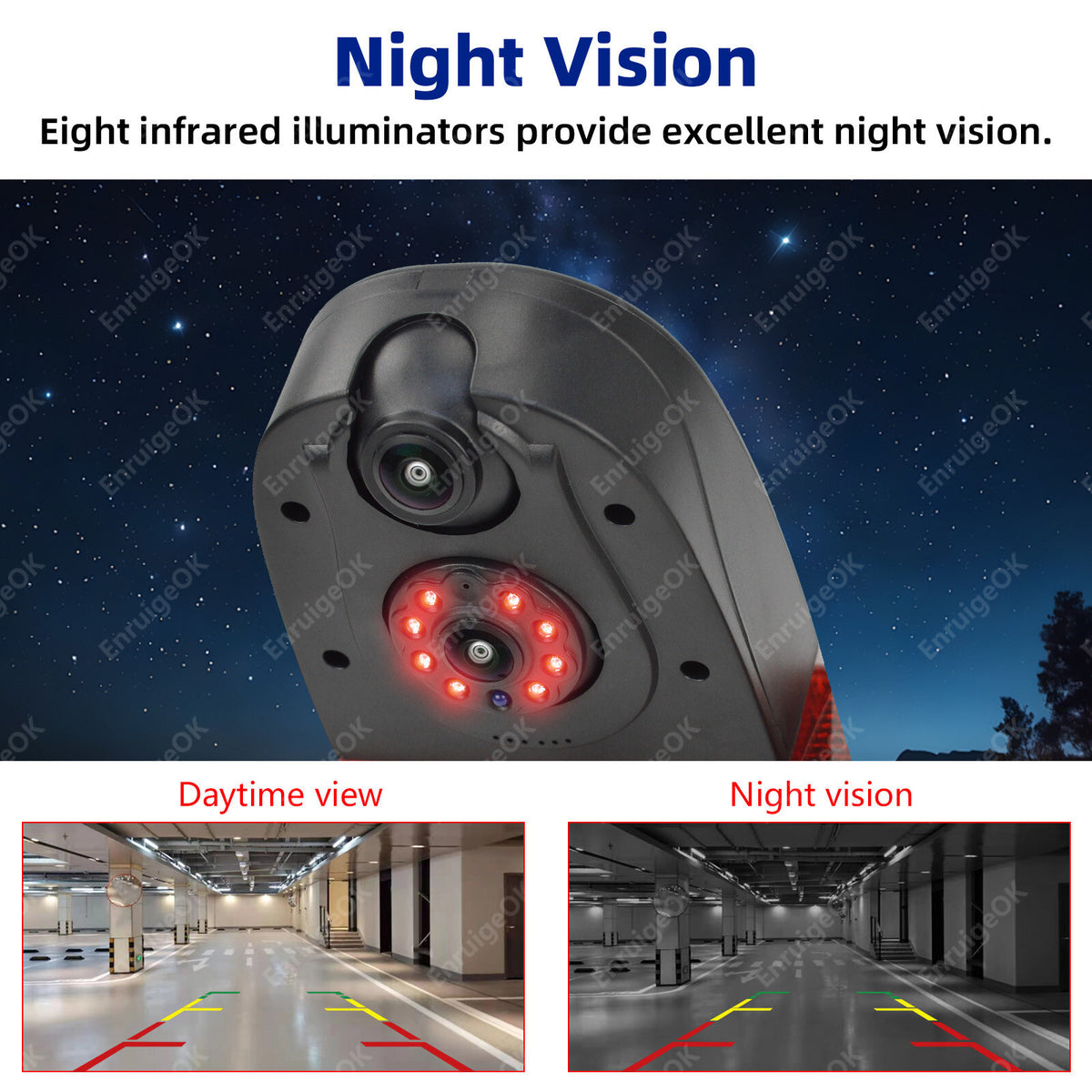

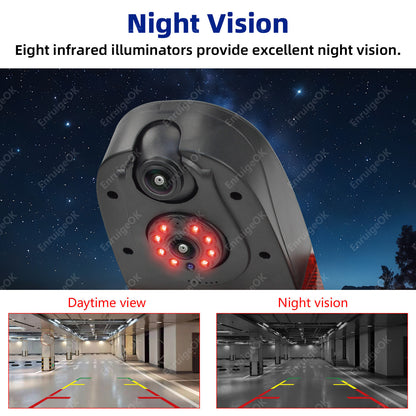

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

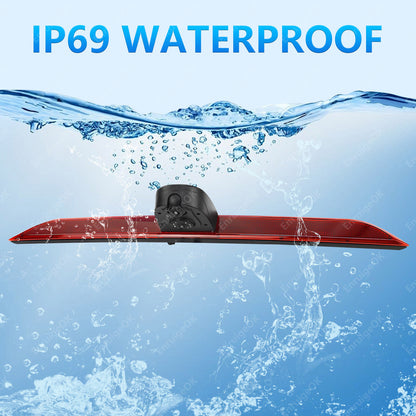

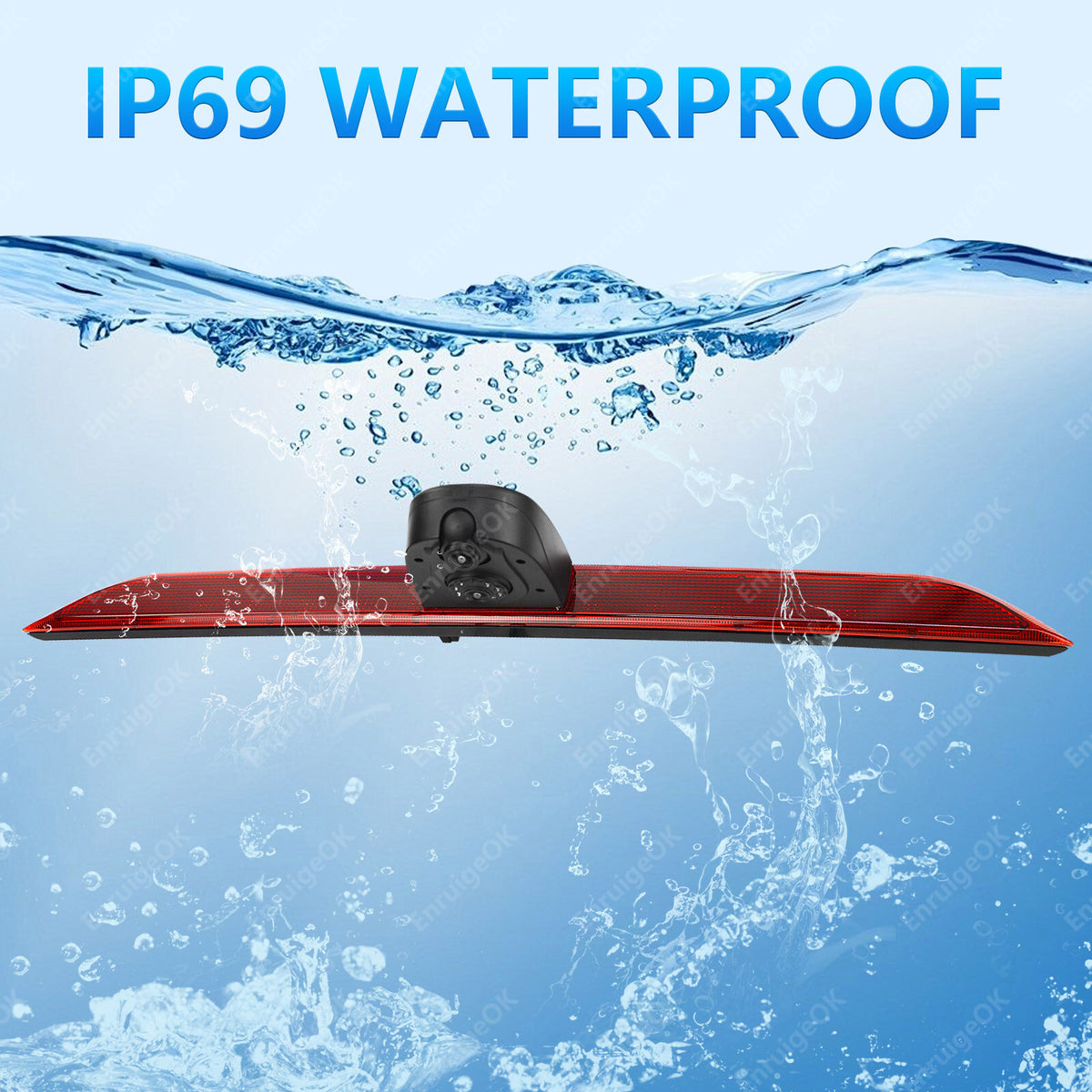

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Complete Parking Aid: Includes a dual-lens reversing camera and a 9" TFT-LCD monitor. The monitor displays rear camera footage while reversing, ensuring safer parking.

Camera Specifications

Image sensor: Colour CMOS

Effective pixel: CVBS 733(H)x493(V)

Resolution: CVBS 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP69

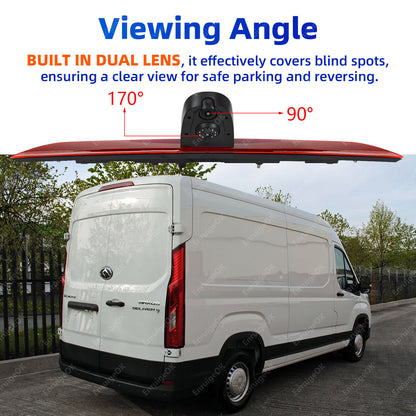

Horizontal angle: 170°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +70℃

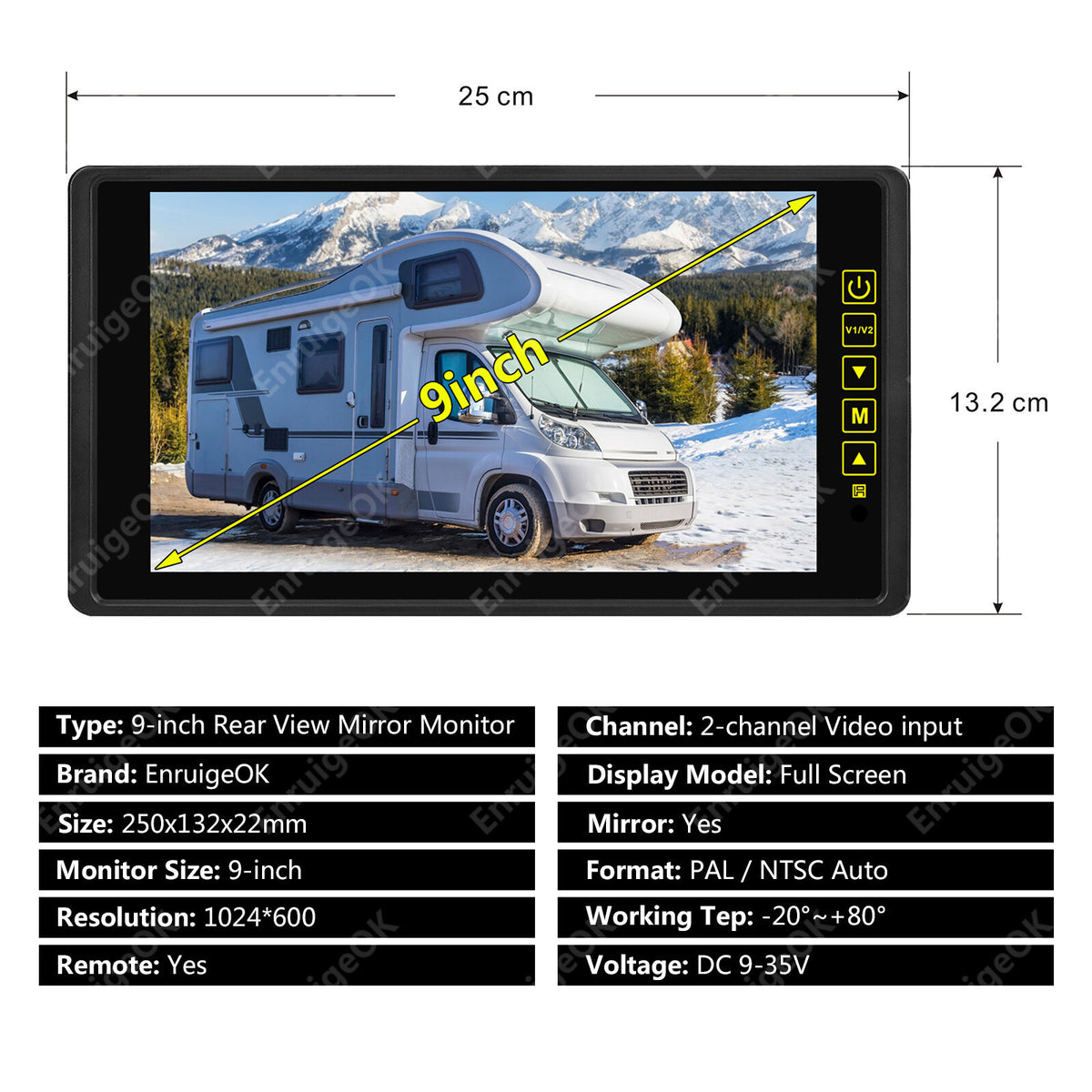

Monitor Specifications

Screen: 9 inch

Resolution: 1024x(RGB)x600

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

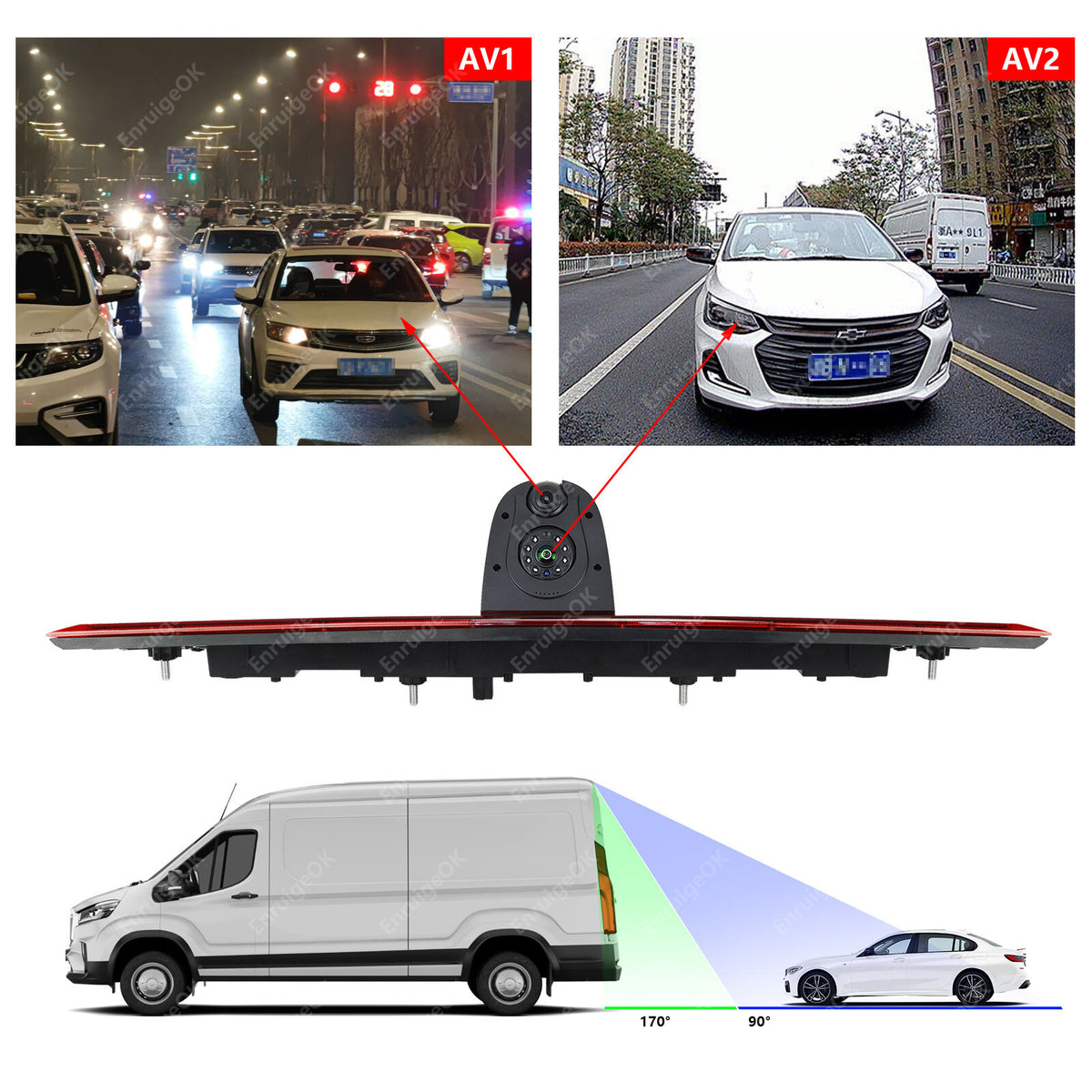

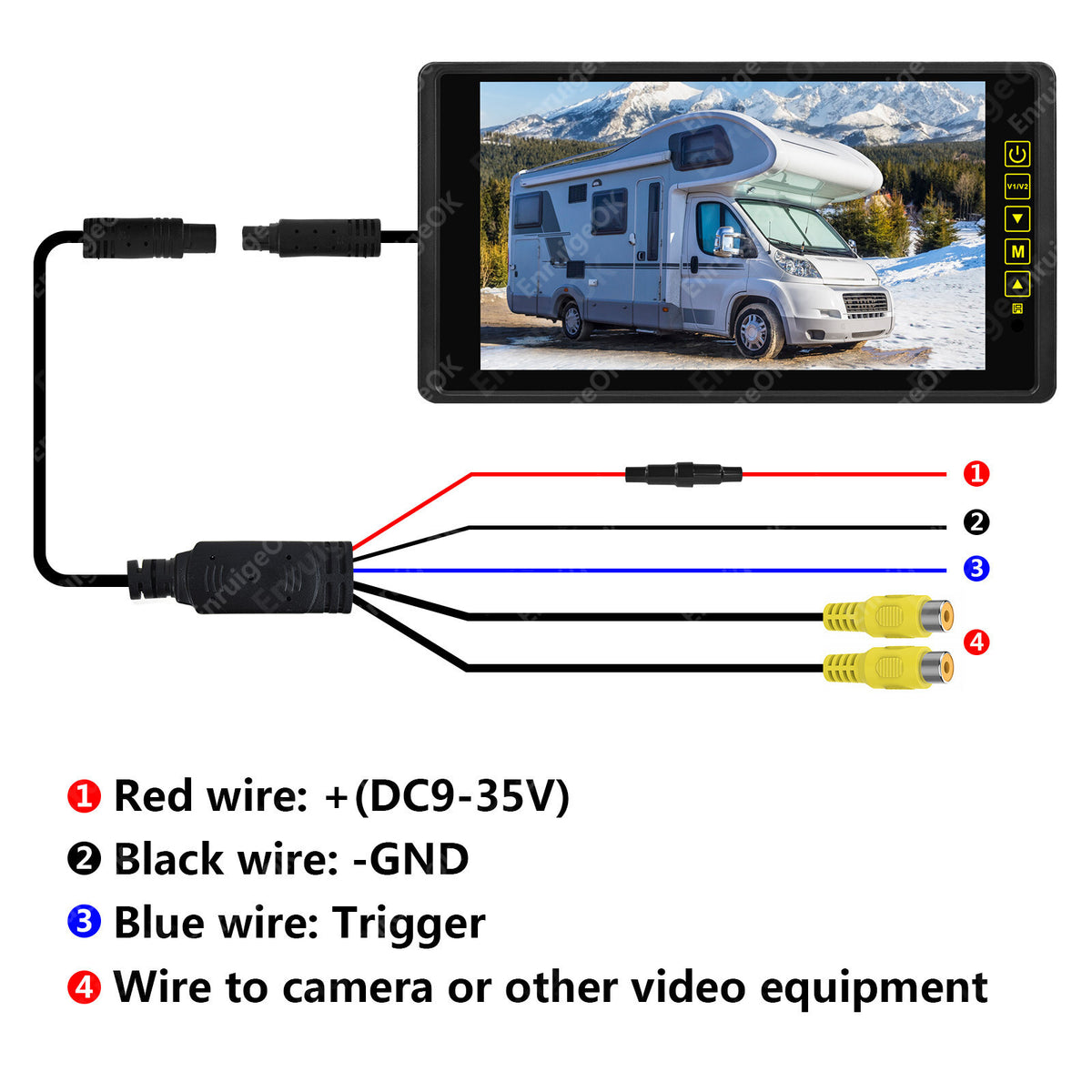

Video Input: Dual video inputs, AV1 and AV2 video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.

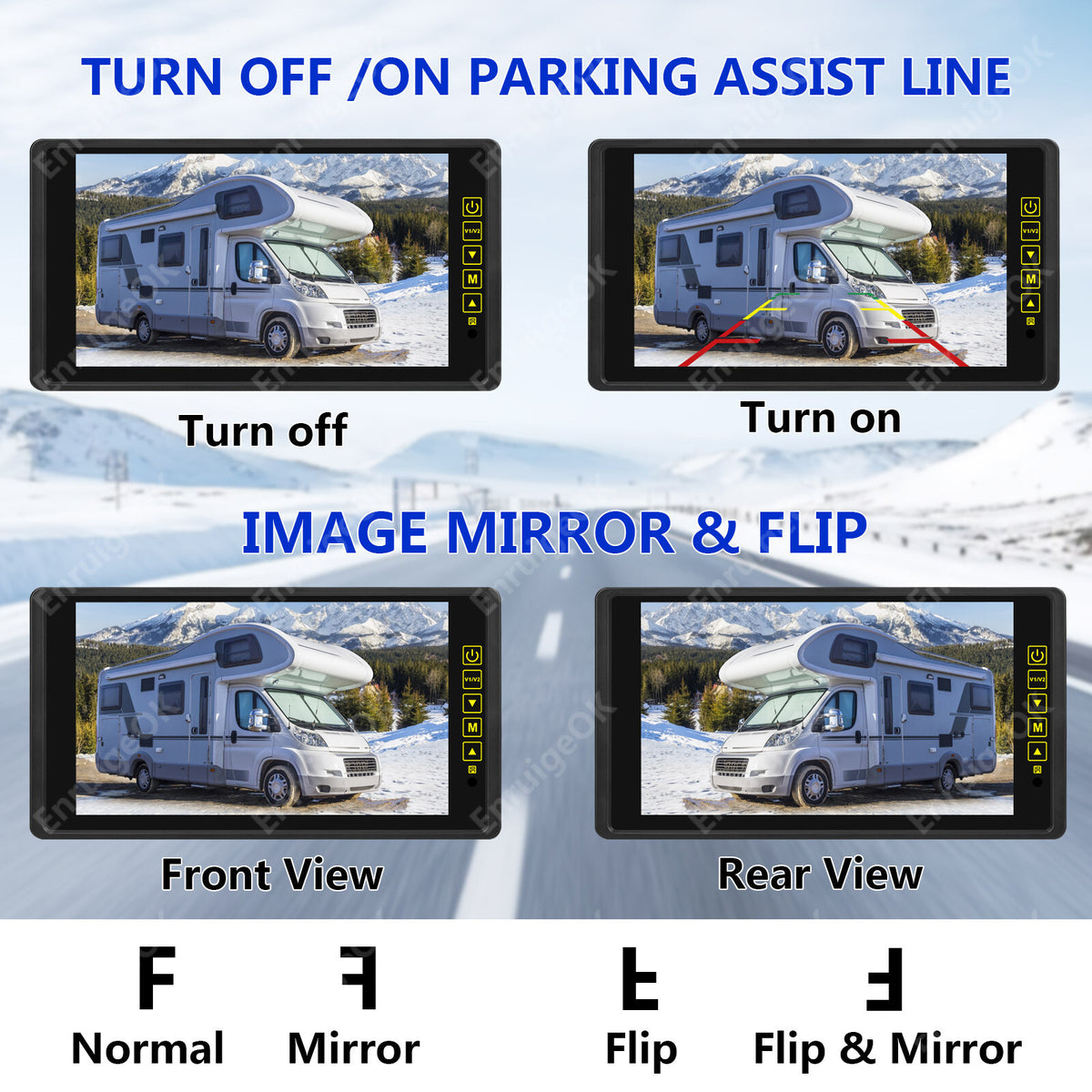

Parking Guidelines: Adjustable (ON/OFF via monitor settings)

Power Supply: DC 9V-35V

Power consumption: 6W

Rear watching: Image can be changed left and right

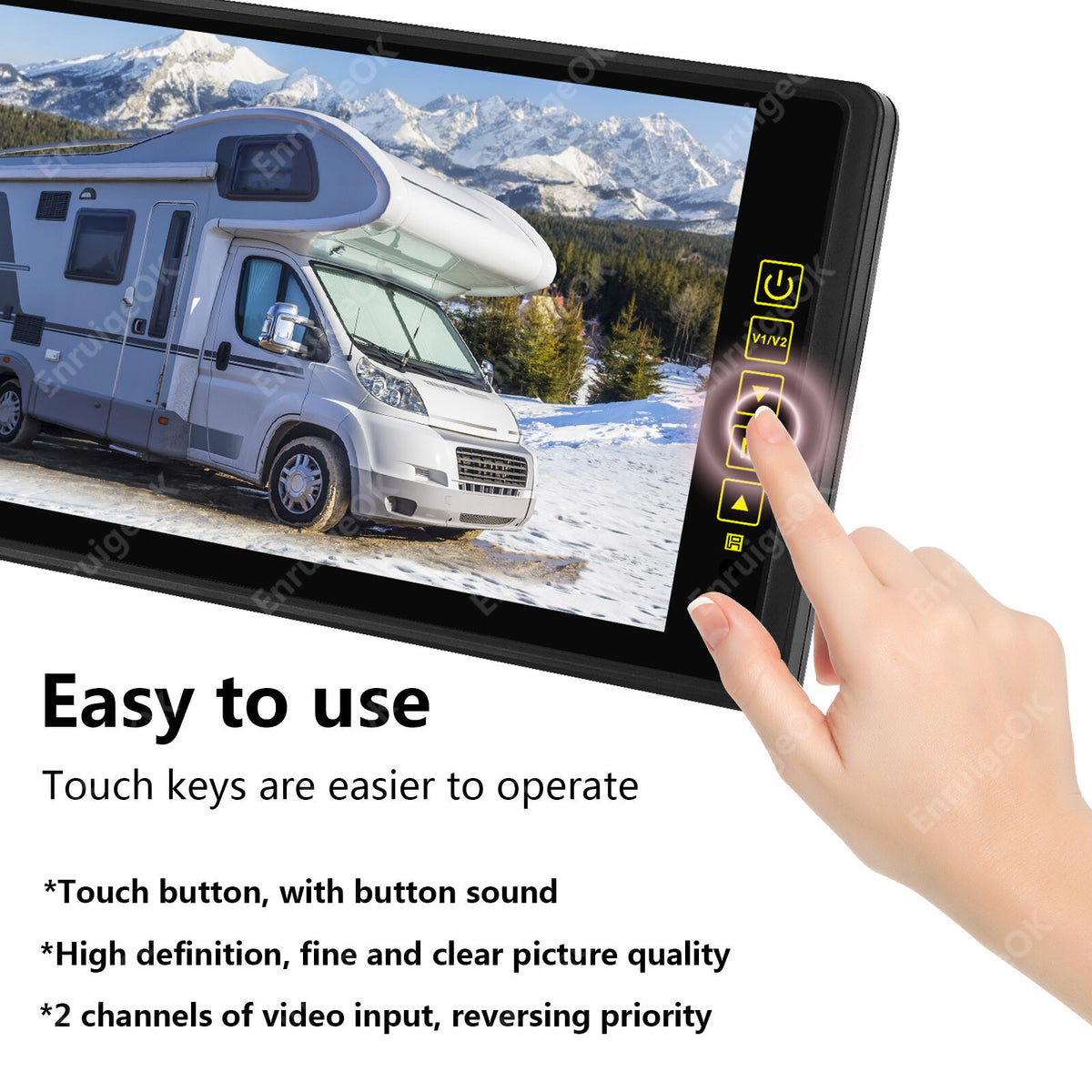

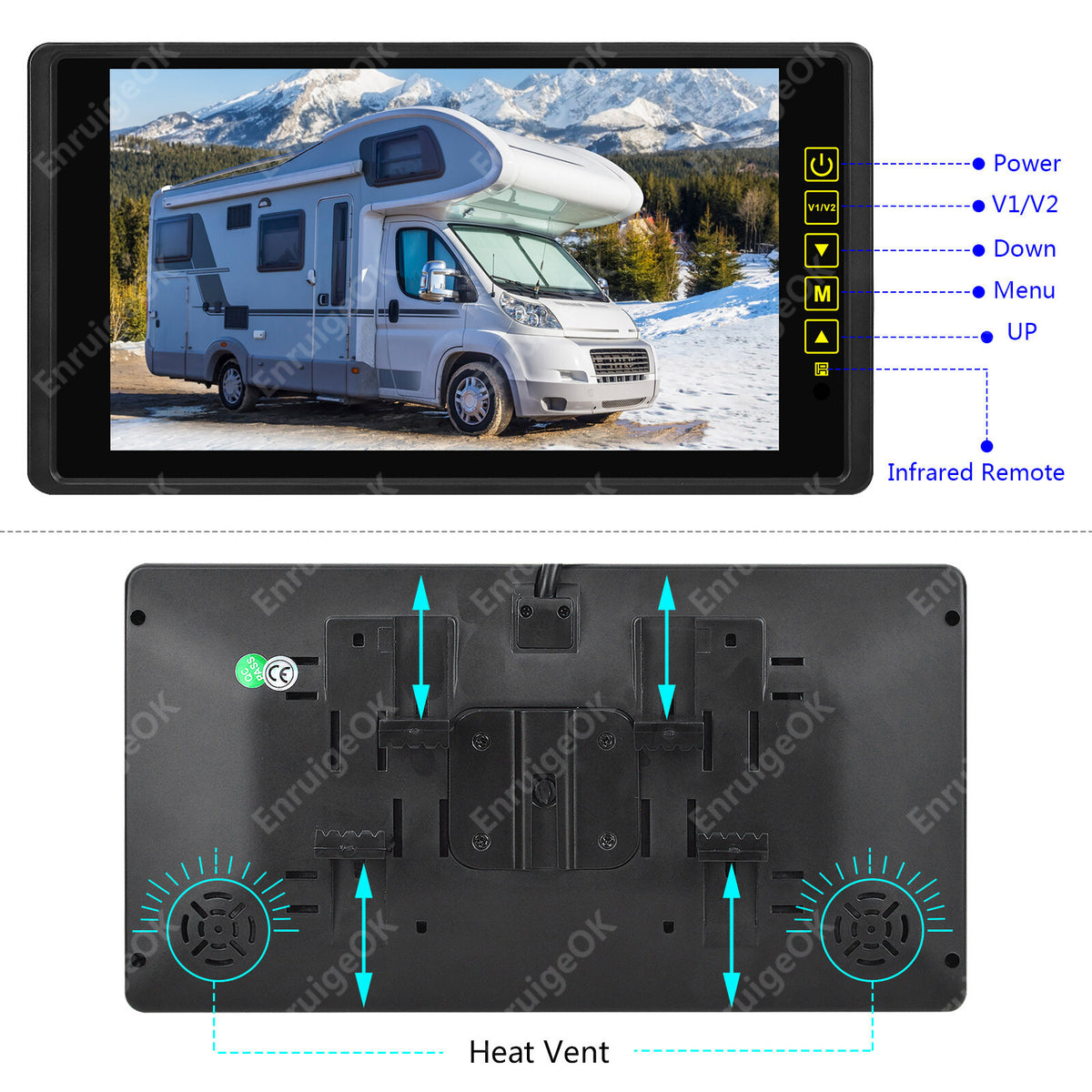

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
