Dual Lens 3rd Brake Light Backup Camera for Ford Transit Custom Van 2016-Present

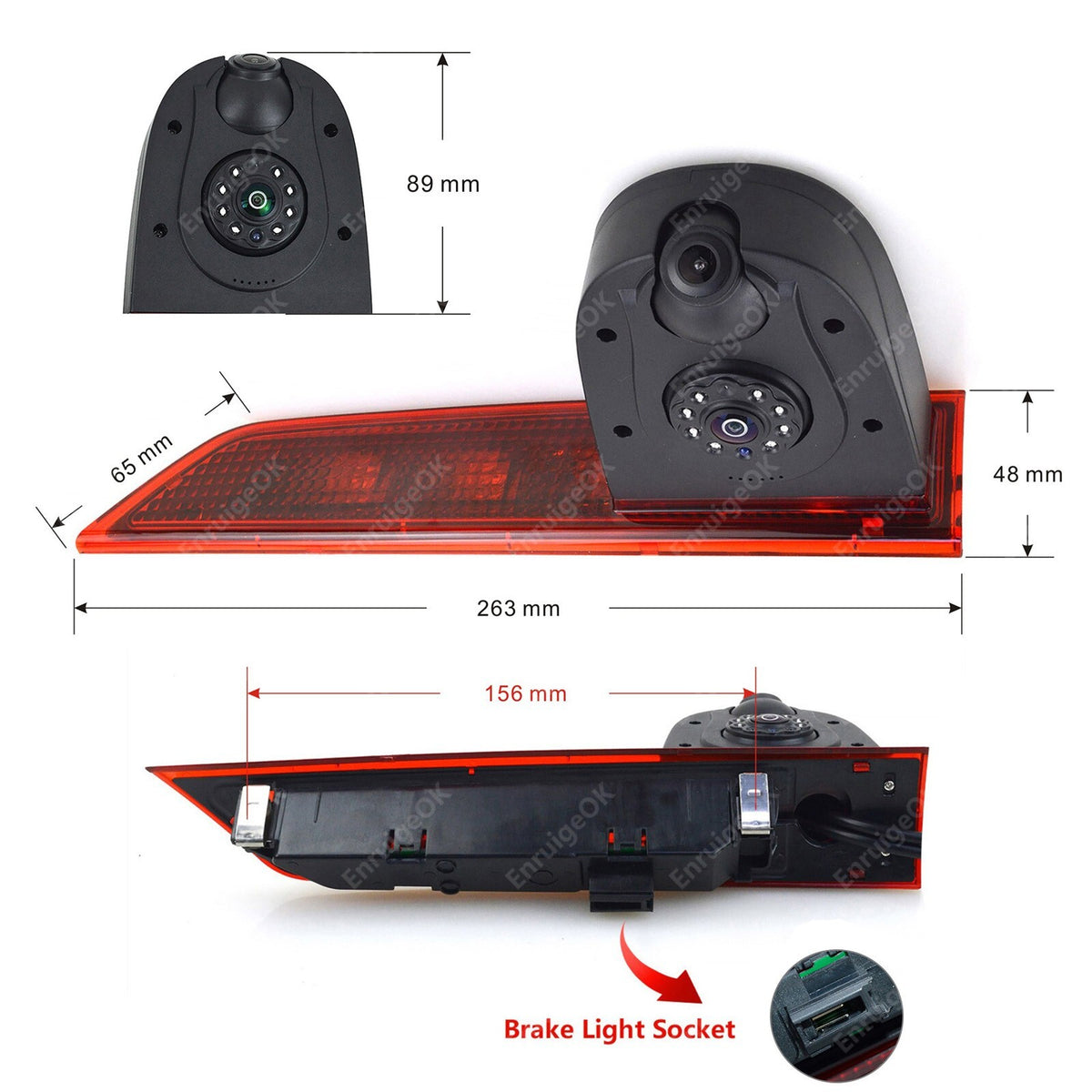

Note: Please check the camera size carefully before make the order.

EnruigeOK Rear Brake Light Backup Camera For Ford Transit Custom Van

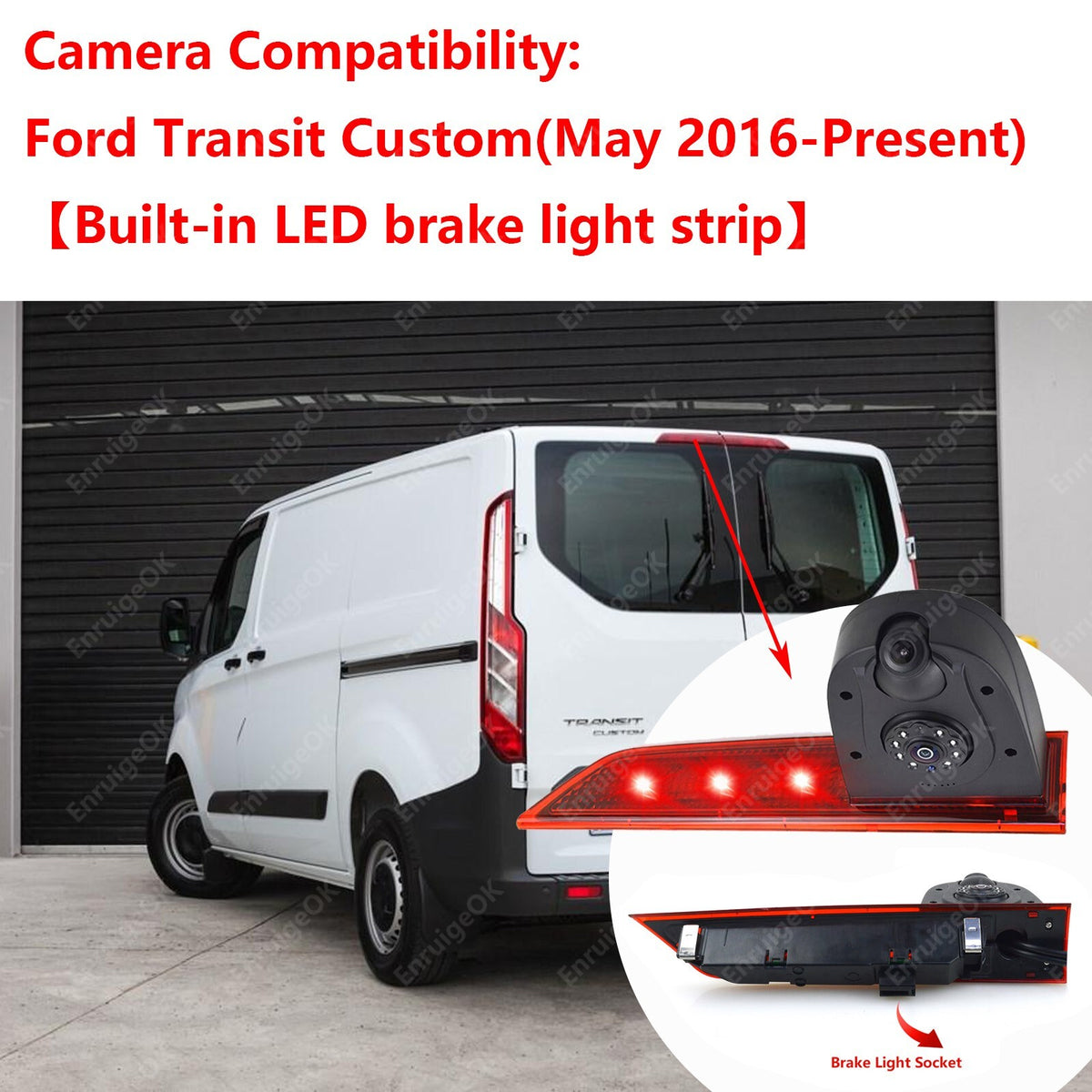

Camera Compatibility

Ford Transit Custom(May 2016-Present)

【Built-in LED brake light strip】

Reminder friendly

AHD video signal camera will only work with AHD monitor. So please check whether the Android unit or monitor supports AHD1080P camera! If AHD1080P cannot be selected, AHD1080P cameras are not supported.

Tips: Go to Car settings >> Factory settings >> Reverse settings >> Select AHD 1080P

Description

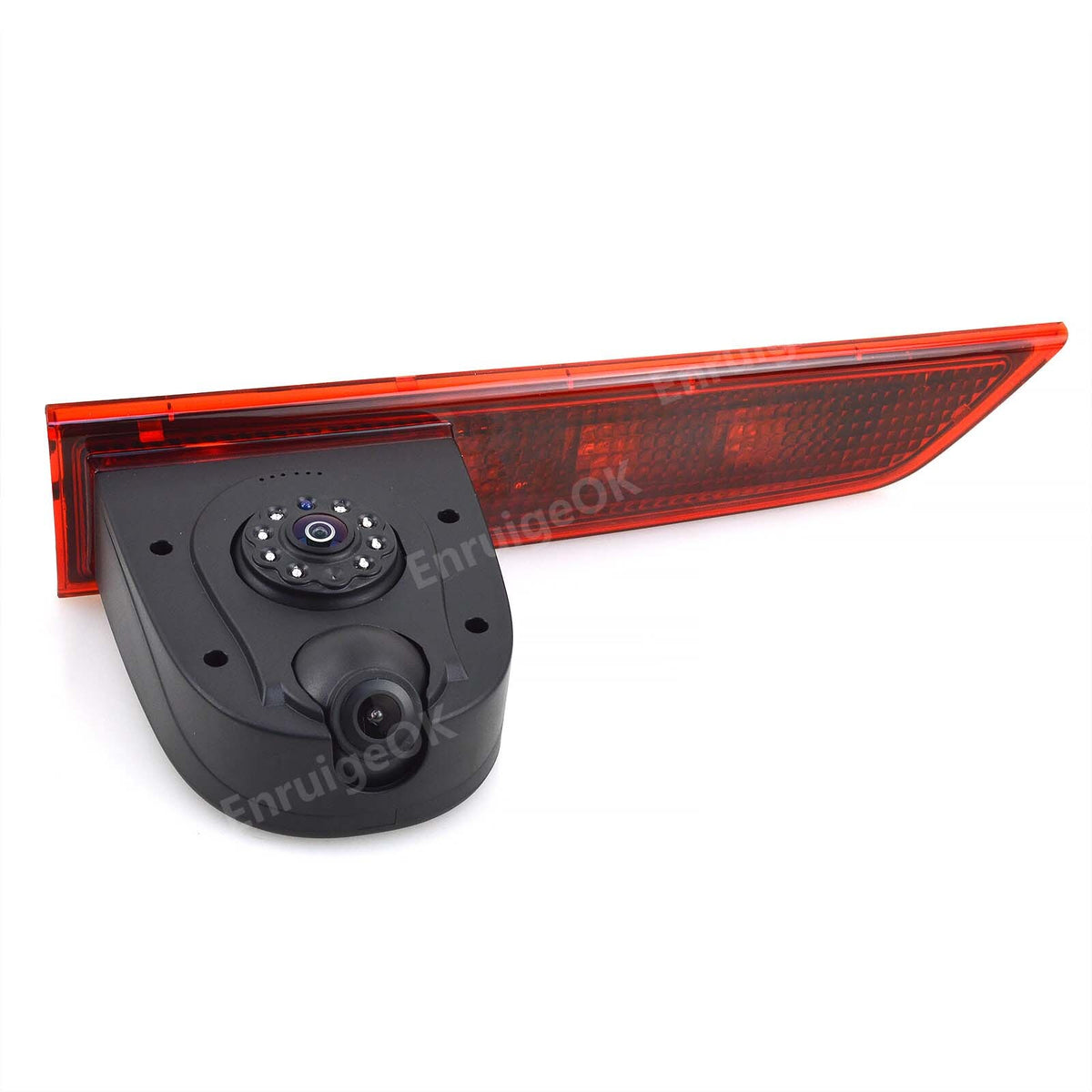

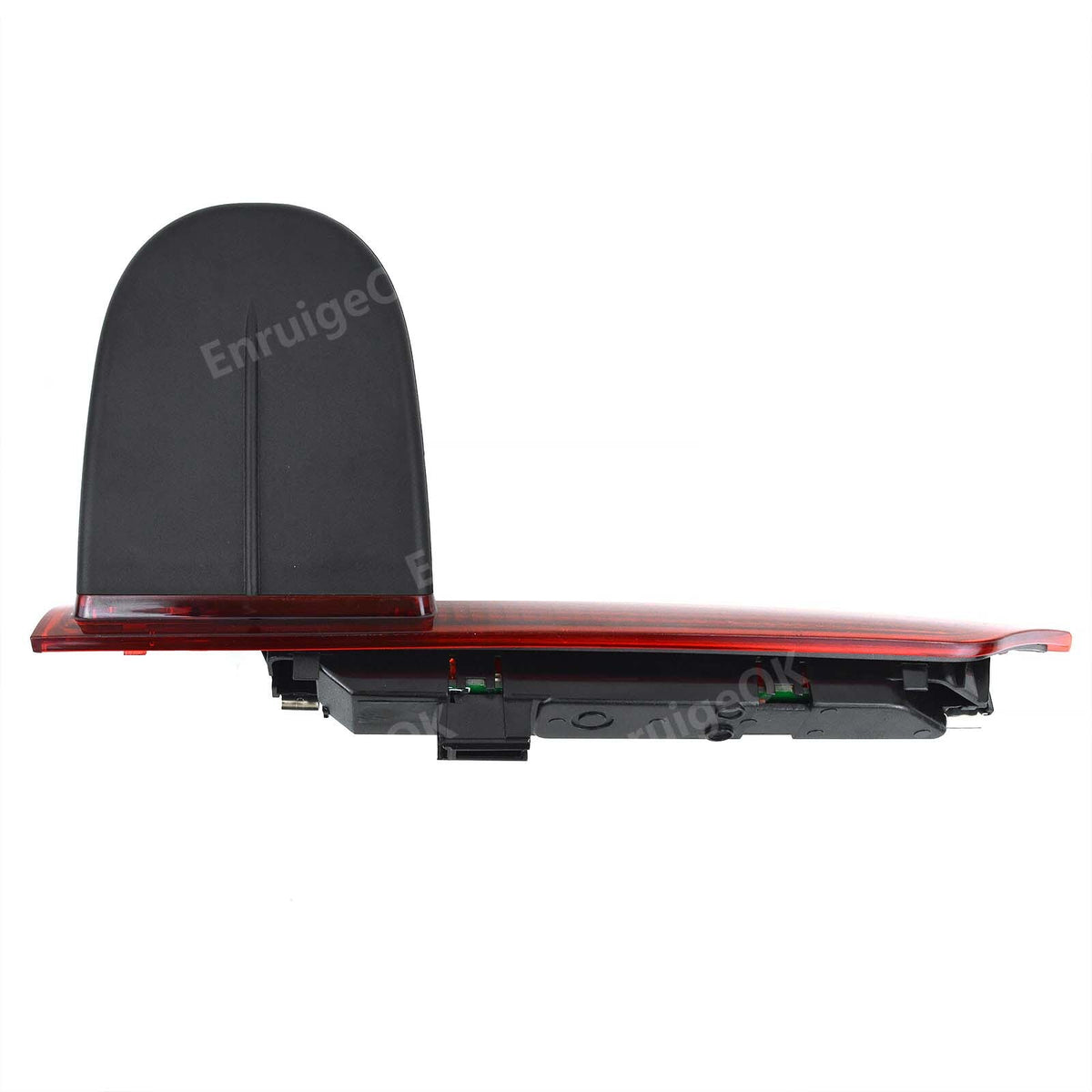

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

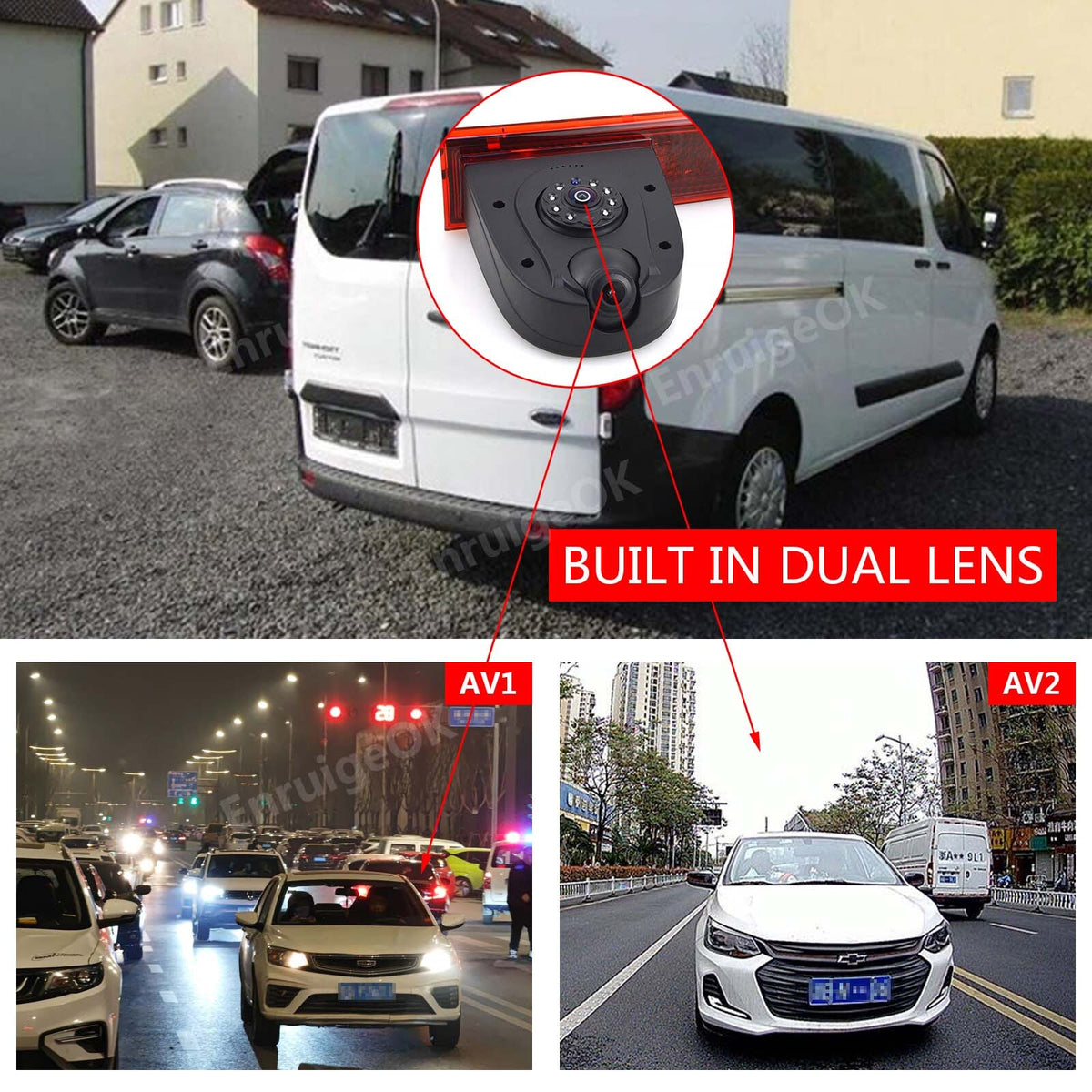

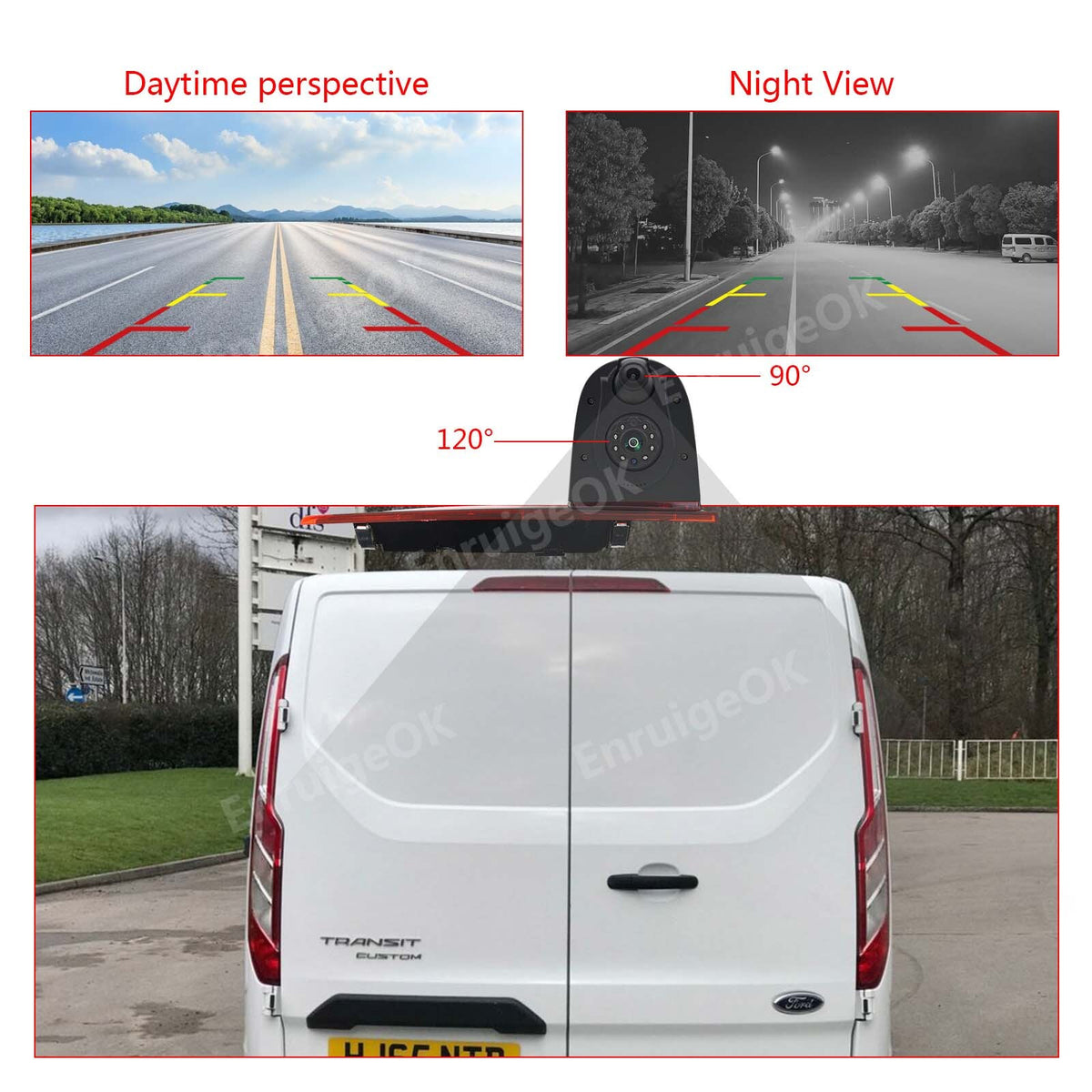

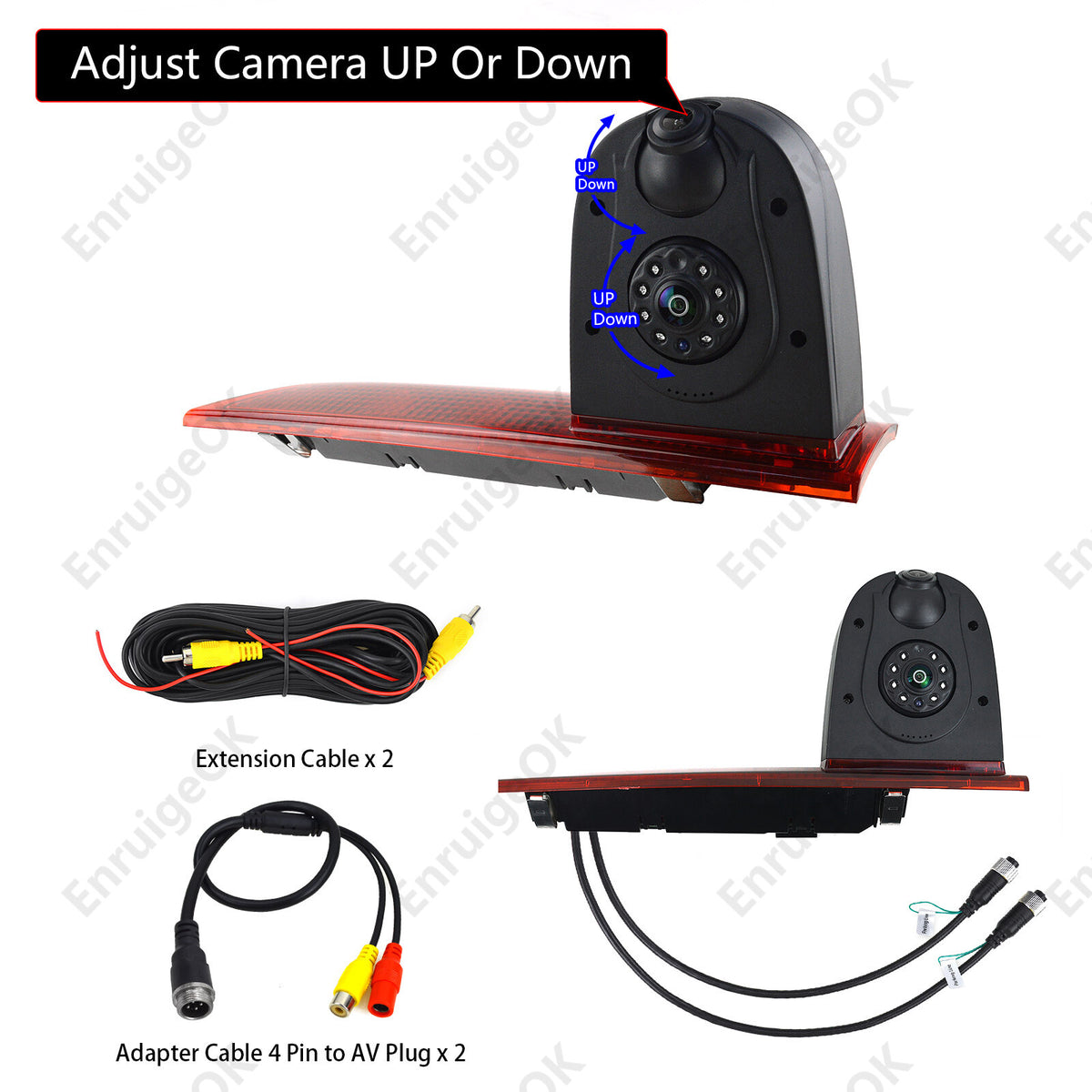

Dual lens backup camera. Its unique design allows to have one mounting with 2 cameras with different viewpoints. One reversing camera to view traffic, another to see trailer hitch and rear bumper.

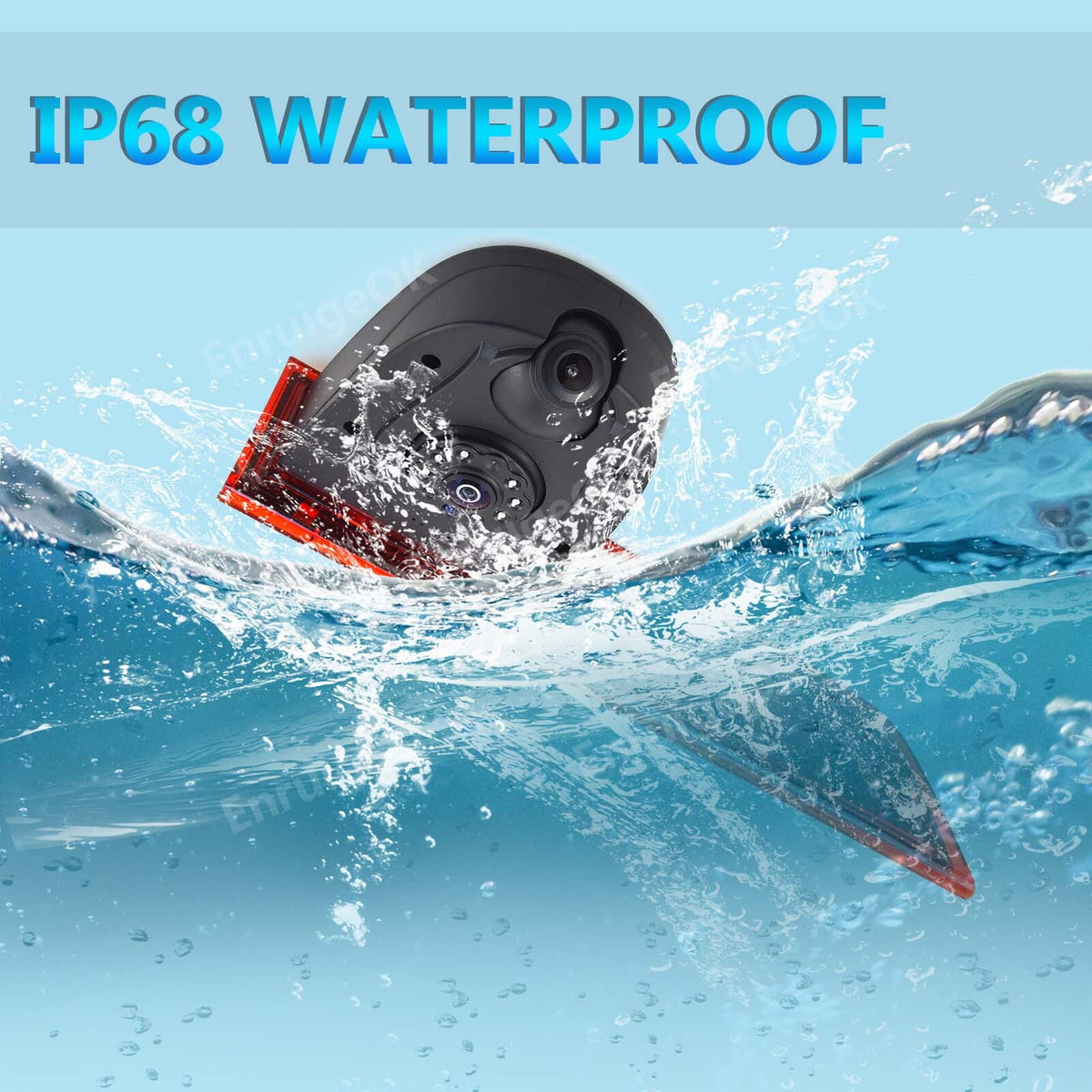

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

Dustproof, shockproof, anti-shake.

Specifications

AHD 1080P Camera:

- Material: ABS+PC

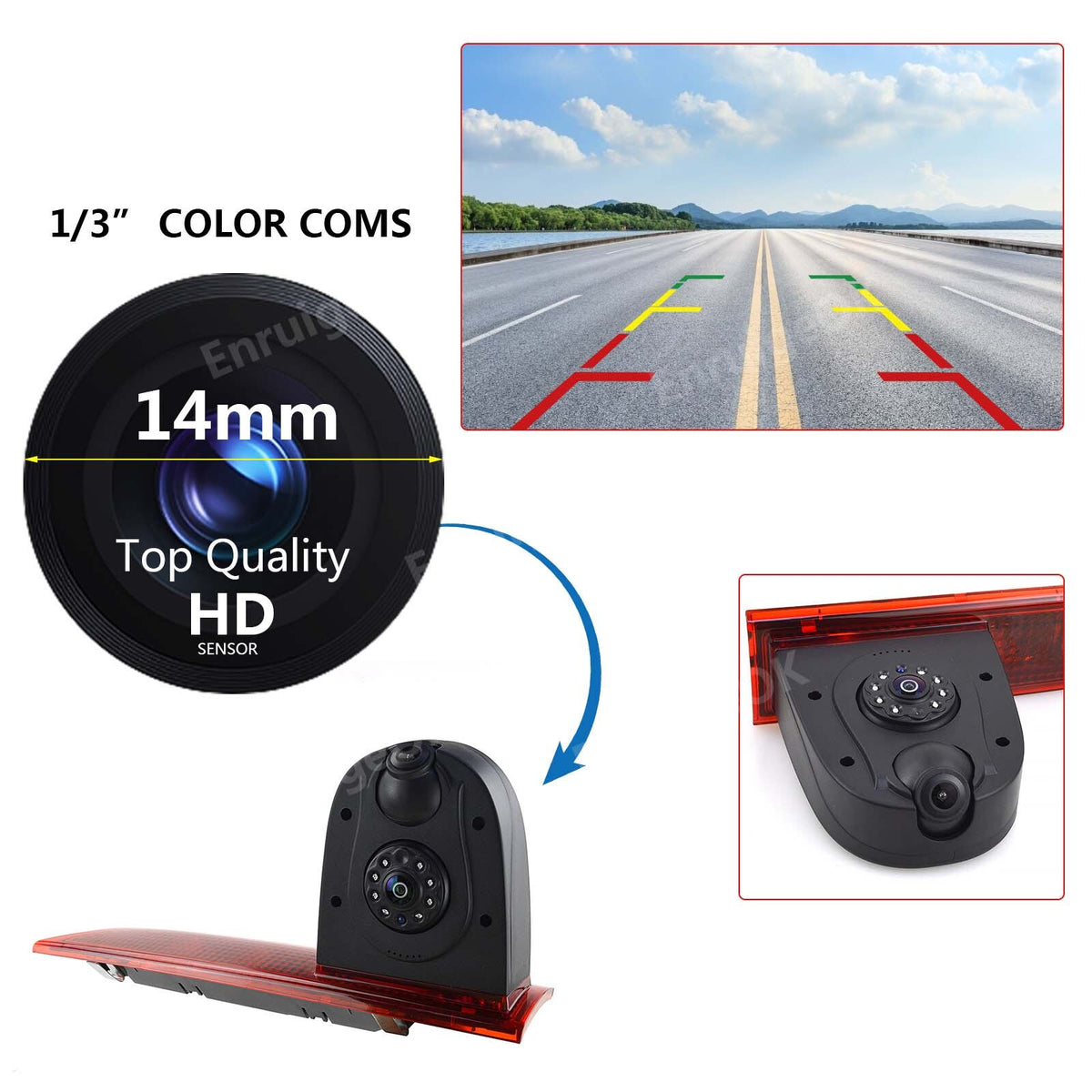

- Image sensor: 1/3" CMOS

- TV system: PAL/NTSC

- Waterproof rating: IP68

- Viewing angle: 90°&120°

- Effective pixel: 1920(H)x1080(V)

- Resolution: AHD 1080P

- Horizontal sync frequency: 15.625KHZ

- Scanning system: 2:1 interface

- Sync system: Internal

- ACG: Auto

- BLC: Auto

- S/N Ratio: > 48dB

- Current consumption: < 150mA

- Minimum illumination: 0Lux(IR LED ON)

- Power supply: DC12V

- Operating temperature: -20℃ to +70℃

CVBS 700TVL Camera:

- Material: ABS+PC

- Image sensor: 1/3" CMOS

- TV system: PAL/NTSC

- Waterproof rating: IP68

- Viewing angle: 90°&120°

- Effective pixel: 733(H)x493(V)

- Resolution: 700TV Lines

- Horizontal sync frequency: 15.625KHZ

- Scanning system: 2:1 interface

- Sync system: Internal

- ACG: Auto

- BLC: Auto

- S/N Ratio: > 48dB

- Current consumption: < 150mA

- Minimum illumination: 0Lux(IR LED ON)

- Power supply: DC12V

- Operating temperature: -20℃ to +70℃

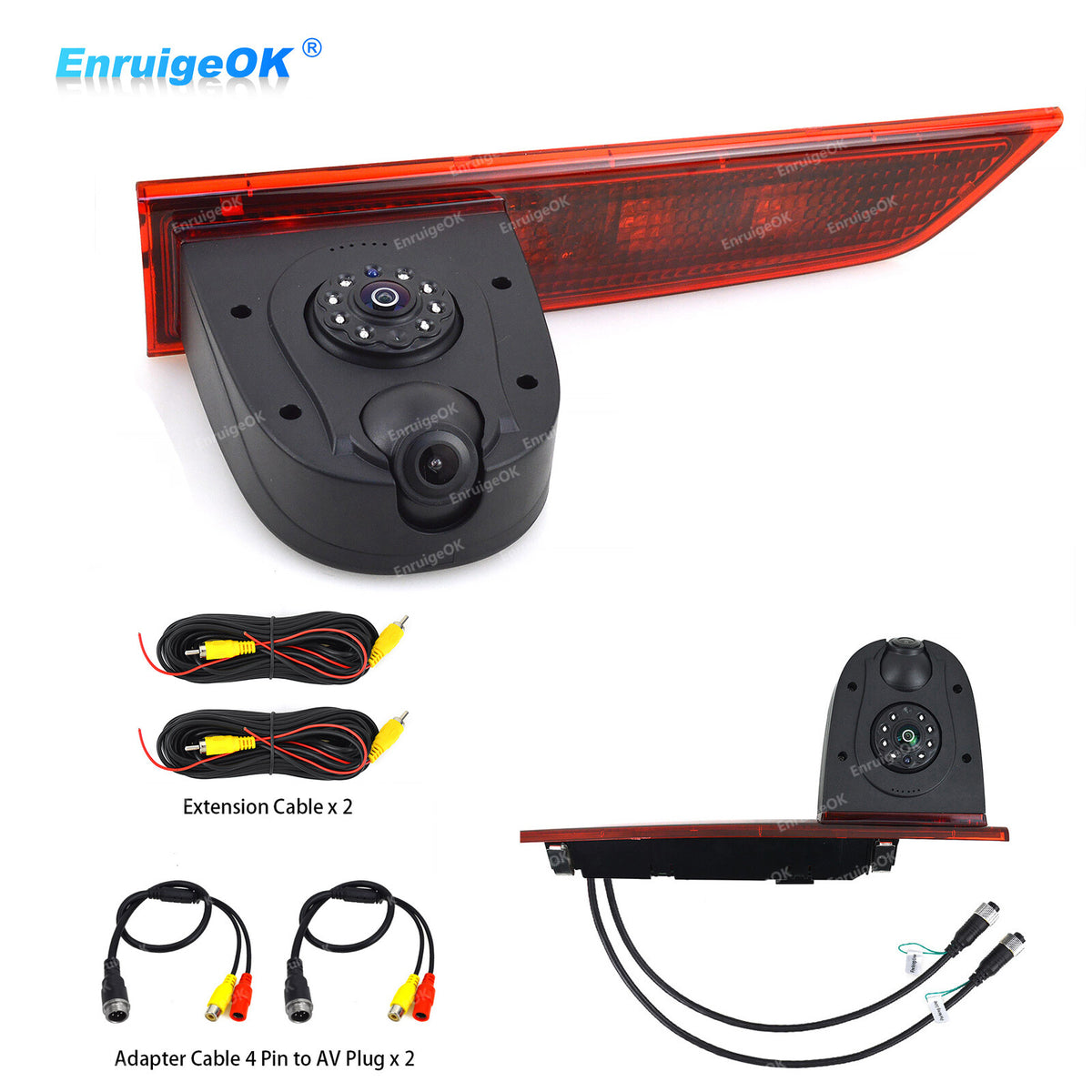

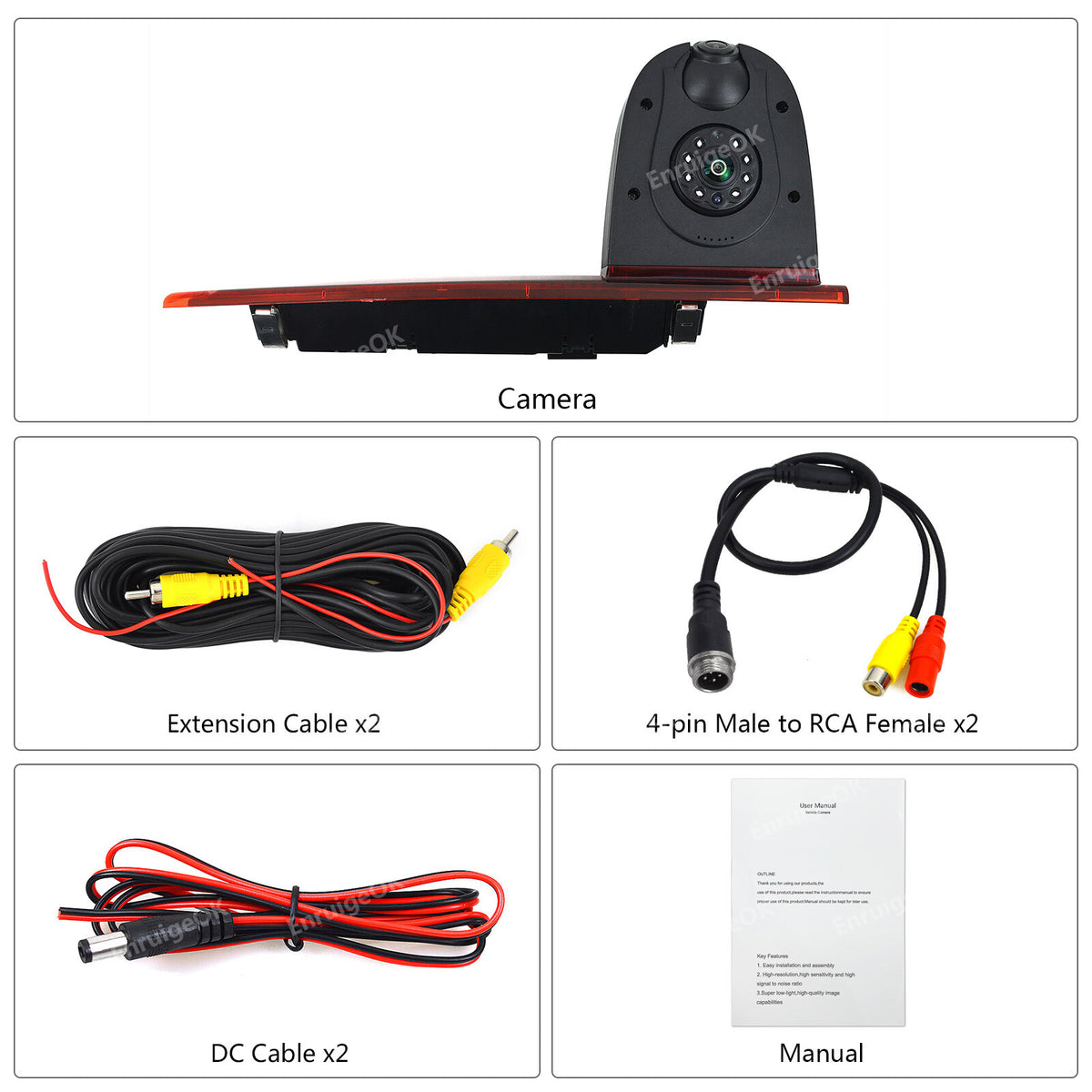

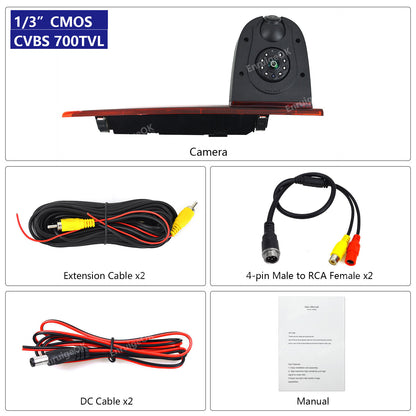

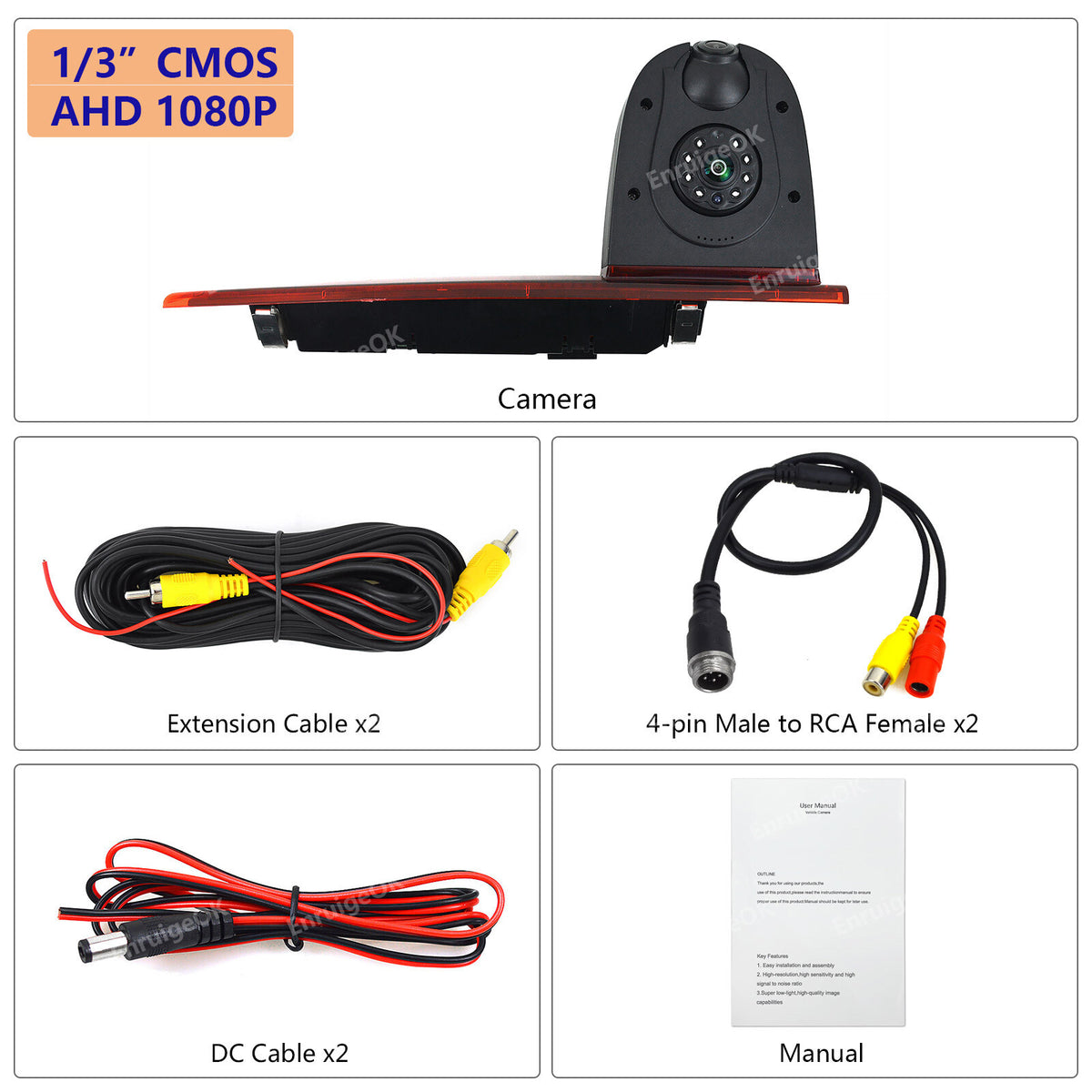

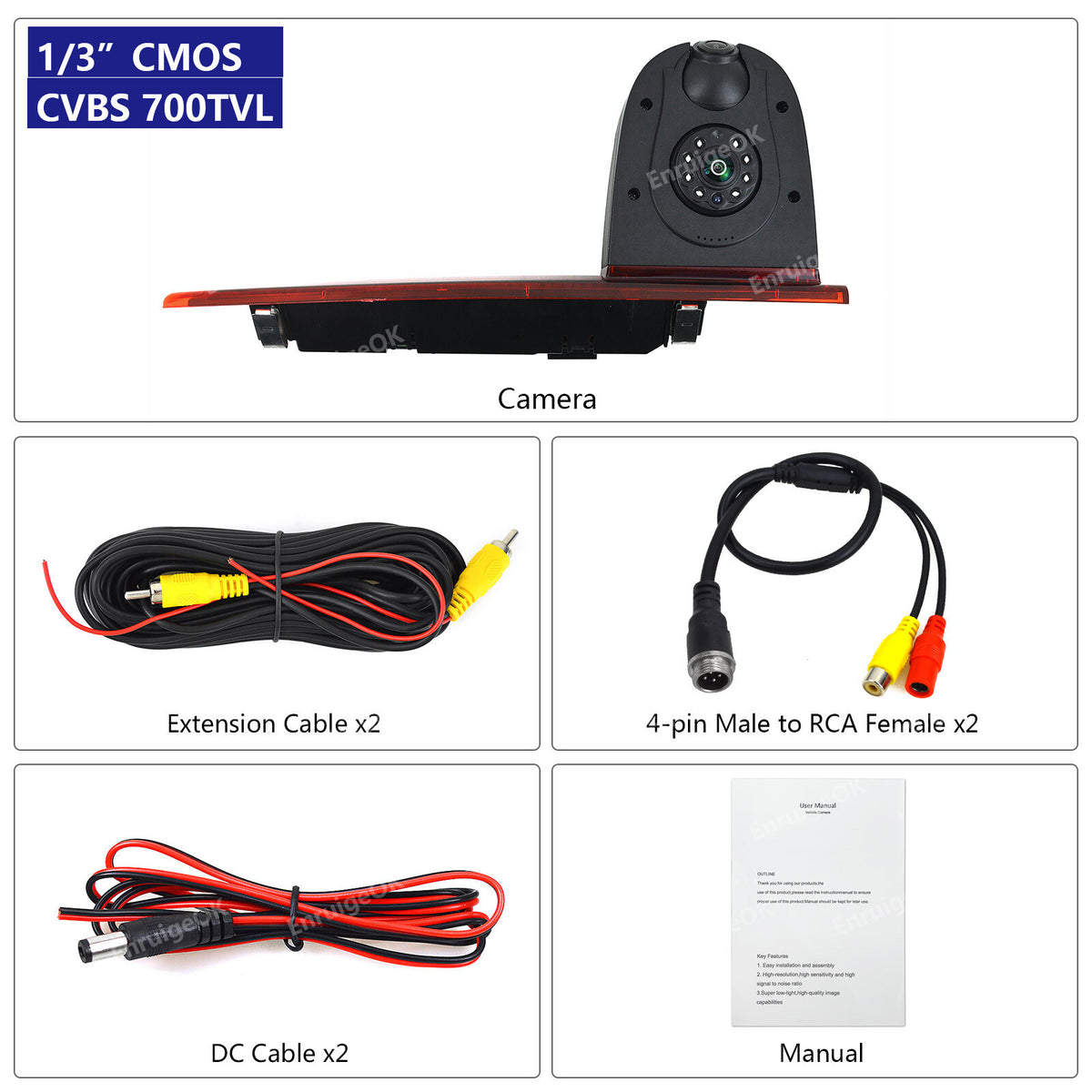

Package content

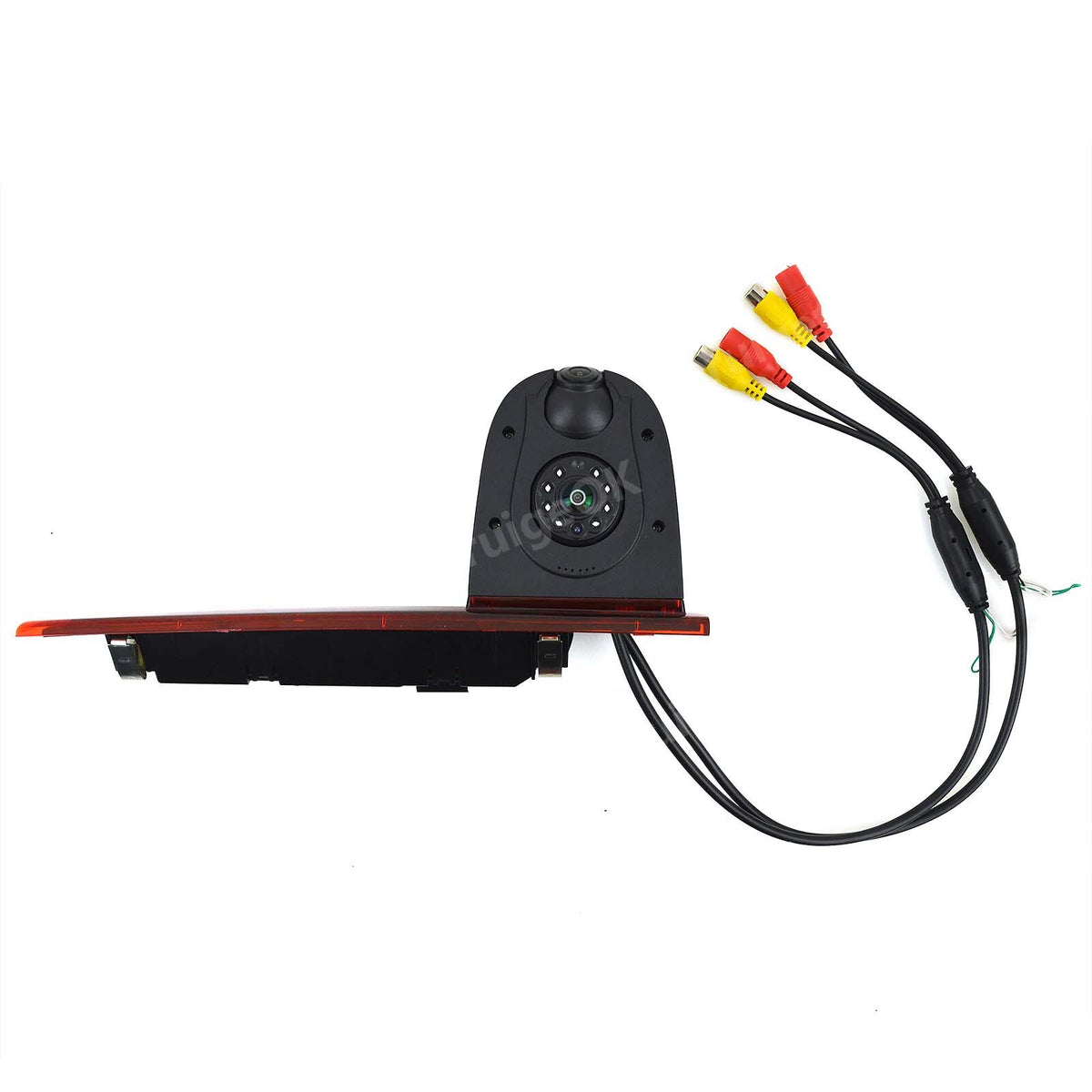

1 X Dual lens backup camera  (AHD or CVBS signal, check your Android unit or monitor）

2 X 10m/33ft. extension cable

2 X DC power cable

2 X Adapter cable

1 X Manual
