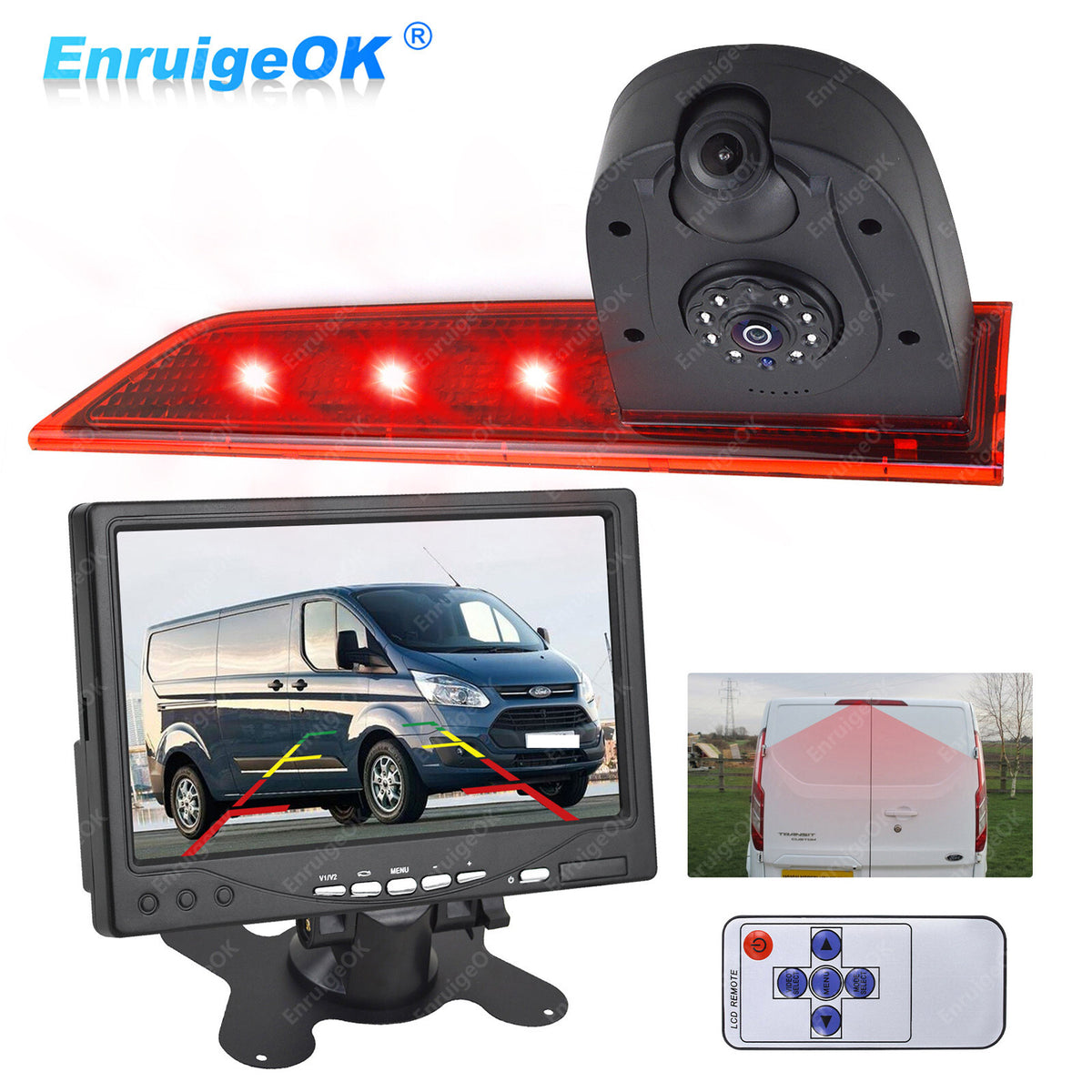

Dual Brake Light Reversing Camera For Ford Transit Custom Van &7" Monitor Kit

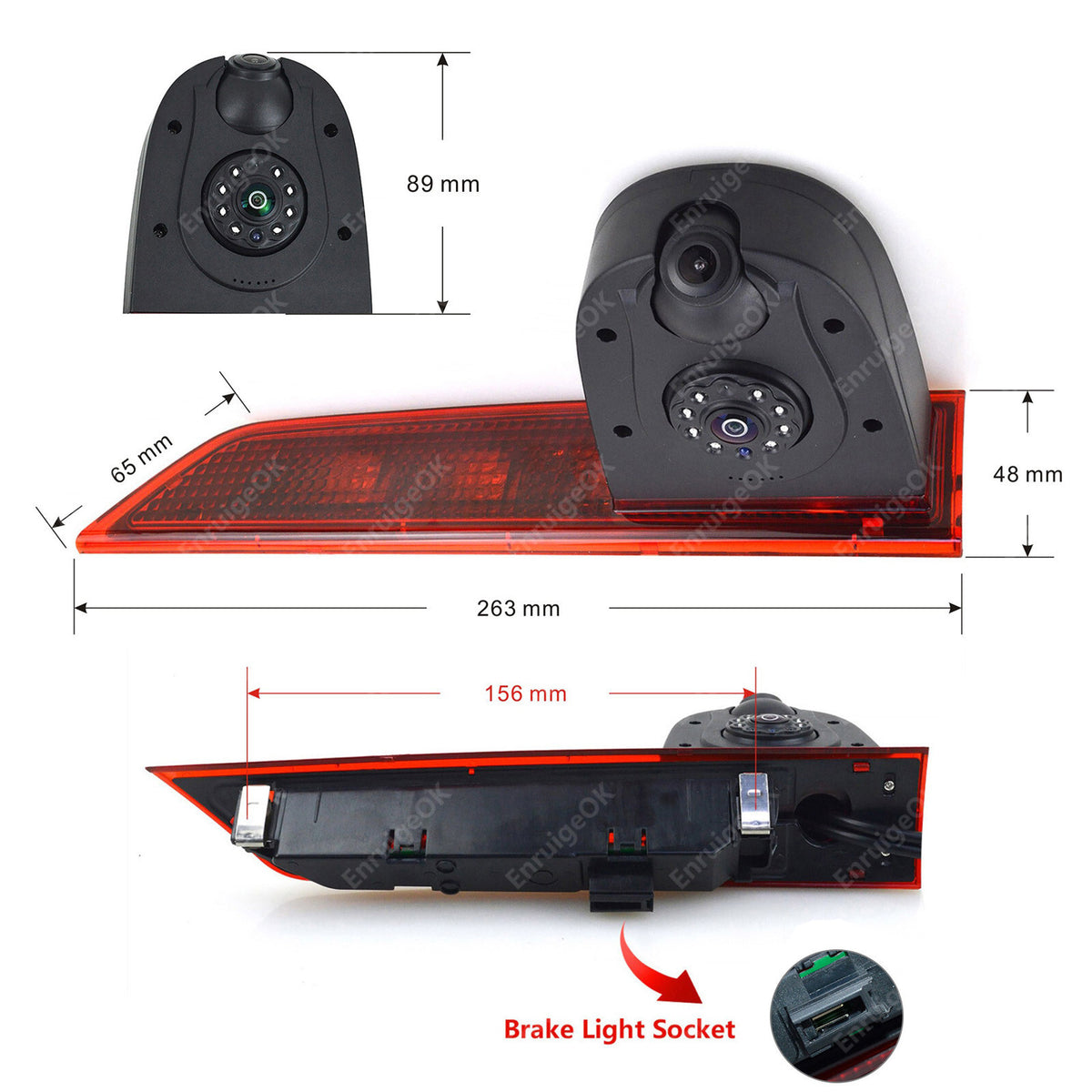

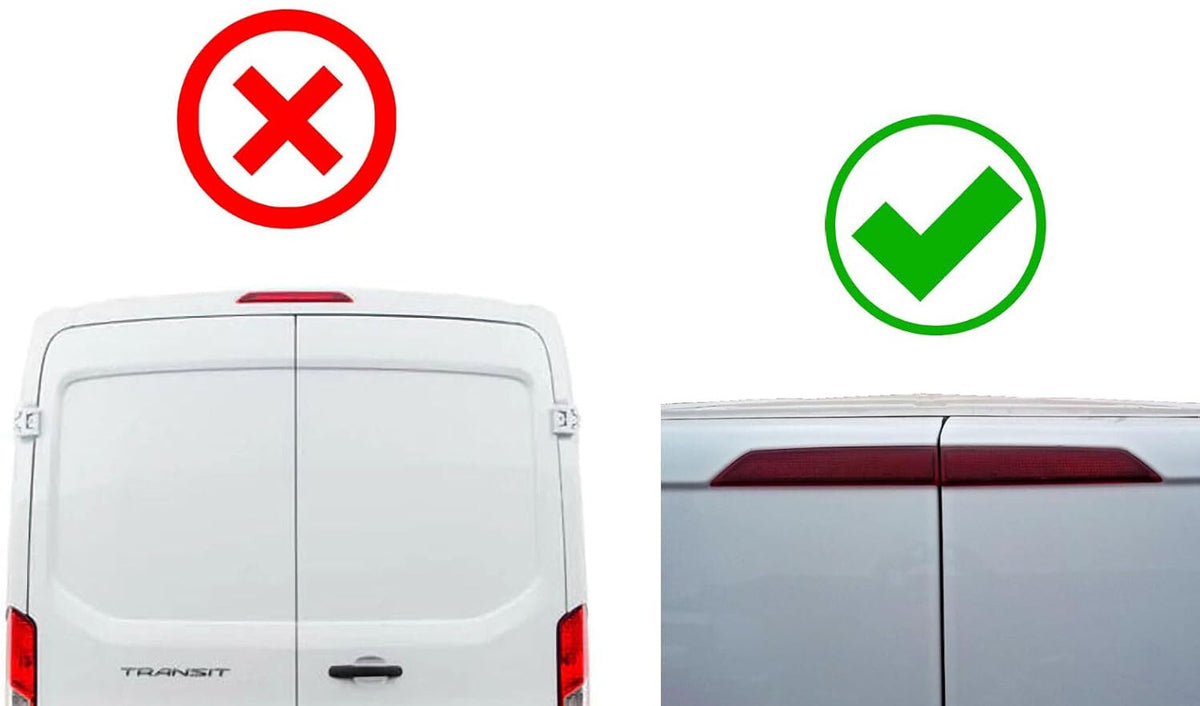

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

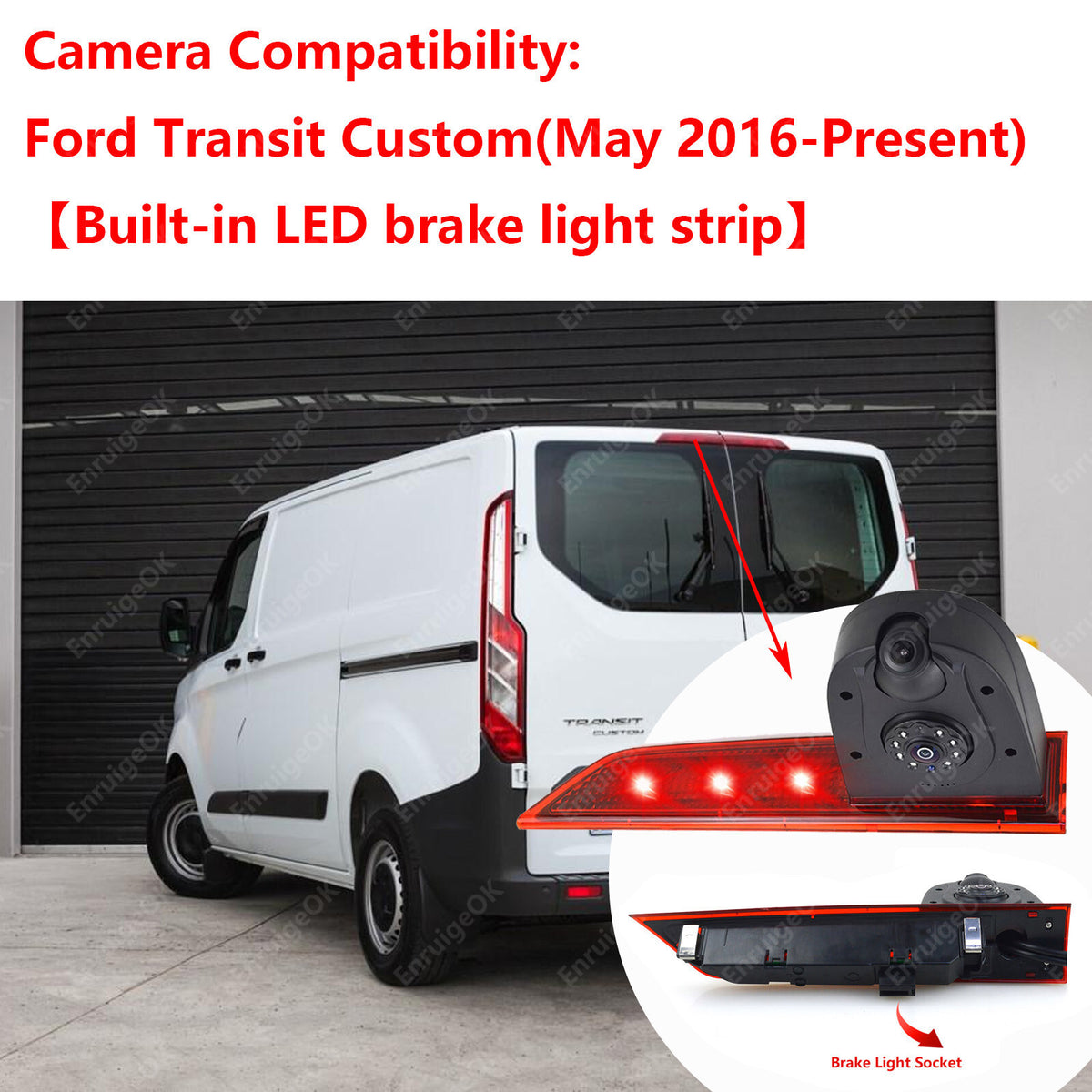

Camera Compatibility

✅Ford Transit Custom(May 2016-Present)

【Built-in LED brake light strip】

This

vehicle list is a guide only, please ensure the product dimensions fit

your vehicle's installation space and that your vehicle's head unit or

monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

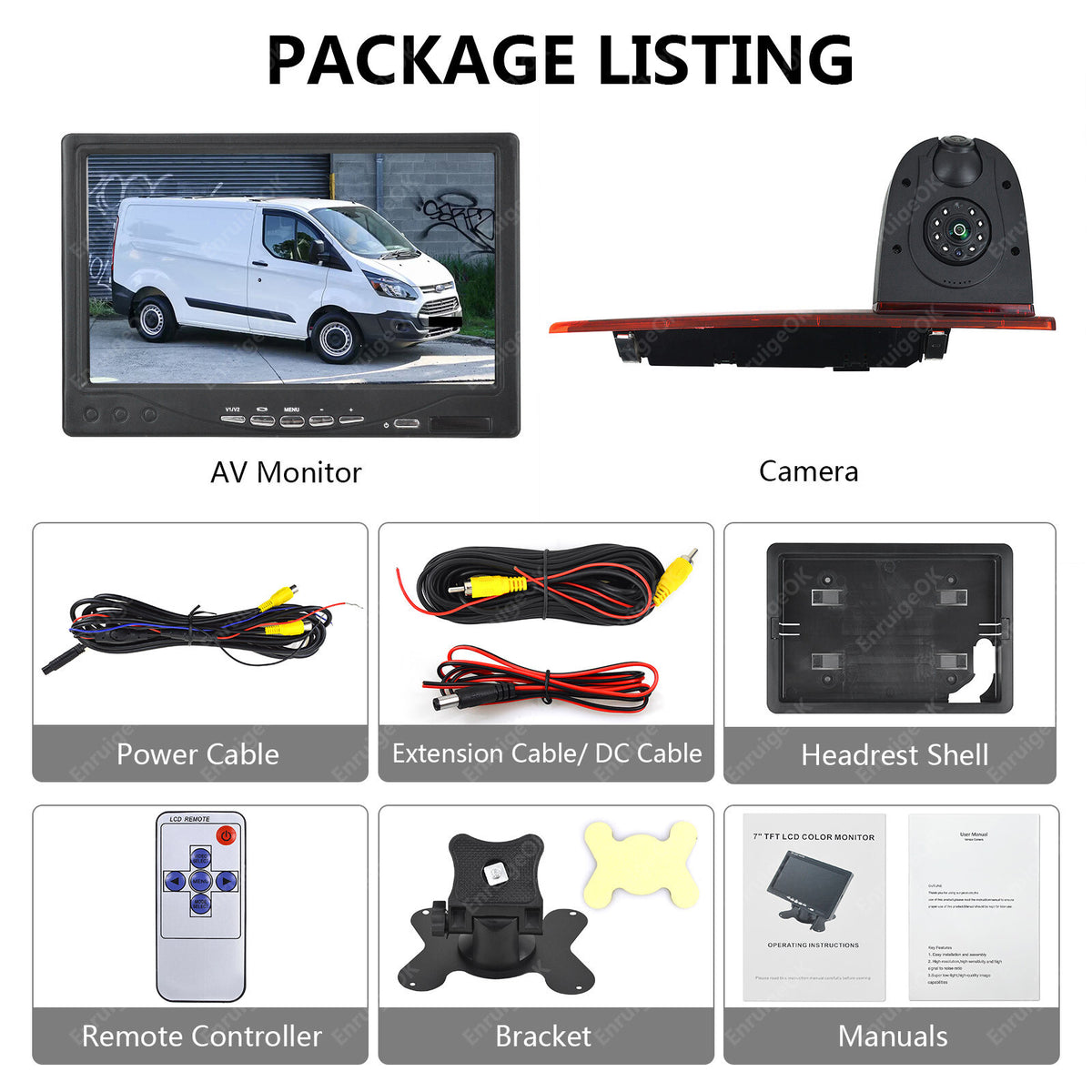

Package contents

1 X Brake light camera

1 X 7'' TFT-LCD monitor

1 X Remote controller(battery not included)

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC Power cable

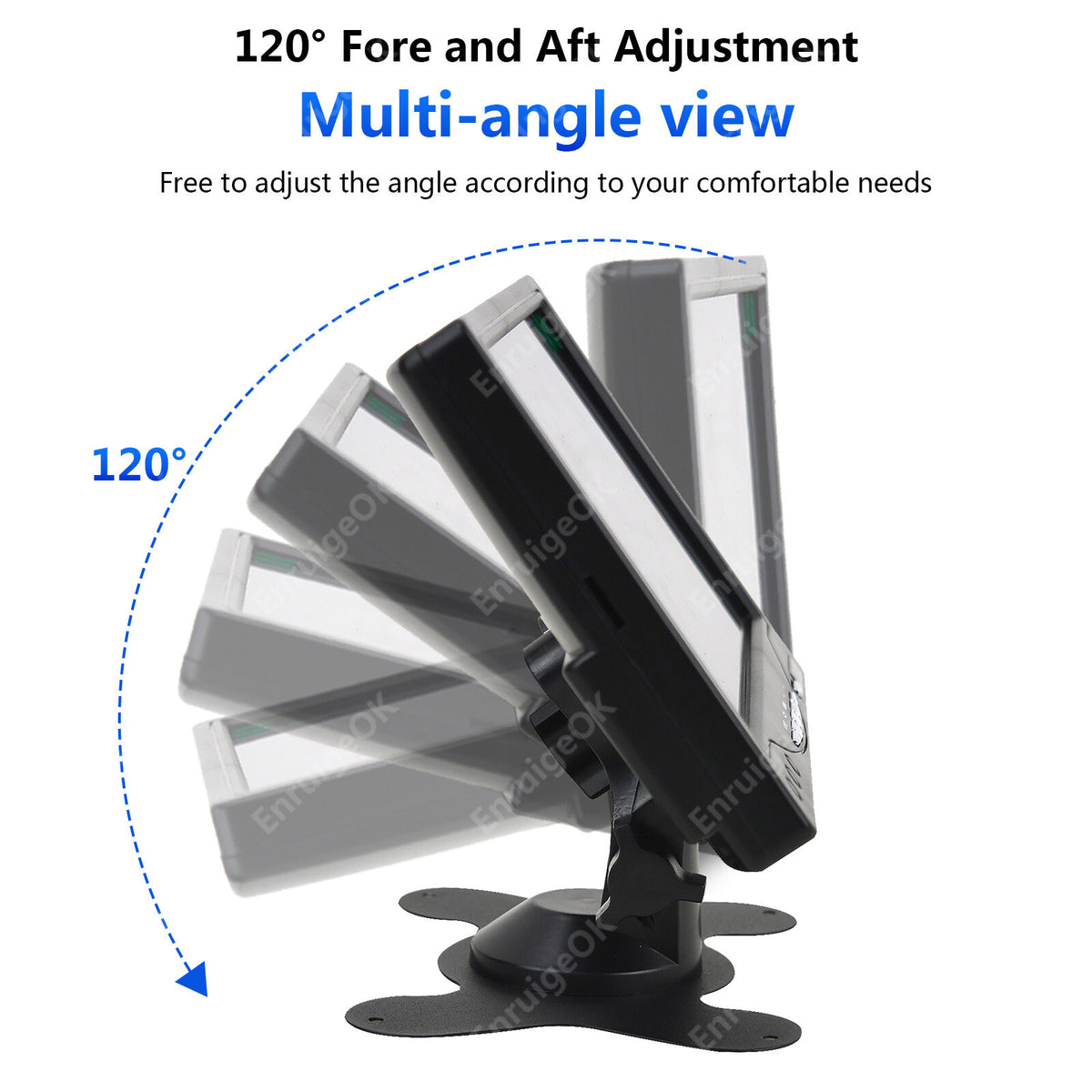

1 X Dashboard mount stand

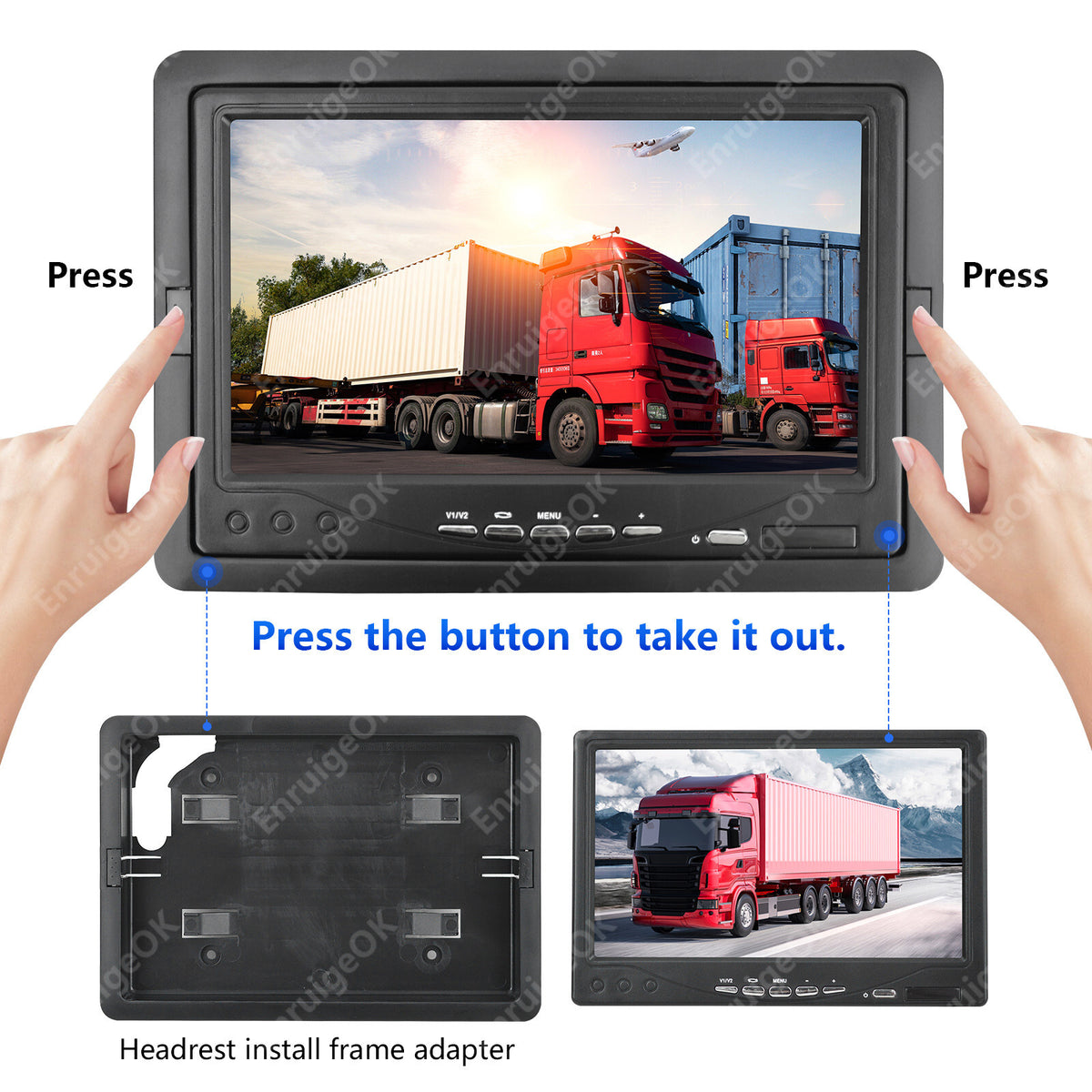

1 X Headrest Shell

1 X Manual

Description

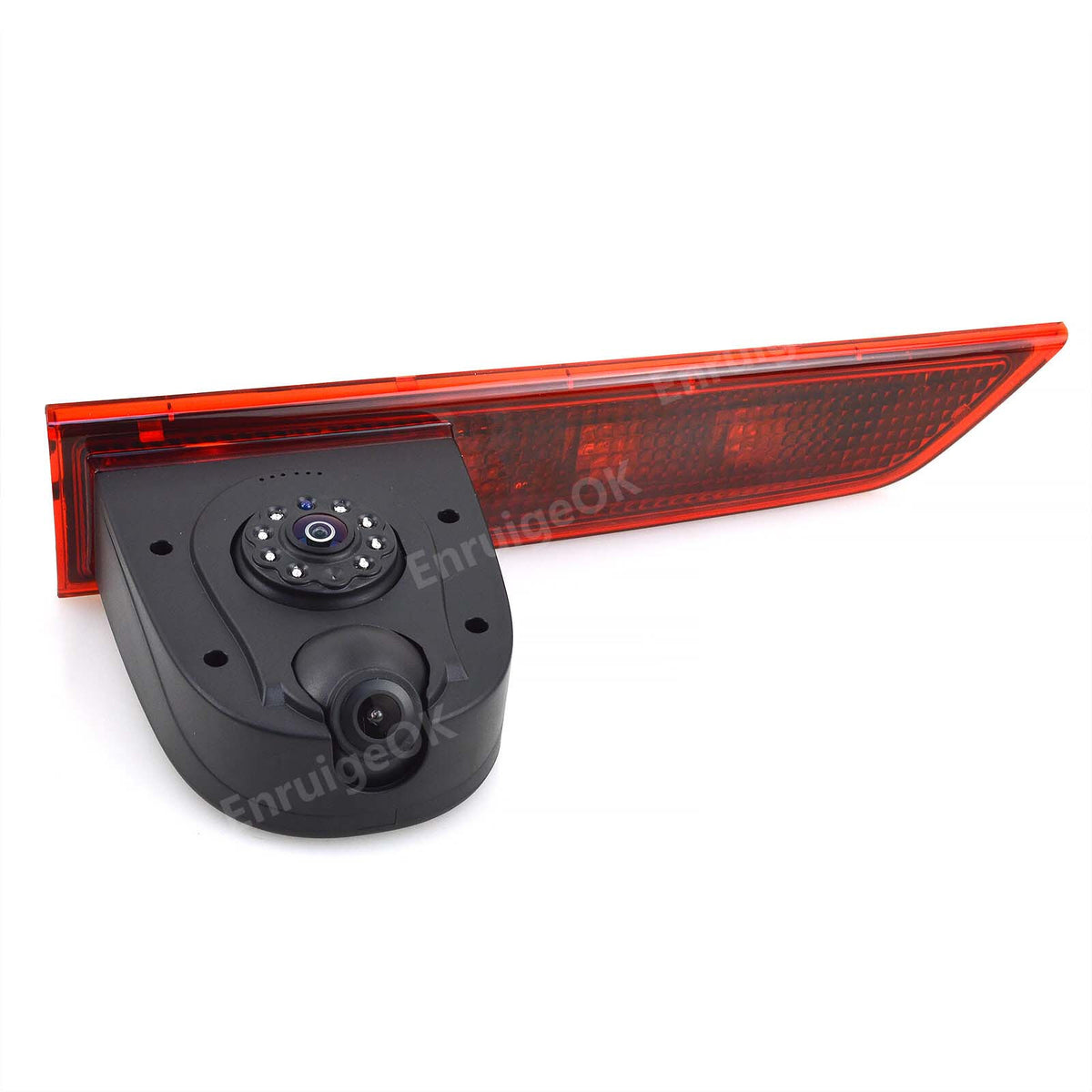

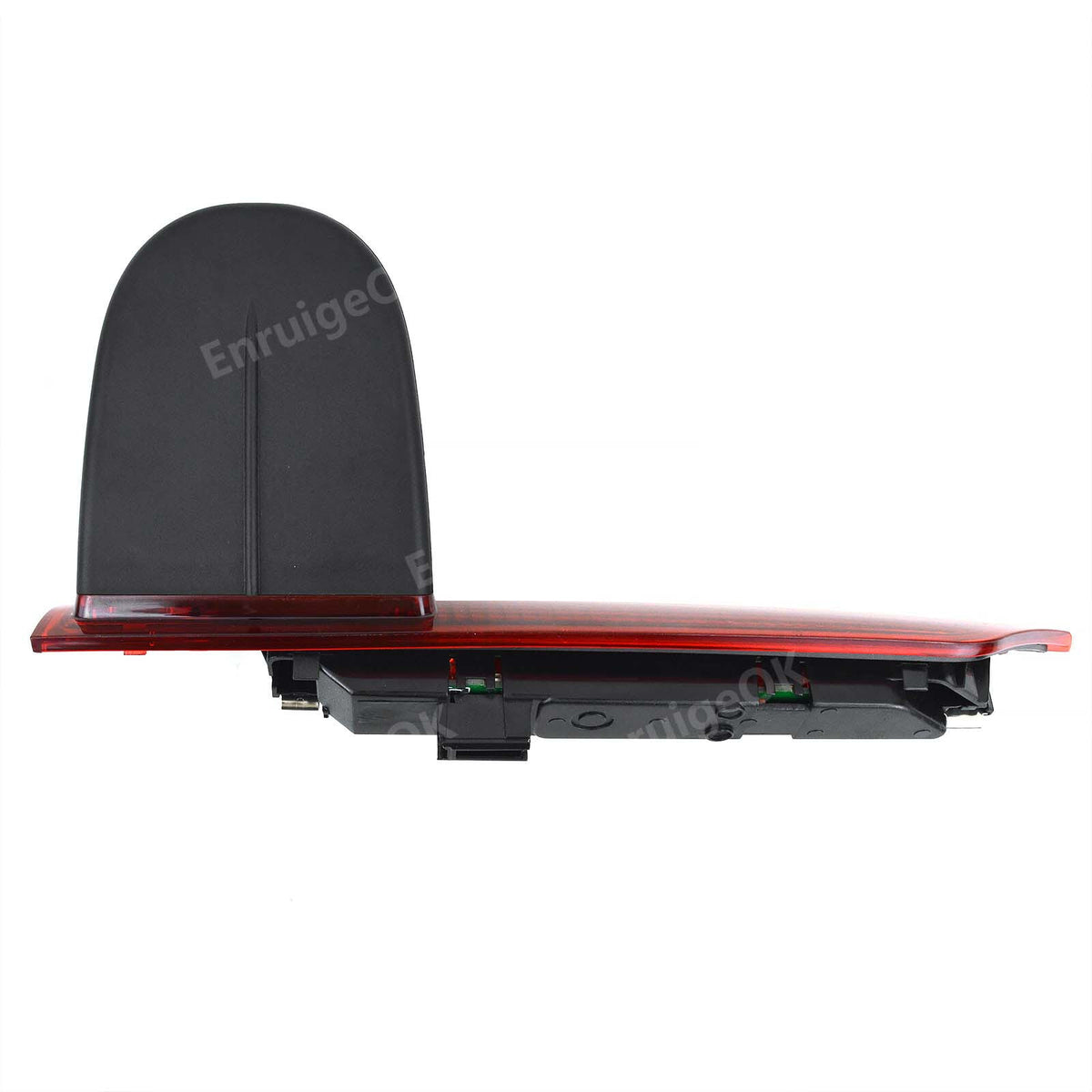

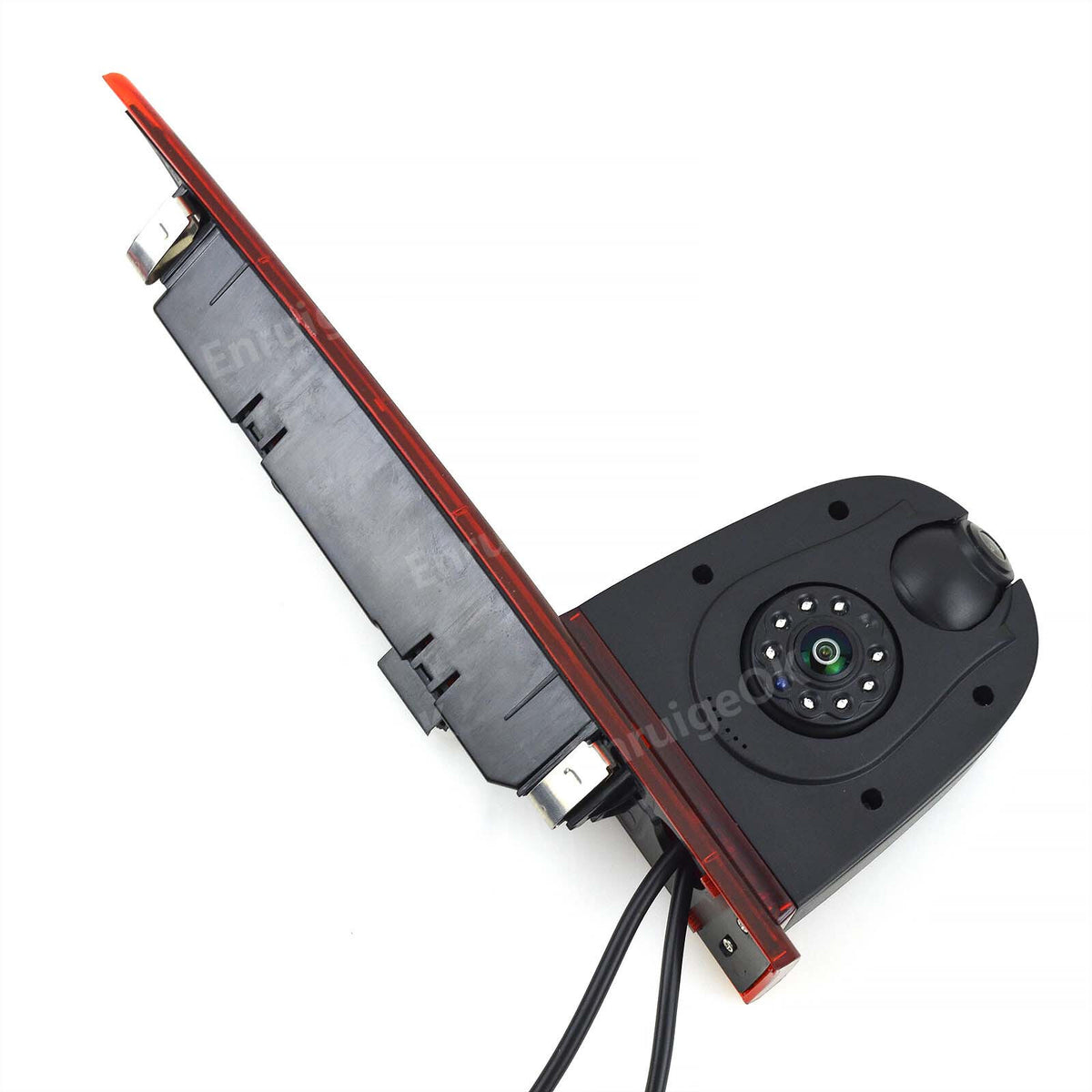

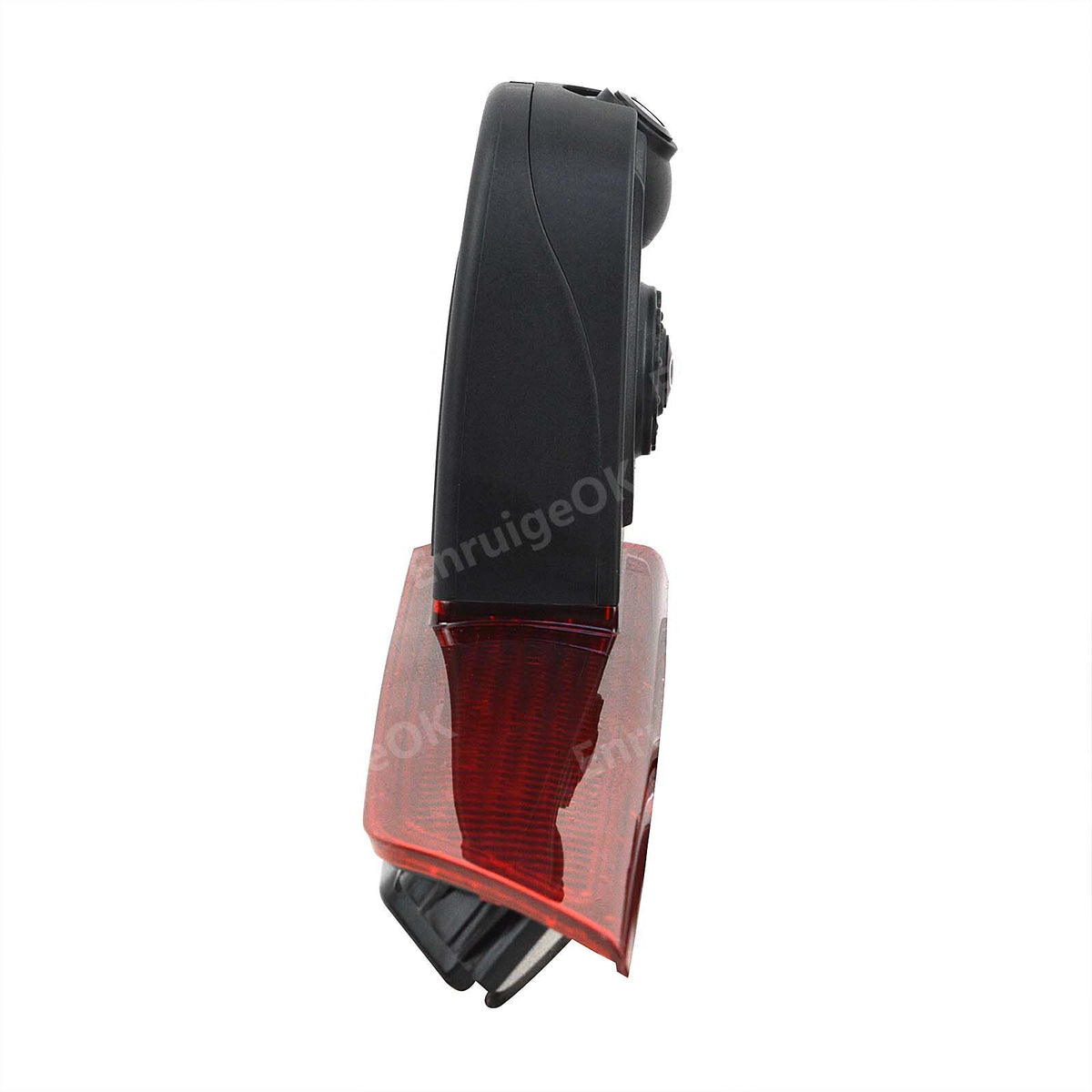

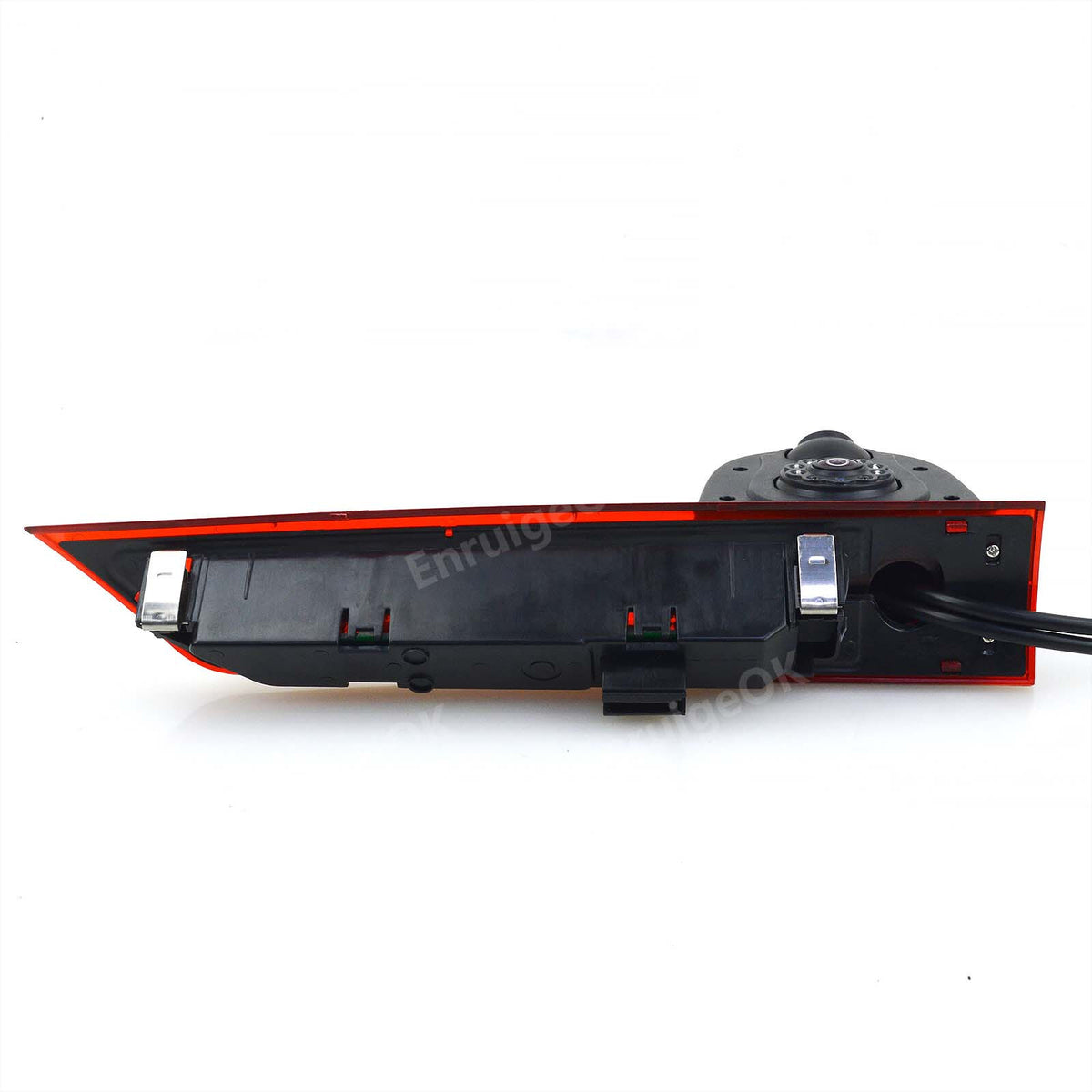

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

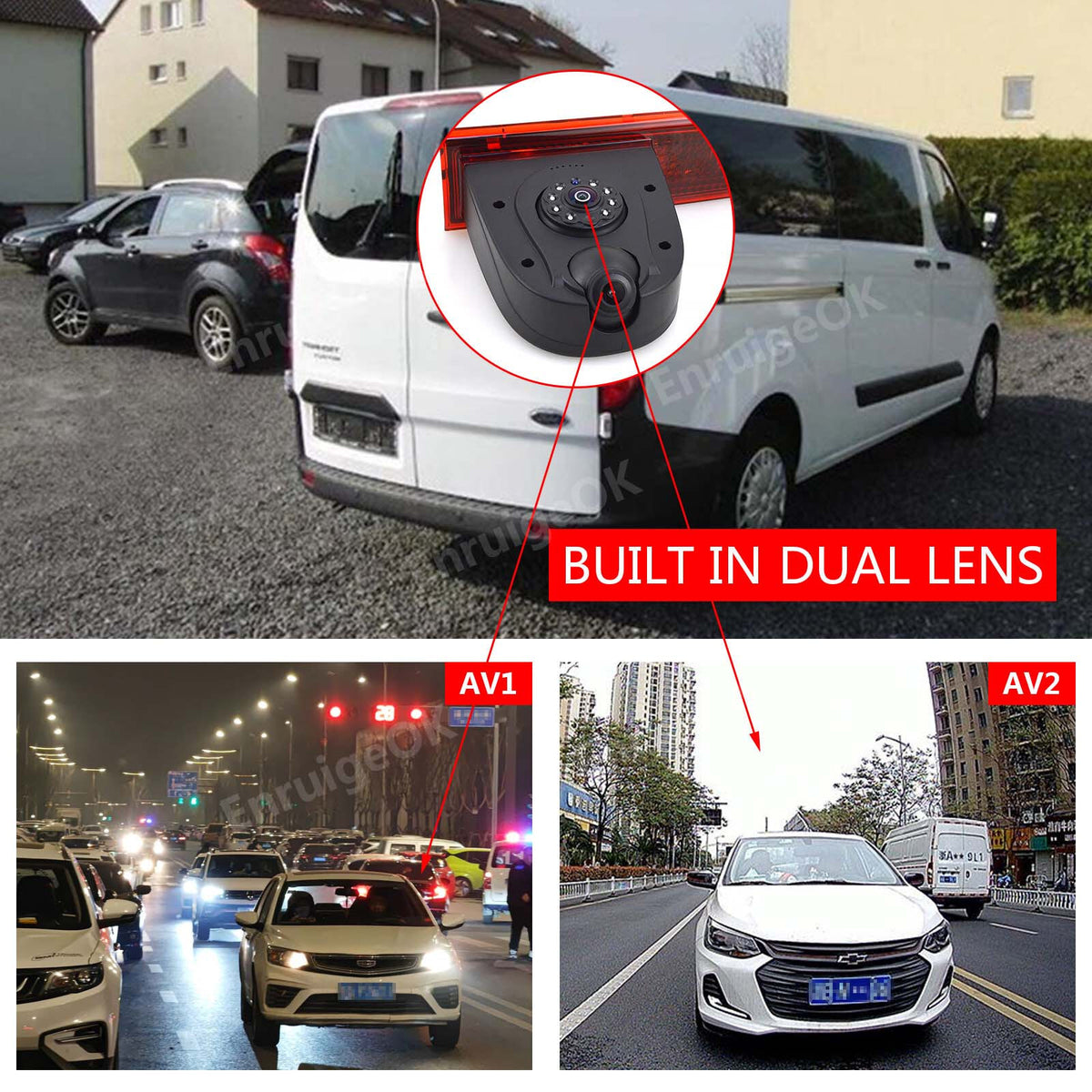

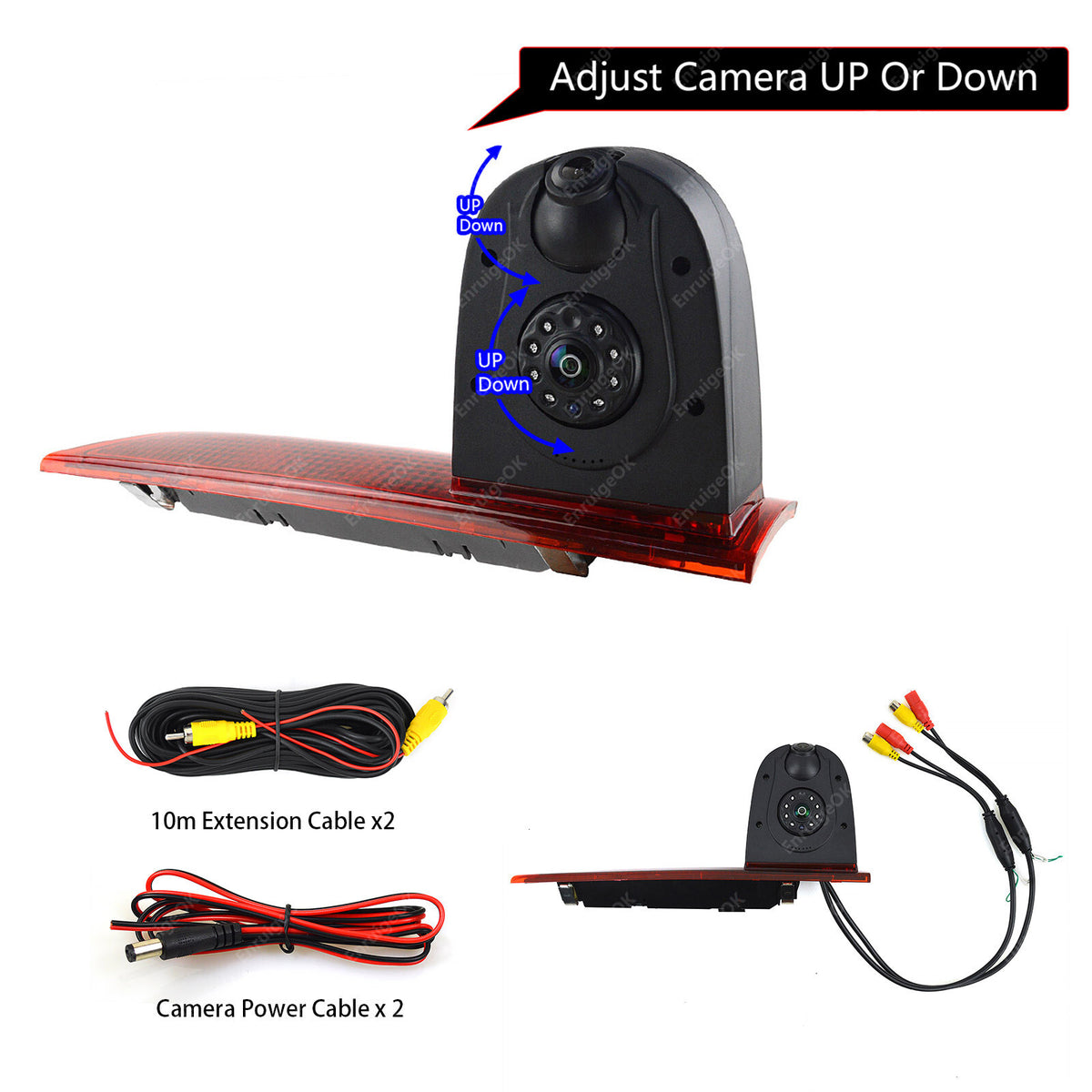

TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving, one for reversing view while parking.

Sensor and Night Vision:

This brake light camera uses a Colour CMOS sensor with enhanced color

imaging and features 8 infrared

lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This

brake light camera supports vehicle power systems with fluctuating

voltages, ensuring reliable operation in various conditions.

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Complete Parking Aid:

Includes a dual-lens reversing camera and a 7" TFT-LCD monitor. The

monitor displays rear camera footage while reversing, ensuring safer

parking.

Camera Specifications

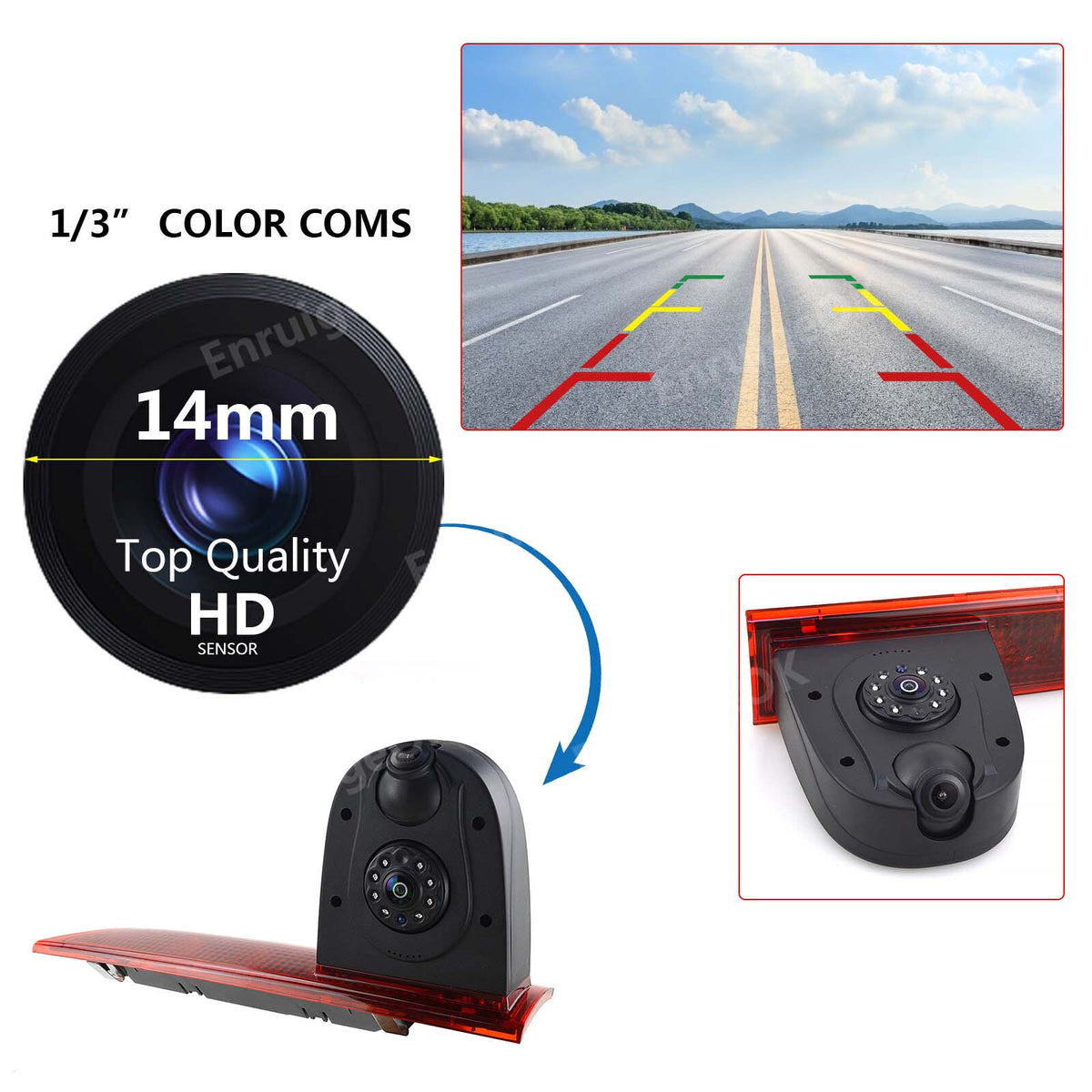

Image sensor: 1/3" CMOS

Lens: 2.8mm&3.6mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°&90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9V-35V

Operating temperature: -20℃ to +70℃

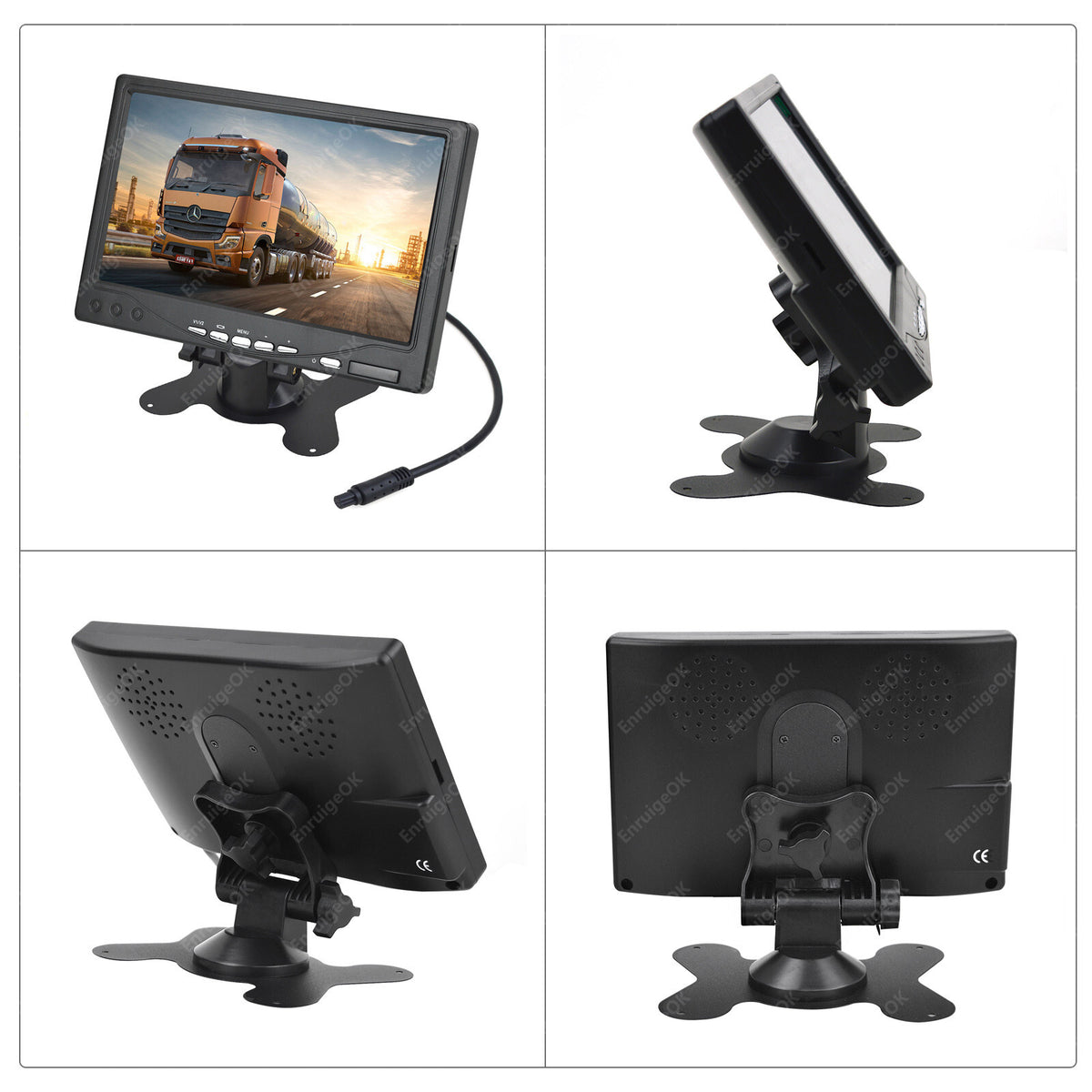

Monitor Specifications

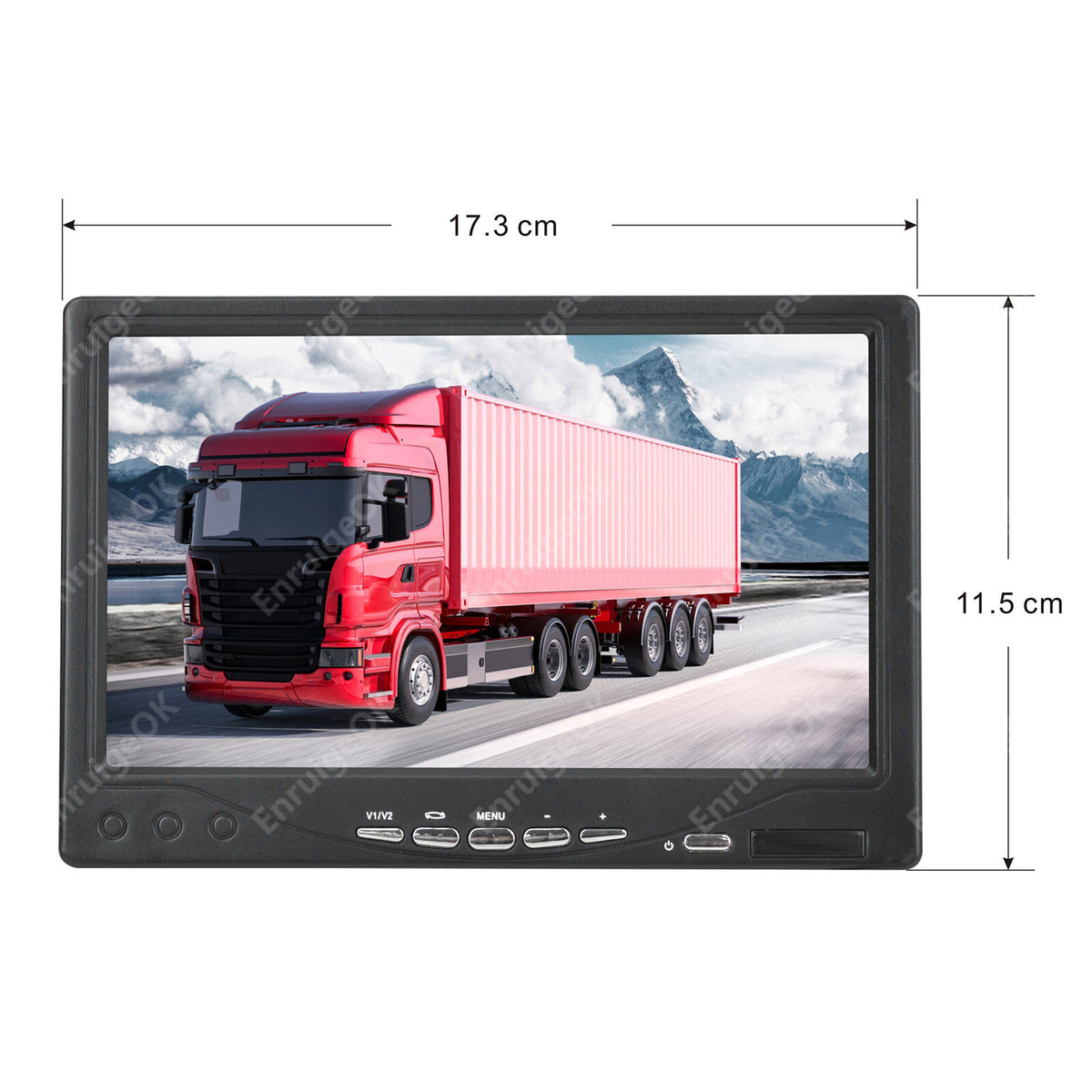

Screen: 7 inch

Resolution: 800x(RGB)x480

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

Video Input: Dual video inputs, AV1(For driving rear view) and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the reversing camera (image) when the reversing gear is engaged.

Blue screen displayed when no signal is detected.

Power Supply: DC 9V-35V

Power consumption: 6W

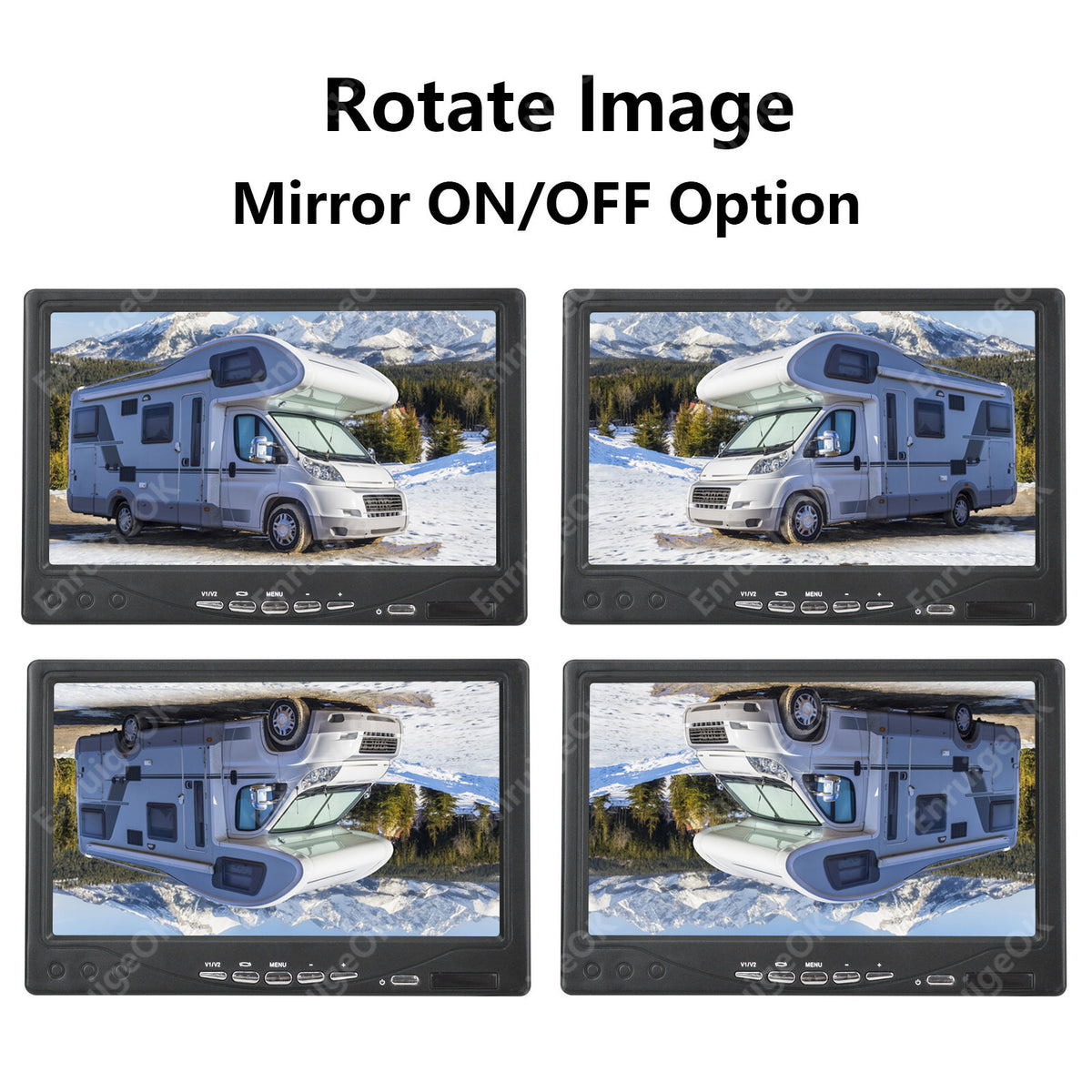

Rear watching: Image can be changed left and right

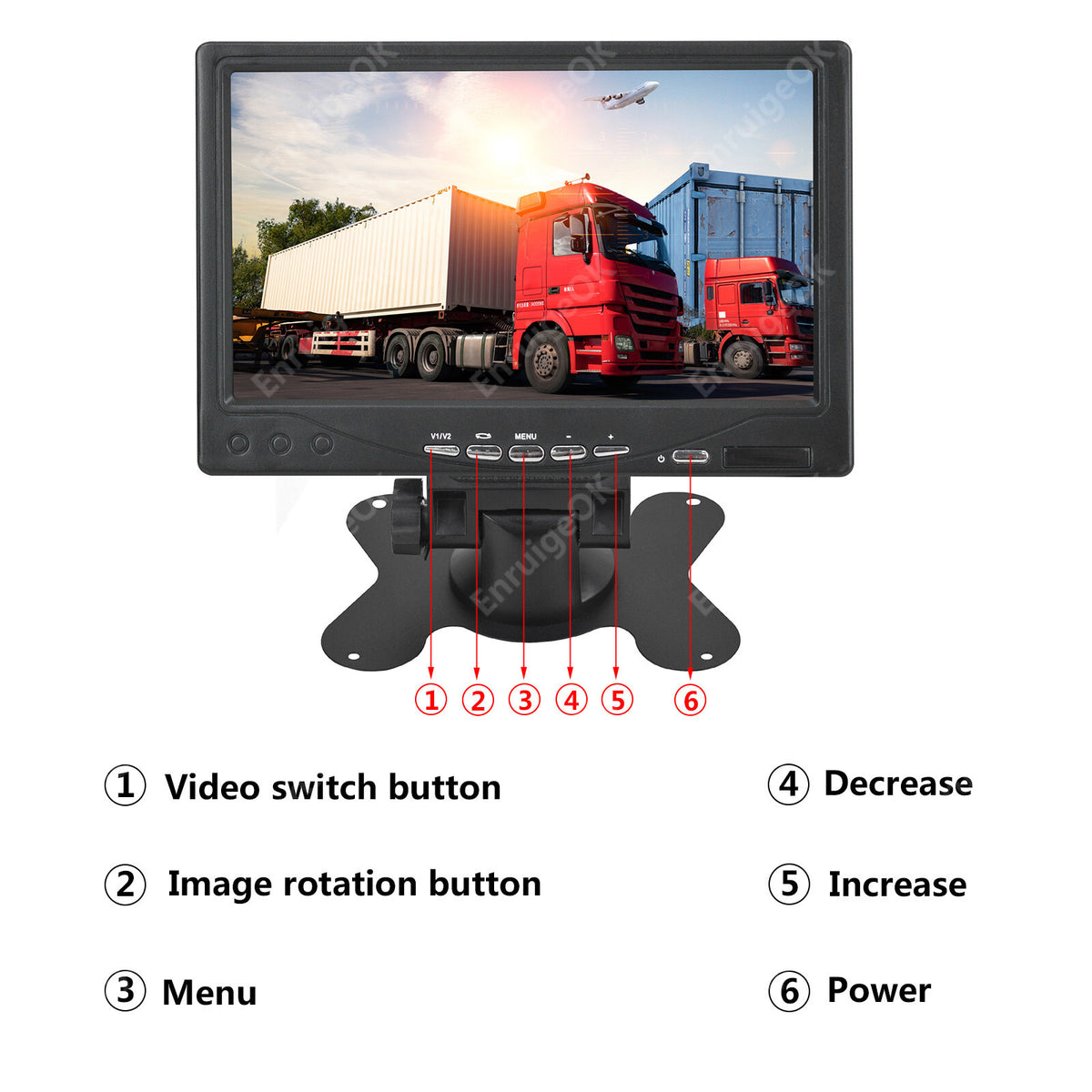

Operate mode: The touch key operation and remote control

Remote control: a CR2025 button battery (battery not included)

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
