Dual Brake Light Reversing Camera For Citroen Relay Fiat Ducato Peugeot Boxer

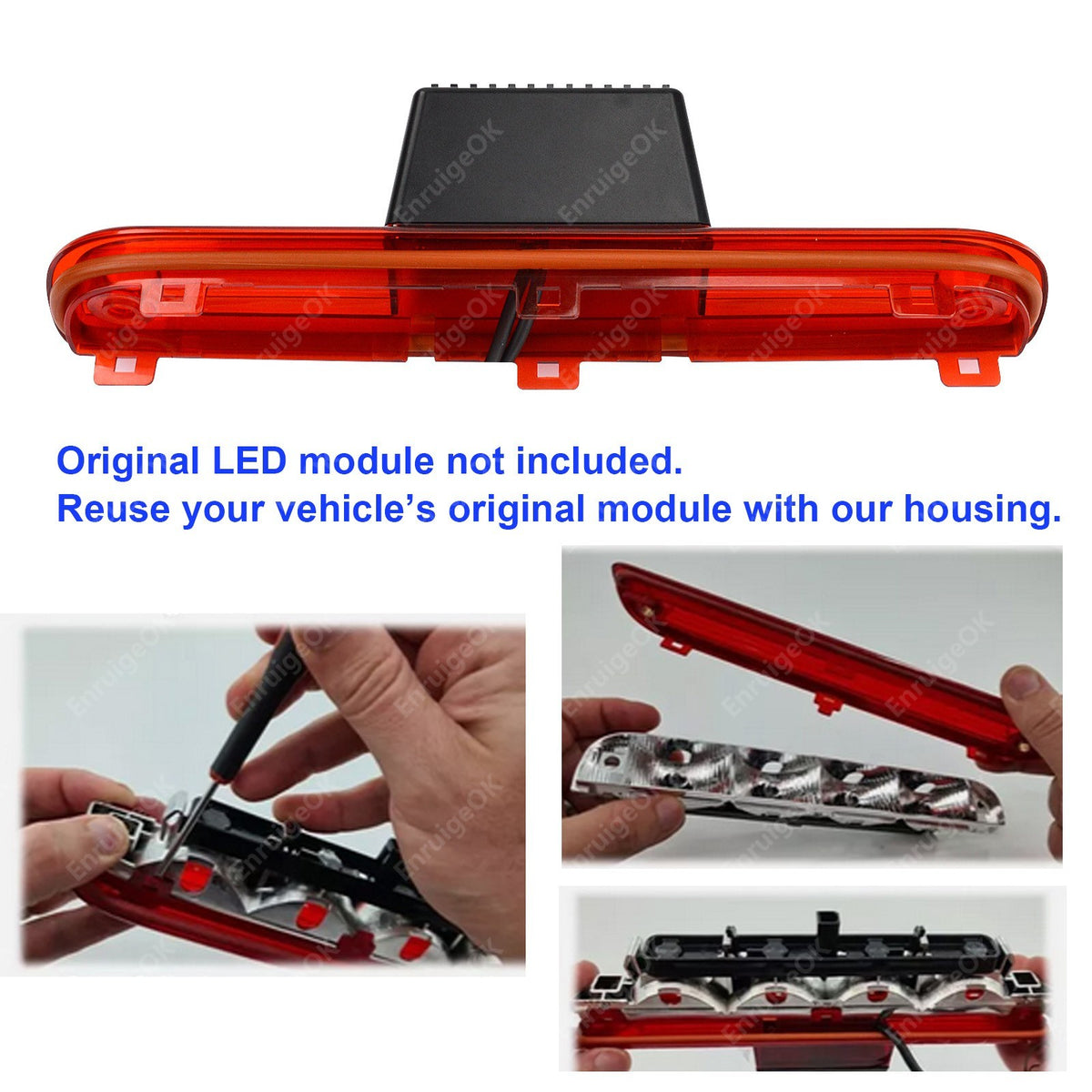

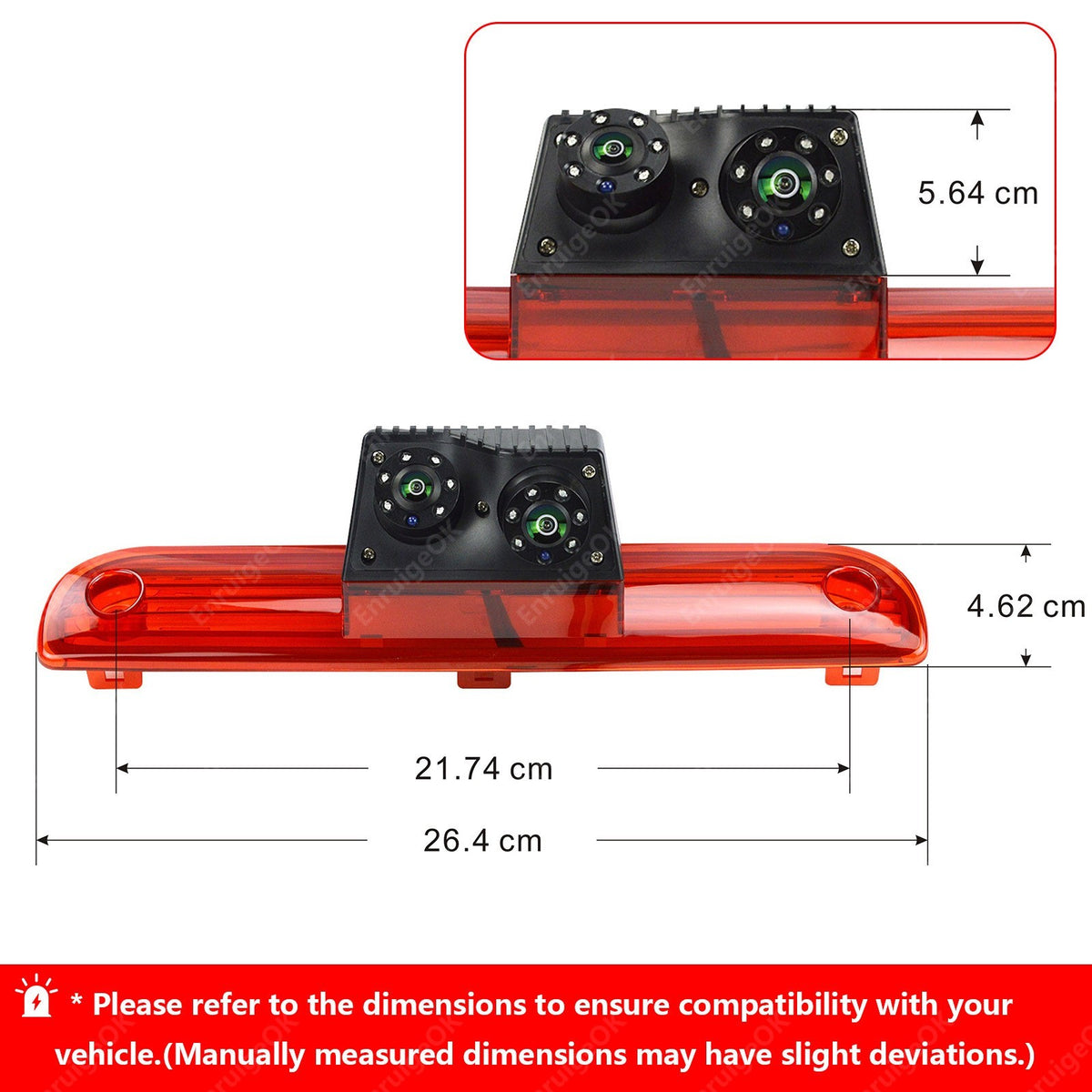

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK Dual Lens Rear Brake Light Reversing Camera For Fiat Ducato, Peugeot Boxer, Citroen Relay Van

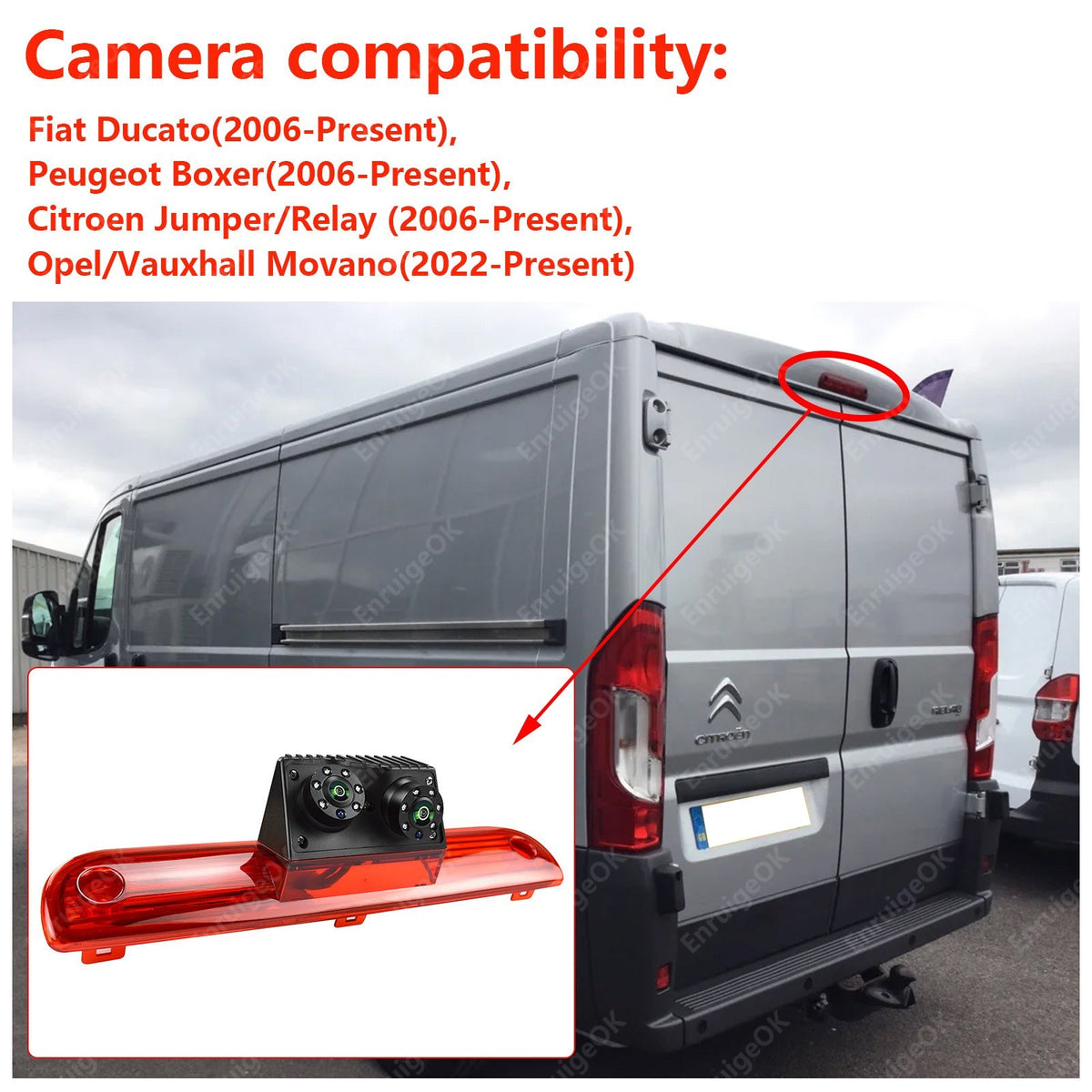

Camera Compatibility

✅Peugeot-Boxer 2(2006-2011)

✅Peugeot-Boxer 3(2012-2014)

✅Peugeot-Boxer 3 facelift (2014 >)

✅Citroen-Jumper/Relay 2 (2006-2011)

✅Citroen-Jumper/Relay 3(2012 -2014)

✅Citroen-Jumper/Relay facelift (2014 >)

✅Fiat-Ducato 3rd Gen(2006-2014)

✅Fiat-Ducato 3rd Gen Facelift (X290)(2014-2021)

✅Fiat-Ducato 3rd Generation Series lll (X290) (2021 >)

✅Vauxhall-Movano(2022 >)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification

Reminder Friendly

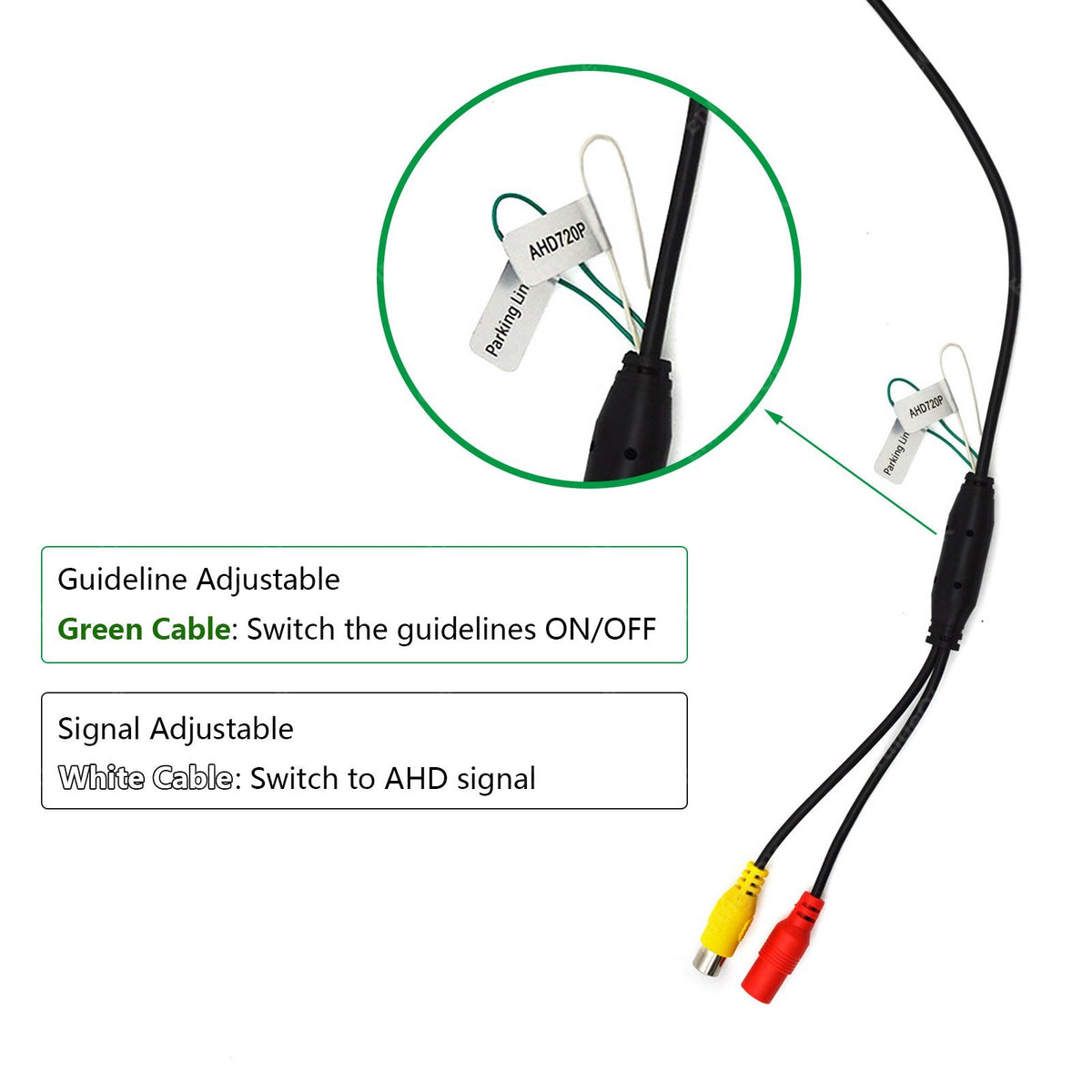

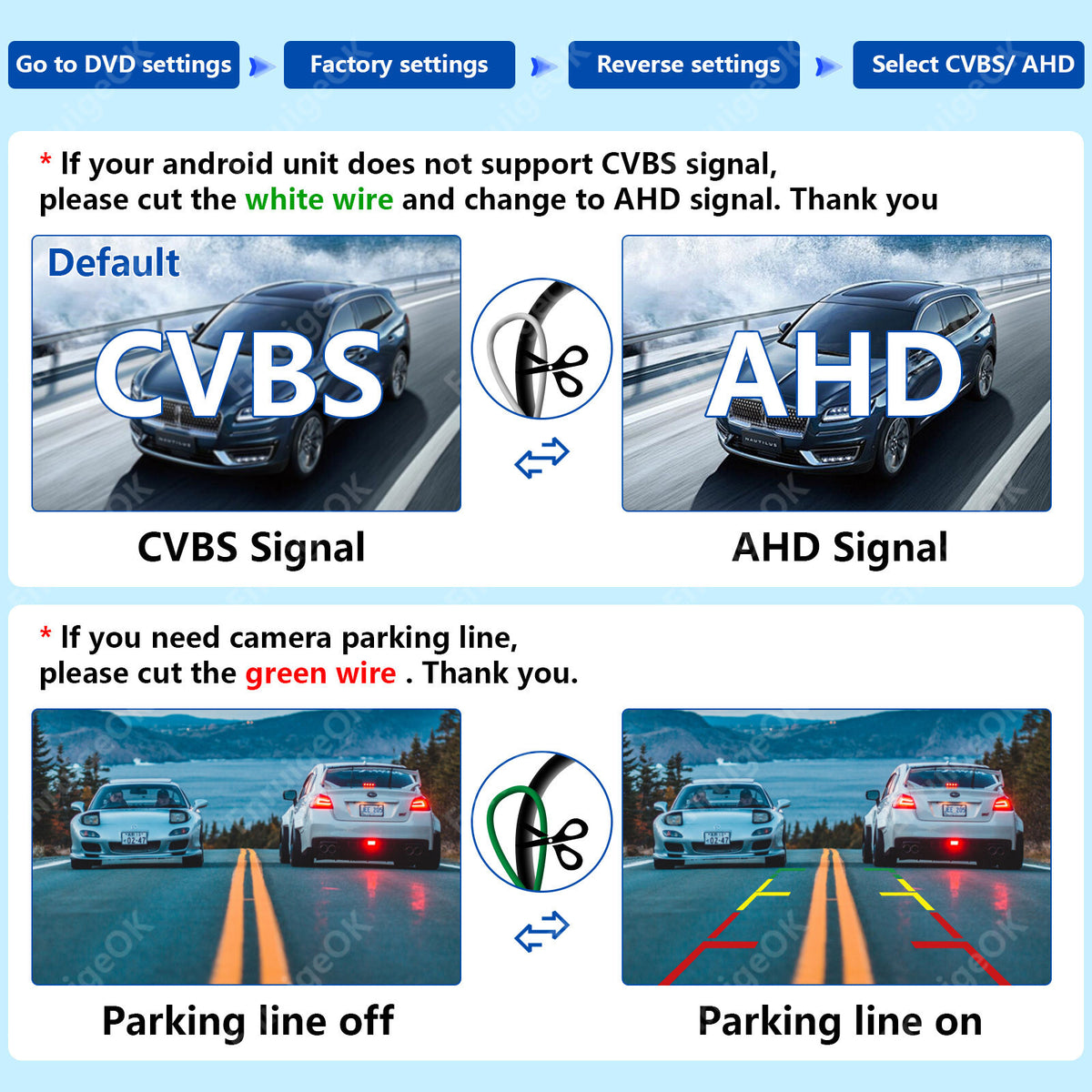

This camera defaults to a CVBS 700TVL signal and supports AHD 720P signal (by cutting the white wire).

If your Android device or monitor supports AHD 720P, you can cut the white wire to switch to AHD 720P. If it does not support AHD 720P, please leave the white wire intact. Thank you!

Tips: Go to Car settings >> Factory settings >> Reverse settings >> Select AHD 720P

Description

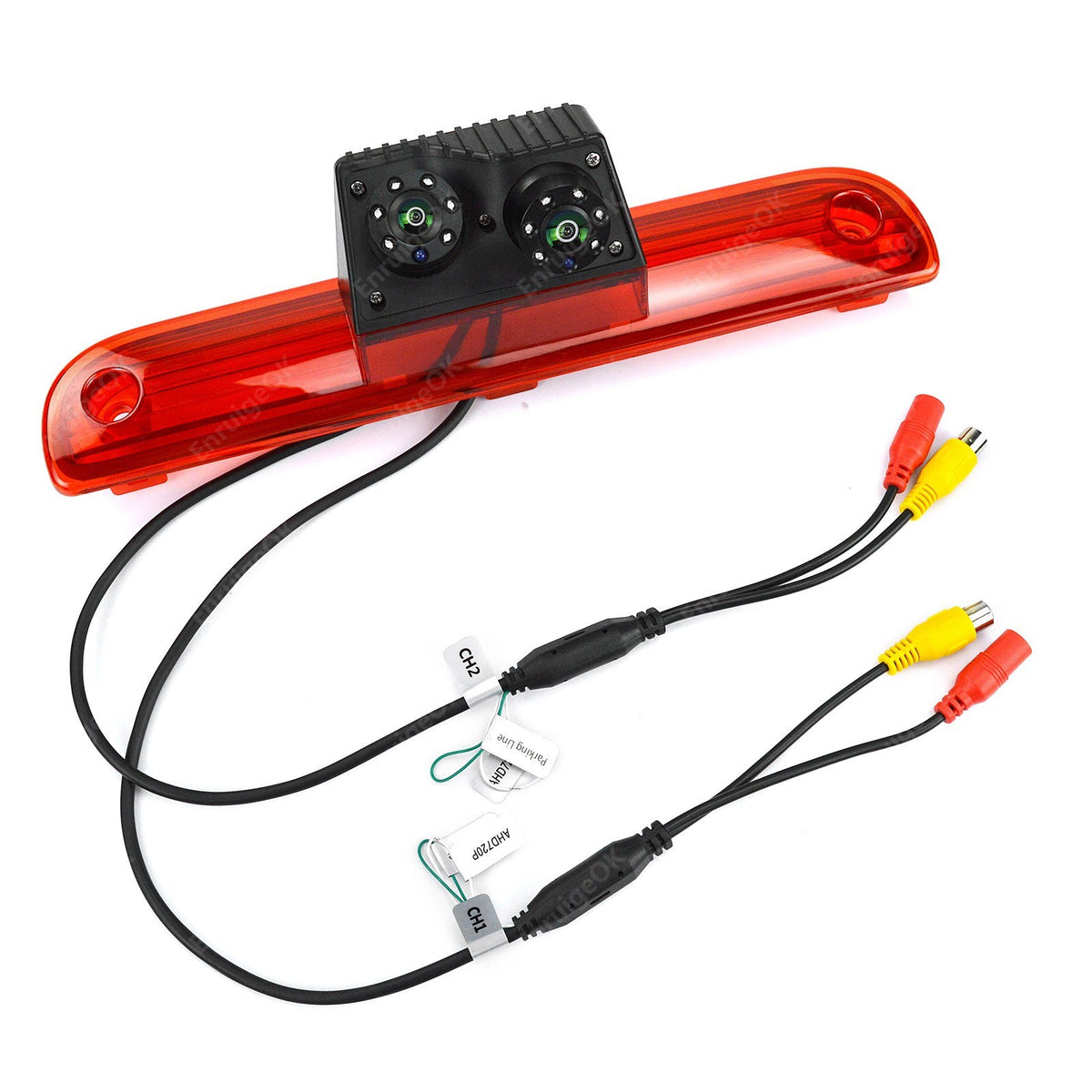

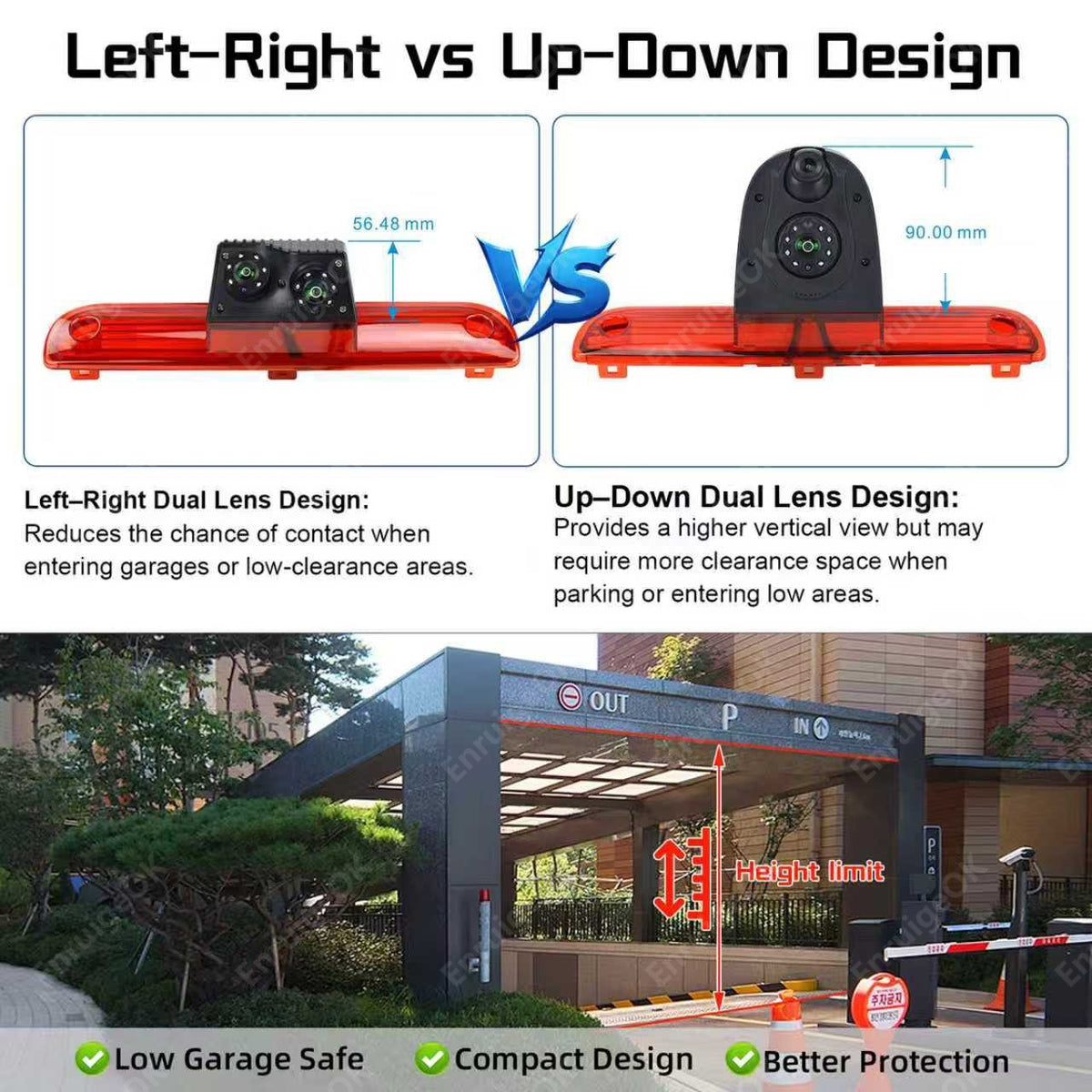

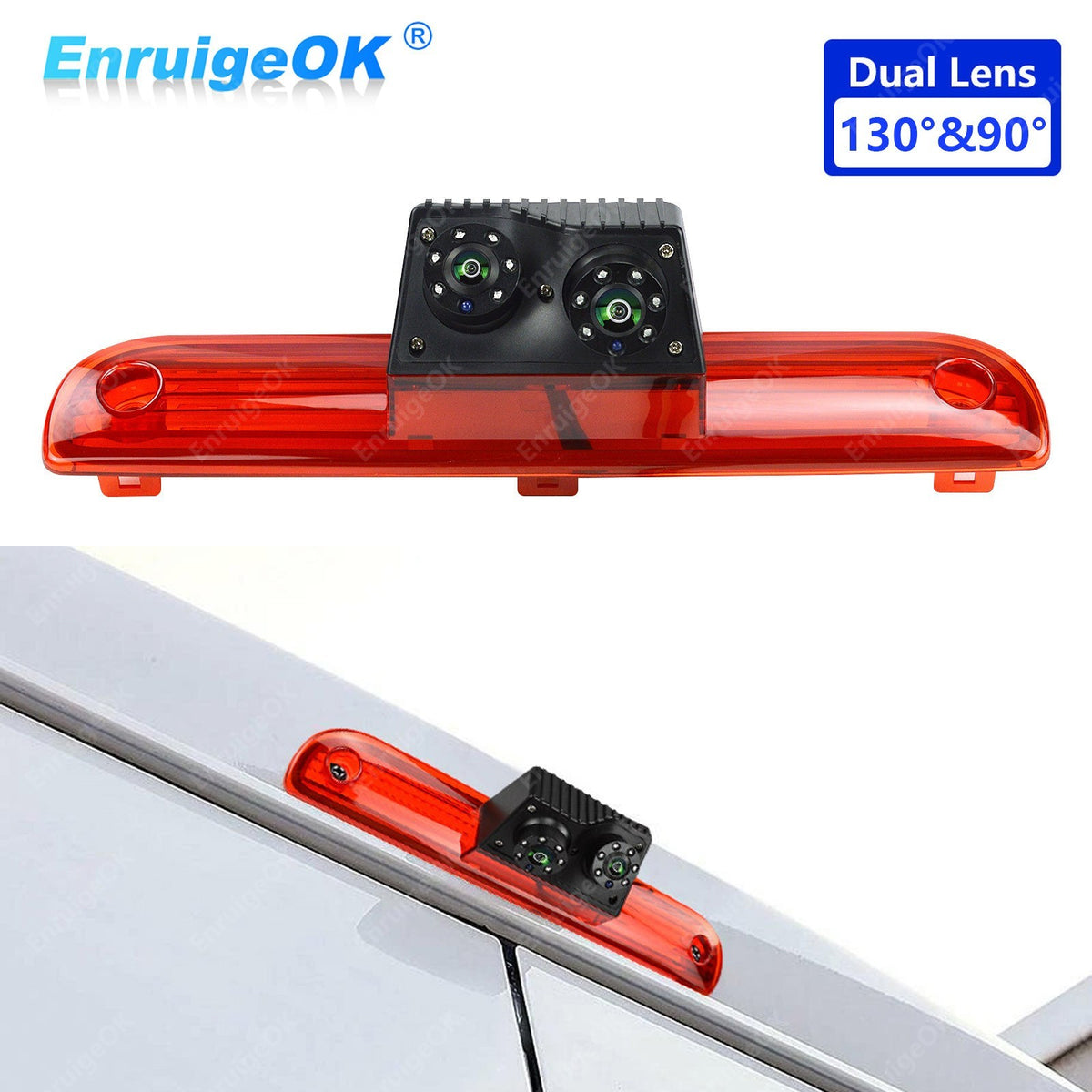

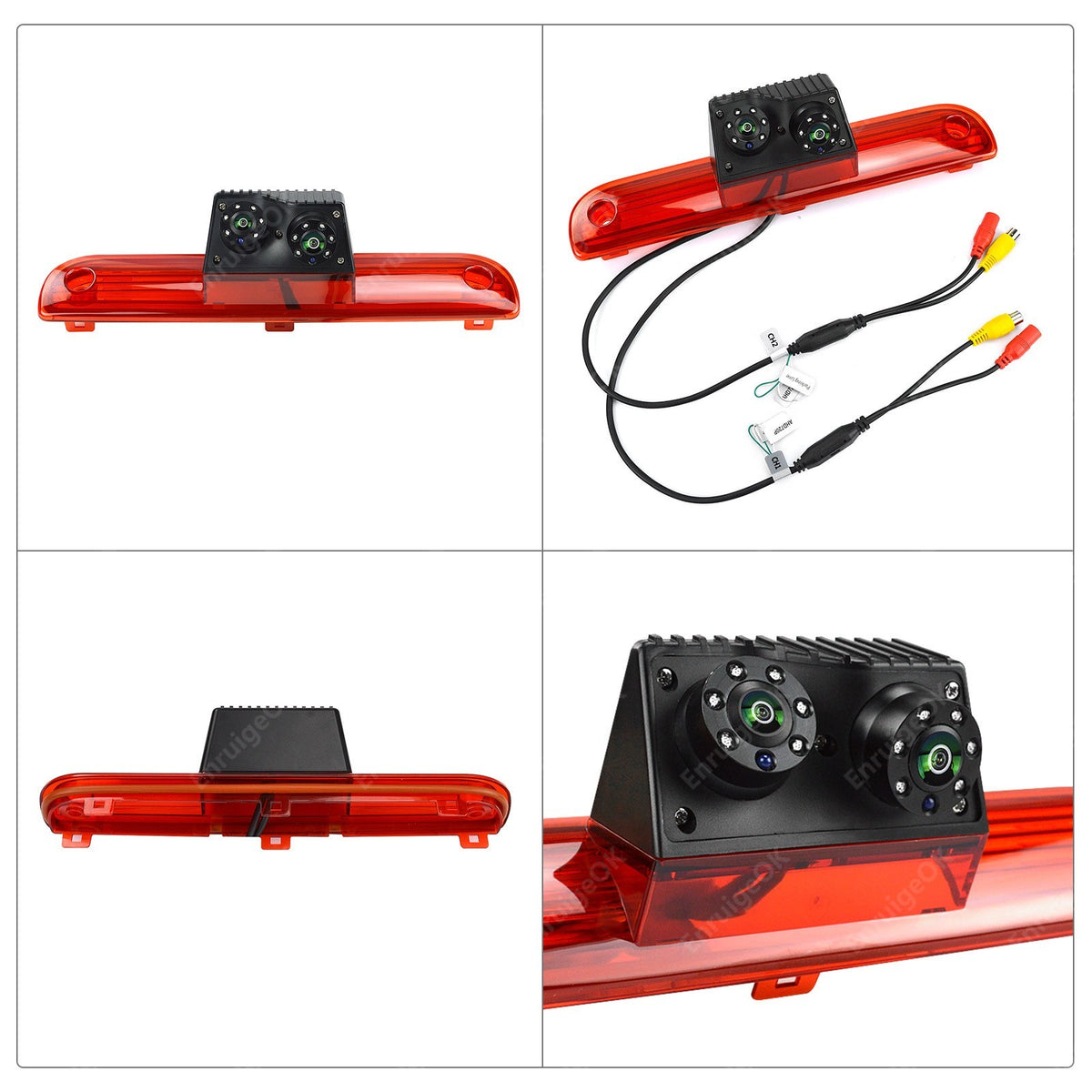

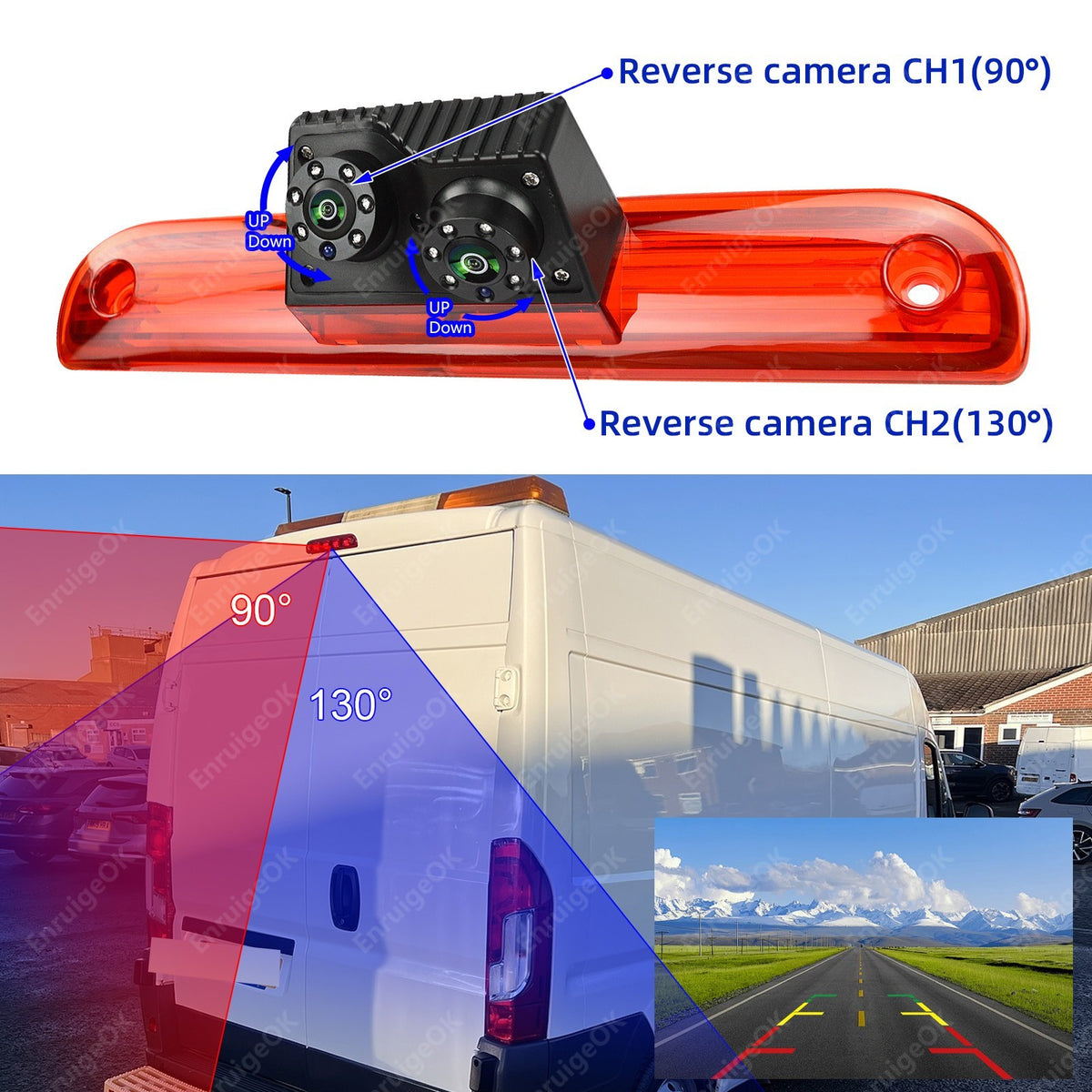

TWIN LENS !!! Dual lens reversing camera: One(CH2) showing the road or area behind the vehicle, and the other(CH1) looking directly down to help the driver see the vehicle's rear end.

Wide Voltage Range(DC 9V-35V): Supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

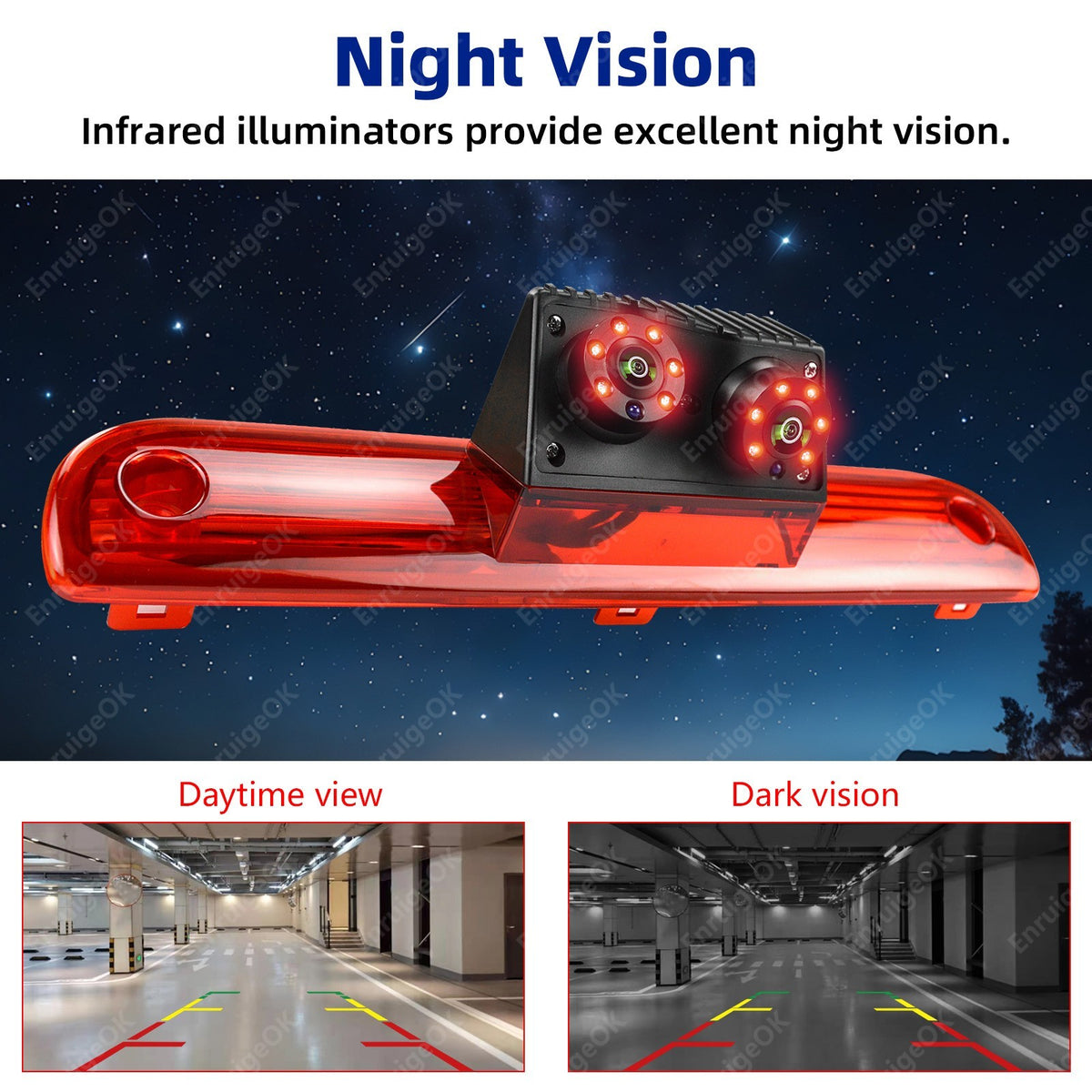

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 12 infrared lights around the lens to ensure excellent night vision.

Horizontal Viewing Angle: With a 130-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

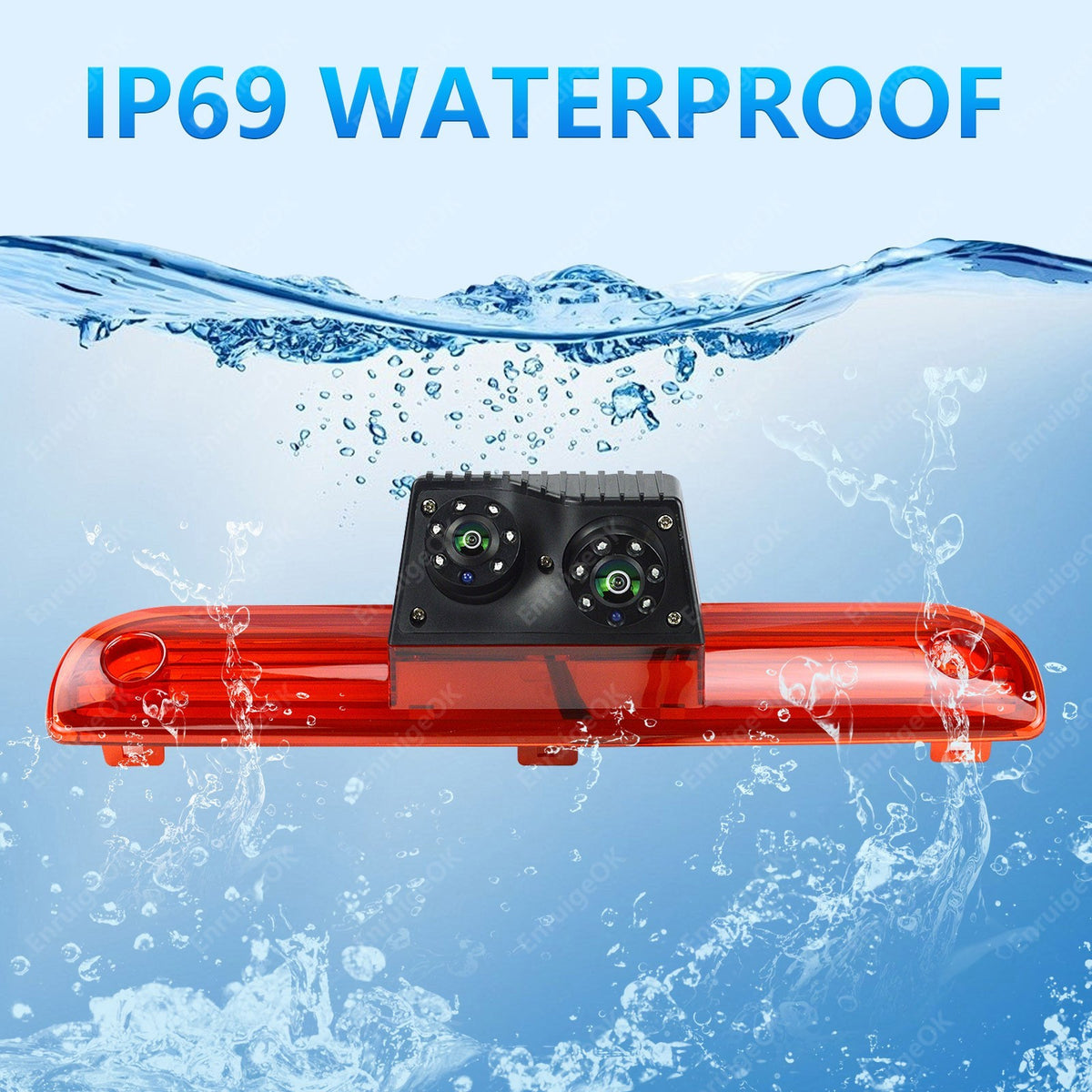

Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: Colour CMOS

Effective pixel: CVBS 733(H)x493(V); AHD 1280(H)x720(V)

Resolution: CVBS 700TV Lines; AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP69

Viewing angle: 90°&130°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 9-35V

Operating temperature: -20℃ to +80℃

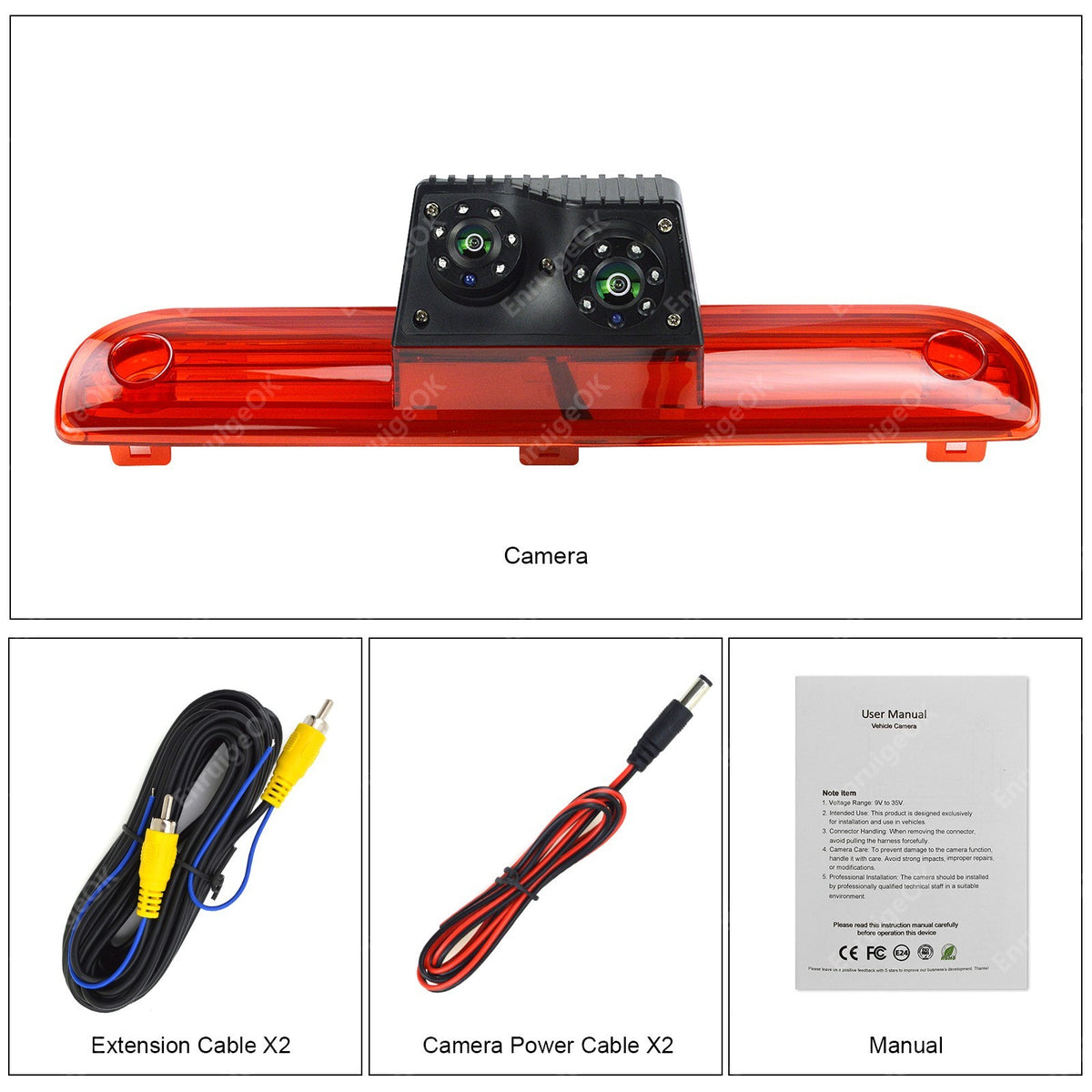

Package contents

1 X EnruigeOK Brake light camera

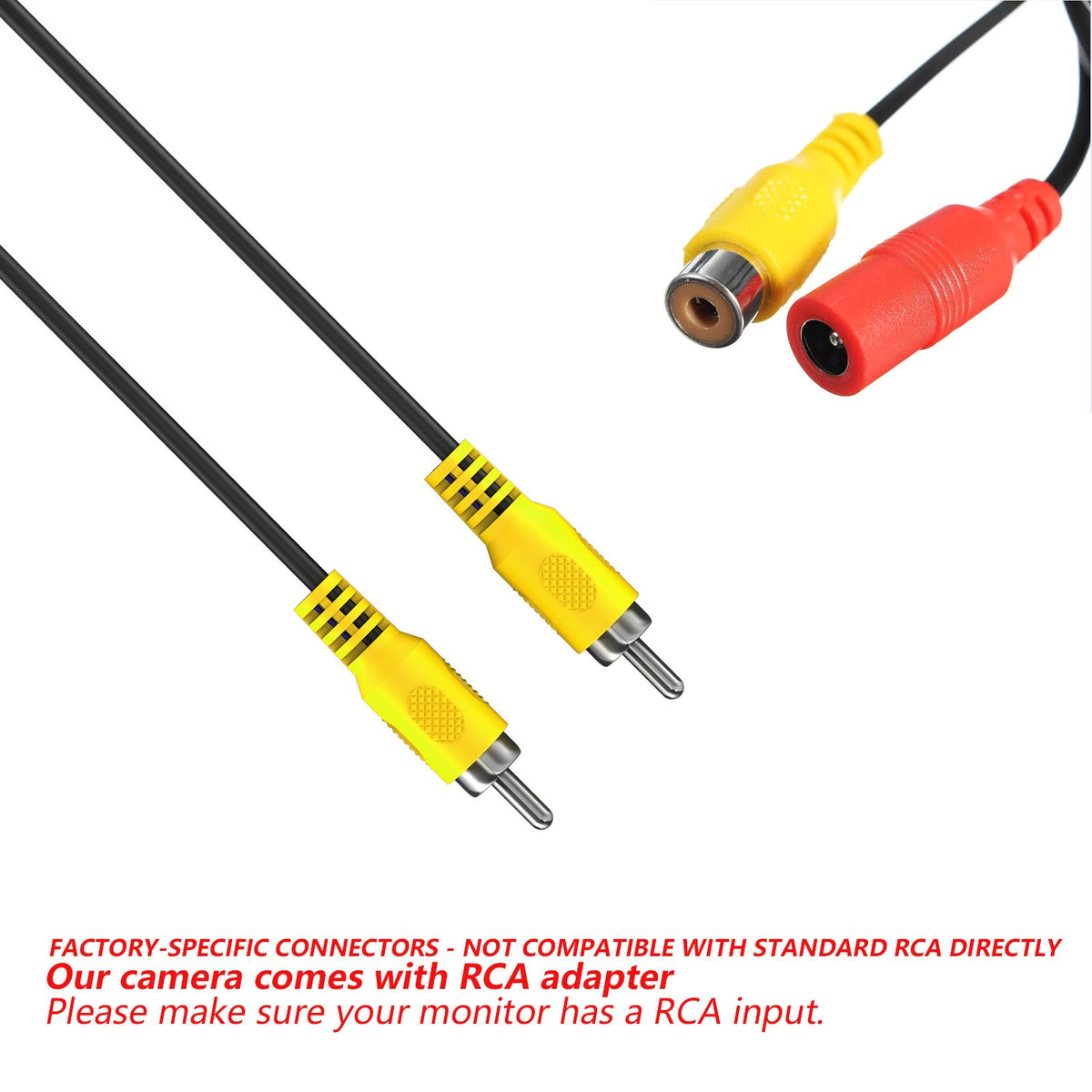

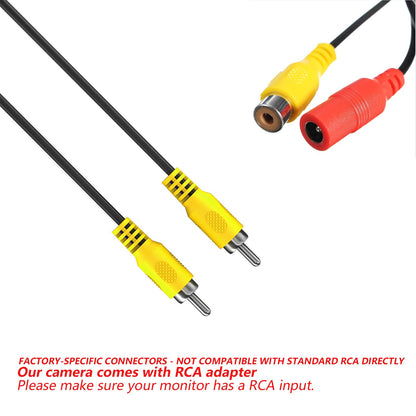

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X Manual

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
