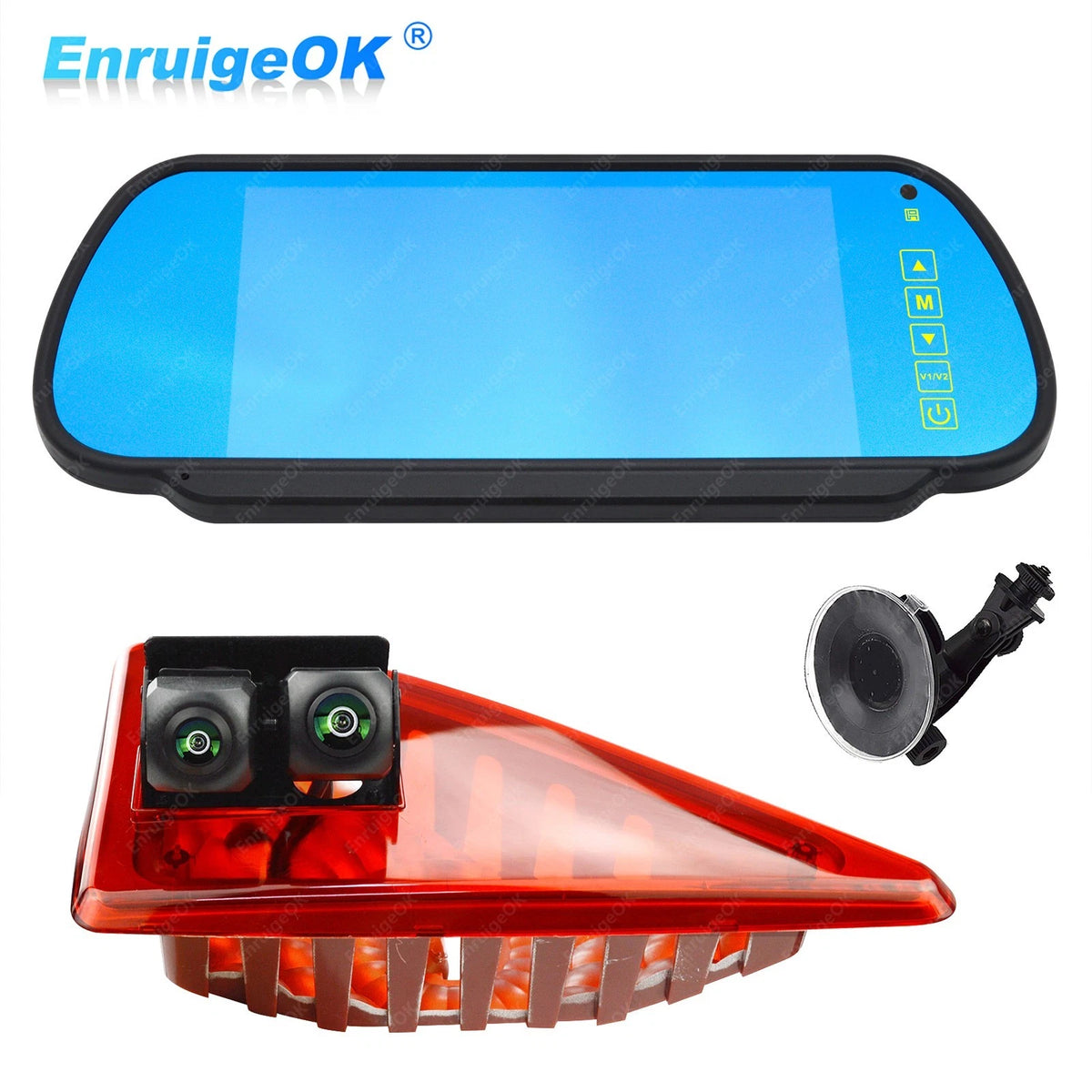

Dual CVBS Brake Light Camera + 7" Mirror Monitor for Master III & NV400

Dual CVBS Brake Light Camera + 7" Mirror Monitor for Master III & NV400.

Vehicle compatibility

• Opel/Vauxhall Movano B, 2010–2021
• Renault Master III, 2010–2023
• Nissan NV400, 2010–2024
• Nissan Interstar, 2022–2024

Check the original brake light housing dimensions and mounting position before ordering.

Features and specifications

• Dual camera lenses for reversing and rearward traffic view; adjustable lens position
• CVBS 700TVL; 1/4-inch CMOS sensor; 2.8mm lens; 733 × 493 effective pixels
• Infrared night vision approximately 35ft; built-in IR-CUT; IP69 camera
• PAL/NTSC; DC 12V camera; operating temperature −20°C to 70°C
• 7-inch TFT LCD mirror monitor, 800 × 480; adjustable 16:9 / 4:3 aspect ratio
• Two AV inputs; automatic switching when reversing; left/right image mirroring
• Touch buttons and remote control; 6W monitor power consumption
• Monitor power supply: DC 12V

Package contents

• Dual brake light camera
• 7-inch mirror monitor
• Remote control (CR2025 battery not included)
• 2.5m monitor power cable
• 2 × 10m video extension cables
• 2 × 1m DC power cables
• Suction cup bracket
• User manual

SKU: ERG-S135/CVBS+ERG-7001-1CVBS/A
