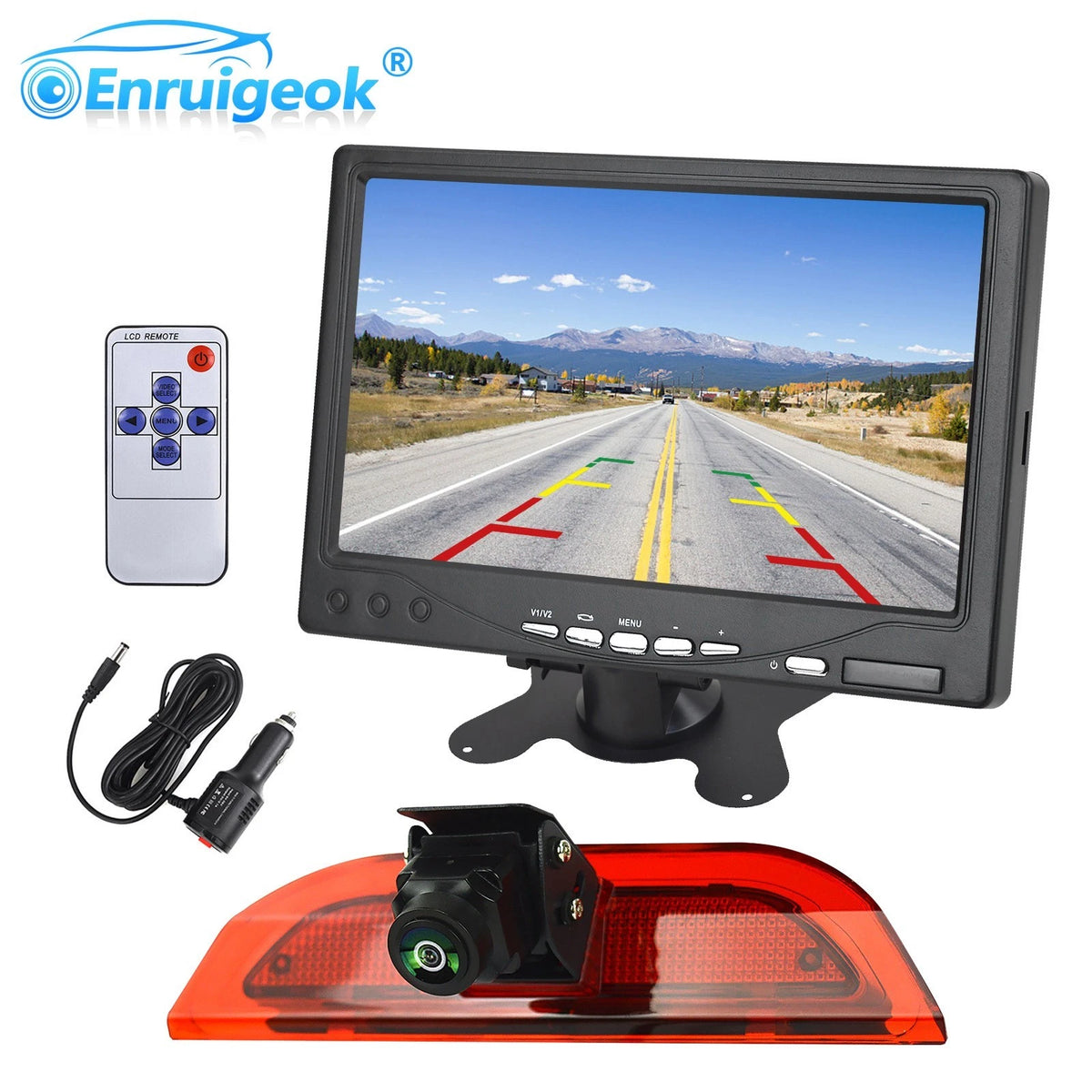

Ford Connect & Courier CVBS Camera Kit with 7" LCD Monitor

Ford Connect & Courier CVBS Camera Kit with 7" LCD Monitor.

Vehicle compatibility

• Ford Transit Connect (SK), May 2024–2025
• Ford Transit Courier (N3P), October 2023–2025
• Ford E-Transit Courier (N3P), March 2025–2025
• Ford Tourneo Courier and E-Tourneo Courier (N1P), 2023–2025

Check the original brake light housing dimensions and mounting position before ordering.

Features and specifications

• CVBS 700TVL CMOS camera, 733 × 493 effective pixels
• 130° horizontal viewing angle; night vision approximately 10.5m
• IP69 waterproof camera; PAL/NTSC; DC 12V
• 7-inch LCD monitor with 800 × 480 resolution
• AV1/AV2 inputs and automatic reversing activation
• Adjustable parking guidelines and left/right image mirroring
• Touch-button and remote control operation; CR2025 remote battery not included

Package contents

• Brake light camera
• 7-inch LCD monitor
• Remote control (battery not included)
• 12V cigarette lighter power adapter
• Video extension cable and 2 DC power cables
• Dashboard mount
• User manual

SKU: ERG-S140/CVBS-1-2+ERG-7008AV
