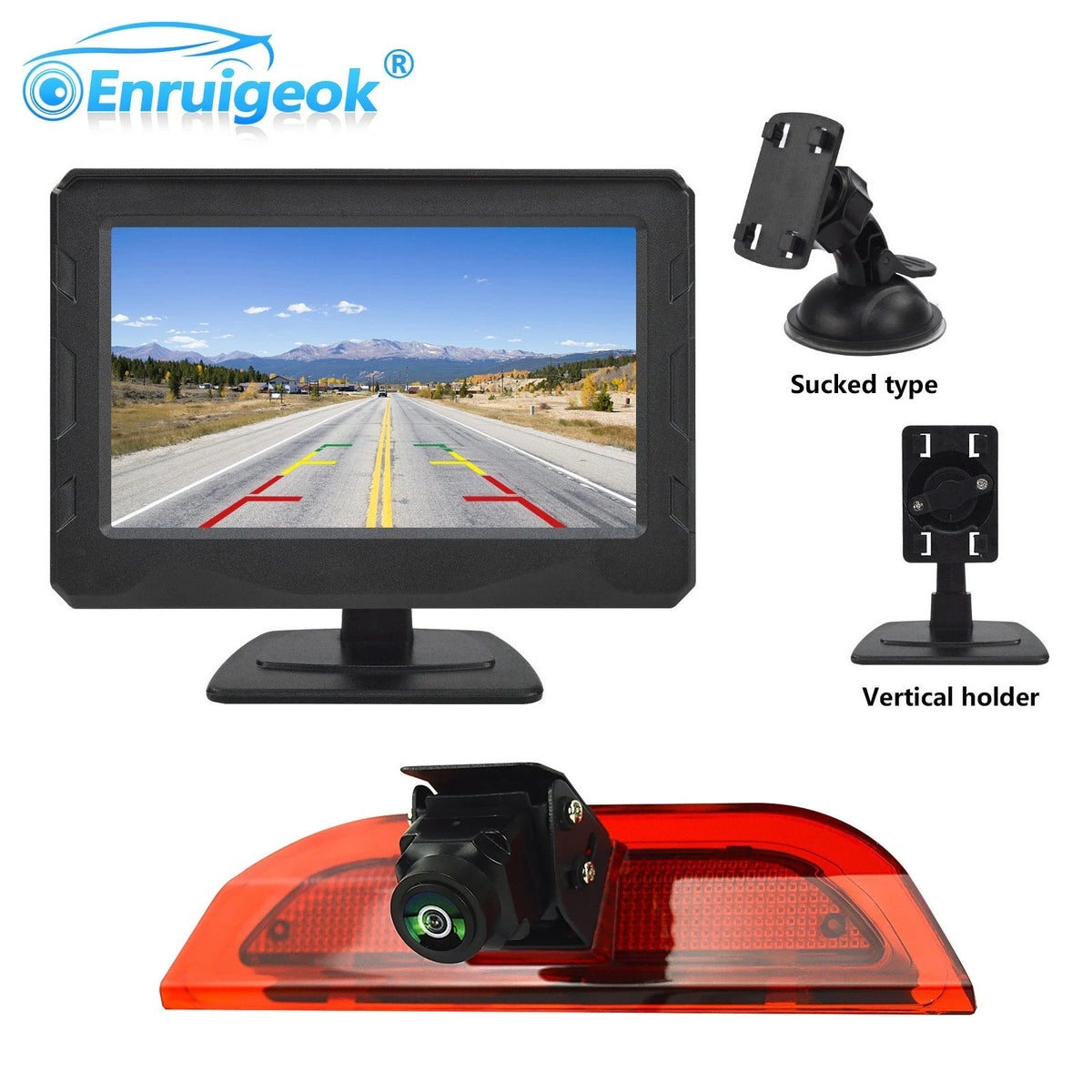

CVBS Brake Light Camera + 4.3" Monitor for Ford Transit & Tourneo Courier

CVBS Brake Light Camera + 4.3" Monitor for Ford Transit & Tourneo Courier.

Vehicle compatibility

• Ford Transit Courier (N3P), October 2023–2025
• Ford E-Transit Courier (N3P), March 2025–2025
• Ford Tourneo Courier (N1P), 2023–2025
• Ford E-Tourneo Courier (N1P), 2023–2025

Check the original brake light housing dimensions and mounting position before ordering.

Features and specifications

• CVBS 700TVL brake light camera; 1/3-inch CMOS sensor; 733 × 493 effective pixels
• 130° viewing angle; infrared night vision approximately 10.5m
• IP69 camera housing; PAL/NTSC; DC 12V; camera operating temperature −20°C to 70°C
• 4.3-inch IPS monitor, 480 × 272 resolution; 4:3 aspect ratio
• Two video inputs; automatic PAL/NTSC; adjustable brightness
• DC 12V monitor

Package contents

• Brake light camera
• 4.3-inch monitor
• Video extension cable
• 2 DC power cables
• Dashboard mounting stand
• Suction cup mounting stand
• User manual

SKU: ERG-S140/CVBS-1-2+ERG-4005AV
