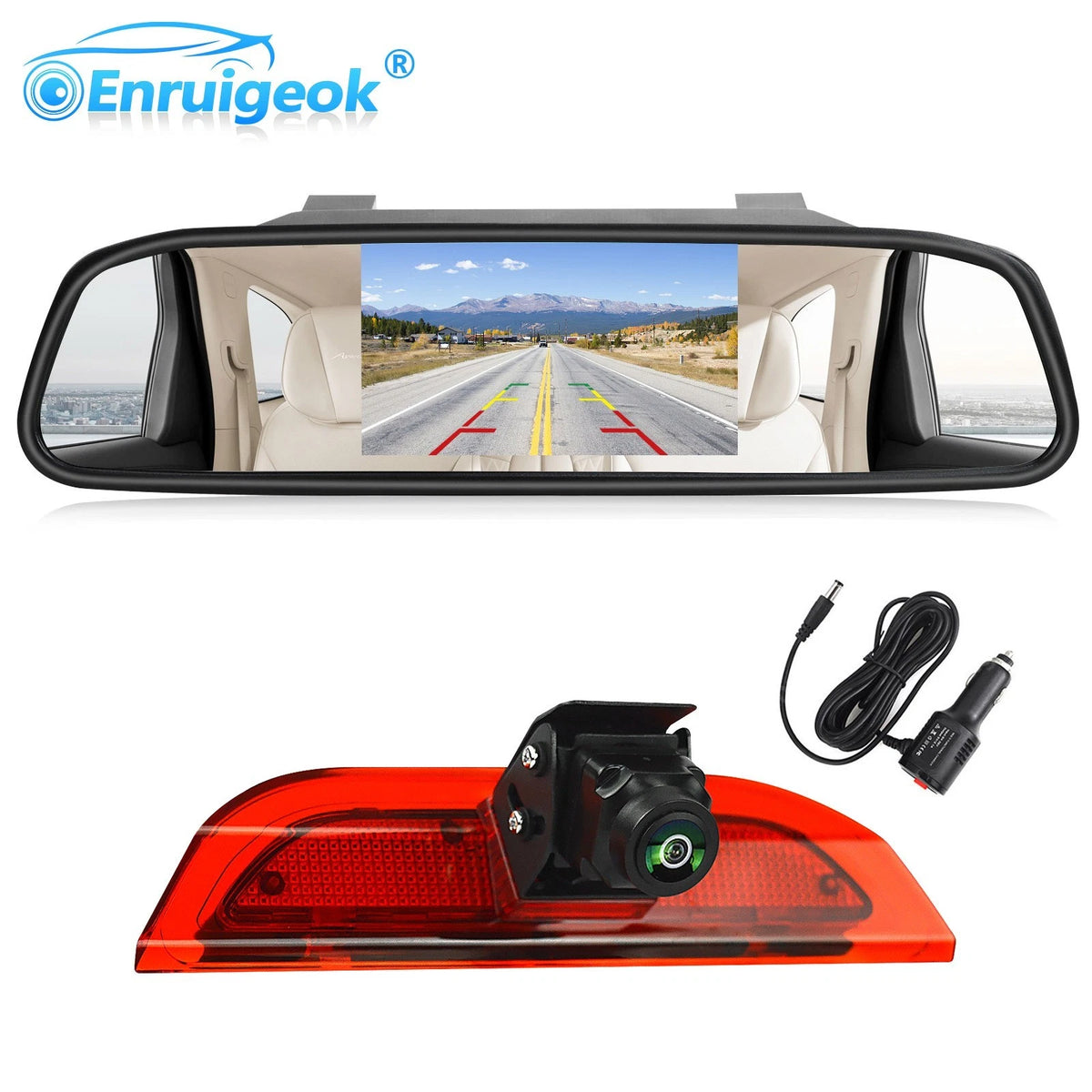

Ford Courier CVBS Camera Kit with 4.3" IPS Mirror Monitor

Ford Courier CVBS Camera Kit with 4.3" IPS Mirror Monitor.

Vehicle compatibility

• Ford Transit Courier (N3P), October 2023–2025
• Ford E-Transit Courier (N3P), March 2025–2025
• Ford Tourneo Courier and E-Tourneo Courier (N1P), 2023–2025

Check the original brake light housing dimensions and mounting position before ordering.

Features and specifications

• CVBS 700TVL CMOS camera, 733 × 493 effective pixels
• 130° horizontal view; IP69 camera; night vision approximately 10.5m
• PAL/NTSC; DC 12V camera and monitor power
• 4.3-inch IPS mirror monitor, 480 × 272 resolution
• Dual video inputs and brightness adjustment

Package contents

• Brake light camera
• 4.3-inch mirror monitor
• Video extension cable and 2 DC power cables
• 12V cigarette lighter power adapter
• User manual

SKU: ERG-S140/CVBS-1-2+ERG-4003AV
