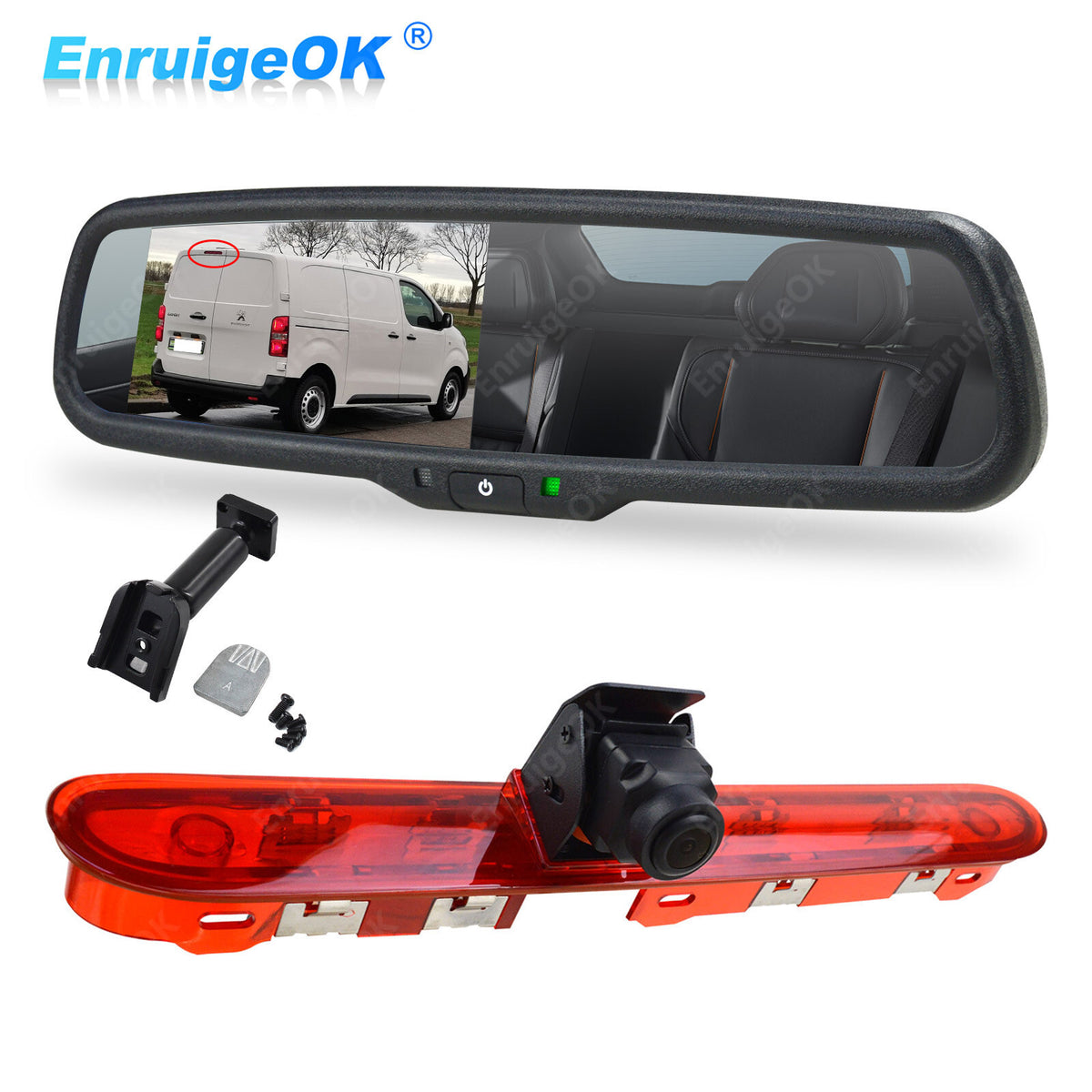

Citroen Dispatch Peugeot Expert Rear Brake Light Reversing Camera & 4.3" Monitor

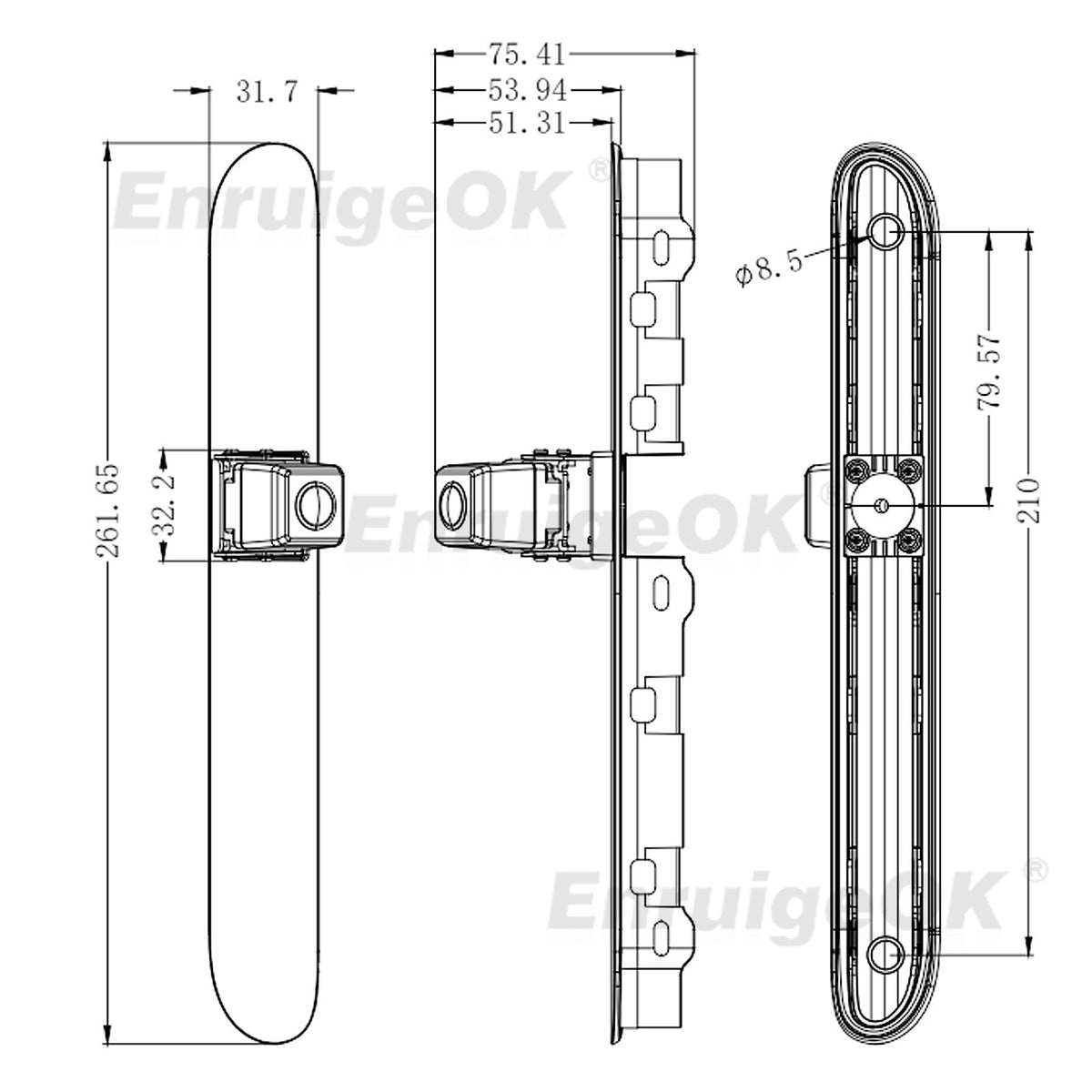

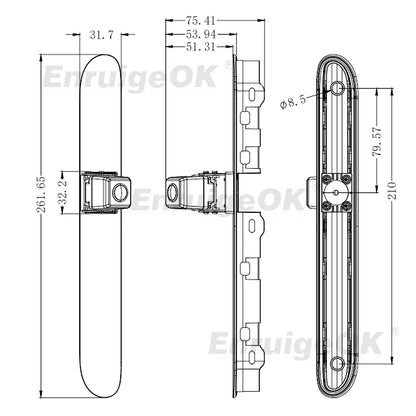

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

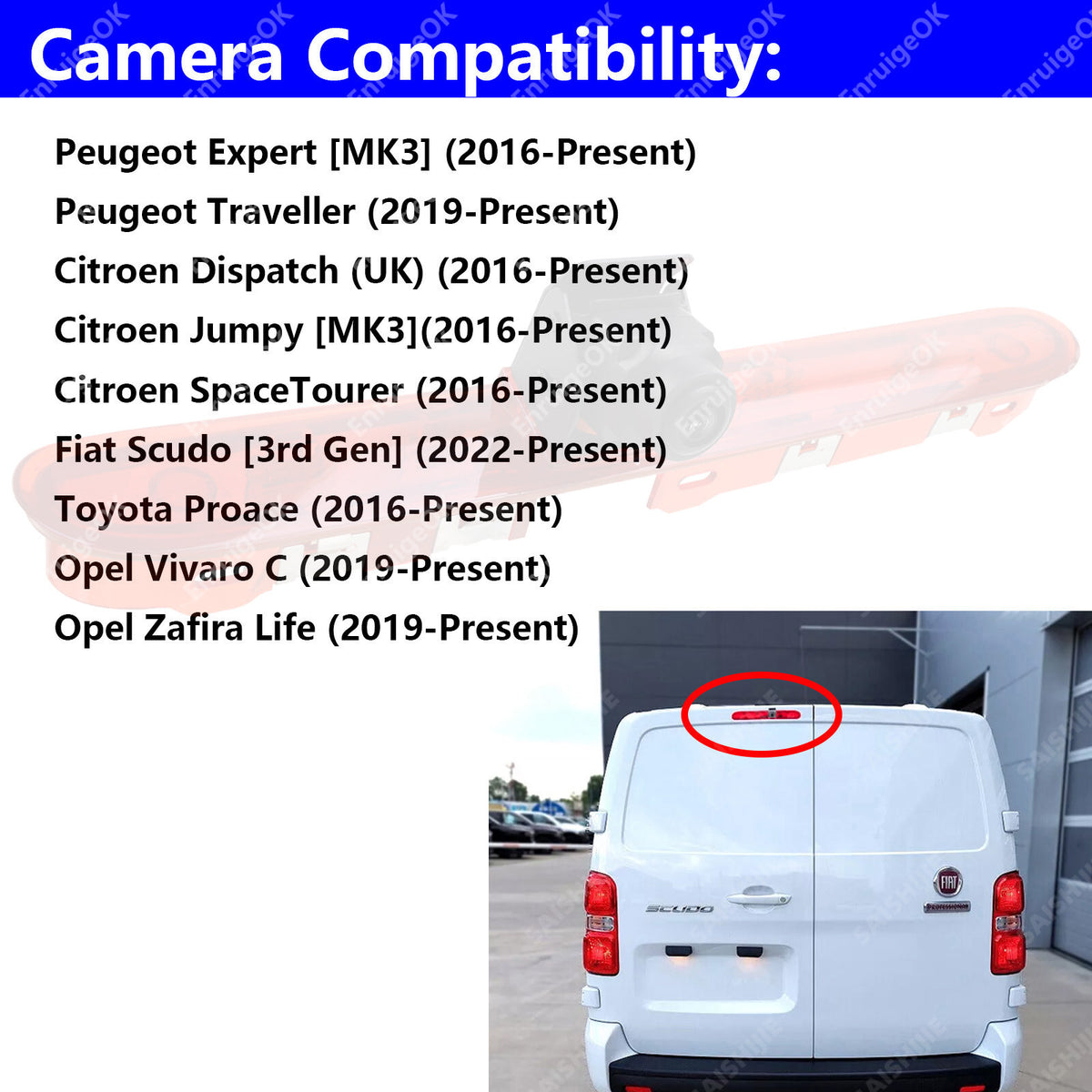

Camera Compatibility

✅Peugeot Expert [MK3] (2016-Present)

✅Peugeot Traveller (2019-Present)

✅Citroen Dispatch (UK) (2016-Present)

✅Citroen Jumpy [MK3](2016-Present)

✅Citroen SpaceTourer (2016-Present)

✅Fiat Scudo [3rd Gen] (2022-Present)

✅Toyota Proace (2016-Present)

✅Opel Vivaro C (2019-Present)

✅Opel Zafira Life (2019-Present)

Please confirm compatibility with your original brake light before purchasing. If unsure, feel free to contact us or send a picture for verification.

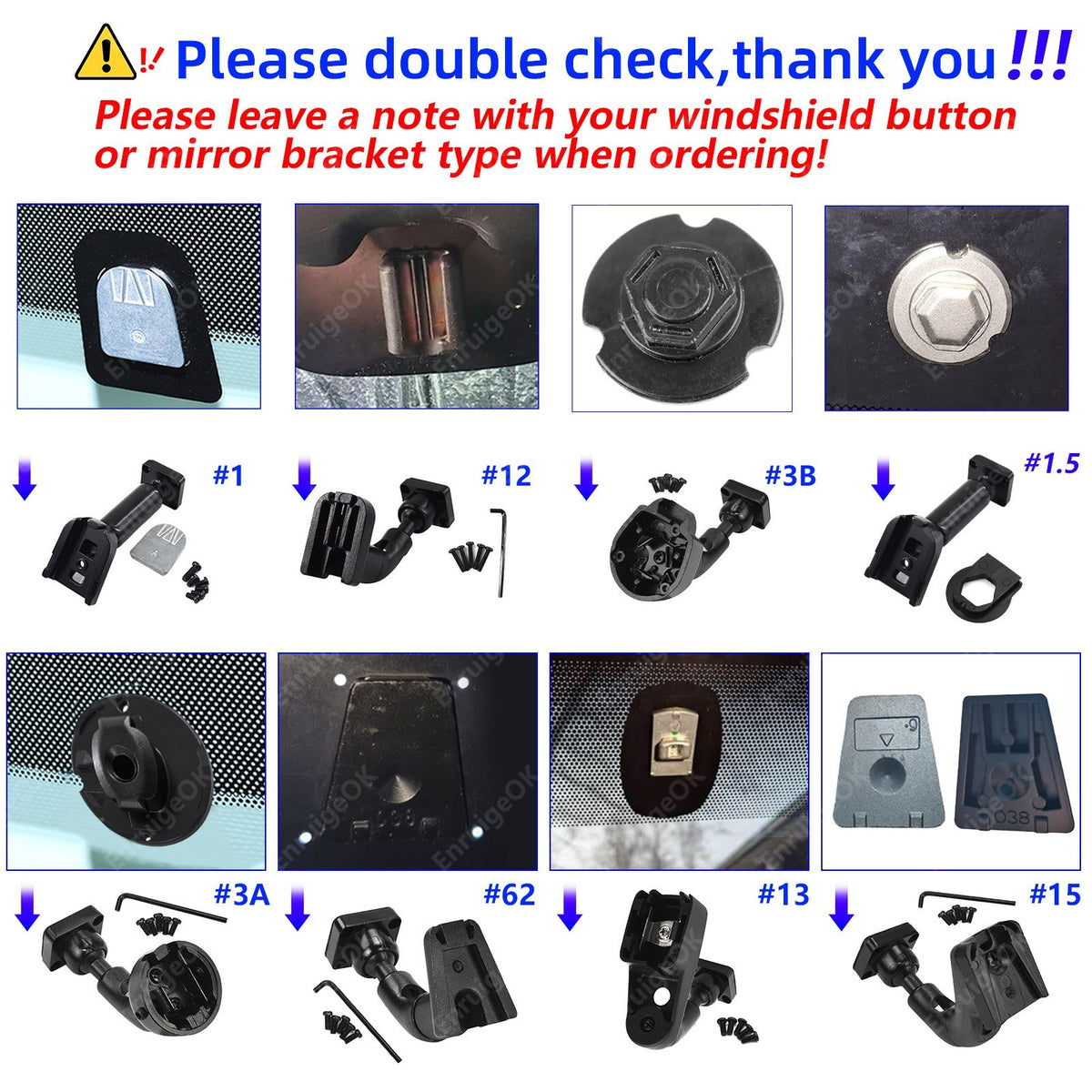

Monitor Bracket Note

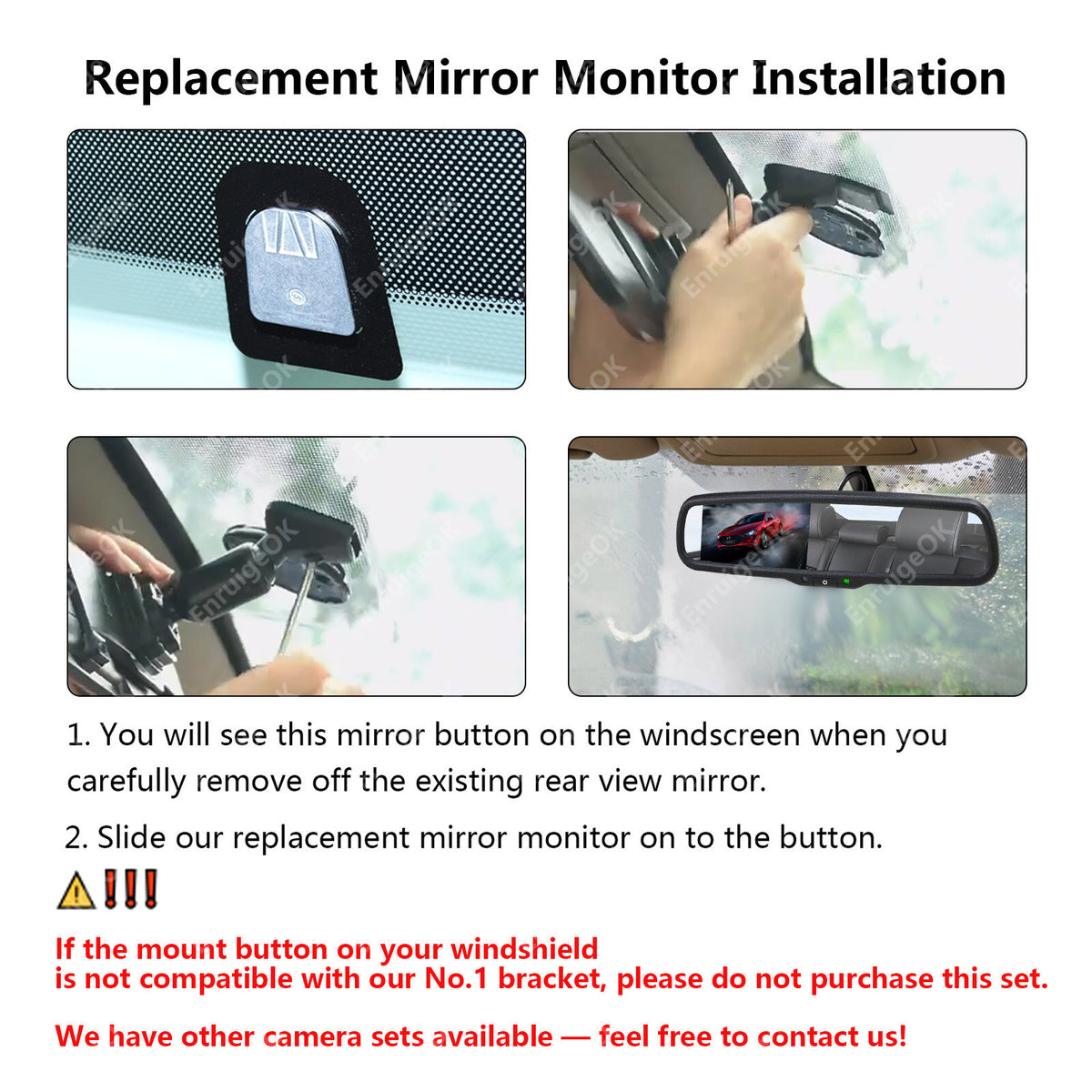

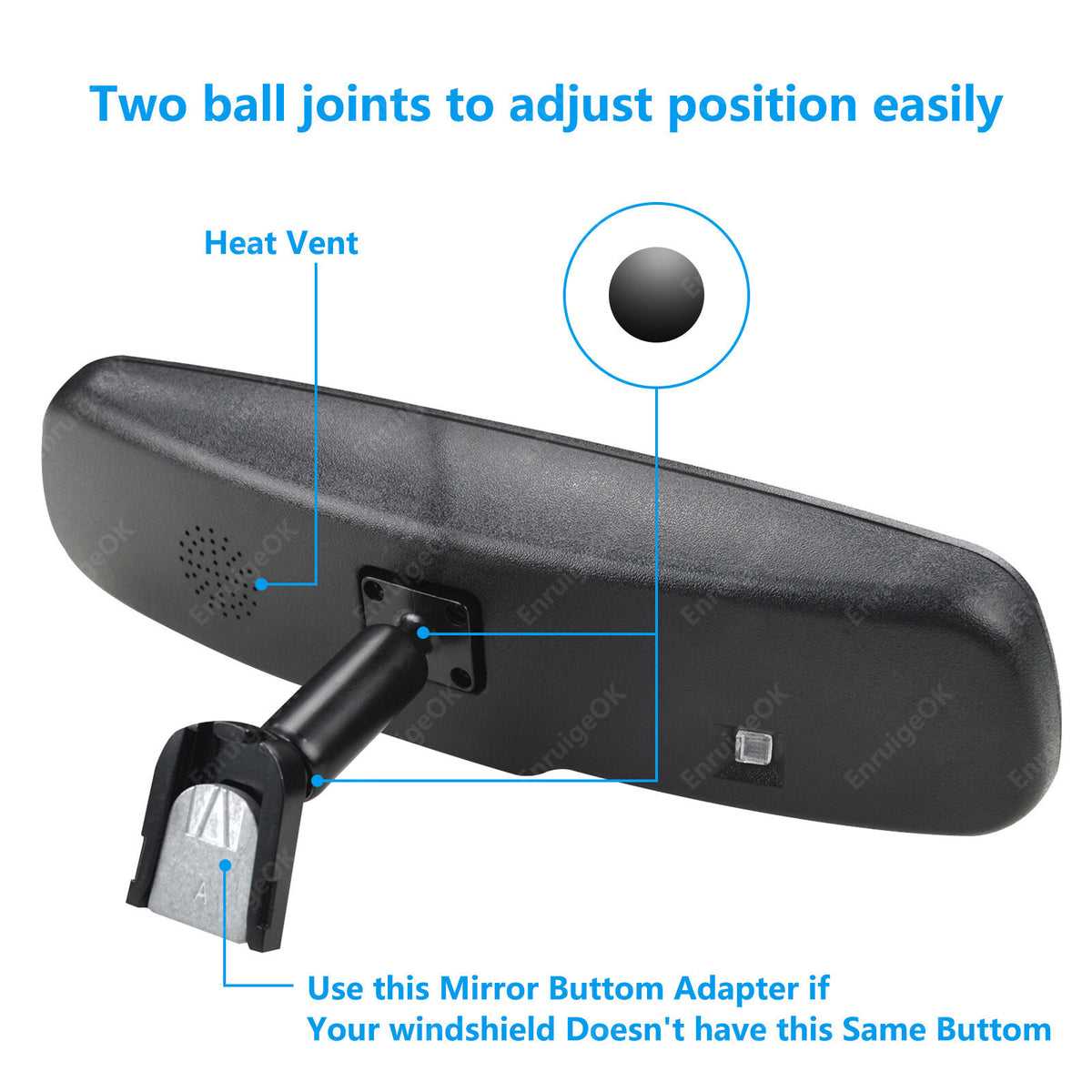

This kit includes the #1 bracket by default. If unsure about compatibility, please send a clear photo of your windshield button or original mirror bracket when ordering. We have other bracket styles that may fit your vehicle.

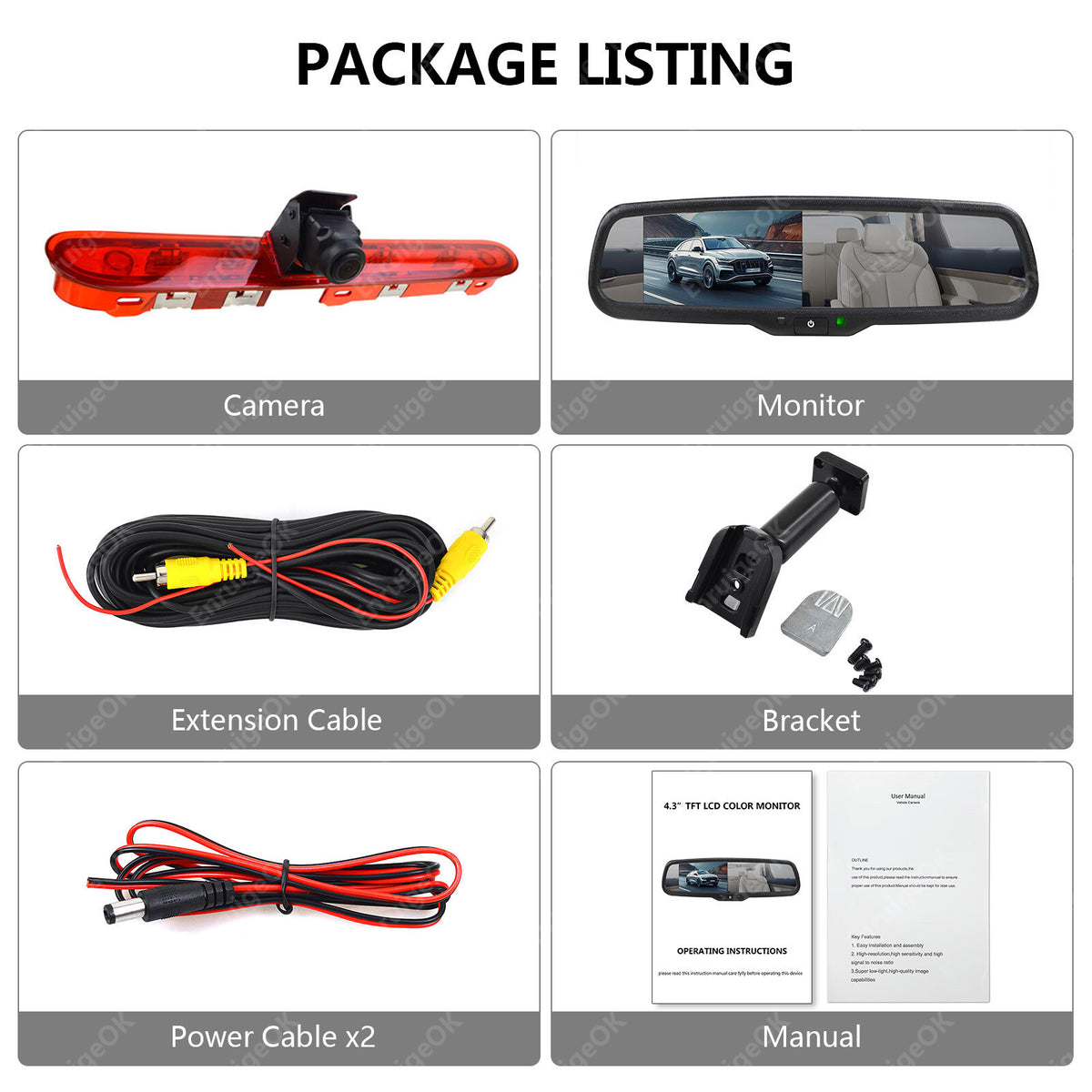

Package contents

1 X Brake light camera

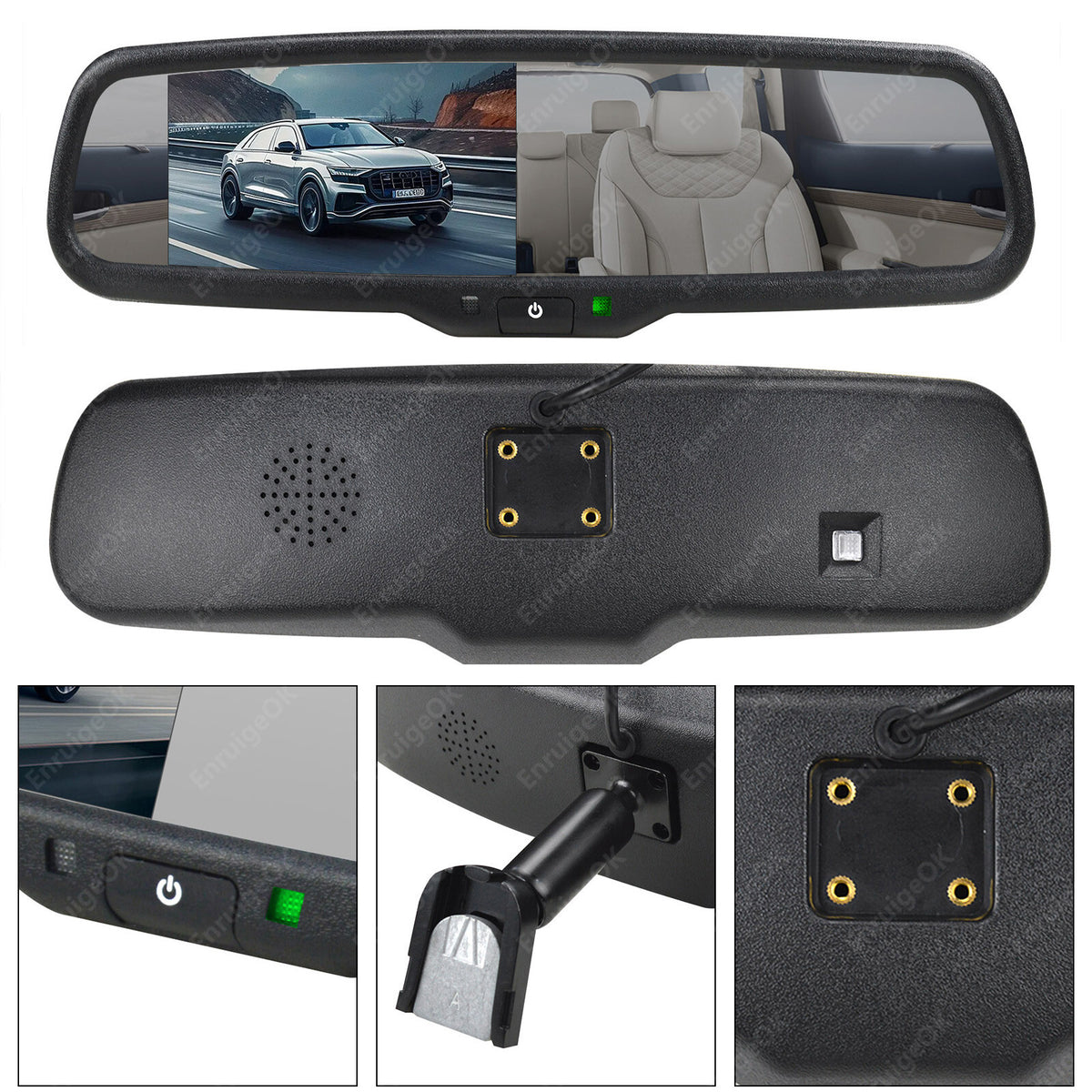

1 X 4.3'' mirror monitor

1 X 10m/33ft. extension cable

2 X DC Power cables

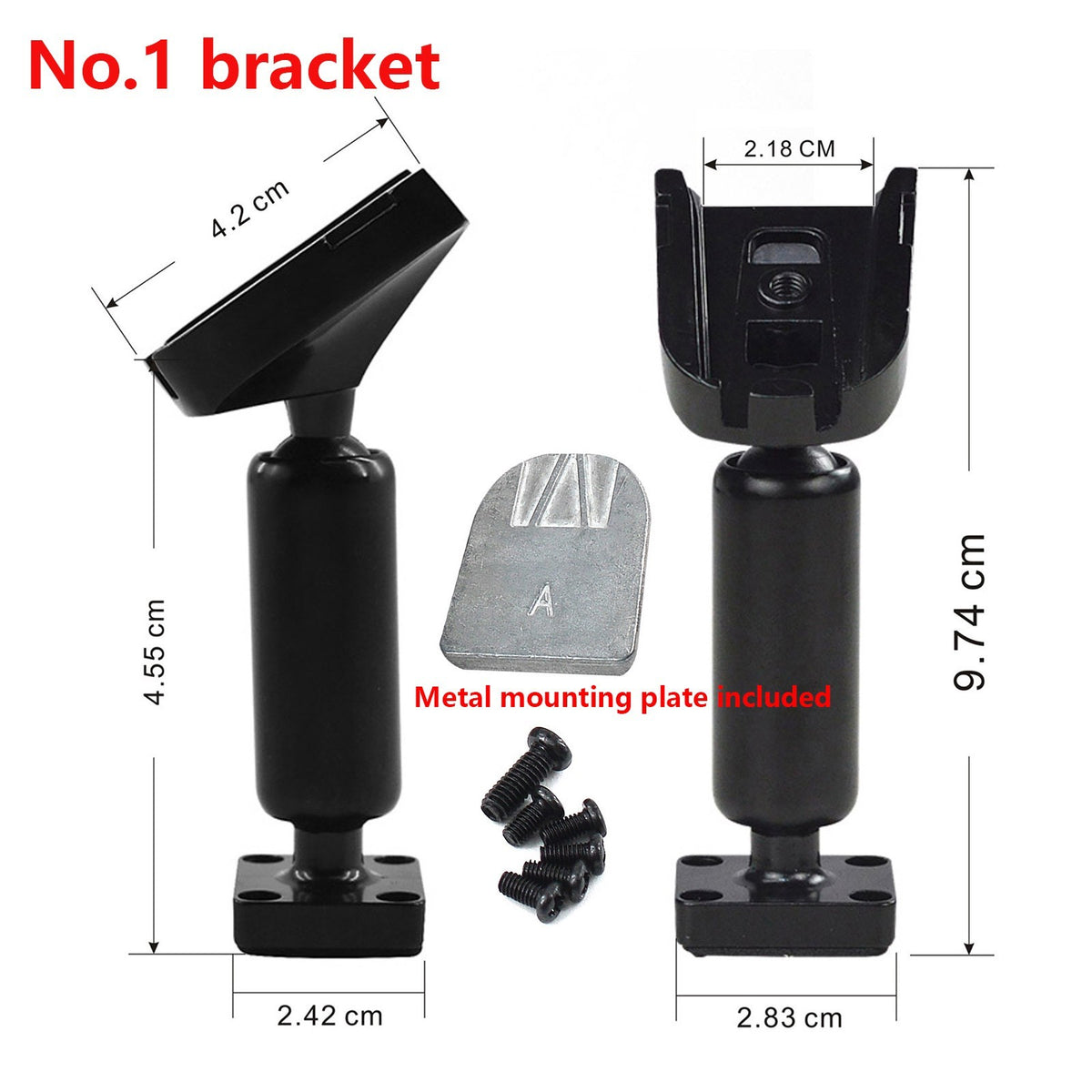

1 X #1 Bracket(check your windshield mounting point)

1 X Manual

Description

It includes a backup camera and monitor. When reversing, the car monitor displays the rear camera images to help you park safely.

The 4.3" IPS display Monitor features 2 video inputs and an 480*272 (RGB) IPS resolution, making it compatible with the brake light rearview camera.

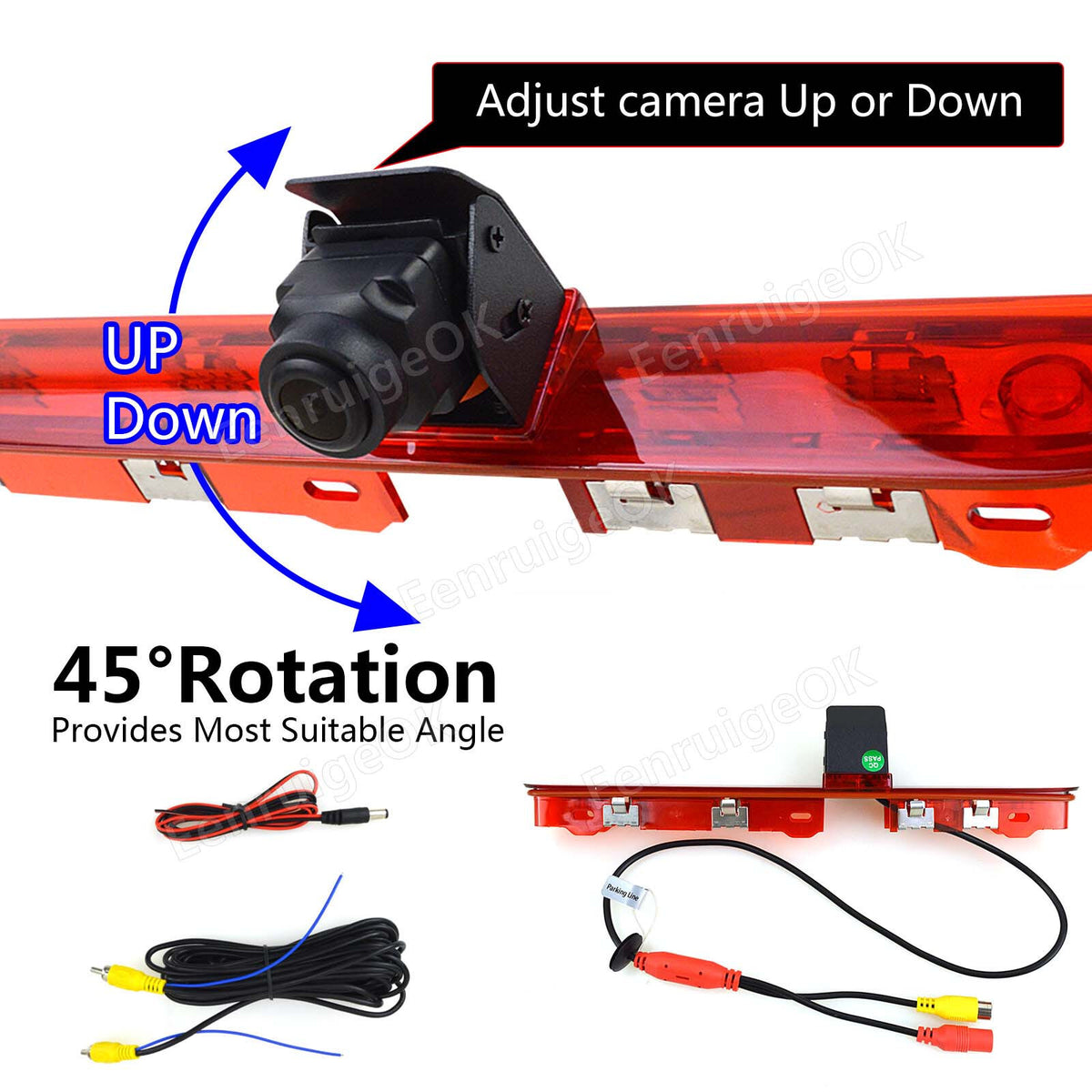

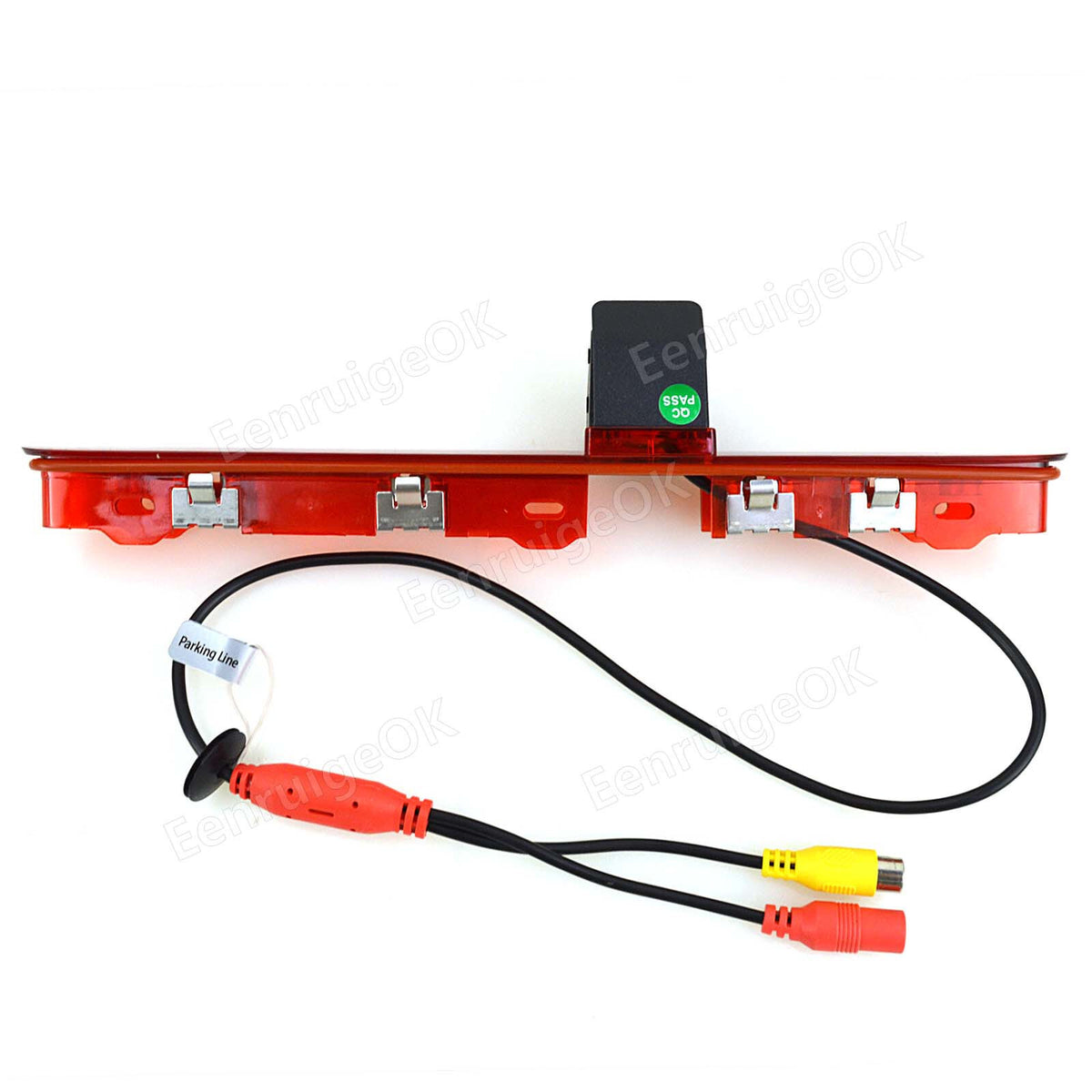

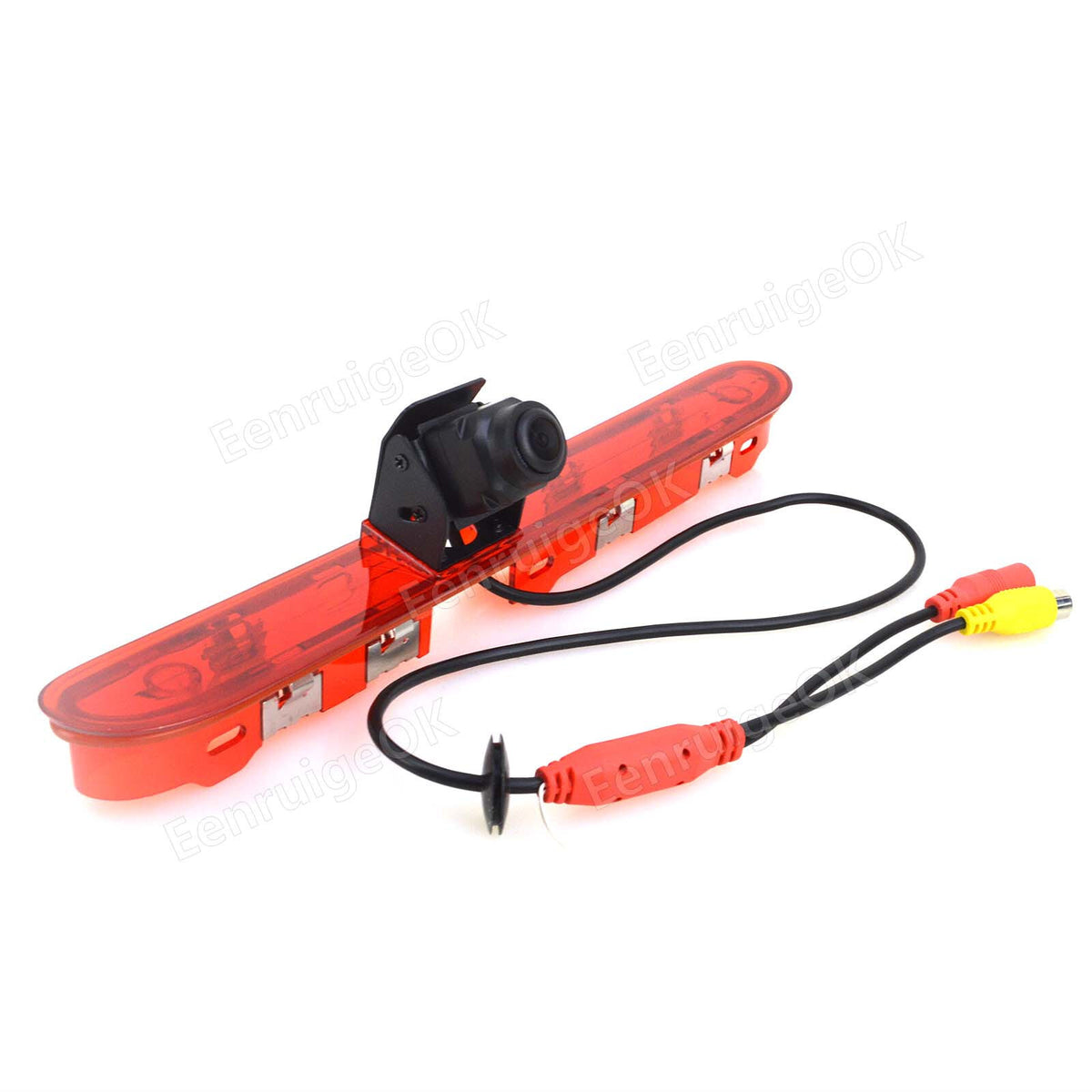

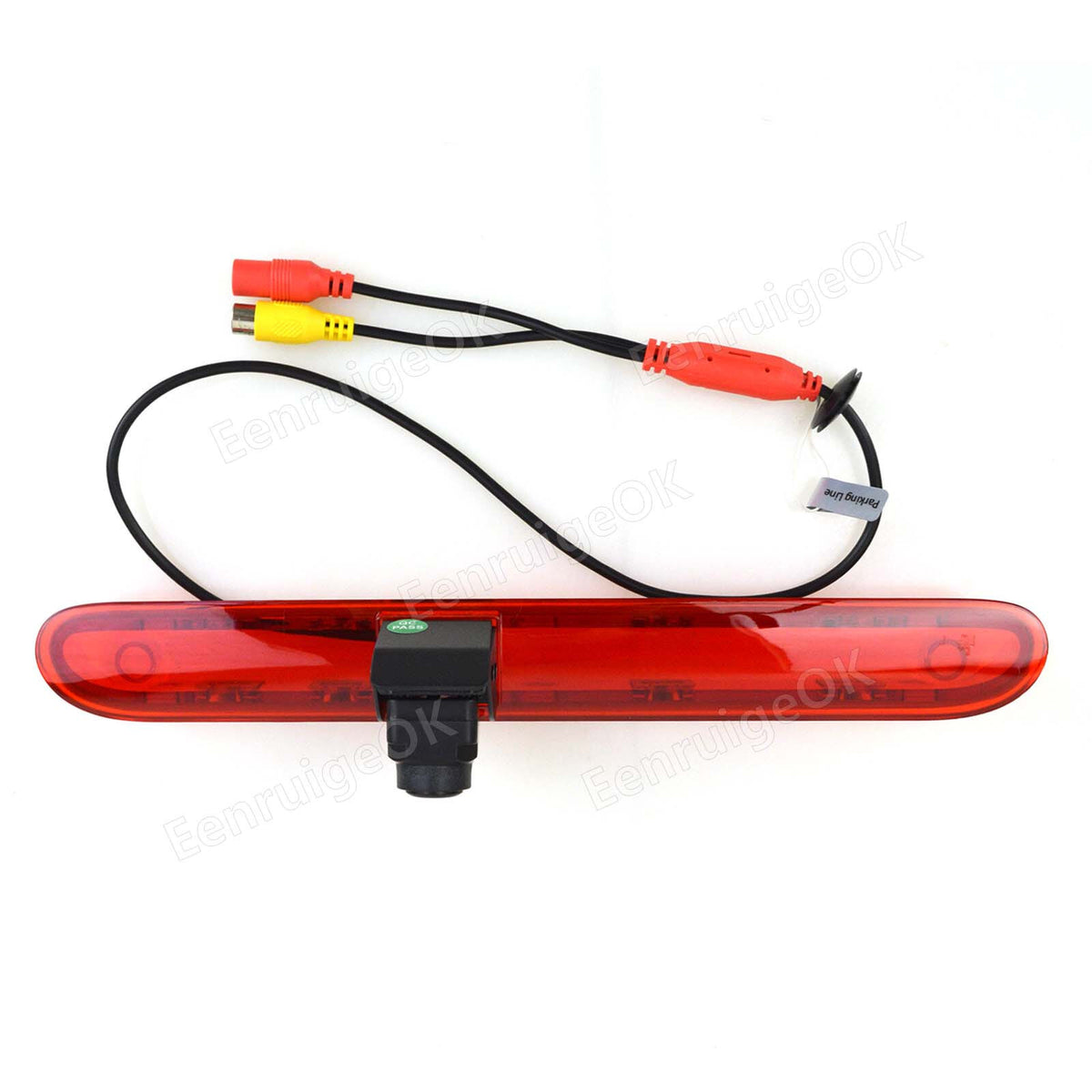

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

This brake light camera uses a 1/3" CMOS sensor with enhanced color imaging.

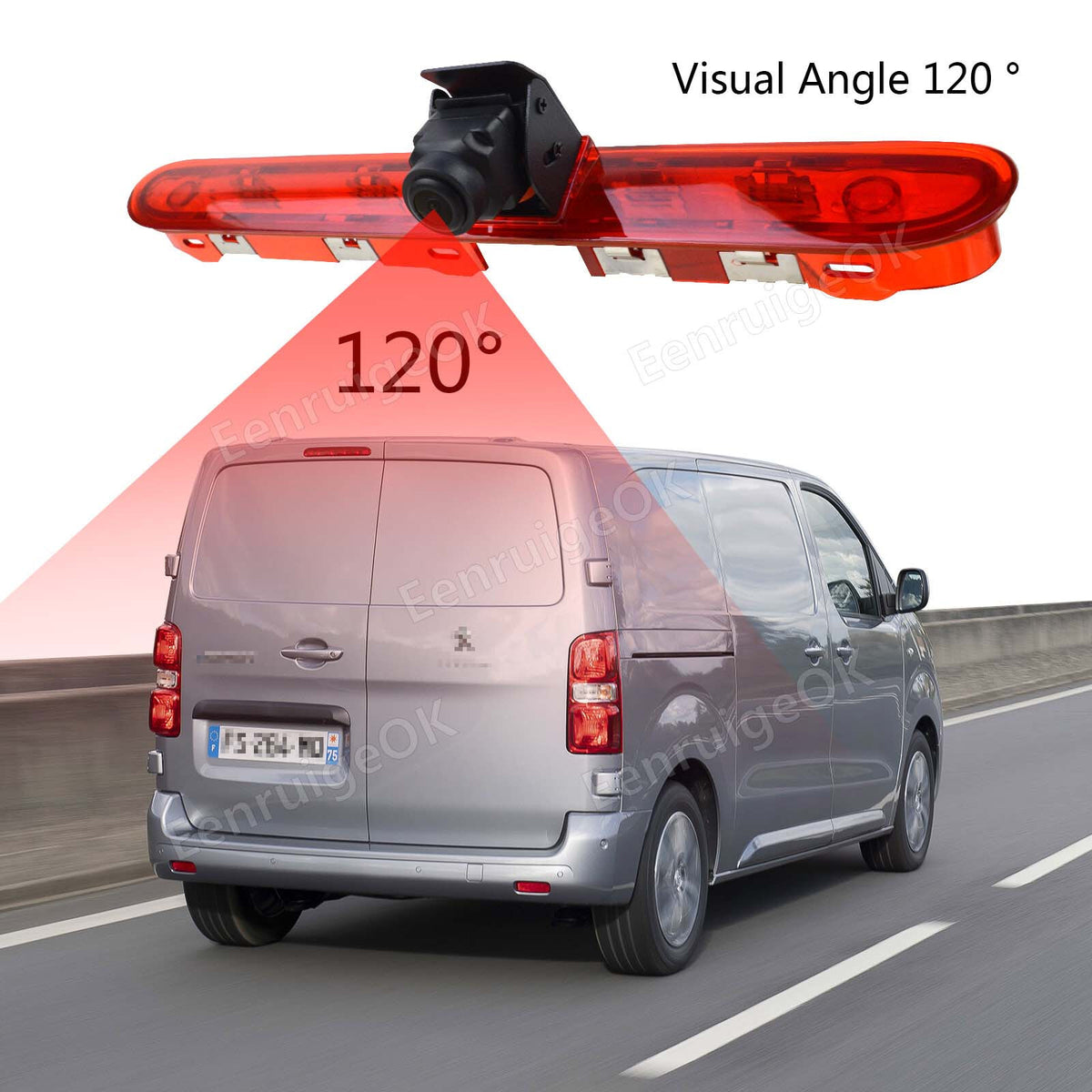

With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.

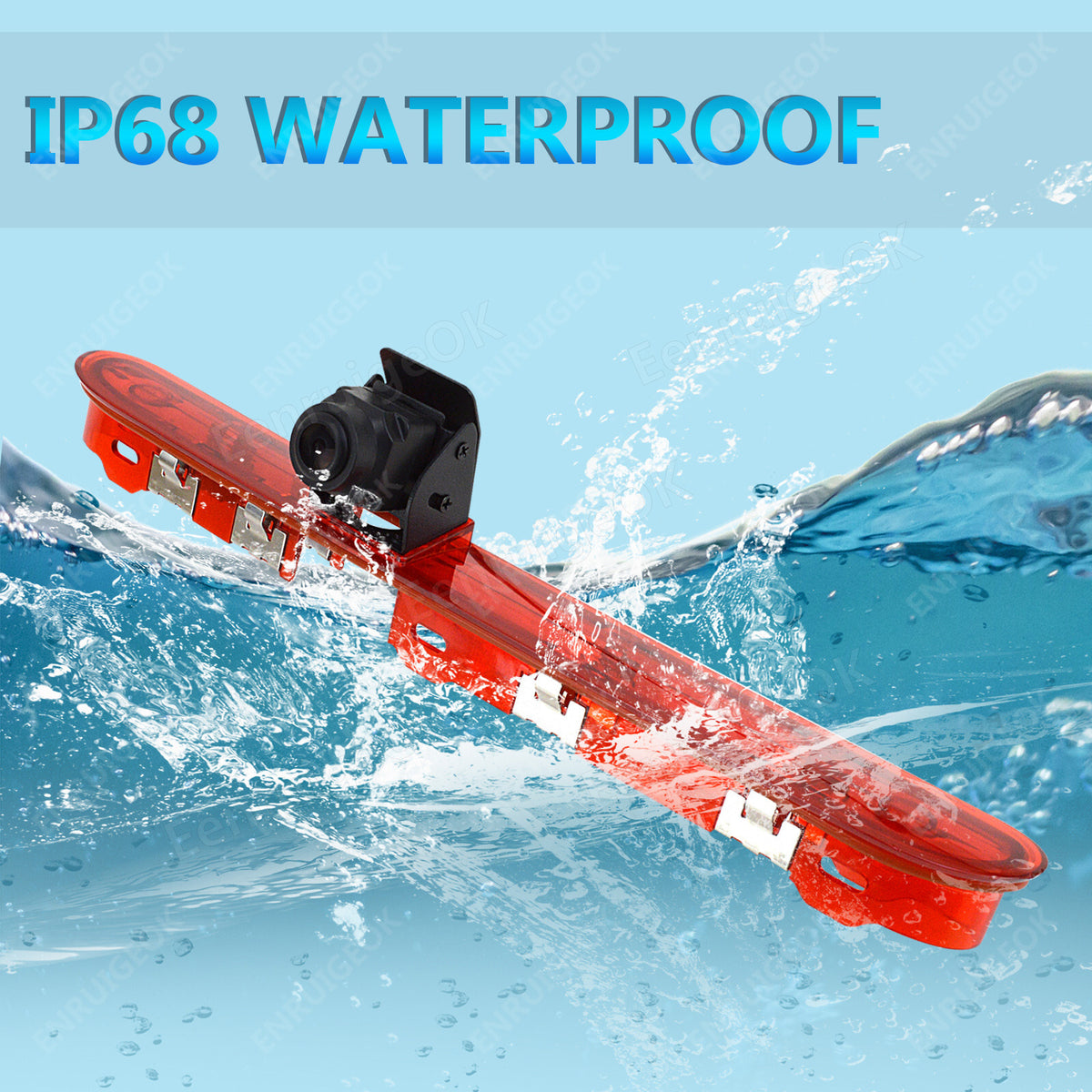

100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm

Effective pixel: 733(H)x493(V)

TV Line: 700TV Lines

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux/F=1.2

Power: DC12V

Operating temperature: -20℃ to +70℃

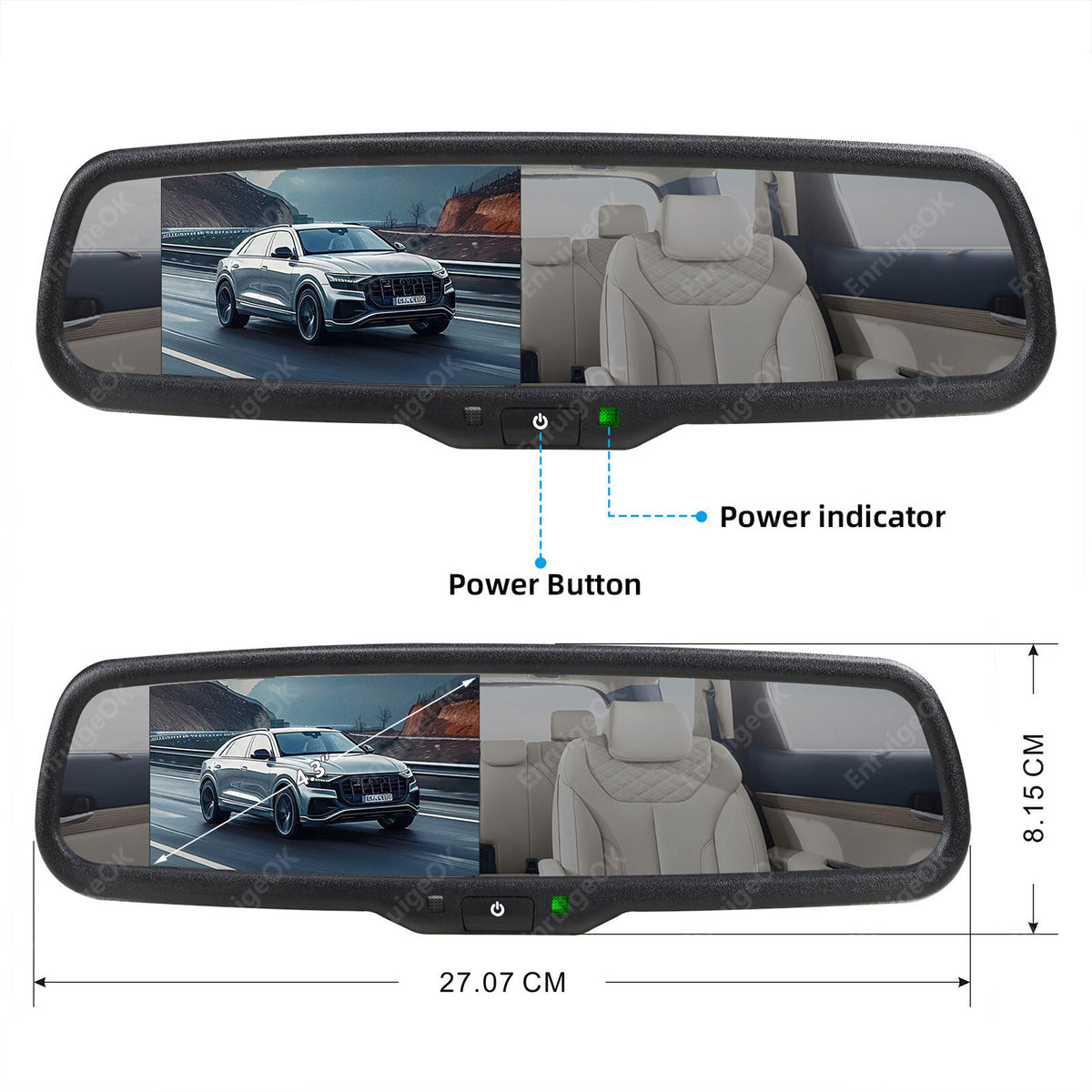

Monitor Specifications

Screen size: 4.3 inch

Display format: 16: 9

Contrast: 300: 1

Brightness: 400 CD/㎡

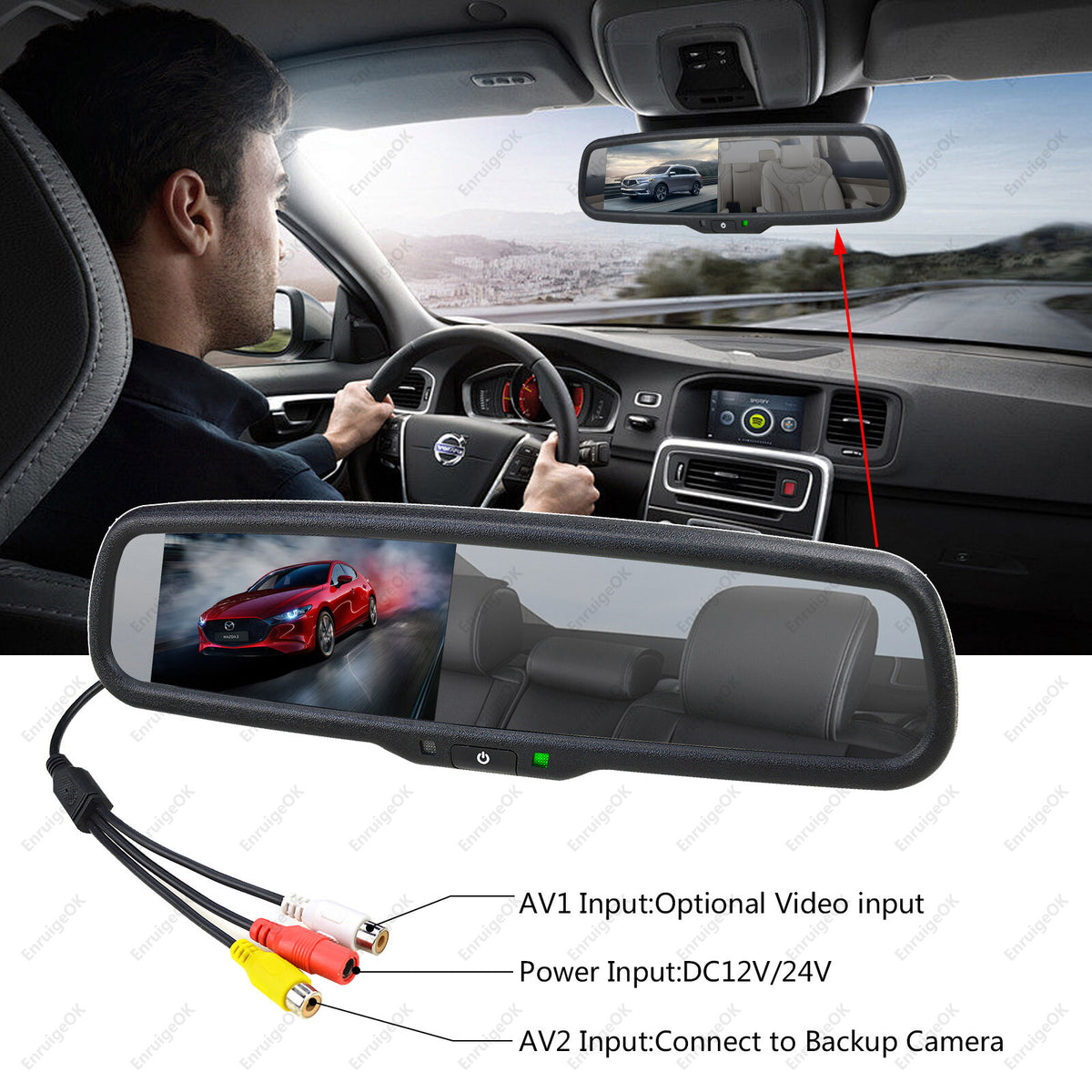

Video: 2-channel video input; AV1 and AV2(For reversing camera) video input.

Resolution: 480*272 IPS

Power supply: DC 12V-24V

Rear view in priority

Video system: NTSC / PAL auto switch

Current consumption: <4W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
