Citroen Dispatch 2007-2016 Dual Brake Light Reverse Camera & 6.86'' Split Screen

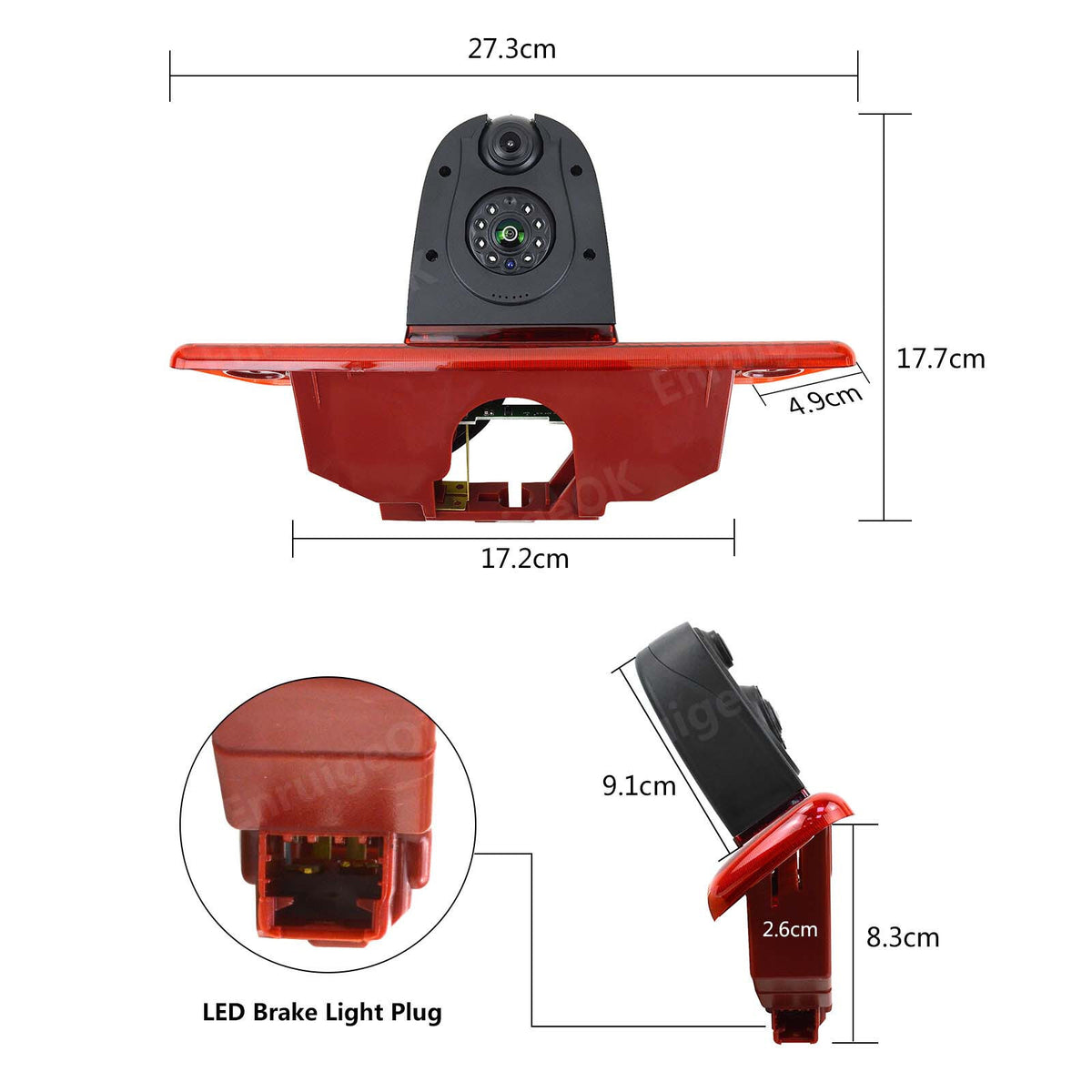

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

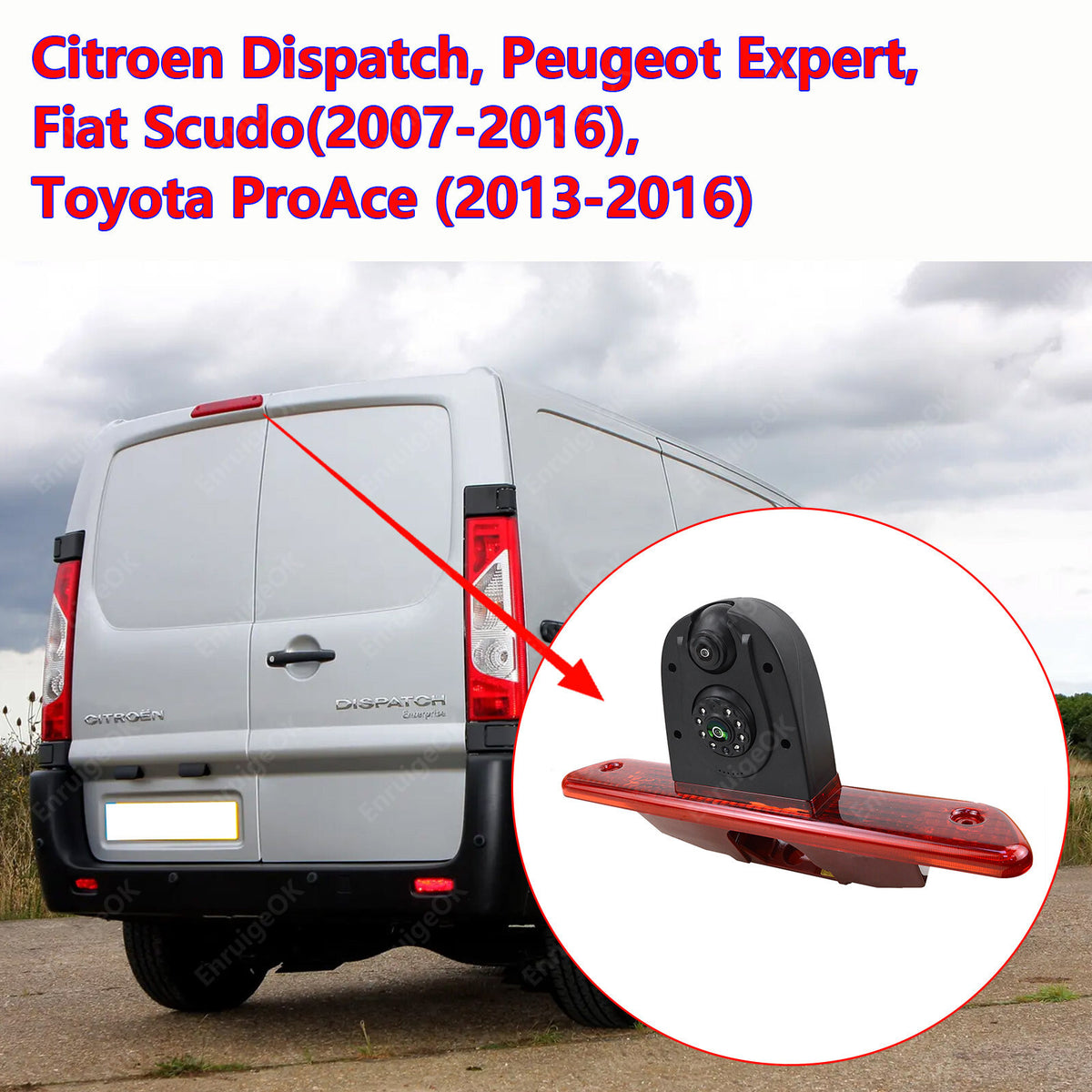

Camera Compatibility

✅Citroen SpaceTourer (2013-2016)

✅Citroen Dispatch [2nd GEN] (2007-2016)

✅Citroen Jumpy (2007-2016)

✅Fiat Scudo (2007-2016)

✅Peugeot Expert [MK2] (2007-2016)

✅Toyota ProAce [Generation 3] (2013-2016)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

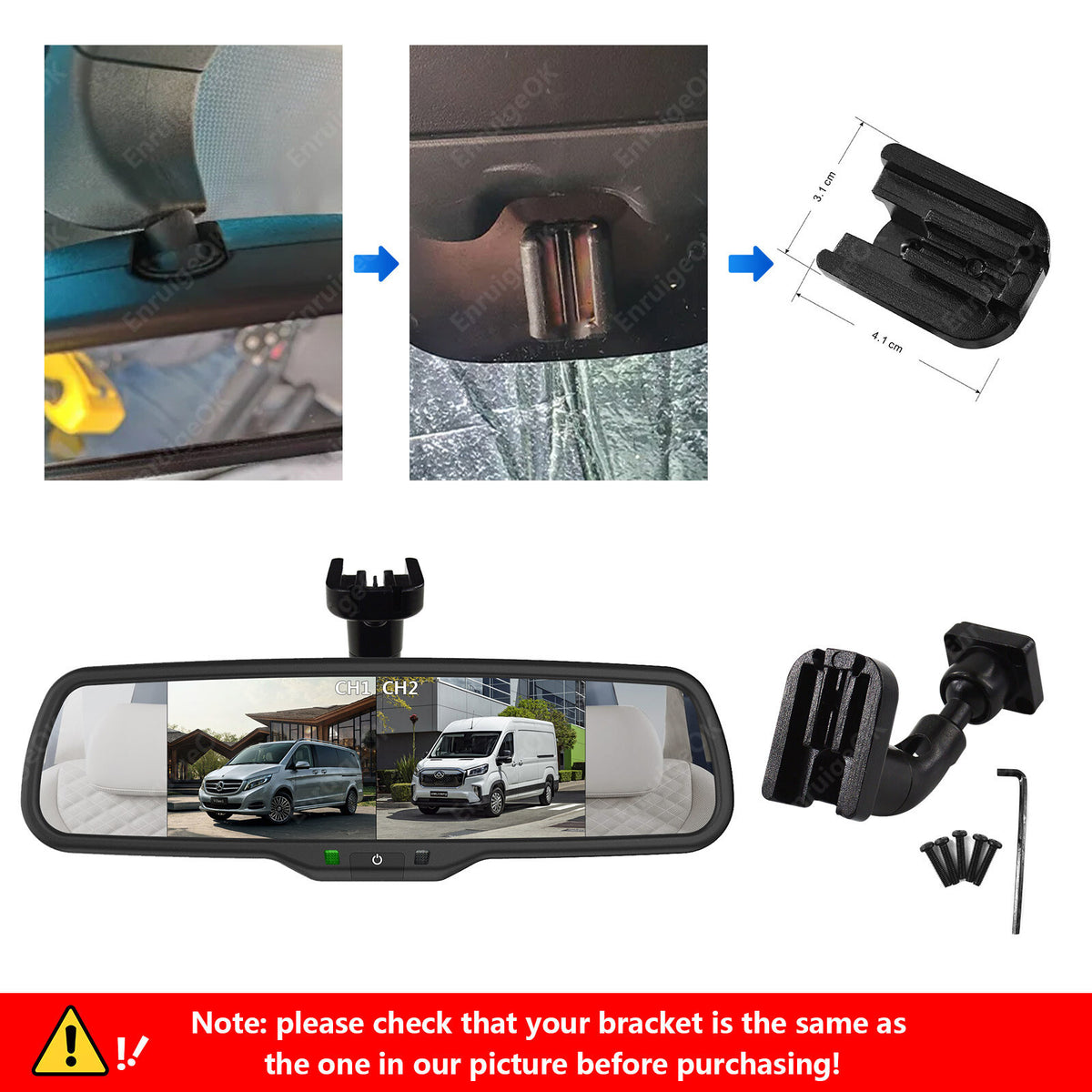

Monitor Bracket Note

This set comes with a #12 bracket by default. Please confirm compatibility by sending us a photo of your windshield button or mirror bracket if unsure.

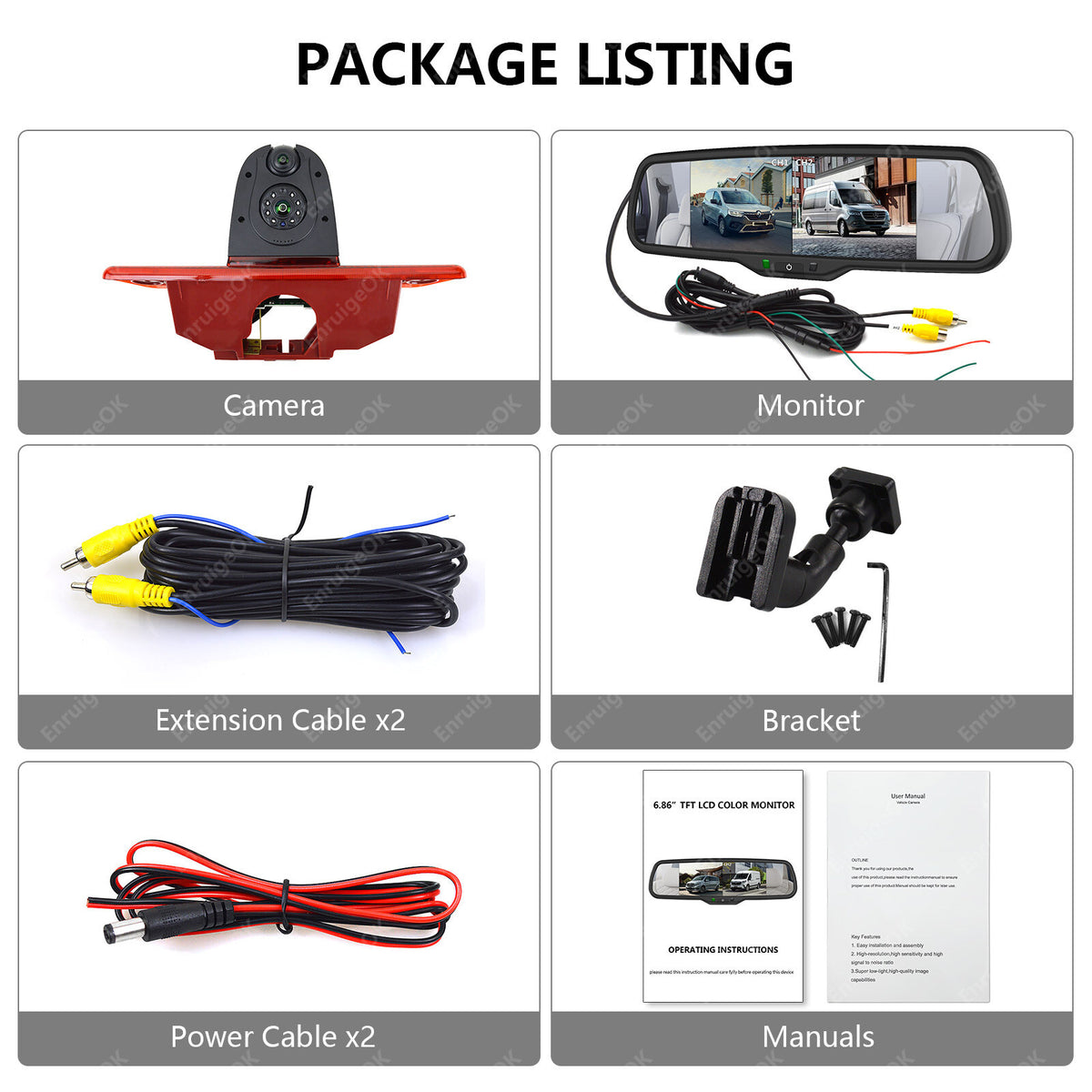

Package contents

1 X Brake light camera

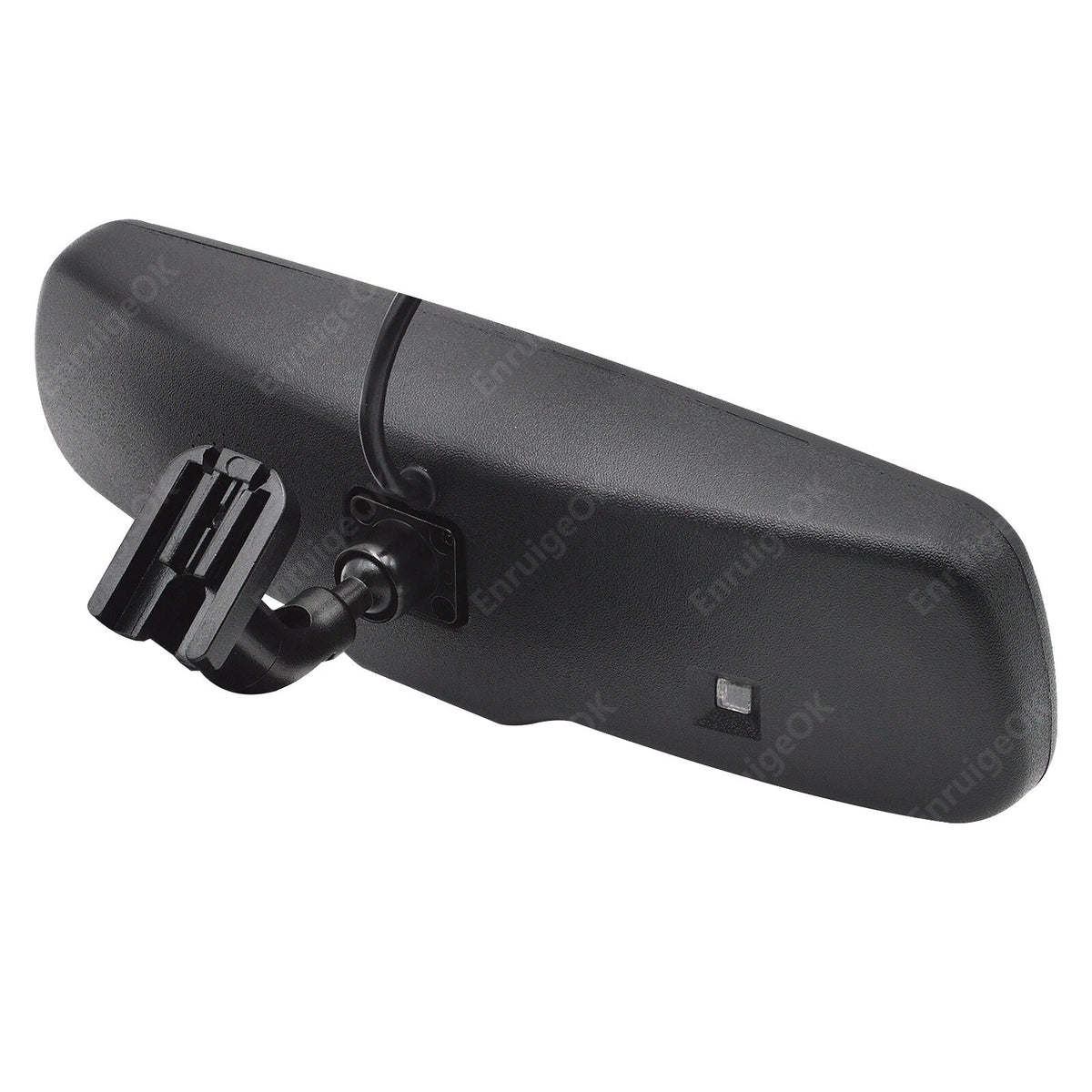

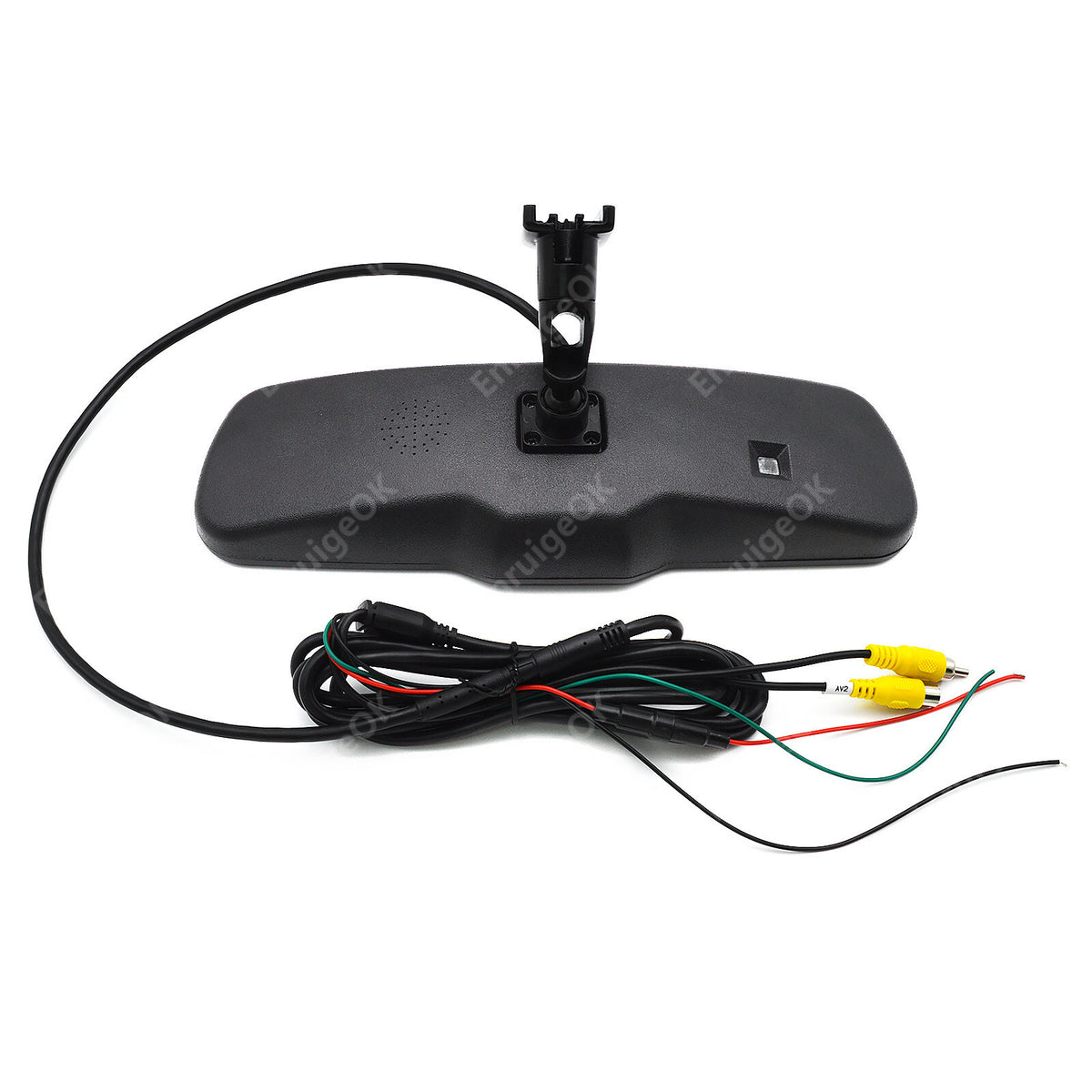

1 X 6.86'' Mirror monitor

1 X 2.5m monitor power cable

2 X 10m/33ft. video extension cable

2 X 1m DC power cable

1 X Female to female adapter

1 X #12 bracket(check your windshield button)

1 X Manual

Description

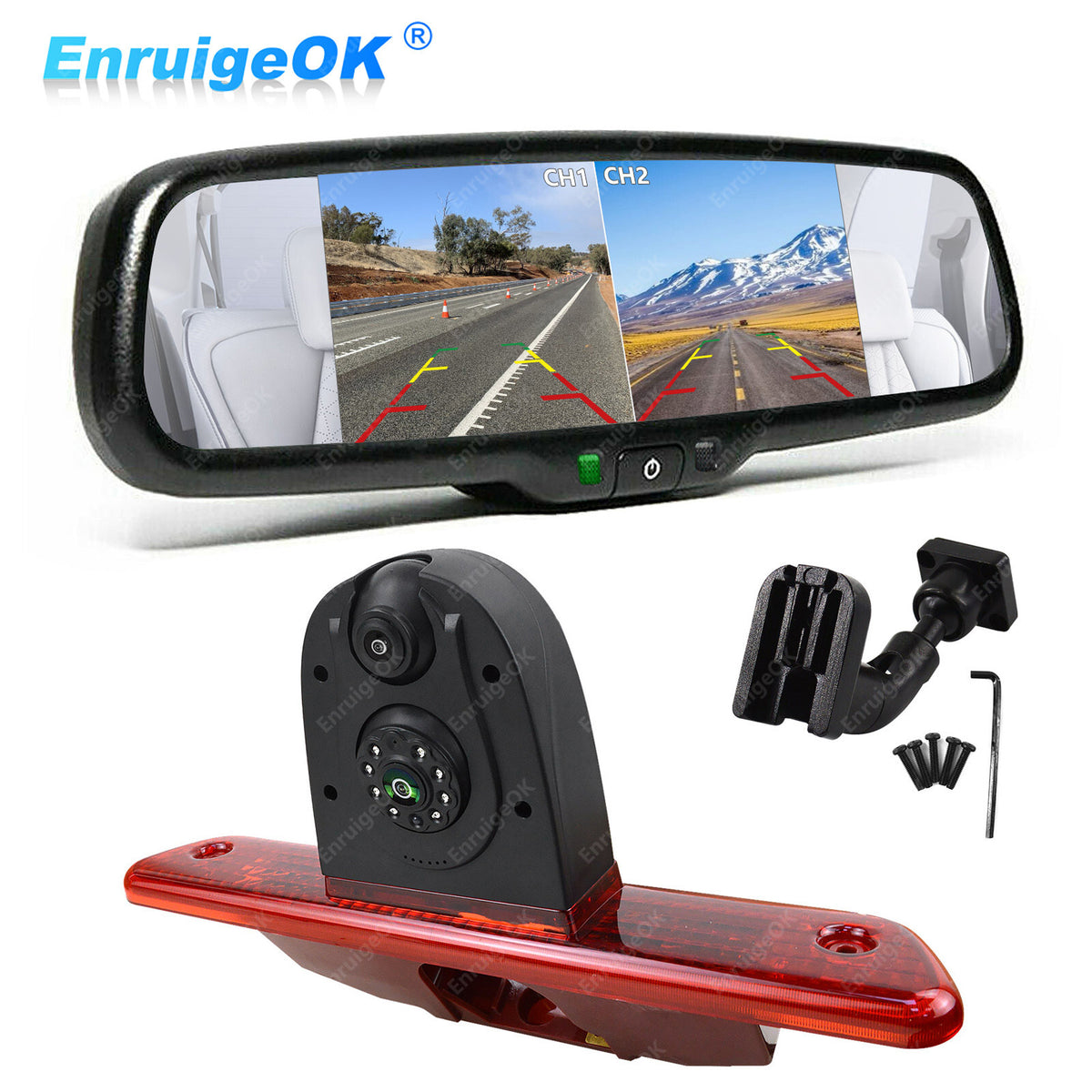

Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.

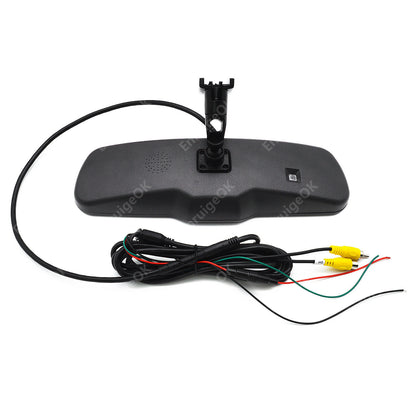

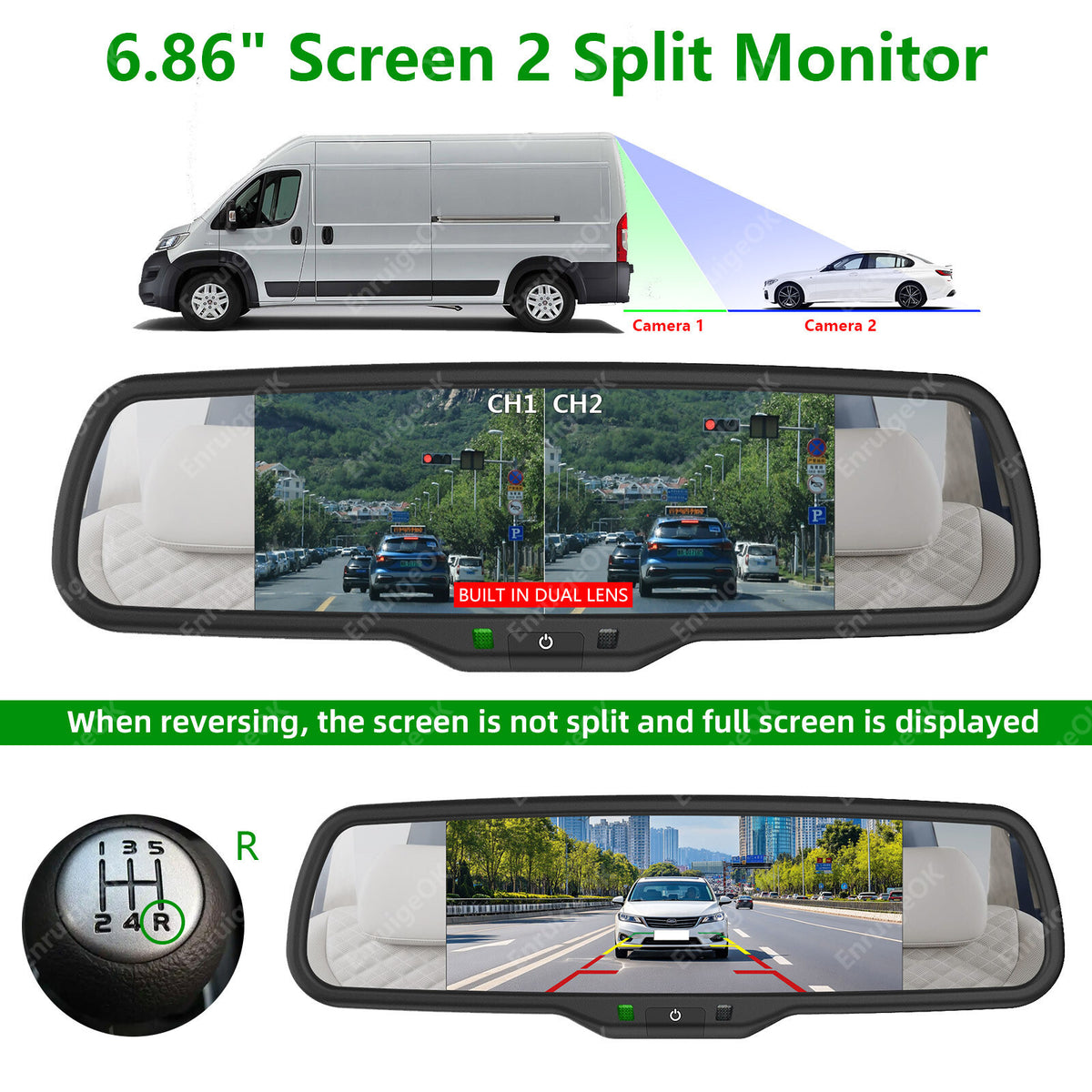

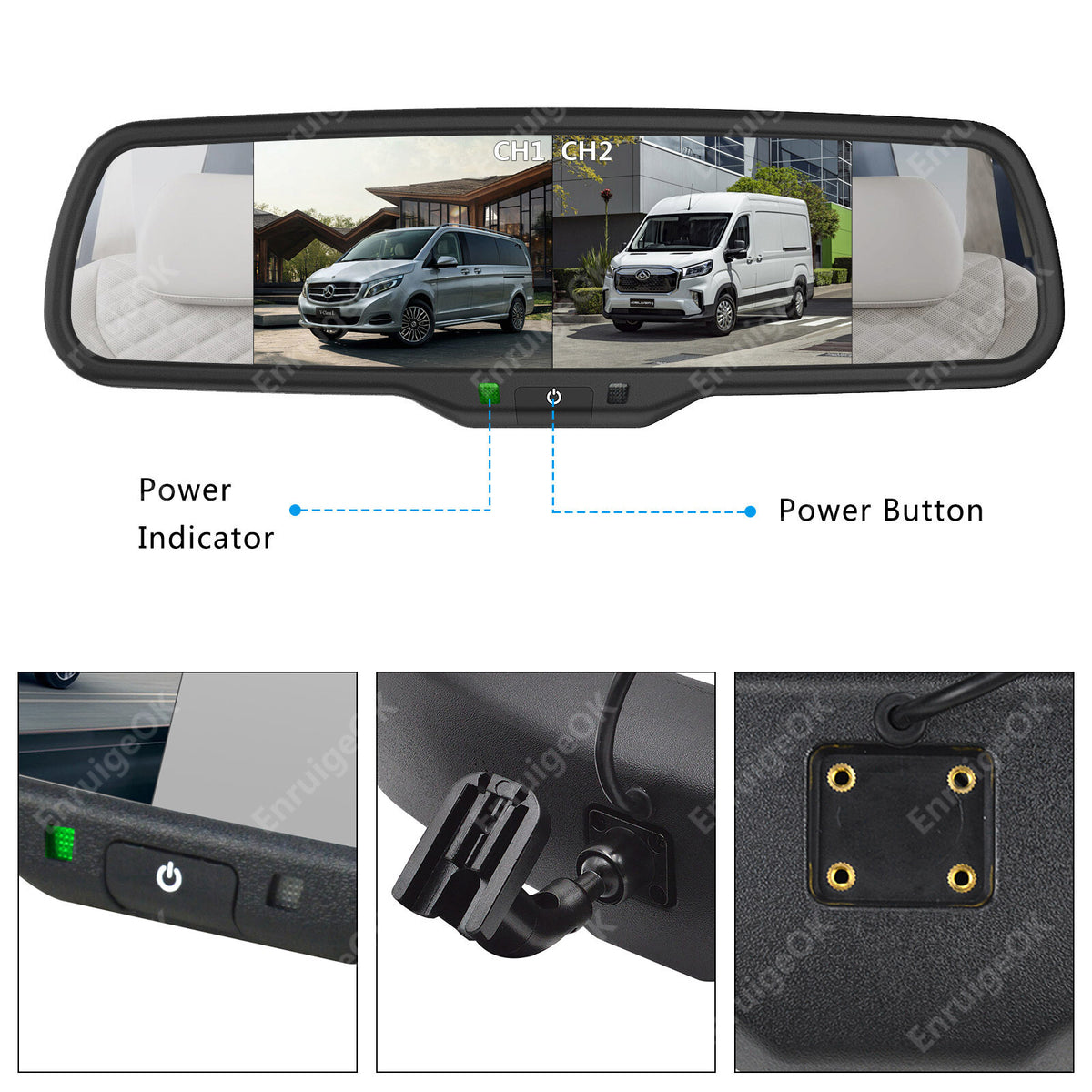

6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

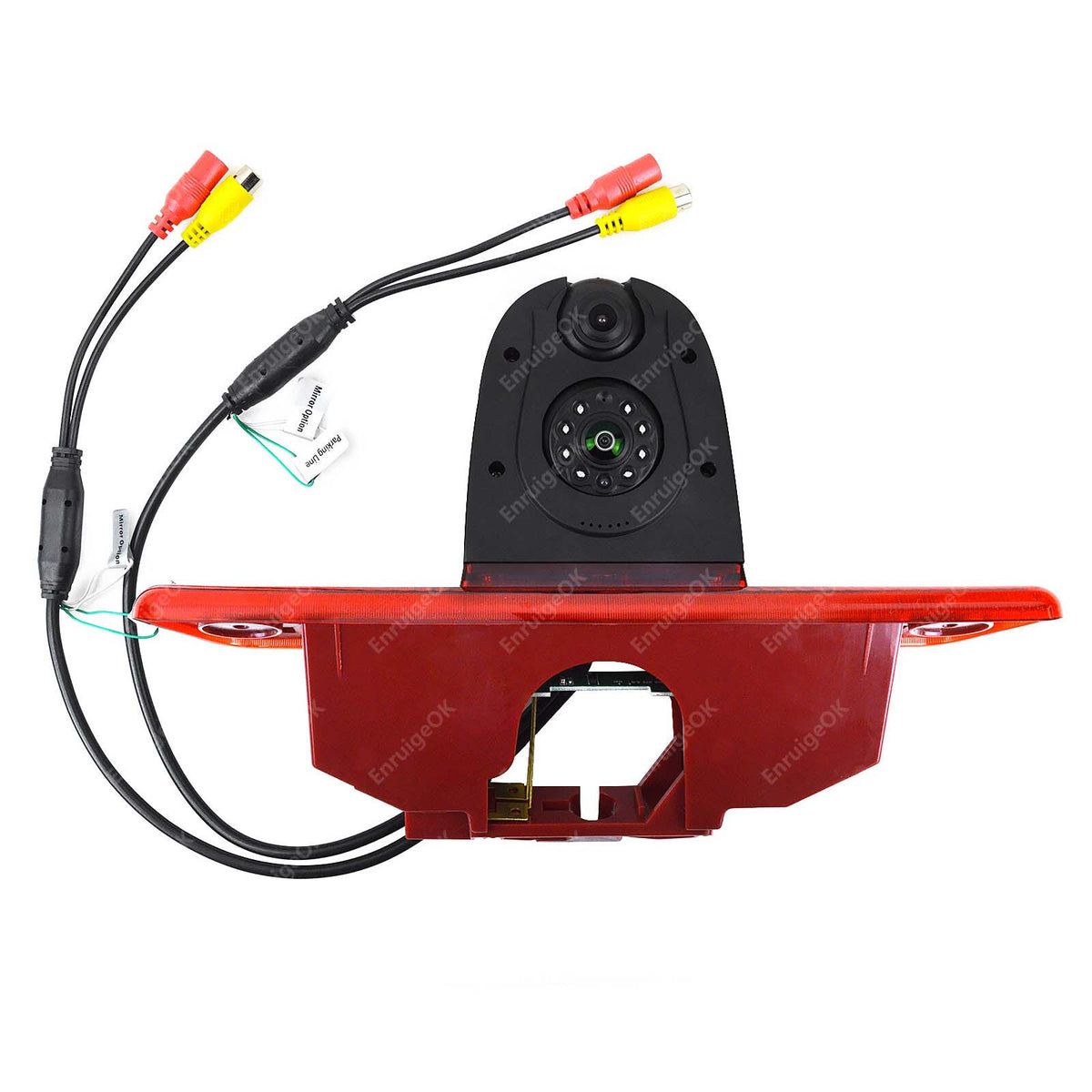

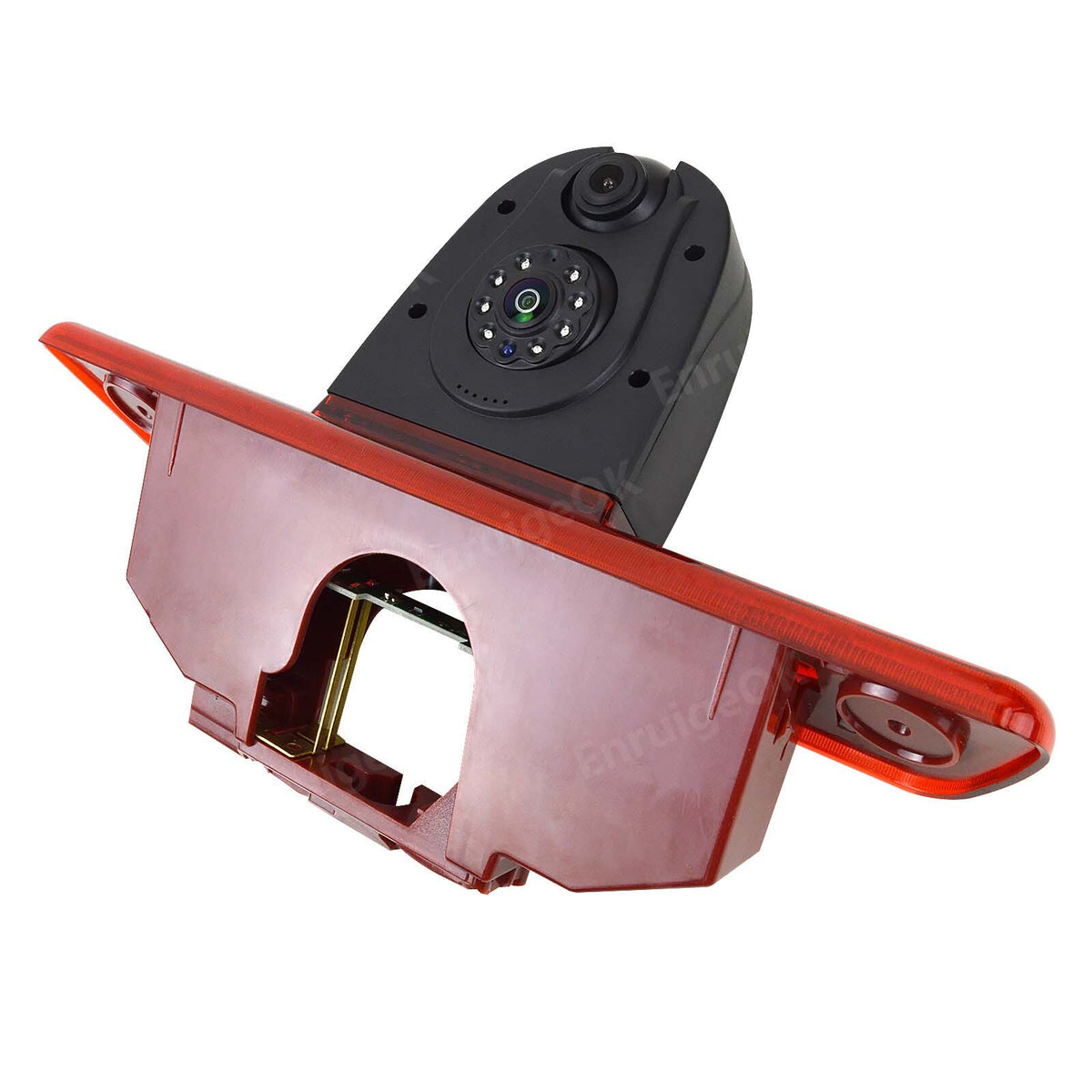

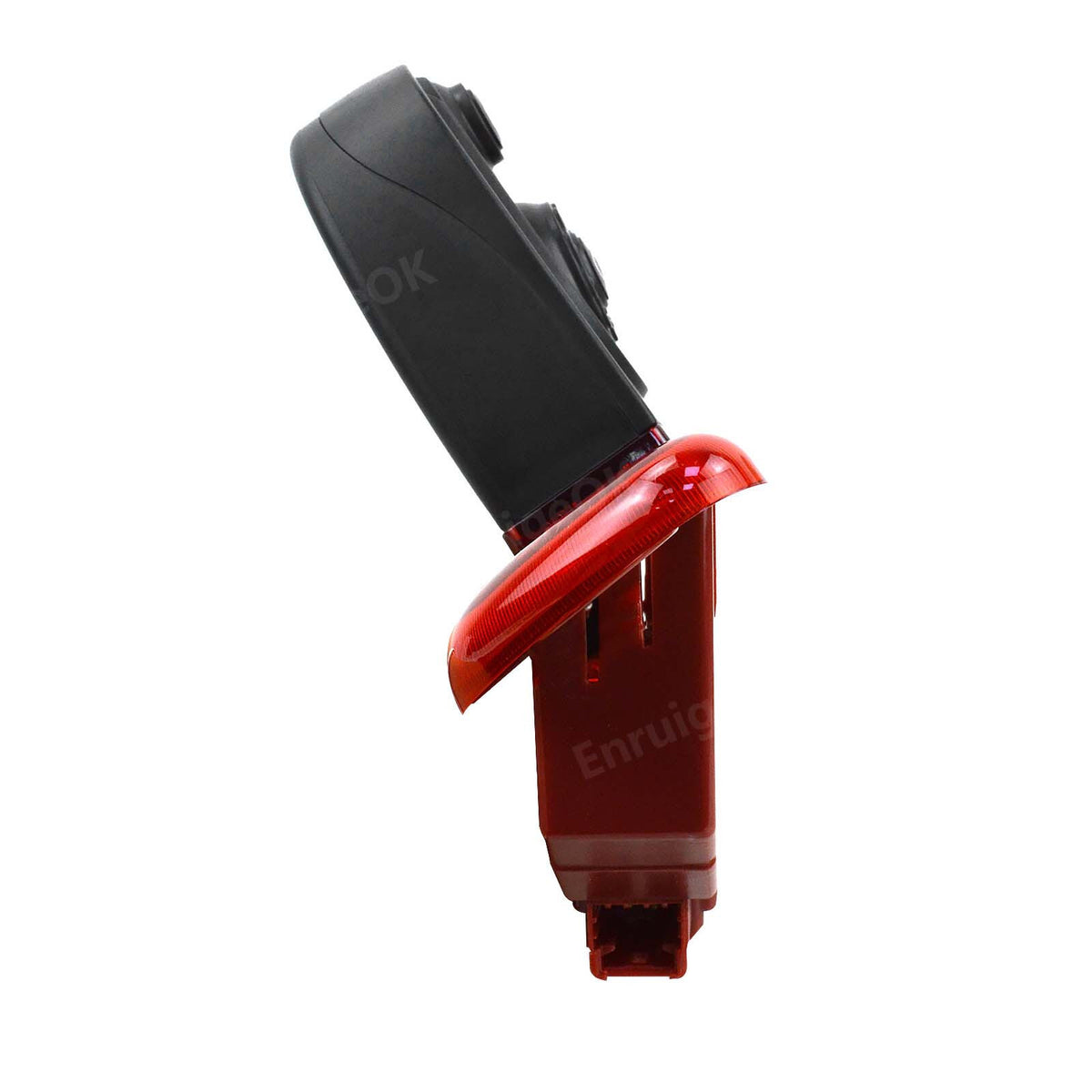

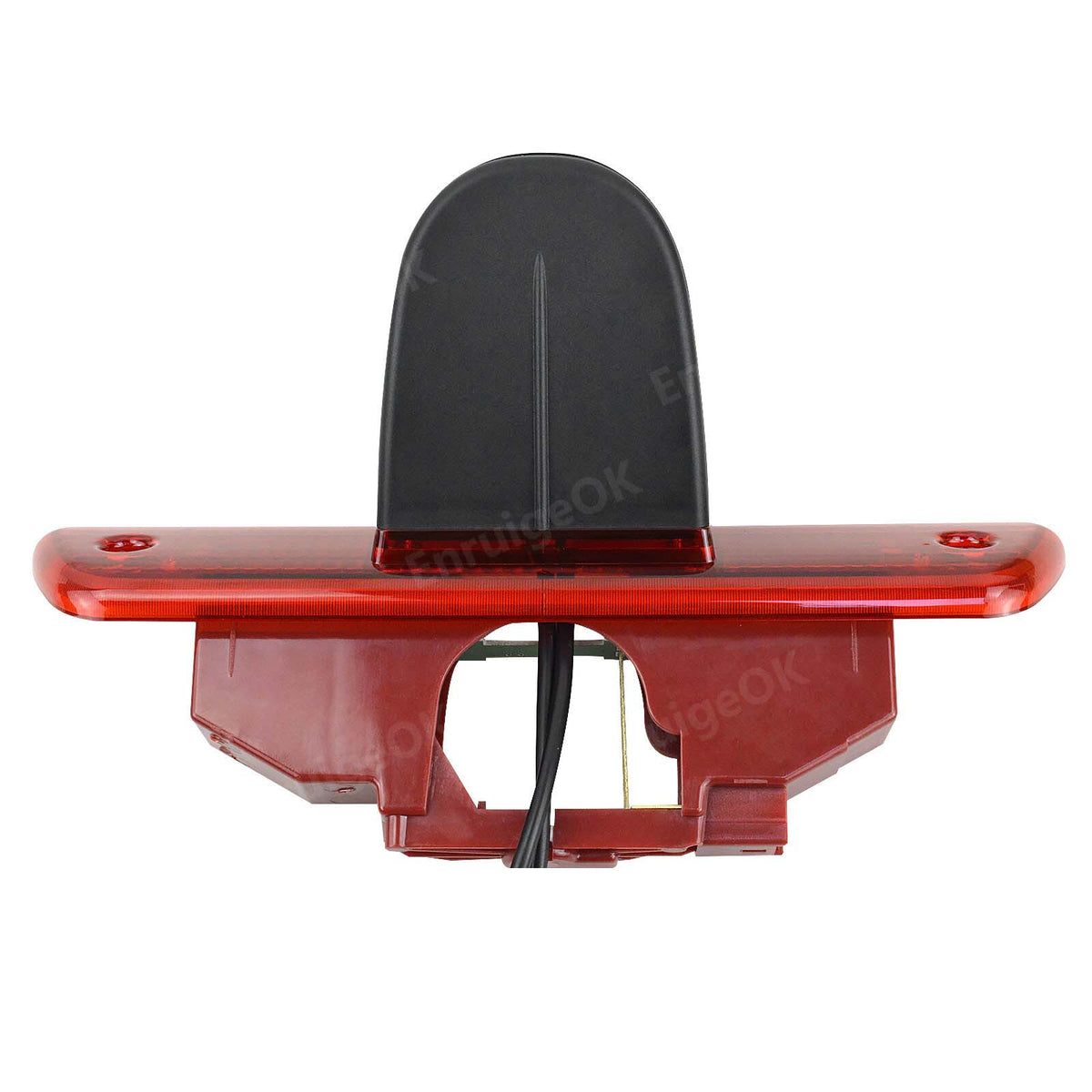

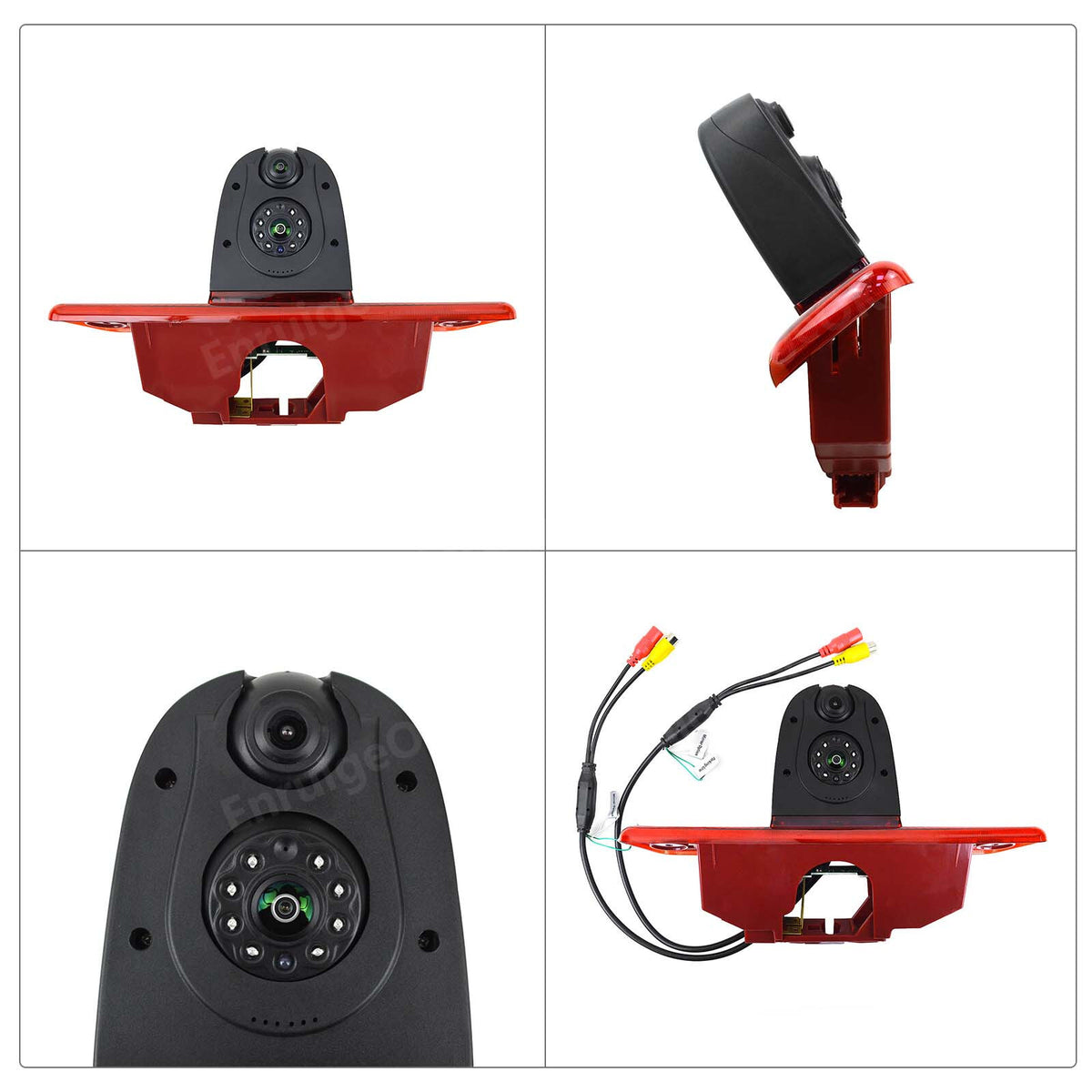

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.

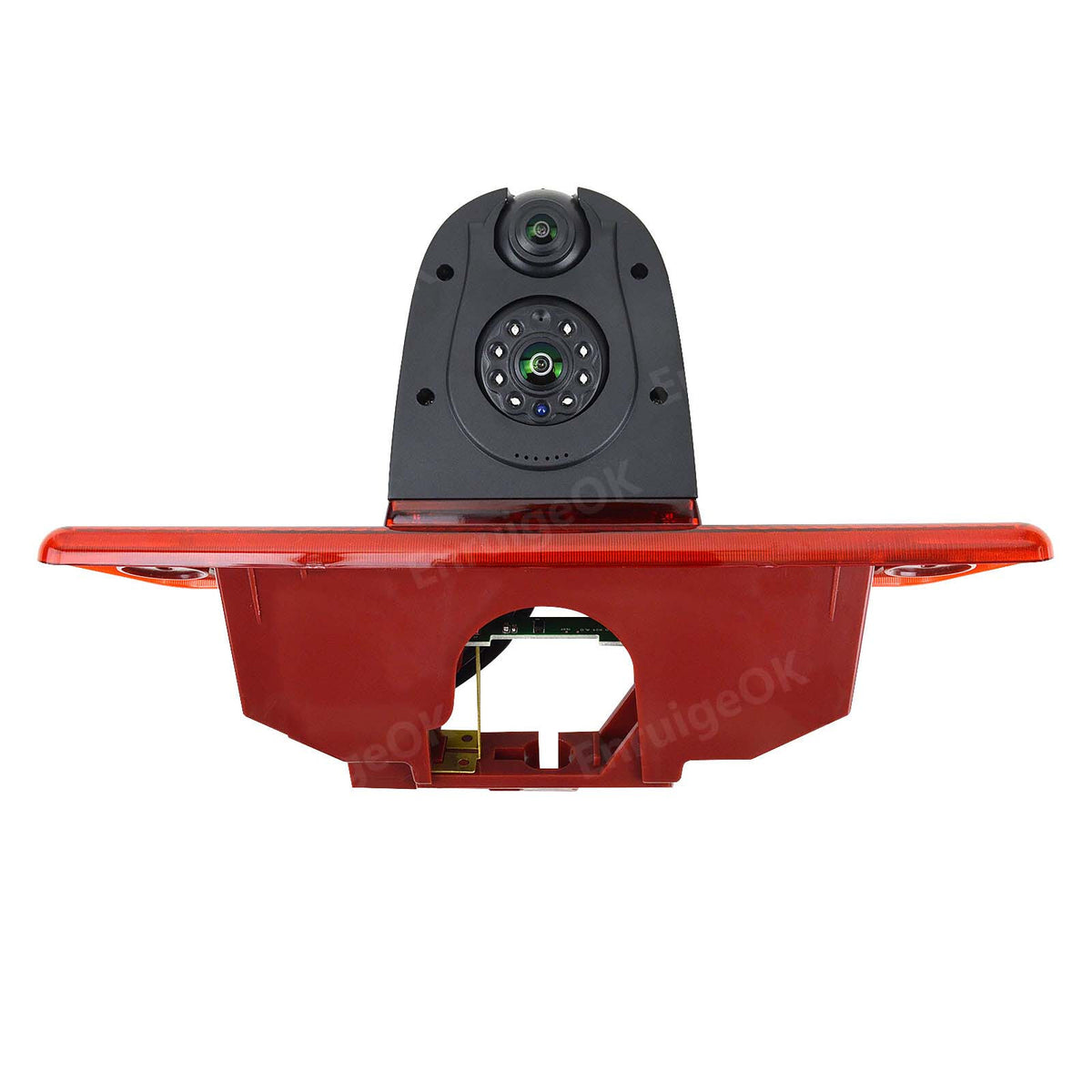

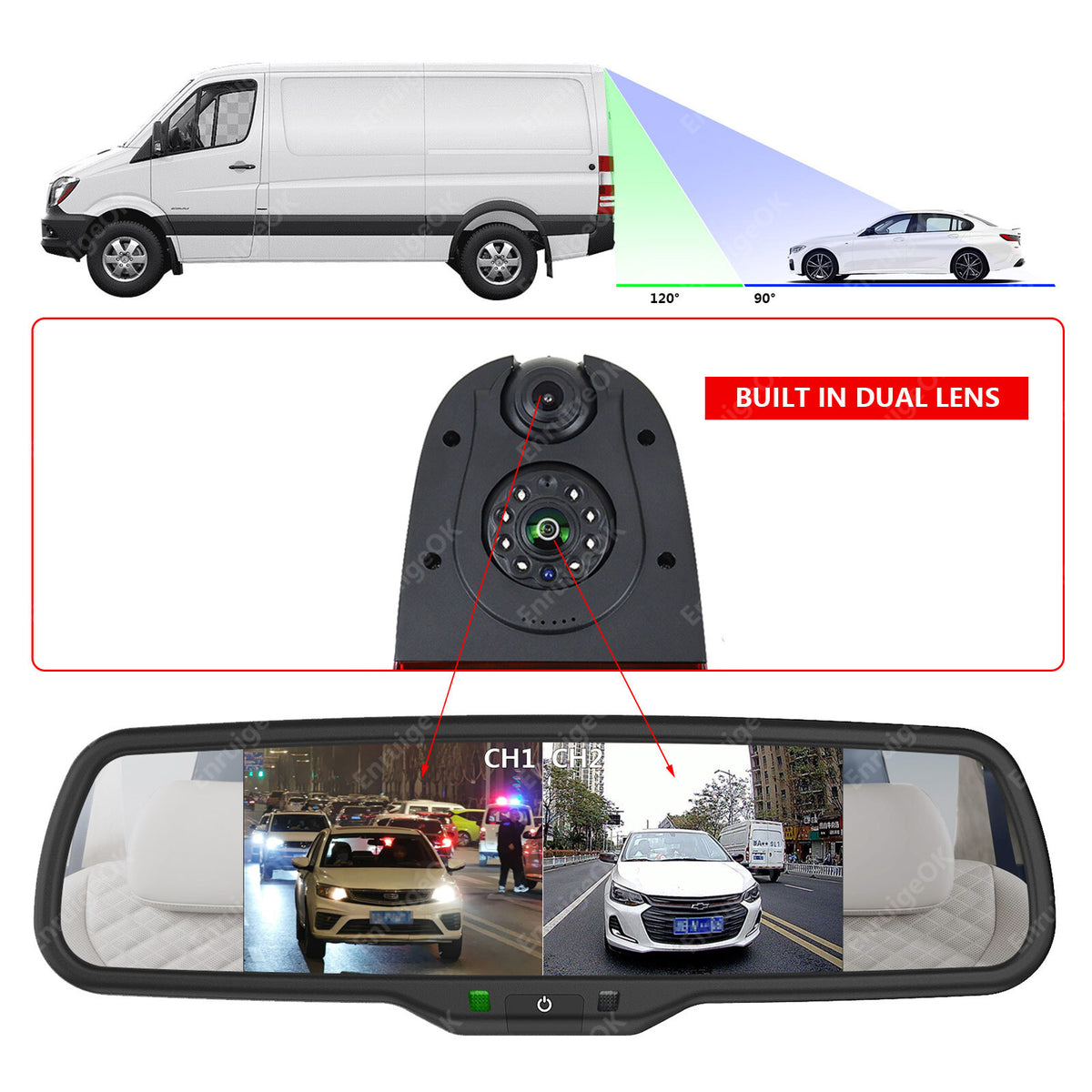

TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving, one for reversing view while parking.

Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.

Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.

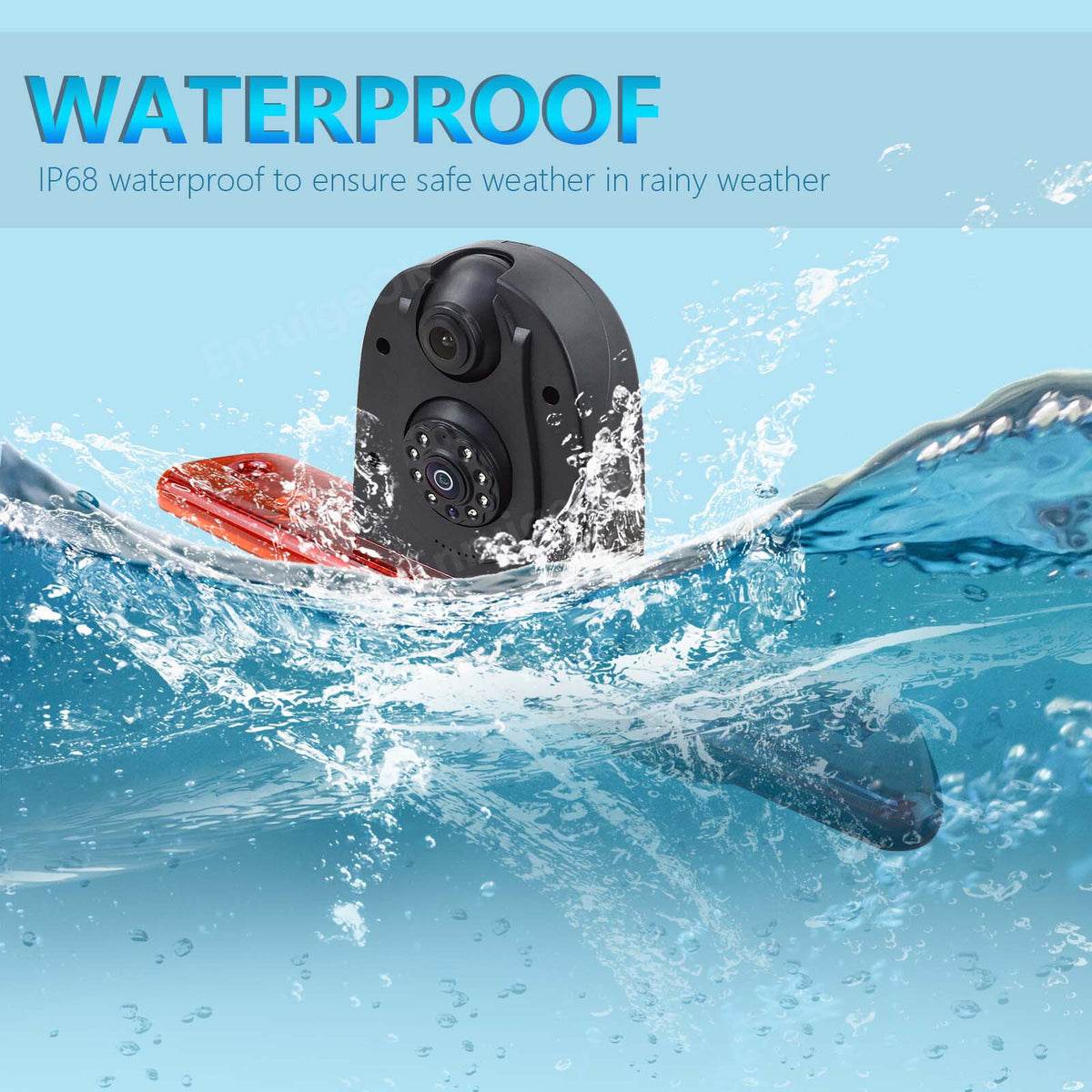

Waterproof Rating: Built with an IP68 rating, this camera is fully waterproof.

Camera Specifications

Image sensor: 1/3" CMOS

Lens: 2.8mm & 3.6mm

Effective pixel: 1920(H)x720(V)

Resolution: AHD 720P

Night Vision distance: Approx.35ft

Waterproof rating: IP68

Viewing angle: 120°& 90°

Video system: PAL/NTSC

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0Lux(IR LED ON)

Power: DC 12V

Operating temperature: -20℃ to +70℃

Monitor Specifications

Screen: 6.86 inch

Resolution: 1280x(RGB)x480 IPS

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

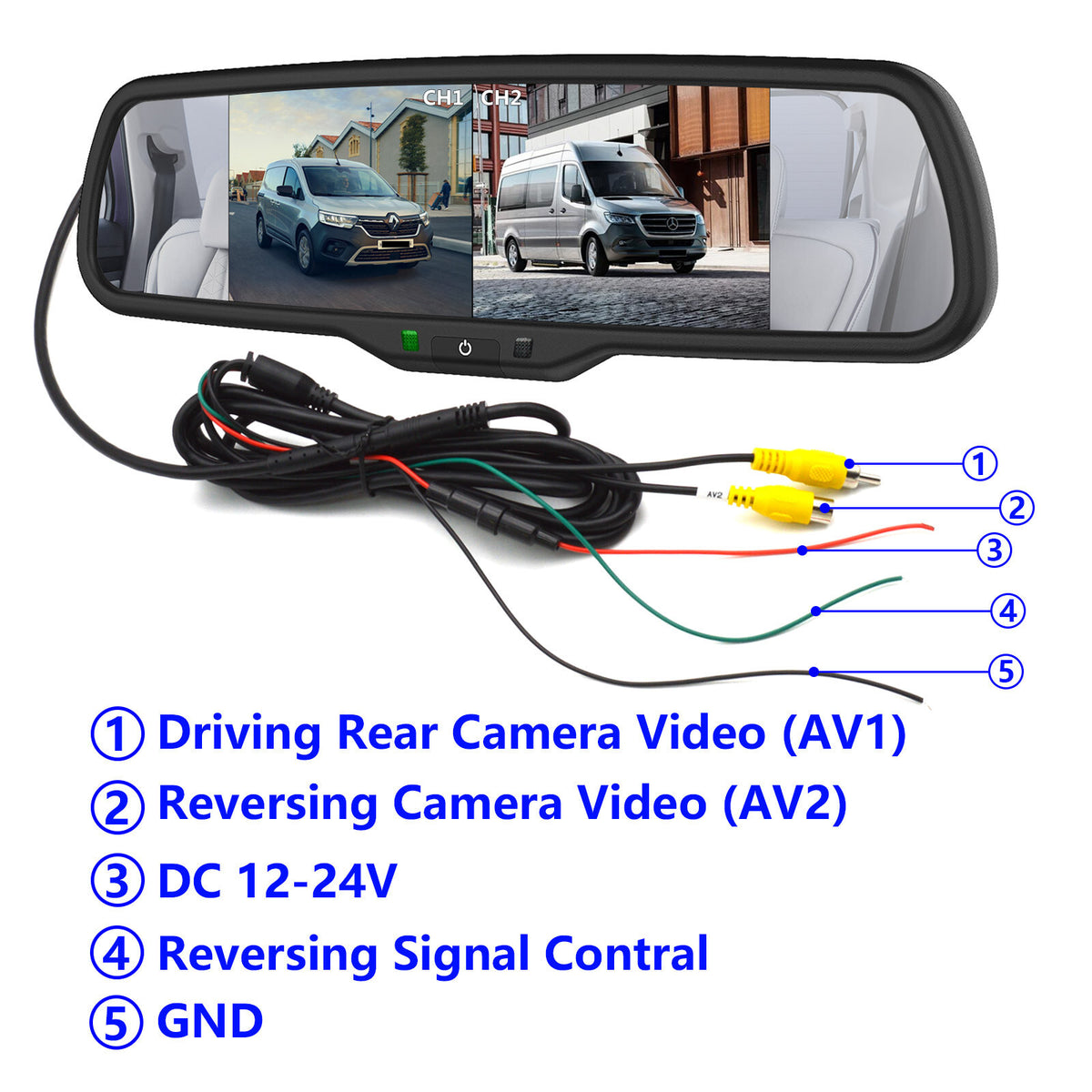

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), support 2-Split Screen, automatic full-screen switch during reversing

Blue screen displayed when no signal is detected.

Power Supply: DC 12V-24V

Power consumption: 6W

Operation temperature: -20℃ ~ +60℃

Storage temperature: -20℃ ~ +60℃

Note

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
