Chevy Express/GMC Savana Explorer Van 2003-2018 Backup Camera + 7" Monitor Kit

Note: Please check the camera size carefully before make the order.

Camera Compatibility

✅2003-2014 Chevrolet Express 1500

✅2003-2019 Chevrolet Express 2500

✅2003-2019 Chevrolet Express 3500

✅2003-2014 GMC Savana 1500

✅2003-2019 GMC Savana 2500

✅2003-2019 GMC Savana 3500

Including Cargo, Passenger & Explorer Vans

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

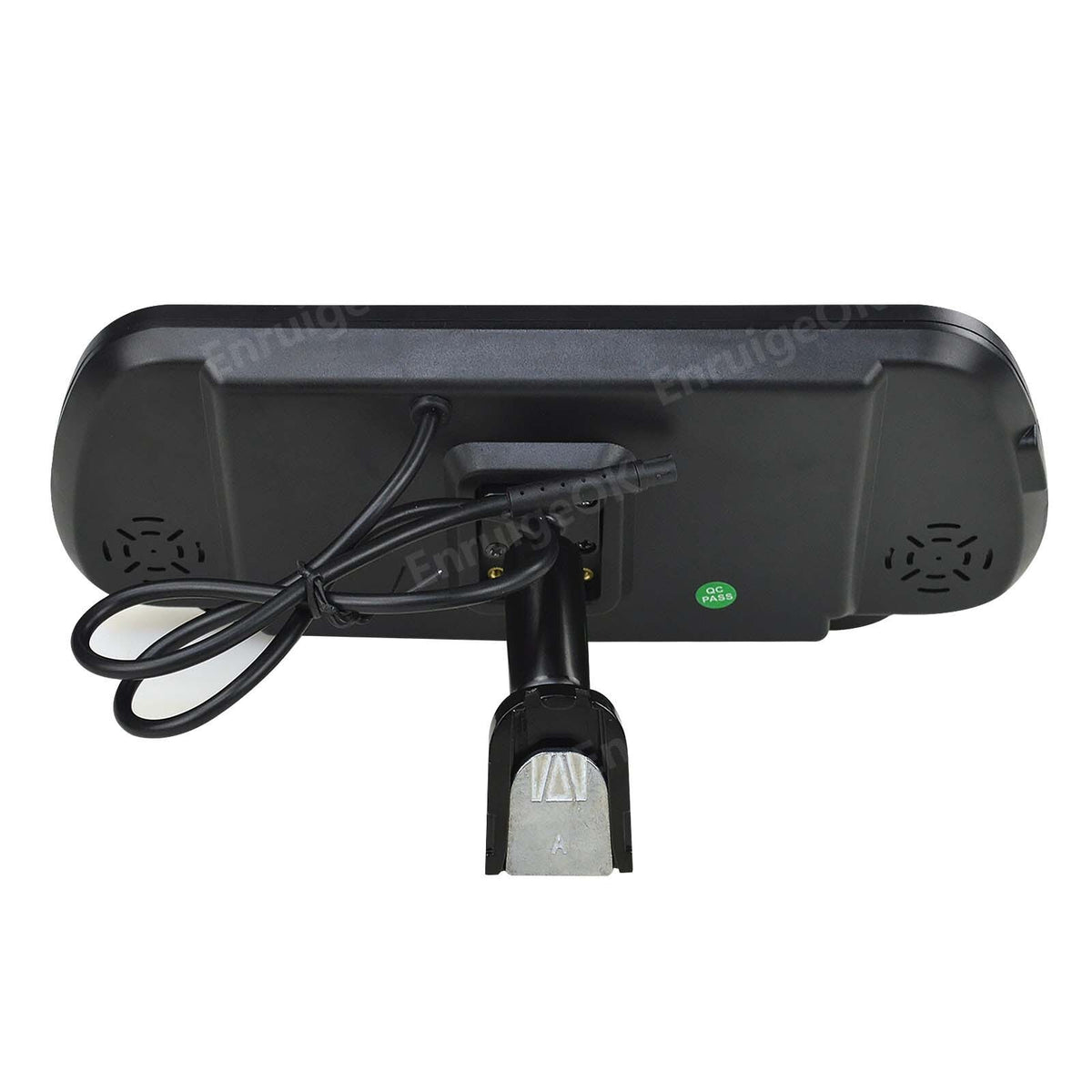

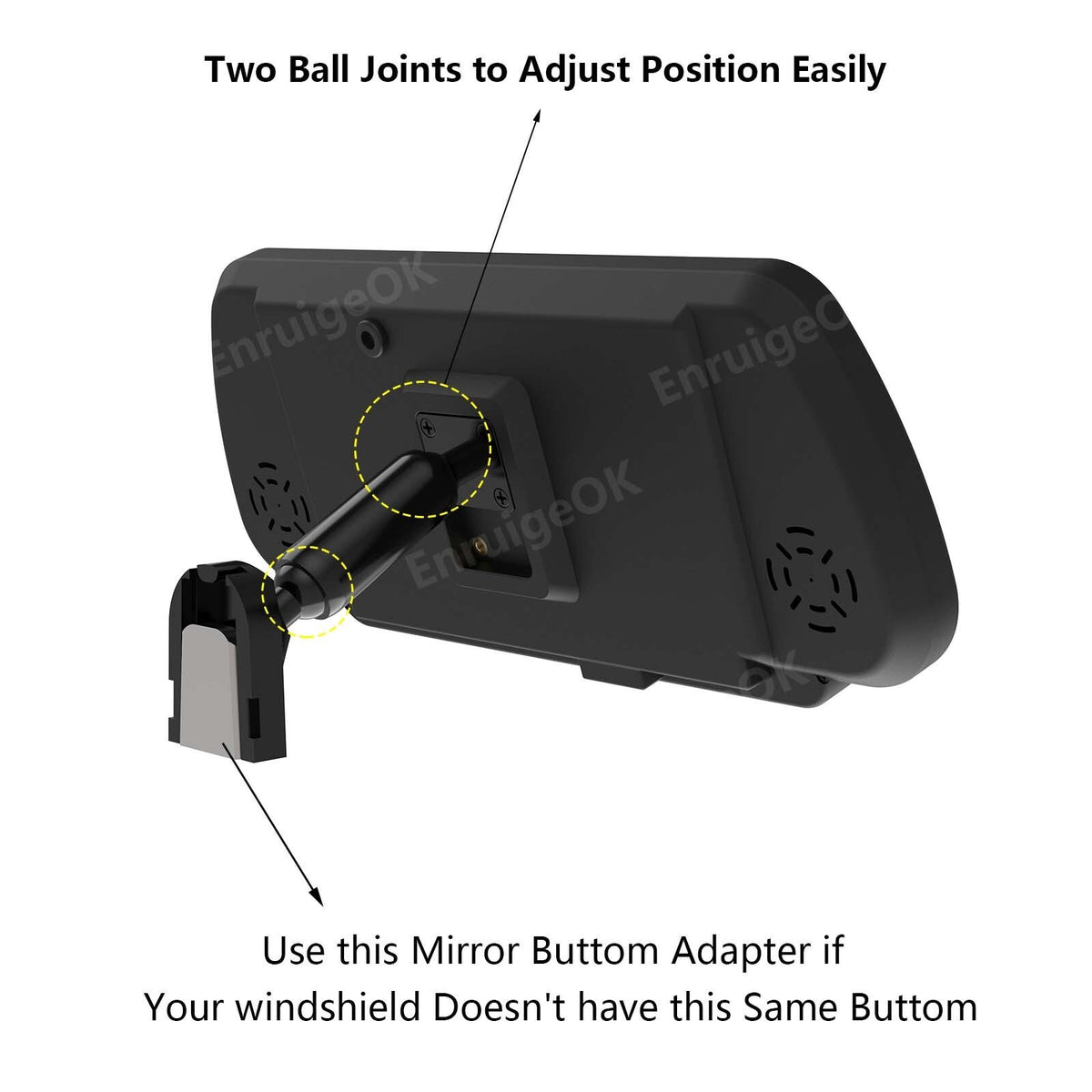

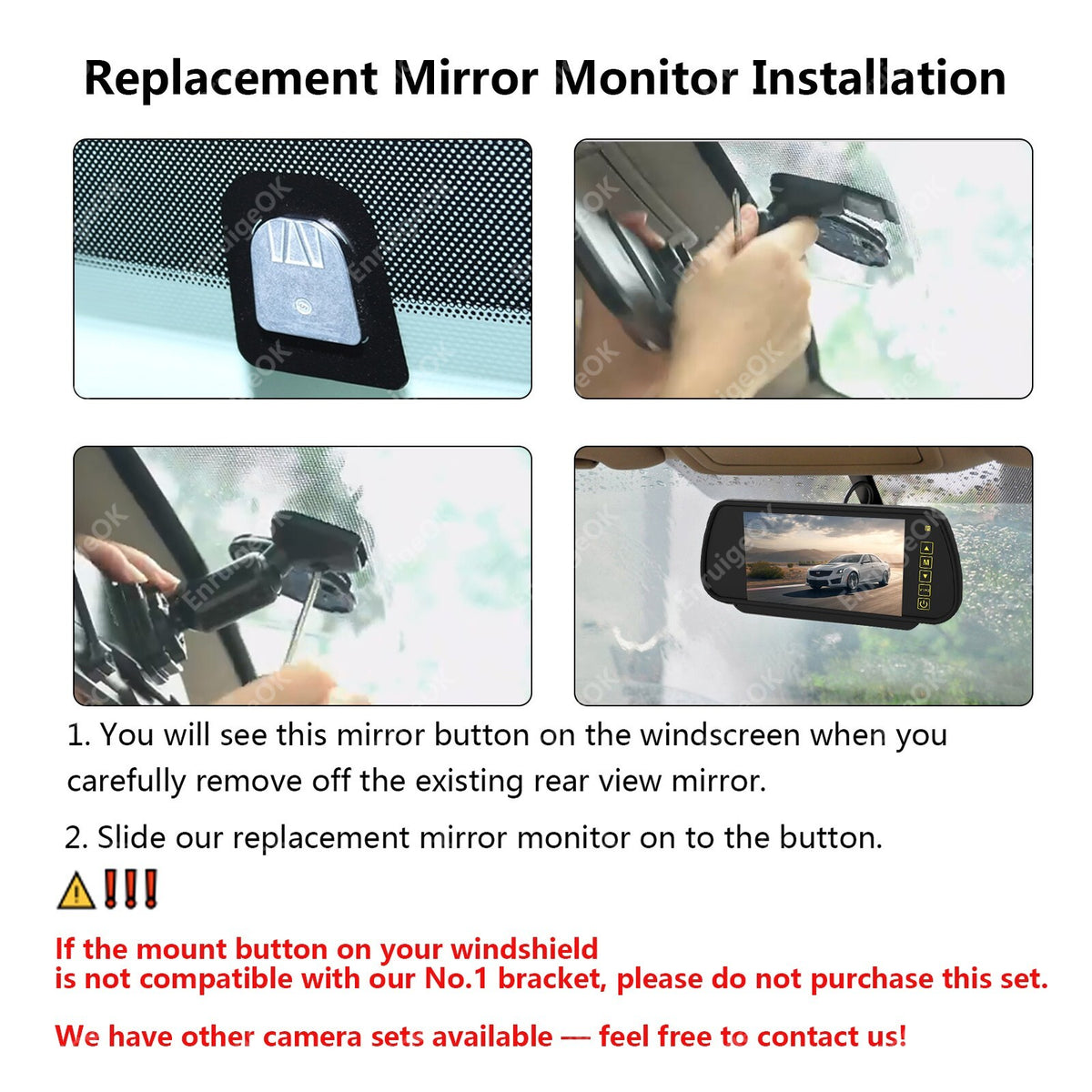

Monitor Bracket Note

This set comes with a #1 bracket by default. Please confirm compatibility by sending us a photo of your windshield button or mirror bracket if unsure.

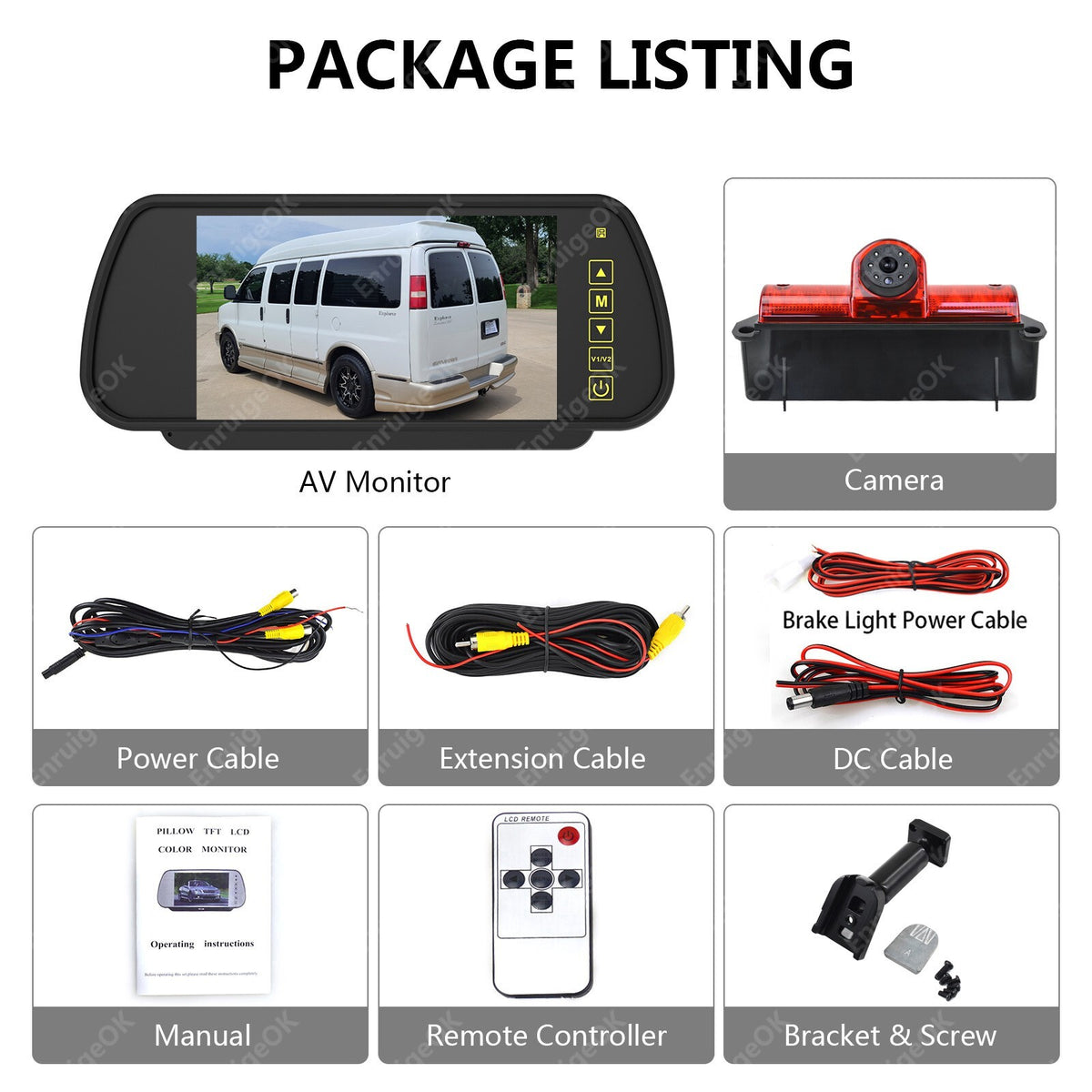

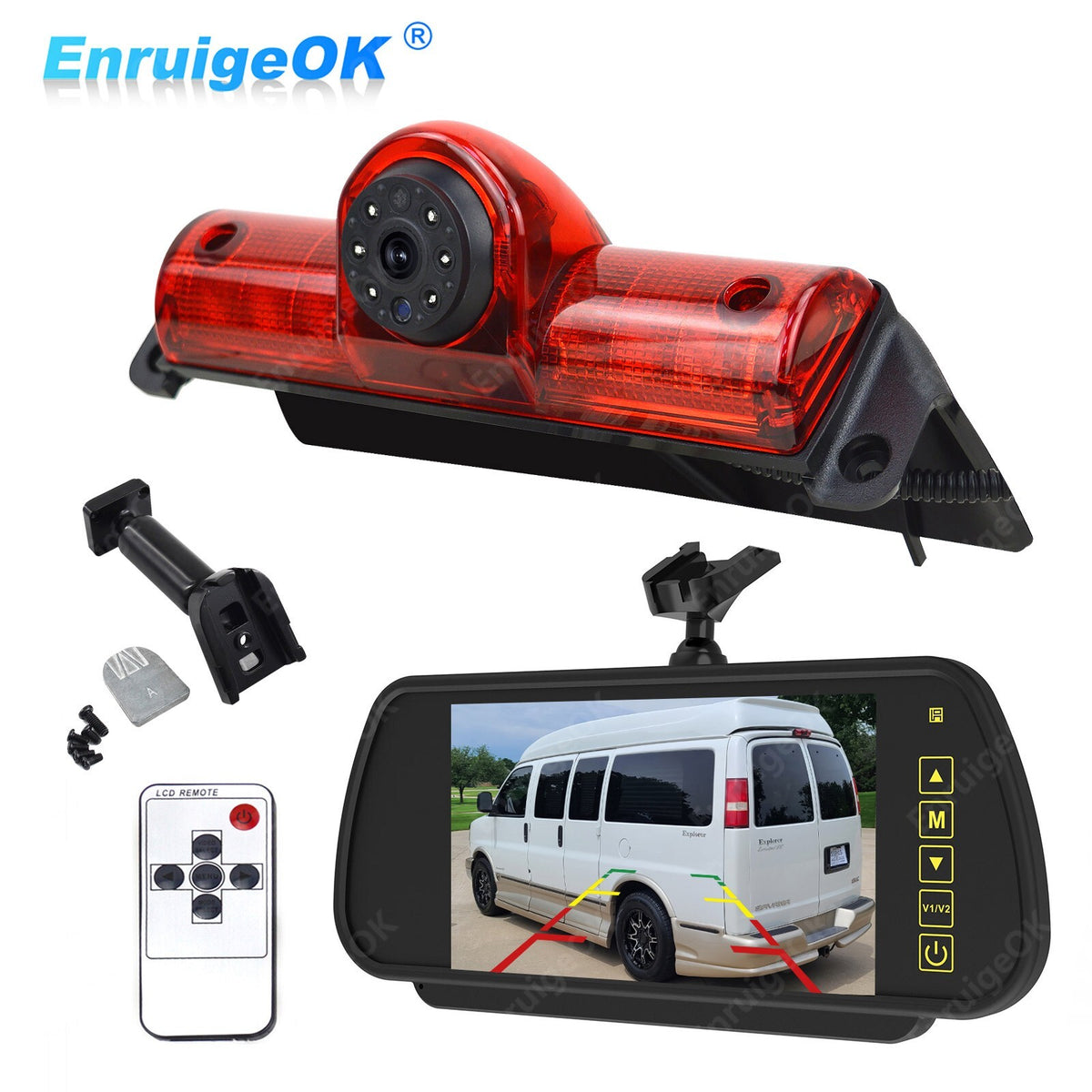

Package contents

1 X Brake light camera

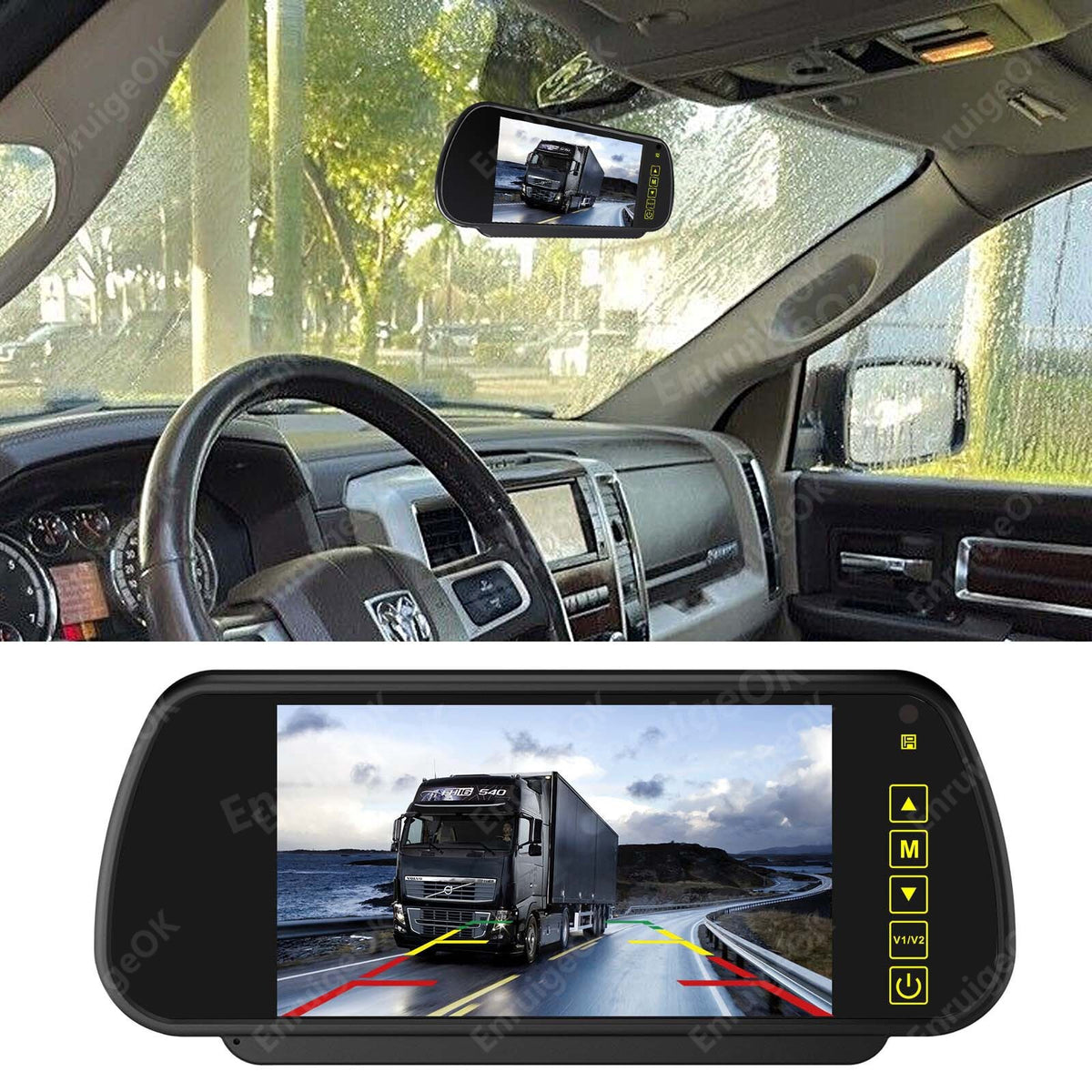

1 X 7'' Mirror monitor

1 X Remote controller(battery not included)

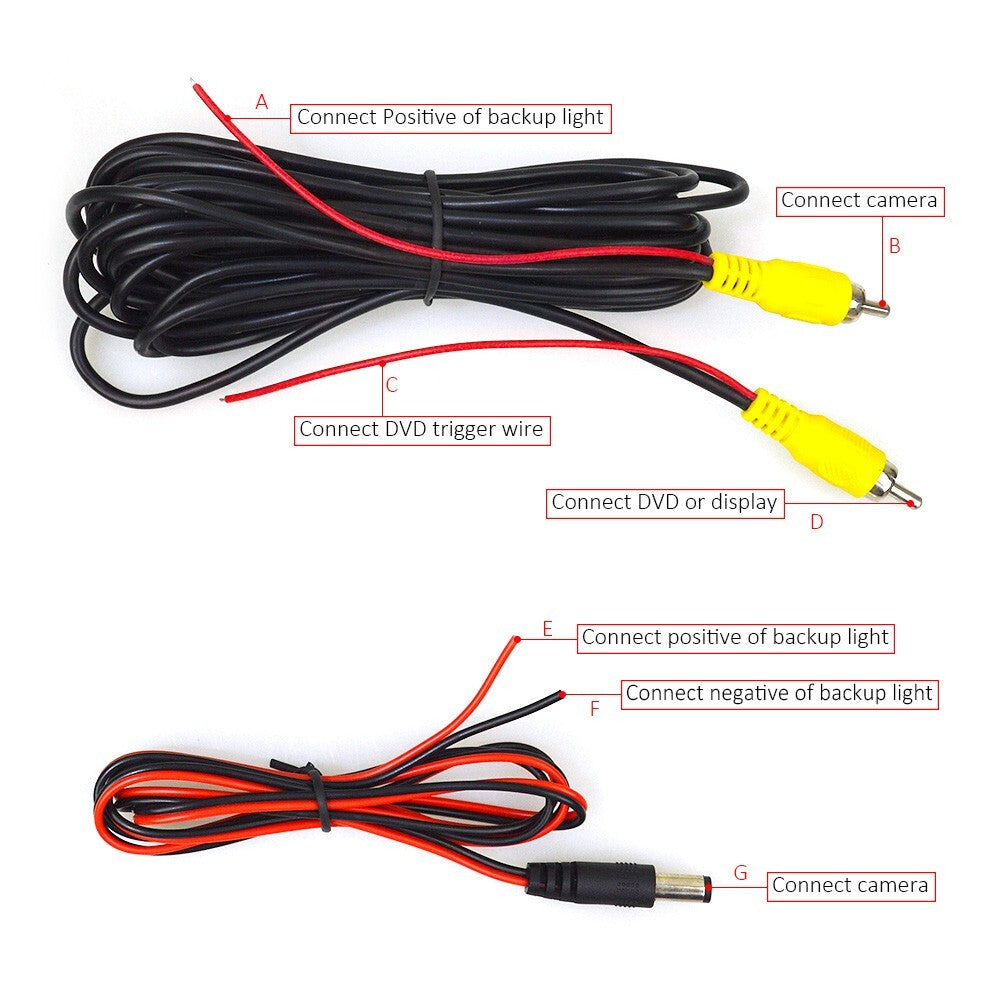

1 X Monitor power cable

1 X 10m/33ft. extension cable

1 X 1.5m DC Power cable

1 x Brake light power cable

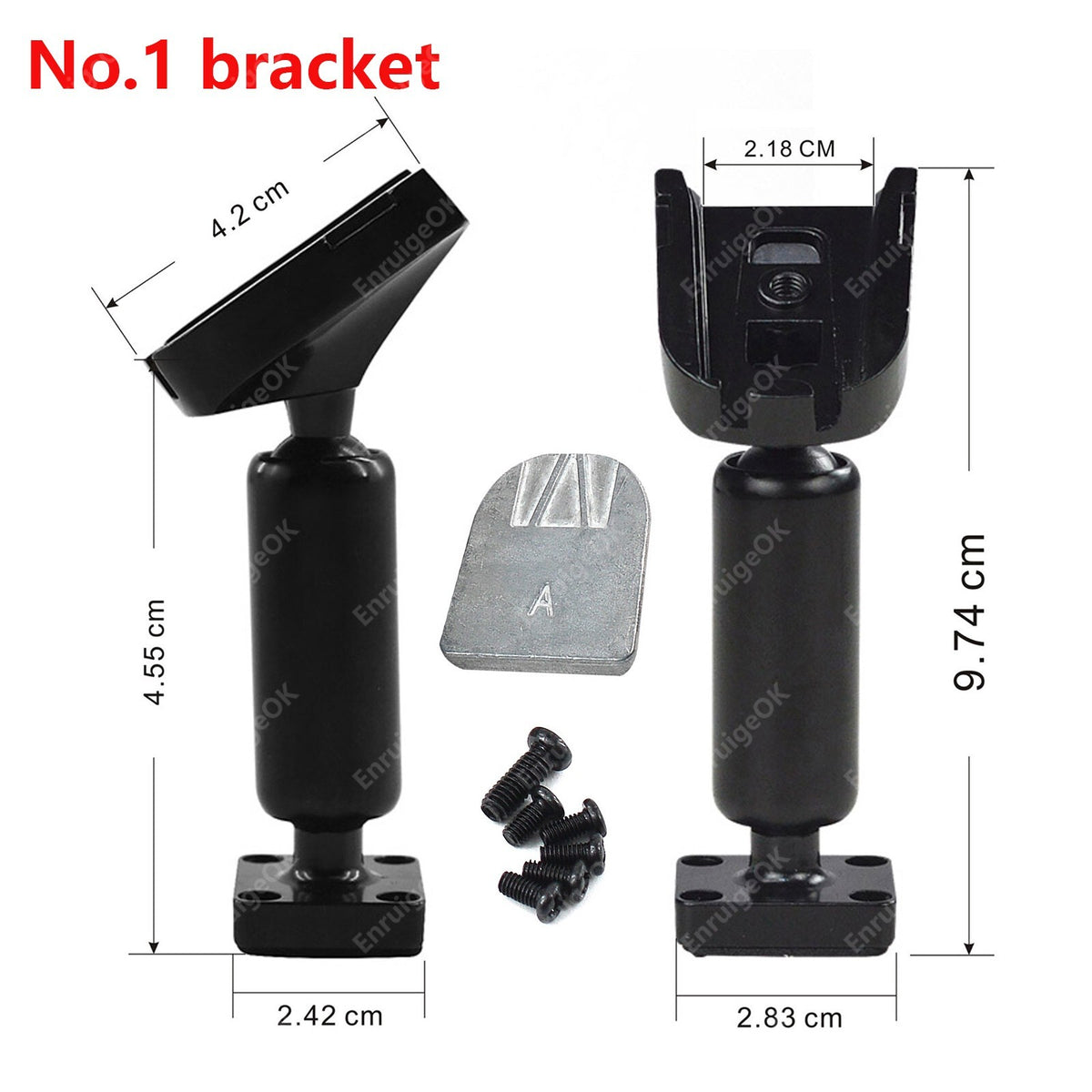

1 X No1 Bracket(check your windshield button)

1 X Manual

Description

It includes a backup camera & monitor. When you are backing up, the car monitor will display the rear camera images, helping you park safely.

7" Color TFT-LCD Monitor with 2 video input, 800*480(RGB) resolution works perfectly with brake light rear view camera.

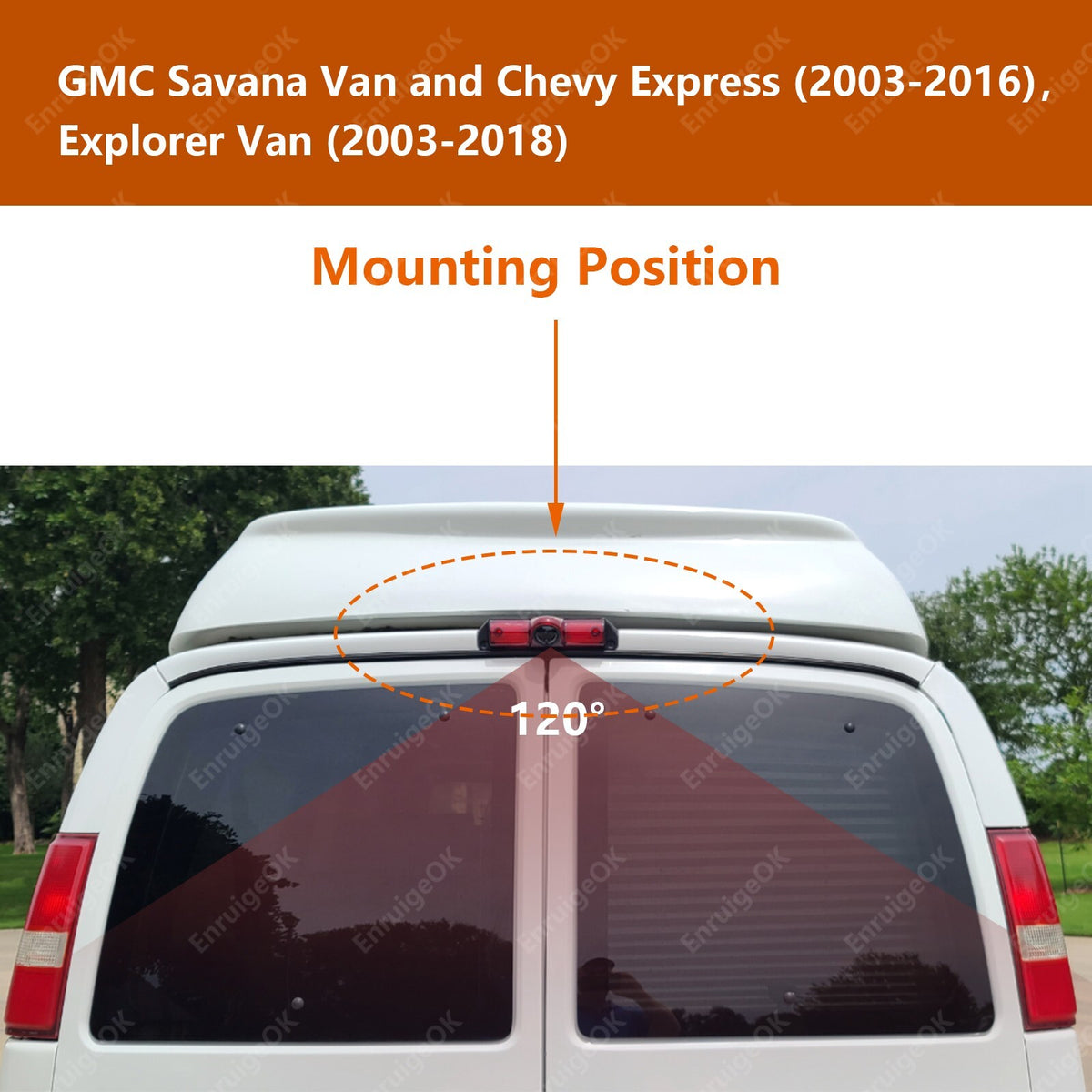

This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.

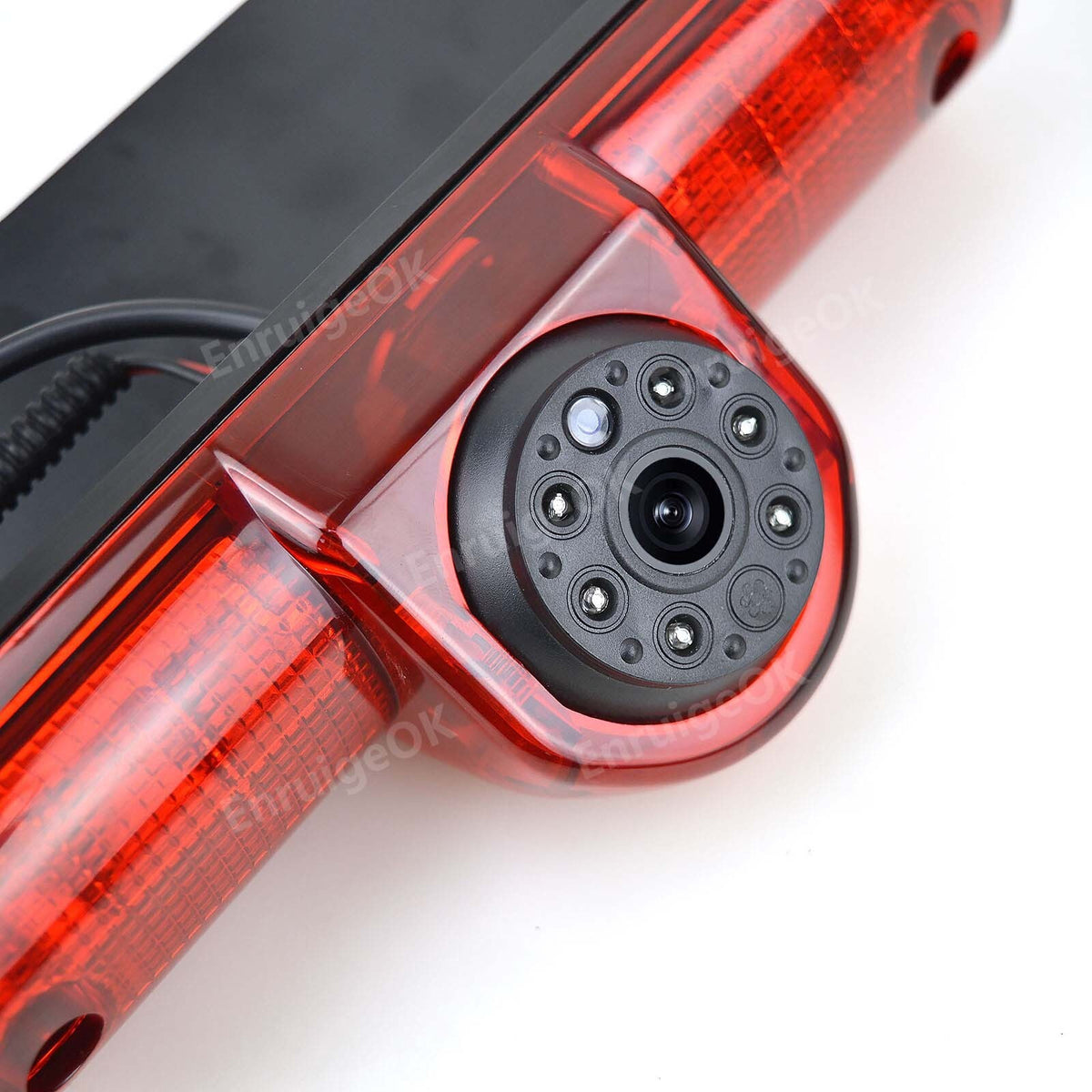

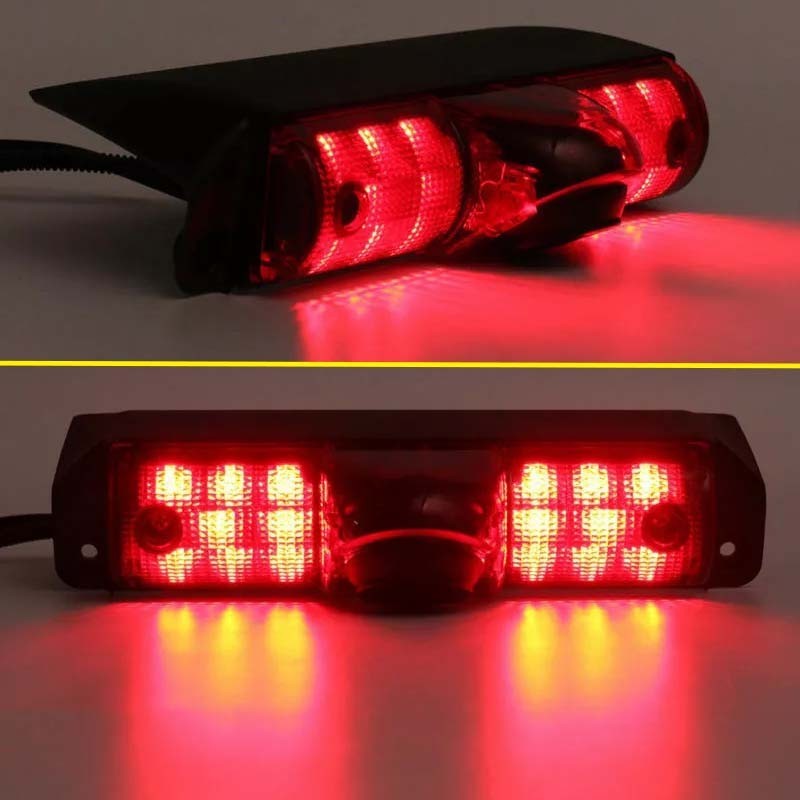

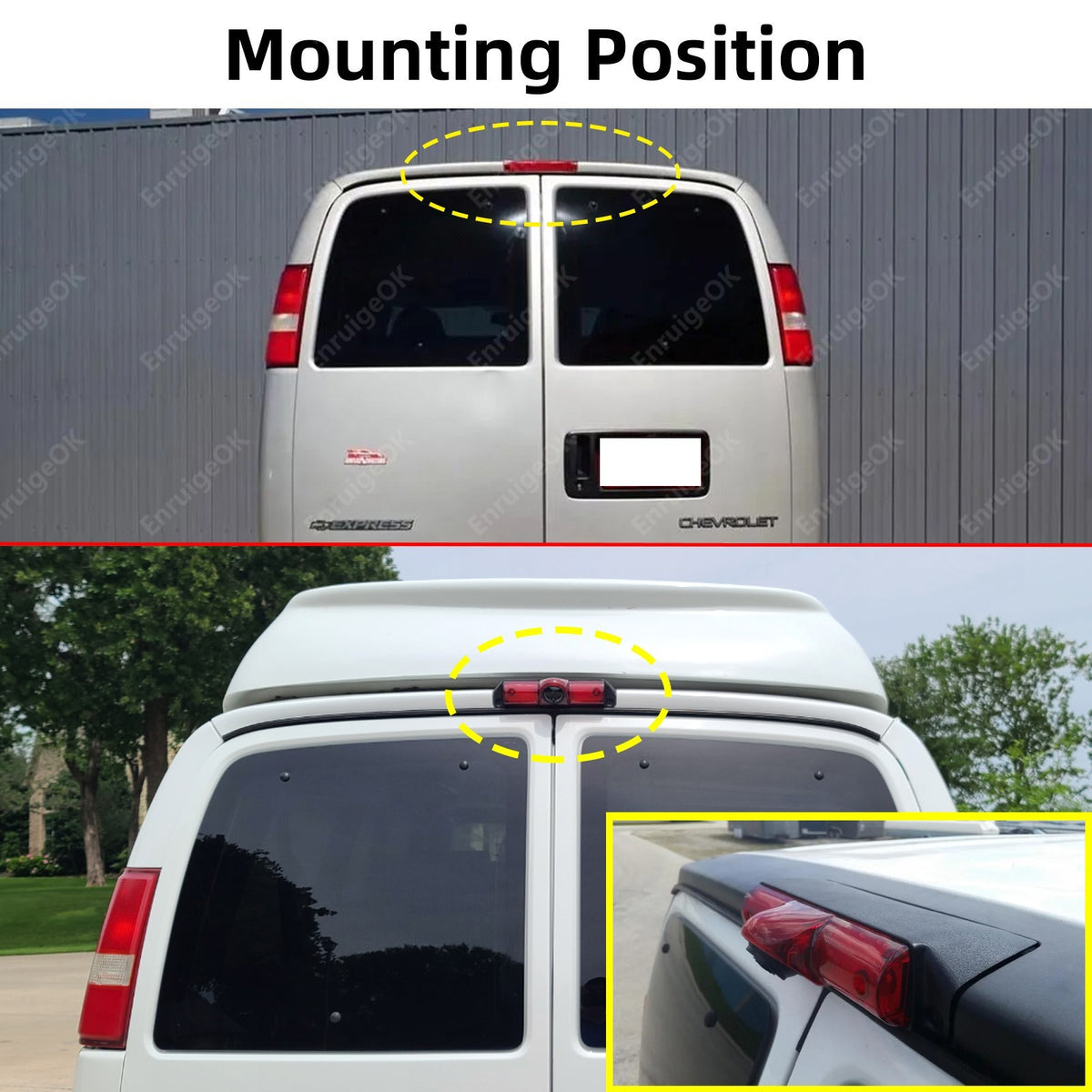

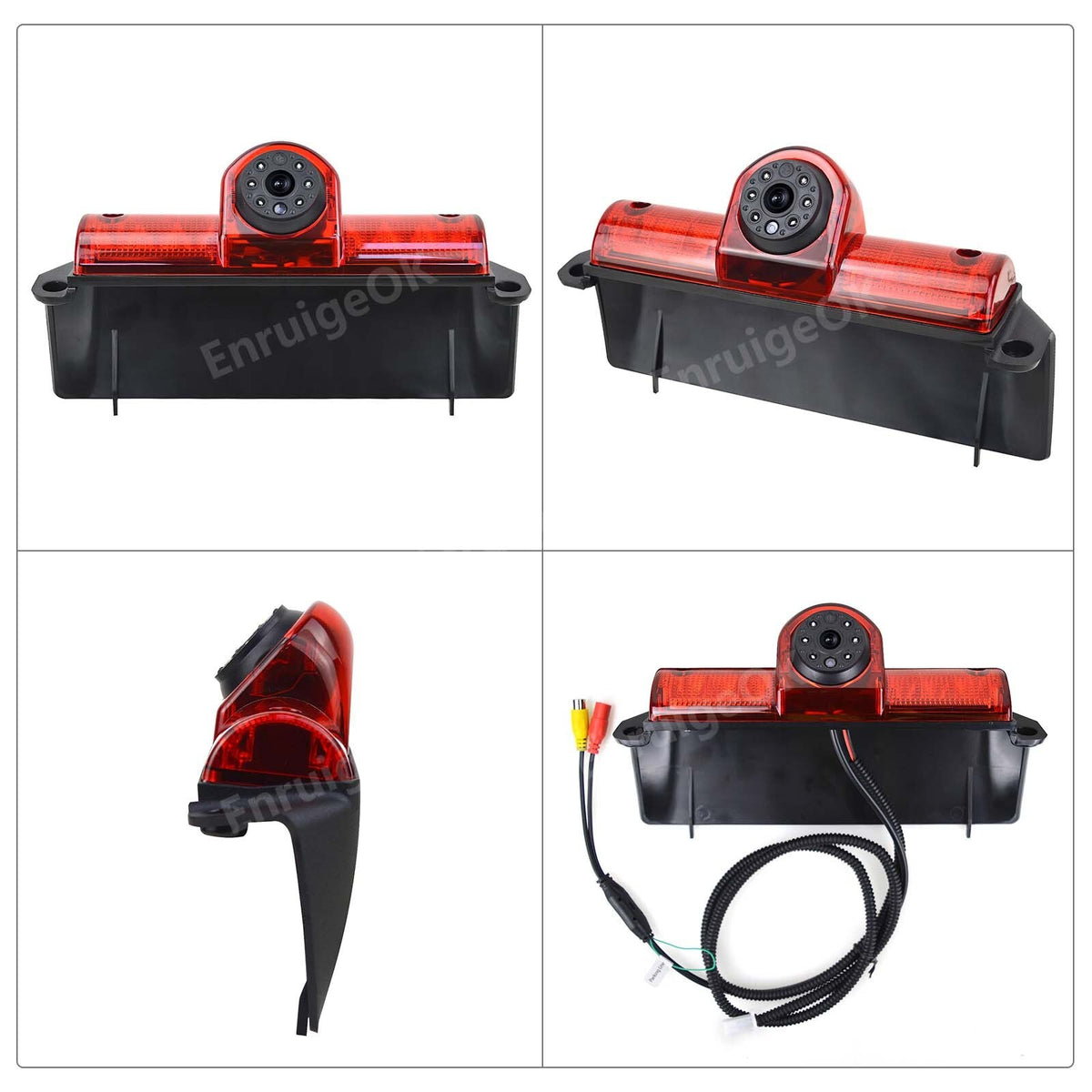

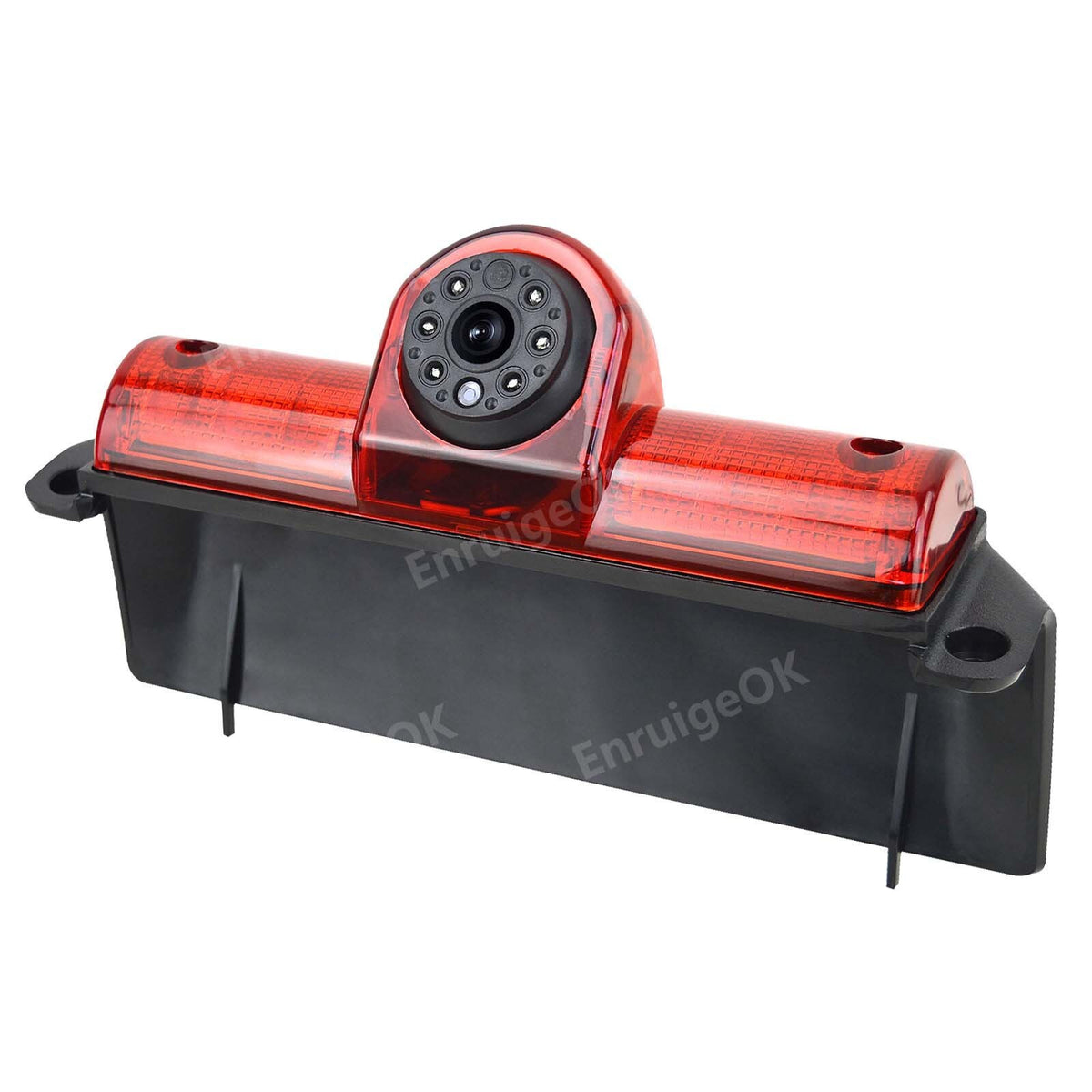

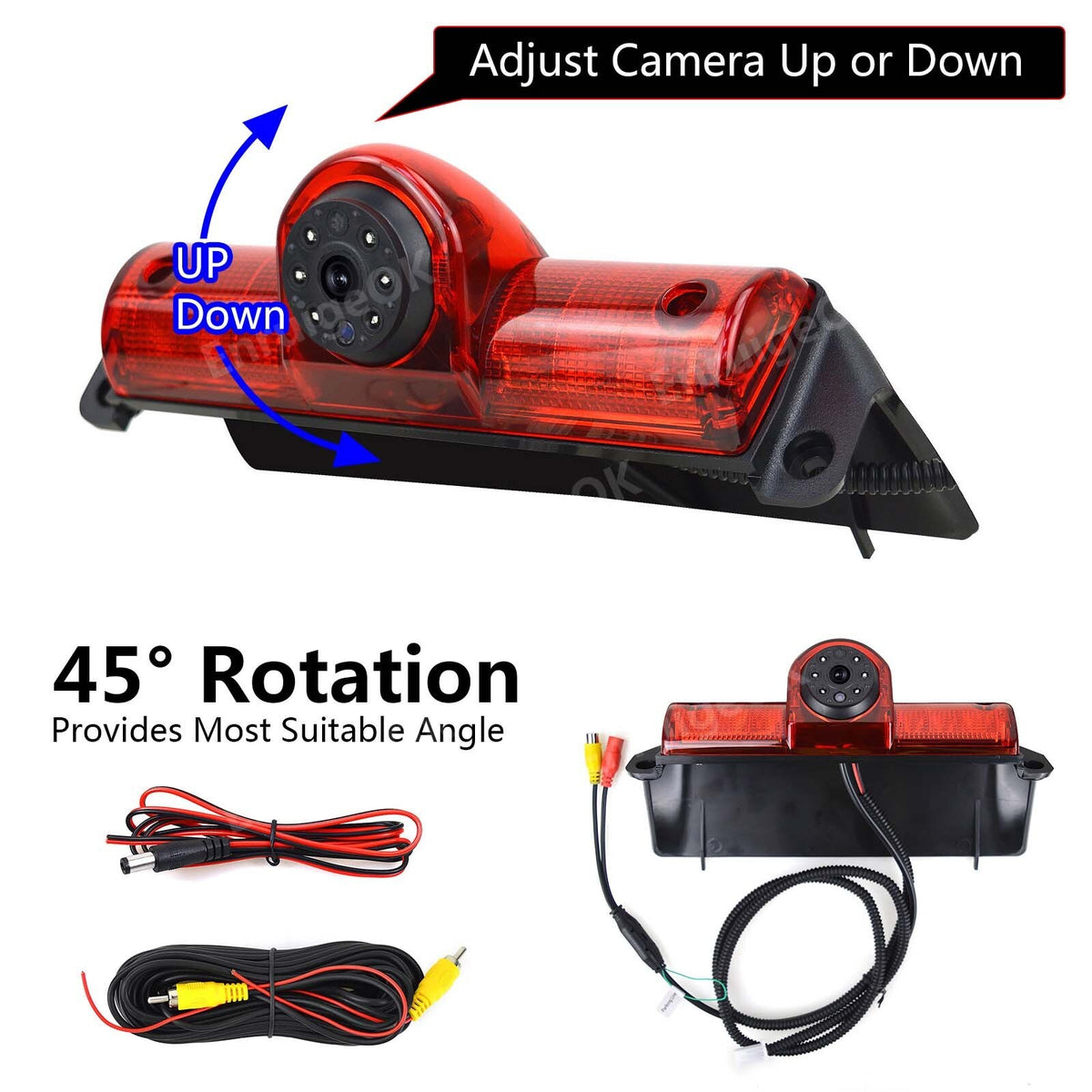

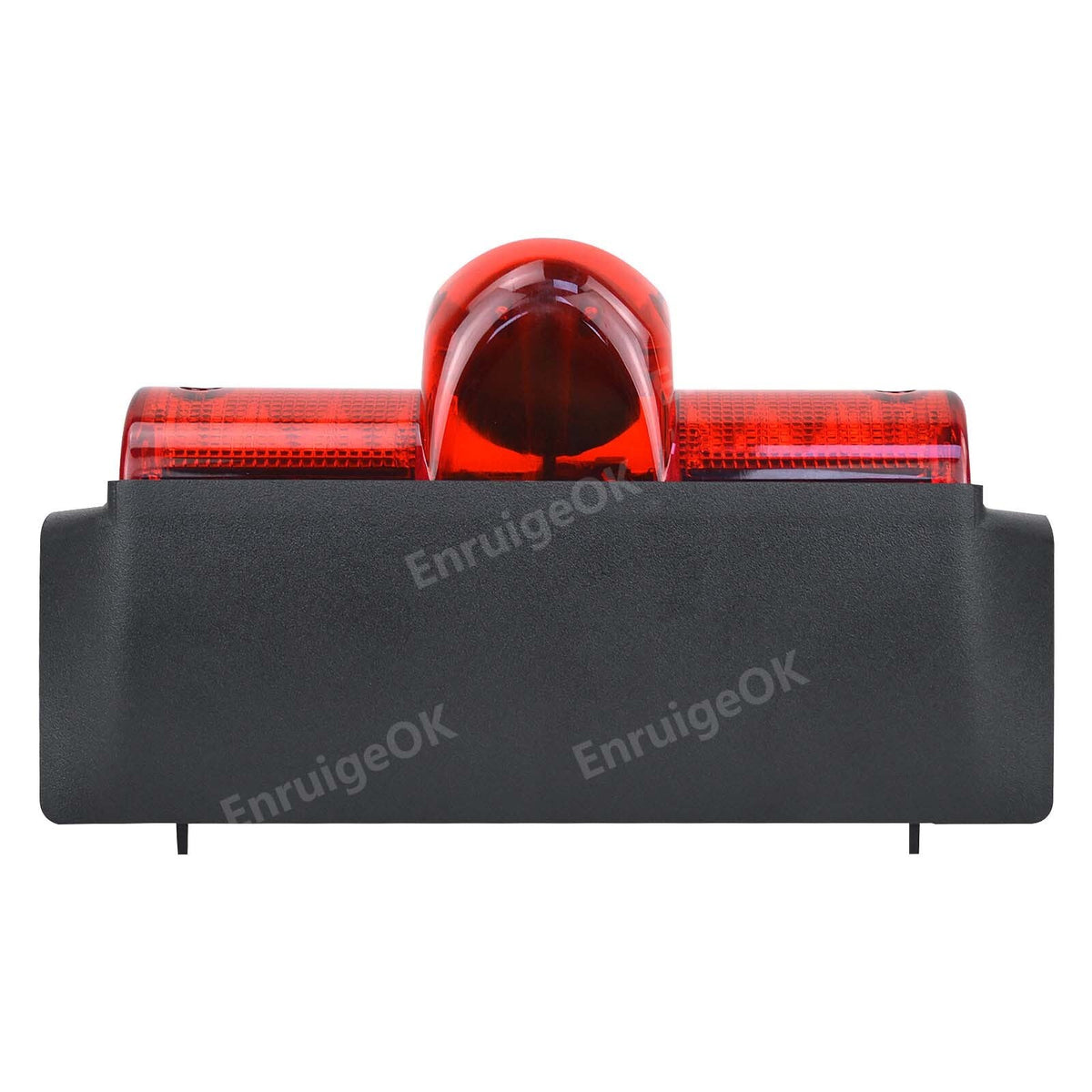

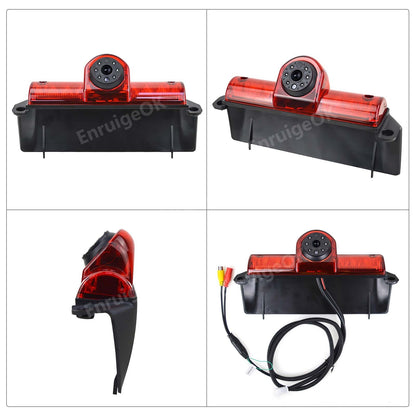

Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

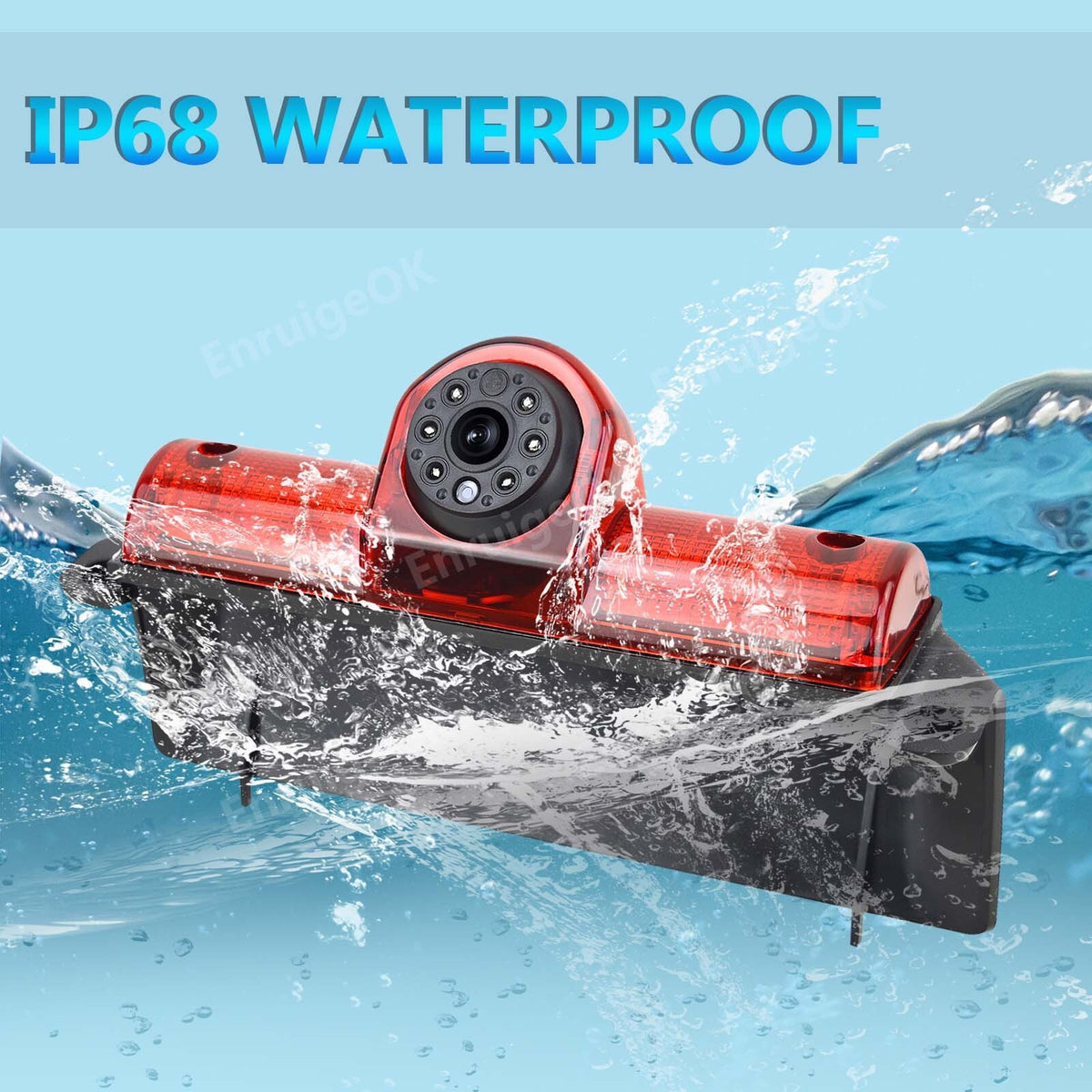

100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.

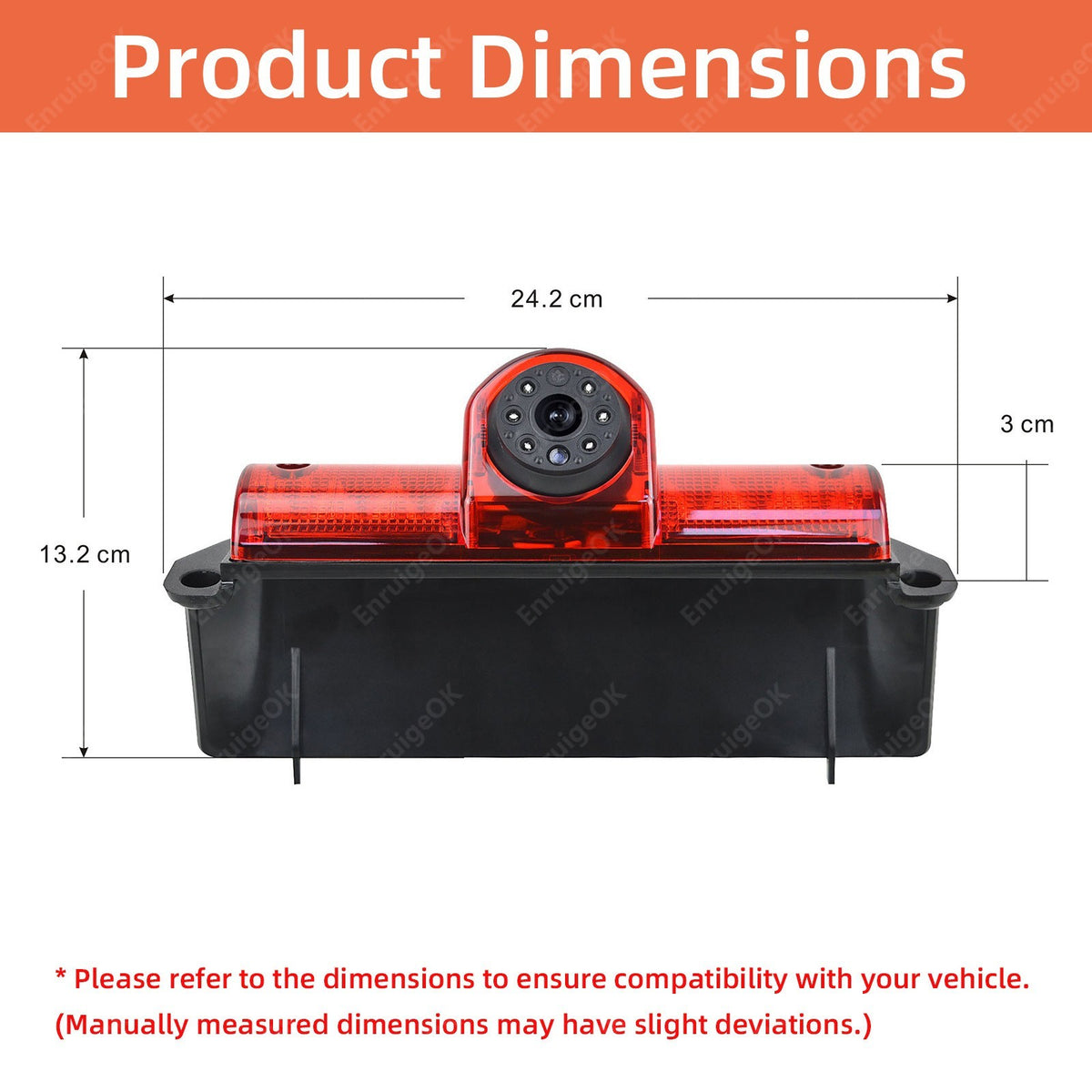

Camera Specifications

Image sensor: 1/4 "CMOS

TV system: PAL/NTSC option

Waterproof rating: IP68

Viewing angle: 120°

Effective pixel: 733(H)x493(V)

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Resolution: 480TV Lines

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 0.1-0.5Lux / F = 1.2

Power supply: DC12V

Power: 5W

Operating temperature: -20℃ to +70℃

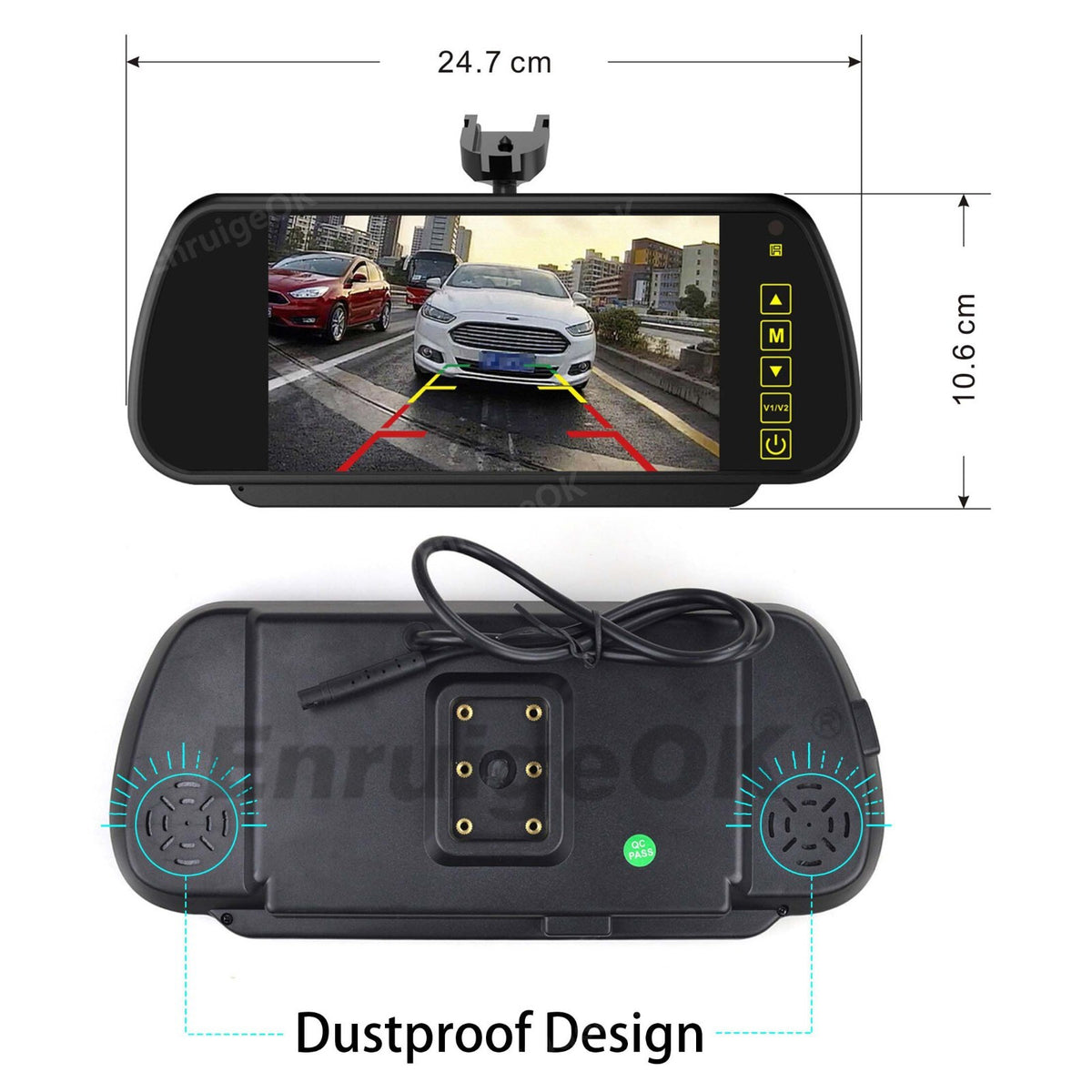

Monitor Specifications

Color: Black

Material: ABS

Screen: 7 inch

Resolution: 800*480(RGB)

TV System: PAL/NTSC auto

Screen ratio 16:9/4:3 adjustable

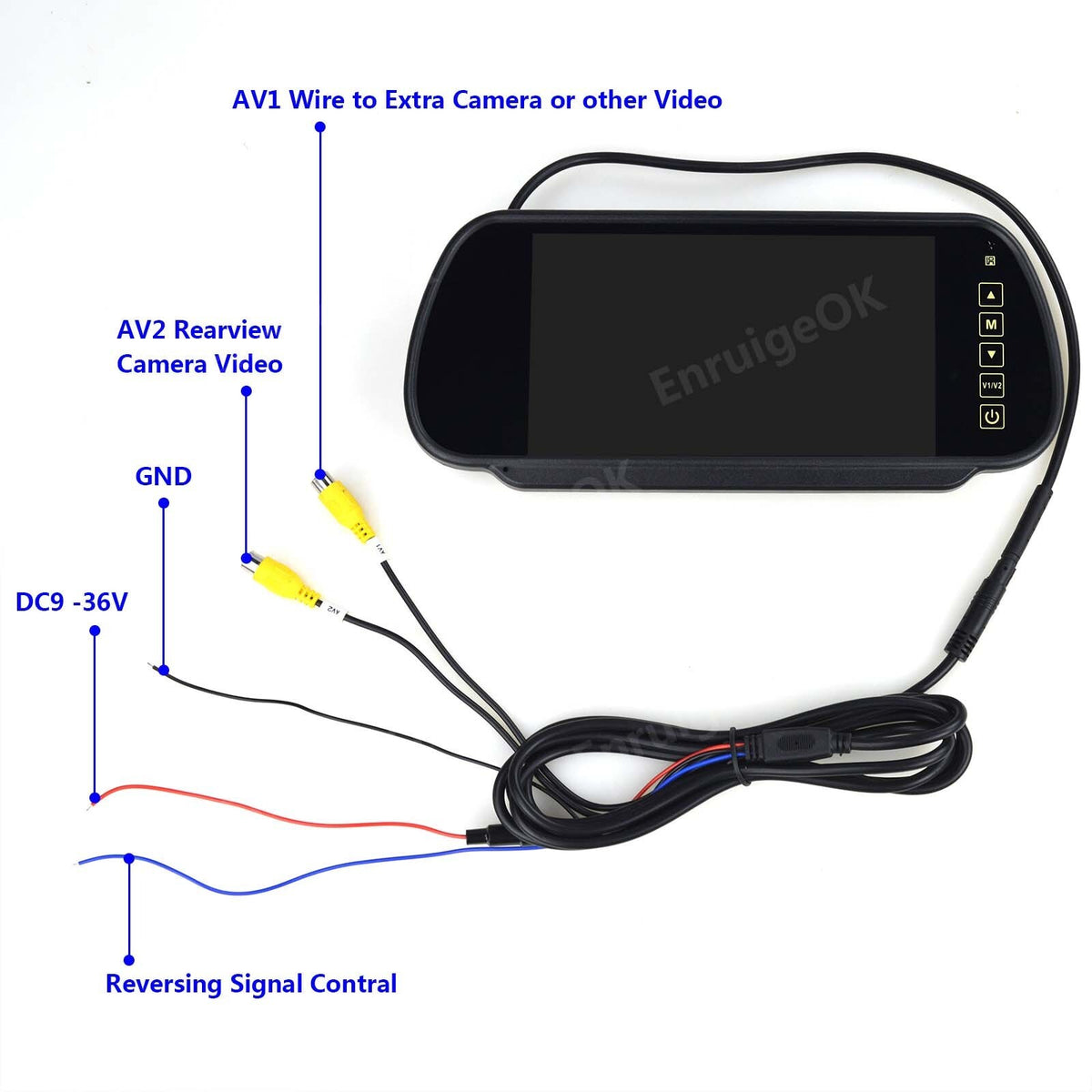

Video Input: 2AV video input

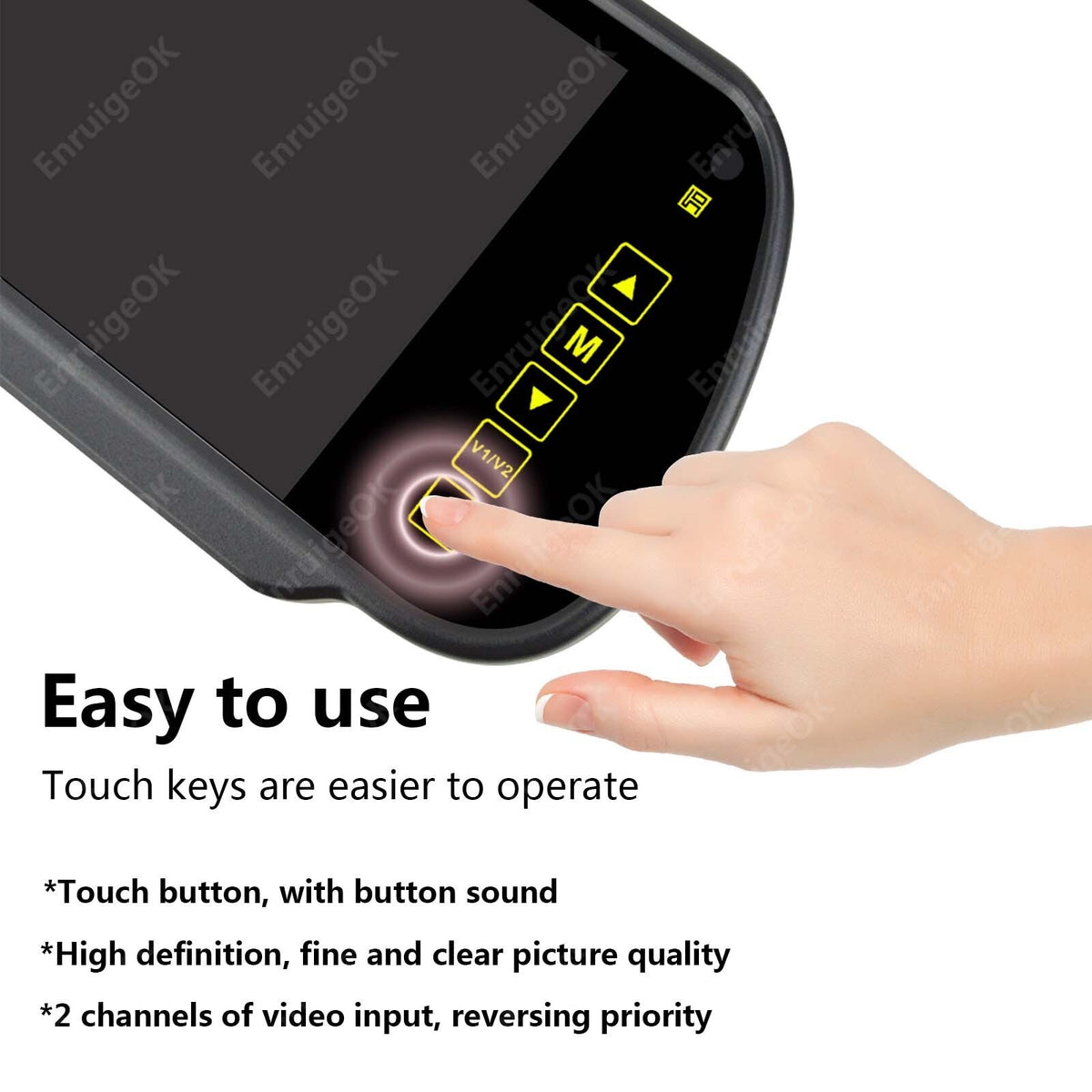

Control mode: Touch button

Power Supply: DC 9V/35V

Power consumption: 6W

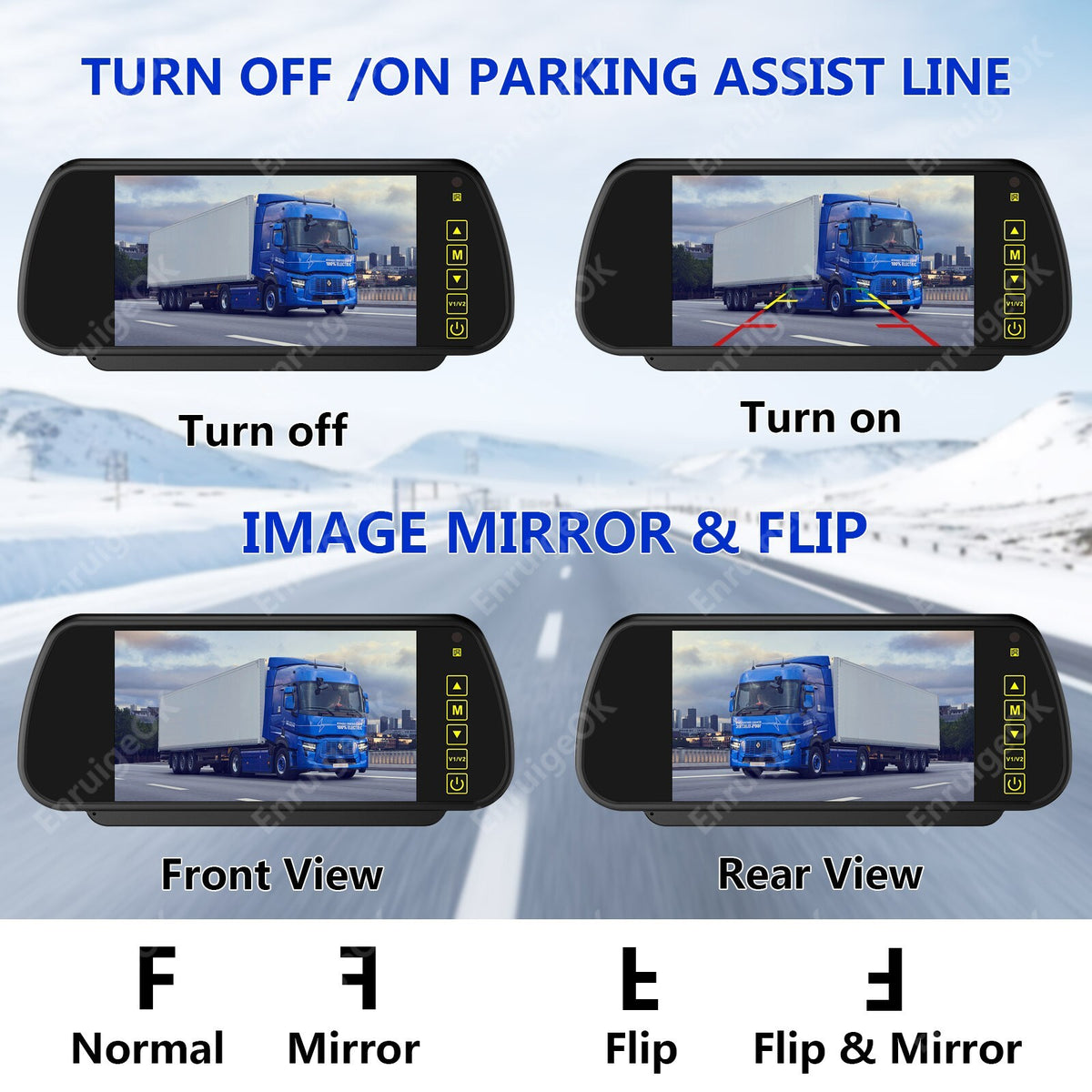

Rear watching: Image can be changed left and right

Operate mode: The key operation and remote control

Dual video inputs: One For DVD/VCD/GPS/TV, the other for the rearview camera and parking sensor, automatically switch when reversing

Applicable models: Universal- Fits in any car

Remote control: a CR2025 button battery (not included)

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
