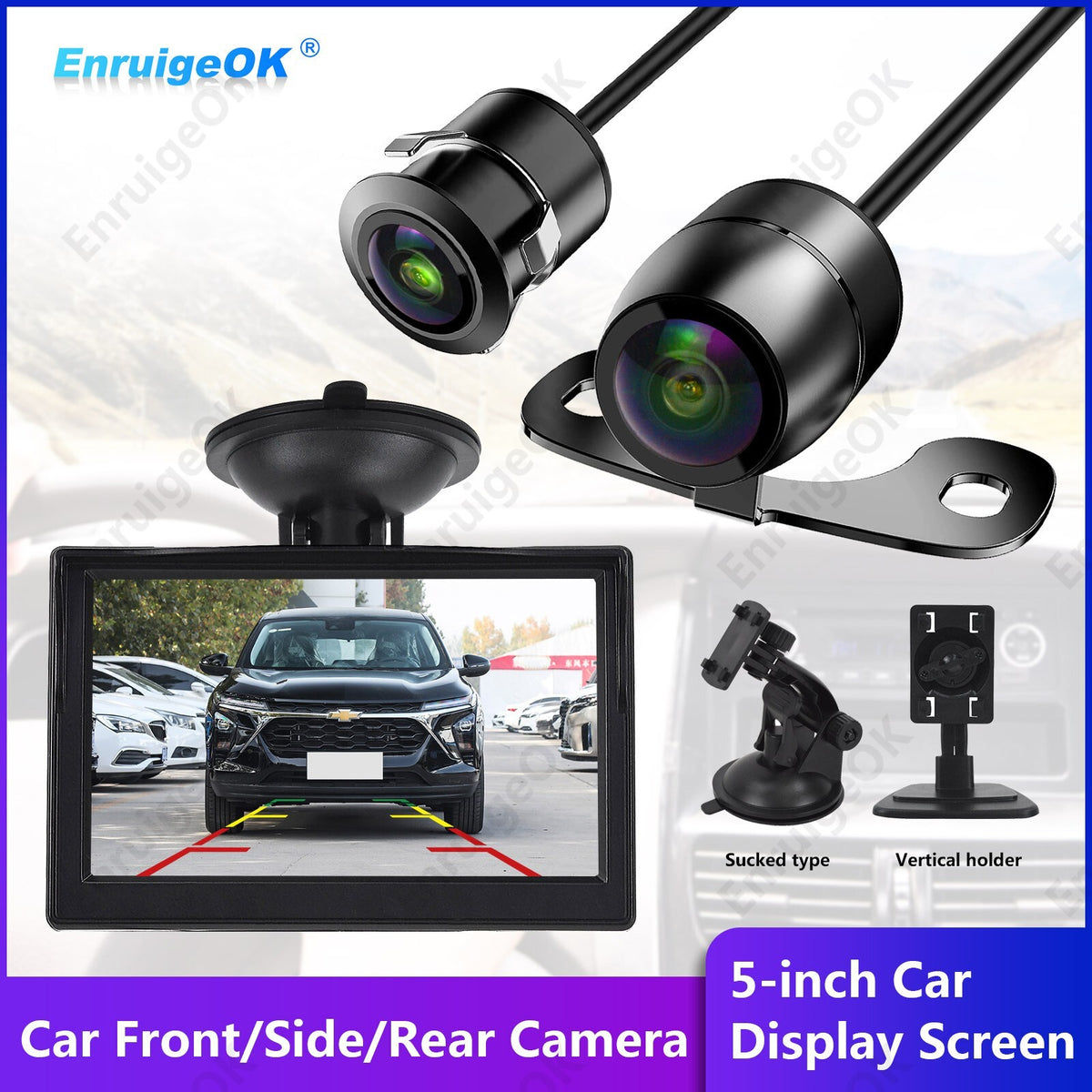

Car Front Rear View Reversing Camera HD Parking Night Vision & 5" Monitor

Product Feature

Easy to Install:

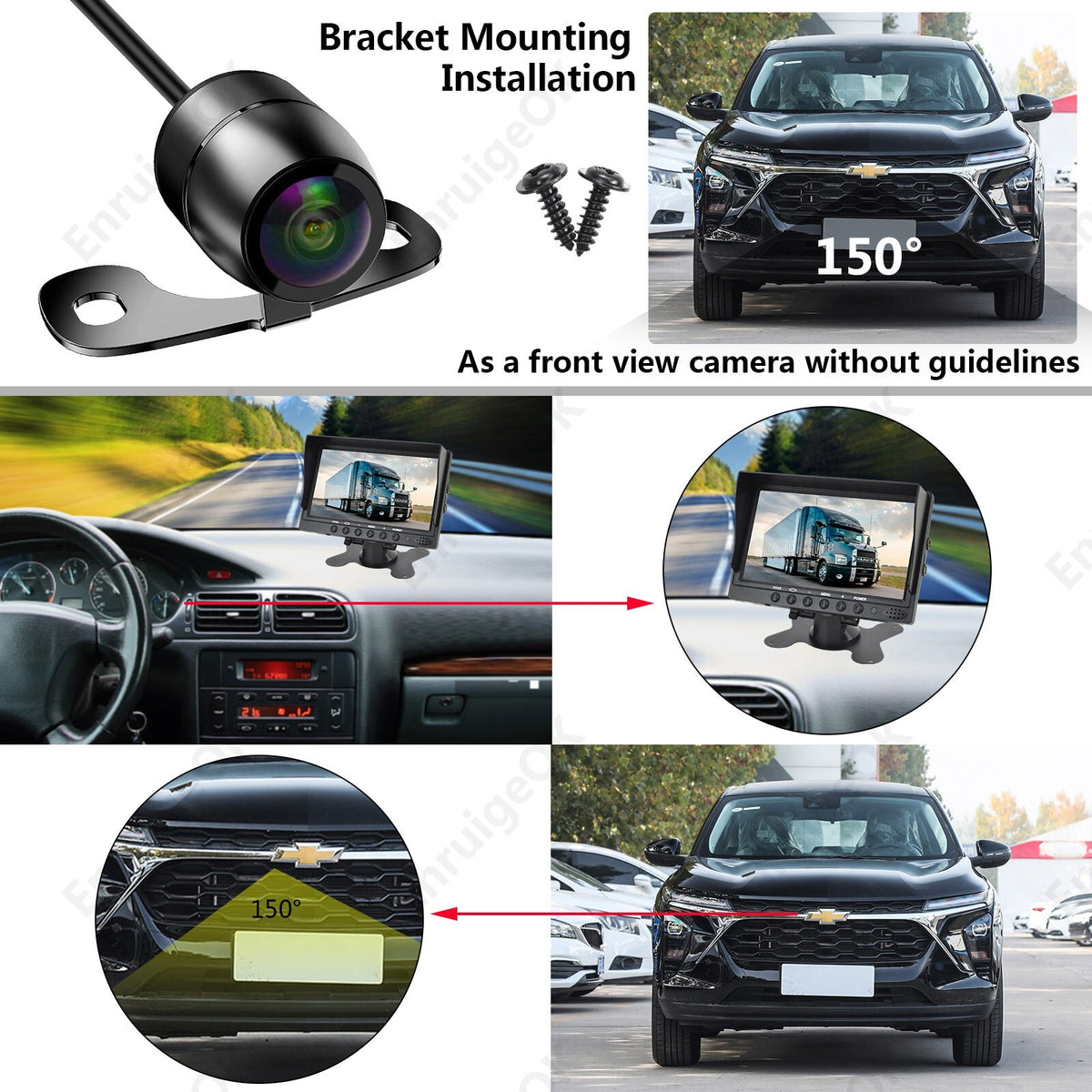

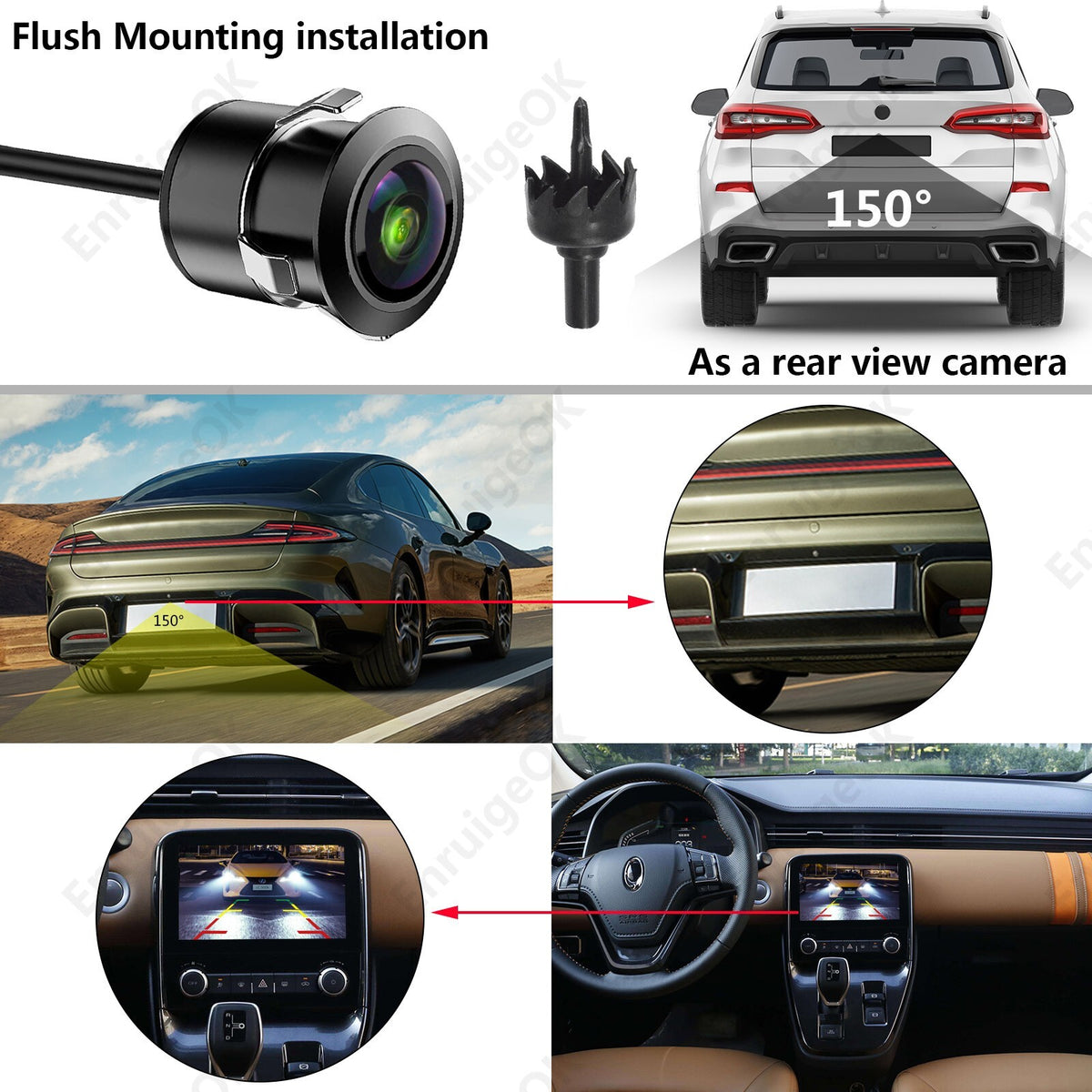

Camera have 2 Installation options, you could choose bracket mounting or flush mounting as per your case.

Rear/Front Switchable:

Optional Customized Distance Scale Lines & Mirror/Normal Image Switchable - You Can Use it as Rear View Backup Camera or Front/Side Camera.

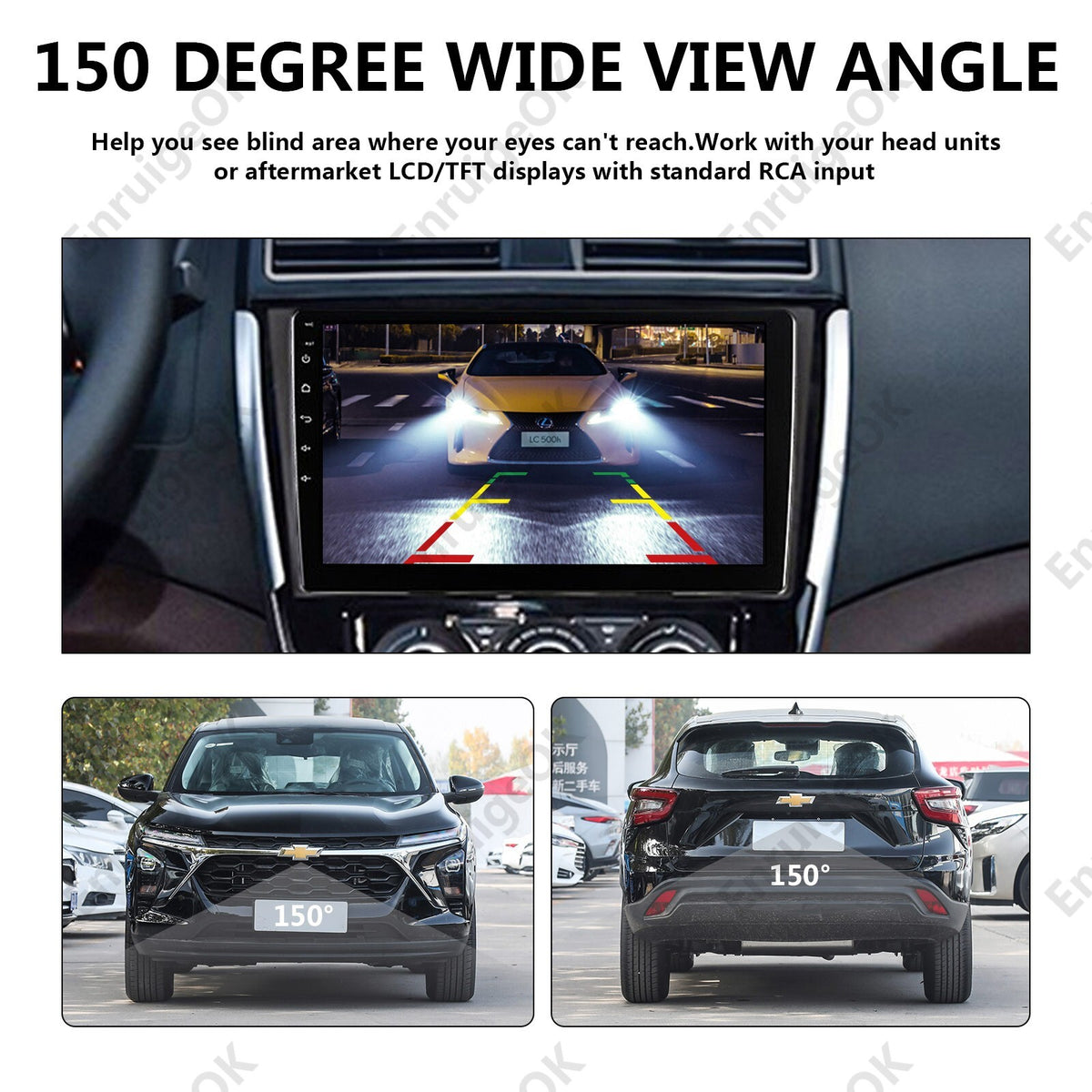

150 Degree Wide View Angle:

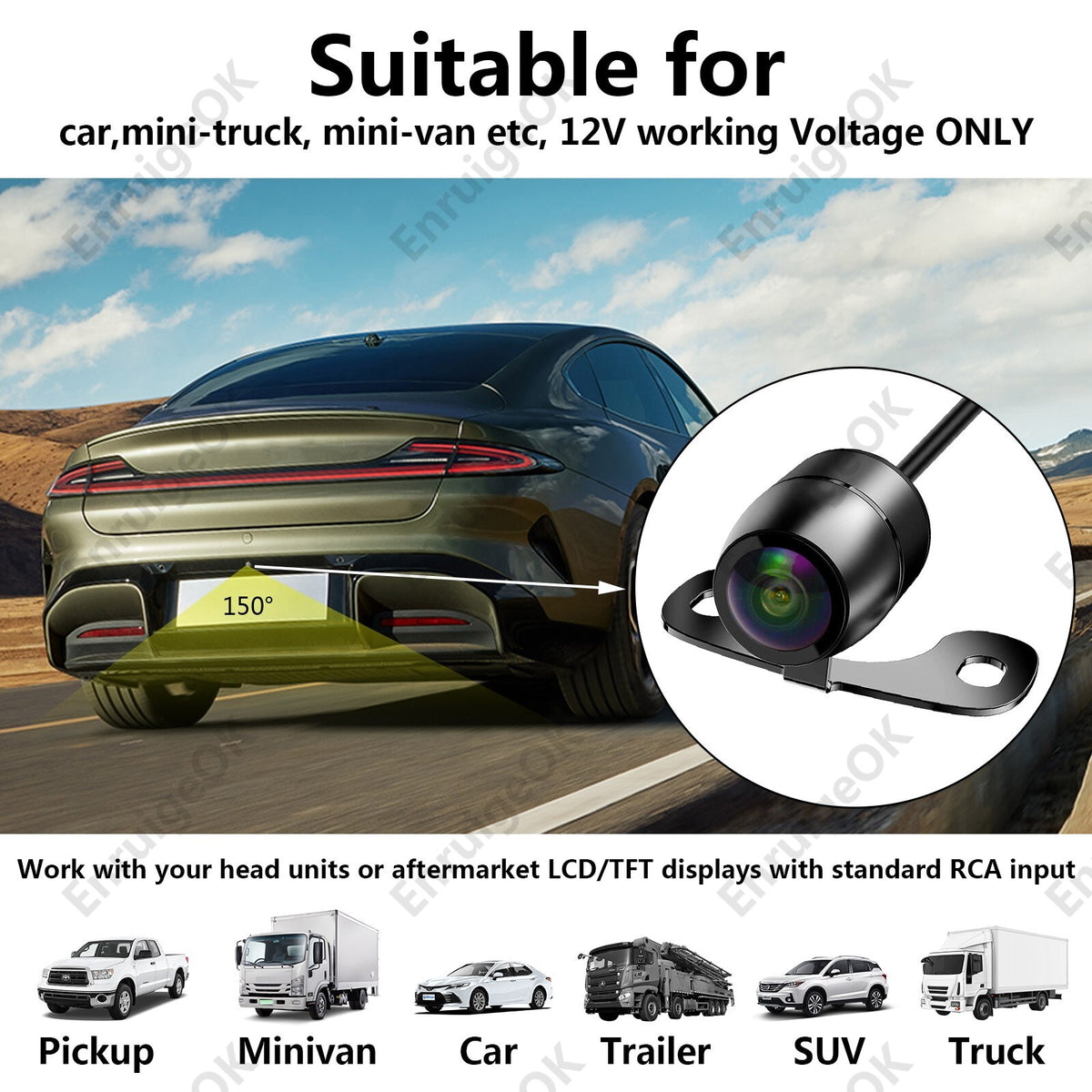

Help you see blind area where your eyes can't reach.Work with your head units or aftermarket LCD/TFT displays with standard RCA input. Flush mounting installation or Bracket mounting installation, suitable for variety of vehicles: car, mini-truck, mini-van etc, 12V working Voltage ONLY.

Hightlight:

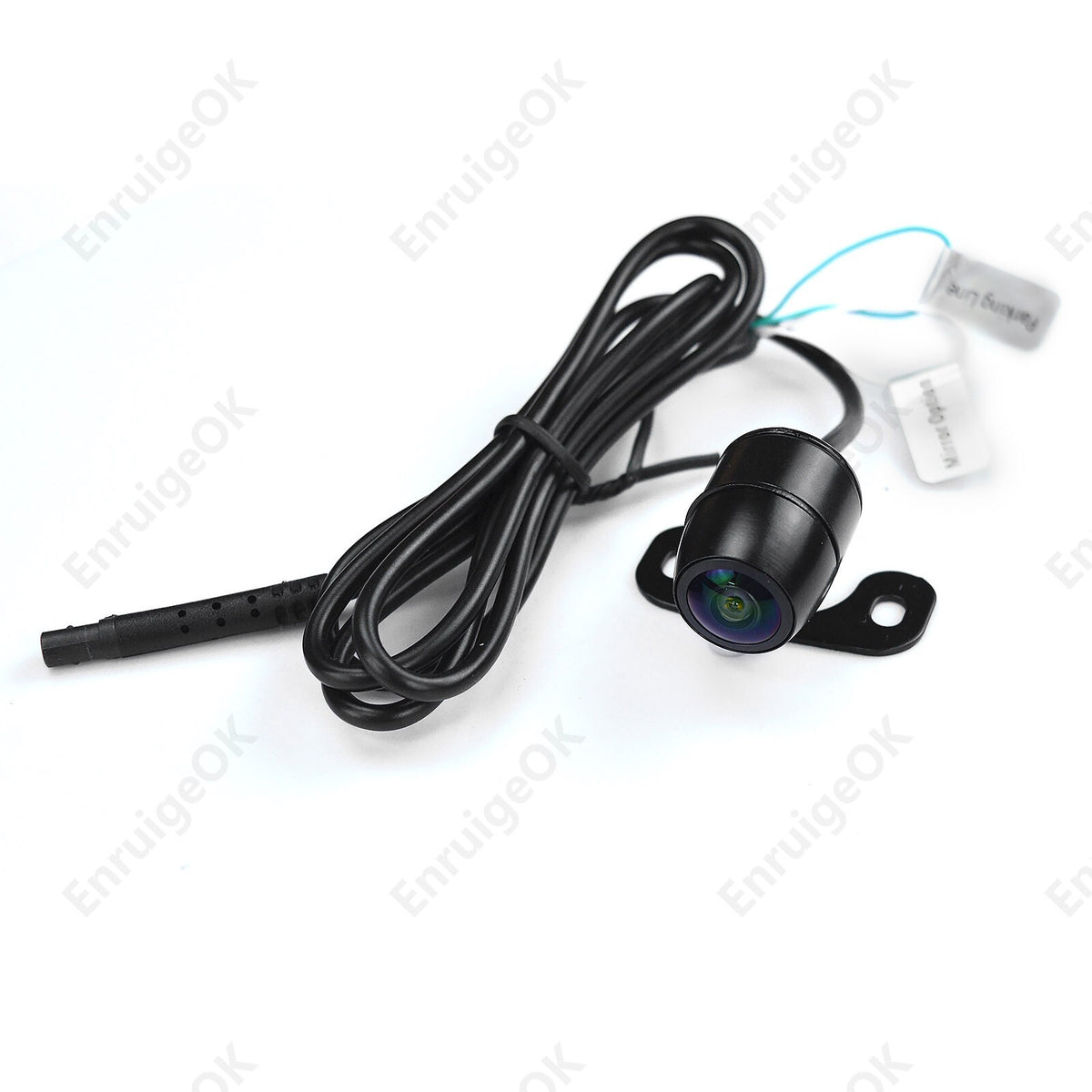

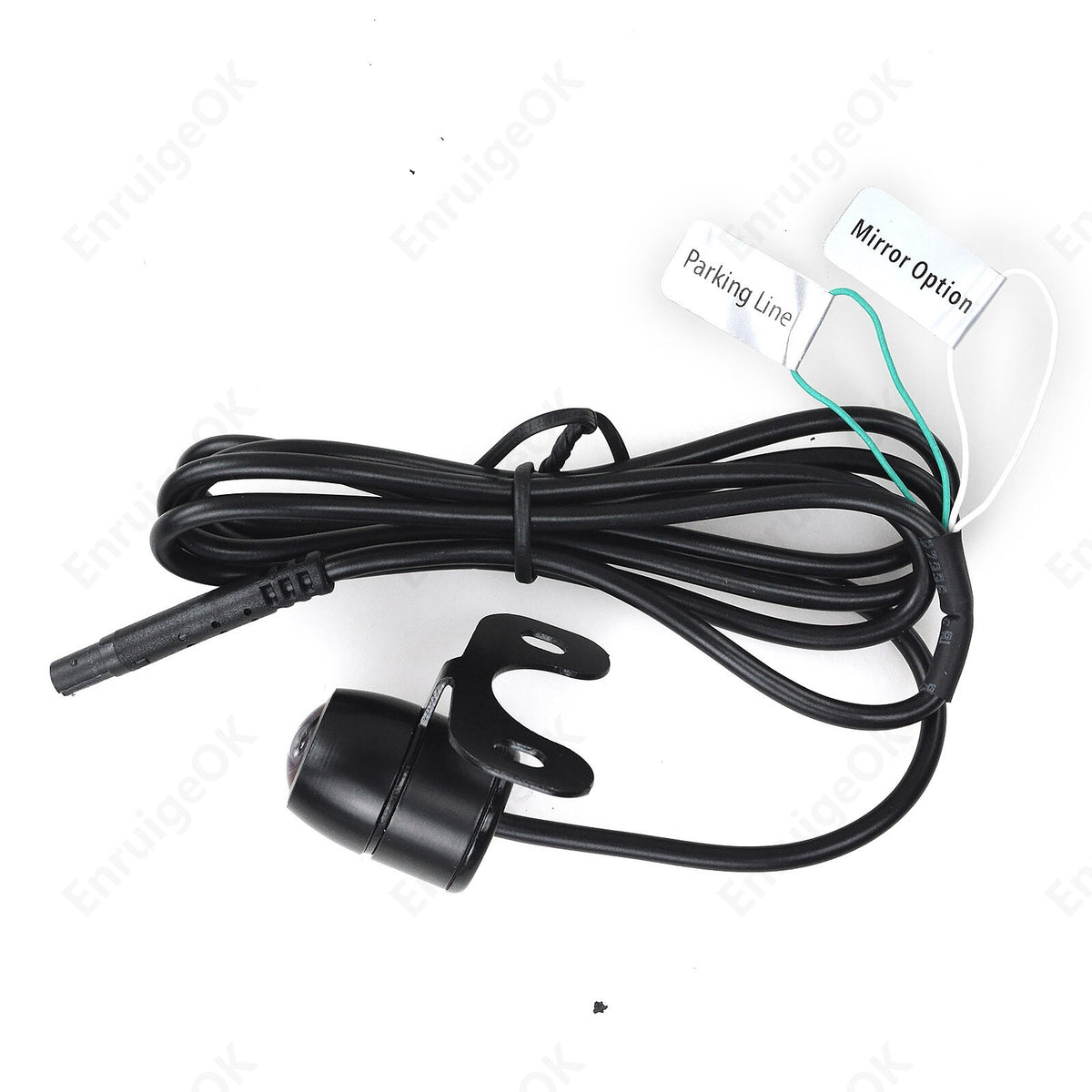

This camera is a front camera without distance scale lines as default set for backing up. To use it as a rear view camera you would need to cut the white looped wire. To appear the parking guide lines, cut the green looped wire.

Cut Green Cable:

Cancel Parking Guide Lines. Cut white cable: Switch normal image(front view) to mirror (rear view).

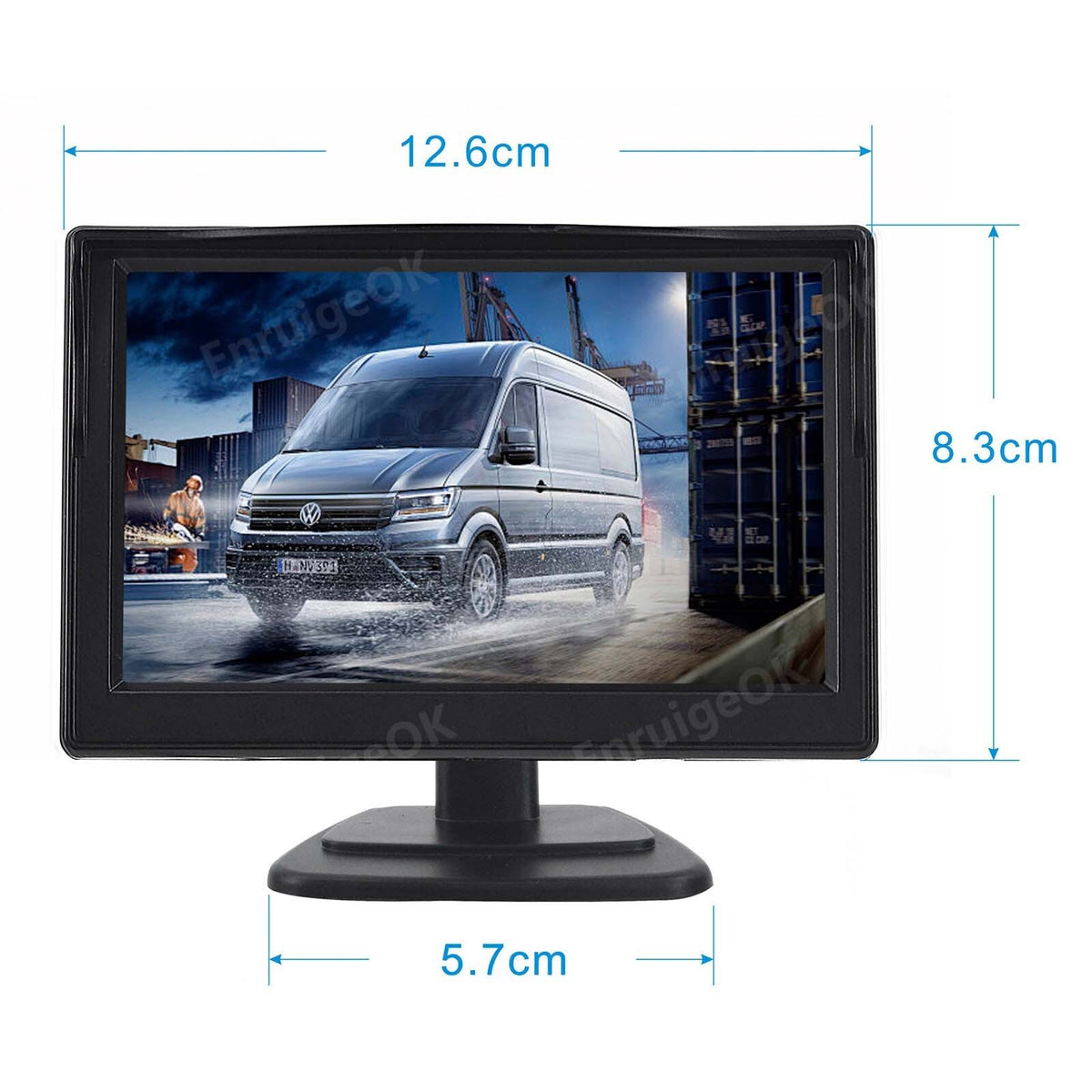

5" IPS display TFT-LCD monitor:

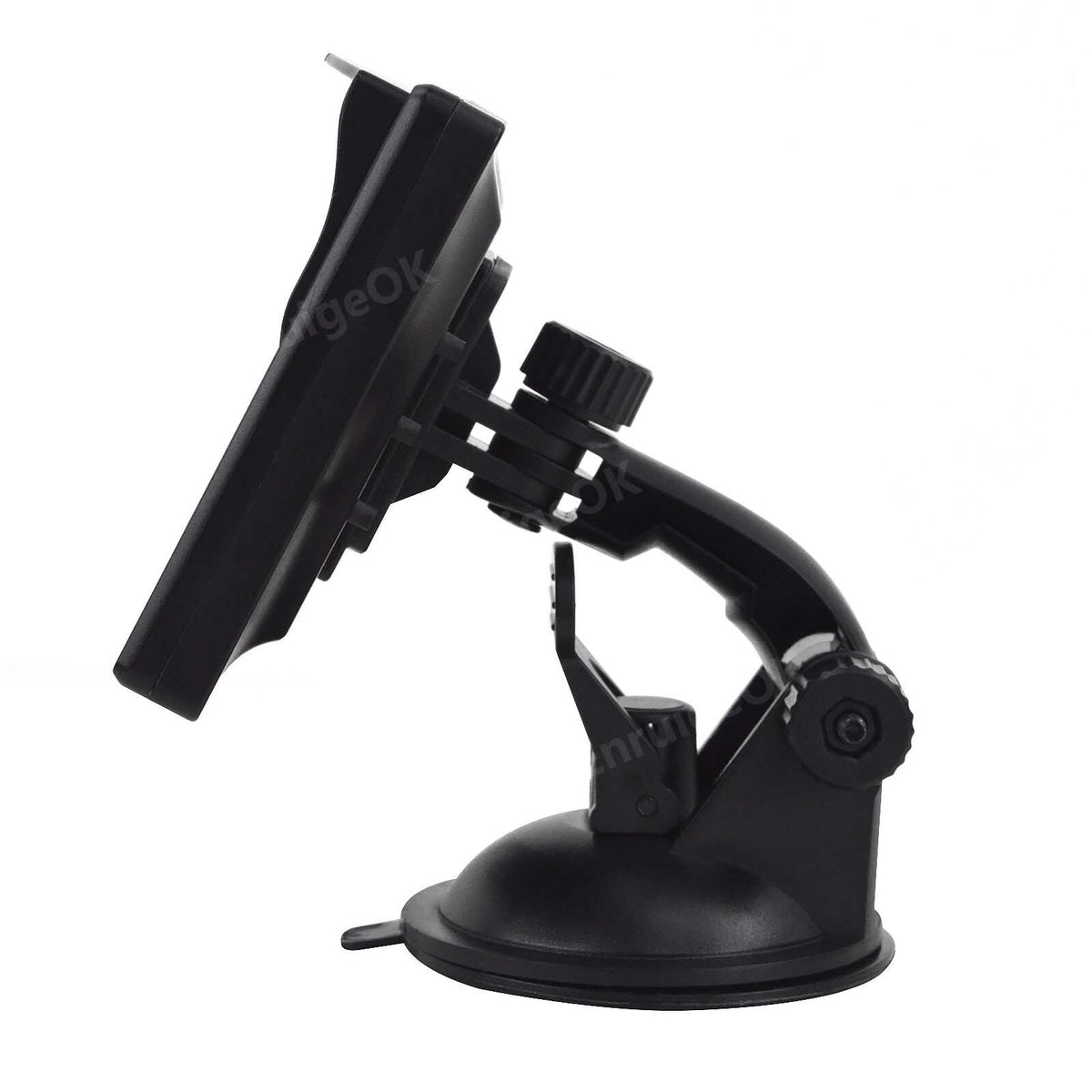

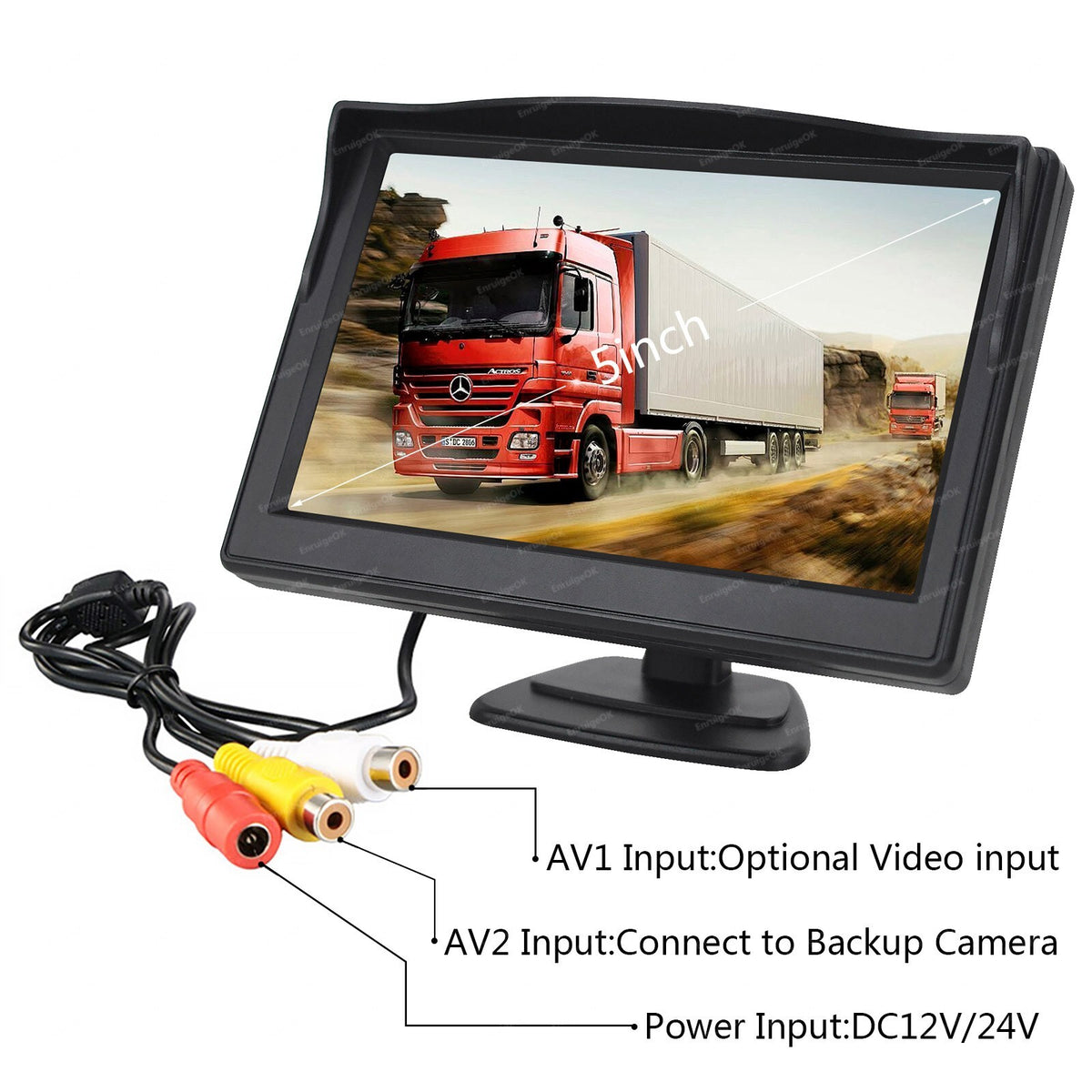

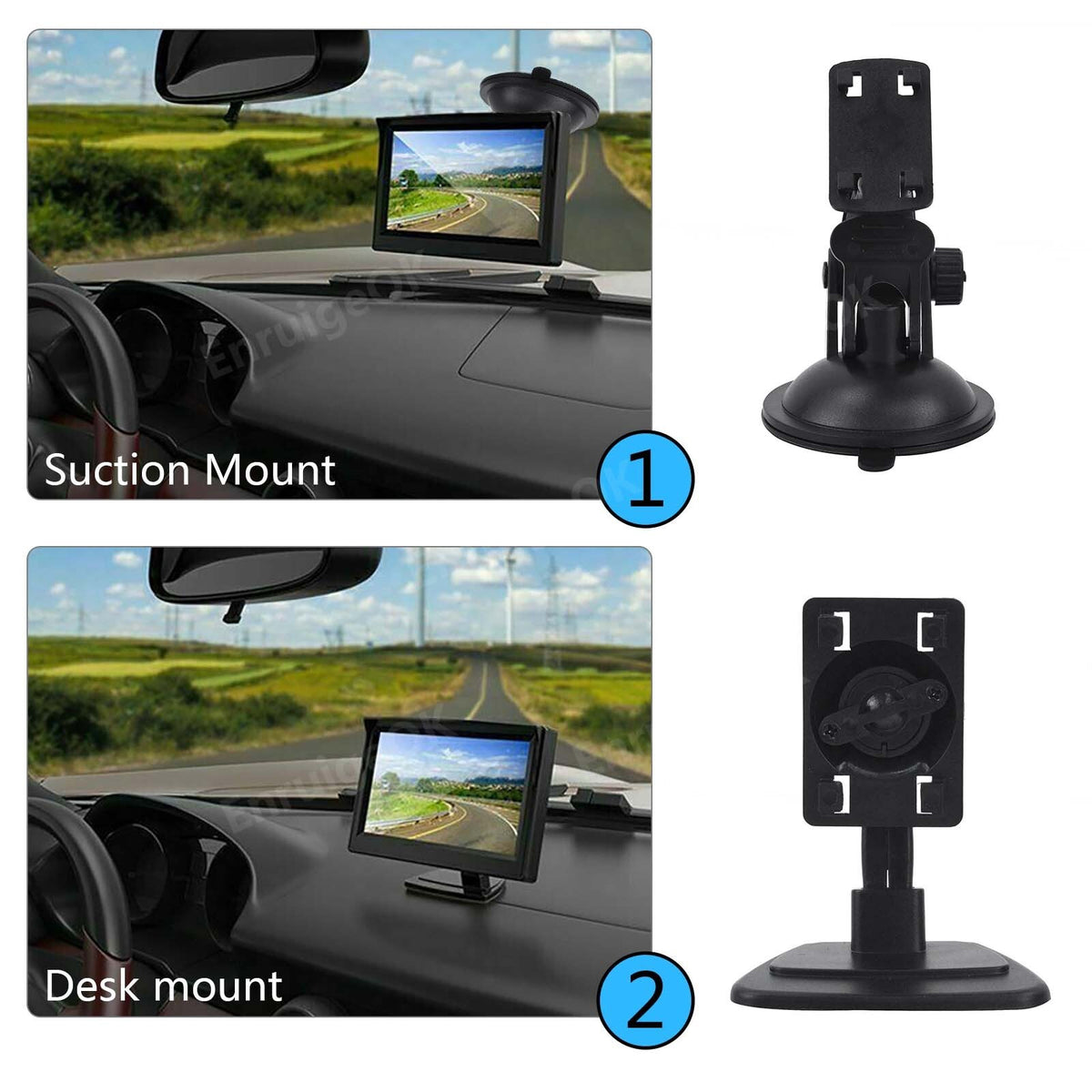

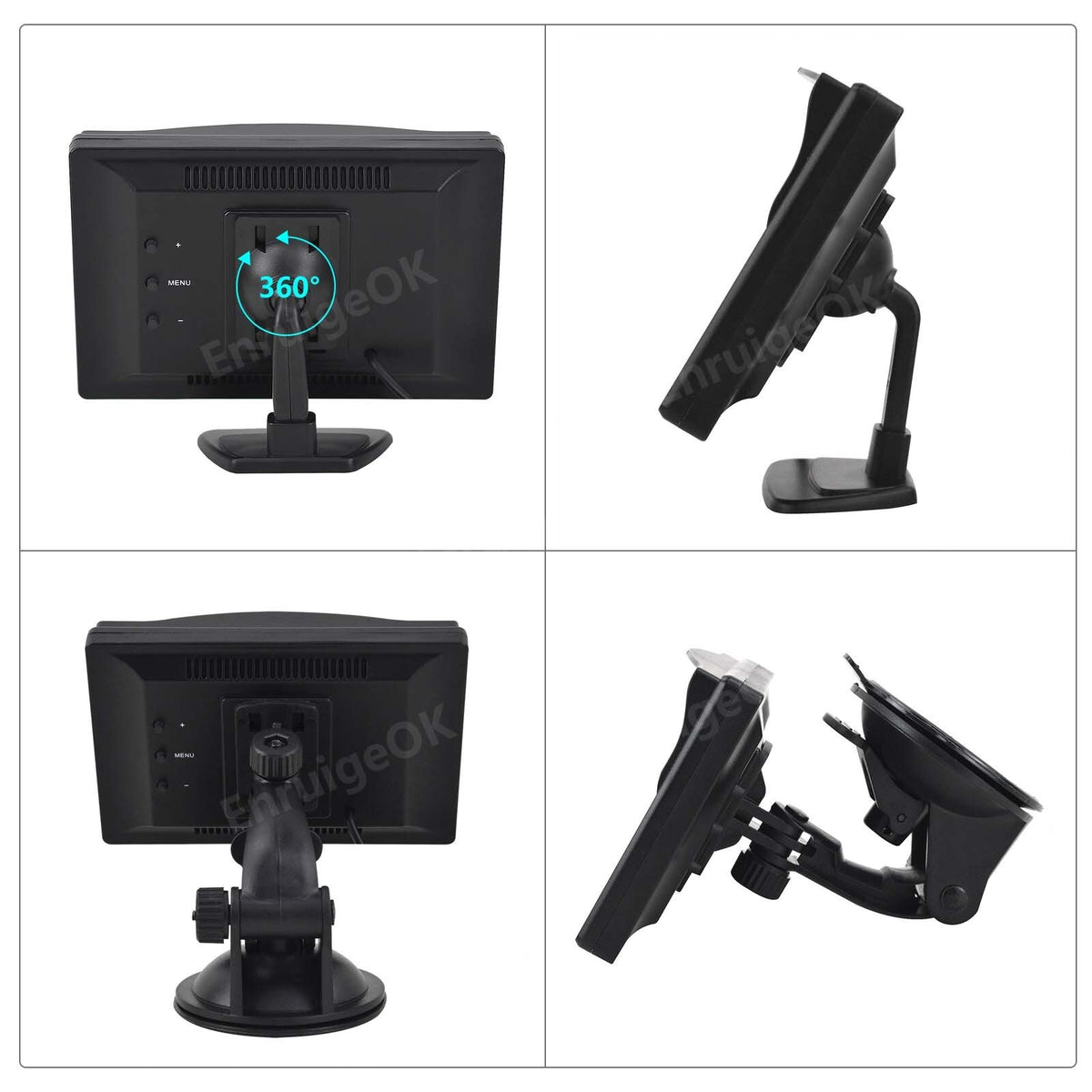

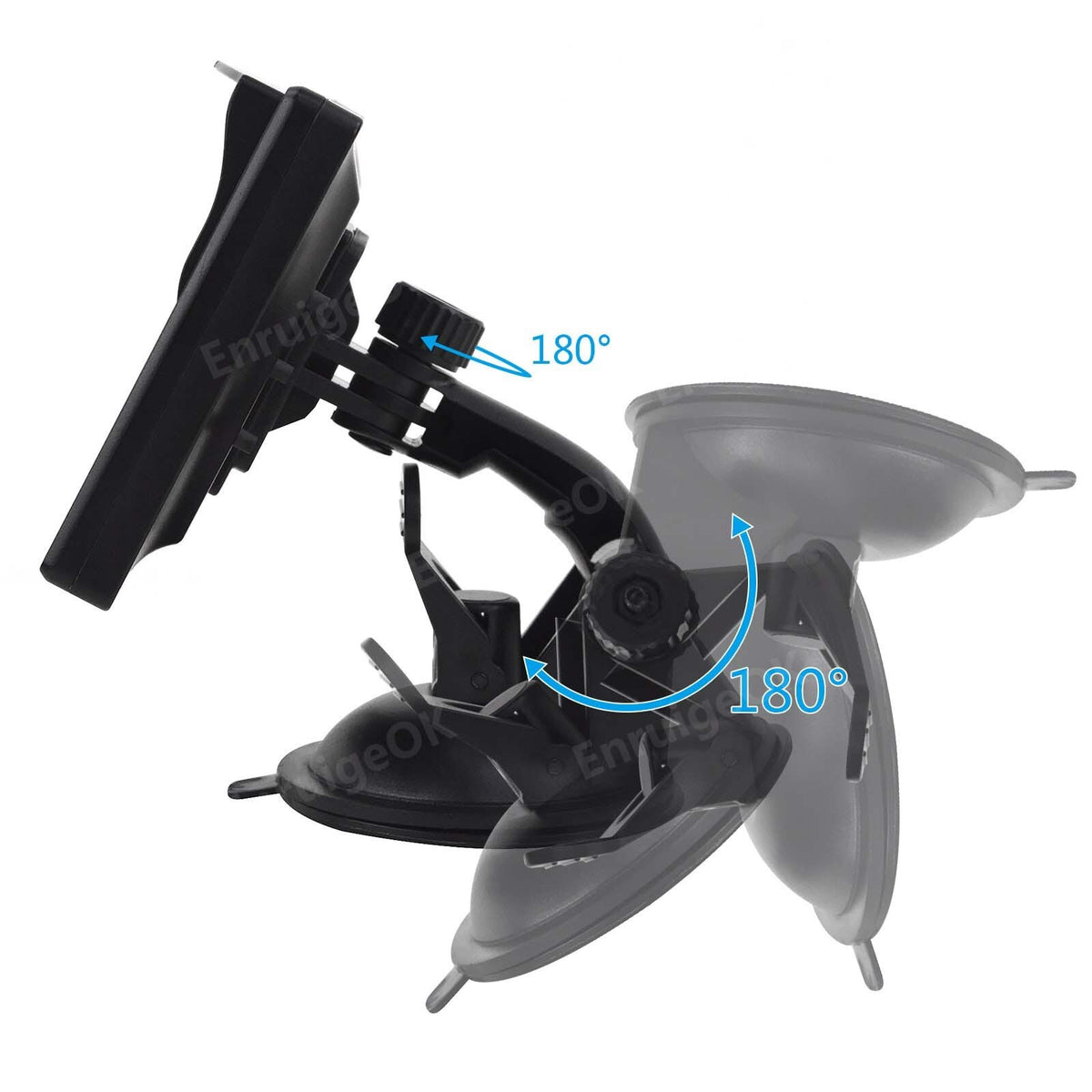

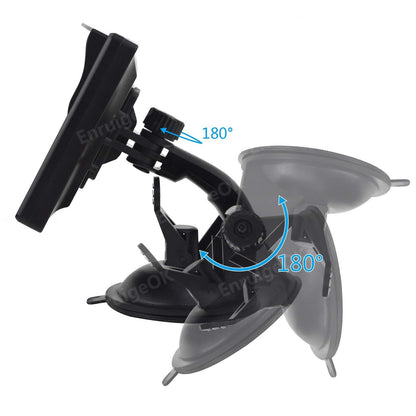

5" Color IPS display Monitor with 2 video input, 480*272(RGB) resolution works perfectly with brake light rear view camera, supports other CVBS video input. Monitor have 2 installation methods. Desk mount and windscreen suction mount.

Installation:

1. Choose a suitable position on your car(above license plate/bumper etc) to install the camera.

2. Connect the power cord (red) to vehicle DC12V power system.

3. Connect the video output(yellow) of the camera to the display/monitor of the vehicle.

4. Turn on the power to test the camera image, make sure it is showing right.

Camera Specifications

Material: ABS+Zinc alloy

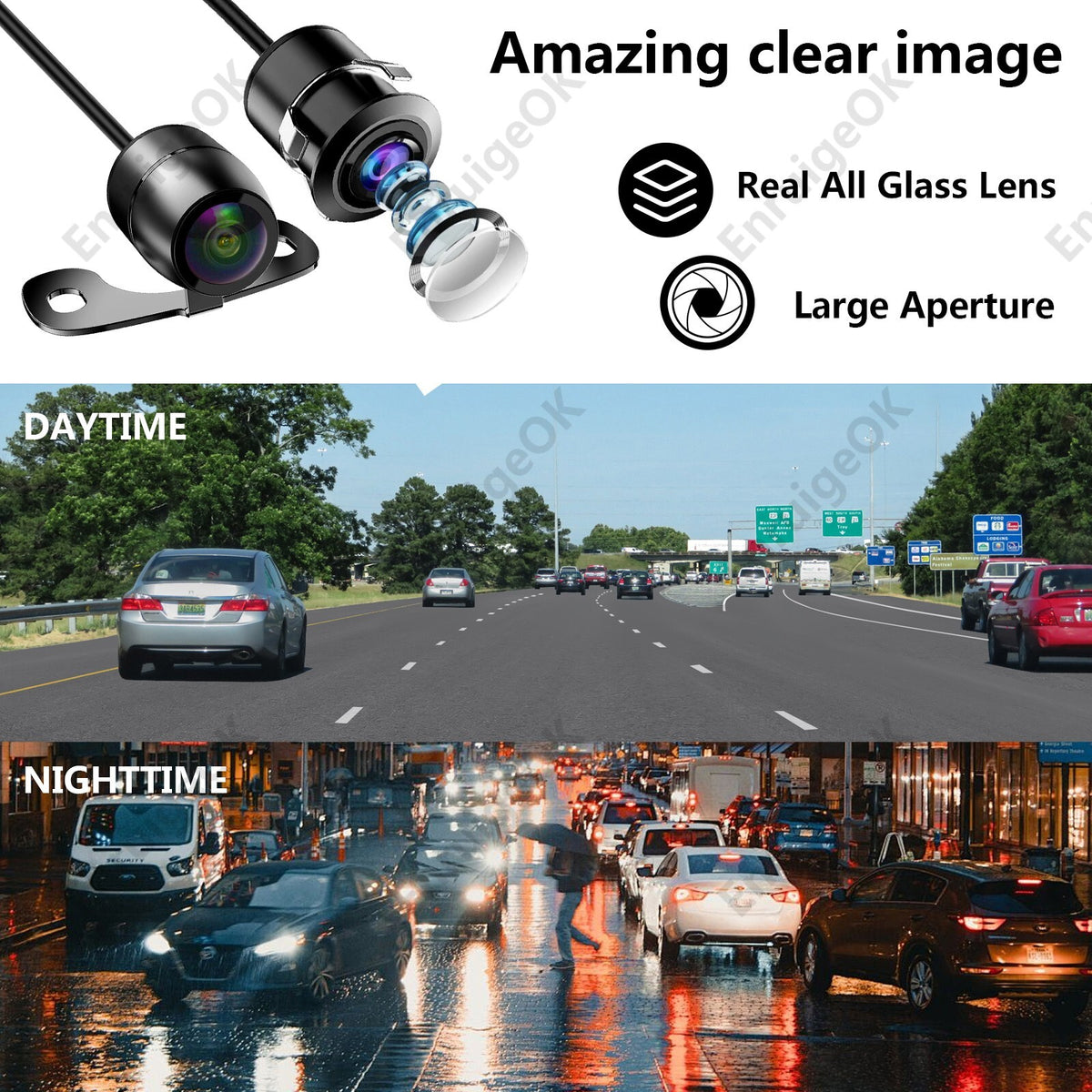

Lens Material: Glass

Image sensor: 1/4" CMOS

Viewing angle: 150 degree

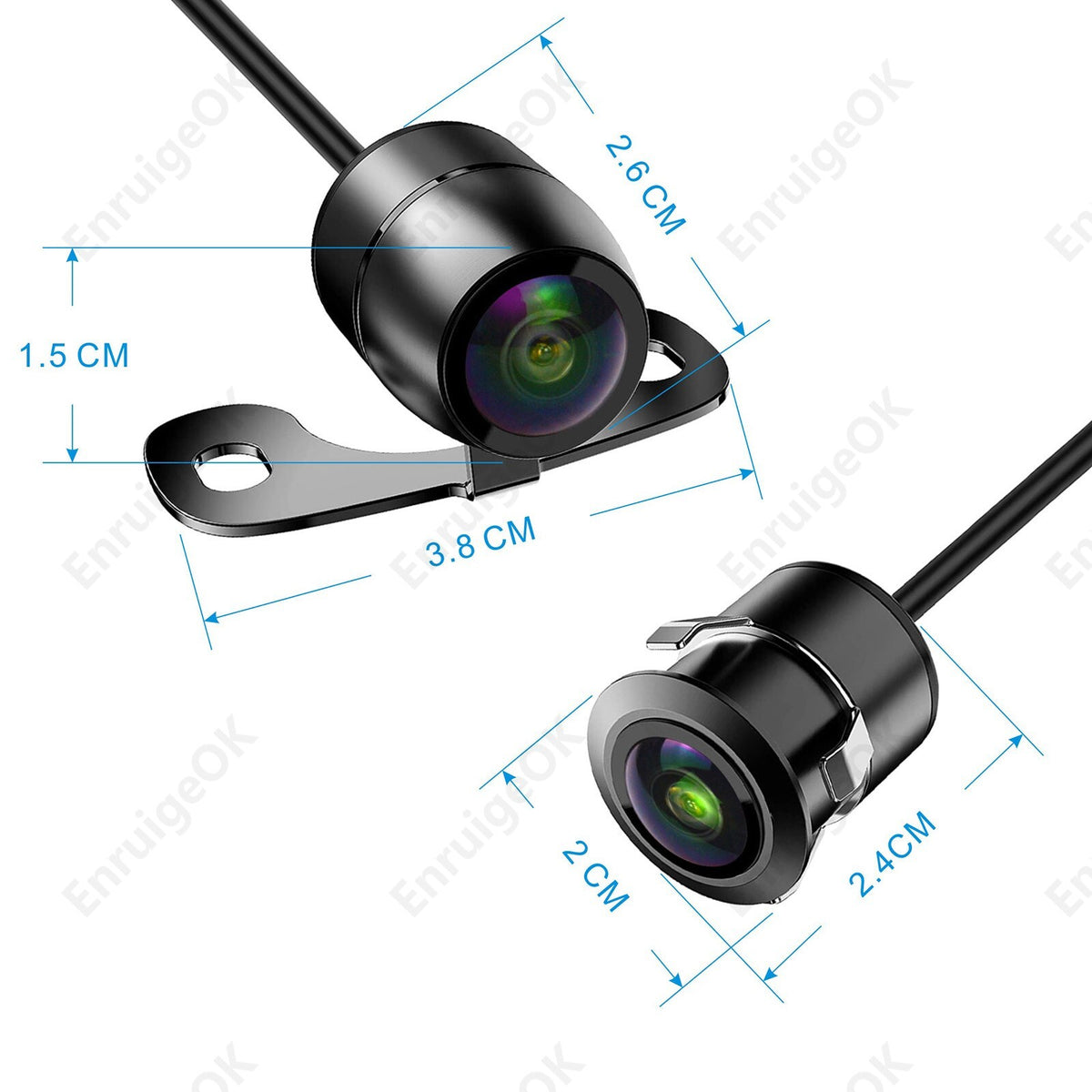

Lens Size: Φ18.5mm/0.73inch

TV system: PAL/NTSC

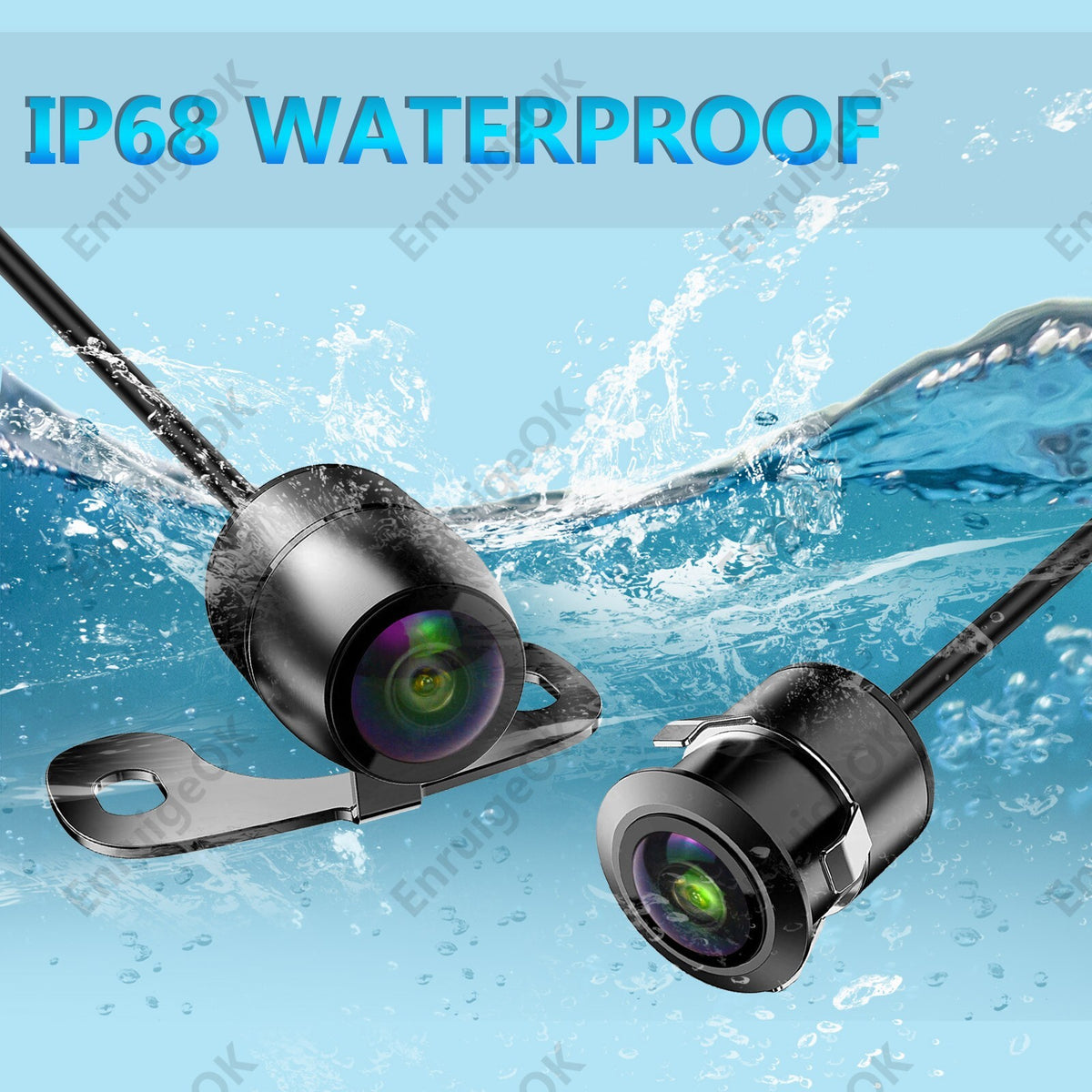

Waterproof rating: IP68

Effective pixel: 733(H)x493(V)

TVL: 480TVL

Horizontal sync frequency: 15.625KHZ

Scanning system: 2:1 interface

Sync system: Internal

ACG: Auto

BLC: Auto

Video output: RCA interface, 1.0Vp-p, 75Ohm

S/N Ratio: > 48dB

Current consumption: < 150mA

Minimum illumination: 1.0Lux = 1.2 lumens

Power supply: DC12V

Power: 5W

Operating temperature: -20℃ to +70℃

Monitor Specifications

Type: IPS Display Monitor

Color: Black

Material: ABS+PC

Screen size: 5 inch

Contrast: 300: 1

Brightness: 500 CD/㎡

Video: 2-channel video input; V1/V1 switching

Resolution: 480 (H) x 272 (V)

Power supply: DC 12V / 24V

Rear view in priority

Blue screen on no signal

Video system: NTSC / PAL auto switch

Current consumption: <4W

Operation temperature: -20℃ ~ 60℃

Storage temperature: -20℃ ~ 60℃

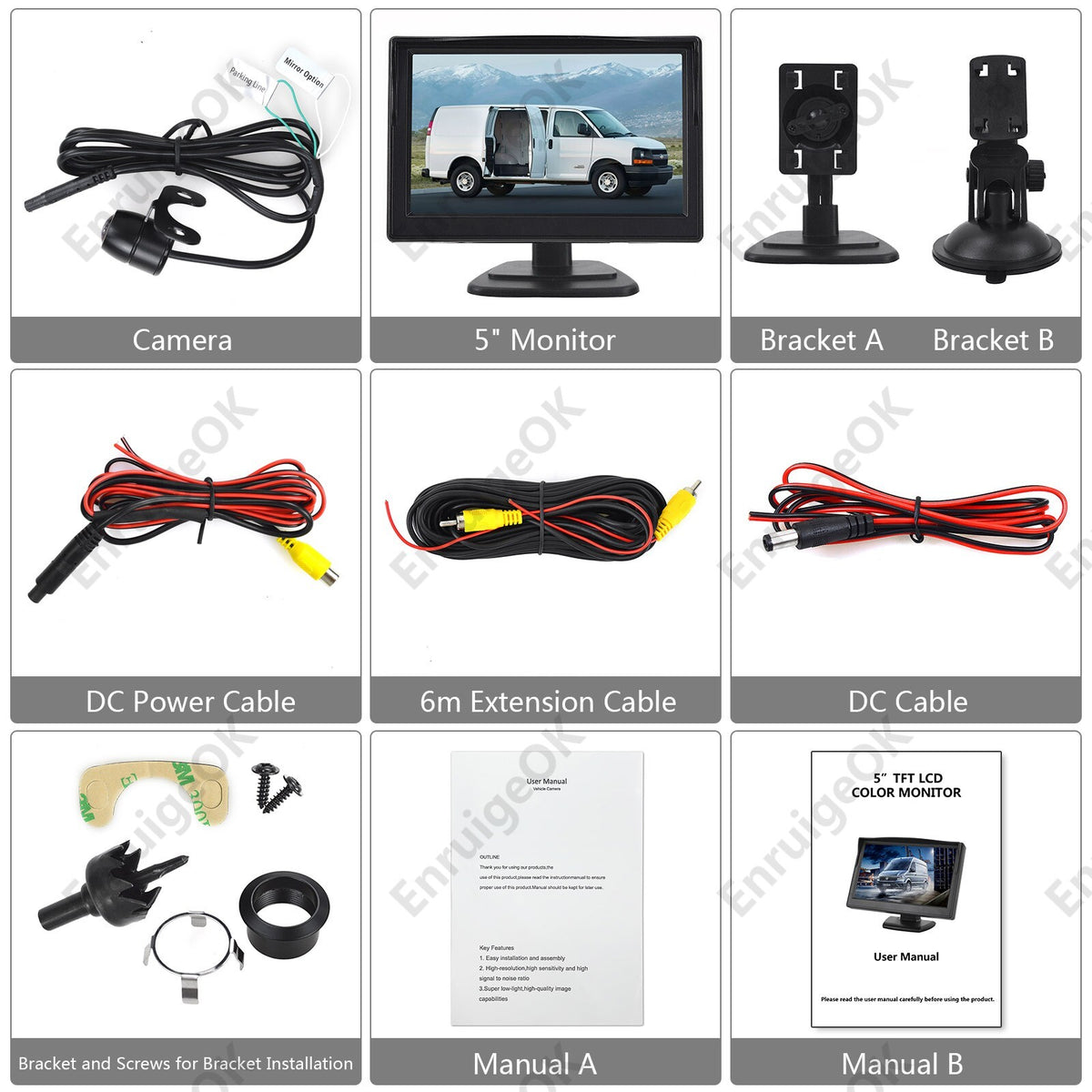

Package content

1 x Car Front/Side/Rear Camera

1 x 5'' Monitor

1 x 6M RCA video cable

1 x Camera DC power cable

1 x Monitor DC power cable

1 x 18.5mm Flush Mount Hole Drill

1 x Camera Mount Bracket

2 x Monitor Bracket

2 x Screws

1 x user manual
