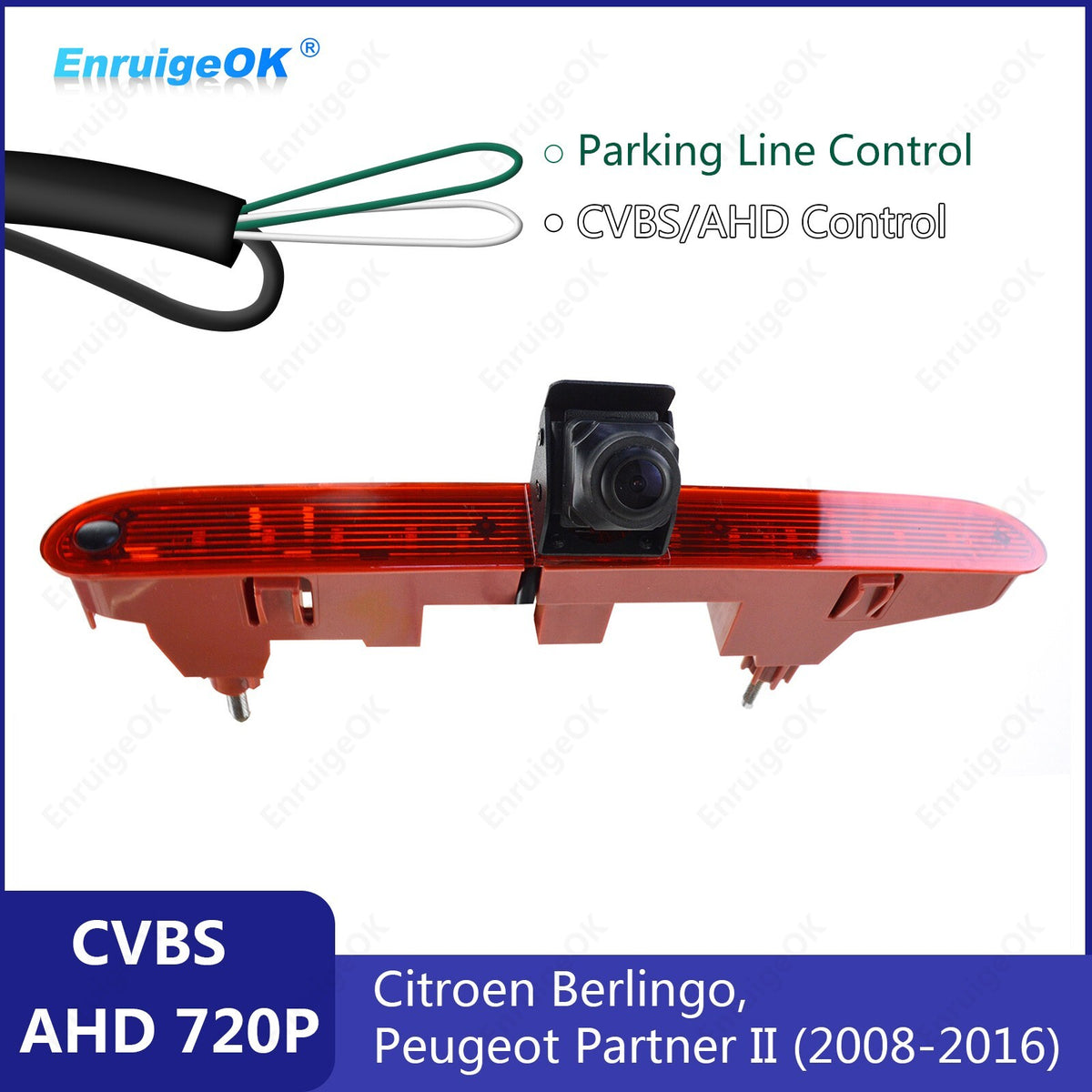

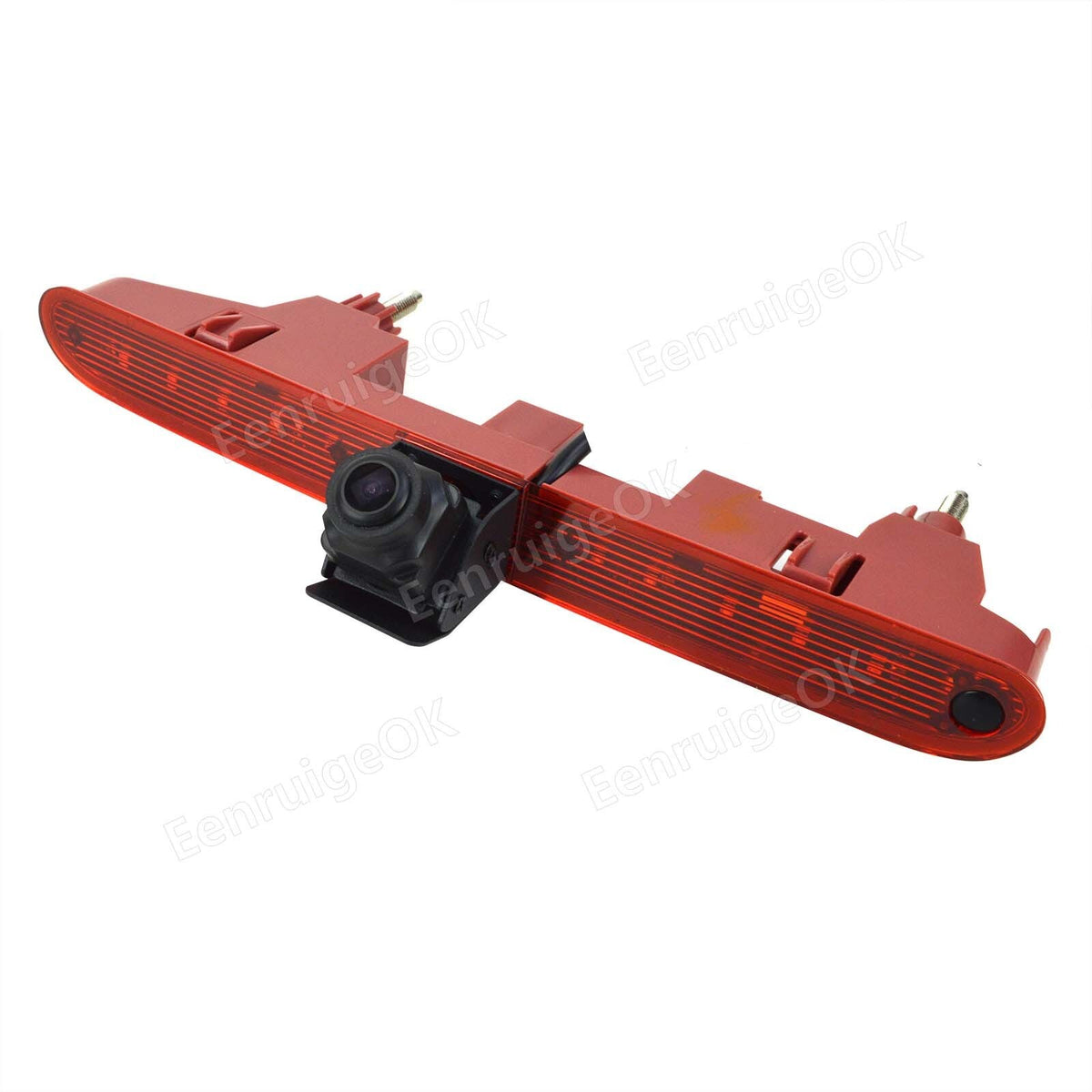

Car Brake Light Backup Camera for Citroen Berlingo Peugeot Partner MK2 MK3

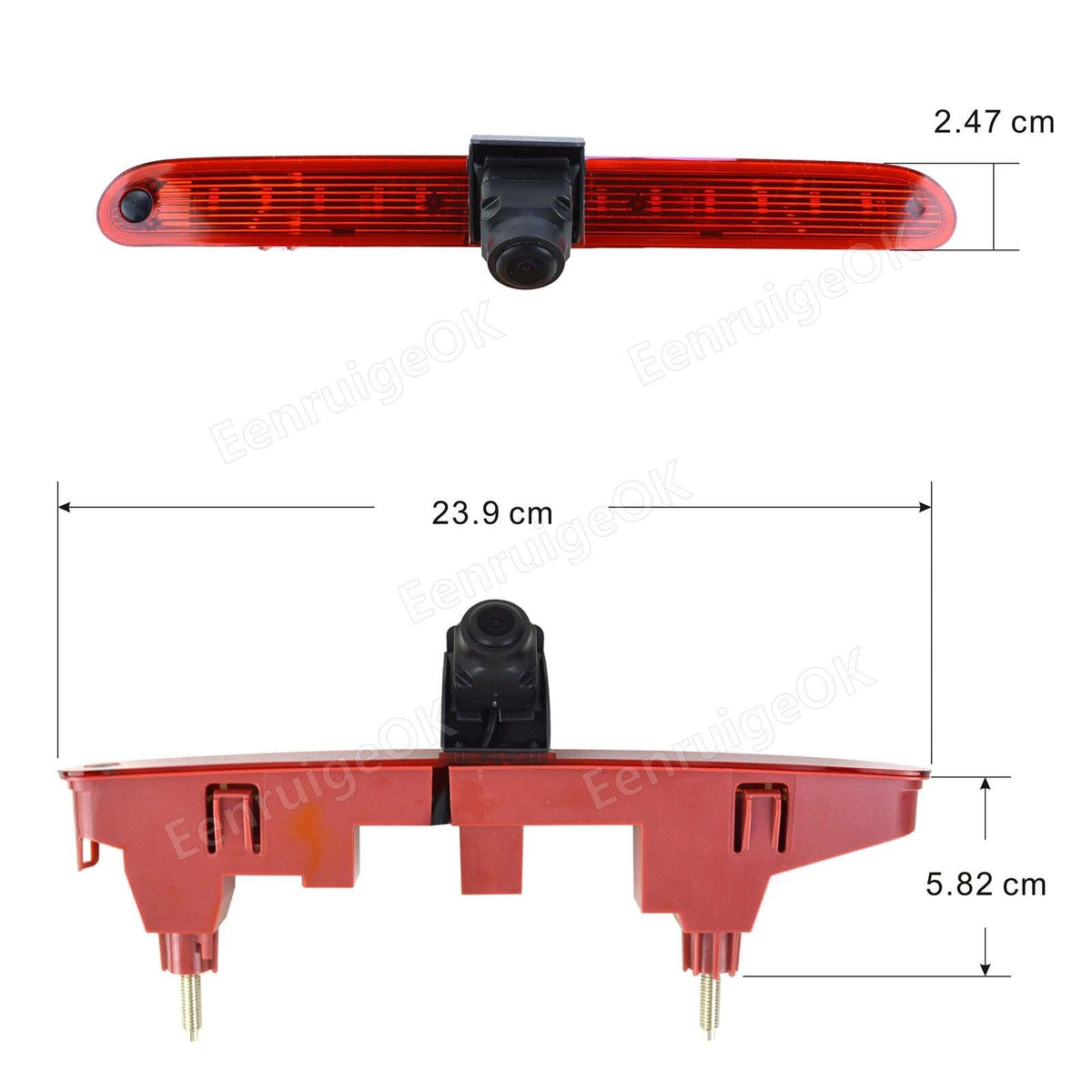

Note: Please check the camera size carefully before make the order.

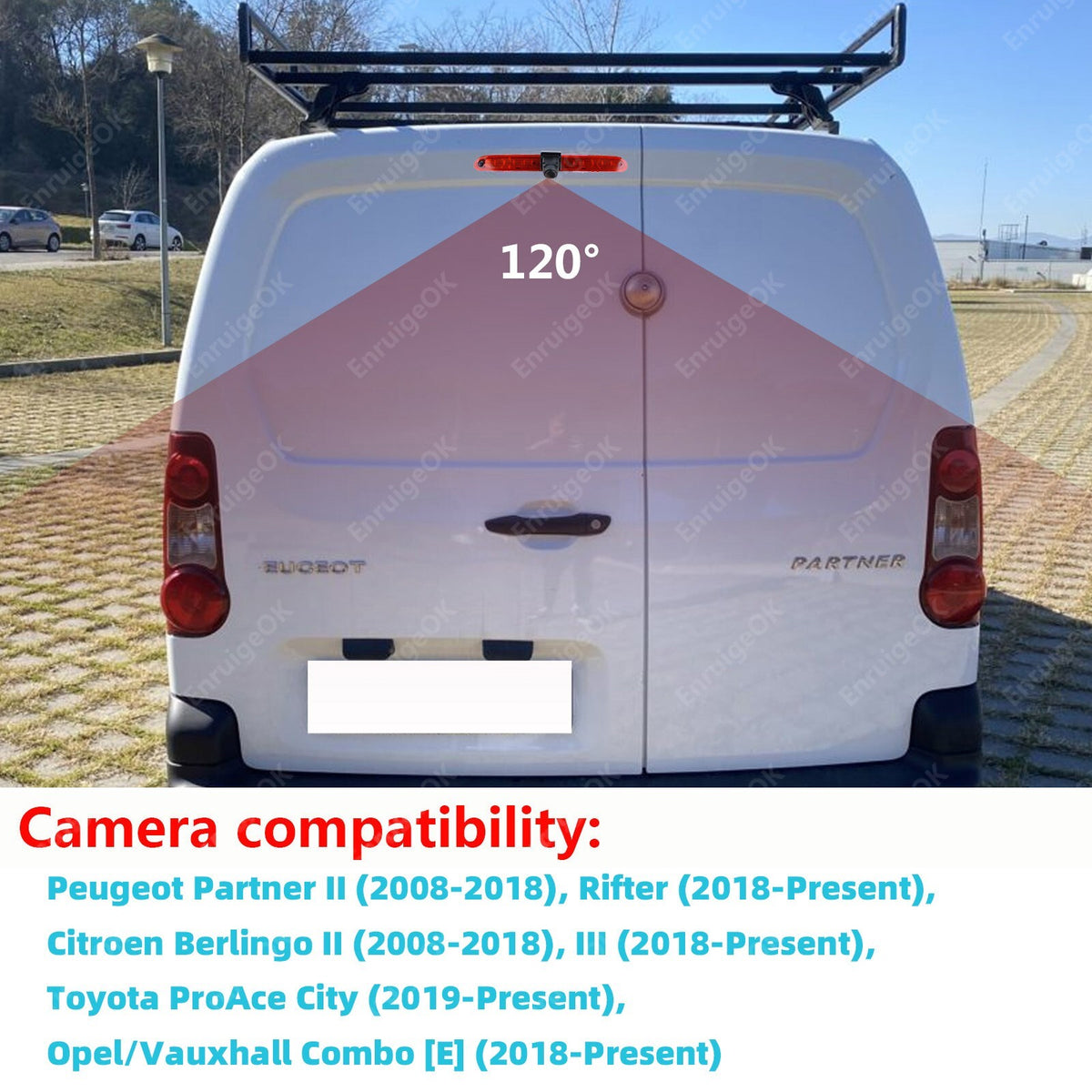

For use with

PEUGEOT Partner MK2 (2008-2018), MK3 (2018–Present)/Rifter (2018–Present),

CITROEN Berlingo MK2 (2008-2018), MK3 (2018-Present),

TOYOTA ProAce City (2019-Present),

Opel/Vauxhall Combo [E] (2018-Present)

Reminder Friendly

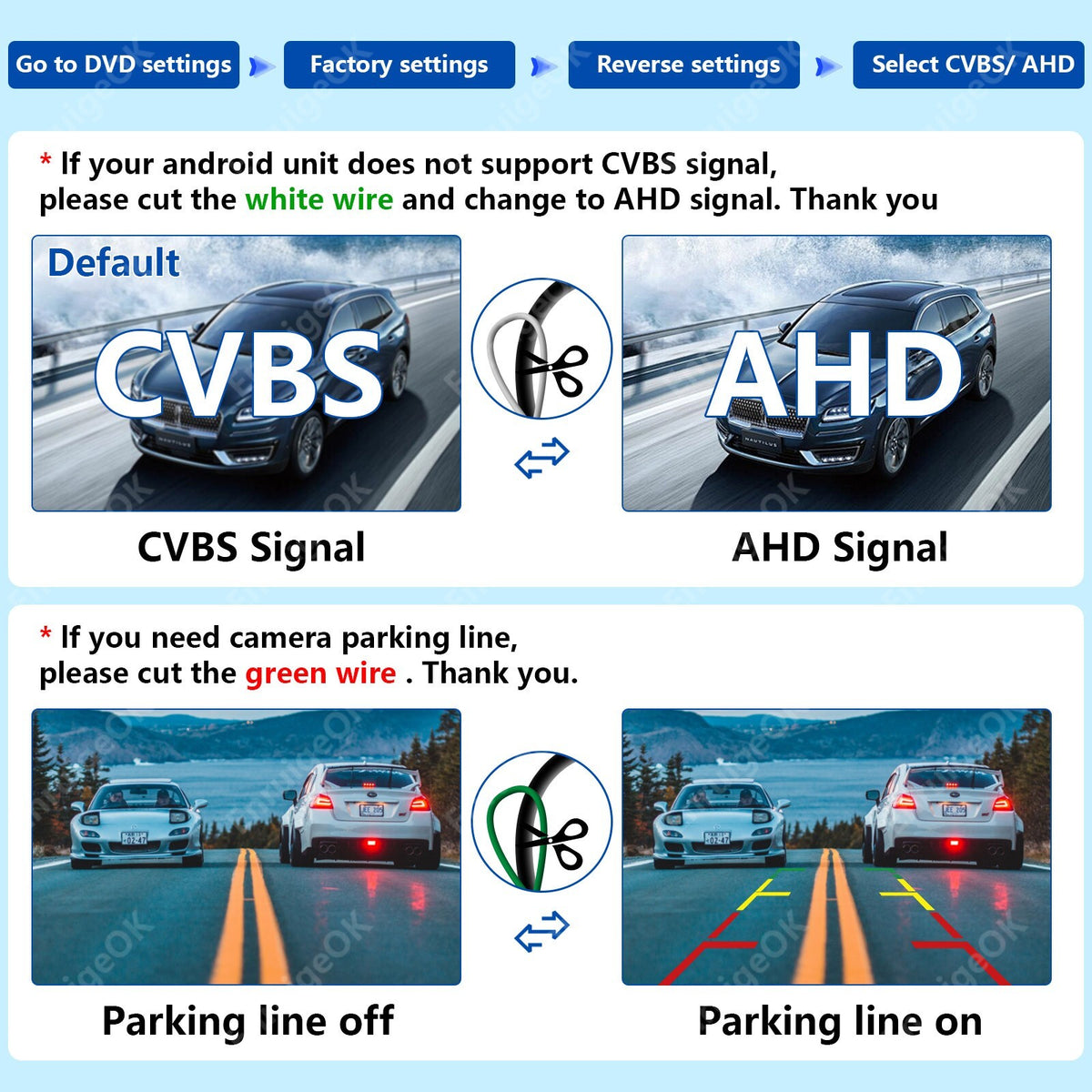

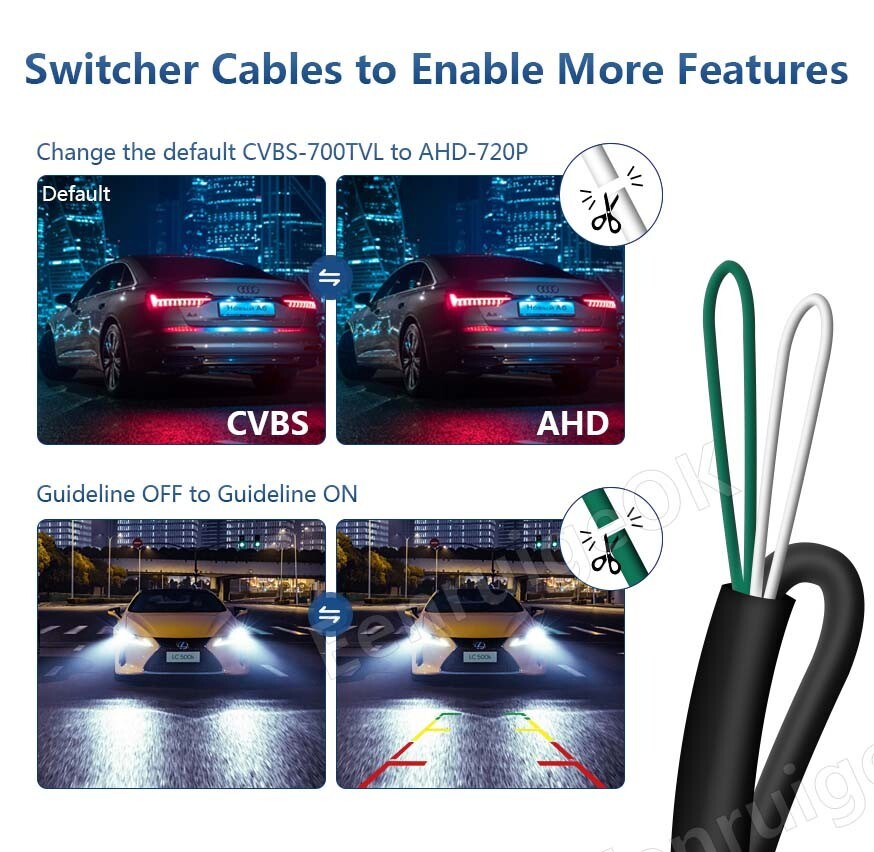

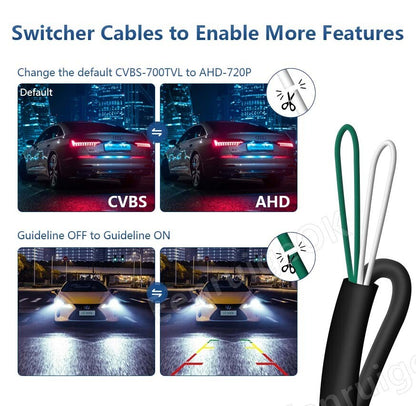

The camera defaults to CVBS 700TVL signal and supports AHD 720P signal (by cutting the white wire). If your Android device or monitor doesn't support CVBS 700TVL signal, please cut the white wire to switch to AHD 720P signal. Thank you.

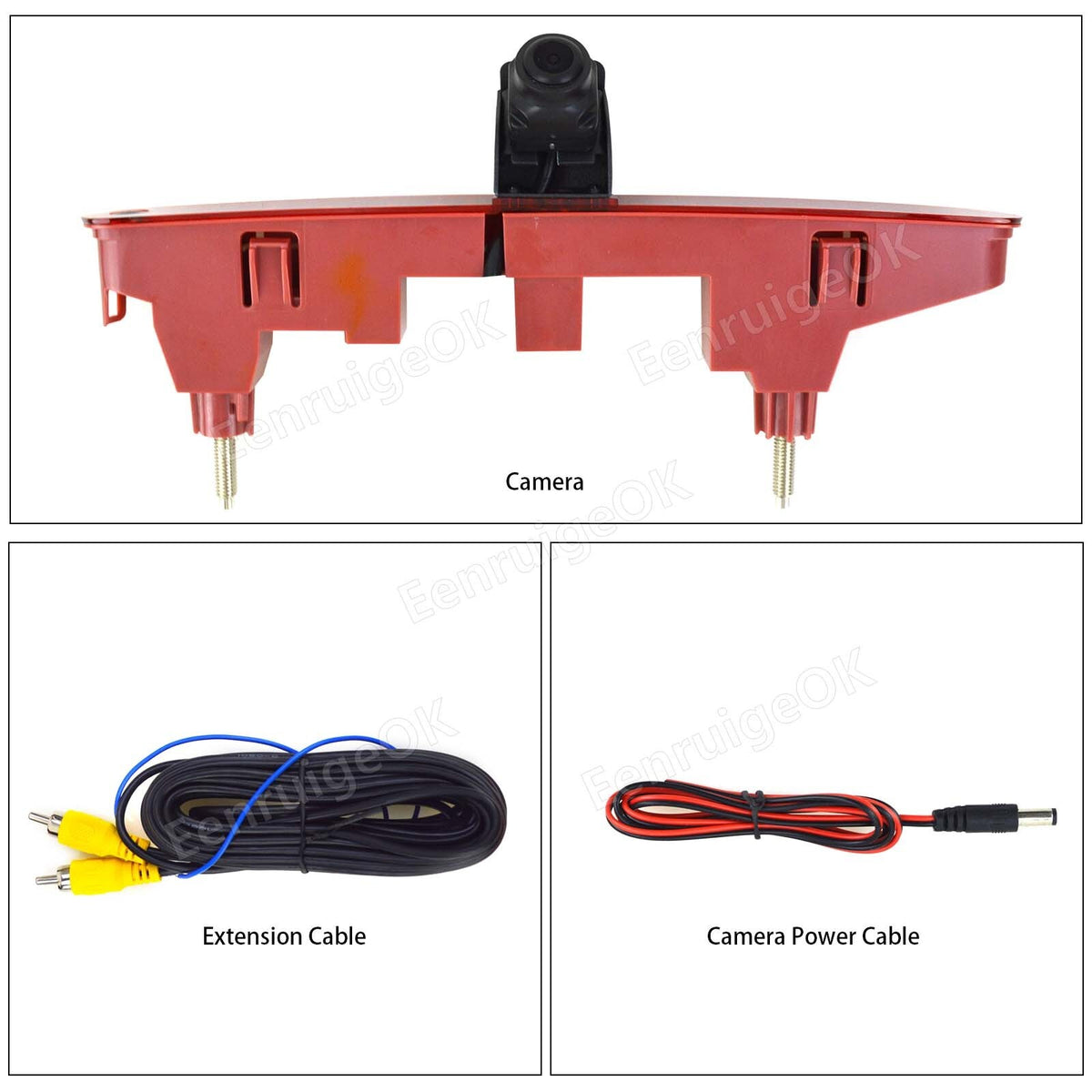

Package Included

1 x Brake Light Camera

1 x 10m RCA Extension Cable

1 x DC cable

1 x Manual

Specifications

-Rear view camera specifically for use on vans.

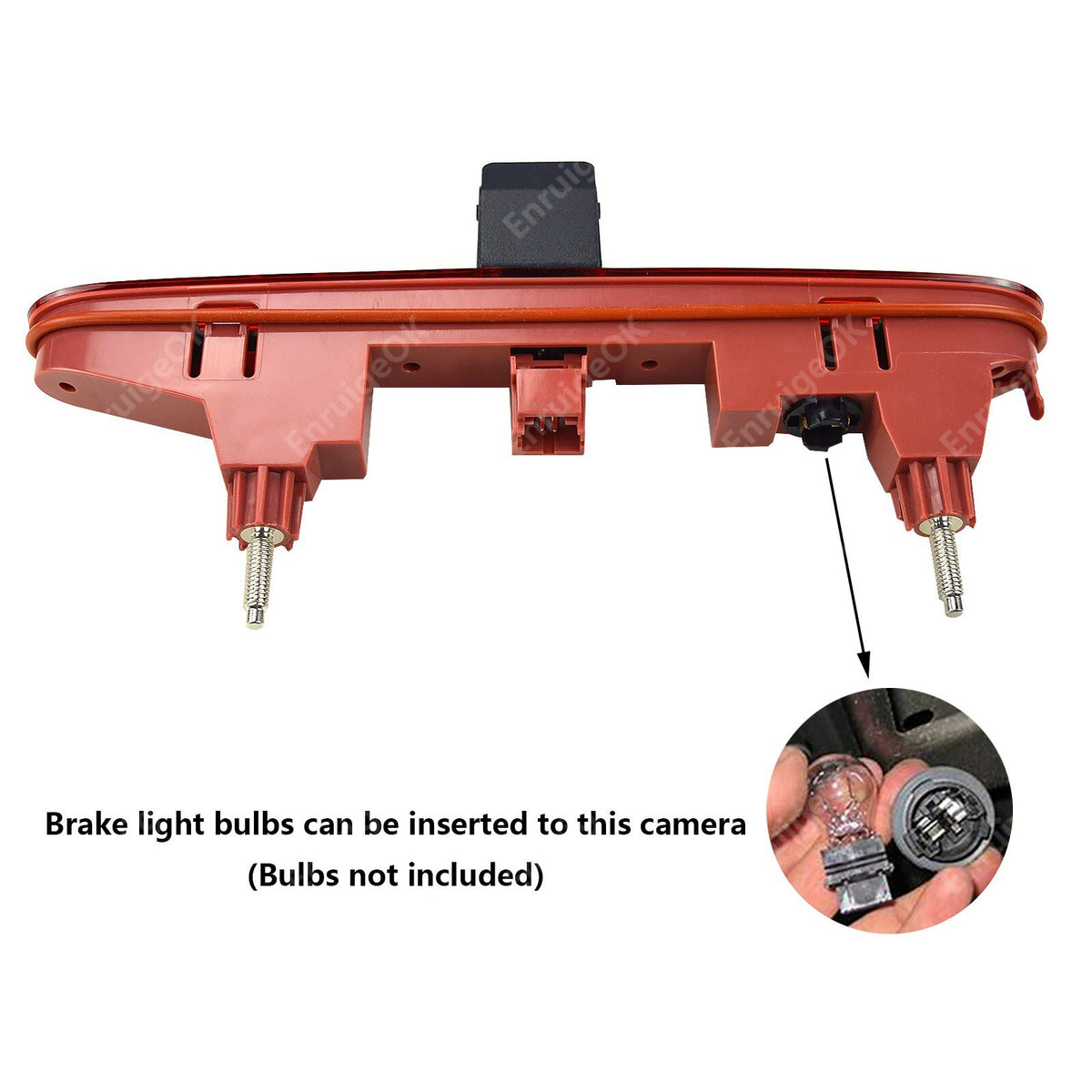

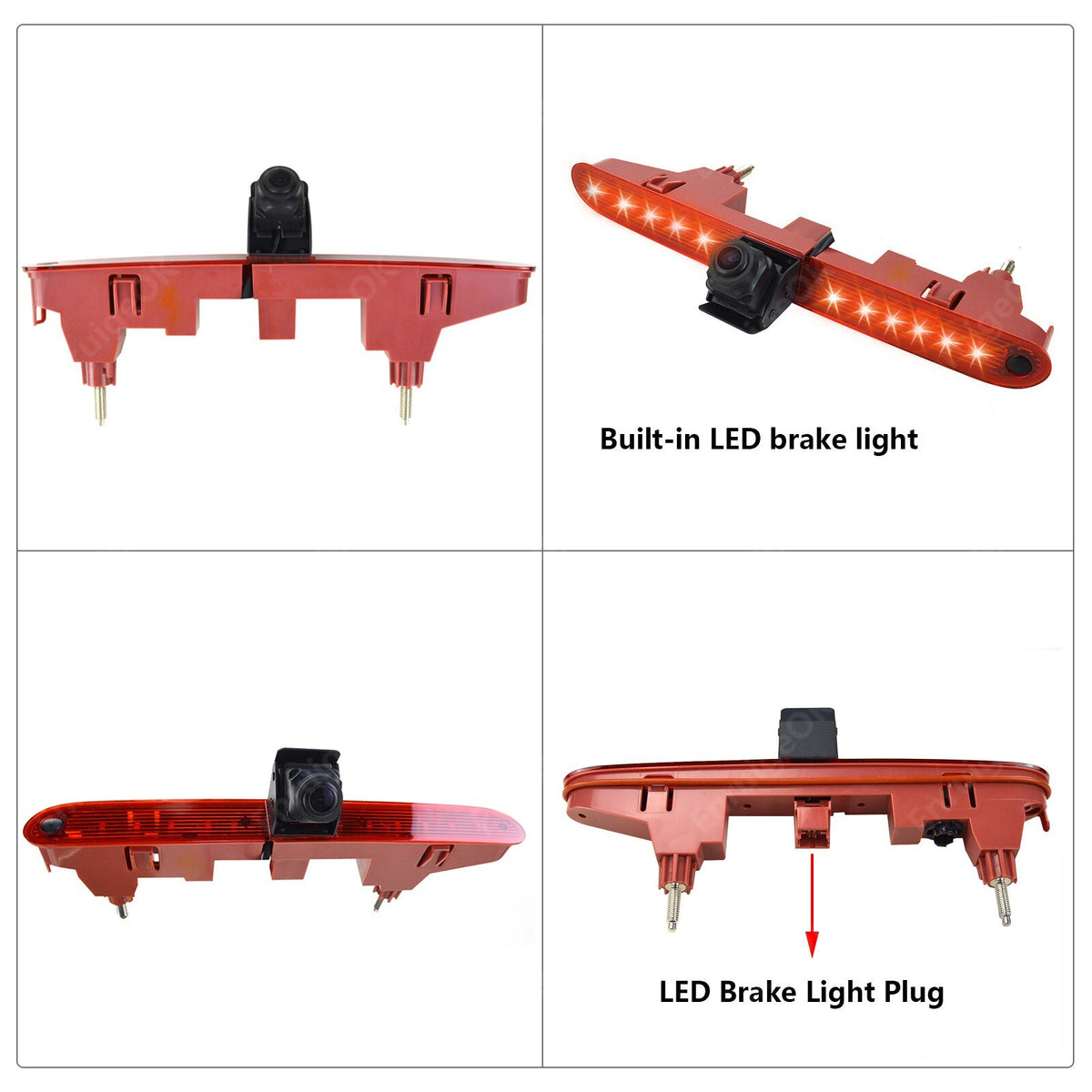

-Easy replacement for the factory 3rd brake light.

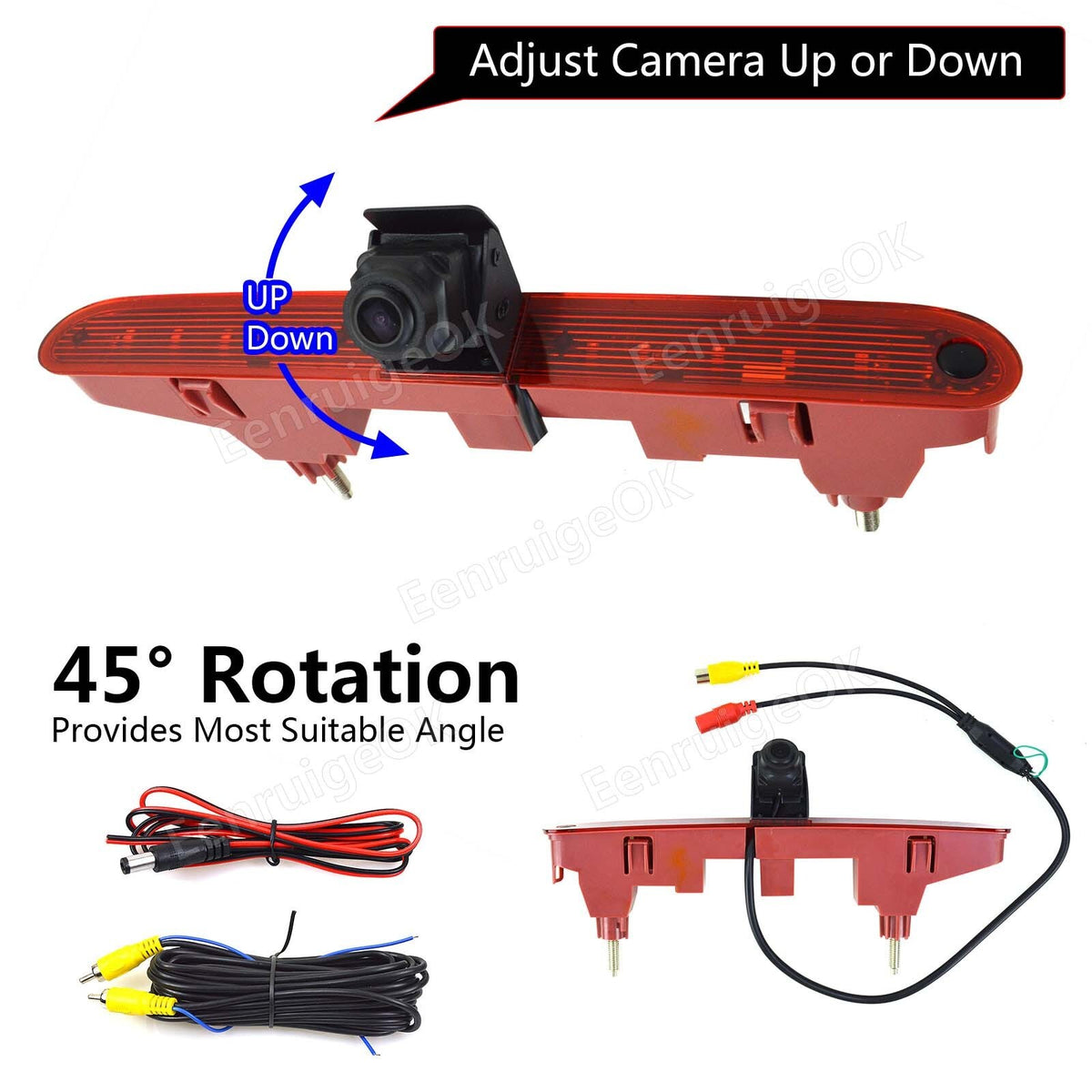

-Fixed vertical detection angle for optimal viewing angle.

-Can be used with all monitors that have an RCA video input.

-High-quality workmanship and visually appealing design.

Specifications

- Image sensor: 1/3" CMOS

- TV system: PAL/NTSC

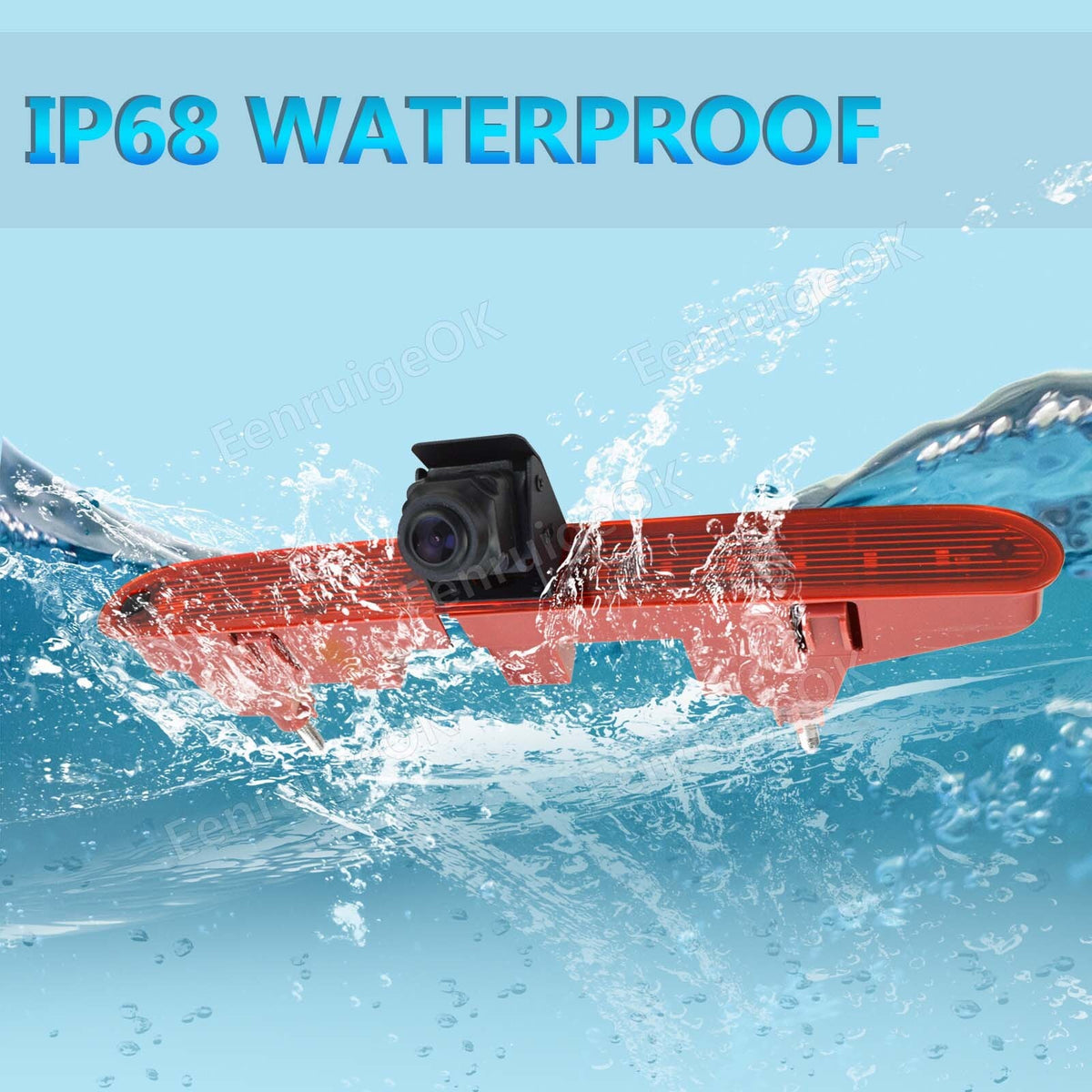

- waterproof rating: IP68

- Viewing angle: 120 °

- Effective pixel: CVBS: 960(H)x480(V); AHD: 1920(H)x720(V)

- Horizontal sync frequency: 15.625KHZ

- Scanning system: 2:1 interface

- Sync system: Internal

- ACG: Auto

- BLC: Auto

- Resolution: CVBS 700 TV Lines; AHD 720P switchable

- S/N Ratio: > 48dB

- Current consumption: < 150mA

- Minimum illumination: 0.1-0.5Lux/F=1.2(0 Lux with LED on)

- Power supply: DC12V

- Power: 5W

- Operating temperature: -20℃ to +70℃

Maintenance

To order to make camera working in the perfect conditions and peformances, please follow the below steps:

Occasionally clean the camera lens with damp soft cloth.

Please refer to user manual first if there is any confusion.

If there is any repair demand, please seek for our qualified assistance.
